The High. Point Broadband Delivery System Ermanno Pietrosemoli School on Radio Use for digital and Multimedia Communications ICTP, February 2002
economy Driving Forces ¥ • Computing, storage, transmission costs • Connected devices • Locations • Transactions • Applications • Complexity • Bandwidth Demands . . . go to zero Networks. . . go to one! . . . go to infinity 0 Market Review time High. Point Deployment Positioning I. P. Services

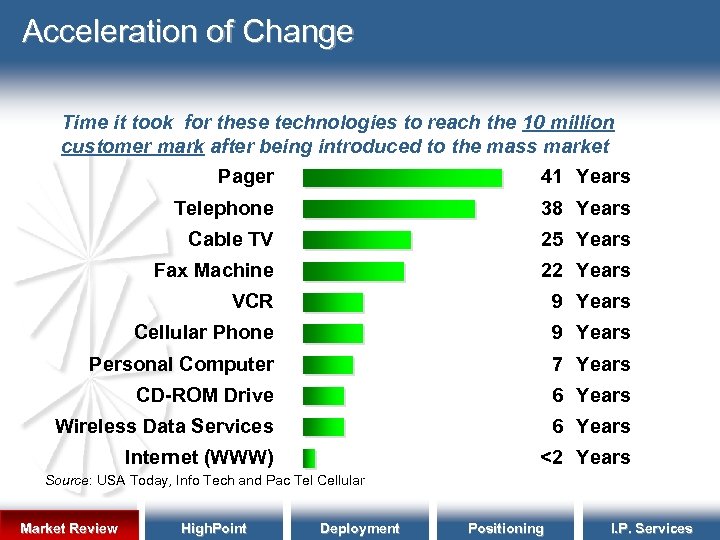

Acceleration of Change Time it took for these technologies to reach the 10 million customer mark after being introduced to the mass market Pager 41 Years Telephone 38 Years Cable TV 25 Years Fax Machine 22 Years VCR 9 Years Cellular Phone 9 Years Personal Computer 7 Years CD-ROM Drive 6 Years Wireless Data Services 6 Years Internet (WWW) <2 Years Source: USA Today, Info Tech and Pac Tel Cellular Market Review High. Point Deployment Positioning I. P. Services

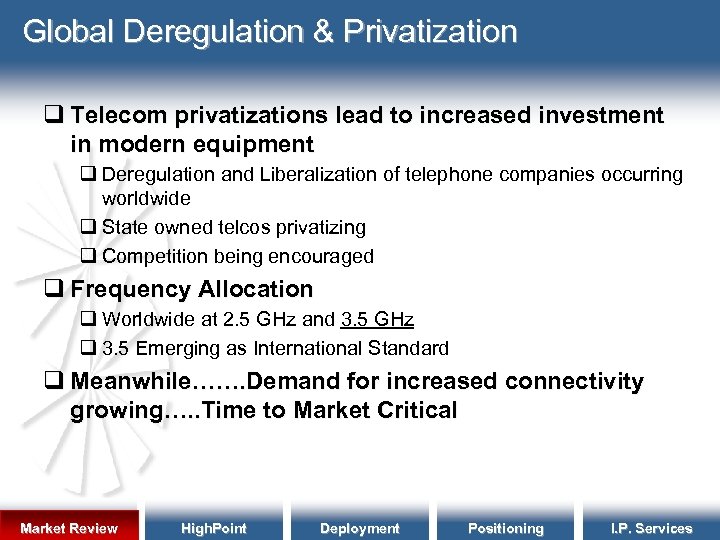

Global Deregulation & Privatization q Telecom privatizations lead to increased investment in modern equipment q Deregulation and Liberalization of telephone companies occurring worldwide q State owned telcos privatizing q Competition being encouraged q Frequency Allocation q Worldwide at 2. 5 GHz and 3. 5 GHz q 3. 5 Emerging as International Standard q Meanwhile……. Demand for increased connectivity growing…. . Time to Market Critical Market Review High. Point Deployment Positioning I. P. Services
Huge potential for new service providers and managers of networks classically reliant on terrestrial infrastructure q IP WAN & Internet connections in high demand q IP Platform now supports multiple data, video and voice applications: q Internet access q WAN access q Video conferencing, Video streaming q IP telephony q Value Added Services Market Review High. Point Deployment Positioning I. P. Services
Broadband Local Access Demand (Lines in Millions) 140 120 Broadband 100 80 Narrowband 60 40 20 0 '98 '99 '00 '01 '02 Source: IDC, FDC, and Lehman Brothers Estimates Market Review High. Point Deployment Positioning I. P. Services

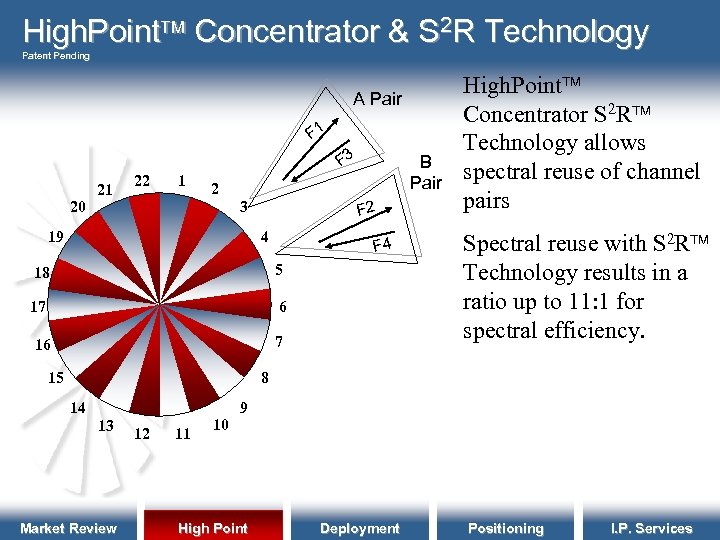

High. Point Concentrator & S 2 R Technology Patent Pending A Pair F 1 F 3 21 22 1 B Pair 2 20 3 19 F 2 4 F 4 18 5 17 6 7 16 15 High. Point Concentrator S 2 R Technology allows spectral reuse of channel pairs Spectral reuse with S 2 R Technology results in a ratio up to 11: 1 for spectral efficiency. 8 14 13 Market Review 12 11 10 9 High Point High. Point Deployment Positioning I. P. Services
Throughput Based on Channel Size Channel Bandwidth Downstream Throughput Upstream Throughput Aggregate Throughput 3. 5 MHz 12 Mbps 5. 4 Mbps 382. 8 Mbps 5 MHz 17 Mbps 7. 6 Mbps 541. 2 Mbps 6 MHz 20 Mbps 8. 75 Mbps 632. 5 Mbps 7 MHz 24 Mbps 10. 24 Mbps 753. 3 Mbps Market Review High Point High. Point Deployment Positioning I. P. Services
High. Point Service Provider Architecture High. Point S 2 R Base Station Concentrator Transceiver Bank Rooftop/Tower RF Modem Banks Ethernet Packet Switch or ATM Switch 2 Way High. Speed Data High End Super Server Telephony Infrastructure Telephony Video Conferencing Central Office Market Review High Point High. Point Internet Deployment Internet WAN Positioning I. P. Services

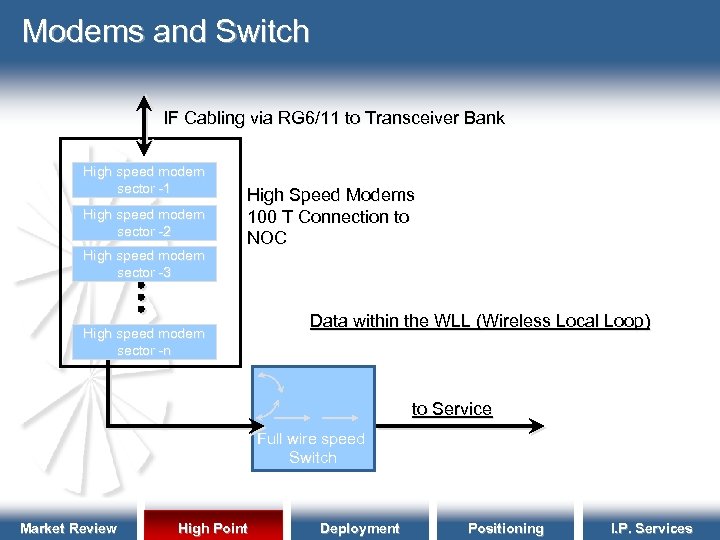

Modems and Switch IF Cabling via RG 6/11 to Transceiver Bank High speed modem sector -1 High speed modem sector -2 High speed modem sector -3 High Speed Modems 100 T Connection to NOC High speed modem sector -n Data within the WLL (Wireless Local Loop) to Service Full wire speed Switch Market Review High Point High. Point Deployment Positioning I. P. Services

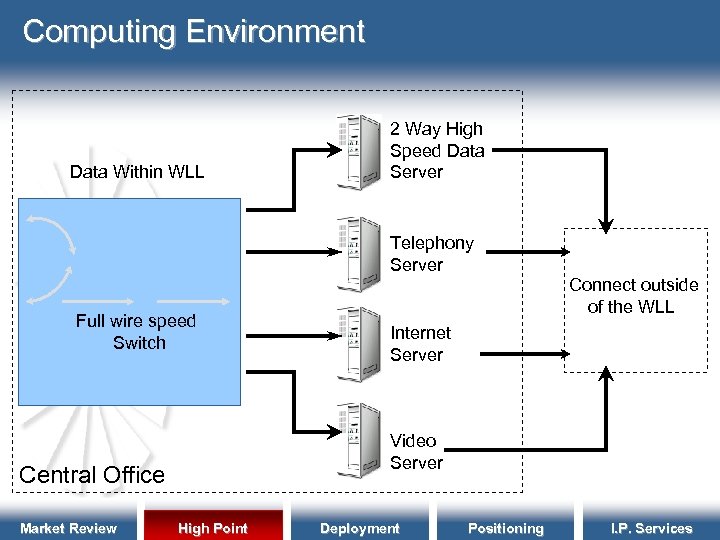

Computing Environment Data Within WLL 2 Way High Speed Data Server Telephony Server Full wire speed Switch Internet Server Video Server Central Office Market Review Connect outside of the WLL High Point High. Point Deployment Positioning I. P. Services

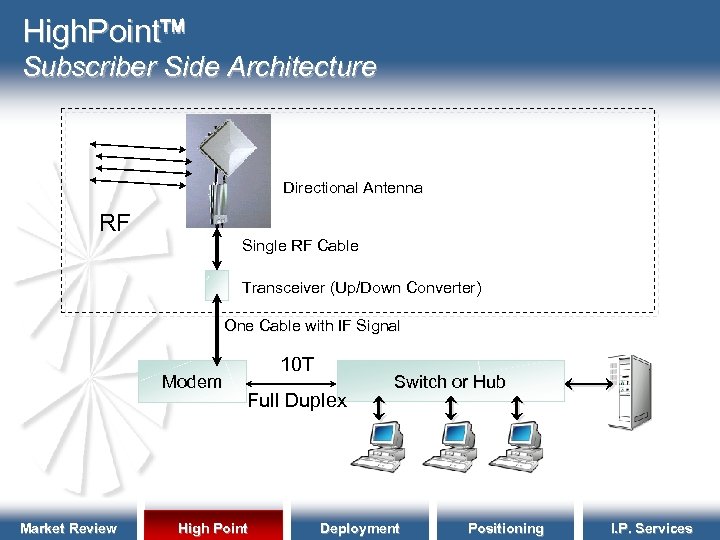

High. Point Subscriber Side Architecture Directional Antenna RF Single RF Cable Transceiver (Up/Down Converter) One Cable with IF Signal Modem Market Review 10 T Full Duplex High Point High. Point Switch or Hub Deployment Positioning I. P. Services
High. Point BDS aesthetically pleasing flat panel antenna low profile, higher gain mesh parabolic antenna subscriber radio transceiver wireless concentrator base station Market Review High Point High. Point Deployment Positioning I. P. Services
High. Point Super. Cell 22 km Radius Max coverage per unit cost Up to 541 Mbps Aggregate Throughput 17 Mbps Down Stream/ Sector 7. 6 Mbps Up Stream/ Sector (With 5 MHz Channels) Benefits • Maximize Channel Capacity • Inexpensive • Simple • Quick Market Review High. Point Deployment Positioning I. P. Services

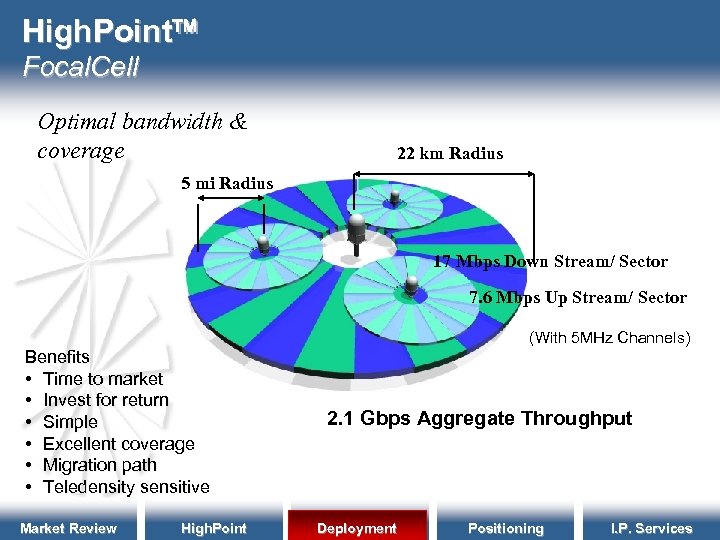

High. Point Focal. Cell Optimal bandwidth & coverage 22 km Radius 5 mi Radius 17 Mbps Down Stream/ Sector 7. 6 Mbps Up Stream/ Sector (With 5 MHz Channels) Benefits • Time to market • Invest for return • Simple • Excellent coverage • Migration path • Teledensity sensitive Market Review High. Point 2. 1 Gbps Aggregate Throughput Deployment Positioning I. P. Services
High. Point Multi. Cell 100% Reuse in a Multi. Cell Environment Benefits • Efficiency through Secrotal/Multicell • Endless Possibilities • 100% reuse in adjacent cells • 3 to 4 times re-use in cell • Excellent Coverage • Highest Possible Bandwidth Market Review High. Point 478 Mbps Cell Capacity (4 MHz Channels) 3, 346 Mbps in 7 Cell Deployment 83. 65 Bit/Hz Spectral Efficiency Deployment Positioning I. P. Services

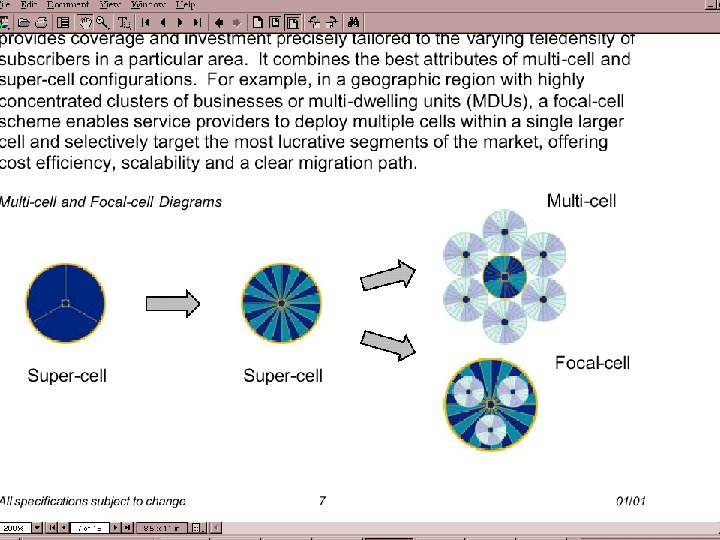

Market Review High. Point Deployment Positioning I. P. Services

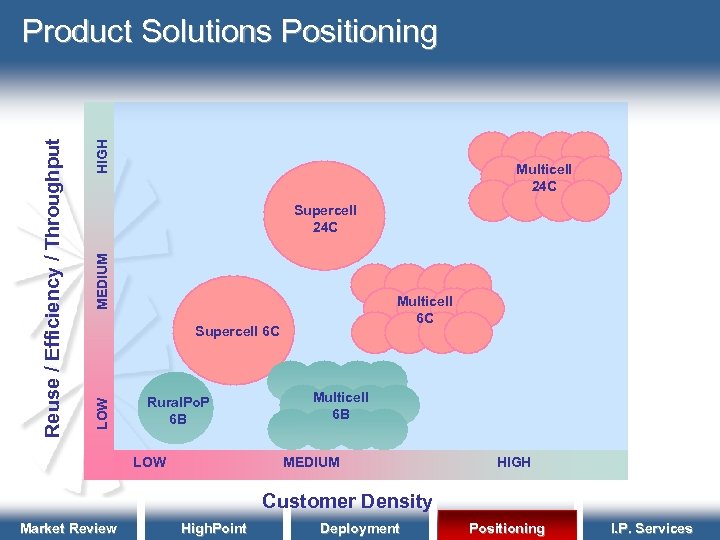

HIGH Multicell 24 C MEDIUM Supercell 24 C Multicell 6 C Supercell 6 C LOW Reuse / Efficiency / Throughput Product Solutions Positioning Rural. Po. P 6 B LOW Multicell 6 B MEDIUM HIGH Customer Density Market Review High. Point Deployment Positioning I. P. Services
Spike Positioning Market Review High. Point Deployment Positioning I. P. Services
Market Review High. Point Deployment Positioning I. P. Services

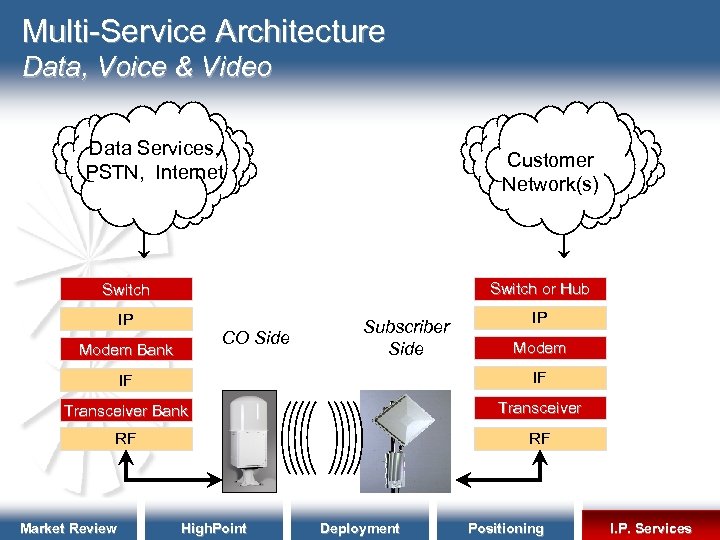

Multi-Service Architecture Data, Voice & Video Data Services, PSTN, Internet Customer Network(s) Switch or Hub Switch IP CO Side Modem Bank Subscriber Side IP Modem IF IF Transceiver Bank Transceiver RF RF Market Review High. Point Deployment Positioning I. P. Services
Multi-Service Architecture Dedicated Internet Access Internet Existing Premises Equipment Switch IP CO Side Modem Bank Subscriber Side Switch or Hub Proxy/Firewall Router IP Modem IF IF Transceiver Bank Transceiver RF HTTP FTP SNMP RF Market Review High. Point Deployment Positioning I. P. Services
Multi-Service Architecture LAN-to-LAN Connections Remote Printing Remote Customer Office, Internet Existing Premises Equipment Switch or Hub File & Database Servers VPN Gateway Proxy/Firewall Router Switch IP CO Side Modem Bank Subscriber Side IP Modem IF IF Transceiver Bank Transceiver RF RF Market Review High. Point Deployment Positioning I. P. Services

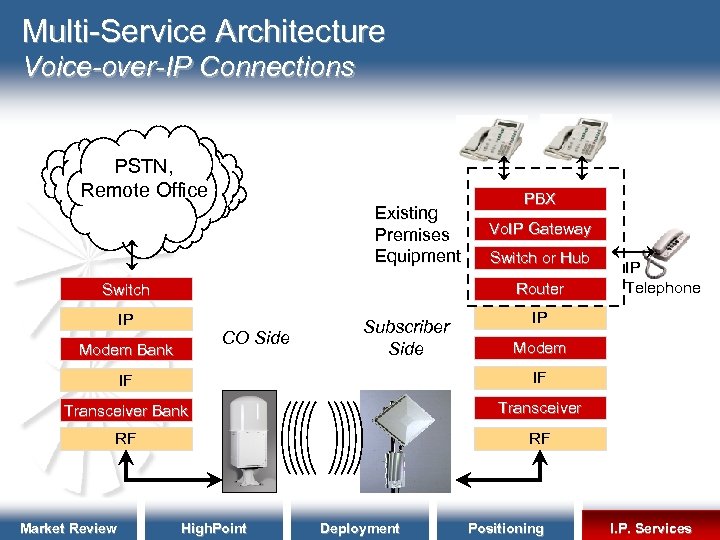

Multi-Service Architecture Voice-over-IP Connections PSTN, Remote Office Existing Premises Equipment PBX Vo. IP Gateway Switch or Hub Router Switch IP CO Side Modem Bank Subscriber Side IP Telephone IP Modem IF IF Transceiver Bank Transceiver RF RF Market Review High. Point Deployment Positioning I. P. Services

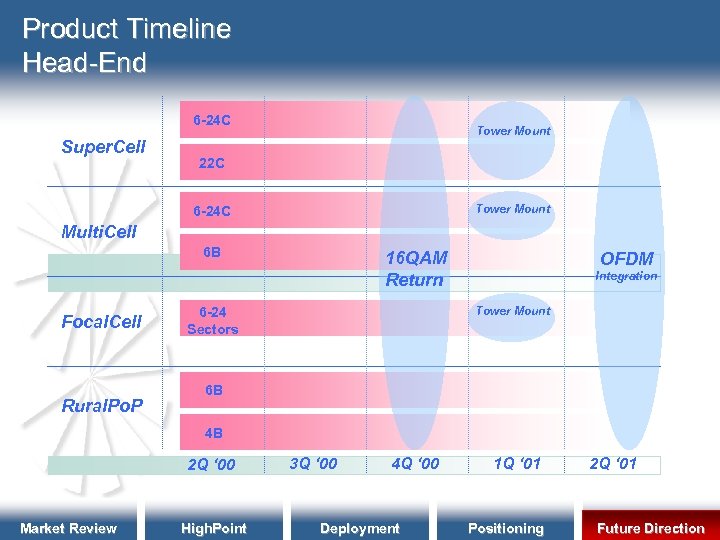

Product Timeline Head-End 6 -24 C Super. Cell Tower Mount 22 C Tower Mount 6 -24 C Multi. Cell 6 B Focal. Cell Rural. Po. P 16 QAM Return OFDM Integration Tower Mount 6 -24 Sectors 6 B 4 B 2 Q ‘ 00 Market Review High. Point 3 Q ‘ 00 4 Q ‘ 00 Deployment 1 Q ‘ 01 Positioning 2 Q ‘ 01 Future Direction I. P. Services

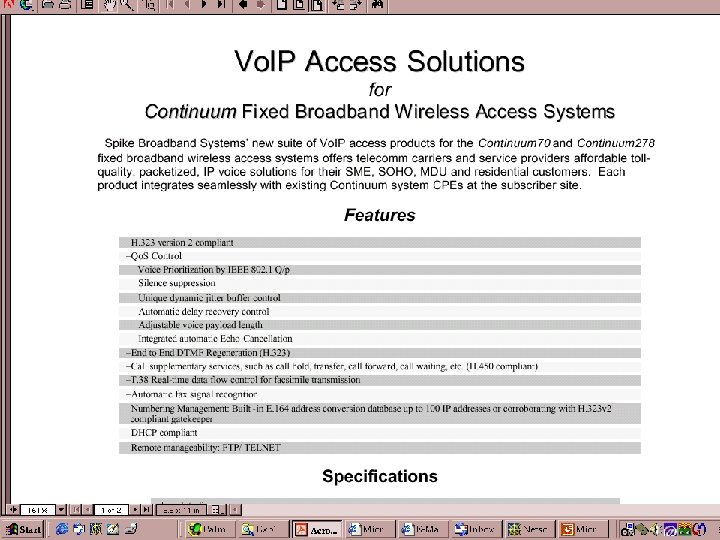

Market Review High. Point Deployment Positioning I. P. Services

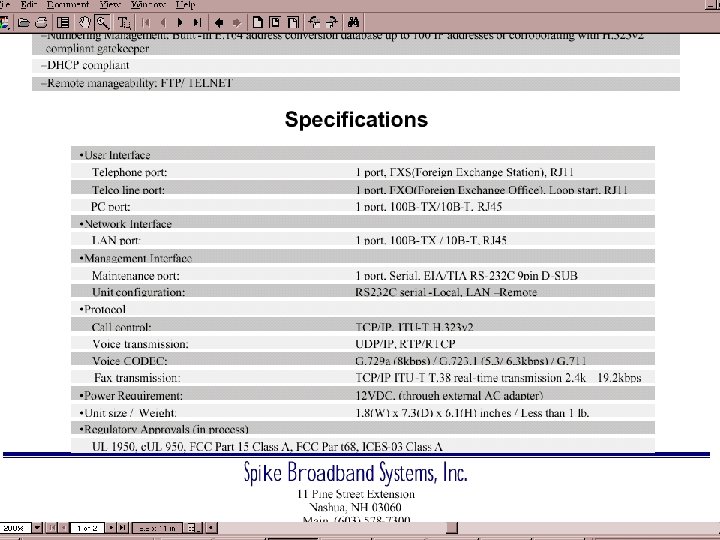

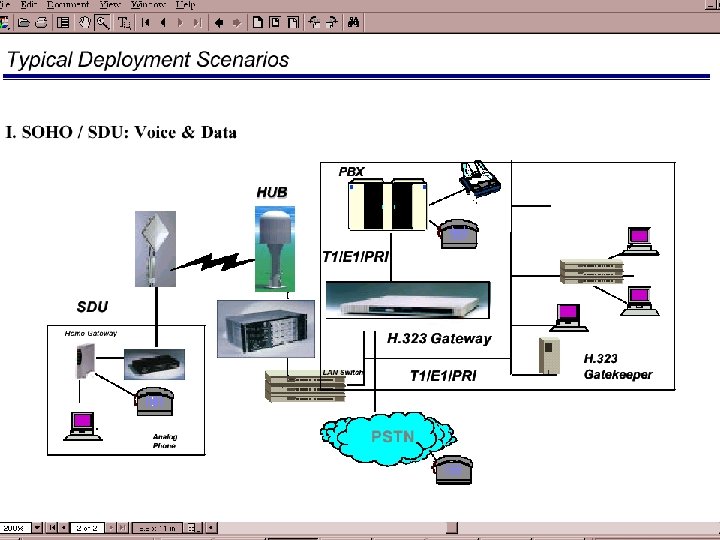

Market Review High. Point Deployment Positioning I. P. Services

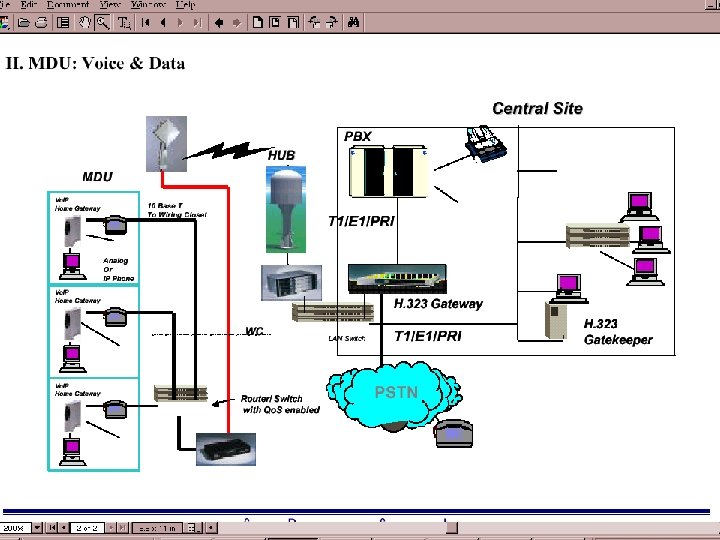

Market Review High. Point Deployment Positioning I. P. Services
Market Review High. Point Deployment Positioning I. P. Services
THANK YOU !
