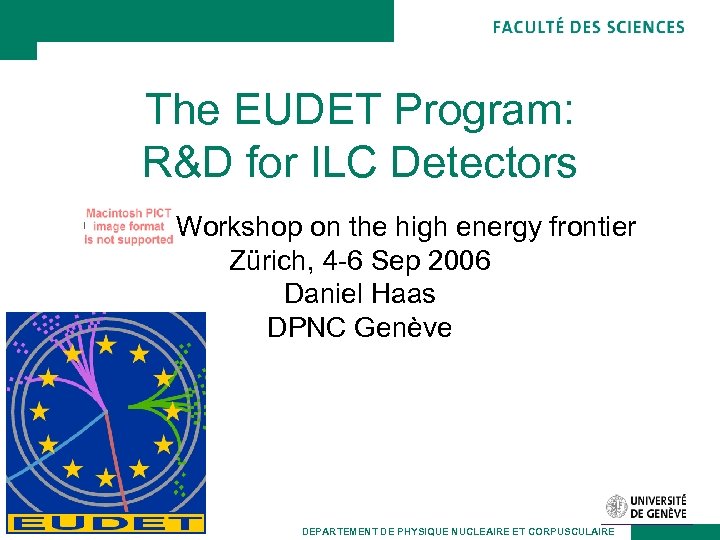

The EUDET Program: R&D for ILC Detectors CHIPP Workshop on the high energy frontier Zürich, 4 -6 Sep 2006 Daniel Haas DPNC Genève DEPARTEMENT DE PHYSIQUE NUCLEAIRE ET CORPUSCULAIRE

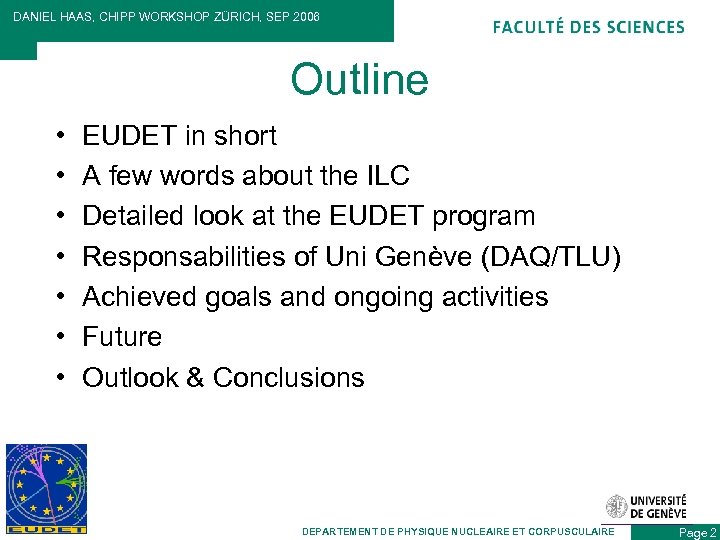

DANIEL HAAS, CHIPP WORKSHOP ZÜRICH, SEP 2006 Outline • • EUDET in short A few words about the ILC Detailed look at the EUDET program Responsabilities of Uni Genève (DAQ/TLU) Achieved goals and ongoing activities Future Outlook & Conclusions DEPARTEMENT DE PHYSIQUE NUCLEAIRE ET CORPUSCULAIRE Page 2

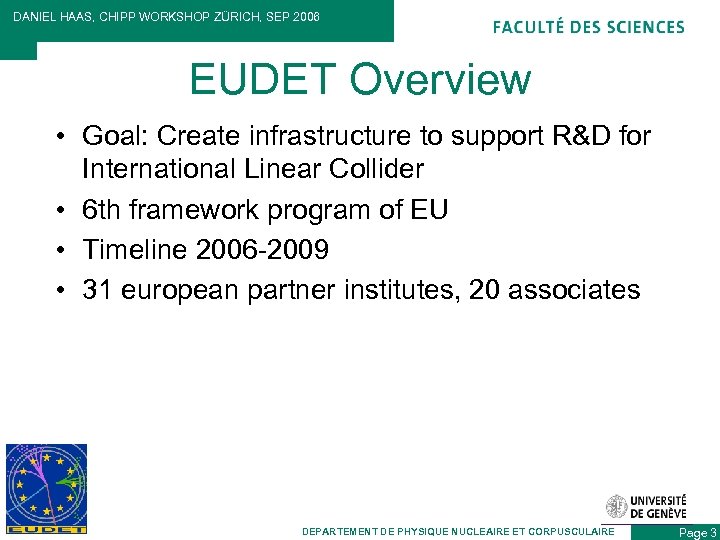

DANIEL HAAS, CHIPP WORKSHOP ZÜRICH, SEP 2006 EUDET Overview • Goal: Create infrastructure to support R&D for International Linear Collider • 6 th framework program of EU • Timeline 2006 -2009 • 31 european partner institutes, 20 associates DEPARTEMENT DE PHYSIQUE NUCLEAIRE ET CORPUSCULAIRE Page 3

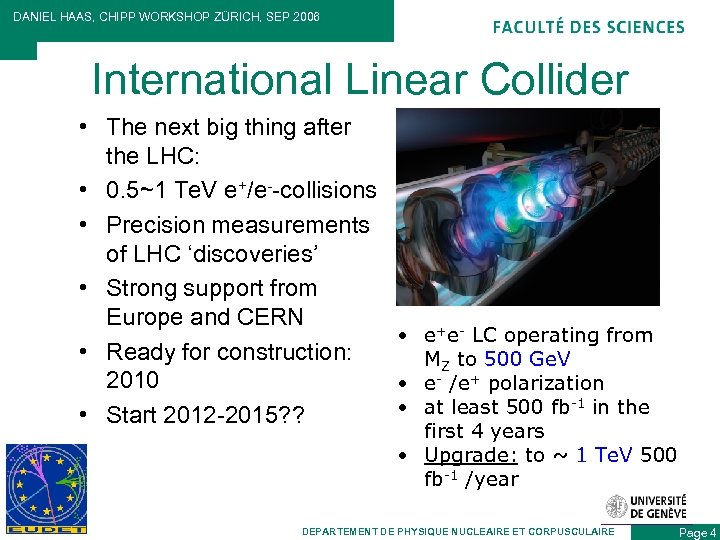

DANIEL HAAS, CHIPP WORKSHOP ZÜRICH, SEP 2006 International Linear Collider • The next big thing after the LHC: • 0. 5~1 Te. V e+/e--collisions • Precision measurements of LHC ‘discoveries’ • Strong support from Europe and CERN • e+e- LC operating from • Ready for construction: MZ to 500 Ge. V 2010 • e- /e+ polarization • at least 500 fb-1 in the • Start 2012 -2015? ? first 4 years • Upgrade: to ~ 1 Te. V 500 fb-1 /year DEPARTEMENT DE PHYSIQUE NUCLEAIRE ET CORPUSCULAIRE Page 4

DANIEL HAAS, CHIPP WORKSHOP ZÜRICH, SEP 2006 International Linear Collider Final goal for inner pixels: • 5 cylindrical layers: – R = 15 – 60 mm – |cosθ| < 0. 9 – 0. 96 • Ultrathin layers – 0. 1% X 0 / layer (50µm) • Fast R/O (25 – 50 µs) • 300 – 800 Mio Pixels • Low power – < 100 W DEPARTEMENT DE PHYSIQUE NUCLEAIRE ET CORPUSCULAIRE Page 5

DANIEL HAAS, CHIPP WORKSHOP ZÜRICH, SEP 2006 EUDET Kickoff Meeting Feb 2006 @ Desy DEPARTEMENT DE PHYSIQUE NUCLEAIRE ET CORPUSCULAIRE Page 6

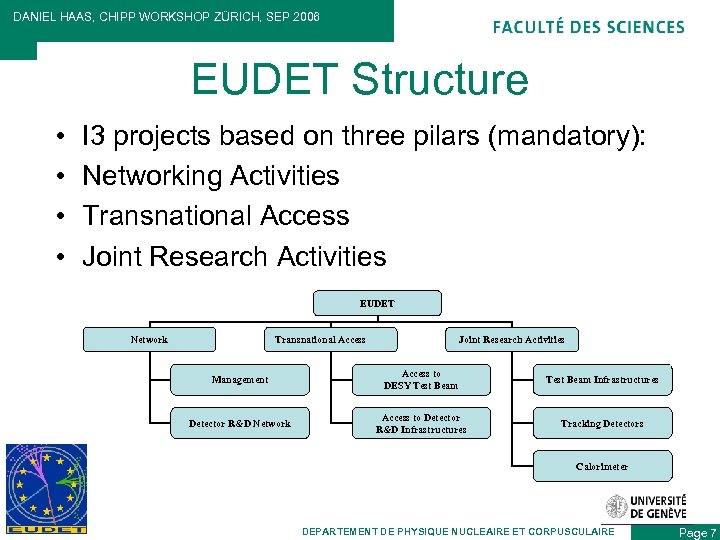

DANIEL HAAS, CHIPP WORKSHOP ZÜRICH, SEP 2006 EUDET Structure • • I 3 projects based on three pilars (mandatory): Networking Activities Transnational Access Joint Research Activities EUDET Network Transnational Access Joint Research Activities Management Access to DESY Test Beam Infrastructures Detector R&D Network Access to Detector R&D Infrastructures Tracking Detectors Calorimeter DEPARTEMENT DE PHYSIQUE NUCLEAIRE ET CORPUSCULAIRE Page 7

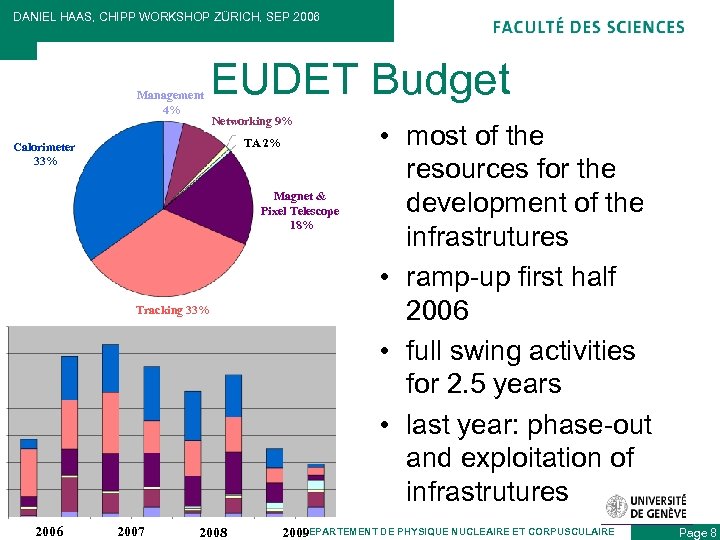

DANIEL HAAS, CHIPP WORKSHOP ZÜRICH, SEP 2006 Management 4% EUDET Budget Networking 9% TA 2% Calorimeter 33% Magnet & Pixel Telescope 18% Tracking 33% 2006 2007 2008 • most of the resources for the development of the infrastrutures • ramp-up first half 2006 • full swing activities for 2. 5 years • last year: phase-out and exploitation of infrastrutures DEPARTEMENT DE PHYSIQUE NUCLEAIRE ET CORPUSCULAIRE 2009 Page 8

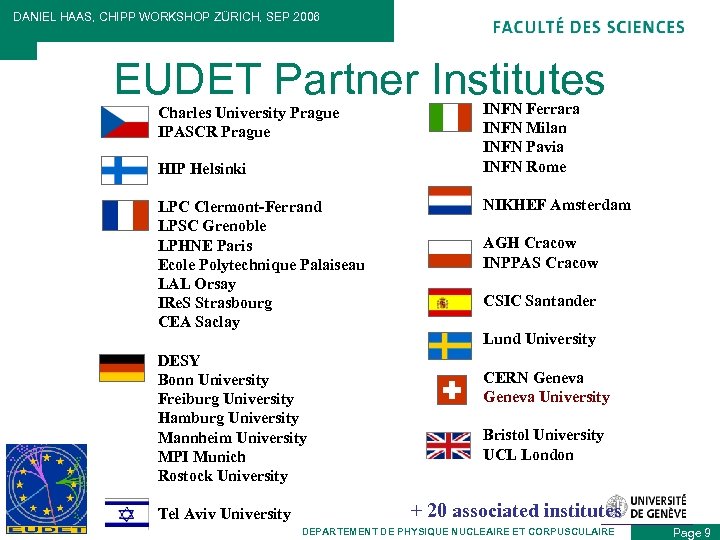

DANIEL HAAS, CHIPP WORKSHOP ZÜRICH, SEP 2006 EUDET Partner Institutes Charles University Prague IPASCR Prague HIP Helsinki LPC Clermont-Ferrand LPSC Grenoble LPHNE Paris Ecole Polytechnique Palaiseau LAL Orsay IRe. S Strasbourg CEA Saclay DESY Bonn University Freiburg University Hamburg University Mannheim University MPI Munich Rostock University Tel Aviv University INFN Ferrara INFN Milan INFN Pavia INFN Rome NIKHEF Amsterdam AGH Cracow INPPAS Cracow CSIC Santander Lund University CERN Geneva University Bristol University UCL London + 20 associated institutes DEPARTEMENT DE PHYSIQUE NUCLEAIRE ET CORPUSCULAIRE Page 9

DANIEL HAAS, CHIPP WORKSHOP ZÜRICH, SEP 2006 The EUDET Map EUDET partners EUDET associates EUDET Partners Novosibirsk Protvino ITEP MPHI MSU Obninsk KEK (Japan) DEPARTEMENT DE PHYSIQUE NUCLEAIRE ET CORPUSCULAIRE Page 10

DANIEL HAAS, CHIPP WORKSHOP ZÜRICH, SEP 2006 EUDET Activities DEPARTEMENT DE PHYSIQUE NUCLEAIRE ET CORPUSCULAIRE Page 11

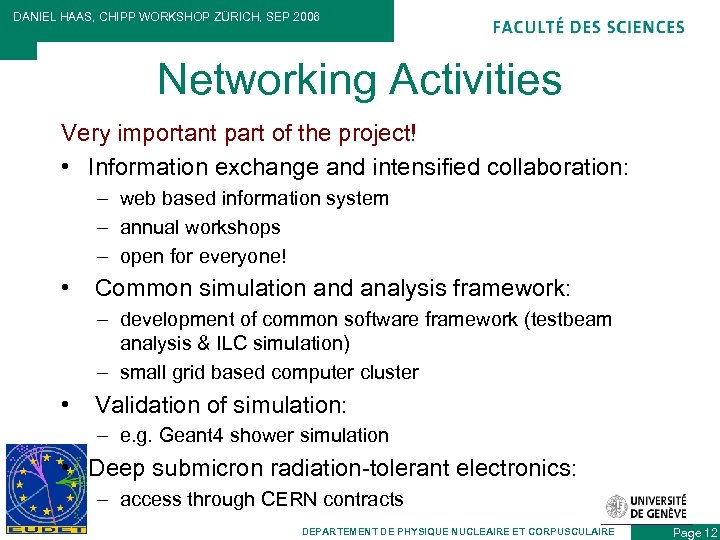

DANIEL HAAS, CHIPP WORKSHOP ZÜRICH, SEP 2006 Networking Activities Very important part of the project! • Information exchange and intensified collaboration: – web based information system – annual workshops – open for everyone! • Common simulation and analysis framework: – development of common software framework (testbeam analysis & ILC simulation) – small grid based computer cluster • Validation of simulation: – e. g. Geant 4 shower simulation • Deep submicron radiation-tolerant electronics: – access through CERN contracts DEPARTEMENT DE PHYSIQUE NUCLEAIRE ET CORPUSCULAIRE Page 12

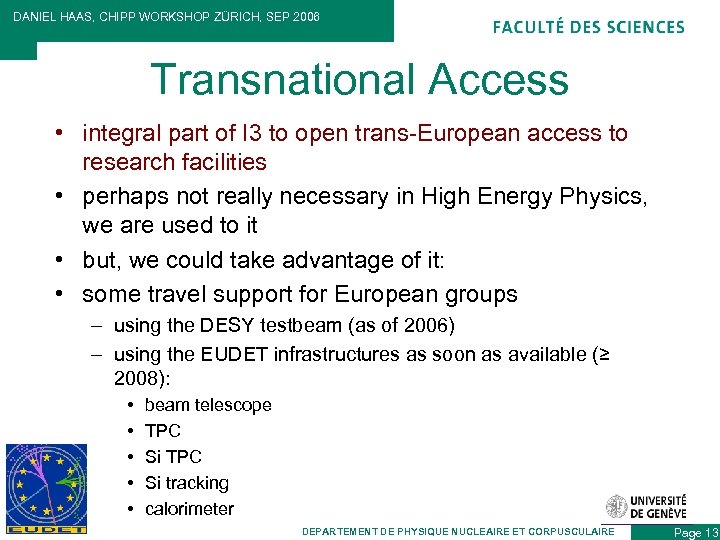

DANIEL HAAS, CHIPP WORKSHOP ZÜRICH, SEP 2006 Transnational Access • integral part of I 3 to open trans-European access to research facilities • perhaps not really necessary in High Energy Physics, we are used to it • but, we could take advantage of it: • some travel support for European groups – using the DESY testbeam (as of 2006) – using the EUDET infrastructures as soon as available (≥ 2008): • • • beam telescope TPC Si tracking calorimeter DEPARTEMENT DE PHYSIQUE NUCLEAIRE ET CORPUSCULAIRE Page 13

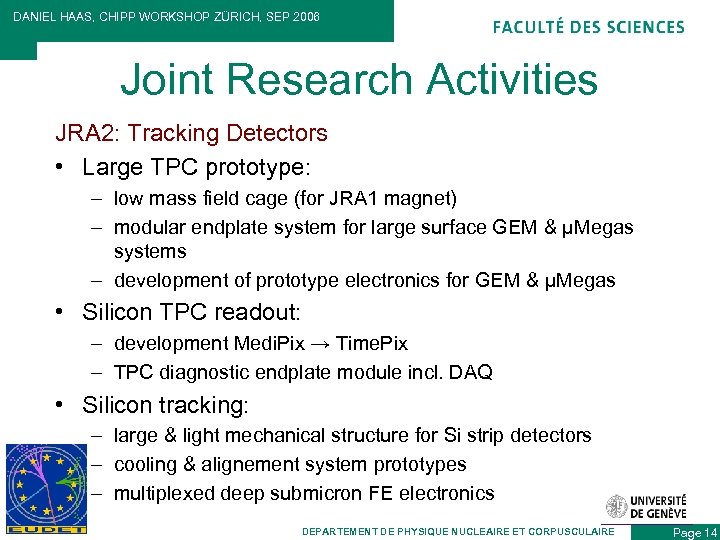

DANIEL HAAS, CHIPP WORKSHOP ZÜRICH, SEP 2006 Joint Research Activities JRA 2: Tracking Detectors • Large TPC prototype: – low mass field cage (for JRA 1 magnet) – modular endplate system for large surface GEM & µMegas systems – development of prototype electronics for GEM & µMegas • Silicon TPC readout: – development Medi. Pix → Time. Pix – TPC diagnostic endplate module incl. DAQ • Silicon tracking: – large & light mechanical structure for Si strip detectors – cooling & alignement system prototypes – multiplexed deep submicron FE electronics DEPARTEMENT DE PHYSIQUE NUCLEAIRE ET CORPUSCULAIRE Page 14

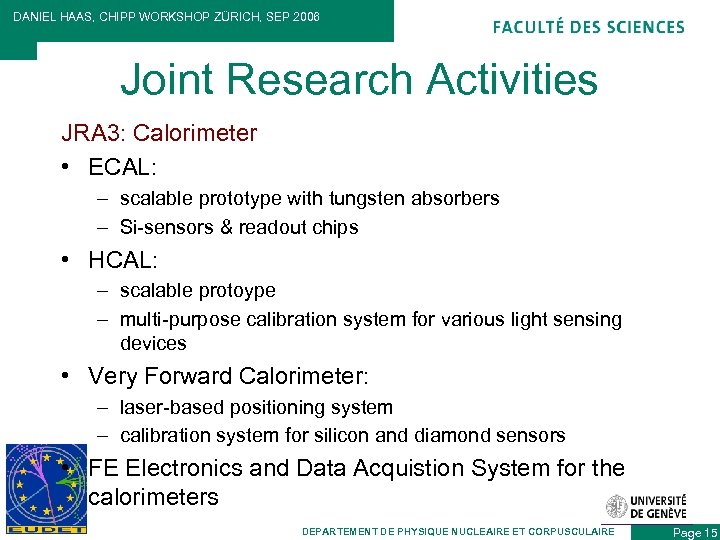

DANIEL HAAS, CHIPP WORKSHOP ZÜRICH, SEP 2006 Joint Research Activities JRA 3: Calorimeter • ECAL: – scalable prototype with tungsten absorbers – Si-sensors & readout chips • HCAL: – scalable protoype – multi-purpose calibration system for various light sensing devices • Very Forward Calorimeter: – laser-based positioning system – calibration system for silicon and diamond sensors • FE Electronics and Data Acquistion System for the calorimeters DEPARTEMENT DE PHYSIQUE NUCLEAIRE ET CORPUSCULAIRE Page 15

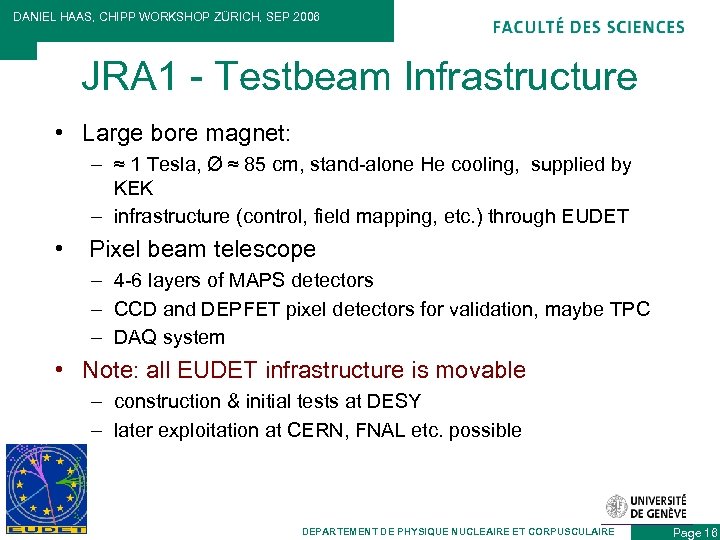

DANIEL HAAS, CHIPP WORKSHOP ZÜRICH, SEP 2006 JRA 1 - Testbeam Infrastructure • Large bore magnet: – ≈ 1 Tesla, Ø ≈ 85 cm, stand-alone He cooling, supplied by KEK – infrastructure (control, field mapping, etc. ) through EUDET • Pixel beam telescope – 4 -6 layers of MAPS detectors – CCD and DEPFET pixel detectors for validation, maybe TPC – DAQ system • Note: all EUDET infrastructure is movable – construction & initial tests at DESY – later exploitation at CERN, FNAL etc. possible DEPARTEMENT DE PHYSIQUE NUCLEAIRE ET CORPUSCULAIRE Page 16

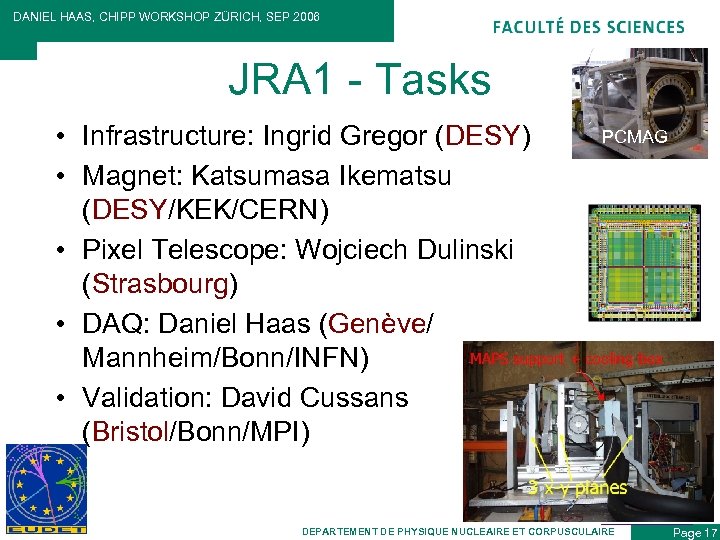

DANIEL HAAS, CHIPP WORKSHOP ZÜRICH, SEP 2006 JRA 1 - Tasks • Infrastructure: Ingrid Gregor (DESY) • Magnet: Katsumasa Ikematsu (DESY/KEK/CERN) • Pixel Telescope: Wojciech Dulinski (Strasbourg) • DAQ: Daniel Haas (Genève/ Mannheim/Bonn/INFN) • Validation: David Cussans (Bristol/Bonn/MPI) PCMAG DEPARTEMENT DE PHYSIQUE NUCLEAIRE ET CORPUSCULAIRE Page 17

DANIEL HAAS, CHIPP WORKSHOP ZÜRICH, SEP 2006 JRA 1 - General Purpose Infrastructure • Generally applicable: • use for pixel sensors, large volume tracking devices (TPC), other areas (imaging, biology, medical) • large range of conditions (cooling, positioning, magnetic field) • easy to use • Well defined/described interfaces • very high precision • < 2µm precision even at smaller energies • suitable to different test beam environments, rates, energies, … DEPARTEMENT DE PHYSIQUE NUCLEAIRE ET CORPUSCULAIRE Page 18

DANIEL HAAS, CHIPP WORKSHOP ZÜRICH, SEP 2006 JRA 1 - Pixel Telescope • Pixel telescope with sensors that – – provide high precision (~ 2 – 4 µm) with reasonably large area (~ 1 – 2 cm) can be thinned down (~ 100 µm) can be read out (relatively) fast (~ k. Hz) • Start with an existing CMOS MAPS chip – Mimostar 3 by CNRS/IRES (not fast enough, 10 -100 Hz) • then go to next generation chip which is fast: – … on chip discriminator and ADC DEPARTEMENT DE PHYSIQUE NUCLEAIRE ET CORPUSCULAIRE Page 19

DANIEL HAAS, CHIPP WORKSHOP ZÜRICH, SEP 2006 JRA 1 - DAQ • Synchronization via DUT common TLU • Digitization/Sparsification with dedicated HW or commodity equipment (USB interface) • SW level integration with standard interfaces telescope DAQ HW Trigger standard bus interfaces intfc DAQ ctrl computer file DEPARTEMENT DE PHYSIQUE NUCLEAIRE ET CORPUSCULAIRE Page 20

DANIEL HAAS, CHIPP WORKSHOP ZÜRICH, SEP 2006 JRA 1 - Trigger Logic Unit • Simple Handshake via Trigger/Busy/Reset on RJ 45 LVDS lines (or TTL-Lemo) • Timestamp and event-number via USB • Eventnumber via advanced data handshake on RJ 45 available • In collaboration with Bristol DEPARTEMENT DE PHYSIQUE NUCLEAIRE ET CORPUSCULAIRE Page 21

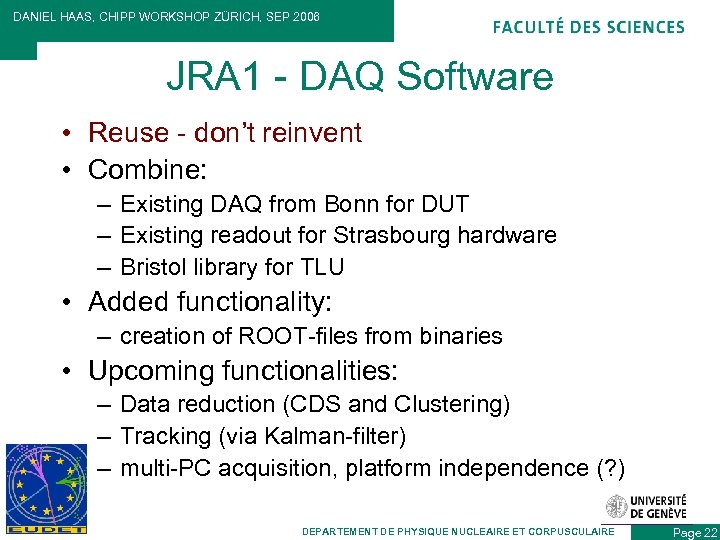

DANIEL HAAS, CHIPP WORKSHOP ZÜRICH, SEP 2006 JRA 1 - DAQ Software • Reuse - don’t reinvent • Combine: – Existing DAQ from Bonn for DUT – Existing readout for Strasbourg hardware – Bristol library for TLU • Added functionality: – creation of ROOT-files from binaries • Upcoming functionalities: – Data reduction (CDS and Clustering) – Tracking (via Kalman-filter) – multi-PC acquisition, platform independence (? ) DEPARTEMENT DE PHYSIQUE NUCLEAIRE ET CORPUSCULAIRE Page 22

DANIEL HAAS, CHIPP WORKSHOP ZÜRICH, SEP 2006 DEPARTEMENT DE PHYSIQUE NUCLEAIRE ET CORPUSCULAIRE Page 23

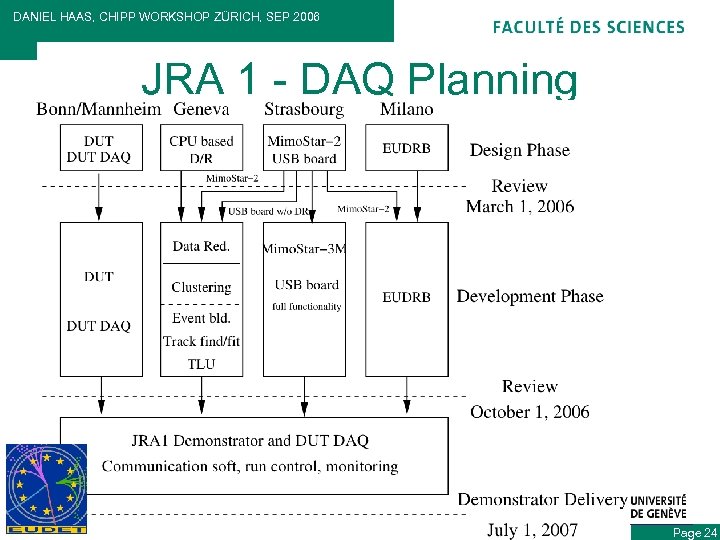

DANIEL HAAS, CHIPP WORKSHOP ZÜRICH, SEP 2006 JRA 1 - DAQ Planning DEPARTEMENT DE PHYSIQUE NUCLEAIRE ET CORPUSCULAIRE Page 24

DANIEL HAAS, CHIPP WORKSHOP ZÜRICH, SEP 2006 Common DAQ efforts DAQ has been identified as key issue of EUDET • part of the infrastructures • easy-to-use for users • cross-JRA issue • combined testbeam run of several sub-detectors • relations to software framework (→ NA 2) DAQ is also an important issue for ILC detectors • EUDET is not going to design/build anything close to the final ILC DAQ system but we must stay connected to the international R&D efforts to go into the same direction DEPARTEMENT DE PHYSIQUE NUCLEAIRE ET CORPUSCULAIRE Page 25

DANIEL HAAS, CHIPP WORKSHOP ZÜRICH, SEP 2006 Upcoming events • EUDET annual review, 18 -20 Oct 2006 – Review of tasks – Deliverables for EU-contract – Report to EU • Delivery of a Pixel Telescope Demonstrator in July 2007 – not all pixel planes, basic DAQ, reduced rate • Final (fully working) telescope needed in 2009 DEPARTEMENT DE PHYSIQUE NUCLEAIRE ET CORPUSCULAIRE Page 26

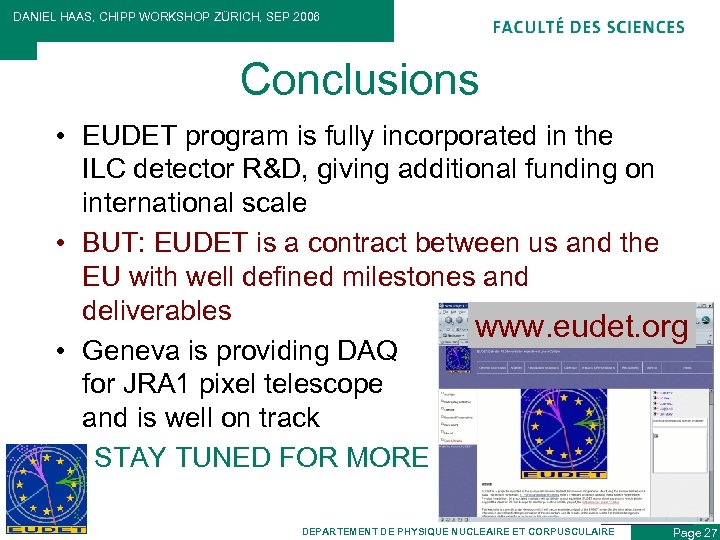

DANIEL HAAS, CHIPP WORKSHOP ZÜRICH, SEP 2006 Conclusions • EUDET program is fully incorporated in the ILC detector R&D, giving additional funding on international scale • BUT: EUDET is a contract between us and the EU with well defined milestones and deliverables www. eudet. org • Geneva is providing DAQ for JRA 1 pixel telescope and is well on track STAY TUNED FOR MORE DEPARTEMENT DE PHYSIQUE NUCLEAIRE ET CORPUSCULAIRE Page 27
