The EMfit program The EMfit program

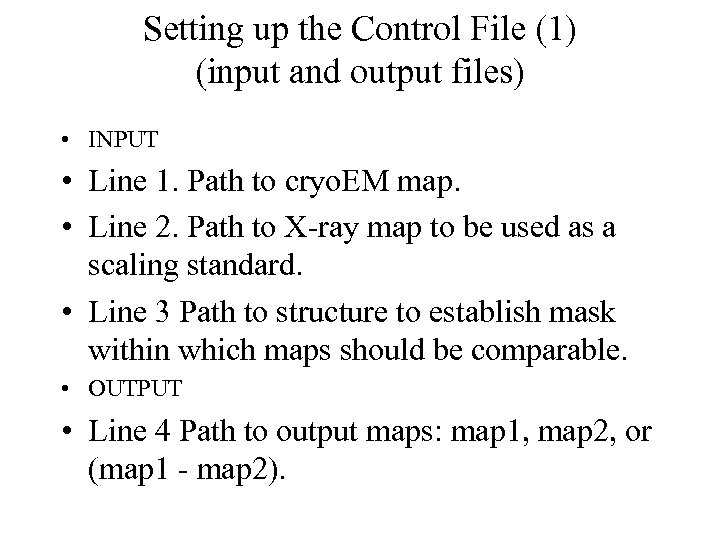

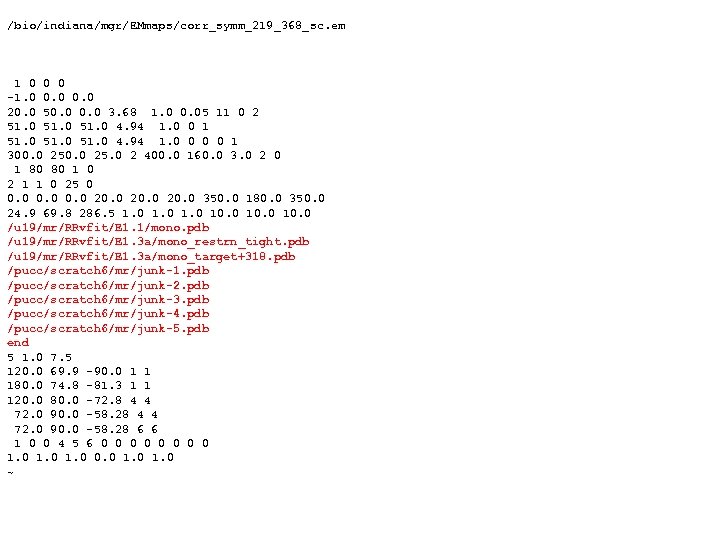

Setting up the Control File (1) (input and output files) • INPUT • Line Setting up the Control File (1) (input and output files) • INPUT • Line 1. Path to cryo. EM map. • Line 2. Path to X-ray map to be used as a scaling standard. • Line 3 Path to structure to establish mask within which maps should be comparable. • OUTPUT • Line 4 Path to output maps: map 1, map 2, or (map 1 - map 2).

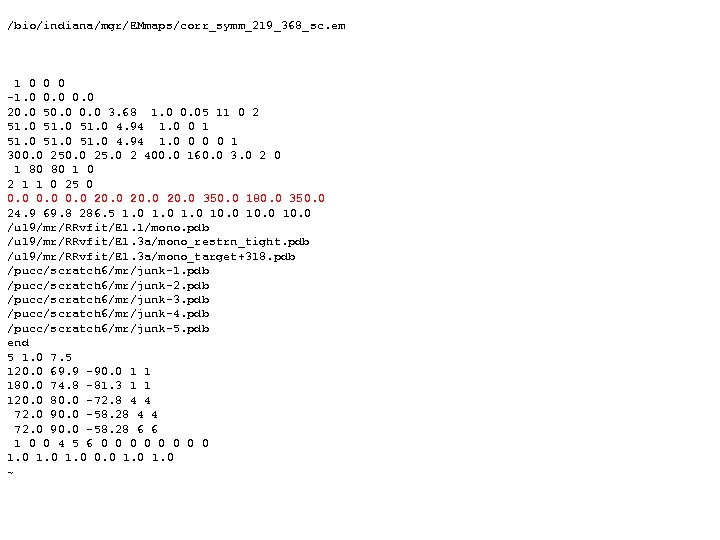

/bio/indiana/mgr/EMmaps/corr_symm_219_368_sc. em 1 0 0 0 -1. 0 0. 0 20. 0 50. 0 /bio/indiana/mgr/EMmaps/corr_symm_219_368_sc. em 1 0 0 0 -1. 0 0. 0 20. 0 50. 0 3. 68 1. 0 0. 05 11 0 2 51. 0 51. 0 4. 94 1. 0 0 1 300. 0 25. 0 2 400. 0 160. 0 3. 0 2 0 1 80 80 1 0 2 1 1 0 25 0 0. 0 20. 0 350. 0 180. 0 350. 0 24. 9 69. 8 286. 5 1. 0 10. 0 /u 19/mr/RRvfit/E 1. 1/mono. pdb /u 19/mr/RRvfit/E 1. 3 a/mono_restrn_tight. pdb /u 19/mr/RRvfit/E 1. 3 a/mono_target+318. pdb /pucc/scratch 6/mr/junk-1. pdb /pucc/scratch 6/mr/junk-2. pdb /pucc/scratch 6/mr/junk-3. pdb /pucc/scratch 6/mr/junk-4. pdb /pucc/scratch 6/mr/junk-5. pdb end 5 1. 0 7. 5 120. 0 69. 9 -90. 0 1 1 180. 0 74. 8 -81. 3 1 1 120. 0 80. 0 -72. 8 4 4 72. 0 90. 0 -58. 28 6 6 1 0 0 4 5 6 0 0 0 0 1. 0 0. 0 1. 0 ~

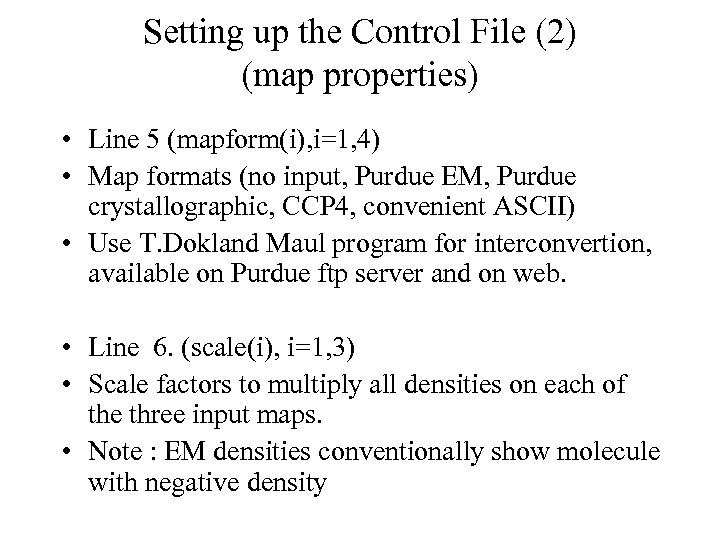

Setting up the Control File (2) (map properties) • Line 5 (mapform(i), i=1, 4) Setting up the Control File (2) (map properties) • Line 5 (mapform(i), i=1, 4) • Map formats (no input, Purdue EM, Purdue crystallographic, CCP 4, convenient ASCII) • Use T. Dokland Maul program for interconvertion, available on Purdue ftp server and on web. • Line 6. (scale(i), i=1, 3) • Scale factors to multiply all densities on each of the three input maps. • Note : EM densities conventionally show molecule with negative density

/bio/indiana/mgr/EMmaps/corr_symm_219_368_sc. em 1 0 0 0 -1. 0 0. 0 20. 0 50. 0 /bio/indiana/mgr/EMmaps/corr_symm_219_368_sc. em 1 0 0 0 -1. 0 0. 0 20. 0 50. 0 3. 68 1. 0 0. 05 11 0 2 51. 0 51. 0 4. 94 1. 0 0 1 300. 0 25. 0 2 400. 0 160. 0 3. 0 2 0 1 80 80 1 0 2 1 1 0 25 0 0. 0 20. 0 350. 0 180. 0 350. 0 24. 9 69. 8 286. 5 1. 0 10. 0 /u 19/mr/RRvfit/E 1. 1/mono. pdb /u 19/mr/RRvfit/E 1. 3 a/mono_restrn_tight. pdb /u 19/mr/RRvfit/E 1. 3 a/mono_target+318. pdb /pucc/scratch 6/mr/junk-1. pdb /pucc/scratch 6/mr/junk-2. pdb /pucc/scratch 6/mr/junk-3. pdb /pucc/scratch 6/mr/junk-4. pdb /pucc/scratch 6/mr/junk-5. pdb end 5 1. 0 7. 5 120. 0 69. 9 -90. 0 1 1 180. 0 74. 8 -81. 3 1 1 120. 0 80. 0 -72. 8 4 4 72. 0 90. 0 -58. 28 6 6 1 0 0 4 5 6 0 0 0 0 1. 0 0. 0 1. 0 ~

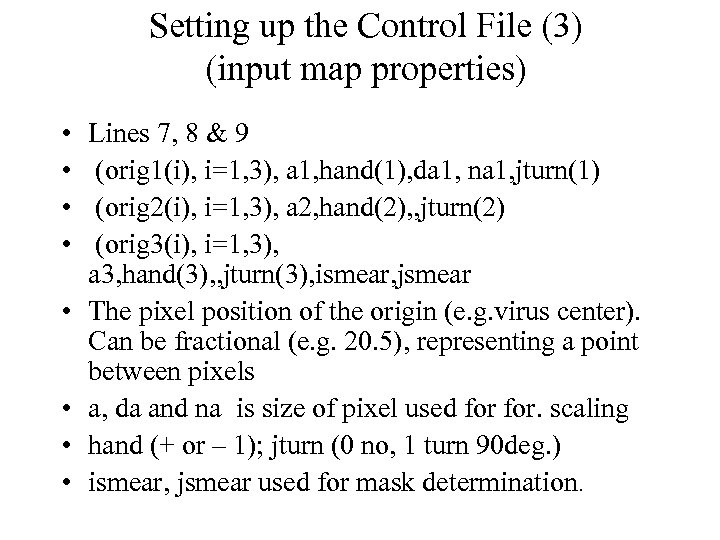

Setting up the Control File (3) (input map properties) • • Lines 7, 8 Setting up the Control File (3) (input map properties) • • Lines 7, 8 & 9 (orig 1(i), i=1, 3), a 1, hand(1), da 1, na 1, jturn(1) (orig 2(i), i=1, 3), a 2, hand(2), , jturn(2) (orig 3(i), i=1, 3), a 3, hand(3), , jturn(3), ismear, jsmear The pixel position of the origin (e. g. virus center). Can be fractional (e. g. 20. 5), representing a point between pixels a, da and na is size of pixel used for. scaling hand (+ or – 1); jturn (0 no, 1 turn 90 deg. ) ismear, jsmear used for mask determination.

/bio/indiana/mgr/EMmaps/corr_symm_219_368_sc. em 1 0 0 0 -1. 0 0. 0 20. 0 50. 0 /bio/indiana/mgr/EMmaps/corr_symm_219_368_sc. em 1 0 0 0 -1. 0 0. 0 20. 0 50. 0 3. 68 1. 0 0. 05 11 0 2 51. 0 51. 0 4. 94 1. 0 0 1 300. 0 25. 0 2 400. 0 160. 0 3. 0 2 0 1 80 80 1 0 2 1 1 0 25 0 0. 0 20. 0 350. 0 180. 0 350. 0 24. 9 69. 8 286. 5 1. 0 10. 0 /u 19/mr/RRvfit/E 1. 1/mono. pdb /u 19/mr/RRvfit/E 1. 3 a/mono_restrn_tight. pdb /u 19/mr/RRvfit/E 1. 3 a/mono_target+318. pdb /pucc/scratch 6/mr/junk-1. pdb /pucc/scratch 6/mr/junk-2. pdb /pucc/scratch 6/mr/junk-3. pdb /pucc/scratch 6/mr/junk-4. pdb /pucc/scratch 6/mr/junk-5. pdb end 5 1. 0 7. 5 120. 0 69. 9 -90. 0 1 1 180. 0 74. 8 -81. 3 1 1 120. 0 80. 0 -72. 8 4 4 72. 0 90. 0 -58. 28 6 6 1 0 0 4 5 6 0 0 0 0 1. 0 0. 0 1. 0 ~

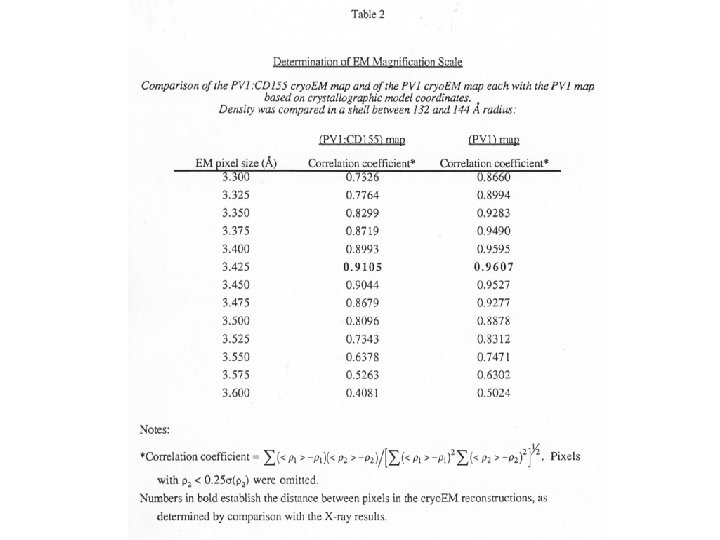

Setting up the Control File (4) (map scaling) • Line 10 • radout, radin, Setting up the Control File (4) (map scaling) • Line 10 • radout, radin, rinc. nvar, rlimit, radrna, crit 1, iverbose, local • Determine scale for density between radout and radin where it is consistent with density of mask defined by (X-Ray) map 3. Use crit 1 to define mask. • Determine CC and R factor for sequential pixel sizes to find correct magnification • r 2 = a + b*r 1: one or two param scale factor

/bio/indiana/mgr/EMmaps/corr_symm_219_368_sc. em 1 0 0 0 -1. 0 0. 0 20. 0 50. 0 /bio/indiana/mgr/EMmaps/corr_symm_219_368_sc. em 1 0 0 0 -1. 0 0. 0 20. 0 50. 0 3. 68 1. 0 0. 05 11 0 2 51. 0 51. 0 4. 94 1. 0 0 1 300. 0 25. 0 2 400. 0 160. 0 3. 0 2 0 1 80 80 1 0 2 1 1 0 25 0 0. 0 20. 0 350. 0 180. 0 350. 0 24. 9 69. 8 286. 5 1. 0 10. 0 /u 19/mr/RRvfit/E 1. 1/mono. pdb /u 19/mr/RRvfit/E 1. 3 a/mono_restrn_tight. pdb /u 19/mr/RRvfit/E 1. 3 a/mono_target+318. pdb /pucc/scratch 6/mr/junk-1. pdb /pucc/scratch 6/mr/junk-2. pdb /pucc/scratch 6/mr/junk-3. pdb /pucc/scratch 6/mr/junk-4. pdb /pucc/scratch 6/mr/junk-5. pdb end 5 1. 0 7. 5 120. 0 69. 9 -90. 0 1 1 180. 0 74. 8 -81. 3 1 1 120. 0 80. 0 -72. 8 4 4 72. 0 90. 0 -58. 28 6 6 1 0 0 4 5 6 0 0 0 0 1. 0 0. 0 1. 0 ~

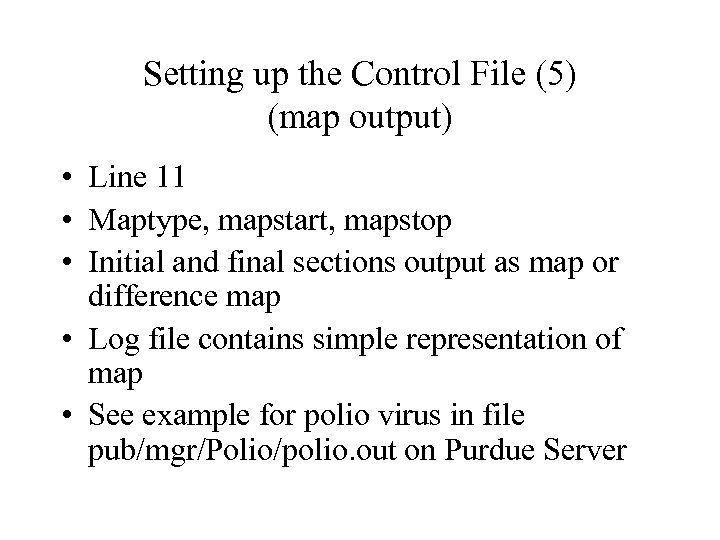

Setting up the Control File (5) (map output) • Line 11 • Maptype, mapstart, Setting up the Control File (5) (map output) • Line 11 • Maptype, mapstart, mapstop • Initial and final sections output as map or difference map • Log file contains simple representation of map • See example for polio virus in file pub/mgr/Polio/polio. out on Purdue Server

/bio/indiana/mgr/EMmaps/corr_symm_219_368_sc. em 1 0 0 0 -1. 0 0. 0 20. 0 50. 0 /bio/indiana/mgr/EMmaps/corr_symm_219_368_sc. em 1 0 0 0 -1. 0 0. 0 20. 0 50. 0 3. 68 1. 0 0. 05 11 0 2 51. 0 51. 0 4. 94 1. 0 0 1 300. 0 25. 0 2 400. 0 160. 0 3. 0 2 0 1 80 80 1 0 2 1 1 0 25 0 0. 0 20. 0 350. 0 180. 0 350. 0 24. 9 69. 8 286. 5 1. 0 10. 0 /u 19/mr/RRvfit/E 1. 1/mono. pdb /u 19/mr/RRvfit/E 1. 3 a/mono_restrn_tight. pdb /u 19/mr/RRvfit/E 1. 3 a/mono_target+318. pdb /pucc/scratch 6/mr/junk-1. pdb /pucc/scratch 6/mr/junk-2. pdb /pucc/scratch 6/mr/junk-3. pdb /pucc/scratch 6/mr/junk-4. pdb /pucc/scratch 6/mr/junk-5. pdb end 5 1. 0 7. 5 120. 0 69. 9 -90. 0 1 1 180. 0 74. 8 -81. 3 1 1 120. 0 80. 0 -72. 8 4 4 72. 0 90. 0 -58. 28 6 6 1 0 0 4 5 6 0 0 0 0 1. 0 0. 0 1. 0 ~

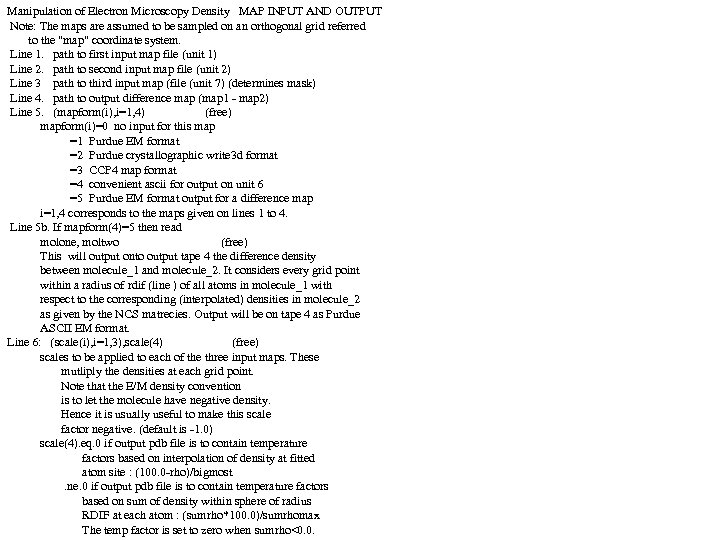

Manipulation of Electron Microscopy Density MAP INPUT AND OUTPUT Note: The maps are assumed Manipulation of Electron Microscopy Density MAP INPUT AND OUTPUT Note: The maps are assumed to be sampled on an orthogonal grid referred to the "map" coordinate system. Line 1. path to first input map file (unit 1) Line 2. path to second input map file (unit 2) Line 3 path to third input map (file (unit 7) (determines mask) Line 4. path to output difference map (map 1 - map 2) Line 5. (mapform(i), i=1, 4) (free) mapform(i)=0 no input for this map =1 Purdue EM format =2 Purdue crystallographic write 3 d format =3 CCP 4 map format =4 convenient ascii for output on unit 6 =5 Purdue EM format output for a difference map i=1, 4 corresponds to the maps given on lines 1 to 4. Line 5 b. If mapform(4)=5 then read molone, moltwo (free) This will output onto output tape 4 the difference density between molecule_1 and molecule_2. It considers every grid point within a radius of rdif (line ) of all atoms in molecule_1 with respect to the corresponding (interpolated) densities in molecule_2 as given by the NCS matrecies. Output will be on tape 4 as Purdue ASCII EM format. Line 6: (scale(i), i=1, 3), scale(4) (free) scales to be applied to each of the three input maps. These mutliply the densities at each grid point. Note that the E/M density convention is to let the molecule have negative density. Hence it is usually useful to make this scale factor negative. (default is -1. 0) scale(4). eq. 0 if output pdb file is to contain temperature factors based on interpolation of density at fitted atom site : (100. 0 -rho)/bigmost. ne. 0 if output pdb file is to contain temperature factors based on sum of density within sphere of radius RDIF at each atom : (sumrho*100. 0)/sumrhomax The temp factor is set to zero when sumrho<0. 0.

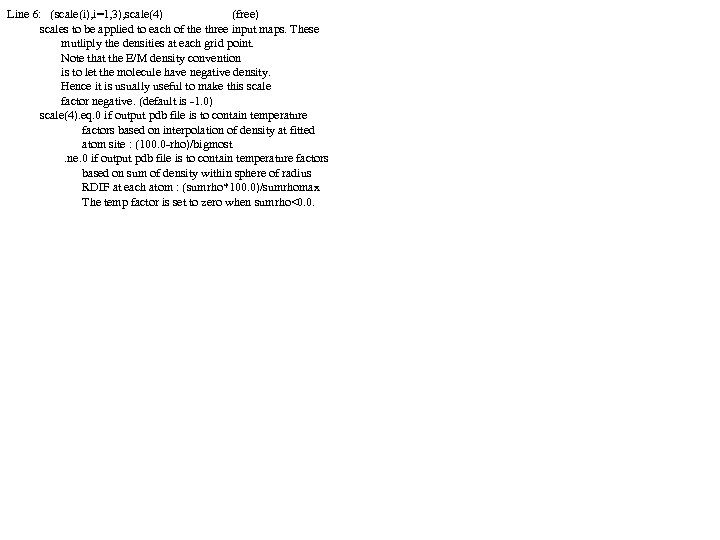

Line 6: (scale(i), i=1, 3), scale(4) (free) scales to be applied to each of Line 6: (scale(i), i=1, 3), scale(4) (free) scales to be applied to each of the three input maps. These mutliply the densities at each grid point. Note that the E/M density convention is to let the molecule have negative density. Hence it is usually useful to make this scale factor negative. (default is -1. 0) scale(4). eq. 0 if output pdb file is to contain temperature factors based on interpolation of density at fitted atom site : (100. 0 -rho)/bigmost. ne. 0 if output pdb file is to contain temperature factors based on sum of density within sphere of radius RDIF at each atom : (sumrho*100. 0)/sumrhomax The temp factor is set to zero when sumrho<0. 0.

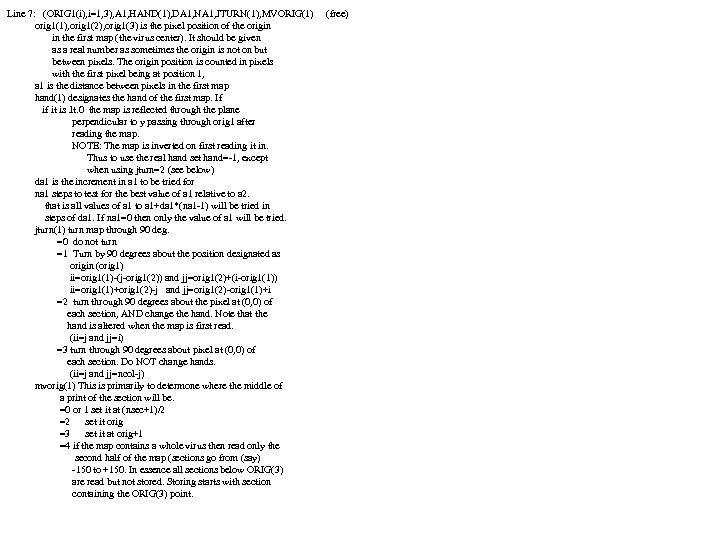

Line 7: (ORIG 1(i), i=1, 3), A 1, HAND(1), DA 1, NA 1, JTURN(1), Line 7: (ORIG 1(i), i=1, 3), A 1, HAND(1), DA 1, NA 1, JTURN(1), MVORIG(1) orig 1(1), orig 1(2), orig 1(3) is the pixel position of the origin in the first map (the virus center). It should be given as a real number as sometimes the origin is not on but between pixels. The origin position is counted in pixels with the first pixel being at position 1, a 1 is the distance between pixels in the first map hand(1) designates the hand of the first map. If if it is. lt. 0 the map is reflected through the plane perpendicular to y passing through orig 1 after reading the map. NOTE: The map is inverted on first reading it in. Thus to use the real hand set hand=-1, except when using jturn=2 (see below) da 1 is the increment in a 1 to be tried for na 1 steps to test for the best value of a 1 relative to a 2. that is all values of a 1 to a 1+da 1*(na 1 -1) will be tried in steps of da 1. If na 1=0 then only the value of a 1 will be tried. jturn(1) turn map through 90 deg. =0 do not turn =1 Turn by 90 degrees about the position designated as origin (orig 1) ii=orig 1(1)-(j-orig 1(2)) and jj=orig 1(2)+(i-orig 1(1)) ii=orig 1(1)+orig 1(2)-j and jj=orig 1(2)-orig 1(1)+i =2 turn through 90 degrees about the pixel at (0, 0) of each section, AND change the hand. Note that the hand is altered when the map is first read. (ii=j and jj=i) =3 turn through 90 degrees about pixel at (0, 0) of each section. Do NOT change hands. (ii=j and jj=ncol-j) mvorig(1) This is primarily to determone where the middle of a print of the section will be. =0 or 1 set it at (nsec+1)/2 =2 set it orig =3 set it at orig+1 =4 if the map contains a whole virus then read only the second half of the map (sections go from (say) -150 to +150. In essence all sections below ORIG(3) are read but not stored. Storing starts with section containing the ORIG(3) point. (free)

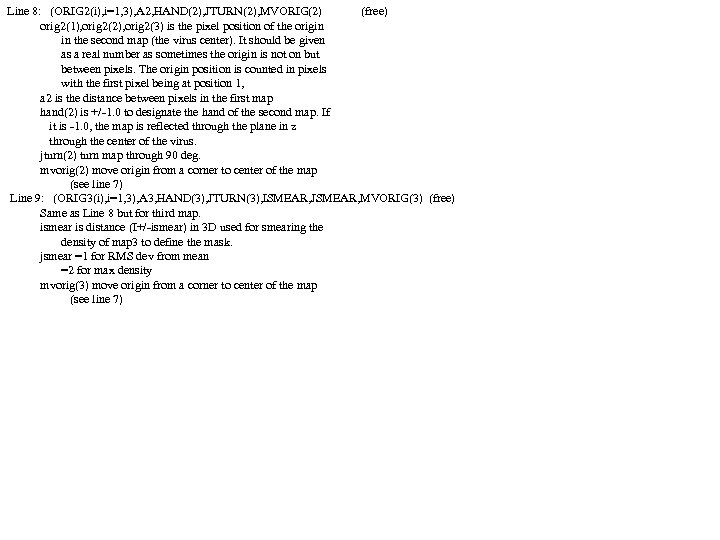

Line 8: (ORIG 2(i), i=1, 3), A 2, HAND(2), JTURN(2), MVORIG(2) (free) orig 2(1), Line 8: (ORIG 2(i), i=1, 3), A 2, HAND(2), JTURN(2), MVORIG(2) (free) orig 2(1), orig 2(2), orig 2(3) is the pixel position of the origin in the second map (the virus center). It should be given as a real number as sometimes the origin is not on but between pixels. The origin position is counted in pixels with the first pixel being at position 1, a 2 is the distance between pixels in the first map hand(2) is +/-1. 0 to designate the hand of the second map. If it is -1. 0, the map is reflected through the plane in z through the center of the virus. jturn(2) turn map through 90 deg. mvorig(2) move origin from a corner to center of the map (see line 7) Line 9: (ORIG 3(i), i=1, 3), A 3, HAND(3), JTURN(3), ISMEAR, JSMEAR, MVORIG(3) (free) Same as Line 8 but for third map. ismear is distance (I+/-ismear) in 3 D used for smearing the density of map 3 to define the mask. jsmear =1 for RMS dev from mean =2 for max density mvorig(3) move origin from a corner to center of the map (see line 7)

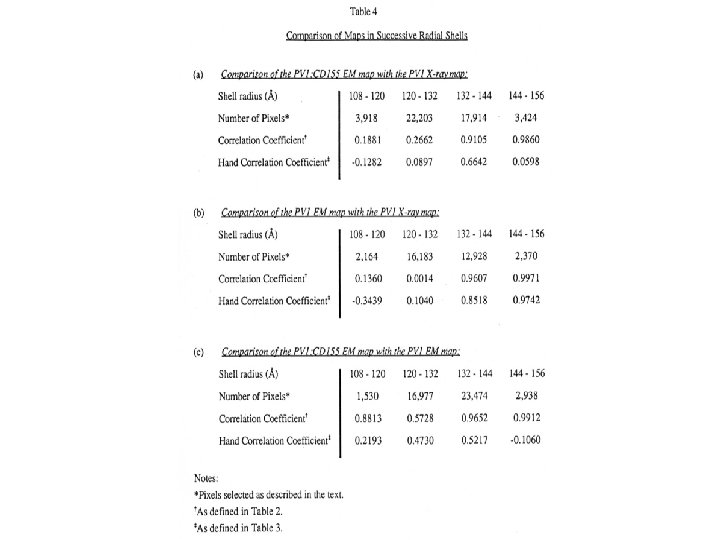

MAP SCVALING OPERATIONS Line 10: RADOUT, RADIN, RINC, NVAR, RLIMIT, RADRNA, CRIT 1, IVERBOSE, MAP SCVALING OPERATIONS Line 10: RADOUT, RADIN, RINC, NVAR, RLIMIT, RADRNA, CRIT 1, IVERBOSE, LOCAL radout radin. These are the outside, inside limits for determening the horizontal and vertical scales. rinc Used to analyse effect of applying horizontal scaling to vertical scaling in annuli. Annuli will have inside radii 0. 0, rinc, 2*rinc, . . outside radii rinc, 2*rinc, 3*rinc, . . till the outside radius is bigger than rlimit. default=50. 0 CRIT 1. eq. 0 horizontal scaling computed from denseties between radout and radin. vertical scaling in radial shells according to rinc between radout and radin, extrapolated to rlimit. If rinc. eq. 0 then do horizontal scaling only but show vertical scaling although use results only from horizontal scaling. CRIT 1. gt. 0 do horizontal scaling on those denseties for which (rho 2 -ave 2)>(crit 1*rms_rho 2). Show vertscaling in shells only for stat info. Also used in out 3 d to define protein mask when (rho(2)-ave(2))>(crit 1*rms(2)) and to define icam density when (rho(1)-ave(1))>(crit 1*rms(1)) nvar (=1 or 2 with default=1) the number of variables to be used for scaling. The scale factor to be applied onto the 2 nd map (Xray map) when n=1 scale factor is a+b*rho 2 2 b*rho 2 rlimit Set all density to zero beyond this radius, to avoid noise from one or the other map in the external solvent region(default=1000. 0) radrna Now used only in out 3 d to draw a sphere (+) on printer output iverbose verbosity of output: 0 least verbose 1 intermediate 2 intermediate 3 most verbose Note: If iverbose. ge. 2 then there will be single character output for map or difference map on standard output, unit 6. But note footnote at end of details. local apply local vertical scaling (0=no, 1=yes) horizontl scaling in fact does both hor. & vert. scaling using density between radin and radout. Then vert. scaling uses the best horizontal scaling in annuli. If local. ne. 0 then vert scaling is applied in radial shells.

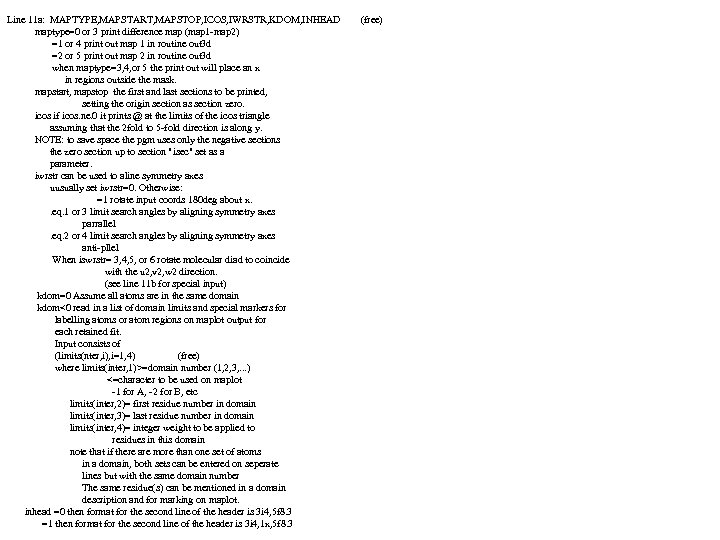

Line 11 a: MAPTYPE, MAPSTART, MAPSTOP, ICOS, IWRSTR, KDOM, INHEAD maptype=0 or 3 print Line 11 a: MAPTYPE, MAPSTART, MAPSTOP, ICOS, IWRSTR, KDOM, INHEAD maptype=0 or 3 print difference map (map 1 -map 2) =1 or 4 print out map 1 in routine out 3 d =2 or 5 print out map 2 in routine out 3 d when maptype=3, 4, or 5 the print out will place an x in regions outside the mask. mapstart, mapstop the first and last sections to be printed, setting the origin section as section zero. icos if icos. ne. 0 it prints @ at the limits of the icos triangle assuming that the 2 fold to 5 -fold direction is along y. NOTE: to save space the pgm uses only the negative sections the zero section up to section "isec" set as a parameter. iwrstr can be used to aline symmetry axes uusually set iwrstr=0. Otherwise: =1 rotate input coords 180 deg about x. . eq. 1 or 3 limit search angles by aligning symmetry axes parrallel. eq. 2 or 4 limit search angles by aligning symmetry axes anti-pllel When iswrstr= 3, 4, 5, or 6 rotate molecular diad to coincide with the u 2, v 2, w 2 direction. (see line 11 b for special input) kdom=0 Assume all atoms are in the same domain kdom<0 read in a list of domain limits and special markers for labelling atoms or atom regions on maplot output for each retained fit. Input consists of (limits(nter, i), i=1, 4) (free) where limits(inter, 1)>=domain number (1, 2, 3, . . . ) <=character to be used on maplot -1 for A, -2 for B, etc limits(inter, 2)= first residue number in domain limits(inter, 3)= last residue number in domain limits(inter, 4)= integer weight to be applied to residues in this domain note that if there are more than one set of atoms in a domain, both sets can be entered on seperate lines but with the same domain number The same residue(s) can be mentioned in a domain description and for marking on maplot. inhead =0 then format for the second line of the header is 3 i 4, 5 f 8. 3 =1 then format for the second line of the header is 3 i 4, 1 x, 5 f 8. 3 (free)

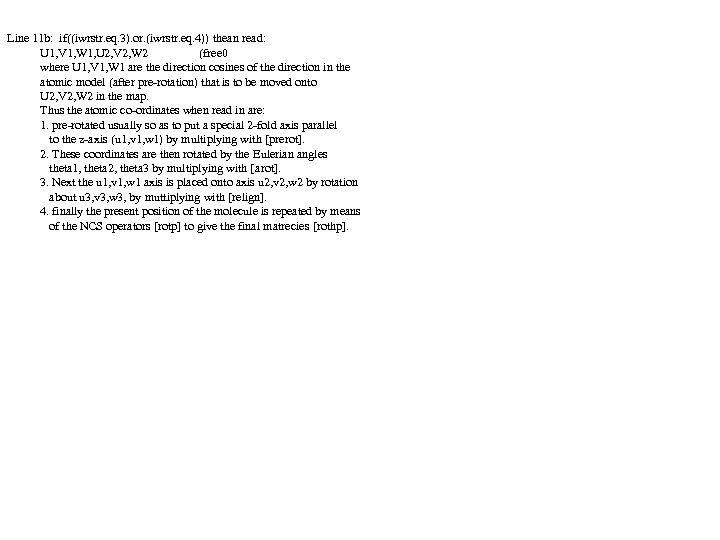

Line 11 b: if((iwrstr. eq. 3). or. (iwrstr. eq. 4)) thean read: U 1, Line 11 b: if((iwrstr. eq. 3). or. (iwrstr. eq. 4)) thean read: U 1, V 1, W 1, U 2, V 2, W 2 (free 0 where U 1, V 1, W 1 are the direction cosines of the direction in the atomic model (after pre-rotation) that is to be moved onto U 2, V 2, W 2 in the map. Thus the atomic co-ordinates when read in are: 1. pre-rotated usually so as to put a special 2 -fold axis parallel to the z-axis (u 1, v 1, w 1) by multiplying with [prerot]. 2. These coordinates are then rotated by the Eulerian angles theta 1, theta 2, theta 3 by multiplying with [arot]. 3. Next the u 1, v 1, w 1 axis is placed onto axis u 2, v 2, w 2 by rotation about u 3, v 3, w 3, by muttiplying with [relign]. 4. finally the present position of the molecule is repeated by means of the NCS operators [rotp] to give the final matrecies [rothp].

Setting up the Control File (6) (real space atom fitting) • • • Line Setting up the Control File (6) (real space atom fitting) • • • Line 12 icont, isearch, iclimb, iturn, ntop, ifit icont= 0 (no search), 1 (Ca only), 2 (all atoms) isearch=0/1 complete Eulerian search iclimb=0/1 “climb” on top results (to be shortly augmented by a least squares procedure) • ifit: 3 choices for best fit criterion • See example for Ross River Virus in file pub/mgr/Sindbis/rrv. out

/bio/indiana/mgr/EMmaps/corr_symm_219_368_sc. em 1 0 0 0 -1. 0 0. 0 20. 0 50. 0 /bio/indiana/mgr/EMmaps/corr_symm_219_368_sc. em 1 0 0 0 -1. 0 0. 0 20. 0 50. 0 3. 68 1. 0 0. 05 11 0 2 51. 0 51. 0 4. 94 1. 0 0 1 300. 0 25. 0 2 400. 0 160. 0 3. 0 2 0 1 80 80 1 0 2 1 1 0 25 0 0. 0 20. 0 350. 0 180. 0 350. 0 24. 9 69. 8 286. 5 1. 0 10. 0 /u 19/mr/RRvfit/E 1. 1/mono. pdb /u 19/mr/RRvfit/E 1. 3 a/mono_restrn_tight. pdb /u 19/mr/RRvfit/E 1. 3 a/mono_target+318. pdb /pucc/scratch 6/mr/junk-1. pdb /pucc/scratch 6/mr/junk-2. pdb /pucc/scratch 6/mr/junk-3. pdb /pucc/scratch 6/mr/junk-4. pdb /pucc/scratch 6/mr/junk-5. pdb end 5 1. 0 7. 5 120. 0 69. 9 -90. 0 1 1 180. 0 74. 8 -81. 3 1 1 120. 0 80. 0 -72. 8 4 4 72. 0 90. 0 -58. 28 6 6 1 0 0 4 5 6 0 0 0 0 1. 0 0. 0 1. 0 ~

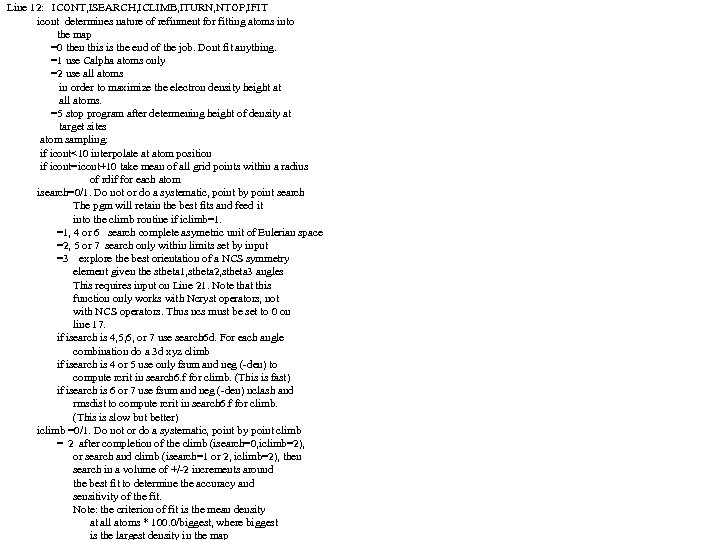

Line 12: ICONT, ISEARCH, ICLIMB, ITURN, NTOP, IFIT icont determines nature of refinment for Line 12: ICONT, ISEARCH, ICLIMB, ITURN, NTOP, IFIT icont determines nature of refinment for fitting atoms into the map =0 then this is the end of the job. Dont fit anything. =1 use Calpha atoms only =2 use all atoms in order to maximize the electron density height at all atoms. =5 stop program after determening height of density at target sites atom sampling: if icont<10 interpolate at atom position if icont=icont+10 take mean of all grid points within a radius of rdif for each atom isearch=0/1. Do not or do a systematic, point by point search The pgm will retain the best fits and feed it into the climb routine if iclimb=1. =1, 4 or 6 search complete asymetric unit of Eulerian space =2, 5 or 7 search only within limits set by input =3 explore the best orientation of a NCS symmetry element given the stheta 1, stheta 2, stheta 3 angles This requires input on Line 21. Note that this function only works with Ncryst operators, not with NCS operators. Thus ncs must be set to 0 on line 17. if isearch is 4, 5, 6, or 7 use search 6 d. For each angle combination do a 3 d xyz climb if isearch is 4 or 5 use only fsum and neg (-den) to compute rcrit in search 6. f for climb. (This is fast) if isearch is 6 or 7 use fsum and neg (-den) nclash and rmsdist to compute rcrit in search 6. f for climb. (This is slow but better) iclimb =0/1. Do not or do a systematic, point by point climb = 2 after completion of the climb (isearch=0, iclimb=2), or search and climb (isearch=1 or 2, iclimb=2), then search in a volume of +/-2 increments around the best fit to determine the accuracy and sensitivity of the fit. Note: the criterion of fit is the mean density at all atoms * 100. 0/biggest, where biggest is the largest density in the map

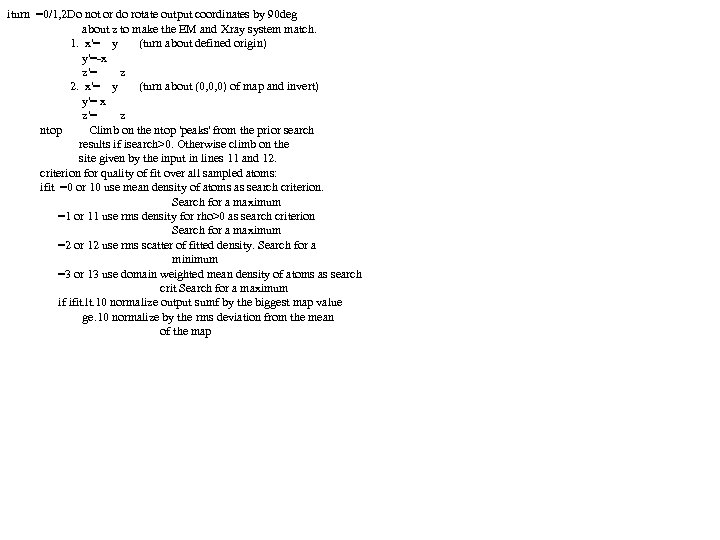

iturn =0/1, 2 Do not or do rotate output coordinates by 90 deg about iturn =0/1, 2 Do not or do rotate output coordinates by 90 deg about z to make the EM and Xray system match. 1. x'= y (turn about defined origin) y'=-x z'= z 2. x'= y (turn about (0, 0, 0) of map and invert) y'= x z'= z ntop Climb on the ntop 'peaks' from the prior search results if isearch>0. Otherwise climb on the site given by the input in lines 11 and 12. criterion for quality of fit over all sampled atoms: ifit =0 or 10 use mean density of atoms as search criterion. Search for a maximum =1 or 11 use rms density for rho>0 as search criterion Search for a maximum =2 or 12 use rms scatter of fitted density. Search for a minimum =3 or 13 use domain weighted mean density of atoms as search crit Search for a maximum if ifit. lt. 10 normalize output sumf by the biggest map value ge. 10 normalize by the rms deviation from the mean of the map

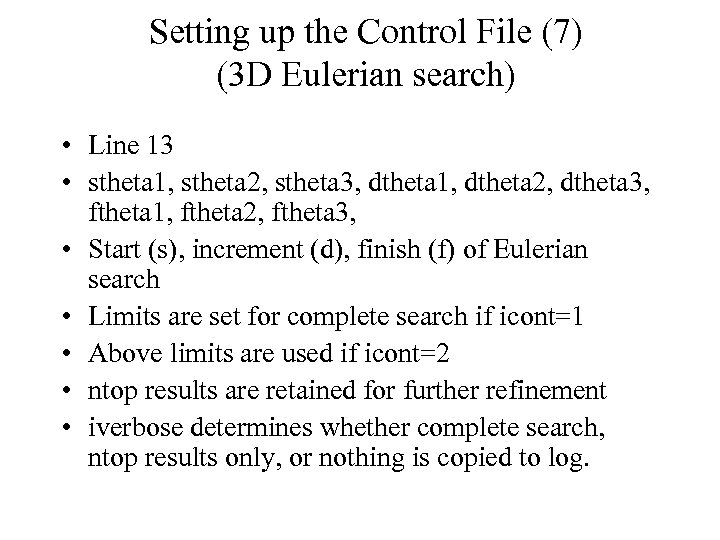

Setting up the Control File (7) (3 D Eulerian search) • Line 13 • Setting up the Control File (7) (3 D Eulerian search) • Line 13 • stheta 1, stheta 2, stheta 3, dtheta 1, dtheta 2, dtheta 3, ftheta 1, ftheta 2, ftheta 3, • Start (s), increment (d), finish (f) of Eulerian search • Limits are set for complete search if icont=1 • Above limits are used if icont=2 • ntop results are retained for further refinement • iverbose determines whether complete search, ntop results only, or nothing is copied to log.

/bio/indiana/mgr/EMmaps/corr_symm_219_368_sc. em 1 0 0 0 -1. 0 0. 0 20. 0 50. 0 /bio/indiana/mgr/EMmaps/corr_symm_219_368_sc. em 1 0 0 0 -1. 0 0. 0 20. 0 50. 0 3. 68 1. 0 0. 05 11 0 2 51. 0 51. 0 4. 94 1. 0 0 1 300. 0 25. 0 2 400. 0 160. 0 3. 0 2 0 1 80 80 1 0 2 1 1 0 25 0 0. 0 20. 0 350. 0 180. 0 350. 0 24. 9 69. 8 286. 5 1. 0 10. 0 /u 19/mr/RRvfit/E 1. 1/mono. pdb /u 19/mr/RRvfit/E 1. 3 a/mono_restrn_tight. pdb /u 19/mr/RRvfit/E 1. 3 a/mono_target+318. pdb /pucc/scratch 6/mr/junk-1. pdb /pucc/scratch 6/mr/junk-2. pdb /pucc/scratch 6/mr/junk-3. pdb /pucc/scratch 6/mr/junk-4. pdb /pucc/scratch 6/mr/junk-5. pdb end 5 1. 0 7. 5 120. 0 69. 9 -90. 0 1 1 180. 0 74. 8 -81. 3 1 1 120. 0 80. 0 -72. 8 4 4 72. 0 90. 0 -58. 28 6 6 1 0 0 4 5 6 0 0 0 0 1. 0 0. 0 1. 0 ~

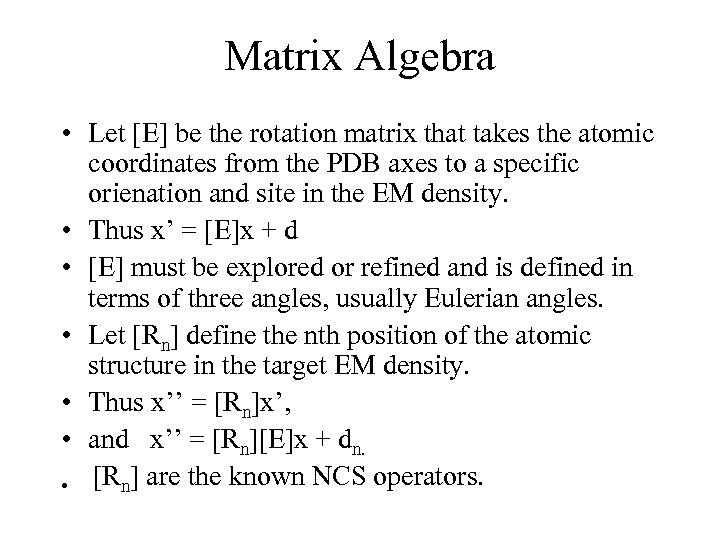

Matrix Algebra • Let [E] be the rotation matrix that takes the atomic coordinates Matrix Algebra • Let [E] be the rotation matrix that takes the atomic coordinates from the PDB axes to a specific orienation and site in the EM density. • Thus x’ = [E]x + d • [E] must be explored or refined and is defined in terms of three angles, usually Eulerian angles. • Let [Rn] define the nth position of the atomic structure in the target EM density. • Thus x’’ = [Rn]x’, • and x’’ = [Rn][E]x + dn. • [Rn] are the known NCS operators.

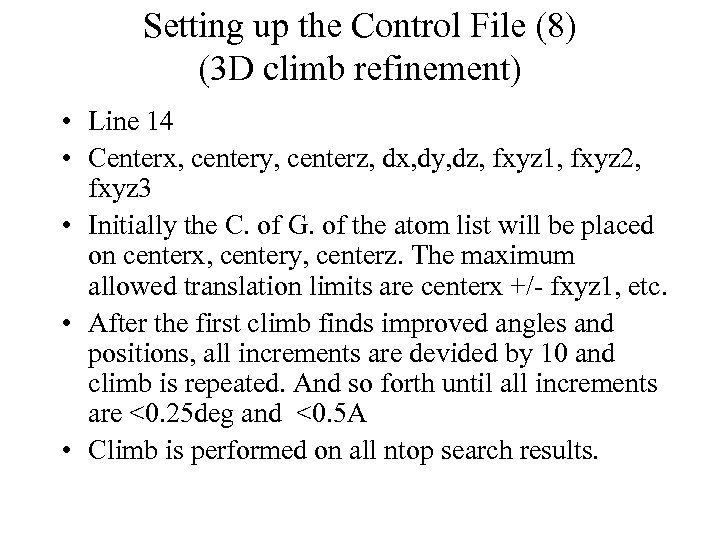

Setting up the Control File (8) (3 D climb refinement) • Line 14 • Setting up the Control File (8) (3 D climb refinement) • Line 14 • Centerx, centery, centerz, dx, dy, dz, fxyz 1, fxyz 2, fxyz 3 • Initially the C. of G. of the atom list will be placed on centerx, centery, centerz. The maximum allowed translation limits are centerx +/- fxyz 1, etc. • After the first climb finds improved angles and positions, all increments are devided by 10 and climb is repeated. And so forth until all increments are <0. 25 deg and <0. 5 A • Climb is performed on all ntop search results.

/bio/indiana/mgr/EMmaps/corr_symm_219_368_sc. em 1 0 0 0 -1. 0 0. 0 20. 0 50. 0 /bio/indiana/mgr/EMmaps/corr_symm_219_368_sc. em 1 0 0 0 -1. 0 0. 0 20. 0 50. 0 3. 68 1. 0 0. 05 11 0 2 51. 0 51. 0 4. 94 1. 0 0 1 300. 0 25. 0 2 400. 0 160. 0 3. 0 2 0 1 80 80 1 0 2 1 1 0 25 0 0. 0 20. 0 350. 0 180. 0 350. 0 24. 9 69. 8 286. 5 1. 0 10. 0 /u 19/mr/RRvfit/E 1. 1/mono. pdb /u 19/mr/RRvfit/E 1. 3 a/mono_restrn_tight. pdb /u 19/mr/RRvfit/E 1. 3 a/mono_target+318. pdb /pucc/scratch 6/mr/junk-1. pdb /pucc/scratch 6/mr/junk-2. pdb /pucc/scratch 6/mr/junk-3. pdb /pucc/scratch 6/mr/junk-4. pdb /pucc/scratch 6/mr/junk-5. pdb end 5 1. 0 7. 5 120. 0 69. 9 -90. 0 1 1 180. 0 74. 8 -81. 3 1 1 120. 0 80. 0 -72. 8 4 4 72. 0 90. 0 -58. 28 6 6 1 0 0 4 5 6 0 0 0 0 1. 0 0. 0 1. 0 ~

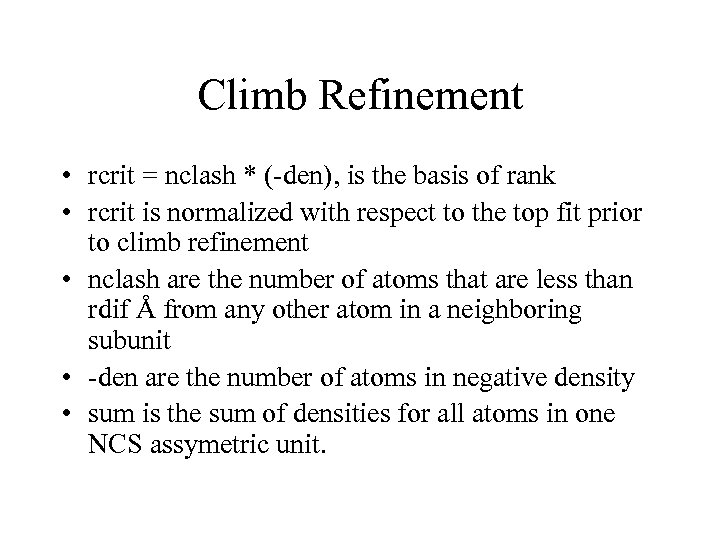

Climb Refinement • rcrit = nclash * (-den), is the basis of rank • Climb Refinement • rcrit = nclash * (-den), is the basis of rank • rcrit is normalized with respect to the top fit prior to climb refinement • nclash are the number of atoms that are less than rdif Å from any other atom in a neighboring subunit • -den are the number of atoms in negative density • sum is the sum of densities for all atoms in one NCS assymetric unit.

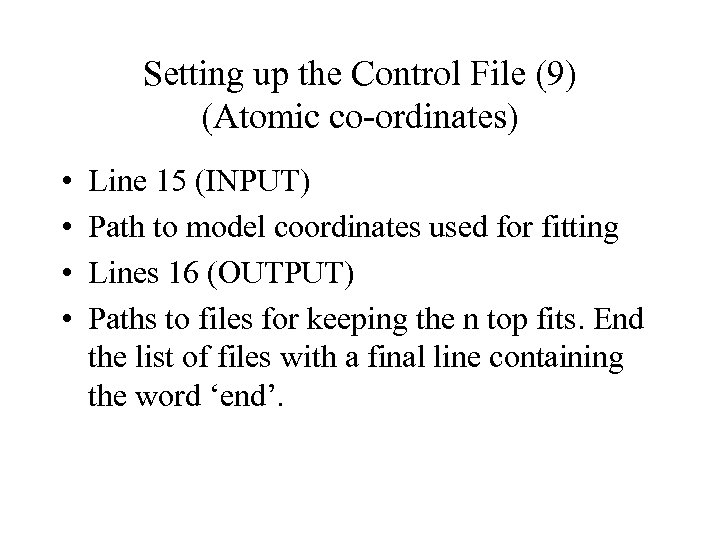

Setting up the Control File (9) (Atomic co-ordinates) • • Line 15 (INPUT) Path Setting up the Control File (9) (Atomic co-ordinates) • • Line 15 (INPUT) Path to model coordinates used for fitting Lines 16 (OUTPUT) Paths to files for keeping the n top fits. End the list of files with a final line containing the word ‘end’.

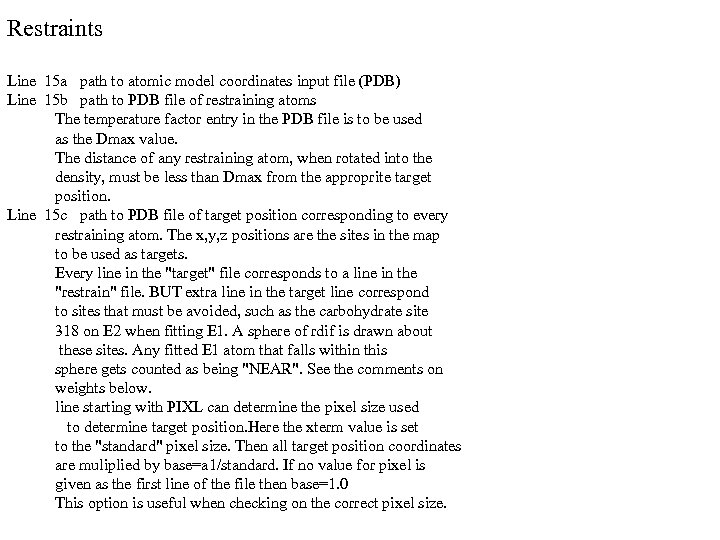

Restraints Line 15 a path to atomic model coordinates input file (PDB) Line 15 Restraints Line 15 a path to atomic model coordinates input file (PDB) Line 15 b path to PDB file of restraining atoms The temperature factor entry in the PDB file is to be used as the Dmax value. The distance of any restraining atom, when rotated into the density, must be less than Dmax from the approprite target position. Line 15 c path to PDB file of target position corresponding to every restraining atom. The x, y, z positions are the sites in the map to be used as targets. Every line in the "target" file corresponds to a line in the "restrain" file. BUT extra line in the target line correspond to sites that must be avoided, such as the carbohydrate site 318 on E 2 when fitting E 1. A sphere of rdif is drawn about these sites. Any fitted E 1 atom that falls within this sphere gets counted as being "NEAR". See the comments on weights below. line starting with PIXL can determine the pixel size used to determine target position. Here the xterm value is set to the "standard" pixel size. Then all target position coordinates are muliplied by base=a 1/standard. If no value for pixel is given as the first line of the file then base=1. 0 This option is useful when checking on the correct pixel size.

/bio/indiana/mgr/EMmaps/corr_symm_219_368_sc. em 1 0 0 0 -1. 0 0. 0 20. 0 50. 0 /bio/indiana/mgr/EMmaps/corr_symm_219_368_sc. em 1 0 0 0 -1. 0 0. 0 20. 0 50. 0 3. 68 1. 0 0. 05 11 0 2 51. 0 51. 0 4. 94 1. 0 0 1 300. 0 25. 0 2 400. 0 160. 0 3. 0 2 0 1 80 80 1 0 2 1 1 0 25 0 0. 0 20. 0 350. 0 180. 0 350. 0 24. 9 69. 8 286. 5 1. 0 10. 0 /u 19/mr/RRvfit/E 1. 1/mono. pdb /u 19/mr/RRvfit/E 1. 3 a/mono_restrn_tight. pdb /u 19/mr/RRvfit/E 1. 3 a/mono_target+318. pdb /pucc/scratch 6/mr/junk-1. pdb /pucc/scratch 6/mr/junk-2. pdb /pucc/scratch 6/mr/junk-3. pdb /pucc/scratch 6/mr/junk-4. pdb /pucc/scratch 6/mr/junk-5. pdb end 5 1. 0 7. 5 120. 0 69. 9 -90. 0 1 1 180. 0 74. 8 -81. 3 1 1 120. 0 80. 0 -72. 8 4 4 72. 0 90. 0 -58. 28 6 6 1 0 0 4 5 6 0 0 0 0 1. 0 0. 0 1. 0 ~

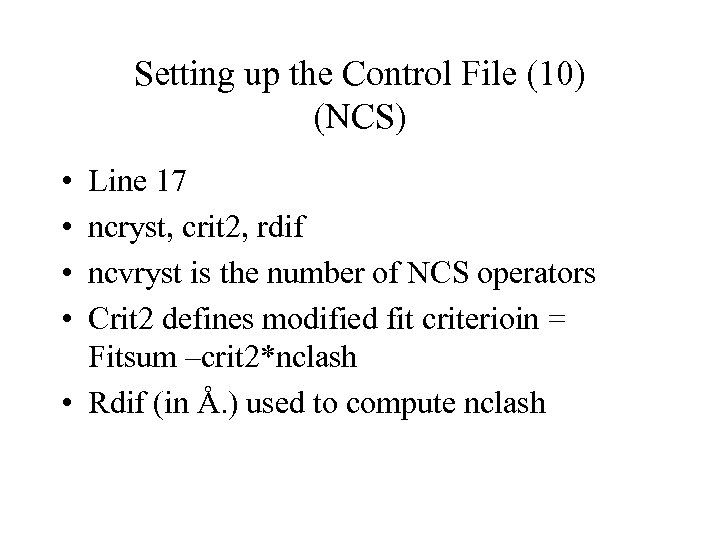

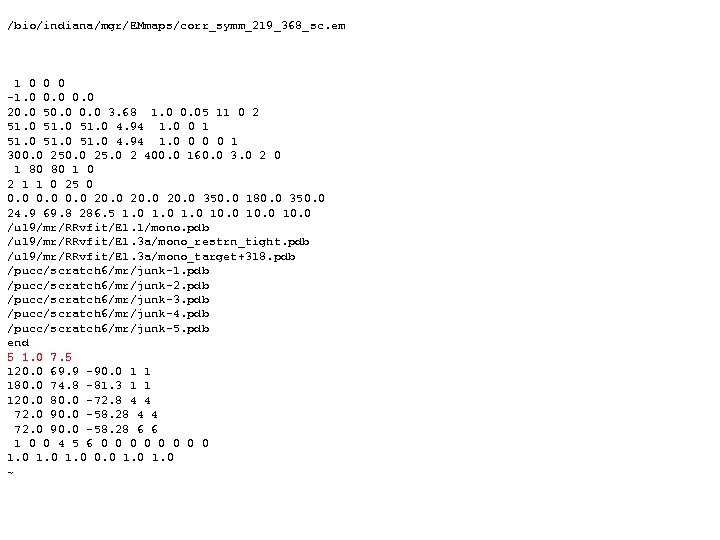

Setting up the Control File (10) (NCS) • • Line 17 ncryst, crit 2, Setting up the Control File (10) (NCS) • • Line 17 ncryst, crit 2, rdif ncvryst is the number of NCS operators Crit 2 defines modified fit criterioin = Fitsum –crit 2*nclash • Rdif (in Å. ) used to compute nclash

/bio/indiana/mgr/EMmaps/corr_symm_219_368_sc. em 1 0 0 0 -1. 0 0. 0 20. 0 50. 0 /bio/indiana/mgr/EMmaps/corr_symm_219_368_sc. em 1 0 0 0 -1. 0 0. 0 20. 0 50. 0 3. 68 1. 0 0. 05 11 0 2 51. 0 51. 0 4. 94 1. 0 0 1 300. 0 25. 0 2 400. 0 160. 0 3. 0 2 0 1 80 80 1 0 2 1 1 0 25 0 0. 0 20. 0 350. 0 180. 0 350. 0 24. 9 69. 8 286. 5 1. 0 10. 0 /u 19/mr/RRvfit/E 1. 1/mono. pdb /u 19/mr/RRvfit/E 1. 3 a/mono_restrn_tight. pdb /u 19/mr/RRvfit/E 1. 3 a/mono_target+318. pdb /pucc/scratch 6/mr/junk-1. pdb /pucc/scratch 6/mr/junk-2. pdb /pucc/scratch 6/mr/junk-3. pdb /pucc/scratch 6/mr/junk-4. pdb /pucc/scratch 6/mr/junk-5. pdb end 5 1. 0 7. 5 120. 0 69. 9 -90. 0 1 1 180. 0 74. 8 -81. 3 1 1 120. 0 80. 0 -72. 8 4 4 72. 0 90. 0 -58. 28 6 6 1 0 0 4 5 6 0 0 0 0 1. 0 0. 0 1. 0 ~

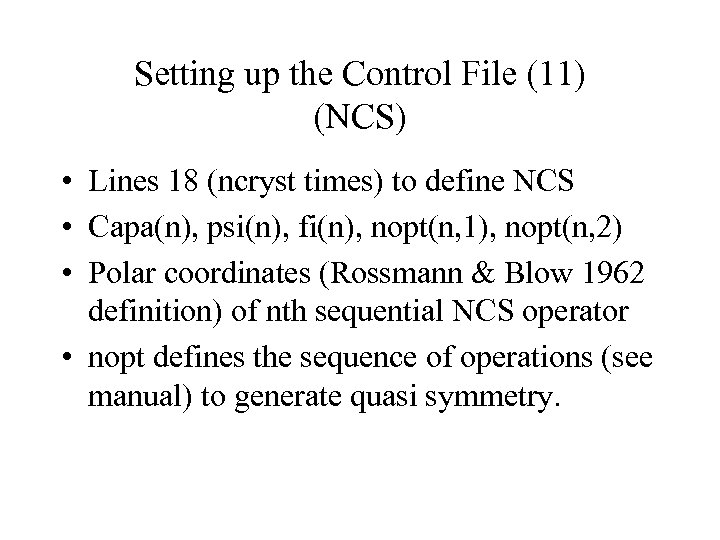

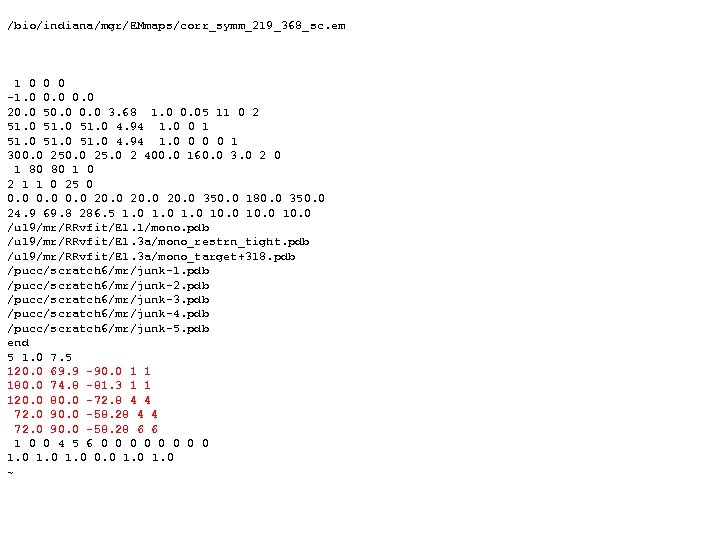

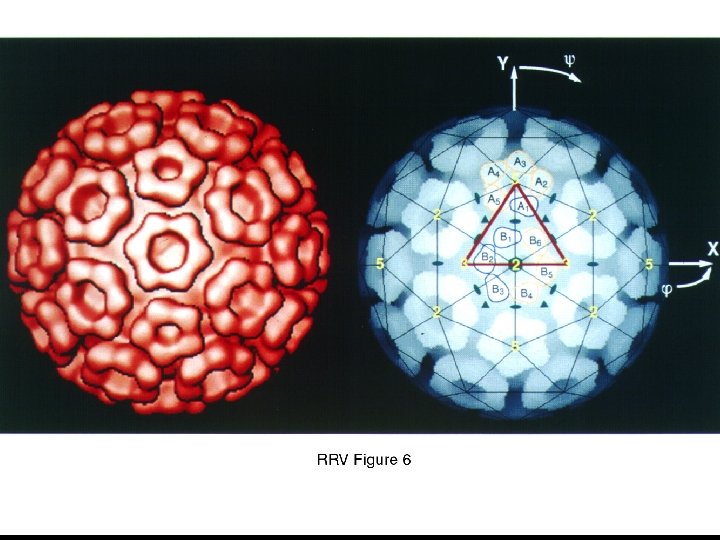

Setting up the Control File (11) (NCS) • Lines 18 (ncryst times) to define Setting up the Control File (11) (NCS) • Lines 18 (ncryst times) to define NCS • Capa(n), psi(n), fi(n), nopt(n, 1), nopt(n, 2) • Polar coordinates (Rossmann & Blow 1962 definition) of nth sequential NCS operator • nopt defines the sequence of operations (see manual) to generate quasi symmetry.

/bio/indiana/mgr/EMmaps/corr_symm_219_368_sc. em 1 0 0 0 -1. 0 0. 0 20. 0 50. 0 /bio/indiana/mgr/EMmaps/corr_symm_219_368_sc. em 1 0 0 0 -1. 0 0. 0 20. 0 50. 0 3. 68 1. 0 0. 05 11 0 2 51. 0 51. 0 4. 94 1. 0 0 1 300. 0 25. 0 2 400. 0 160. 0 3. 0 2 0 1 80 80 1 0 2 1 1 0 25 0 0. 0 20. 0 350. 0 180. 0 350. 0 24. 9 69. 8 286. 5 1. 0 10. 0 /u 19/mr/RRvfit/E 1. 1/mono. pdb /u 19/mr/RRvfit/E 1. 3 a/mono_restrn_tight. pdb /u 19/mr/RRvfit/E 1. 3 a/mono_target+318. pdb /pucc/scratch 6/mr/junk-1. pdb /pucc/scratch 6/mr/junk-2. pdb /pucc/scratch 6/mr/junk-3. pdb /pucc/scratch 6/mr/junk-4. pdb /pucc/scratch 6/mr/junk-5. pdb end 5 1. 0 7. 5 120. 0 69. 9 -90. 0 1 1 180. 0 74. 8 -81. 3 1 1 120. 0 80. 0 -72. 8 4 4 72. 0 90. 0 -58. 28 6 6 1 0 0 4 5 6 0 0 0 0 1. 0 0. 0 1. 0 ~

Line 13: STHETA 1, STHETA 2, STHETA 3, DTHETA 1, DTHETA 2, DTHETA 3, Line 13: STHETA 1, STHETA 2, STHETA 3, DTHETA 1, DTHETA 2, DTHETA 3, FTHETA 1, FTHETA 2. FTHETA 3 (free) (S_tart) Intial Eulerian angles, (D_elta) Increment the angles, (F_inish) Final Eulerian angles (used only for search) these limits are used only when isearch=2. When isearch=1 the limits are hard-wired as 0<=theta 1<360. in intervals of dtheta 1 0<=theta 2<180 in intervals of dtheta 2 0<=theta 3<360 in intervals of dtheta 3 Line 14: (CENTER(i), i=1, 3), DX, DY, DZ, (FXYZ(i), i=1, 3) (free) center(i), i=1, 3 Site in map 1 where the model's center of gravity is to be placed in A. relative to origin. dx, dy, dz increment in center position (center(i) +/- fxyz(i)) are the limits for the translational search or climb Line 15 a path to atomic model coordinates input file (PDB) Line 15 b path to PDB file of restraining atoms The temperature factor entry in the PDB file is to be used as the Dmax value. The distance of any restraining atom, when rotated into the density, must be less than Dmax from the approprite target position. Line 15 c path to PDB file of target position corresponding to every restraining atom. The x, y, z positions are the sites in the map to be used as targets. Every line in the "target" file corresponds to a line in the "restrain" file. BUT extra line in the target line correspond to sites that must be avoided, such as the carbohydrate site 318 on E 2 when fitting E 1. A sphere of rdif is drawn about these sites. Any fitted E 1 atom that falls within this sphere gets counted as being "NEAR". See the comments on weights below. line starting with PIXL can determine the pixel size used to determine target position. Here the xterm value is set to the "standard" pixel size. Then all target position coordinates are muliplied by base=a 1/standard. If no value for pixel is given as the first line of the file then base=1. 0 This option is useful when checking on the correct pixel size.

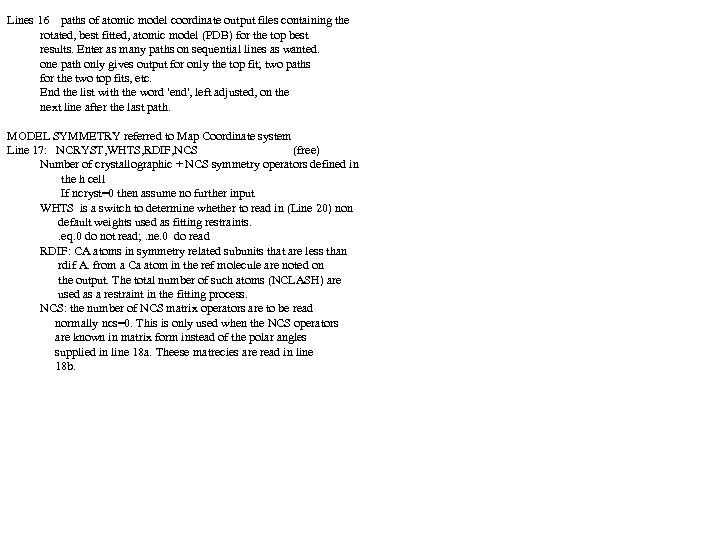

Lines 16 paths of atomic model coordinate output files containing the rotated, best fitted, Lines 16 paths of atomic model coordinate output files containing the rotated, best fitted, atomic model (PDB) for the top best results. Enter as many paths on sequential lines as wanted. one path only gives output for only the top fit; two paths for the two top fits, etc. End the list with the word 'end', left adjusted, on the next line after the last path. MODEL SYMMETRY referred to Map Coordinate system Line 17: NCRYST, WHTS, RDIF, NCS (free) Number of crystallographic + NCS symmetry operators defined in the h cell If ncryst=0 then assume no further input WHTS is a switch to determine whether to read in (Line 20) non default weights used as fitting restraints. . eq. 0 do not read; . ne. 0 do read RDIF: CA atoms in symmetry related subunits that are less than rdif A. from a Ca atom in the ref molecule are noted on the output. The total number of such atoms (NCLASH) are used as a restraint in the fitting process. NCS: the number of NCS matrix operators are to be read normally ncs=0. This is only used when the NCS operators are known in matrix form instead of the polar angles supplied in line 18 a. Theese matrecies are read in line 18 b.

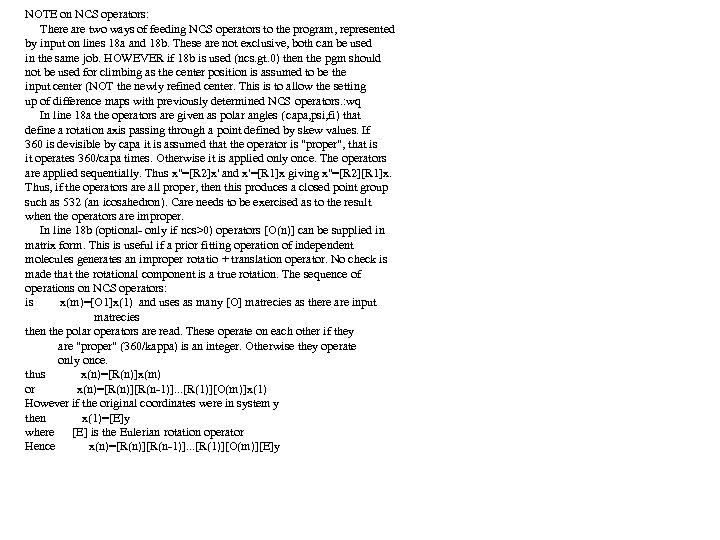

NOTE on NCS operators: There are two ways of feeding NCS operators to the NOTE on NCS operators: There are two ways of feeding NCS operators to the program, represented by input on lines 18 a and 18 b. These are not exclusive, both can be used in the same job. HOWEVER if 18 b is used (ncs. gt. 0) then the pgm should not be used for climbing as the center position is assumed to be the input center (NOT the newly refined center. This is to allow the setting up of difference maps with previously determined NCS operators. : wq In line 18 a the operators are given as polar angles (capa, psi, fi) that define a rotation axis passing through a point defined by skew values. If 360 is devisible by capa it is assumed that the operator is "proper", that is it operates 360/capa times. Otherwise it is applied only once. The operators are applied sequentially. Thus x''=[R 2]x' and x'=[R 1]x giving x''=[R 2][R 1]x. Thus, if the operators are all proper, then this produces a closed point group such as 532 (an icosahedron). Care needs to be exercised as to the result when the operators are improper. In line 18 b (optional- only if ncs>0) operators [O(n)] can be supplied in matrix form. This is useful if a prior fitting operation of independent molecules generates an improper rotatio + translation operator. No check is made that the rotational component is a true rotation. The sequence of operations on NCS operators: is x(m)=[O 1]x(1) and uses as many [O] matrecies as there are input matrecies then the polar operators are read. These operate on each other if they are "proper" (360/kappa) is an integer. Otherwise they operate only once. thus x(n)=[R(n)]x(m) or x(n)=[R(n)][R(n-1)]. . . [R(1)][O(m)]x(1) However if the original coordinates were in system y then x(1)=[E]y where [E] is the Eulerian rotation operator Hence x(n)=[R(n)][R(n-1)]. . . [R(1)][O(m)][E]y

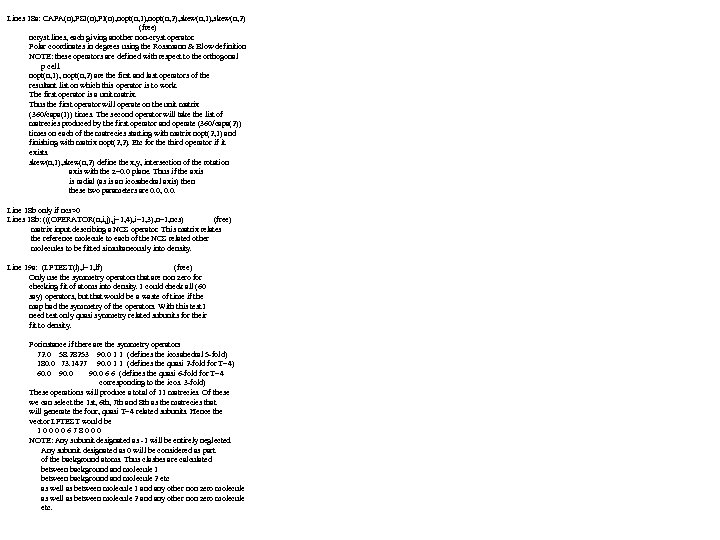

Lines 18 a: CAPA(n), PSI(n), FI(n), nopt(n, 1), nopt(n, 2), skew(n, 1), skew(n, 2) Lines 18 a: CAPA(n), PSI(n), FI(n), nopt(n, 1), nopt(n, 2), skew(n, 1), skew(n, 2) (free) ncryst lines, each giving another non-cryst operator. Polar coordinates in degrees using the Rossmann & Blow definition NOTE: these operators are defined with respect to the orthogonal p cell. nopt(n, 1), nopt(n, 2) are the first and last operators of the resultant list on which this operator is to work. The first operator is a unit matrix. Thus the first operator will operate on the unit matrix (360/capa(1)) times. The second operator will take the list of matrecies produced by the first operator and operate (360/capa(2)) times on each of the matrecies starting with matrix nopt(2, 1) and finishing with matrix nopt(2, 2). Etc for the third operator if it exists. skew(n, 1), skew(n, 2) define the x, y, intersection of the rotation axis with the z=0. 0 plane. Thus if the axis is radial (as is an icosahedral axis) then these two parameters are 0. 0, 0. 0. Line 18 b only if ncs>0 Lines 18 b: (((OPERATOR(n, i, j), j=1, 4), i=1, 3), n=1, ncs) (free) matrix input describing a NCS operator. This matrix relates the reference molecule to each of the NCS related other molecules to be fitted simultaneously into density. Line 19 a: (LFTEST(l), l=1, lf) (free) Only use the symmetry operators that are non zero for checking fit of atoms into density. I could check all (60 say) operators, but that would be a waste of time if the map had the symmetry of the operators. With this test I need test only quasi symmetry related subunits for their fit to density. Forinstance if there are the symmetry operators 72. 0 58. 28253 90. 0 1 1 (defines the icosahedral 5 -fold) 180. 0 73. 1427 90. 0 1 1 (defines the quasi 2 -fold for T=4) 60. 0 90. 0 6 6 (defines the quasi 6 -fold for T=4 corresponding to the icos. 3 -fold) These operations will produce a total of 11 matrecies. Of these we can select the 1 st, 6 th, 7 th and 8 th as the matrecies that will generate the four, quasi T=4 related subunits. Hence the vector LFTEST would be 10000678000 NOTE: Any subunit designated as -1 will be entirely neglected. Any subunit designated as 0 will be considered as part of the background atoms. Thus clashes are calculated between background and molecule 1 between background and molecule 2 etc as well as between molecule 1 and any other non zero molecule as well as between molecule 2 and any other non zero molecule etc.

Line 19 b: (TREF(i), i=1, lf) Give NCS symmetry number. For instance if T=4 Line 19 b: (TREF(i), i=1, lf) Give NCS symmetry number. For instance if T=4 there are 4 different NCS related molecules. All the others are related by crystallographic symmetry to one of the 4 independent NCS molecules. The value of the temperature factor in the O/P pdb file will be set to 100 - ((r * 100. 0)/biggest) where are is the density at that atom. For the example above TREF would be 11111234234 Line 20: (WHT(i), i=1, 6) (free) Read only if WHTS on line 17. ne. 0. these weights are applied to the restraints on : wht(1) maximizing SUMF, the fit into density wht(2) minimizing the number of atoms CLASHing between subunits wht(3) minimizing the number of atoms in density < average height wht(4) minimizing RMSDST of restraining to target atoms (not used) wht(5) minimizing AVGDST of restraining to target atoms. wht(6) minimizing NEAR, the number of atoms within rdif A. to another structure to be avoided Line 21: (only if isearch=3) N, Spsi, Fpsi, Dpsi, Sphi, Fphi, Dphi (free) N gives the nth NCS element that is to be explored Spsi, Fpsi, Dpsi is to be explored from Spsi to Fpsi in incs of Dpsi Sphi, Fphi, Dphi is to be explored from Spsi to Fphi in incs of Dphi

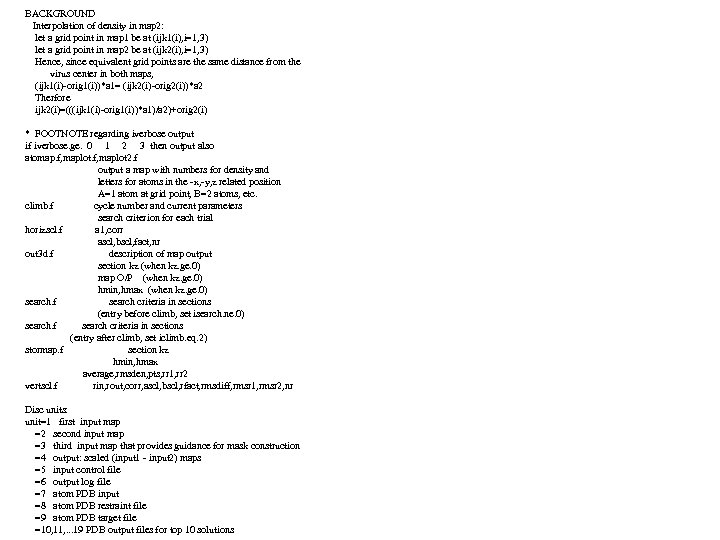

BACKGROUND Interpolation of density in map 2: let a grid point in map 1 BACKGROUND Interpolation of density in map 2: let a grid point in map 1 be at (ijk 1(i), i=1, 3) let a grid point in map 2 be at (ijk 2(i), i=1, 3) Hence, since equivalent grid points are the same distance from the virus center in both maps, (ijk 1(i)-orig 1(i))*a 1= (ijk 2(i)-orig 2(i))*a 2 Therfore ijk 2(i)=(((ijk 1(i)-orig 1(i))*a 1)/a 2)+orig 2(i) * FOOTNOTE regarding iverbose output if iverbose. ge. 0 1 2 3 then output also atomap. f, maplot 2. f output a map with numbers for density and letters for atoms in the -x, -y, z related position A=1 atom at grid point, B=2 atoms, etc. climb. f cycle number and current parameters search criterion for each trial horizscl. f a 1, corr ascl, bscl, fact, nr out 3 d. f description of map output section kz (when kz. ge. 0) map O/P (when kz. ge. 0) hmin, hmax (when kz. ge. 0) search. f search criteria in sections (entry before climb, set isearch. ne. 0) search. f search criteria in sections (entry after climb, set iclimb. eq. 2) stormap. f section kz hmin, hmax average, rmsden, pts, rr 1, rr 2 vertscl. f rin, rout, corr, ascl, bscl, rfact, rmsdiff, rmsr 1, rmsr 2, nr Disc units: unit=1 first input map =2 second input map =3 third input map that provides guidance for mask construction =4 output: scaled (input 1 - input 2) maps =5 input control file =6 output log file =7 atom PDB input =8 atom PDB restraint file =9 atom PDB target file =10, 11, . . . 19 PDB output files for top 10 solutions

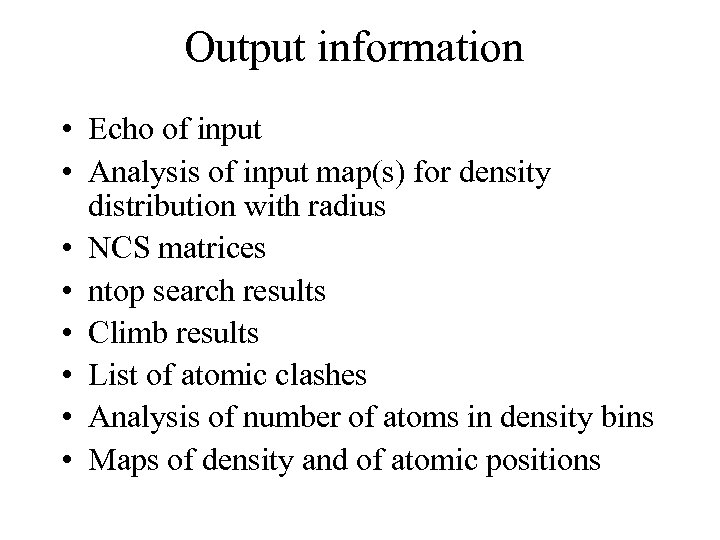

Output information • Echo of input • Analysis of input map(s) for density distribution Output information • Echo of input • Analysis of input map(s) for density distribution with radius • NCS matrices • ntop search results • Climb results • List of atomic clashes • Analysis of number of atoms in density bins • Maps of density and of atomic positions

CLOCKIT 04/25/10 11: 28: 45 CPU time (sec): User: . 010 Syst em: . CLOCKIT 04/25/10 11: 28: 45 CPU time (sec): User: . 010 Syst em: . 020 Page faults: 0 . 030 map 1 input file is called /bio/indiana/mgr/EMmaps/corr_symm_219_368_sc. em Purdue EM format map 2 is not in use map 3 is not in use map 4 is not in use first input EM map is scaled by -1. 0000 secnd input EM map is scaled by -1. 0000 third input EM map is scaled by -1. 0000 distance a 1 between pixels in first map increment a 1 by da 1 in na 1 steps distance a 2 between pixels in secnd map distance a 3 between pixels in secnd map origin pixels in first map. 00 origin pixels in secnd map 51. 00 origin pixels in third map 51. 00 move origin flags for the three maps 1 turn maps through 90 deg ? (0/1 no/yes) 0 ext. int. & inc for map scale determ. 25. 00 hand of maps 1. number of variables for scale factor set all density to zero beyond density within radrna not in mask is rna use only (rho 2 -ave_rho 2)>crit 1*rms(rho 2) verbosity of output apply local vertical scaling: 0=n, 1=y ismear, jsmear for mask making with map 3 maptype (0=diff; 1=map 1; 2=map 2) first and last section output print icosahedral triangle if icos. ne. 0 iwrstr: controls pre-superpositions 3. 680. 050 4. 940 20. 00 11 50. 00 51. 00 2 1 0 0 300. 00 250. 00 1. 2 400. 0 A. 160. 0 3. 00 2 0 0 1 80 1 0 0 80

ANALYSIS of MAP 1 pixel size 3. 6800, map center 20. 00 50. 00 ANALYSIS of MAP 1 pixel size 3. 6800, map center 20. 00 50. 00 rad in rad out pts ave den rms den hmin hmax. 00 25. 00 606. 3050. 83 1743. 15 -3400. 0 6400. 0 25. 00 50. 00 4327. 4740. 05 1195. 49 -400. 0 8000. 0 50. 00 75. 00 12152. 2451. 74 4810. 49 -21400. 0 15600. 0 75. 00 100. 00 21640. 1289. 17 4482. 59 -14600. 0 13600. 0 100. 00 125. 00 32014. -1049. 81 4176. 82 -14600. 0 13400. 0 125. 00 150. 00 45166. -874. 90 4839. 16 -19400. 0 14400. 0 150. 00 175. 00 59610. 821. 13 6425. 33 -25000. 0 19600. 0 175. 00 200. 00 72629. -3202. 23 16940. 57 -25400. 0 25600. 0 200. 00 225. 00 78123. 1997. 45 11417. 50 -25400. 0 25600. 0 225. 00 250. 00 78281. -588. 86 8889. 39 -25400. 0 25600. 0 250. 00 275. 00 74406. 2891. 47 11196. 51 -25400. 0 25600. 0 275. 00 300. 00 68771. 5221. 89 16345. 97 -25400. 0 25600. 0 300. 00 325. 00 64529. 1602. 89 16437. 26 -25400. 0 25600. 0 325. 00 350. 00 62330. 94 15526. 14 -25400. 0 25600. 0 350. 00 375. 00 60834. -7370. 78 6471. 90 -21800. 0 25600. 0 375. 00 400. 00 59937. -2822. 95 3315. 25 -16200. 0 4800. 0 400. 00 425. 00 50893. 83. 71 441. 18 -2200. 0 2800. 0 425. 00 450. 00 25670. -92. 39 103. 00 -400. 0 200. 0 450. 00 475. 00 7328. -95. 93 100. 19 -400. 0 200. 0 475. 00 500. 00 754. -106. 90 99. 76 -200. 0. 0 250. 00 300. 00 143177. 4010. 81 13958. 28. 00 1000. 00 880000. 59. 68 11344. 87 biggest absolute value on stored map is The number of pixels with this value is 25600. 0 33955

density distribution in map 1 rr 2 -5. 00 -4. 00 -3. 00 -2. density distribution in map 1 rr 2 -5. 00 -4. 00 -3. 00 -2. 00 -1. 00 2. 00 x rms density. 0 25. 0 0 0 606 0 0 25. 0 50. 0 0 0 4327 0 0 50. 0 75. 0 0 0 38 11955 159 0 75. 0 100. 0 0 0 27 21498 115 0 100. 0 125. 0 0 0 227 31758 29 0 125. 0 150. 0 0 0 605 44319 242 0 150. 0 175. 0 0 17 2200 54837 2556 0 175. 0 200. 0 0 13141 15125 26341 11089 6933 200. 0 225. 0 0 3884 7172 52346 13868 853 225. 0 250. 0 0 55 8929 61588 7438 271 250. 0 275. 0 0 904 9106 45610 18063 723 275. 0 300. 0 0 3503 11291 24243 16311 13423 300. 0 325. 0 0 1215 18834 22892 9326 12262 325. 0 350. 0 0 136 17528 26125 6786 11755 350. 0 375. 0 0 0 15135 44037 1418 244 375. 0 400. 0 0 0 432 59505 0 0 400. 0 425. 0 0 0 50893 0 0 425. 0 450. 0 0 0 25670 0 0 450. 0 475. 0 0 0 7328 0 0 475. 0 500. 0 0 0 754 0 0 3. 00 4. 00 5. 00 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

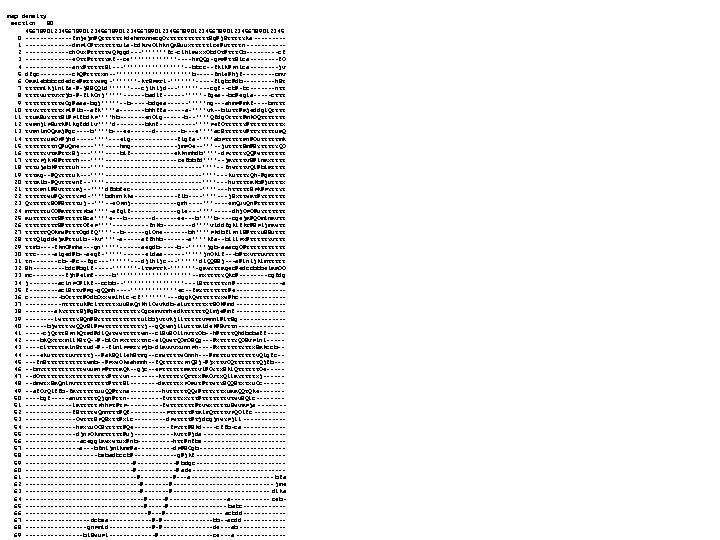

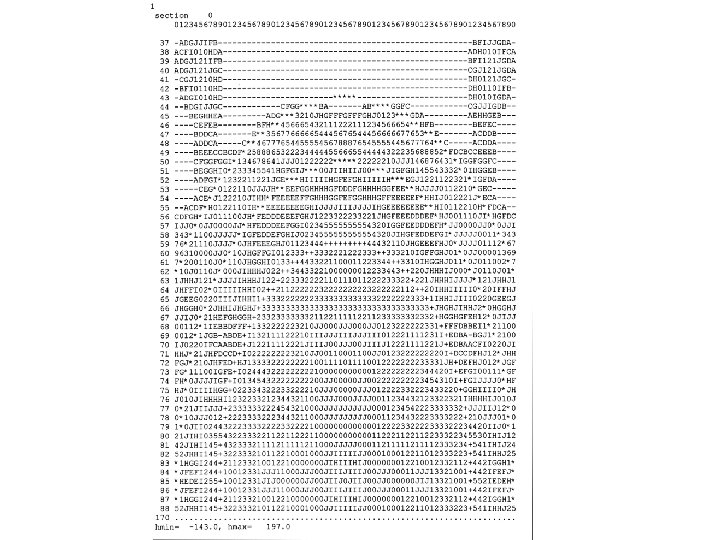

map density section 80 456789012345678901234567890123456789012345 0 -------fmjejm@QZZZZZZkdehm. TVmecg. OYZZZZZZSg@j. SZZZZYka ----1 -------dm. Pl. O@TXZZZZZUia-bdk. map density section 80 456789012345678901234567890123456789012345 0 [email protected] TVmecg. [email protected] SZZZZYka ----1 -------dm. Pl. [email protected] VWOihkn. [email protected] -----2 ------ch. [email protected]*******fc-cihi. RWXXObd. [email protected] 3 -------e. [email protected]*******----hm. QQg-g. [email protected] O 4 -------an. [email protected]*********[email protected] V 5 dfgc-----ck. [email protected]***********[email protected] V 6 [email protected]*******-k. TSPRTl-*******[email protected] SZ 7 [email protected] SSQQld******---cjihljd---******[email protected] ZZ 8 [email protected] Onj*****------badif------*****[email protected] TZZ 9 [email protected]*****--b-----bdgea------*****ng---ahm. [email protected] ZZZ 10 [email protected]****a-------bhhffa-----a-****Vk--bi. [email protected] QZZZZ 11 [email protected] P****hb-------en. Oig------b--****Qfdg. [email protected] OQTZZZZZZ 12 ZWRmjl. [email protected] V****d----bknf-----****Pef. [email protected] 13 ZVRnlm. [email protected]****b---ee------d-------b---e ****ac. [email protected] 14 [email protected]****---elg-------figfa-****ab. [email protected] 15 ZZZZZZZTn. [email protected]***----hmg-------jm. POe--***--j. [email protected] 16 [email protected]****----bif------ekknmhdb****-d. [email protected] 17 YZZYPjk. [email protected]****---------- cefbbfd****--j. [email protected] RXZZZZ 18 [email protected]****--------------****-- fn. [email protected] RZZZZ 19 [email protected]****--------------****--- k. [email protected] RZZZZ 20 [email protected]****--------------****--- h. [email protected] UZZTX 21 [email protected]****dfbbfec----------****--- h. [email protected] 22 [email protected]****bdhmnkke------fib----****--- j. [email protected] 23 [email protected]***--e. OPmj-------gmh----***----em. [email protected] 24 m. [email protected]****-afgif-------gle---****-----dhj. [email protected] 25 [email protected]****e---b-------d------ee---b ****b----cgej. [email protected] RVZZ 26 [email protected] P****-----fnkb----d****Vlddfgklfk. [email protected] RWZZ 27 ZZZZZTQOkm. [email protected] Q****--b------gi. One-------bh****Pkdbfl. Pnl. [email protected] 28 ZZZQlgddej. [email protected] V****-a-----affhhb-------a****kfa--bill. [email protected] 29 ZZmb----fkm. [email protected]*****------aegdb-----b--*****jgb-aaacg. [email protected] 30 [email protected]*****------eidaa------*****jn. [email protected] 31 [email protected]******---djlhijc---******dl. [email protected] TZZZZ 32 [email protected]*******-l. TRPTTk-*******-g. [email protected] RROO 33 [email protected]***********--m. [email protected] 34 j----acin. [email protected] --*********---i. [email protected] 35 f----aci. [email protected] QQmh ----*******ec--f. [email protected] c-----b. [email protected] OXXWRihic-cf *******---dggk. [email protected] -----n. [email protected] ZZZZZXUUSRQnkhi. OWVkdb-ai. [email protected] -------38 ----ak. [email protected] SZZZZZZYOgcem. VTmhedk. [email protected] -------39 ----l. [email protected] VZVkjil. [email protected] TSg ------40 ------bj. [email protected] QZWmjii. [email protected] -----cj. QZZZSPnk. [email protected] QWZWWZZZZZWm--cl. SVSOiin. [email protected] ----bk. QXZZXmiik. [email protected] On. PXZZZXTnc-el. QUWTQOm. [email protected]i----43 ----cl. TZZZZRln. [email protected] PPRZYPjb-dl. RVVVXUnn. [email protected] ----ek. [email protected] SQlieh. STmg--cm. [email protected] ZZZUZZZZZZZVQlgfc-45 ---fn. [email protected] QZZZZZYPn. [email protected] XZZVOQZZZZZZZQjfb--46 --bm. YZZZZZZWVURn. [email protected] [email protected] QZZZZZZOe----47 --d. [email protected] [email protected] RYZZZZXj-----48 --dm. WZXSRQmin. [email protected] [email protected] --af. OVQiffb-f. [email protected] [email protected] ----bgf-----an. [email protected] [email protected] -------i. RZZZZZPhh. [email protected] [email protected] -------52 -------f. SZZZZWQmn. [email protected]@ZRlm. QTZZZVPQOifc ----53 [email protected] [email protected] WYPjli ------54 -------h. [email protected] [email protected] ------55 -------djn. POkm. [email protected] [email protected] -----------56 --------aceggi. [email protected] [email protected] -----------57 --------a--- [email protected] [email protected] ------------58 ---------- [email protected]@jkf ------------59 [email protected]@ bdgc------------60 [email protected]@ ade-------------61 [email protected]@---a------------ bfa 62 [email protected] jme 63 [email protected] dlka 64 [email protected] ceb 65 [email protected] babc------66 [email protected] acbdd------67 [email protected]@-------bb--acdd ------68 ---------gn. [email protected]@-------de---ab ------69 --------bl. [email protected] -------

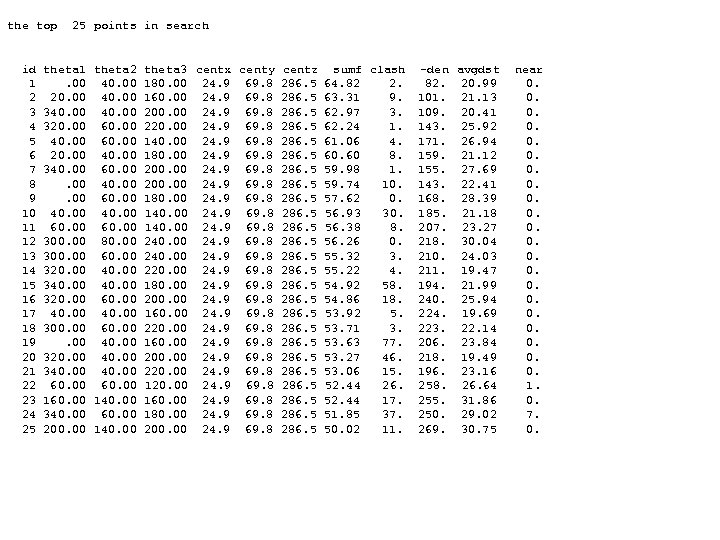

the top id 1 2 3 4 5 6 7 8 9 10 11 the top id 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 25 points in search theta 1 theta 2 theta 3 centx centy centz sumf clash -den. 00 40. 00 180. 00 24. 9 69. 8 286. 5 64. 82 2. 82. 20. 00 40. 00 160. 00 24. 9 69. 8 286. 5 63. 31 9. 101. 340. 00 200. 00 24. 9 69. 8 286. 5 62. 97 3. 109. 320. 00 60. 00 220. 00 24. 9 69. 8 286. 5 62. 24 1. 143. 40. 00 60. 00 140. 00 24. 9 69. 8 286. 5 61. 06 4. 171. 20. 00 40. 00 180. 00 24. 9 69. 8 286. 5 60. 60 8. 159. 340. 00 60. 00 200. 00 24. 9 69. 8 286. 5 59. 98 1. 155. . 00 40. 00 200. 00 24. 9 69. 8 286. 5 59. 74 10. 143. . 00 60. 00 180. 00 24. 9 69. 8 286. 5 57. 62 0. 168. 40. 00 140. 00 24. 9 69. 8 286. 5 56. 93 30. 185. 60. 00 140. 00 24. 9 69. 8 286. 5 56. 38 8. 207. 300. 00 80. 00 24. 9 69. 8 286. 5 56. 26 0. 218. 300. 00 60. 00 24. 9 69. 8 286. 5 55. 32 3. 210. 320. 00 40. 00 220. 00 24. 9 69. 8 286. 5 55. 22 4. 211. 340. 00 180. 00 24. 9 69. 8 286. 5 54. 92 58. 194. 320. 00 60. 00 200. 00 24. 9 69. 8 286. 5 54. 86 18. 240. 00 160. 00 24. 9 69. 8 286. 5 53. 92 5. 224. 300. 00 60. 00 220. 00 24. 9 69. 8 286. 5 53. 71 3. 223. . 00 40. 00 160. 00 24. 9 69. 8 286. 5 53. 63 77. 206. 320. 00 40. 00 200. 00 24. 9 69. 8 286. 5 53. 27 46. 218. 340. 00 220. 00 24. 9 69. 8 286. 5 53. 06 15. 196. 60. 00 120. 00 24. 9 69. 8 286. 5 52. 44 26. 258. 160. 00 140. 00 160. 00 24. 9 69. 8 286. 5 52. 44 17. 255. 340. 00 60. 00 180. 00 24. 9 69. 8 286. 5 51. 85 37. 250. 200. 00 140. 00 200. 00 24. 9 69. 8 286. 5 50. 02 11. 269. avgdst 20. 99 21. 13 20. 41 25. 92 26. 94 21. 12 27. 69 22. 41 28. 39 21. 18 23. 27 30. 04 24. 03 19. 47 21. 99 25. 94 19. 69 22. 14 23. 84 19. 49 23. 16 26. 64 31. 86 29. 02 30. 75 near 0. 0. 0. 1. 0. 7. 0.

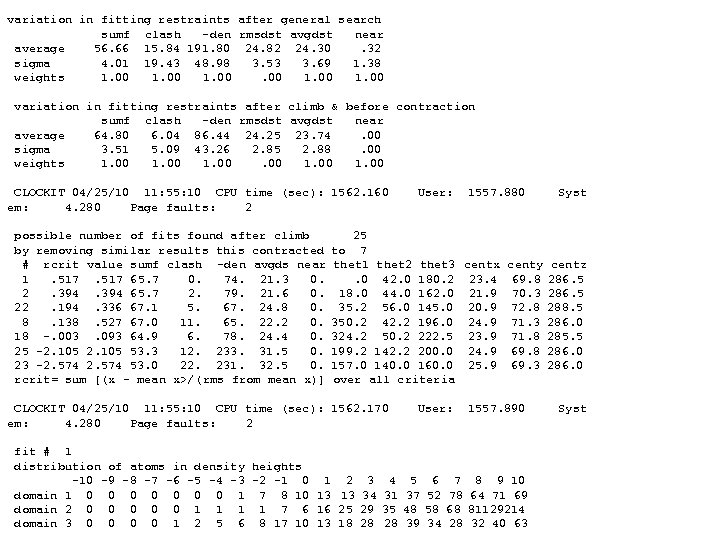

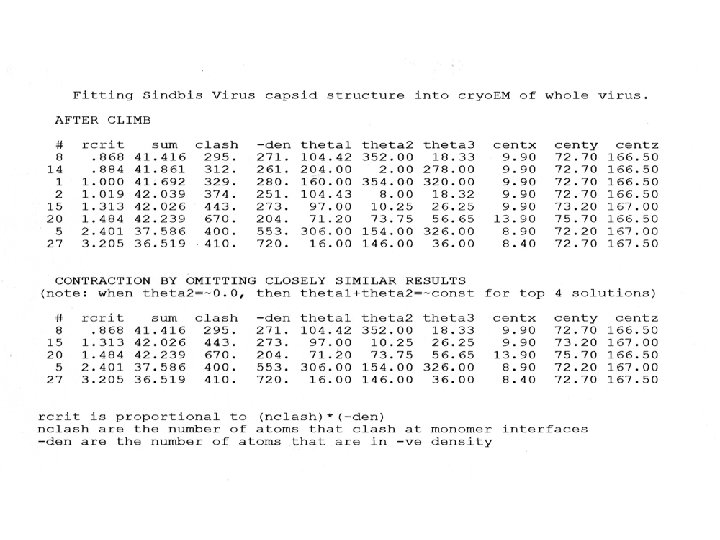

variation in fitting restraints after general search sumf clash -den rmsdst avgdst near average variation in fitting restraints after general search sumf clash -den rmsdst avgdst near average 56. 66 15. 84 191. 80 24. 82 24. 30. 32 sigma 4. 01 19. 43 48. 98 3. 53 3. 69 1. 38 weights 1. 00 variation in fitting restraints after climb & before contraction sumf clash -den rmsdst avgdst near average 64. 80 6. 04 86. 44 24. 25 23. 74. 00 sigma 3. 51 5. 09 43. 26 2. 85 2. 88. 00 weights 1. 00 CLOCKIT 04/25/10 11: 55: 10 CPU time (sec): 1562. 160 em: 4. 280 Page faults: 2 possible number of fits found after climb by removing similar results this contracted # rcrit value sumf clash -den avgds near 1. 517 65. 7 0. 74. 21. 3 0. 2. 394 65. 7 2. 79. 21. 6 0. 22. 194. 336 67. 1 5. 67. 24. 8 0. 8. 138. 527 67. 0 11. 65. 22. 2 0. 18 -. 003. 093 64. 9 6. 78. 24. 4 0. 25 -2. 105 53. 3 12. 233. 31. 5 0. 23 -2. 574 53. 0 22. 231. 32. 5 0. rcrit= sum [(x - mean x>/(rms from mean x)] User: 1557. 880 Syst 25 to 7 thet 1 thet 2 thet 3 centx centy centz. 0 42. 0 180. 2 23. 4 69. 8 286. 5 18. 0 44. 0 162. 0 21. 9 70. 3 286. 5 35. 2 56. 0 145. 0 20. 9 72. 8 288. 5 350. 2 42. 2 196. 0 24. 9 71. 3 286. 0 324. 2 50. 2 222. 5 23. 9 71. 8 285. 5 199. 2 142. 2 200. 0 24. 9 69. 8 286. 0 157. 0 140. 0 160. 0 25. 9 69. 3 286. 0 over all criteria CLOCKIT 04/25/10 11: 55: 10 CPU time (sec): 1562. 170 em: 4. 280 Page faults: 2 fit # 1 distribution of atoms in density heights -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 0 1 2 3 domain 1 0 0 0 0 1 7 8 10 13 13 34 domain 2 0 0 0 1 1 7 6 16 25 29 domain 3 0 0 1 2 5 6 8 17 10 13 18 28 4 31 35 28 User: 5 37 48 39 6 52 58 34 7 78 68 28 1557. 890 8 9 10 64 71 69 81129214 32 40 63 Syst

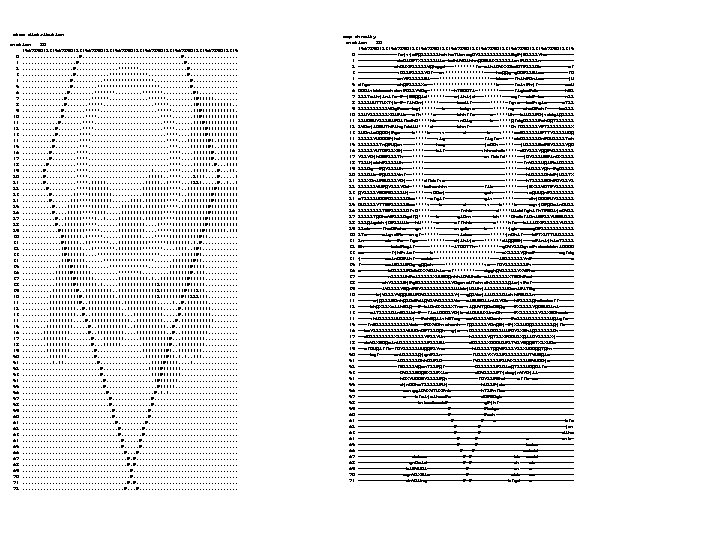

atom distribution section 80 456789012345678901234567890123456789012345 0. . . . . @. . . . atom distribution section 80 456789012345678901234567890123456789012345 0. . . . . @. . . . 1. . . . . @. . . . 2. . . . @. . . *******. . . . @. . . . 3. . . . @. . . *******. . . @. . . . 4. . . . @. . *********. . . @. . . . 5. . . . @. . . . ***********. . @. . . . 6. . . . @. . . . *******. . . @1. . . 7. . . @. . . . ******. . . [email protected] . . . 8. . . @. . . . *****. . . . [email protected] . 9. . . @. . . . *****. . . . [email protected] 10. . . @. . . . ****. . . . [email protected] 11. . . @. . . . ****. . . [email protected] 12. . . @. . . . ****. . . [email protected] 13. . . @. . . . ****. . [email protected] 14. . @. . . . ****. . . [email protected] 1111111 15. . @. . . . ***. . [email protected] . 111111 16. . @. . . . ****. . [email protected] . 111111 17. . @. . . . ****. . [email protected] . 111111 18. . . . @. . ****. . 111111. @. . . 1111 19. . . . @. . ****. . . . . 1. . . ****. . 11111. . . @. . . 11. 20. . . . @. . ****. . . . . 11111. . ****. . 2111. . @. . . 1 21. . . . @. . ****. 11111. . 1****. . . 1221. . . @. . 1 22. . . . @. . ****1111111. . . 11111****. . [email protected] 23. . @. . . . 11***1111. . 11111***1. . [email protected] 24. . @. . . 111****1111111. . . 1111111****. . [email protected] 25. . @. . 1111****111111. . 1111111****. [email protected] 26. . @. . 11111****1111. . . 1111111****[email protected] 27. . . @. . 111111****1. . . . 111111****[email protected] 28. . . @. . 1111111****. . . . 11111. . 1****[email protected] 29. . . @1111*****. . . 11111. . *****[email protected] 111 30. . . @111111. 1*****. . . 1111111. . *****[email protected] . 31. . . @11111. . 11******. . . 11111******1111. 1. @. . . 32. . . [email protected] . . 1*******. 1111*******. . 1111. . [email protected] . . 33. . . [email protected] . ***********. . . . [email protected] . . 34. . . [email protected] . . *********. . . [email protected] . . 35. . . [email protected] . . . *******. . . . [email protected] . . 36. . . [email protected] . *******1. . [email protected] 111. . . 37. . . [email protected] . . . 11111. 1. . [email protected] . . 38. . . [email protected] 1. . . [email protected] . . 39. . [email protected] . [email protected] . . 40. . [email protected] [email protected] . 41. . [email protected] . 11111111111. . @. 1111111. . 42. . 11111. . @. 111111. . . @. 11111. . 43. . 11111. . @. . 111111. . . @. 11111. . 44. . 1111. . @. 1111111. . @. 111111. . . . 45. . . . 11111. . . @. . 11111111111. . @. . 11111. . 46. . . . 11111. . . @. . 11111. . 47. . . . 1111. . . . @. . . 1111111. . . [email protected] . . 1111. . . 48. . . . 1111. . . . @. . . 111111. . . . [email protected] . 11111. . . 49. . . . 1111. . . . @. . . . [email protected] . 1111. . . 50. . 111111. . @. . . . [email protected] 1. 1. . 111. . . 51. . 1. 11. . . @. . . . [email protected] . . . . 52. . . @. . . . [email protected] . . . . 53. . . @. . . . [email protected] . . . . 54. . . . @. . . . [email protected] . . . . 55. . . . @11111. . . . . 56. . . . @. 1. 1. . . 57. . . . @. . . . . 58. . . . @. . . . . 59. . . . @. . . . . 60. . . . @. . . . . 61. . . . @. . . . . 62. . . . @. . . . . 63. . . . @. . . . . 64. . . . @. . . . . 65. . . . @. . . . . 66. . . . @. . . . . 67. . . . . @. @. . . . 68. . . . . @. @. . . . 69. . . . . @. . . . . 70. . . . . @. . . . . 71. . . . . @. @. . . . 72. . . . @. . . . . map density section 80 456789012345678901234567890123456789012345 0 [email protected] TVmecg. [email protected] SZZZZYka----1 -------dm. Pl. [email protected] VWOihkn. [email protected] ------ch. [email protected]*******fc-cihi. RWXXObd. [email protected] 3 -------e. [email protected]*******----hm. QQg-g. [email protected] O 4 -------an. [email protected]*********[email protected] V 5 dfgc-----ck. [email protected]***********[email protected] V 6 [email protected]*******-k. TSPRTl-*******[email protected] SZ 7 [email protected] SSQQld******---cjihljd---******[email protected] ZZ 8 [email protected] Onj*****------badif------*****[email protected] TZZ 9 [email protected]*****--b-----bdgea------*****ng---ahm. [email protected] ZZZ 10 [email protected]****a-------bhhffa-----a-****Vk--bi. [email protected] QZZZZ 11 [email protected] P****hb-------en. Oig------b--****Qfdg. [email protected] OQTZZZZZZ 12 ZWRmjl. [email protected] V****d----bknf-----****Pef. [email protected] 13 ZVRnlm. [email protected]****b---ee------d-------b---e****ac. [email protected] 14 [email protected]****---elg-------figfa-****ab. [email protected] 15 ZZZZZZZTn. [email protected]***----hmg-------jm. POe--***--j. [email protected] 16 [email protected]****----bif------ekknmhdb****-d. [email protected] 17 YZZYPjk. [email protected]****----------cefbbfd****--j. [email protected] RXZZZZ 18 [email protected]****--------------****--fn. [email protected] RZZZZ 19 [email protected]****--------------****---k. [email protected] RZZZZ 20 [email protected]****--------------****---h. [email protected] UZZTX 21 [email protected]****dfbbfec----------****---h. [email protected] 22 [email protected]****bdhmnkke------fib----****---j. [email protected] 23 [email protected]***--e. OPmj-------gmh----***----em. [email protected] 24 m. [email protected]****-afgif-------gle---****-----dhj. [email protected] 25 [email protected]****e---b-------d------ee---b****b----cgej. [email protected] RVZZ 26 [email protected] P****-----fnkb----d****Vlddfgklfk. [email protected] RWZZ 27 ZZZZZTQOkm. [email protected] Q****--b------gi. One-------bh****Pkdbfl. Pnl. [email protected] 28 ZZZQlgddej. [email protected] V****-a-----affhhb-------a****kfa--bill. [email protected] 29 ZZmb----fkm. [email protected]*****------aegdb-----b--*****jgb-aaacg. [email protected] 30 [email protected]*****------eidaa------*****jn. [email protected] 31 [email protected]******---djlhijc---******dl. [email protected] TZZZZ 32 [email protected]*******-l. TRPTTk-*******-g. [email protected]bel. RROO 33 [email protected]***********--m. [email protected] 34 j----acin. [email protected]*********---i. [email protected] 35 f----aci. [email protected] QQmh----*******ec--f. [email protected] c-----b. [email protected] OXXWRihic-cf*******---dggk. [email protected] -----n. [email protected] ZZZZZXUUSRQnkhi. OWVkdb-ai. [email protected] ----ak. [email protected] SZZZZZZYOgcem. VTmhedk. [email protected] ----l. [email protected] VZVkjil. [email protected] TSg------40 ------bj. [email protected] QZWmjii. [email protected] -----cj. QZZZSPnk. [email protected] QWZWWZZZZZWm--cl. SVSOiin. [email protected] ----bk. QXZZXmiik. [email protected] On. PXZZZXTnc-el. QUWTQOm. [email protected] ----cl. TZZZZRln. [email protected] PPRZYPjb-dl. RVVVXUnn. [email protected] ----ek. [email protected] SQlieh. STmg--cm. [email protected] ZZZUZZZZZZZVQlgfc-45 ---fn. [email protected] QZZZZZYPn. [email protected] XZZVOQZZZZZZZQjfb--46 --bm. YZZZZZZWVURn. [email protected] [email protected] QZZZZZZOe----47 --d. [email protected] [email protected] RYZZZZXj-----48 --dm. WZXSRQmin. [email protected] [email protected] --af. OVQiffb-f. [email protected] [email protected] ----bgf-----an. [email protected] [email protected] -------i. RZZZZZPhh. [email protected] [email protected] -------f. SZZZZWQmn. [email protected]@ZRlm. QTZZZVPQOifc----53 [email protected] [email protected] WYPjli------54 -------h. [email protected] [email protected] -------djn. POkm. [email protected] [email protected] --------aceggi. [email protected] [email protected] [email protected] [email protected] [email protected]@jkf------------59 [email protected]@bdgc------------60 [email protected]@ade-------------61 [email protected]@---a------------bfa 62 [email protected] 63 [email protected] 64 [email protected] 65 [email protected] [email protected] [email protected]@-------bb--acdd------68 ---------gn. [email protected]@-------de---ab------69 --------bl. [email protected] --------agn. [email protected] --------dn. [email protected]@------bfgd---a-------
