The details and connections of the PDMS full-disclosure

The details and connections of the PDMS/ full-disclosure system currently in use. connections and extensions to be created in the future September 8 th 2005 A. van Dusseldorp

AIS-VUmc Amsterdam • • web-based platform independent programming-language independent real-time recording full disclosure open architecture HTML-conversion standard tools

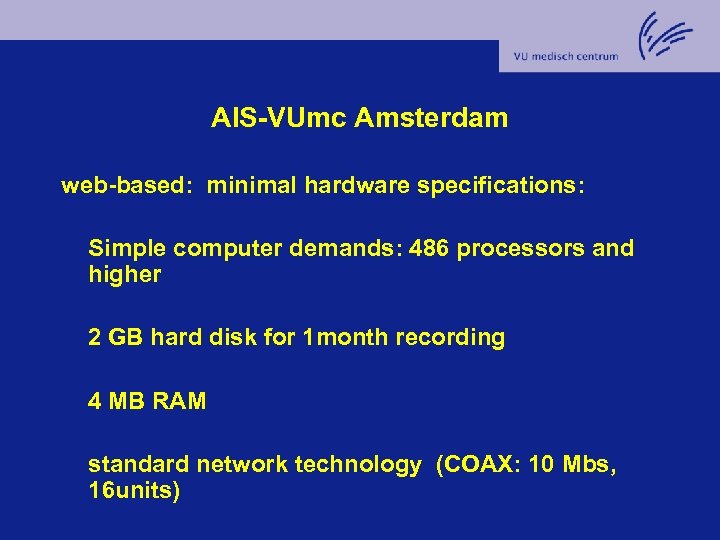

AIS-VUmc Amsterdam web-based: minimal hardware specifications: Simple computer demands: 486 processors and higher 2 GB hard disk for 1 month recording 4 MB RAM standard network technology (COAX: 10 Mbs, 16 units)

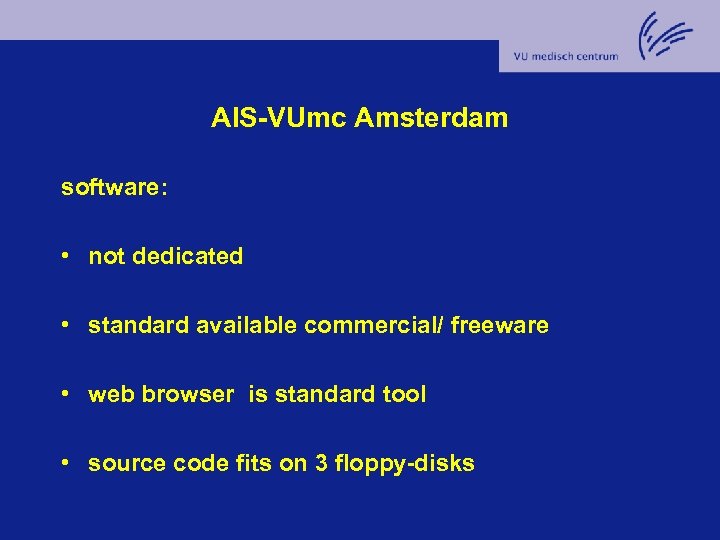

AIS-VUmc Amsterdam software: • not dedicated • standard available commercial/ freeware • web browser is standard tool • source code fits on 3 floppy-disks

AIS-VUmc Amsterdam open architecture: • independent program-modules • generating web services • access from any direction • communication in any direction

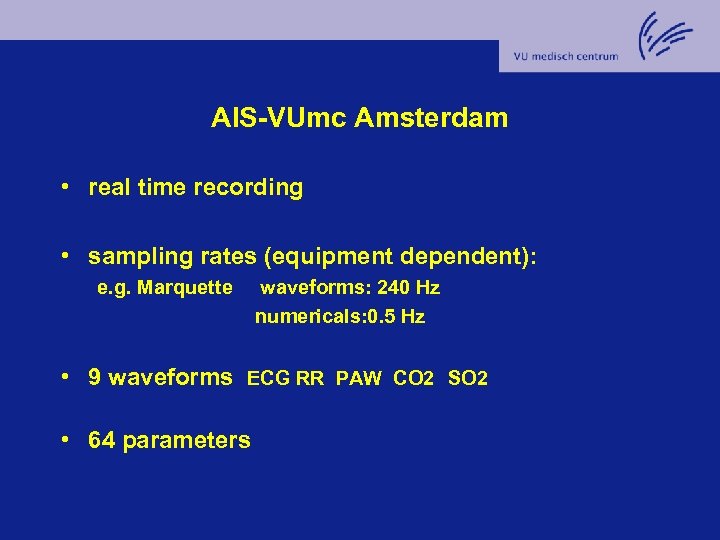

AIS-VUmc Amsterdam • real time recording • sampling rates (equipment dependent): e. g. Marquette waveforms: 240 Hz numericals: 0. 5 Hz • 9 waveforms ECG RR PAW CO 2 SO 2 • 64 parameters

AIS-VUmc Amsterdam security aspects: physical separation physical addresses firewall encryption?

AIS-VUmc Amsterdam

AIS-VUmc Amsterdam

AIS-VUmc Amsterdam

AIS-VUmc Amsterdam

AIS-VUmc Amsterdam

AIS-VUmc Amsterdam

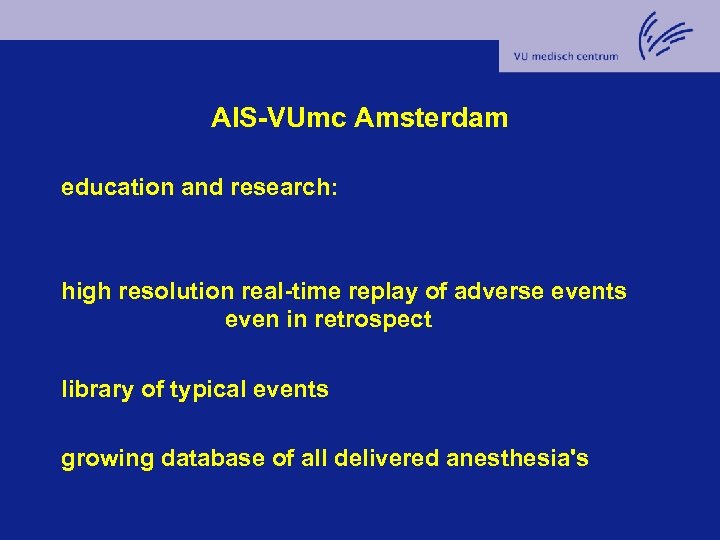

AIS-VUmc Amsterdam education and research: high resolution real-time replay of adverse events even in retrospect library of typical events growing database of all delivered anesthesia's

AIS-VUmc Amsterdam future developments: further integration of existing hospital data systems automated artifact suppression expert system for pattern recognition development of management tools
