The design of HEPS digital BPM electronics BI Group, accelerator division 2015. 3. 18 1

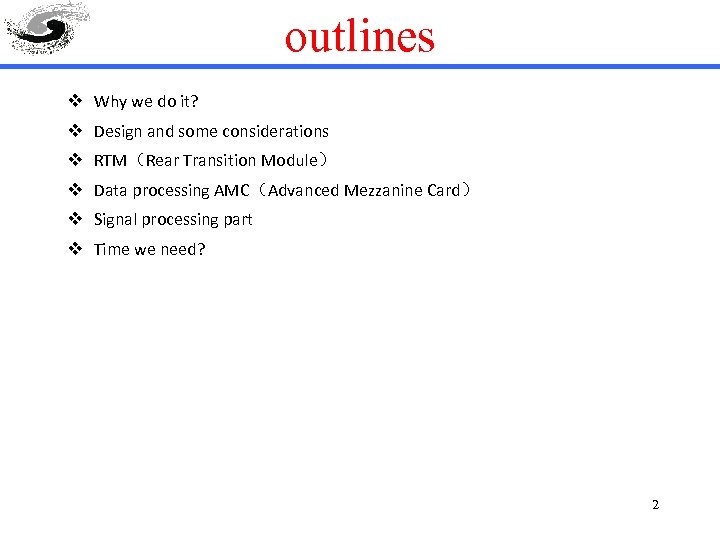

outlines v Why we do it? v Design and some considerations v RTM（Rear Transition Module） v Data processing AMC（Advanced Mezzanine Card） v Signal processing part v Time we need? 2

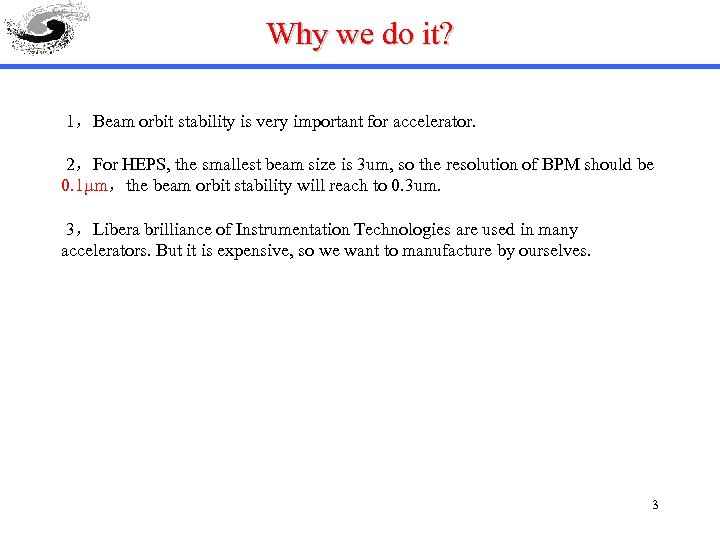

Why we do it? 1，Beam orbit stability is very important for accelerator. 2，For HEPS, the smallest beam size is 3 um, so the resolution of BPM should be 0. 1µm，the beam orbit stability will reach to 0. 3 um. 3，Libera brilliance of Instrumentation Technologies are used in many accelerators. But it is expensive, so we want to manufacture by ourselves. 3
System Design We take micro. Tc. A. 4 as the architecture，which includes analog electronics-RTM（Rear Transition Module）and digital signal processing module-AMC（Advanced Mezzanine Card）。The important work includes software work and hardware work, we do them at the same to save the time. software： 1，bunch by bunch diagnostic tool based on BEECube platform can verify signal processing algorithm. 2，To buy some commercial hardware based on micro. Tc. A, on which software work will be done. hardware： 1，to design and manufacture the analog module and digital module, then transfer the software to it. 4 数字BPM研制方案

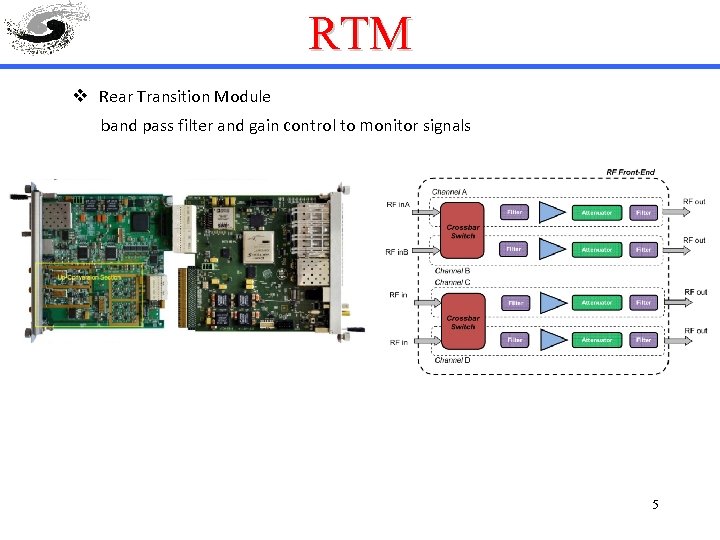

RTM v Rear Transition Module band pass filter and gain control to monitor signals 5

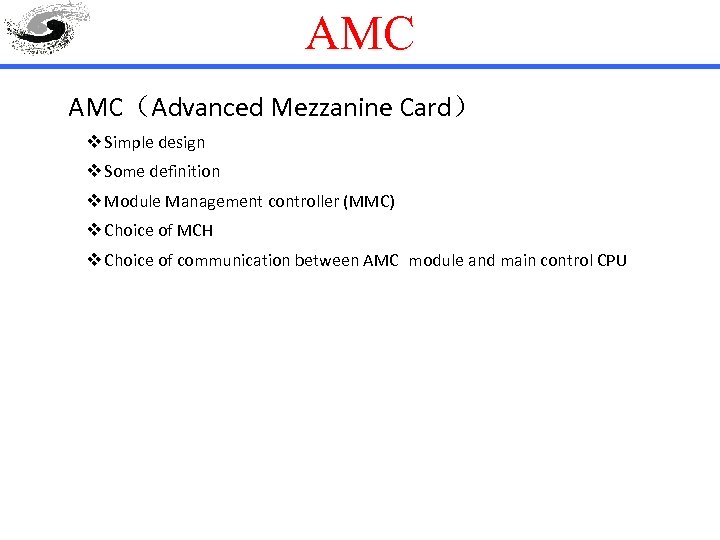

AMC AMC（Advanced Mezzanine Card） v Simple design v Some definition v Module Management controller (MMC) v Choice of MCH v Choice of communication between AMC module and main control CPU

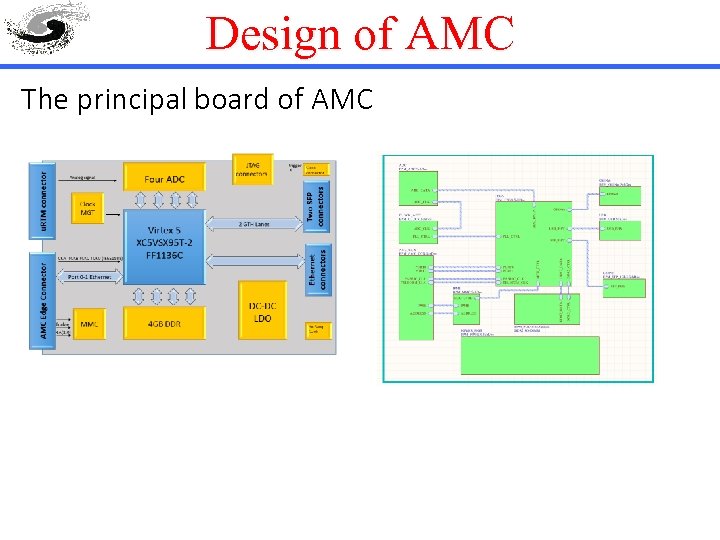

Design of AMC The principal board of AMC

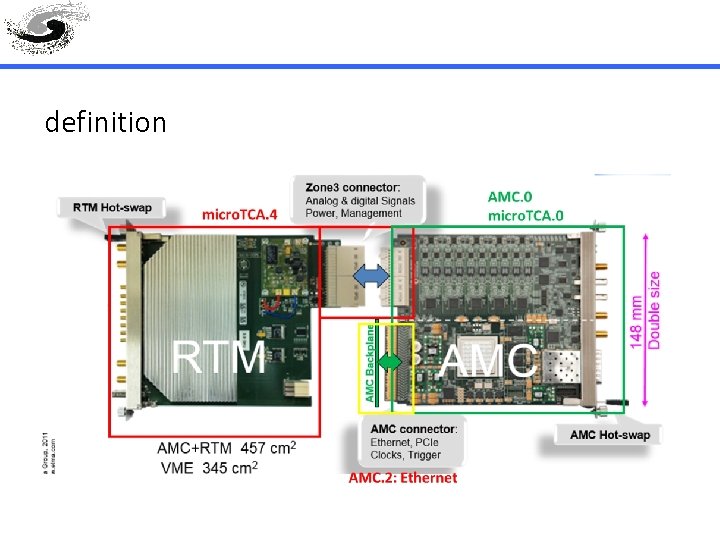

definition

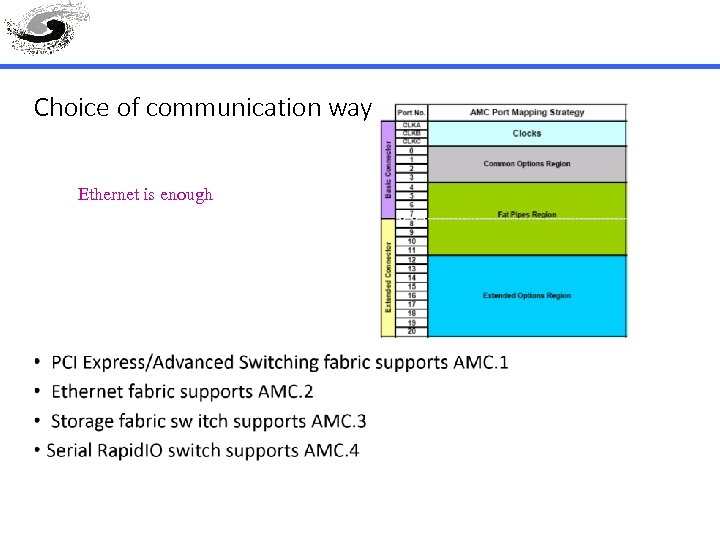

Choice of communication way Ethernet is enough

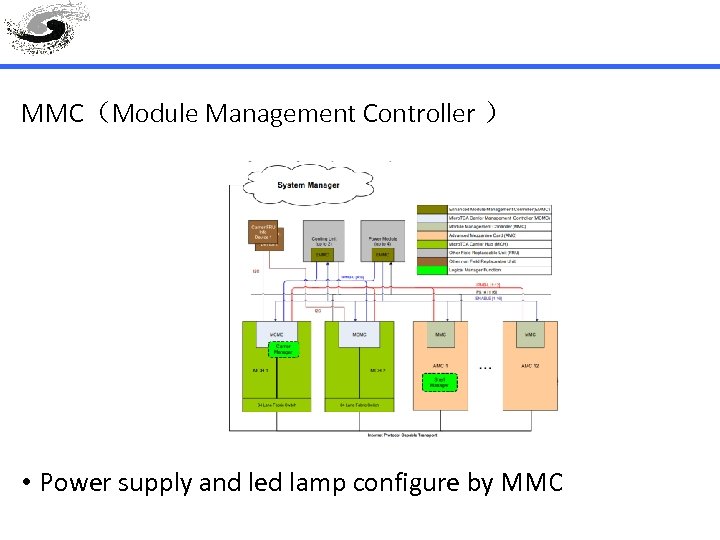

MMC（Module Management Controller ） • Power supply and led lamp configure by MMC

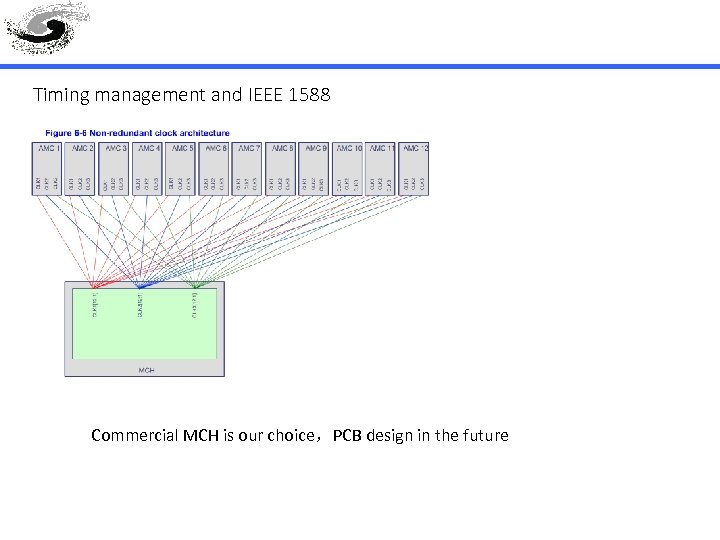

Timing management and IEEE 1588 Commercial MCH is our choice，PCB design in the future

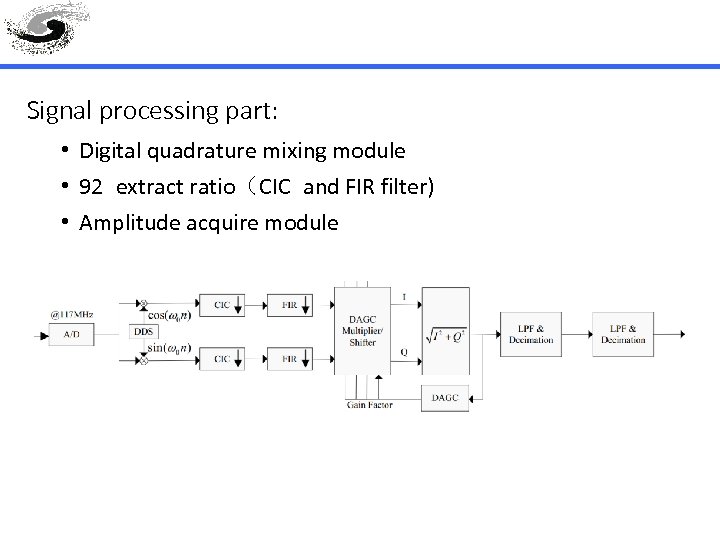

Signal processing part: • Digital quadrature mixing module • 92 extract ratio（CIC and FIR filter) • Amplitude acquire module

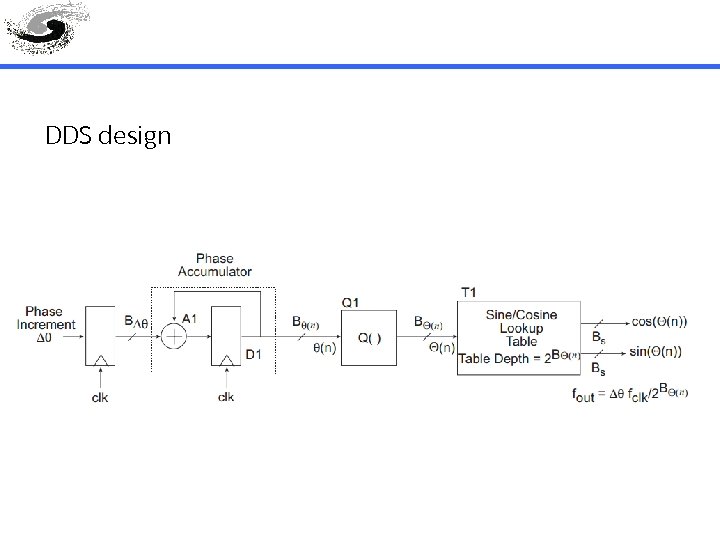

DDS design

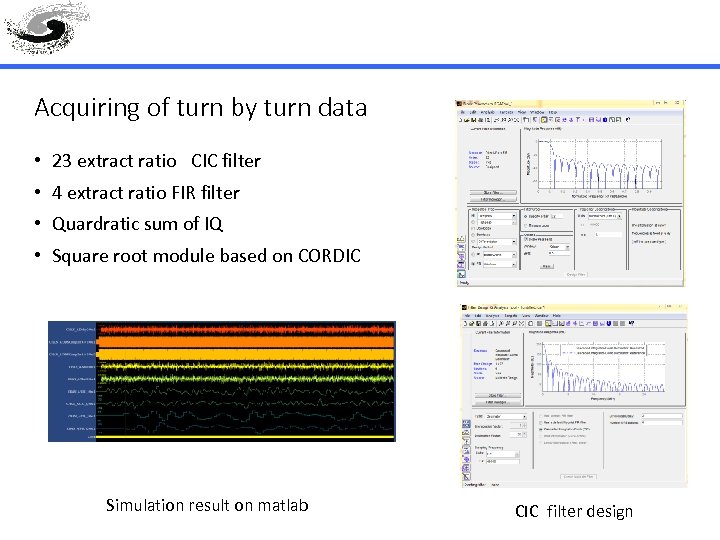

Acquiring of turn by turn data • 23 extract ratio CIC filter • 4 extract ratio FIR filter • Quardratic sum of IQ • Square root module based on CORDIC Simulation result on matlab CIC filter design

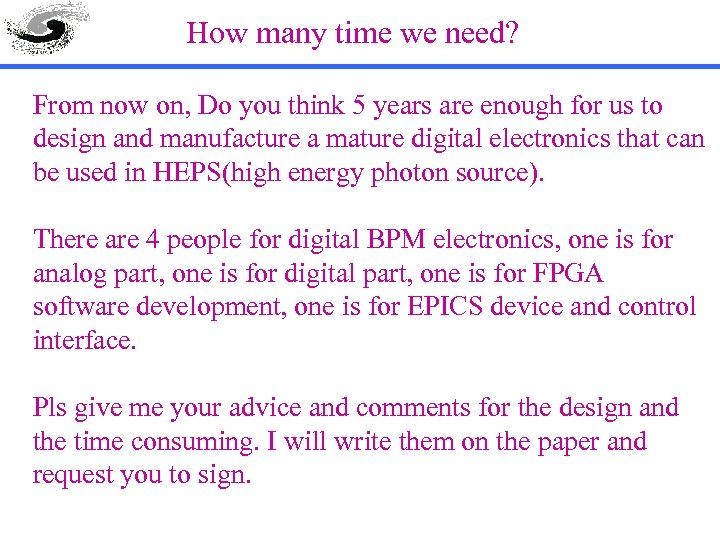

How many time we need? From now on, Do you think 5 years are enough for us to design and manufacture a mature digital electronics that can be used in HEPS(high energy photon source). There are 4 people for digital BPM electronics, one is for analog part, one is for digital part, one is for FPGA software development, one is for EPICS device and control interface. Pls give me your advice and comments for the design and the time consuming. I will write them on the paper and request you to sign.
