The Cost of Doing Nothing the video Energy

The Cost of Doing Nothing (the video) Energy Efficiency Retrofits For Your Home! (the webinar) August 18, 2011 James Fenton A Research Institute of the University of Central Florida

5: 53 minute video http: //www. vimeo. com/14676549 FLORIDA SOLAR ENERGY CENTER — A Research Institute of the University of Central Florida 2

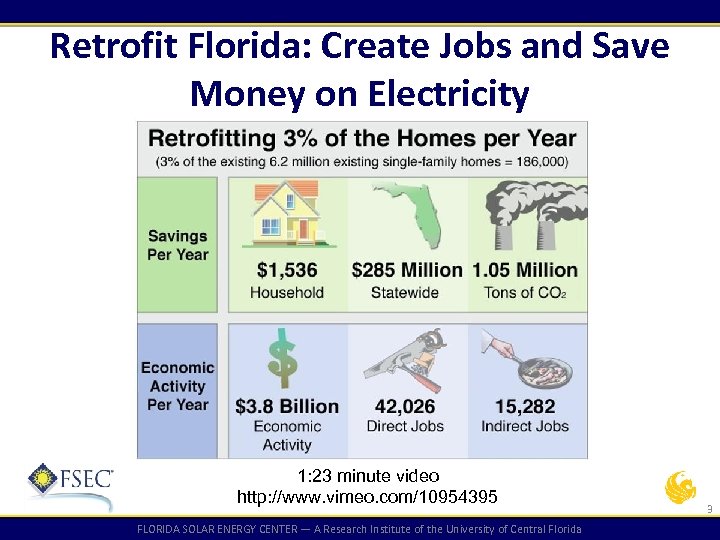

Retrofit Florida: Create Jobs and Save Money on Electricity 1: 23 minute video http: //www. vimeo. com/10954395 FLORIDA SOLAR ENERGY CENTER — A Research Institute of the University of Central Florida 3

3: 33 minute video http: //www. vimeo. com/24514610 FLORIDA SOLAR ENERGY CENTER — A Research Institute of the University of Central Florida 4

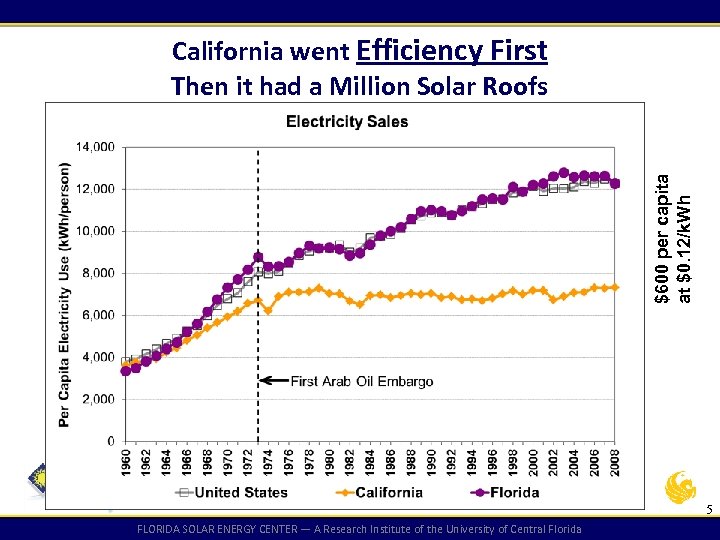

$600 per capita at $0. 12/k. Wh California went Efficiency First Then it had a Million Solar Roofs 5 FLORIDA SOLAR ENERGY CENTER — A Research Institute of the University of Central Florida

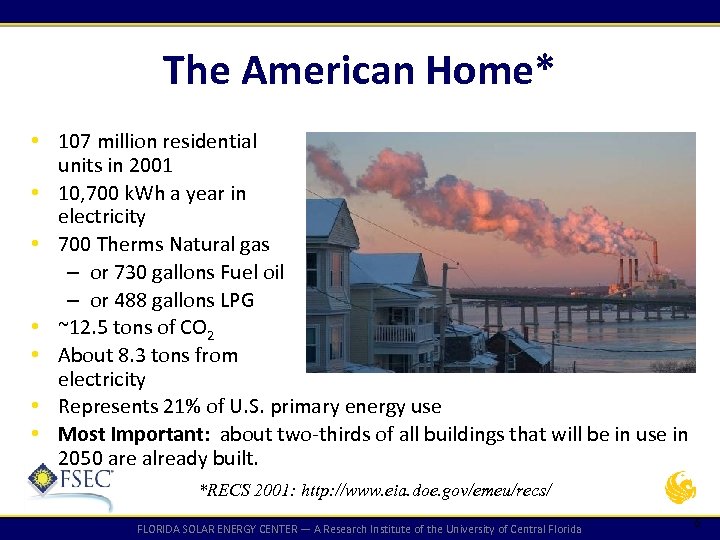

The American Home* • 107 million residential units in 2001 • 10, 700 k. Wh a year in electricity • 700 Therms Natural gas – or 730 gallons Fuel oil – or 488 gallons LPG • ~12. 5 tons of CO 2 • About 8. 3 tons from electricity • Represents 21% of U. S. primary energy use • Most Important: about two-thirds of all buildings that will be in use in 2050 are already built. *RECS 2001: http: //www. eia. doe. gov/emeu/recs/ FLORIDA SOLAR ENERGY CENTER — A Research Institute of the University of Central Florida 6

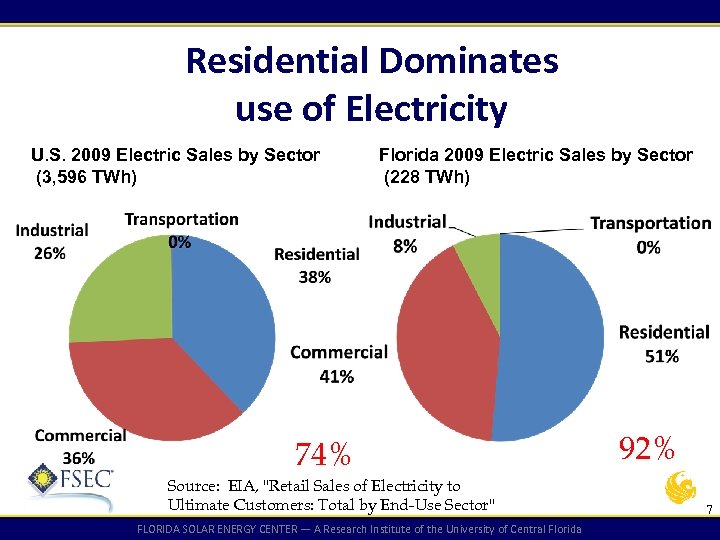

Residential Dominates use of Electricity U. S. 2009 Electric Sales by Sector (3, 596 TWh) Florida 2009 Electric Sales by Sector (228 TWh) 74% Source: EIA, "Retail Sales of Electricity to Ultimate Customers: Total by End-Use Sector" FLORIDA SOLAR ENERGY CENTER — A Research Institute of the University of Central Florida 92% 7

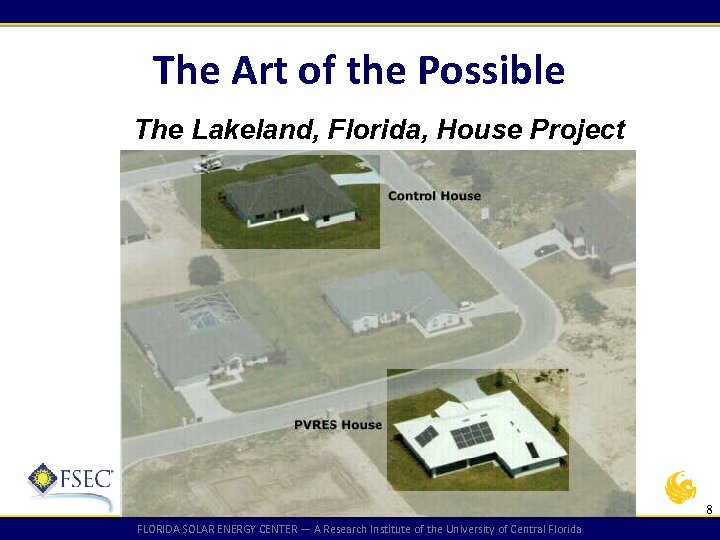

The Art of the Possible The Lakeland, Florida, House Project 8 FLORIDA SOLAR ENERGY CENTER — A Research Institute of the University of Central Florida

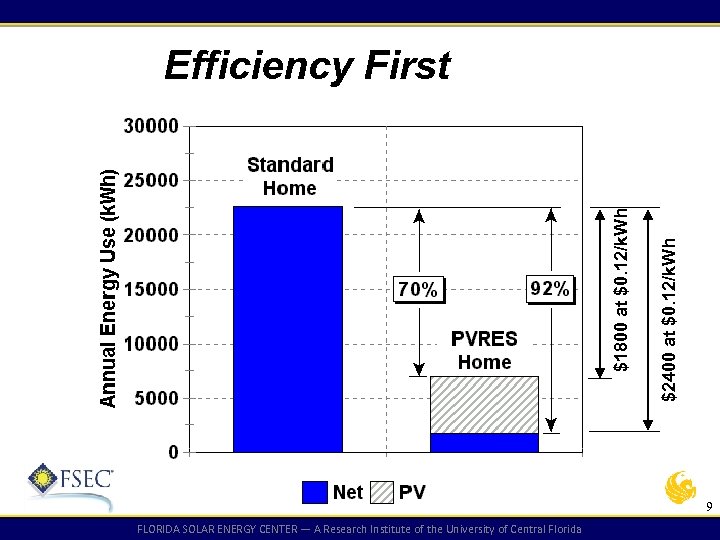

$2400 at $0. 12/k. Wh $1800 at $0. 12/k. Wh Efficiency First 9 FLORIDA SOLAR ENERGY CENTER — A Research Institute of the University of Central Florida

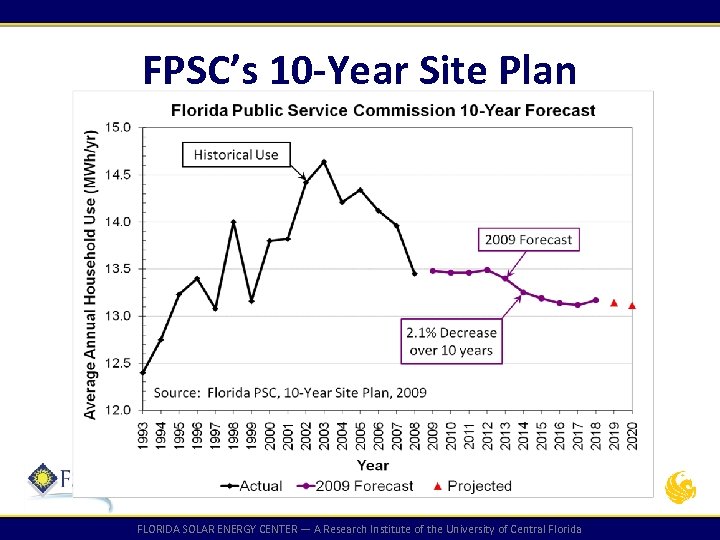

FPSC’s 10 -Year Site Plan FLORIDA SOLAR ENERGY CENTER — A Research Institute of the University of Central Florida

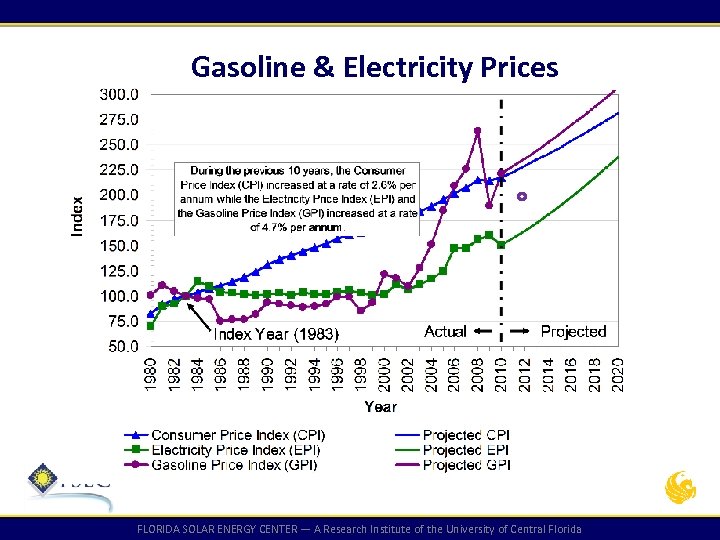

Gasoline & Electricity Prices FLORIDA SOLAR ENERGY CENTER — A Research Institute of the University of Central Florida

Projected Electric Costs $230 /mon $148 /mon Cost of doing nothing $82/mon No job creation, export money as continue to purchase more fossil fuels FLORIDA SOLAR ENERGY CENTER — A Research Institute of the University of Central Florida

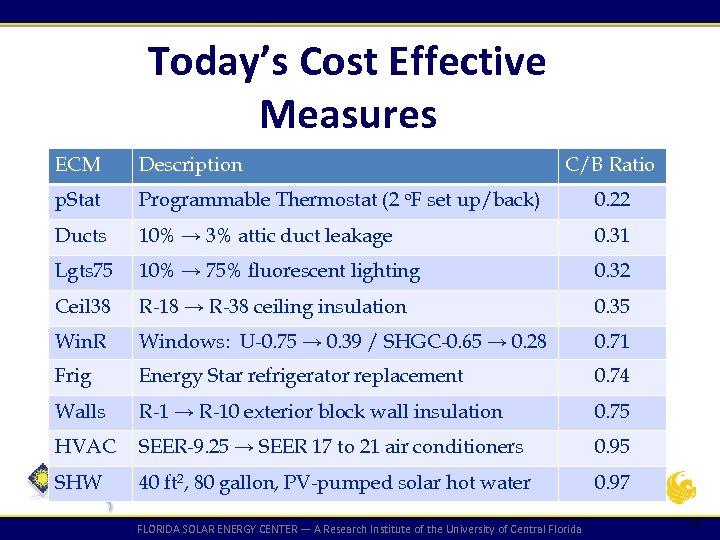

Today’s Cost Effective Measures ECM Description C/B Ratio p. Stat Programmable Thermostat (2 o. F set up/back) 0. 22 Ducts 10% → 3% attic duct leakage 0. 31 Lgts 75 10% → 75% fluorescent lighting 0. 32 Ceil 38 R-18 → R-38 ceiling insulation 0. 35 Win. R Windows: U-0. 75 → 0. 39 / SHGC-0. 65 → 0. 28 0. 71 Frig Energy Star refrigerator replacement 0. 74 Walls R-1 → R-10 exterior block wall insulation 0. 75 HVAC SEER-9. 25 → SEER 17 to 21 air conditioners 0. 95 SHW 40 ft 2, 80 gallon, PV-pumped solar hot water 0. 97 FLORIDA SOLAR ENERGY CENTER — A Research Institute of the University of Central Florida 13

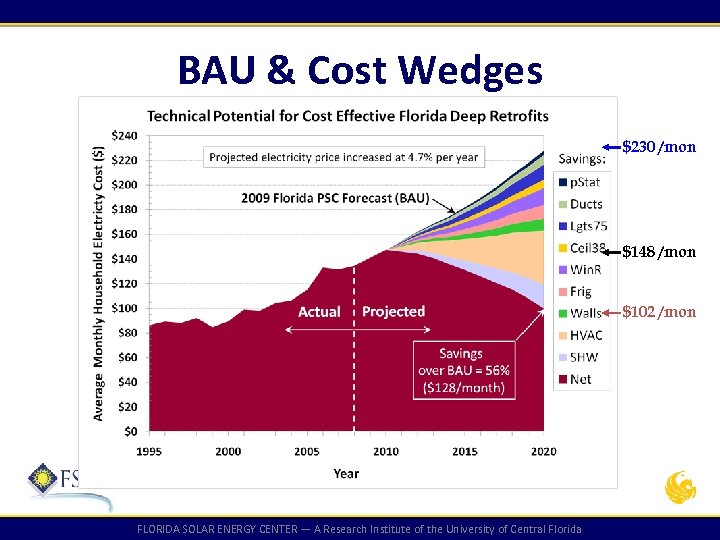

BAU & Cost Wedges $230 /mon $148 /mon $102 /mon FLORIDA SOLAR ENERGY CENTER — A Research Institute of the University of Central Florida

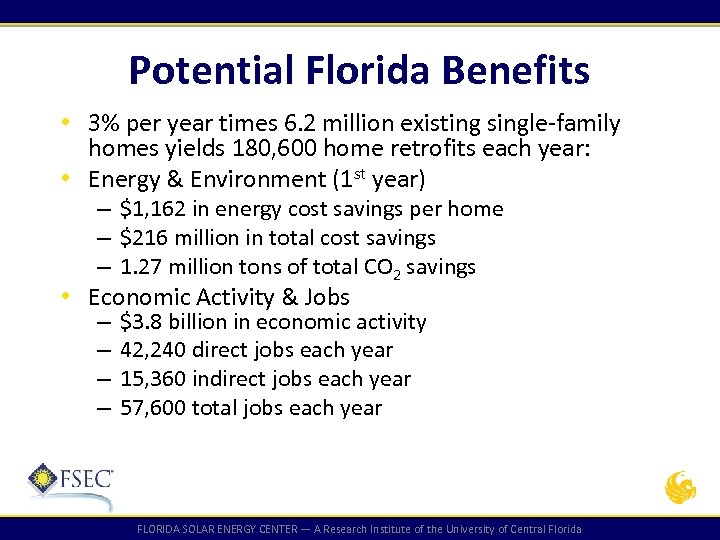

Potential Florida Benefits • 3% per year times 6. 2 million existing single-family homes yields 180, 600 home retrofits each year: • Energy & Environment (1 st year) – $1, 162 in energy cost savings per home – $216 million in total cost savings – 1. 27 million tons of total CO 2 savings • Economic Activity & Jobs – – $3. 8 billion in economic activity 42, 240 direct jobs each year 15, 360 indirect jobs each year 57, 600 total jobs each year FLORIDA SOLAR ENERGY CENTER — A Research Institute of the University of Central Florida

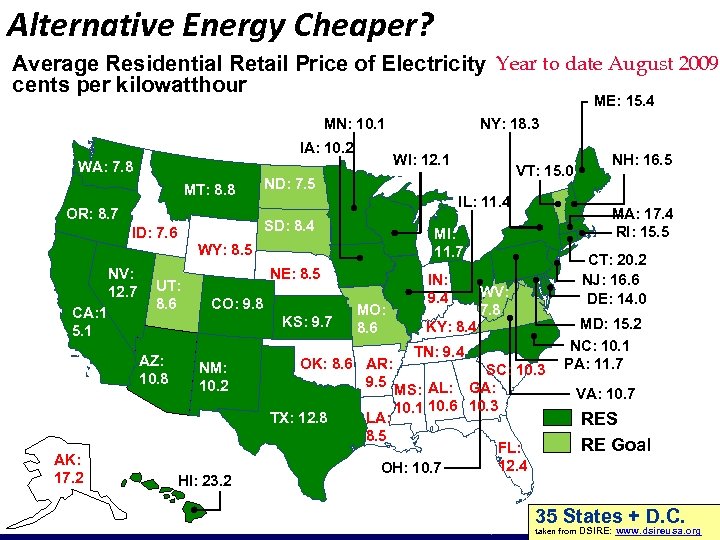

Alternative Energy Cheaper? Average Residential Retail Price of Electricity Year to date August 2009 cents per kilowatthour ME: 15. 4 MN: 10. 1 IA: 10. 2 WA: 7. 8 MT: 8. 8 OR: 8. 7 WI: 12. 1 IL: 11. 4 CA: 1 5. 1 UT: 8. 6 NE: 8. 5 CO: 9. 8 KS: 9. 7 AZ: 10. 8 NM: 10. 2 OK: 8. 6 AR: 9. 5 TX: 12. 8 AK: 17. 2 HI: 23. 2 MO: 8. 6 LA: 8. 5 IN: 9. 4 CT: 20. 2 NJ: 16. 6 DE: 14. 0 WV: 7. 8 KY: 8. 4 TN: 9. 4 SC: 10. 3 MS: AL: GA: 10. 1 10. 6 10. 3 OH: 10. 7 FL: 12. 4 NH: 16. 5 MA: 17. 4 RI: 15. 5 MI: 11. 7 WY: 8. 5 NV: 12. 7 VT: 15. 0 ND: 7. 5 SD: 8. 4 ID: 7. 6 NY: 18. 3 MD: 15. 2 NC: 10. 1 PA: 11. 7 VA: 10. 7 RES RE Goal 35 States + D. C. FLORIDA SOLAR ENERGY CENTER — A Research Institute of the University of Central Florida taken from DSIRE: www. dsireusa. org

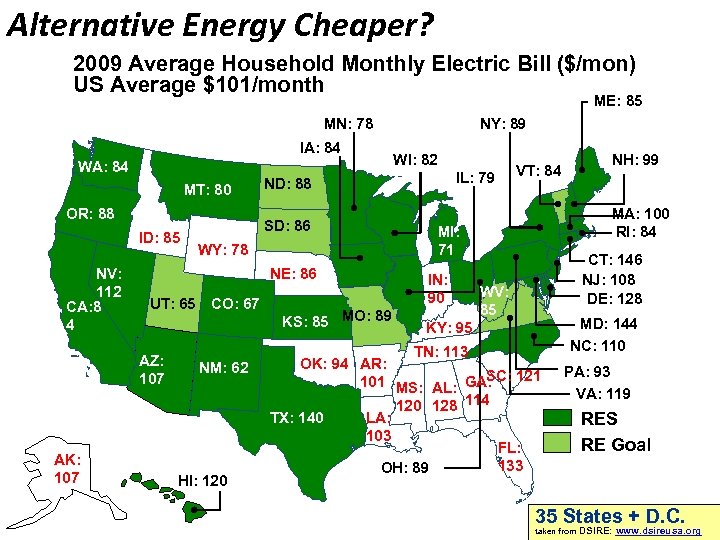

Alternative Energy Cheaper? 2009 Average Household Monthly Electric Bill ($/mon) US Average $101/month ME: 85 MN: 78 IA: 84 WA: 84 MT: 80 OR: 88 ID: 85 NV: 112 CA: 8 4 AZ: 107 AK: 107 SD: 86 WY: 78 CO: 67 NM: 62 HI: 120 WI: 82 IL: 79 ND: 88 NE: 86 UT: 65 NY: 89 KS: 85 MO: 89 VT: 84 MA: 100 RI: 84 MI: 71 IN: 90 NH: 99 CT: 146 NJ: 108 DE: 128 WV: 85 KY: 95 TN: 113 OK: 94 AR: SC: 121 101 MS: AL: GA: 120 128 114 TX: 140 LA: 103 FL: 133 OH: 89 MD: 144 NC: 110 PA: 93 VA: 119 RES RE Goal 35 States + D. C. FLORIDA SOLAR ENERGY CENTER — A Research Institute of the University of Central Florida taken from DSIRE: www. dsireusa. org

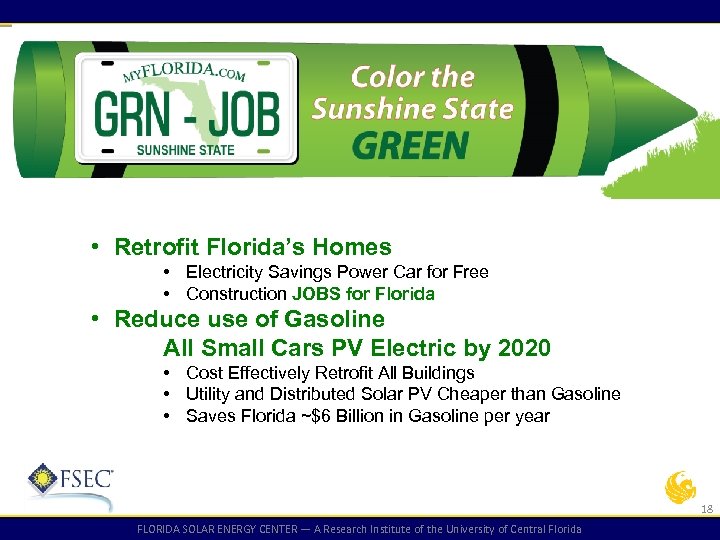

• Retrofit Florida’s Homes • Electricity Savings Power Car for Free • Construction JOBS for Florida • Reduce use of Gasoline All Small Cars PV Electric by 2020 • Cost Effectively Retrofit All Buildings • Utility and Distributed Solar PV Cheaper than Gasoline • Saves Florida ~$6 Billion in Gasoline per year 18 FLORIDA SOLAR ENERGY CENTER — A Research Institute of the University of Central Florida

EXTRA SLIDES 19 FLORIDA SOLAR ENERGY CENTER — A Research Institute of the University of Central Florida

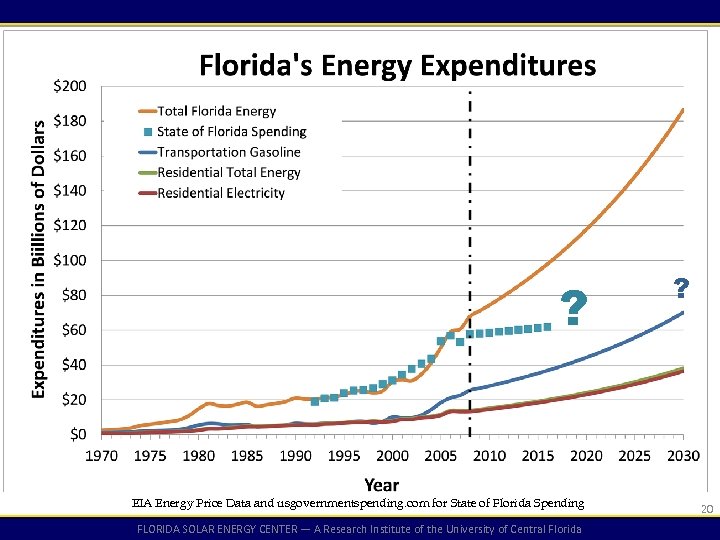

? EIA Energy Price Data and usgovernmentspending. com for State of Florida Spending FLORIDA SOLAR ENERGY CENTER — A Research Institute of the University of Central Florida ? 20

3: 33 minute video http: //vimeo. com/24514610 FLORIDA SOLAR ENERGY CENTER — A Research Institute of the University of Central Florida 21

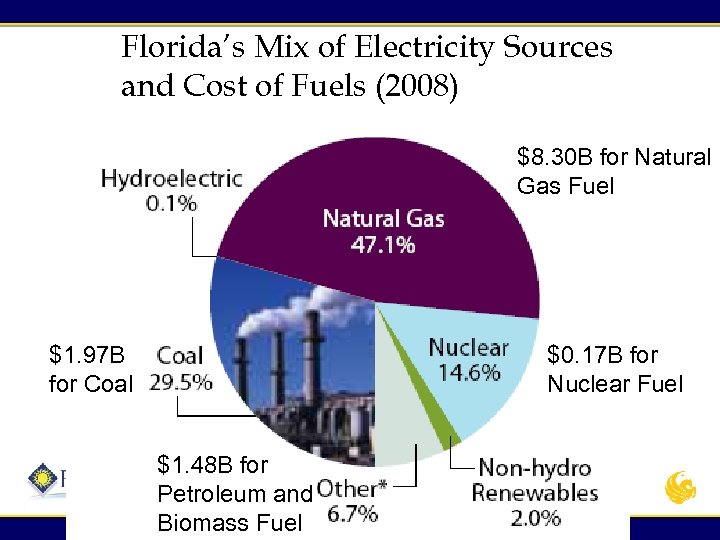

Florida’s Mix of Electricity Sources and Cost of Fuels (2008) $8. 30 B for Natural Gas Fuel $1. 97 B for Coal $0. 17 B for Nuclear Fuel $1. 48 B for Petroleum and Biomass CENTER — FLORIDA SOLAR ENERGYFuel A Research Institute of the University of Central Florida
