The CONVERSE Project Tough on Change Tough on

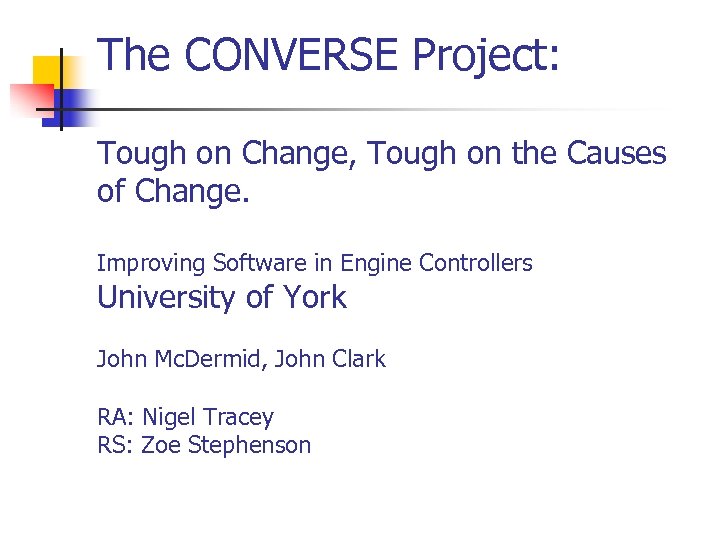

The CONVERSE Project: Tough on Change, Tough on the Causes of Change. Improving Software in Engine Controllers University of York John Mc. Dermid, John Clark RA: Nigel Tracey RS: Zoe Stephenson

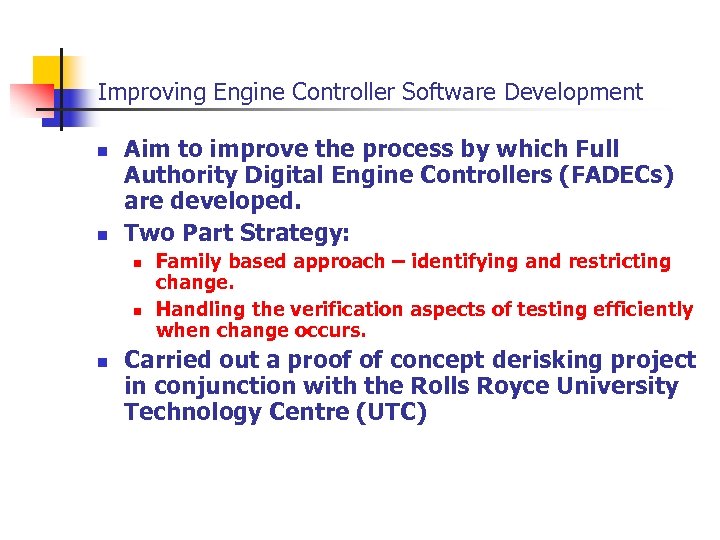

Improving Engine Controller Software Development n n Aim to improve the process by which Full Authority Digital Engine Controllers (FADECs) are developed. Two Part Strategy: n n n Family based approach – identifying and restricting change. Handling the verification aspects of testing efficiently when change occurs. Carried out a proof of concept derisking project in conjunction with the Rolls Royce University Technology Centre (UTC)

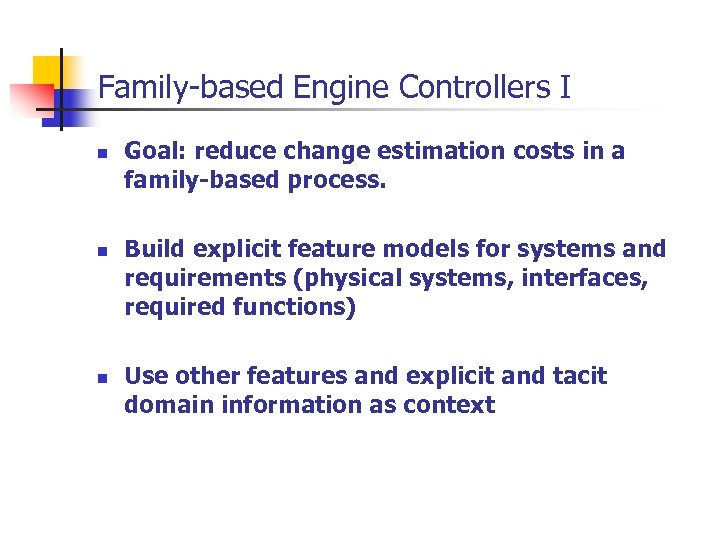

Family-based Engine Controllers I n n n Goal: reduce change estimation costs in a family-based process. Build explicit feature models for systems and requirements (physical systems, interfaces, required functions) Use other features and explicit and tacit domain information as context

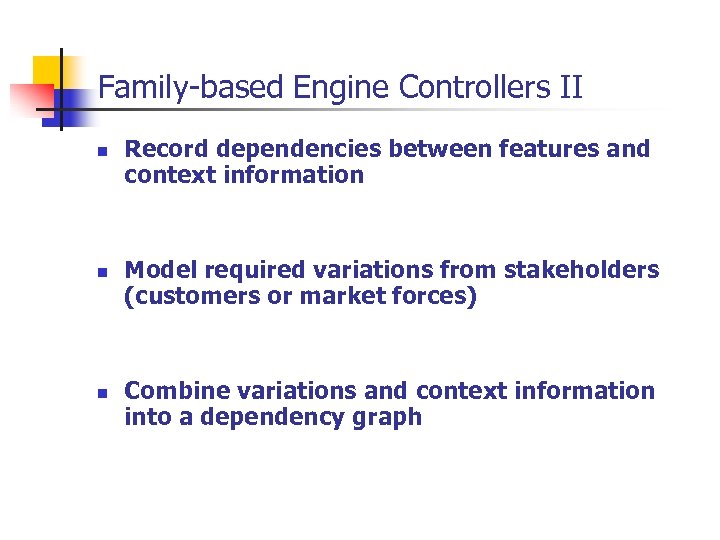

Family-based Engine Controllers II n n n Record dependencies between features and context information Model required variations from stakeholders (customers or market forces) Combine variations and context information into a dependency graph

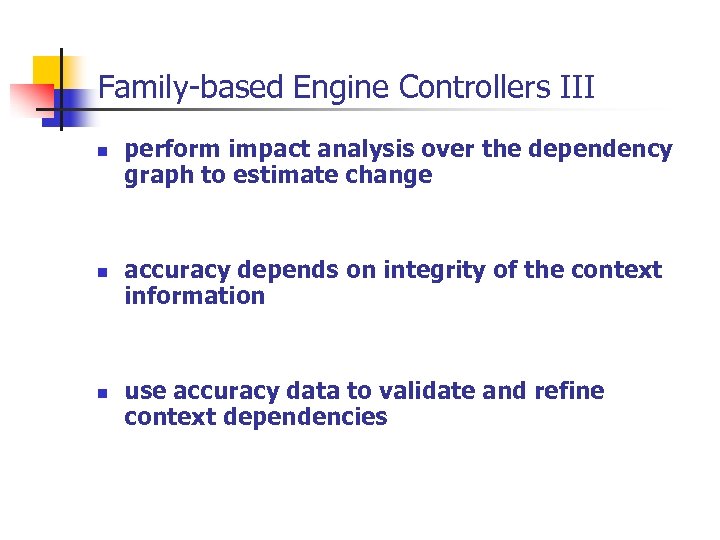

Family-based Engine Controllers III n n n perform impact analysis over the dependency graph to estimate change accuracy depends on integrity of the context information use accuracy data to validate and refine context dependencies

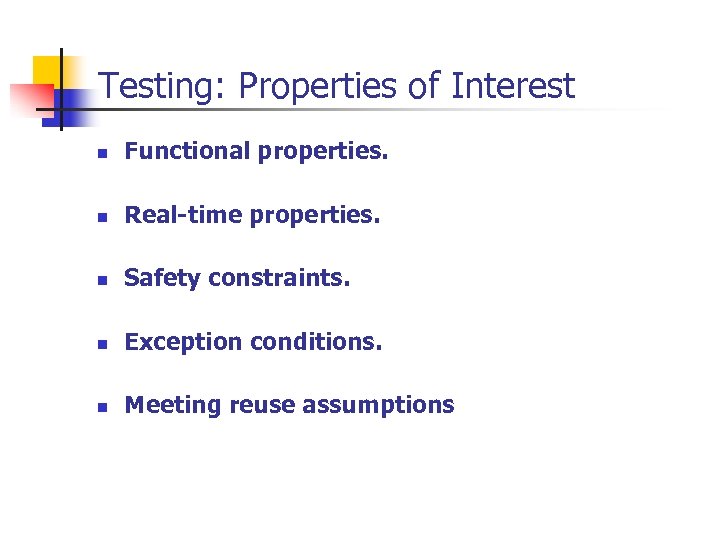

Testing: Properties of Interest n Functional properties. n Real-time properties. n Safety constraints. n Exception conditions. n Meeting reuse assumptions

Testing: things that help n n n Small modules Restricted data types Simple design structure These facilitate testing generally but also have a significant impact on the feasibility and efficiency of automated approaches to software testing.

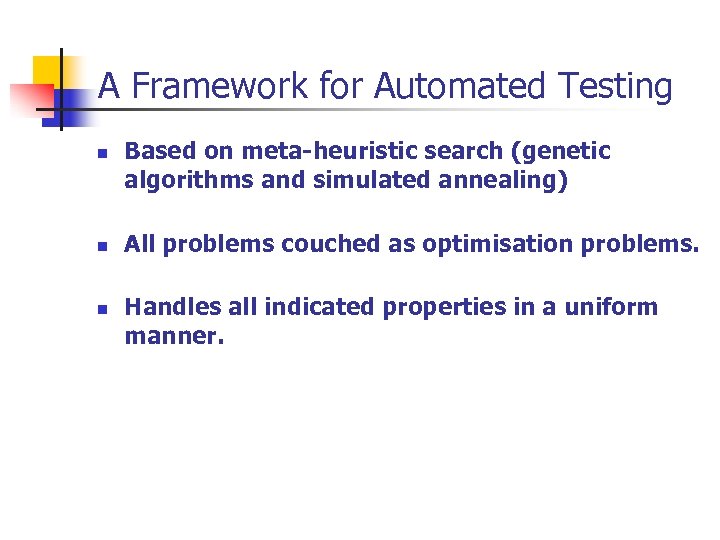

A Framework for Automated Testing n n n Based on meta-heuristic search (genetic algorithms and simulated annealing) All problems couched as optimisation problems. Handles all indicated properties in a uniform manner.

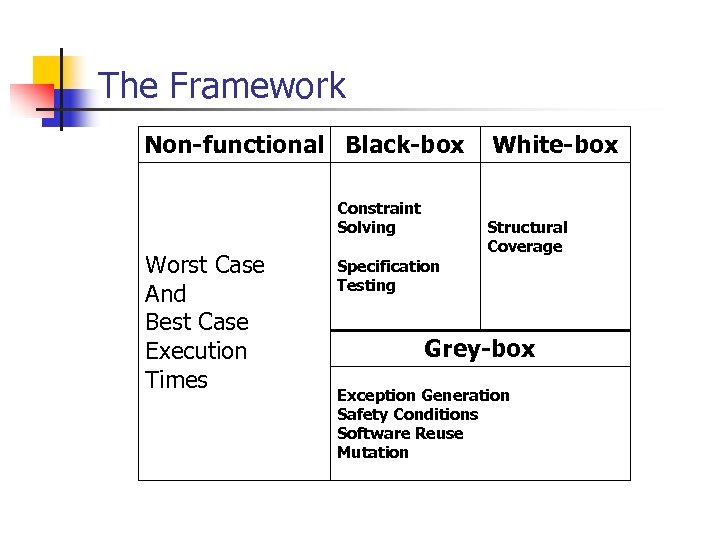

The Framework Non-functional Black-box Constraint Solving Worst Case And Best Case Execution Times Specification Testing White-box Structural Coverage Grey-box Exception Generation Safety Conditions Software Reuse Mutation

The Framework Testing Criterion SUT Extractor SUT Information Fitness Function Module Fitness Function Search Techniques Test System Test Data

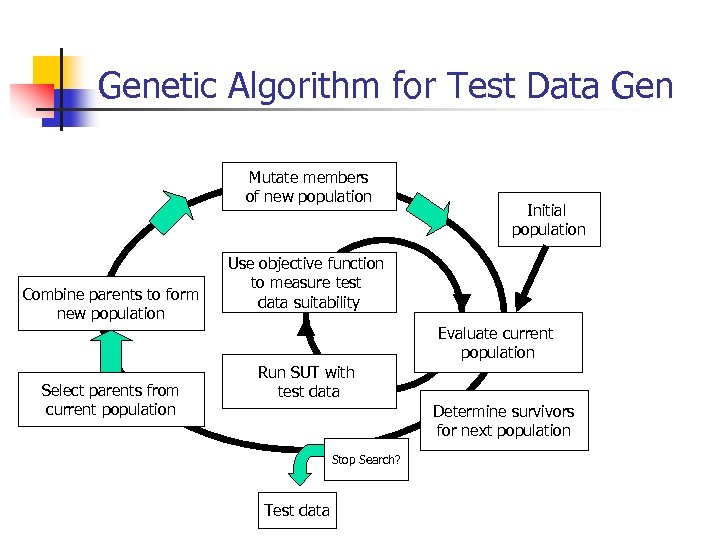

Genetic Algorithm for Test Data Gen Mutate members of new population Combine parents to form new population Initial population Use objective function to measure test data suitability Evaluate current population Select parents from current population Run SUT with test data Determine survivors for next population Stop Search? Test data

Some Publications n n n Integrating Safety Analysis with Automatic Test-Data Generation for Software Safety Verification. Nigel Tracey, John Clark, John Mc. Dermid and Keith Mander. In the Proceedings of 17 th International System Safety Conference. August 1999. Pages 128 -137. Integrating Automated Testing with Exception Freeness Proofs for Safety Critical Systems. Nigel Tracey, John Clark, Keith Mander and John Mc. Dermid. In the Proceedings of 4 th Australian Workshop on Safety Critical Systems and Software. Australian Computer Society. November 1999. Assessing Test Set Adequacy for Object-Oriented Programs Using Class Mutation. Sun-Woo Kim, John Clark, and John Mc. Dermid. In the Proceedings of Symposium on Software Technology (So. ST'99). Pages 72 -83, September 1999. The Rigorous Generation of Java Mutation Operators Using HAZOP. Sun-Woo Kim, John Clark, and John Mc. Dermid. In the Proceedings of the 12 th International Conference on SOFTWARE & SYSTEMS ENGINEERING and their APPLICATIONS (ICSSEA'99). December 1999. A Safety Change Oriented Process for Safety-Critical Systems. Nigel Tracey, Alan Stephenson, John Clark and John Mc. Dermid. In the Proceedings of Software Change and Evolution Workshop. IEEE International Conference on Software Engineering. May 1999. Automated Program Flaw Finding using Simulated Annealing. Nigel Tracey, John Clark and Keith Mander. In Software Engineering Notes Issue 23 Number 2, the Proceedings of the ACM/SIGSOFT International Symposium on Software Testing and Analysis (ISSTA). USA, March 1998. Pages 73 -81. The Way Forward for Unifying Dynamic Test-Case Generation: The Optimisation-Based Approach. Nigel Tracey, John Clark and Keith Mander. In the Proceedings of the IFIP International Workshop on Dependable Computing and Its Applications (DCIA). South Africa, January 1998. Pages 169 -180. An Automated Framework for Structural Test Data Generation. Nigel Tracey, John Clark, Keith Mander and John Mc. Dermid. ASE 1998, Honolulu. Towards Industrially Applicable Formal Methods: Three Small Steps, and One Giant Leap. John Mc. Dermid, Andy Galloway, Simon Burton, John Clark, Ian Toyn, Nigel Tracey and Sam Valentine. In the Proceedings of IEEE ICFEM (International Conference on Formal Engineering Methods). December 1998. Automated test-data generation for exception conditions. Nigel Tracey, John Clark, Keith Mander and John Mc. Dermid. Software Practice and Experience, January 2000. CONVERSE: A Change-Oriented Process for Engine Controllers. Darren Buttle, John Clark, John Mc. Dermid, Alan Stephenson and Nigel Tracey IEE Software. Vol. 146(3)130 -136, June 1999. SEBPC New Directions. Chapters 4 and 12 n CONVERSE: A Family Oriented Software Development process for Engine Controllers. Simon Burton, Darren Buttle, Zoe Stephenson and John Mc. Dermid. n A Search-Based Automated Test Data Generation Framework for Safety-Critical systems. Nigel Tracey, John Clark, John Mc. Dermid and Keith Mander.

Overall n n n Successful project. Has aroused considerable interest and attracted further investment from our industrial collaborator (Rolls Royce). Invaluable help given by RR n n (access to information, involvement in meetings, reviews, access to very specialised resources etc. , and tailoring funded work to assist with CONVERSE) 12 conference and journal publications Over 10 seminars given. Peer rated “Alpha 4”
