The Compact Embedded IPC with Integrated Display Interface ARK-1503
Intel® ATOM D 425/D 525 High Value Compact Automation Control Box with Integrated Display Interface § Fanless, Intel® ATOM D 425/D 525 1. 8 GHz Compact Embedded Box IPC § Integrated display interface – I-Panel Link & golden finger inter face for ITM-5115. The interface includes LVDS and touch signals for touch panel. § Easy integration, easy maintenance § Mini. PCIe expansion for communication module, i. e. HSDPA, WLAN § Supports up to 2 x Gb. E, 4 x USB 2. 0 and 2 x COMs ports, 8 -bit DIO and Line-out § Support 1 x CF socket and 1 x 2. 5” SATA HDD (9. 5 mm height)
ARK-1503 : Product Detail Spec. Main Chip • Intel Atom D 425/D 525 1. 8 GHz • Intel ICH 8 -M Graphics • Embedded Gen 3. 5 + GFX Core • 1 x VGA • 1 x Integrated LVDS Storage • 1 x Compact Flash Socket • 1 x 2. 5” SATA HDD (9. 5 mm) Expansion • 1 x mini. PCIe socket Environment • Temperature: -20~60°C (w/ extended temp peripheral CF • Vibration: 5 G / Shock: 50 G (with CF) IO Ports • Maximum 1 x RS-232, 1 x RS 232/485 w/ auto flow control • 1 x VGA, up to 2048 x 1536@60 Hz • 1 x integrated LVDS: Single channel 24 -bit LVDS up to WXGA 1366 x 768 with USB, Tx/Rx, DC Power for Panel • 2 x Giga. LAN • 1 x 8 -bit DIO • Up to 4 x USB 2. 0 • Line_Out • 1 x CF socket and 1 x 2. 5” SATA HDD (9. 5 mm height) • 1 x mini. PCIe expansion • Power ON/OFF switch • 12 V DC Input • Golden Finger Display Interface

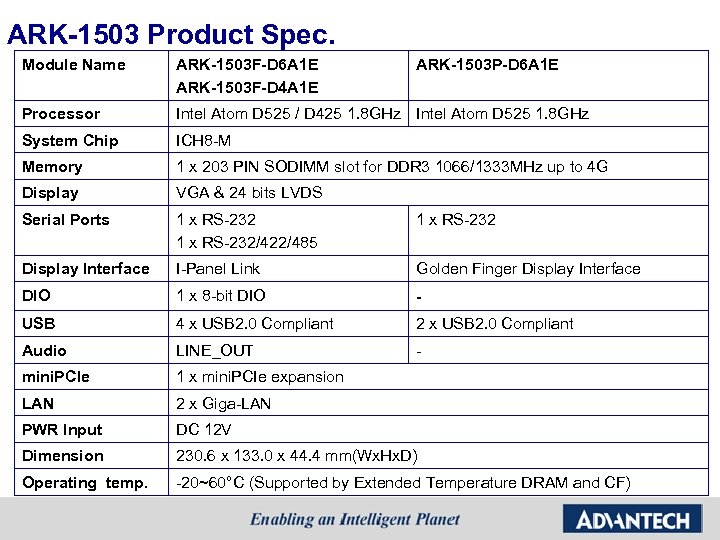

ARK-1503 Product Spec. Module Name ARK-1503 F-D 6 A 1 E ARK-1503 F-D 4 A 1 E ARK-1503 P-D 6 A 1 E Processor Intel Atom D 525 / D 425 1. 8 GHz Intel Atom D 525 1. 8 GHz System Chip ICH 8 -M Memory 1 x 203 PIN SODIMM slot for DDR 3 1066/1333 MHz up to 4 G Display VGA & 24 bits LVDS Serial Ports 1 x RS-232/422/485 1 x RS-232 Display Interface I-Panel Link Golden Finger Display Interface DIO 1 x 8 -bit DIO - USB 4 x USB 2. 0 Compliant 2 x USB 2. 0 Compliant Audio LINE_OUT - mini. PCIe 1 x mini. PCIe expansion LAN 2 x Giga-LAN PWR Input DC 12 V Dimension 230. 6 x 133. 0 x 44. 4 mm(Wx. Hx. D) Operating temp. -20~60°C (Supported by Extended Temperature DRAM and CF)

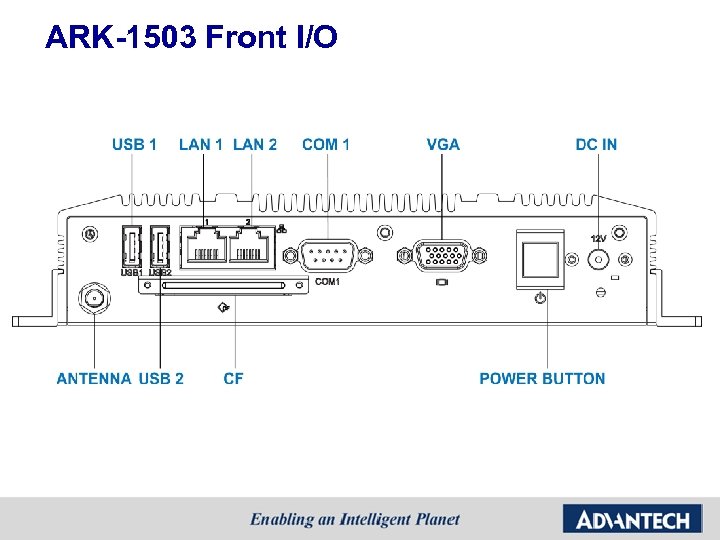

ARK-1503 Front I/O

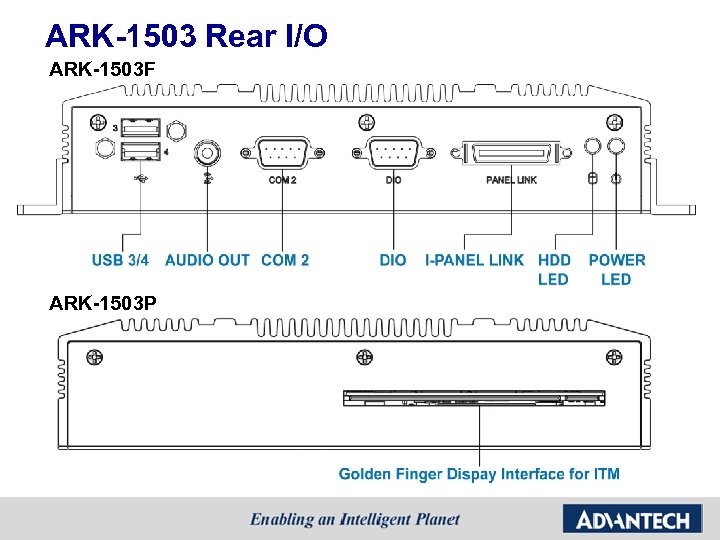

ARK-1503 Rear I/O ARK-1503 F ARK-1503 P

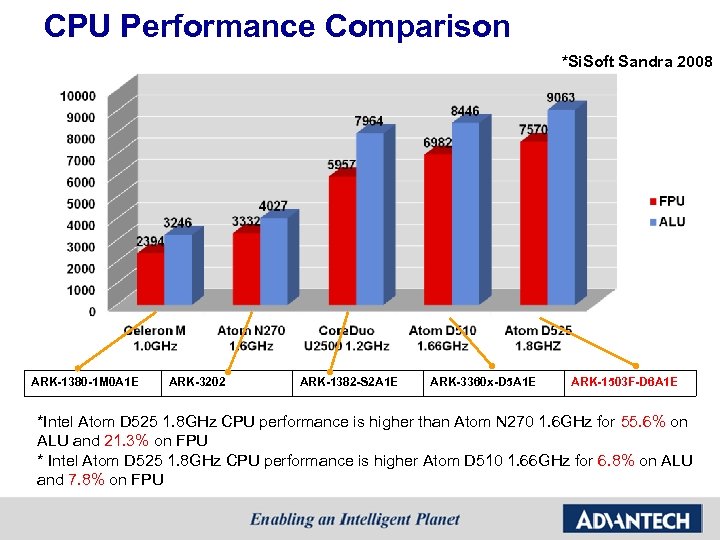

CPU Performance Comparison *Si. Soft Sandra 2008 ARK-1380 -1 M 0 A 1 E ARK-3202 ARK-1382 -S 2 A 1 E ARK-3360 x-D 5 A 1 E ARK-1503 F-D 6 A 1 E *Intel Atom D 525 1. 8 GHz CPU performance is higher than Atom N 270 1. 6 GHz for 55. 6% on ALU and 21. 3% on FPU * Intel Atom D 525 1. 8 GHz CPU performance is higher Atom D 510 1. 66 GHz for 6. 8% on ALU and 7. 8% on FPU

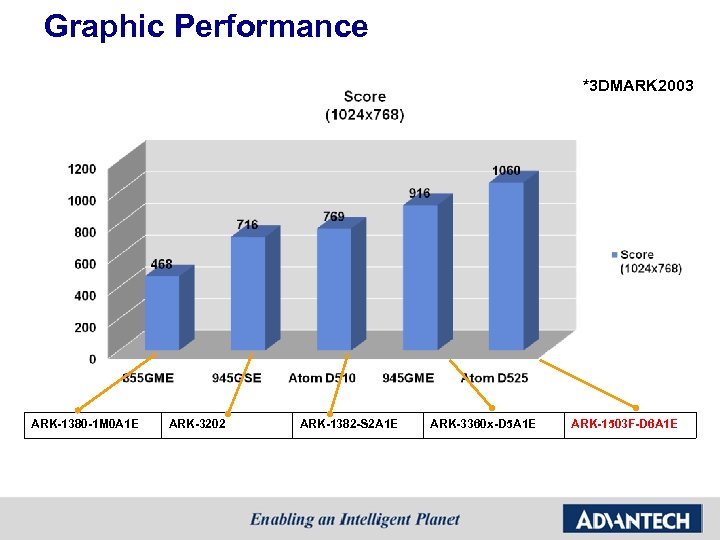

Graphic Performance *3 DMARK 2003 ARK-1380 -1 M 0 A 1 E ARK-3202 ARK-1382 -S 2 A 1 E ARK-3360 x-D 5 A 1 E ARK-1503 F-D 6 A 1 E

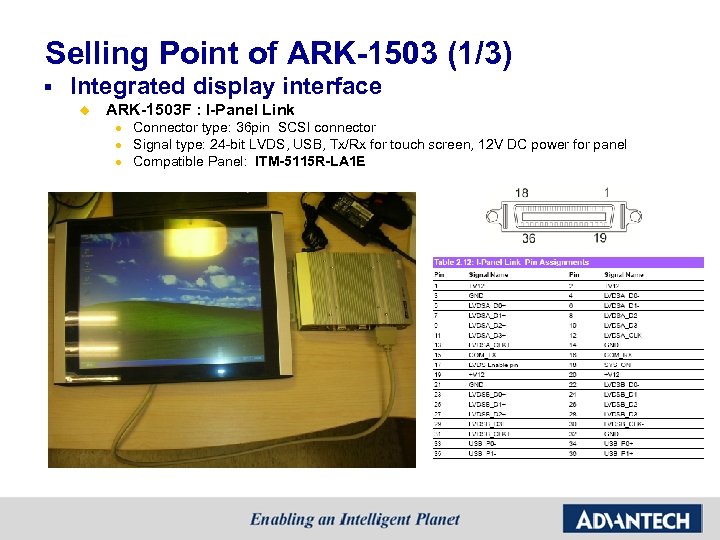

Selling Point of ARK-1503 (1/3) § Integrated display interface u ARK-1503 F : I-Panel Link l l l Connector type: 36 pin SCSI connector Signal type: 24 -bit LVDS, USB, Tx/Rx for touch screen, 12 V DC power for panel Compatible Panel: ITM-5115 R-LA 1 E

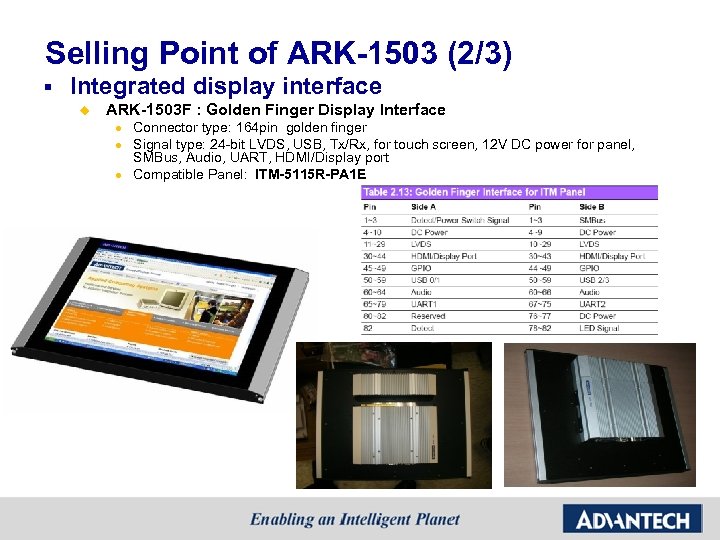

Selling Point of ARK-1503 (2/3) § Integrated display interface u ARK-1503 F : Golden Finger Display Interface l l l Connector type: 164 pin golden finger Signal type: 24 -bit LVDS, USB, Tx/Rx, for touch screen, 12 V DC power for panel, SMBus, Audio, UART, HDMI/Display port Compatible Panel: ITM-5115 R-PA 1 E

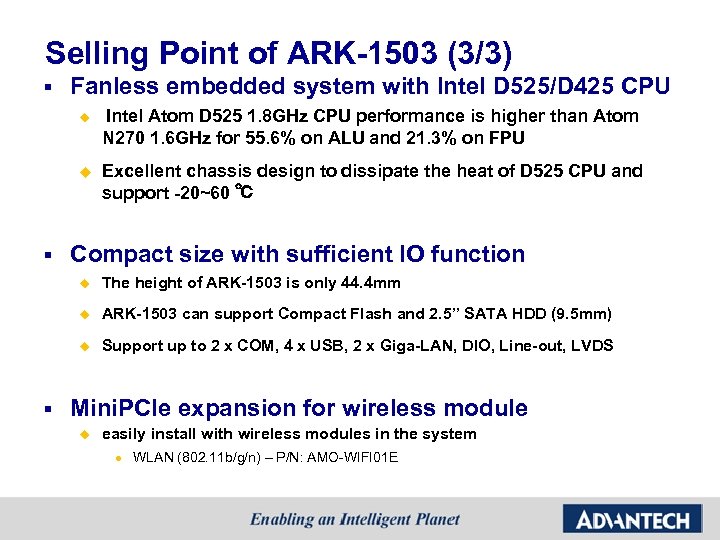

Selling Point of ARK-1503 (3/3) § Fanless embedded system with Intel D 525/D 425 CPU u u § Intel Atom D 525 1. 8 GHz CPU performance is higher than Atom N 270 1. 6 GHz for 55. 6% on ALU and 21. 3% on FPU Excellent chassis design to dissipate the heat of D 525 CPU and support -20~60 ℃ Compact size with sufficient IO function u u ARK-1503 can support Compact Flash and 2. 5” SATA HDD (9. 5 mm) u § The height of ARK-1503 is only 44. 4 mm Support up to 2 x COM, 4 x USB, 2 x Giga-LAN, DIO, Line-out, LVDS Mini. PCIe expansion for wireless module u easily install with wireless modules in the system l WLAN (802. 11 b/g/n) – P/N: AMO-WIFI 01 E

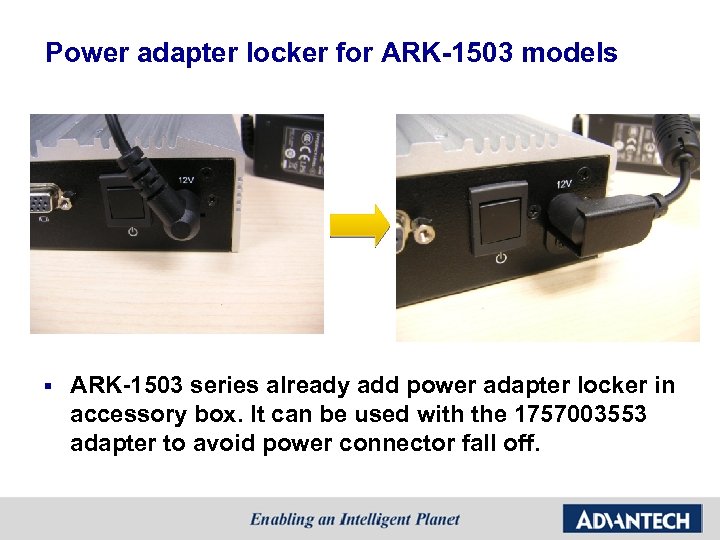

Power adapter locker for ARK-1503 models § ARK-1503 series already add power adapter locker in accessory box. It can be used with the 1757003553 adapter to avoid power connector fall off.

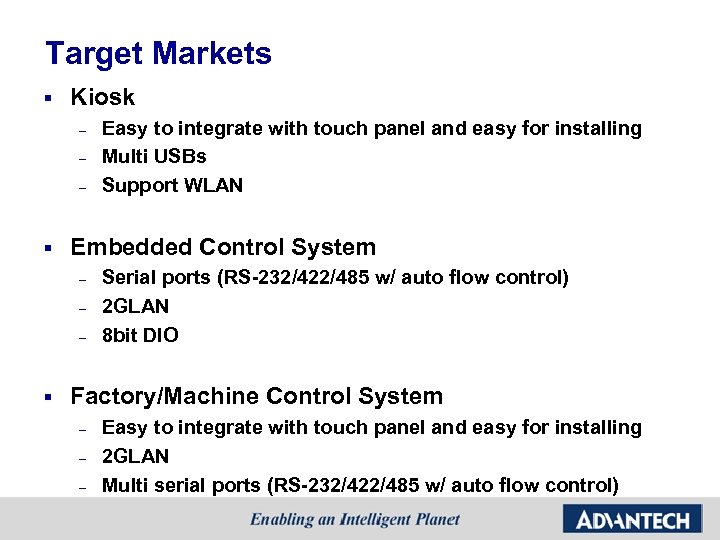

Target Markets § Kiosk – – – § Embedded Control System – – – § Easy to integrate with touch panel and easy for installing Multi USBs Support WLAN Serial ports (RS-232/422/485 w/ auto flow control) 2 GLAN 8 bit DIO Factory/Machine Control System – – – Easy to integrate with touch panel and easy for installing 2 GLAN Multi serial ports (RS-232/422/485 w/ auto flow control)

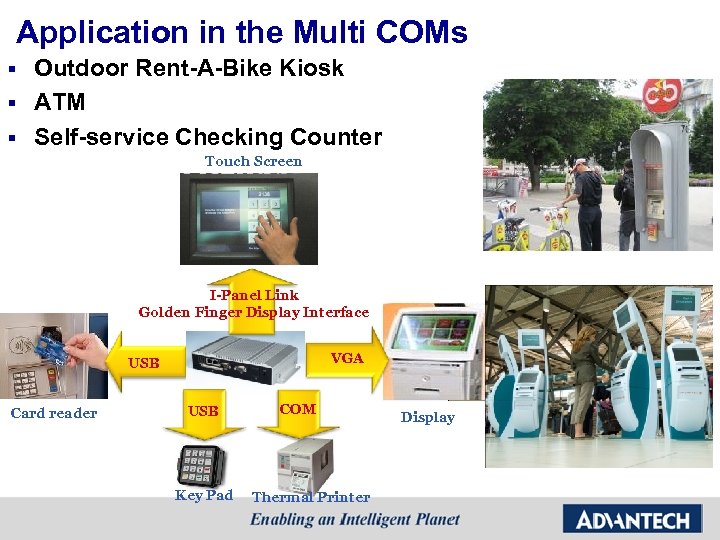

Application in the Multi COMs Outdoor Rent-A-Bike Kiosk § ATM § Self-service Checking Counter § Touch Screen I-Panel Link Golden Finger Display Interface VGA USB Card reader USB Key Pad COM Thermal Printer Display

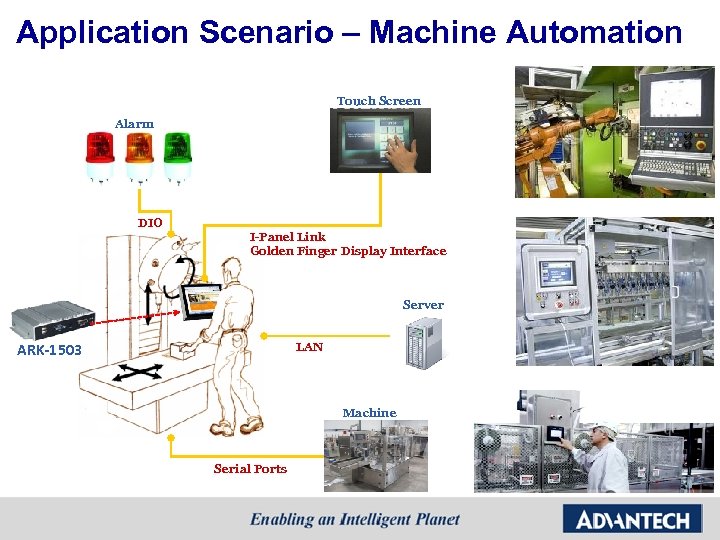

Application Scenario – Machine Automation Touch Screen Alarm DIO I-Panel Link Golden Finger Display Interface Server ARK-1503 LAN Machine Serial Ports

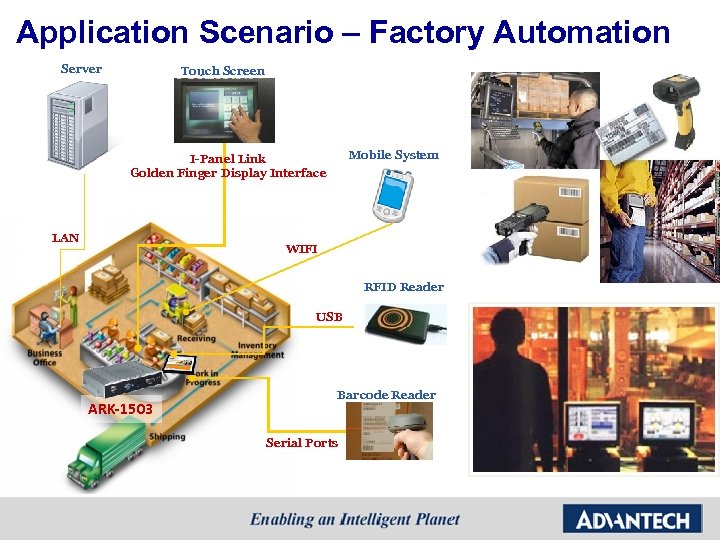

Application Scenario – Factory Automation Server Touch Screen Mobile System I-Panel Link Golden Finger Display Interface LAN WIFI RFID Reader USB ARK-1503 Barcode Reader Serial Ports

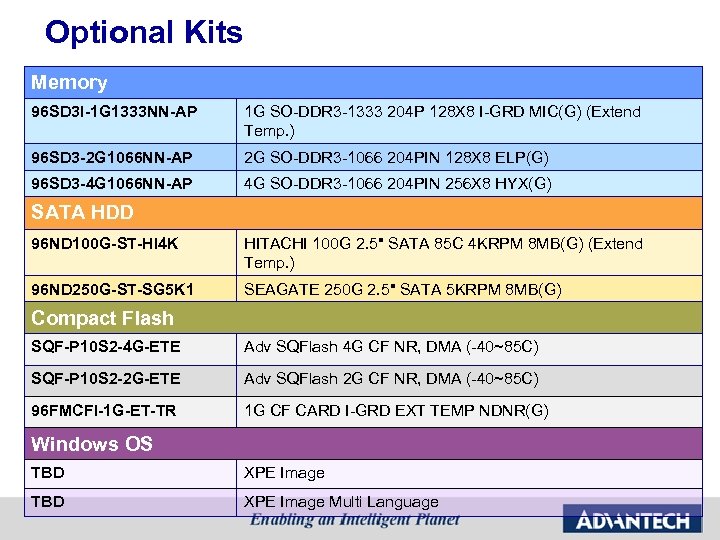

Optional Kits Memory 96 SD 3 I-1 G 1333 NN-AP 1 G SO-DDR 3 -1333 204 P 128 X 8 I-GRD MIC(G) (Extend Temp. ) 96 SD 3 -2 G 1066 NN-AP 2 G SO-DDR 3 -1066 204 PIN 128 X 8 ELP(G) 96 SD 3 -4 G 1066 NN-AP 4 G SO-DDR 3 -1066 204 PIN 256 X 8 HYX(G) SATA HDD 96 ND 100 G-ST-HI 4 K HITACHI 100 G 2. 5" SATA 85 C 4 KRPM 8 MB(G) (Extend Temp. ) 96 ND 250 G-ST-SG 5 K 1 SEAGATE 250 G 2. 5" SATA 5 KRPM 8 MB(G) Compact Flash SQF-P 10 S 2 -4 G-ETE Adv SQFlash 4 G CF NR, DMA (-40~85 C) SQF-P 10 S 2 -2 G-ETE Adv SQFlash 2 G CF NR, DMA (-40~85 C) 96 FMCFI-1 G-ET-TR 1 G CF CARD I-GRD EXT TEMP NDNR(G) Windows OS TBD XPE Image Multi Language

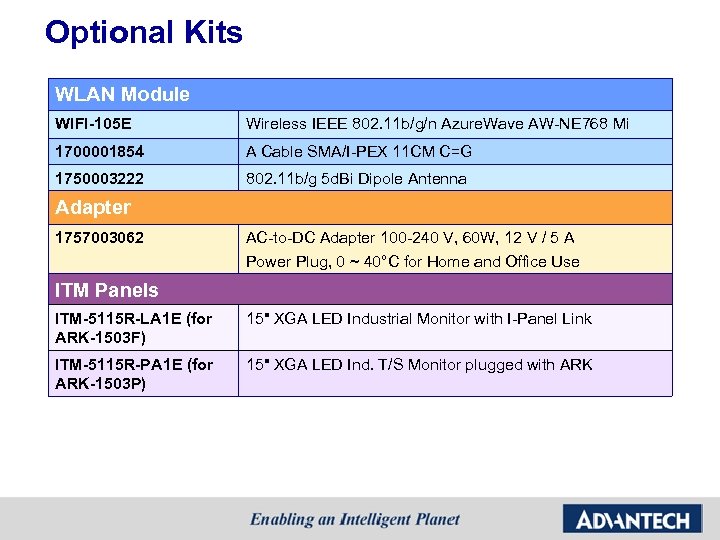

Optional Kits WLAN Module WIFI-105 E Wireless IEEE 802. 11 b/g/n Azure. Wave AW-NE 768 Mi 1700001854 A Cable SMA/I-PEX 11 CM C=G 1750003222 802. 11 b/g 5 d. Bi Dipole Antenna Adapter 1757003062 AC-to-DC Adapter 100 -240 V, 60 W, 12 V / 5 A Power Plug, 0 ~ 40°C for Home and Office Use ITM Panels ITM-5115 R-LA 1 E (for ARK-1503 F) 15" XGA LED Industrial Monitor with I-Panel Link ITM-5115 R-PA 1 E (for ARK-1503 P) 15" XGA LED Ind. T/S Monitor plugged with ARK
