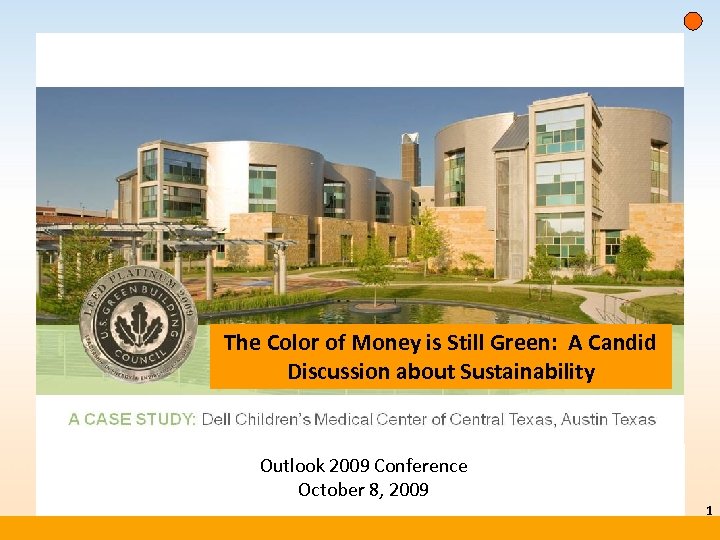

The Color of Money is Still Green A

The Color of Money is Still Green: A Candid Discussion about Sustainability Outlook 2009 Conference October 8, 2009 1

Presented by Alan R. Bell, AIA, LEED® AP Seton Family of Hospitals Learning Opportunities: • What LEED credits were attained • Incorporating energy saving technologies & systems into your facilities • Evaluating various green tech tools that measure your building performance • Developing detailed plans when implementing green systems into your operations 2

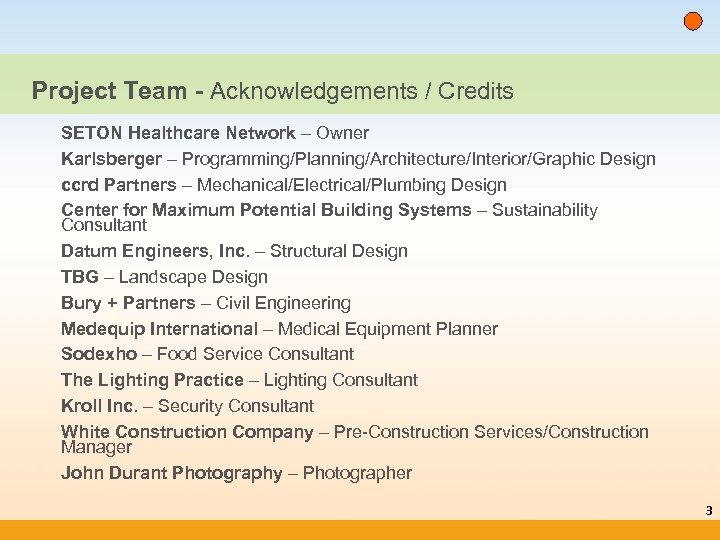

Project Team - Acknowledgements / Credits SETON Healthcare Network – Owner Karlsberger – Programming/Planning/Architecture/Interior/Graphic Design ccrd Partners – Mechanical/Electrical/Plumbing Design Center for Maximum Potential Building Systems – Sustainability Consultant Datum Engineers, Inc. – Structural Design TBG – Landscape Design Bury + Partners – Civil Engineering Medequip International – Medical Equipment Planner Sodexho – Food Service Consultant The Lighting Practice – Lighting Consultant Kroll Inc. – Security Consultant White Construction Company – Pre-Construction Services/Construction Manager John Durant Photography – Photographer 3

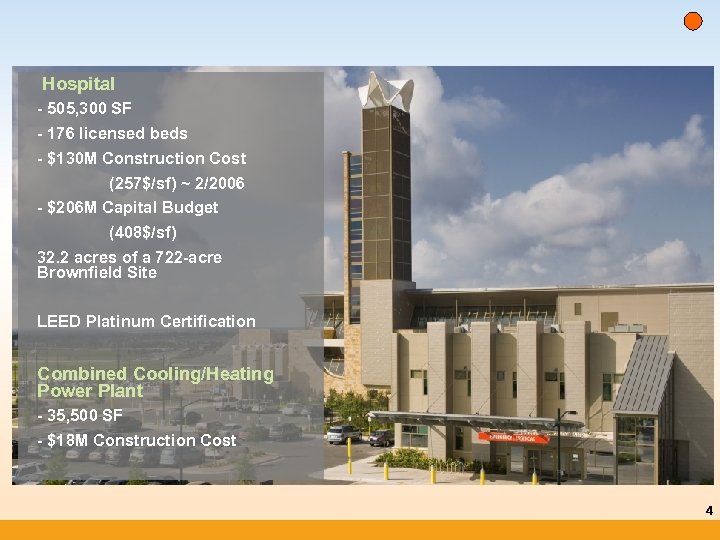

Hospital - 505, 300 SF - 176 licensed beds - $130 M Construction Cost (257$/sf) ~ 2/2006 - $206 M Capital Budget (408$/sf) 32. 2 acres of a 722 -acre Brownfield Site LEED Platinum Certification Combined Cooling/Heating Power Plant - 35, 500 SF - $18 M Construction Cost 4

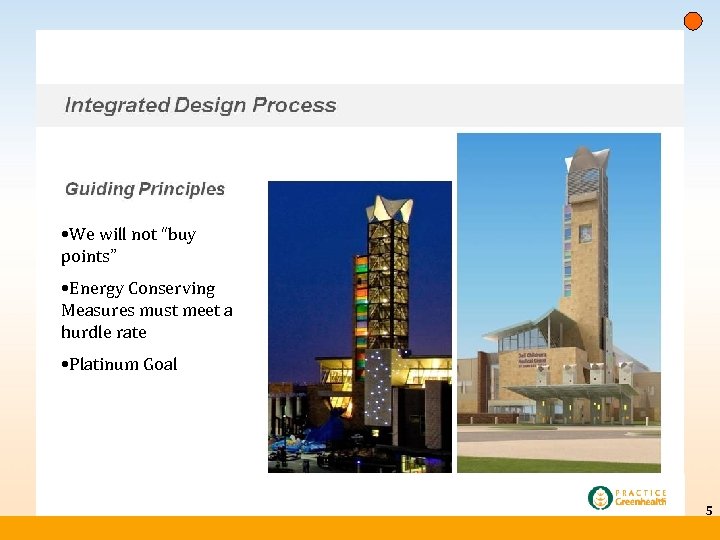

• We will not “buy points” • Energy Conserving Measures must meet a hurdle rate • Platinum Goal 5

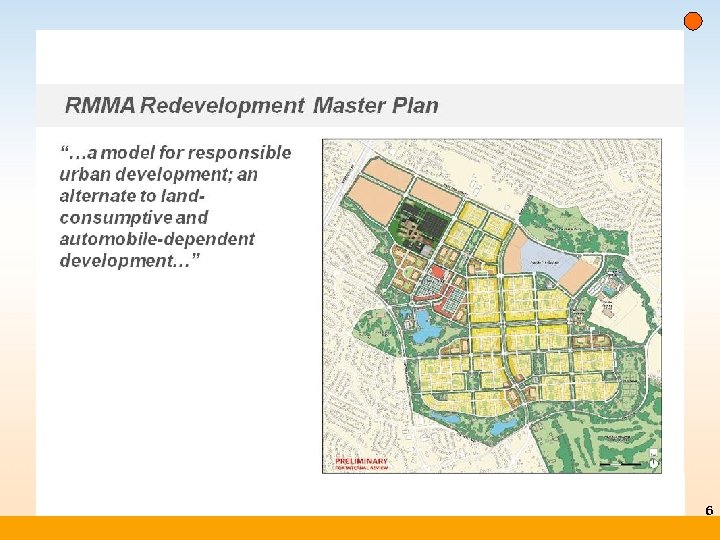

6

7

8

9

10

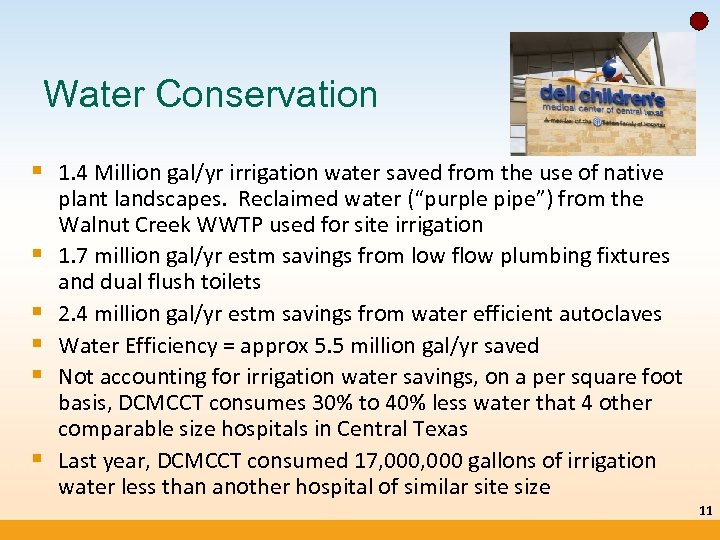

Water Conservation § 1. 4 Million gal/yr irrigation water saved from the use of native § § § plant landscapes. Reclaimed water (“purple pipe”) from the Walnut Creek WWTP used for site irrigation 1. 7 million gal/yr estm savings from low flow plumbing fixtures and dual flush toilets 2. 4 million gal/yr estm savings from water efficient autoclaves Water Efficiency = approx 5. 5 million gal/yr saved Not accounting for irrigation water savings, on a per square foot basis, DCMCCT consumes 30% to 40% less water that 4 other comparable size hospitals in Central Texas Last year, DCMCCT consumed 17, 000 gallons of irrigation water less than another hospital of similar site size 11

12

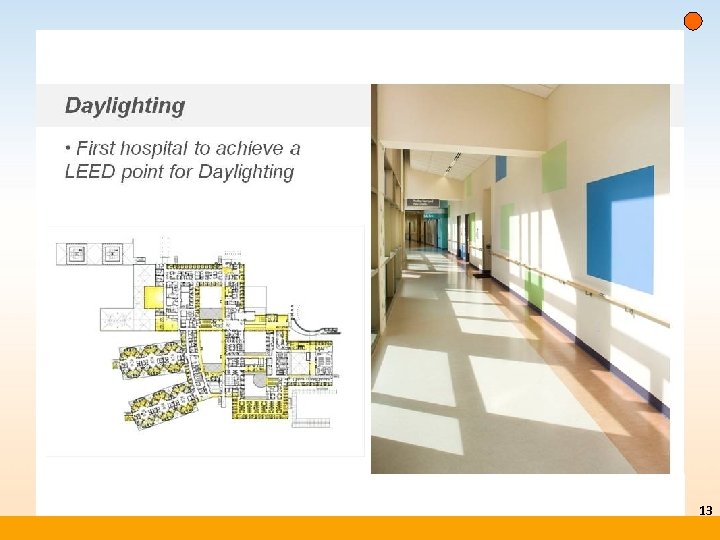

13

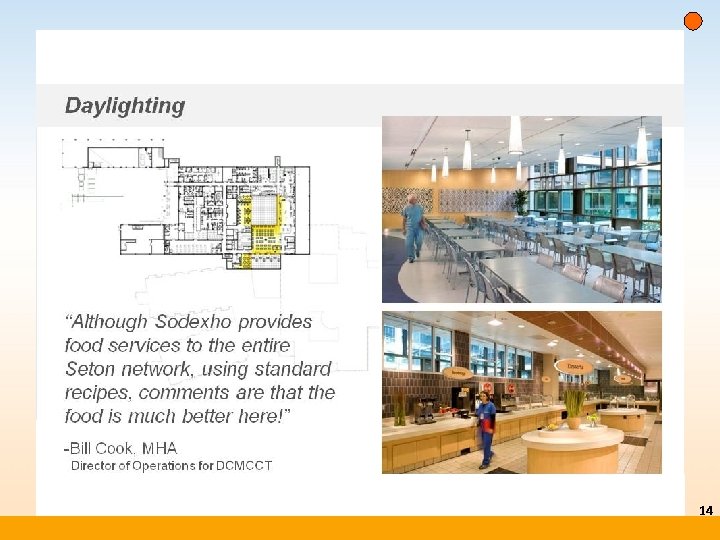

14

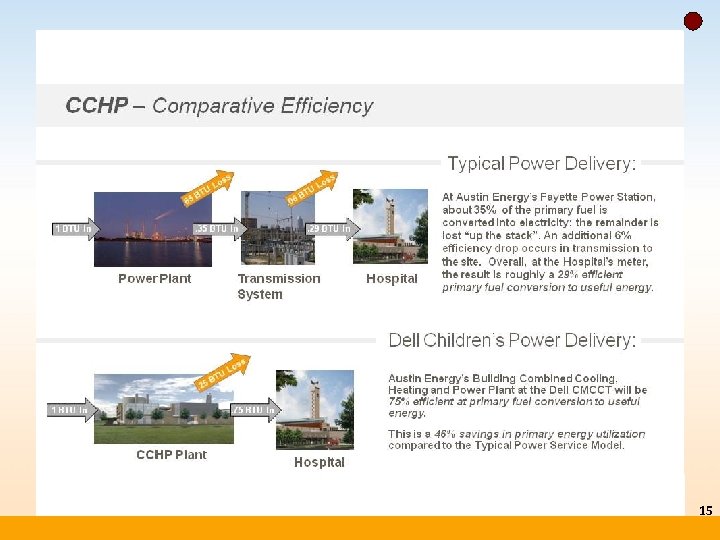

15

16

17

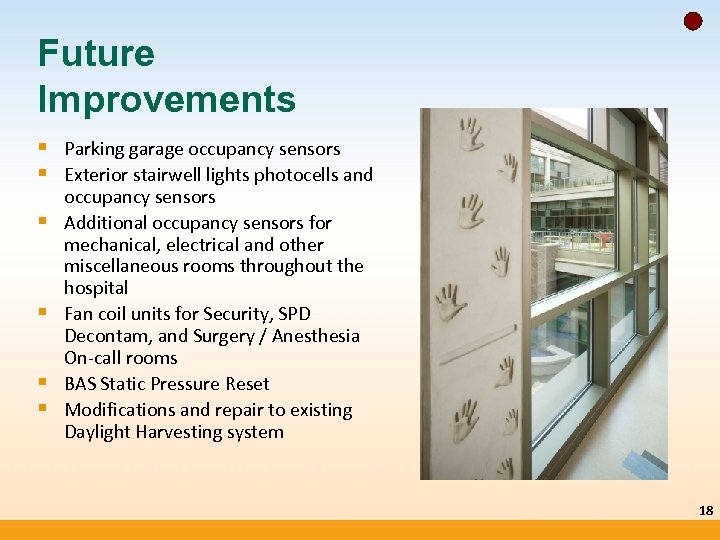

Future Improvements § Parking garage occupancy sensors § Exterior stairwell lights photocells and § § occupancy sensors Additional occupancy sensors for mechanical, electrical and other miscellaneous rooms throughout the hospital Fan coil units for Security, SPD Decontam, and Surgery / Anesthesia On-call rooms BAS Static Pressure Reset Modifications and repair to existing Daylight Harvesting system 18

19

20

21

22

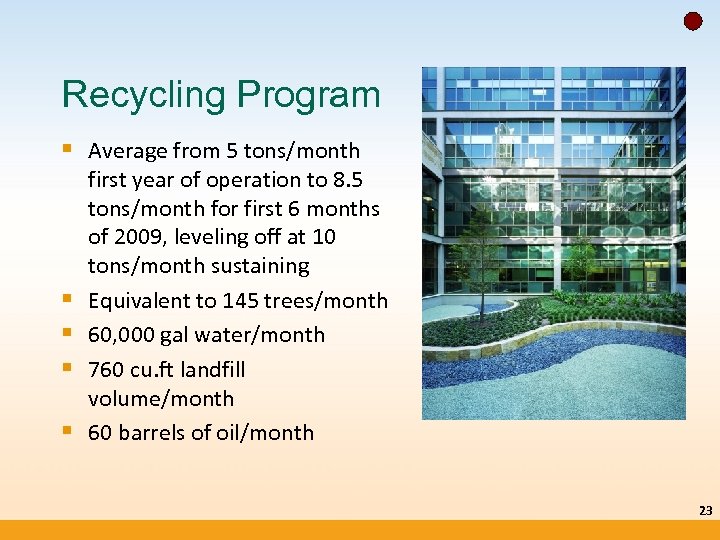

Recycling Program § Average from 5 tons/month § § first year of operation to 8. 5 tons/month for first 6 months of 2009, leveling off at 10 tons/month sustaining Equivalent to 145 trees/month 60, 000 gal water/month 760 cu. ft landfill volume/month 60 barrels of oil/month 23

24

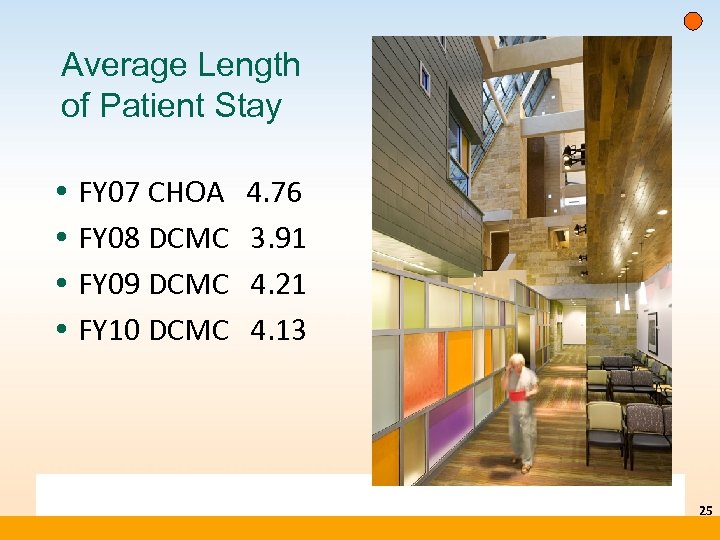

Average Length of Patient Stay • FY 07 CHOA 4. 76 • FY 08 DCMC 3. 91 • FY 09 DCMC 4. 21 • FY 10 DCMC 4. 13 25

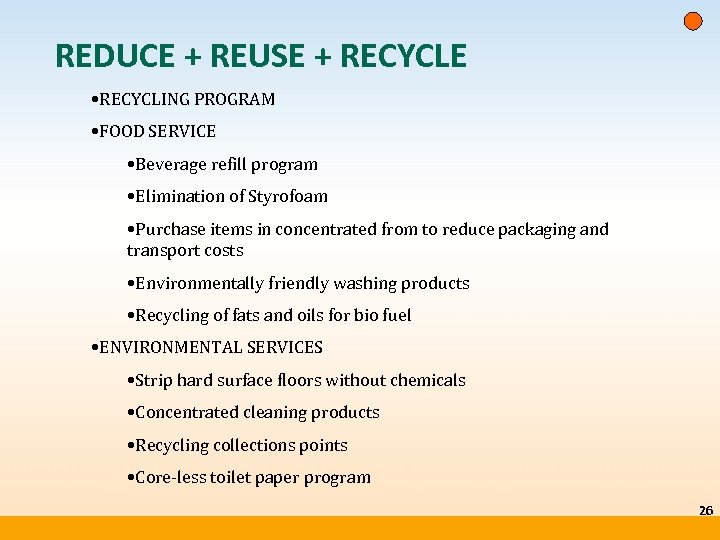

REDUCE + REUSE + RECYCLE • RECYCLING PROGRAM • FOOD SERVICE • Beverage refill program • Elimination of Styrofoam • Purchase items in concentrated from to reduce packaging and transport costs • Environmentally friendly washing products • Recycling of fats and oils for bio fuel • ENVIRONMENTAL SERVICES • Strip hard surface floors without chemicals • Concentrated cleaning products • Recycling collections points • Core-less toilet paper program 26

27
