The audio portion of this session is being broadcast through your computer speakers. If you can’t hear anything, please look for the phone number on your registration email and dial into the audio conference. If you have any questions during the webinar, use the chat feature on the right hand side of the screen and type your question in the space provided. Total Filtration Services

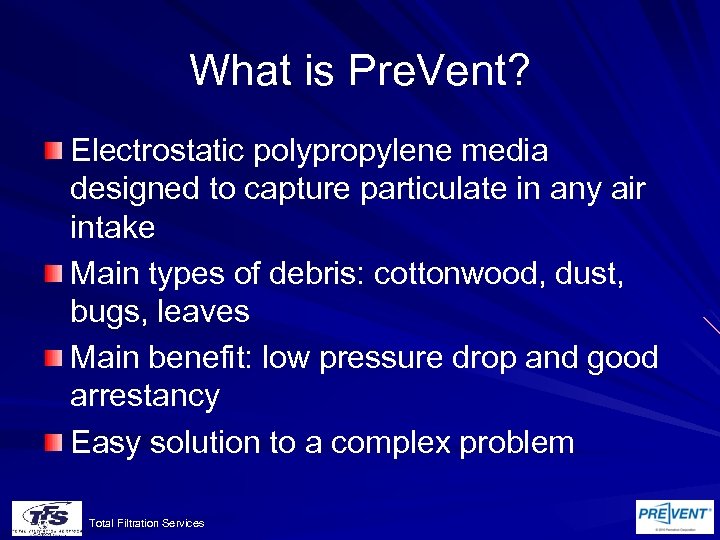

What is Pre. Vent? Electrostatic polypropylene media designed to capture particulate in any air intake Main types of debris: cottonwood, dust, bugs, leaves Main benefit: low pressure drop and good arrestancy Easy solution to a complex problem Total Filtration Services
Pre. Vent® Cost Effective Custom Fit -- Any Size Easy Installation Easy Cleaning UV Protected GREEN Product Total Filtration Services

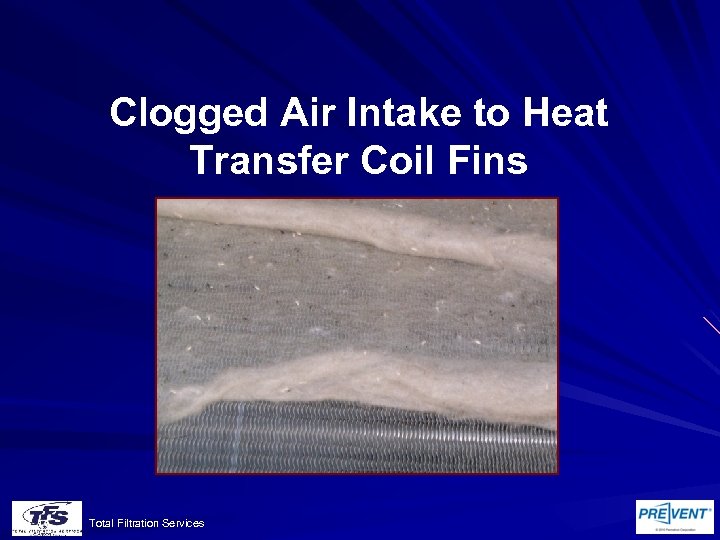

Clogged Air Intake to Heat Transfer Coil Fins Total Filtration Services

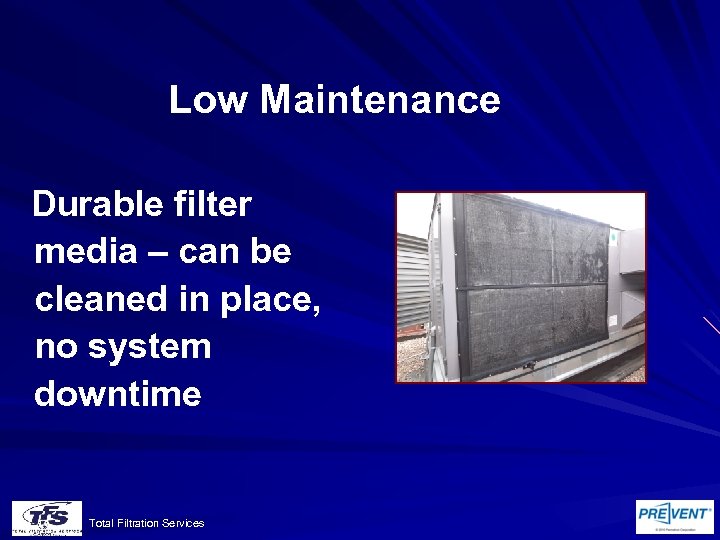

Low Maintenance Durable filter media – can be cleaned in place, no system downtime Total Filtration Services
As needed, simply brush debris off with a broom/stiff brush or vacuum Total Filtration Services
Proven Success Pre. Vent® Equipment Protection Filters are custom made to work with any type of equipment air intake Total Filtration Services

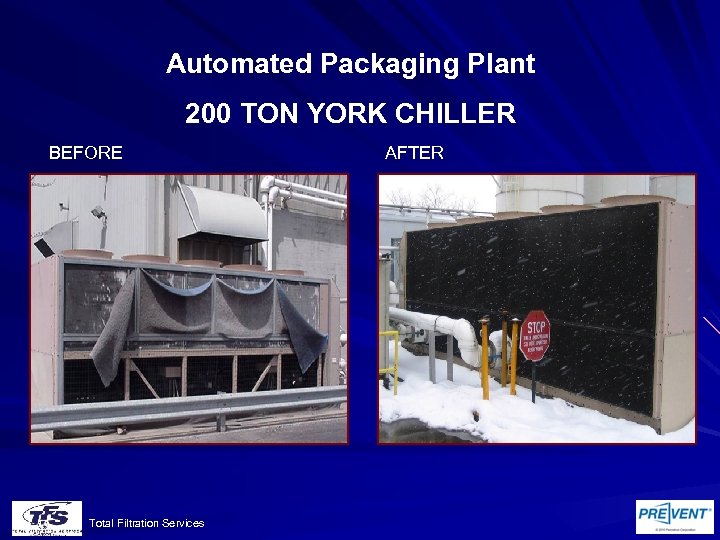

Automated Packaging Plant 200 TON YORK CHILLER BEFORE Total Filtration Services AFTER
Special Applications (PVC) Liebert Outdoor Unit Total Filtration Services

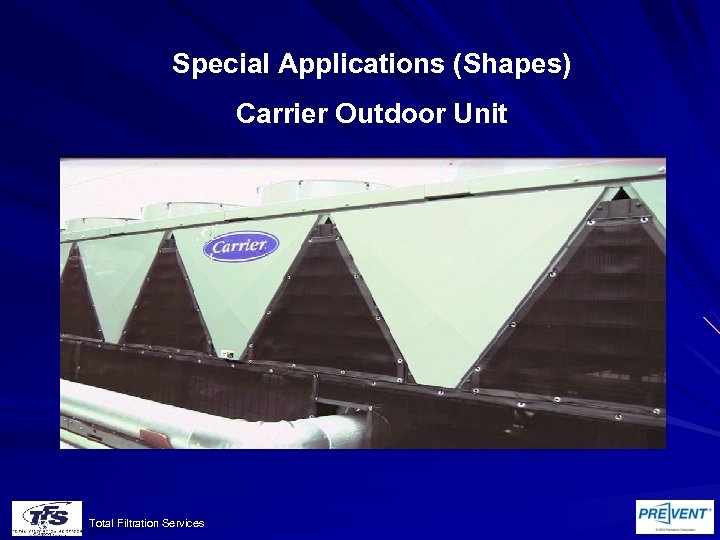

Special Applications (Shapes) Carrier Outdoor Unit Total Filtration Services
Carrier Chiller With Cut-Outs Total Filtration Services

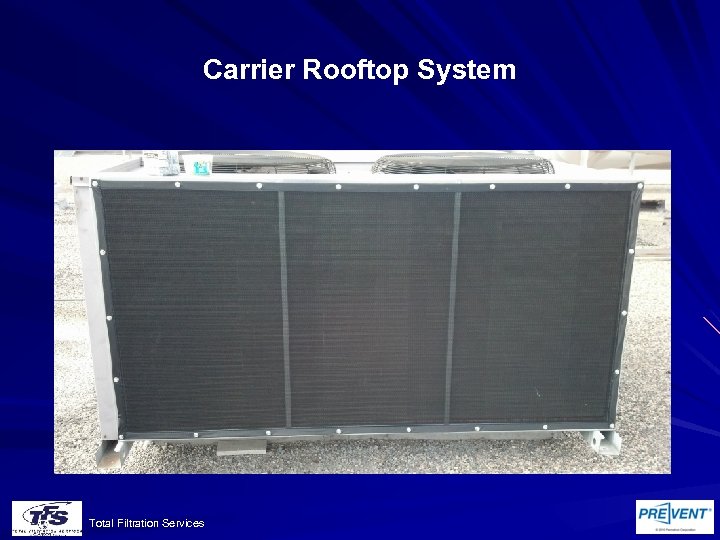

Carrier Rooftop System Total Filtration Services

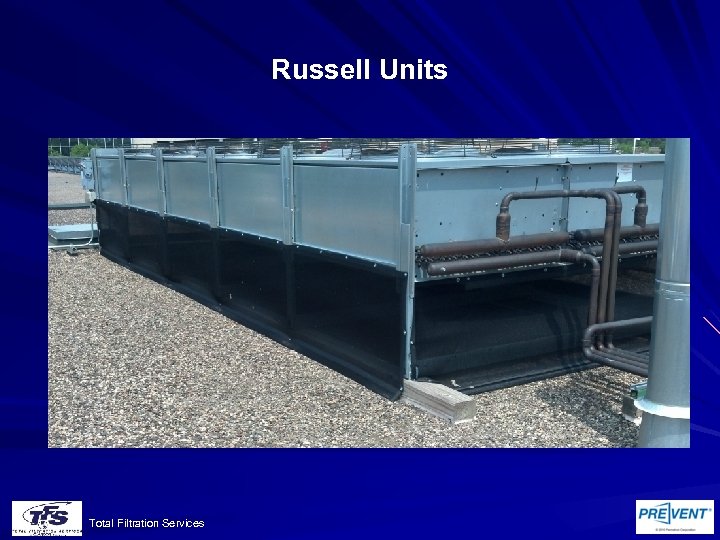

Russell Units Total Filtration Services

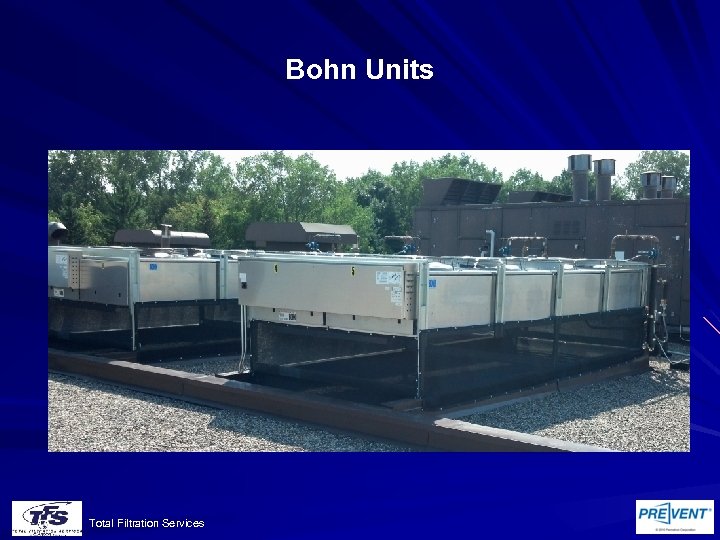

Bohn Units Total Filtration Services

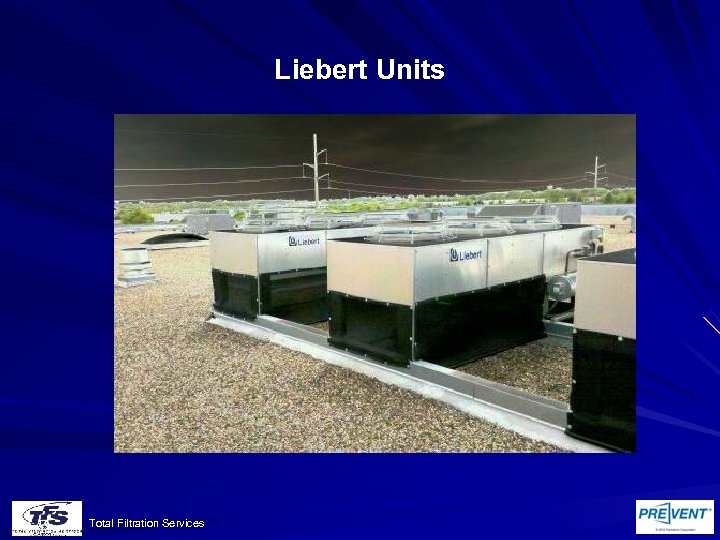

Liebert Units Total Filtration Services
How Do You Save? Cut Maintenance Time Stop Unnecessary Breakdowns Longer Capital Equipment Life Decrease Energy Use Extended Interior Filter Life Total Filtration Services

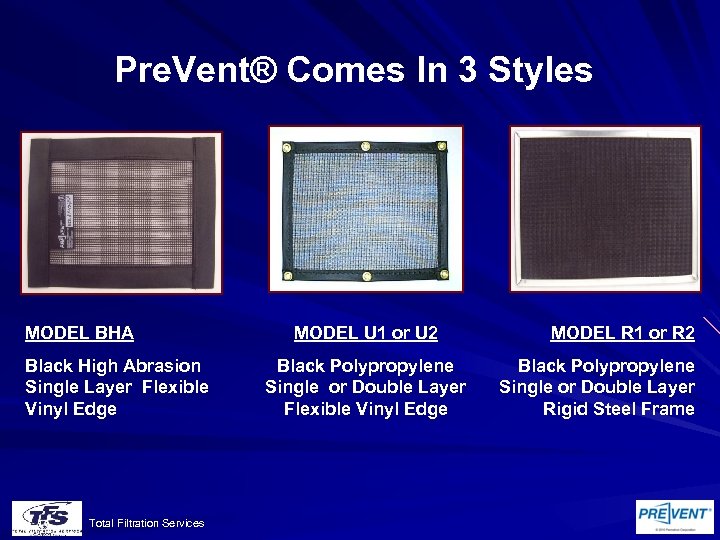

Pre. Vent® Comes In 3 Styles MODEL BHA Black High Abrasion Single Layer Flexible Vinyl Edge Total Filtration Services MODEL U 1 or U 2 Black Polypropylene Single or Double Layer Flexible Vinyl Edge MODEL R 1 or R 2 Black Polypropylene Single or Double Layer Rigid Steel Frame

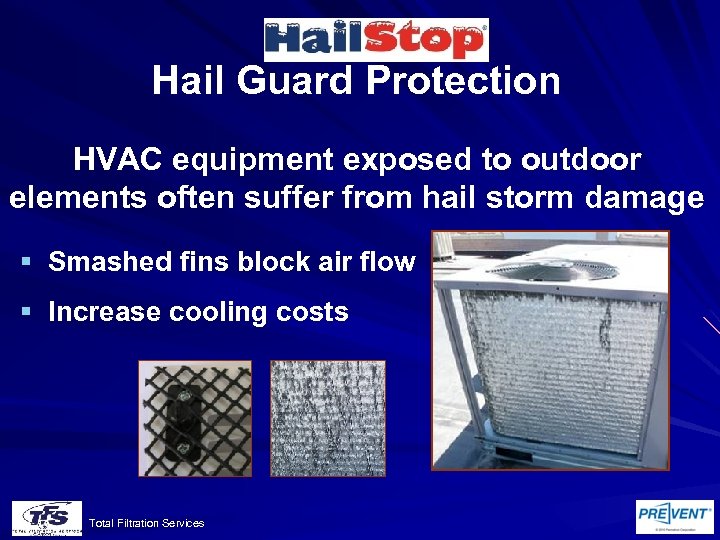

Hail Guard Protection HVAC equipment exposed to outdoor elements often suffer from hail storm damage § Smashed fins block air flow § Increase cooling costs Total Filtration Services

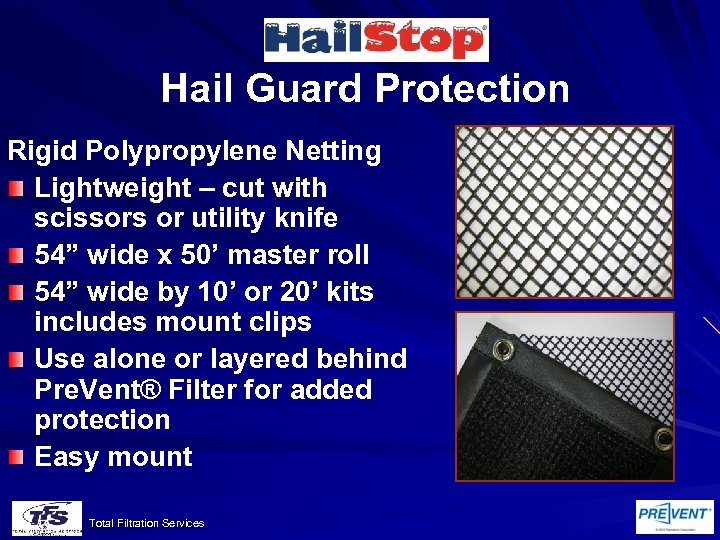

Hail Guard Protection Rigid Polypropylene Netting Lightweight – cut with scissors or utility knife 54” wide x 50’ master roll 54” wide by 10’ or 20’ kits includes mount clips Use alone or layered behind Pre. Vent® Filter for added protection Easy mount Total Filtration Services

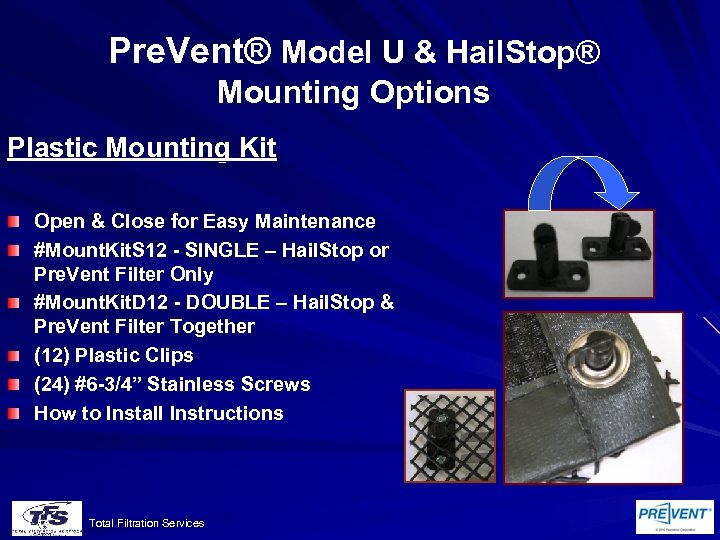

Pre. Vent® Model U & Hail. Stop® Mounting Options Plastic Mounting Kit Open & Close for Easy Maintenance #Mount. Kit. S 12 - SINGLE – Hail. Stop or Pre. Vent Filter Only #Mount. Kit. D 12 - DOUBLE – Hail. Stop & Pre. Vent Filter Together (12) Plastic Clips (24) #6 -3/4” Stainless Screws How to Install Instructions Total Filtration Services

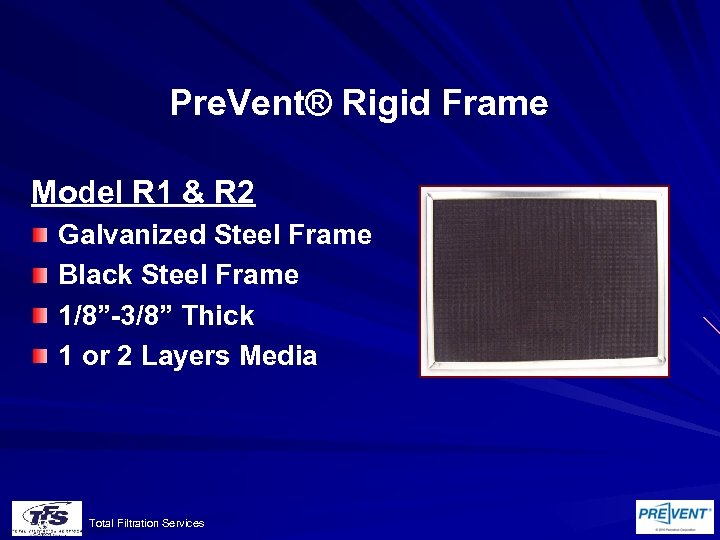

Pre. Vent® Rigid Frame Model R 1 & R 2 Galvanized Steel Frame Black Steel Frame 1/8”-3/8” Thick 1 or 2 Layers Media Total Filtration Services

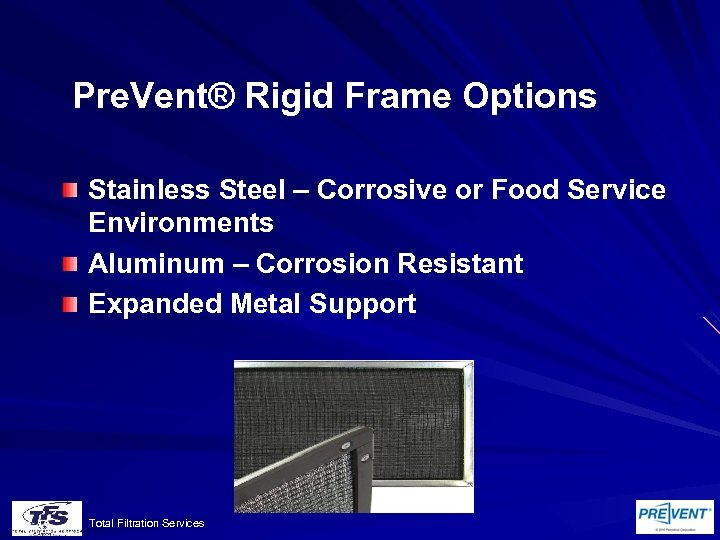

Pre. Vent® Rigid Frame Options Stainless Steel – Corrosive or Food Service Environments Aluminum – Corrosion Resistant Expanded Metal Support Total Filtration Services
Pre. Vent® Model R Mounting Options Magnetic Edging on Frame – Filter Sticks to Metal Housing Cabinet Neoprene Gasket Edging – Tighter Seal Eliminates Air Bypass Total Filtration Services

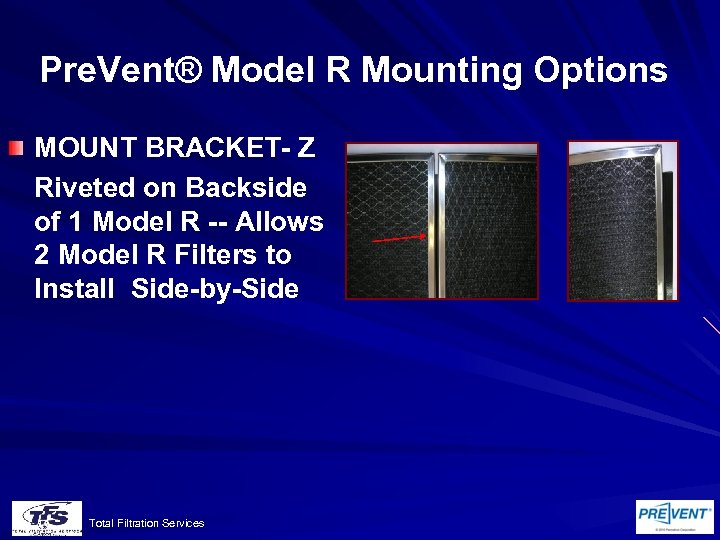

Pre. Vent® Model R Mounting Options MOUNT BRACKET- Z Riveted on Backside of 1 Model R -- Allows 2 Model R Filters to Install Side-by-Side Total Filtration Services

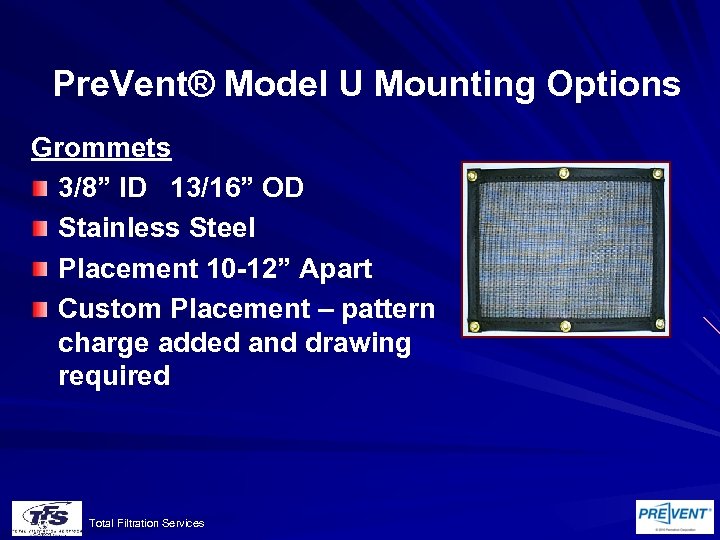

Pre. Vent® Model U Mounting Options Grommets 3/8” ID 13/16” OD Stainless Steel Placement 10 -12” Apart Custom Placement – pattern charge added and drawing required Total Filtration Services
Equipment Protection Filters Application Based Solutions Driven Cost Effective Total Filtration Services
Questions? Total Filtration Services
John Rappaport Phone: (847) 434 -1421 Direct: (847) 621 -5731 Fax: (847) 434 -1429 Email: jrappaport@permatron. com Total Filtration Services
