Content • Basic Applications • Flexible Automation SL-2002 -14 The Application of Optical Inspection 2

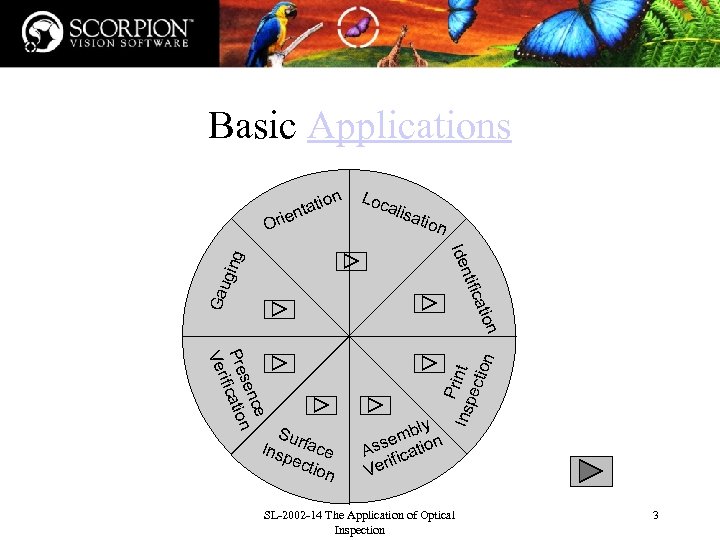

Basic Applications on ti nta e Ori Loc alis atio n P Insp rint ecti on icat Gau ntif ging Ide ce sen n Pre icatio if Ver Sur Insp face ecti on ly mb n e Ass ficatio i Ver SL-2002 -14 The Application of Optical Inspection 3

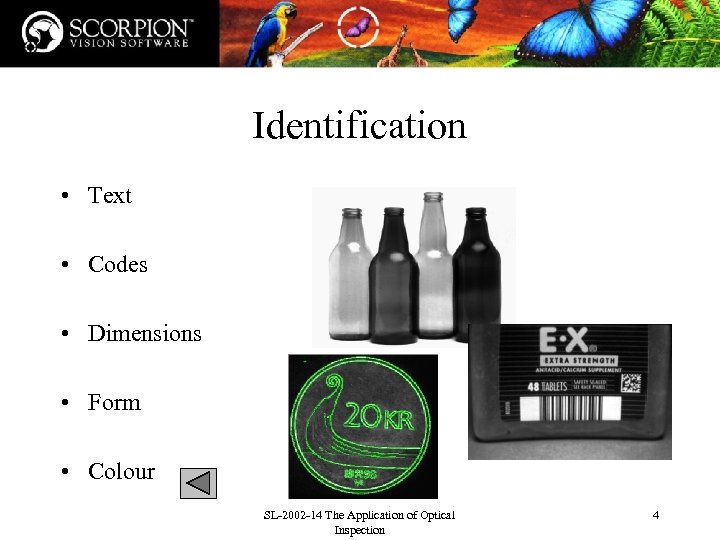

Identification • Text • Codes • Dimensions • Form • Colour SL-2002 -14 The Application of Optical Inspection 4

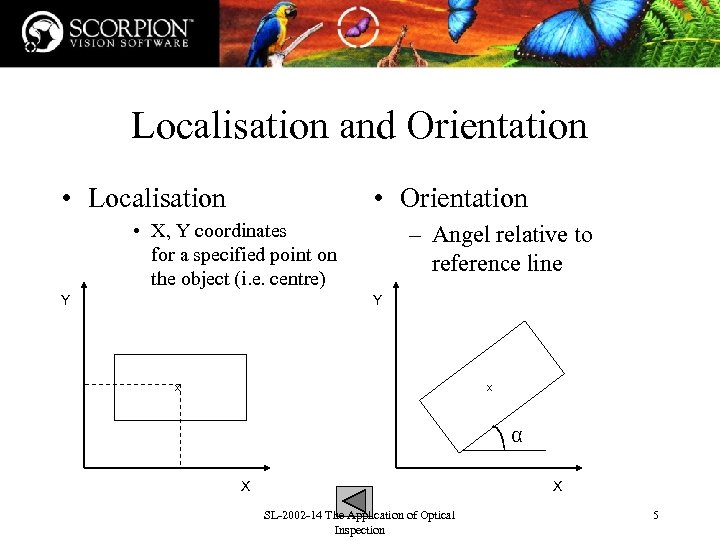

Localisation and Orientation • Localisation • Orientation • X, Y coordinates for a specified point on the object (i. e. centre) Y – Angel relative to reference line Y X X α X X SL-2002 -14 The Application of Optical Inspection 5

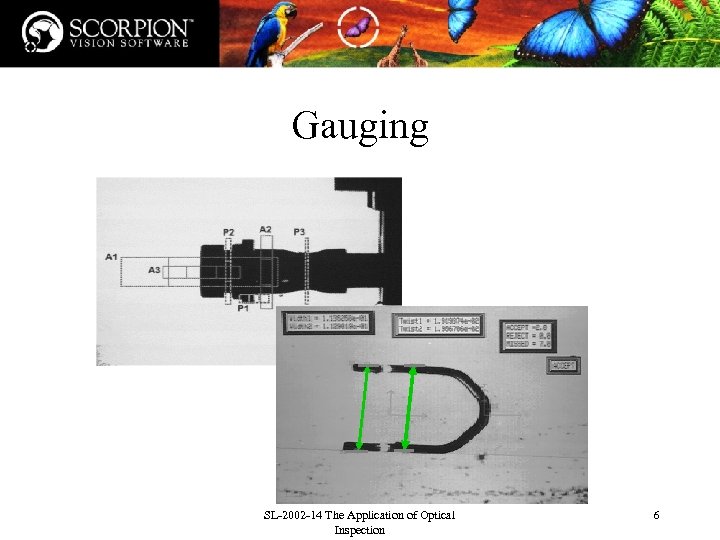

Gauging SL-2002 -14 The Application of Optical Inspection 6

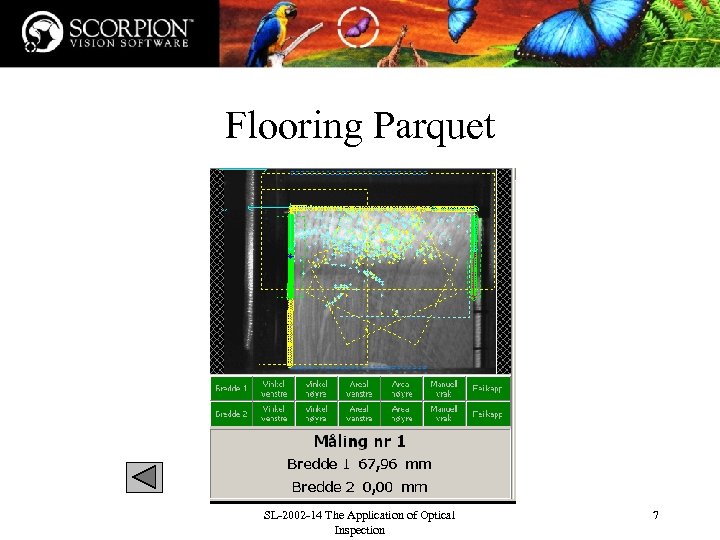

Flooring Parquet SL-2002 -14 The Application of Optical Inspection 7

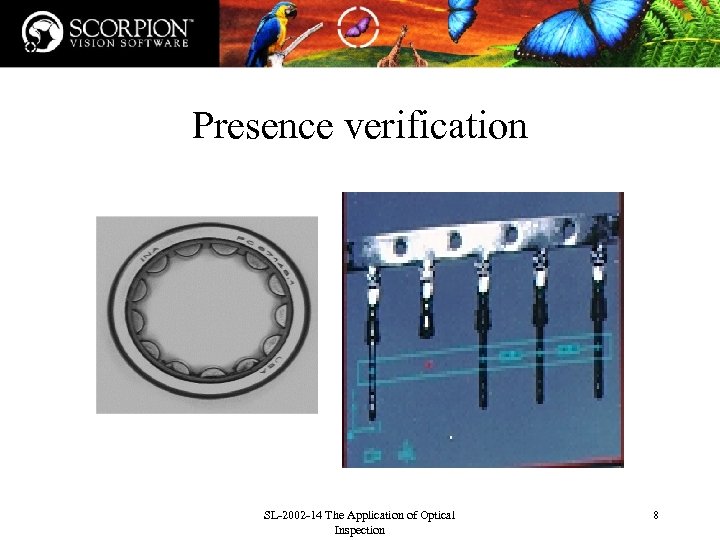

Presence verification SL-2002 -14 The Application of Optical Inspection 8

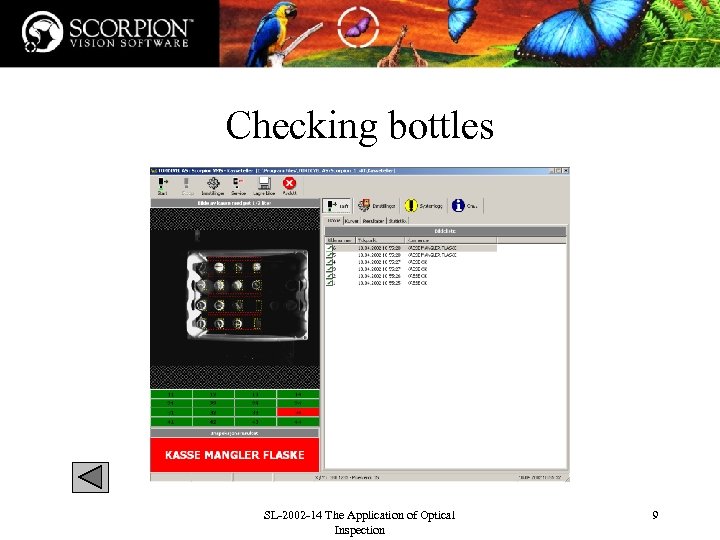

Checking bottles SL-2002 -14 The Application of Optical Inspection 9

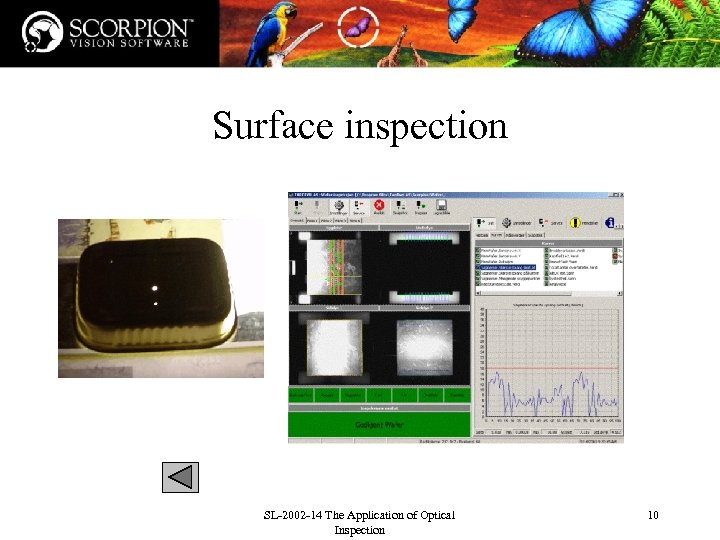

Surface inspection SL-2002 -14 The Application of Optical Inspection 10

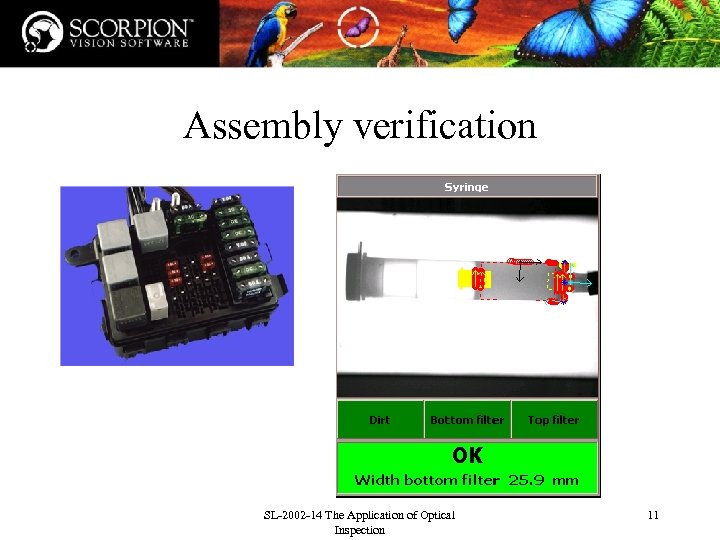

Assembly verification SL-2002 -14 The Application of Optical Inspection 11

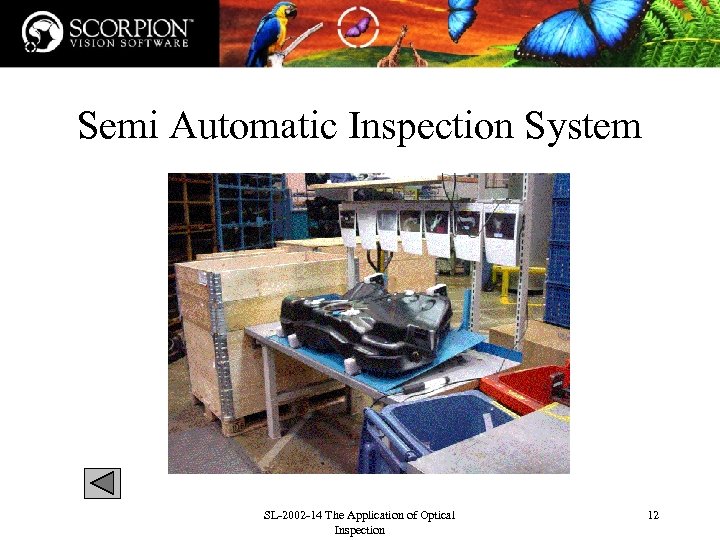

Semi Automatic Inspection System SL-2002 -14 The Application of Optical Inspection 12

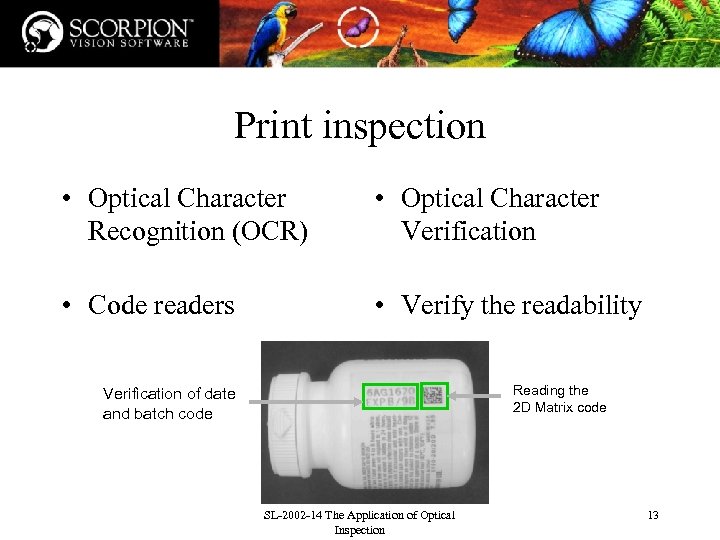

Print inspection • Optical Character Recognition (OCR) • Optical Character Verification • Code readers • Verify the readability Reading the 2 D Matrix code Verification of date and batch code SL-2002 -14 The Application of Optical Inspection 13

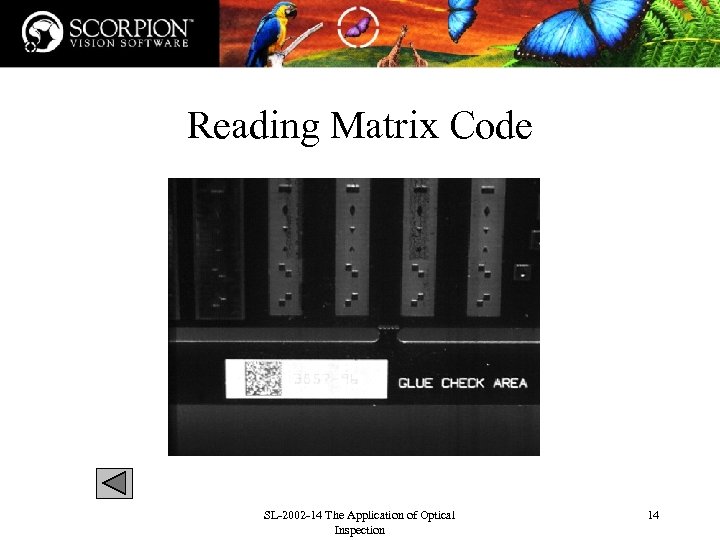

Reading Matrix Code SL-2002 -14 The Application of Optical Inspection 14

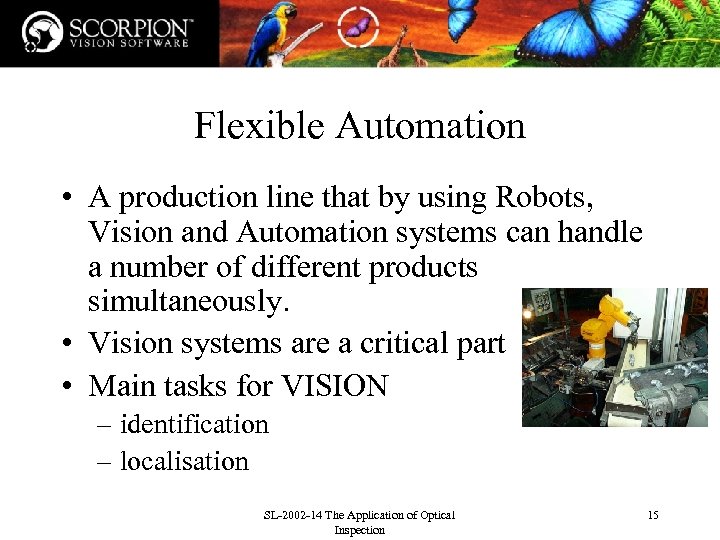

Flexible Automation • A production line that by using Robots, Vision and Automation systems can handle a number of different products simultaneously. • Vision systems are a critical part • Main tasks for VISION – identification – localisation SL-2002 -14 The Application of Optical Inspection 15

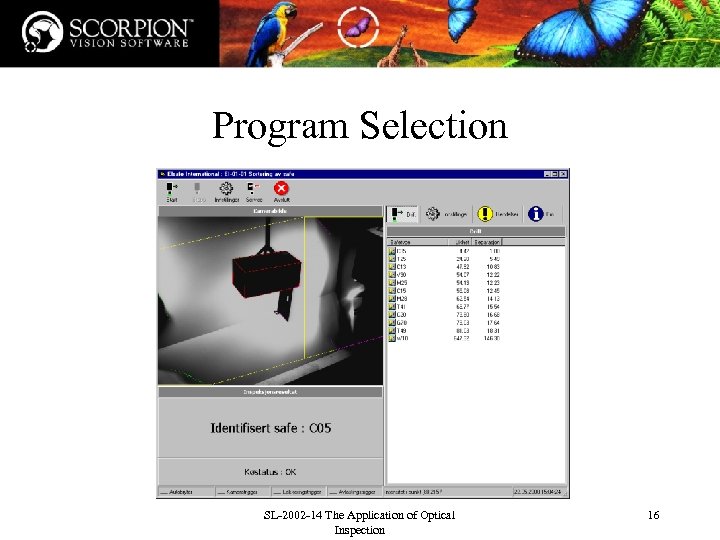

Program Selection SL-2002 -14 The Application of Optical Inspection 16

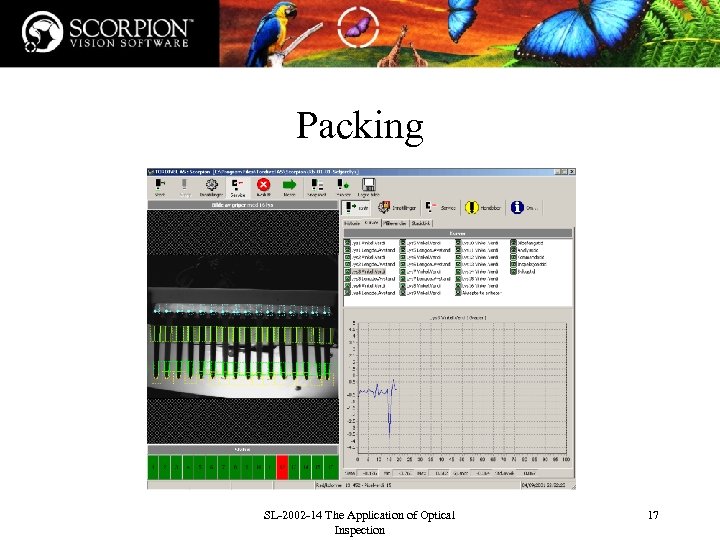

Packing SL-2002 -14 The Application of Optical Inspection 17

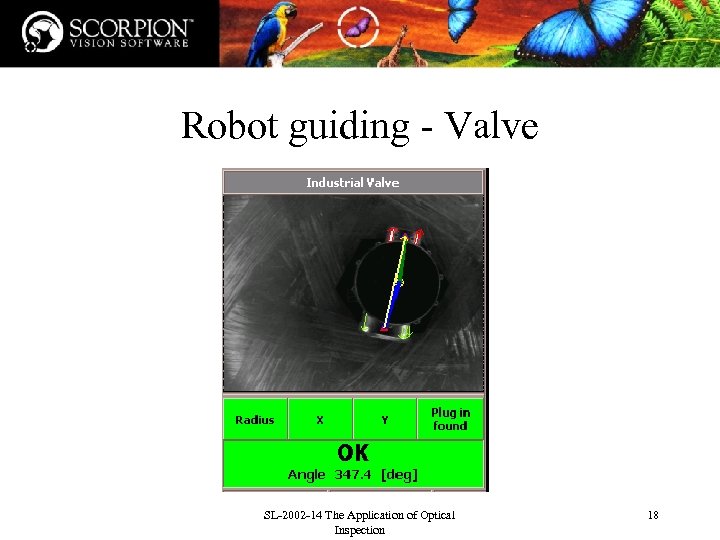

Robot guiding - Valve SL-2002 -14 The Application of Optical Inspection 18

Robot Guiding – plastic bags • Four conveyors with bags • One robot picking bags SL-2002 -14 The Application of Optical Inspection 19

Opportunities! Consumer Goods Electronics Wood and Furniture Pharmaceutical Industry Mechanical Production SL-2002 -14 The Application of Optical Inspection 20
