The 21 st Century Network Standards Requirements Keith

The 21 st Century Network Standards Requirements Keith Dickerson Head of Standards BT Group

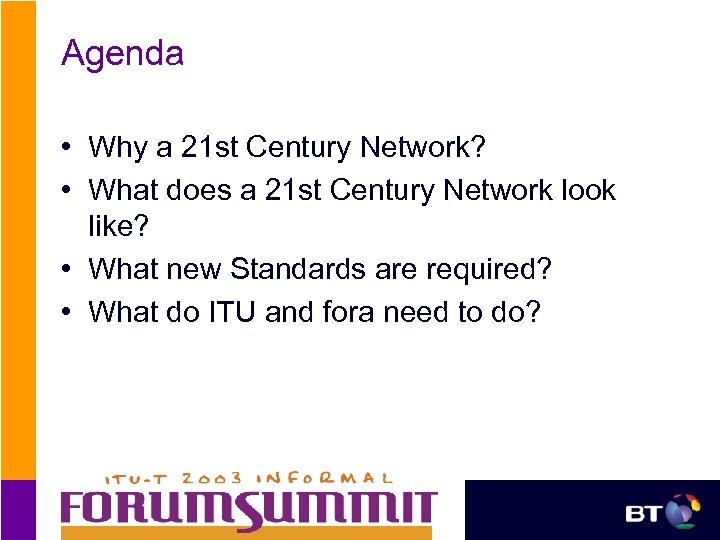

Agenda • Why a 21 st Century Network? • What does a 21 st Century Network look like? • What new Standards are required? • What do ITU and fora need to do?

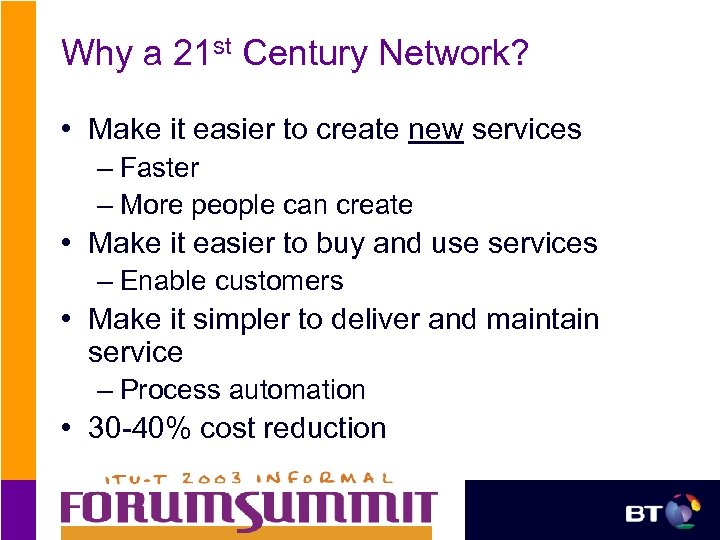

Why a 21 st Century Network? • Make it easier to create new services – Faster – More people can create • Make it easier to buy and use services – Enable customers • Make it simpler to deliver and maintain service – Process automation • 30 -40% cost reduction

What does it mean? • New services – Open APIs and applications platforms – Mobile enabled – Re-usable components/capabilities – Build on broadband • Cost reduction – Not enough to do efficiencies and automation – Radical network convergence to fewer networks and systems carrying more services – Converge in from the edge

21 st Century Services Vision “A world where all our customers feel empowered and are treated as individuals”

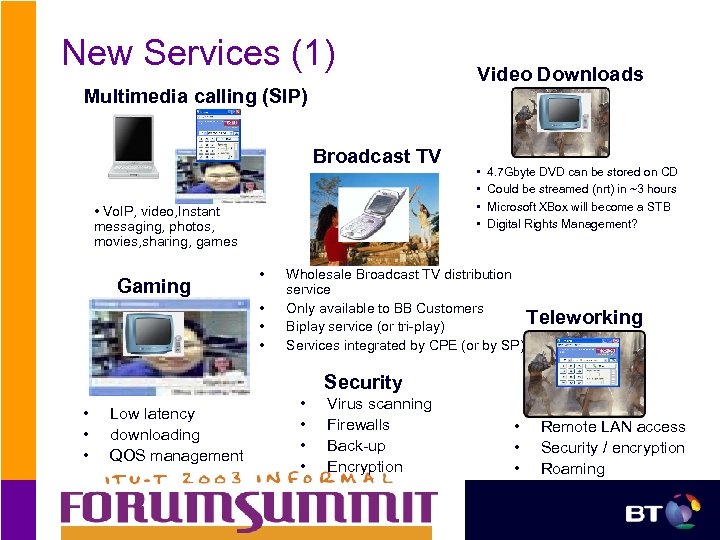

New Services (1) Multimedia calling (SIP) Broadcast TV • Vo. IP, video, Instant messaging, photos, movies, sharing, games Gaming • • Video Downloads • • 4. 7 Gbyte DVD can be stored on CD Could be streamed (nrt) in ~3 hours Microsoft XBox will become a STB Digital Rights Management? Wholesale Broadcast TV distribution service Only available to BB Customers Teleworking Biplay service (or tri-play) Services integrated by CPE (or by SP) Security • • • Low latency downloading QOS management • • Virus scanning Firewalls Back-up Encryption • • • Remote LAN access Security / encryption Roaming

New Services (2) • Broadband – Move from selling best effort pipe to assured services charged per session/time/ – Provide one way assurance (VOD, Turbo button etc) but also twoway multimedia calling – Allow anyone to create services • Business – Provide ICT service, managed desktop, storage, hosted applications… Build on IPVPN to have any access, including work at home, cellular and WLAN • Future voice – Derived/replacement where needed – Multi-media in both consumer and business • Mobility – Support mobile terminals – Build on IM/mobile presentation to provide roaming over any access – Personal and terminal mobility

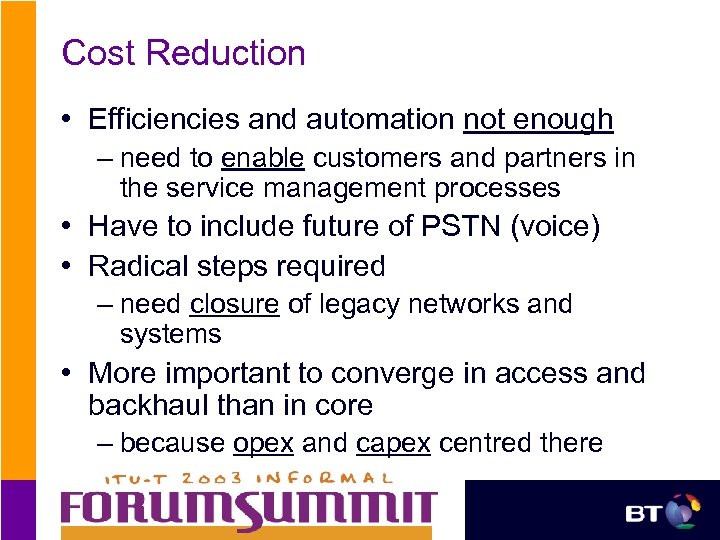

Cost Reduction • Efficiencies and automation not enough – need to enable customers and partners in the service management processes • Have to include future of PSTN (voice) • Radical steps required – need closure of legacy networks and systems • More important to converge in access and backhaul than in core – because opex and capex centred there

21 st Century Network Vision Logical Nodes Today ~80, 000 PCPs in the Access Network ~100, 000 Remote Concs, DLAMS and Data Muxes ~1000 + Voice Switches and Data Cross Connects ~170 Core Switches (DMSU / NGS) Data Centre International Networks Internet Peering End Customer Logical Nodes Begin Fibre to the PCP ~30, 000 ~10 Multi. Service Access Devices Aggregation Metro Routers Core Routers Service Edge Core Data Centre

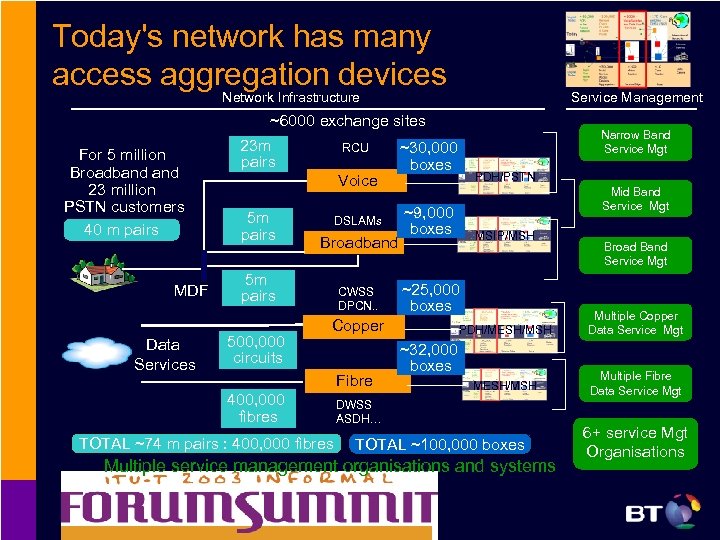

Today's network has many access aggregation devices Network Infrastructure Service Management ~6000 exchange sites For 5 million Broadband 23 million PSTN customers 40 m pairs MDF Data Services 23 m pairs RCU Voice 5 m pairs DSLAMs Broadband 5 m pairs 500, 000 circuits CWSS DPCN. . ~30, 000 boxes 400, 000 fibres TOTAL ~74 m pairs : 400, 000 fibres PDH/PSTN Mid Band Service Mgt ~9, 000 boxes MSIP/MSH ~25, 000 boxes Broad Band Service Mgt PDH/MESH/MSH Copper Fibre Narrow Band Service Mgt Multiple Copper Data Service Mgt MESH/MSH Multiple Fibre Data Service Mgt ~32, 000 boxes DWSS ASDH… TOTAL ~100, 000 boxes Multiple service management organisations and systems 6+ service Mgt Organisations

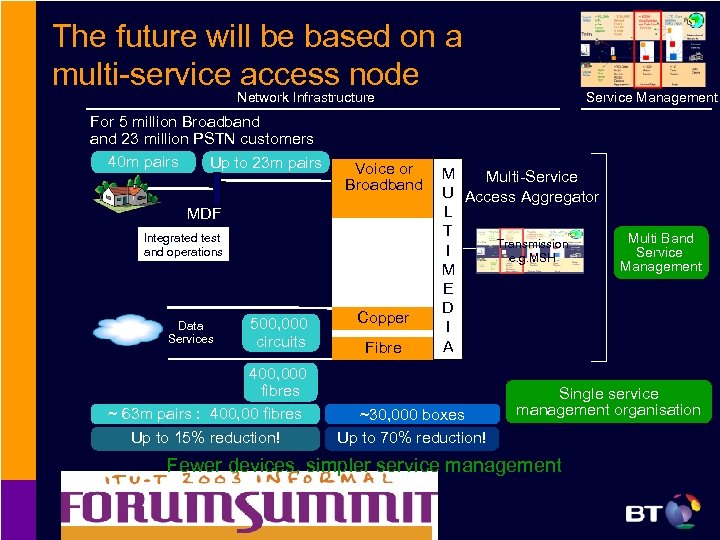

The future will be based on a multi-service access node Network Infrastructure For 5 million Broadband 23 million PSTN customers 40 m pairs Up to 23 m pairs Voice or Broadband MDF Integrated test and operations Data Services 500, 000 circuits 400, 000 fibres ~ 63 m pairs : 400, 00 fibres Up to 15% reduction! Copper Fibre Service Management M Multi-Service U Access Aggregator L T Transmission I e. g. MSH M E D I A ~30, 000 boxes Up to 70% reduction! Multi Band Service Management Single service management organisation Fewer devices, simpler service management

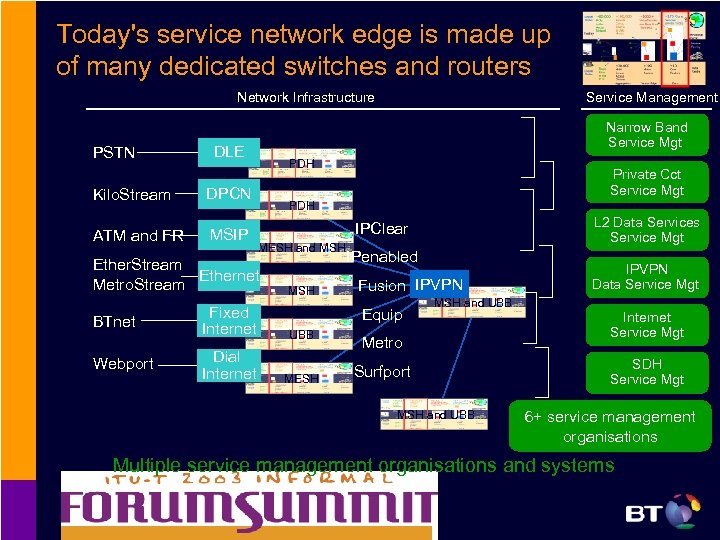

Today's service network edge is made up of many dedicated switches and routers Network Infrastructure PSTN Kilo. Stream ATM and FR Narrow Band Service Mgt DLE PDH DPCN MSIP Service Management Private Cct Service Mgt PDH L 2 Data Services Service Mgt IPClear MESH and MSH Ether. Stream Ethernet Metro. Stream MSH BTnet Fixed Internet UBB Webport Dial Internet MESH IPenabled Fusion IPVPN Equip IPVPN Data Service Mgt MSH and UBB Metro Surfport MSH and UBB Internet Service Mgt SDH Service Mgt 6+ service management organisations Multiple service management organisations and systems

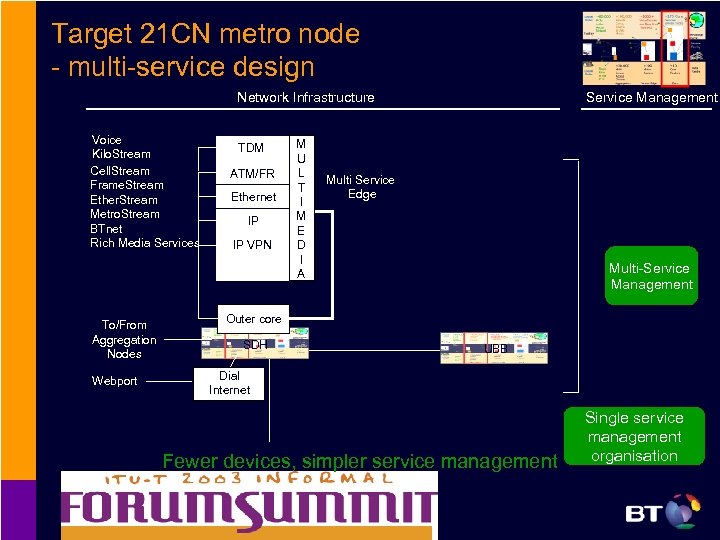

Target 21 CN metro node - multi-service design Network Infrastructure Voice Kilo. Stream Cell. Stream Frame. Stream Ether. Stream Metro. Stream BTnet Rich Media Services To/From Aggregation Nodes Webport TDM ATM/FR Ethernet IP IP VPN M U L T I M E D I A Service Management Multi Service Edge Multi-Service Management Outer core SDH UBB Dial Internet Fewer devices, simpler service management Single service management organisation

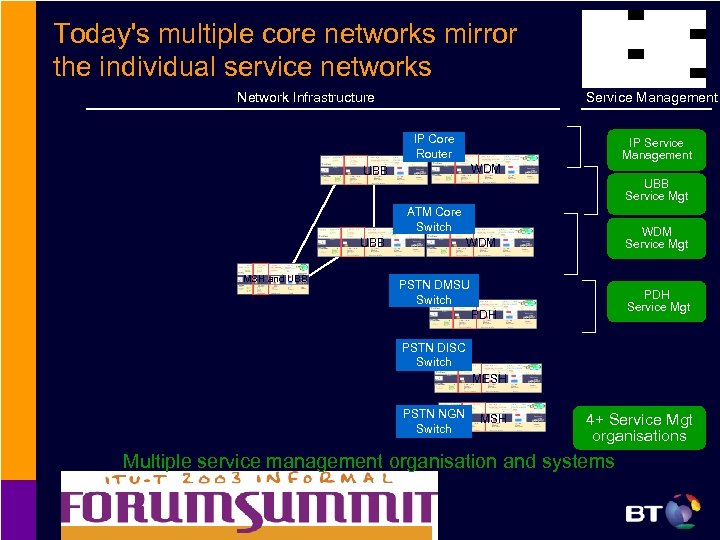

Today's multiple core networks mirror the individual service networks Network Infrastructure Service Management IP Core Router IP Service Management WDM UBB Service Mgt ATM Core Switch UBB MSH and UBB WDM Service Mgt WDM PSTN DMSU Switch PDH Service Mgt PDH PSTN DISC Switch MESH PSTN NGN Switch MSH 4+ Service Mgt organisations Multiple service management organisation and systems

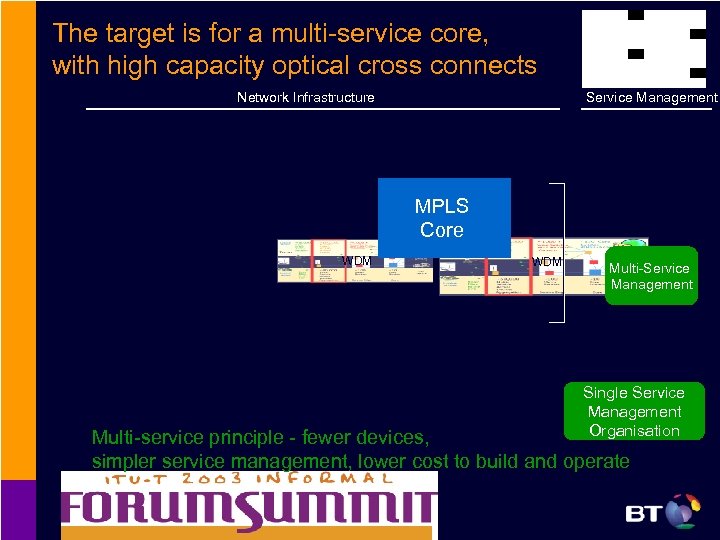

The target is for a multi-service core, with high capacity optical cross connects Network Infrastructure Service Management MPLS Core WDM Multi-Service Management Single Service Management Organisation Multi-service principle - fewer devices, simpler service management, lower cost to build and operate

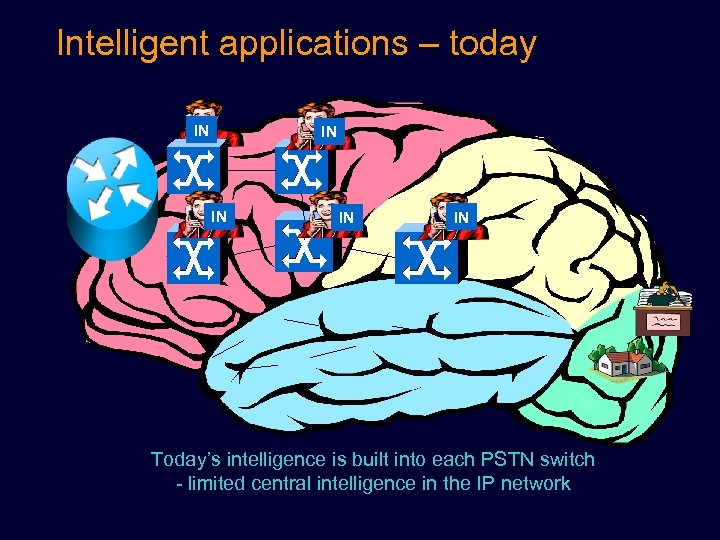

Intelligent applications – today IN IN IN Today’s intelligence is built into each PSTN switch - limited central intelligence in the IP network

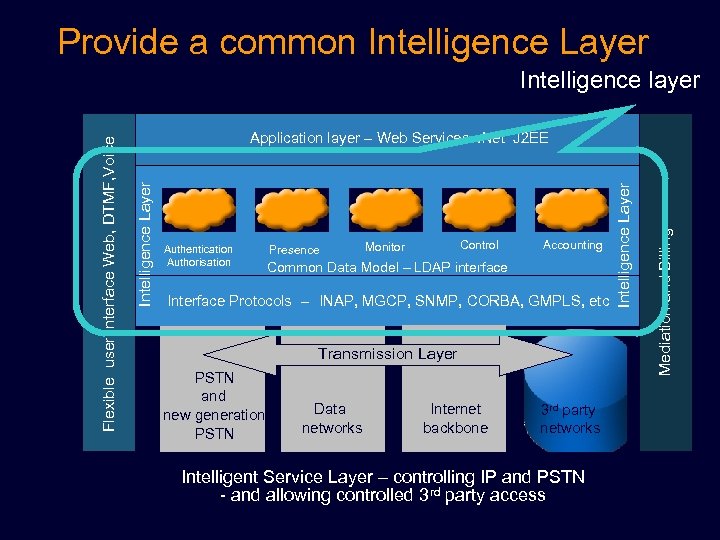

Provide a common Intelligence Layer Presence Control Monitor Accounting Common Data Model – LDAP interface Interface Protocols – INAP, MGCP, SNMP, CORBA, GMPLS, etc Transmission Layer PSTN and new generation PSTN Data networks Internet backbone 3 rd party networks Intelligent Service Layer – controlling IP and PSTN - and allowing controlled 3 rd party access Mediation and Billing Authentication Authorisation Intelligence Layer Application layer – Web Services. Net J 2 EE Intelligence Layer Flexible user interface Web, DTMF, Voice Intelligence layer

Home Gateway M&C API IF-6 EUD-HN 1 Interface Diag API Customer Environment Service Provider IF-1 IF-3 Home Network 1 Home Network n IF-10 IF-9 IF-8 M&C API Diag API EUD-HNn Interface CG-HNn Interface Diagnostics API IF-4 Customer Gateway IF-7 Management & Control API CG-HN 1 Interface Content Provider Network Provider Access Interface NT IF-2 IF-5 End User device

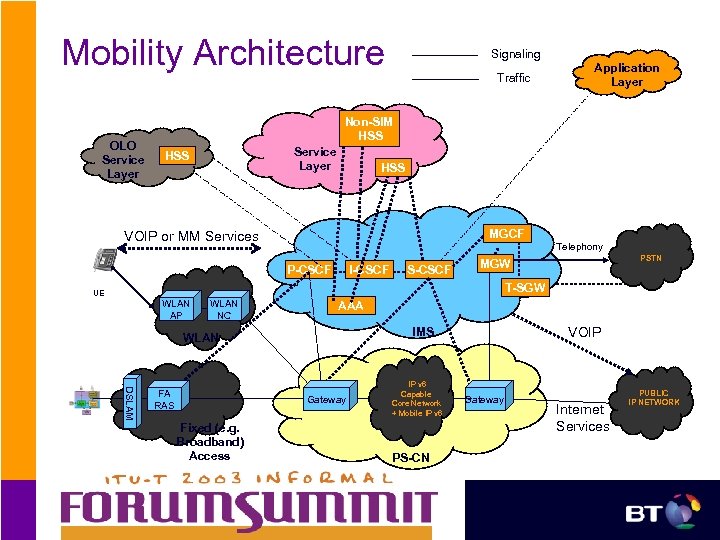

Mobility Architecture OLO Service Layer Signaling Traffic Application Layer Non-SIM HSS Service Layer HSS MGCF VOIP or MM Services Telephony P-CSCF I-CSCF S-CSCF PSTN MGW T-SGW UE WLAN AP WLAN NC AAA IMS WLAN DSLAM FA RAS Gateway Fixed (e. g. Broadband) Access IP v 6 Capable Core Network + Mobile IP v 6 PS-CN VOIP Gateway Internet Services PUBLIC IP NETWORK

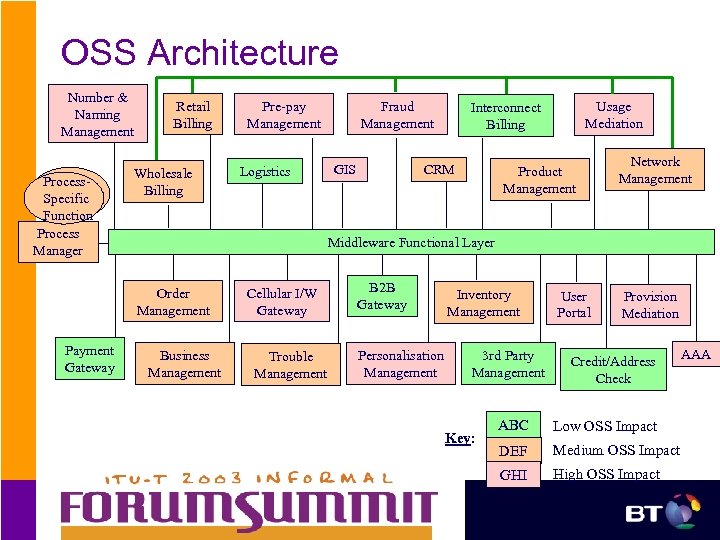

OSS Architecture Number & Naming Management Process. Specific Function Process Manager Retail Billing Wholesale Billing Logistics Fraud Management GIS Usage Mediation Interconnect Billing CRM Product Management Network Management Middleware Functional Layer Order Management Payment Gateway Pre-pay Management Business Management Cellular I/W Gateway Trouble Management B 2 B Gateway Personalisation Management Inventory Management 3 rd Party Management Key: User Portal Provision Mediation Credit/Address Check ABC Low OSS Impact DEF Medium OSS Impact GHI High OSS Impact AAA

Application Architecture

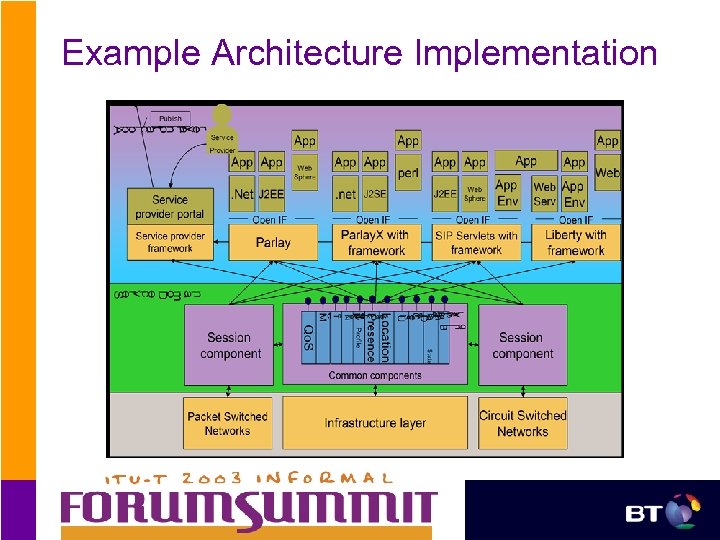

Example Architecture Implementation

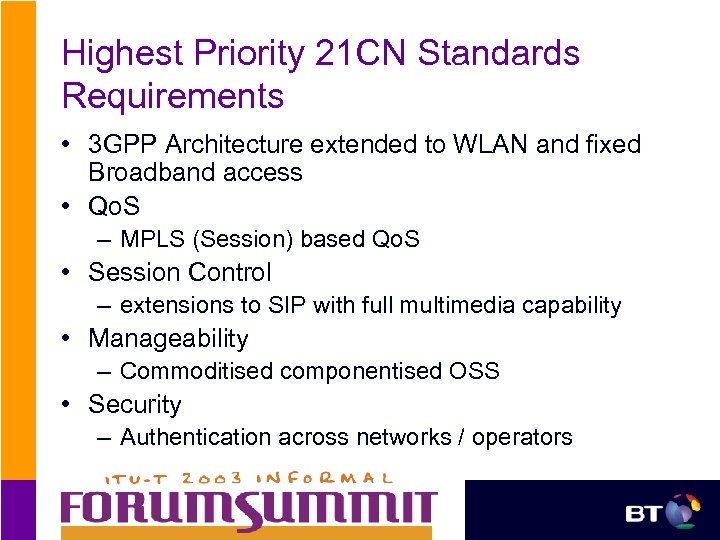

Highest Priority 21 CN Standards Requirements • 3 GPP Architecture extended to WLAN and fixed Broadband access • Qo. S – MPLS (Session) based Qo. S • Session Control – extensions to SIP with full multimedia capability • Manageability – Commoditised componentised OSS • Security – Authentication across networks / operators

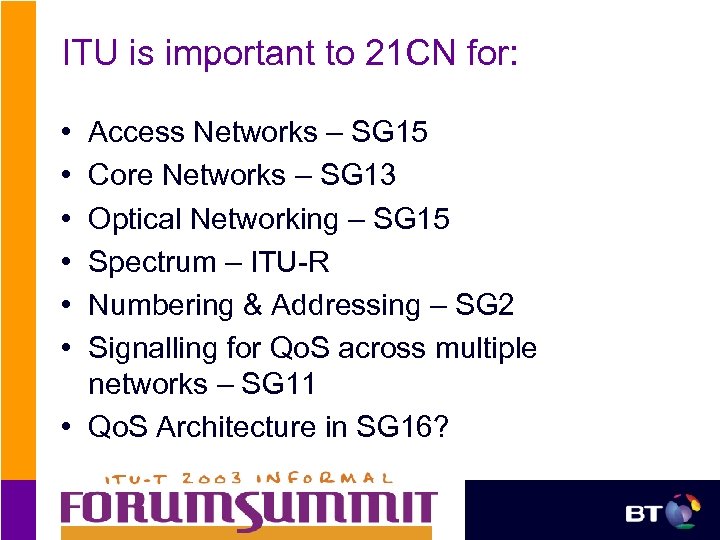

ITU is important to 21 CN for: • • • Access Networks – SG 15 Core Networks – SG 13 Optical Networking – SG 15 Spectrum – ITU-R Numbering & Addressing – SG 2 Signalling for Qo. S across multiple networks – SG 11 • Qo. S Architecture in SG 16?

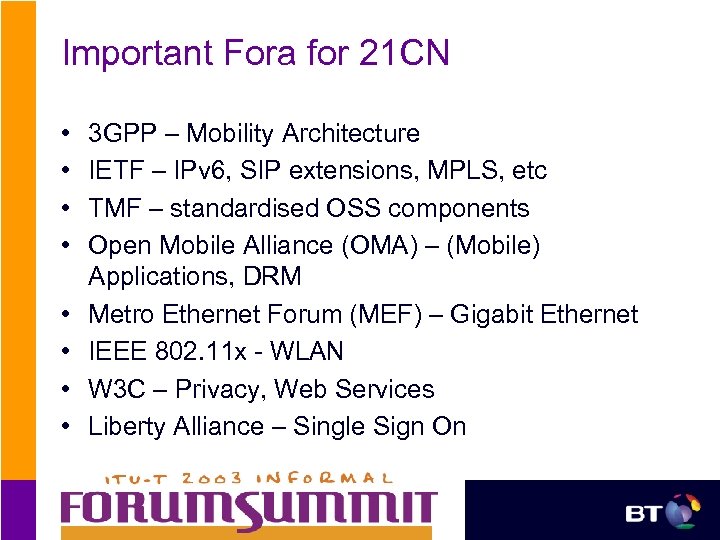

Important Fora for 21 CN • • 3 GPP – Mobility Architecture IETF – IPv 6, SIP extensions, MPLS, etc TMF – standardised OSS components Open Mobile Alliance (OMA) – (Mobile) Applications, DRM Metro Ethernet Forum (MEF) – Gigabit Ethernet IEEE 802. 11 x - WLAN W 3 C – Privacy, Web Services Liberty Alliance – Single Sign On

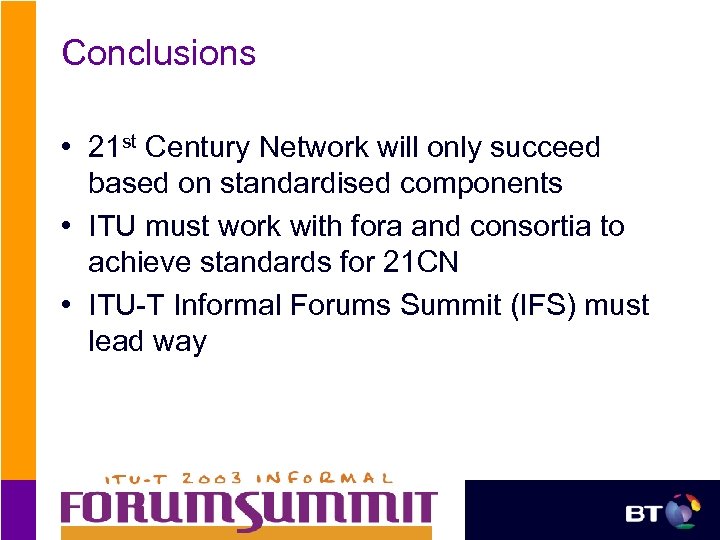

Conclusions • 21 st Century Network will only succeed based on standardised components • ITU must work with fora and consortia to achieve standards for 21 CN • ITU-T Informal Forums Summit (IFS) must lead way
