Testing Database Applications Donald Kossmann http www dbis

Testing Database Applications Donald Kossmann http: //www. dbis. ethz. ch Joint work with: Carsten Binnig, Eric Lo Thanks: i-TV-T AG, Porsche, Microsoft, Baden-Würtemberg

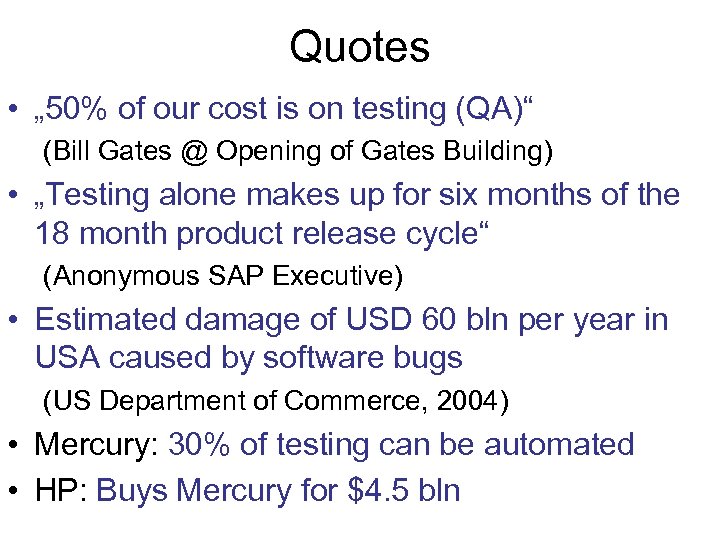

Quotes • „ 50% of our cost is on testing (QA)“ (Bill Gates @ Opening of Gates Building) • „Testing alone makes up for six months of the 18 month product release cycle“ (Anonymous SAP Executive) • Estimated damage of USD 60 bln per year in USA caused by software bugs (US Department of Commerce, 2004) • Mercury: 30% of testing can be automated • HP: Buys Mercury for $4. 5 bln

Observations • Everybody loves writing code Everybody hates testing it – more work on new models etc. than on testing – solution: automate the testing! – (Computers are cheap and do not complain) • Test Automation is a DB Problem – several optimizations in different flavors – it is all about logical data independence – it is a far cry from being solved! • Research on Testing (Automation) is fun!

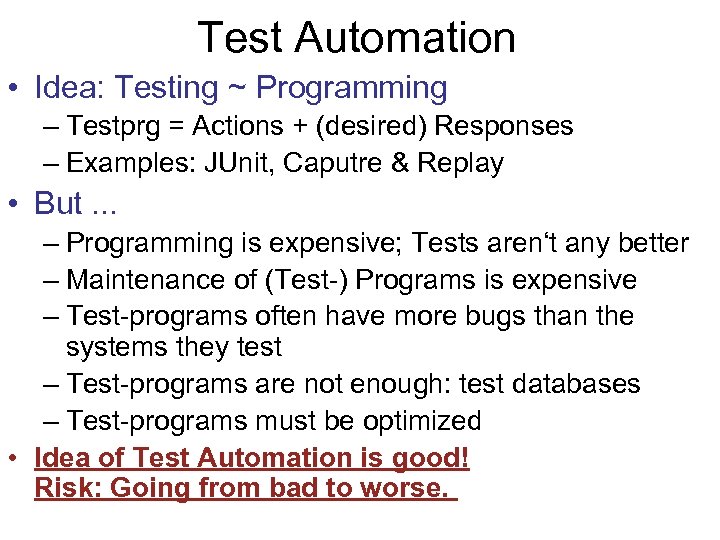

Test Automation • Idea: Testing ~ Programming – Testprg = Actions + (desired) Responses – Examples: JUnit, Caputre & Replay • But. . . – Programming is expensive; Tests aren‘t any better – Maintenance of (Test-) Programs is expensive – Test-programs often have more bugs than the systems they test – Test-programs are not enough: test databases – Test-programs must be optimized • Idea of Test Automation is good! Risk: Going from bad to worse.

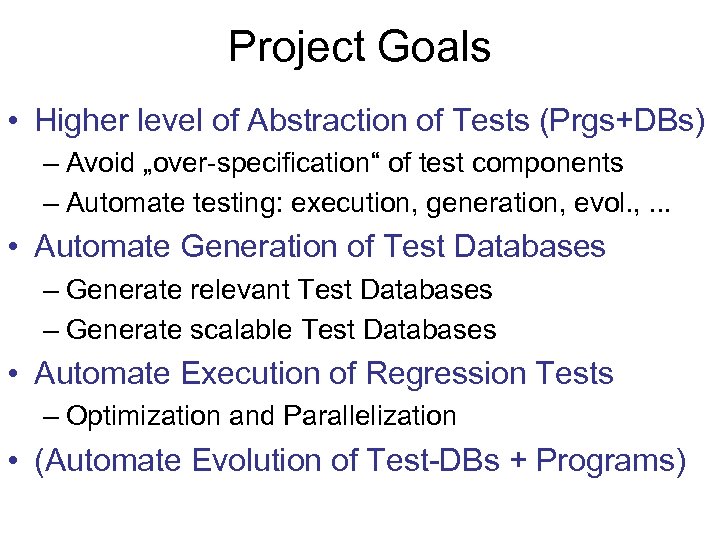

Project Goals • Higher level of Abstraction of Tests (Prgs+DBs) – Avoid „over-specification“ of test components – Automate testing: execution, generation, evol. , . . . • Automate Generation of Test Databases – Generate relevant Test Databases – Generate scalable Test Databases • Automate Execution of Regression Tests – Optimization and Parallelization • (Automate Evolution of Test-DBs + Programs)

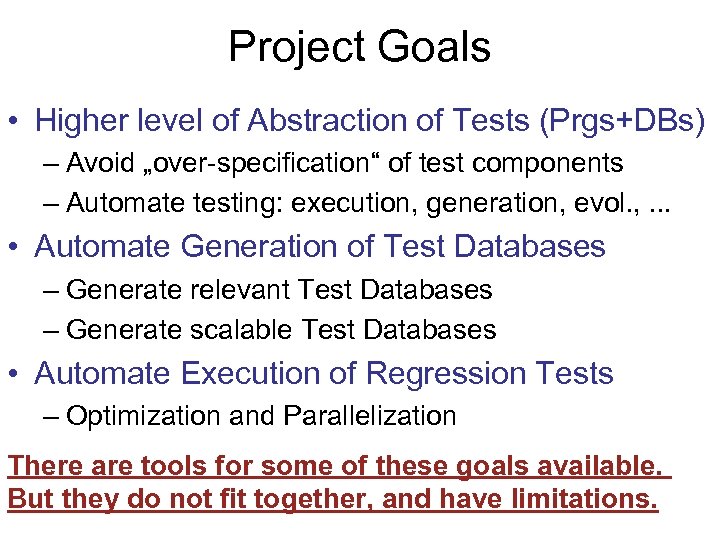

Project Goals • Higher level of Abstraction of Tests (Prgs+DBs) – Avoid „over-specification“ of test components – Automate testing: execution, generation, evol. , . . . • Automate Generation of Test Databases – Generate relevant Test Databases – Generate scalable Test Databases • Automate Execution of Regression Tests – Optimization and Parallelization There are tools for some of these goals available. But they do not fit together, and have limitations.

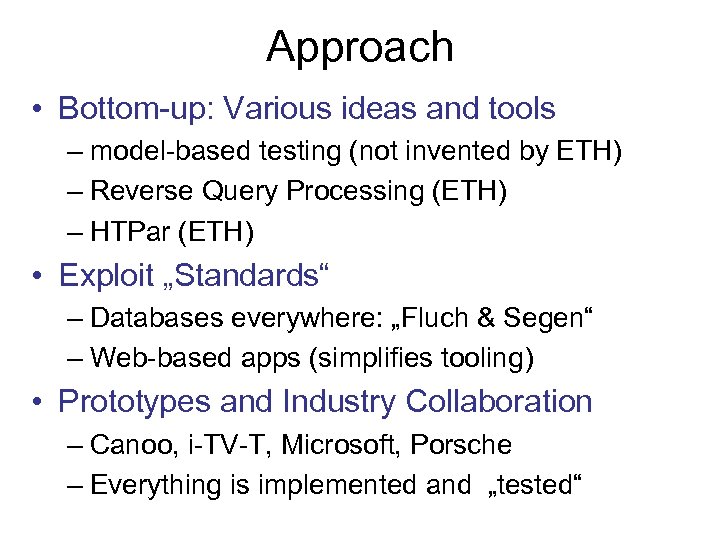

Approach • Bottom-up: Various ideas and tools – model-based testing (not invented by ETH) – Reverse Query Processing (ETH) – HTPar (ETH) • Exploit „Standards“ – Databases everywhere: „Fluch & Segen“ – Web-based apps (simplifies tooling) • Prototypes and Industry Collaboration – Canoo, i-TV-T, Microsoft, Porsche – Everything is implemented and „tested“

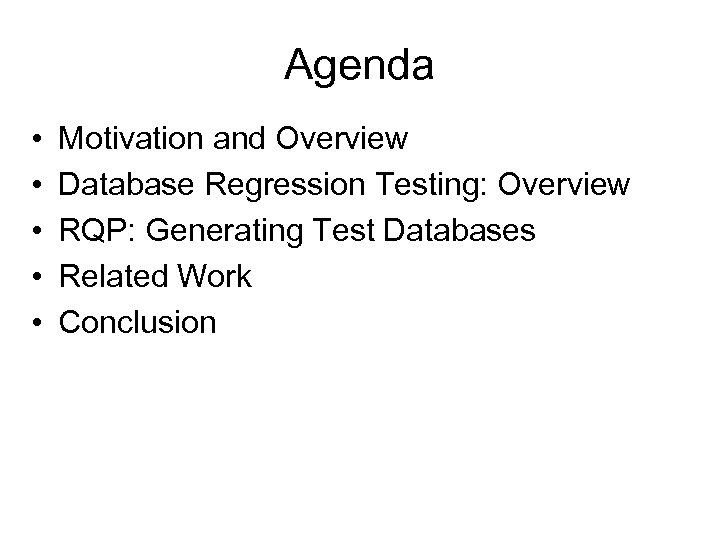

Agenda • • • Motivation and Overview Database Regression Testing: Overview RQP: Generating Test Databases Related Work Conclusion

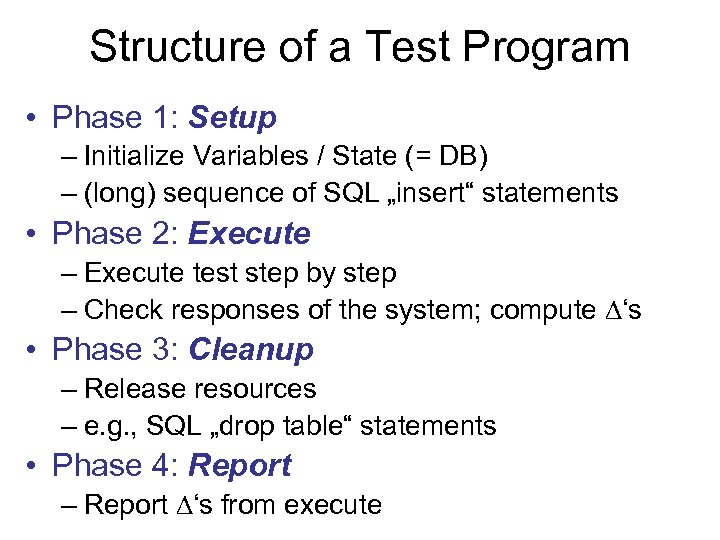

Structure of a Test Program • Phase 1: Setup – Initialize Variables / State (= DB) – (long) sequence of SQL „insert“ statements • Phase 2: Execute – Execute test step by step – Check responses of the system; compute ‘s • Phase 3: Cleanup – Release resources – e. g. , SQL „drop table“ statements • Phase 4: Report – Report ‘s from execute

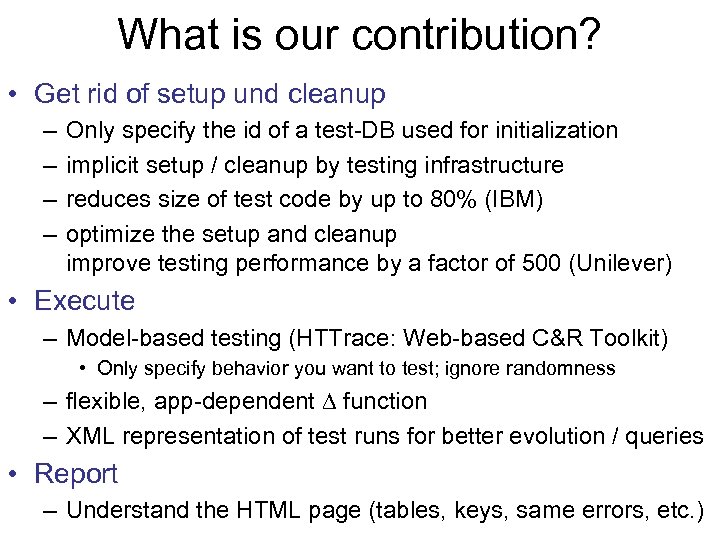

What is our contribution? • Get rid of setup und cleanup – – Only specify the id of a test-DB used for initialization implicit setup / cleanup by testing infrastructure reduces size of test code by up to 80% (IBM) optimize the setup and cleanup improve testing performance by a factor of 500 (Unilever) • Execute – Model-based testing (HTTrace: Web-based C&R Toolkit) • Only specify behavior you want to test; ignore randomness – flexible, app-dependent function – XML representation of test runs for better evolution / queries • Report – Understand the HTML page (tables, keys, same errors, etc. )

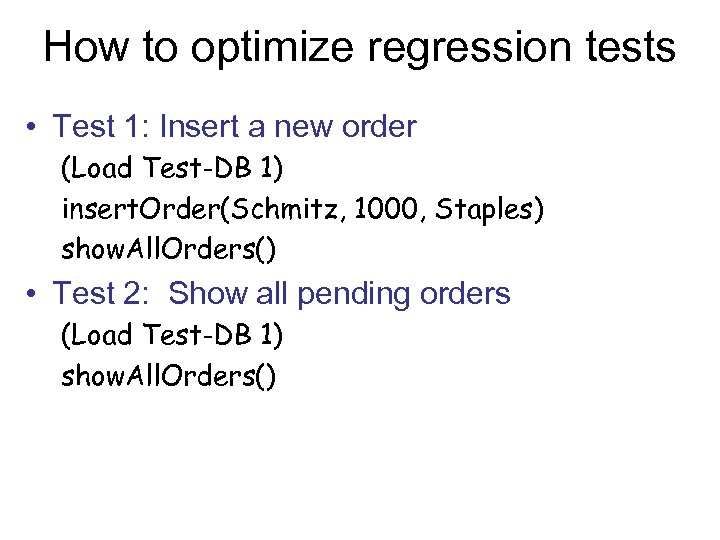

How to optimize regression tests • Test 1: Insert a new order (Load Test-DB 1) insert. Order(Schmitz, 1000, Staples) show. All. Orders() • Test 2: Show all pending orders (Load Test-DB 1) show. All. Orders()

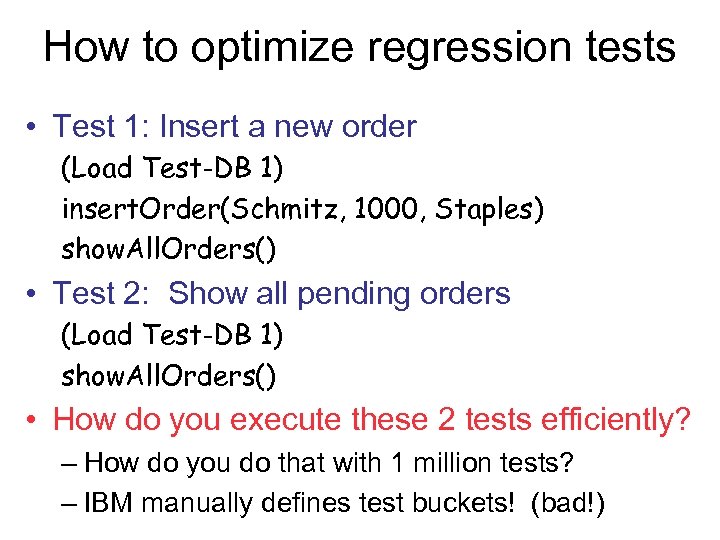

How to optimize regression tests • Test 1: Insert a new order (Load Test-DB 1) insert. Order(Schmitz, 1000, Staples) show. All. Orders() • Test 2: Show all pending orders (Load Test-DB 1) show. All. Orders() • How do you execute these 2 tests efficiently? – How do you do that with 1 million tests? – IBM manually defines test buckets! (bad!)

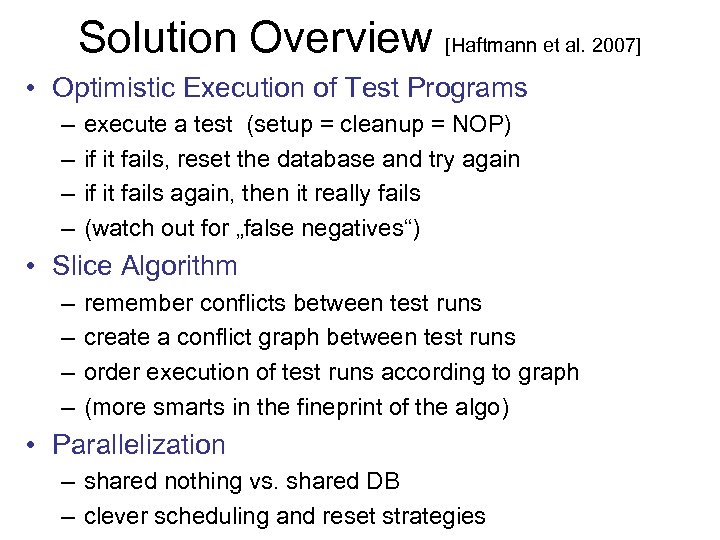

Solution Overview [Haftmann et al. 2007] • Optimistic Execution of Test Programs – – execute a test (setup = cleanup = NOP) if it fails, reset the database and try again if it fails again, then it really fails (watch out for „false negatives“) • Slice Algorithm – – remember conflicts between test runs create a conflict graph between test runs order execution of test runs according to graph (more smarts in the fineprint of the algo) • Parallelization – shared nothing vs. shared DB – clever scheduling and reset strategies

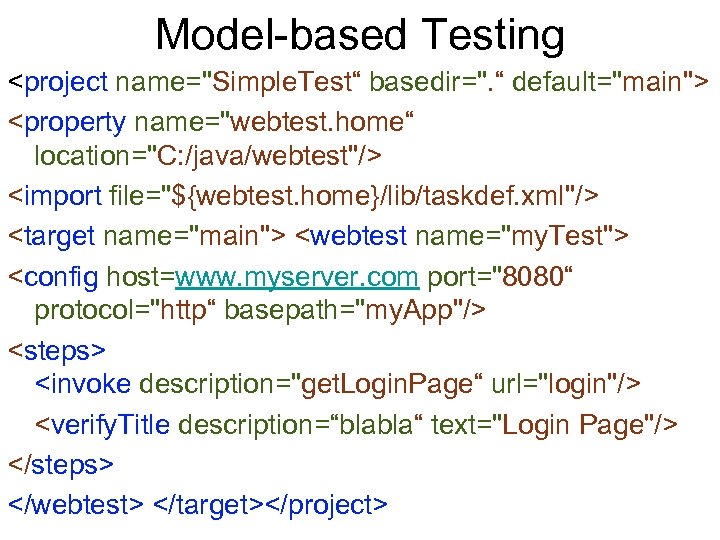

Model-based Testing <project name="Simple. Test“ basedir=". “ default="main"> <property name="webtest. home“ location="C: /java/webtest"/> <import file="${webtest. home}/lib/taskdef. xml"/> <target name="main"> <webtest name="my. Test"> <config host=www. myserver. com port="8080“ protocol="http“ basepath="my. App"/> <steps> <invoke description="get. Login. Page“ url="login"/> <verify. Title description=“blabla“ text="Login Page"/> </steps> </webtest> </target></project>

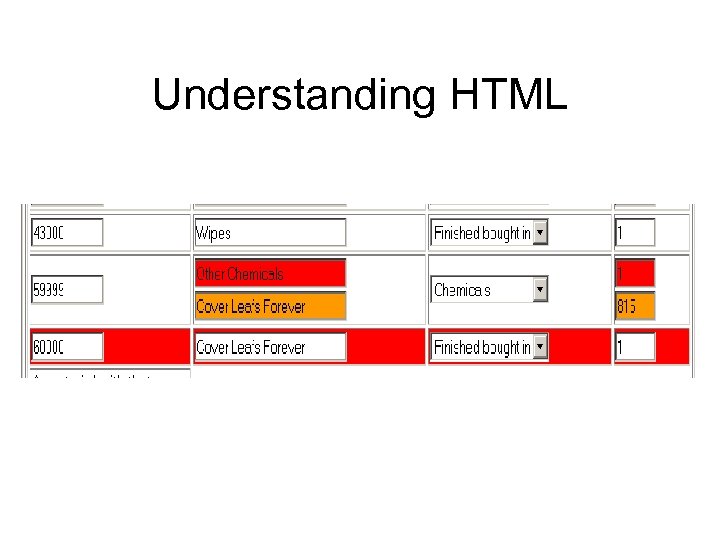

Understanding HTML

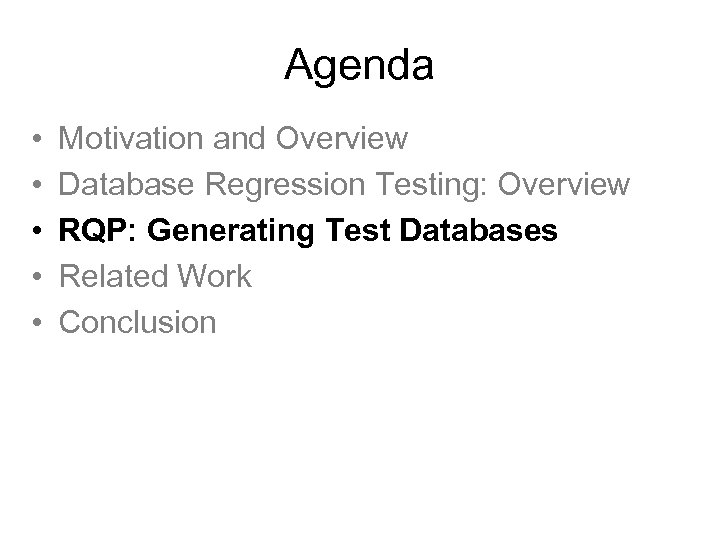

Agenda • • • Motivation and Overview Database Regression Testing: Overview RQP: Generating Test Databases Related Work Conclusion

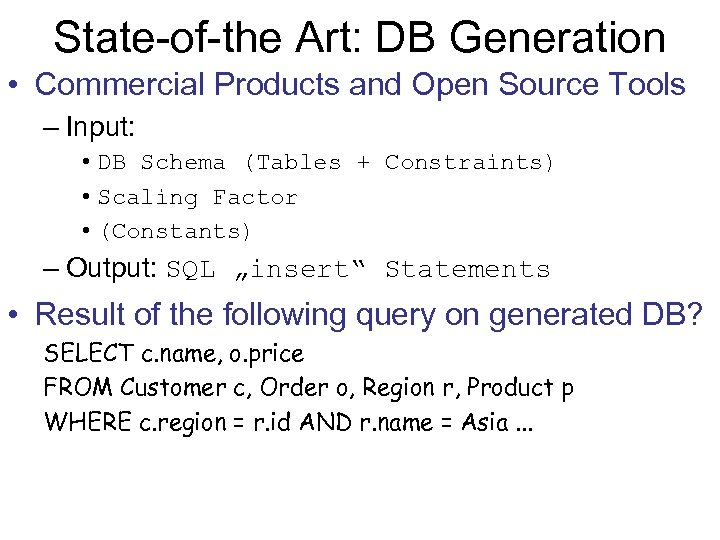

State-of-the Art: DB Generation • Commercial Products and Open Source Tools – Input: • DB Schema (Tables + Constraints) • Scaling Factor • (Constants) – Output: SQL „insert“ Statements • Result of the following query on generated DB? SELECT c. name, o. price FROM Customer c, Order o, Region r, Product p WHERE c. region = r. id AND r. name = Asia. . .

State-of-the Art: DB Generation • Commercial Product and Open Source Tools – Input: • DB Schema (Tables + Constraints) • Scaling Factor • (Constants) – Output: SQL „insert“ Statements • What is the result of the following query? SELECT c. name, o. price FROM Customer c, Order o, Region r, Product p WHERE c. region = r. id AND r. name = Asia. . . c. name o. price

The Solution • Reverse Query Processing – Input: • DB Schema (Tables + Constraints) • Scaling Factor • (Constants) • Application Program (SQL Queries) • Meaningful Query Results (Tables) – Output: SQL „insert“ Statements • Generate „Relevant“ Test-DBs – a Test-DB must be specific to the application – Evolution: Create new or extend Test-DB when the schema evolves and application has new queries

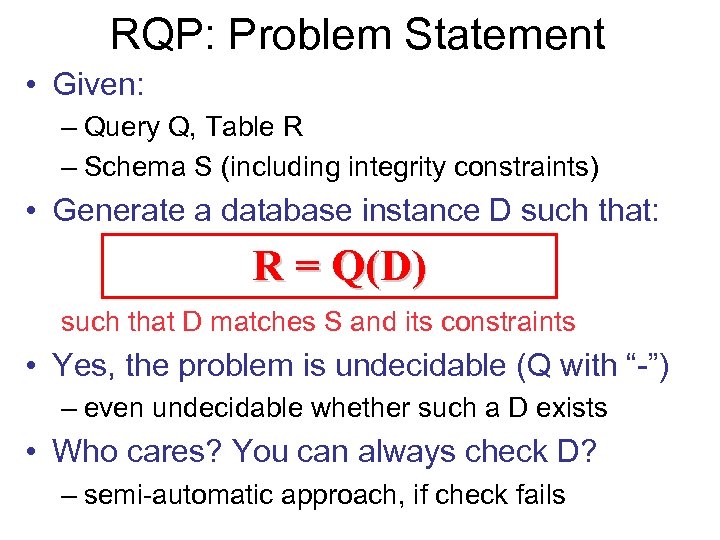

RQP: Problem Statement • Given: – Query Q, Table R – Schema S (including integrity constraints) • Generate a database instance D such that: R = Q(D) such that D matches S and its constraints • Yes, the problem is undecidable (Q with “-”) – even undecidable whether such a D exists • Who cares? You can always check D? – semi-automatic approach, if check fails

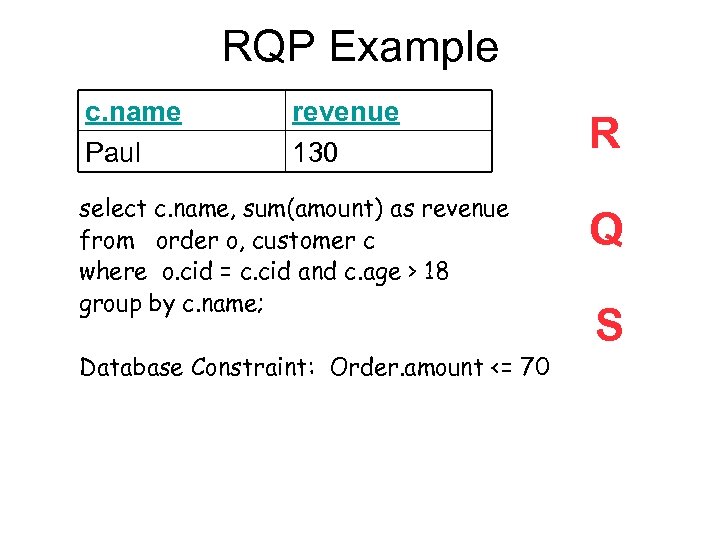

RQP Example c. name Paul revenue 130 select c. name, sum(amount) as revenue from order o, customer c where o. cid = c. cid and c. age > 18 group by c. name; Database Constraint: Order. amount <= 70 R Q S

RQP Example c. name Paul revenue 130 R select c. name, sum(amount) as revenue from Order o, Customer c where o. cid = c. cid and c. age > 18 group by c. name; Database Constraint: Order. amount <= 70 Order cid amount 1 70 1 60 Q S Customer cid name age salary 1 Paul 23 5000 D

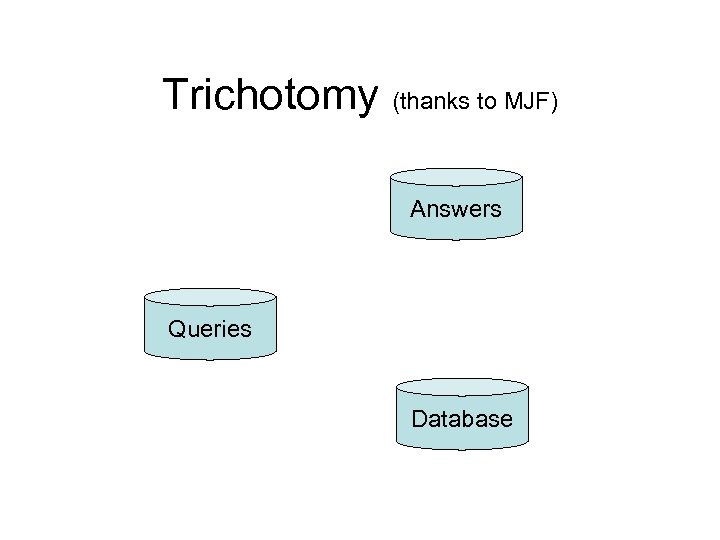

Trichotomy (thanks to MJF) Answers Queries Database

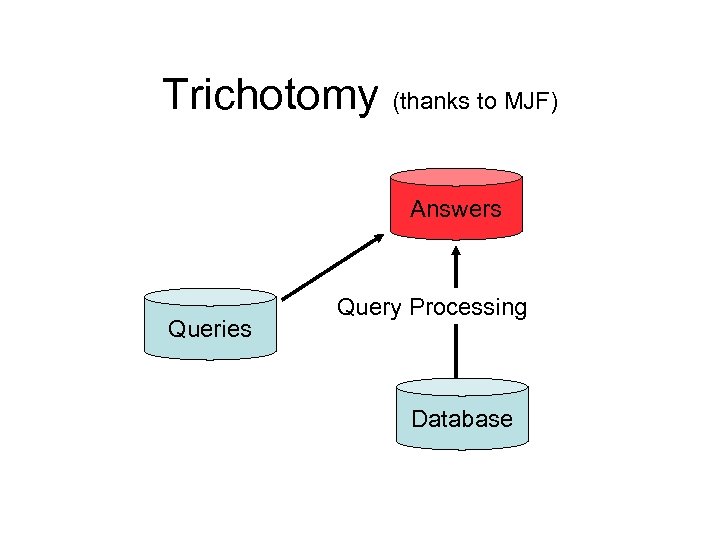

Trichotomy (thanks to MJF) Answers Queries Query Processing Database

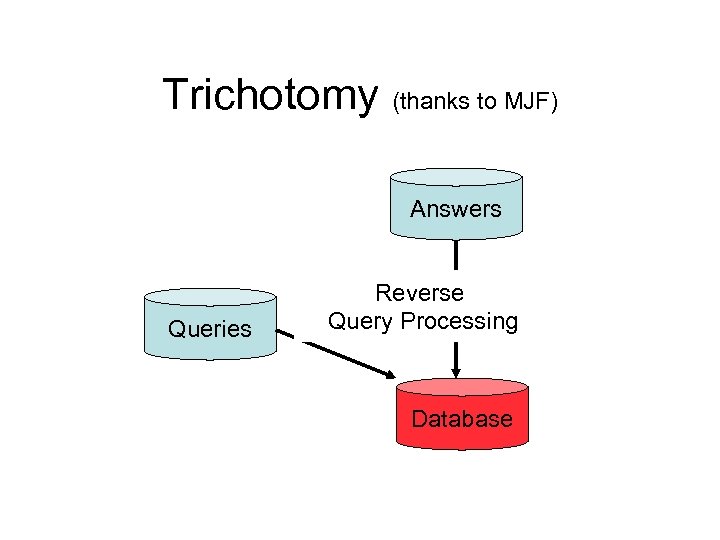

Trichotomy (thanks to MJF) Answers Queries Reverse Query Processing Database

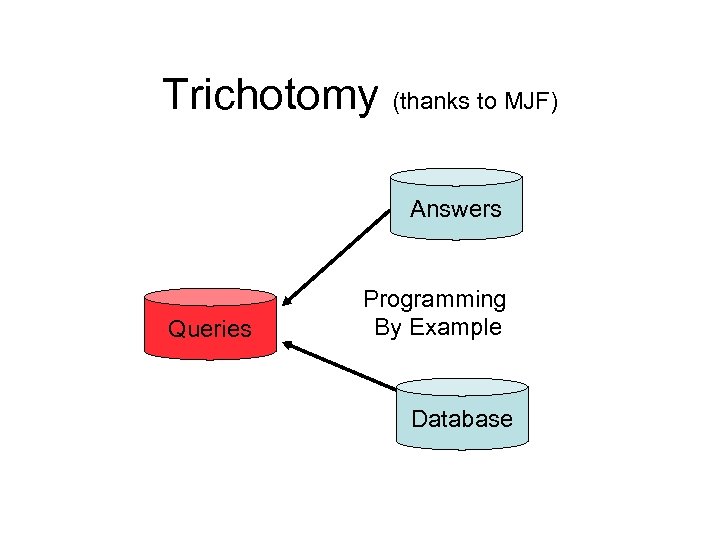

Trichotomy (thanks to MJF) Answers Queries Programming By Example Database

Architecture compile-time Query Q Reverse Query Processor Query parser and translator Reverse query tree TQ Database Schema S Bottom-up query annotation Annotated T+Q Query optimizer run-time Model checker Formula L Instantiation I Optimized T’Q Top-down data instantiation RTable R Database D Parameter values

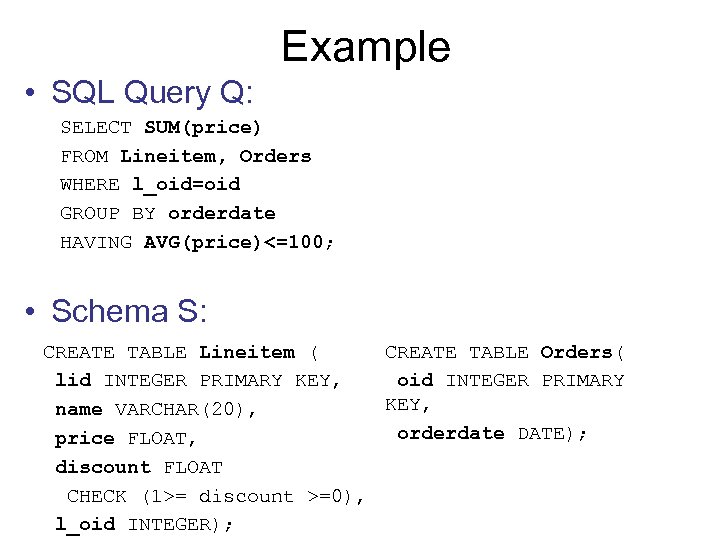

Example • SQL Query Q: SELECT SUM(price) FROM Lineitem, Orders WHERE l_oid=oid GROUP BY orderdate HAVING AVG(price)<=100; • Schema S: CREATE TABLE Lineitem ( CREATE TABLE Orders( lid INTEGER PRIMARY KEY, oid INTEGER PRIMARY KEY, name VARCHAR(20), orderdate DATE); price FLOAT, discount FLOAT CHECK (1>= discount >=0), l_oid INTEGER);

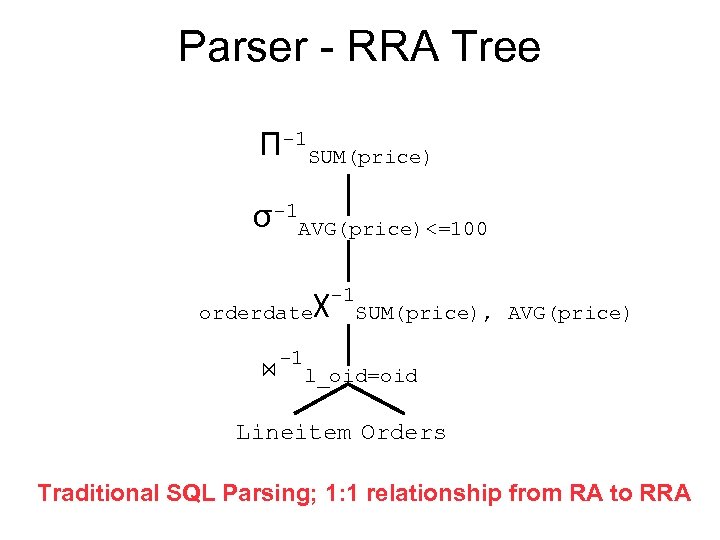

Parser - RRA Tree П-1 SUM(price) σ-1 AVG(price)<=100 χ-1 SUM(price), orderdate -1 AVG(price) l_oid=oid Lineitem Orders Traditional SQL Parsing; 1: 1 relationship from RA to RRA

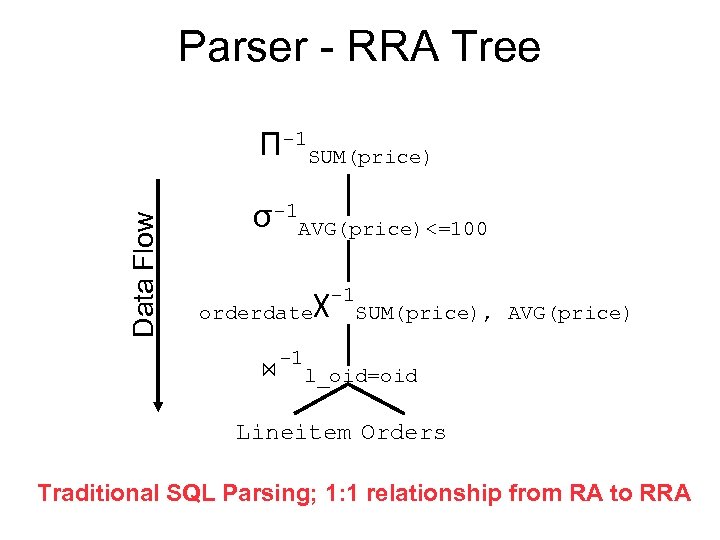

Parser - RRA Tree Data Flow П-1 SUM(price) σ-1 AVG(price)<=100 χ-1 SUM(price), orderdate -1 AVG(price) l_oid=oid Lineitem Orders Traditional SQL Parsing; 1: 1 relationship from RA to RRA

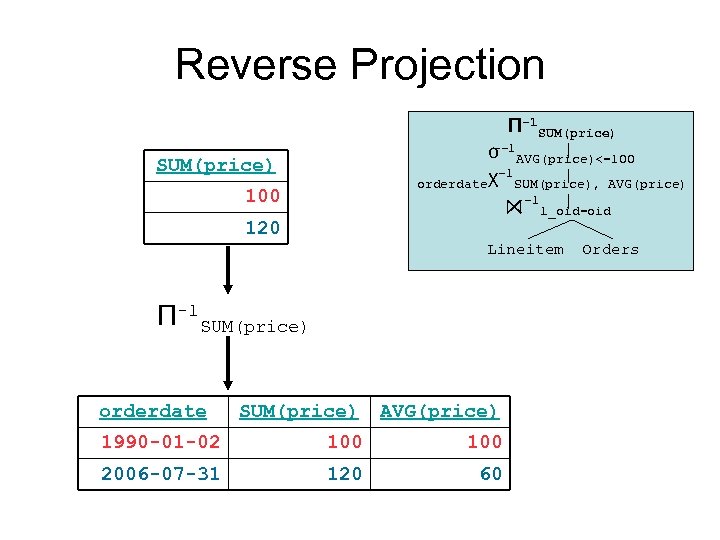

Reverse Projection П-1 SUM(price) σ-1 AVG(price)<=100 -1 orderdateχ SUM(price), AVG(price) SUM(price) 100 -1 l_oid=oid 120 Lineitem П-1 SUM(price) orderdate SUM(price) AVG(price) 1990 -01 -02 100 2006 -07 -31 120 60 Orders

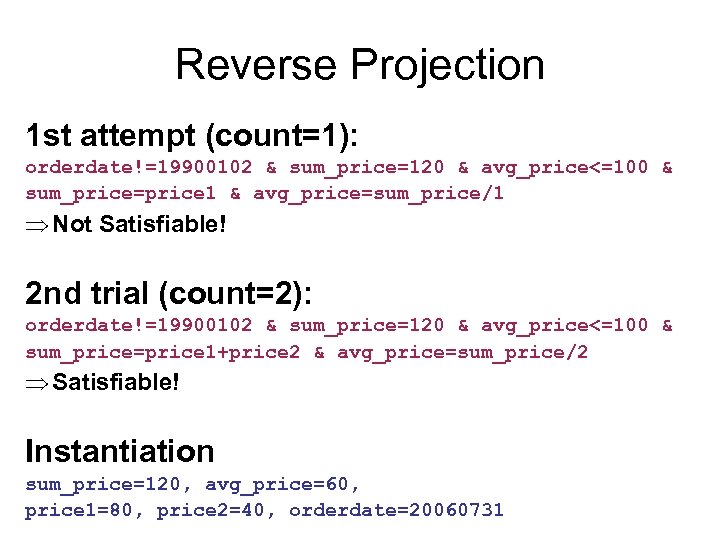

Reverse Projection 1 st attempt (count=1): orderdate!=19900102 & sum_price=120 & avg_price<=100 & sum_price=price 1 & avg_price=sum_price/1 Þ Not Satisfiable! 2 nd trial (count=2): orderdate!=19900102 & sum_price=120 & avg_price<=100 & sum_price=price 1+price 2 & avg_price=sum_price/2 Þ Satisfiable! Instantiation sum_price=120, avg_price=60, price 1=80, price 2=40, orderdate=20060731

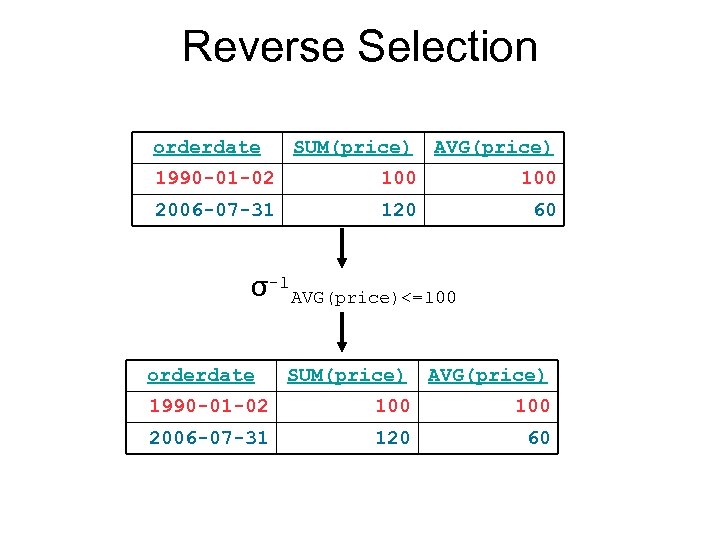

Reverse Selection orderdate SUM(price) AVG(price) 1990 -01 -02 100 2006 -07 -31 120 60 σ-1 AVG(price)<=100 orderdate SUM(price) AVG(price) 1990 -01 -02 100 2006 -07 -31 120 60

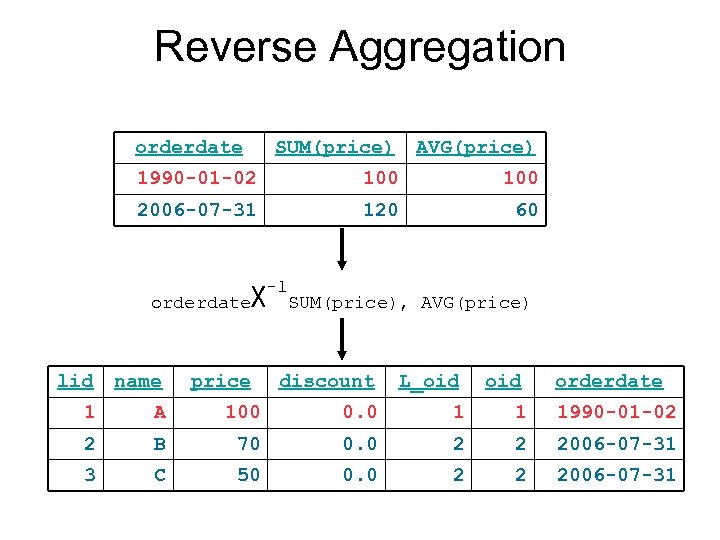

Reverse Aggregation orderdate SUM(price) AVG(price) 1990 -01 -02 100 2006 -07 -31 120 60 orderdateχ lid name 1 A 2 3 price -1 SUM(price), AVG(price) discount L_oid orderdate 100 0. 0 1 1 1990 -01 -02 B 70 0. 0 2 2 2006 -07 -31 C 50 0. 0 2 2 2006 -07 -31

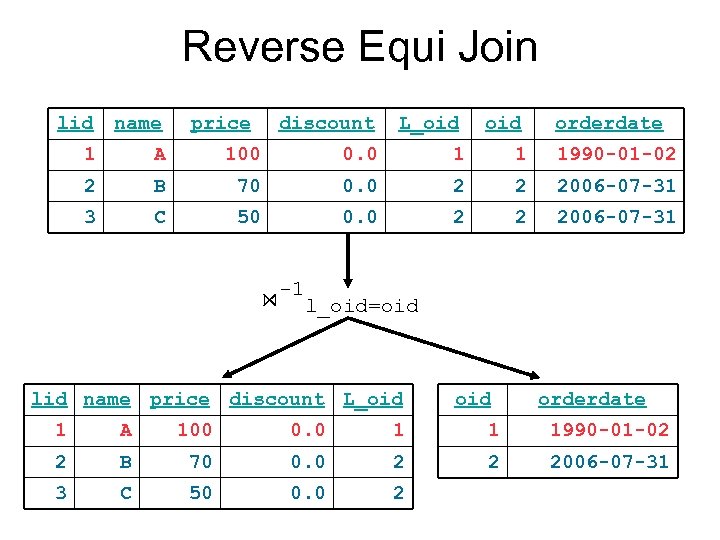

Reverse Equi Join lid name 1 A 2 3 price discount L_oid 100 0. 0 1 1 1990 -01 -02 B 70 0. 0 2 2 2006 -07 -31 C 50 0. 0 2 2 2006 -07 -31 -1 oid orderdate l_oid=oid lid name price discount L_oid orderdate 1 A 100 0. 0 1 1 1990 -01 -02 2 B 70 0. 0 2 2 2006 -07 -31 3 C 50 0. 0 2

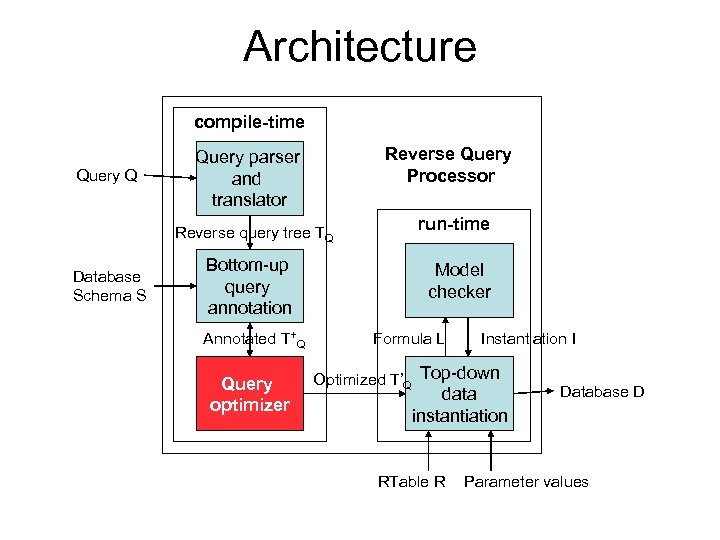

Architecture compile-time Query Q Reverse Query Processor Query parser and translator Reverse query tree TQ Database Schema S Bottom-up query annotation Annotated T+Q Query optimizer run-time Model checker Formula L Instantiation I Optimized T’Q Top-down data instantiation RTable R Database D Parameter values

Reverse Query Optimization • Some observations – projections and group by‘s are expensive – (equi-) joins and selections are cheap – nested queries are expensive – calls to the model checker are expensive • depend on number of free variables, types of vars • Conclusions – apply „smarts“ to avoid model checker calls – apply smarts to simplify model checker calls – do aggressive query rewriting – but do not worry about join ordering, push-down

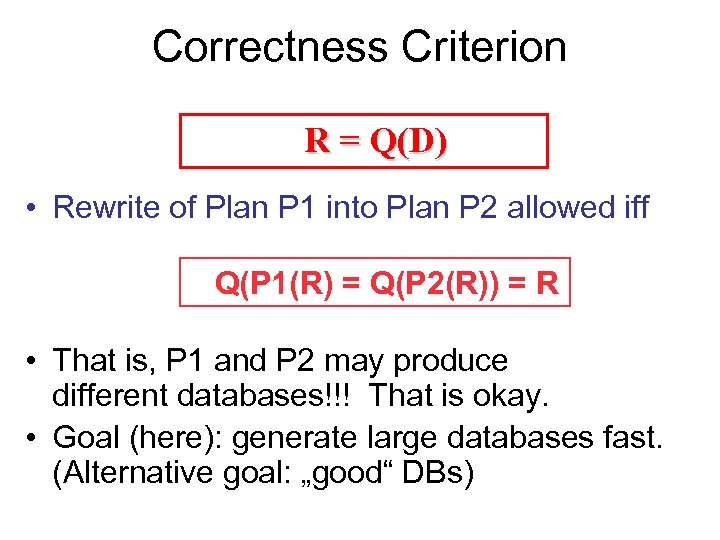

Correctness Criterion R = Q(D) • Rewrite of Plan P 1 into Plan P 2 allowed iff Q(P 1(R) = Q(P 2(R)) = R • That is, P 1 and P 2 may produce different databases!!! That is okay. • Goal (here): generate large databases fast. (Alternative goal: „good“ DBs)

Query Unnesting select name from lineitem where l_oid not in (select max(cid) from orders group by odate) becomes select name from lineitem • (An empty „orders“ table is generated!)

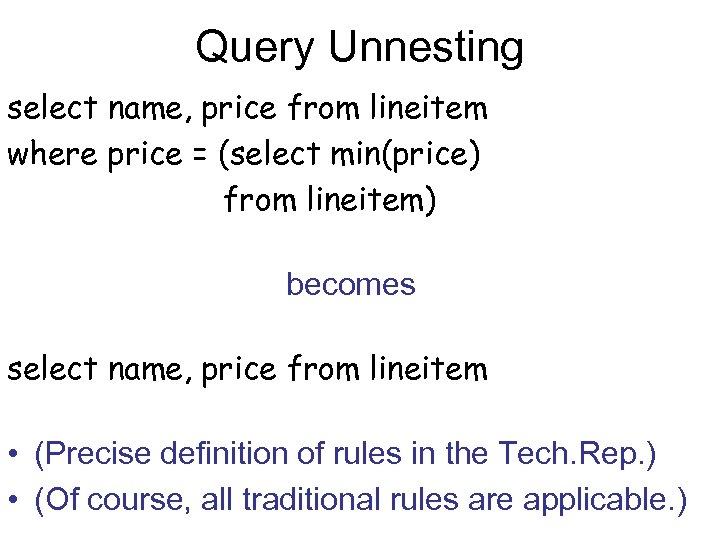

Query Unnesting select name, price from lineitem where price = (select min(price) from lineitem) becomes select name, price from lineitem • (Precise definition of rules in the Tech. Rep. ) • (Of course, all traditional rules are applicable. )

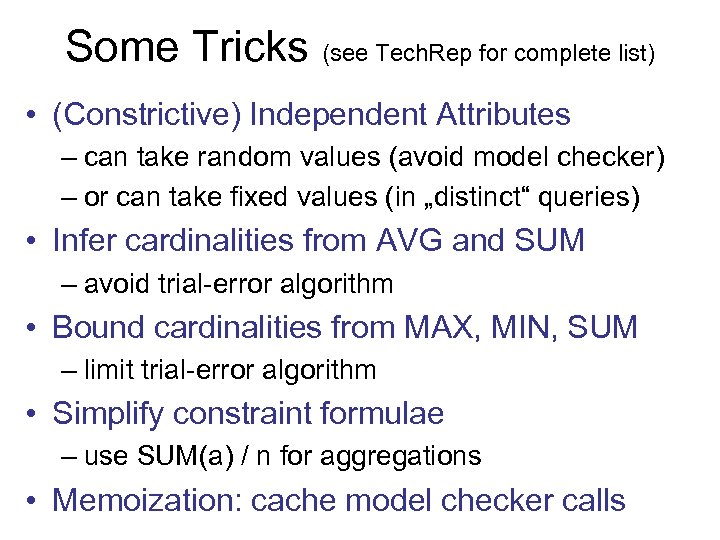

Some Tricks (see Tech. Rep for complete list) • (Constrictive) Independent Attributes – can take random values (avoid model checker) – or can take fixed values (in „distinct“ queries) • Infer cardinalities from AVG and SUM – avoid trial-error algorithm • Bound cardinalities from MAX, MIN, SUM – limit trial-error algorithm • Simplify constraint formulae – use SUM(a) / n for aggregations • Memoization: cache model checker calls

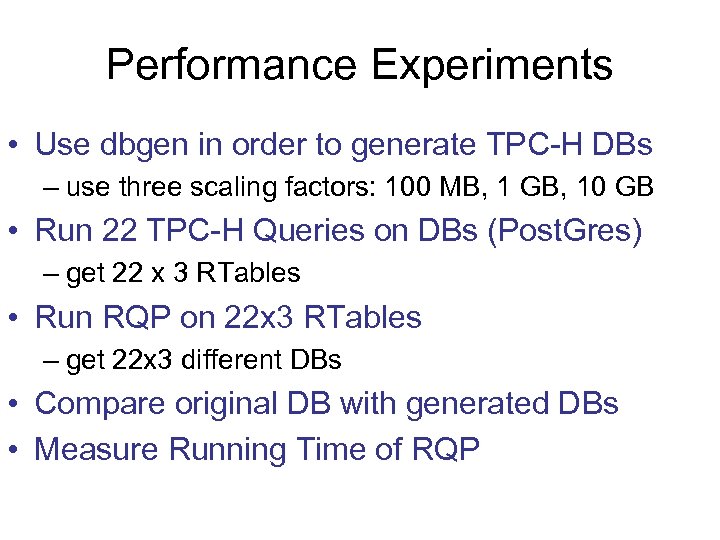

Performance Experiments • Use dbgen in order to generate TPC-H DBs – use three scaling factors: 100 MB, 1 GB, 10 GB • Run 22 TPC-H Queries on DBs (Post. Gres) – get 22 x 3 RTables • Run RQP on 22 x 3 RTables – get 22 x 3 different DBs • Compare original DB with generated DBs • Measure Running Time of RQP

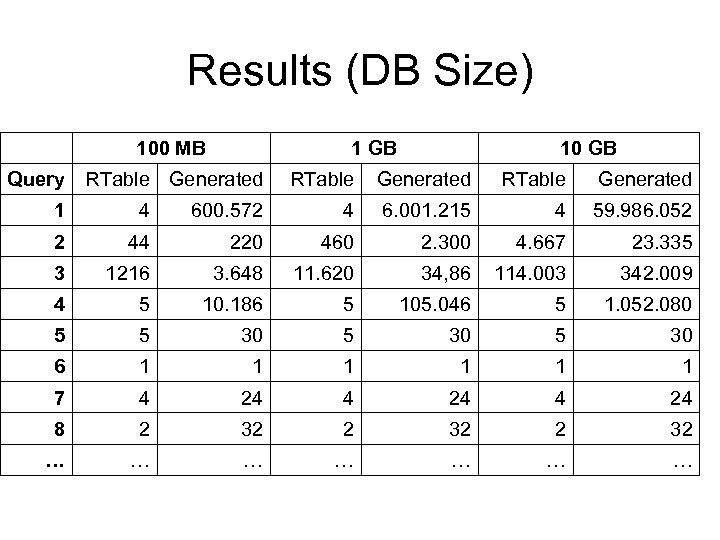

Results (DB Size) 100 MB Query 1 GB RTable Generated 10 GB RTable Generated 1 4 600. 572 4 6. 001. 215 4 59. 986. 052 2 44 220 460 2. 300 4. 667 23. 335 3 1216 3. 648 11. 620 34, 86 114. 003 342. 009 4 5 10. 186 5 105. 046 5 1. 052. 080 5 5 30 6 1 1 1 7 4 24 8 2 32 … … … …

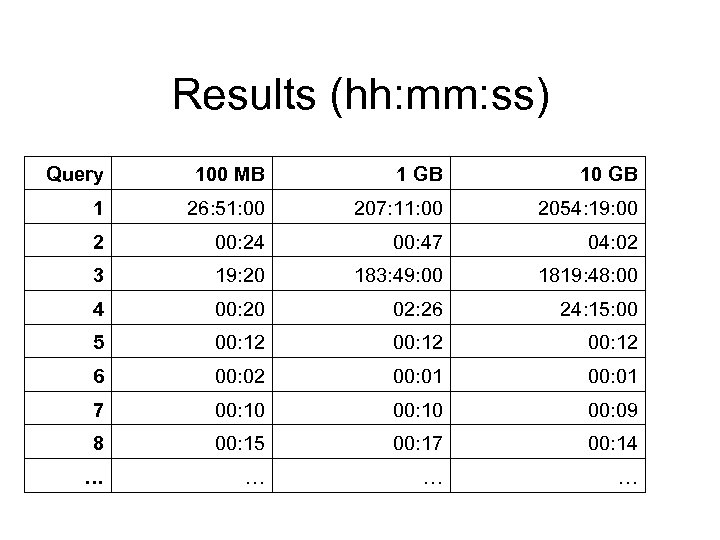

Results (hh: mm: ss) Query 100 MB 1 GB 10 GB 1 26: 51: 00 207: 11: 00 2054: 19: 00 2 00: 24 00: 47 04: 02 3 19: 20 183: 49: 00 1819: 48: 00 4 00: 20 02: 26 24: 15: 00 5 00: 12 6 00: 02 00: 01 7 00: 10 00: 09 8 00: 15 00: 17 00: 14 … …

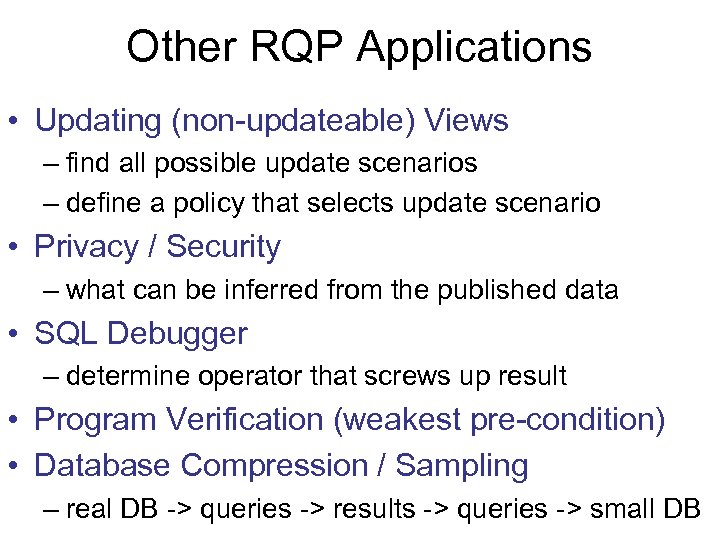

Other RQP Applications • Updating (non-updateable) Views – find all possible update scenarios – define a policy that selects update scenario • Privacy / Security – what can be inferred from the published data • SQL Debugger – determine operator that screws up result • Program Verification (weakest pre-condition) • Database Compression / Sampling – real DB -> queries -> results -> queries -> small DB

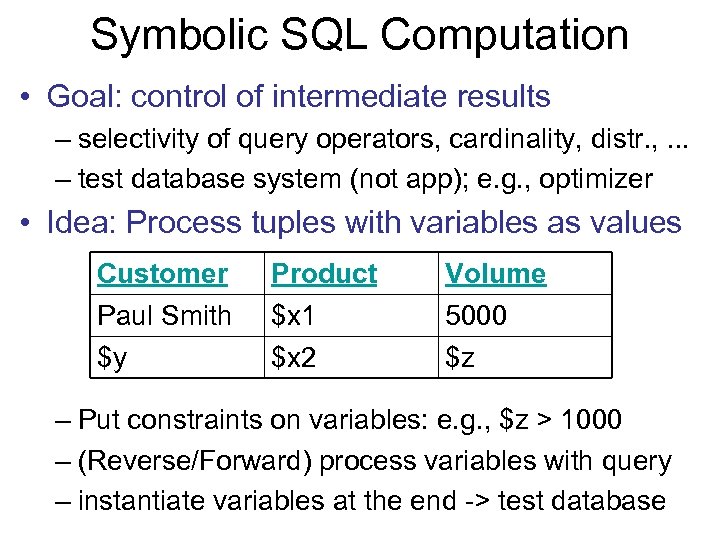

Symbolic SQL Computation • Goal: control of intermediate results – selectivity of query operators, cardinality, distr. , . . . – test database system (not app); e. g. , optimizer • Idea: Process tuples with variables as values Customer Paul Smith $y Product $x 1 $x 2 Volume 5000 $z – Put constraints on variables: e. g. , $z > 1000 – (Reverse/Forward) process variables with query – instantiate variables at the end -> test database

Agenda • • • Motivation and Overview Database Regression Testing: Overview RQP: Generating Test Databases Related Work Conclusion

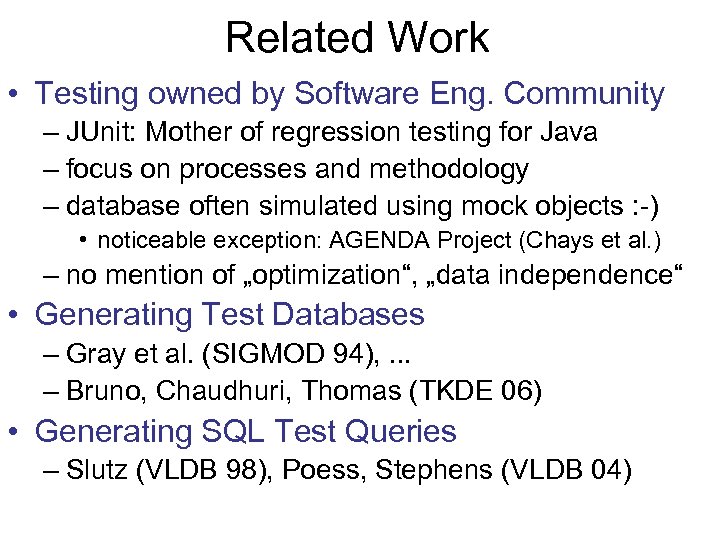

Related Work • Testing owned by Software Eng. Community – JUnit: Mother of regression testing for Java – focus on processes and methodology – database often simulated using mock objects : -) • noticeable exception: AGENDA Project (Chays et al. ) – no mention of „optimization“, „data independence“ • Generating Test Databases – Gray et al. (SIGMOD 94), . . . – Bruno, Chaudhuri, Thomas (TKDE 06) • Generating SQL Test Queries – Slutz (VLDB 98), Poess, Stephens (VLDB 04)

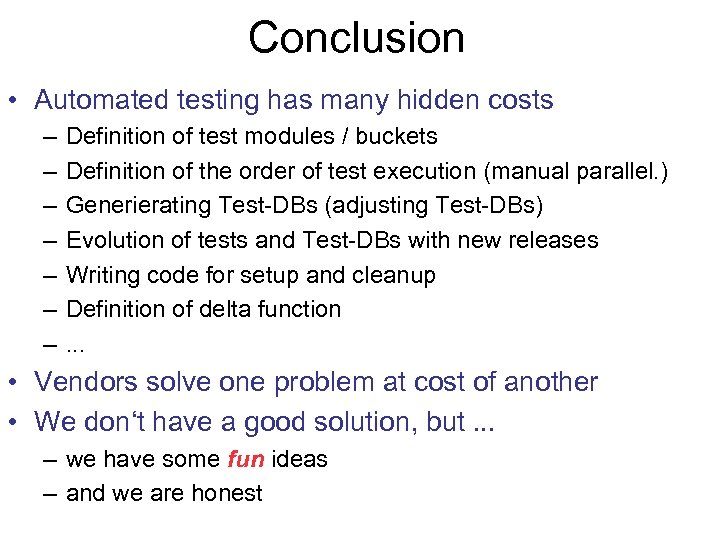

Conclusion • Automated testing has many hidden costs – – – – Definition of test modules / buckets Definition of the order of test execution (manual parallel. ) Generierating Test-DBs (adjusting Test-DBs) Evolution of tests and Test-DBs with new releases Writing code for setup and cleanup Definition of delta function. . . • Vendors solve one problem at cost of another • We don‘t have a good solution, but. . . – we have some fun ideas – and we are honest

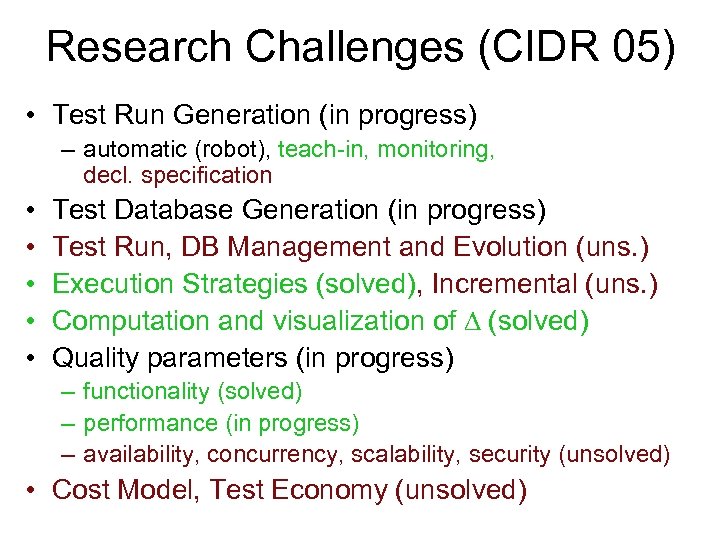

Research Challenges (CIDR 05) • Test Run Generation (in progress) – automatic (robot), teach-in, monitoring, decl. specification • • • Test Database Generation (in progress) Test Run, DB Management and Evolution (uns. ) Execution Strategies (solved), Incremental (uns. ) Computation and visualization of (solved) Quality parameters (in progress) – functionality (solved) – performance (in progress) – availability, concurrency, scalability, security (unsolved) • Cost Model, Test Economy (unsolved)
