Testimise projekteerimine Labor 2 BIST Optimization Sergei Kostin

Testimise projekteerimine: Labor 2 BIST Optimization Sergei Kostin

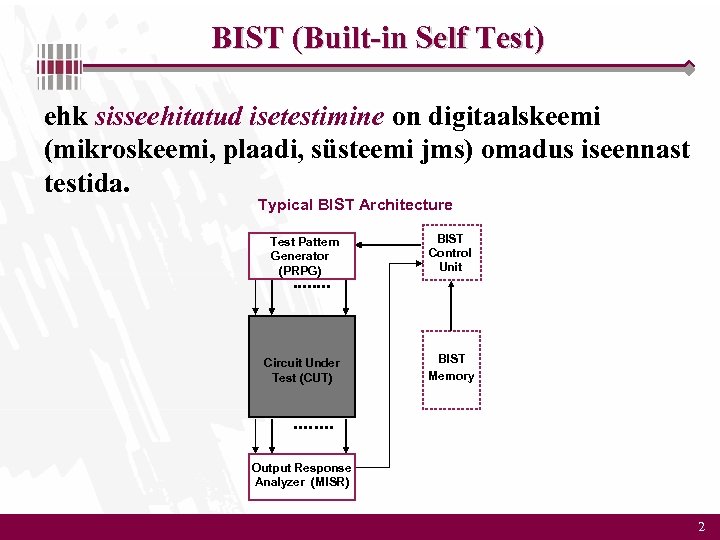

BIST (Built-in Self Test) ehk sisseehitatud isetestimine on digitaalskeemi (mikroskeemi, plaadi, süsteemi jms) omadus iseennast testida. Typical BIST Architecture Test Pattern Generator (PRPG) BIST Control Unit Circuit Under Test (CUT) BIST Memory . . . . Output Response Analyzer (MISR) 2

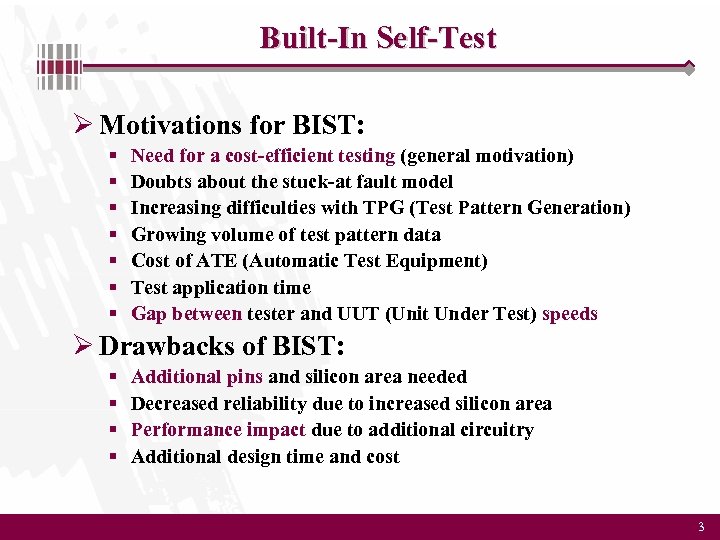

Built-In Self-Test Ø Motivations for BIST: § § § § Need for a cost-efficient testing (general motivation) Doubts about the stuck-at fault model Increasing difficulties with TPG (Test Pattern Generation) Growing volume of test pattern data Cost of ATE (Automatic Test Equipment) Test application time Gap between tester and UUT (Unit Under Test) speeds Ø Drawbacks of BIST: § § Additional pins and silicon area needed Decreased reliability due to increased silicon area Performance impact due to additional circuitry Additional design time and cost 3

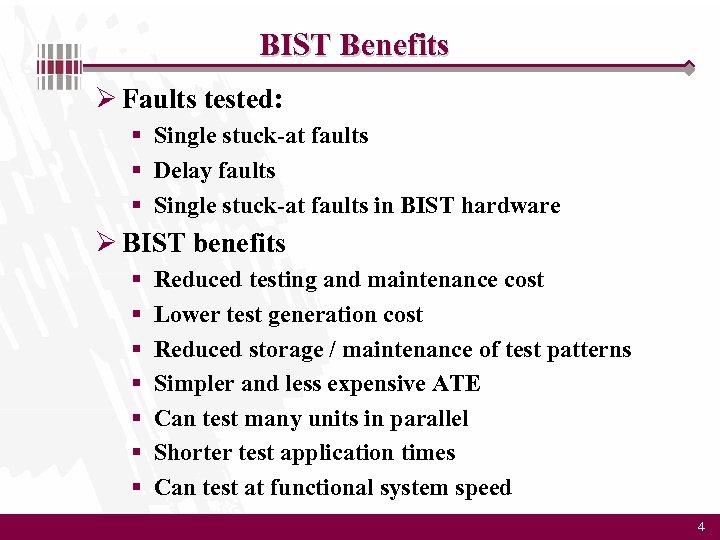

BIST Benefits Ø Faults tested: § Single stuck-at faults § Delay faults § Single stuck-at faults in BIST hardware Ø BIST benefits § § § § Reduced testing and maintenance cost Lower test generation cost Reduced storage / maintenance of test patterns Simpler and less expensive ATE Can test many units in parallel Shorter test application times Can test at functional system speed 4

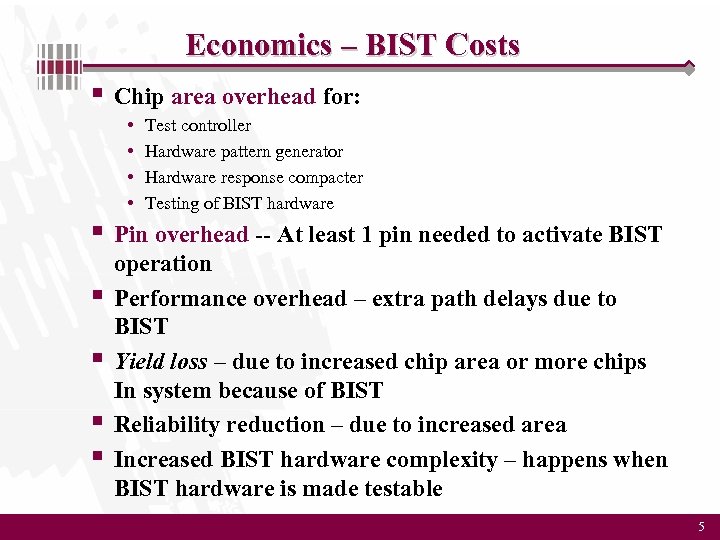

Economics – BIST Costs § Chip area overhead for: • • Test controller Hardware pattern generator Hardware response compacter Testing of BIST hardware § Pin overhead -- At least 1 pin needed to activate BIST § § operation Performance overhead – extra path delays due to BIST Yield loss – due to increased chip area or more chips In system because of BIST Reliability reduction – due to increased area Increased BIST hardware complexity – happens when BIST hardware is made testable 5

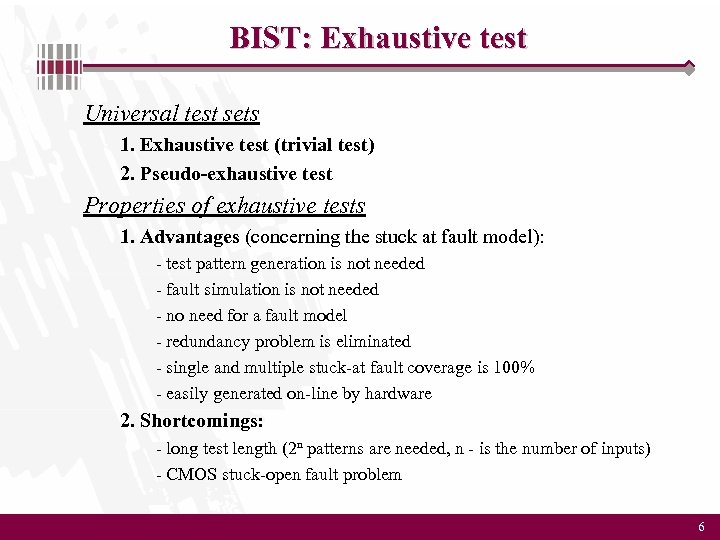

BIST: Exhaustive test Universal test sets 1. Exhaustive test (trivial test) 2. Pseudo-exhaustive test Properties of exhaustive tests 1. Advantages (concerning the stuck at fault model): - test pattern generation is not needed - fault simulation is not needed - no need for a fault model - redundancy problem is eliminated - single and multiple stuck-at fault coverage is 100% - easily generated on-line by hardware 2. Shortcomings: - long test length (2 n patterns are needed, n - is the number of inputs) - CMOS stuck-open fault problem 6

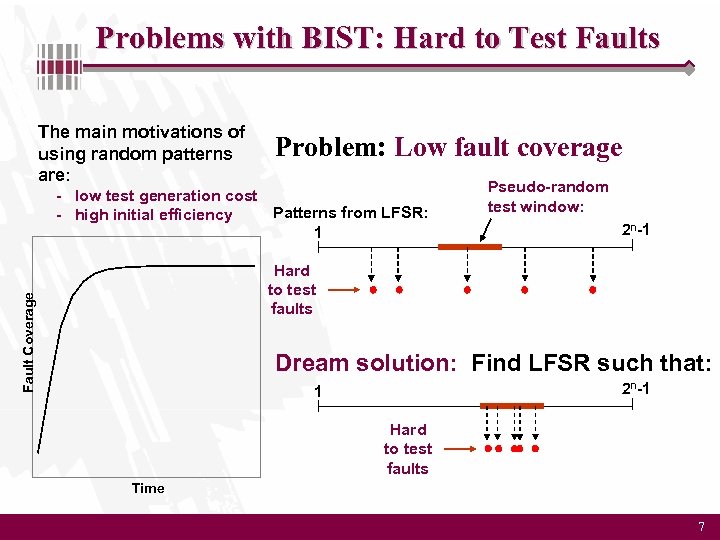

Problems with BIST: Hard to Test Faults The main motivations of using random patterns are: Problem: Low fault coverage - low test generation cost Patterns from LFSR: - high initial efficiency 1 Pseudo-random test window: 2 n-1 Fault Coverage Hard to test faults Dream solution: Find LFSR such that: 2 n-1 1 Hard to test faults Time 7

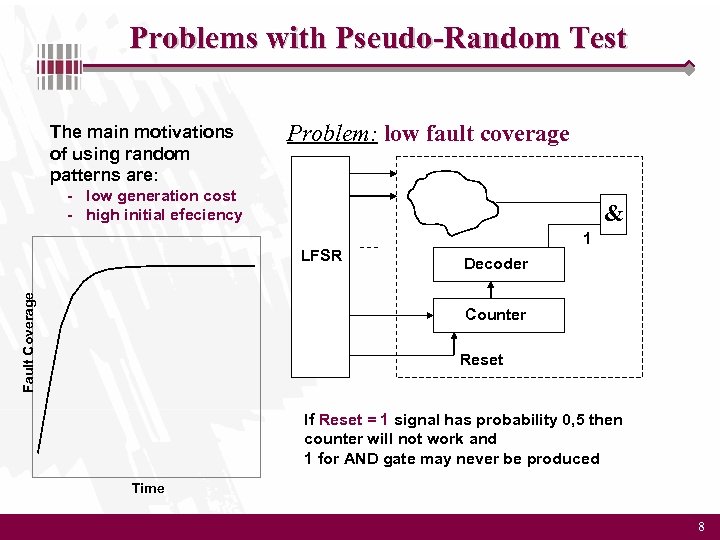

Problems with Pseudo-Random Test The main motivations of using random patterns are: Problem: low fault coverage - low generation cost - high initial efeciency & Fault Coverage LFSR 1 Decoder Counter Reset If Reset = 1 signal has probability 0, 5 then counter will not work and 1 for AND gate may never be produced Time 8

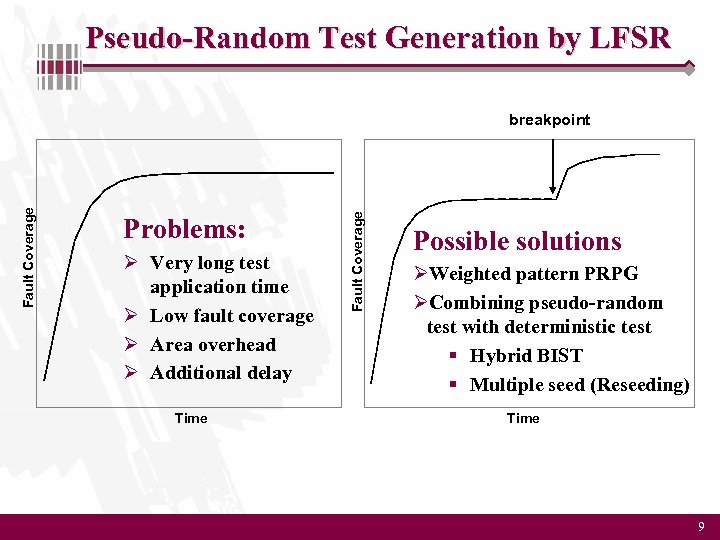

Pseudo-Random Test Generation by LFSR Problems: Ø Very long test application time Ø Low fault coverage Ø Area overhead Ø Additional delay Time Fault Coverage breakpoint Possible solutions ØWeighted pattern PRPG ØCombining pseudo-random test with deterministic test § Hybrid BIST § Multiple seed (Reseeding) Time 9

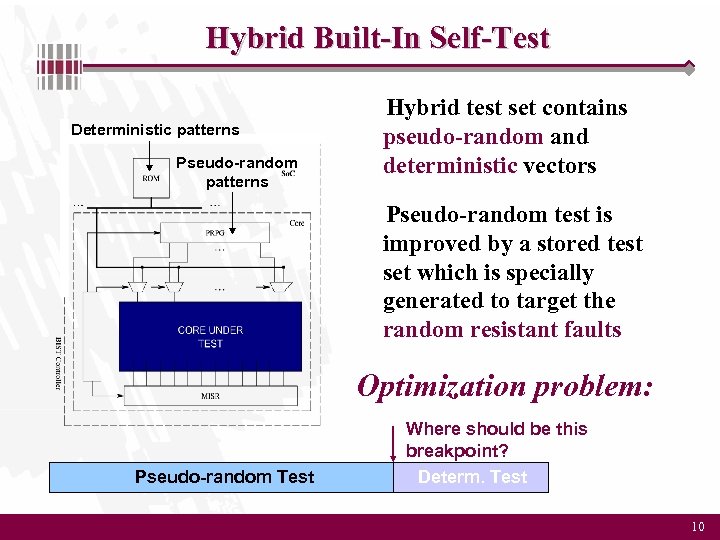

Hybrid Built-In Self-Test Deterministic patterns Pseudo-random patterns Hybrid test set contains pseudo-random and deterministic vectors Pseudo-random test is improved by a stored test set which is specially generated to target the random resistant faults Optimization problem: Pseudo-random Test Where should be this breakpoint? Determ. Test 10

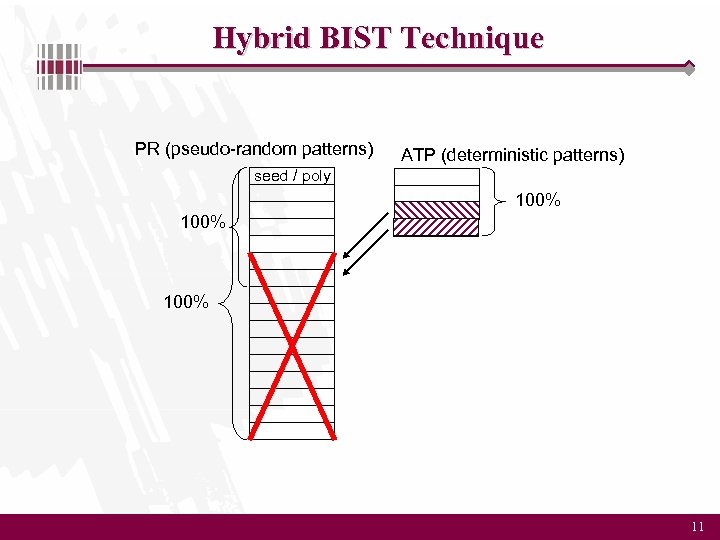

Hybrid BIST Technique PR (pseudo-random patterns) ATP (deterministic patterns) seed / poly 100% 11

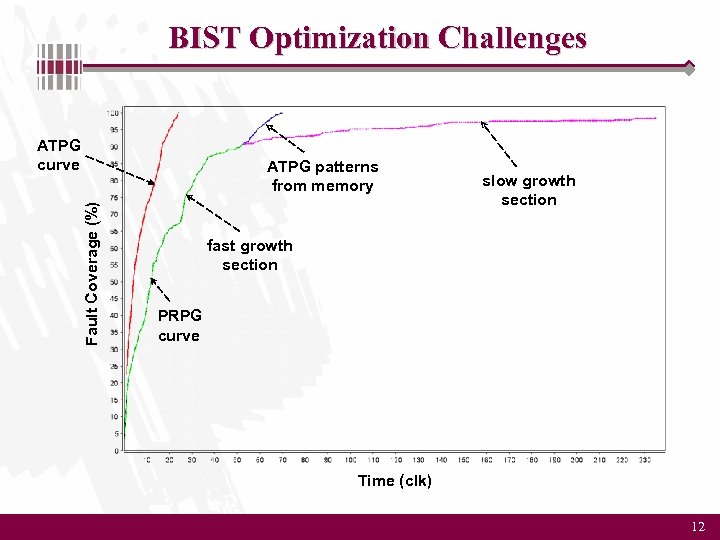

BIST Optimization Challenges ATPG curve Fault Coverage (%) ATPG patterns from memory slow growth section fast growth section PRPG curve Time (clk) 12

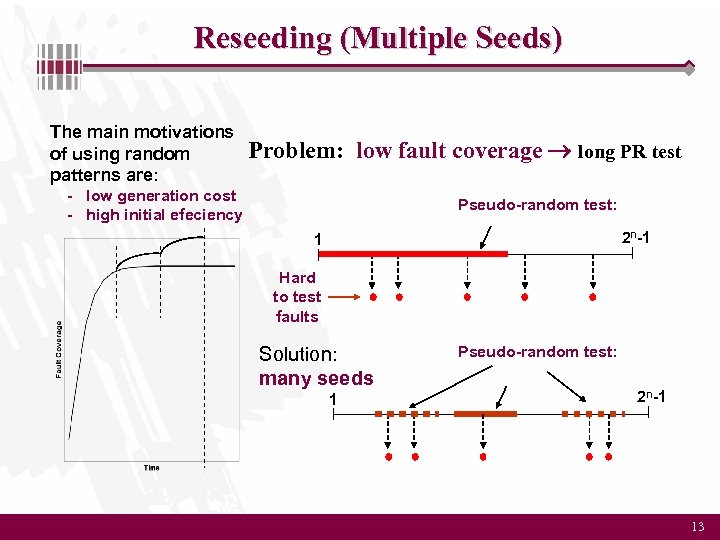

Reseeding (Multiple Seeds) The main motivations of using random patterns are: Problem: low fault coverage long PR test - low generation cost - high initial efeciency Pseudo-random test: 2 n-1 1 Hard to test faults Solution: many seeds 1 Pseudo-random test: 2 n-1 13

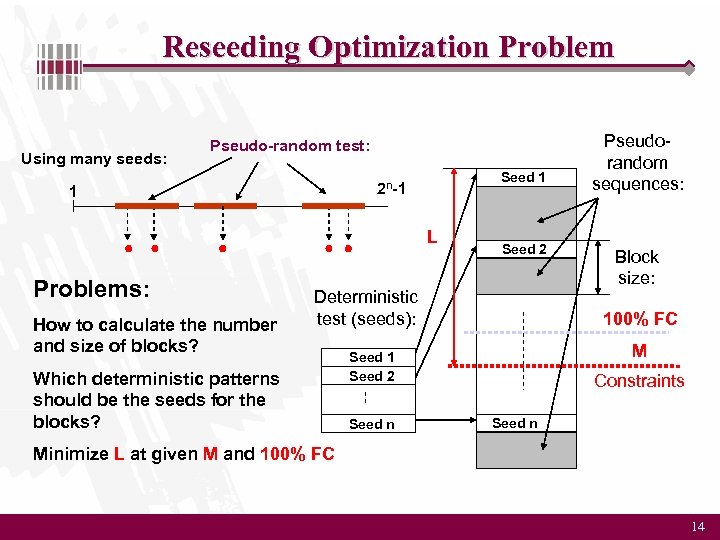

Reseeding Optimization Problem Using many seeds: Pseudo-random test: Seed 1 2 n-1 1 L Problems: How to calculate the number and size of blocks? Seed 2 Deterministic test (seeds): Which deterministic patterns should be the seeds for the blocks? Block size: 100% FC M Seed 1 Seed 2 Seed n Pseudorandom sequences: Constraints Seed n Minimize L at given M and 100% FC 14

Cost Calculation for Hybrid BIST CTOTAL = T + M(k) Cost PR test length # faults not detected # tests needed T M(k) min CTOTAL Pseudorandom Test Det. Test 15

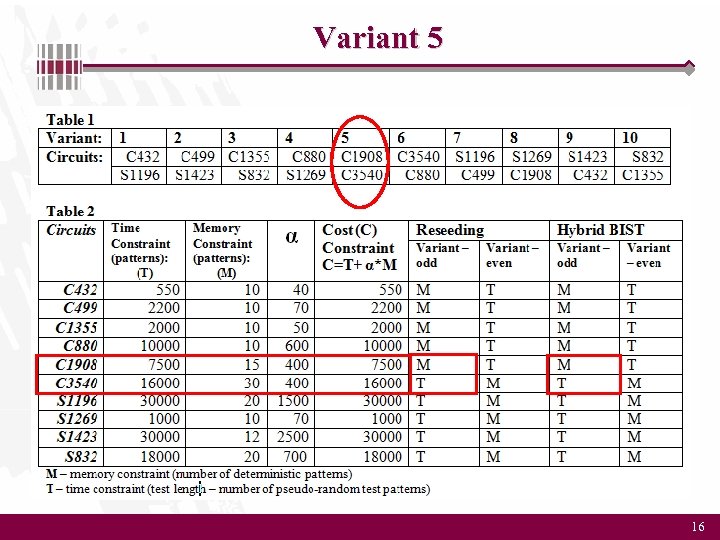

Variant 5 16

ISCAS’ 85 benchmark circuit 17

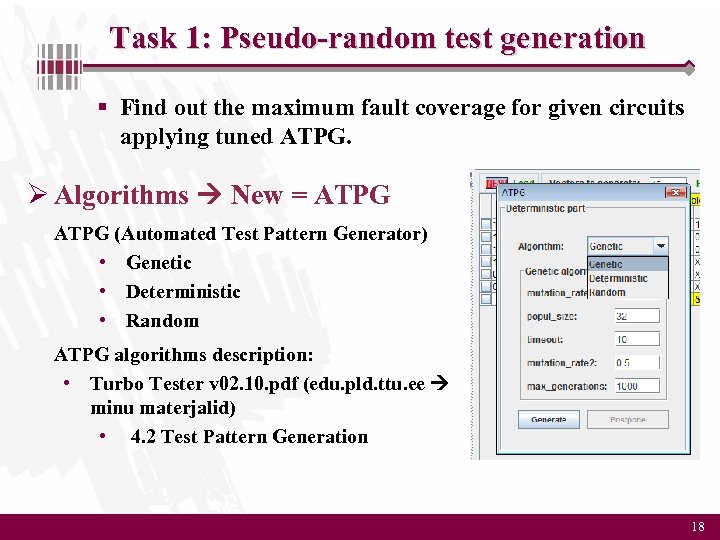

Task 1: Pseudo-random test generation § Find out the maximum fault coverage for given circuits applying tuned ATPG. Ø Algorithms New = ATPG (Automated Test Pattern Generator) • Genetic • Deterministic • Random ATPG algorithms description: • Turbo Tester v 02. 10. pdf (edu. pld. ttu. ee minu materjalid) • 4. 2 Test Pattern Generation 18

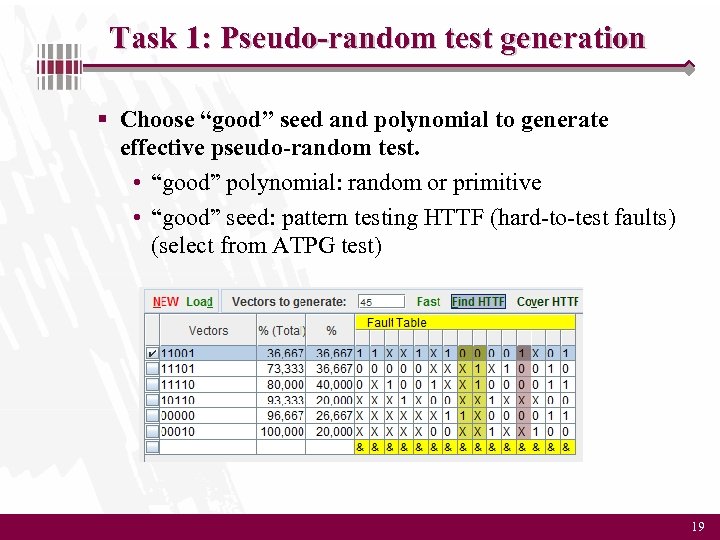

Task 1: Pseudo-random test generation § Choose “good” seed and polynomial to generate effective pseudo-random test. • “good” polynomial: random or primitive • “good” seed: pattern testing HTTF (hard-to-test faults) (select from ATPG test) 19

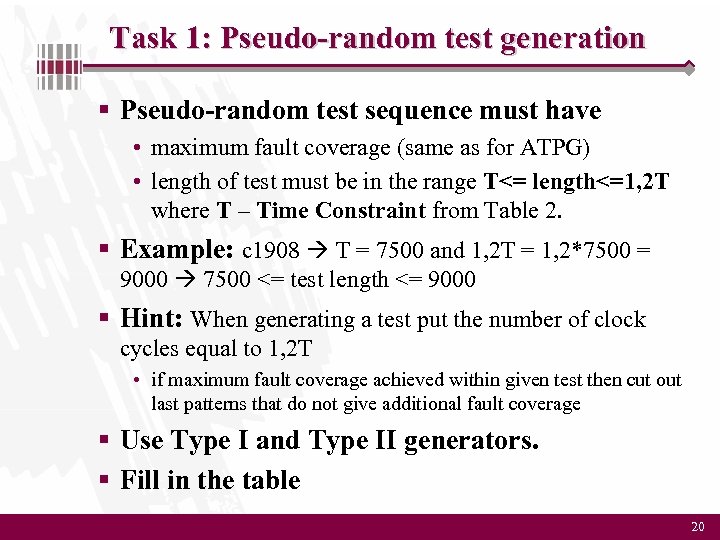

Task 1: Pseudo-random test generation § Pseudo-random test sequence must have • maximum fault coverage (same as for ATPG) • length of test must be in the range T<= length<=1, 2 T where T – Time Constraint from Table 2. § Example: c 1908 T = 7500 and 1, 2 T = 1, 2*7500 = 9000 7500 <= test length <= 9000 § Hint: When generating a test put the number of clock cycles equal to 1, 2 T • if maximum fault coverage achieved within given test then cut out last patterns that do not give additional fault coverage § Use Type I and Type II generators. § Fill in the table 20

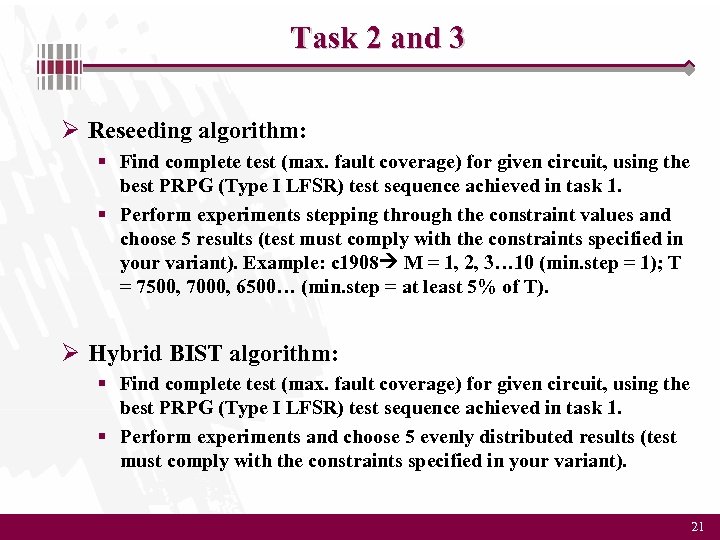

Task 2 and 3 Ø Reseeding algorithm: § Find complete test (max. fault coverage) for given circuit, using the best PRPG (Type I LFSR) test sequence achieved in task 1. § Perform experiments stepping through the constraint values and choose 5 results (test must comply with the constraints specified in your variant). Example: c 1908 M = 1, 2, 3… 10 (min. step = 1); T = 7500, 7000, 6500… (min. step = at least 5% of T). Ø Hybrid BIST algorithm: § Find complete test (max. fault coverage) for given circuit, using the best PRPG (Type I LFSR) test sequence achieved in task 1. § Perform experiments and choose 5 evenly distributed results (test must comply with the constraints specified in your variant). 21

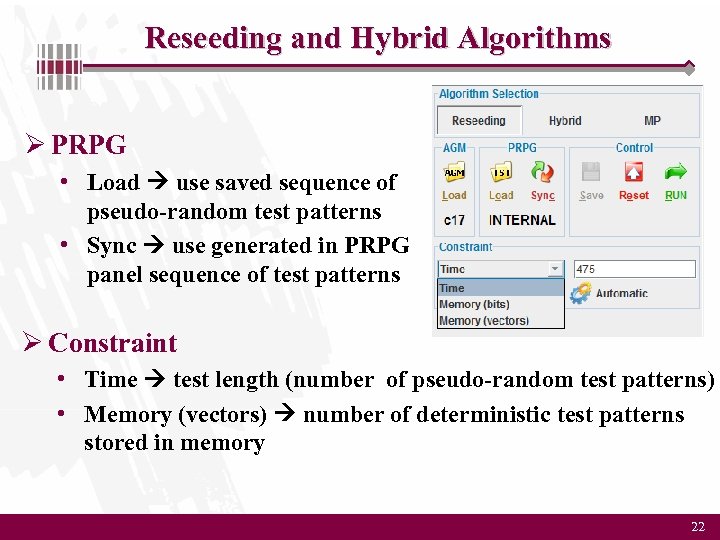

Reseeding and Hybrid Algorithms Ø PRPG • Load use saved sequence of pseudo-random test patterns • Sync use generated in PRPG panel sequence of test patterns Ø Constraint • Time test length (number of pseudo-random test patterns) • Memory (vectors) number of deterministic test patterns stored in memory 22

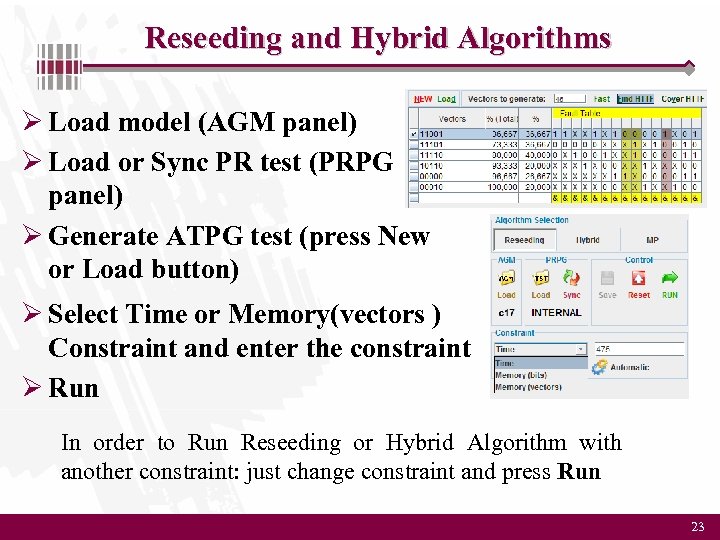

Reseeding and Hybrid Algorithms Ø Load model (AGM panel) Ø Load or Sync PR test (PRPG panel) Ø Generate ATPG test (press New or Load button) Ø Select Time or Memory(vectors ) Constraint and enter the constraint Ø Run In order to Run Reseeding or Hybrid Algorithm with another constraint: just change constraint and press Run 23

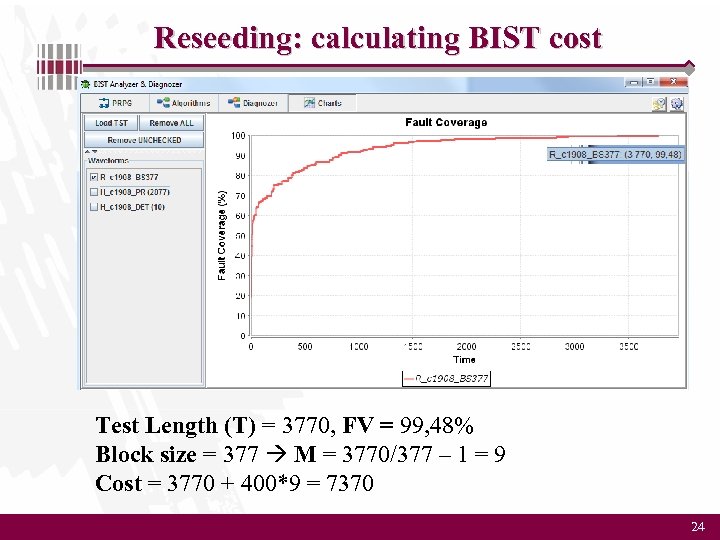

Reseeding: calculating BIST cost Test Length (T) = 3770, FV = 99, 48% Block size = 377 M = 3770/377 – 1 = 9 Cost = 3770 + 400*9 = 7370 24

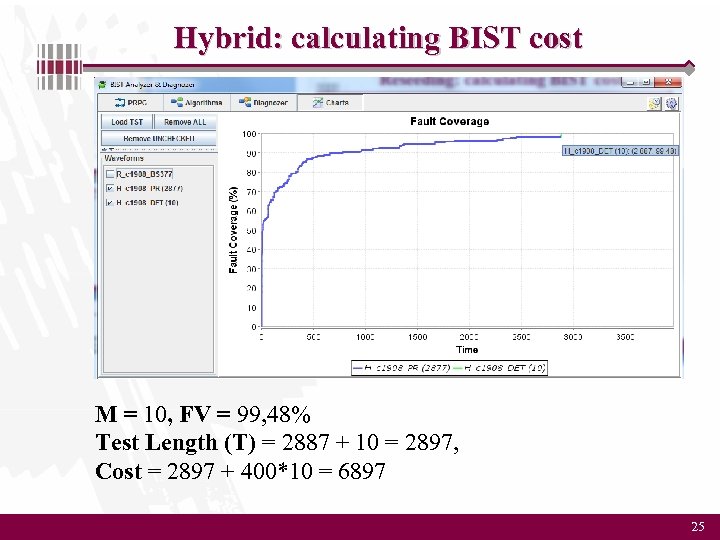

Hybrid: calculating BIST cost M = 10, FV = 99, 48% Test Length (T) = 2887 + 10 = 2897, Cost = 2897 + 400*10 = 6897 25

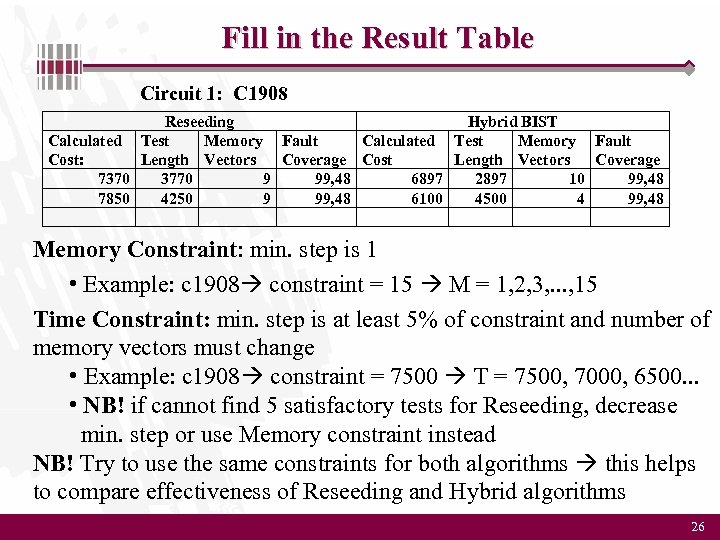

Fill in the Result Table Circuit 1: C 1908 Reseeding Hybrid BIST Calculated Test Memory Fault Cost: Length Vectors Coverage Cost Length Vectors Coverage 7370 3770 9 99, 48 6897 2897 10 99, 48 7850 4250 9 99, 48 6100 4500 4 99, 48 Memory Constraint: min. step is 1 • Example: c 1908 constraint = 15 M = 1, 2, 3, . . . , 15 Time Constraint: min. step is at least 5% of constraint and number of memory vectors must change • Example: c 1908 constraint = 7500 T = 7500, 7000, 6500. . . • NB! if cannot find 5 satisfactory tests for Reseeding, decrease min. step or use Memory constraint instead NB! Try to use the same constraints for both algorithms this helps to compare effectiveness of Reseeding and Hybrid algorithms 26

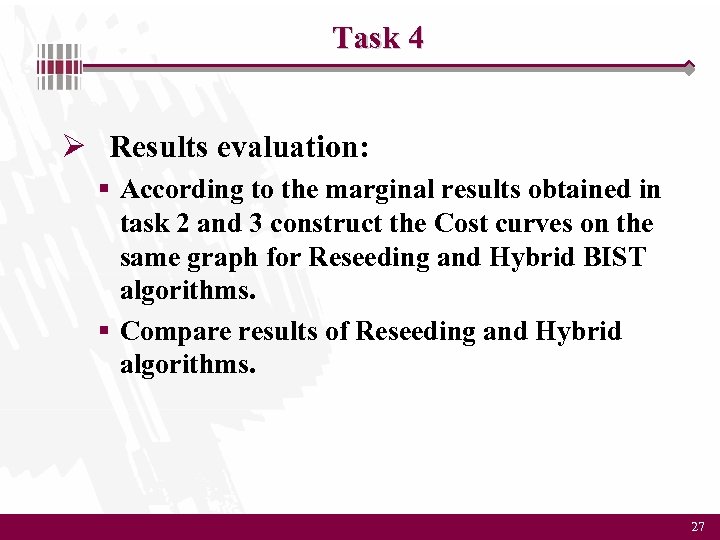

Task 4 Ø Results evaluation: § According to the marginal results obtained in task 2 and 3 construct the Cost curves on the same graph for Reseeding and Hybrid BIST algorithms. § Compare results of Reseeding and Hybrid algorithms. 27

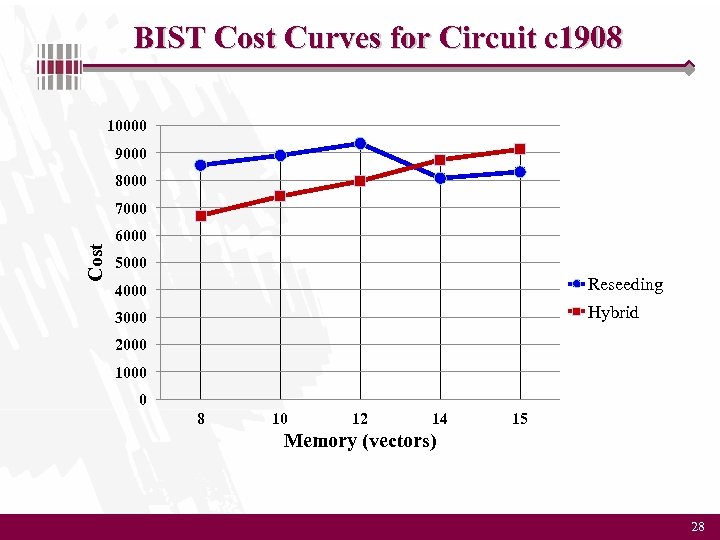

BIST Cost Curves for Circuit c 1908 10000 9000 8000 Cost 7000 6000 5000 4000 Reseeding 3000 Hybrid 2000 1000 0 8 10 12 14 15 Memory (vectors) 28
