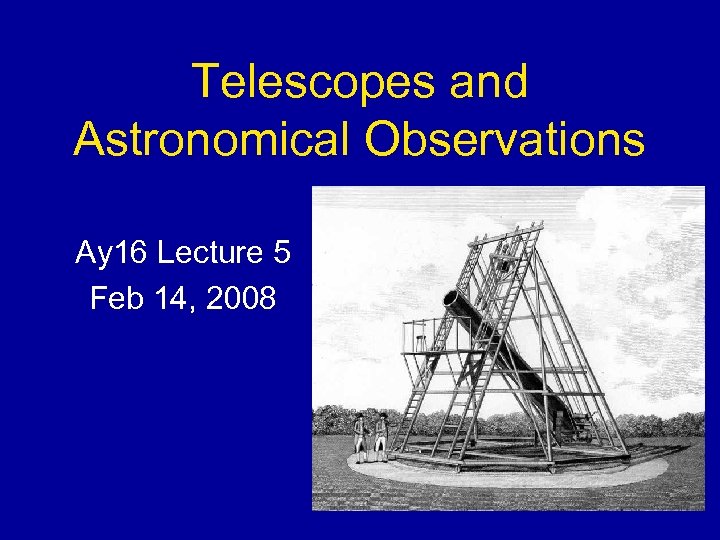

Telescopes and Astronomical Observations Ay 16 Lecture 5 Feb 14, 2008

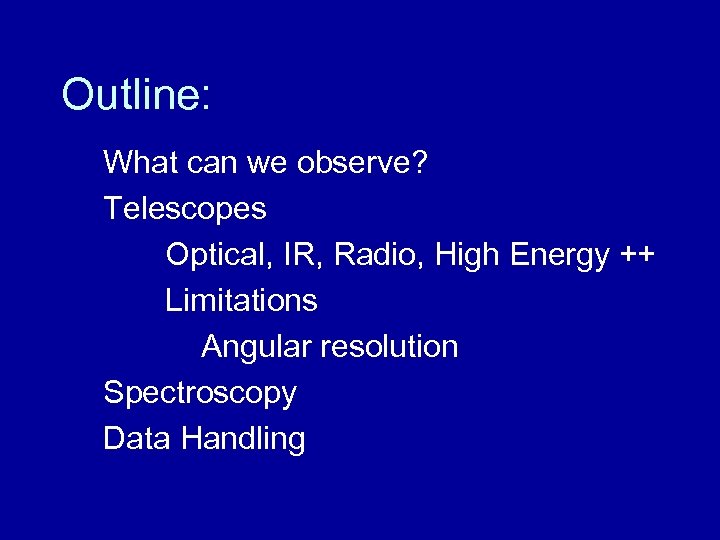

Outline: What can we observe? Telescopes Optical, IR, Radio, High Energy ++ Limitations Angular resolution Spectroscopy Data Handling

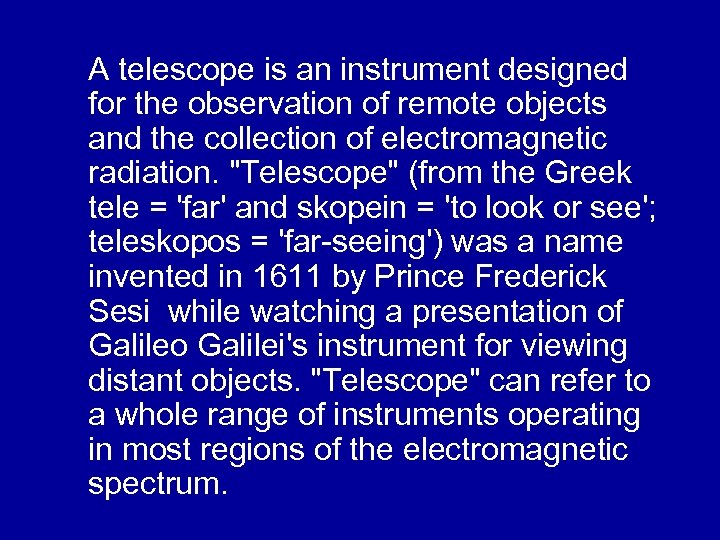

A telescope is an instrument designed for the observation of remote objects and the collection of electromagnetic radiation. "Telescope" (from the Greek tele = 'far' and skopein = 'to look or see'; teleskopos = 'far-seeing') was a name invented in 1611 by Prince Frederick Sesi while watching a presentation of Galileo Galilei's instrument for viewing distant objects. "Telescope" can refer to a whole range of instruments operating in most regions of the electromagnetic spectrum.

Telescopes are “Tools” By themselves, most telescopes are not scientfically useful. They need yet other tools a. k. a. instruments.

What Can We Observe? Brightness (M) + d. M/dt = Light Curves, Variability + d. M/d = Spectrum or SED + d. M/d /dt = Spectral Variability Position + d( , )/dt = Proper Motion + d 2( , )/dt 2 = Acceleration Polarization

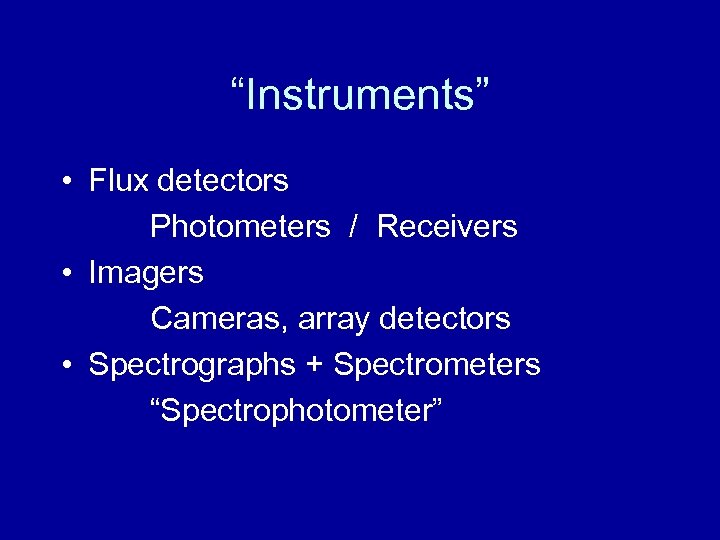

“Instruments” • Flux detectors Photometers / Receivers • Imagers Cameras, array detectors • Spectrographs + Spectrometers “Spectrophotometer”

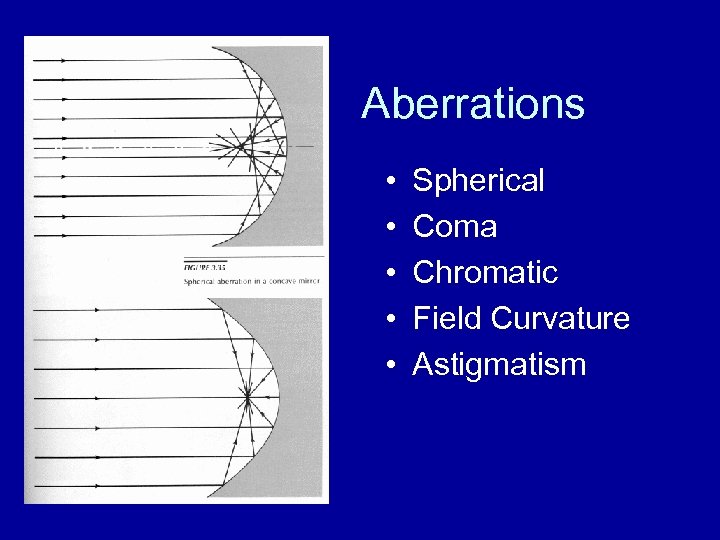

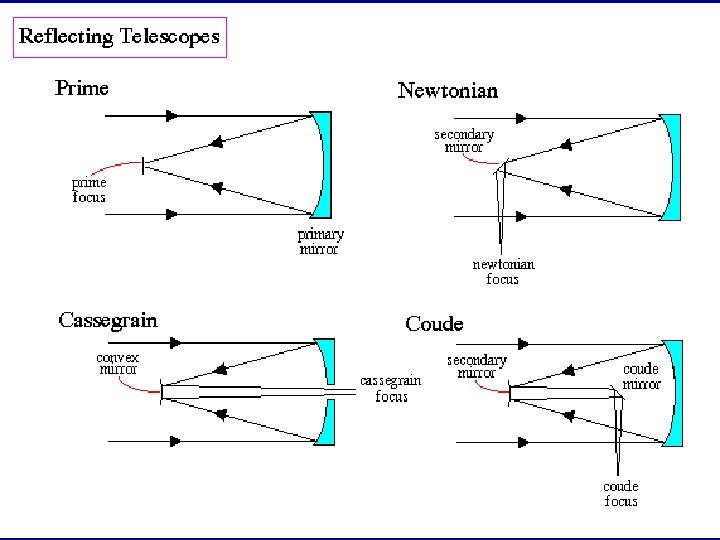

Aberrations • • • Spherical Coma Chromatic Field Curvature Astigmatism

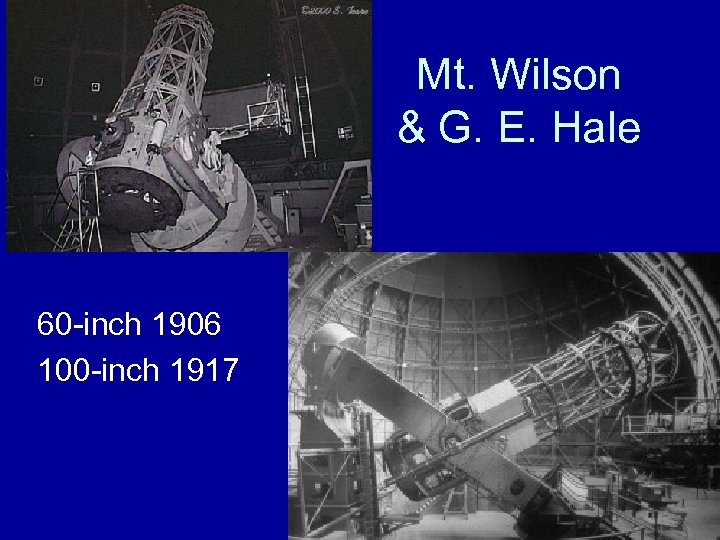

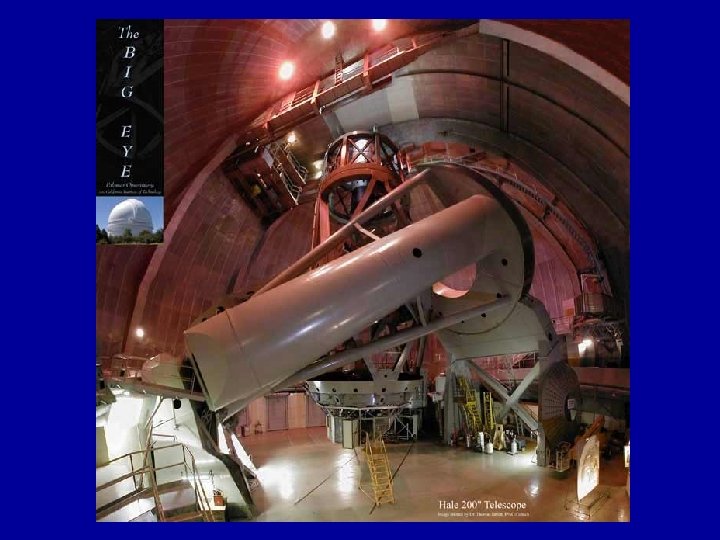

Mt. Wilson & G. E. Hale 60 -inch 1906 100 -inch 1917

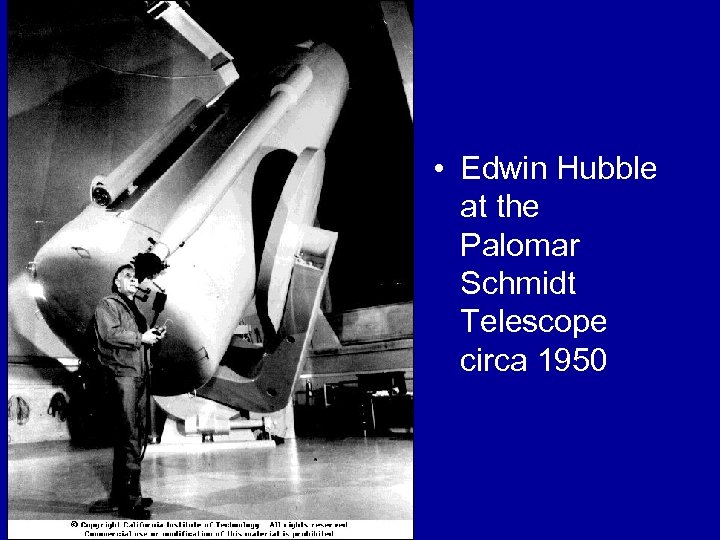

• Edwin Hubble at the Palomar Schmidt Telescope circa 1950

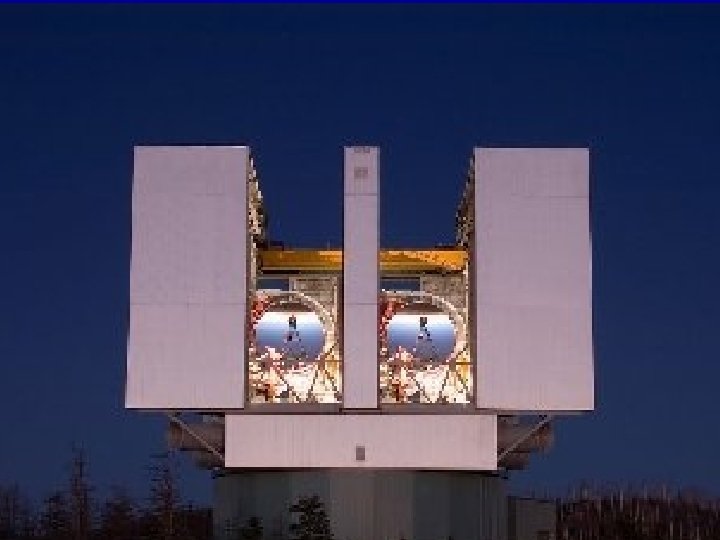

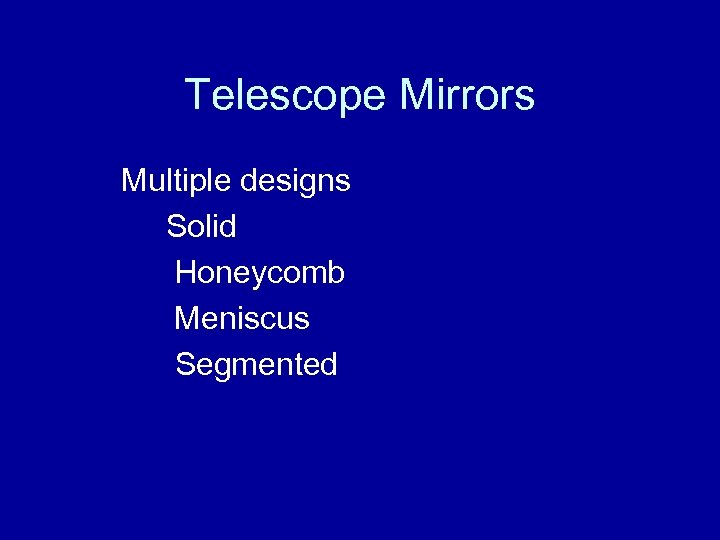

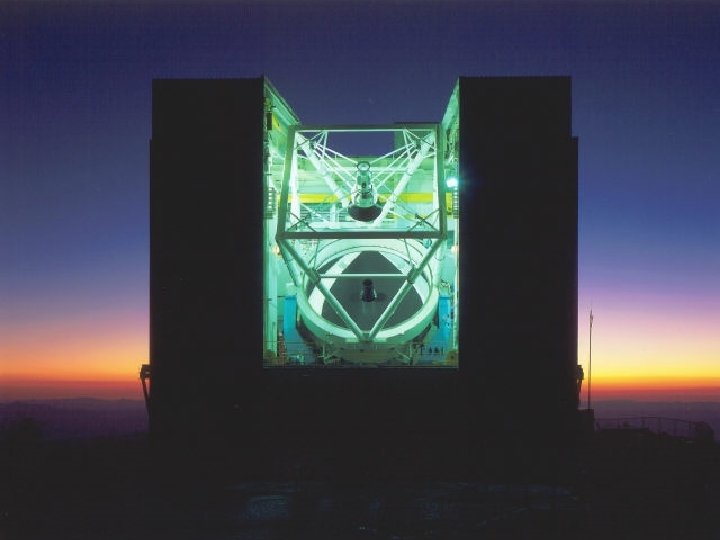

Telescope Mirrors Multiple designs Solid Honeycomb Meniscus Segmented

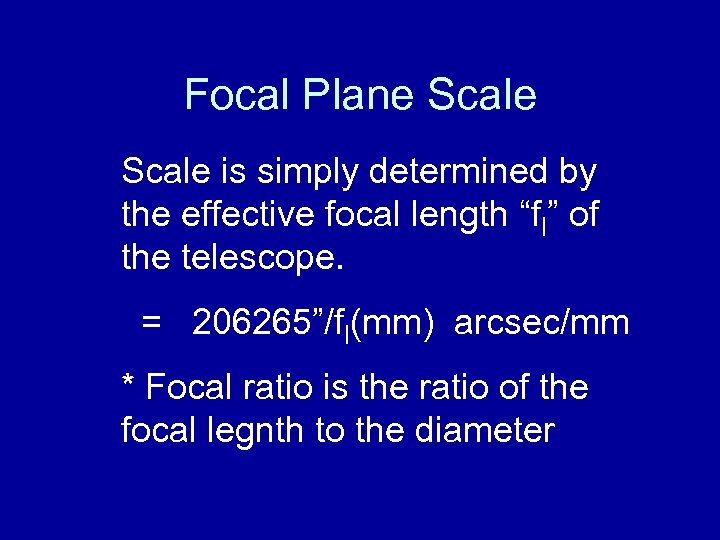

Focal Plane Scale is simply determined by the effective focal length “fl” of the telescope. = 206265”/fl(mm) arcsec/mm * Focal ratio is the ratio of the focal legnth to the diameter

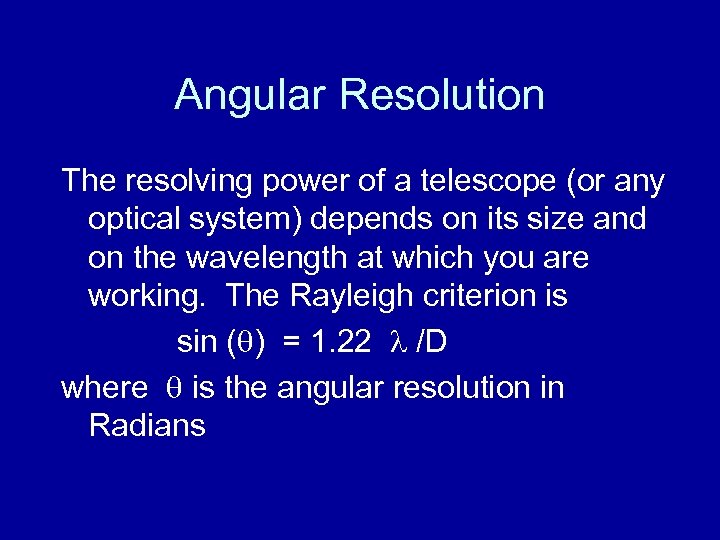

Angular Resolution The resolving power of a telescope (or any optical system) depends on its size and on the wavelength at which you are working. The Rayleigh criterion is sin ( ) = 1. 22 /D where is the angular resolution in Radians

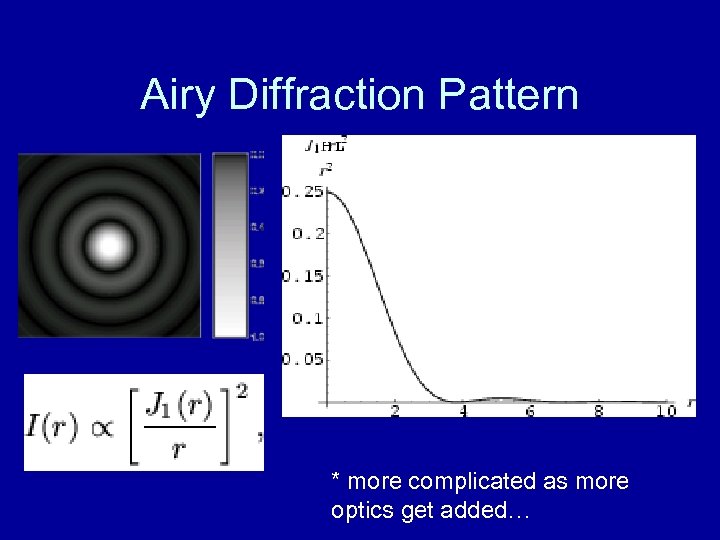

$Airy Diffraction Pattern • * more complicated as more optics get added…$

Airy Diffraction Pattern • * more complicated as more optics get added…

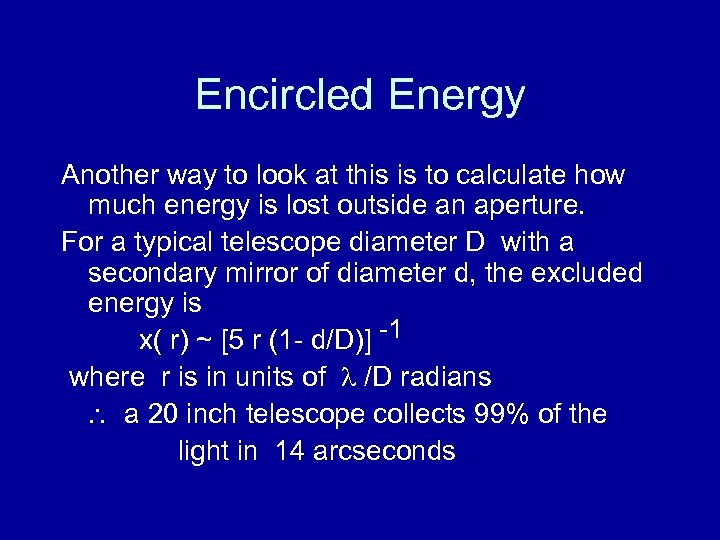

Encircled Energy Another way to look at this is to calculate how much energy is lost outside an aperture. For a typical telescope diameter D with a secondary mirror of diameter d, the excluded energy is x( r) ~ [5 r (1 - d/D)] -1 where r is in units of /D radians a 20 inch telescope collects 99% of the light in 14 arcseconds

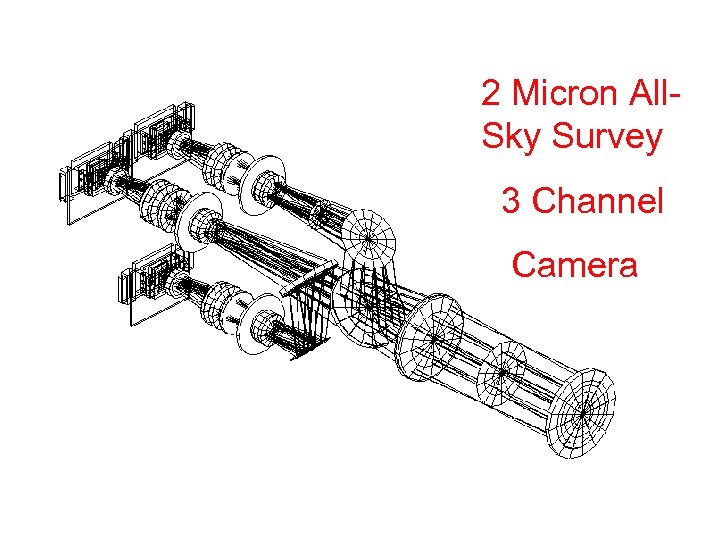

2 Micron All. Sky Survey • 3 Channel Camera

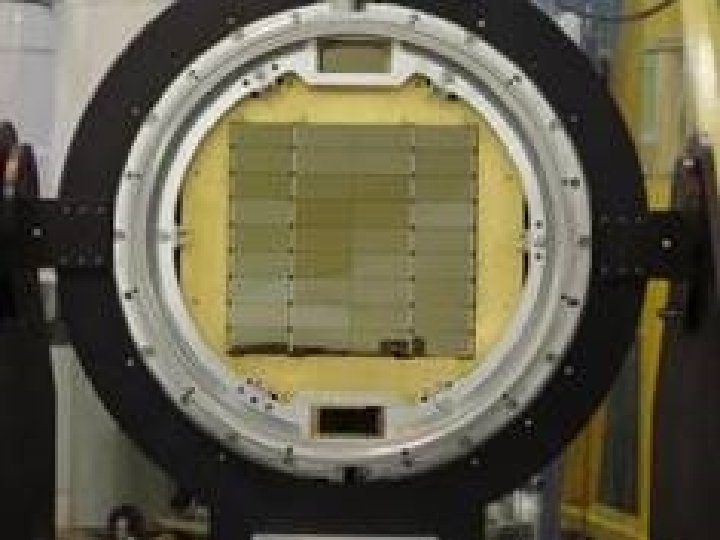

Silicon Arrays --- CCDs

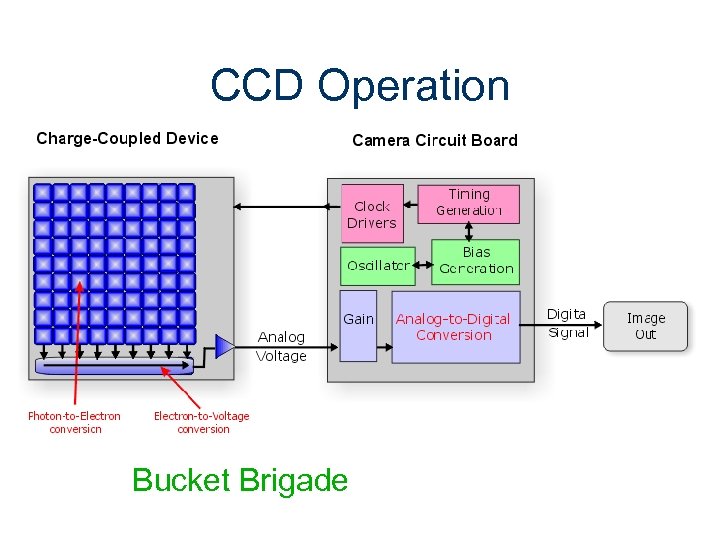

CCD Operation Bucket Brigade

•

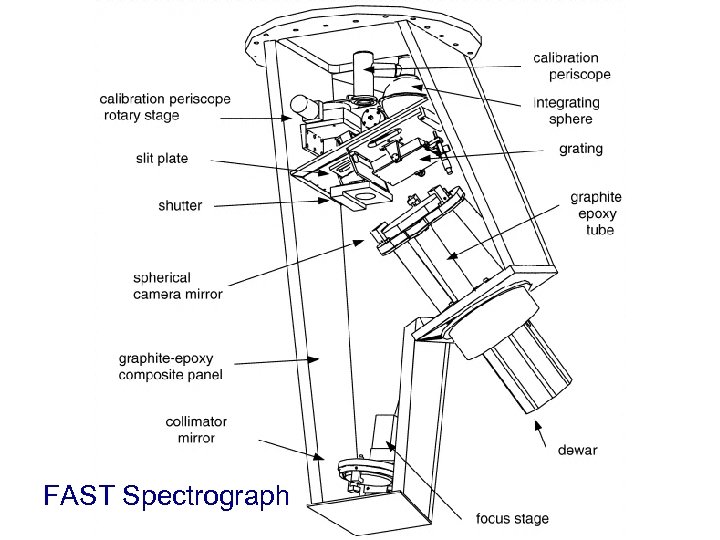

• FAST Spectrograph

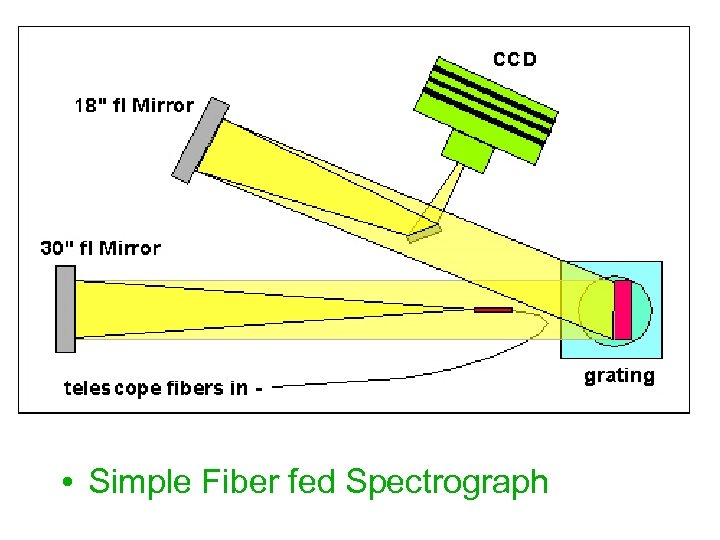

• Simple Fiber fed Spectrograph

Hectospec (MMT)

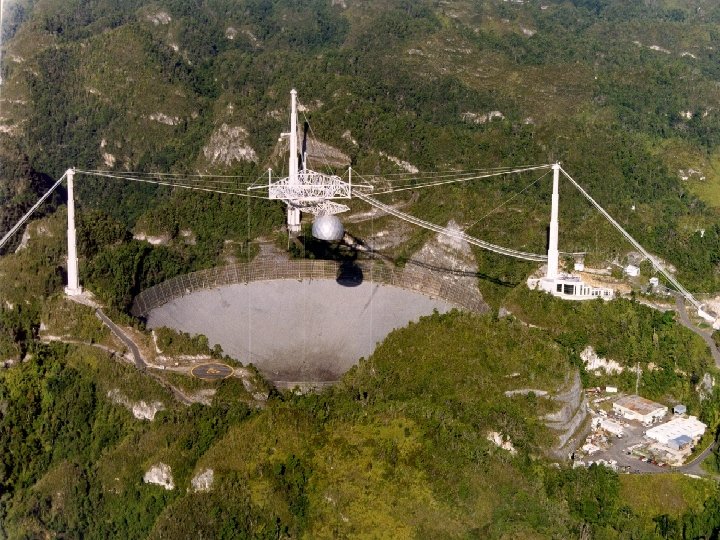

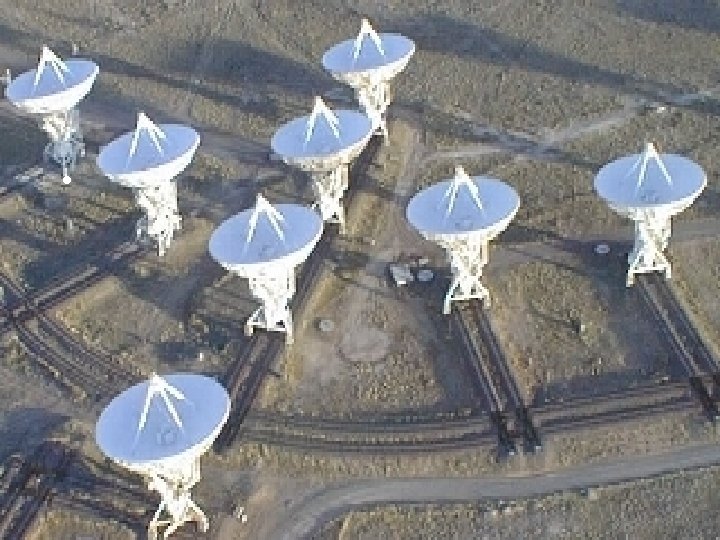

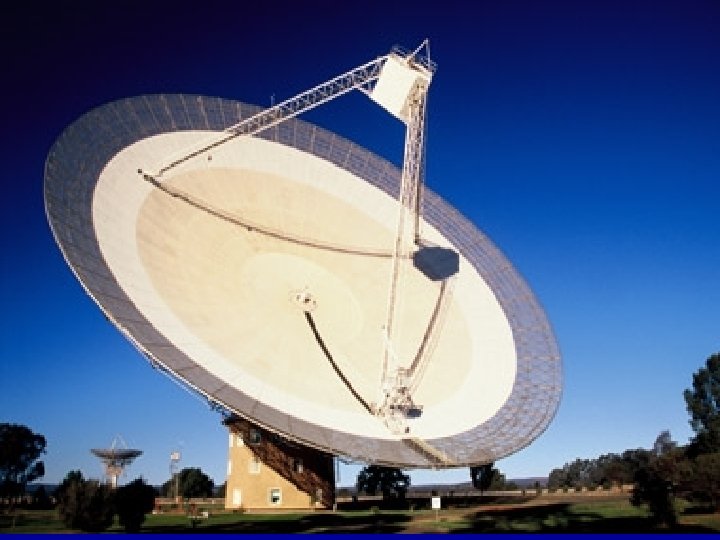

Holmdel Horn

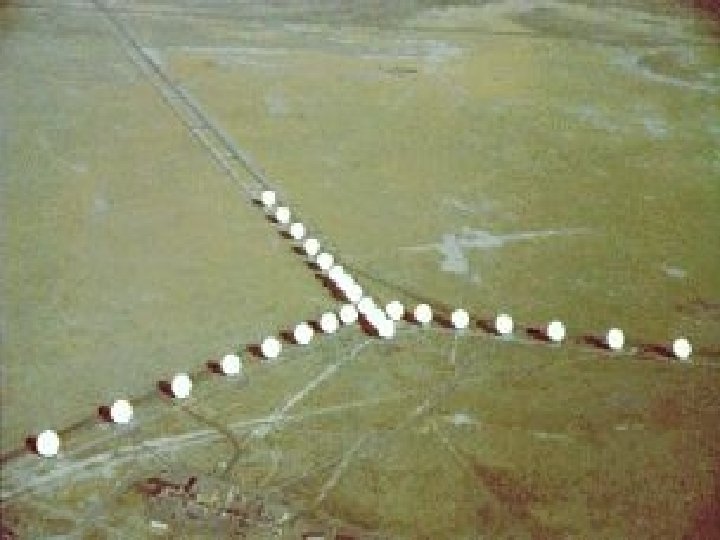

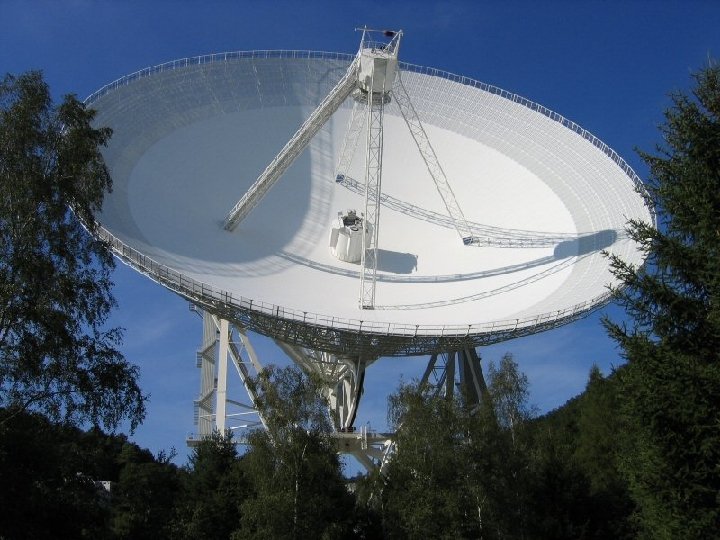

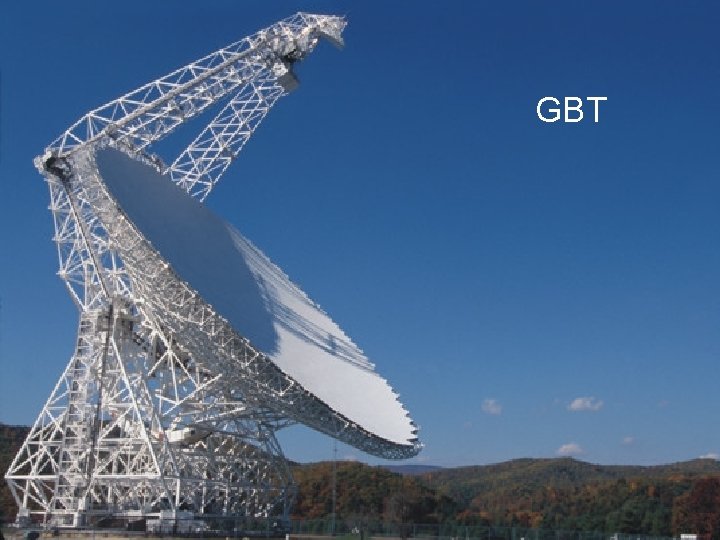

GBT

•

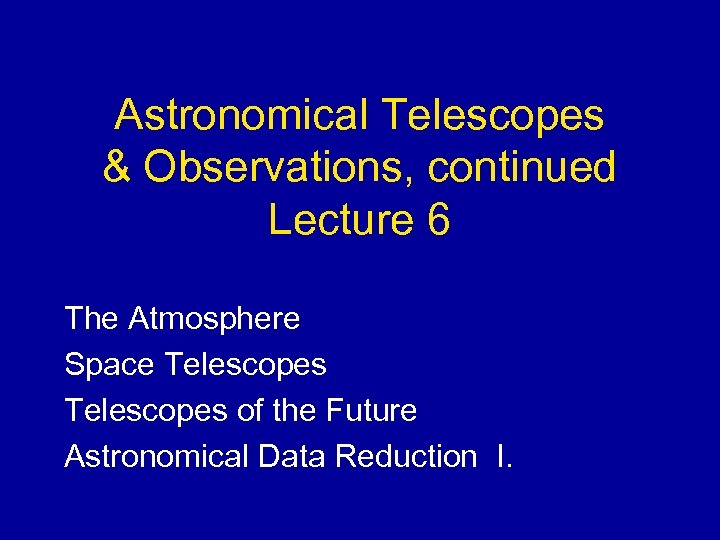

Astronomical Telescopes & Observations, continued Lecture 6 The Atmosphere Space Telescopes of the Future Astronomical Data Reduction I.

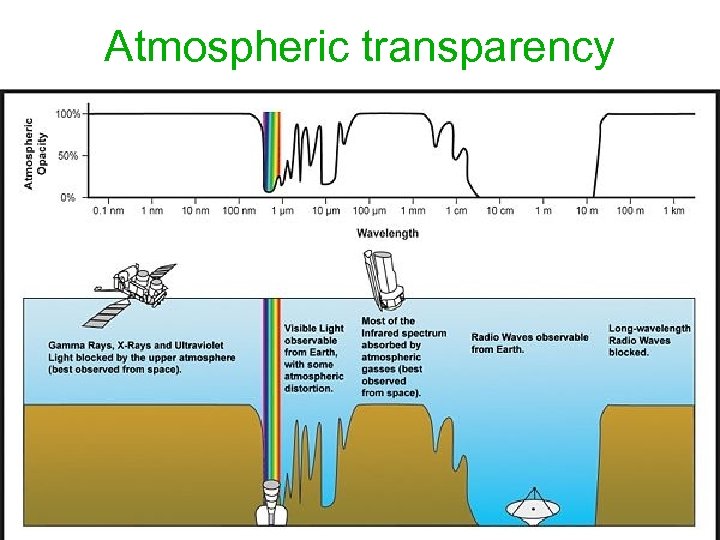

Atmospheric transparency

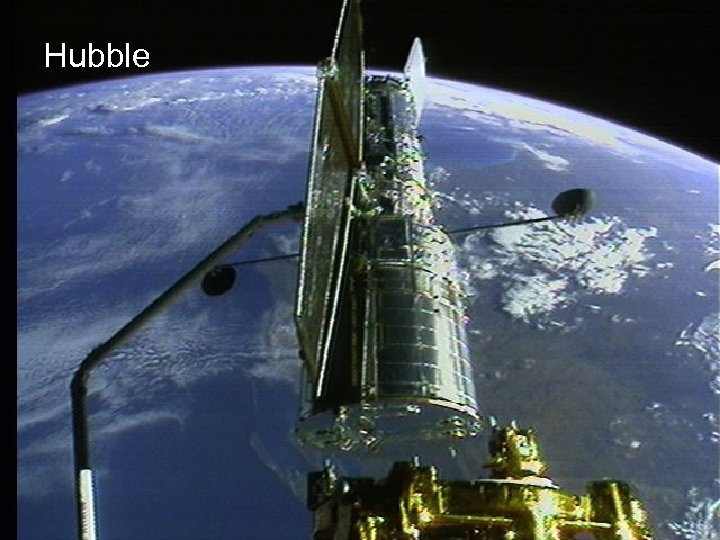

Hubble

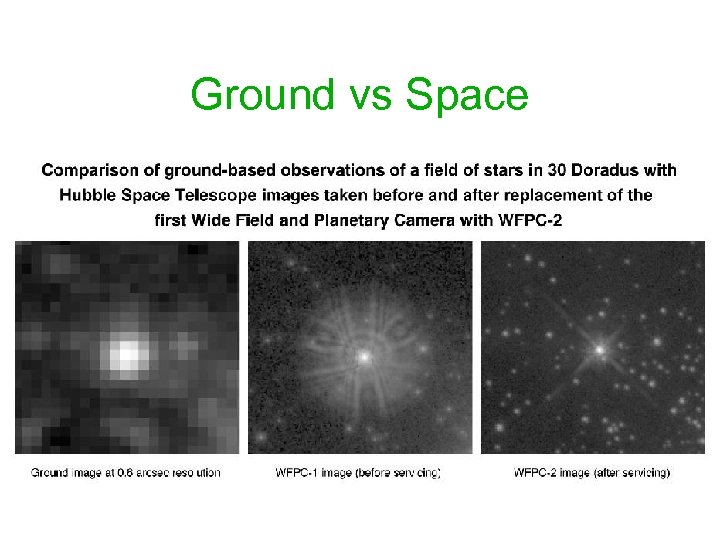

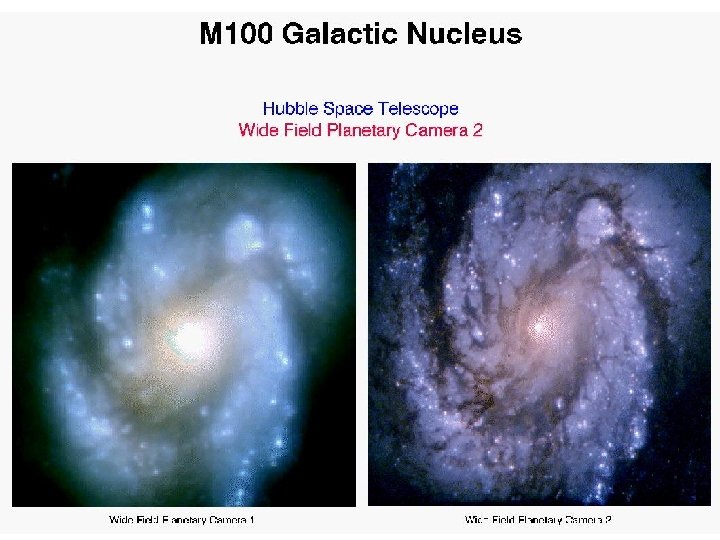

Ground vs Space •

Adaptive Optics

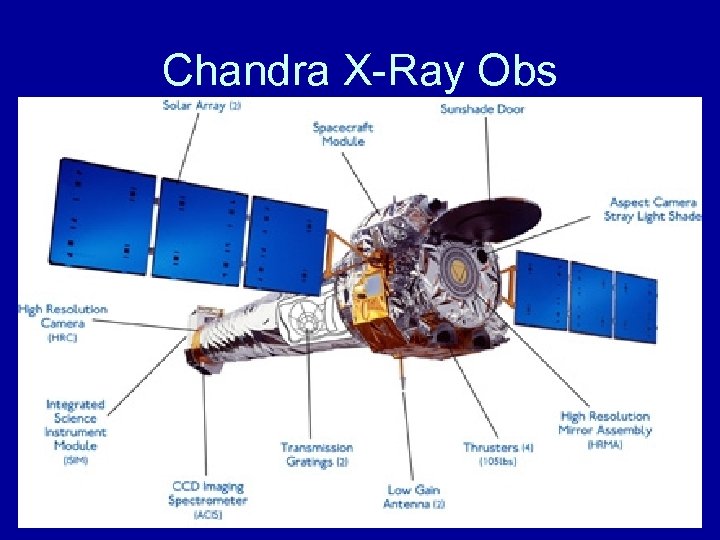

Chandra X-Ray Obs

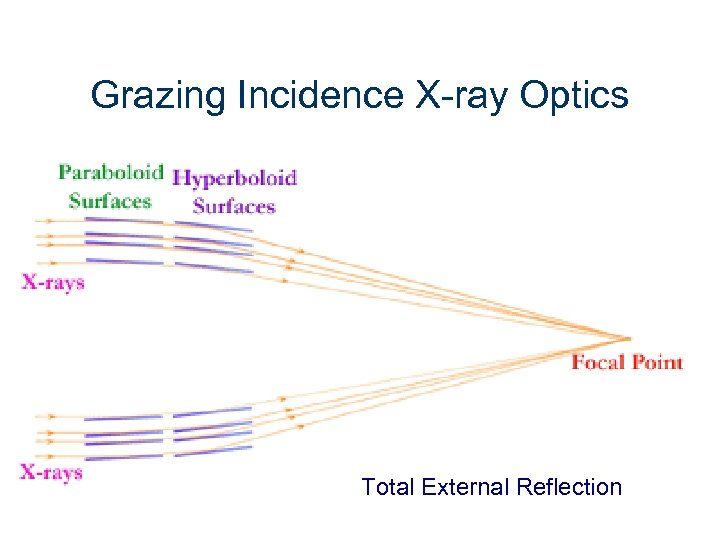

Grazing Incidence X-ray Optics Total External Reflection

X-Ray Reflection Snell’s Law sin 1 1 = sin 2 2 2/ 1 = 12 sin 2 = sin 1 / 12 Critical angle = sin C = 12 --> total external reflection, not refraction

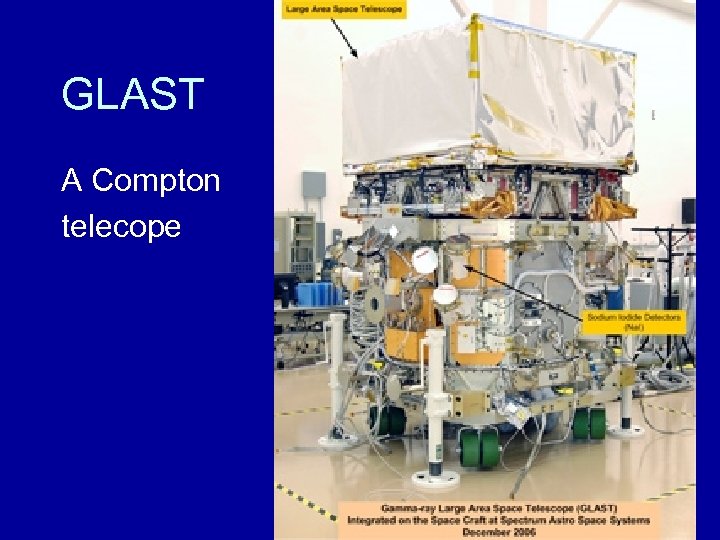

GLAST A Compton telecope

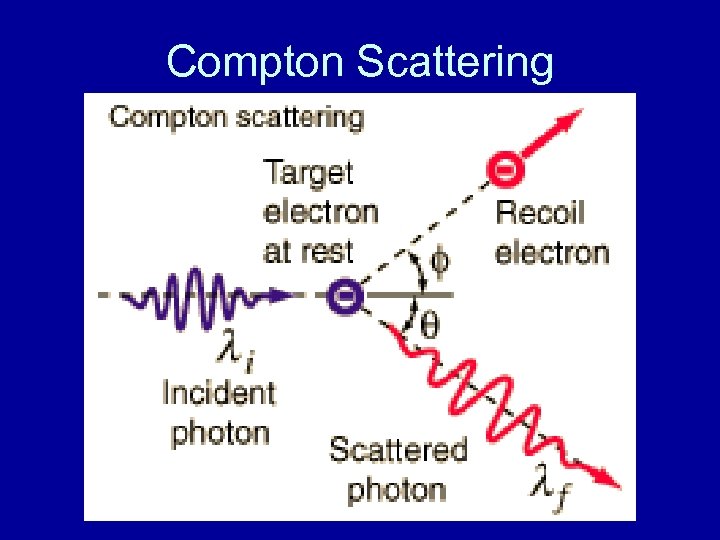

Compton Scattering

LAT GBM

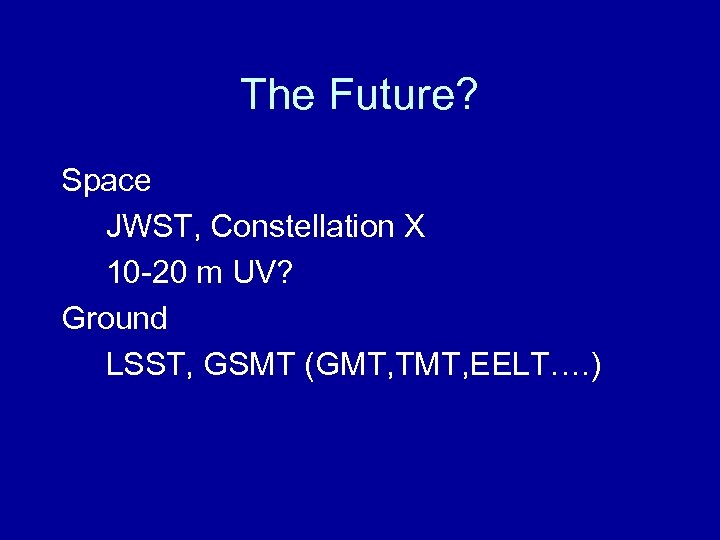

The Future? Space JWST, Constellation X 10 -20 m UV? Ground LSST, GSMT (GMT, TMT, EELT…. )

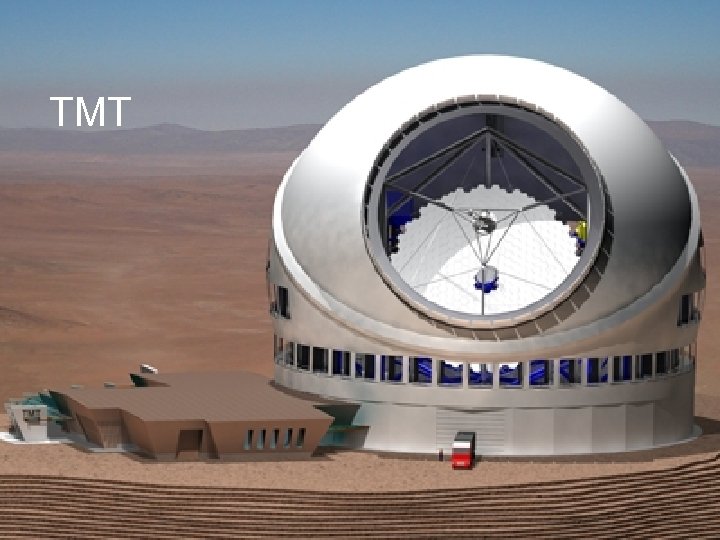

TMT

TMT

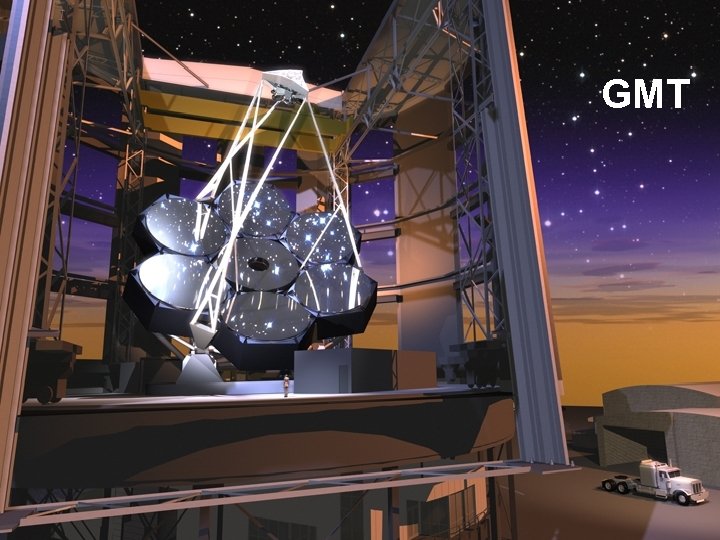

GMT

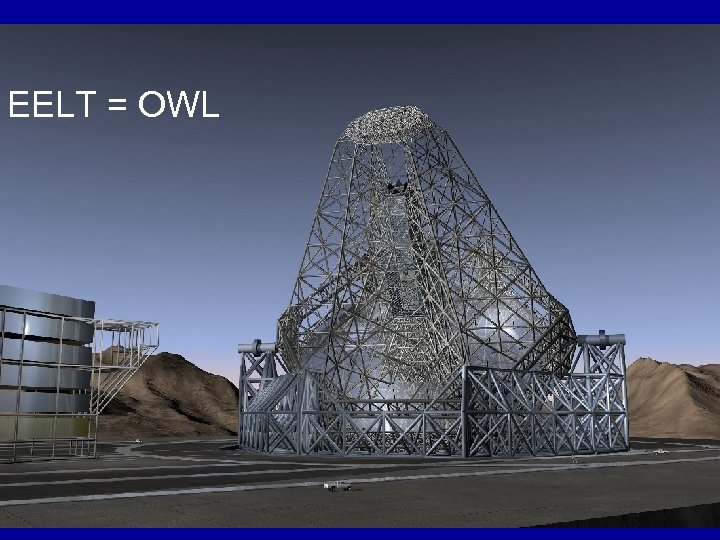

EELT = OWL

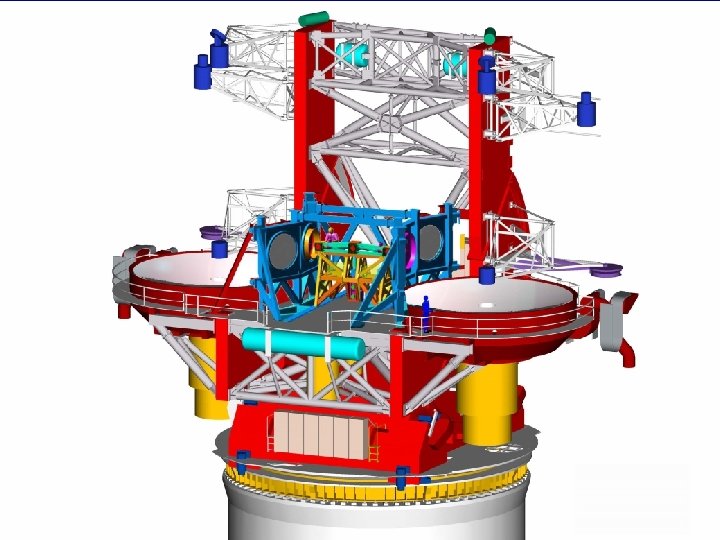

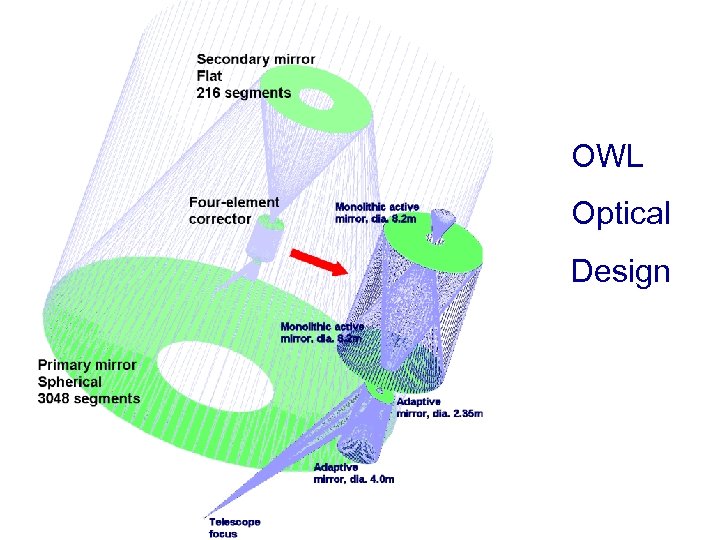

OWL Optical Design

JWST

Con. X

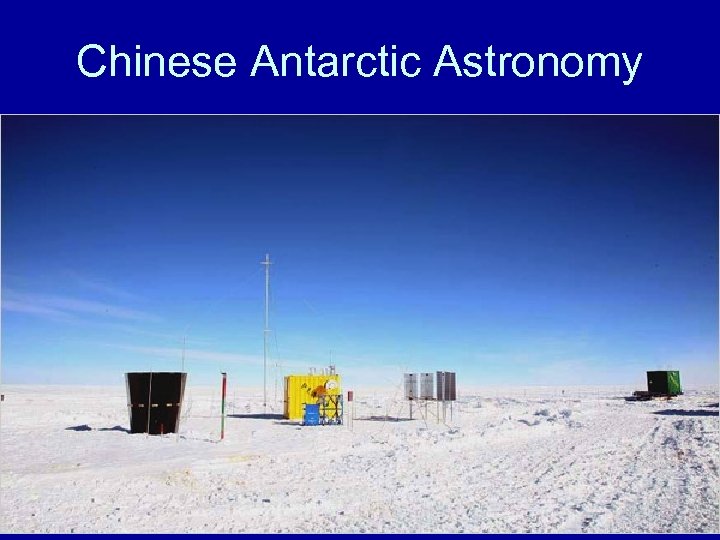

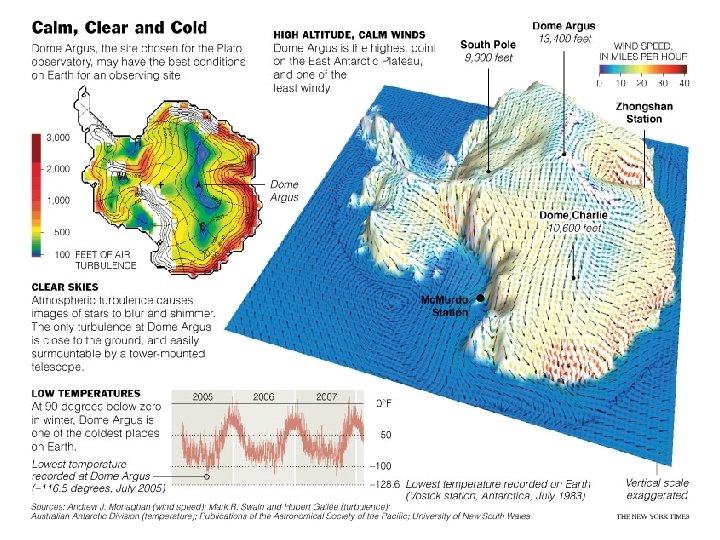

Chinese Antarctic Astronomy

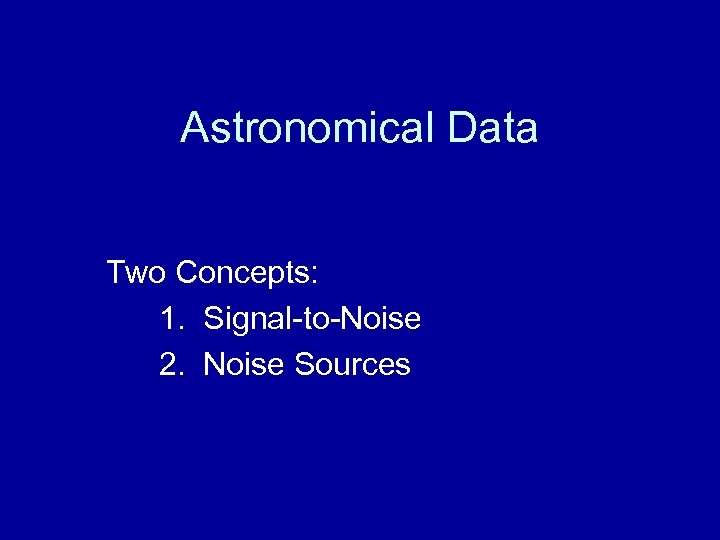

Astronomical Data Two Concepts: 1. Signal-to-Noise 2. Noise Sources

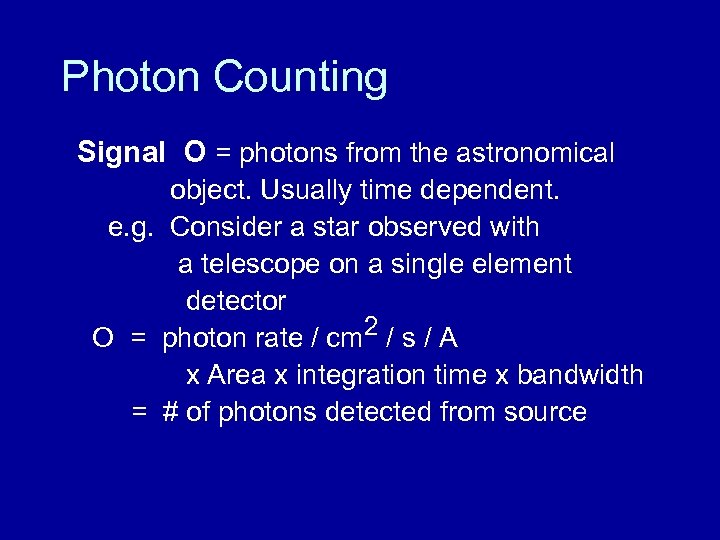

Photon Counting Signal O = photons from the astronomical object. Usually time dependent. e. g. Consider a star observed with a telescope on a single element detector O = photon rate / cm 2 / s / A x Area x integration time x bandwidth = # of photons detected from source

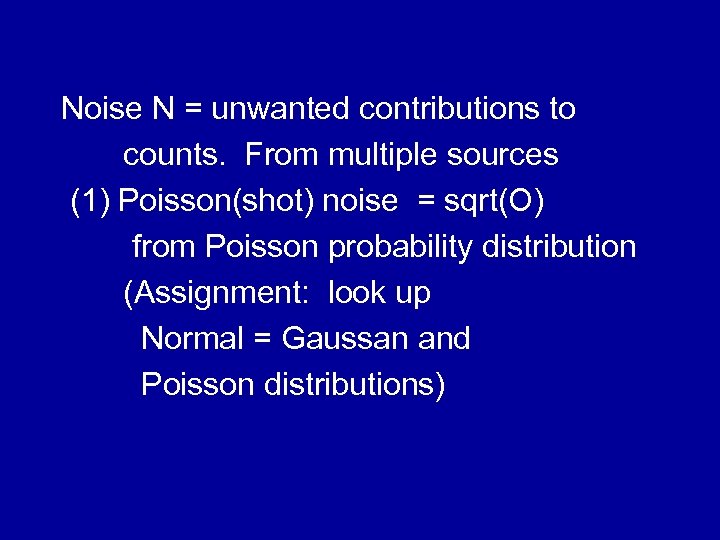

Noise N = unwanted contributions to counts. From multiple sources (1) Poisson(shot) noise = sqrt(O) from Poisson probability distribution (Assignment: look up Normal = Gaussan and Poisson distributions)

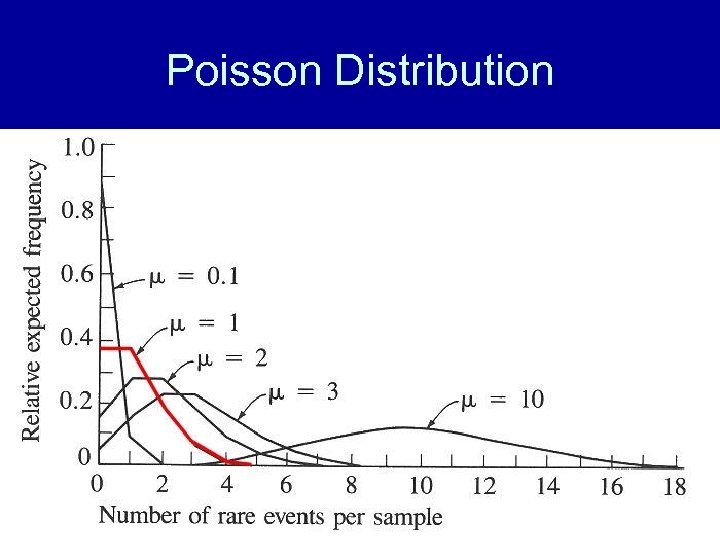

Poisson Distribution •

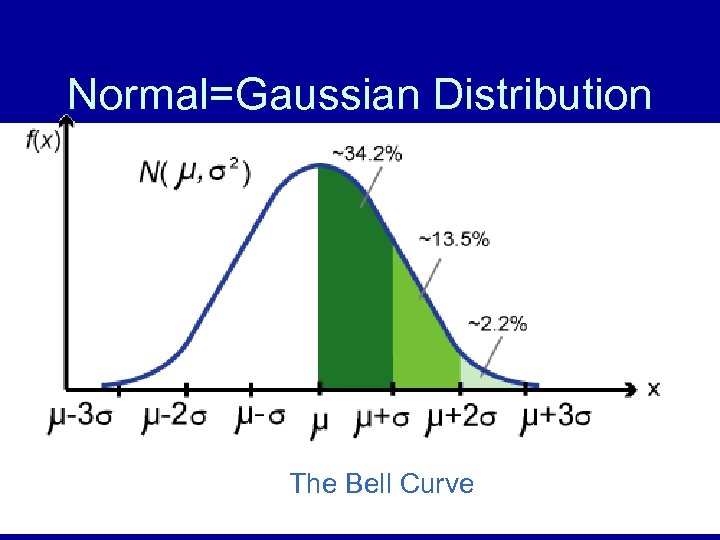

Normal=Gaussian Distribution The Bell Curve

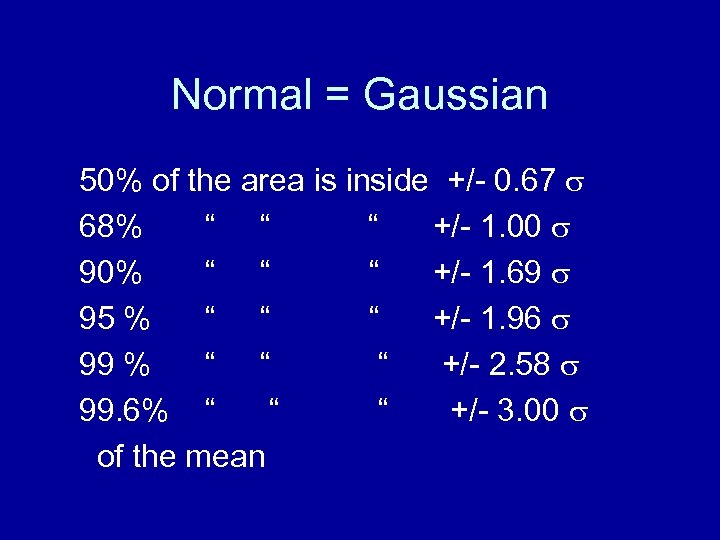

Normal = Gaussian 50% of the area is inside +/- 0. 67 68% “ “ “ +/- 1. 00 90% “ “ “ +/- 1. 69 95 % “ “ “ +/- 1. 96 99 % “ “ “ +/- 2. 58 99. 6% “ “ “ +/- 3. 00 of the mean

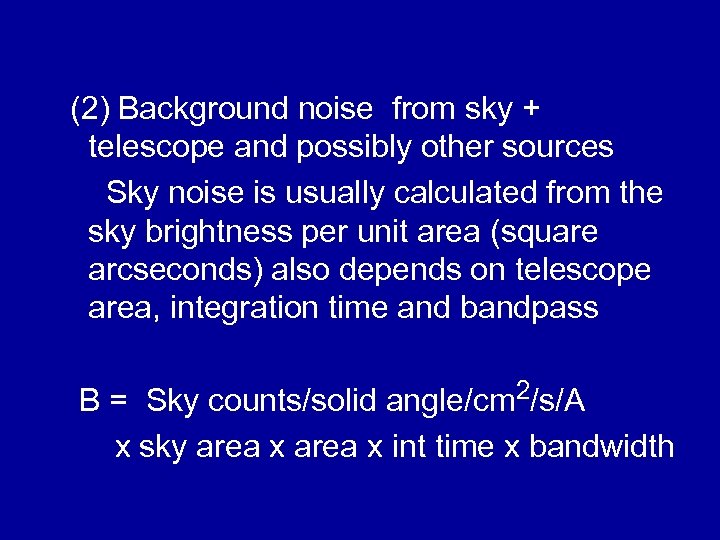

(2) Background noise from sky + telescope and possibly other sources Sky noise is usually calculated from the sky brightness per unit area (square arcseconds) also depends on telescope area, integration time and bandpass B = Sky counts/solid angle/cm 2/s/A x sky area x int time x bandwidth

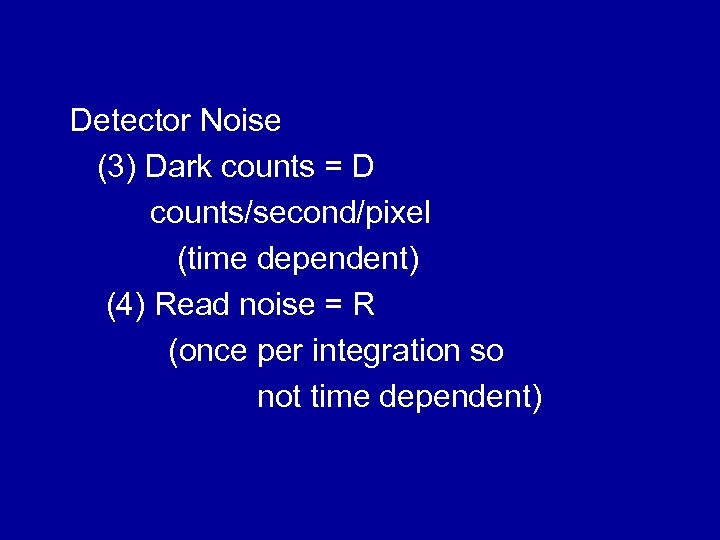

Detector Noise (3) Dark counts = D counts/second/pixel (time dependent) (4) Read noise = R (once per integration so not time dependent)

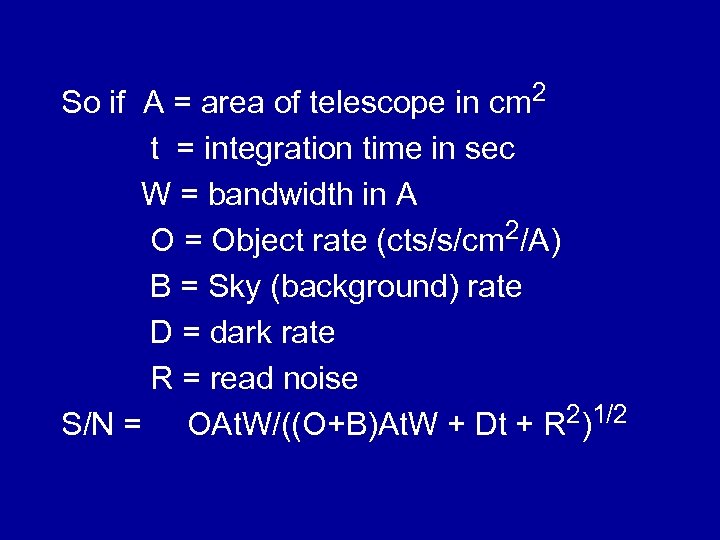

So if A = area of telescope in cm 2 t = integration time in sec W = bandwidth in A O = Object rate (cts/s/cm 2/A) B = Sky (background) rate D = dark rate R = read noise S/N = OAt. W/((O+B)At. W + Dt + R 2)1/2

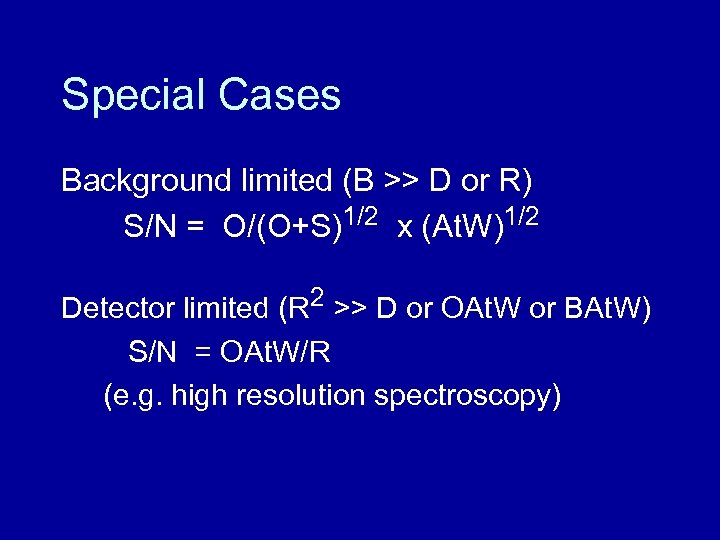

Special Cases Background limited (B >> D or R) S/N = O/(O+S)1/2 x (At. W)1/2 Detector limited (R 2 >> D or OAt. W or BAt. W) S/N = OAt. W/R (e. g. high resolution spectroscopy)

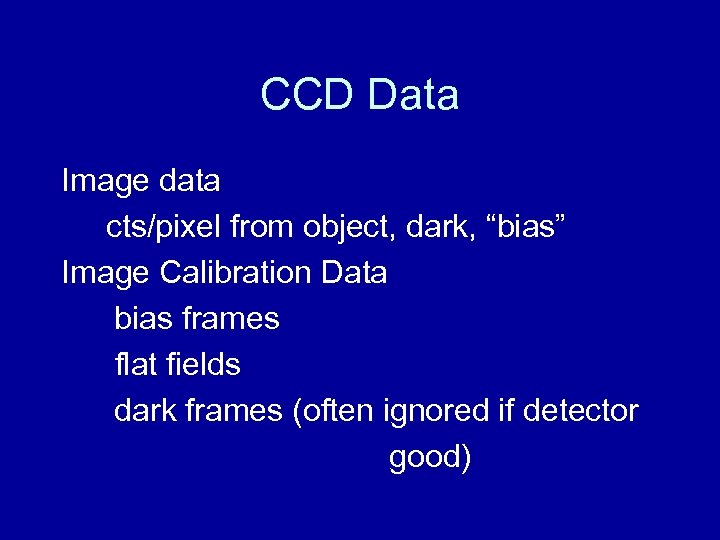

CCD Data Image data cts/pixel from object, dark, “bias” Image Calibration Data bias frames flat fields dark frames (often ignored if detector good)

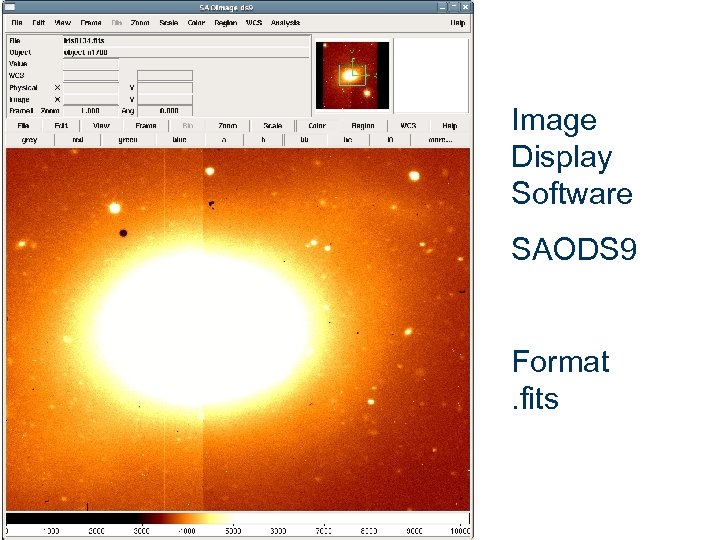

Image Display Software SAODS 9 Format. fits

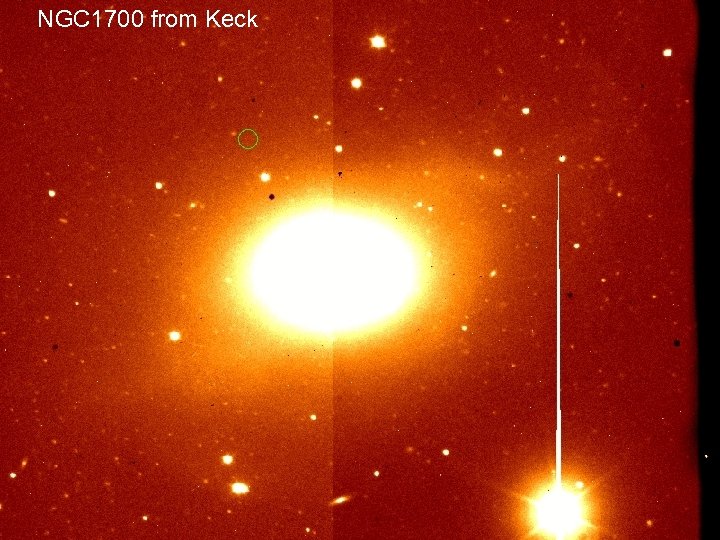

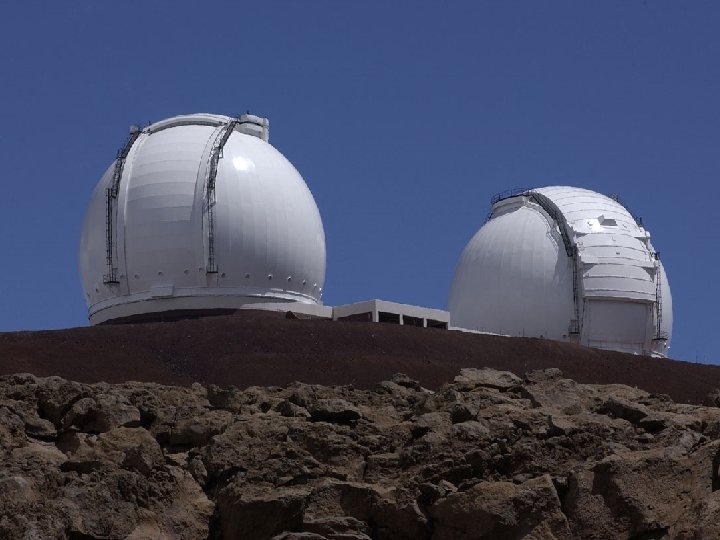

NGC 1700 from Keck

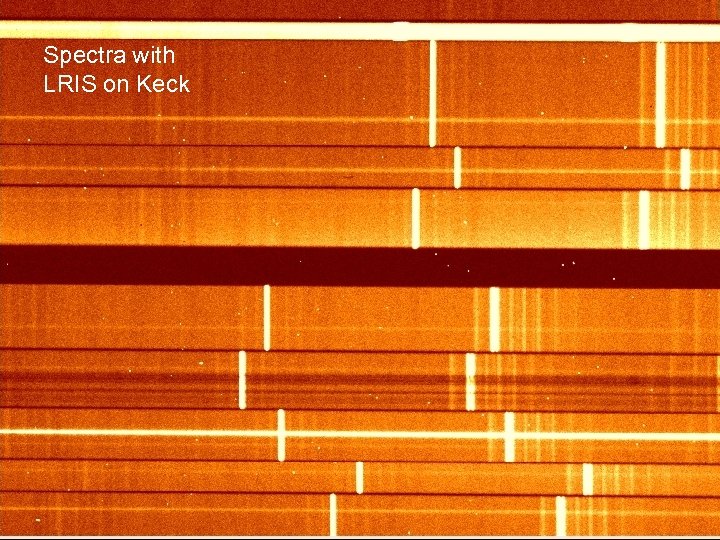

Spectra with LRIS on Keck

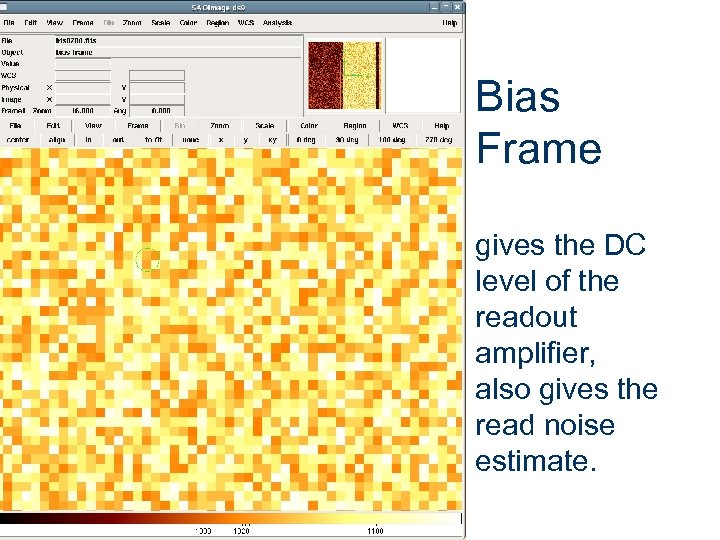

Bias Frame gives the DC level of the readout amplifier, also gives the read noise estimate.

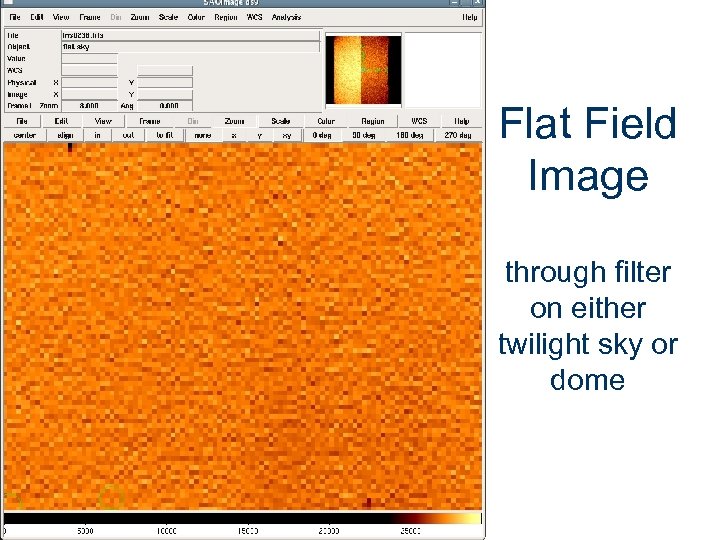

Flat Field Image through filter on either twilight sky or dome

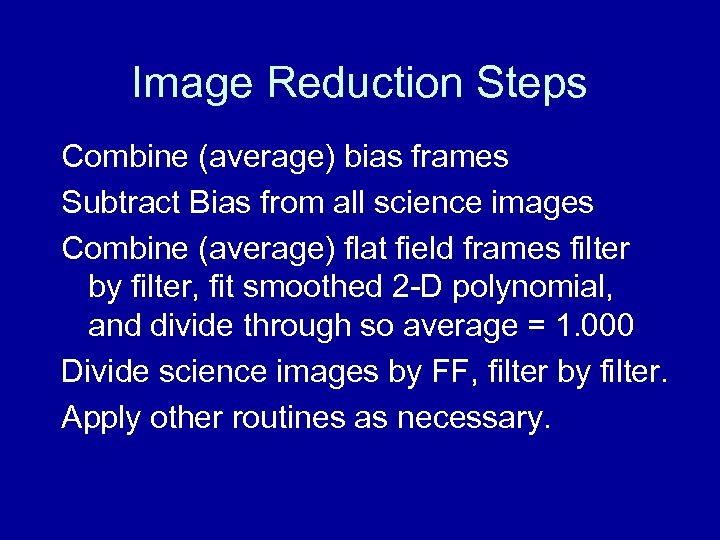

Image Reduction Steps Combine (average) bias frames Subtract Bias from all science images Combine (average) flat field frames filter by filter, fit smoothed 2 -D polynomial, and divide through so average = 1. 000 Divide science images by FF, filter by filter. Apply other routines as necessary.

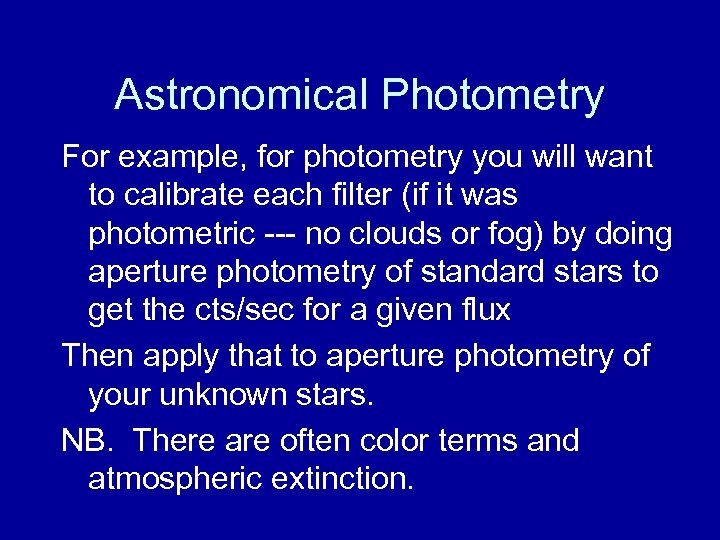

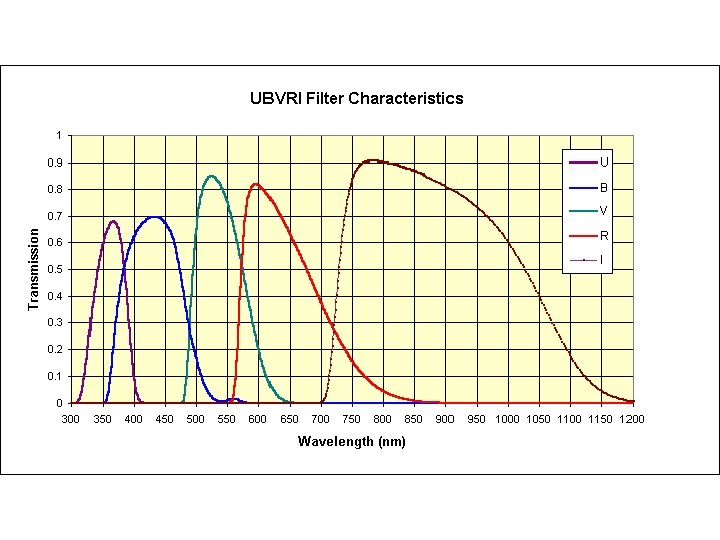

Astronomical Photometry For example, for photometry you will want to calibrate each filter (if it was photometric --- no clouds or fog) by doing aperture photometry of standard stars to get the cts/sec for a given flux Then apply that to aperture photometry of your unknown stars. NB. There are often color terms and atmospheric extinction.

Photometry, con’t v = -2. 5 x log 10(vcts/sec) + constant V = v + C 1(B-V) + k. Vx + C 2 …… x = sec(zenith distance) = airmass (B-V) = C 3(b-v) + C 4 + k. BVx + ….
