Telecommunications and Network Security Dr Bhavani Thuraisingham The

Telecommunications and Network Security Dr. Bhavani Thuraisingham The University of Texas at Dallas (UTD) July 2013

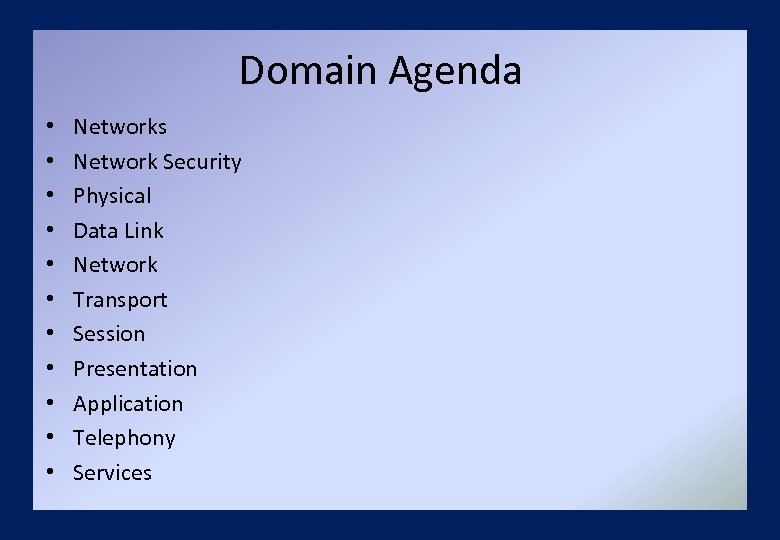

Domain Agenda • • • Networks Network Security Physical Data Link Network Transport Session Presentation Application Telephony Services

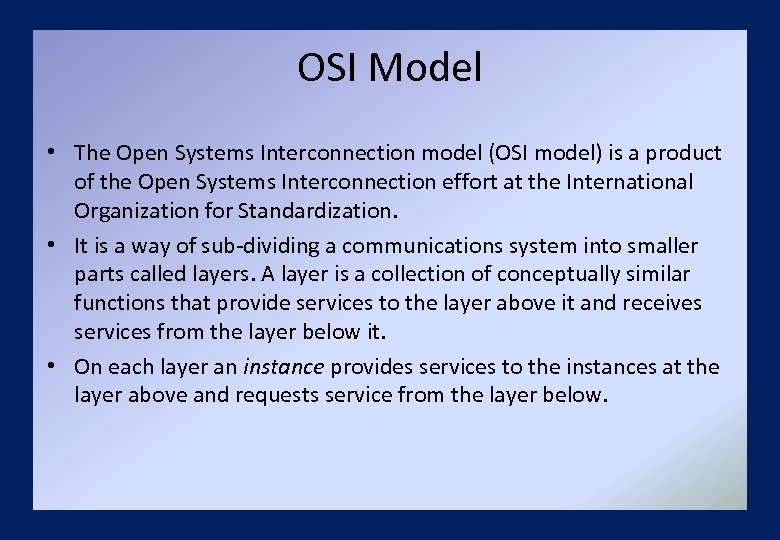

OSI Model • The Open Systems Interconnection model (OSI model) is a product of the Open Systems Interconnection effort at the International Organization for Standardization. • It is a way of sub-dividing a communications system into smaller parts called layers. A layer is a collection of conceptually similar functions that provide services to the layer above it and receives services from the layer below it. • On each layer an instance provides services to the instances at the layer above and requests service from the layer below.

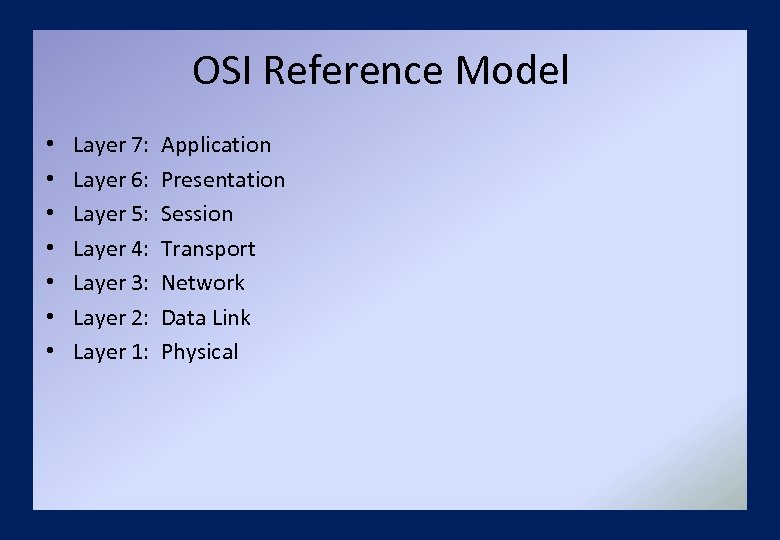

OSI Reference Model • • Layer 7: Layer 6: Layer 5: Layer 4: Layer 3: Layer 2: Layer 1: Application Presentation Session Transport Network Data Link Physical

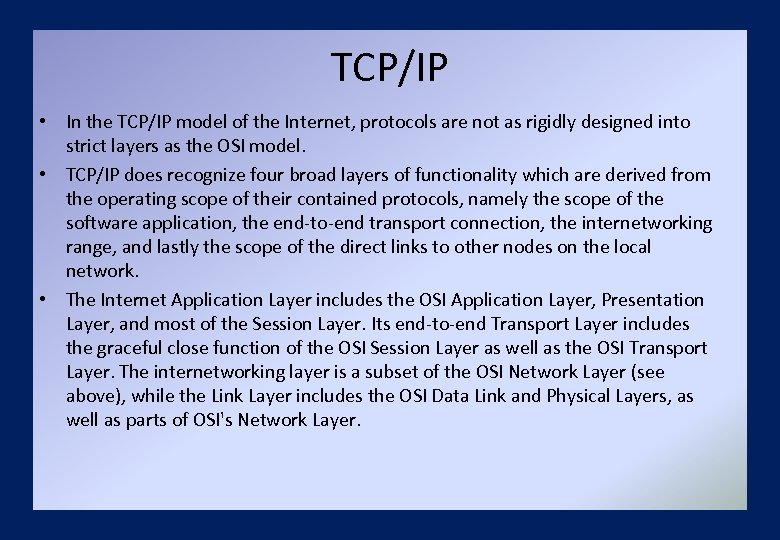

TCP/IP • In the TCP/IP model of the Internet, protocols are not as rigidly designed into strict layers as the OSI model. • TCP/IP does recognize four broad layers of functionality which are derived from the operating scope of their contained protocols, namely the scope of the software application, the end-to-end transport connection, the internetworking range, and lastly the scope of the direct links to other nodes on the local network. • The Internet Application Layer includes the OSI Application Layer, Presentation Layer, and most of the Session Layer. Its end-to-end Transport Layer includes the graceful close function of the OSI Session Layer as well as the OSI Transport Layer. The internetworking layer is a subset of the OSI Network Layer (see above), while the Link Layer includes the OSI Data Link and Physical Layers, as well as parts of OSI's Network Layer.

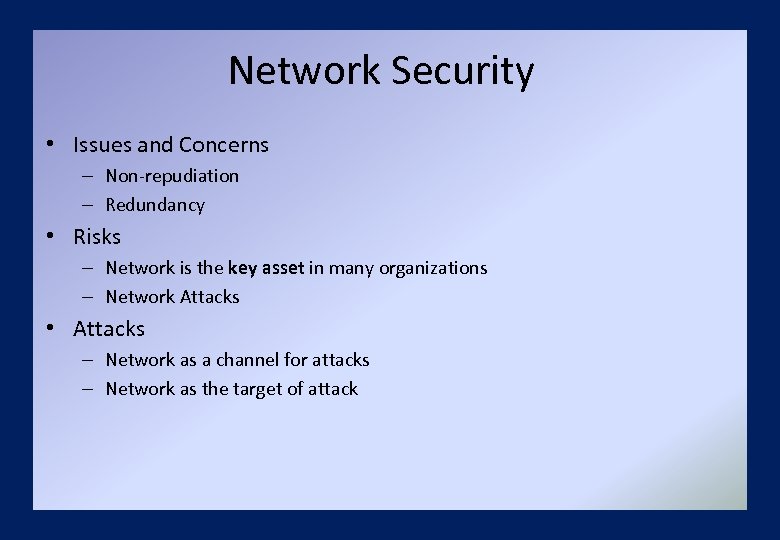

Network Security • Issues and Concerns – Non-repudiation – Redundancy • Risks – Network is the key asset in many organizations – Network Attacks • Attacks – Network as a channel for attacks – Network as the target of attack

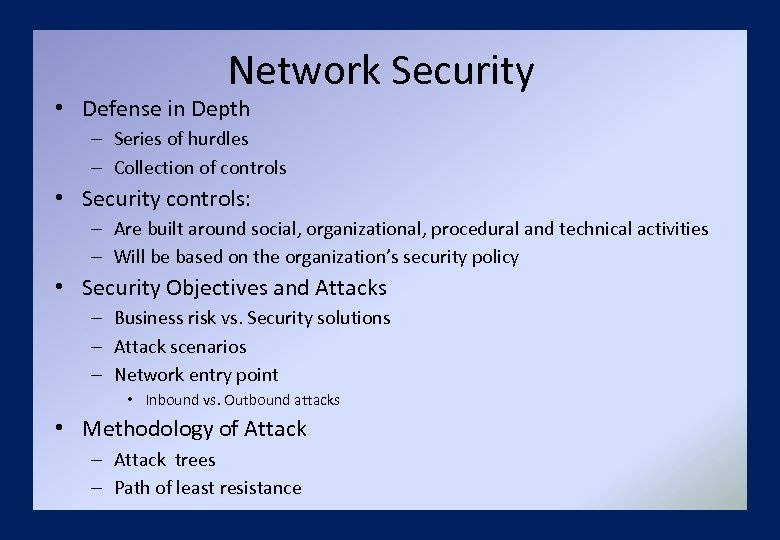

Network Security • Defense in Depth – Series of hurdles – Collection of controls • Security controls: – Are built around social, organizational, procedural and technical activities – Will be based on the organization’s security policy • Security Objectives and Attacks – Business risk vs. Security solutions – Attack scenarios – Network entry point • Inbound vs. Outbound attacks • Methodology of Attack – Attack trees – Path of least resistance

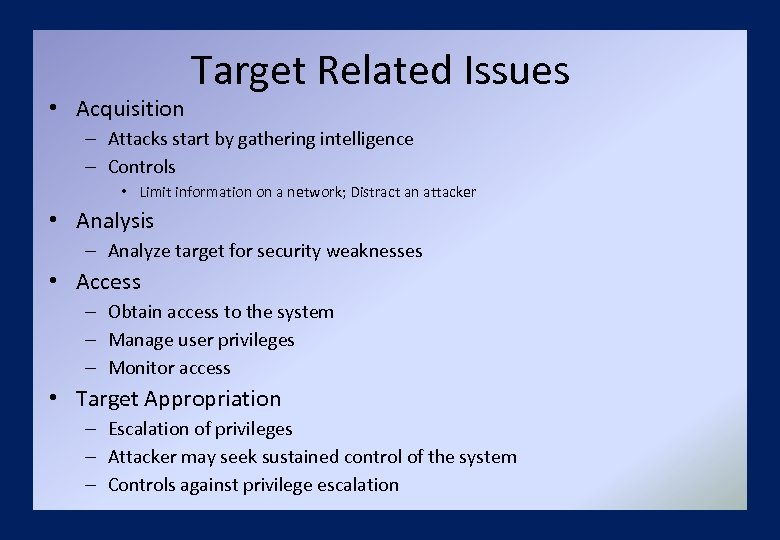

• Acquisition Target Related Issues – Attacks start by gathering intelligence – Controls • Limit information on a network; Distract an attacker • Analysis – Analyze target for security weaknesses • Access – Obtain access to the system – Manage user privileges – Monitor access • Target Appropriation – Escalation of privileges – Attacker may seek sustained control of the system – Controls against privilege escalation

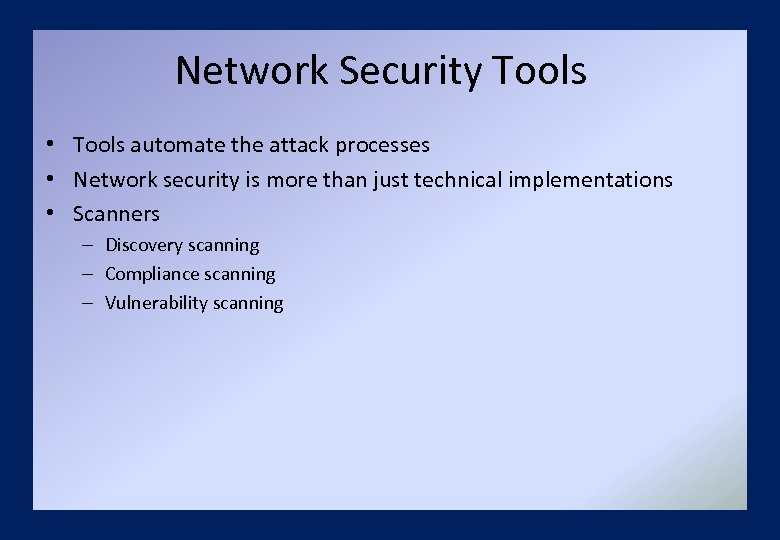

Network Security Tools • Tools automate the attack processes • Network security is more than just technical implementations • Scanners – Discovery scanning – Compliance scanning – Vulnerability scanning

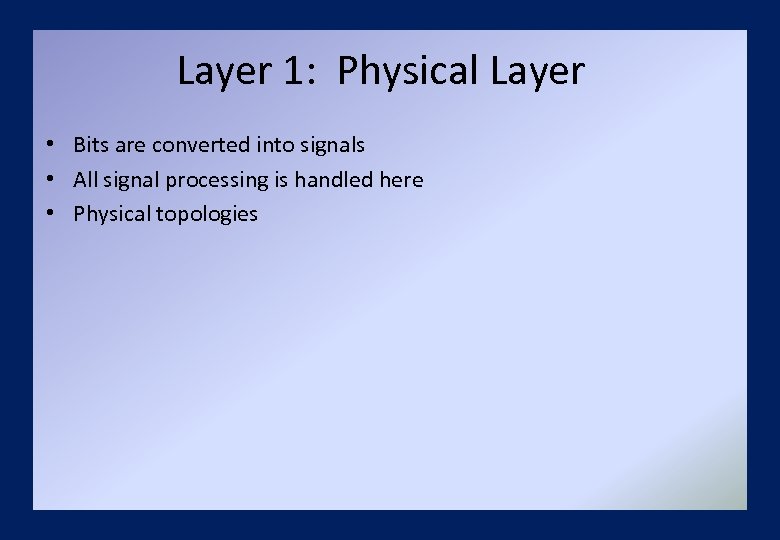

Layer 1: Physical Layer • Bits are converted into signals • All signal processing is handled here • Physical topologies

Communication Technology • Analog Communication – Analog signals use frequency and amplitude – Transmitted on wires or with wireless devices • Digital communications – – Uses different electronic states Can be transmitted over most media Integrity of digital communication is easier Digital communication brings quantitative and qualitative enhancements

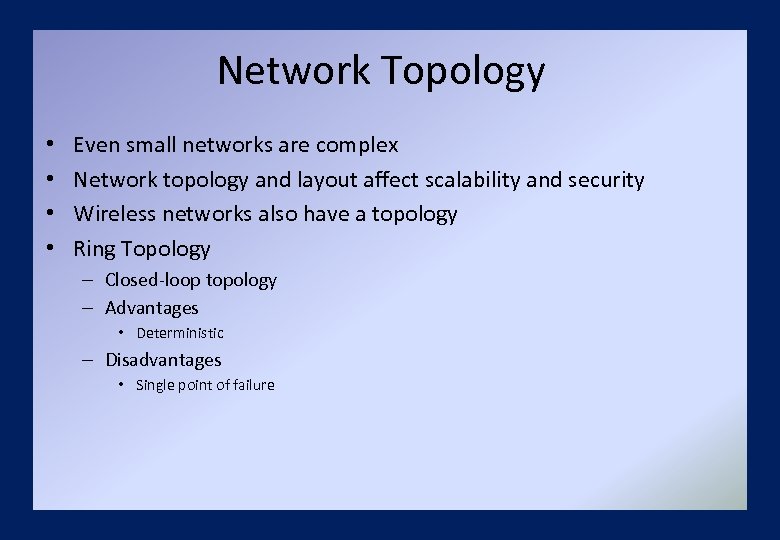

Network Topology • • Even small networks are complex Network topology and layout affect scalability and security Wireless networks also have a topology Ring Topology – Closed-loop topology – Advantages • Deterministic – Disadvantages • Single point of failure

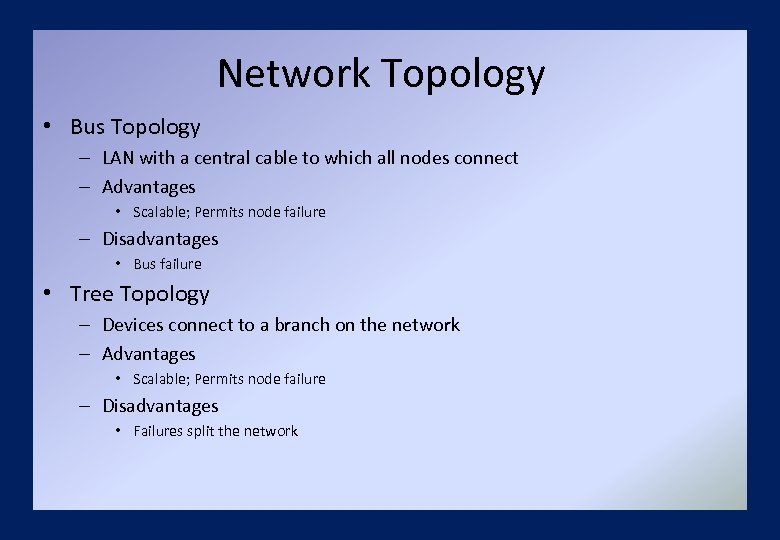

Network Topology • Bus Topology – LAN with a central cable to which all nodes connect – Advantages • Scalable; Permits node failure – Disadvantages • Bus failure • Tree Topology – Devices connect to a branch on the network – Advantages • Scalable; Permits node failure – Disadvantages • Failures split the network

Network Topology • Mesh Topology – Every node network is connected to every other node in the network – Advantages • Redundancy – Disadvantages • Expensive; Complex; Scalability • Star Topology – All of the nodes connect to a central device – Advantages • Permits node/cable failure; Scalable – Disadvantages • Single point of failure

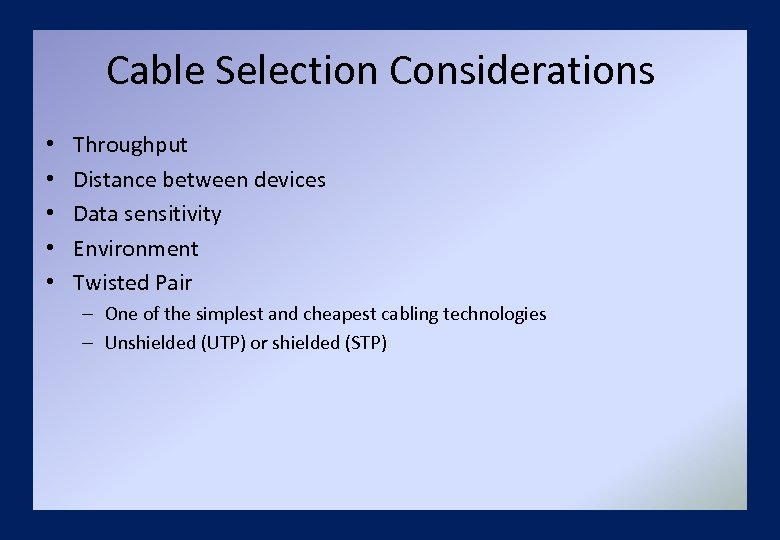

Cable Selection Considerations • • • Throughput Distance between devices Data sensitivity Environment Twisted Pair – One of the simplest and cheapest cabling technologies – Unshielded (UTP) or shielded (STP)

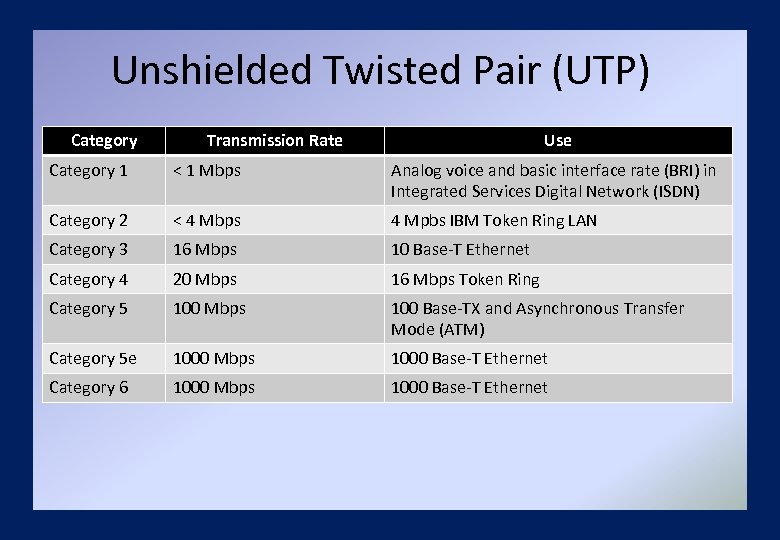

Unshielded Twisted Pair (UTP) Category Transmission Rate Use Category 1 < 1 Mbps Analog voice and basic interface rate (BRI) in Integrated Services Digital Network (ISDN) Category 2 < 4 Mbps 4 Mpbs IBM Token Ring LAN Category 3 16 Mbps 10 Base-T Ethernet Category 4 20 Mbps 16 Mbps Token Ring Category 5 100 Mbps 100 Base-TX and Asynchronous Transfer Mode (ATM) Category 5 e 1000 Mbps 1000 Base-T Ethernet Category 6 1000 Mbps 1000 Base-T Ethernet

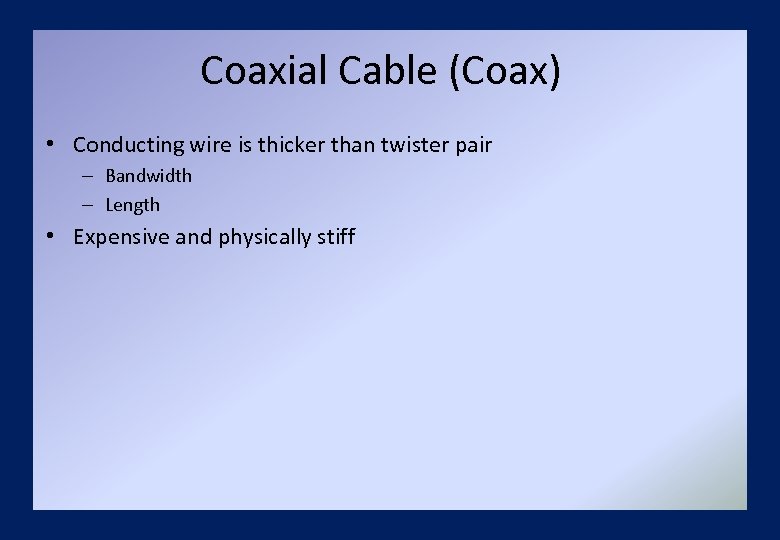

Coaxial Cable (Coax) • Conducting wire is thicker than twister pair – Bandwidth – Length • Expensive and physically stiff

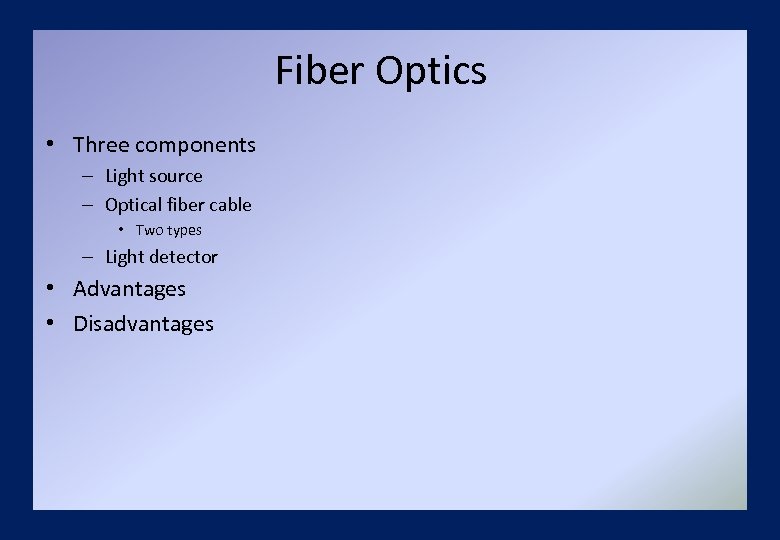

Fiber Optics • Three components – Light source – Optical fiber cable • Two types – Light detector • Advantages • Disadvantages

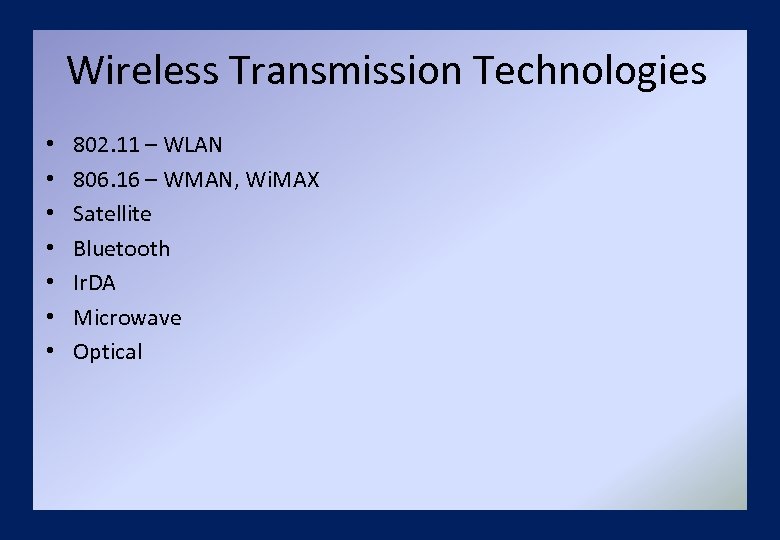

Wireless Transmission Technologies • • 802. 11 – WLAN 806. 16 – WMAN, Wi. MAX Satellite Bluetooth Ir. DA Microwave Optical

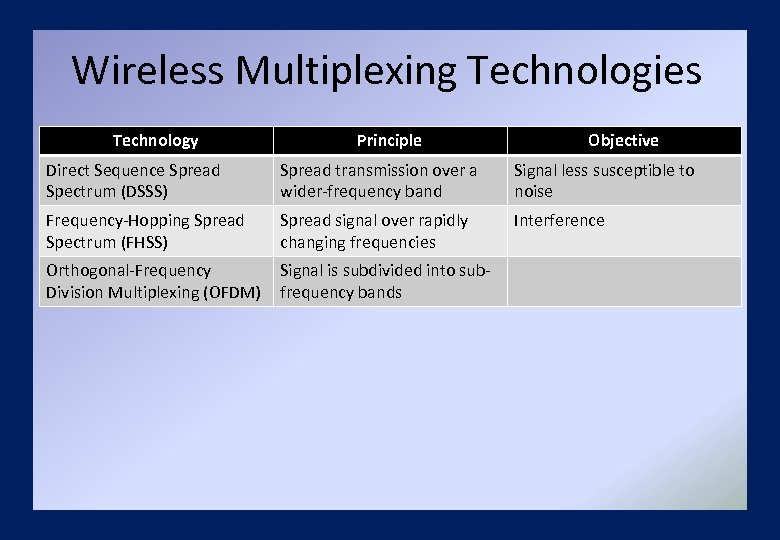

Wireless Multiplexing Technologies Technology Principle Objective Direct Sequence Spread Spectrum (DSSS) Spread transmission over a wider-frequency band Signal less susceptible to noise Frequency-Hopping Spread Spectrum (FHSS) Spread signal over rapidly changing frequencies Interference Orthogonal-Frequency Division Multiplexing (OFDM) Signal is subdivided into subfrequency bands

Physical Layer: Equipment Agenda • • • Patch panel Modem Cable modem Digital subscriber line Hub and repeater Wireless access points

Physical Layer: Equipment Agenda • Patch Panels – Provide a physical cross-connect point for devices – Alternative to directly connecting devices – Centralized management • Modem – Convert a digital signal to analog – Provide little security • War dialing – Unauthorized modems

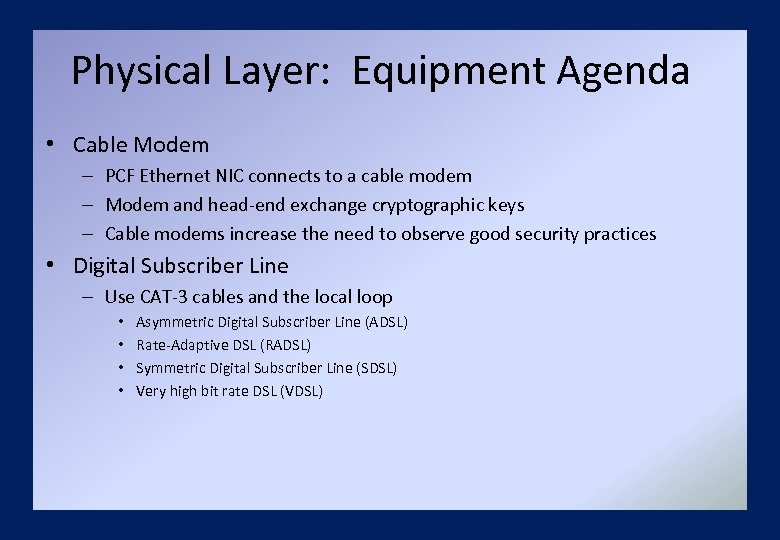

Physical Layer: Equipment Agenda • Cable Modem – PCF Ethernet NIC connects to a cable modem – Modem and head-end exchange cryptographic keys – Cable modems increase the need to observe good security practices • Digital Subscriber Line – Use CAT-3 cables and the local loop • • Asymmetric Digital Subscriber Line (ADSL) Rate-Adaptive DSL (RADSL) Symmetric Digital Subscriber Line (SDSL) Very high bit rate DSL (VDSL)

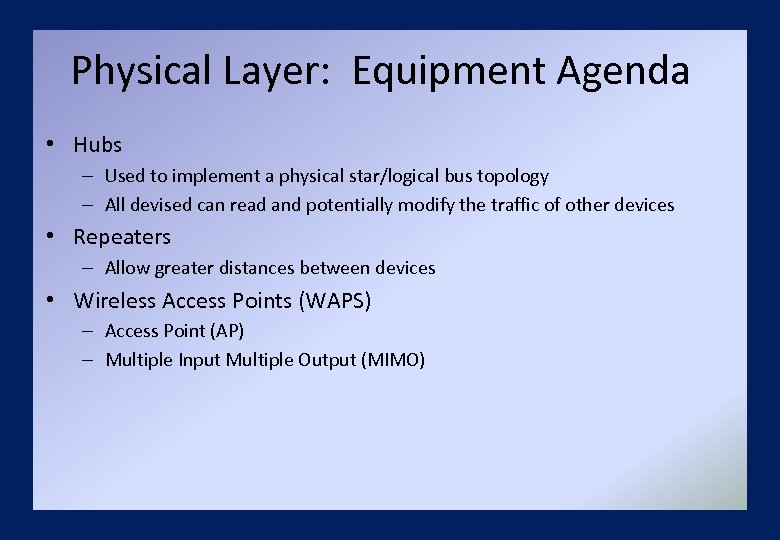

Physical Layer: Equipment Agenda • Hubs – Used to implement a physical star/logical bus topology – All devised can read and potentially modify the traffic of other devices • Repeaters – Allow greater distances between devices • Wireless Access Points (WAPS) – Access Point (AP) – Multiple Input Multiple Output (MIMO)

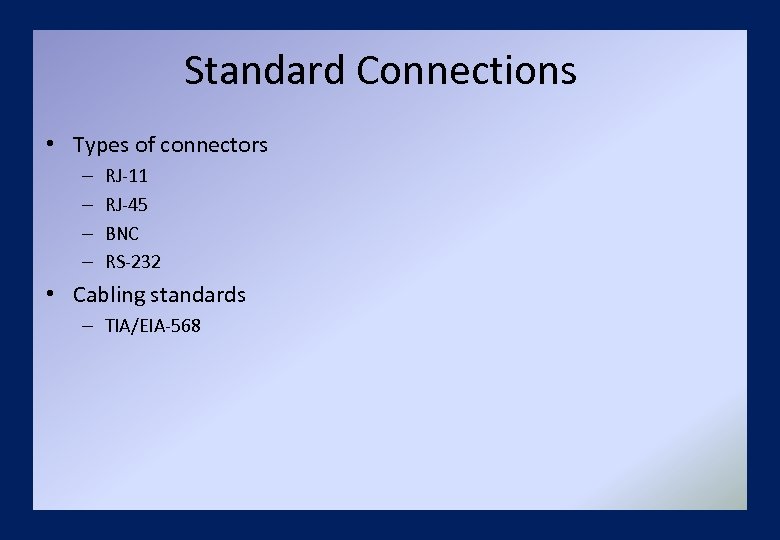

Standard Connections • Types of connectors – – RJ-11 RJ-45 BNC RS-232 • Cabling standards – TIA/EIA-568

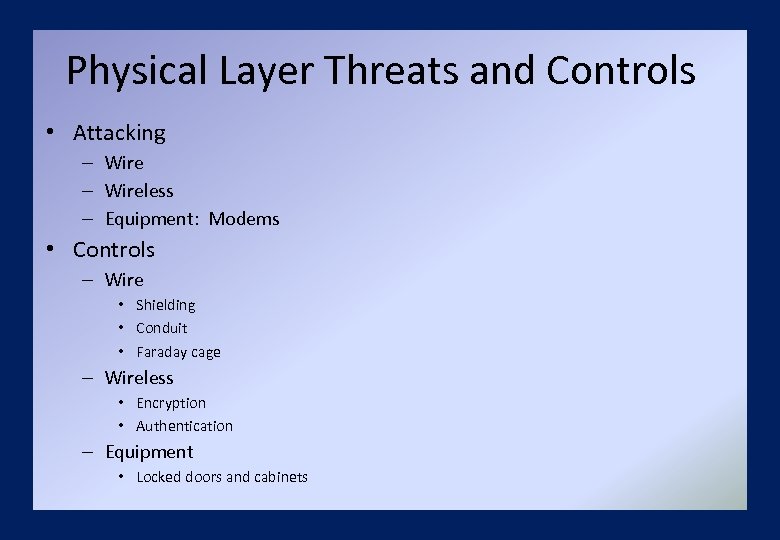

Physical Layer Threats and Controls • Attacking – Wireless – Equipment: Modems • Controls – Wire • Shielding • Conduit • Faraday cage – Wireless • Encryption • Authentication – Equipment • Locked doors and cabinets

Layer 2: Data Link Layer • • • Connects layer 1 and 3 Converts data from a signal into a frame Transmits frames to devices Linker-Layer encryption Determines network transmission format

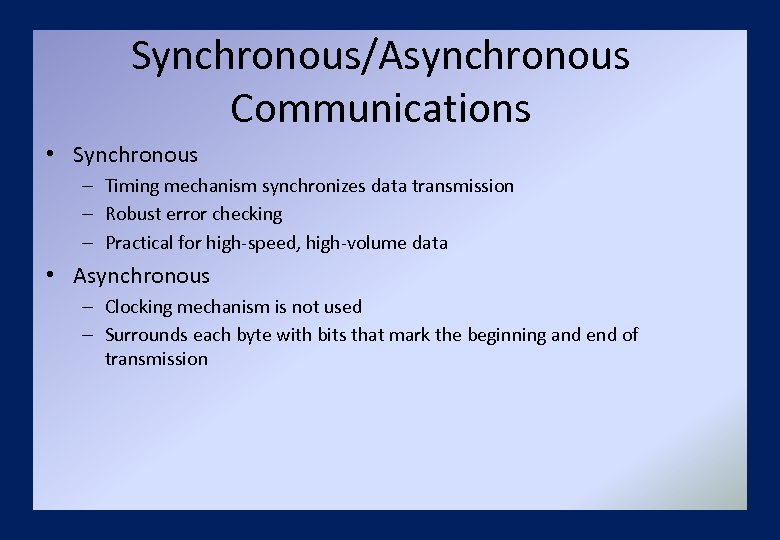

Synchronous/Asynchronous Communications • Synchronous – Timing mechanism synchronizes data transmission – Robust error checking – Practical for high-speed, high-volume data • Asynchronous – Clocking mechanism is not used – Surrounds each byte with bits that mark the beginning and end of transmission

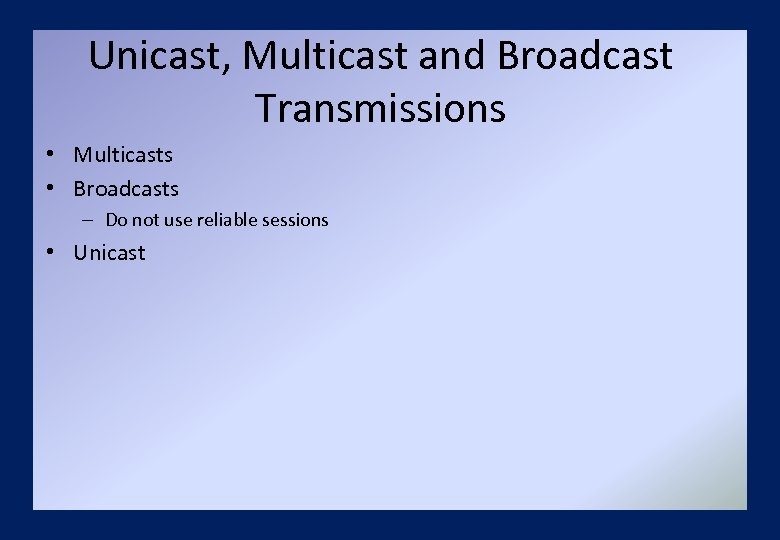

Unicast, Multicast and Broadcast Transmissions • Multicasts • Broadcasts – Do not use reliable sessions • Unicast

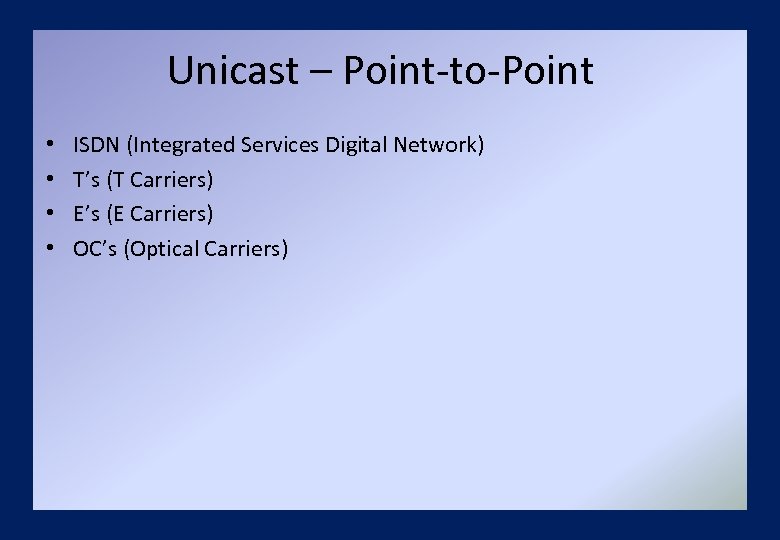

Unicast – Point-to-Point • • ISDN (Integrated Services Digital Network) T’s (T Carriers) E’s (E Carriers) OC’s (Optical Carriers)

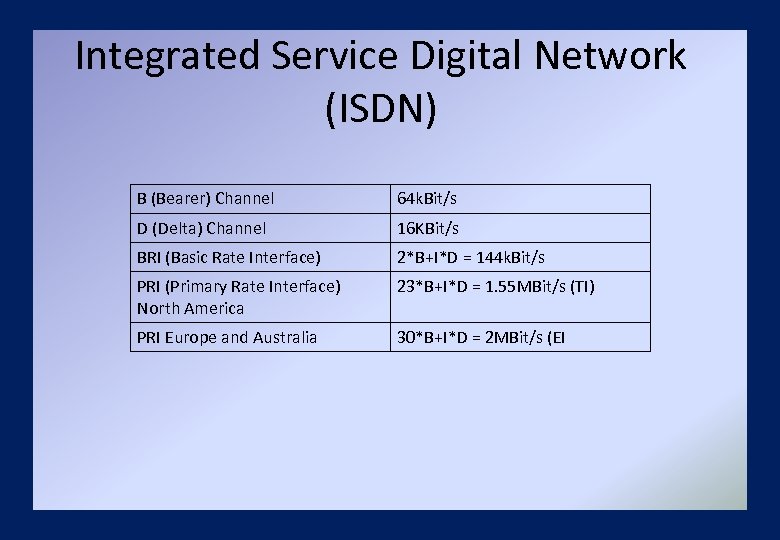

Integrated Service Digital Network (ISDN) B (Bearer) Channel 64 k. Bit/s D (Delta) Channel 16 KBit/s BRI (Basic Rate Interface) 2*B+I*D = 144 k. Bit/s PRI (Primary Rate Interface) North America 23*B+I*D = 1. 55 MBit/s (TI) PRI Europe and Australia 30*B+I*D = 2 MBit/s (EI

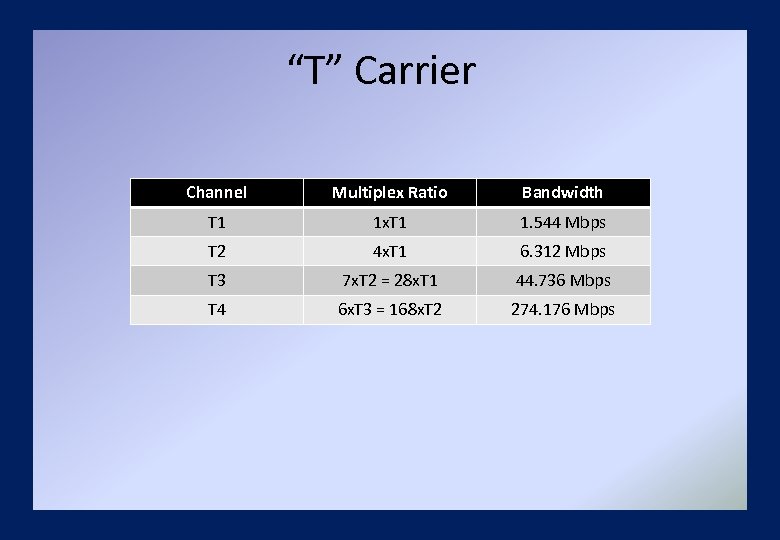

“T” Carrier Channel Multiplex Ratio Bandwidth T 1 1 x. T 1 1. 544 Mbps T 2 4 x. T 1 6. 312 Mbps T 3 7 x. T 2 = 28 x. T 1 44. 736 Mbps T 4 6 x. T 3 = 168 x. T 2 274. 176 Mbps

“E” Carrier Channel Multiplex Ratio Bandwidth E 1 1 x. E 1 2. 058 Mbps E 2 4 x. E 1 8. 848 Mbps E 3 4 x. E 2 = 16 x. E 1 34. 304 Mbps E 4 4 x. E 3 = 64 x. E 2 139. 264 Mbps

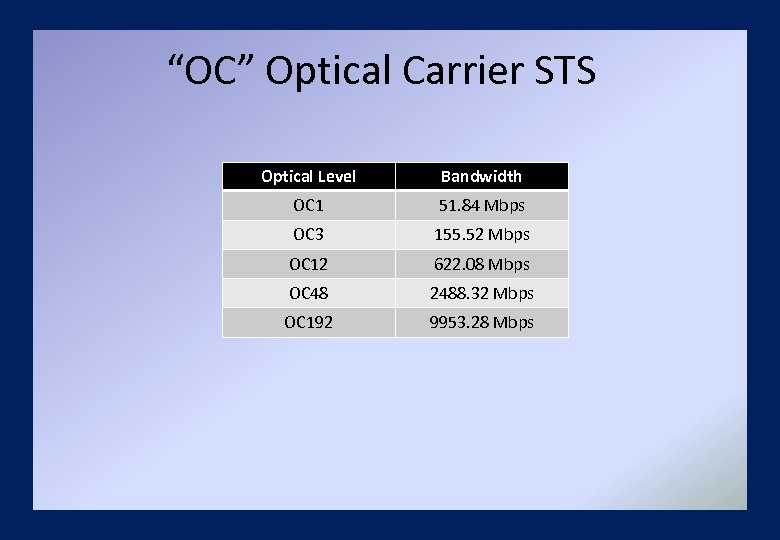

“OC” Optical Carrier STS Optical Level Bandwidth OC 1 51. 84 Mbps OC 3 155. 52 Mbps OC 12 622. 08 Mbps OC 48 2488. 32 Mbps OC 192 9953. 28 Mbps

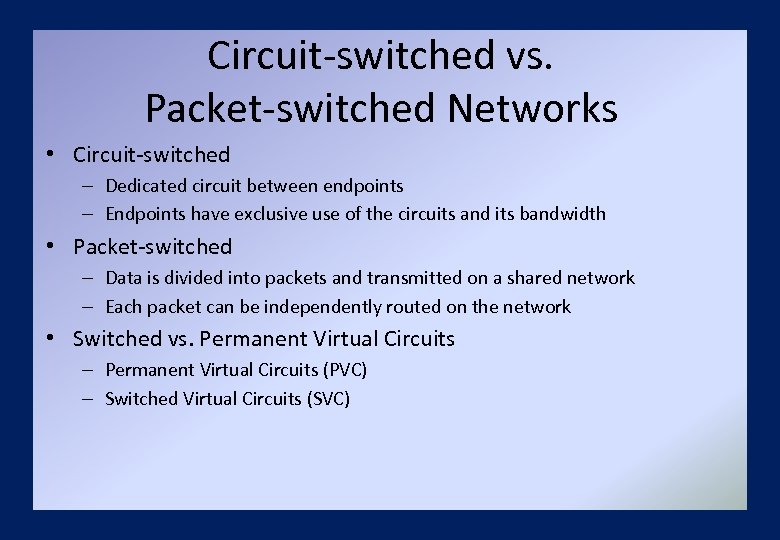

Circuit-switched vs. Packet-switched Networks • Circuit-switched – Dedicated circuit between endpoints – Endpoints have exclusive use of the circuits and its bandwidth • Packet-switched – Data is divided into packets and transmitted on a shared network – Each packet can be independently routed on the network • Switched vs. Permanent Virtual Circuits – Permanent Virtual Circuits (PVC) – Switched Virtual Circuits (SVC)

Carrier Sense Multiple Access • Only one device may transmit at a time • There are two variations – Carrier Sense Multiple Access with Collision Avoidance (CSMA/CA) – Carrier Sense Multiple Access with Collision Detection (CSMA/CD)

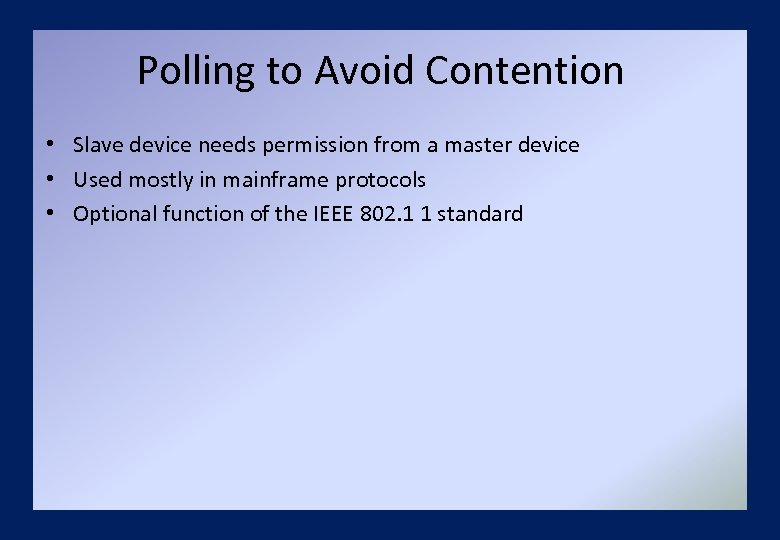

Polling to Avoid Contention • Slave device needs permission from a master device • Used mostly in mainframe protocols • Optional function of the IEEE 802. 1 1 standard

Token Passing • A token is a special frame that circulates through the ring • Device must possess the token to transmit • Token passing is used in Token Ring (IEEE 802. 5) and FDDI

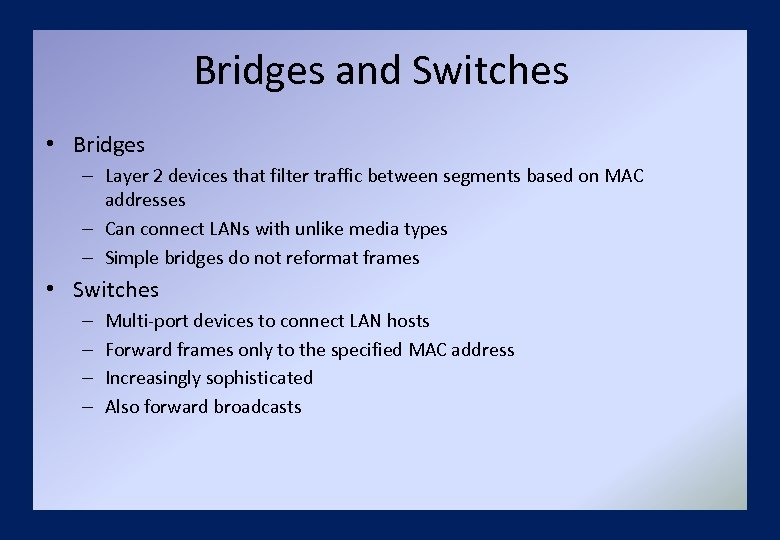

Bridges and Switches • Bridges – Layer 2 devices that filter traffic between segments based on MAC addresses – Can connect LANs with unlike media types – Simple bridges do not reformat frames • Switches – – Multi-port devices to connect LAN hosts Forward frames only to the specified MAC address Increasingly sophisticated Also forward broadcasts

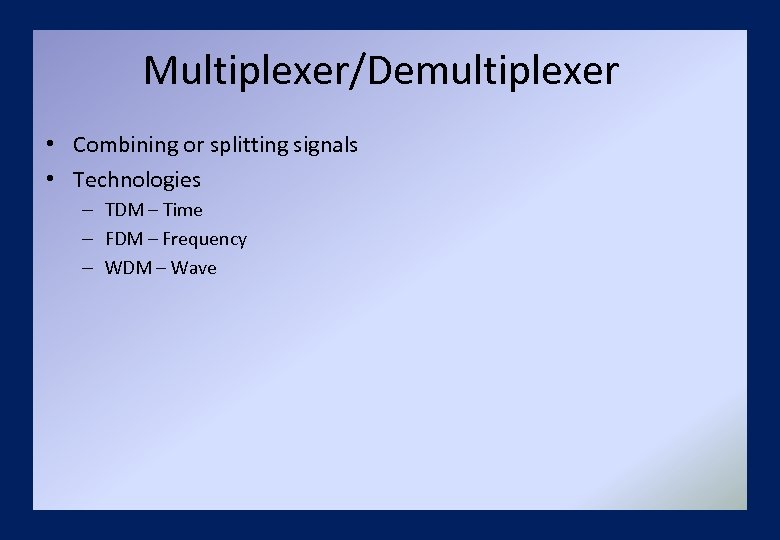

Multiplexer/Demultiplexer • Combining or splitting signals • Technologies – TDM – Time – FDM – Frequency – WDM – Wave

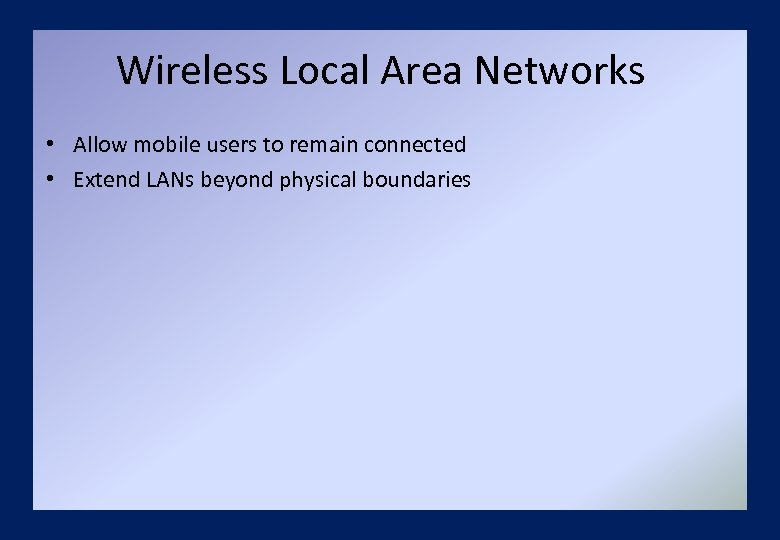

Wireless Local Area Networks • Allow mobile users to remain connected • Extend LANs beyond physical boundaries

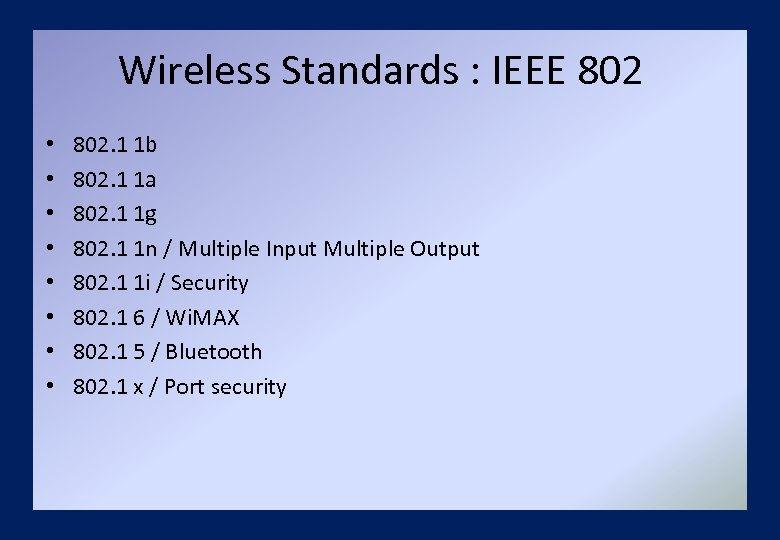

Wireless Standards : IEEE 802 • • 802. 1 1 b 802. 1 1 a 802. 1 1 g 802. 1 1 n / Multiple Input Multiple Output 802. 1 1 i / Security 802. 1 6 / Wi. MAX 802. 1 5 / Bluetooth 802. 1 x / Port security

Ethernet (IEEE 802. 3) • Most popular LAN architecture • Support bus, star, and point-to-point topologies • Currently supports speed up to 10000 Mbps

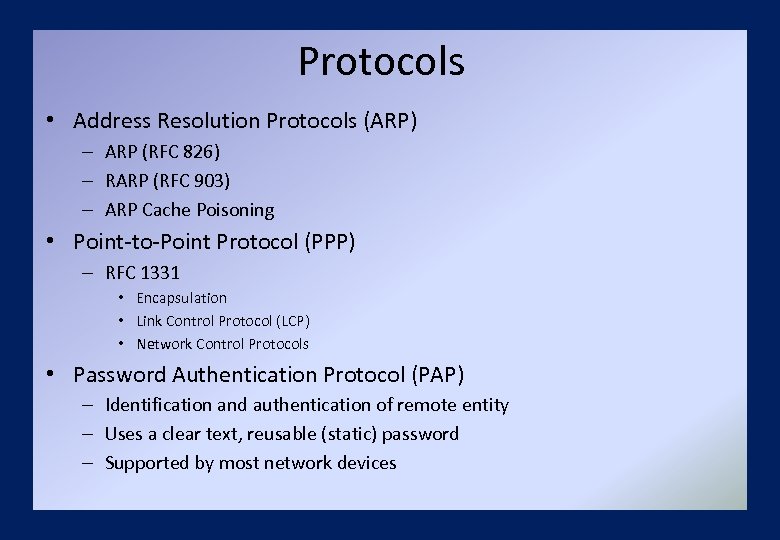

Protocols • Address Resolution Protocols (ARP) – ARP (RFC 826) – RARP (RFC 903) – ARP Cache Poisoning • Point-to-Point Protocol (PPP) – RFC 1331 • Encapsulation • Link Control Protocol (LCP) • Network Control Protocols • Password Authentication Protocol (PAP) – Identification and authentication of remote entity – Uses a clear text, reusable (static) password – Supported by most network devices

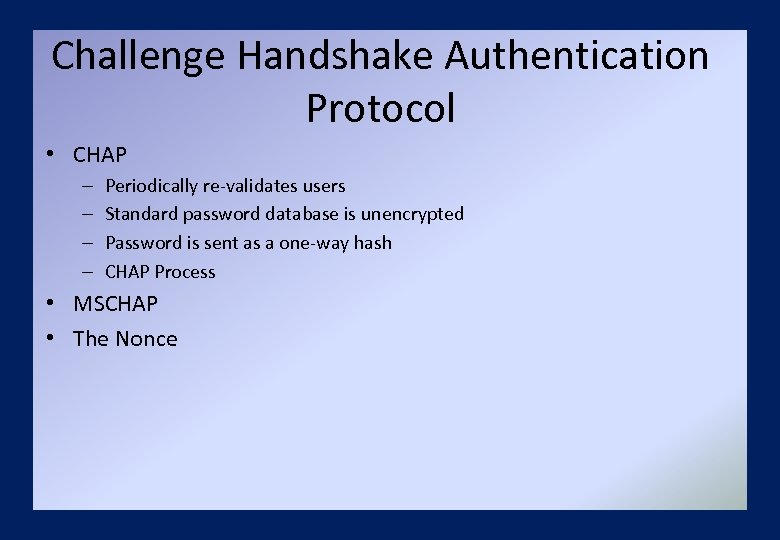

Challenge Handshake Authentication Protocol • CHAP – – Periodically re-validates users Standard password database is unencrypted Password is sent as a one-way hash CHAP Process • MSCHAP • The Nonce

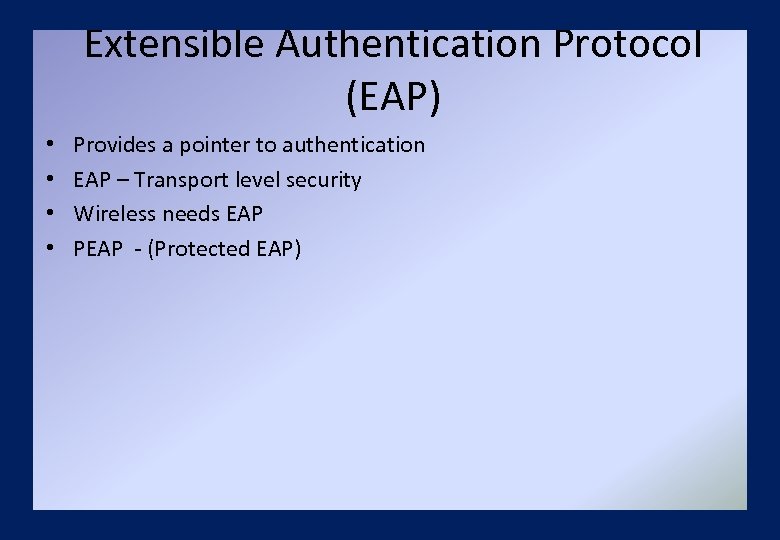

Extensible Authentication Protocol (EAP) • • Provides a pointer to authentication EAP – Transport level security Wireless needs EAP PEAP - (Protected EAP)

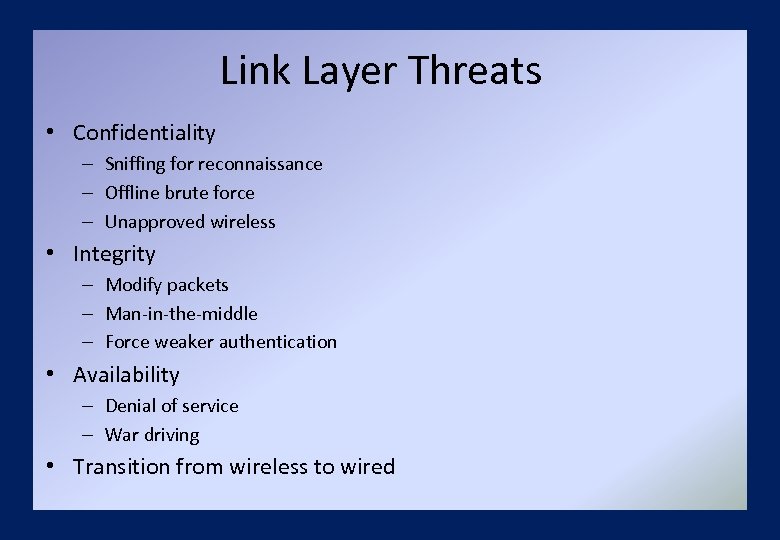

Link Layer Threats • Confidentiality – Sniffing for reconnaissance – Offline brute force – Unapproved wireless • Integrity – Modify packets – Man-in-the-middle – Force weaker authentication • Availability – Denial of service – War driving • Transition from wireless to wired

Wired and Wireless Link-Layer Controls • Encryption – PPP Encryption Control Protocol (ECP) • Authentication – PAP – CHAP – EAP • Tunneling – EAP-TTLS • Radio frequency management

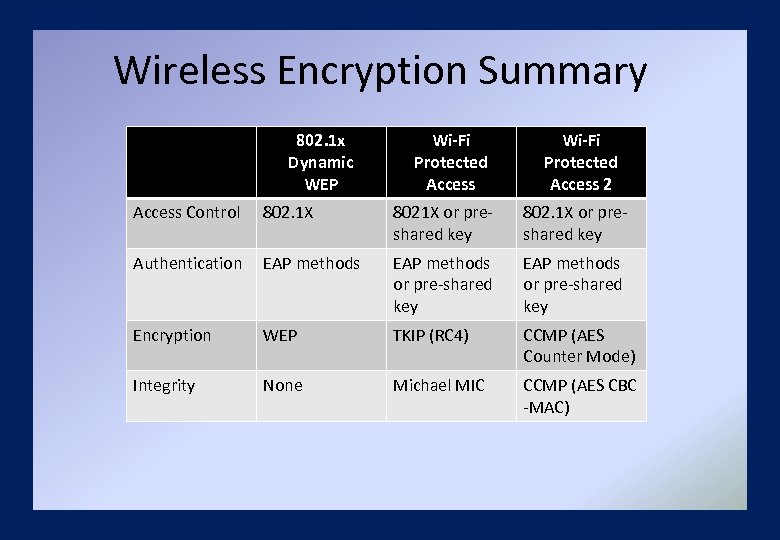

Wireless Encryption Summary 802. 1 x Dynamic WEP Wi-Fi Protected Access 2 Access Control 802. 1 X 8021 X or preshared key 802. 1 X or preshared key Authentication EAP methods or pre-shared key Encryption WEP TKIP (RC 4) CCMP (AES Counter Mode) Integrity None Michael MIC CCMP (AES CBC -MAC)

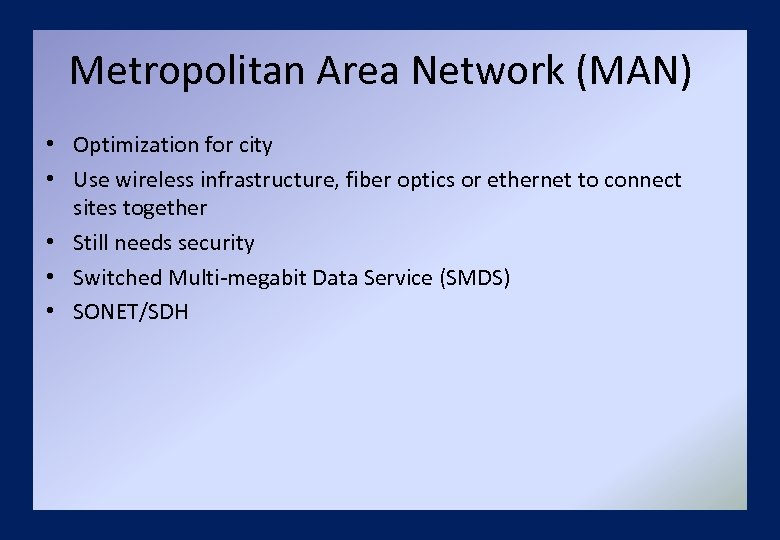

Metropolitan Area Network (MAN) • Optimization for city • Use wireless infrastructure, fiber optics or ethernet to connect sites together • Still needs security • Switched Multi-megabit Data Service (SMDS) • SONET/SDH

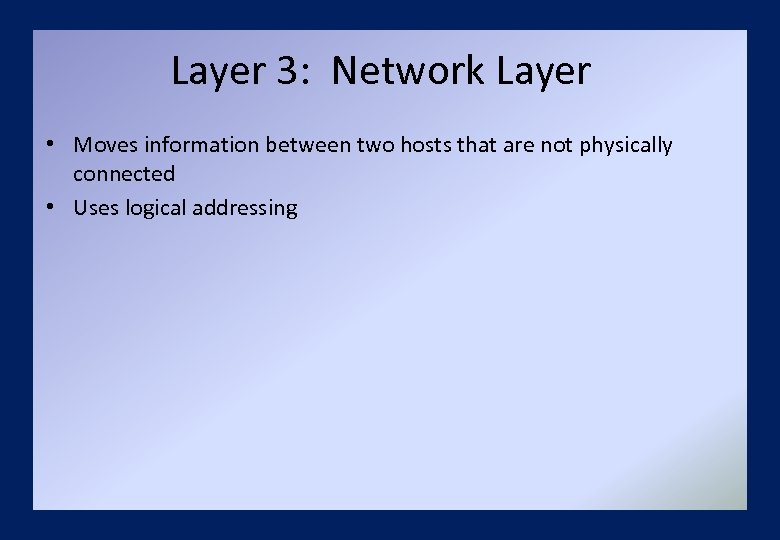

Layer 3: Network Layer • Moves information between two hosts that are not physically connected • Uses logical addressing

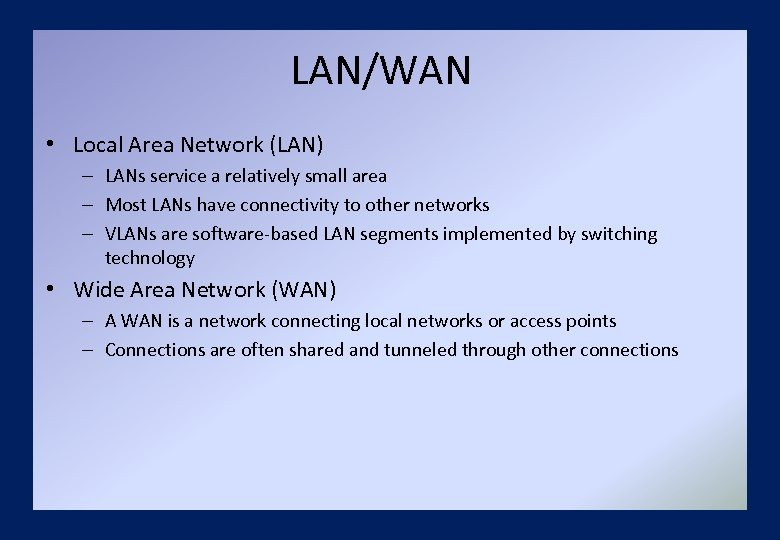

LAN/WAN • Local Area Network (LAN) – LANs service a relatively small area – Most LANs have connectivity to other networks – VLANs are software-based LAN segments implemented by switching technology • Wide Area Network (WAN) – A WAN is a network connecting local networks or access points – Connections are often shared and tunneled through other connections

Storage Area Network (SAN) • • Hard drive space problem Server of servers Fiber backbone Switched

Public Switched Telephone Networks (PSTNs) • PSTNs are circuit-switched networks • PSTNs are subject to attacks

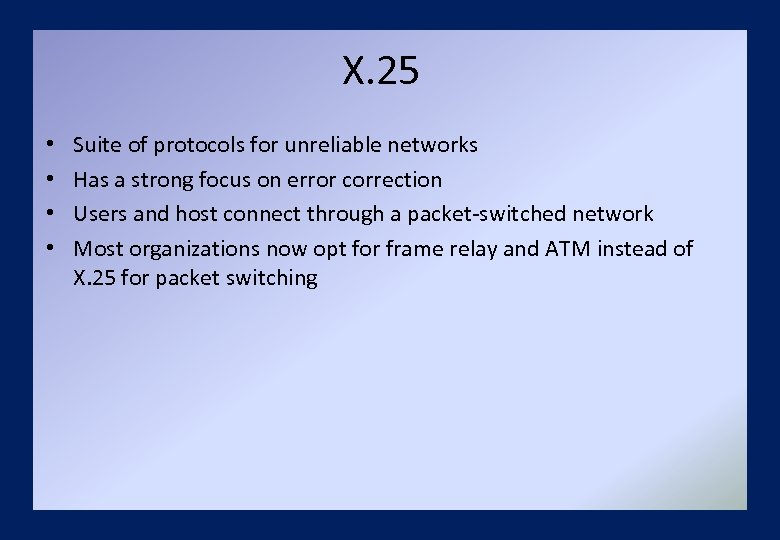

X. 25 • • Suite of protocols for unreliable networks Has a strong focus on error correction Users and host connect through a packet-switched network Most organizations now opt for frame relay and ATM instead of X. 25 for packet switching

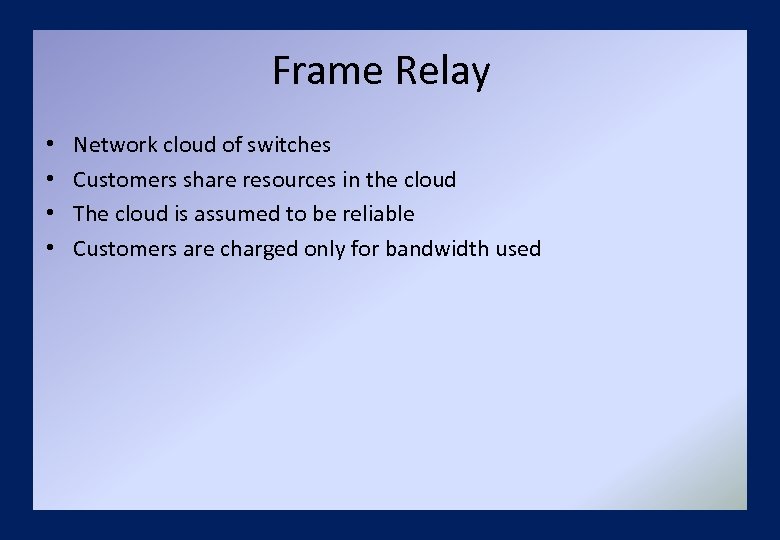

Frame Relay • • Network cloud of switches Customers share resources in the cloud The cloud is assumed to be reliable Customers are charged only for bandwidth used

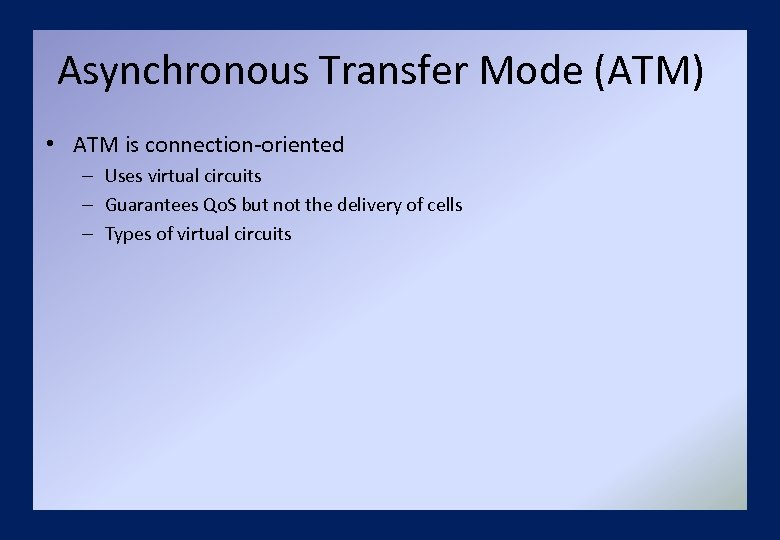

Asynchronous Transfer Mode (ATM) • ATM is connection-oriented – Uses virtual circuits – Guarantees Qo. S but not the delivery of cells – Types of virtual circuits

Multi-Protocol Label Switching (MPLS) • • • Bandwidth management and scalability Permits traffic-engineering Provides Qo. S and defense against network attacks Operates at Layer 2 and 3 Operates over most other packet switching technologies such as Frame Relay and ATM

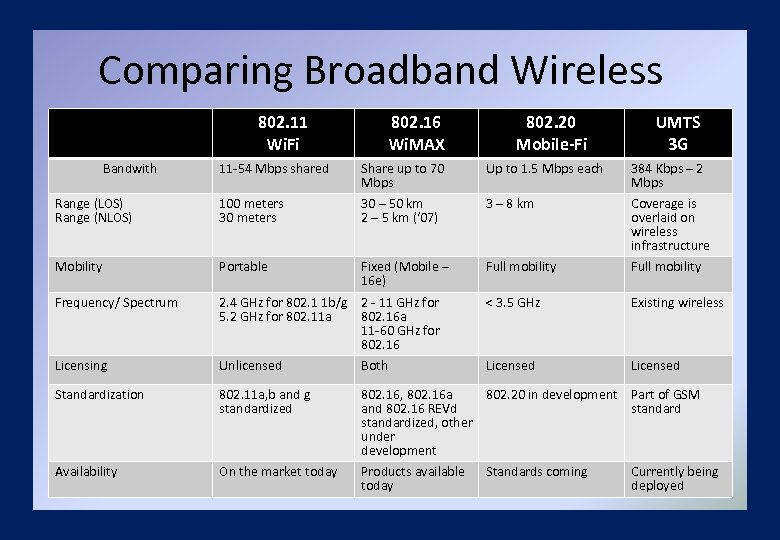

Comparing Broadband Wireless 802. 11 Wi. Fi Bandwith 802. 16 Wi. MAX 802. 20 Mobile-Fi UMTS 3 G 11 -54 Mbps shared Share up to 70 Mbps Up to 1. 5 Mbps each 384 Kbps – 2 Mbps Range (LOS) Range (NLOS) 100 meters 30 – 50 km 2 – 5 km (‘ 07) 3 – 8 km Coverage is overlaid on wireless infrastructure Mobility Portable Fixed (Mobile – 16 e) Full mobility Frequency/ Spectrum 2. 4 GHz for 802. 1 1 b/g 2 - 11 GHz for 5. 2 GHz for 802. 11 a 802. 16 a 11 -60 GHz for 802. 16 < 3. 5 GHz Existing wireless Licensing Unlicensed Both Licensed Standardization 802. 11 a, b and g standardized 802. 16, 802. 16 a 802. 20 in development Part of GSM and 802. 16 REVd standardized, other under development Availability On the market today Products available today Standards coming Currently being deployed

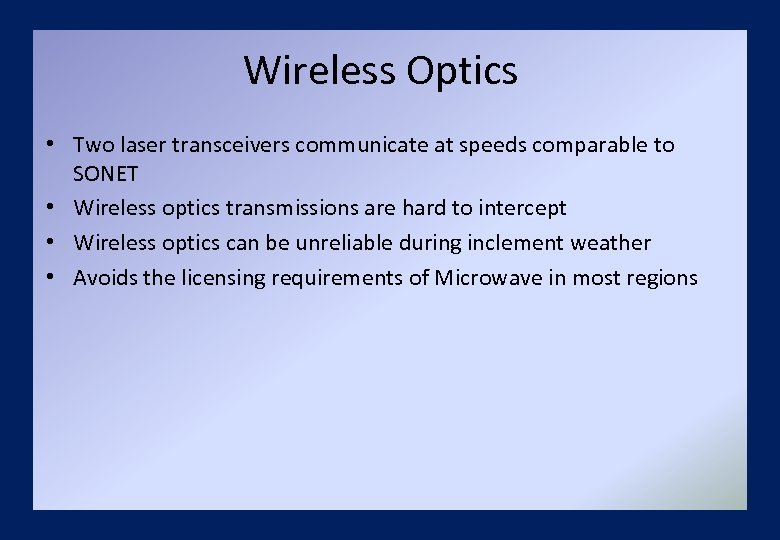

Wireless Optics • Two laser transceivers communicate at speeds comparable to SONET • Wireless optics transmissions are hard to intercept • Wireless optics can be unreliable during inclement weather • Avoids the licensing requirements of Microwave in most regions

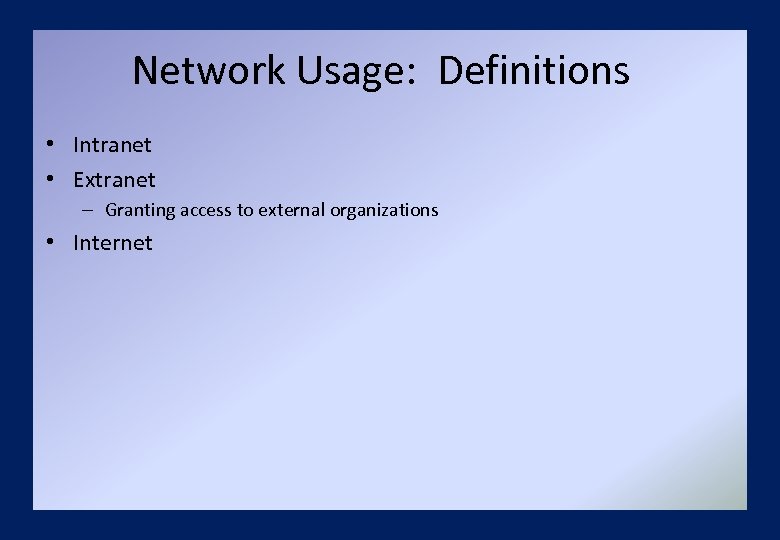

Network Usage: Definitions • Intranet • Extranet – Granting access to external organizations • Internet

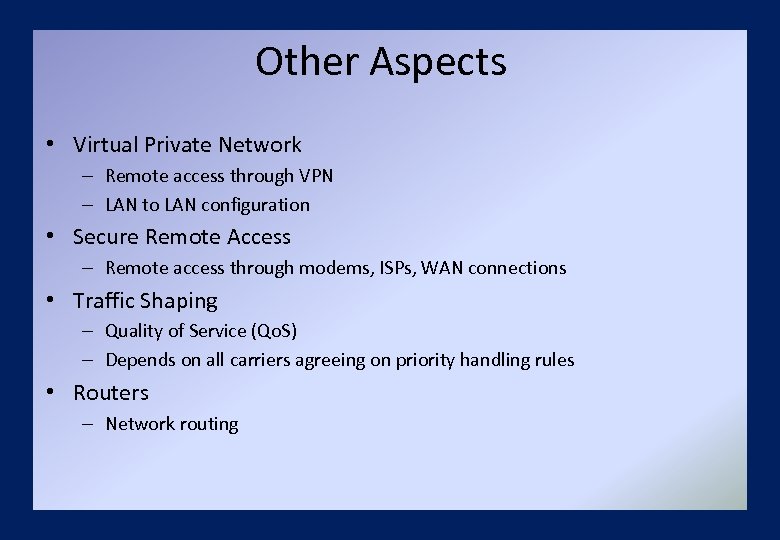

Other Aspects • Virtual Private Network – Remote access through VPN – LAN to LAN configuration • Secure Remote Access – Remote access through modems, ISPs, WAN connections • Traffic Shaping – Quality of Service (Qo. S) – Depends on all carriers agreeing on priority handling rules • Routers – Network routing

Firewalls • Filtering – Filtering by address – Filtering by service • • • Static Packet Filtering Stateful inspection or dynamic packet filtering Personal firewalls Enforce administrative security policies Separate trusted networks from untrusted networks – Firewalls should be placed between security domains • Proxy Firewalls – Circuit-level policy – Application-level policy

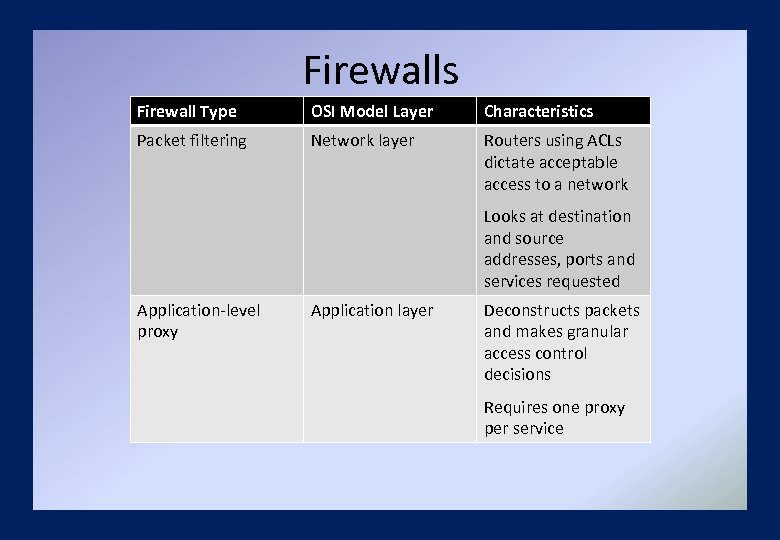

Firewalls Firewall Type OSI Model Layer Characteristics Packet filtering Network layer Routers using ACLs dictate acceptable access to a network Looks at destination and source addresses, ports and services requested Application-level proxy Application layer Deconstructs packets and makes granular access control decisions Requires one proxy per service

Firewalls (cont. ) Firewall Type OSI Model Layer Characteristics Circuit- level proxy Session layer Deconstructs packets Protects wider range of protocols and services than applevel proxies, but are not as detailed as a level of control Stateful Network layer Keeps track of each conversation using a state table Looks at state and context of packets

Network Partitioning • • • Boundary routers Dual-homed host Bastion Host Demilitarized Zone (DMZ) Three-legged firewall

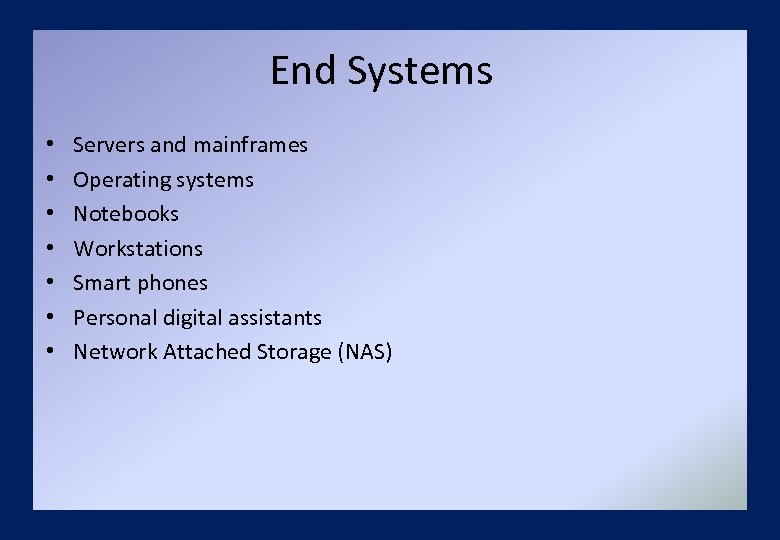

End Systems • • Servers and mainframes Operating systems Notebooks Workstations Smart phones Personal digital assistants Network Attached Storage (NAS)

Internet Protocol (IP) • Internet Protocol (IP) is responsible for routing packets over a network • Unreliable protocol • IP will subdivide packets • IPv 4 address structure

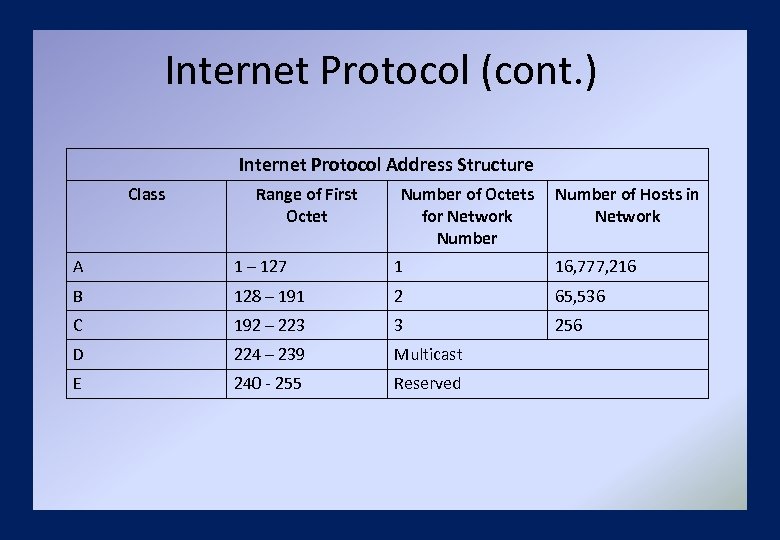

Internet Protocol (cont. ) Internet Protocol Address Structure Class Range of First Octet Number of Octets for Network Number of Hosts in Network A 1 – 127 1 16, 777, 216 B 128 – 191 2 65, 536 C 192 – 223 3 256 D 224 – 239 Multicast E 240 - 255 Reserved

Subnetting and Valid Subnets • Subnetting • Supernetting • Classless Inter-Domain Routing (CIDR)

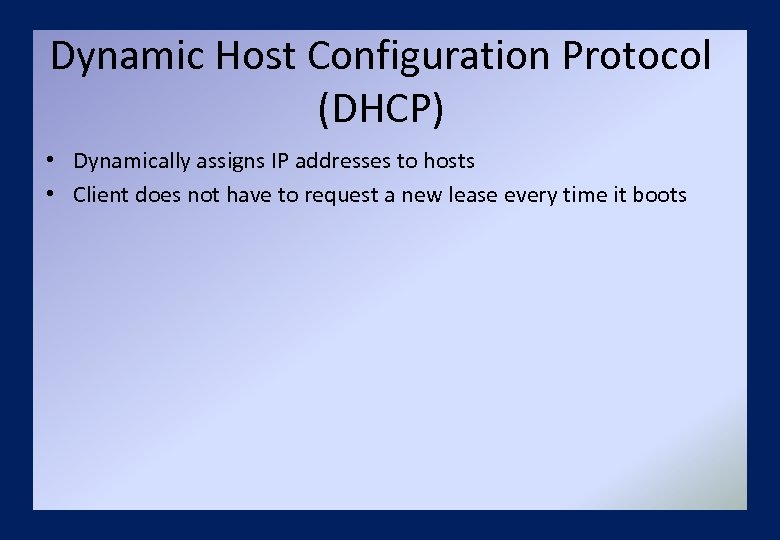

Dynamic Host Configuration Protocol (DHCP) • Dynamically assigns IP addresses to hosts • Client does not have to request a new lease every time it boots

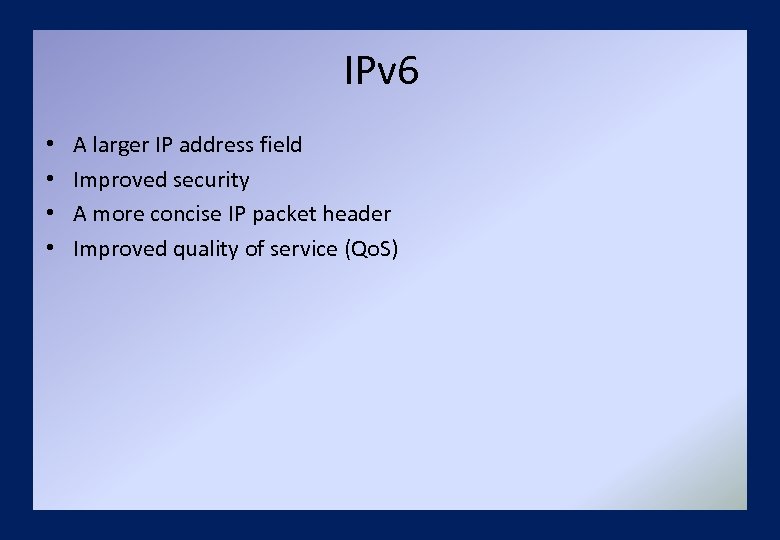

IPv 6 • • A larger IP address field Improved security A more concise IP packet header Improved quality of service (Qo. S)

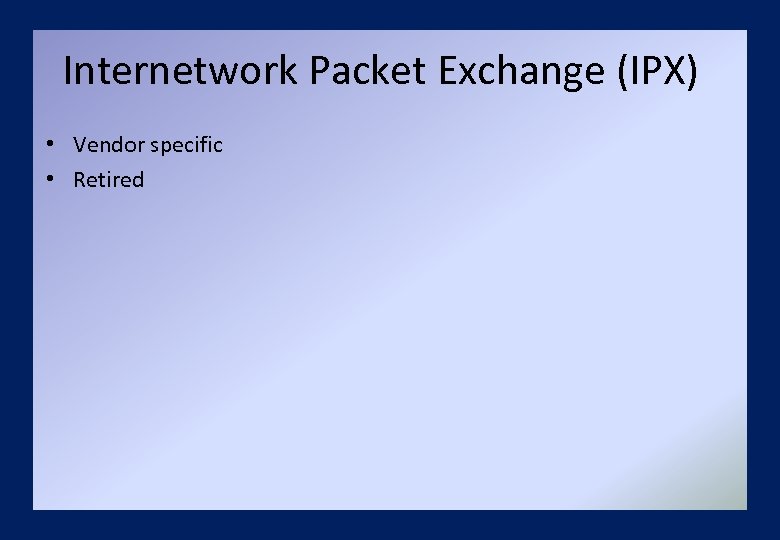

Internetwork Packet Exchange (IPX) • Vendor specific • Retired

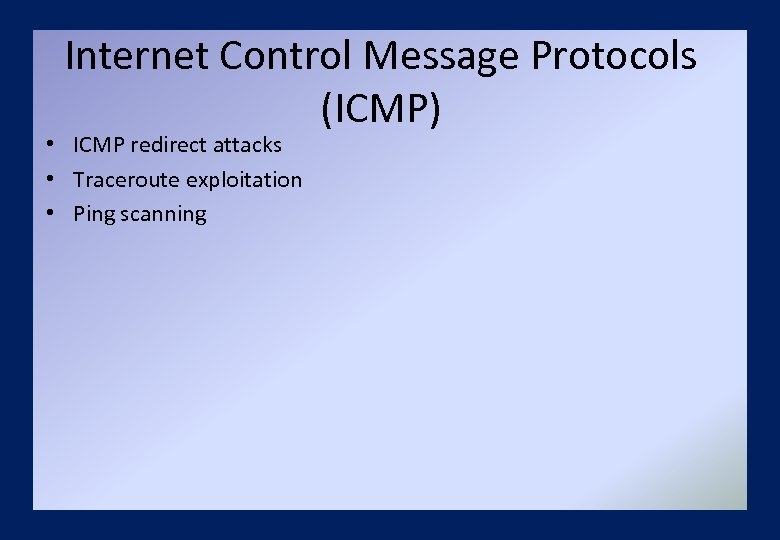

Internet Control Message Protocols (ICMP) • ICMP redirect attacks • Traceroute exploitation • Ping scanning

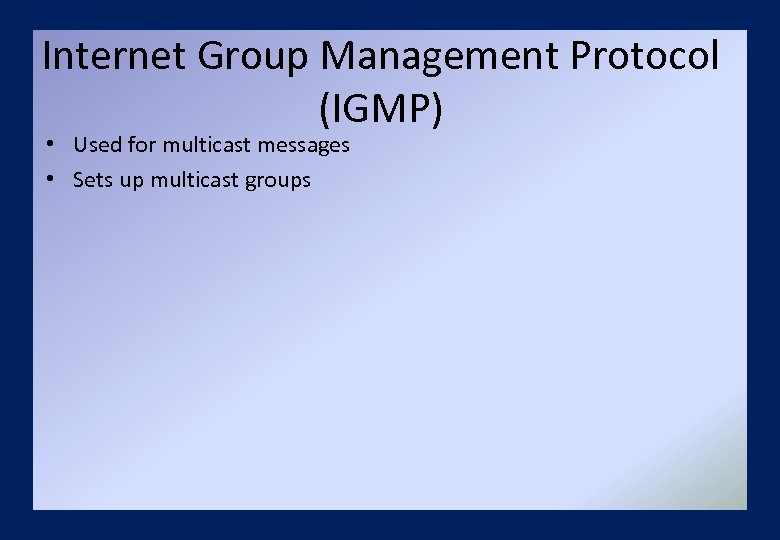

Internet Group Management Protocol (IGMP) • Used for multicast messages • Sets up multicast groups

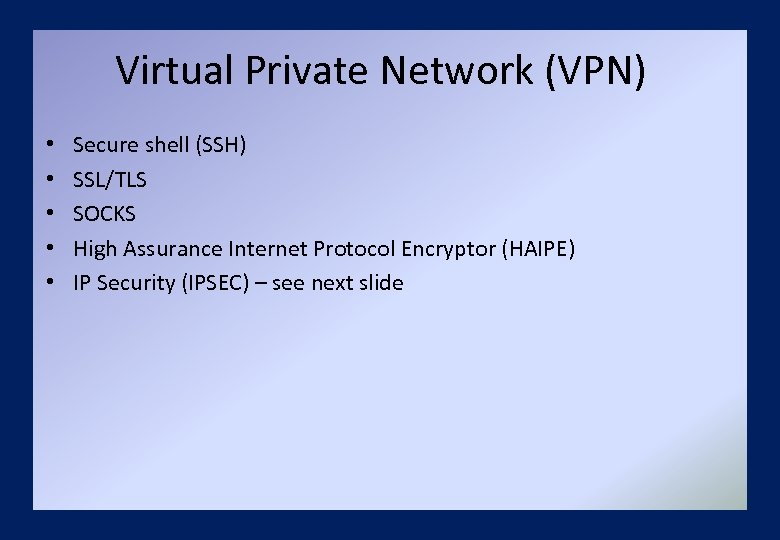

Virtual Private Network (VPN) • • • Secure shell (SSH) SSL/TLS SOCKS High Assurance Internet Protocol Encryptor (HAIPE) IP Security (IPSEC) – see next slide

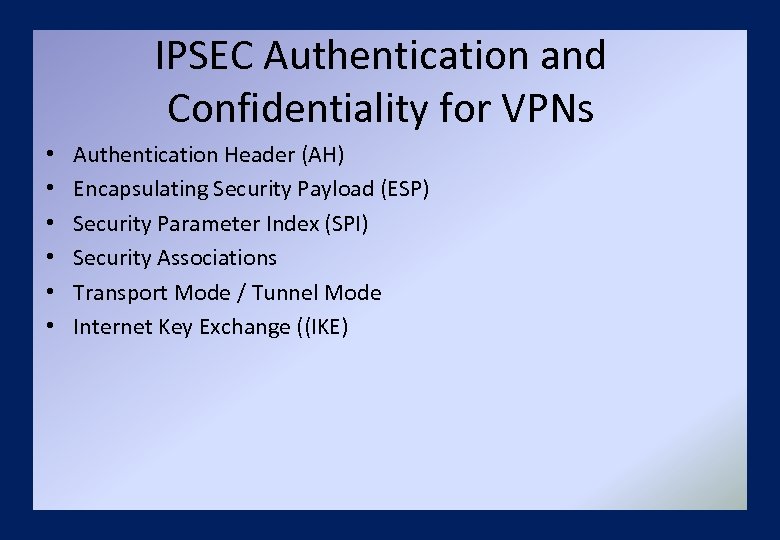

IPSEC Authentication and Confidentiality for VPNs • • • Authentication Header (AH) Encapsulating Security Payload (ESP) Security Parameter Index (SPI) Security Associations Transport Mode / Tunnel Mode Internet Key Exchange ((IKE)

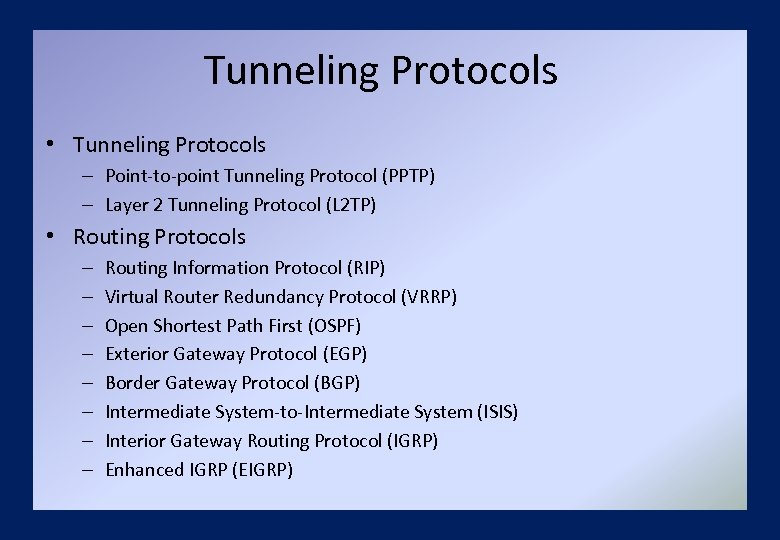

Tunneling Protocols • Tunneling Protocols – Point-to-point Tunneling Protocol (PPTP) – Layer 2 Tunneling Protocol (L 2 TP) • Routing Protocols – – – – Routing Information Protocol (RIP) Virtual Router Redundancy Protocol (VRRP) Open Shortest Path First (OSPF) Exterior Gateway Protocol (EGP) Border Gateway Protocol (BGP) Intermediate System-to-Intermediate System (ISIS) Interior Gateway Routing Protocol (IGRP) Enhanced IGRP (EIGRP)

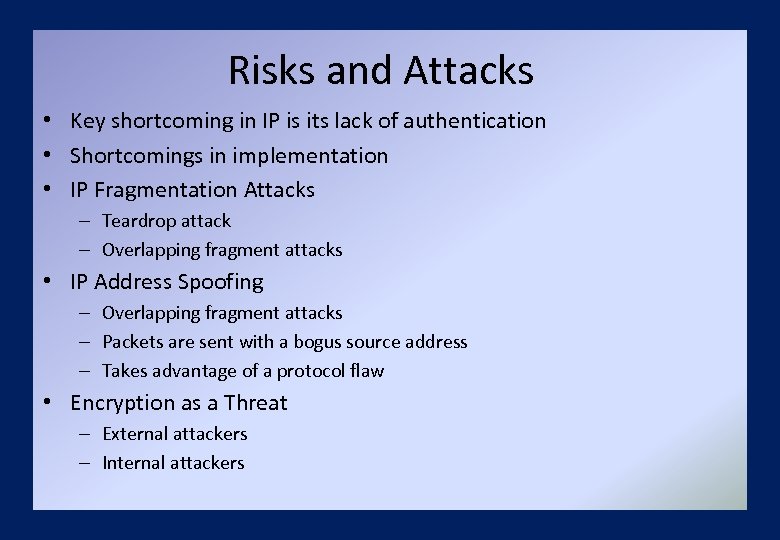

Risks and Attacks • Key shortcoming in IP is its lack of authentication • Shortcomings in implementation • IP Fragmentation Attacks – Teardrop attack – Overlapping fragment attacks • IP Address Spoofing – Overlapping fragment attacks – Packets are sent with a bogus source address – Takes advantage of a protocol flaw • Encryption as a Threat – External attackers – Internal attackers

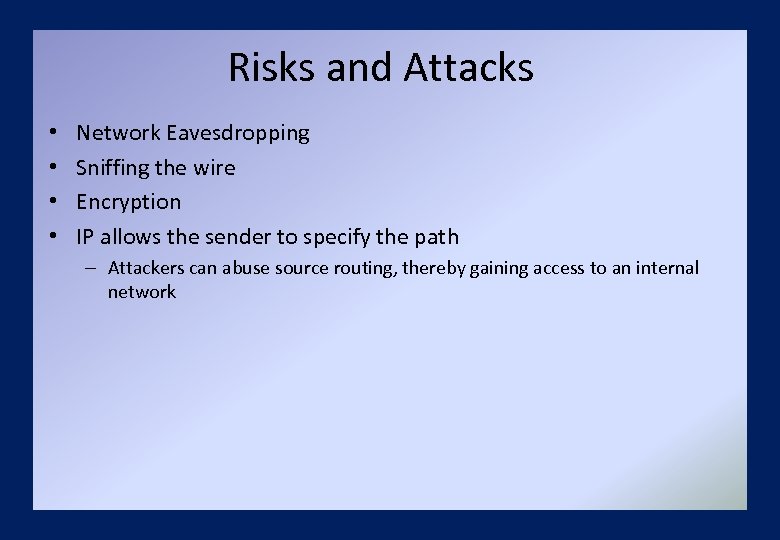

Risks and Attacks • • Network Eavesdropping Sniffing the wire Encryption IP allows the sender to specify the path – Attackers can abuse source routing, thereby gaining access to an internal network

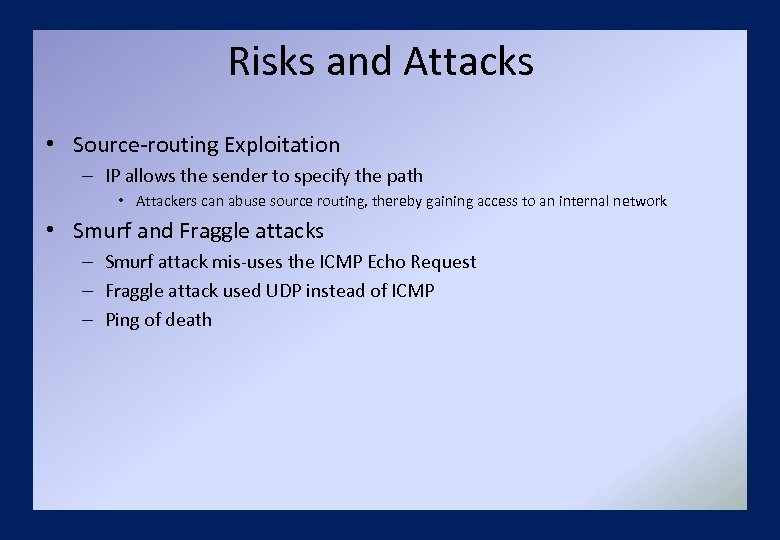

Risks and Attacks • Source-routing Exploitation – IP allows the sender to specify the path • Attackers can abuse source routing, thereby gaining access to an internal network • Smurf and Fraggle attacks – Smurf attack mis-uses the ICMP Echo Request – Fraggle attack used UDP instead of ICMP – Ping of death

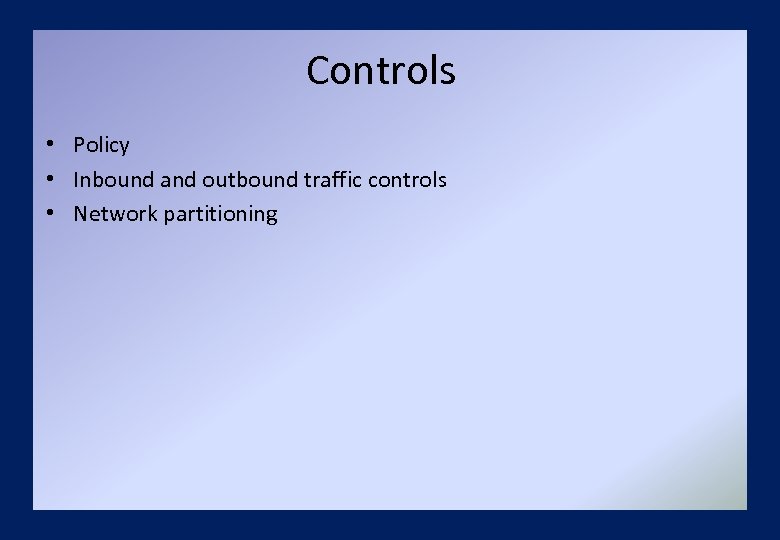

Controls • Policy • Inbound and outbound traffic controls • Network partitioning

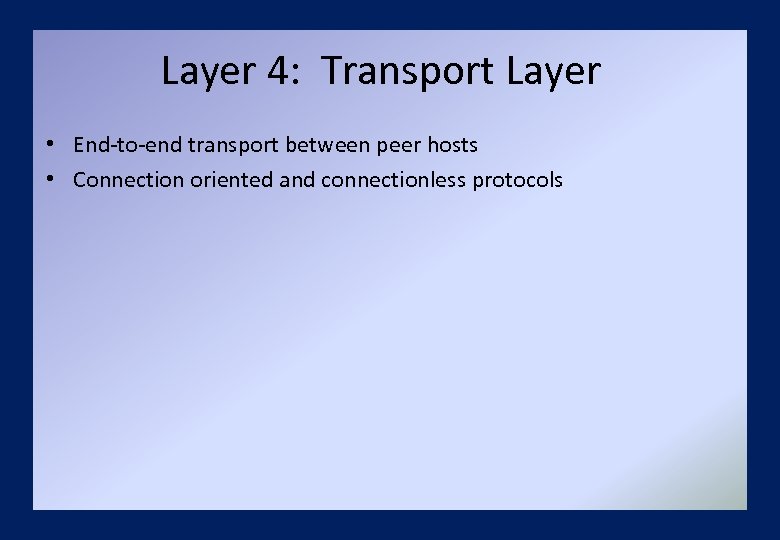

Layer 4: Transport Layer • End-to-end transport between peer hosts • Connection oriented and connectionless protocols

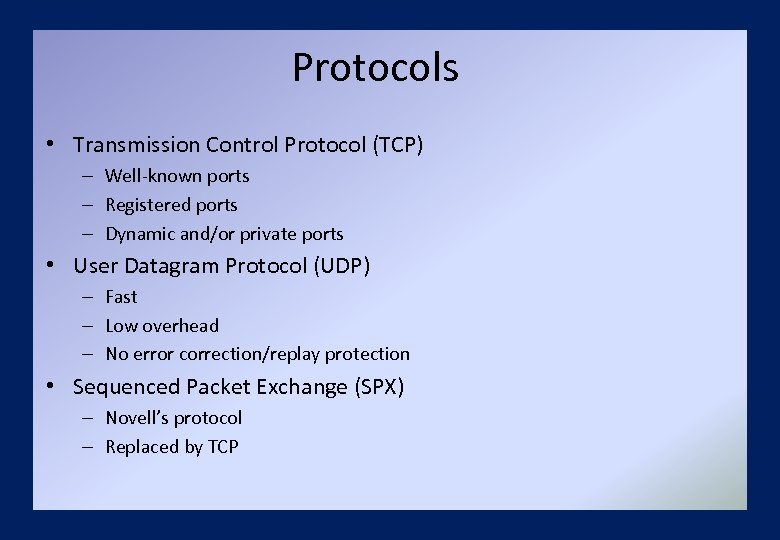

Protocols • Transmission Control Protocol (TCP) – Well-known ports – Registered ports – Dynamic and/or private ports • User Datagram Protocol (UDP) – Fast – Low overhead – No error correction/replay protection • Sequenced Packet Exchange (SPX) – Novell’s protocol – Replaced by TCP

Transport Layer Security (TLS) • Mutual authentication • Encryption • Integrity

Attacks • SYN Flood • Port Scanning – – FIN, NULL and XMAS Scanning SYN Scanning TCP Sequence Number Attacks Session Hijacking • Denial of Service

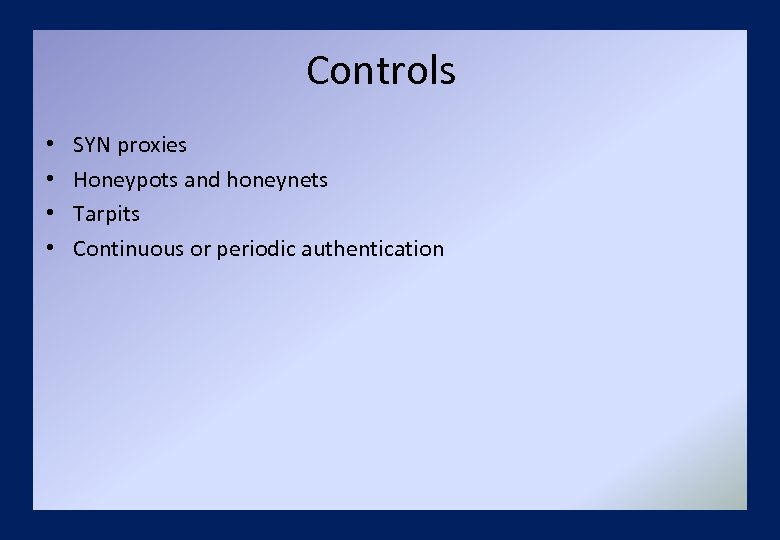

Controls • • SYN proxies Honeypots and honeynets Tarpits Continuous or periodic authentication

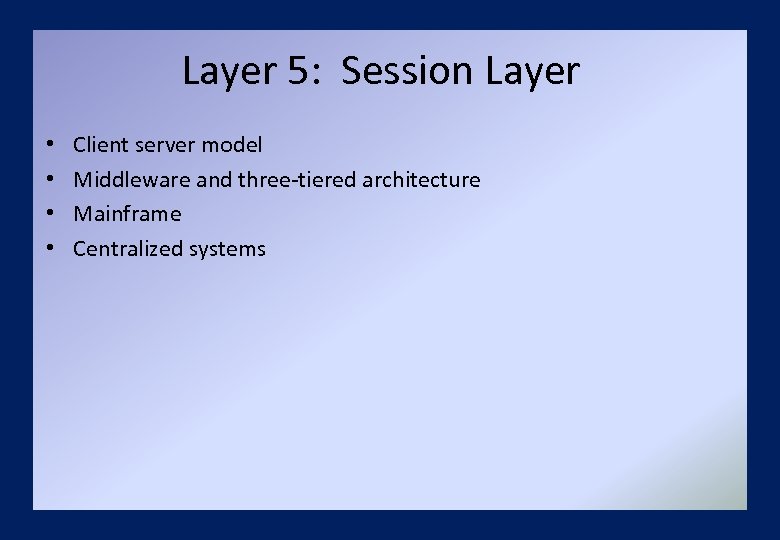

Layer 5: Session Layer • • Client server model Middleware and three-tiered architecture Mainframe Centralized systems

Protocols • Real-time protocol – RTP • RTP control protocol – RTCP • Remote procedure calls - RPC

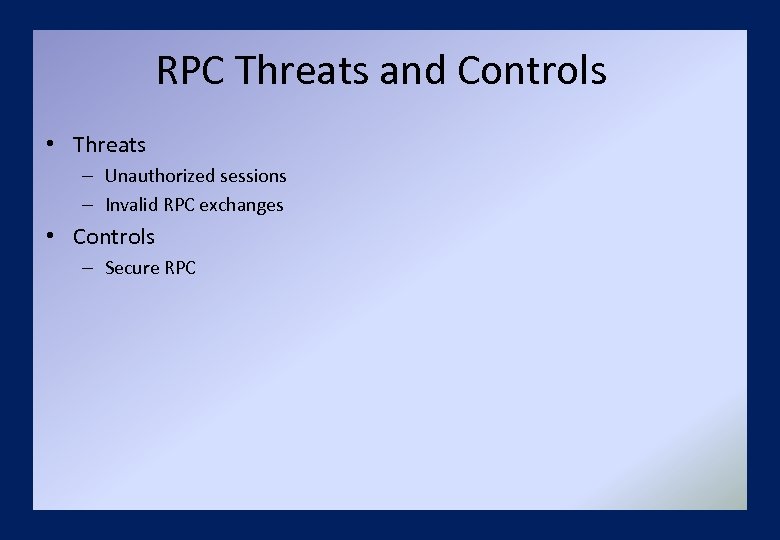

RPC Threats and Controls • Threats – Unauthorized sessions – Invalid RPC exchanges • Controls – Secure RPC

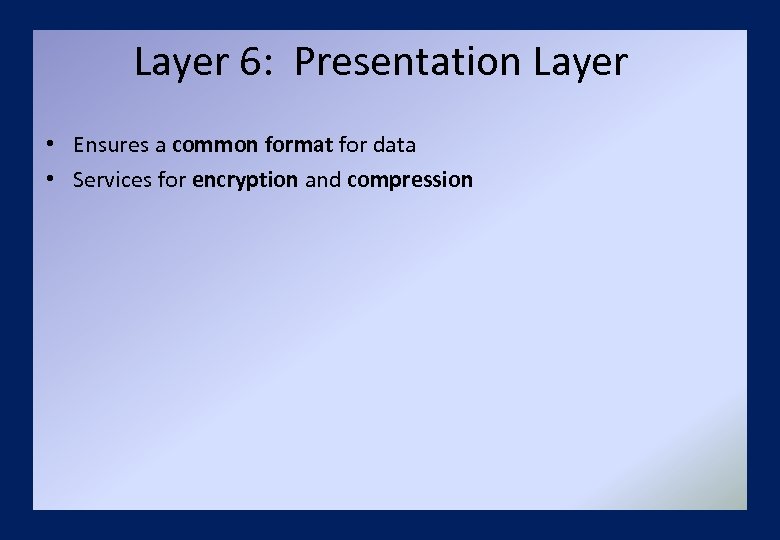

Layer 6: Presentation Layer • Ensures a common format for data • Services for encryption and compression

Standards • Mainframe to PC Translation – Extended Binary Coded Decimal Interchange Code (EBCDIC) – American Standard Code for Information Interchange (ASCII) – Gateway • Video and Audio Compression – Codec • Compression / decompression – Conserves bandwidth and storage

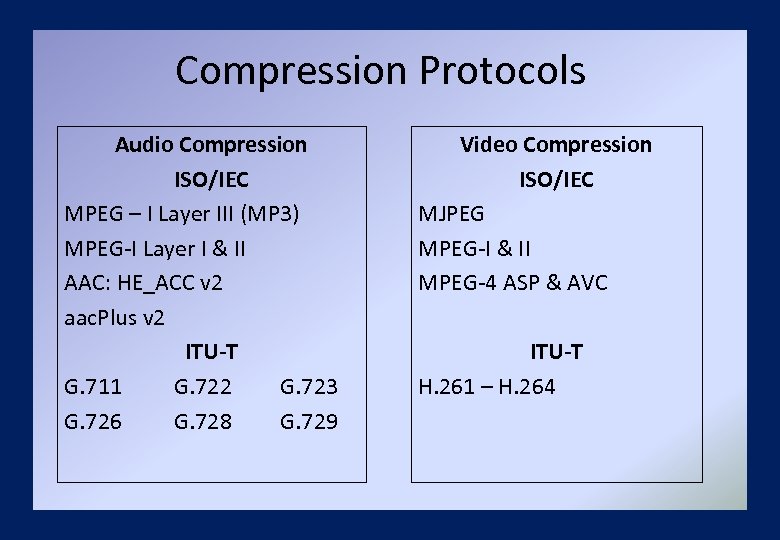

Compression Protocols Audio Compression ISO/IEC MPEG – I Layer III (MP 3) MPEG-I Layer I & II AAC: HE_ACC v 2 aac. Plus v 2 ITU-T G. 711 G. 722 G. 723 G. 726 G. 728 G. 729 Video Compression ISO/IEC MJPEG MPEG-I & II MPEG-4 ASP & AVC ITU-T H. 261 – H. 264

Threats and Controls • Availability Threat – Lack of interoperability • Controls – Organizational standards

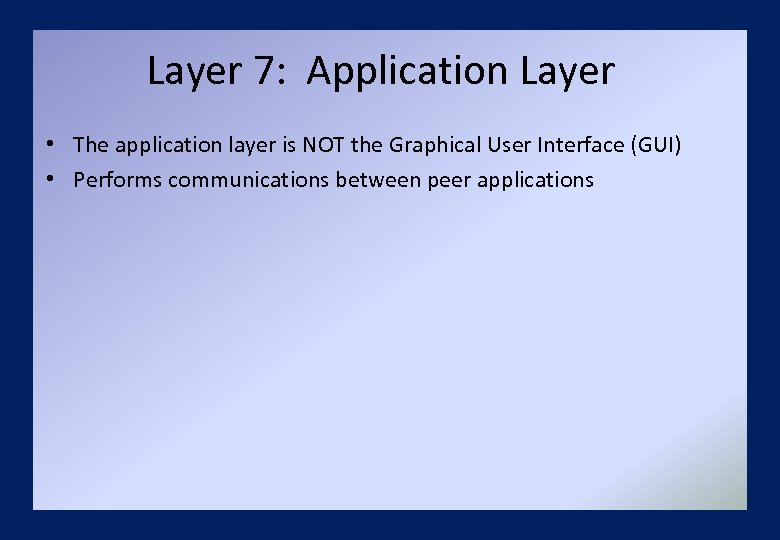

Layer 7: Application Layer • The application layer is NOT the Graphical User Interface (GUI) • Performs communications between peer applications

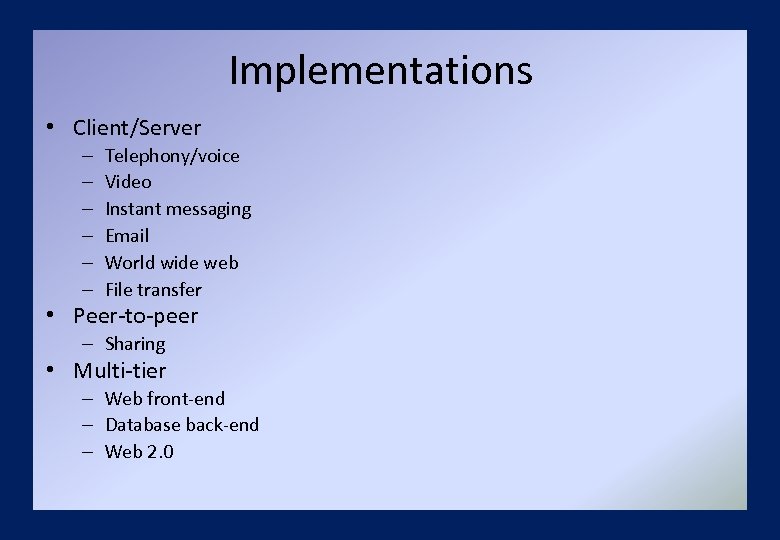

Implementations • Client/Server – – – Telephony/voice Video Instant messaging Email World wide web File transfer • Peer-to-peer – Sharing • Multi-tier – Web front-end – Database back-end – Web 2. 0

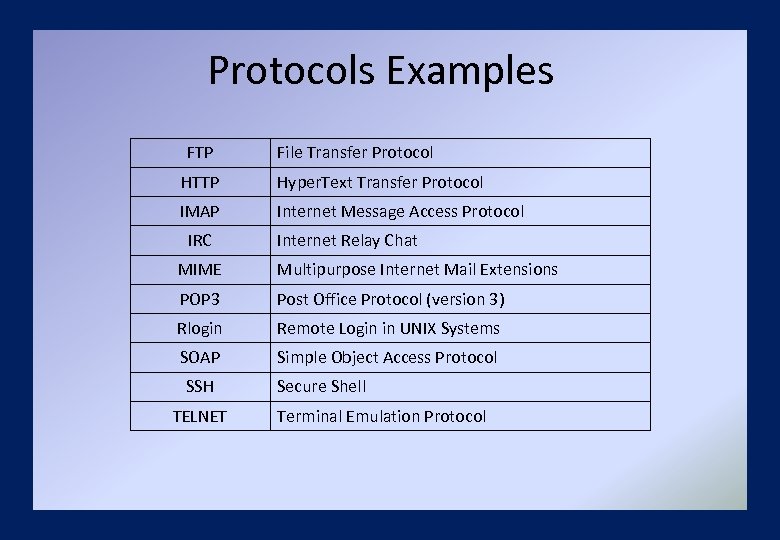

Protocols Examples FTP File Transfer Protocol HTTP Hyper. Text Transfer Protocol IMAP Internet Message Access Protocol IRC Internet Relay Chat MIME Multipurpose Internet Mail Extensions POP 3 Post Office Protocol (version 3) Rlogin Remote Login in UNIX Systems SOAP Simple Object Access Protocol SSH TELNET Secure Shell Terminal Emulation Protocol

Threats and Controls • Vulnerabilities as of September 2007 – 35, 000 • Verified exploits – +10, 000 • Controls – STOP IT! • Don’t use application-layer protocols that are too risky? – Update / patch

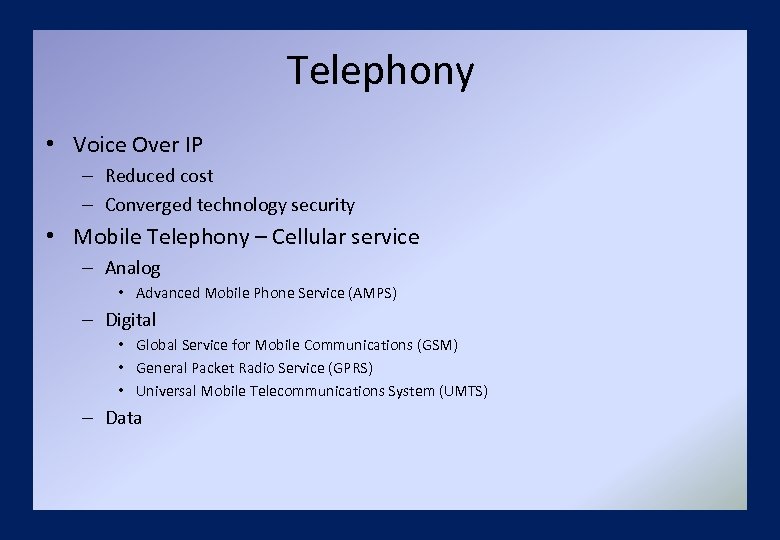

Telephony • Voice Over IP – Reduced cost – Converged technology security • Mobile Telephony – Cellular service – Analog • Advanced Mobile Phone Service (AMPS) – Digital • Global Service for Mobile Communications (GSM) • General Packet Radio Service (GPRS) • Universal Mobile Telecommunications System (UMTS) – Data

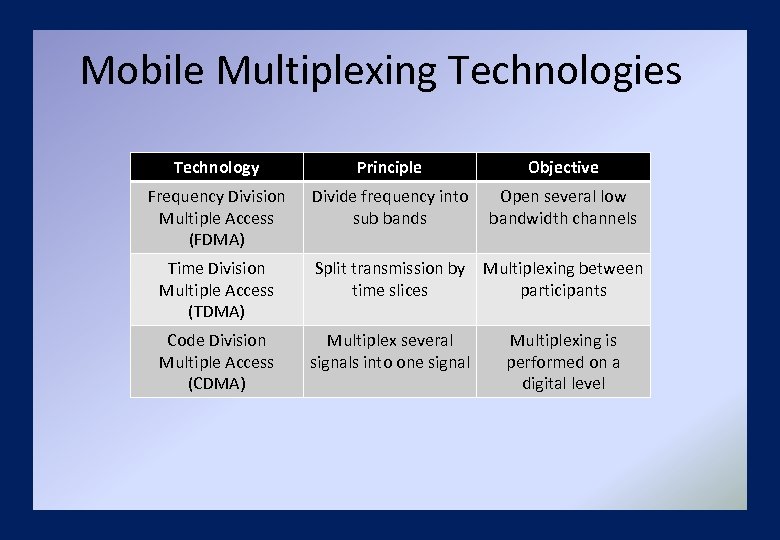

Mobile Multiplexing Technologies Technology Principle Objective Frequency Division Multiple Access (FDMA) Divide frequency into sub bands Open several low bandwidth channels Time Division Multiple Access (TDMA) Split transmission by Multiplexing between time slices participants Code Division Multiple Access (CDMA) Multiplex several signals into one signal Multiplexing is performed on a digital level

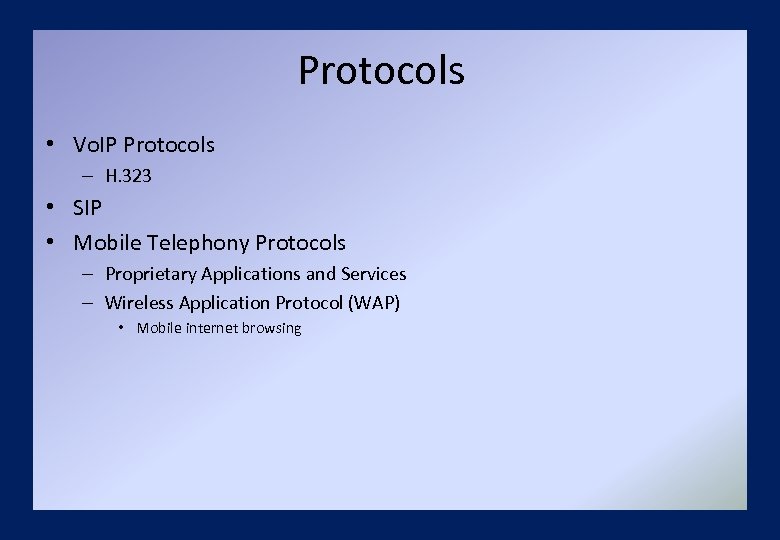

Protocols • Vo. IP Protocols – H. 323 • SIP • Mobile Telephony Protocols – Proprietary Applications and Services – Wireless Application Protocol (WAP) • Mobile internet browsing

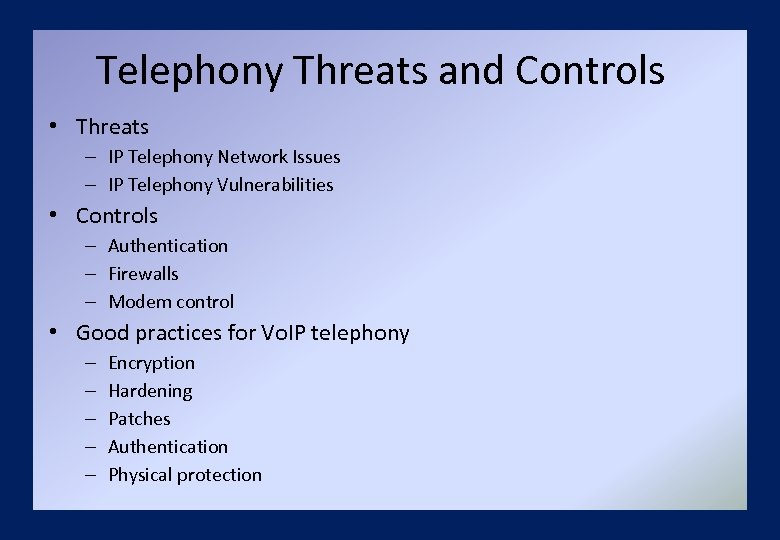

Telephony Threats and Controls • Threats – IP Telephony Network Issues – IP Telephony Vulnerabilities • Controls – Authentication – Firewalls – Modem control • Good practices for Vo. IP telephony – – – Encryption Hardening Patches Authentication Physical protection

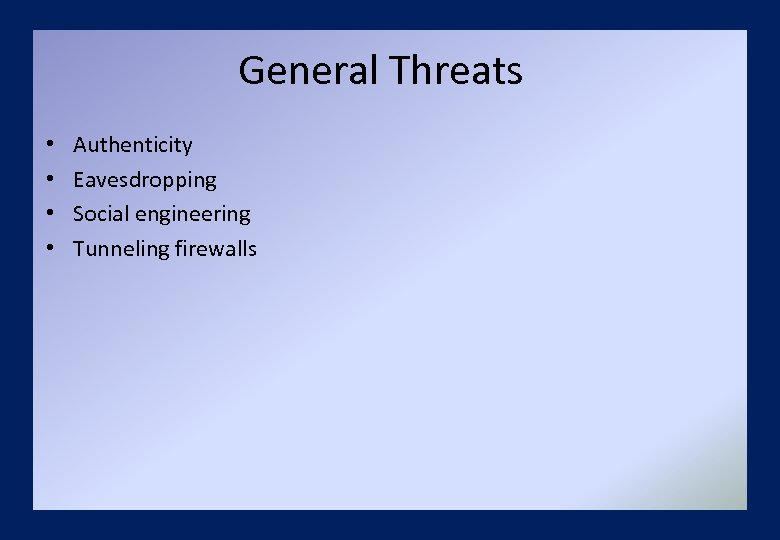

General Threats • • Authenticity Eavesdropping Social engineering Tunneling firewalls

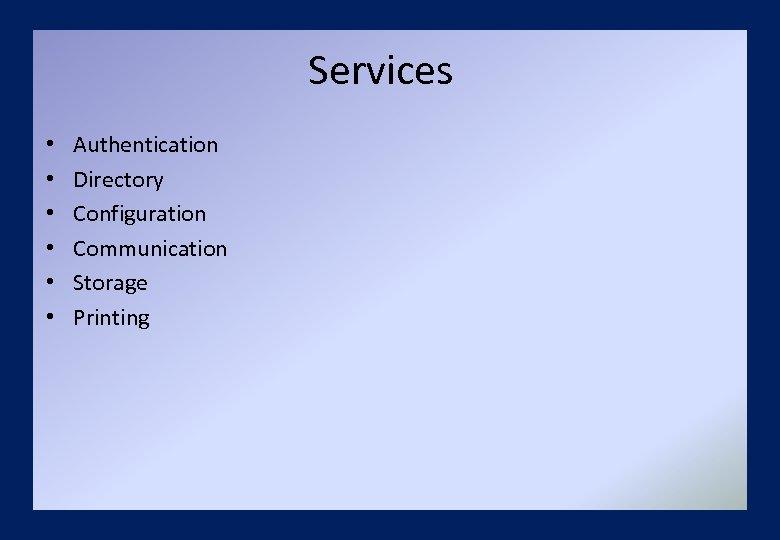

Services • • • Authentication Directory Configuration Communication Storage Printing

Authentication • Centralized Remote User Authentication – Network Access Server send authentication requests to the Centralized Authentication Server. • Kerberos Authentication – RFC 1510 – Principals (client and server) are treated as equals – Key Distribution Server (KDC) • Authentication server (AS) – Ticket granting server (TGS)

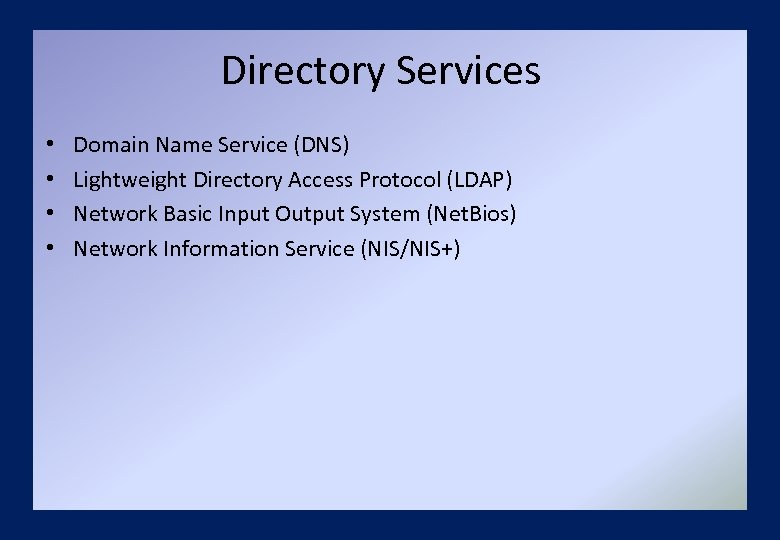

Directory Services • • Domain Name Service (DNS) Lightweight Directory Access Protocol (LDAP) Network Basic Input Output System (Net. Bios) Network Information Service (NIS/NIS+)

Configuration Services • • Simple Network Management Protocol (SNMP) Dynamic Host Configuration Protocol (DHCP) Network Time Protocol (NTP) Finger User Information Protocol

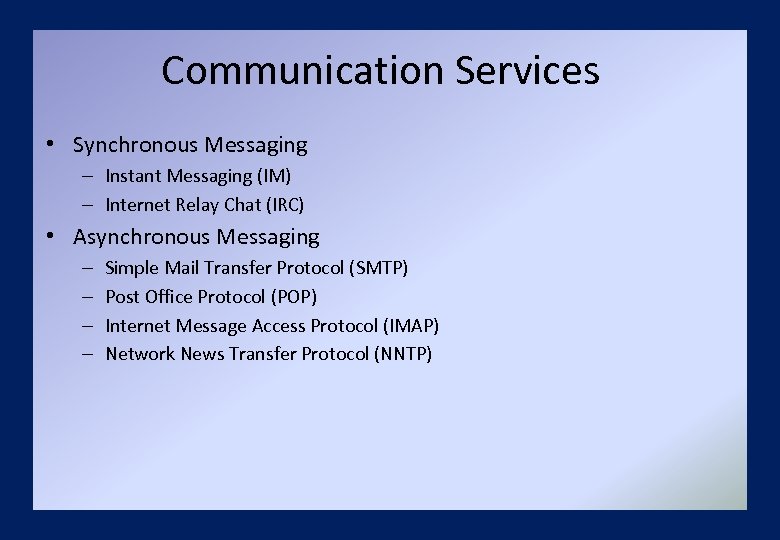

Communication Services • Synchronous Messaging – Instant Messaging (IM) – Internet Relay Chat (IRC) • Asynchronous Messaging – – Simple Mail Transfer Protocol (SMTP) Post Office Protocol (POP) Internet Message Access Protocol (IMAP) Network News Transfer Protocol (NNTP)

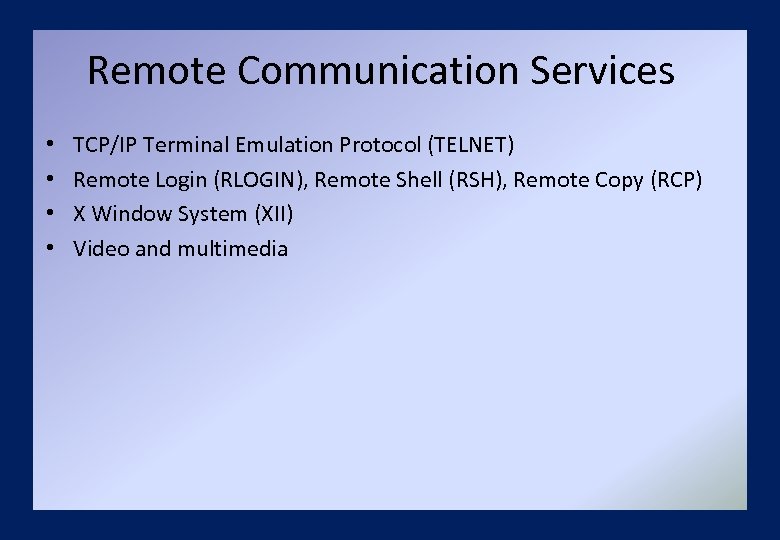

Remote Communication Services • • TCP/IP Terminal Emulation Protocol (TELNET) Remote Login (RLOGIN), Remote Shell (RSH), Remote Copy (RCP) X Window System (XII) Video and multimedia

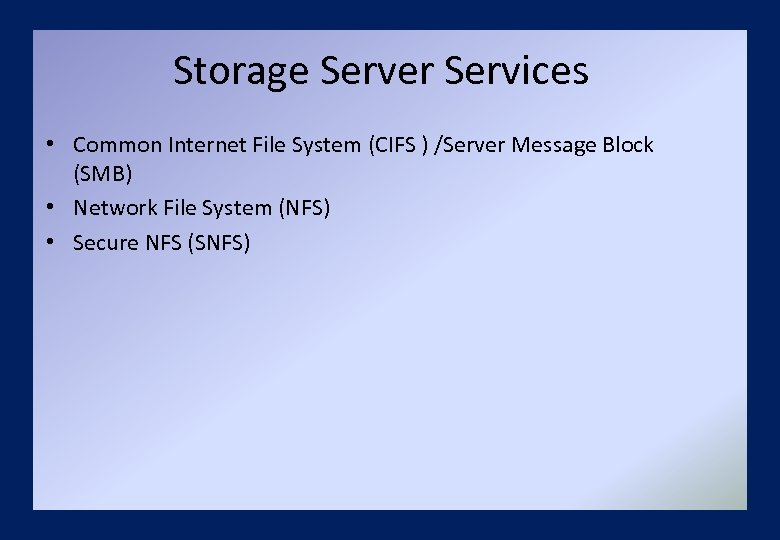

Storage Server Services • Common Internet File System (CIFS ) /Server Message Block (SMB) • Network File System (NFS) • Secure NFS (SNFS)

Storage Data Services • • • File Transfer Protocol (FTP) Trivial File Transfer Protocol (TFTP) Hypertext Transfer Protocol (HTTP) HTTP over TLS (HTTPS) Secure Hypertext Transfer Protocol (S-HTTP) Proxies

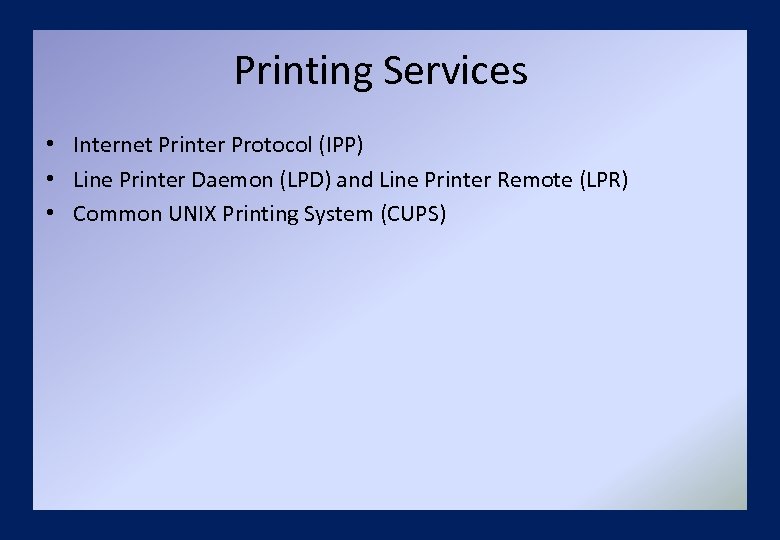

Printing Services • Internet Printer Protocol (IPP) • Line Printer Daemon (LPD) and Line Printer Remote (LPR) • Common UNIX Printing System (CUPS)

DNS Threats • Spoofing • Query manipulation – Hosts file manipulation – Social engineering • Information disclosure • Domain litigation • Cyber squatting

Other Threats • Email Threats – Spoofing – Open Mail Relay Servers – Spam and Filtering • • Instant messaging Threats File sharing SPIM Service Message Block (SMB) Threats – Buffer overflows

Controls • • DNS security extensions (DNSSEC) Mail filtering IM policy Turn off SMB
