Tele. Eye IP and Mobile Surveillance Solutions
Who Are We? • Founded in 1994 • City. U of HK and fellow researchers • Leading supplier of advanced CCTV solution • Listed on HK Stock Exchange on May 2001 • Obtained ISO 9001: 2000 on Jan 2004 • Overseas offices: United Kingdom, Croatia, China, Singapore, Philippines, Mauritius and South Africa
Applications on IP & Mobile Solutions Unmanned Premises Banking Logistics Retail Property Management Factory
Retail Manufacturing
Government & Public Utilities Education
Banks
RVRCs
What factor determines the performance of IP & mobile video surveillance solutions? Answer: Compression Technology !

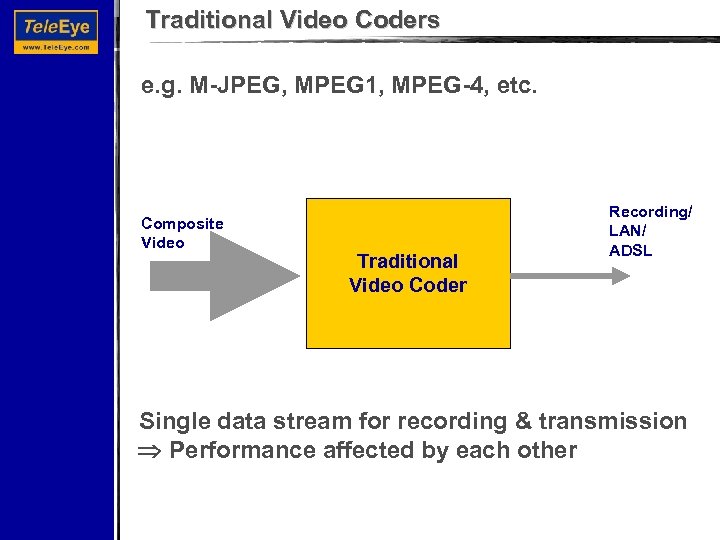

Traditional Video Coders e. g. M-JPEG, MPEG 1, MPEG-4, etc. Composite Video Traditional Video Coder Recording/ LAN/ ADSL Single data stream for recording & transmission Performance affected by each other
MPEG-4 : Motion Predictive Coding Group of Pictures I-frame P-frame I-frame …. . . Quality Non-uniform quality in successive frames …. . .

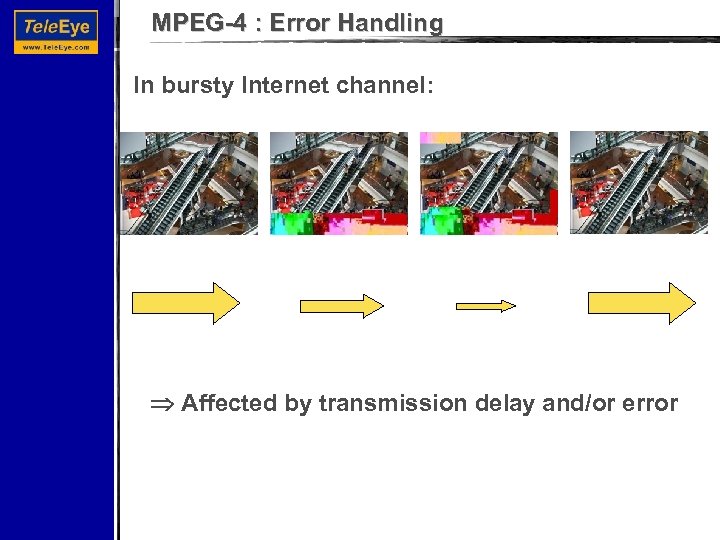

MPEG-4 : Error Handling In bursty Internet channel: Affected by transmission delay and/or error

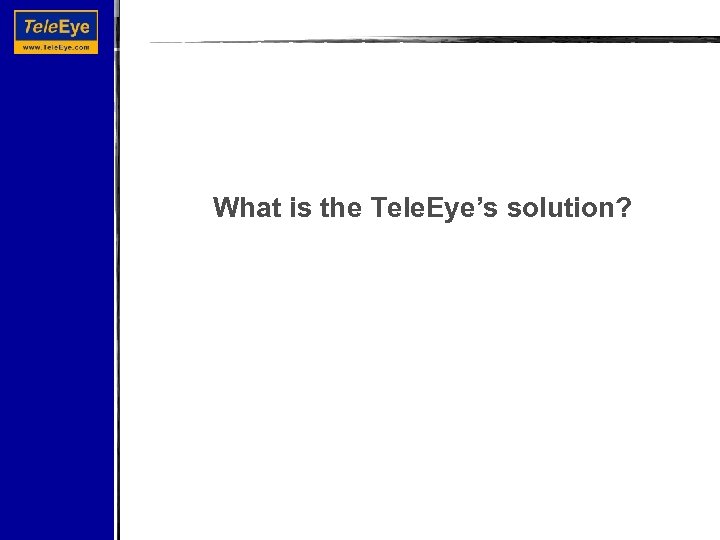

What is the Tele. Eye’s solution?

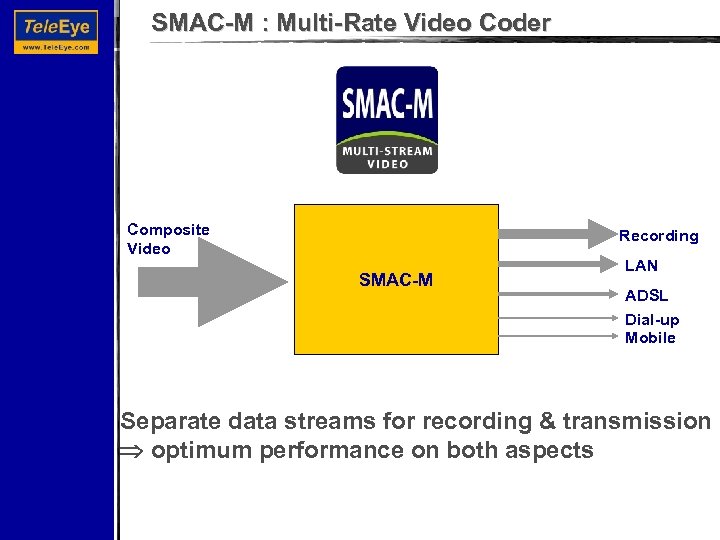

SMAC-M : Multi-Rate Video Coder Composite Video Recording SMAC-M LAN ADSL Dial-up Mobile Separate data streams for recording & transmission optimum performance on both aspects

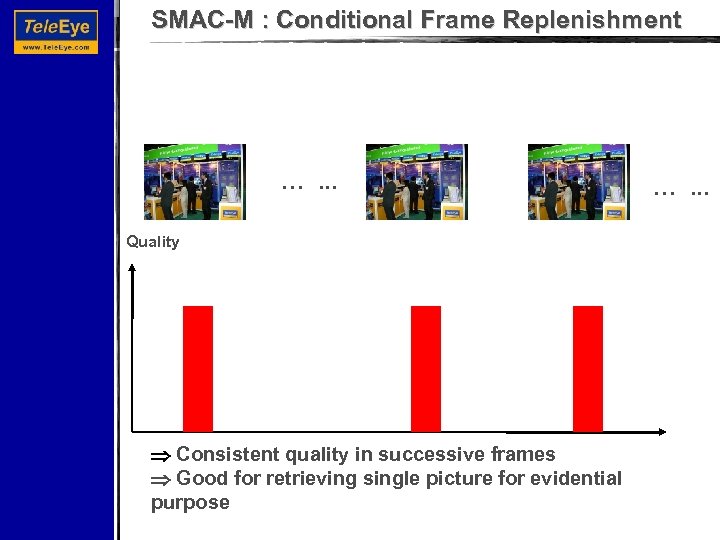

SMAC-M : Conditional Frame Replenishment …. . . Quality Consistent quality in successive frames Good for retrieving single picture for evidential purpose …. . .

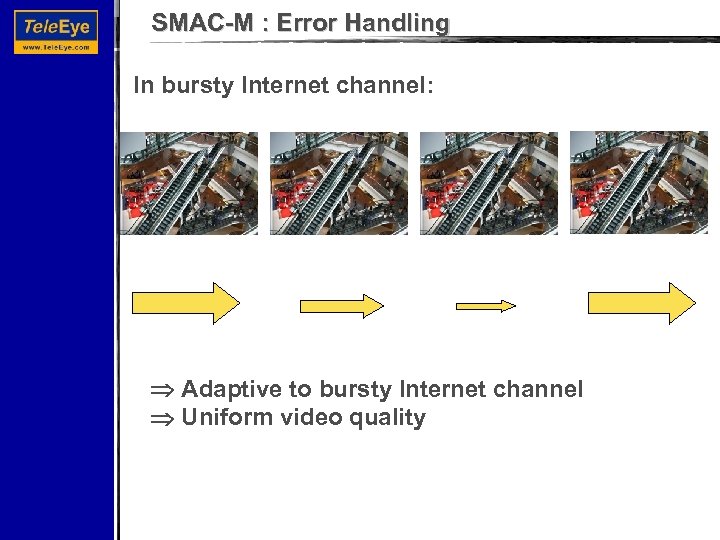

SMAC-M : Error Handling In bursty Internet channel: Adaptive to bursty Internet channel Uniform video quality

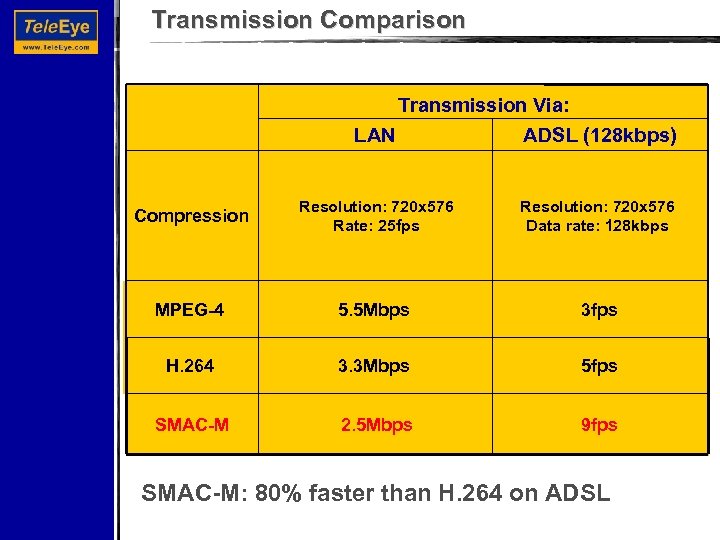

Transmission Comparison Transmission Via: LAN ADSL (128 kbps) Compression Resolution: 720 x 576 Rate: 25 fps Resolution: 720 x 576 Data rate: 128 kbps MPEG-4 5. 5 Mbps 3 fps H. 264 3. 3 Mbps 5 fps SMAC-M 2. 5 Mbps 9 fps SMAC-M: 80% faster than H. 264 on ADSL
Recording Comparison Recording Performance Compression Resolution: 720 x 576 Rate: 25 fps MPEG-4 56 GB/day H. 264 45 GB/day SMAC-M 35 GB/day SMAC-M: Record 29% more than H. 264

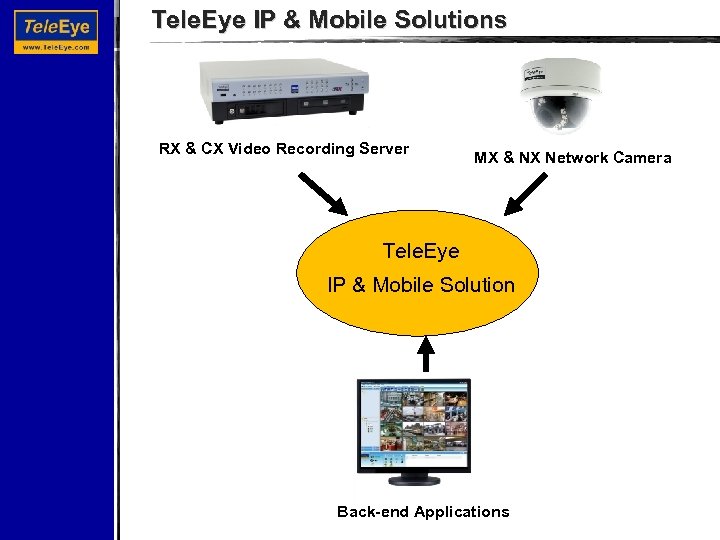

Tele. Eye IP & Mobile Solutions RX & CX Video Recording Server MX & NX Network Camera Tele. Eye IP & Mobile Solution Back-end Applications

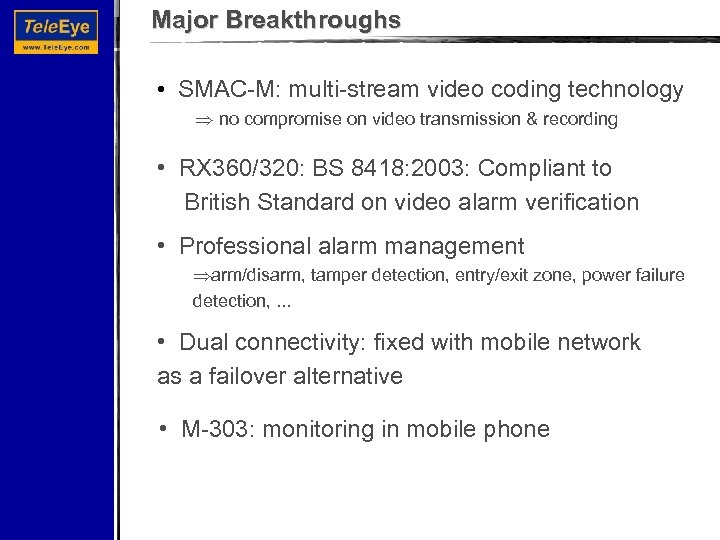

Major Breakthroughs • SMAC-M: multi-stream video coding technology no compromise on video transmission & recording • RX 360/320: BS 8418: 2003: Compliant to British Standard on video alarm verification • Professional alarm management arm/disarm, tamper detection, entry/exit zone, power failure detection, . . . • Dual connectivity: fixed with mobile network as a failover alternative • M-303: monitoring in mobile phone

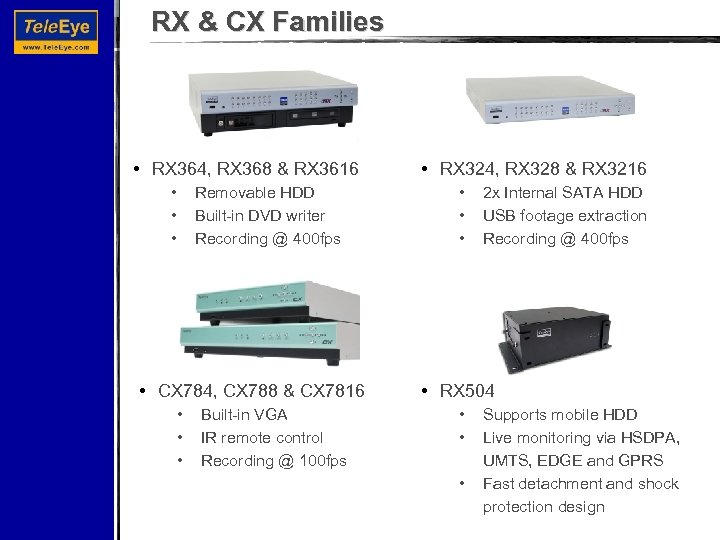

RX & CX Families • RX 364, RX 368 & RX 3616 • • • Removable HDD Built-in DVD writer Recording @ 400 fps • CX 784, CX 788 & CX 7816 • • • Built-in VGA IR remote control Recording @ 100 fps • RX 324, RX 328 & RX 3216 • • • 2 x Internal SATA HDD USB footage extraction Recording @ 400 fps • RX 504 • • • Supports mobile HDD Live monitoring via HSDPA, UMTS, EDGE and GPRS Fast detachment and shock protection design

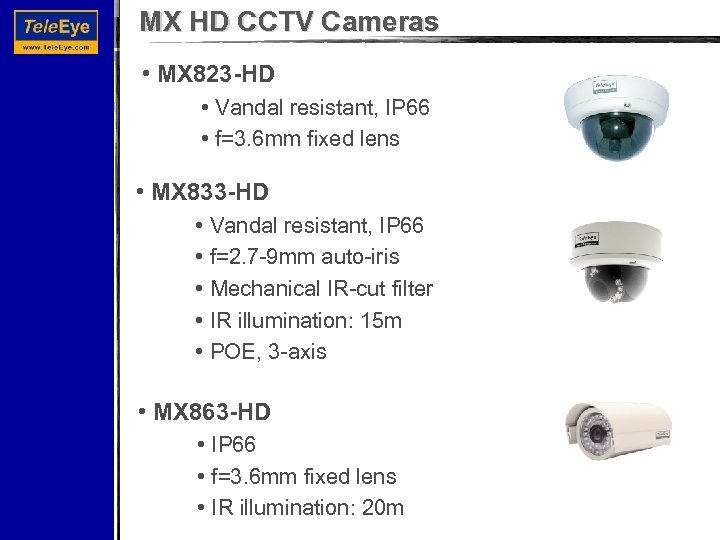

MX HD CCTV Cameras • MX 823 -HD • Vandal resistant, IP 66 • f=3. 6 mm fixed lens • MX 833 -HD • Vandal resistant, IP 66 • f=2. 7 -9 mm auto-iris • Mechanical IR-cut filter • IR illumination: 15 m • POE, 3 -axis • MX 863 -HD • IP 66 • f=3. 6 mm fixed lens • IR illumination: 20 m

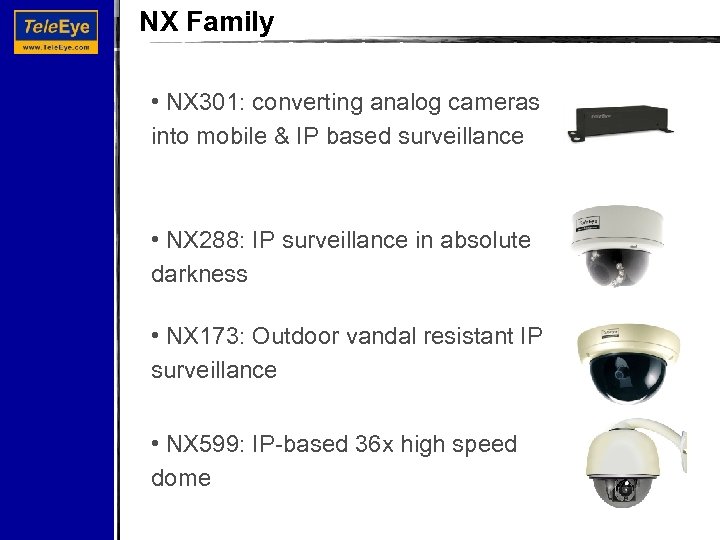

NX Family • NX 301: converting analog cameras into mobile & IP based surveillance • NX 288: IP surveillance in absolute darkness • NX 173: Outdoor vandal resistant IP surveillance • NX 599: IP-based 36 x high speed dome

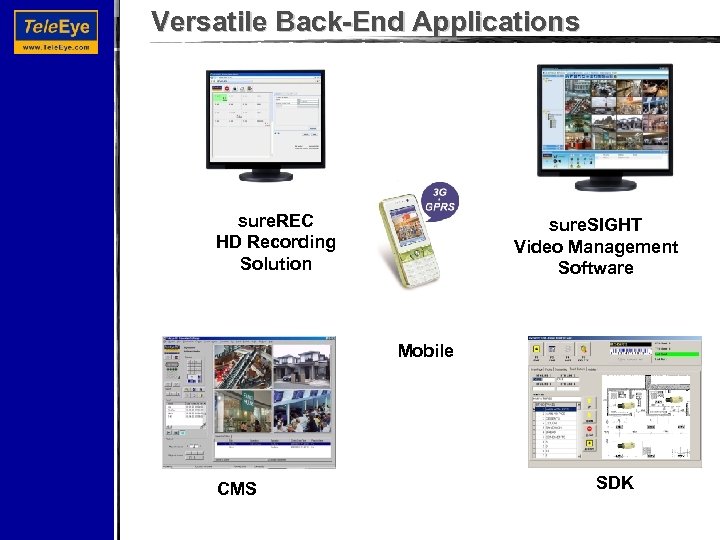

Versatile Back-End Applications sure. REC HD Recording Solution sure. SIGHT Video Management Software Mobile CMS SDK
RA Highlights • SMAC compression: 60% longer recording time than MPEG-4 DVRs • Recording: 100 fps@CIF; 25 fps@D 1 • Video: 4, 8 & 16; Audio: 2 • Alarm: 4; Relay: 1 • Composite + VGA output • IR remote control • Built- in DVD writer (RA 30 series)
BS 8418: 2003 Compliant Configuration RX Video Recording Server

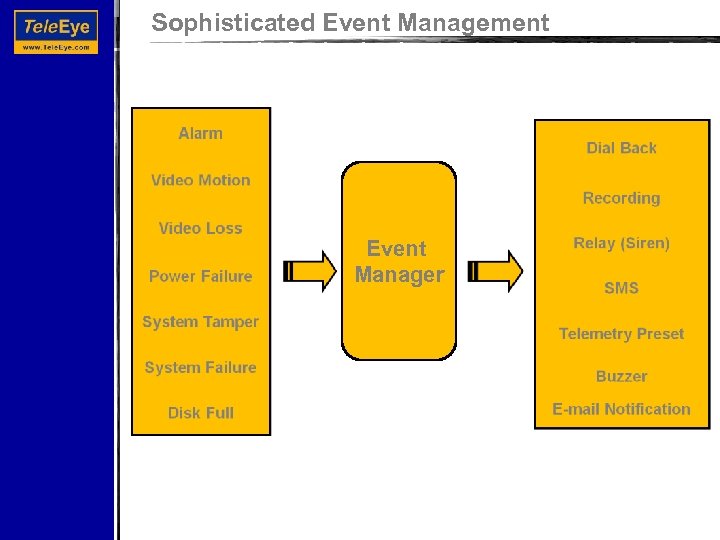

Sophisticated Event Management Event Manager

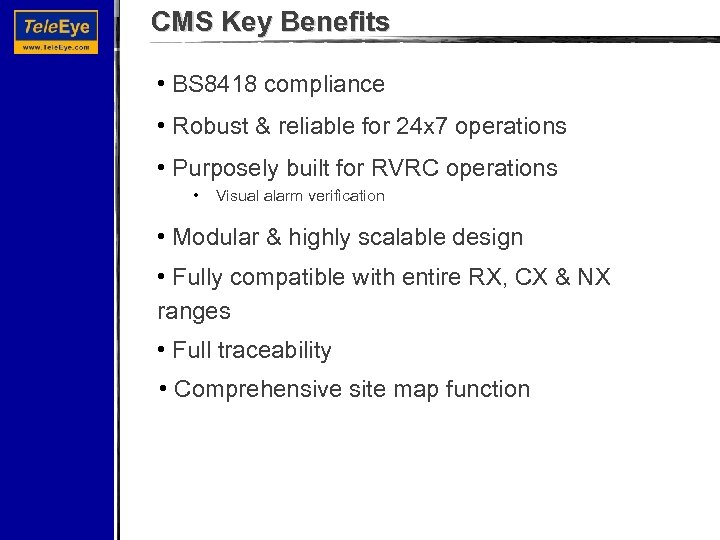

CMS Key Benefits • BS 8418 compliance • Robust & reliable for 24 x 7 operations • Purposely built for RVRC operations • Visual alarm verification • Modular & highly scalable design • Fully compatible with entire RX, CX & NX ranges • Full traceability • Comprehensive site map function

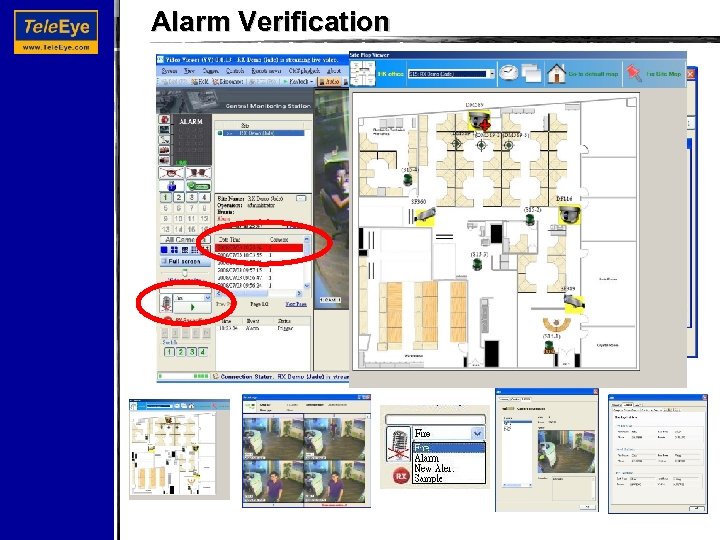

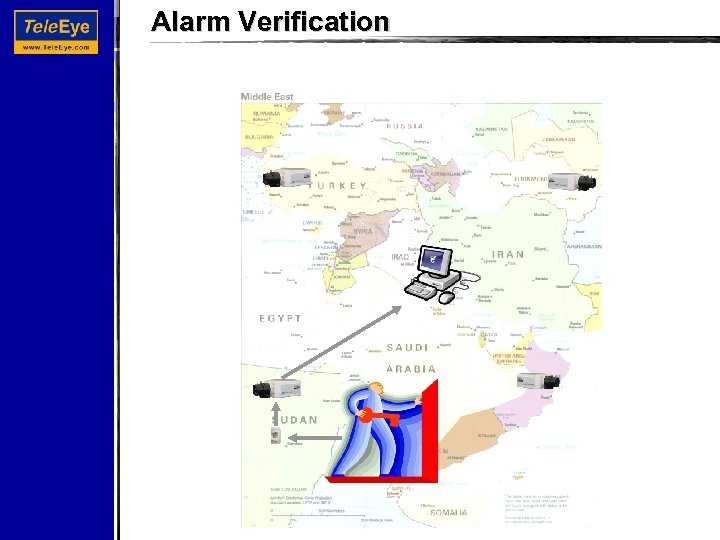

Alarm Verification
Alarm Verification

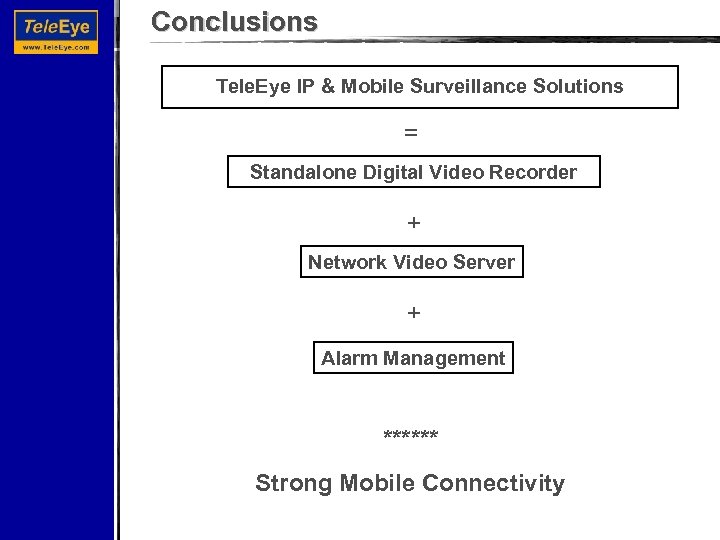

Conclusions Tele. Eye IP & Mobile Surveillance Solutions = Standalone Digital Video Recorder + Network Video Server + Alarm Management ****** Strong Mobile Connectivity
