TDS 2000 and TDS 1000 Series Digital

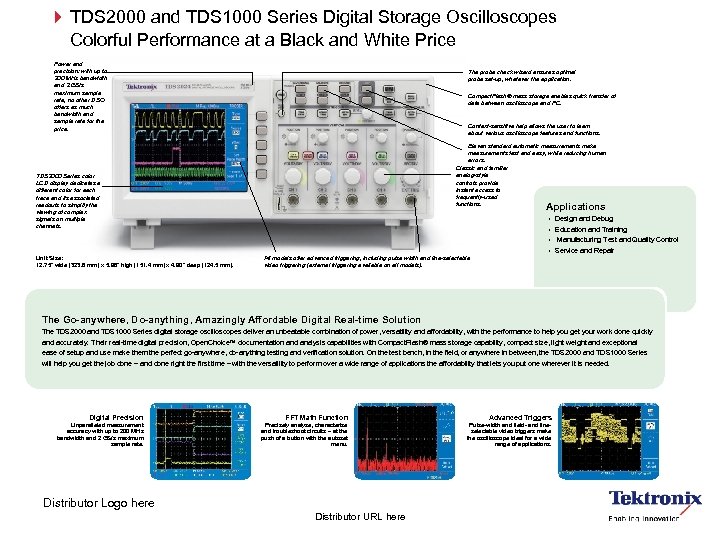

TDS 2000 and TDS 1000 Series Digital Storage Oscilloscopes Colorful Performance at a Black and White Price Power and precision: with up to 200 MHz bandwidth and 2 GS/s maximum sample rate, no other DSO offers as much bandwidth and sample rate for the price. The probe check wizard ensures optimal probe set-up, whatever the application. Compact. Flash® mass storage enables quick transfer of data between oscilloscope and PC. Context-sensitive help allows the user to learn about various oscilloscope features and functions. Eleven standard automatic measurements make measurements fast and easy, while reducing human errors. Classic and familiar analog-style controls provide instant access to frequently-used functions. TDS 2000 Series color LCD display dedicates a different color for each trace and its associated readouts to simplify the viewing of complex signals on multiple channels. Unit Size: 12. 75" wide (323. 8 mm) x 5. 96" high (151. 4 mm) x 4. 90" deep (124. 5 mm). Applications All models offer advanced triggering, including pulse width and line-selectable video triggering (external triggering available on all models). Design and Debug Education and Training Manufacturing Test and Quality Control Service and Repair The Go-anywhere, Do-anything, Amazingly Affordable Digital Real-time Solution The TDS 2000 and TDS 1000 Series digital storage oscilloscopes deliver an unbeatable combination of power, versatility and affordability, with the performance to help you get your work done quickly and accurately. Their real-time digital precision, Open. Choice™ documentation and analysis capabilities with Compact. Flash® mass storage capability, compact size, light weight and exceptional ease of setup and use make them the perfect go-anywhere, do-anything testing and verification solution. On the test bench, in the field, or anywhere in between, the TDS 2000 and TDS 1000 Series will help you get the job done – and done right the first time – with the versatility to perform over a wide range of applications the affordability that lets you put one wherever it is needed. Digital Precision Unparalleled measurement accuracy with up to 200 MHz bandwidth and 2 GS/s maximum sample rate. FFT Math Function Precisely analyze, characterize and troubleshoot circuits – at the push of a button with the autoset menu. Distributor Logo here Distributor URL here Advanced Triggers Pulse-width and field- and lineselectable video triggers make the oscilloscope ideal for a wide range of applications.

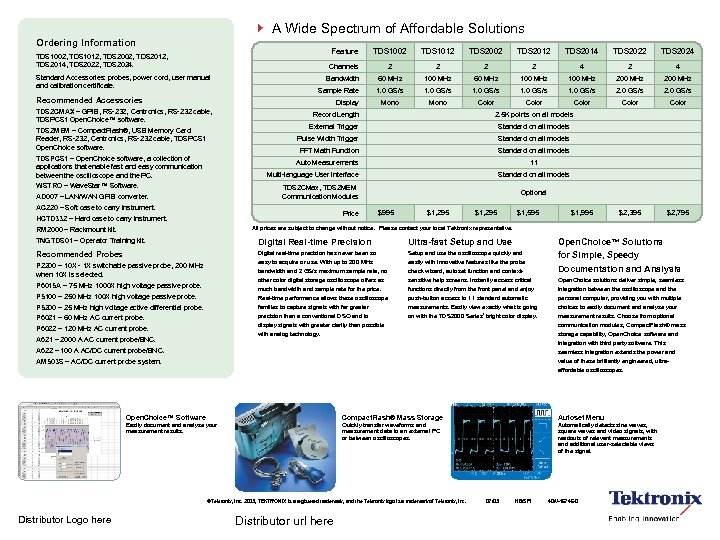

A Wide Spectrum of Affordable Solutions Ordering Information Feature TDS 1002, TDS 1012, TDS 2002, TDS 2014, TDS 2022, TDS 2024. TDS 1002 TDS 1012 TDS 2002 TDS 2014 TDS 2022 TDS 2024 Channels Standard Accessories: probes, power cord, user manual and calibration certificate. 2 2 4 2 4 Bandwidth 60 MHz 100 MHz 200 MHz Sample Rate 1. 0 GS/s 2. 0 GS/s Mono Color Color $1, 995 $2, 395 $2, 795 Recommended Accessories Display TDS 2 CMAX – GPIB, RS-232, Centronics, RS-232 cable, TDSPCS 1 Open. Choice™ software. Record Length 2. 5 K points on all models Standard on all models FFT Math Function TDSPCS 1 – Open. Choice software, a collection of applications that enable fast and easy communication between the oscilloscope and the PC. External Trigger Pulse Width Trigger TDS 2 MEM – Compact. Flash®, USB Memory Card Reader, RS-232, Centronics, RS-232 cable, TDSPCS 1 Open. Choice software. Standard on all models Auto Measurements 11 Multi-language User Interface WSTRO – Wave. Star™ Software. Standard on all models TDS 2 CMax, TDS 2 MEM Communication Modules AD 007 – LAN/WAN GPIB converter. AC 220 – Soft case to carry instrument. Price HCTD 332 – Hard case to carry instrument. Optional $995 $1, 295 $1, 595 All prices are subject to change without notice. Please contact your local Tektronix representative. RM 2000 – Rackmount kit. TNGTDS 01 – Operator Training kit. Digital Real-time Precision Ultra-fast Setup and Use Open. Choice™ Solutions Recommended Probes Digital real-time precision has never been so easy to acquire or use. With up to 200 MHz Setup and use the oscilloscope quickly and easily with innovative features like the probe bandwidth and 2 GS/s maximum sample rate, no other color digital storage oscilloscope offers as much bandwidth and sample rate for the price. check wizard, autoset function and contextsensitive help screens. Instantly access critical functions directly from the front panel and enjoy for Simple, Speedy Documentation and Analysis Real-time performance allows these oscilloscope families to capture signals with far greater precision than a conventional DSO and to display signals with greater clarity than possible with analog technology. push-button access to 11 standard automatic measurements. Easily view exactly what is going on with the TDS 2000 Series’ bright color display. P 2200 – 10 X - 1 X switchable passive probe, 200 MHz when 10 X is selected. P 6015 A – 75 MHz 1000 X high voltage passive probe. P 5100 – 250 MHz 100 X high voltage passive probe. P 5200 – 25 MHz high voltage active differential probe. P 6021 – 60 MHz AC current probe. P 6022 – 120 MHz AC current probe. A 621 – 2000 A AC current probe/BNC. A 622 – 100 A AC/DC current probe/BNC. personal computer, providing you with multiple choices to easily document and analyze your measurement results. Choose from optional communication modules, Compact. Flash® mass storage capability, Open. Choice software and integration with third party software. This seamless integration extends the power and value of these brilliantly engineered, ultraaffordable oscilloscopes. AM 503 S – AC/DC current probe system. Open. Choice™ Software Compact. Flash® Mass Storage Easily document and analyze your measurement results. Autoset Menu Quickly transfer waveforms and measurement data to an external PC or between oscilloscopes. ©Tektronix, Inc. 2003, TEKTRONIX is a registered trademark, and the Tektronix logo is a trademark of Tektronix, Inc. Distributor Logo here Open. Choice solutions deliver simple, seamless integration between the oscilloscope and the Distributor url here Automatically detects sine waves, square waves and video signals, with readouts of relevant measurements and additional user-selectable views of the signal. 07/03 HB/SFI 40 W-16746 -0
