Unification of Vision, Geometry and Graphics Through Toolkits Bill Lorensen GE Corporate R&D Niskayuna, NY lorensen@crd. ge. com

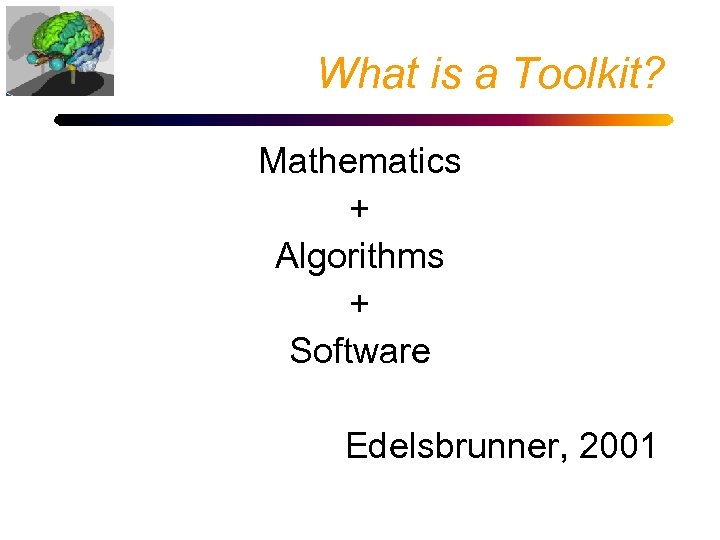

What is a Toolkit? Mathematics + Algorithms + Software Edelsbrunner, 2001

Dual Interests

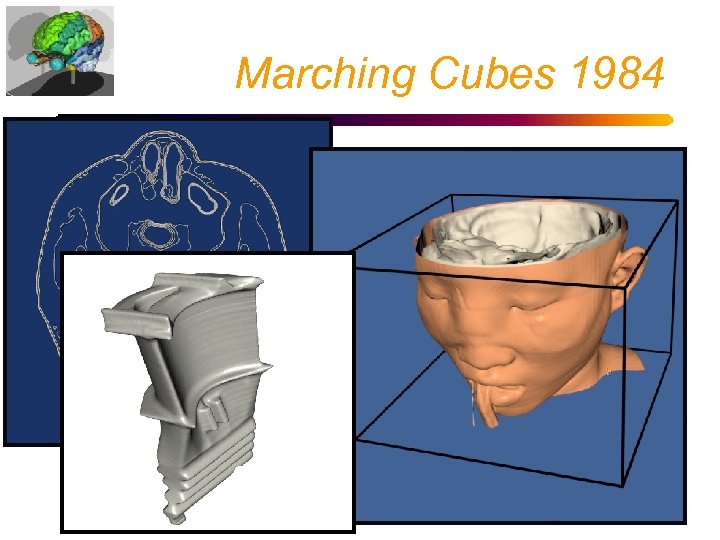

Marching Cubes 1984

Baseball Visualization 1989

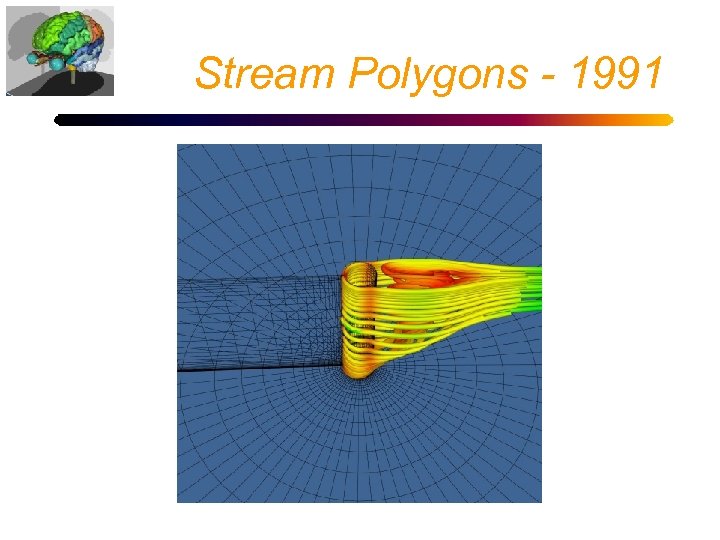

Stream Polygons - 1991

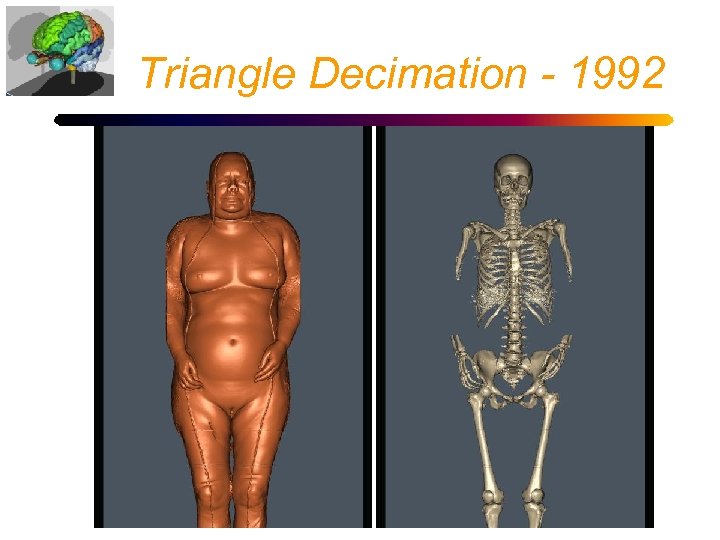

Triangle Decimation - 1992

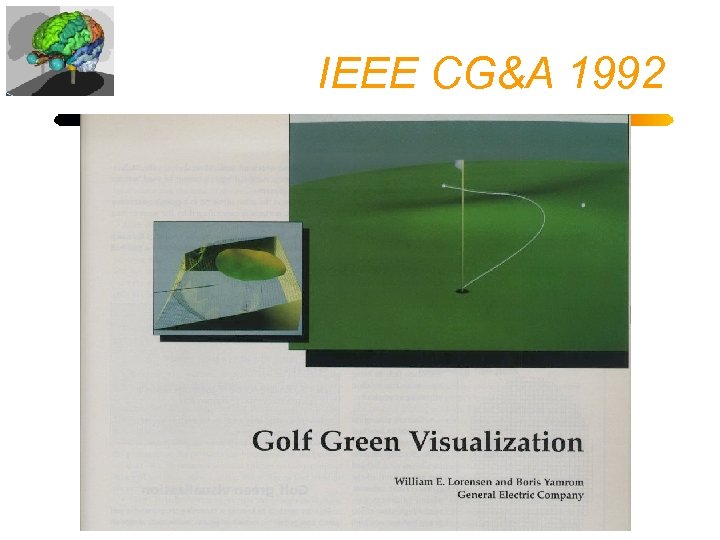

IEEE CG&A 1992

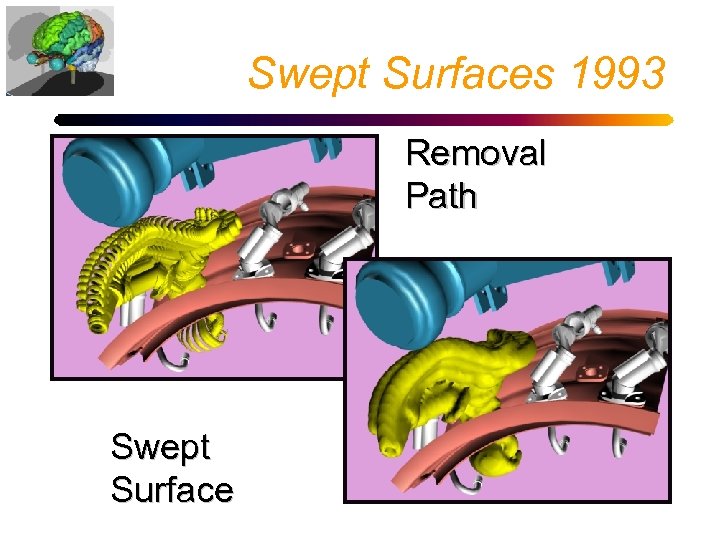

Swept Surfaces 1993 Removal Path Swept Surface

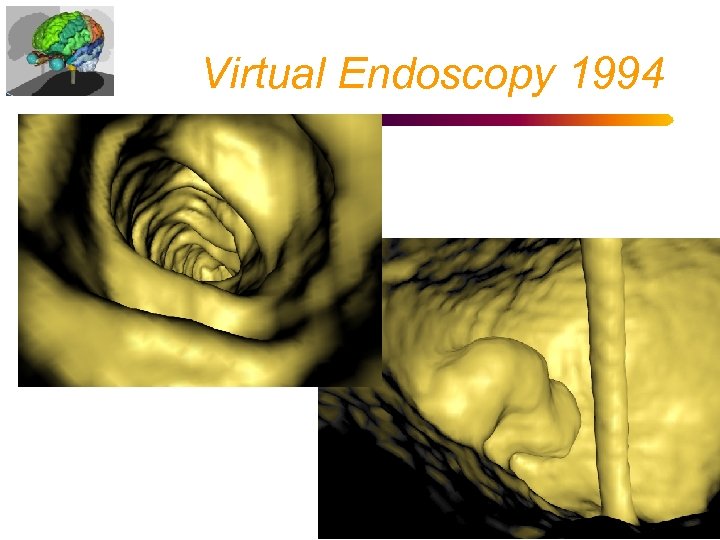

Virtual Endoscopy 1994

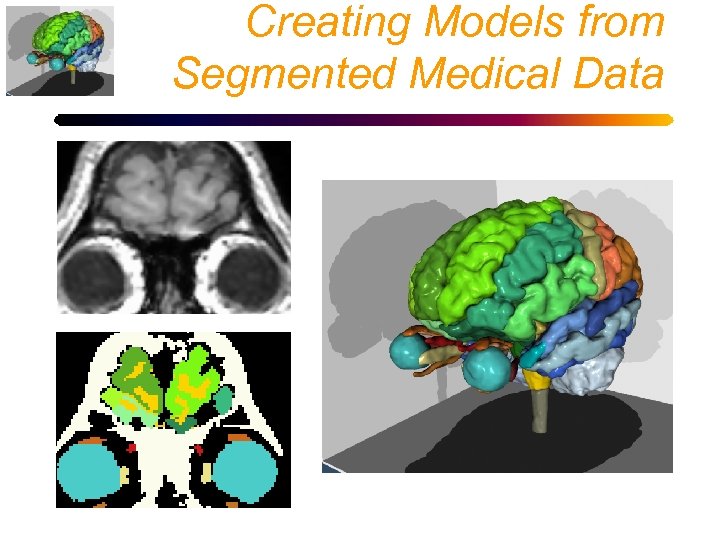

Creating Models from Segmented Medical Data

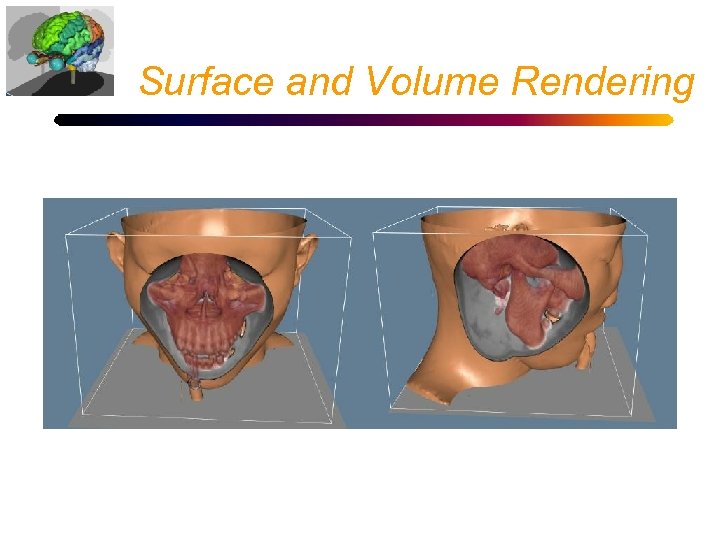

Surface and Volume Rendering

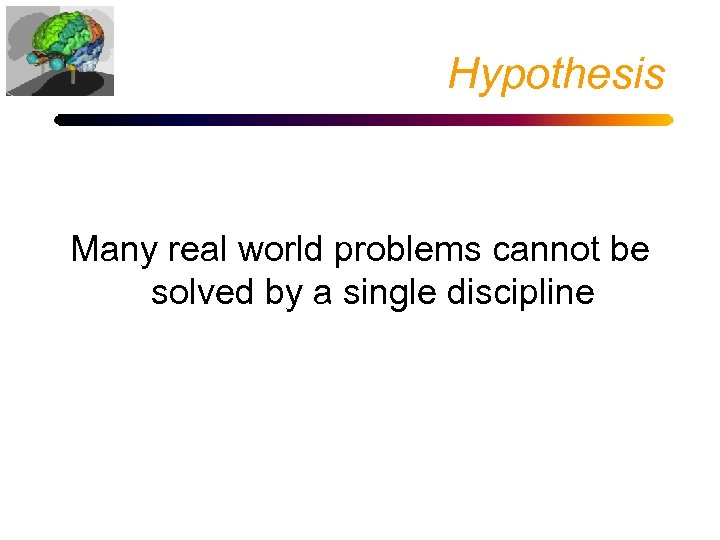

Hypothesis Many real world problems cannot be solved by a single discipline

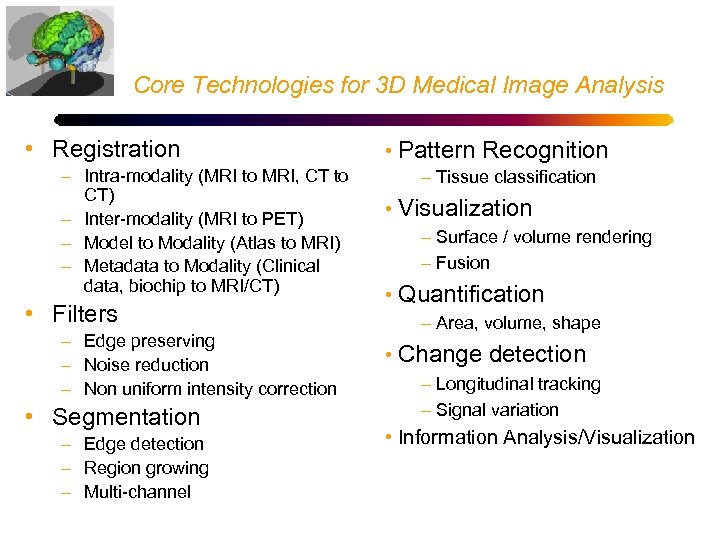

Core Technologies for 3 D Medical Image Analysis • Registration – Intra-modality (MRI to MRI, CT to CT) – Inter-modality (MRI to PET) – Model to Modality (Atlas to MRI) – Metadata to Modality (Clinical data, biochip to MRI/CT) • Filters – Edge preserving – Noise reduction – Non uniform intensity correction • Segmentation – Edge detection – Region growing – Multi-channel • Pattern Recognition – Tissue classification • Visualization – Surface / volume rendering – Fusion • Quantification – Area, volume, shape • Change detection – Longitudinal tracking – Signal variation • Information Analysis/Visualization

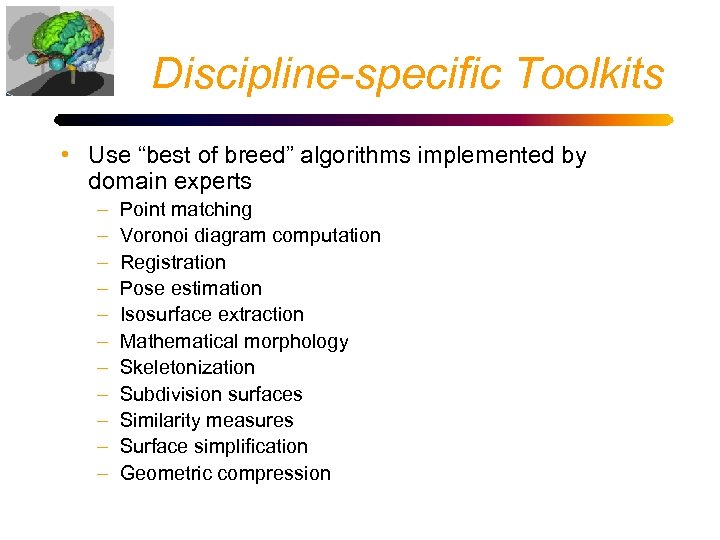

Discipline-specific Toolkits • Use “best of breed” algorithms implemented by domain experts – – – Point matching Voronoi diagram computation Registration Pose estimation Isosurface extraction Mathematical morphology Skeletonization Subdivision surfaces Similarity measures Surface simplification Geometric compression

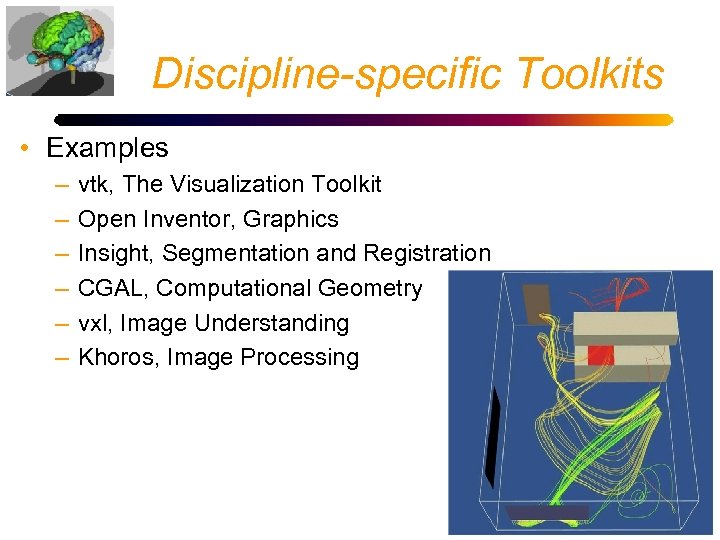

Discipline-specific Toolkits • Examples – – – vtk, The Visualization Toolkit Open Inventor, Graphics Insight, Segmentation and Registration CGAL, Computational Geometry vxl, Image Understanding Khoros, Image Processing

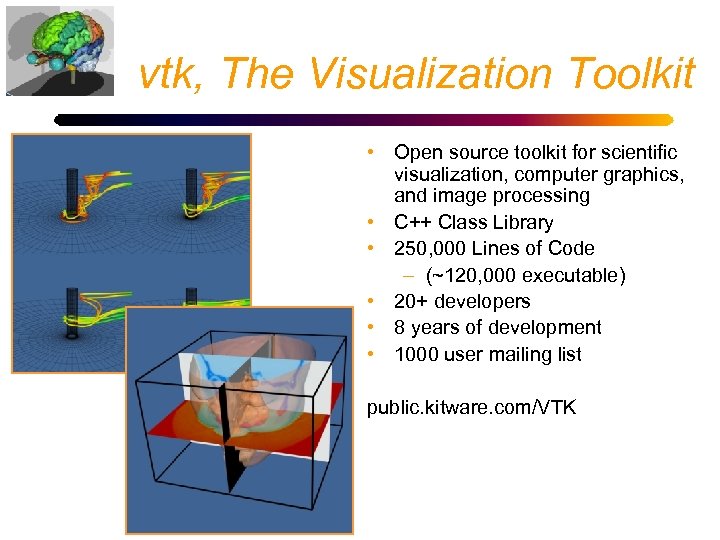

vtk, The Visualization Toolkit • Open source toolkit for scientific visualization, computer graphics, and image processing • C++ Class Library • 250, 000 Lines of Code – (~120, 000 executable) • 20+ developers • 8 years of development • 1000 user mailing list public. kitware. com/VTK

Insight Segmentation and Registration Toolkit

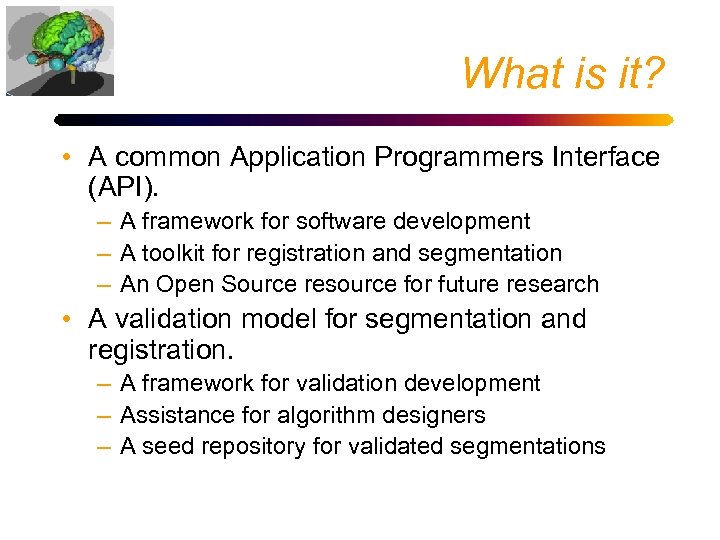

What is it? • A common Application Programmers Interface (API). – A framework for software development – A toolkit for registration and segmentation – An Open Source resource for future research • A validation model for segmentation and registration. – A framework for validation development – Assistance for algorithm designers – A seed repository for validated segmentations

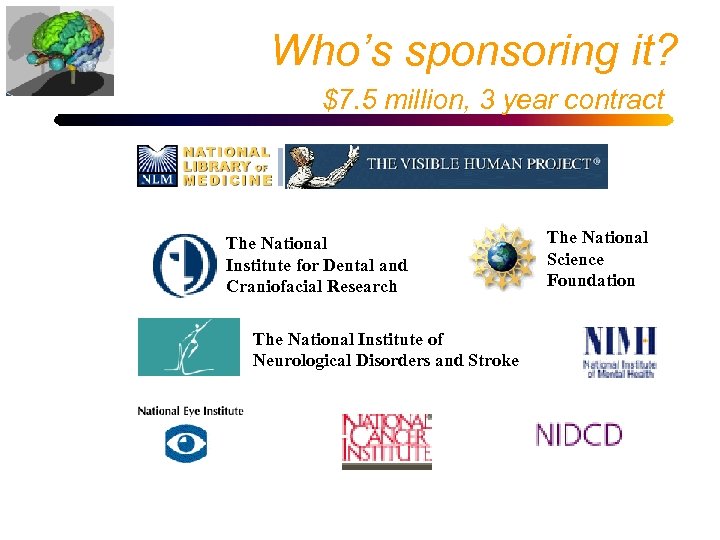

Who’s sponsoring it? $7. 5 million, 3 year contract The National Institute for Dental and Craniofacial Research The National Institute of Neurological Disorders and Stroke The National Science Foundation

Who’s creating it?

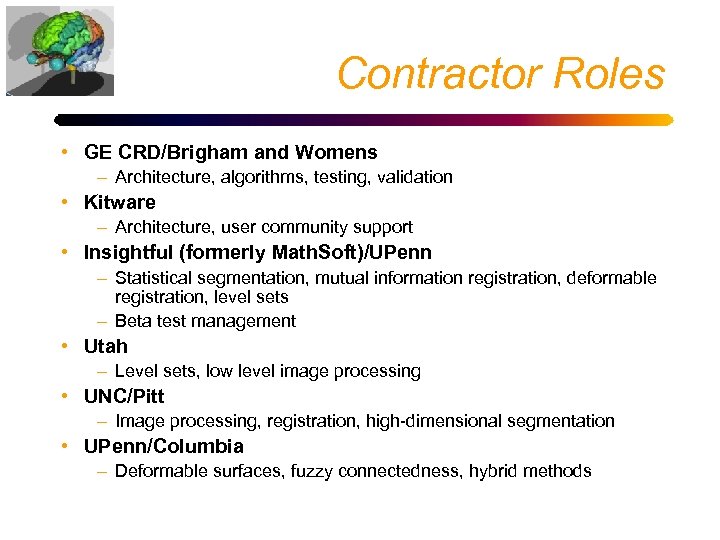

Contractor Roles • GE CRD/Brigham and Womens – Architecture, algorithms, testing, validation • Kitware – Architecture, user community support • Insightful (formerly Math. Soft)/UPenn – Statistical segmentation, mutual information registration, deformable registration, level sets – Beta test management • Utah – Level sets, low level image processing • UNC/Pitt – Image processing, registration, high-dimensional segmentation • UPenn/Columbia – Deformable surfaces, fuzzy connectedness, hybrid methods

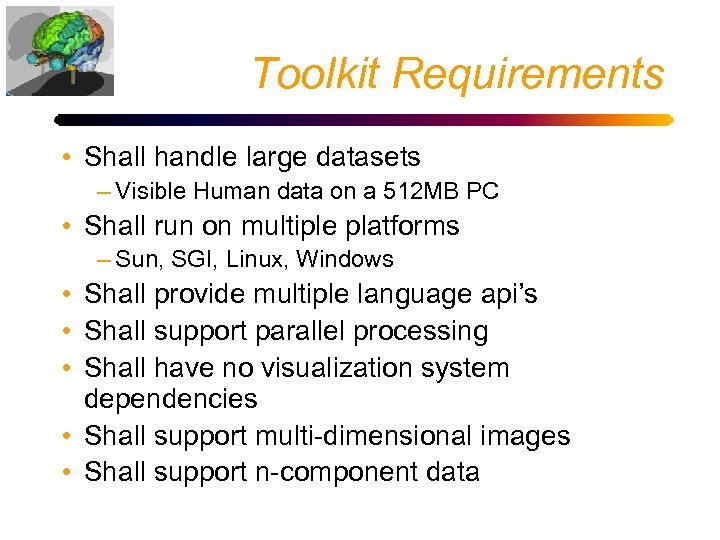

Toolkit Requirements • Shall handle large datasets – Visible Human data on a 512 MB PC • Shall run on multiple platforms – Sun, SGI, Linux, Windows • Shall provide multiple language api’s • Shall support parallel processing • Shall have no visualization system dependencies • Shall support multi-dimensional images • Shall support n-component data

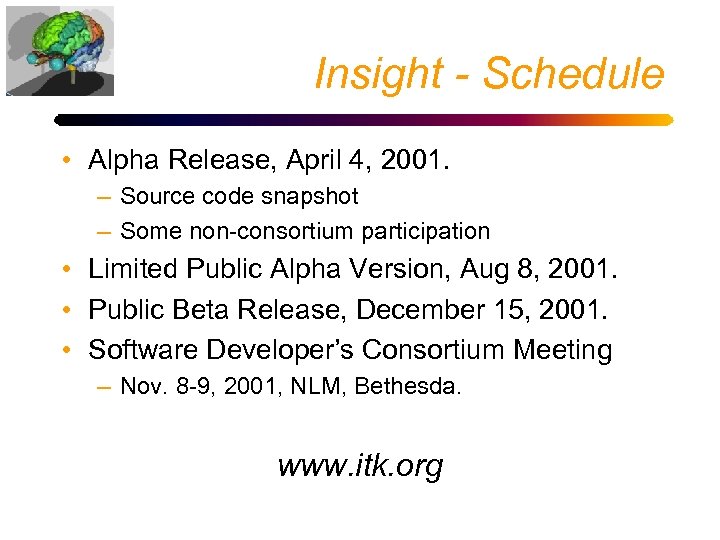

Insight - Schedule • Alpha Release, April 4, 2001. – Source code snapshot – Some non-consortium participation • Limited Public Alpha Version, Aug 8, 2001. • Public Beta Release, December 15, 2001. • Software Developer’s Consortium Meeting – Nov. 8 -9, 2001, NLM, Bethesda. www. itk. org

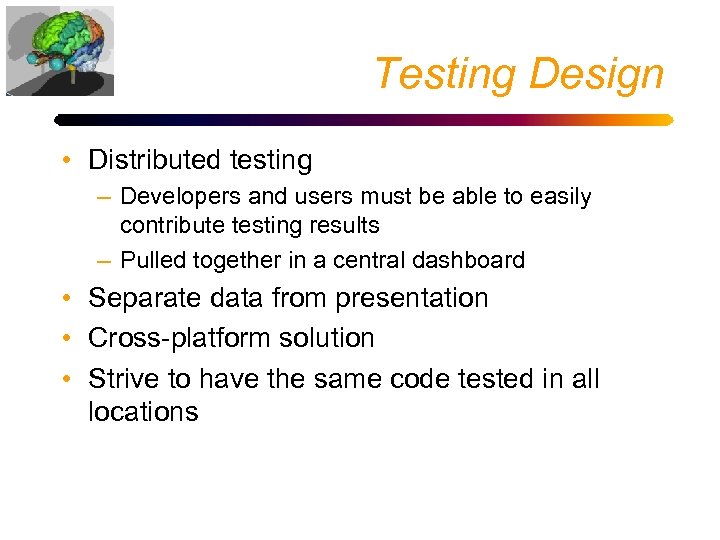

Testing Design • Distributed testing – Developers and users must be able to easily contribute testing results – Pulled together in a central dashboard • Separate data from presentation • Cross-platform solution • Strive to have the same code tested in all locations

Using vtk and Insight Registration of Volumetric Medical Data

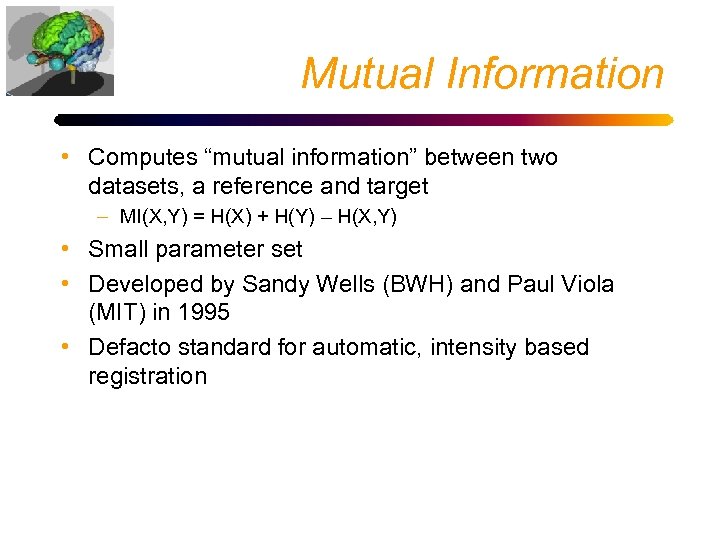

Mutual Information • Computes “mutual information” between two datasets, a reference and target – MI(X, Y) = H(X) + H(Y) – H(X, Y) • Small parameter set • Developed by Sandy Wells (BWH) and Paul Viola (MIT) in 1995 • Defacto standard for automatic, intensity based registration

Insight Mutual Information Registration • There is no MI open source implementation • The Insight Registration and Segmentation Toolkit has an implementation • GE and Brigham as Insight contractors have early access to the code • Code was developed at Math. Soft (now called Insightful) • GE was able to “guide” development with input from Sandy Wells

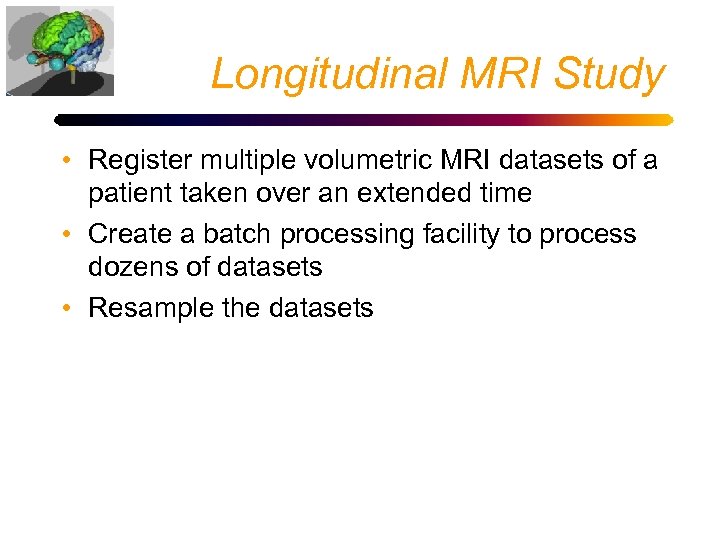

Longitudinal MRI Study • Register multiple volumetric MRI datasets of a patient taken over an extended time • Create a batch processing facility to process dozens of datasets • Resample the datasets

Approach • Validate the algorithm • Pick a set of parameters that can be used across all the studies • For each pair of datasets – Perform registration – Output a transform • View the resampled source dataset in context with the target dataset

Division of Labor Read data vtk Normalize data Export data Import Data itk MRIRegistration. cxx Register Report transform Read data vtk Reslice Display Multi. Compare. tcl

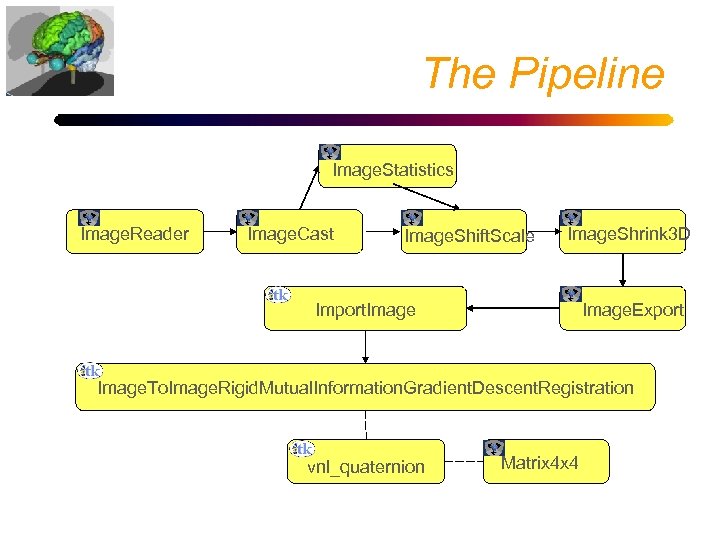

The Pipeline Image. Statistics Image. Reader Image. Cast Image. Shift. Scale Image. Shrink 3 D Image. Export Import. Image. To. Image. Rigid. Mutual. Information. Gradient. Descent. Registration vnl_quaternion Matrix 4 x 4

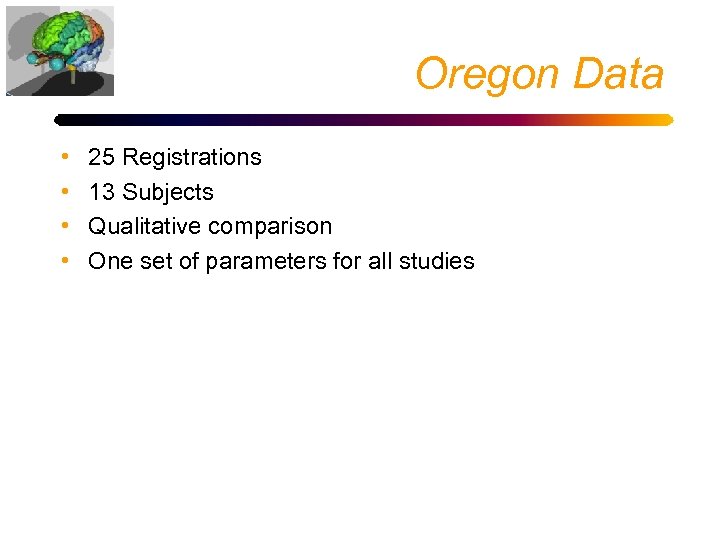

Oregon Data • • 25 Registrations 13 Subjects Qualitative comparison One set of parameters for all studies

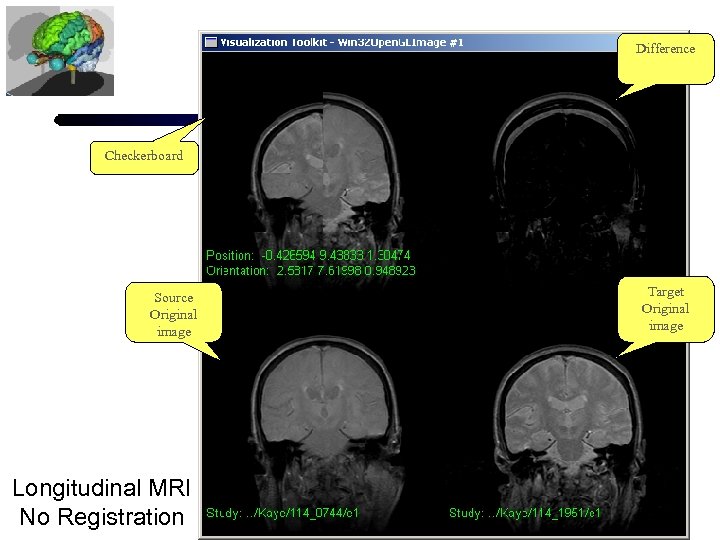

Difference Checkerboard Source Original image Longitudinal MRI No Registration Target Original image

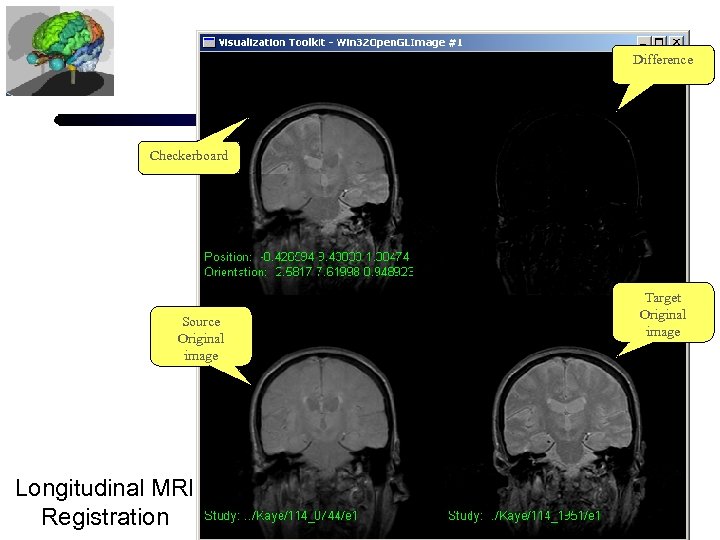

Difference Checkerboard Source Original image Longitudinal MRI Registration Target Original image

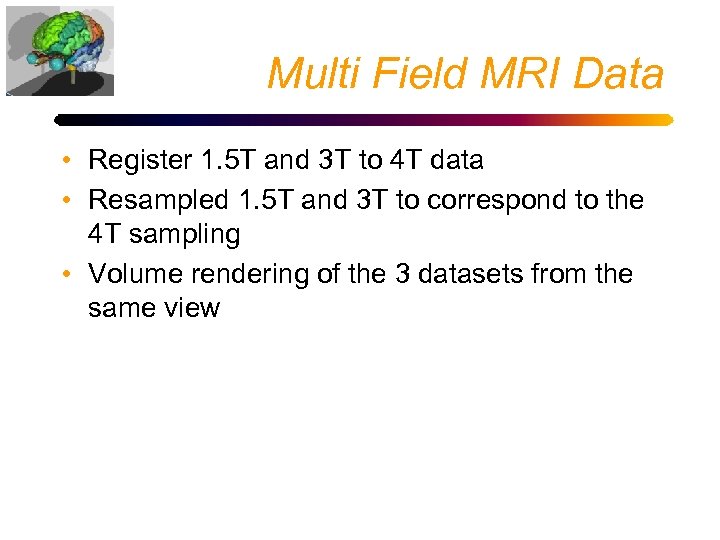

Multi Field MRI Data • Register 1. 5 T and 3 T to 4 T data • Resampled 1. 5 T and 3 T to correspond to the 4 T sampling • Volume rendering of the 3 datasets from the same view

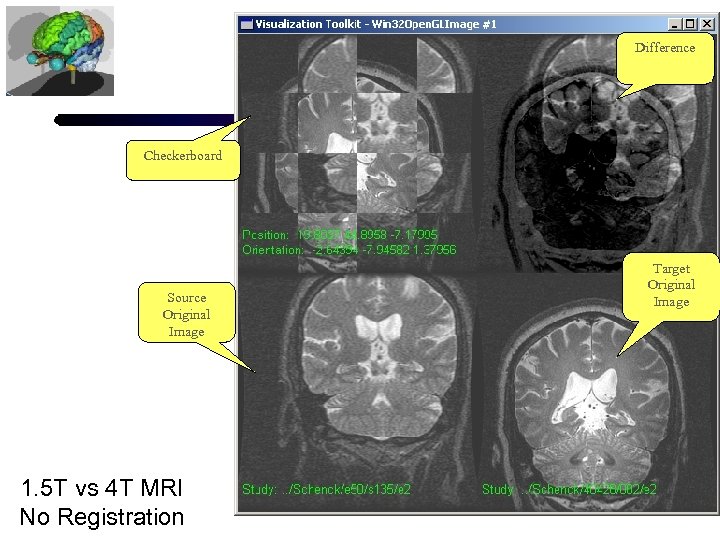

Difference Checkerboard Source Original Image 1. 5 T vs 4 T MRI No Registration Target Original Image

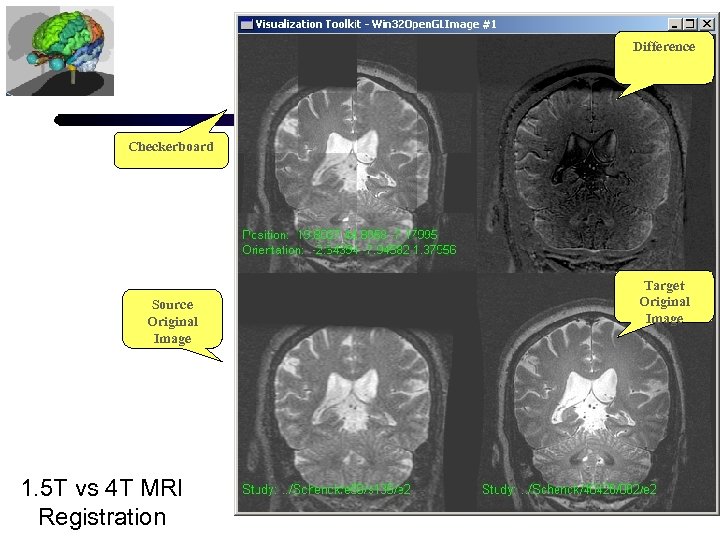

Difference Checkerboard Source Original Image 1. 5 T vs 4 T MRI Registration Target Original Image

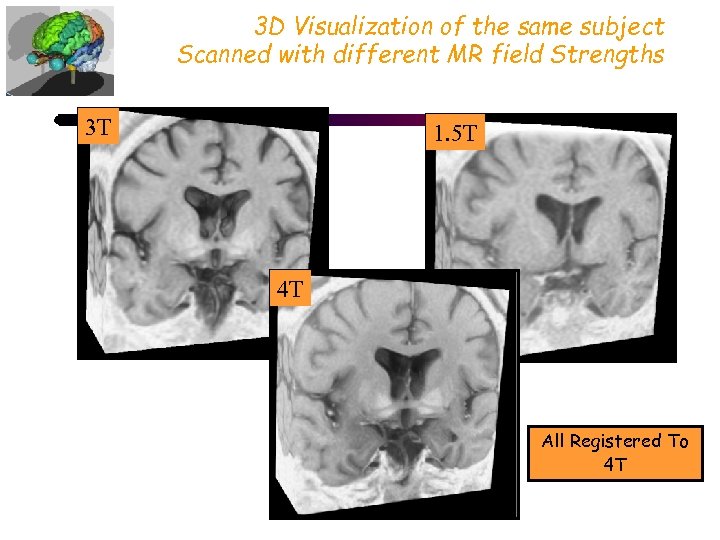

3 D Visualization of the same subject Scanned with different MR field Strengths 3 T 1. 5 T 4 T All Registered To 4 T

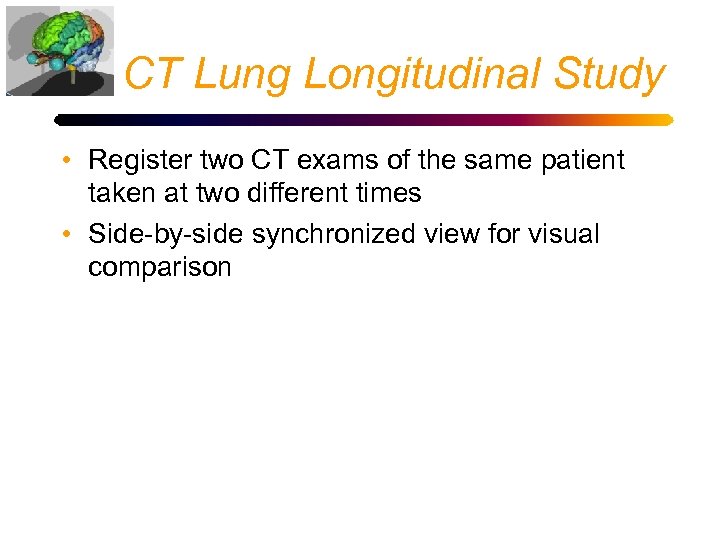

CT Lung Longitudinal Study • Register two CT exams of the same patient taken at two different times • Side-by-side synchronized view for visual comparison

Difference Checkerboard Target Original Image Source Original Image Lung CT No Registration

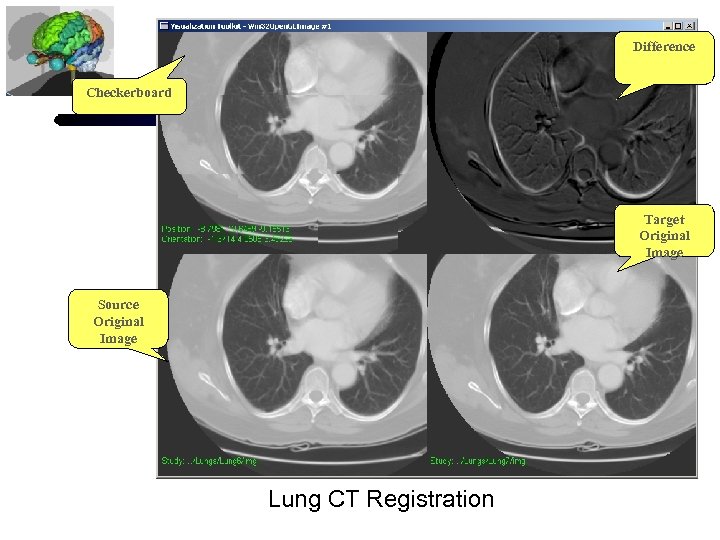

Difference Checkerboard Target Original Image Source Original Image Lung CT Registration

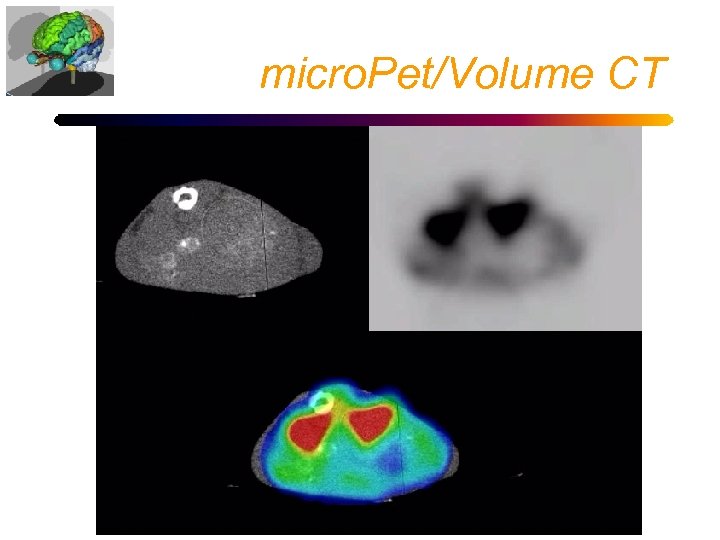

micro. Pet/Volume CT

Back to the Software

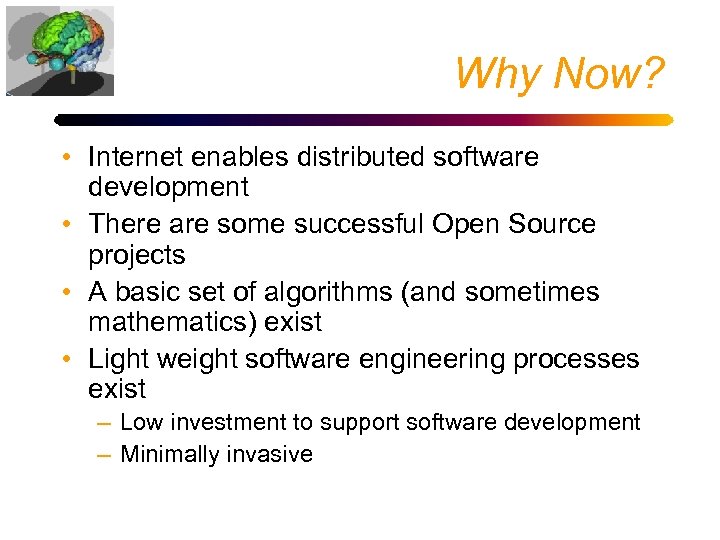

Why Now? • Internet enables distributed software development • There are some successful Open Source projects • A basic set of algorithms (and sometimes mathematics) exist • Light weight software engineering processes exist – Low investment to support software development – Minimally invasive

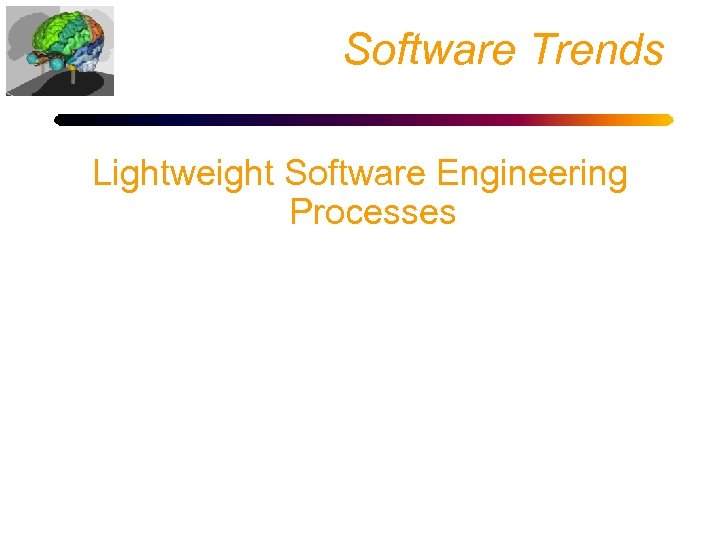

Software Trends Lightweight Software Engineering Processes

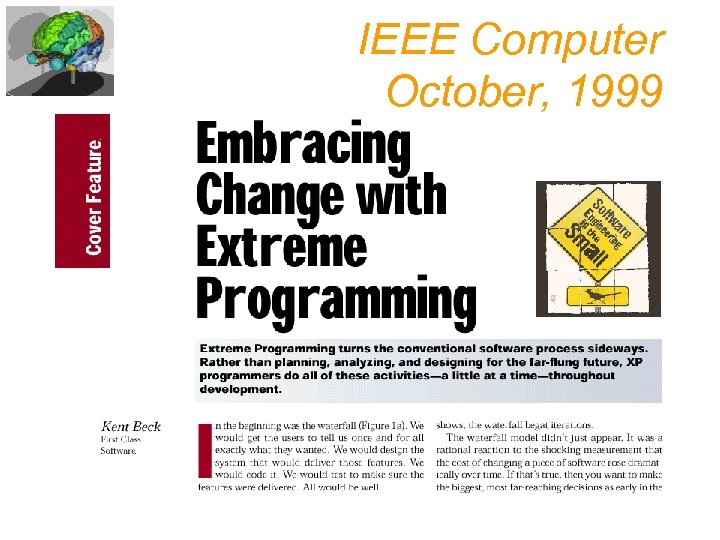

IEEE Computer October, 1999

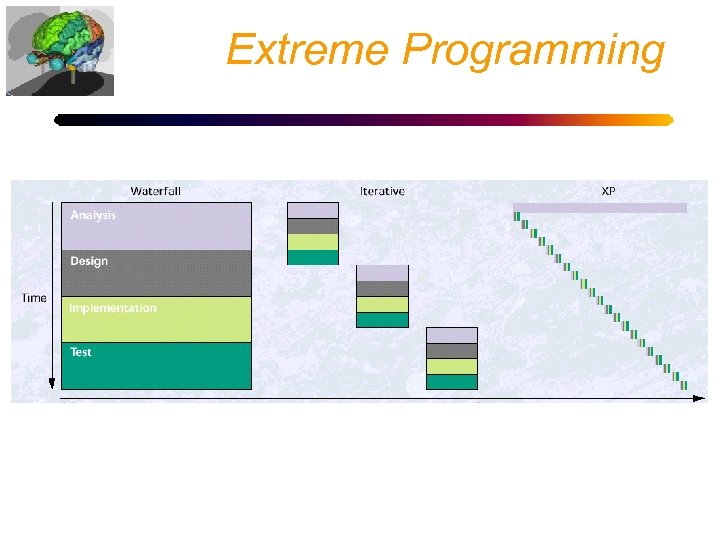

Extreme Programming

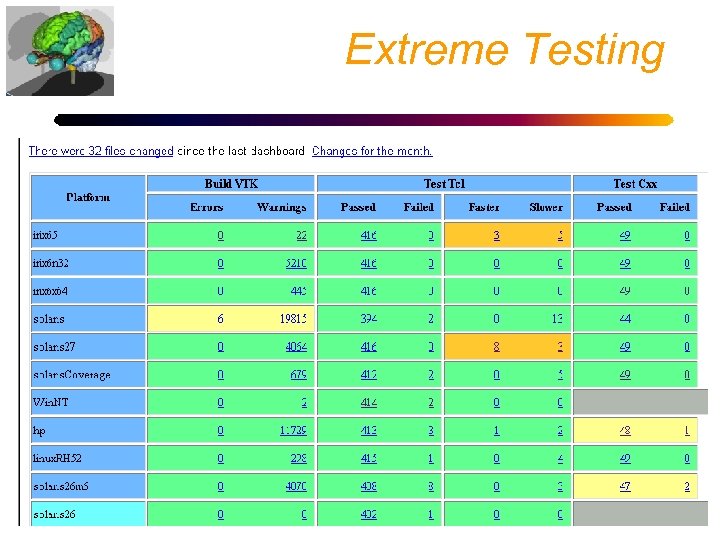

Extreme Testing

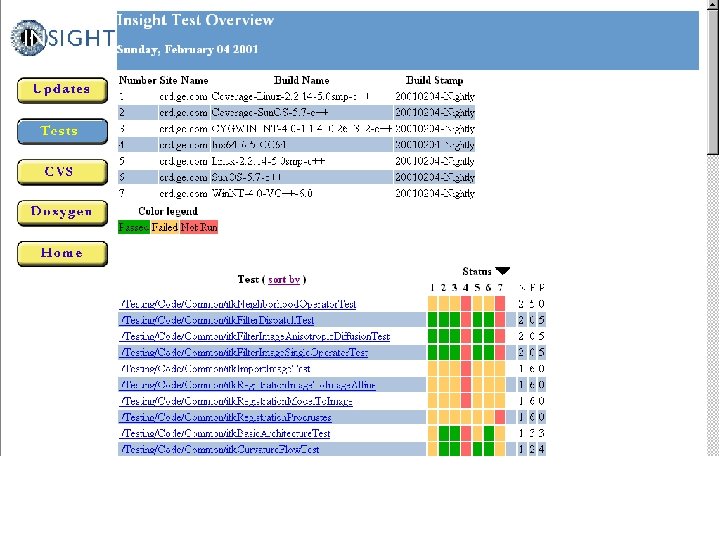

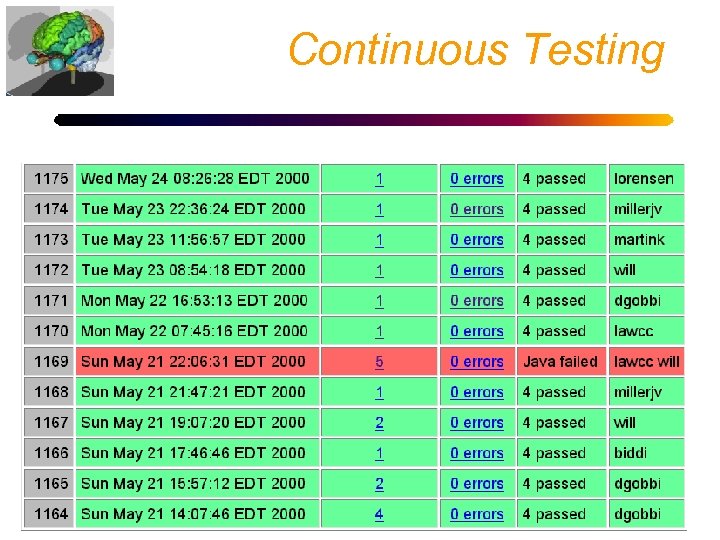

Continuous Testing

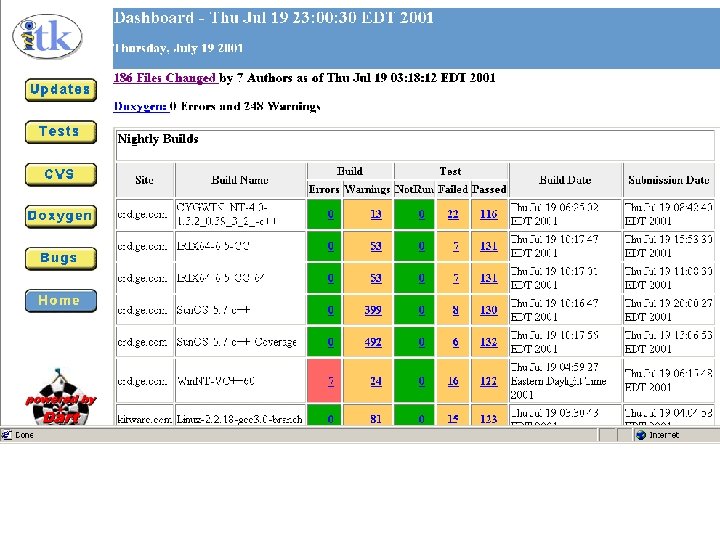

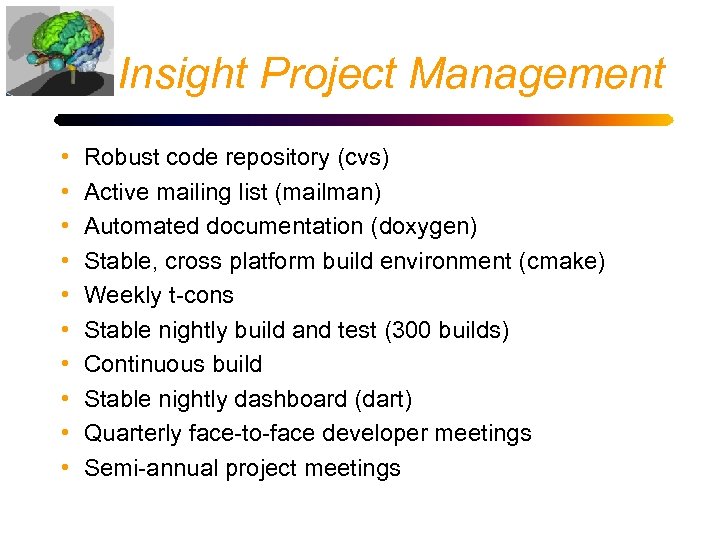

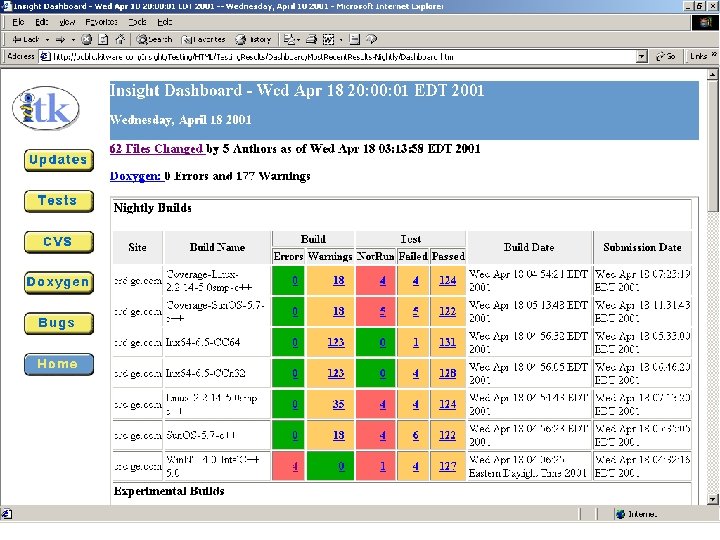

Insight Project Management • • • Robust code repository (cvs) Active mailing list (mailman) Automated documentation (doxygen) Stable, cross platform build environment (cmake) Weekly t-cons Stable nightly build and test (300 builds) Continuous build Stable nightly dashboard (dart) Quarterly face-to-face developer meetings Semi-annual project meetings

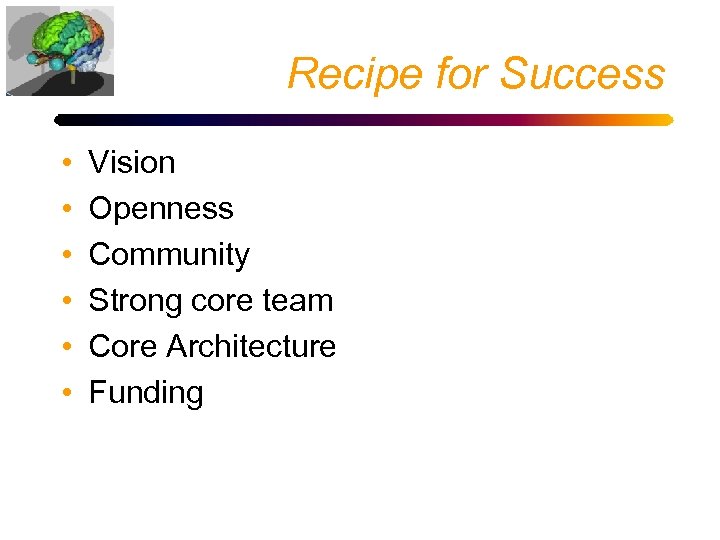

Recipe for Success • • • Vision Openness Community Strong core team Core Architecture Funding
