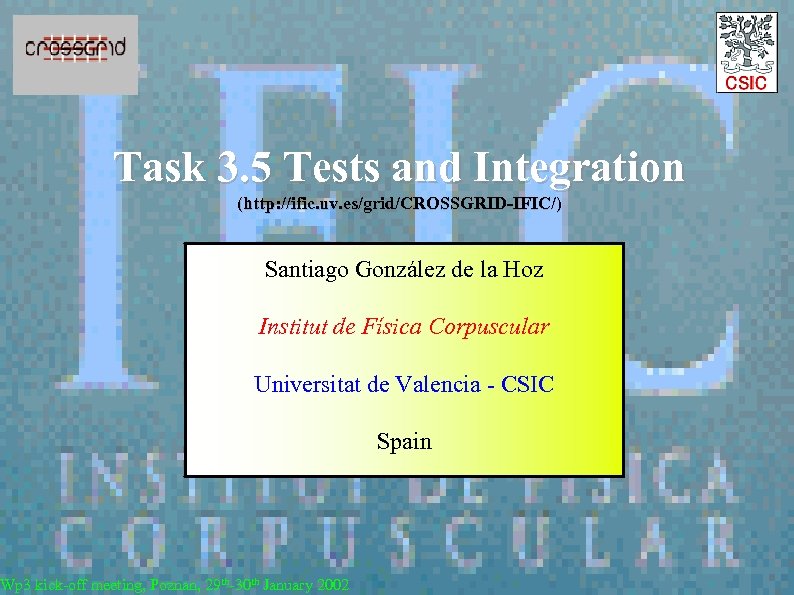

Task 3. 5 Tests and Integration (http: //ific. uv. es/grid/CROSSGRID-IFIC/) Santiago González de la Task 3. 5 Tests and Integration (http: //ific. uv. es/grid/CROSSGRID-IFIC/) Santiago González de la Hoz Institut de Física Corpuscular Universitat de Valencia - CSIC Wp 3 kick-off meeting, Poznan, 29 th-30 th January 2002 Spain

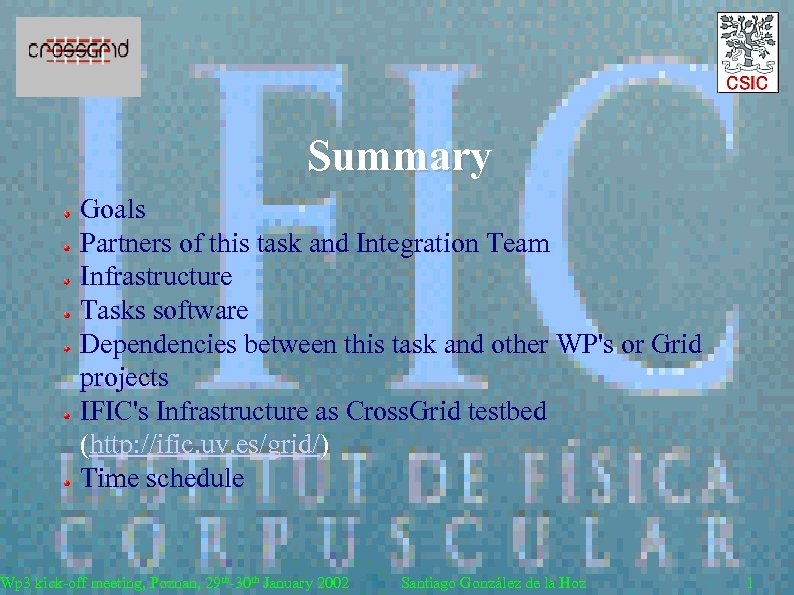

Summary Goals Partners of this task and Integration Team Infrastructure Tasks software Dependencies between Summary Goals Partners of this task and Integration Team Infrastructure Tasks software Dependencies between this task and other WP's or Grid projects IFIC's Infrastructure as Cross. Grid testbed (http: //ific. uv. es/grid/) Time schedule Wp 3 kick-off meeting, Poznan, 29 th-30 th January 2002 Santiago González de la Hoz 1

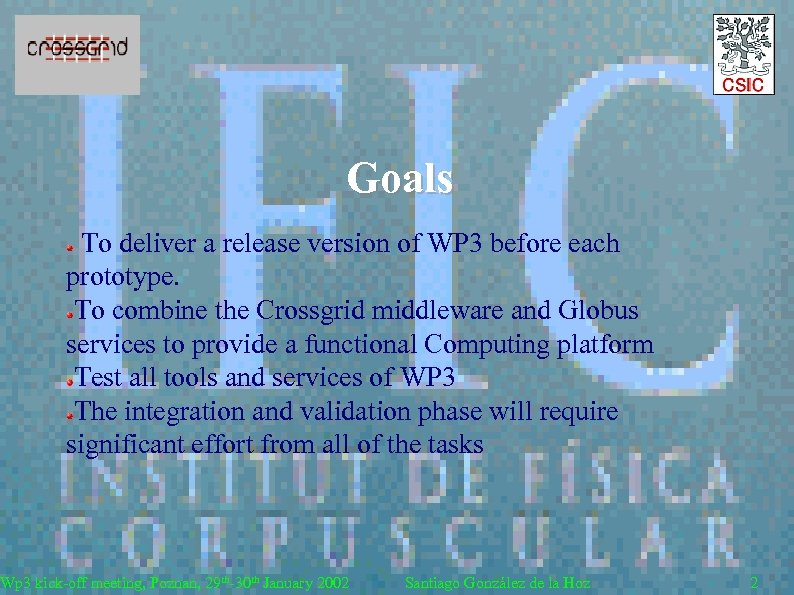

Goals To deliver a release version of WP 3 before each prototype. To combine Goals To deliver a release version of WP 3 before each prototype. To combine the Crossgrid middleware and Globus services to provide a functional Computing platform Test all tools and services of WP 3 The integration and validation phase will require significant effort from all of the tasks Wp 3 kick-off meeting, Poznan, 29 th-30 th January 2002 Santiago González de la Hoz 2

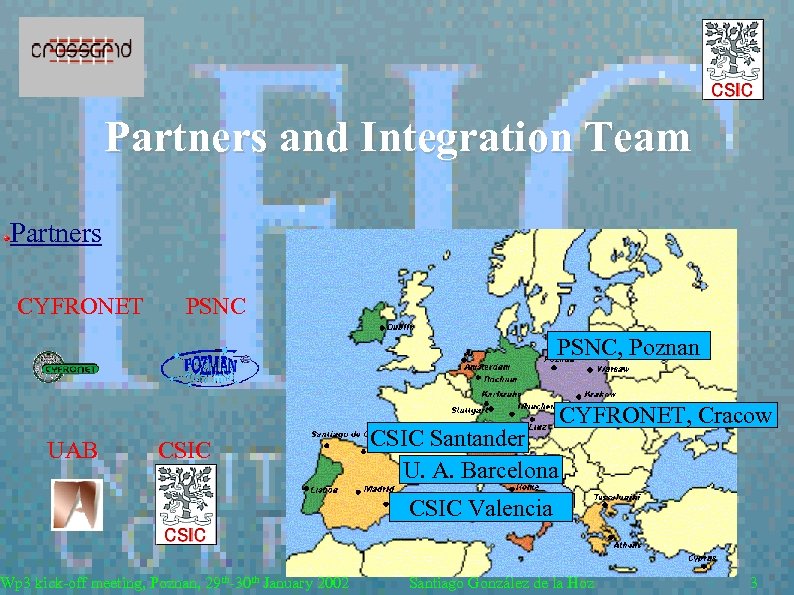

Partners and Integration Team Partners CYFRONET PSNC, Poznan UAB CSIC Wp 3 kick-off meeting, Partners and Integration Team Partners CYFRONET PSNC, Poznan UAB CSIC Wp 3 kick-off meeting, Poznan, 29 th-30 th January 2002 CSIC Santander U. A. Barcelona CYFRONET, Cracow CSIC Valencia Santiago González de la Hoz 3

Partners and Integration Team Who? Where is information available ? http: //www. . . Partners and Integration Team Who? Where is information available ? http: //www. . . When are the meetings? (For example, via VRVS) Wp 3 kick-off meeting, Poznan, 29 th-30 th January 2002 Miroslaw Kupczyk 3. 1 Miquel A. Senar 3. 2 Brian A. Coghlan 3. 3 Jacek Kitowski 3. 4 S. González 3. 5 ? ? Santiago González de la Hoz 4

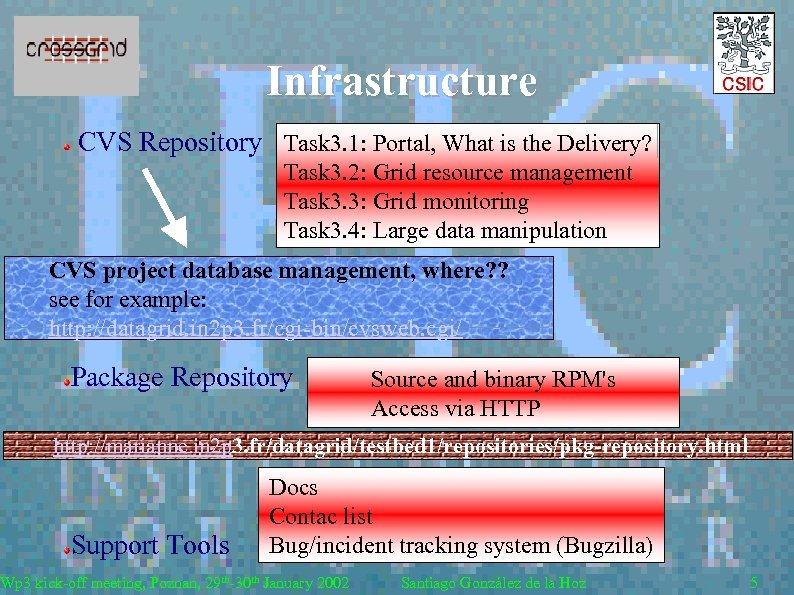

Infrastructure CVS Repository Task 3. 1: Portal, What is the Delivery? Task 3. 2: Infrastructure CVS Repository Task 3. 1: Portal, What is the Delivery? Task 3. 2: Grid resource management Task 3. 3: Grid monitoring Task 3. 4: Large data manipulation CVS project database management, where? ? see for example: http: //datagrid. in 2 p 3. fr/cgi-bin/cvsweb. cgi/ Package Repository Source and binary RPM's Access via HTTP http: //marianne. in 2 p 3. fr/datagrid/testbed 1/repositories/pkg-repository. html Support Tools Docs Contac list Bug/incident tracking system (Bugzilla) Wp 3 kick-off meeting, Poznan, 29 th-30 th January 2002 Santiago González de la Hoz 5

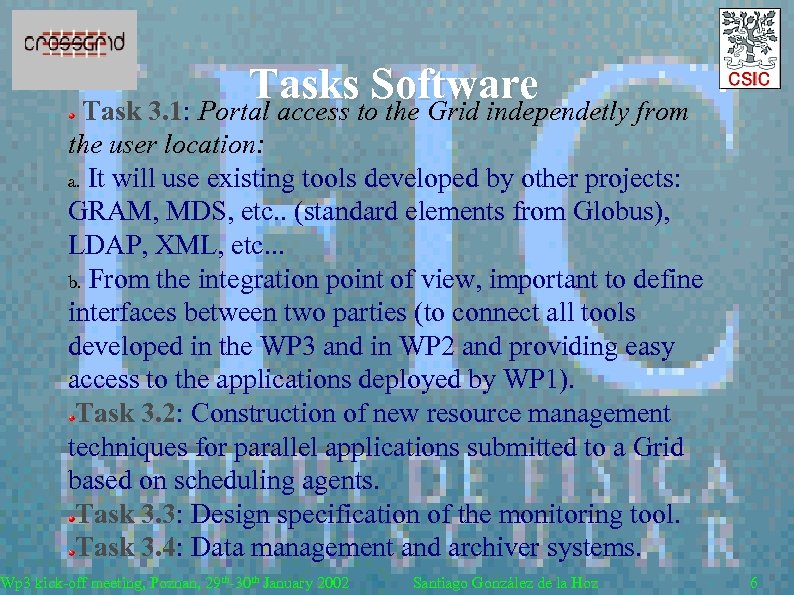

Tasksto. Software Task 3. 1: Portal access the Grid independetly from the user location: Tasksto. Software Task 3. 1: Portal access the Grid independetly from the user location: a. It will use existing tools developed by other projects: GRAM, MDS, etc. . (standard elements from Globus), LDAP, XML, etc. . . b. From the integration point of view, important to define interfaces between two parties (to connect all tools developed in the WP 3 and in WP 2 and providing easy access to the applications deployed by WP 1). Task 3. 2: Construction of new resource management techniques for parallel applications submitted to a Grid based on scheduling agents. Task 3. 3: Design specification of the monitoring tool. Task 3. 4: Data management and archiver systems. Wp 3 kick-off meeting, Poznan, 29 th-30 th January 2002 Santiago González de la Hoz 6

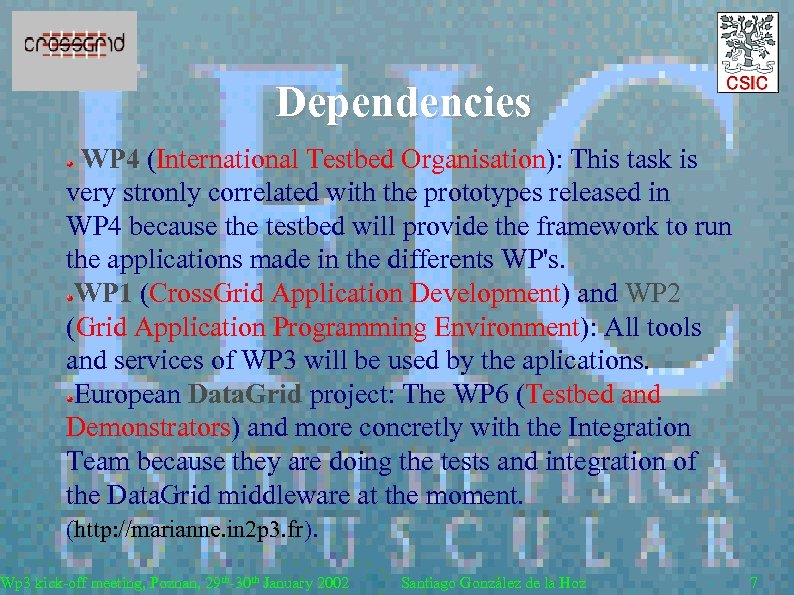

Dependencies WP 4 (International Testbed Organisation): This task is very stronly correlated with the Dependencies WP 4 (International Testbed Organisation): This task is very stronly correlated with the prototypes released in WP 4 because the testbed will provide the framework to run the applications made in the differents WP's. WP 1 (Cross. Grid Application Development) and WP 2 (Grid Application Programming Environment): All tools and services of WP 3 will be used by the aplications. European Data. Grid project: The WP 6 (Testbed and Demonstrators) and more concretly with the Integration Team because they are doing the tests and integration of the Data. Grid middleware at the moment. (http: //marianne. in 2 p 3. fr). Wp 3 kick-off meeting, Poznan, 29 th-30 th January 2002 Santiago González de la Hoz 7

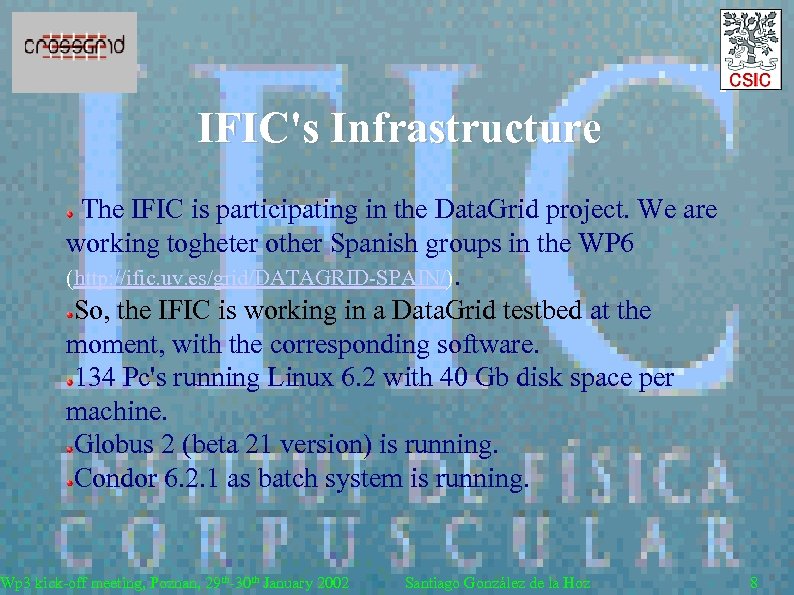

IFIC's Infrastructure The IFIC is participating in the Data. Grid project. We are working IFIC's Infrastructure The IFIC is participating in the Data. Grid project. We are working togheter other Spanish groups in the WP 6 (http: //ific. uv. es/grid/DATAGRID-SPAIN/). So, the IFIC is working in a Data. Grid testbed at the moment, with the corresponding software. 134 Pc's running Linux 6. 2 with 40 Gb disk space per machine. Globus 2 (beta 21 version) is running. Condor 6. 2. 1 as batch system is running. Wp 3 kick-off meeting, Poznan, 29 th-30 th January 2002 Santiago González de la Hoz 8

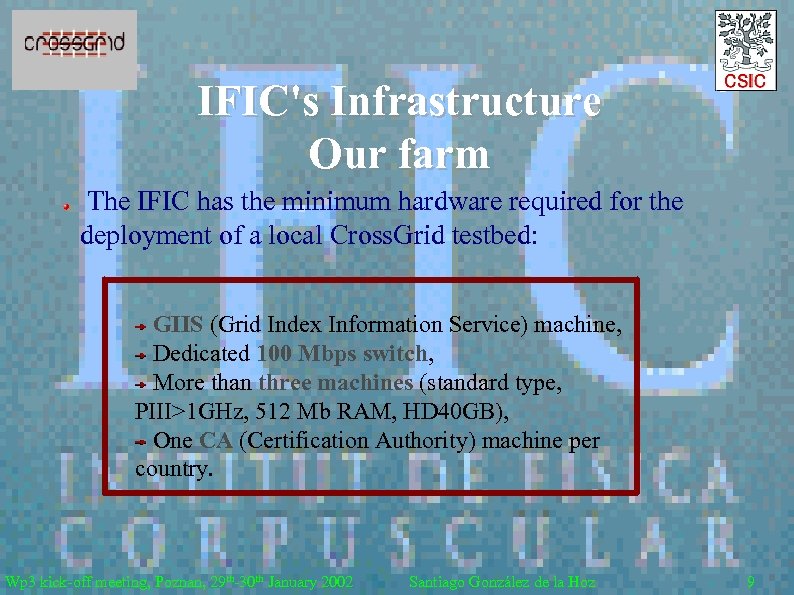

IFIC's Infrastructure Our farm The IFIC has the minimum hardware required for the deployment IFIC's Infrastructure Our farm The IFIC has the minimum hardware required for the deployment of a local Cross. Grid testbed: GIIS (Grid Index Information Service) machine, Dedicated 100 Mbps switch, More than three machines (standard type, PIII>1 GHz, 512 Mb RAM, HD 40 GB), One CA (Certification Authority) machine per country. Wp 3 kick-off meeting, Poznan, 29 th-30 th January 2002 Santiago González de la Hoz 9

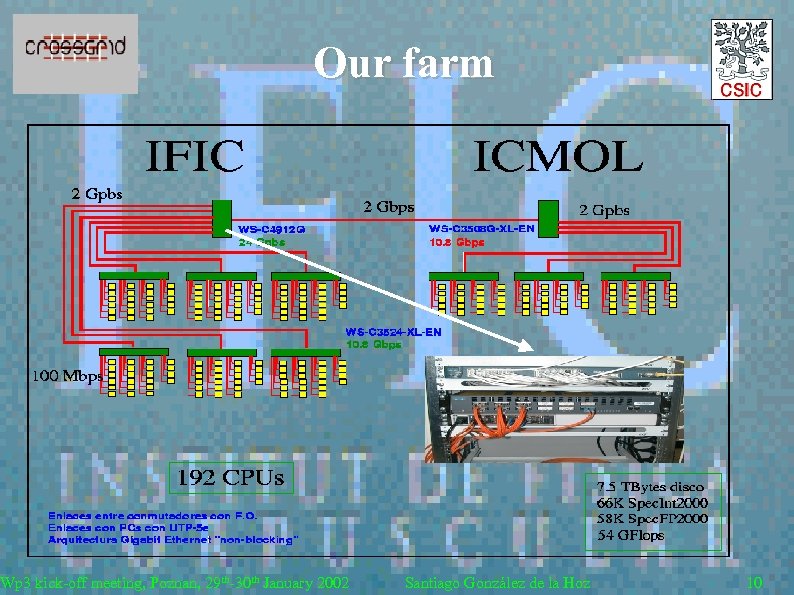

Our farm Wp 3 kick-off meeting, Poznan, 29 th-30 th January 2002 Santiago González Our farm Wp 3 kick-off meeting, Poznan, 29 th-30 th January 2002 Santiago González de la Hoz 10

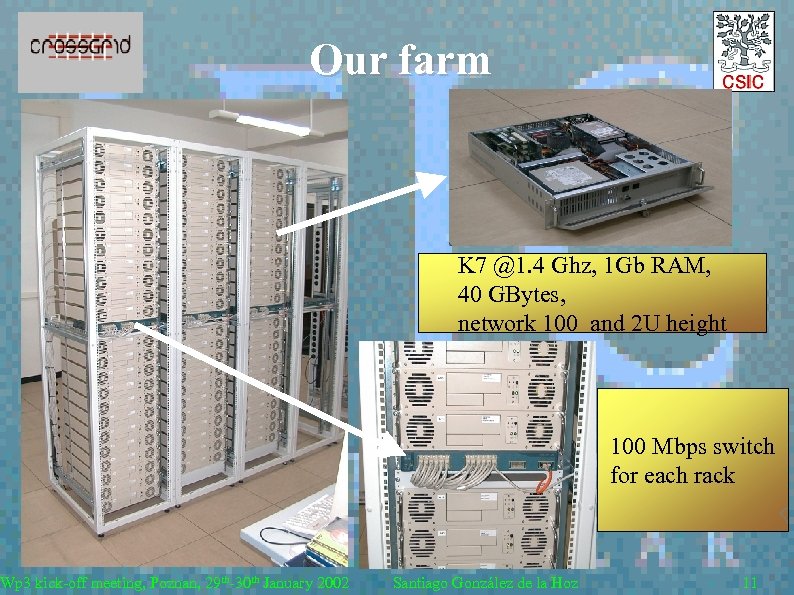

Our farm Wp 3 kick-off meeting, Poznan, 29 th-30 th January 2002 K 7 Our farm Wp 3 kick-off meeting, Poznan, 29 th-30 th January 2002 K 7 @1. 4 Ghz, 1 Gb RAM, 40 GBytes, network 100 and 2 U height 100 Mbps switch for each rack Santiago González de la Hoz 11

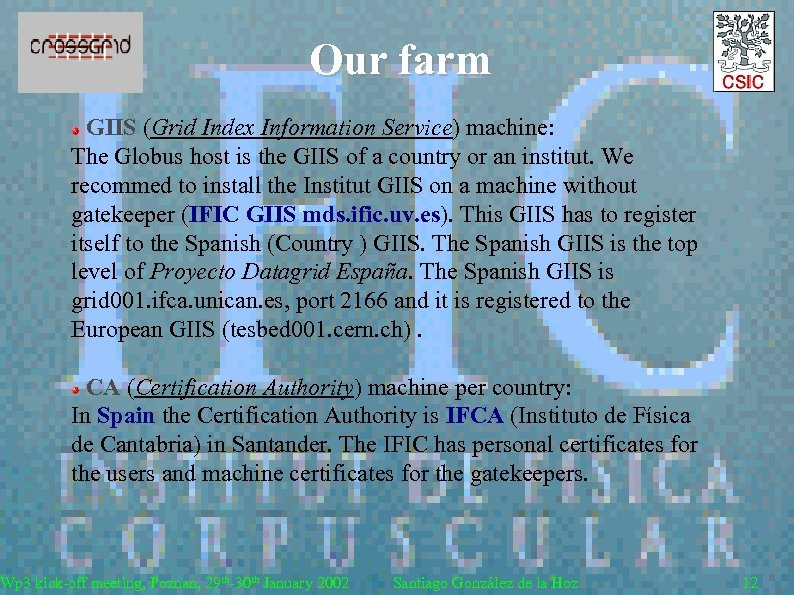

Our farm GIIS (Grid Index Information Service) machine: The Globus host is the GIIS Our farm GIIS (Grid Index Information Service) machine: The Globus host is the GIIS of a country or an institut. We recommed to install the Institut GIIS on a machine without gatekeeper (IFIC GIIS mds. ific. uv. es). This GIIS has to register itself to the Spanish (Country ) GIIS. The Spanish GIIS is the top level of Proyecto Datagrid España. The Spanish GIIS is grid 001. ifca. unican. es, port 2166 and it is registered to the European GIIS (tesbed 001. cern. ch). CA (Certification Authority) machine per country: In Spain the Certification Authority is IFCA (Instituto de Física de Cantabria) in Santander. The IFIC has personal certificates for the users and machine certificates for the gatekeepers. Wp 3 kick-off meeting, Poznan, 29 th-30 th January 2002 Santiago González de la Hoz 12

Time Schedule Milestones: 1 Month 3: To define The integration team and the CVS Time Schedule Milestones: 1 Month 3: To define The integration team and the CVS database. 1 Month 6: Co-ordination established with other WP and projects (WP 4 Testbed Organisation). 1 Month 10 -12: First delivery version of WP 3 prototype running in distributed local mode (First tests of the alpha software versions). 1 Month 18: Component integrations on local grid (monitors, managers, applications and tests of the beta versions). 1 Month 24: Integration on the International Cross. Grid Testbed 1 Month 33: Final deployment in Cross. Grid. Wp 3 kick-off meeting, Poznan, 29 th-30 th January 2002 Santiago González de la Hoz 13

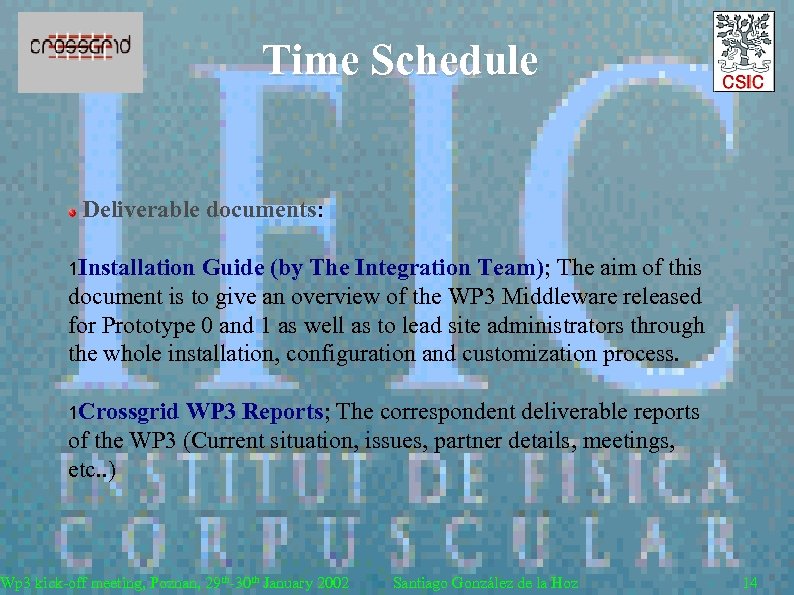

Time Schedule Deliverable documents: 1 Installation Guide (by The Integration Team); The aim of Time Schedule Deliverable documents: 1 Installation Guide (by The Integration Team); The aim of this document is to give an overview of the WP 3 Middleware released for Prototype 0 and 1 as well as to lead site administrators through the whole installation, configuration and customization process. 1 Crossgrid WP 3 Reports; The correspondent deliverable reports of the WP 3 (Current situation, issues, partner details, meetings, etc. . ) Wp 3 kick-off meeting, Poznan, 29 th-30 th January 2002 Santiago González de la Hoz 14
