TAPELESS Internet, Intranet TV On Air Automation Solution From Virtual Set to the Streaming Server!

DARIM 2006 BROADCAST Technical Seminar I. Video Capture & Streaming II. Studio Automation Video Server III. Virtual Set and VR Presenter

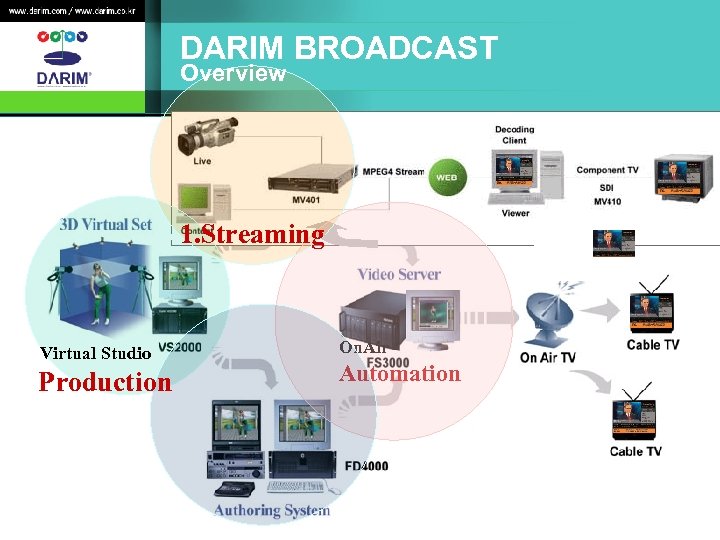

DARIM BROADCAST Overview 1. Streaming Virtual Studio Production On. Air Automation

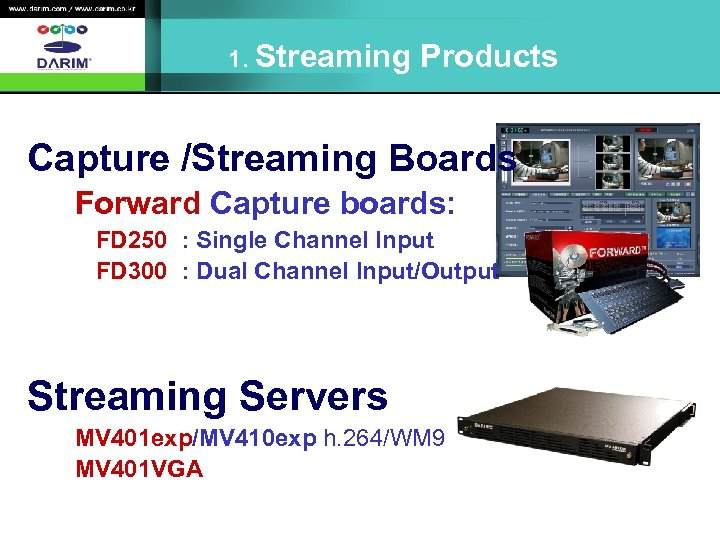

1. Streaming Products Capture /Streaming Boards Forward Capture boards: FD 250 : Single Channel Input FD 300 : Dual Channel Input/Output Streaming Servers MV 401 exp/MV 410 exp h. 264/WM 9 MV 401 VGA

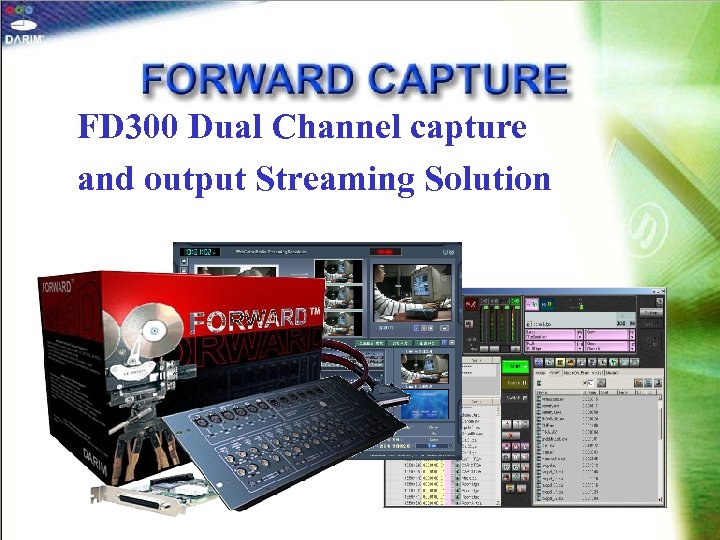

FD 300 Dual Channel capture and output Streaming Solution

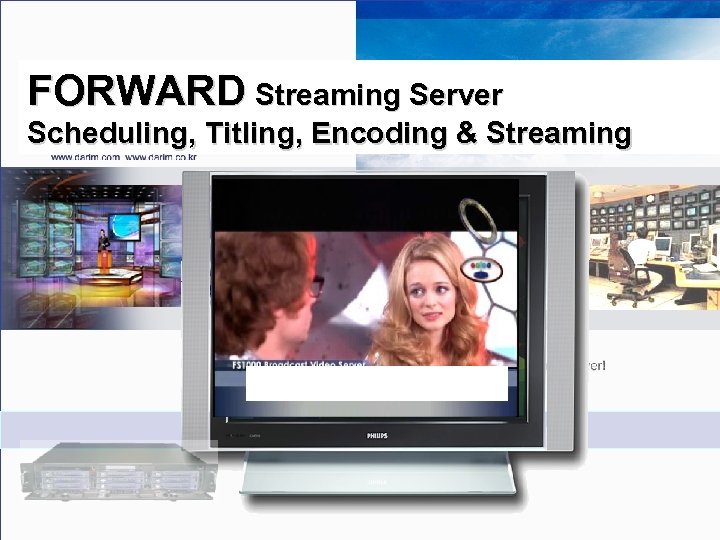

FORWARD Streaming Server Scheduling, Titling, Encoding & Streaming

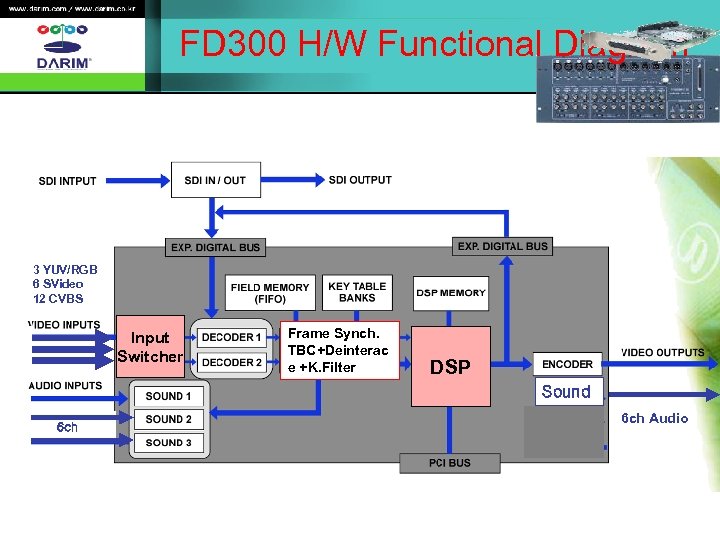

FD 300 H/W Functional Diagram 3 YUV/RGB 6 SVideo 12 CVBS Input Switcher Frame Synch. TBC+Deinterac e +K. Filter DSP Sound 6 ch Audio

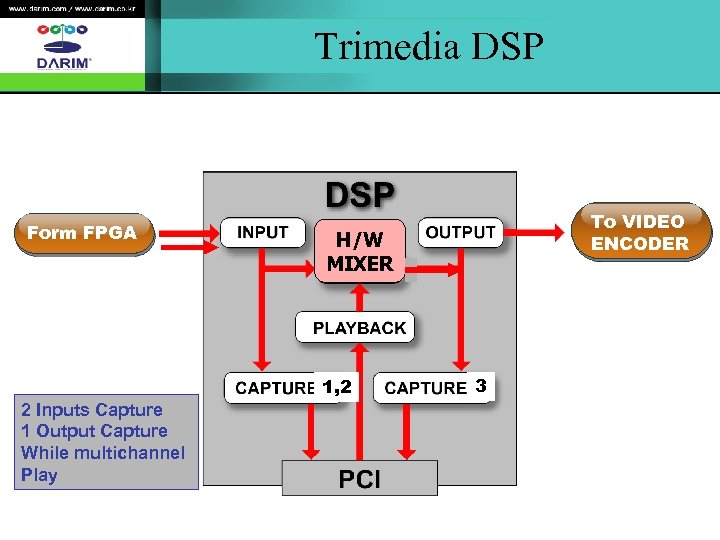

Trimedia DSP Form FPGA H/W MIXER 1, 2 2 Inputs Capture 1 Output Capture While multichannel Play To VIDEO ENCODER 3

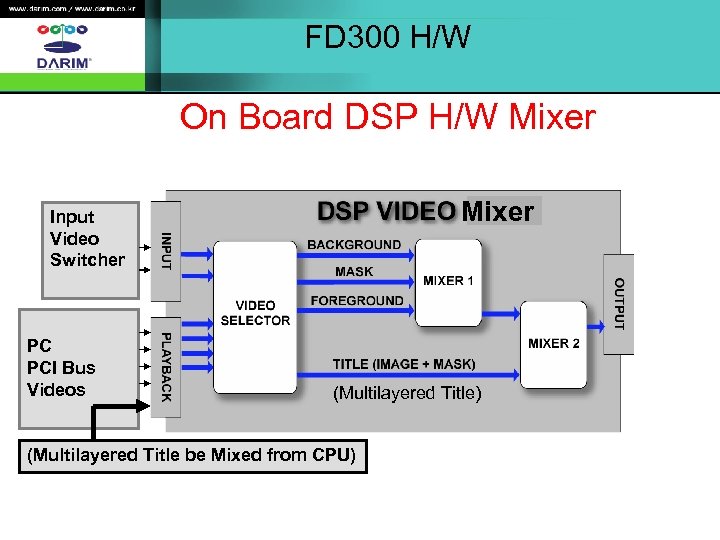

FD 300 H/W On Board DSP H/W Mixer Input Video Switcher PC PCI Bus Videos (Multilayered Title) (Multilayered Title be Mixed from CPU)

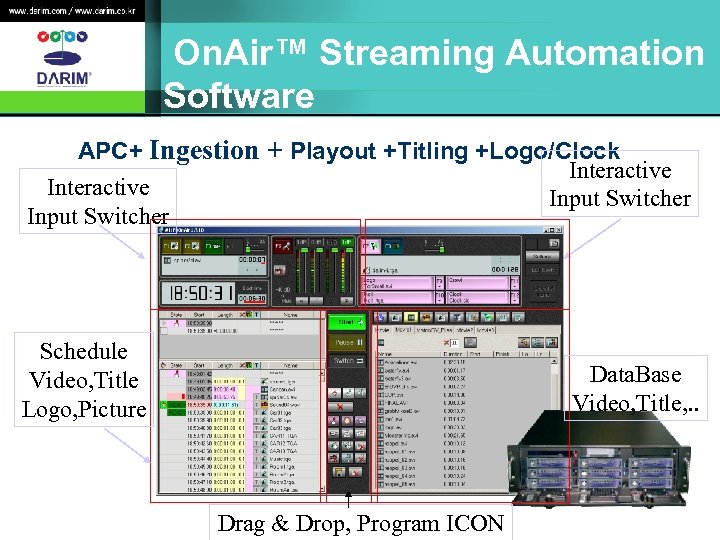

On. Air™ Streaming Automation Software APC+ Ingestion + Playout +Titling +Logo/Clock Interactive Input Switcher Schedule Video, Title Logo, Picture Data. Base Video, Title, . . Drag & Drop, Program ICON

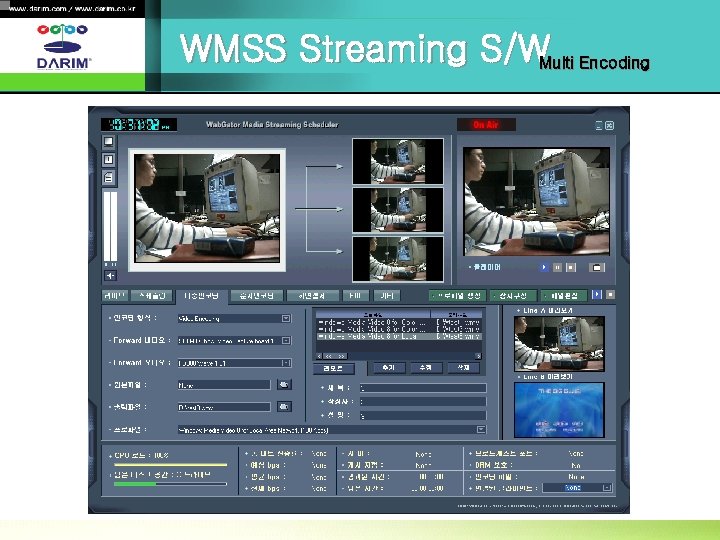

WMSS Streaming S/W Encoding Multi

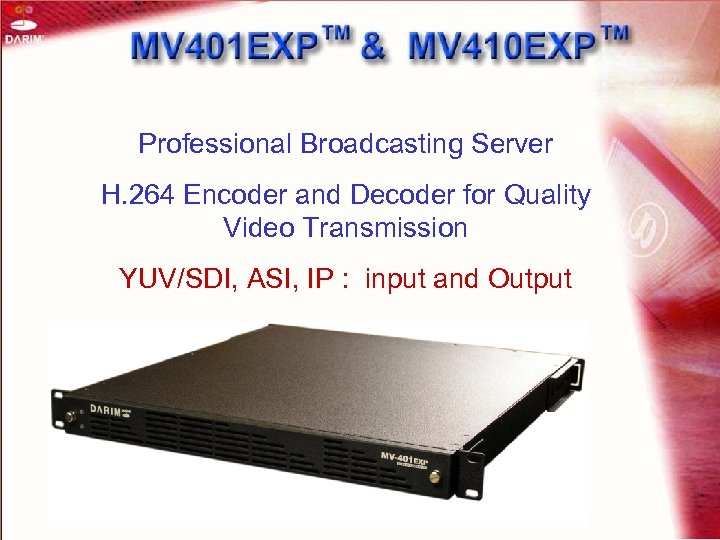

Professional Broadcasting Server H. 264 Encoder and Decoder for Quality Video Transmission YUV/SDI, ASI, IP : input and Output

Adaptive video noise reduction filter and de-interlacing hardware h. 264 Baseline or Main profile at CIF, Half D 1 or Full D resolutions 300 – 3000 kbps selectable bitrate CBR or VBR MPEG 1/AAC audio encoding MPEG 2 Transport stream multiplexing UDP/RTP multicast/unicast streaming Remote Operation/configuration IPMI status monitoring

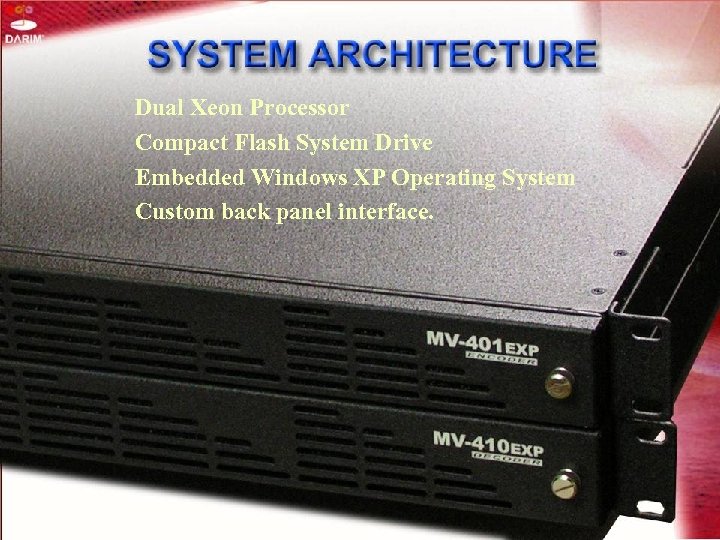

Dual Xeon Processor Compact Flash System Drive Embedded Windows XP Operating System Custom back panel interface.

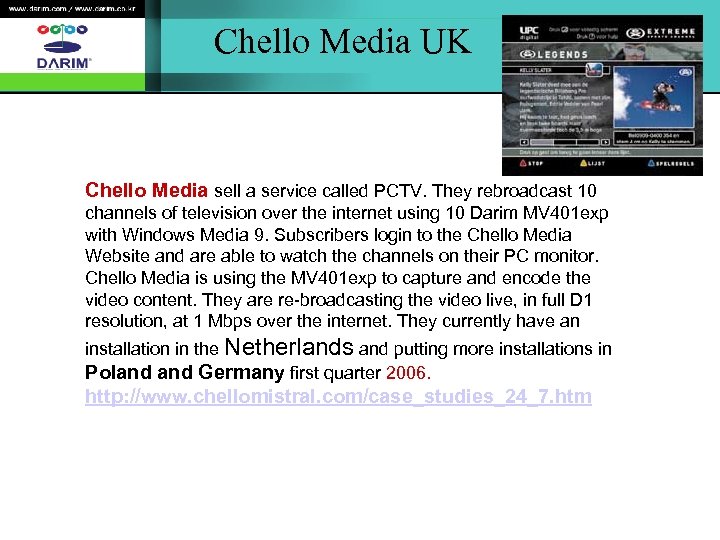

Chello Media UK Chello Media sell a service called PCTV. They rebroadcast 10 channels of television over the internet using 10 Darim MV 401 exp with Windows Media 9. Subscribers login to the Chello Media Website and are able to watch the channels on their PC monitor. Chello Media is using the MV 401 exp to capture and encode the video content. They are re-broadcasting the video live, in full D 1 resolution, at 1 Mbps over the internet. They currently have an installation in the Netherlands and putting more installations in Poland Germany first quarter 2006. http: //www. chellomistral. com/case_studies_24_7. htm

TORINO Italy • Italia Television Is using Video streaming using MV 401 exp from Torino

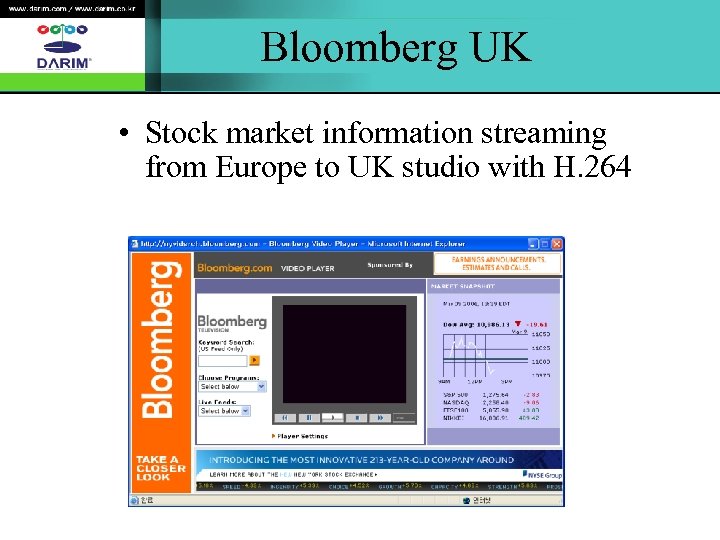

Bloomberg UK • Stock market information streaming from Europe to UK studio with H. 264

FORWARD Automation & Titling For TV and IP-TV FS 800/1000/2000 KM 300 Installed 450 B. Stations World widely

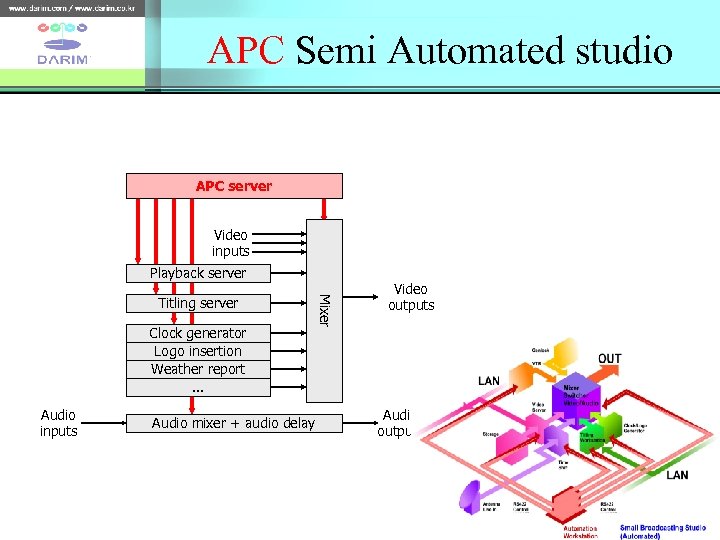

APC Semi Automated studio APC server Video inputs Playback server Clock generator Logo insertion Weather report. . . Audio inputs Audio mixer + audio delay Mixer Titling server Video outputs Audio outputs

FS 1000 Full Automated studio Forward Server APC server Video inputs Switcher + TBC Playback server Clock generator Logo insertion Weather report. . . Audio inputs Audio mixer + audio delay Mixer Titling server Video outputs Audio outputs

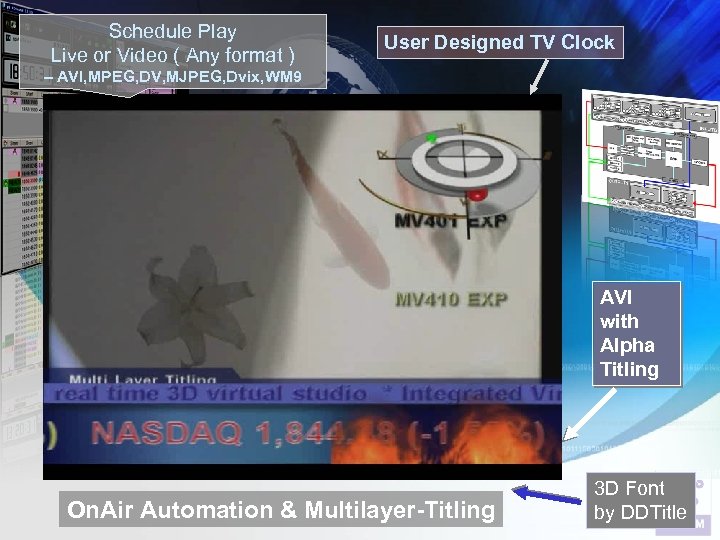

Schedule Play Live or Video ( Any format ) User Designed TV Clock – AVI, MPEG, DV, MJPEG, Dvix, WM 9 AVI with Alpha Titling On. Air Automation & Multilayer-Titling 3 D Font by DDTitle

FS 1000 FS 800/810/820 FS 1000, 1100 FS 2000 KM 300 : : Titling/SMS/Web. Scan Server Titling & Automation Server Sport Replay Server Chromakey & Mixer

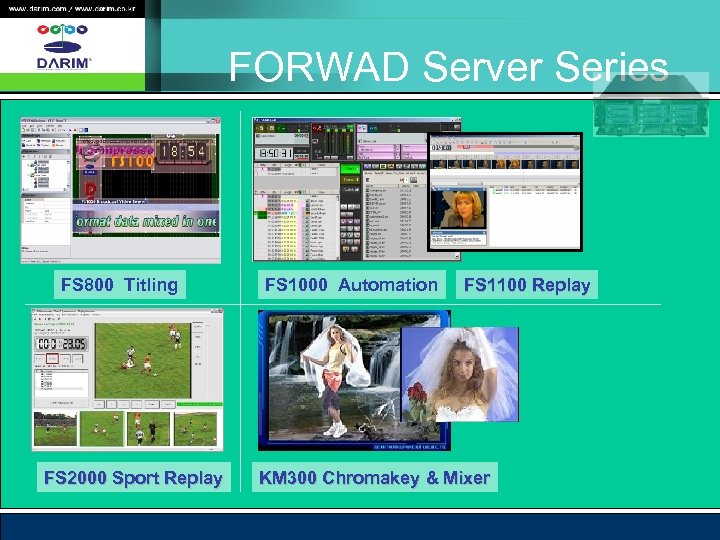

FORWAD Server Series FS 800 Titling FS 2000 Sport Replay FS 1000 Automation FS 1100 Replay KM 300 Chromakey & Mixer

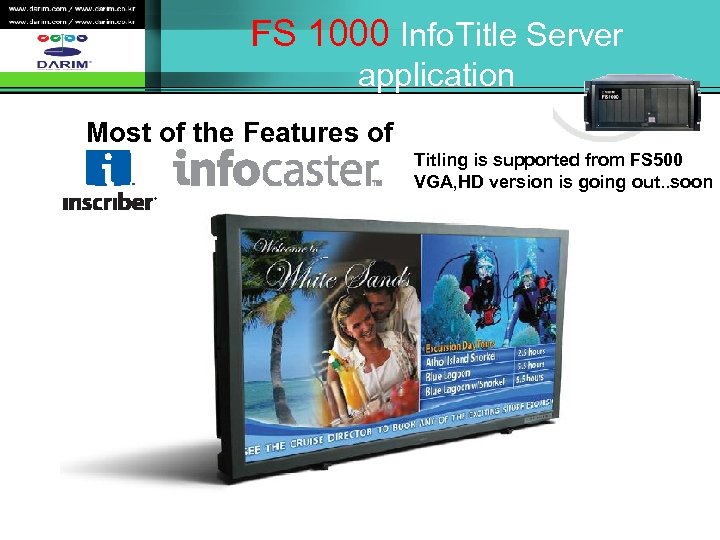

FS 1000 Info. Title Server application Most of the Features of Titling is supported from FS 500 VGA, HD version is going out. . soon

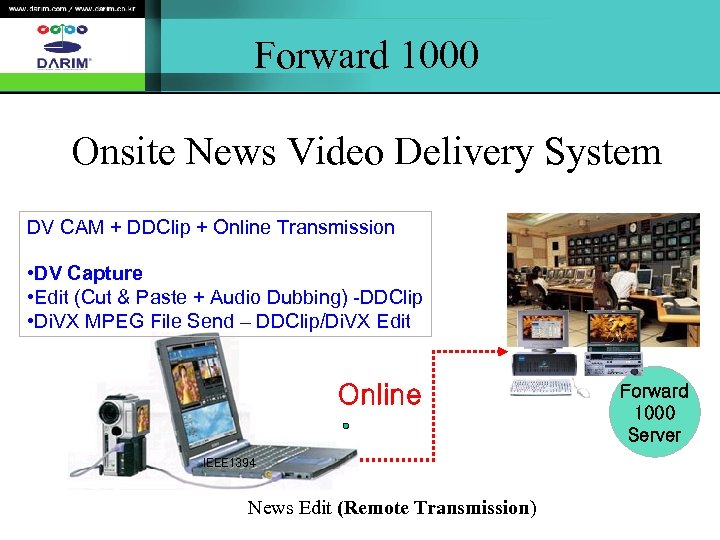

Forward 1000 Onsite News Video Delivery System DV CAM + DDClip + Online Transmission • DV Capture • Edit (Cut & Paste + Audio Dubbing) -DDClip • Di. VX MPEG File Send – DDClip/Di. VX Edit Online IEEE 1394 News Edit (Remote Transmission) Forward 1000 Server

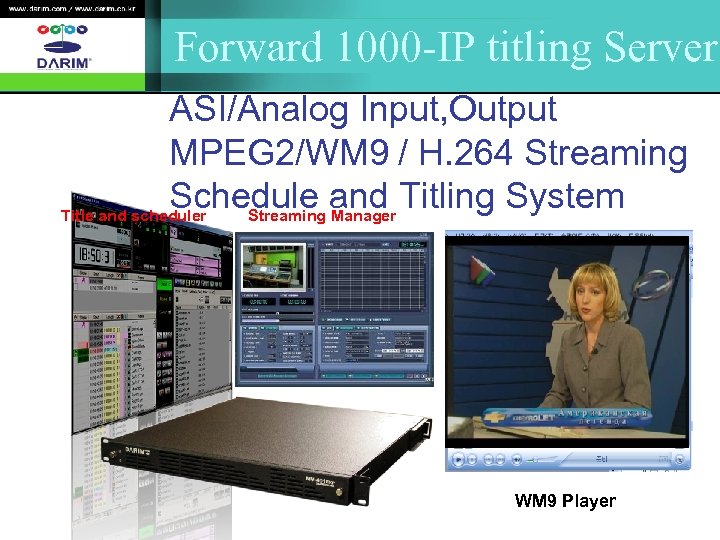

Forward 1000 -IP titling Server ASI/Analog Input, Output MPEG 2/WM 9 / H. 264 Streaming Schedule and Titling System Title and scheduler Streaming Manager WM 9 Player

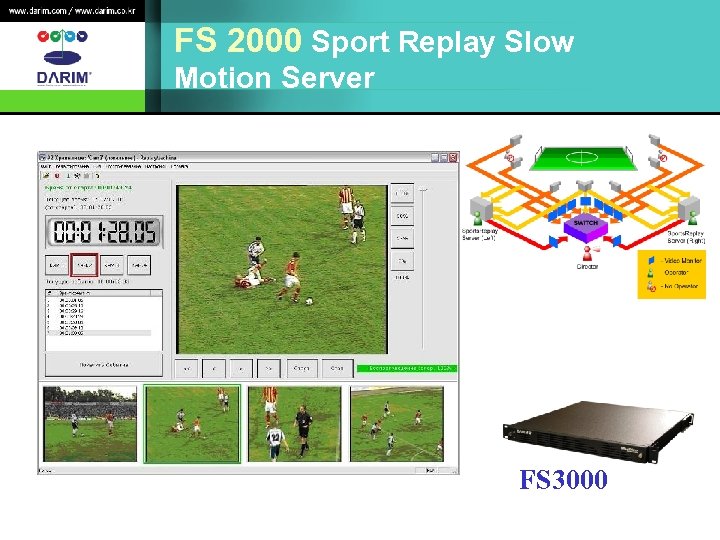

FS 2000 Sport Replay Slow Motion Server FS 3000

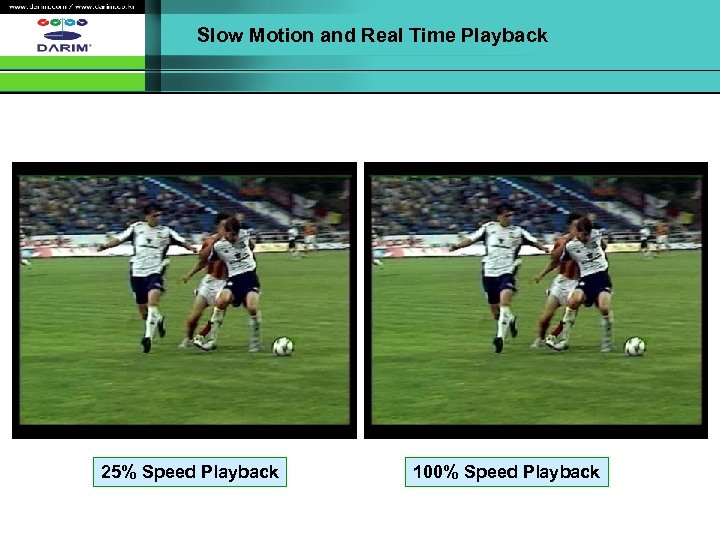

Slow Motion and Real Time Playback 25% Speed Playback 100% Speed Playback

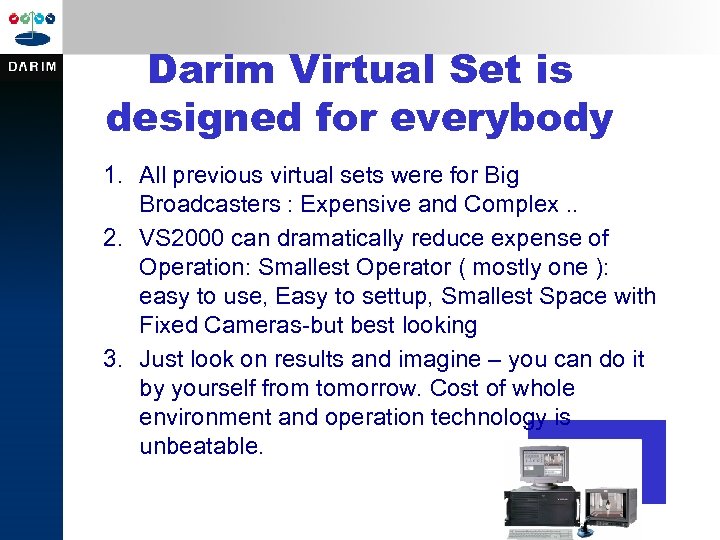

Darim Virtual Set is designed for everybody 1. All previous virtual sets were for Big Broadcasters : Expensive and Complex. . 2. VS 2000 can dramatically reduce expense of Operation: Smallest Operator ( mostly one ): easy to use, Easy to settup, Smallest Space with Fixed Cameras-but best looking 3. Just look on results and imagine – you can do it by yourself from tomorrow. Cost of whole environment and operation technology is unbeatable.

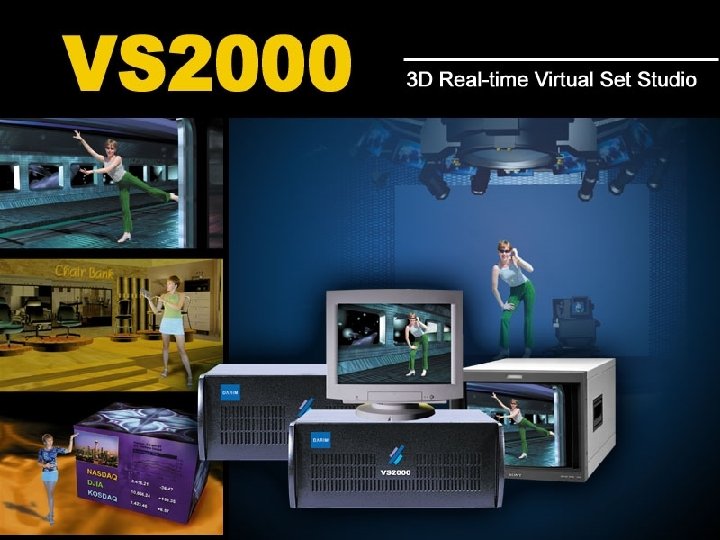

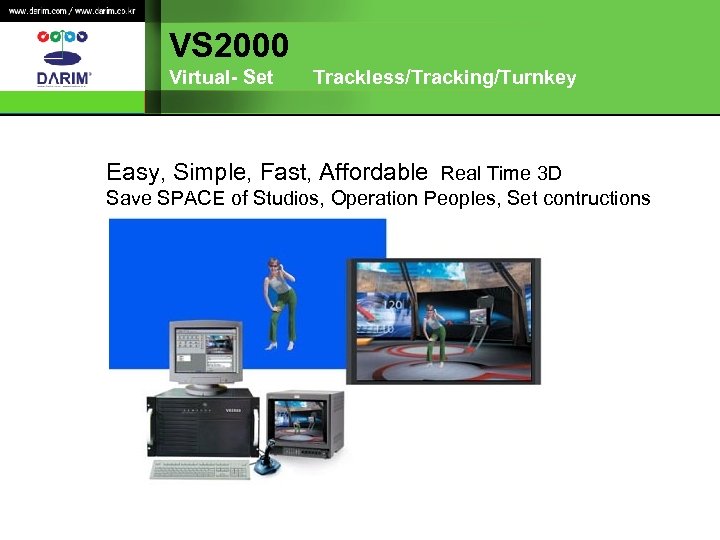

VS 2000 Virtual- Set Trackless/Tracking/Turnkey Easy, Simple, Fast, Affordable Real Time 3 D Save SPACE of Studios, Operation Peoples, Set contructions

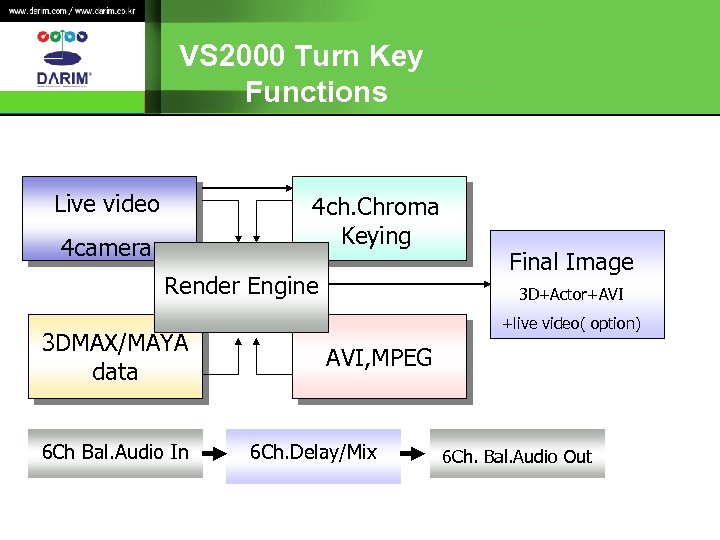

VS 2000 Turn Key Functions Live video 4 ch. Chroma Keying 4 camera Render Engine 3 DMAX/MAYA data 6 Ch Bal. Audio In Final Image 3 D+Actor+AVI +live video( option) AVI, MPEG 6 Ch. Delay/Mix 6 Ch. Bal. Audio Out

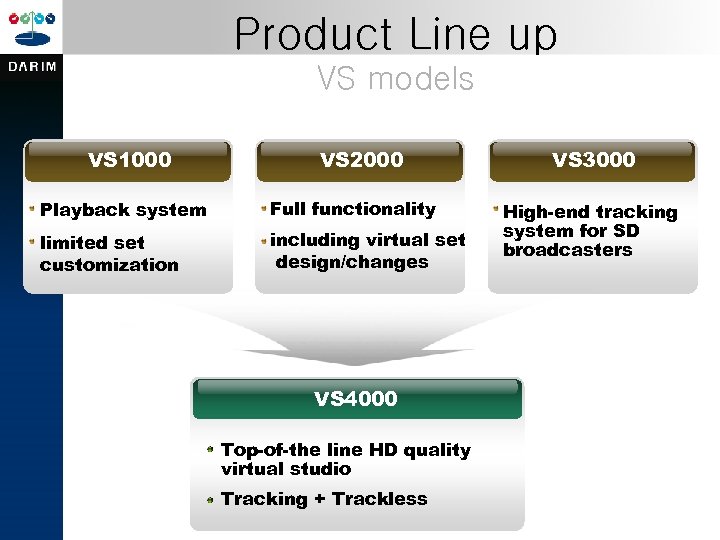

Product Line up VS models VS 1000 VS 2000 Playback system Full functionality limited set customization including virtual set design/changes VS 4000 Top-of-the line HD quality virtual studio Tracking + Trackless VS 3000 High-end tracking system for SD broadcasters

Reference sites: Cincinnati University in USA Algebra in Russia

VR Presenter Real Time Virtual Studio for 3 rd Generation Presentation Real Time VR Presentation & Recording/Streaming

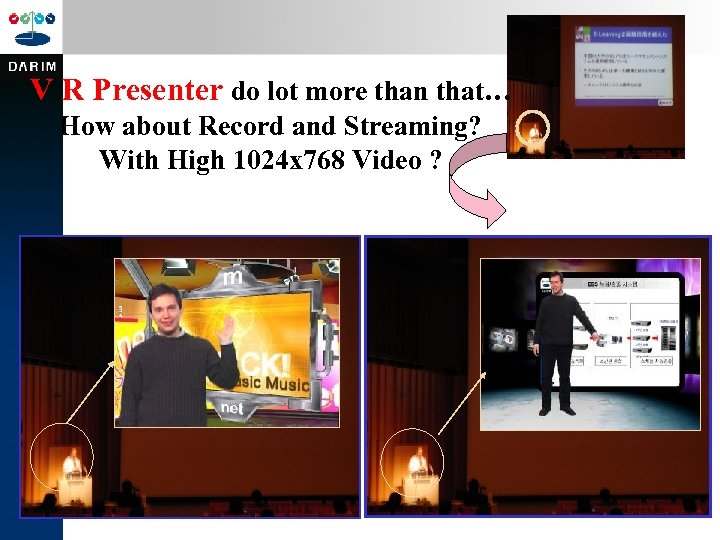

V R Presenter do lot more than that… How about Record and Streaming? With High 1024 x 768 Video ?

The 3 rd Generation VR e-Learning The 2 nd Generation e-Learning Separate Windows of Teacher and PPT The 3 rd Generation 3 D VR- Presention Integrated Windows Teaching in a Virtual World

VR-Presentor Main features * Real Time Operation by a Teacher * Five minutes to learn * One Touch operation * Enough Templates - Editable
