T TRIPOD CATALOG RD Before you move forward, you must forget the past! 1. Analog Force Gauge 2. Digital Force Gauge 3. Electronic Test Stand 4. Manual Test Stand 5. Spring Tester 6. Torque meter 7. Hardness Tester 8. Rope Tension Equipment 9. Tension gauge 10. Other test equipment 11. Grips/Jips/Clamp TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

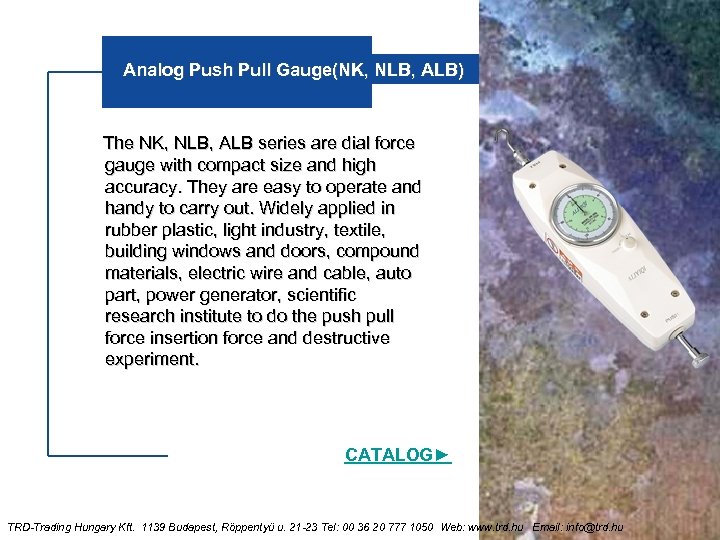

Analog Push Pull Gauge(NK, NLB, ALB) The NK, NLB, ALB series are dial force gauge with compact size and high accuracy. They are easy to operate and handy to carry out. Widely applied in rubber plastic, light industry, textile, building windows and doors, compound materials, electric wire and cable, auto part, power generator, scientific research institute to do the push pull force insertion force and destructive experiment. CATALOG► TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

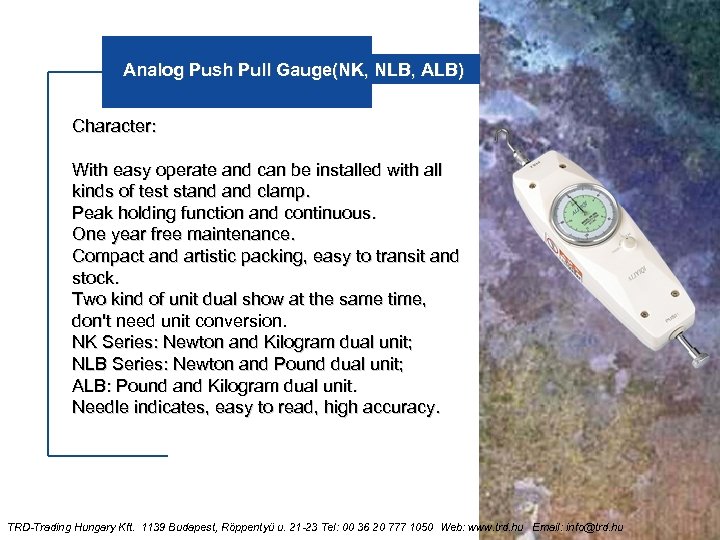

Analog Push Pull Gauge(NK, NLB, ALB) Character: With easy operate and can be installed with all kinds of test stand clamp. Peak holding function and continuous. One year free maintenance. Compact and artistic packing, easy to transit and stock. Two kind of unit dual show at the same time, don't need unit conversion. NK Series: Newton and Kilogram dual unit; NLB Series: Newton and Pound dual unit; ALB: Pound and Kilogram dual unit. Needle indicates, easy to read, high accuracy. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

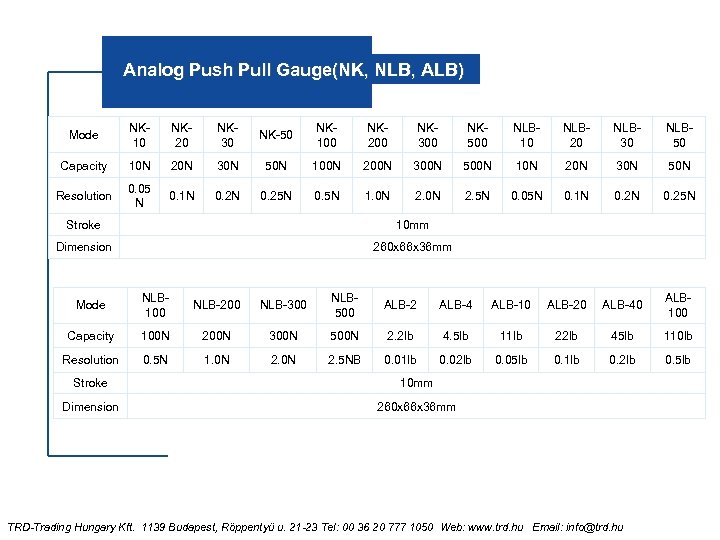

Analog Push Pull Gauge(NK, NLB, ALB) Mode NK 10 NK 20 NK 30 NK-50 NK 100 NK 200 NK 300 NK 500 NLB 10 NLB 20 NLB 30 NLB 50 Capacity 10 N 20 N 30 N 50 N 100 N 200 N 300 N 500 N 10 N 20 N 30 N 50 N Resolution 0. 05 N 0. 1 N 0. 25 N 0. 5 N 1. 0 N 2. 5 N 0. 05 N 0. 1 N 0. 25 N Stroke 10 mm Dimension 260 x 66 x 36 mm Mode NLB 100 NLB-200 NLB-300 NLB 500 ALB-2 ALB-4 ALB-10 ALB-20 ALB-40 ALB 100 Capacity 100 N 200 N 300 N 500 N 2. 2 lb 4. 5 lb 11 lb 22 lb 45 lb 110 lb Resolution 0. 5 N 1. 0 N 2. 5 NB 0. 01 lb 0. 02 lb 0. 05 lb 0. 1 lb 0. 2 lb 0. 5 lb Stroke 10 mm Dimension 260 x 66 x 36 mm TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

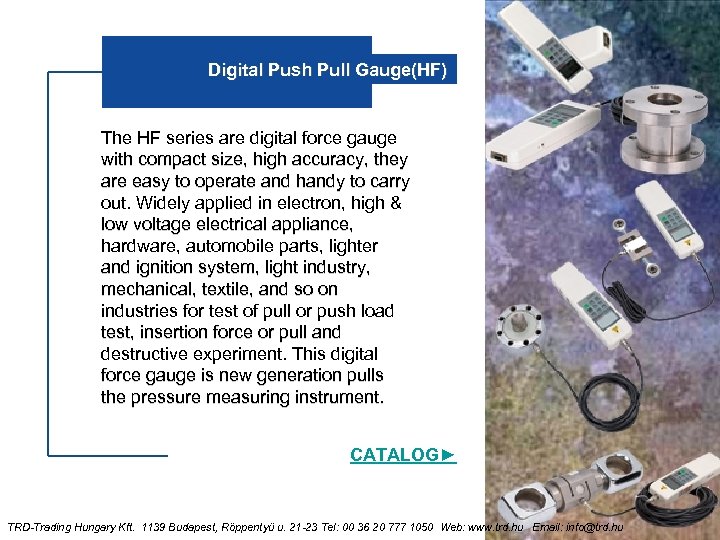

Digital Push Pull Gauge(HF) The HF series are digital force gauge with compact size, high accuracy, they are easy to operate and handy to carry out. Widely applied in electron, high & low voltage electrical appliance, hardware, automobile parts, lighter and ignition system, light industry, mechanical, textile, and so on industries for test of pull or push load test, insertion force or pull and destructive experiment. This digital force gauge is new generation pulls the pressure measuring instrument. CATALOG► TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

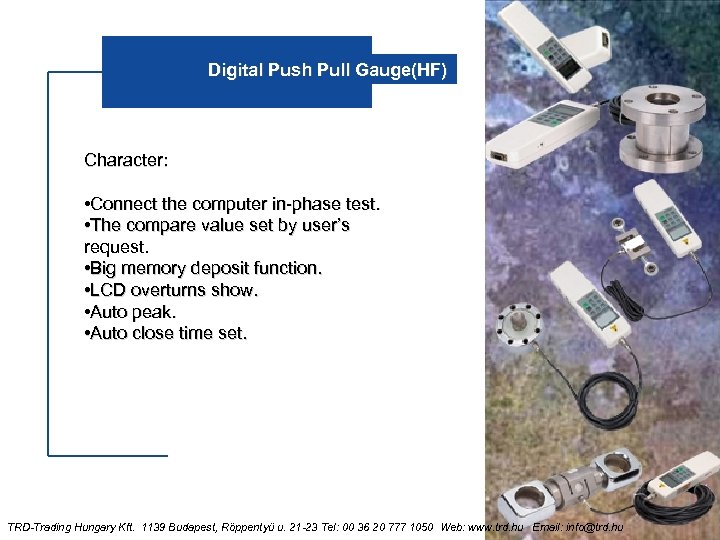

Digital Push Pull Gauge(HF) Character: • Connect the computer in-phase test. • The compare value set by user’s request. • Big memory deposit function. • LCD overturns show. • Auto peak. • Auto close time set. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

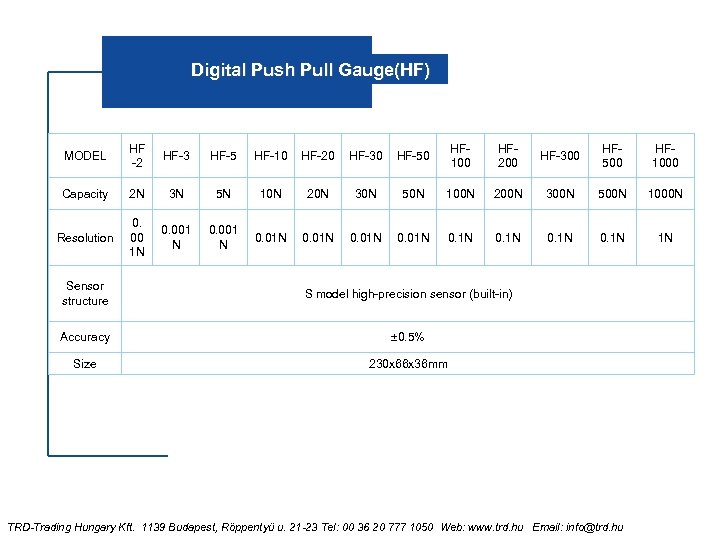

Digital Push Pull Gauge(HF) MODEL HF -2 HF-3 HF-5 HF-10 HF-20 HF-30 HF-50 HF 100 HF 200 HF-300 HF 500 HF 1000 Capacity 2 N 3 N 5 N 10 N 20 N 30 N 50 N 100 N 200 N 300 N 500 N 1000 N Resolution 0. 00 1 N 0. 001 N 0. 01 N 0. 1 N 1 N Sensor structure S model high-precision sensor (built-in) Accuracy ± 0. 5% Size 230 x 66 x 36 mm TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu
Digital Push Pull Gauge(HF) MODEL HF 200 0 HF 3000 HF 5000 HF 10 K HF 20 K HF 30 K HF 50 K HF 100 K HF 200 K HF 300 K HF 500 K HF 1000 K Capacity 200 0 N 3000 N 5000 N 10 KN 20 KN 30 KN 50 KN 100 K N 200 K N 300 KN 500 K N 1000 KN Resoluti on 1 N 1 N 0. 01 K N 0. 1 KN 1 KN Sensor structure S model high-precision sensor (external) Cylindrical or spoke (external) Accurac y ± 0. 5% ± 1% Size 230 x 66 x 36 mm TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

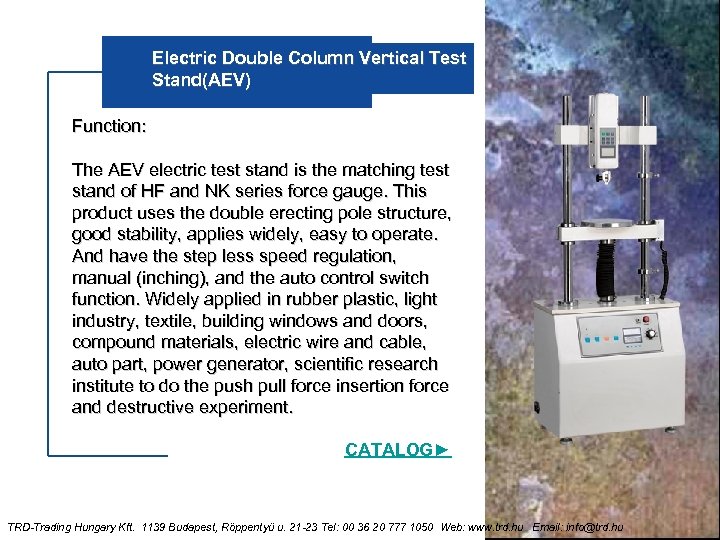

Electric Double Column Vertical Test Stand(AEV) Function: The AEV electric test stand is the matching test stand of HF and NK series force gauge. This product uses the double erecting pole structure, good stability, applies widely, easy to operate. And have the step less speed regulation, manual (inching), and the auto control switch function. Widely applied in rubber plastic, light industry, textile, building windows and doors, compound materials, electric wire and cable, auto part, power generator, scientific research institute to do the push pull force insertion force and destructive experiment. CATALOG► TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

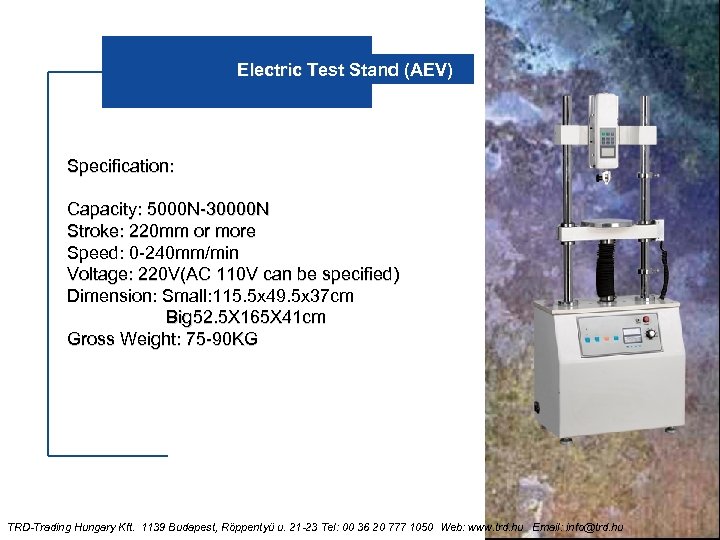

Electric Test Stand (AEV) Specification: Capacity: 5000 N-30000 N Stroke: 220 mm or more Speed: 0 -240 mm/min Voltage: 220 V(AC 110 V can be specified) Dimension: Small: 115. 5 x 49. 5 x 37 cm Big 52. 5 X 165 X 41 cm Gross Weight: 75 -90 KG TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu
Electric Horizontal Test Stand (AEH) Function: AEH electric horizontal test stand is special design for NK and HF series force gauge. This product uses the double erecting pole structure, good stability, applies widely, easy to operate. And has the step less speed regulation, manual (inching), and the auto control switch function. Widely applied in rubber plastic, light industry, textile, building windows and doors, compound materials, electric wire and cable, auto part, power generator, scientific research institute to do the push pull force insertion force and destructive experiment. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

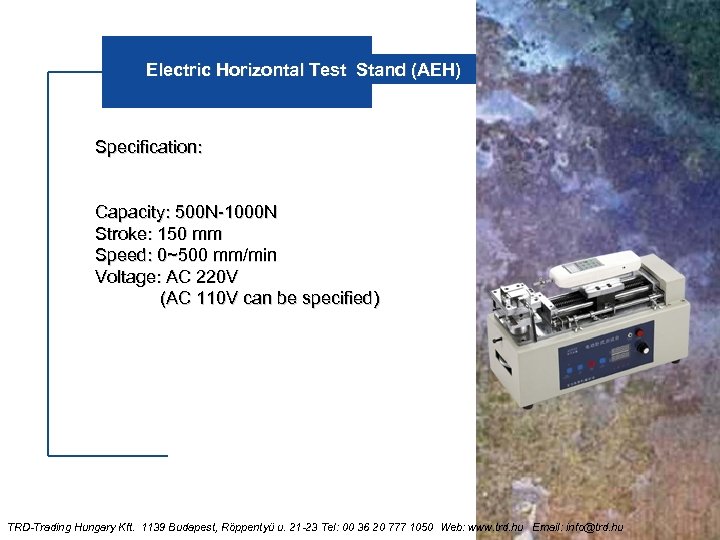

Electric Horizontal Test Stand (AEH) Specification: Capacity: 500 N-1000 N Stroke: 150 mm Speed: 0~500 mm/min Voltage: AC 220 V (AC 110 V can be specified) TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

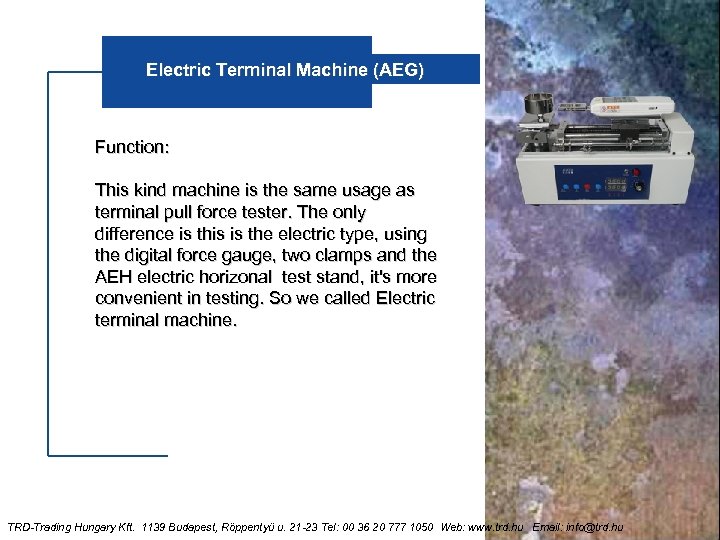

Electric Terminal Machine (AEG) Function: This kind machine is the same usage as terminal pull force tester. The only difference is this is the electric type, using the digital force gauge, two clamps and the AEH electric horizonal test stand, it's more convenient in testing. So we called Electric terminal machine. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

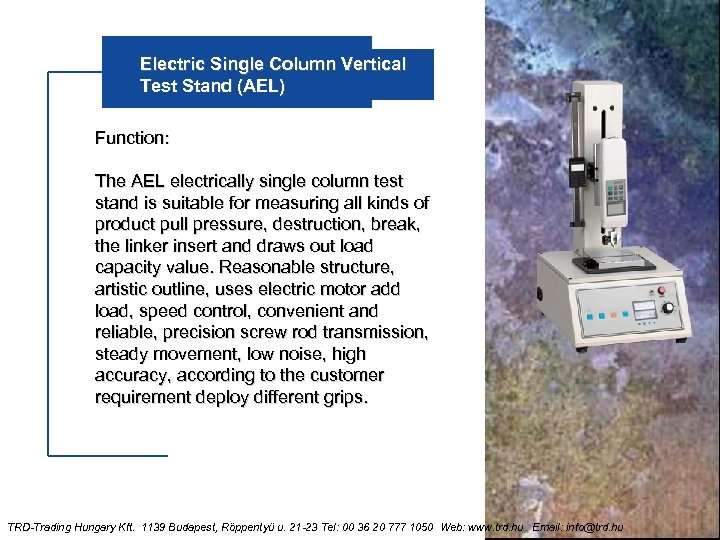

Electric Single Column Vertical Test Stand (AEL) Function: The AEL electrically single column test stand is suitable for measuring all kinds of product pull pressure, destruction, break, the linker insert and draws out load capacity value. Reasonable structure, artistic outline, uses electric motor add load, speed control, convenient and reliable, precision screw rod transmission, steady movement, low noise, high accuracy, according to the customer requirement deploy different grips. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

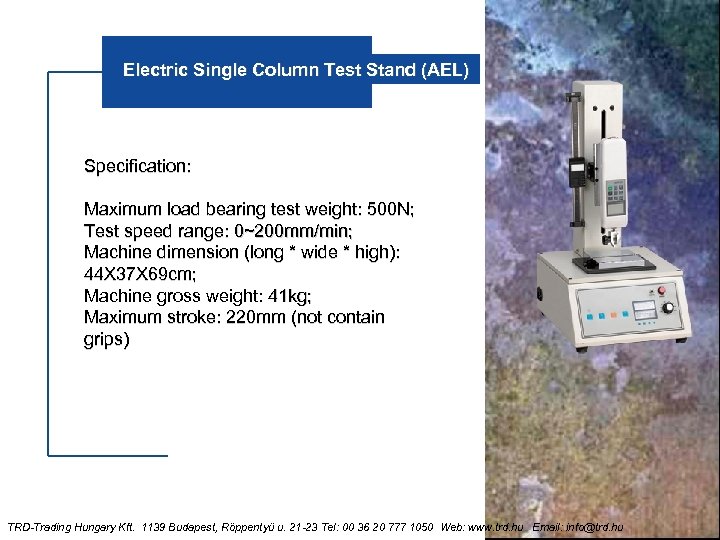

Electric Single Column Test Stand (AEL) Specification: Maximum load bearing test weight: 500 N; Test speed range: 0~200 mm/min; Machine dimension (long * wide * high): 44 X 37 X 69 cm; Machine gross weight: 41 kg; Maximum stroke: 220 mm (not contain grips) TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

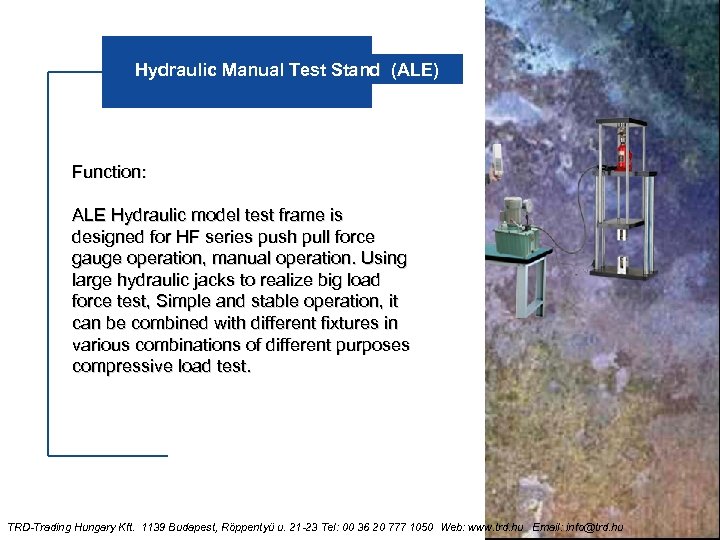

Hydraulic Manual Test Stand (ALE) Function: ALE Hydraulic model test frame is designed for HF series push pull force gauge operation, manual operation. Using large hydraulic jacks to realize big load force test, Simple and stable operation, it can be combined with different fixtures in various combinations of different purposes compressive load test. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

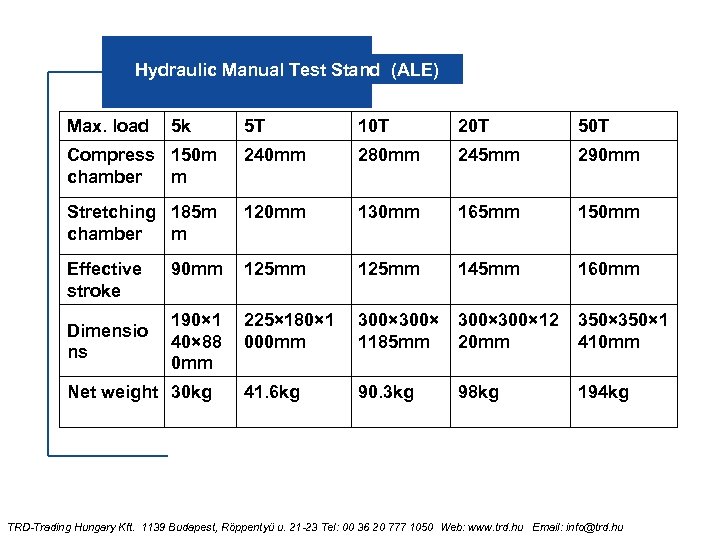

Hydraulic Manual Test Stand (ALE) Max. load 5 T 10 T 20 T 50 T Compress 150 m chamber m 240 mm 280 mm 245 mm 290 mm Stretching 185 m chamber m 120 mm 130 mm 165 mm 150 mm Effective stroke 90 mm 125 mm 145 mm 160 mm 190× 1 40× 88 0 mm 225× 180× 1 000 mm 300× 1185 mm 300× 12 20 mm 350× 1 410 mm 41. 6 kg 90. 3 kg 98 kg 194 kg Dimensio ns 5 k Net weight 30 kg TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu
Analog Force Gauge Test Stand (AST-S) Function: AST-S test stand is specially design for the analog series force gauge to make up of different test equipment doing the push pull force insertion force and destructive experiment. CATALOG► TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu
Analog Force Gauge Test Stand (AST-J) Character: • Hand press, operate simply and firmly. Compact structure, gear and rack transmission. • Fix firmly, big feet and heavy frame, can install on the floor (tabletop) to use, causes operate more firmly. • Matching digital staff gauge, collection stroke data at any moment. Parameter: Capacity: 500 N Stroke: 90 mm Dimension: 255 x 240 x 550 mm Weight: 12 KG TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

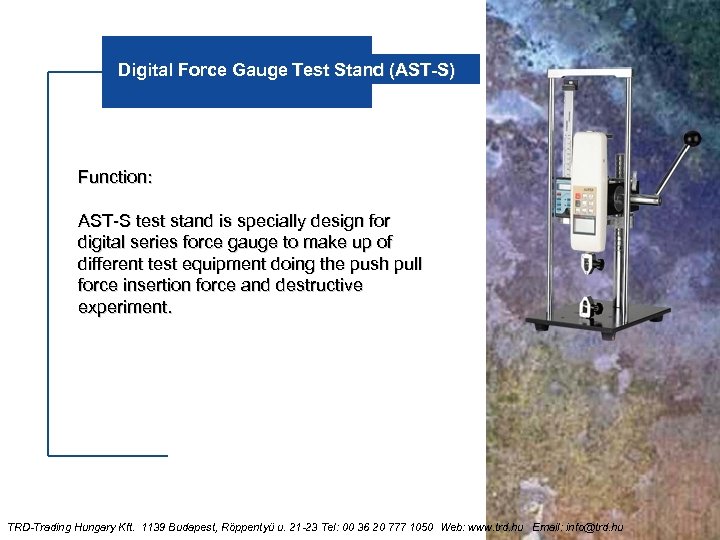

Digital Force Gauge Test Stand (AST-S) Function: AST-S test stand is specially design for digital series force gauge to make up of different test equipment doing the push pull force insertion force and destructive experiment. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu
Digital Force Gauge Test Stand (AST-S) Character: • Hand press, operate simply and firmly. Compact structure, gear and rack transmission. • Fix firmly, big feet and heavy frame, can install on the floor (tabletop) to use, causes operate more firmly. • Matching digital staff gauge, collection stroke data at any moment. Parameter: Capacity: 500 N Stroke: 90 mm Dimension: 255 x 240 x 550 mm Weight: 12 KG TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

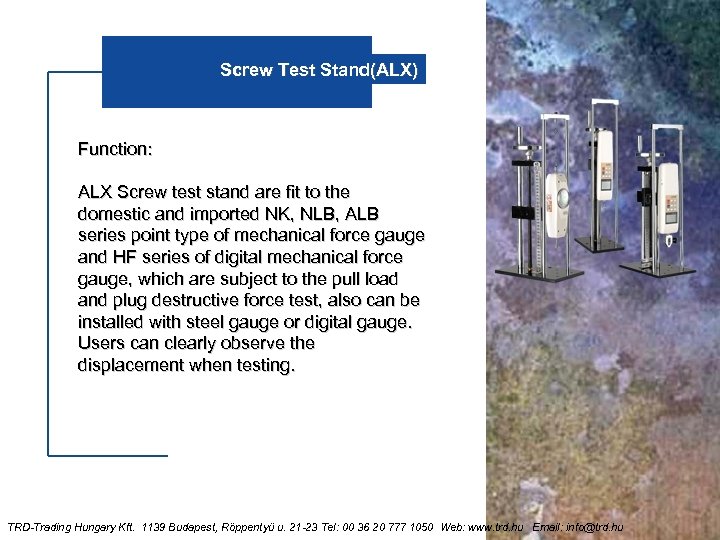

Screw Test Stand(ALX) Function: ALX Screw test stand are fit to the domestic and imported NK, NLB, ALB series point type of mechanical force gauge and HF series of digital mechanical force gauge, which are subject to the pull load and plug destructive force test, also can be installed with steel gauge or digital gauge. Users can clearly observe the displacement when testing. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu
Screw Test Stand (ALX) Parameters： ·Maximum load: 500 N ·Effective stroke: 150 mm ·Length × width × height: 230× 150× 490 mm ·Effective area of the test area: 105× 100 mm ·Net weight: 9 kg TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

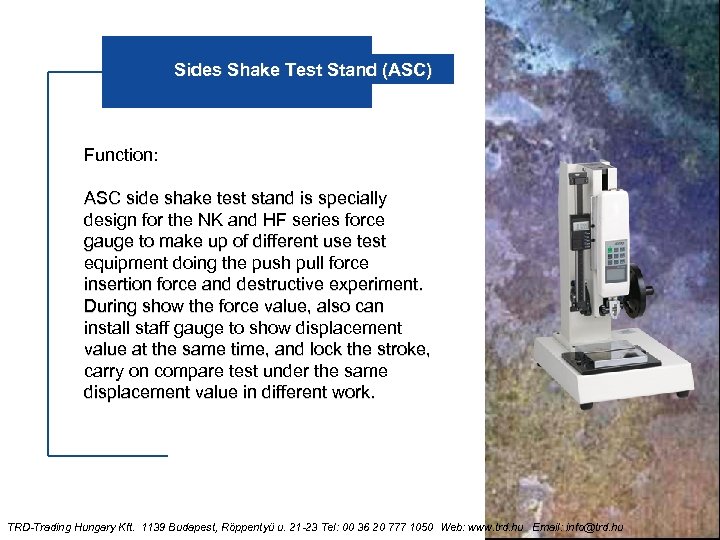

Sides Shake Test Stand (ASC) Function: ASC side shake test stand is specially design for the NK and HF series force gauge to make up of different use test equipment doing the push pull force insertion force and destructive experiment. During show the force value, also can install staff gauge to show displacement value at the same time, and lock the stroke, carry on compare test under the same displacement value in different work. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

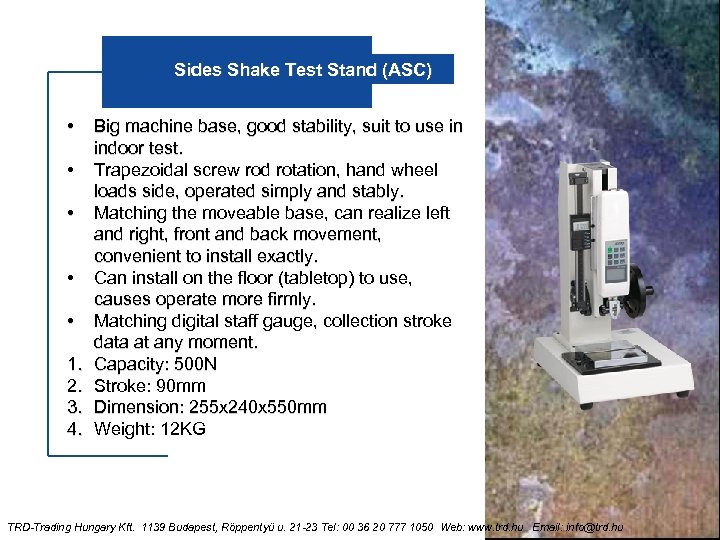

Sides Shake Test Stand (ASC) • • • 1. 2. 3. 4. Big machine base, good stability, suit to use in indoor test. Trapezoidal screw rod rotation, hand wheel loads side, operated simply and stably. Matching the moveable base, can realize left and right, front and back movement, convenient to install exactly. Can install on the floor (tabletop) to use, causes operate more firmly. Matching digital staff gauge, collection stroke data at any moment. Capacity: 500 N Stroke: 90 mm Dimension: 255 x 240 x 550 mm Weight: 12 KG TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

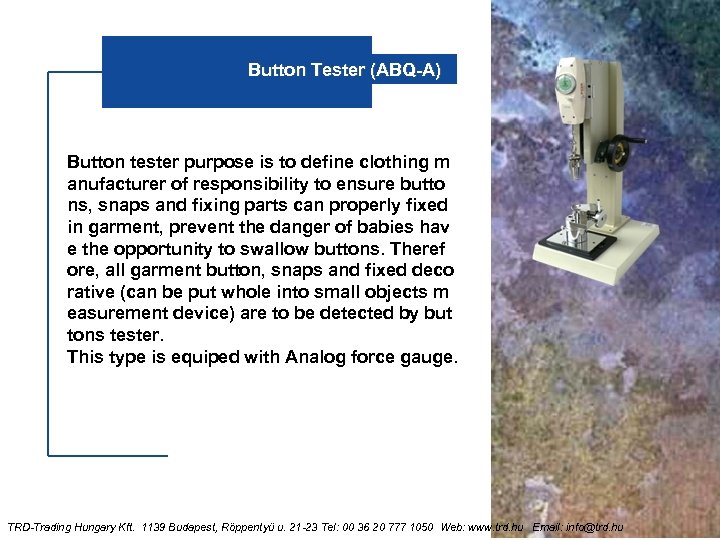

Button Tester (ABQ-A) Button tester purpose is to define clothing m anufacturer of responsibility to ensure butto ns, snaps and fixing parts can properly fixed in garment, prevent the danger of babies hav e the opportunity to swallow buttons. Theref ore, all garment button, snaps and fixed deco rative (can be put whole into small objects m easurement device) are to be detected by but tons tester. This type is equiped with Analog force gauge. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

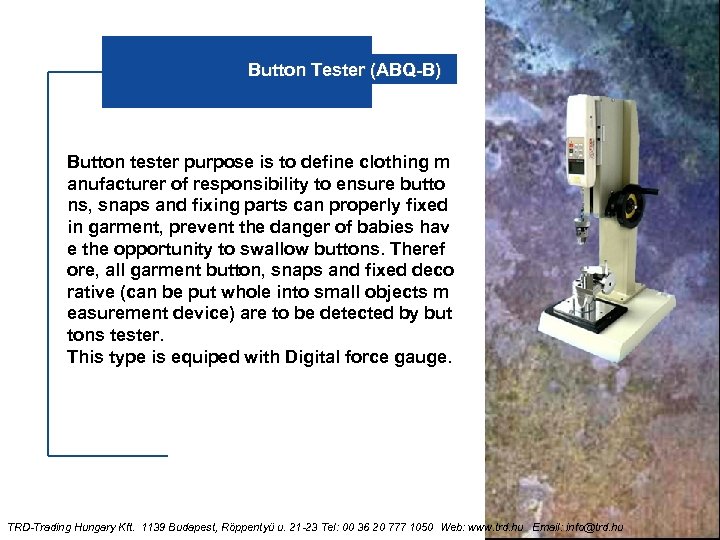

Button Tester (ABQ-B) Button tester purpose is to define clothing m anufacturer of responsibility to ensure butto ns, snaps and fixing parts can properly fixed in garment, prevent the danger of babies hav e the opportunity to swallow buttons. Theref ore, all garment button, snaps and fixed deco rative (can be put whole into small objects m easurement device) are to be detected by but tons tester. This type is equiped with Digital force gauge. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

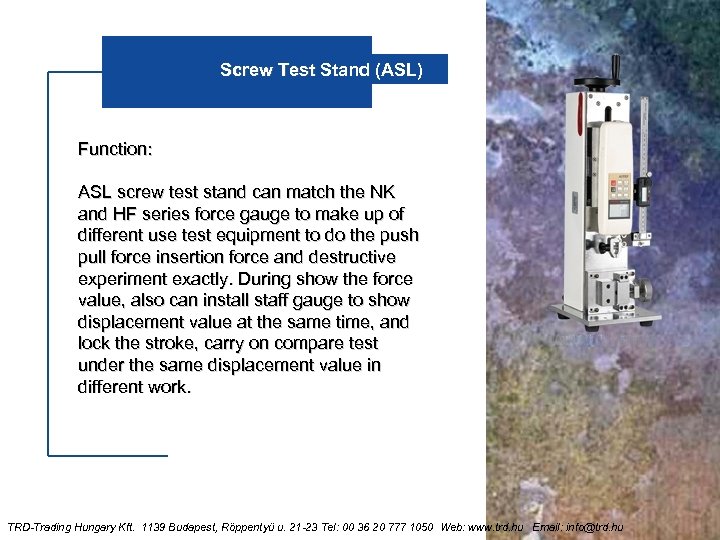

Screw Test Stand (ASL) Function: ASL screw test stand can match the NK and HF series force gauge to make up of different use test equipment to do the push pull force insertion force and destructive experiment exactly. During show the force value, also can install staff gauge to show displacement value at the same time, and lock the stroke, carry on compare test under the same displacement value in different work. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

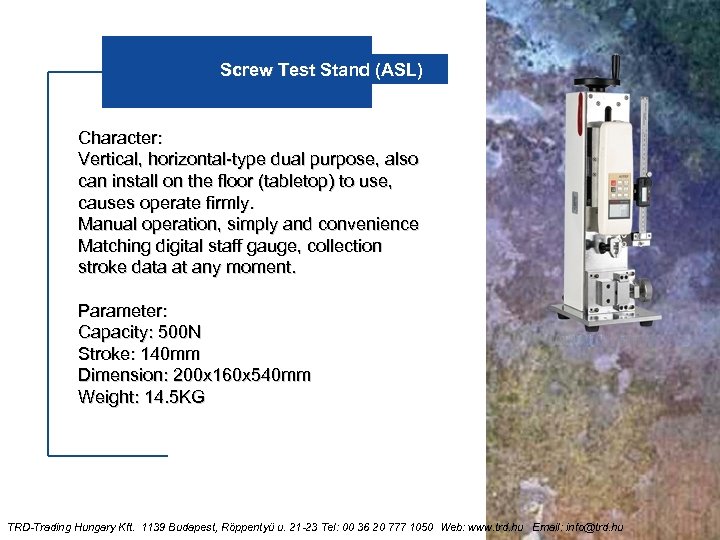

Screw Test Stand (ASL) Character: Vertical, horizontal-type dual purpose, also can install on the floor (tabletop) to use, causes operate firmly. Manual operation, simply and convenience Matching digital staff gauge, collection stroke data at any moment. Parameter: Capacity: 500 N Stroke: 140 mm Dimension: 200 x 160 x 540 mm Weight: 14. 5 KG TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

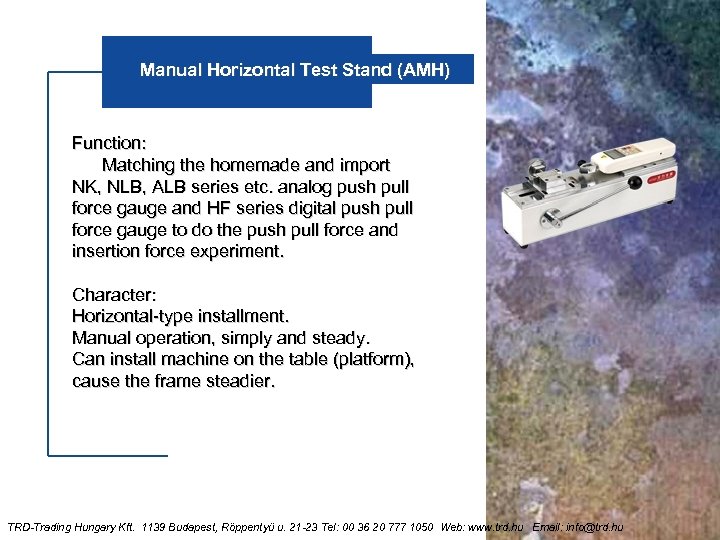

Manual Horizontal Test Stand (AMH) Function: Matching the homemade and import NK, NLB, ALB series etc. analog push pull force gauge and HF series digital push pull force gauge to do the push pull force and insertion force experiment. Character: Horizontal-type installment. Manual operation, simply and steady. Can install machine on the table (platform), cause the frame steadier. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

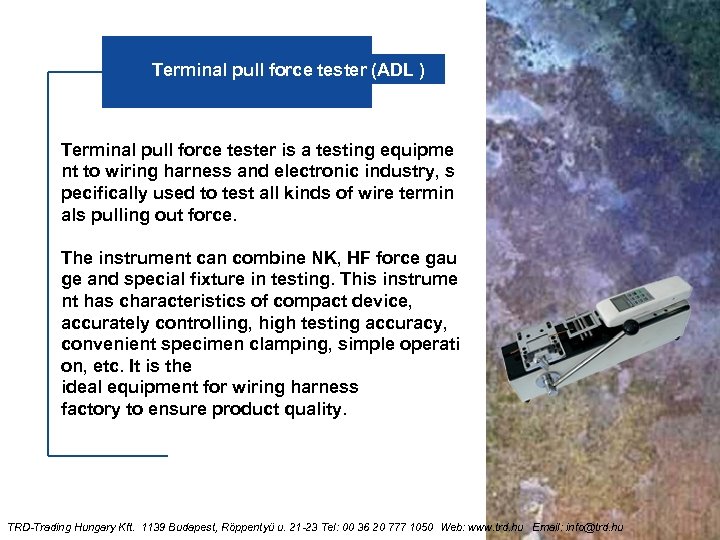

Terminal pull force tester (ADL ) Terminal pull force tester is a testing equipme nt to wiring harness and electronic industry, s pecifically used to test all kinds of wire termin als pulling out force. The instrument can combine NK, HF force gau ge and special fixture in testing. This instrume nt has characteristics of compact device, accurately controlling, high testing accuracy, convenient specimen clamping, simple operati on, etc. It is the ideal equipment for wiring harness factory to ensure product quality. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu
Hydraulic Manual Test Stand (ALR) Function: ALR Hydraulic model test frame is designed for HF series push pull force gauge operation, manual operation. Using large hydraulic jacks to realize big load force test, Simple and stable operation, it can be combined with different fixtures in various combinations of different purposes compressive load test. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

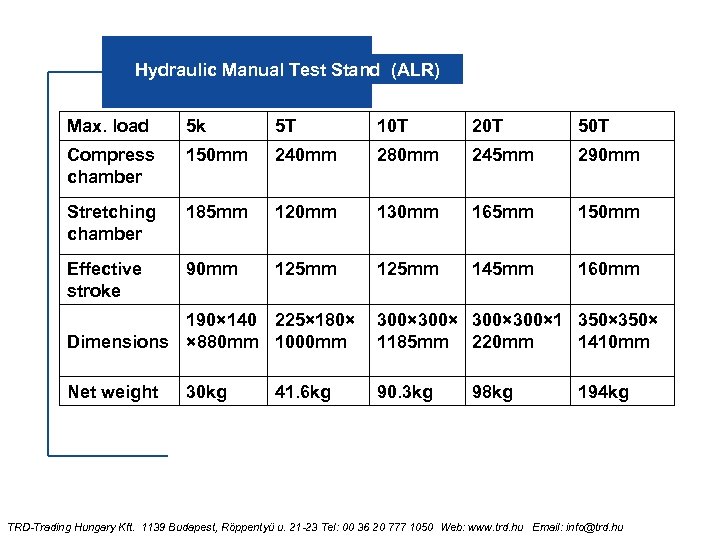

Hydraulic Manual Test Stand (ALR) Max. load 5 k 5 T 10 T 20 T 50 T Compress chamber 150 mm 240 mm 280 mm 245 mm 290 mm Stretching chamber 185 mm 120 mm 130 mm 165 mm 150 mm Effective stroke 90 mm 125 mm 145 mm 160 mm 190× 140 225× 180× Dimensions × 880 mm 1000 mm 300× 1 350× 1185 mm 220 mm 1410 mm Net weight 90. 3 kg 30 kg 41. 6 kg 98 kg 194 kg TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

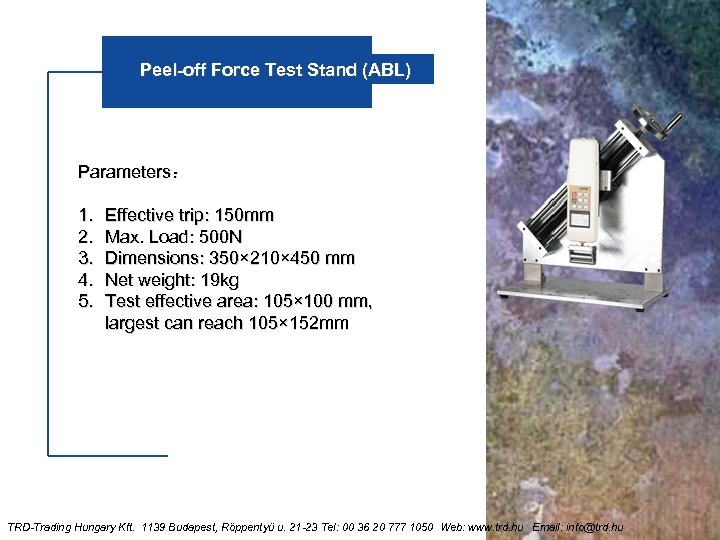

Peel-off Force Test Stand (ABL) Parameters： 1. 2. 3. 4. 5. Effective trip: 150 mm Max. Load: 500 N Dimensions: 350× 210× 450 mm Net weight: 19 kg Test effective area: 105× 100 mm, largest can reach 105× 152 mm TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

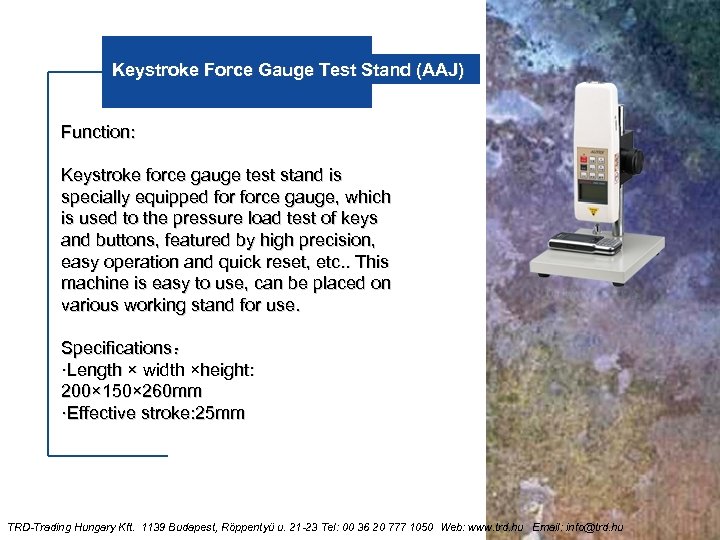

Keystroke Force Gauge Test Stand (AAJ) Function: Keystroke force gauge test stand is specially equipped force gauge, which is used to the pressure load test of keys and buttons, featured by high precision, easy operation and quick reset, etc. . This machine is easy to use, can be placed on various working stand for use. Specifications： ·Length × width ×height: 200× 150× 260 mm ·Effective stroke: 25 mm TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

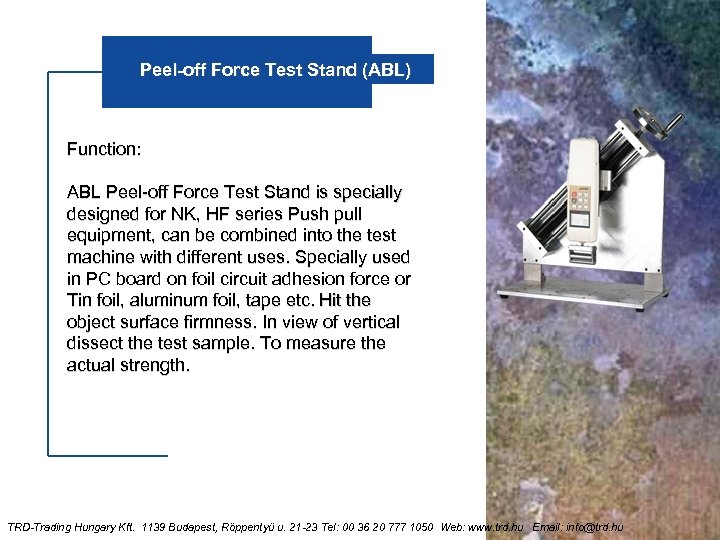

Peel-off Force Test Stand (ABL) Function: ABL Peel-off Force Test Stand is specially designed for NK, HF series Push pull equipment, can be combined into the test machine with different uses. Specially used in PC board on foil circuit adhesion force or Tin foil, aluminum foil, tape etc. Hit the object surface firmness. In view of vertical dissect the test sample. To measure the actual strength. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

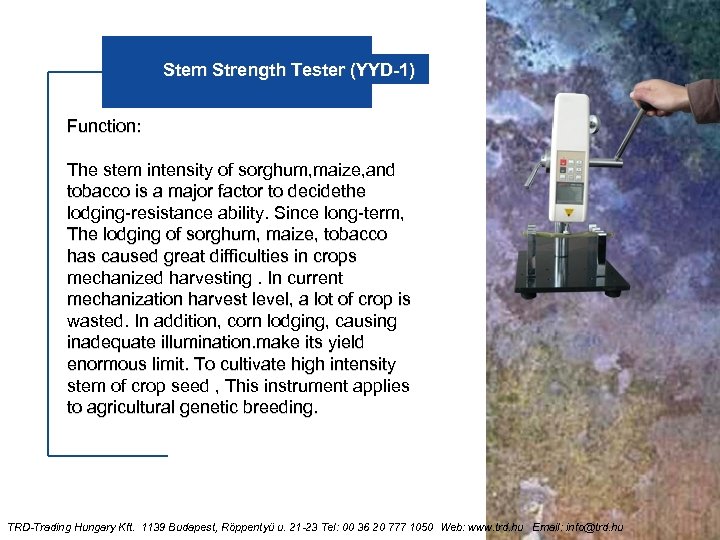

Stem Strength Tester (YYD-1) Function: The stem intensity of sorghum, maize, and tobacco is a major factor to decidethe lodging-resistance ability. Since long-term, The lodging of sorghum, maize, tobacco has caused great difficulties in crops mechanized harvesting. In current mechanization harvest level, a lot of crop is wasted. In addition, corn lodging, causing inadequate illumination. make its yield enormous limit. To cultivate high intensity stem of crop seed , This instrument applies to agricultural genetic breeding. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

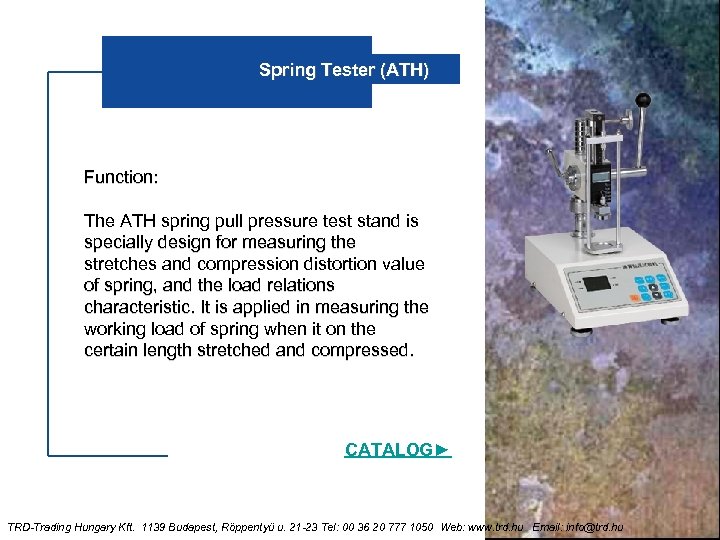

Spring Tester (ATH) Function: The ATH spring pull pressure test stand is specially design for measuring the stretches and compression distortion value of spring, and the load relations characteristic. It is applied in measuring the working load of spring when it on the certain length stretched and compressed. CATALOG► TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

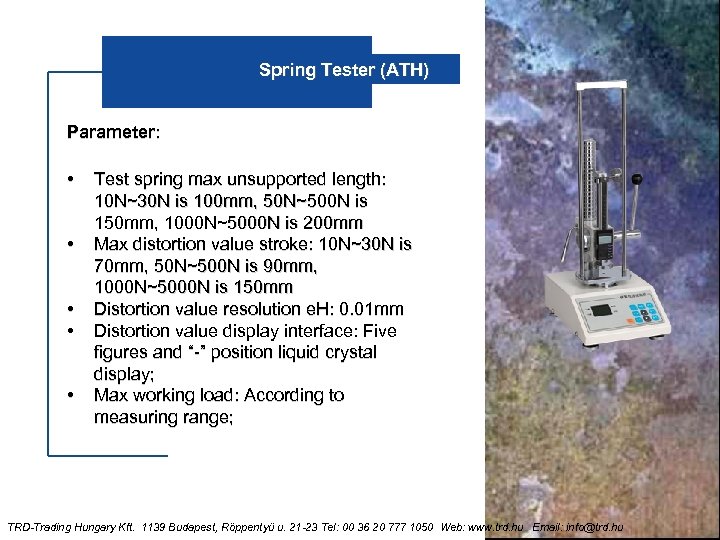

Spring Tester (ATH) Parameter: • • • Test spring max unsupported length: 10 N~30 N is 100 mm, 50 N~500 N is 150 mm, 1000 N~5000 N is 200 mm Max distortion value stroke: 10 N~30 N is 70 mm, 50 N~500 N is 90 mm, 1000 N~5000 N is 150 mm Distortion value resolution e. H: 0. 01 mm Distortion value display interface: Five figures and “-” position liquid crystal display; Max working load: According to measuring range; TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

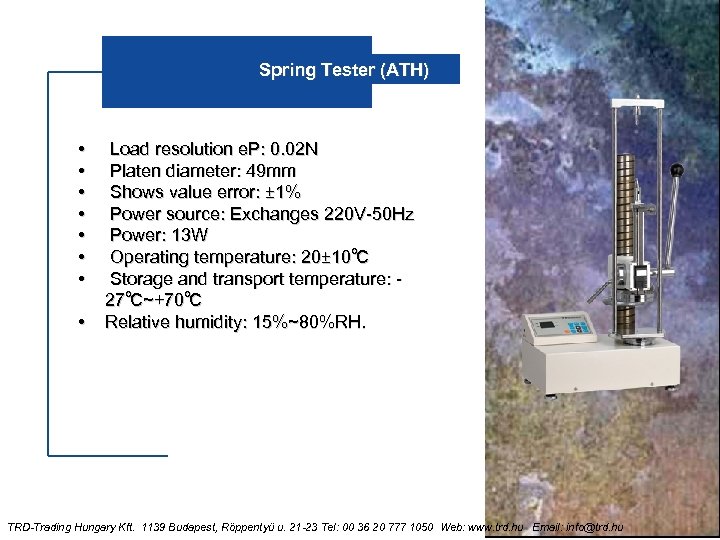

Spring Tester (ATH) • • Load resolution e. P: 0. 02 N Platen diameter: 49 mm Shows value error: ± 1% Power source: Exchanges 220 V-50 Hz Power: 13 W Operating temperature: 20± 10℃ Storage and transport temperature: 27℃~+70℃ Relative humidity: 15%~80%RH. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

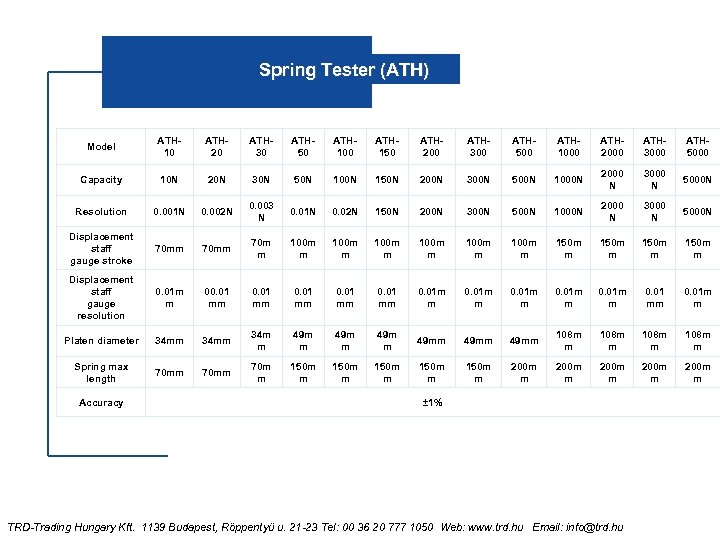

Spring Tester (ATH) Model ATH 10 ATH 20 ATH 30 ATH 50 ATH 100 ATH 150 ATH 200 ATH 300 ATH 500 ATH 1000 ATH 2000 ATH 3000 ATH 5000 Capacity 10 N 20 N 30 N 50 N 100 N 150 N 200 N 300 N 500 N 1000 N 2000 N 3000 N 5000 N Resolution 0. 001 N 0. 002 N 0. 003 N 0. 01 N 0. 02 N 150 N 200 N 300 N 500 N 1000 N 2000 N 3000 N 5000 N Displacement staff gauge stroke 70 mm 70 m m 100 m m 100 m m 150 m m Displacement staff gauge resolution 0. 01 m m 00. 01 mm 0. 01 m m 0. 01 mm 0. 01 m m Platen diameter 34 mm 34 m m 49 mm 49 mm 108 m m Spring max length 70 mm 70 m m 150 m m 150 m m 200 m m 200 m m Accuracy ± 1% TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

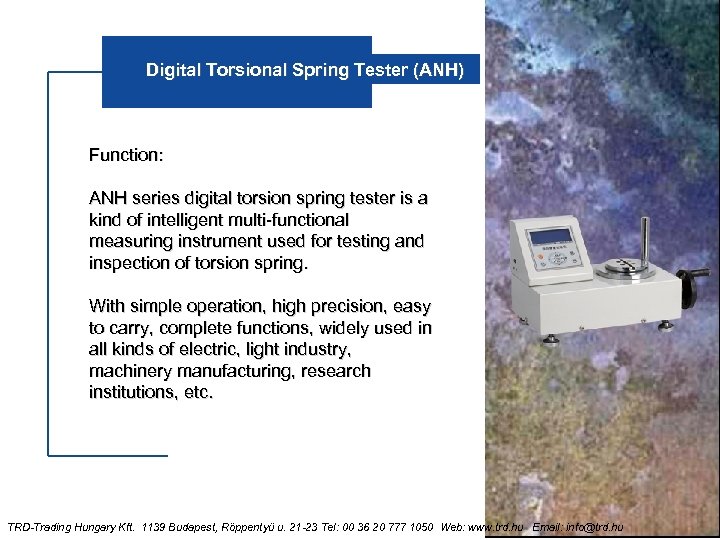

Digital Torsional Spring Tester (ANH) Function: ANH series digital torsion spring tester is a kind of intelligent multi-functional measuring instrument used for testing and inspection of torsion spring. With simple operation, high precision, easy to carry, complete functions, widely used in all kinds of electric, light industry, machinery manufacturing, research institutions, etc. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

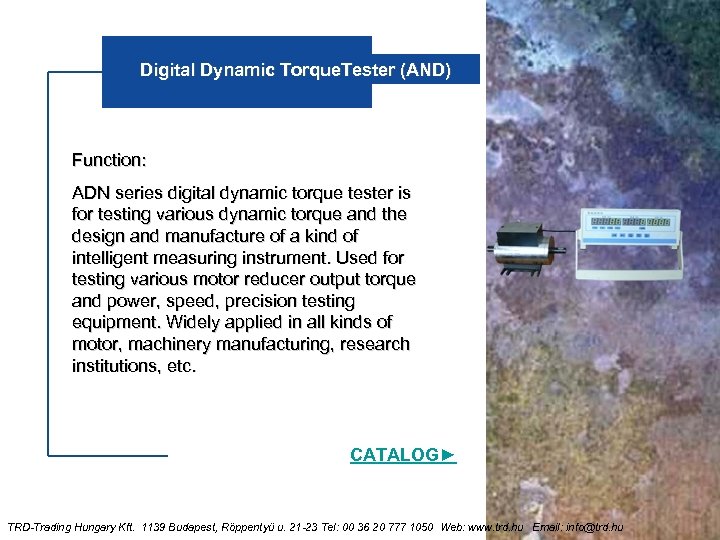

Digital Dynamic Torque. Tester (AND) Function: ADN series digital dynamic torque tester is for testing various dynamic torque and the design and manufacture of a kind of intelligent measuring instrument. Used for testing various motor reducer output torque and power, speed, precision testing equipment. Widely applied in all kinds of motor, machinery manufacturing, research institutions, etc. CATALOG► TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

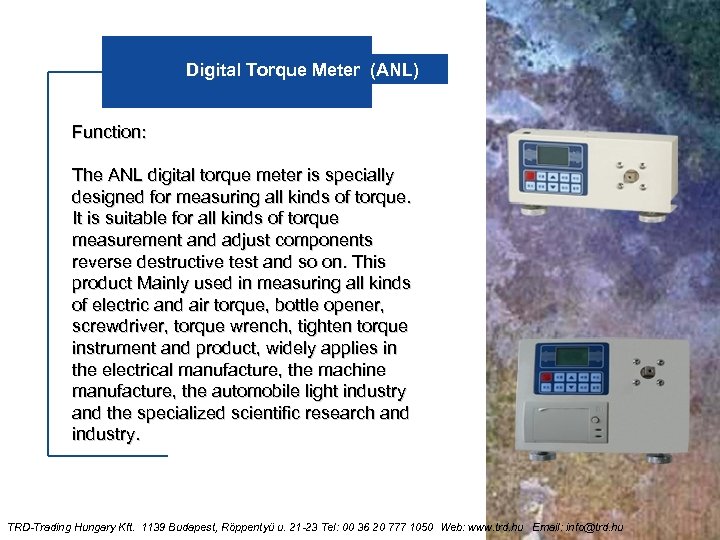

Digital Torque Meter (ANL) Function: The ANL digital torque meter is specially designed for measuring all kinds of torque. It is suitable for all kinds of torque measurement and adjust components reverse destructive test and so on. This product Mainly used in measuring all kinds of electric and air torque, bottle opener, screwdriver, torque wrench, tighten torque instrument and product, widely applies in the electrical manufacture, the machine manufacture, the automobile light industry and the specialized scientific research and industry. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

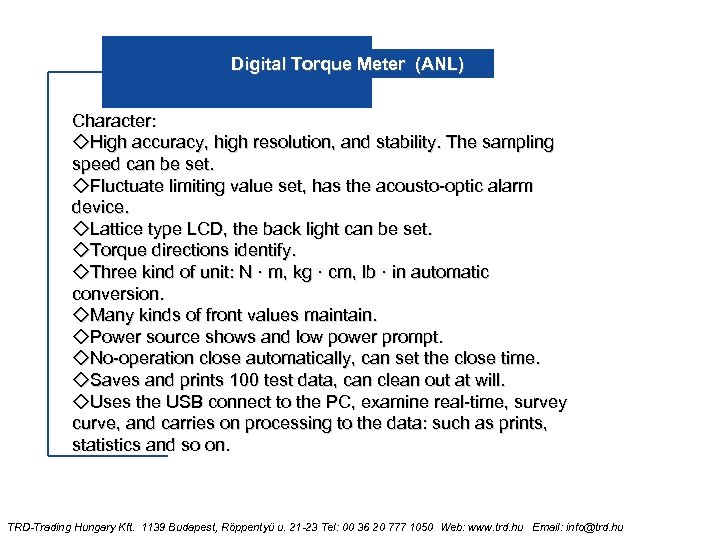

Digital Torque Meter (ANL) Character: ◇High accuracy, high resolution, and stability. The sampling speed can be set. ◇Fluctuate limiting value set, has the acousto-optic alarm device. ◇Lattice type LCD, the back light can be set. ◇Torque directions identify. ◇Three kind of unit: N · m, kg · cm, lb · in automatic conversion. ◇Many kinds of front values maintain. ◇Power source shows and low power prompt. ◇No-operation close automatically, can set the close time. ◇Saves and prints 100 test data, can clean out at will. ◇Uses the USB connect to the PC, examine real-time, survey curve, and carries on processing to the data: such as prints, statistics and so on. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

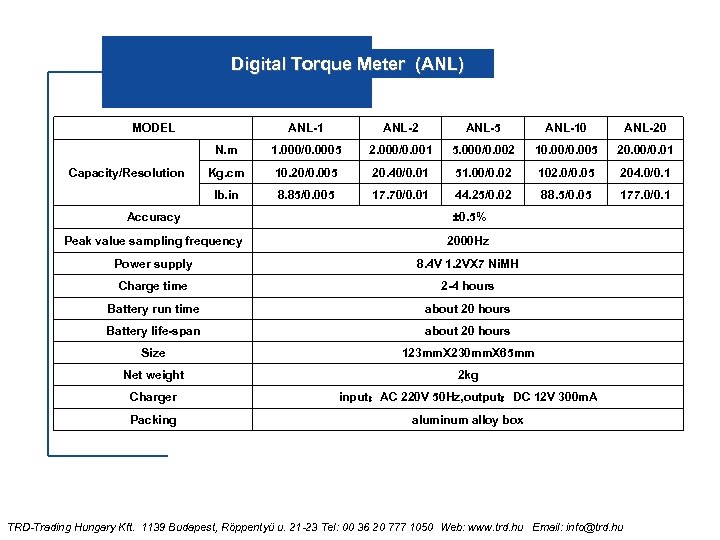

Digital Torque Meter (ANL) MODEL ANL-2 ANL-5 ANL-10 ANL-20 N. m 1. 000/0. 0005 2. 000/0. 001 5. 000/0. 002 10. 00/0. 005 20. 00/0. 01 Kg. cm 10. 20/0. 005 20. 40/0. 01 51. 00/0. 02 102. 0/0. 05 204. 0/0. 1 lb. in Capacity/Resolution ANL-1 8. 85/0. 005 17. 70/0. 01 44. 25/0. 02 88. 5/0. 05 177. 0/0. 1 Accuracy ± 0. 5% Peak value sampling frequency 2000 Hz Power supply 8. 4 V 1. 2 VX 7 Ni. MH Charge time 2 -4 hours Battery run time about 20 hours Battery life-span about 20 hours Size 123 mm. X 230 mm. X 65 mm Net weight 2 kg Charger input：AC 220 V 50 Hz, output：DC 12 V 300 m. A Packing aluminum alloy box TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

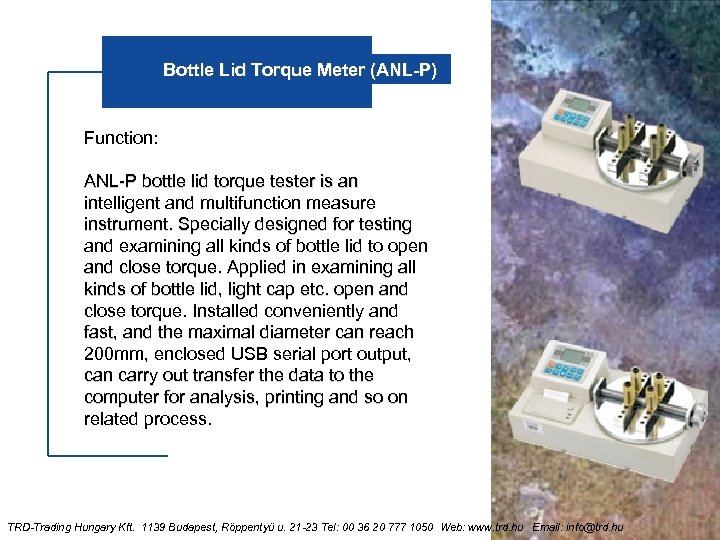

Bottle Lid Torque Meter (ANL-P) Function: ANL-P bottle lid torque tester is an intelligent and multifunction measure instrument. Specially designed for testing and examining all kinds of bottle lid to open and close torque. Applied in examining all kinds of bottle lid, light cap etc. open and close torque. Installed conveniently and fast, and the maximal diameter can reach 200 mm, enclosed USB serial port output, can carry out transfer the data to the computer for analysis, printing and so on related process. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

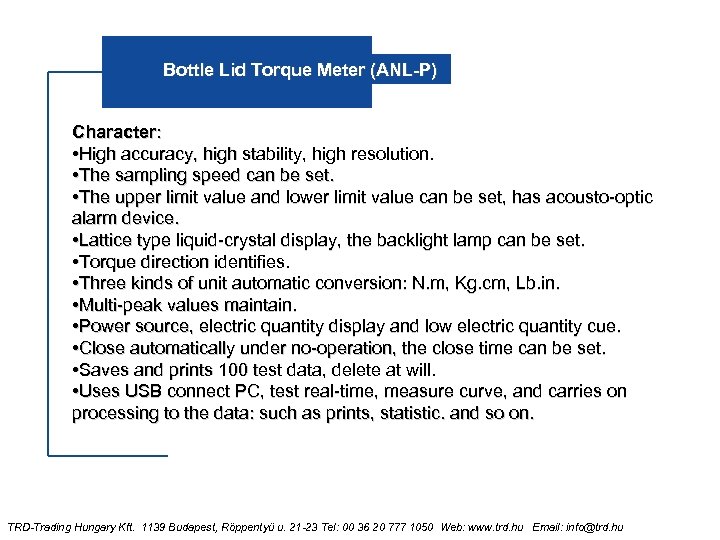

Bottle Lid Torque Meter (ANL-P) Character: • High accuracy, high stability, high resolution. • The sampling speed can be set. • The upper limit value and lower limit value can be set, has acousto-optic alarm device. • Lattice type liquid-crystal display, the backlight lamp can be set. • Torque direction identifies. • Three kinds of unit automatic conversion: N. m, Kg. cm, Lb. in. • Multi-peak values maintain. • Power source, electric quantity display and low electric quantity cue. • Close automatically under no-operation, the close time can be set. • Saves and prints 100 test data, delete at will. • Uses USB connect PC, test real-time, measure curve, and carries on processing to the data: such as prints, statistic. and so on. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

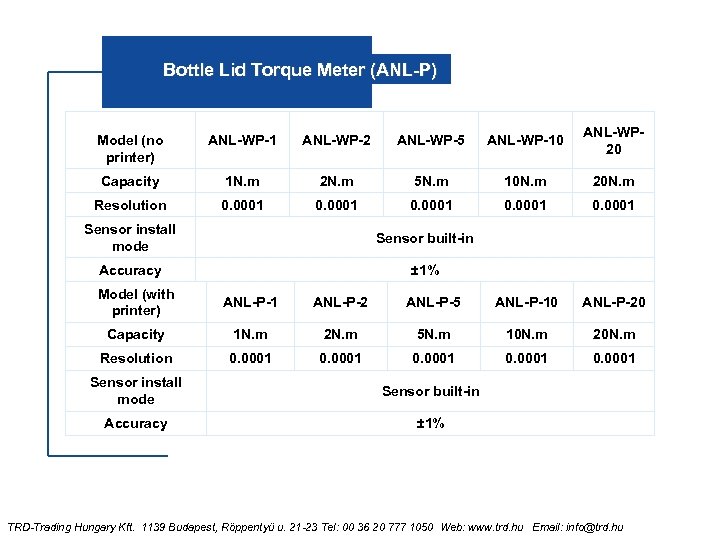

Bottle Lid Torque Meter (ANL-P) Model (no printer) ANL-WP-1 ANL-WP-2 ANL-WP-5 ANL-WP-10 ANL-WP 20 Capacity 1 N. m 2 N. m 5 N. m 10 N. m 20 N. m Resolution 0. 0001 Sensor install mode Sensor built-in Accuracy ± 1% Model (with printer) ANL-P-1 ANL-P-2 ANL-P-5 ANL-P-10 ANL-P-20 Capacity 1 N. m 2 N. m 5 N. m 10 N. m 20 N. m Resolution 0. 0001 Sensor install mode Sensor built-in Accuracy ± 1% TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

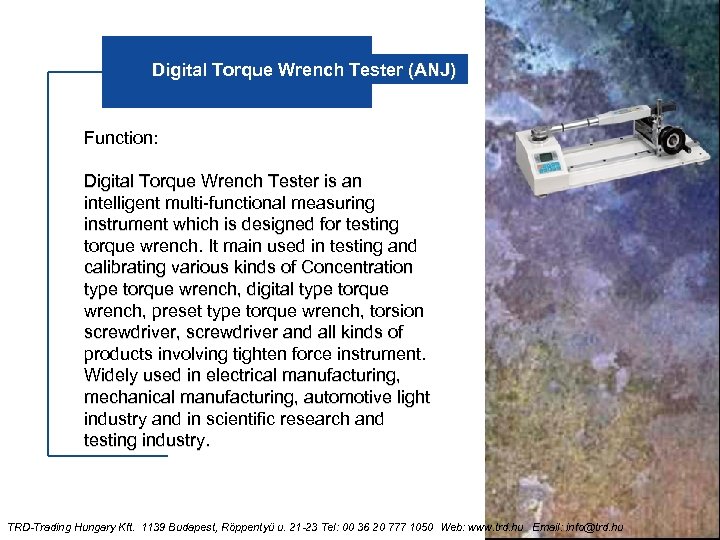

Digital Torque Wrench Tester (ANJ) Function: Digital Torque Wrench Tester is an intelligent multi-functional measuring instrument which is designed for testing torque wrench. It main used in testing and calibrating various kinds of Concentration type torque wrench, digital type torque wrench, preset type torque wrench, torsion screwdriver, screwdriver and all kinds of products involving tighten force instrument. Widely used in electrical manufacturing, mechanical manufacturing, automotive light industry and in scientific research and testing industry. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

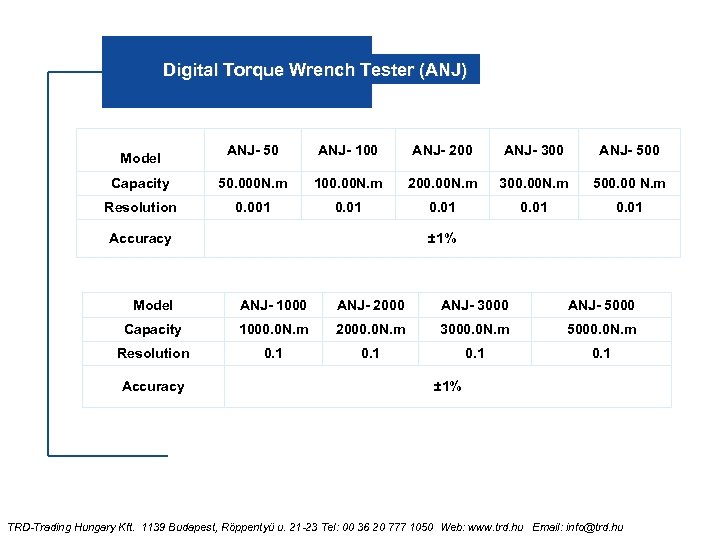

Digital Torque Wrench Tester (ANJ) ANJ- 50 ANJ- 100 ANJ- 200 ANJ- 300 ANJ- 500 Capacity 50. 000 N. m 100. 00 N. m 200. 00 N. m 300. 00 N. m 500. 00 N. m Resolution 0. 001 0. 01 Model Accuracy ± 1% Model ANJ- 1000 ANJ- 2000 ANJ- 3000 ANJ- 5000 Capacity 1000. 0 N. m 2000. 0 N. m 3000. 0 N. m 5000. 0 N. m Resolution 0. 1 Accuracy ± 1% TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

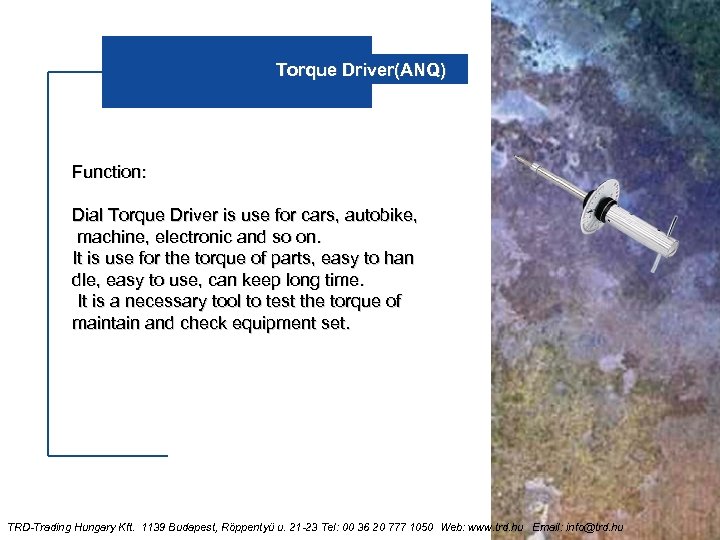

Torque Driver(ANQ) Function: Dial Torque Driver is use for cars, autobike, machine, electronic and so on. It is use for the torque of parts, easy to han dle, easy to use, can keep long time. It is a necessary tool to test the torque of maintain and check equipment set. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

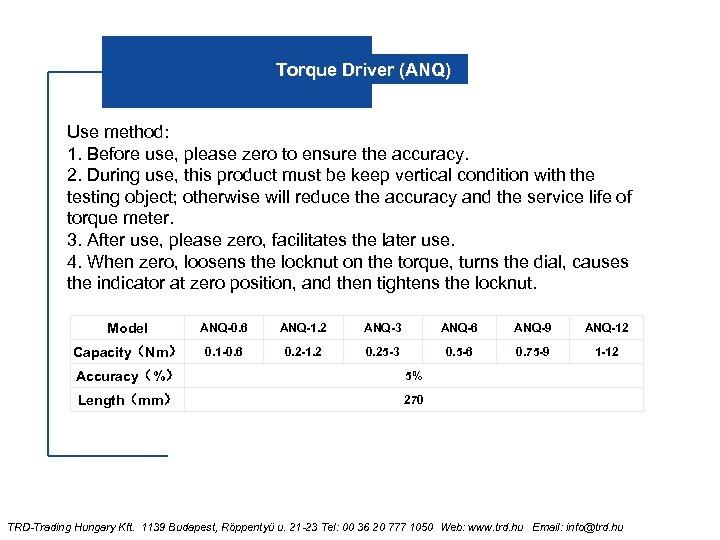

Torque Driver (ANQ) Use method: 1. Before use, please zero to ensure the accuracy. 2. During use, this product must be keep vertical condition with the testing object; otherwise will reduce the accuracy and the service life of torque meter. 3. After use, please zero, facilitates the later use. 4. When zero, loosens the locknut on the torque, turns the dial, causes the indicator at zero position, and then tightens the locknut. Model ANQ-0. 6 ANQ-1. 2 ANQ-3 ANQ-6 ANQ-9 ANQ-12 Capacity（Nm） 0. 1 -0. 6 0. 2 -1. 2 0. 25 -3 0. 5 -6 0. 75 -9 1 -12 Accuracy（%） 5% Length（mm） 270 TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

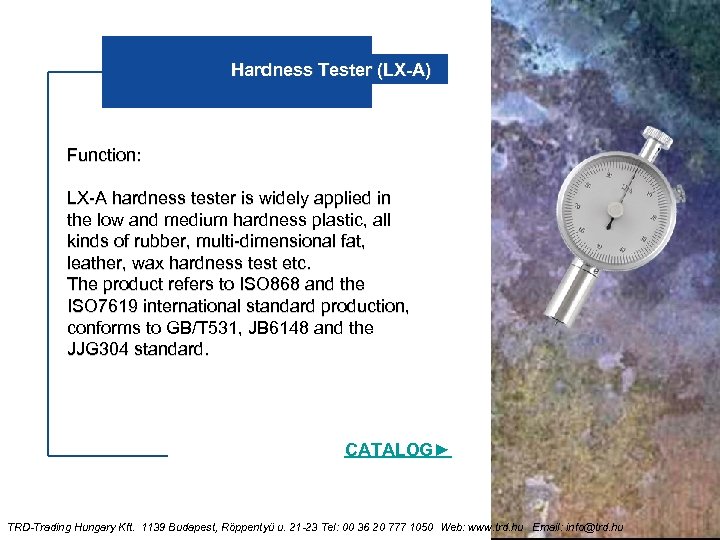

Hardness Tester (LX-A) Function: LX-A hardness tester is widely applied in the low and medium hardness plastic, all kinds of rubber, multi-dimensional fat, leather, wax hardness test etc. The product refers to ISO 868 and the ISO 7619 international standard production, conforms to GB/T 531, JB 6148 and the JJG 304 standard. CATALOG► TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu
Hardness Tester (LX-A) Character: Needle indicates, easy to read, high accuracy. Dual needle, after test the top value, the driven needle will stop move, convenience the user to read. Handhold design, carry conveniently, handhold measure, also can be installed with match test stand. Specification: Dial value: 0 ～ 100 HA Needle stroke: 2. 5 mm Measure range: 10 ～ 90 HA Needlepoint size: Ф 0. 79 mm Weight: ～ 0. 5 kg TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

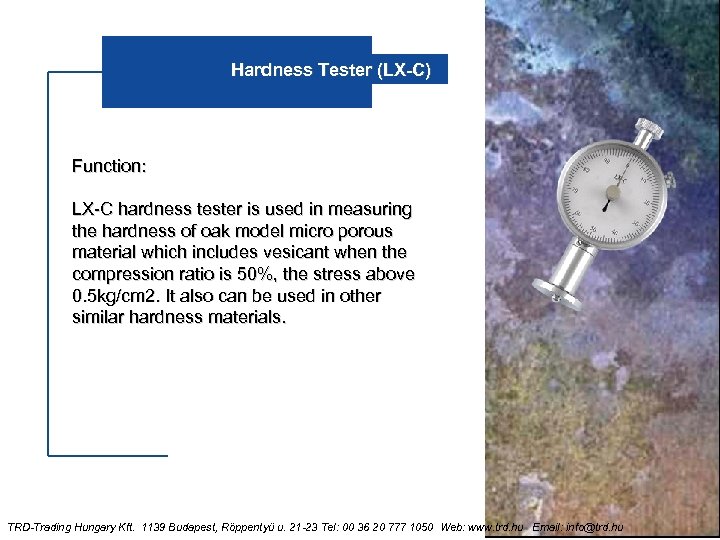

Hardness Tester (LX-C) Function: LX-C hardness tester is used in measuring the hardness of oak model micro porous material which includes vesicant when the compression ratio is 50%, the stress above 0. 5 kg/cm 2. It also can be used in other similar hardness materials. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu
Hardness Tester (LX-C) Character: Needle indicates, easy to read, high accuracy. Dual needle, after test the top value, the driven needle will stop move, convenience the user to read. Handhold design, carry conveniently, handhold measure, also can be installed with match test stand. Specification: Dial value: 0 ～ 100 HA Needle stroke: 2. 5 mm Measure range: 10 ～ 90 HC Needlepoint size: SR 2. 5 mm Weight: ～ 0. 5 kg TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

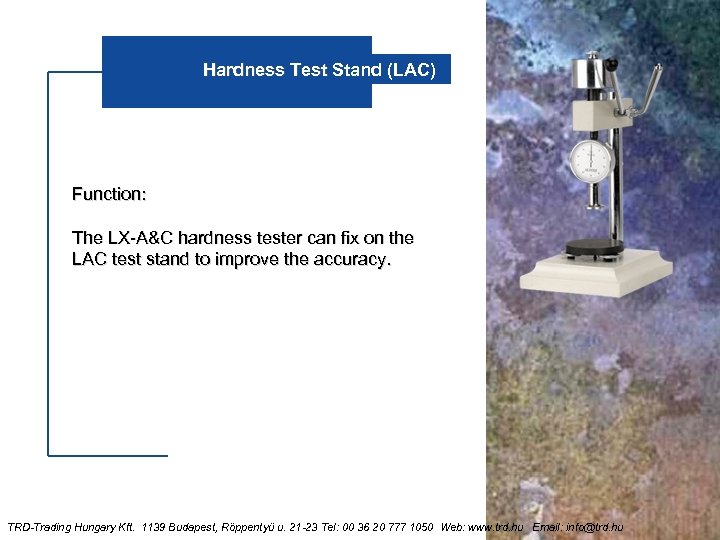

Hardness Test Stand (LAC) Function: The LX-A&C hardness tester can fix on the LAC test stand to improve the accuracy. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

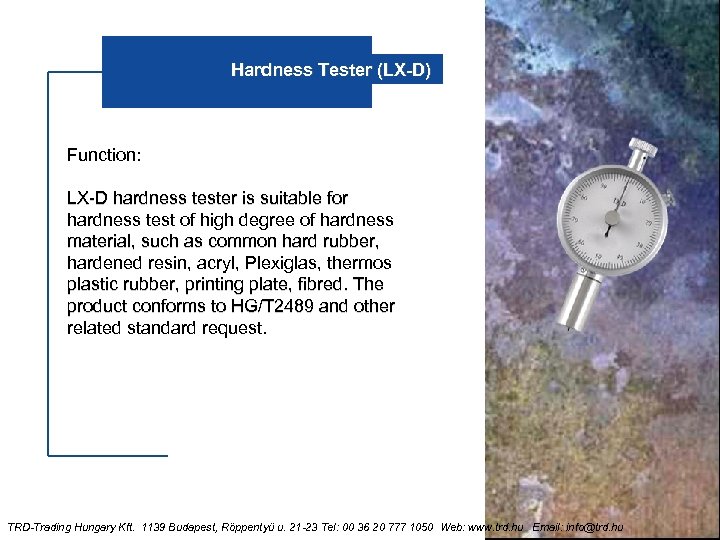

Hardness Tester (LX-D) Function: LX-D hardness tester is suitable for hardness test of high degree of hardness material, such as common hard rubber, hardened resin, acryl, Plexiglas, thermos plastic rubber, printing plate, fibred. The product conforms to HG/T 2489 and other related standard request. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

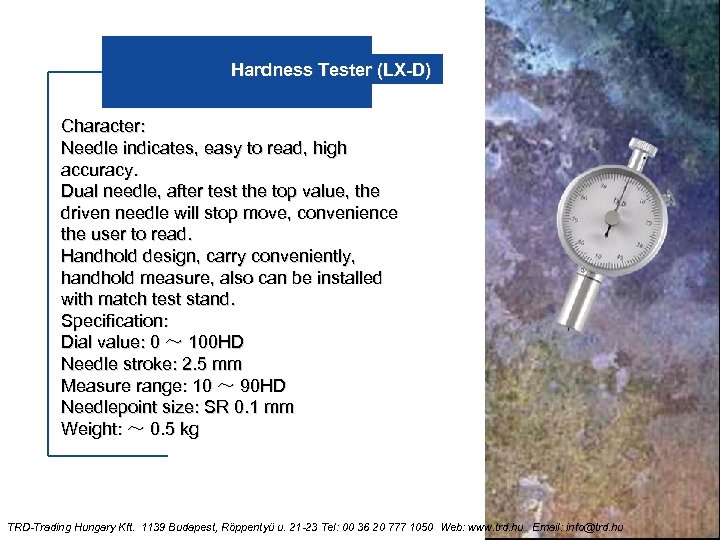

Hardness Tester (LX-D) Character: Needle indicates, easy to read, high accuracy. Dual needle, after test the top value, the driven needle will stop move, convenience the user to read. Handhold design, carry conveniently, handhold measure, also can be installed with match test stand. Specification: Dial value: 0 ～ 100 HD Needle stroke: 2. 5 mm Measure range: 10 ～ 90 HD Needlepoint size: SR 0. 1 mm Weight: ～ 0. 5 kg TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

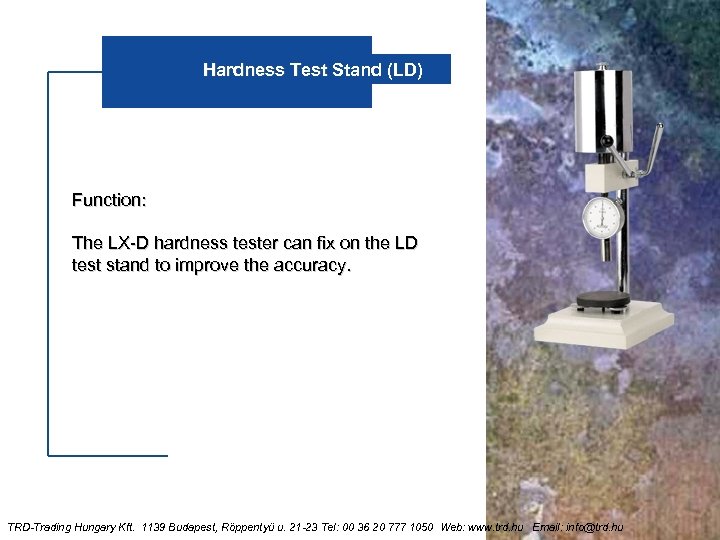

Hardness Test Stand (LD) Function: The LX-D hardness tester can fix on the LD test stand to improve the accuracy. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

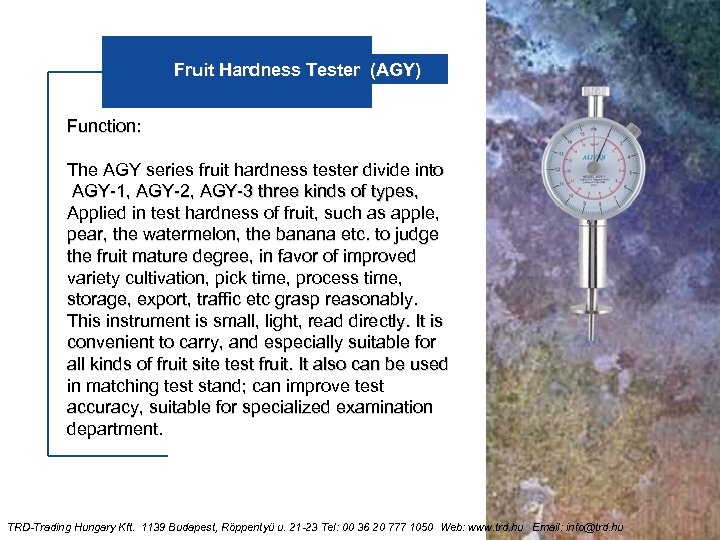

Fruit Hardness Tester (AGY) Function: The AGY series fruit hardness tester divide into AGY-1, AGY-2, AGY-3 three kinds of types, Applied in test hardness of fruit, such as apple, pear, the watermelon, the banana etc. to judge the fruit mature degree, in favor of improved variety cultivation, pick time, process time, storage, export, traffic etc grasp reasonably. This instrument is small, light, read directly. It is convenient to carry, and especially suitable for all kinds of fruit site test fruit. It also can be used in matching test stand; can improve test accuracy, suitable for specialized examination department. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

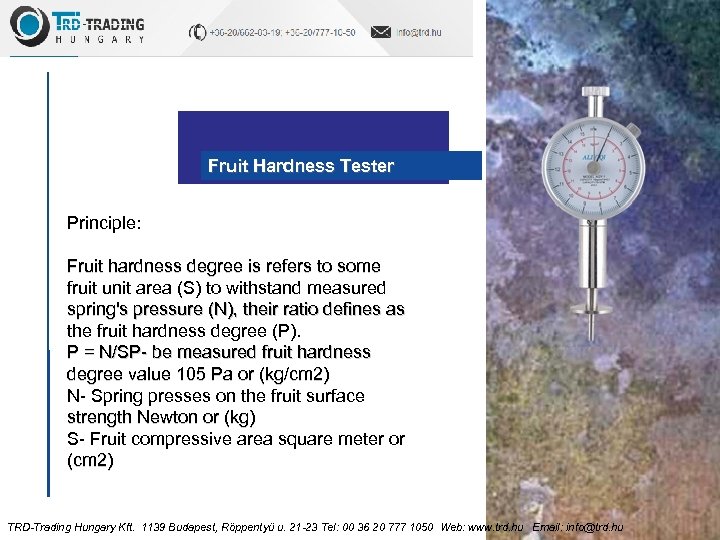

Fruit Hardness Tester Principle: Fruit hardness degree is refers to some fruit unit area (S) to withstand measured spring's pressure (N), their ratio defines as the fruit hardness degree (P). P = N/SP- be measured fruit hardness degree value 105 Pa or (kg/cm 2) N- Spring presses on the fruit surface strength Newton or (kg) S- Fruit compressive area square meter or (cm 2) TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

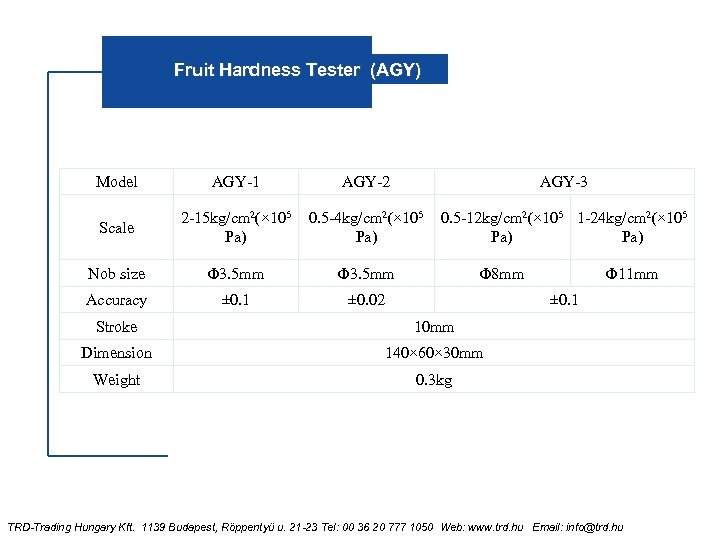

Fruit Hardness Tester (AGY) Model AGY-1 AGY-2 AGY-3 Scale 2 -15 kg/cm 2(× 105 Pa) 0. 5 -4 kg/cm 2(× 105 Pa) 0. 5 -12 kg/cm 2(× 105 1 -24 kg/cm 2(× 105 Pa) Nob size Φ 3. 5 mm Accuracy ± 0. 1 ± 0. 02 Φ 8 mm Φ 11 mm ± 0. 1 Stroke 10 mm Dimension 140× 60× 30 mm Weight 0. 3 kg TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu
Fruit Hardness Tester Stand (GY) Introduction: GY-J fruit hardness tester is designed for GY - 1, GY - 2, GY-3 three types of fruits hardness tester, used for apples, bananas, pears, watermelon etc. Various fruits and hardness testing. Features: Simple operation stability, suitable for indoor table testing. Using screw transmission technology, Displacement measurement precision, smooth. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

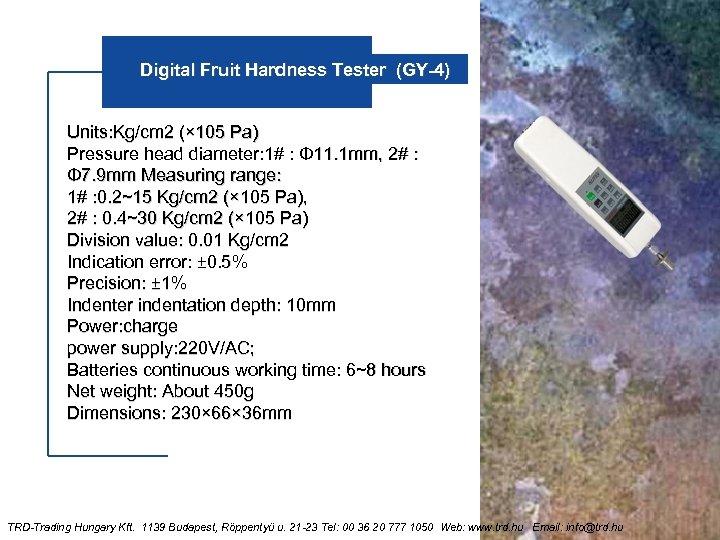

Digital Fruit Hardness Tester (GY-4) Units: Kg/cm 2 (× 105 Pa) Pressure head diameter: 1# : Φ 11. 1 mm, 2# : Φ 7. 9 mm Measuring range: 1# : 0. 2~15 Kg/cm 2 (× 105 Pa), 2# : 0. 4~30 Kg/cm 2 (× 105 Pa) Division value: 0. 01 Kg/cm 2 Indication error: ± 0. 5% Precision: ± 1% Indenter indentation depth: 10 mm Power: charge power supply: 220 V/AC; Batteries continuous working time: 6~8 hours Net weight: About 450 g Dimensions: 230× 66× 36 mm TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

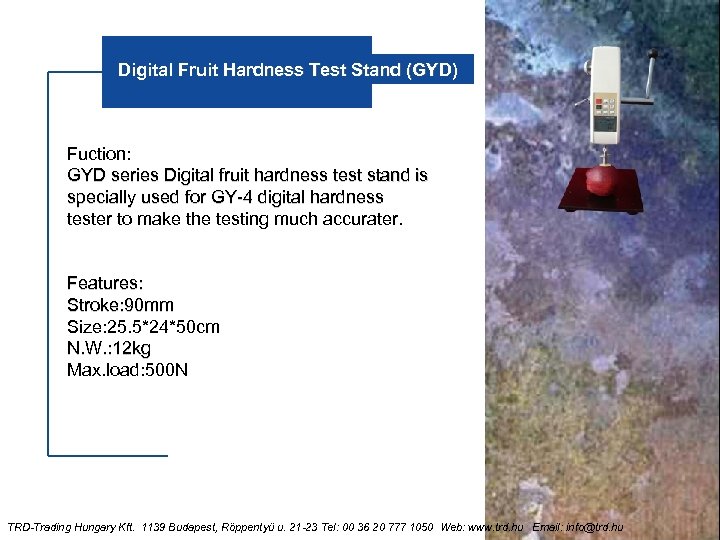

Digital Fruit Hardness Test Stand (GYD) Fuction: GYD series Digital fruit hardness test stand is specially used for GY-4 digital hardness tester to make the testing much accurater. Features: Stroke: 90 mm Size: 25. 5*24*50 cm N. W. : 12 kg Max. load: 500 N TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

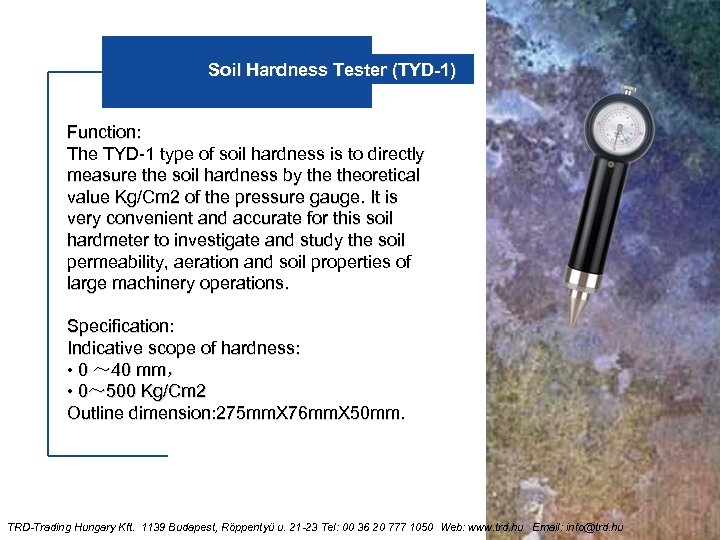

Soil Hardness Tester (TYD-1) Function: The TYD-1 type of soil hardness is to directly measure the soil hardness by theoretical value Kg/Cm 2 of the pressure gauge. It is very convenient and accurate for this soil hardmeter to investigate and study the soil permeability, aeration and soil properties of large machinery operations. Specification: Indicative scope of hardness: • 0 ～ 40 mm， • 0～ 500 Kg/Cm 2 Outline dimension: 275 mm. X 76 mm. X 50 mm. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

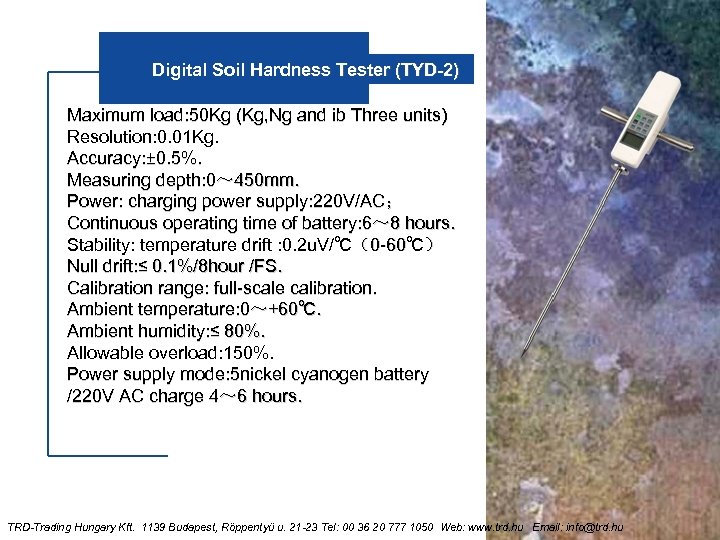

Digital Soil Hardness Tester (TYD-2) Maximum load: 50 Kg (Kg, Ng and ib Three units) Resolution: 0. 01 Kg. Accuracy: ± 0. 5%. Measuring depth: 0～ 450 mm. Power: charging power supply: 220 V/AC； Continuous operating time of battery: 6～ 8 hours. Stability: temperature drift : 0. 2 u. V/℃（0 -60℃） Null drift: ≤ 0. 1%/8 hour /FS. Calibration range: full-scale calibration. Ambient temperature: 0～+60℃. Ambient humidity: ≤ 80%. Allowable overload: 150%. Power supply mode: 5 nickel cyanogen battery /220 V AC charge 4～ 6 hours. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

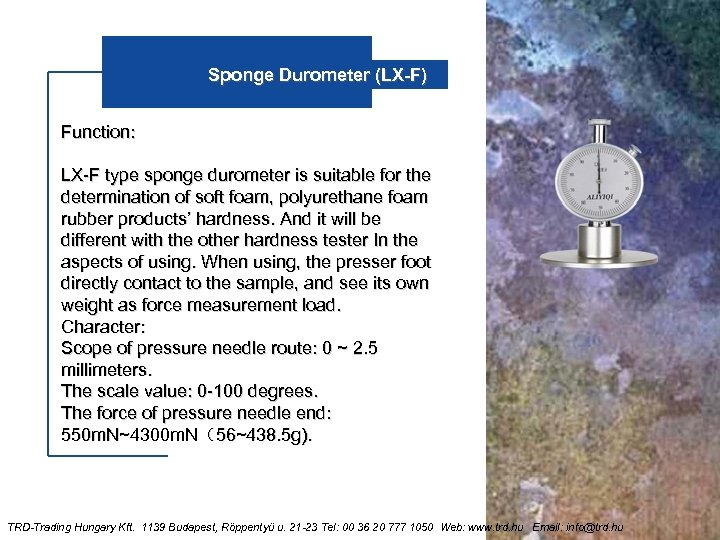

Sponge Durometer (LX-F) Function: LX-F type sponge durometer is suitable for the determination of soft foam, polyurethane foam rubber products’ hardness. And it will be different with the other hardness tester In the aspects of using. When using, the presser foot directly contact to the sample, and see its own weight as force measurement load. Character: Scope of pressure needle route: 0 ~ 2. 5 millimeters. The scale value: 0 -100 degrees. The force of pressure needle end: 550 m. N~4300 m. N（56~438. 5 g). TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

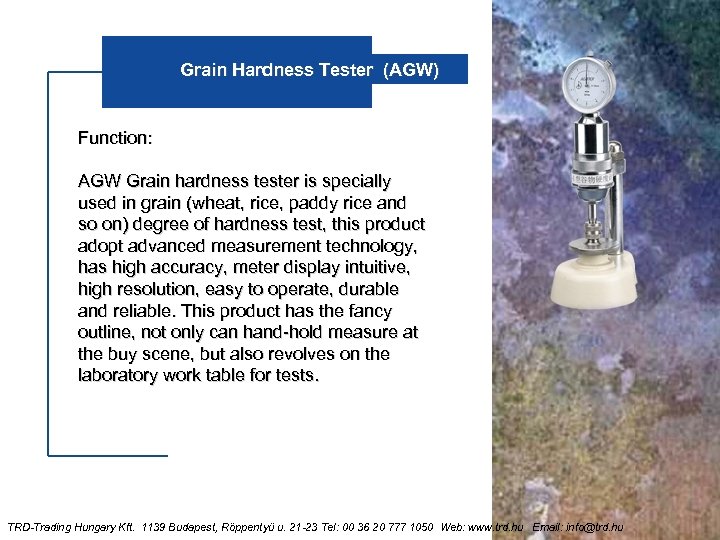

Grain Hardness Tester (AGW) Function: AGW Grain hardness tester is specially used in grain (wheat, rice, paddy rice and so on) degree of hardness test, this product adopt advanced measurement technology, has high accuracy, meter display intuitive, high resolution, easy to operate, durable and reliable. This product has the fancy outline, not only can hand-hold measure at the buy scene, but also revolves on the laboratory work table for tests. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

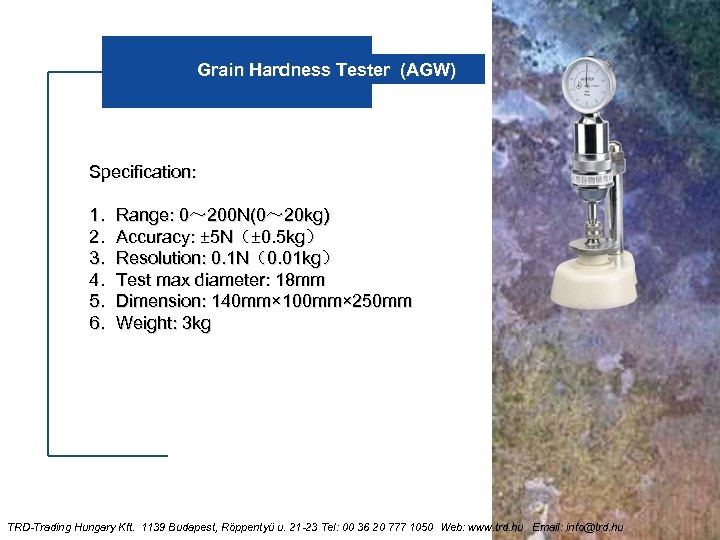

Grain Hardness Tester (AGW) Specification: 1. 2. 3. 4. 5. 6. Range: 0～ 200 N(0～ 20 kg) Accuracy: ± 5 N（± 0. 5 kg） Resolution: 0. 1 N（0. 01 kg） Test max diameter: 18 mm Dimension: 140 mm× 100 mm× 250 mm Weight: 3 kg TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

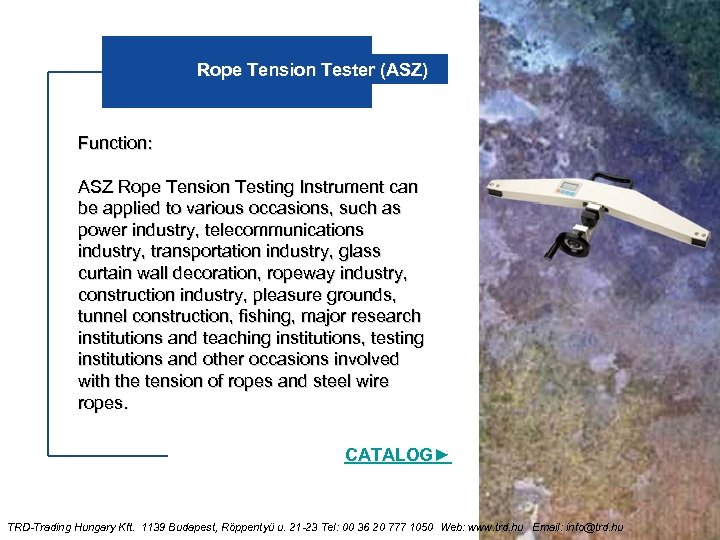

Rope Tension Tester (ASZ) Function: ASZ Rope Tension Testing Instrument can be applied to various occasions, such as power industry, telecommunications industry, transportation industry, glass curtain wall decoration, ropeway industry, construction industry, pleasure grounds, tunnel construction, fishing, major research institutions and teaching institutions, testing institutions and other occasions involved with the tension of ropes and steel wire ropes. CATALOG► TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

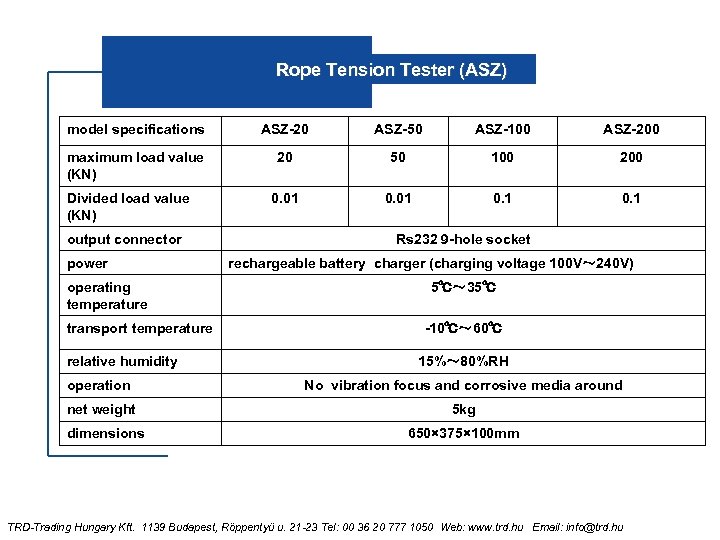

Rope Tension Tester (ASZ) model specifications ASZ-20 ASZ-50 ASZ-100 ASZ-200 maximum load value (KN) 20 50 100 200 0. 01 0. 1 Divided load value (KN) output connector power operating temperature transport temperature relative humidity Rs 232 9 -hole socket rechargeable battery charger (charging voltage 100 V～ 240 V) 5℃～ 35℃ -10℃～ 60℃ 15%～ 80%RH operation No vibration focus and corrosive media around net weight 5 kg dimensions 650× 375× 100 mm TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

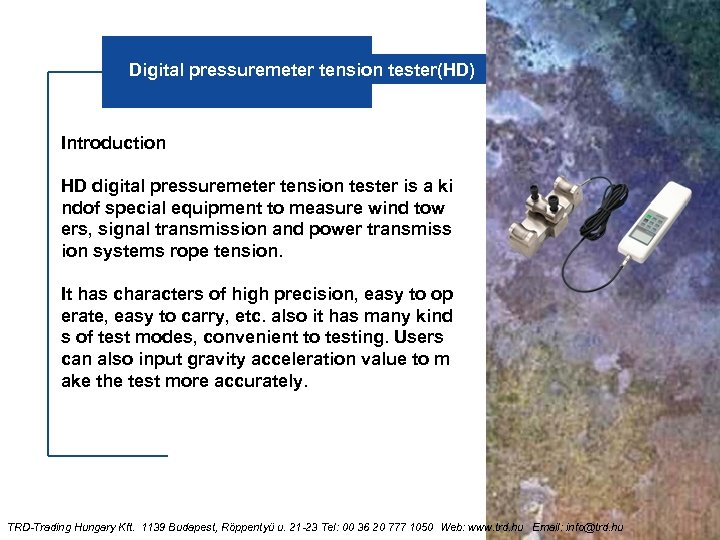

Digital pressuremeter tension tester(HD) Introduction HD digital pressuremeter tension tester is a ki ndof special equipment to measure wind tow ers, signal transmission and power transmiss ion systems rope tension. It has characters of high precision, easy to op erate, easy to carry, etc. also it has many kind s of test modes, convenient to testing. Users can also input gravity acceleration value to m ake the test more accurately. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

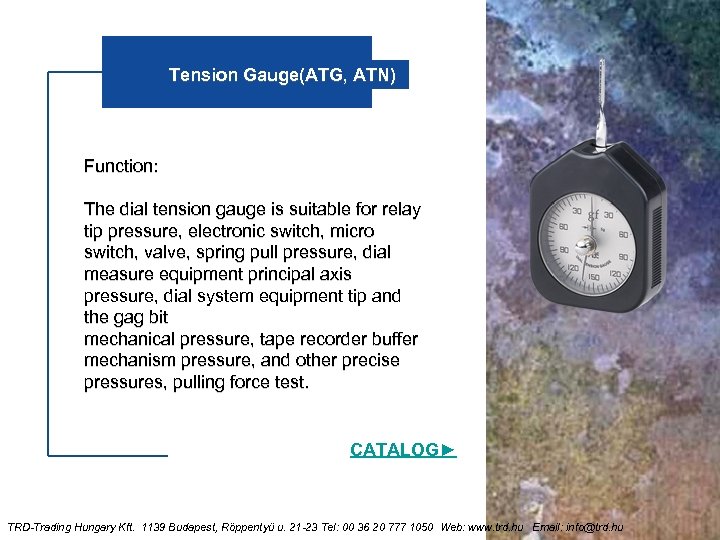

Tension Gauge(ATG, ATN) Function: The dial tension gauge is suitable for relay tip pressure, electronic switch, micro switch, valve, spring pull pressure, dial measure equipment principal axis pressure, dial system equipment tip and the gag bit mechanical pressure, tape recorder buffer mechanism pressure, and other precise pressures, pulling force test. CATALOG► TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

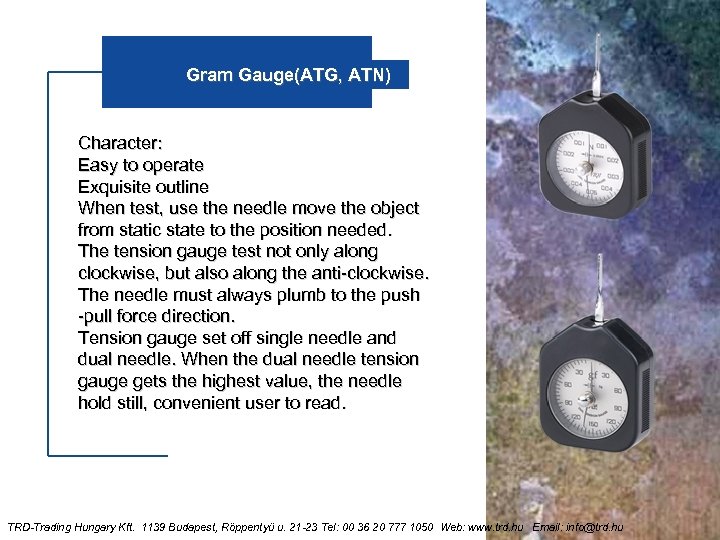

Gram Gauge(ATG, ATN) Character: Easy to operate Exquisite outline When test, use the needle move the object from static state to the position needed. The tension gauge test not only along clockwise, but also along the anti-clockwise. The needle must always plumb to the push -pull force direction. Tension gauge set off single needle and dual needle. When the dual needle tension gauge gets the highest value, the needle hold still, convenient user to read. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

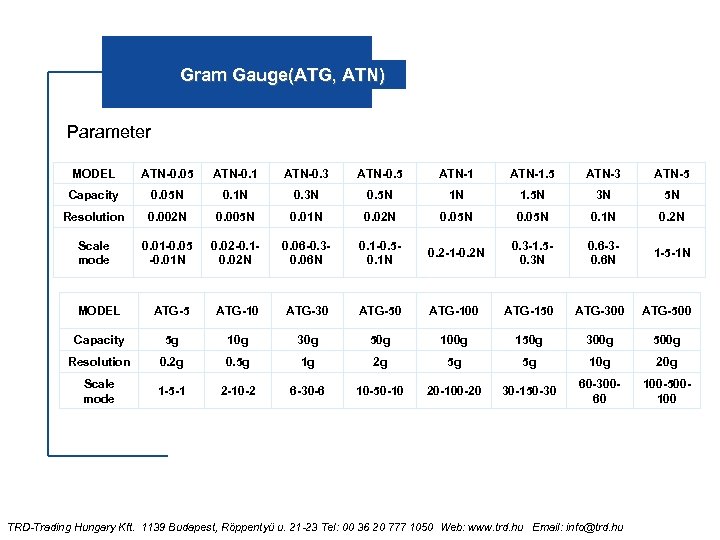

Gram Gauge(ATG, ATN) Parameter MODEL ATN-0. 05 ATN-0. 1 ATN-0. 3 ATN-0. 5 ATN-1. 5 ATN-3 ATN-5 Capacity 0. 05 N 0. 1 N 0. 3 N 0. 5 N 1 N 1. 5 N 3 N 5 N Resolution 0. 002 N 0. 005 N 0. 01 N 0. 02 N 0. 05 N 0. 1 N 0. 2 N Scale mode 0. 01 -0. 05 -0. 01 N 0. 02 -0. 10. 02 N 0. 06 -0. 30. 06 N 0. 1 -0. 50. 1 N 0. 2 -1 -0. 2 N 0. 3 -1. 50. 3 N 0. 6 -30. 6 N 1 -5 -1 N MODEL ATG-5 ATG-10 ATG-30 ATG-50 ATG-100 ATG-150 ATG-300 ATG-500 Capacity 5 g 10 g 30 g 50 g 100 g 150 g 300 g 500 g Resolution 0. 2 g 0. 5 g 1 g 2 g 5 g 5 g 10 g 20 g Scale mode 1 -5 -1 2 -10 -2 6 -30 -6 10 -50 -10 20 -100 -20 30 -150 -30 60 -30060 100 -500100 TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu
Ball Pressure Tester (AQY) Function: This experiment device is designed according to the "ball pressure test " requirements in GB 2099 standards, mainly used for heat testing in household and similar plug sockets products. It is the necessary equipment for relevant manufacturers and qc department for product quality inspection and control. CATALOG► TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

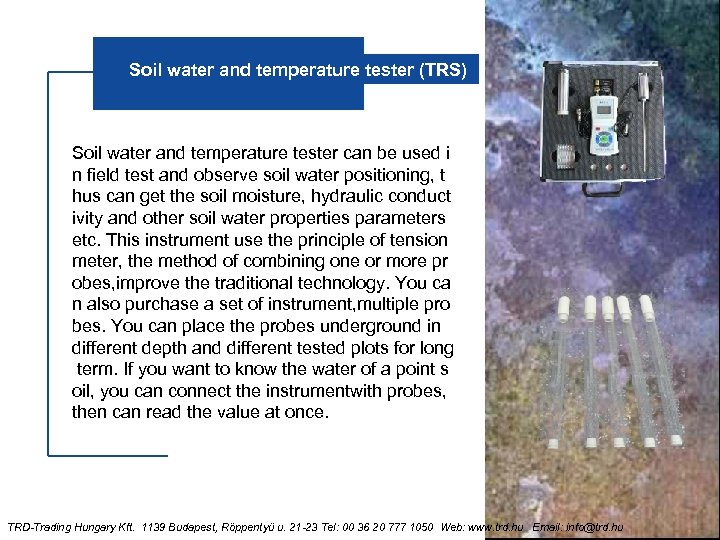

Soil water and temperature tester (TRS) Soil water and temperature tester can be used i n field test and observe soil water positioning, t hus can get the soil moisture, hydraulic conduct ivity and other soil water properties parameters etc. This instrument use the principle of tension meter, the method of combining one or more pr obes, improve the traditional technology. You ca n also purchase a set of instrument, multiple pro bes. You can place the probes underground in different depth and different tested plots for long term. If you want to know the water of a point s oil, you can connect the instrumentwith probes, then can read the value at once. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

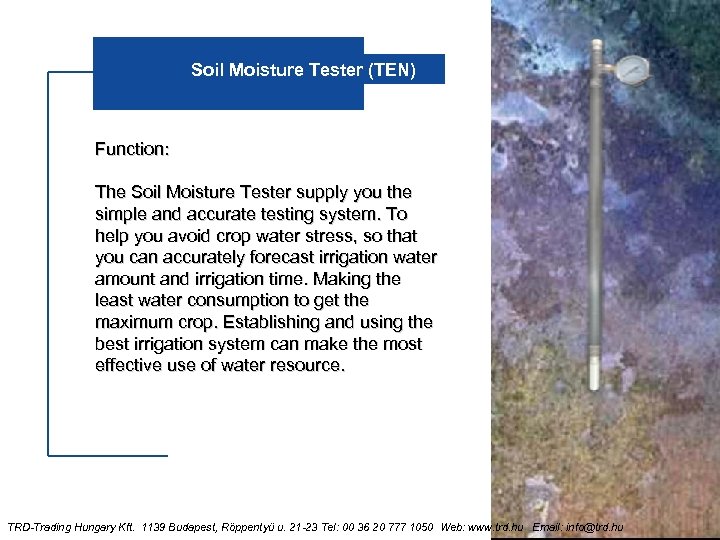

Soil Moisture Tester (TEN) Function: The Soil Moisture Tester supply you the simple and accurate testing system. To help you avoid crop water stress, so that you can accurately forecast irrigation water amount and irrigation time. Making the least water consumption to get the maximum crop. Establishing and using the best irrigation system can make the most effective use of water resource. TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu

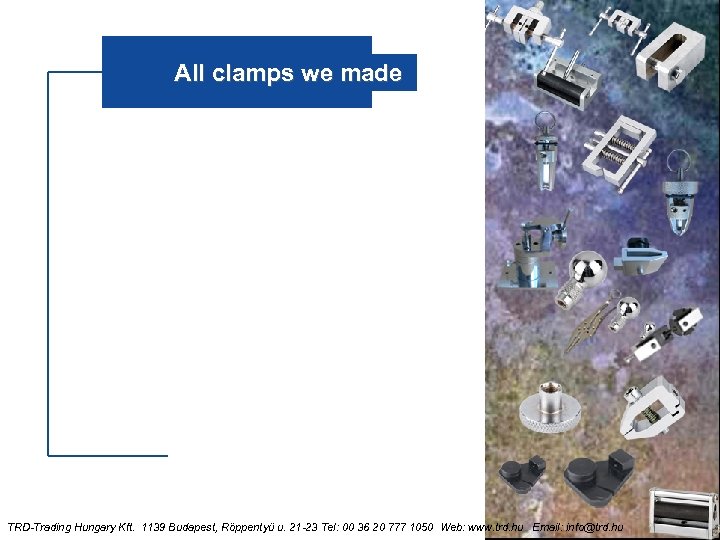

All clamps we made TRD-Trading Hungary Kft. 1139 Budapest, Röppentyű u. 21 -23 Tel: 00 36 20 777 1050 Web: www. trd. hu Email: info@trd. hu
