Systemy Sygnalizacji Włamania i Napadu Centrala alarmowa MAP 5000 Paweł Piekut pawel. piekut@pl. bosch. Systemy Sygnalizacji Włamania i Napadu Centrala alarmowa MAP 5000 Paweł Piekut pawel. piekut@pl. bosch. com Security Systems 1 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

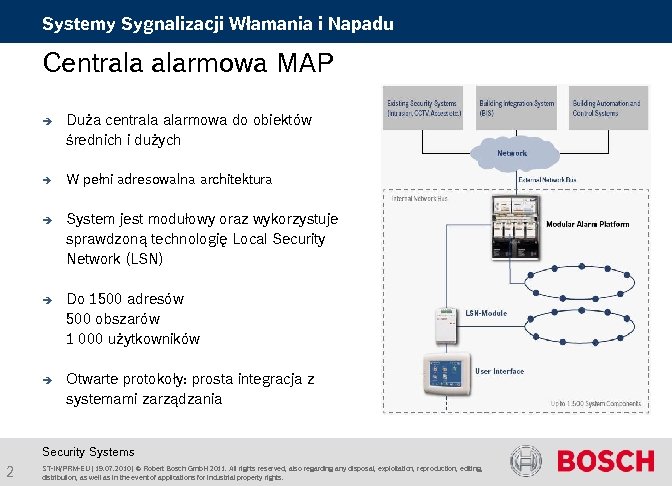

Systemy Sygnalizacji Włamania i Napadu Centrala alarmowa MAP è Duża centrala alarmowa do obiektów Systemy Sygnalizacji Włamania i Napadu Centrala alarmowa MAP è Duża centrala alarmowa do obiektów średnich i dużych è W pełni adresowalna architektura è System jest modułowy oraz wykorzystuje sprawdzoną technologię Local Security Network (LSN) è Do 1500 adresów 500 obszarów 1 000 użytkowników è Otwarte protokoły: prosta integracja z systemami zarządzania Security Systems 2 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

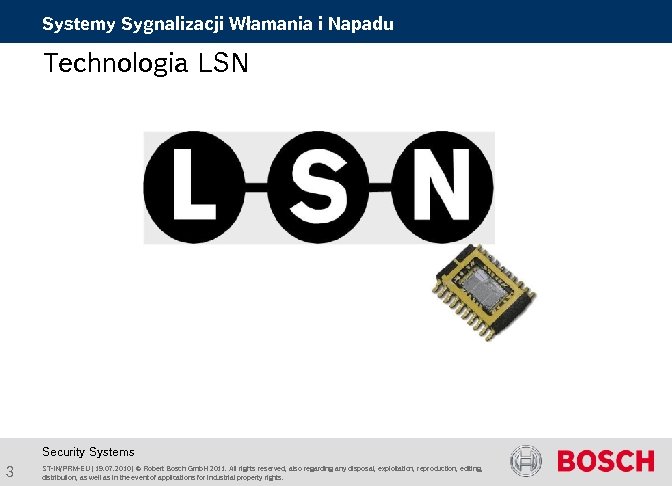

Systemy Sygnalizacji Włamania i Napadu Technologia LSN Security Systems 3 ST-IN/PRM-EU | 19. 07. Systemy Sygnalizacji Włamania i Napadu Technologia LSN Security Systems 3 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

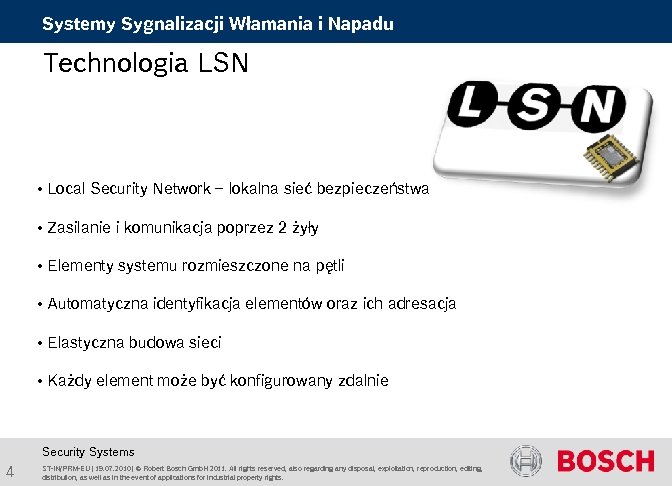

Systemy Sygnalizacji Włamania i Napadu Technologia LSN • Local Security Network – lokalna sieć Systemy Sygnalizacji Włamania i Napadu Technologia LSN • Local Security Network – lokalna sieć bezpieczeństwa • Zasilanie i komunikacja poprzez 2 żyły • Elementy systemu rozmieszczone na pętli • Automatyczna identyfikacja elementów oraz ich adresacja • Elastyczna budowa sieci • Każdy element może być konfigurowany zdalnie Security Systems 4 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

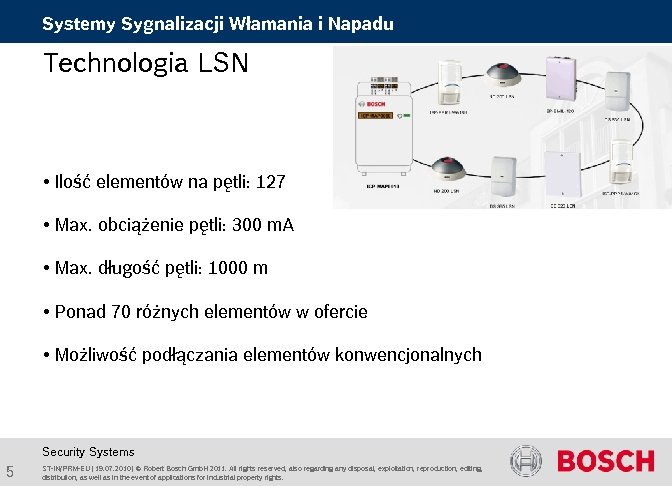

Systemy Sygnalizacji Włamania i Napadu Technologia LSN • Ilość elementów na pętli: 127 • Systemy Sygnalizacji Włamania i Napadu Technologia LSN • Ilość elementów na pętli: 127 • Max. obciążenie pętli: 300 m. A • Max. długość pętli: 1000 m • Ponad 70 różnych elementów w ofercie • Możliwość podłączania elementów konwencjonalnych Security Systems 5 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

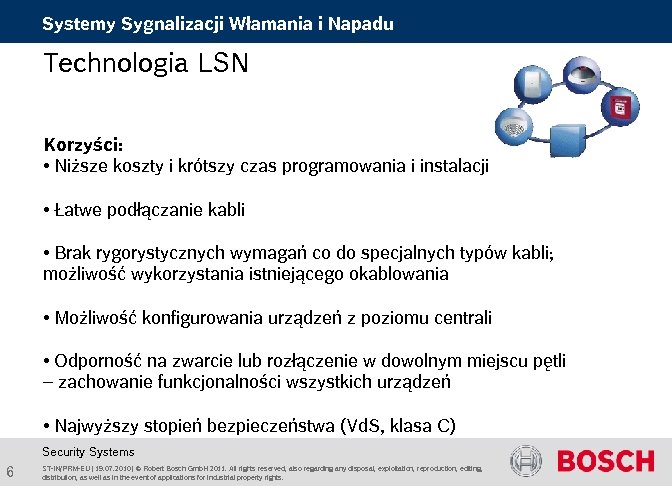

Systemy Sygnalizacji Włamania i Napadu Technologia LSN Korzyści: • Niższe koszty i krótszy czas Systemy Sygnalizacji Włamania i Napadu Technologia LSN Korzyści: • Niższe koszty i krótszy czas programowania i instalacji • Łatwe podłączanie kabli • Brak rygorystycznych wymagań co do specjalnych typów kabli; możliwość wykorzystania istniejącego okablowania • Możliwość konfigurowania urządzeń z poziomu centrali • Odporność na zwarcie lub rozłączenie w dowolnym miejscu pętli – zachowanie funkcjonalności wszystkich urządzeń • Najwyższy stopień bezpieczeństwa (Vd. S, klasa C) Security Systems 6 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

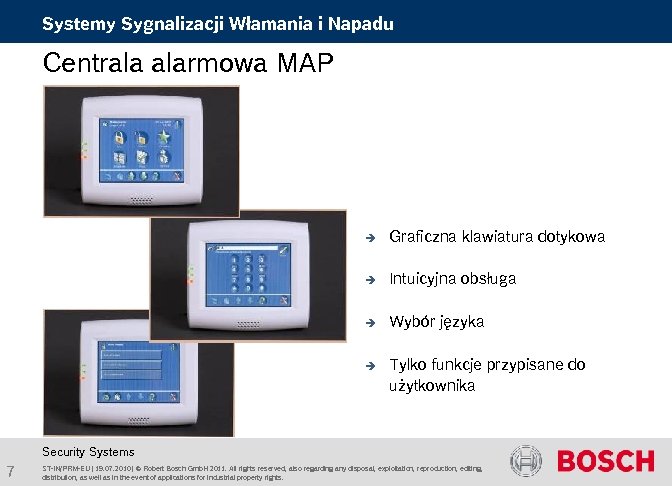

Systemy Sygnalizacji Włamania i Napadu Centrala alarmowa MAP è Graficzna klawiatura dotykowa è Intuicyjna Systemy Sygnalizacji Włamania i Napadu Centrala alarmowa MAP è Graficzna klawiatura dotykowa è Intuicyjna obsługa è Wybór języka è Tylko funkcje przypisane do użytkownika Security Systems 7 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

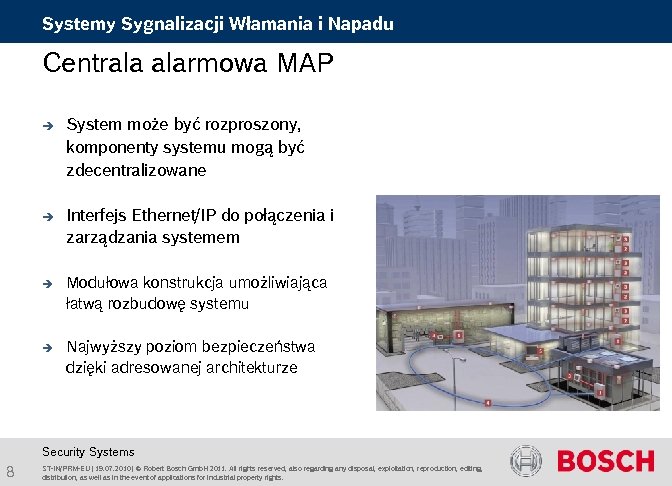

Systemy Sygnalizacji Włamania i Napadu Centrala alarmowa MAP è System może być rozproszony, komponenty Systemy Sygnalizacji Włamania i Napadu Centrala alarmowa MAP è System może być rozproszony, komponenty systemu mogą być zdecentralizowane è Interfejs Ethernet/IP do połączenia i zarządzania systemem è Modułowa konstrukcja umożliwiająca łatwą rozbudowę systemu è Najwyższy poziom bezpieczeństwa dzięki adresowanej architekturze Security Systems 8 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

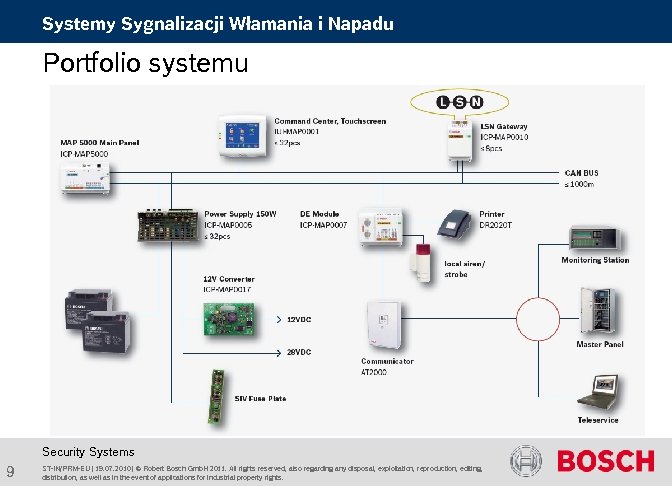

Systemy Sygnalizacji Włamania i Napadu Portfolio systemu Security Systems 9 ST-IN/PRM-EU | 19. 07. Systemy Sygnalizacji Włamania i Napadu Portfolio systemu Security Systems 9 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

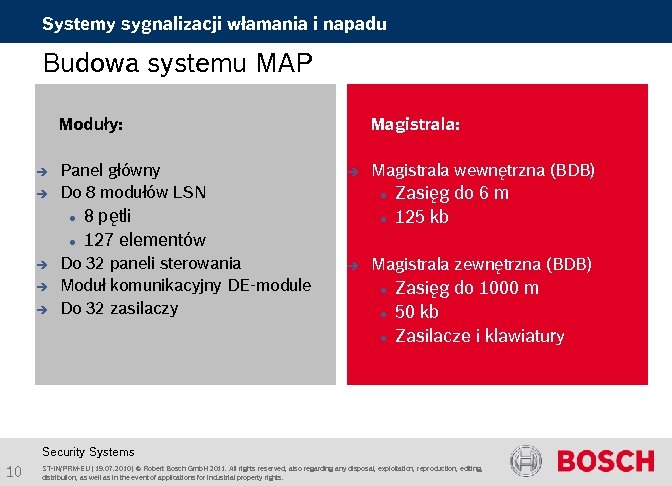

Systemy sygnalizacji włamania i napadu Budowa systemu MAP Moduły: è è Panel główny Do Systemy sygnalizacji włamania i napadu Budowa systemu MAP Moduły: è è Panel główny Do 8 modułów LSN è è è Magistrala: è 8 pętli 127 elementów Do 32 paneli sterowania Moduł komunikacyjny DE-module Do 32 zasilaczy Magistrala wewnętrzna (BDB) è Zasięg do 6 m 125 kb Magistrala zewnętrzna (BDB) Zasięg do 1000 m 50 kb Zasilacze i klawiatury Security Systems 10 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

Systemy sygnalizacji włamania i napadu MAP 5000 – magistrala wewnętrzna Moduły centrali MAP 5000 Systemy sygnalizacji włamania i napadu MAP 5000 – magistrala wewnętrzna Moduły centrali MAP 5000 zlokalizowane w tej samej obudowie podłączamy do magistrali wewnętrznej: • Panel główny • Panel sterowania • Moduł DE • Moduły pętli LSN • Zasilacz Security Systems 11 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

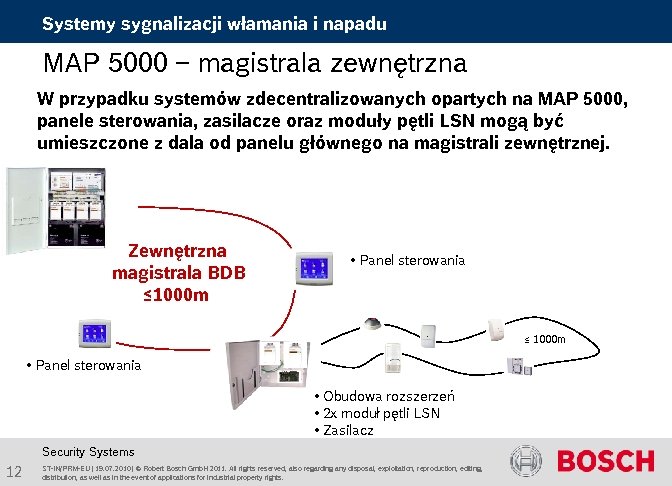

Systemy sygnalizacji włamania i napadu MAP 5000 – magistrala zewnętrzna W przypadku systemów zdecentralizowanych Systemy sygnalizacji włamania i napadu MAP 5000 – magistrala zewnętrzna W przypadku systemów zdecentralizowanych opartych na MAP 5000, panele sterowania, zasilacze oraz moduły pętli LSN mogą być umieszczone z dala od panelu głównego na magistrali zewnętrznej. Zewnętrzna magistrala BDB ≤ 1000 m • Panel sterowania • Obudowa rozszerzeń • 2 x moduł pętli LSN • Zasilacz Security Systems 12 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

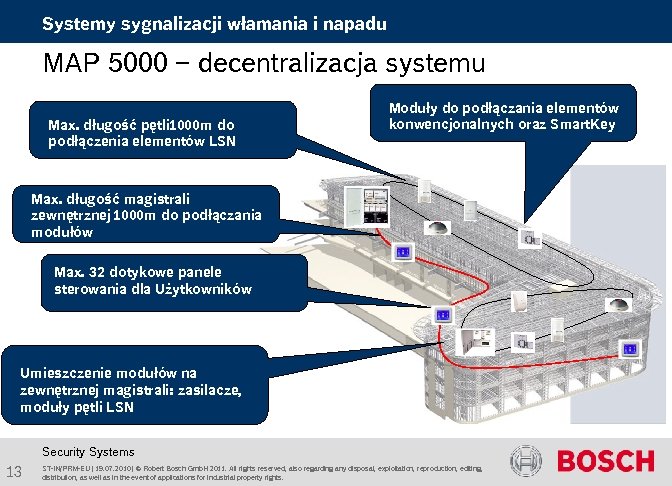

Systemy sygnalizacji włamania i napadu MAP 5000 – decentralizacja systemu Max. długość pętli 1000 Systemy sygnalizacji włamania i napadu MAP 5000 – decentralizacja systemu Max. długość pętli 1000 m do podłączenia elementów LSN Moduły do podłączania elementów konwencjonalnych oraz Smart. Key Max. długość magistrali zewnętrznej 1000 m do podłączania modułów Max. 32 dotykowe panele sterowania dla Użytkowników Umieszczenie modułów na zewnętrznej magistrali: zasilacze, moduły pętli LSN Security Systems 13 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

Systemy sygnalizacji włamania i napadu MAP 5000 – decentralizacja systemu Zastosowanie technologii LSN oznacza: Systemy sygnalizacji włamania i napadu MAP 5000 – decentralizacja systemu Zastosowanie technologii LSN oznacza: Plano èMniejsze zużycie kabli wanie èŁatwe planowanie systemu Mniej èŁatwa instalacja i programowanie èŁatwa konserwacja Szybs kabli za ins talacj a èŁatwa rozbudowa w przyszłości Oszczędność czasu i pieniędzy Security Systems 14 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

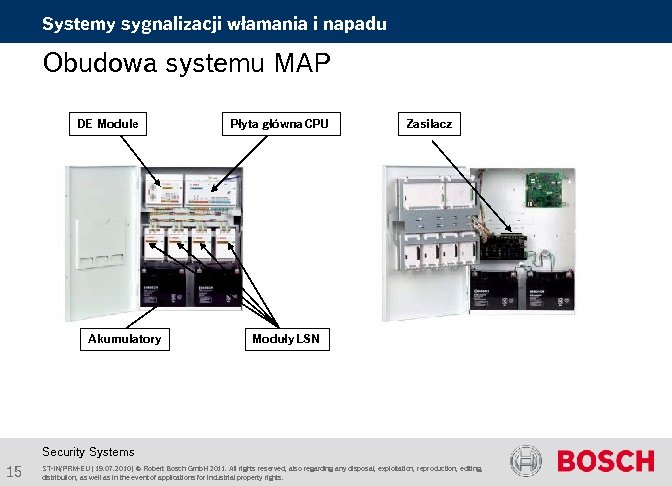

Systemy sygnalizacji włamania i napadu Obudowa systemu MAP DE Module Akumulatory Płyta główna CPU Systemy sygnalizacji włamania i napadu Obudowa systemu MAP DE Module Akumulatory Płyta główna CPU Zasilacz Moduły LSN Security Systems 15 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

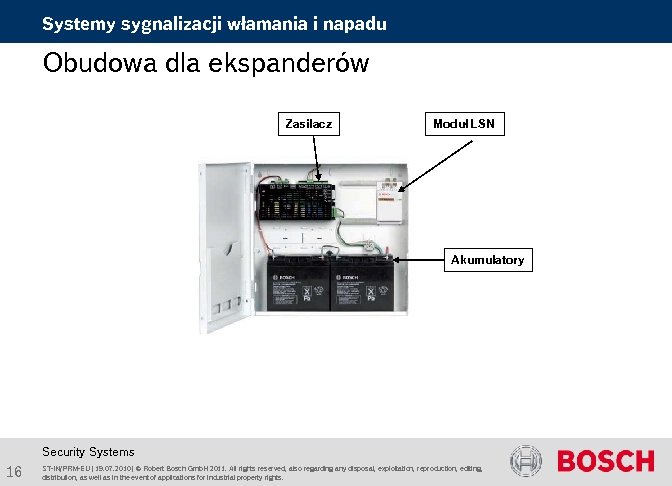

Systemy sygnalizacji włamania i napadu Obudowa dla ekspanderów Zasilacz Moduł LSN Akumulatory Security Systems Systemy sygnalizacji włamania i napadu Obudowa dla ekspanderów Zasilacz Moduł LSN Akumulatory Security Systems 16 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

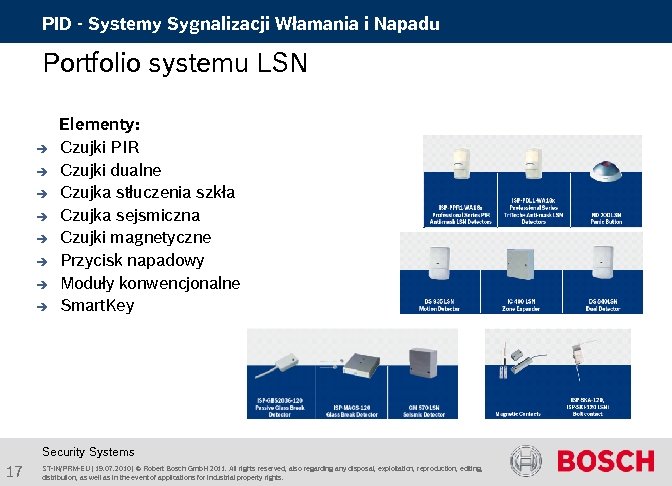

PID - Systemy Sygnalizacji Włamania i Napadu Portfolio systemu LSN è è è è PID - Systemy Sygnalizacji Włamania i Napadu Portfolio systemu LSN è è è è Elementy: Czujki PIR Czujki dualne Czujka stłuczenia szkła Czujka sejsmiczna Czujki magnetyczne Przycisk napadowy Moduły konwencjonalne Smart. Key Security Systems 17 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

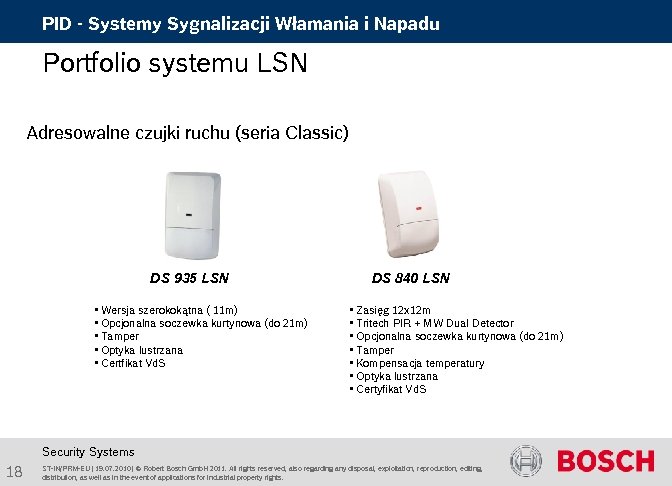

PID - Systemy Sygnalizacji Włamania i Napadu Portfolio systemu LSN Adresowalne czujki ruchu (seria PID - Systemy Sygnalizacji Włamania i Napadu Portfolio systemu LSN Adresowalne czujki ruchu (seria Classic) DS 935 LSN • Wersja szerokokątna ( 11 m) • Opcjonalna soczewka kurtynowa (do 21 m) • Tamper • Optyka lustrzana • Certfikat Vd. S DS 840 LSN • Zasięg 12 x 12 m • Tritech PIR + MW Dual Detector • Opcjonalna soczewka kurtynowa (do 21 m) • Tamper • Kompensacja temperatury • Optyka lustrzana • Certyfikat Vd. S Security Systems 18 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

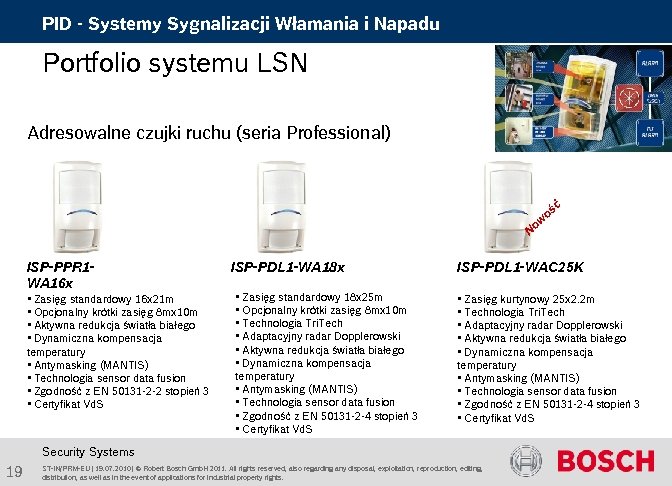

PID - Systemy Sygnalizacji Włamania i Napadu Portfolio systemu LSN Adresowalne czujki ruchu (seria PID - Systemy Sygnalizacji Włamania i Napadu Portfolio systemu LSN Adresowalne czujki ruchu (seria Professional) ć oś w o N ISP-PPR 1 WA 16 x • Zasięg standardowy 16 x 21 m • Opcjonalny krótki zasięg 8 mx 10 m • Aktywna redukcja światła białego • Dynamiczna kompensacja temperatury • Antymasking (MANTIS) • Technologia sensor data fusion • Zgodność z EN 50131 -2 -2 stopień 3 • Certyfikat Vd. S ISP-PDL 1 -WA 18 x • Zasięg standardowy 18 x 25 m • Opcjonalny krótki zasięg 8 mx 10 m • Technologia Tri. Tech • Adaptacyjny radar Dopplerowski • Aktywna redukcja światła białego • Dynamiczna kompensacja temperatury • Antymasking (MANTIS) • Technologia sensor data fusion • Zgodność z EN 50131 -2 -4 stopień 3 • Certyfikat Vd. S ISP-PDL 1 -WAC 25 K • Zasięg kurtynowy 25 x 2. 2 m • Technologia Tri. Tech • Adaptacyjny radar Dopplerowski • Aktywna redukcja światła białego • Dynamiczna kompensacja temperatury • Antymasking (MANTIS) • Technologia sensor data fusion • Zgodność z EN 50131 -2 -4 stopień 3 • Certyfikat Vd. S Security Systems 19 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

PID - Systemy Sygnalizacji Włamania i Napadu Portfolio systemu LSN Kompletna oferta adresowalnych czujek PID - Systemy Sygnalizacji Włamania i Napadu Portfolio systemu LSN Kompletna oferta adresowalnych czujek magnetycznych ISP-MCSX-FP 110 Czujka magnetyczna ISP-MCBX-FP 110 Czujka magnetyczna • Montaż powierzchniowy • Certyfikat Vd. S Class B lub Class C • Zgodność z EN 50131 stopień 2 lub 3 • Montaż wpuszczany • Certyfikat Vd. S Class B lub Class C • Zgodność z EN 50131 stopień 2 lub 3 Security Systems 20 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

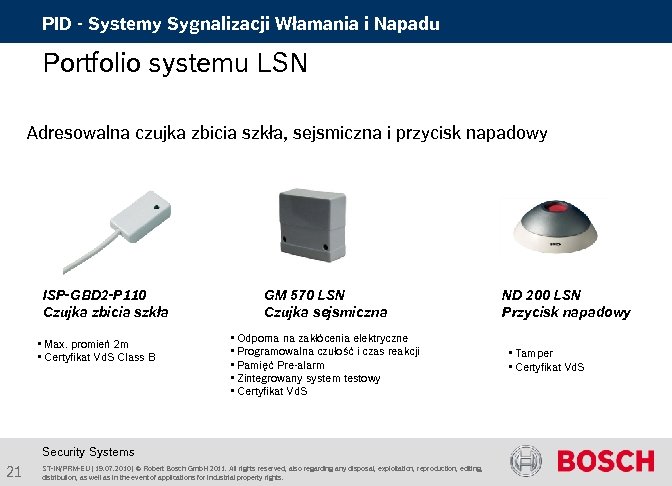

PID - Systemy Sygnalizacji Włamania i Napadu Portfolio systemu LSN Adresowalna czujka zbicia szkła, PID - Systemy Sygnalizacji Włamania i Napadu Portfolio systemu LSN Adresowalna czujka zbicia szkła, sejsmiczna i przycisk napadowy ISP-GBD 2 -P 110 Czujka zbicia szkła • Max. promień 2 m • Certyfikat Vd. S Class B GM 570 LSN Czujka sejsmiczna • Odporna na zakłócenia elektryczne • Programowalna czułość i czas reakcji • Pamięć Pre-alarm • Zintegrowany system testowy • Certyfikat Vd. S Security Systems 21 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights. ND 200 LSN Przycisk napadowy • Tamper • Certyfikat Vd. S

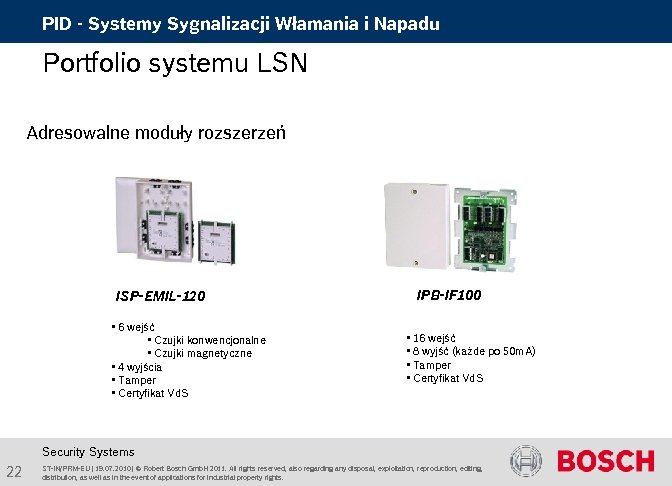

PID - Systemy Sygnalizacji Włamania i Napadu Portfolio systemu LSN Adresowalne moduły rozszerzeń ISP-EMIL-120 PID - Systemy Sygnalizacji Włamania i Napadu Portfolio systemu LSN Adresowalne moduły rozszerzeń ISP-EMIL-120 • 6 wejść • Czujki konwencjonalne • Czujki magnetyczne • 4 wyjścia • Tamper • Certyfikat Vd. S IPB-IF 100 • 16 wejść • 8 wyjść (każde po 50 m. A) • Tamper • Certyfikat Vd. S Security Systems 22 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

PID - Systemy Sygnalizacji Włamania i Napadu Smartkey System Moduł Smartkey Element blokujący (opcja) PID - Systemy Sygnalizacji Włamania i Napadu Smartkey System Moduł Smartkey Element blokujący (opcja) Detektor zamka (opcja) Czytnik Smartkey Klucz Smartkey Security Systems 23 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

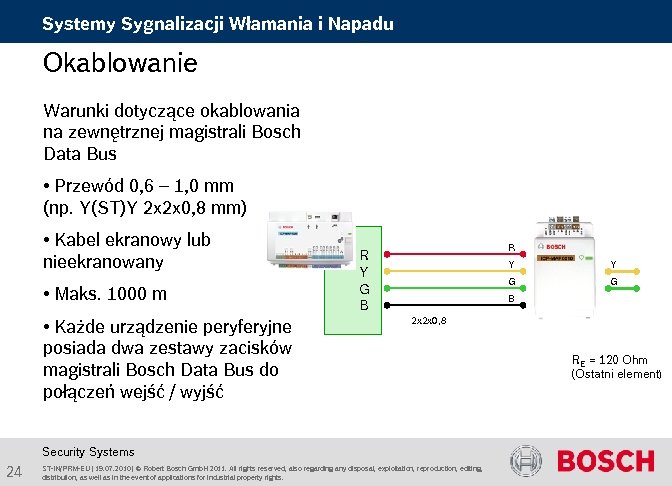

Systemy Sygnalizacji Włamania i Napadu Okablowanie Warunki dotyczące okablowania na zewnętrznej magistrali Bosch Data Systemy Sygnalizacji Włamania i Napadu Okablowanie Warunki dotyczące okablowania na zewnętrznej magistrali Bosch Data Bus • Przewód 0, 6 – 1, 0 mm (np. Y(ST)Y 2 x 2 x 0, 8 mm) • Kabel ekranowy lub nieekranowany • Maks. 1000 m • Każde urządzenie peryferyjne posiada dwa zestawy zacisków magistrali Bosch Data Bus do połączeń wejść / wyjść R Y G B R Y G G B 2 x 2 x 0, 8 Security Systems 24 Y ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights. RE = 120 Ohm (Ostatni element)

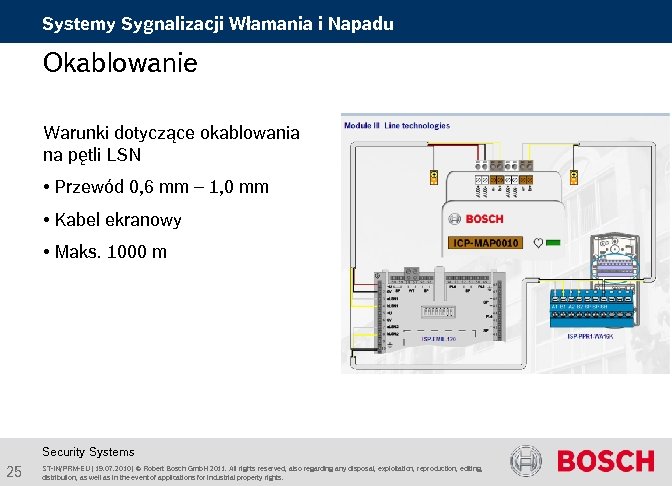

Systemy Sygnalizacji Włamania i Napadu Okablowanie Warunki dotyczące okablowania na pętli LSN • Przewód Systemy Sygnalizacji Włamania i Napadu Okablowanie Warunki dotyczące okablowania na pętli LSN • Przewód 0, 6 mm – 1, 0 mm • Kabel ekranowy • Maks. 1000 m Security Systems 25 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

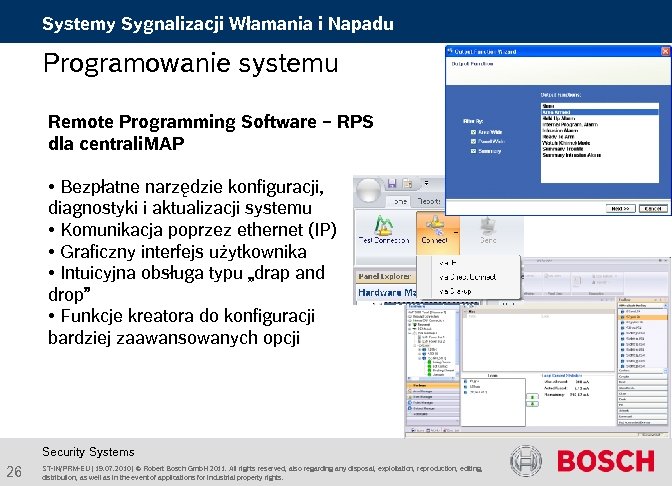

Systemy Sygnalizacji Włamania i Napadu Programowanie systemu Remote Programming Software – RPS dla centrali Systemy Sygnalizacji Włamania i Napadu Programowanie systemu Remote Programming Software – RPS dla centrali MAP • Bezpłatne narzędzie konfiguracji, diagnostyki i aktualizacji systemu • Komunikacja poprzez ethernet (IP) • Graficzny interfejs użytkownika • Intuicyjna obsługa typu „drap and drop” • Funkcje kreatora do konfiguracji bardziej zaawansowanych opcji Security Systems 26 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

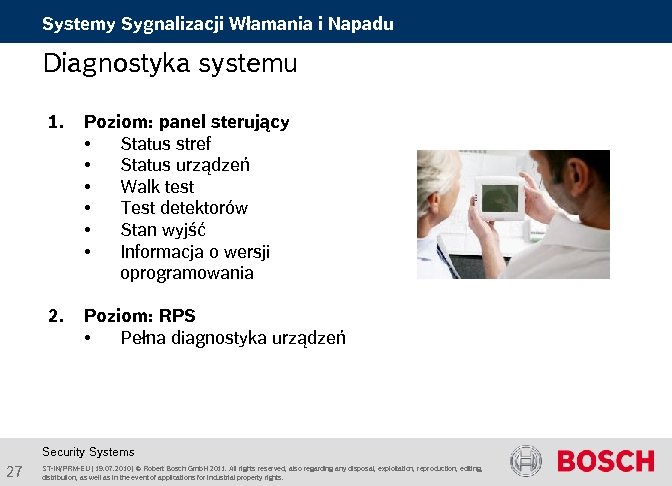

Systemy Sygnalizacji Włamania i Napadu Diagnostyka systemu 1. Poziom: panel sterujący • Status stref Systemy Sygnalizacji Włamania i Napadu Diagnostyka systemu 1. Poziom: panel sterujący • Status stref • Status urządzeń • Walk test • Test detektorów • Stan wyjść • Informacja o wersji oprogramowania 2. Poziom: RPS • Pełna diagnostyka urządzeń Security Systems 27 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

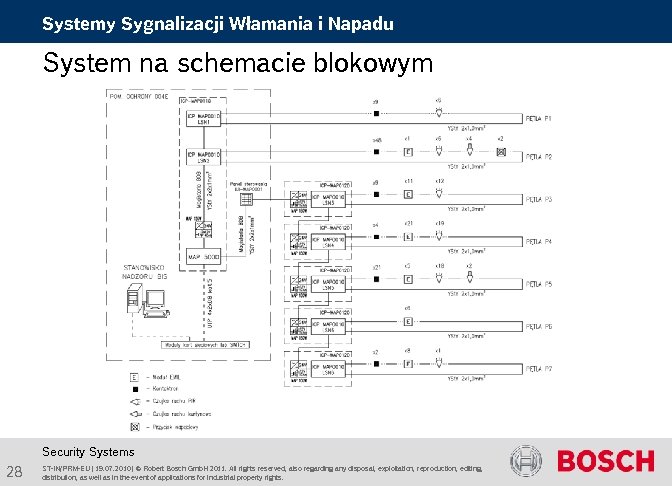

Systemy Sygnalizacji Włamania i Napadu System na schemacie blokowym Security Systems 28 ST-IN/PRM-EU | Systemy Sygnalizacji Włamania i Napadu System na schemacie blokowym Security Systems 28 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

MAP Technical Training SSWi. N: RPS dla MAP 5000 Paweł Piekut Access & MAP MAP Technical Training SSWi. N: RPS dla MAP 5000 Paweł Piekut Access & MAP Product Manager Security Systems 29 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

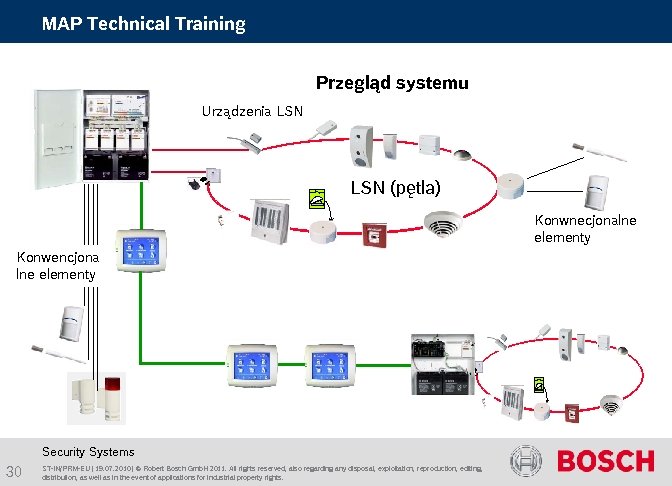

MAP Technical Training Przegląd systemu Urządzenia LSN (pętla) Konwnecjonalne elementy Konwencjona lne elementy Security MAP Technical Training Przegląd systemu Urządzenia LSN (pętla) Konwnecjonalne elementy Konwencjona lne elementy Security Systems 30 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

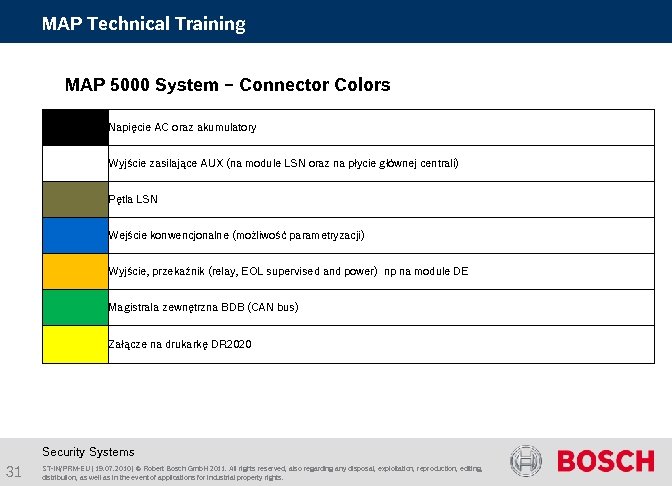

MAP Technical Training MAP 5000 System – Connector Colors Napięcie AC oraz akumulatory Wyjście MAP Technical Training MAP 5000 System – Connector Colors Napięcie AC oraz akumulatory Wyjście zasilające AUX (na module LSN oraz na płycie głównej centrali) Pętla LSN Wejście konwencjonalne (możliwość parametryzacji) Wyjście, przekaźnik (relay, EOL supervised and power) np na module DE Magistrala zewnętrzna BDB (CAN bus) Załącze na drukarkę DR 2020 Security Systems 31 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

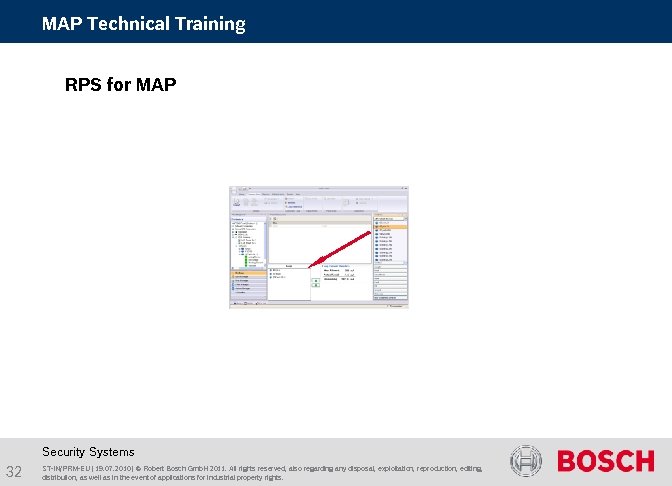

MAP Technical Training RPS for MAP Security Systems 32 ST-IN/PRM-EU | 19. 07. 2010 MAP Technical Training RPS for MAP Security Systems 32 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

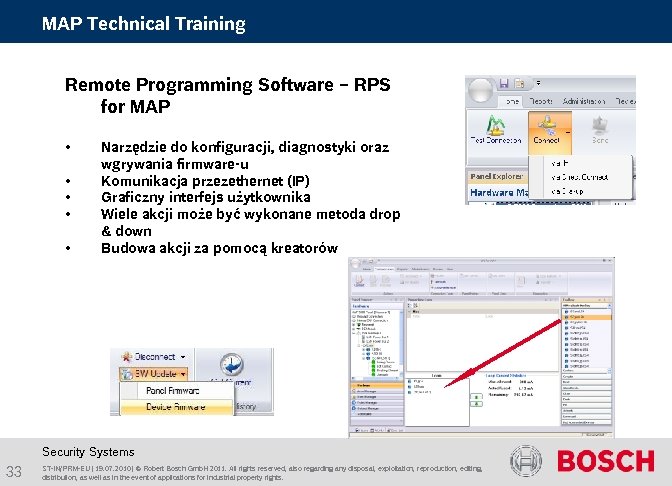

MAP Technical Training Remote Programming Software – RPS for MAP • • • Narzędzie MAP Technical Training Remote Programming Software – RPS for MAP • • • Narzędzie do konfiguracji, diagnostyki oraz wgrywania firmware-u Komunikacja przezethernet (IP) Graficzny interfejs użytkownika Wiele akcji może być wykonane metoda drop & down Budowa akcji za pomocą kreatorów Security Systems 33 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

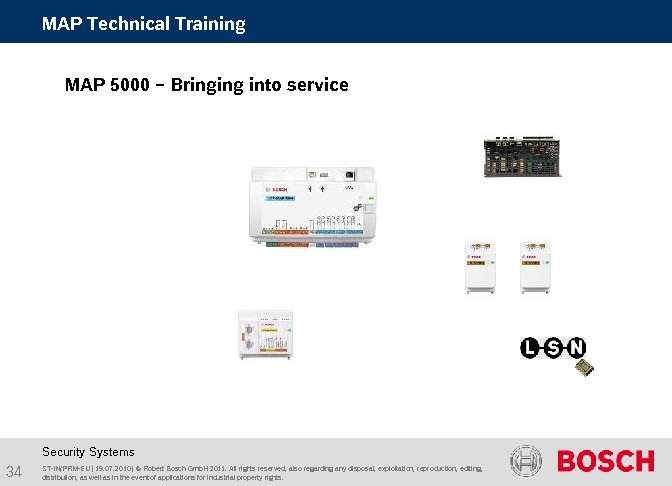

MAP Technical Training MAP 5000 – Bringing into service Security Systems 34 ST-IN/PRM-EU | MAP Technical Training MAP 5000 – Bringing into service Security Systems 34 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

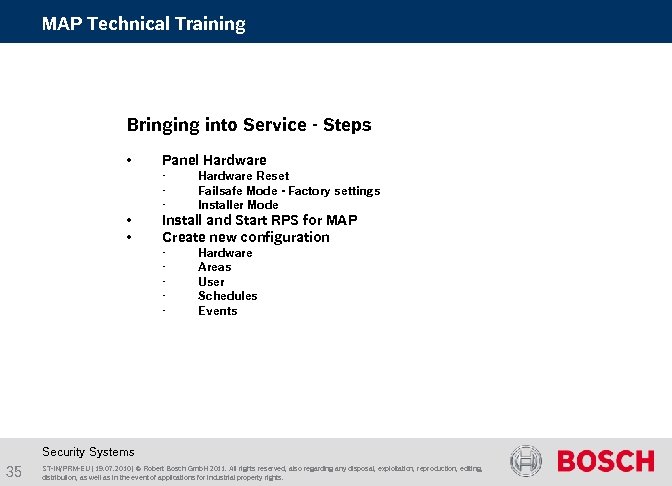

MAP Technical Training Bringing into Service - Steps • Panel Hardware - • • MAP Technical Training Bringing into Service - Steps • Panel Hardware - • • Hardware Reset Failsafe Mode - Factory settings Installer Mode Install and Start RPS for MAP Create new configuration - Hardware Areas User Schedules Events Security Systems 35 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

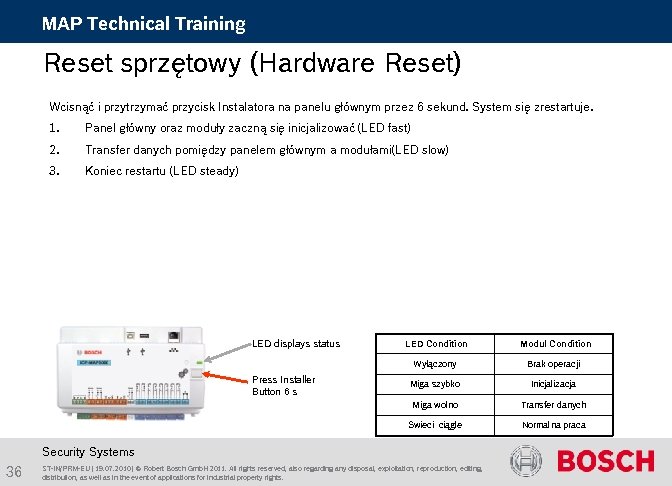

MAP Technical Training Reset sprzętowy (Hardware Reset) Wcisnąć i przytrzymać przycisk Instalatora na panelu MAP Technical Training Reset sprzętowy (Hardware Reset) Wcisnąć i przytrzymać przycisk Instalatora na panelu głównym przez 6 sekund. System się zrestartuje. 1. Panel główny oraz moduły zaczną się inicjalizować (LED fast) 2. Transfer danych pomiędzy panelem głównym a modułami(LED slow) 3. Koniec restartu (LED steady) LED displays status Modul Condition Wyłączony Brak operacji Miga szybko Inicjalizacja Miga wolno Transfer danych Swieci ciągle Press Installer Button 6 s LED Condition Normalna praca Security Systems 36 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

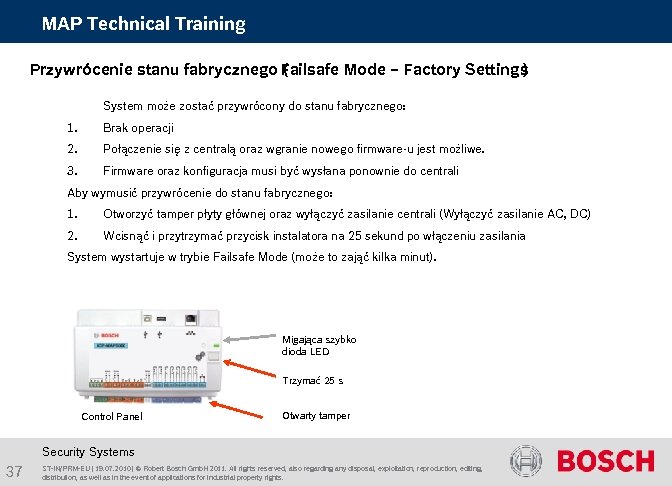

MAP Technical Training Przywrócenie stanu fabrycznego Failsafe Mode – Factory Settings ( ) System MAP Technical Training Przywrócenie stanu fabrycznego Failsafe Mode – Factory Settings ( ) System może zostać przywrócony do stanu fabrycznego: 1. Brak operacji 2. Połączenie się z centralą oraz wgranie nowego firmware-u jest możliwe. 3. Firmware oraz konfiguracja musi być wysłana ponownie do centrali Aby wymusić przywrócenie do stanu fabrycznego: 1. Otworzyć tamper płyty głównej oraz wyłączyć zasilanie centrali (Wyłączyć zasilanie AC, DC) 2. Wcisnąć i przytrzymać przycisk instalatora na 25 sekund po włączeniu zasilania System wystartuje w trybie Failsafe Mode (może to zająć kilka minut). Migająca szybko dioda LED Trzymać 25 s Control Panel Otwarty tamper Security Systems 37 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

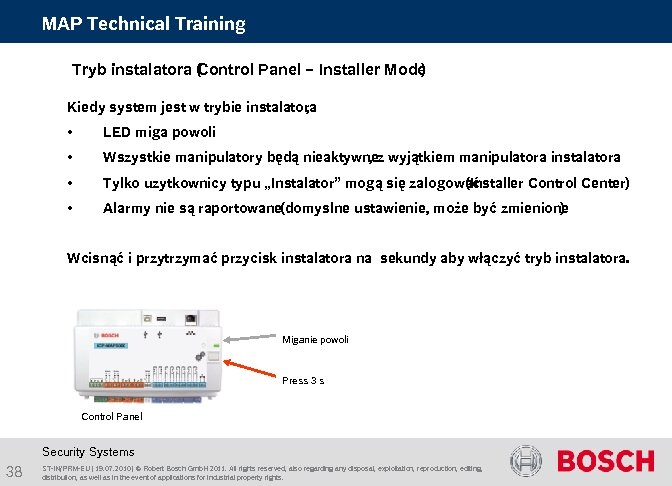

MAP Technical Training Tryb instalatora ( ontrol Panel – Installer Mode C ) Kiedy MAP Technical Training Tryb instalatora ( ontrol Panel – Installer Mode C ) Kiedy system jest w trybie instalatora , • LED miga powoli • Wszystkie manipulatory będą nieaktywnez wyjątkiem manipulatora instalatora , • Tylko uzytkownicy typu „Instalator” mogą się zalogować (Installer Control Center) • Alarmy nie są raportowane(domyslne ustawienie, może być zmienione ) Wcisnąć i przytrzymać przycisk instalatora na sekundy aby włączyć tryb instalatora. Miganie powoli Press 3 s Control Panel Security Systems 38 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

MAP Technical Training Software MAP – Instalacja w środowisku. Microsoft Windows Software Bundle App MAP Technical Training Software MAP – Instalacja w środowisku. Microsoft Windows Software Bundle App 2 Software Bundle MAP App 2 RPS for MAP Application Crystal Reports App 1 Operating System Hardware Driver Visual C++ . NET Framework SQL Server 2005 Express Windows Ethernet Graphics Board USB Printer Windows Service Pack … … … Manufacturers SAP AG Microsoft Bosch Other Security Systems 39 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

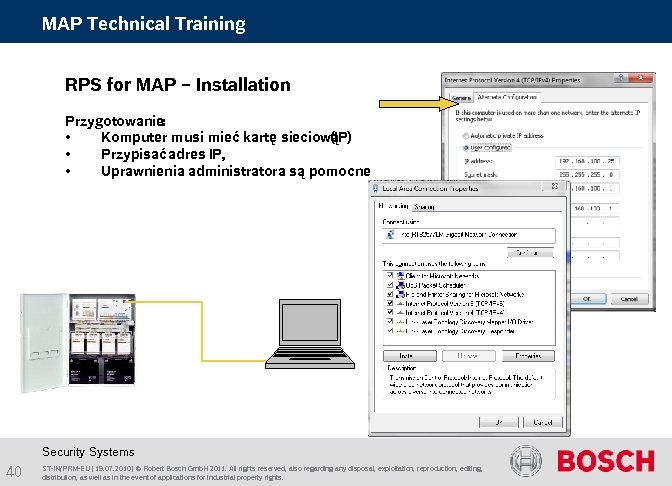

MAP Technical Training RPS for MAP – Installation Przygotowanie : • Komputer musi mieć MAP Technical Training RPS for MAP – Installation Przygotowanie : • Komputer musi mieć kartę sieciową (IP) • Przypisać adres IP, • Uprawnienia administratora są pomocne Security Systems 40 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

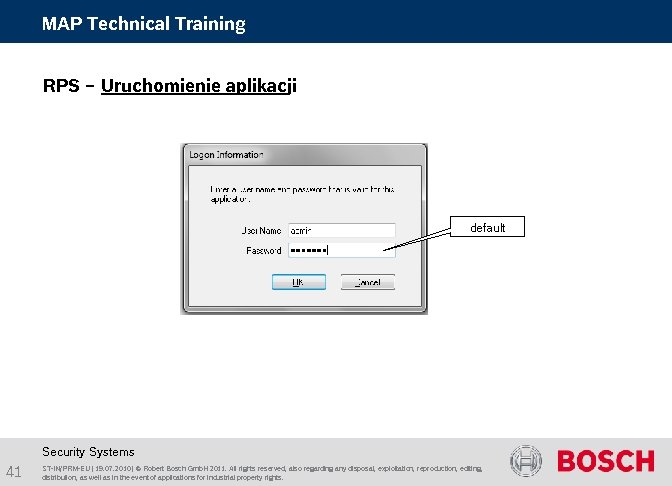

MAP Technical Training RPS – Uruchomienie aplikacji default Security Systems 41 ST-IN/PRM-EU | 19. MAP Technical Training RPS – Uruchomienie aplikacji default Security Systems 41 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

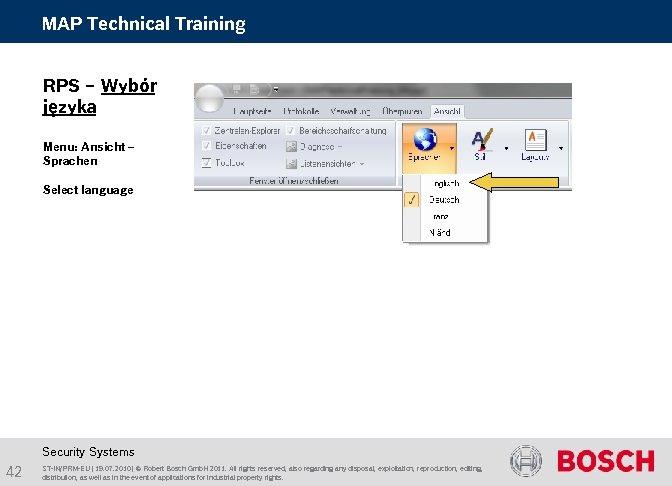

MAP Technical Training RPS – Wybór języka Menu: Ansicht – Sprachen Select language Security MAP Technical Training RPS – Wybór języka Menu: Ansicht – Sprachen Select language Security Systems 42 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

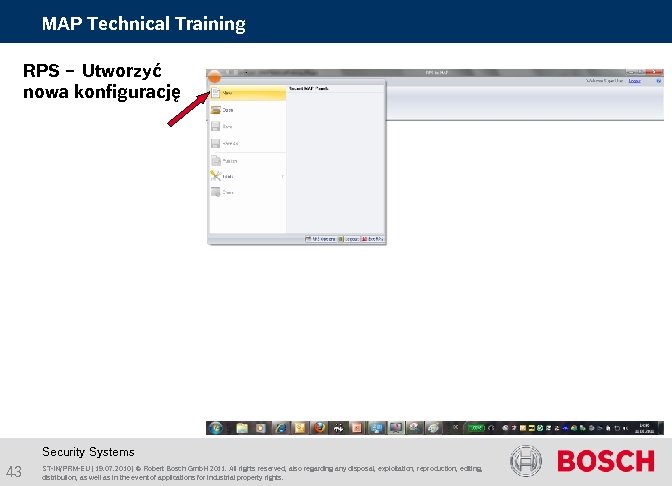

MAP Technical Training RPS – Utworzyć nowa konfigurację Security Systems 43 ST-IN/PRM-EU | 19. MAP Technical Training RPS – Utworzyć nowa konfigurację Security Systems 43 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

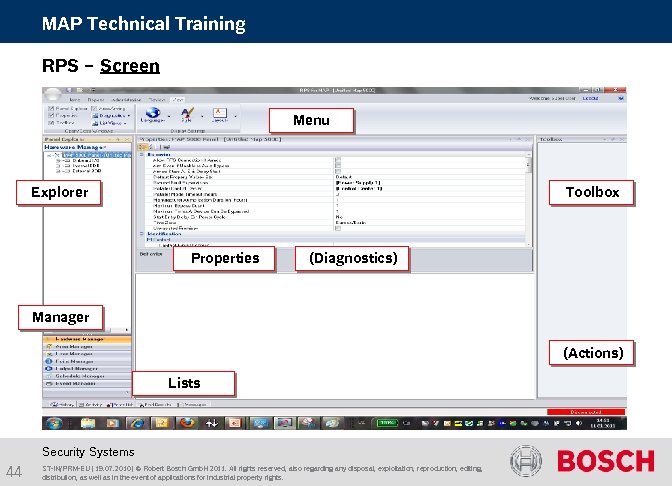

MAP Technical Training RPS – Screen Menu Explorer Toolbox Properties (Diagnostics) Manager (Actions) Lists MAP Technical Training RPS – Screen Menu Explorer Toolbox Properties (Diagnostics) Manager (Actions) Lists Security Systems 44 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

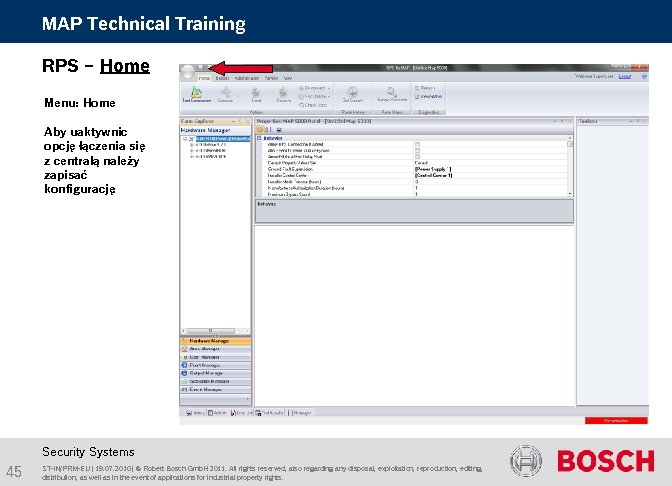

MAP Technical Training RPS – Home Menu: Home Aby uaktywnic opcję łączenia się z MAP Technical Training RPS – Home Menu: Home Aby uaktywnic opcję łączenia się z centralą należy zapisać konfigurację. Security Systems 45 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

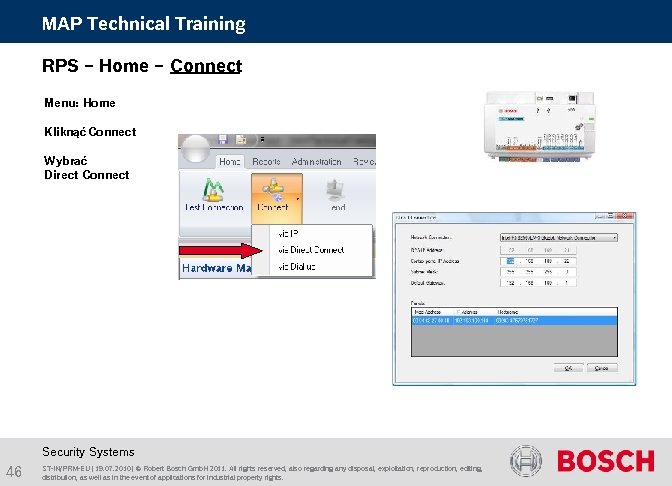

MAP Technical Training RPS – Home – Connect Menu: Home Kliknąć Connect Wybrać Direct MAP Technical Training RPS – Home – Connect Menu: Home Kliknąć Connect Wybrać Direct Connect Security Systems 46 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

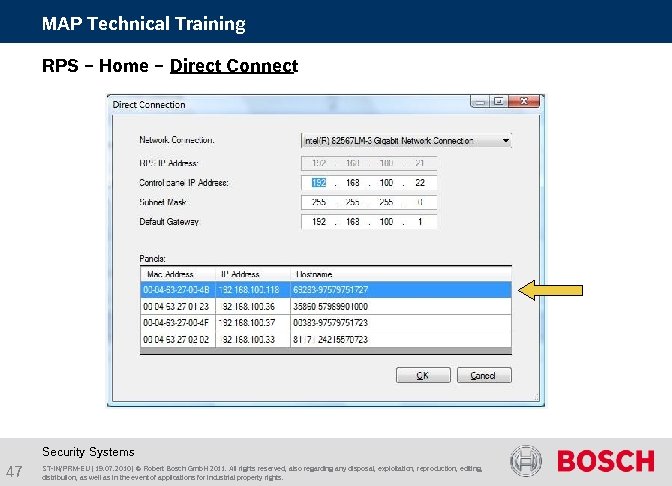

MAP Technical Training RPS – Home – Direct Connect Security Systems 47 ST-IN/PRM-EU | MAP Technical Training RPS – Home – Direct Connect Security Systems 47 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

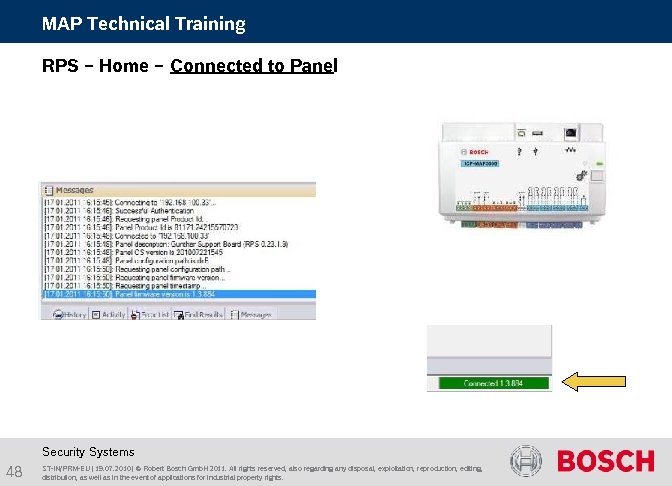

MAP Technical Training RPS – Home – Connected to Panel Security Systems 48 ST-IN/PRM-EU MAP Technical Training RPS – Home – Connected to Panel Security Systems 48 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

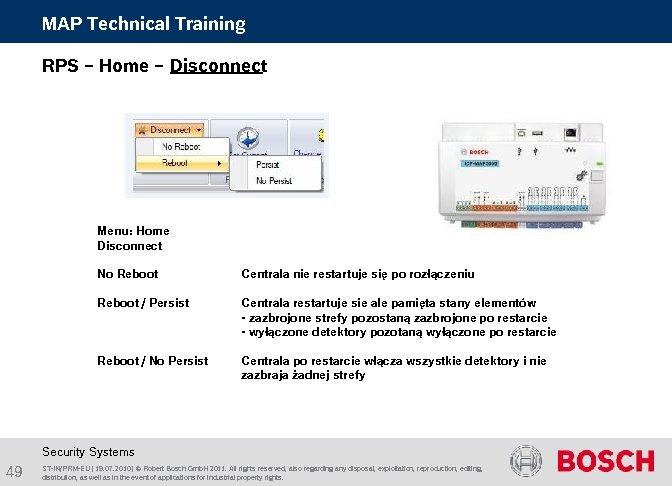

MAP Technical Training RPS – Home – Disconnect Menu: Home Disconnect No Reboot Centrala MAP Technical Training RPS – Home – Disconnect Menu: Home Disconnect No Reboot Centrala nie restartuje się po rozłączeniu Reboot / Persist Centrala restartuje sie ale pamięta stany elementów : - zazbrojone strefy pozostaną zazbrojone po restarcie - wyłączone detektory pozotaną wyłączone po restarcie Reboot / No Persist Centrala po restarcie włącza wszystkie detektory i nie zazbraja żadnej strefy Security Systems 49 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

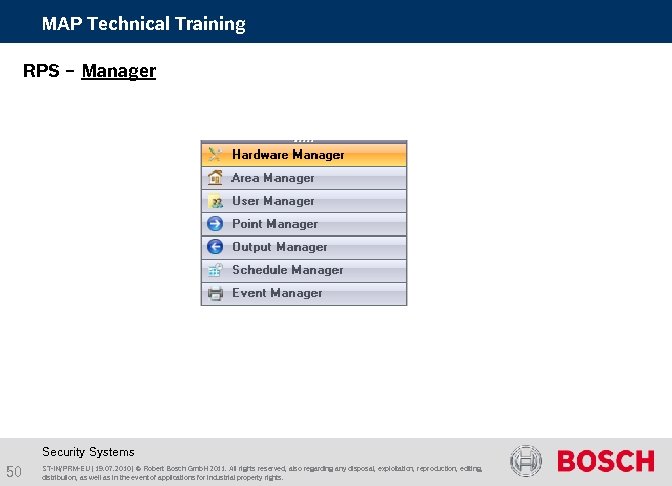

MAP Technical Training RPS – Manager Security Systems 50 ST-IN/PRM-EU | 19. 07. 2010 MAP Technical Training RPS – Manager Security Systems 50 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

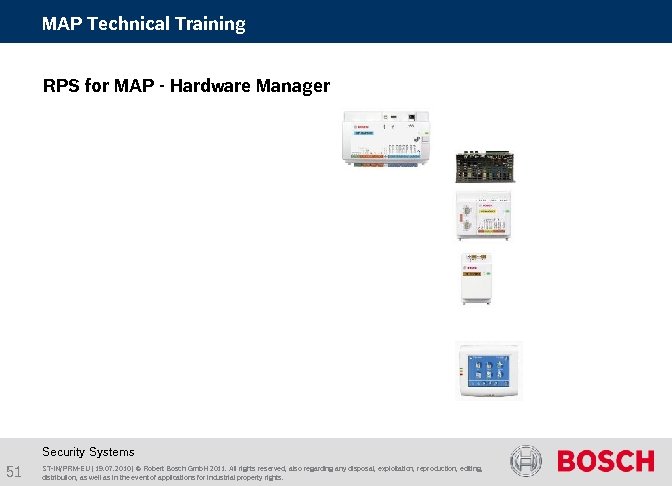

MAP Technical Training RPS for MAP - Hardware Manager Security Systems 51 ST-IN/PRM-EU | MAP Technical Training RPS for MAP - Hardware Manager Security Systems 51 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

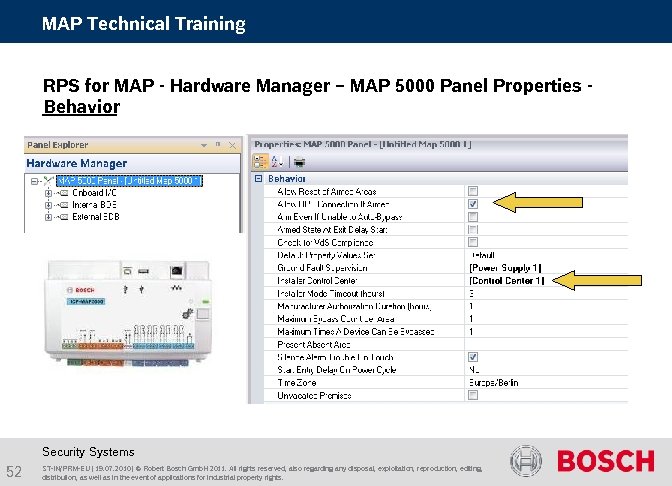

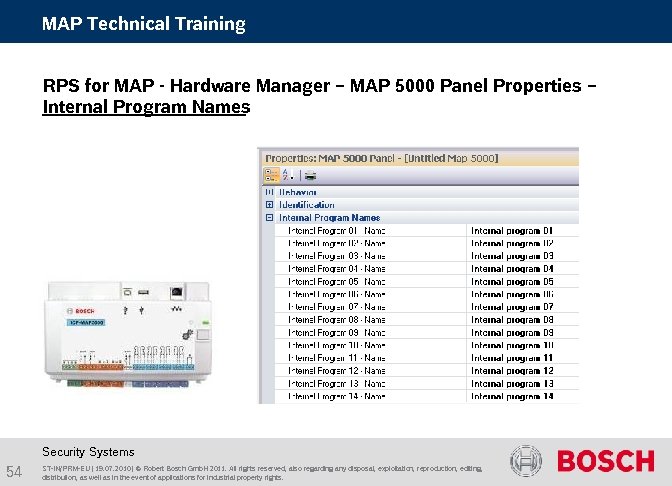

MAP Technical Training RPS for MAP - Hardware Manager – MAP 5000 Panel Properties MAP Technical Training RPS for MAP - Hardware Manager – MAP 5000 Panel Properties Behavior Security Systems 52 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

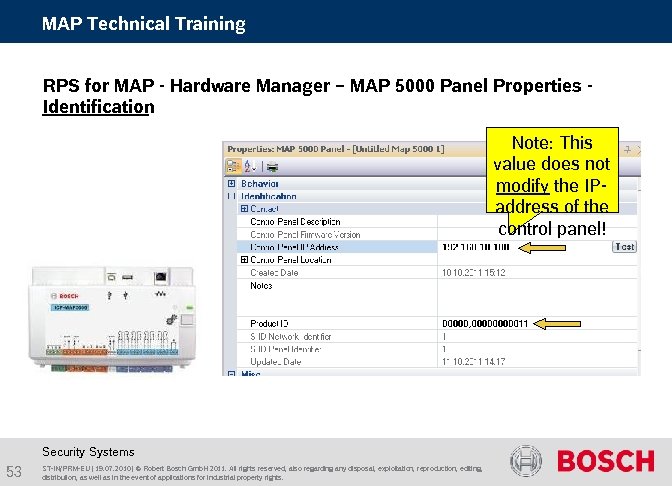

MAP Technical Training RPS for MAP - Hardware Manager – MAP 5000 Panel Properties MAP Technical Training RPS for MAP - Hardware Manager – MAP 5000 Panel Properties Identification Note: This value does not modify the IPaddress of the control panel! Security Systems 53 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

MAP Technical Training RPS for MAP - Hardware Manager – MAP 5000 Panel Properties MAP Technical Training RPS for MAP - Hardware Manager – MAP 5000 Panel Properties – Internal Program Names Security Systems 54 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

MAP Technical Training RPS for MAP - Hardware Manager – MAP 5000 Panel Properties MAP Technical Training RPS for MAP - Hardware Manager – MAP 5000 Panel Properties Miscellenious Ilość adresów w systemie Security Systems 55 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

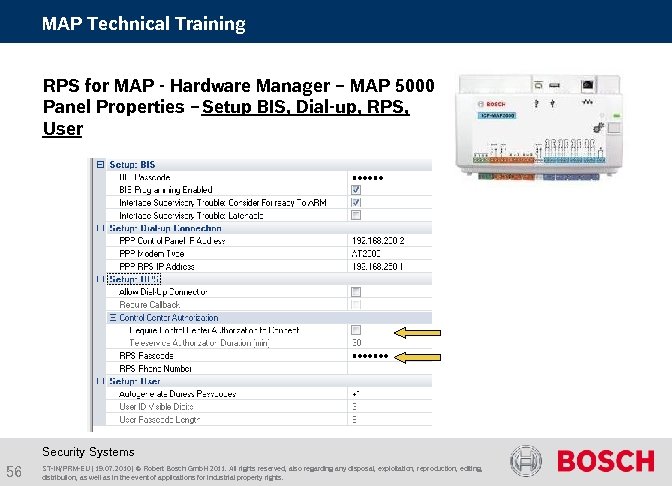

MAP Technical Training RPS for MAP - Hardware Manager – MAP 5000 Panel Properties MAP Technical Training RPS for MAP - Hardware Manager – MAP 5000 Panel Properties – Setup BIS, Dial-up, RPS, User Security Systems 56 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

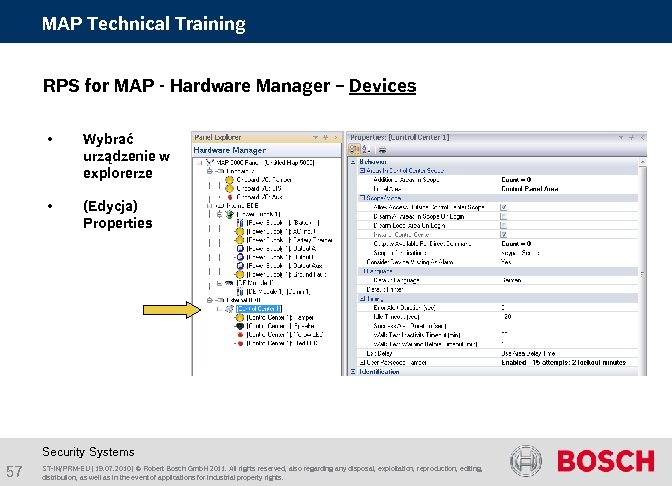

MAP Technical Training RPS for MAP - Hardware Manager – Devices • Wybrać urządzenie MAP Technical Training RPS for MAP - Hardware Manager – Devices • Wybrać urządzenie w explorerze • (Edycja) Properties Security Systems 57 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

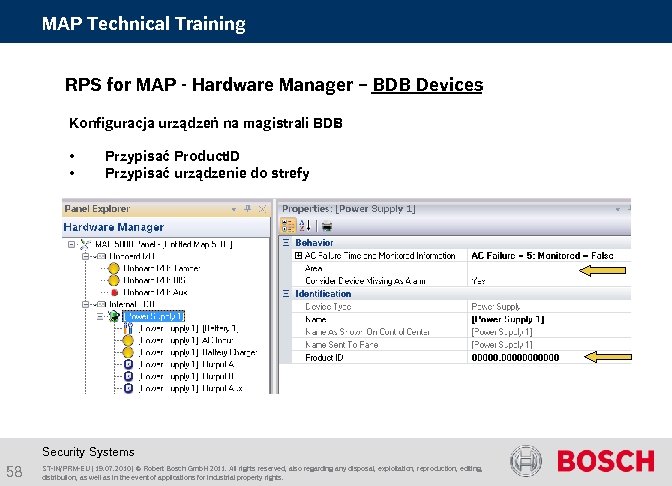

MAP Technical Training RPS for MAP - Hardware Manager – BDB Devices Konfiguracja urządzeń MAP Technical Training RPS for MAP - Hardware Manager – BDB Devices Konfiguracja urządzeń na magistrali BDB : • • Przypisać Product. ID Przypisać urządzenie do strefy Security Systems 58 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

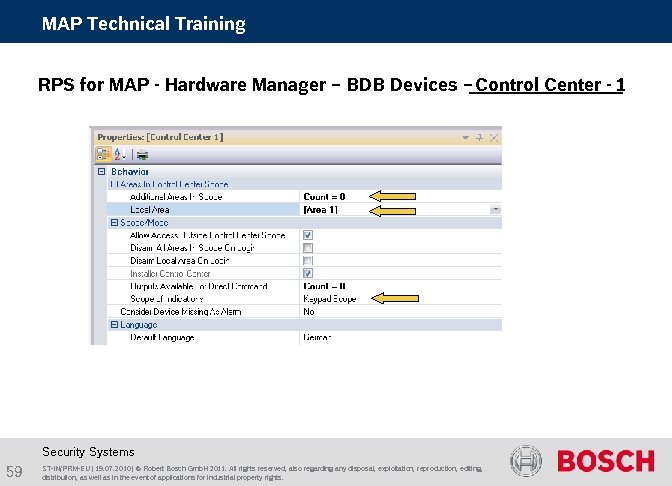

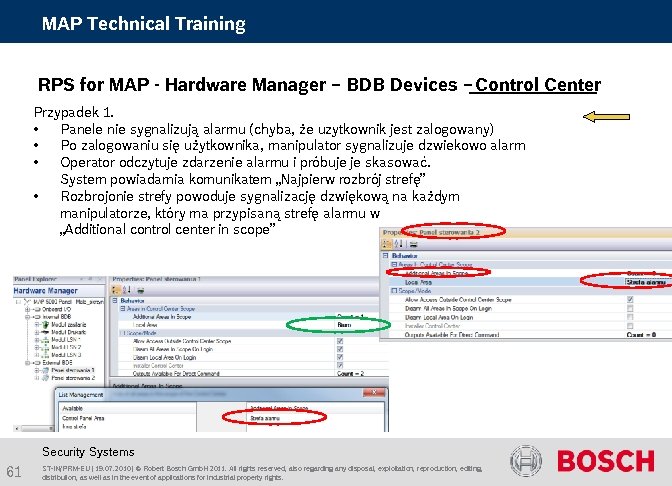

MAP Technical Training RPS for MAP - Hardware Manager – BDB Devices – Control MAP Technical Training RPS for MAP - Hardware Manager – BDB Devices – Control Center - 1 Security Systems 59 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

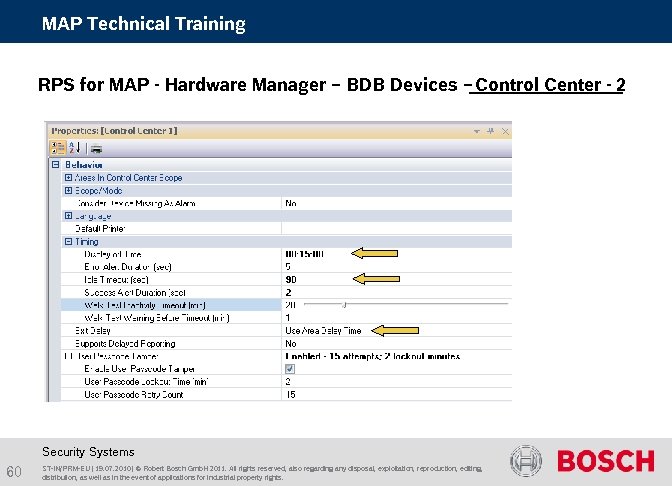

MAP Technical Training RPS for MAP - Hardware Manager – BDB Devices – Control MAP Technical Training RPS for MAP - Hardware Manager – BDB Devices – Control Center - 2 Security Systems 60 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

MAP Technical Training RPS for MAP - Hardware Manager – BDB Devices – Control MAP Technical Training RPS for MAP - Hardware Manager – BDB Devices – Control Center Przypadek 1. • Panele nie sygnalizują alarmu (chyba, że uzytkownik jest zalogowany) • Po zalogowaniu się użytkownika, manipulator sygnalizuje dzwiekowo alarm • Operator odczytuje zdarzenie alarmu i próbuje je skasować. System powiadamia komunikatem „Najpierw rozbrój strefę” • Rozbrojonie strefy powoduje sygnalizację dzwiękową na każdym manipulatorze, który ma przypisaną strefę alarmu w „Additional control center in scope” Security Systems 61 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

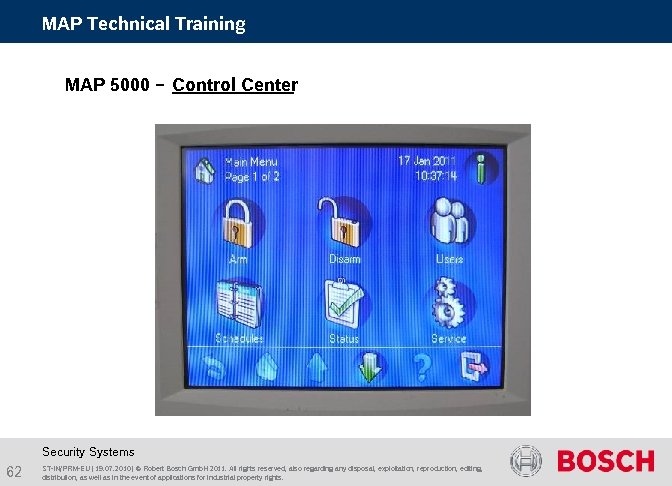

MAP Technical Training MAP 5000 – Control Center Security Systems 62 ST-IN/PRM-EU | 19. MAP Technical Training MAP 5000 – Control Center Security Systems 62 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

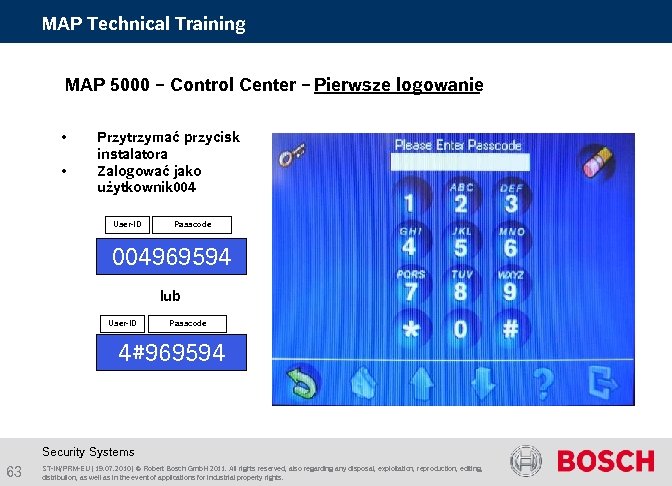

MAP Technical Training MAP 5000 – Control Center – Pierwsze logowanie • • Przytrzymać MAP Technical Training MAP 5000 – Control Center – Pierwsze logowanie • • Przytrzymać przycisk instalatora Zalogować jako użytkownik 004 User-ID Passcode 004969594 lub User-ID Passcode 4#969594 Security Systems 63 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

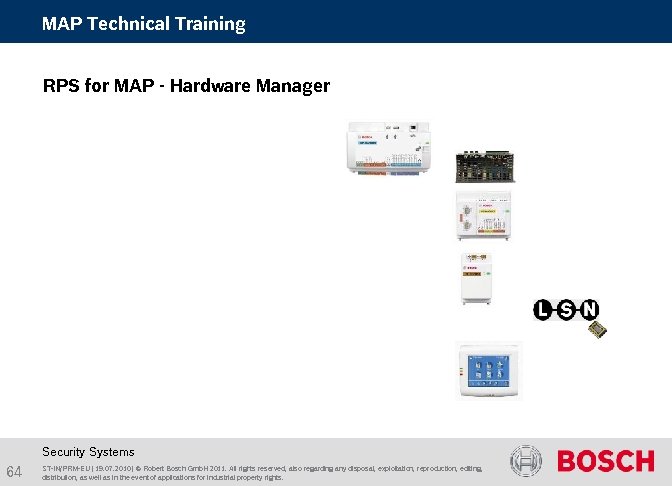

MAP Technical Training RPS for MAP - Hardware Manager Security Systems 64 ST-IN/PRM-EU | MAP Technical Training RPS for MAP - Hardware Manager Security Systems 64 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

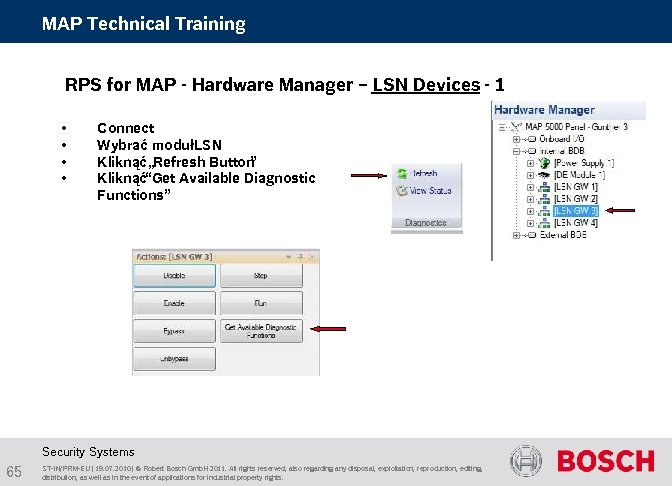

MAP Technical Training RPS for MAP - Hardware Manager – LSN Devices - 1 MAP Technical Training RPS for MAP - Hardware Manager – LSN Devices - 1 • • Connect Wybrać modułLSN Kliknąć „Refresh Button ” Kliknąć“Get Available Diagnostic Functions” Security Systems 65 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

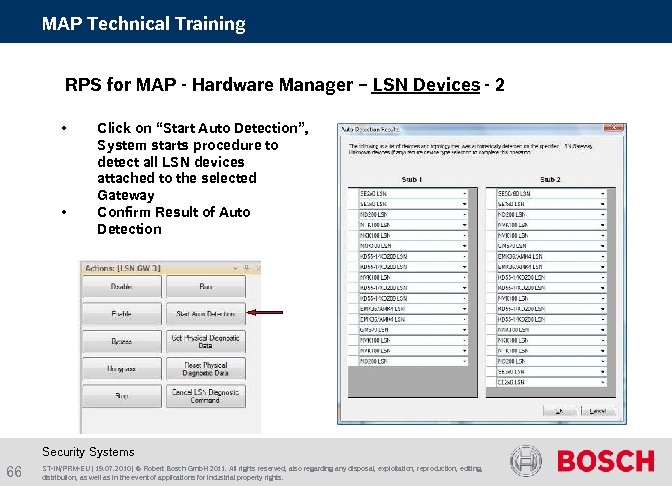

MAP Technical Training RPS for MAP - Hardware Manager – LSN Devices - 2 MAP Technical Training RPS for MAP - Hardware Manager – LSN Devices - 2 • • Click on “Start Auto Detection”, System starts procedure to detect all LSN devices attached to the selected Gateway Confirm Result of Auto Detection Security Systems 66 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

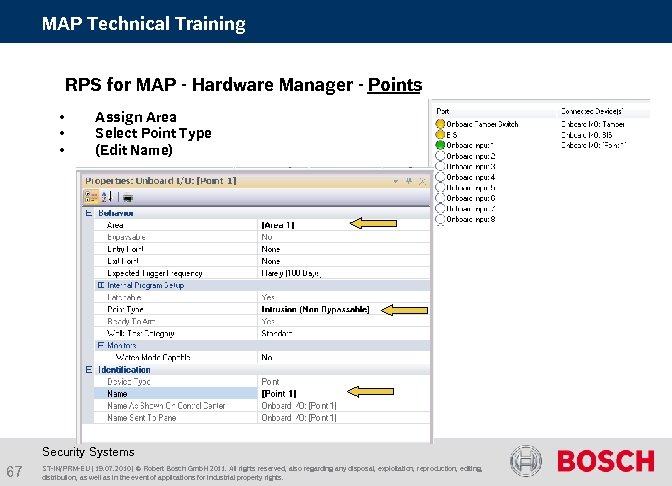

MAP Technical Training RPS for MAP - Hardware Manager - Points • • • MAP Technical Training RPS for MAP - Hardware Manager - Points • • • Assign Area Select Point Type (Edit Name) Security Systems 67 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

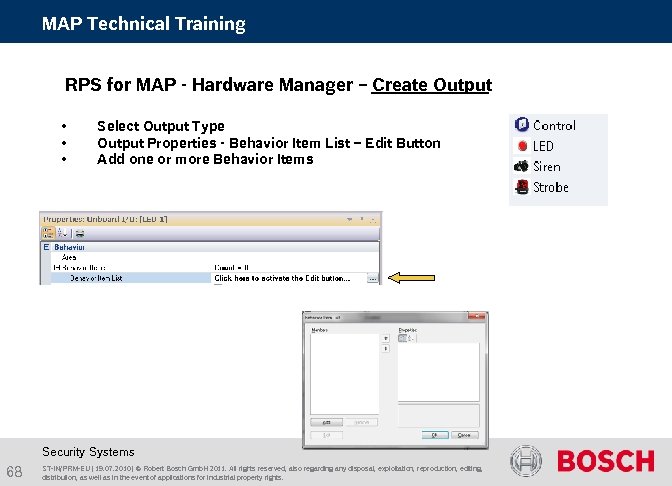

MAP Technical Training RPS for MAP - Hardware Manager – Create Output • • MAP Technical Training RPS for MAP - Hardware Manager – Create Output • • • Select Output Type Output Properties - Behavior Item List – Edit Button Add one or more Behavior Items Security Systems 68 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

MAP Technical Training RPS for MAP - Hardware Manager – Output Device • • MAP Technical Training RPS for MAP - Hardware Manager – Output Device • • Select Output type One or more behavior items AND / OR logic Activation after Delay time Event Output Device Event Security Systems 69 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

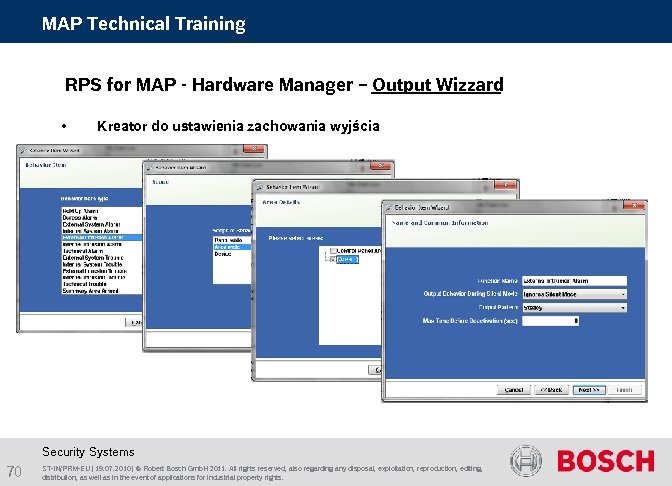

MAP Technical Training RPS for MAP - Hardware Manager – Output Wizzard • Kreator MAP Technical Training RPS for MAP - Hardware Manager – Output Wizzard • Kreator do ustawienia zachowania wyjścia Security Systems 70 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

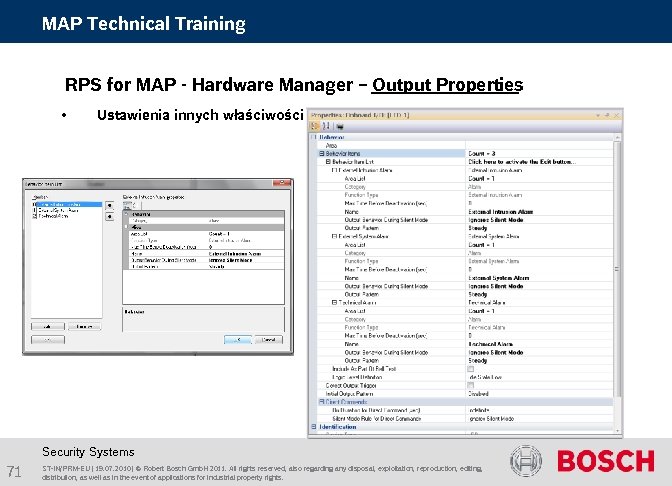

MAP Technical Training RPS for MAP - Hardware Manager – Output Properties • Ustawienia MAP Technical Training RPS for MAP - Hardware Manager – Output Properties • Ustawienia innych właściwości Security Systems 71 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

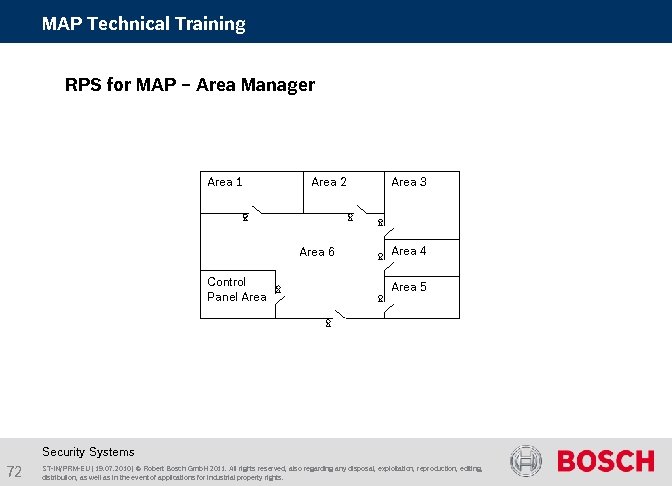

MAP Technical Training RPS for MAP – Area Manager Area 1 Area 2 Area MAP Technical Training RPS for MAP – Area Manager Area 1 Area 2 Area 6 Control Panel Area 3 Area 4 Area 5 Security Systems 72 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

MAP Technical Training RPS for MAP – Area Manager – Devices Przypisywanie do stref MAP Technical Training RPS for MAP – Area Manager – Devices Przypisywanie do stref : • Smartkey (obligatoryjne ) • Moduły na magistrali. BDB • Elementy LSN • Wejścia • Wyjścia Security Systems 73 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

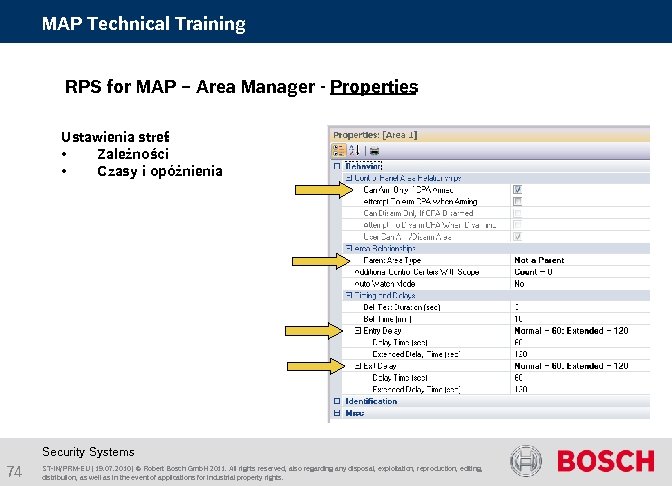

MAP Technical Training RPS for MAP – Area Manager - Properties Ustawienia stref : MAP Technical Training RPS for MAP – Area Manager - Properties Ustawienia stref : • Zależności • Czasy i opóźnienia Security Systems 74 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

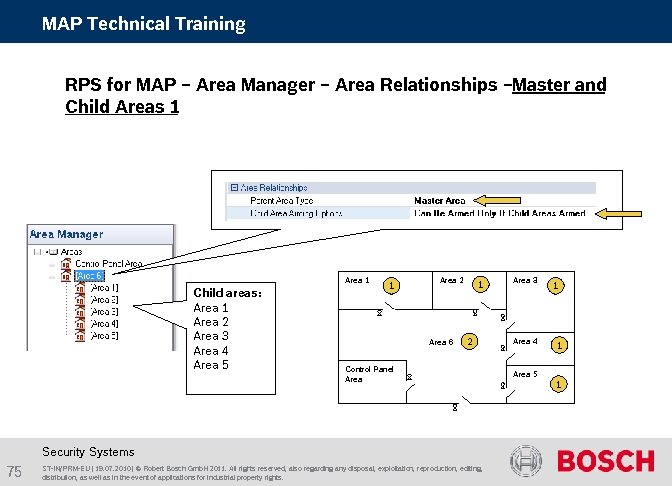

MAP Technical Training RPS for MAP – Area Manager – Area Relationships –Master and MAP Technical Training RPS for MAP – Area Manager – Area Relationships –Master and Child Areas 1 Area 1 Child areas: Area 1 Area 2 Area 3 Area 4 Area 5 1 Area 2 Area 6 1 2 Control Panel Area 3 Area 4 1 1 Area 5 1 Security Systems 75 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

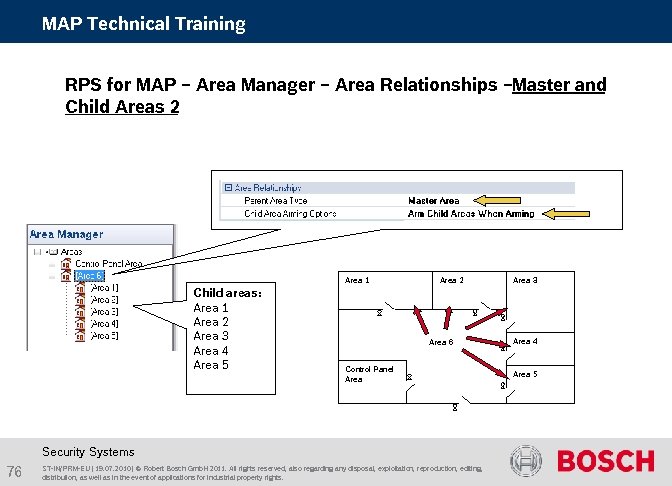

MAP Technical Training RPS for MAP – Area Manager – Area Relationships –Master and MAP Technical Training RPS for MAP – Area Manager – Area Relationships –Master and Child Areas 2 Area 1 Child areas: Area 1 Area 2 Area 3 Area 4 Area 5 Area 2 Area 6 Control Panel Area 3 Area 4 Area 5 Security Systems 76 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

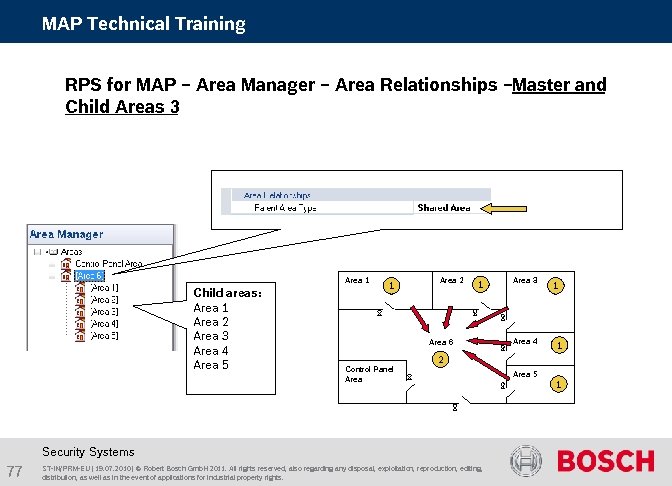

MAP Technical Training RPS for MAP – Area Manager – Area Relationships –Master and MAP Technical Training RPS for MAP – Area Manager – Area Relationships –Master and Child Areas 3 Area 1 Child areas: Area 1 Area 2 Area 3 Area 4 Area 5 1 Area 2 1 Area 6 Control Panel Area 3 Area 4 1 1 2 Area 5 1 Security Systems 77 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

MAP Technical Training RPS for MAP – User Manager Security Systems 78 ST-IN/PRM-EU | MAP Technical Training RPS for MAP – User Manager Security Systems 78 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

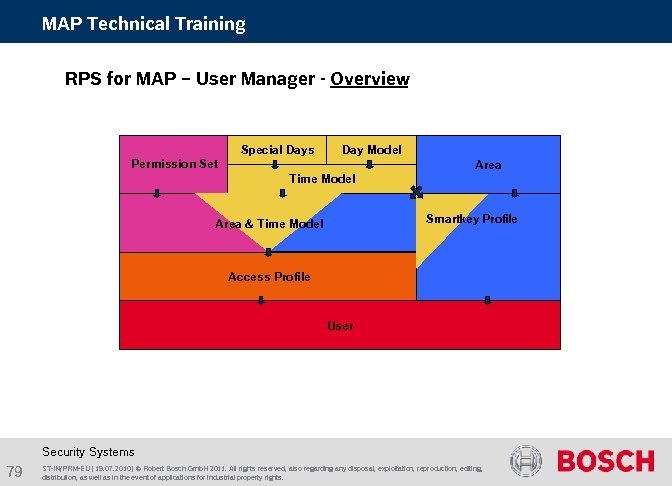

MAP Technical Training RPS for MAP – User Manager - Overview Special Days Day MAP Technical Training RPS for MAP – User Manager - Overview Special Days Day Model Permission Set Area Time Model Smartkey Profile Area & Time Model Access Profile User Security Systems 79 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

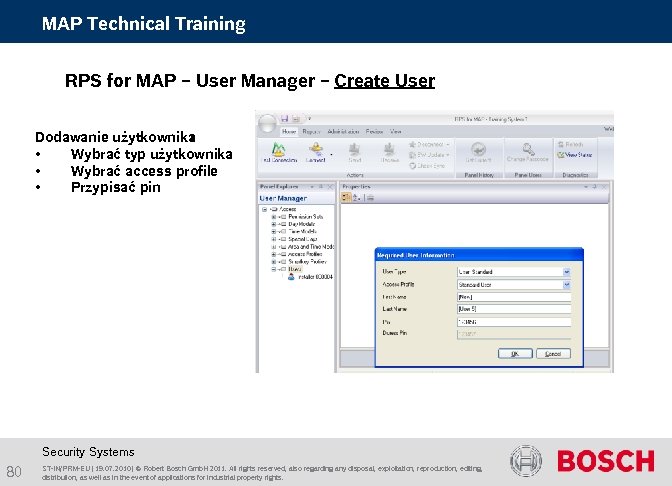

MAP Technical Training RPS for MAP – User Manager – Create User Dodawanie użytkownika MAP Technical Training RPS for MAP – User Manager – Create User Dodawanie użytkownika : • Wybrać typ użytkownika • Wybrać access profile • Przypisać pin Security Systems 80 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

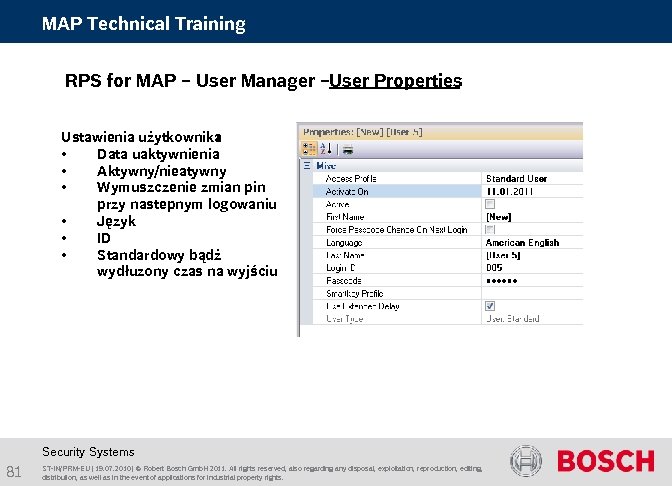

MAP Technical Training RPS for MAP – User Manager –User Properties Ustawienia użytkownika : MAP Technical Training RPS for MAP – User Manager –User Properties Ustawienia użytkownika : • Data uaktywnienia • Aktywny/nieatywny • Wymuszczenie zmian pin przy nastepnym logowaniu • Język • ID • Standardowy bądź wydłuzony czas na wyjściu Security Systems 81 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

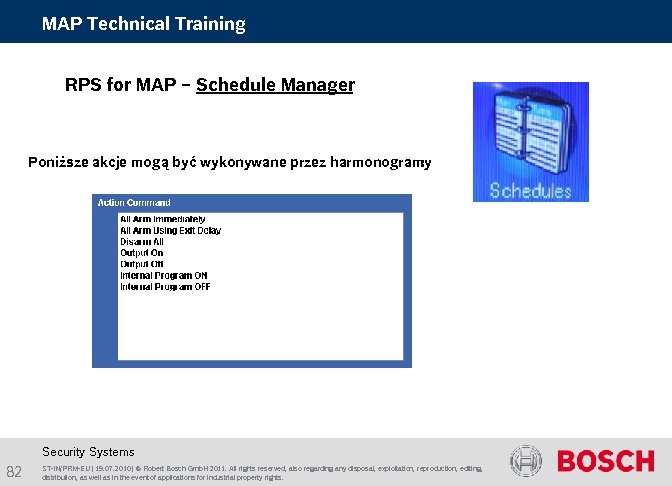

MAP Technical Training RPS for MAP – Schedule Manager Poniższe akcje mogą być wykonywane MAP Technical Training RPS for MAP – Schedule Manager Poniższe akcje mogą być wykonywane przez harmonogramy : Security Systems 82 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

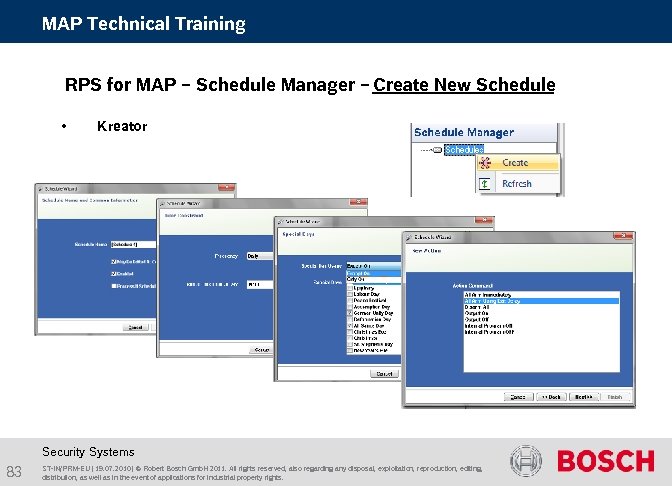

MAP Technical Training RPS for MAP – Schedule Manager – Create New Schedule • MAP Technical Training RPS for MAP – Schedule Manager – Create New Schedule • Kreator Security Systems 83 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

MAP Technical Training RPS for MAP – Event Manager Panel Event Groups: • Configure MAP Technical Training RPS for MAP – Event Manager Panel Event Groups: • Configure Properties for Logging, Printing and Reporting Security Systems 84 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

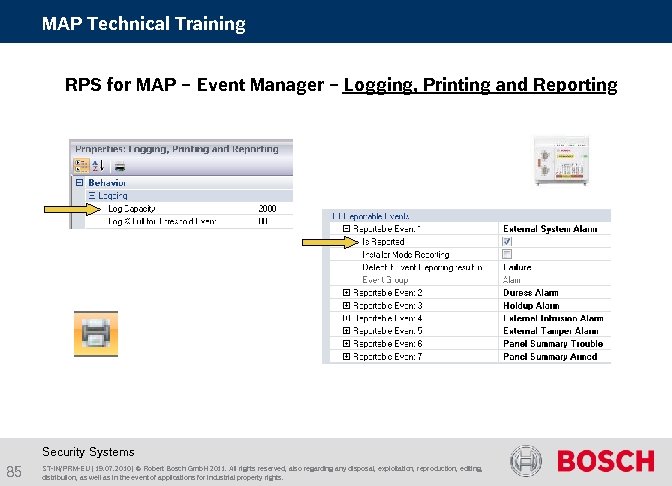

MAP Technical Training RPS for MAP – Event Manager – Logging, Printing and Reporting MAP Technical Training RPS for MAP – Event Manager – Logging, Printing and Reporting Security Systems 85 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

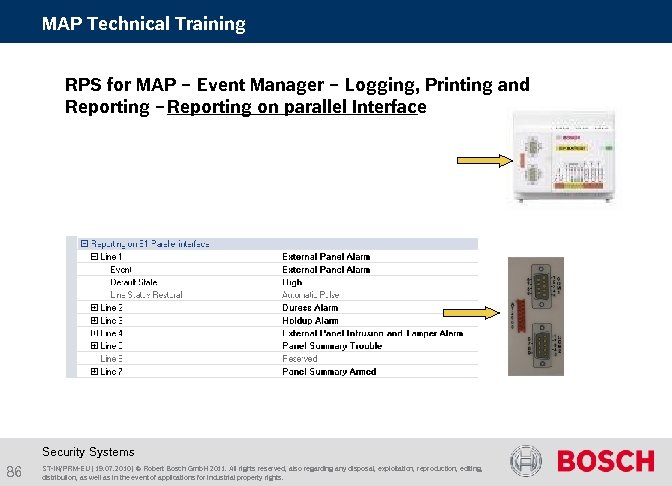

MAP Technical Training RPS for MAP – Event Manager – Logging, Printing and Reporting MAP Technical Training RPS for MAP – Event Manager – Logging, Printing and Reporting – Reporting on parallel Interface Security Systems 86 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

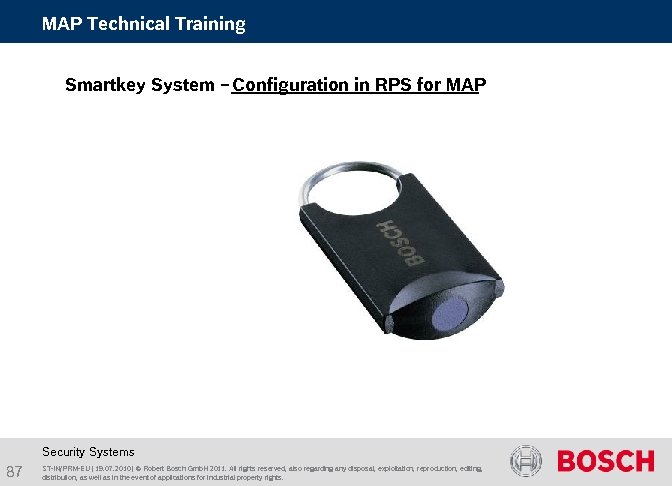

MAP Technical Training Smartkey System – Configuration in RPS for MAP Security Systems 87 MAP Technical Training Smartkey System – Configuration in RPS for MAP Security Systems 87 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

MAP Technical Training RPS for MAP – Hardware Manager - Smartkey device Assign Smartkey MAP Technical Training RPS for MAP – Hardware Manager - Smartkey device Assign Smartkey Device to an Area More options: • Use of bolt contact • Require passcode for arming / disarming • Alarm Overide • Force unlock • Use of door opener (SE 320 only) Security Systems 88 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

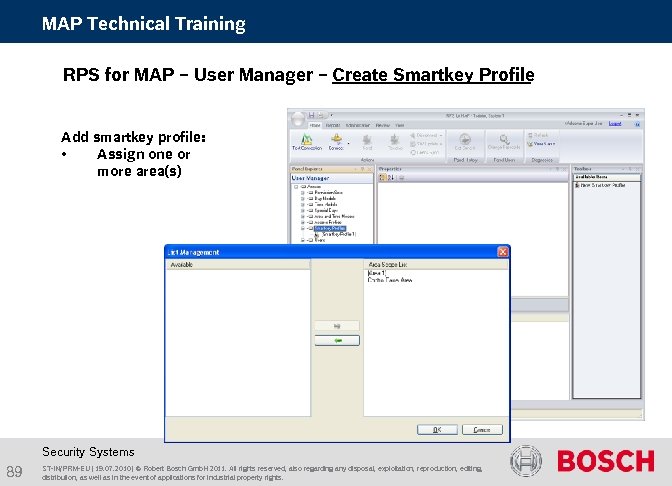

MAP Technical Training RPS for MAP – User Manager – Create Smartkey Profile Add MAP Technical Training RPS for MAP – User Manager – Create Smartkey Profile Add smartkey profile: • Assign one or more area(s) Security Systems 89 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

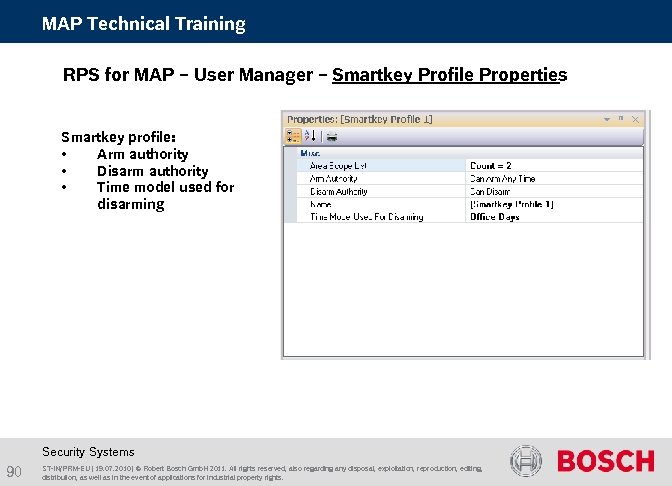

MAP Technical Training RPS for MAP – User Manager – Smartkey Profile Properties Smartkey MAP Technical Training RPS for MAP – User Manager – Smartkey Profile Properties Smartkey profile: • Arm authority • Disarm authority • Time model used for disarming Security Systems 90 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

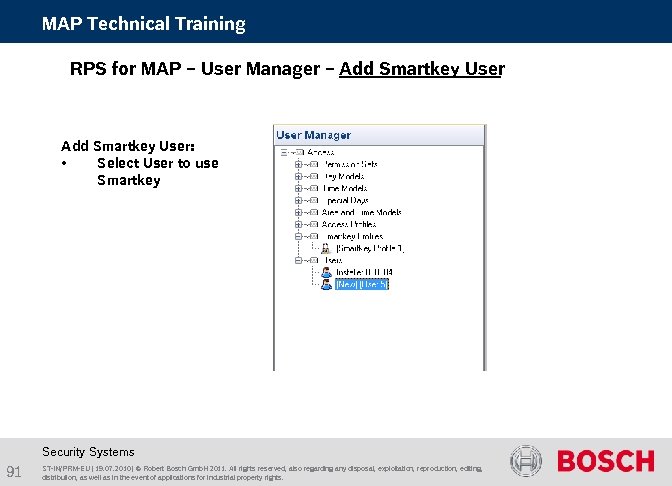

MAP Technical Training RPS for MAP – User Manager – Add Smartkey User: • MAP Technical Training RPS for MAP – User Manager – Add Smartkey User: • Select User to use Smartkey Security Systems 91 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

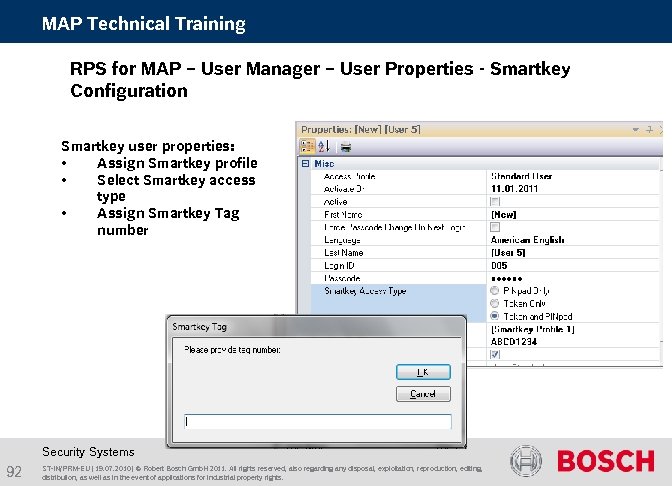

MAP Technical Training RPS for MAP – User Manager – User Properties - Smartkey MAP Technical Training RPS for MAP – User Manager – User Properties - Smartkey Configuration Smartkey user properties: • Assign Smartkey profile • Select Smartkey access type • Assign Smartkey Tag number Security Systems 92 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

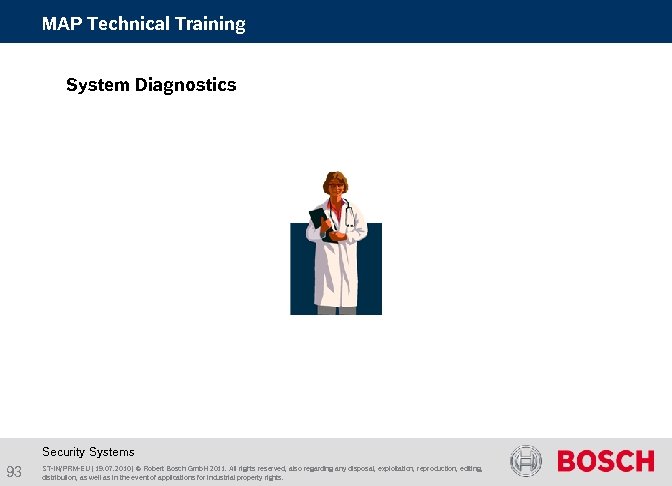

MAP Technical Training System Diagnostics Security Systems 93 ST-IN/PRM-EU | 19. 07. 2010 | MAP Technical Training System Diagnostics Security Systems 93 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

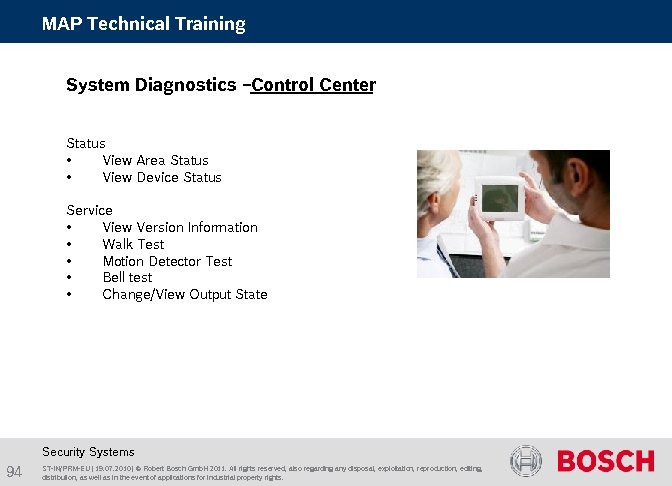

MAP Technical Training System Diagnostics –Control Center Status • View Area Status • View MAP Technical Training System Diagnostics –Control Center Status • View Area Status • View Device Status Service • View Version Information • Walk Test • Motion Detector Test • Bell test • Change/View Output State Security Systems 94 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

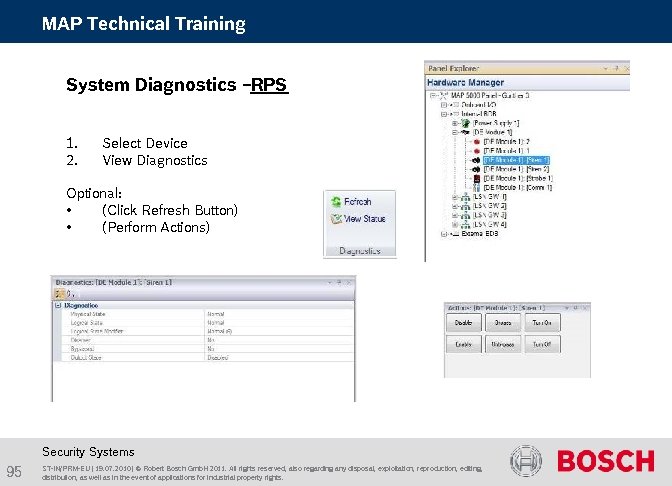

MAP Technical Training System Diagnostics –RPS 1. 2. Select Device View Diagnostics Optional: • MAP Technical Training System Diagnostics –RPS 1. 2. Select Device View Diagnostics Optional: • (Click Refresh Button) • (Perform Actions) Security Systems 95 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

MAP Technical Training Firmware Upgrade Security Systems 96 ST-IN/PRM-EU | 19. 07. 2010 | MAP Technical Training Firmware Upgrade Security Systems 96 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

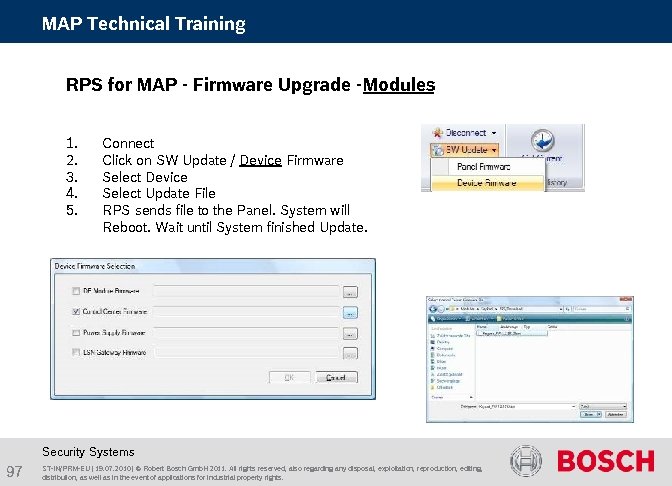

MAP Technical Training RPS for MAP - Firmware Upgrade - Modules 1. 2. 3. MAP Technical Training RPS for MAP - Firmware Upgrade - Modules 1. 2. 3. 4. 5. Connect Click on SW Update / Device Firmware Select Device Select Update File RPS sends file to the Panel. System will Reboot. Wait until System finished Update. Security Systems 97 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

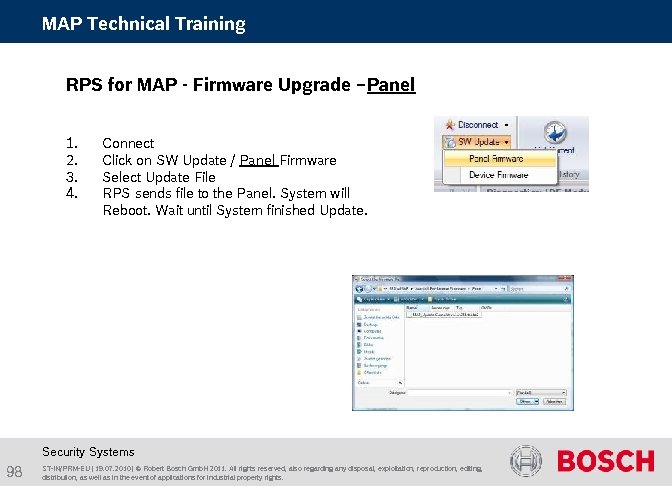

MAP Technical Training RPS for MAP - Firmware Upgrade – Panel 1. 2. 3. MAP Technical Training RPS for MAP - Firmware Upgrade – Panel 1. 2. 3. 4. Connect Click on SW Update / Panel Firmware Select Update File RPS sends file to the Panel. System will Reboot. Wait until System finished Update. Security Systems 98 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

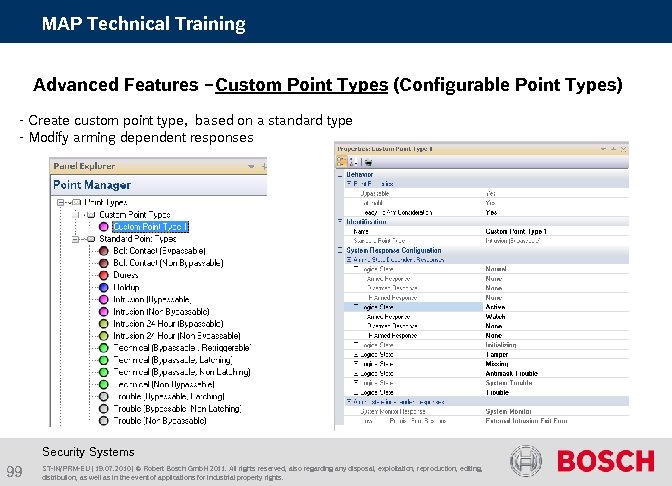

MAP Technical Training Advanced Features – Custom Point Types (Configurable Point Types) - Create MAP Technical Training Advanced Features – Custom Point Types (Configurable Point Types) - Create custom point type, based on a standard type - Modify arming dependent responses Security Systems 99 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

MAP Technical Training Advanced Features – Area- Blocking Time for Disarming It is possible MAP Technical Training Advanced Features – Area- Blocking Time for Disarming It is possible to configure allowed times for disarming for every area including CPA. For a single day, a maximum of three blocking time intervals can be configured. During the configured intervals disarming is allowed (Blocking Time is inactive). Outside of the configured intervals disarming is not allowed (Blocking Time is active). If the system is in Installer Mode blocking time is always inactive for all areas. Security Systems 100 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

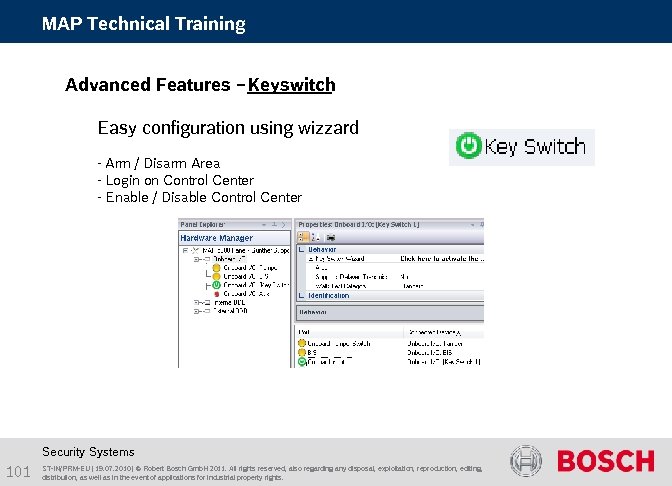

MAP Technical Training Advanced Features – Keyswitch Easy configuration using wizzard - Arm / MAP Technical Training Advanced Features – Keyswitch Easy configuration using wizzard - Arm / Disarm Area - Login on Control Center - Enable / Disable Control Center Security Systems 101 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

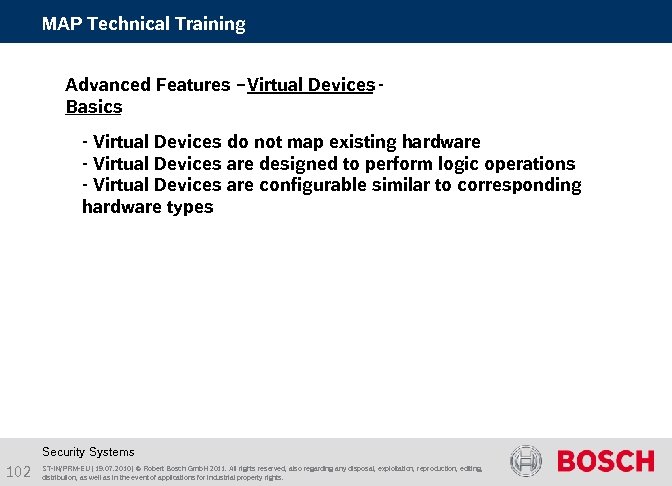

MAP Technical Training Advanced Features – Virtual Devices Basics - Virtual Devices do not MAP Technical Training Advanced Features – Virtual Devices Basics - Virtual Devices do not map existing hardware - Virtual Devices are designed to perform logic operations - Virtual Devices are configurable similar to corresponding hardware types Security Systems 102 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

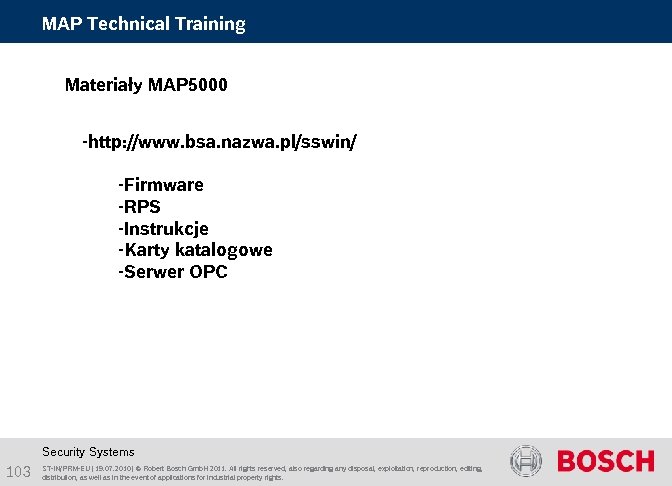

MAP Technical Training Materiały MAP 5000 -http: //www. bsa. nazwa. pl/sswin/ -Firmware -RPS -Instrukcje MAP Technical Training Materiały MAP 5000 -http: //www. bsa. nazwa. pl/sswin/ -Firmware -RPS -Instrukcje -Karty katalogowe -Serwer OPC Security Systems 103 ST-IN/PRM-EU | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

System Kontroli Dostępu Bosch Paweł Piekut Access & MAP Product Manager Security Systems 104 System Kontroli Dostępu Bosch Paweł Piekut Access & MAP Product Manager Security Systems 104 Department | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.

Dziękuję za uwagę! Security Systems 105 Department | 19. 07. 2010 | © Dziękuję za uwagę! Security Systems 105 Department | 19. 07. 2010 | © Robert Bosch Gmb. H 2011. All rights reserved, also regarding any disposal, exploitation, reproduction, editing, distribution, as well as in the event of applications for industrial property rights.
