Systems Engineering for the Internet and the Web Rob Oshana oshana@airmail. net 214 -415 Systems Engineering for the Internet and the Web Rob Oshana [email protected] net 214 -415 -9690

My Background • Defense business experience • Internet/web experience • Commercial “shrink wrap” experience My Background • Defense business experience • Internet/web experience • Commercial “shrink wrap” experience • SMU adjunct (CSE, EETS) • Consulting with telecom • E-Commerce certificate

So Why am I Talking About This ? • I learned a lot about So Why am I Talking About This ? • I learned a lot about system engineering in Do. D environment • I saw a need for sound system engineering principles in the internet space (currently chaotic) • I believe there is an opportunity in the educational space

Introduction • The Internet has increased the scope and complexity of information technology systems, Introduction • The Internet has increased the scope and complexity of information technology systems, placing even greater importance on system planning and design • System engineering for rapid, iterative methodologies of the Internet world

System • A system can be defined as – an integrated composite of people, System • A system can be defined as – an integrated composite of people, products, and processes that provide a capability to satisfy a need or objective [MIL-STD-499 B] – a collection of components organized to accomplish a specific function or set of functions – an interacting combination of elements, viewed in relation to function [INCOSE 95]

System • A system may be a product that is hardware only, hardware/software, software System • A system may be a product that is hardware only, hardware/software, software only, or a service – the sum of the products being delivered to the customer(s) or user(s) of the products – achieve the overall cost, schedule, and performance objectives of the business entity developing the product

Systems engineering process • Systems engineering process is a comprehensive problem-solving process used to Systems engineering process • Systems engineering process is a comprehensive problem-solving process used to – transform customer needs and requirements into a life-cycle balanced solution set of system product and process designs – generate information for decision makers – provide information for the next product development or acquisition phase

SE-CMM Process Areas SE-CMM Process Areas

Applicable Process Areas • • Analyze Candidate Solutions Derive and Allocate Requirements Evolve System Applicable Process Areas • • Analyze Candidate Solutions Derive and Allocate Requirements Evolve System Architecture Integrate Disciplines Integrate System Understand customer needs Coordinate with suppliers, etc

Analyze Candidate Solutions • Identifies the characteristics of a process for choosing a solution Analyze Candidate Solutions • Identifies the characteristics of a process for choosing a solution from several alternatives – design decision – production decisions – life-cycle cost decisions – human factors decisions – risk reduction decisions

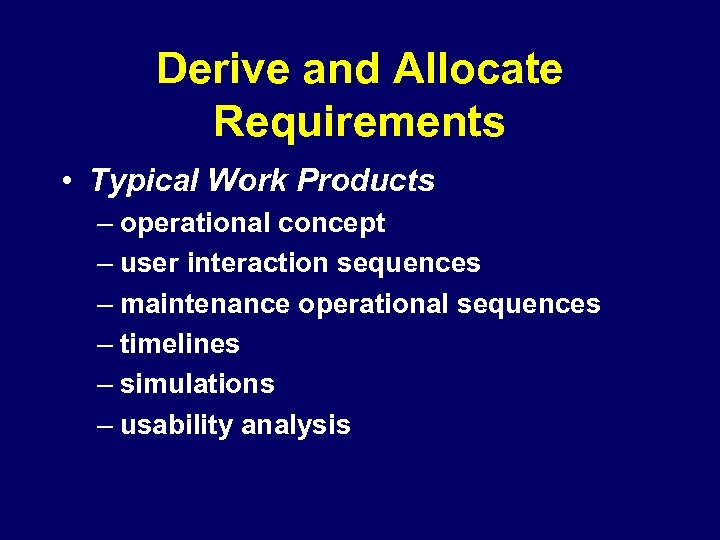

Derive and Allocate Requirements • Typical Work Products – operational concept – user interaction Derive and Allocate Requirements • Typical Work Products – operational concept – user interaction sequences – maintenance operational sequences – timelines – simulations – usability analysis

Understand Customer Needs and Expectations • Interface control working groups • Questionnaires, interviews, operational Understand Customer Needs and Expectations • Interface control working groups • Questionnaires, interviews, operational scenarios obtained from users • Prototypes and models • Brainstorming • Market surveys • Observation of existing systems, environments, and workflow patterns

Coordinate with Suppliers • Typical Work Products – make-vs. -buy trade study – list Coordinate with Suppliers • Typical Work Products – make-vs. -buy trade study – list of system components – sub set of system components for outside organizations to address – list of potential suppliers – beginnings of criteria for completion of needed work

System Engineering Applied to Internet Infrastructure System Engineering Applied to Internet Infrastructure

Example - Campus Network http: //www. cisco. com/cpress/cc/td/cpress/ccie/ndcs/ 01 ccie. htm#35145 Example - Campus Network http: //www. cisco. com/cpress/cc/td/cpress/ccie/ndcs/ 01 ccie. htm#35145

Determining Requirements • Understand requirements • Selecting capability and reliability options that meet these Determining Requirements • Understand requirements • Selecting capability and reliability options that meet these requirements • Solution must reflect the goals, characteristics, and policies of the organizations in which they operate

Determining Requirements • Two primary goals drive design and implementation – Application availability – Determining Requirements • Two primary goals drive design and implementation – Application availability – Cost of ownership • IS budgets today often run in the millions of dollars as large organizations increasingly rely on electronic data for managing business activities • A well-designed solution can help to balance these objectives!!

The Design Problem: Optimizing Availability and Cost • Design problem consists of the following The Design Problem: Optimizing Availability and Cost • Design problem consists of the following general elements • Environmental givens – location of hosts, servers, terminals, and other end nodes – the projected traffic for the environment – projected costs for delivering different service levels

Optimizing Availability and Cost • Performance constraints – network reliability – traffic throughput – Optimizing Availability and Cost • Performance constraints – network reliability – traffic throughput – host/client computer speeds (for example, network interface cards and hard drive access speeds). • • Internetworking variables network topology line capacities packet flow assignments

Optimizing Availability and Cost • Goal is to minimize cost based on these elements Optimizing Availability and Cost • Goal is to minimize cost based on these elements while delivering service that does not compromise established availability requirements • Primary concerns are availability and cost – essentially at odds – increase in availability must generally be reflected as an increase in cost

Assess needs and cost General Network Design Process Select topologies and technologies to satisfy Assess needs and cost General Network Design Process Select topologies and technologies to satisfy needs Model Network Workload Simulate behavior under expected load Perform sensitivity tests Rework design as needed

Assessing User Requirements • Users primarily want application availability in their networks; – response Assessing User Requirements • Users primarily want application availability in their networks; – response time • interactive online services, such as automated tellers and point-of-sale machines – throughput • file- transfer activities (low response-time requirements) • always a tradeoff; think Size/Weight/Power!

Assessing User Requirements – reliability • Financial services, securities exchanges, and emergency/police/military operations • Assessing User Requirements – reliability • Financial services, securities exchanges, and emergency/police/military operations • high level of hardware and topological redundancy • Determining cost of any downtime is essential in determining the relative importance of reliability

Assessing User Requirements • User community profiles • Interviews, focus groups, and surveys • Assessing User Requirements • User community profiles • Interviews, focus groups, and surveys • Interviews with key user groups • Focus groups • Formal surveys can be used to get a statistically valid reading of user sentiment • Human factors tests

Assessing Proprietary and Nonproprietary Solutions • Compatibility, conformance, and interoperability are related to the Assessing Proprietary and Nonproprietary Solutions • Compatibility, conformance, and interoperability are related to the problem of balancing proprietary functionality and open internetworking flexibility • Multivendor environment or specific, proprietary capability – Open routing protocol can potentially result in greater multiple-vendor configuration complexity

Assessing Proprietary and Nonproprietary Solutions • Gaining a measure of interoperability versus losing functionality Assessing Proprietary and Nonproprietary Solutions • Gaining a measure of interoperability versus losing functionality • Previous internetworking (and networking) investments and expectations for future requirements have considerable influence over choice of implementations

Assessing Proprietary and Nonproprietary Solutions • Must consider – installed internetworking and networking equipment Assessing Proprietary and Nonproprietary Solutions • Must consider – installed internetworking and networking equipment – applications running (or to be run) on the network – traffic patterns – physical location of sites, hosts, and users – rate of growth of the user community – physical and logical network layout

Assessing Costs • Internetwork is a strategic element in customer’s overall information system design Assessing Costs • Internetwork is a strategic element in customer’s overall information system design – cost of internetwork is much more than the sum of your equipment purchase orders. • Must be viewed as a total cost-ofownership issue • Must consider the entire life cycle of your internetworking environment

Costs to Consider • Equipment hardware and software costs – initial purchase and installation, Costs to Consider • Equipment hardware and software costs – initial purchase and installation, maintenance, and projected upgrade costs • Performance tradeoff costs – cost of going from a five-second response time to a half-second response time

Costs to Consider • Installation costs – Installing a site's physical cable plant can Costs to Consider • Installation costs – Installing a site's physical cable plant can be the most expensive element of a large network • installation labor • site modification • fees associated with local code conformance • costs incurred to ensure compliance with environmental restrictions (such as asbestos removal)

Costs to Consider • Expansion costs – cost of ripping out all thick Ethernet, Costs to Consider • Expansion costs – cost of ripping out all thick Ethernet, adding additional functionality, or moving to a new location • Projecting future requirements and accounting for future needs saves time and money

Costs to Consider • Support costs – Complicated internetworks cost more to monitor, configure, Costs to Consider • Support costs – Complicated internetworks cost more to monitor, configure, and maintain • training • direct labor (network managers and administrators) • sparing • replacement costs – Also out-of-band management, SNMP management stations, and power

Costs to Consider • Cost of downtime – Evaluate the cost for every minute Costs to Consider • Cost of downtime – Evaluate the cost for every minute that a user is unable to access a file server or a centralized database – If the cost is high enough, fully redundant internetworks might be best option

Costs to Consider • Opportunity costs – Every choice made has an opposing alternative Costs to Consider • Opportunity costs – Every choice made has an opposing alternative option • • specific hardware platform topology solution level of redundancy system integration alternative

Costs to Consider • Opportunity Costs – opportunity costs of not switching to newer Costs to Consider • Opportunity Costs – opportunity costs of not switching to newer technologies and topologies might be lost competitive advantage, lower productivity, and slower overall performance • Any effort to integrate opportunity costs into your analysis can help to make accurate comparisons at the beginning of the project

Costs to Consider • Sunken costs – Investment in existing cable plant, routers, concentrators, Costs to Consider • Sunken costs – Investment in existing cable plant, routers, concentrators, switches, hosts, and other equipment and software sunken costs – If the sunken cost is high, might need to modify networks so that existing internetwork can continue to be utilized

Estimating Traffic: Work Load Modeling • Empirical work-load modeling – instrumenting a working internetwork Estimating Traffic: Work Load Modeling • Empirical work-load modeling – instrumenting a working internetwork – monitoring traffic for a given number of users, applications, and network topology • Characterize activity throughout a normal work day – type of traffic passed – level of traffic – response time of hosts – time to execute file transfers

Work Load Modeling • Extrapolating to the new internetwork's number of users, applications, and Work Load Modeling • Extrapolating to the new internetwork's number of users, applications, and topology • Tools • Passive monitoring of an existing network • Measure activity and traffic generated by a known number of users

Work Load Modeling • Problem with modeling workloads on networks is that it is Work Load Modeling • Problem with modeling workloads on networks is that it is difficult to accurately pinpoint traffic load and network device performance as functions of the number of users, type of application, and geographical location

Work Load Modeling • Factors that influence the dynamics of the network – The Work Load Modeling • Factors that influence the dynamics of the network – The time-dependent nature of network access – Differences associated with type of traffic • Routed and bridged traffic place different demands – The random (nondeterministic) nature of network traffic

Sensitivity Testing • Sensitivity testing involves breaking stable links and observing what happens – Sensitivity Testing • Sensitivity testing involves breaking stable links and observing what happens – how traffic is rerouted – speed of convergence – whether any connectivity is lost – and whether problems arise in handling specific types of traffic

Sensitivity Testing • This empirical testing is a type of regression testing: – A Sensitivity Testing • This empirical testing is a type of regression testing: – A series of specific modifications (tests) are repeated on different versions of network configurations – By monitoring the effects on the design variations, you can characterize the relative resilience of the design

System Engineering Techniques Applied to the Web System Engineering Techniques Applied to the Web

Quantitative Analysis Business model & measurable goals E-Business site architecture 1 2 Measure E-Business Quantitative Analysis Business model & measurable goals E-Business site architecture 1 2 Measure E-Business Site Predict E-Business Site performance 8 7 Forecast Workload Evolution Characterize 3 Customer Behavior Obtain Performance Parameters 6 Characterize Site Workload Develop 5 Performance Models 4

Customer, Workload, and Resource Models Metrics: - revenue/sec - response time - throughput Customer Customer, Workload, and Resource Models Metrics: - revenue/sec - response time - throughput Customer Model What-if questions regarding impacts of customer behavior Workload Model Resource Model What-if questions regarding impacts of workload, architecture, and configuration changes

What is a performance model? • A model of a system helps one understand What is a performance model? • A model of a system helps one understand some fundamental characteristics of the system • “All models are wrong, but some are useful!”

Zipfs Law • If one ranks the popularity of words in a given text Zipfs Law • If one ranks the popularity of words in a given text (p) by their frequency (f) then f ~ 1/p • A few elements score very high and a very large number of elements score very low • Many phenomena on the web can be modeled by Zipfs law

Zipfs Law • P = k/r where P is the number of references to Zipfs Law • P = k/r where P is the number of references to a document, r is the rank, k is a positive constant • Some documents are very popular while most documents receive just a few references • Can use Zipfs law to understand some asymptotic properties of web caching performance

Zipfs Law • Results obtained from Zipfs model are useful – to characterize WWW Zipfs Law • Results obtained from Zipfs model are useful – to characterize WWW workloads – analyze document dissemination and replication strategies – model the behavior of caching and mirroring systems

Other Types of Models • CBMG • CSID • Resource model; represents the structure Other Types of Models • CBMG • CSID • Resource model; represents the structure and the various components of an ebusiness site • Performance model; represents the way system’s resources are used by the workload and capture the main factors determining system performance

Other Types of Models • Analytic models; specify the interaction between the various components Other Types of Models • Analytic models; specify the interaction between the various components of a system via formulas • Example; minimum possible HTTP transaction time Rtmin = RTT + requestmin + Site. Processing. Time + replymin RTT=round trip delay in network comm, requestmin = Request. Size/Bandwidth = min time needed to send the request to the site

Other Types of Models • Simulation models; mimic the behavior of the actual system Other Types of Models • Simulation models; mimic the behavior of the actual system by running a simulation program – Mimics the transitions among the system states according to the occurrence of events in the simulated system – Measure performance by counting events – Expensive to develop and run – How long to you run it ?

Why do we need models? • Help us understand the quantitative behavior of complex Why do we need models? • Help us understand the quantitative behavior of complex systems • Commerce is a transaction based system • Useful for analyzing document replacement policies in caching proxies • Useful for analyzing bandwidth capacity of certain network links • Good essential tool for studying resource allocation problems in the context of ecommerce

A Modeling Paradigm • View from different perspectives; – Modeling/prediction paradigm • Modeling the A Modeling Paradigm • View from different perspectives; – Modeling/prediction paradigm • Modeling the system – Analytic models • Validating the model – Obtain necessary input parameters – Make proper assumptions • Using the model to predict future system performance – Analytic or simulation techniques

Modeling/Prediction Paradigm Analyzing Actual system Collect data Performance measurement Modeling Predicting Build a model Modeling/Prediction Paradigm Analyzing Actual system Collect data Performance measurement Modeling Predicting Build a model Performance Of projected system Obtain Parameters Solve the model Validate The model Change Validated model

A Modeling Paradigm • Accuracy of results • Response time of e-commerce transaction computed A Modeling Paradigm • Accuracy of results • Response time of e-commerce transaction computed by model should be compared against actual data • Rules of thumb – Resource utilization – 10% – System throughput – 10% – Response time – 20% • Errors may exist in modeling phase or in the measurement phase

State and Transitions of a 0. 25 Search CBMG 0. 25 0. 35 Browse State and Transitions of a 0. 25 Search CBMG 0. 25 0. 35 Browse 0. 3 0. 15 Entry 0. 7 Pay 0. 2 0. 1 0. 6 Home 0. 1 0. 2 0. 3 0. 2 0. 5 0. 3 0. 2 0. 3 0. 1 0. 05 Add to Login cart 0. 4 0. 05 0. 1 0. 2 0. 05 Register 0. 15 0. 25 1. 0 0. 2 0. 35 Search 0. 1 0. 2 Select 0. 1

Capacity Planning • Determining future load levels – Natural evolution of existing workloads – Capacity Planning • Determining future load levels – Natural evolution of existing workloads – Deployment of new applications and services – Changes in customer behavior • Traffic surges due to new situations • Changes in customer navigational patterns due to availability of new business functions • Predictive patterns and not experimentation

Definition of Adequate Capacity Customers Service Level Agreements Specified Technologies And standards Management Cost Definition of Adequate Capacity Customers Service Level Agreements Specified Technologies And standards Management Cost constraints e. g. response time < 2 sec Availability > 99. 5% Adequate capacity e. g. NT servers, Oracle DBMS, SSL, SET e. g. startup cost < $5. 5 million Maintenance cost < $1. 6 million/yr

CBMG for Online Auto-Buying Service with Virtual Buying feature Select options Select car entry CBMG for Online Auto-Buying Service with Virtual Buying feature Select options Select car entry home View order Cancel order Select Svc contr Enter data Apply for financing Enter deliv data Hold car

Typical Multi-Tier E-Business Site Architecture LAN 1 T 3 link LAN 2 App Servers Typical Multi-Tier E-Business Site Architecture LAN 1 T 3 link LAN 2 App Servers Intranet/Internet MS windows NT server Site Server Commerce Edition Router Firewall DB Servers MS windows NT server MS IIS HTTP server Web Server MS windows NT server MS SQL server

CSID for the Option Select E -Business Functions 1 2 3 [1, 200] C CSID for the Option Select E -Business Functions 1 2 3 [1, 200] C [1, 320] WS (Int, LAN 1) 4 [1, 400] AS (LAN 1, LAN 2) Launch. Show. Options 5 [1, 1050] DB (LAN 2) [1, 2400] AS (LAN 2) Search. Car. Options Display. Car. Options 6 7 [1, 2600] WS (LAN 1, LAN 2) C (LAN 1, Int) Send. Reply Display. Car. Options

Performance Laws • • T = observation period Bo = system busy period Ao Performance Laws • • T = observation period Bo = system busy period Ao = number of arrivals of requests Co = number of completed requests • Can then derive operational quantities

Utilization Law • Fraction of time the resource is busy • Utilization, U = Utilization Law • Fraction of time the resource is busy • Utilization, U = Bi / T • Average throughput from queue = Xi = Co / T • Ui = Bi / T = Bi / (Co/Xi) = (Bi/Co) X Xi = Si X Xi

Forced Flow Law • Average number of visits, Vi; each completing transaction has to Forced Flow Law • Average number of visits, Vi; each completing transaction has to pass Vi times on average by queue i • Xo transaction complete per unit time • Vi X Xo transactions visit queue I per unit time • Xi = Vi X Xo is the Forced Flow Law

Service Demand Law • Combine the Utilization and Forced Flow Laws • Di = Service Demand Law • Combine the Utilization and Forced Flow Laws • Di = Vi X Si = (Xi / Xo) X (Ui / Xi) = Ui / Xo

Little’s Law • Simple and widely applicable to performance analysis of computing resources N Little’s Law • Simple and widely applicable to performance analysis of computing resources N R X Customers arrive at the black box, spend R seconds in the black box and leave

Little’s Law n(t) Number of customers in the black box at time t k Little’s Law n(t) Number of customers in the black box at time t k N 0 t rk t

Little’s Law • Departure rate through black box is X customers/sec • N = Little’s Law • Departure rate through black box is X customers/sec • N = average number of customers in the black box (at the web site) • Show that N = X X R • Observation time is t • Average number of customers in the interval can be calculated

A Performance Modeling Question DMZ Layer 1 Layer 2 Layer 3 Model ntranet/Internet ? A Performance Modeling Question DMZ Layer 1 Layer 2 Layer 3 Model ntranet/Internet ? Router Firewall Load Balancer DB Servers (e. g. mainframes) Web App Servers

Single Server Model Arrival process Resources Queuing Space Service process Single Server Model Arrival process Resources Queuing Space Service process

Single Queue Model Web server Requests Responses Data Storage device Single Queue Requests/ responses Single Queue Model Web server Requests Responses Data Storage device Single Queue Requests/ responses

Queuing Network Model DMZ Layer 1 Layer 2 Intranet/Internet Router Firewall Load Balancer Web Queuing Network Model DMZ Layer 1 Layer 2 Intranet/Internet Router Firewall Load Balancer Web App Servers Layer 3

Queuing Network Model Queuing Network Model

Financial Site: CSID for “Show Portfolio” 3 C [0. 05, m 2] 2 1 Financial Site: CSID for “Show Portfolio” 3 C [0. 05, m 2] 2 1 C WS [1, m 1] 4 5 AS [0. 95, m 3] [0. 8, m 6] DB [1, m 7] 6 AS [1, m 8] 7 WS [1, m 9] 8 C

Open QN of the Financial Site 2 4 disk 6 disk 1 processor 3 Open QN of the Financial Site 2 4 disk 6 disk 1 processor 3 processor Web server App server responses disk 5 processor Database server

Response Time of Financial Site Response Time of Financial Site

Contention for Software in E -Business Sites • • WS is multithreaded (m threads) Contention for Software in E -Business Sites • • WS is multithreaded (m threads) AS has n threads DS has p threads Queue for WS limited (requests may be rejected) • Requests sent to AS and/or DS and are queued there

S/W and H/W Queues WS threads AS threads DS threads 1 1 1 m S/W and H/W Queues WS threads AS threads DS threads 1 1 1 m m m Rejected requests CPU Disk

Example of Zipf’s Law Example of Zipf’s Law

Traffic Volume to an E-Tailer Site Traffic Volume to an E-Tailer Site

Historical Data Patterns Historical Data Patterns

So What is Being Done? So What is Being Done?

Technology Assessment • Reduces the risk of using obsolete or unproven solutions and identifies Technology Assessment • Reduces the risk of using obsolete or unproven solutions and identifies available products and services with attractive price-performance profiles • The thrust is to make full use of standards-based, leading edge technologies that are commercially available, plug-and-play components.

Prototyping, modeling, and simulation • Techniques are used to evaluate alternative conceptual designs, predict Prototyping, modeling, and simulation • Techniques are used to evaluate alternative conceptual designs, predict performance, and conduct trade-off analyses • Analysis tools to support workload forecasting, performance measurement, capacity management, and cost estimation – Used to evaluate conceptual designs and select the system alternative that best meets current and future requirements

Acquisition Phase • Active support role, or assumes full responsibility in acquiring all the Acquisition Phase • Active support role, or assumes full responsibility in acquiring all the necessary products and services competitively to build the target system • Prepare acquisition specifications, screen potential vendors, elicit proposals, evaluate offers, and select best-value solution

Implementation Phase • Support clients in managing systems development, installation, and cut over activities Implementation Phase • Support clients in managing systems development, installation, and cut over activities to ensure quality performance by vendors • Monitor work progress, conduct formal reviews at major milestones, identify risk areas, and devise corrective actions to ensure the delivery of reliable, maintainable systems, on schedule and within budget

Job Description Job Description

 • Participate. . on a project team of engineers involved in development of • Participate. . on a project team of engineers involved in development of systems and software for XX products. . Requires a strong background in Systems design…. . . and system-level documentation, on projects that may include any of the following list of responsibilities: Specify detailed product requirements, participate in the architecture and requirements of system software/hardware for optical products designed for the core of optical networks. Demonstrate a high degree of originality and innovation in defining product and project level architecture. Significantly influences the design of interfaces between products to ensure interoperability. Define new software product features. Champion new, improved design methodologies. Define Reliability, Availability, Servicability (RAS) goals for products. Strong interpersonal skills. . .

Summary • The internet is here to stay (and becoming critical) • Complexity of Summary • The internet is here to stay (and becoming critical) • Complexity of modern solutions requires a good systems engineering approach • SMU is in a hotbed for this technology • Educational opportunities
