Systems Analysis and Design in a Changing World, Fourth Edition Systems Analysis and Design Systems Analysis and Design in a Changing World, Fourth Edition Systems Analysis and Design in a Changing World, 4 th Edition 15

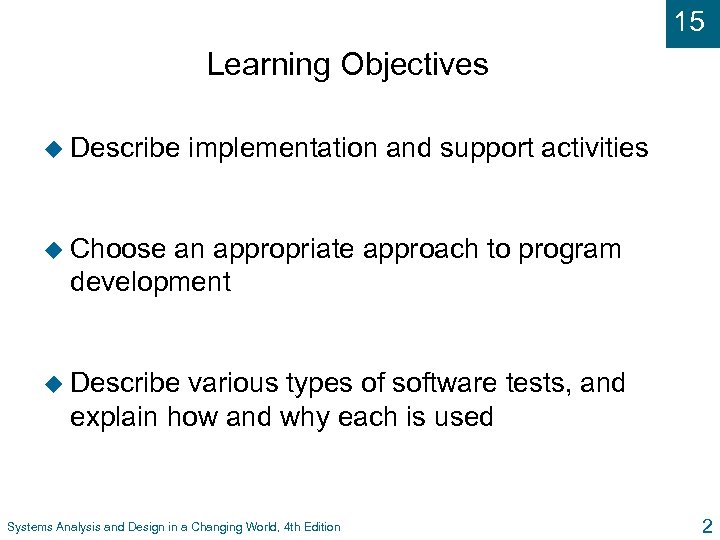

15 Learning Objectives u Describe implementation and support activities u Choose an appropriate approach 15 Learning Objectives u Describe implementation and support activities u Choose an appropriate approach to program development u Describe various types of software tests, and explain how and why each is used Systems Analysis and Design in a Changing World, 4 th Edition 2

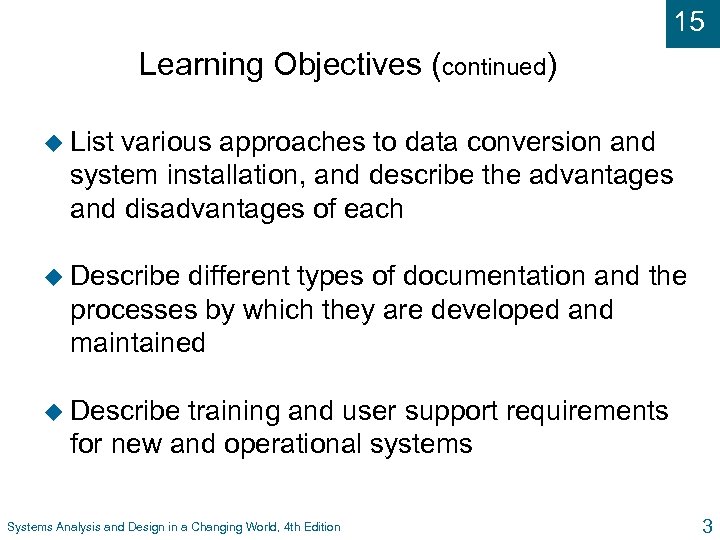

15 Learning Objectives (continued) u List various approaches to data conversion and system installation, 15 Learning Objectives (continued) u List various approaches to data conversion and system installation, and describe the advantages and disadvantages of each u Describe different types of documentation and the processes by which they are developed and maintained u Describe training and user support requirements for new and operational systems Systems Analysis and Design in a Changing World, 4 th Edition 3

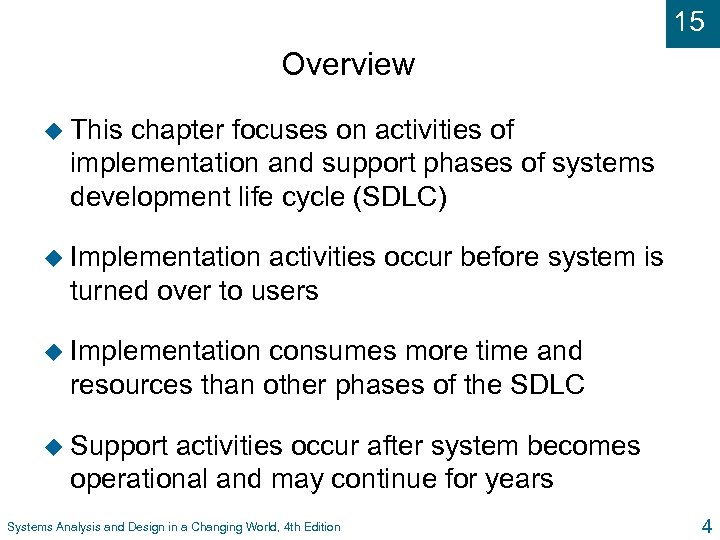

15 Overview u This chapter focuses on activities of implementation and support phases of 15 Overview u This chapter focuses on activities of implementation and support phases of systems development life cycle (SDLC) u Implementation activities occur before system is turned over to users u Implementation consumes more time and resources than other phases of the SDLC u Support activities occur after system becomes operational and may continue for years Systems Analysis and Design in a Changing World, 4 th Edition 4

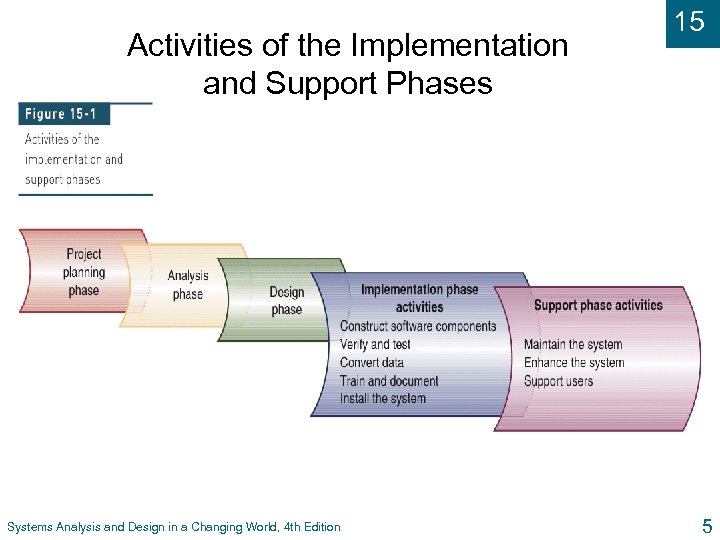

Activities of the Implementation and Support Phases Systems Analysis and Design in a Changing Activities of the Implementation and Support Phases Systems Analysis and Design in a Changing World, 4 th Edition 15 5

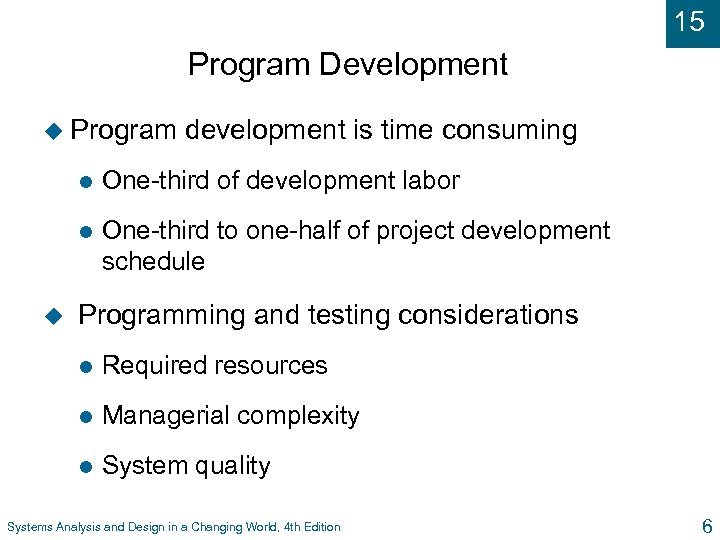

15 Program Development u Program development is time consuming l l u One-third of 15 Program Development u Program development is time consuming l l u One-third of development labor One-third to one-half of project development schedule Programming and testing considerations l Required resources l Managerial complexity l System quality Systems Analysis and Design in a Changing World, 4 th Edition 6

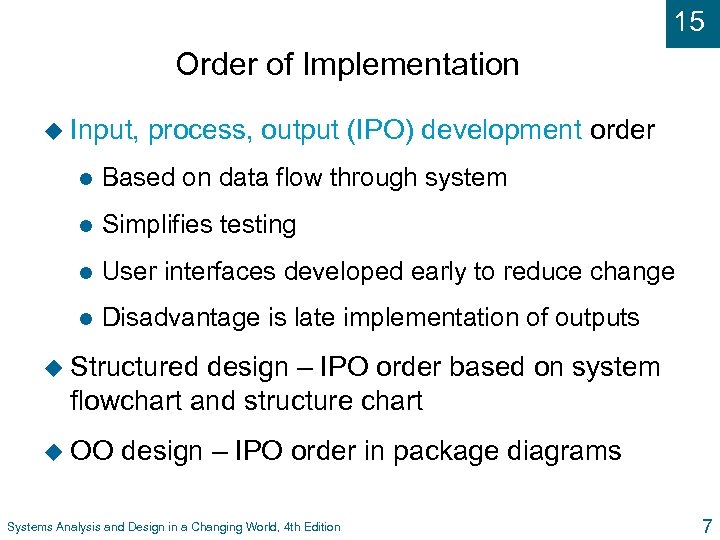

15 Order of Implementation u Input, process, output (IPO) development order l Based on 15 Order of Implementation u Input, process, output (IPO) development order l Based on data flow through system l Simplifies testing l User interfaces developed early to reduce change l Disadvantage is late implementation of outputs u Structured design – IPO order based on system flowchart and structure chart u OO design – IPO order in package diagrams Systems Analysis and Design in a Changing World, 4 th Edition 7

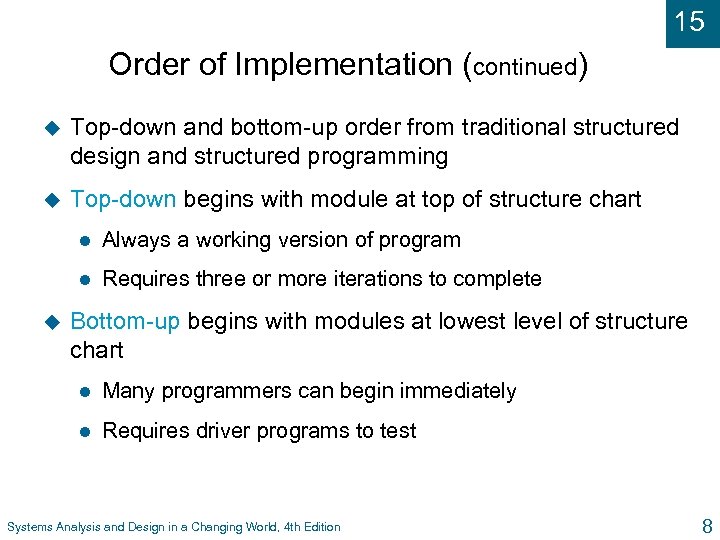

15 Order of Implementation (continued) u Top-down and bottom-up order from traditional structured design 15 Order of Implementation (continued) u Top-down and bottom-up order from traditional structured design and structured programming u Top-down begins with module at top of structure chart l l u Always a working version of program Requires three or more iterations to complete Bottom-up begins with modules at lowest level of structure chart l Many programmers can begin immediately l Requires driver programs to test Systems Analysis and Design in a Changing World, 4 th Edition 8

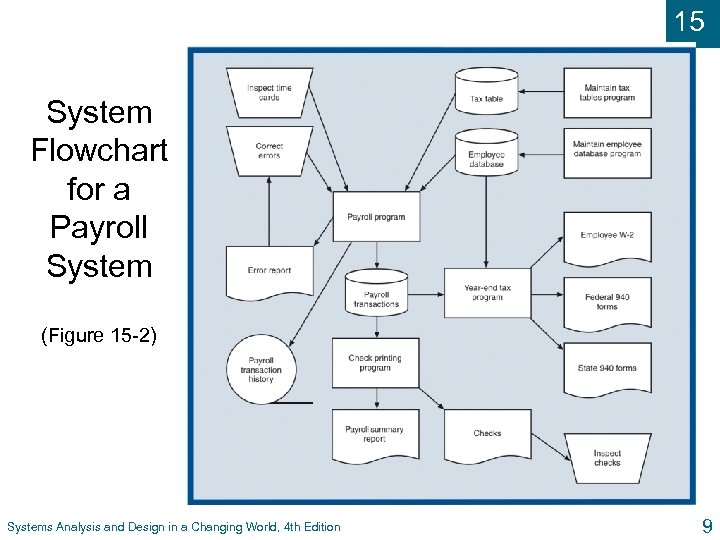

15 System Flowchart for a Payroll System (Figure 15 -2) Systems Analysis and Design 15 System Flowchart for a Payroll System (Figure 15 -2) Systems Analysis and Design in a Changing World, 4 th Edition 9

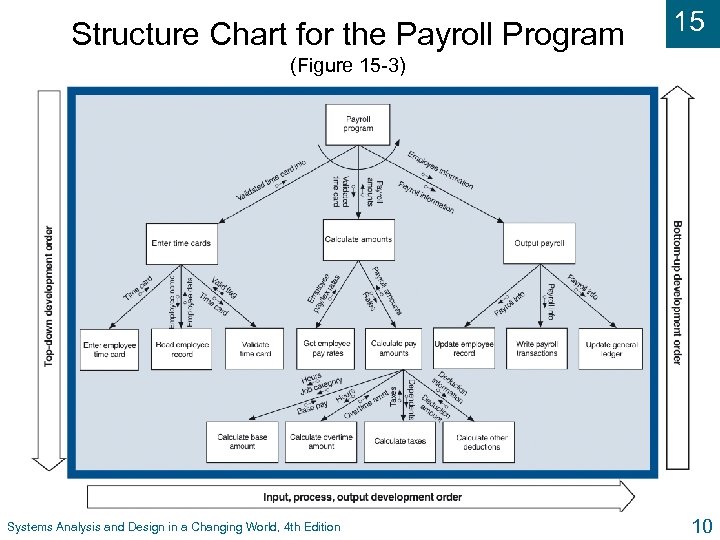

Structure Chart for the Payroll Program 15 (Figure 15 -3) Systems Analysis and Design Structure Chart for the Payroll Program 15 (Figure 15 -3) Systems Analysis and Design in a Changing World, 4 th Edition 10

Package Diagrams for RMO Subsystems Systems Analysis and Design in a Changing World, 4 Package Diagrams for RMO Subsystems Systems Analysis and Design in a Changing World, 4 th Edition 15 11

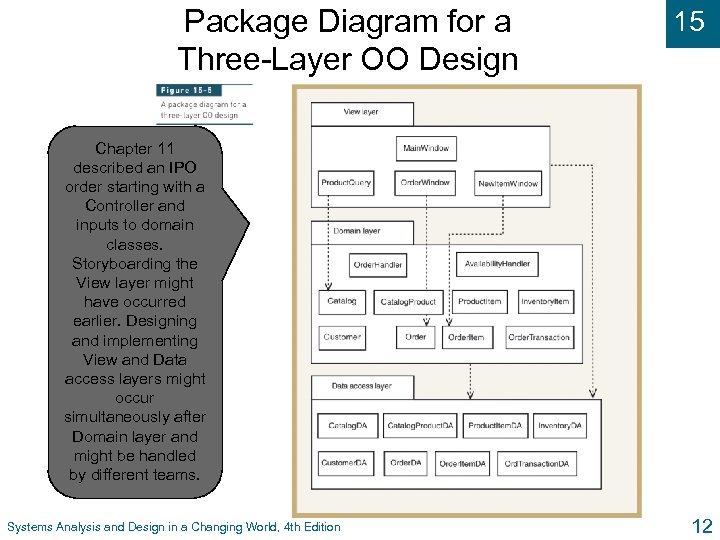

Package Diagram for a Three-Layer OO Design 15 Chapter 11 described an IPO order Package Diagram for a Three-Layer OO Design 15 Chapter 11 described an IPO order starting with a Controller and inputs to domain classes. Storyboarding the View layer might have occurred earlier. Designing and implementing View and Data access layers might occur simultaneously after Domain layer and might be handled by different teams. Systems Analysis and Design in a Changing World, 4 th Edition 12

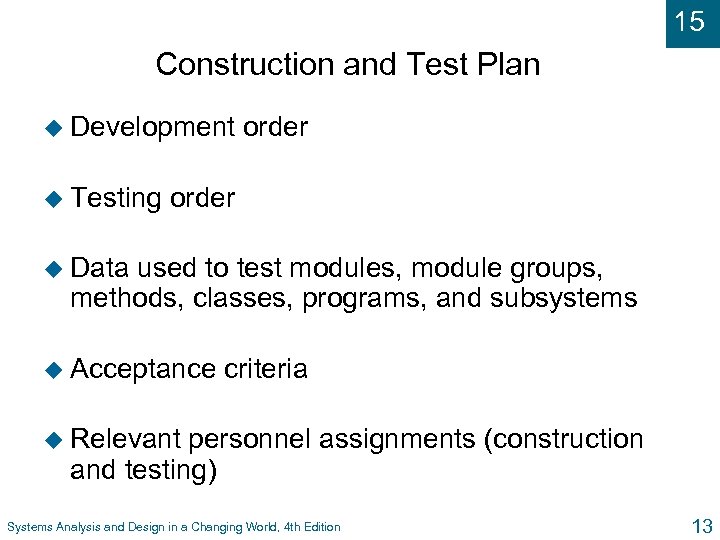

15 Construction and Test Plan u Development u Testing order u Data used to 15 Construction and Test Plan u Development u Testing order u Data used to test modules, module groups, methods, classes, programs, and subsystems u Acceptance criteria u Relevant personnel assignments (construction and testing) Systems Analysis and Design in a Changing World, 4 th Edition 13

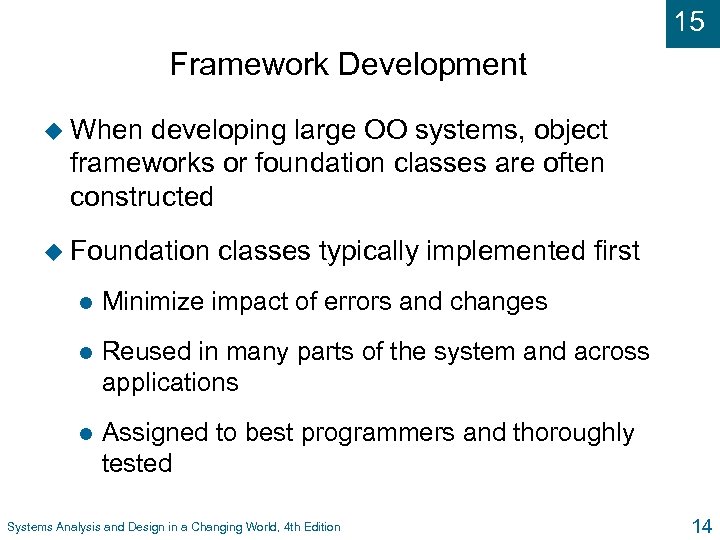

15 Framework Development u When developing large OO systems, object frameworks or foundation classes 15 Framework Development u When developing large OO systems, object frameworks or foundation classes are often constructed u Foundation classes typically implemented first l Minimize impact of errors and changes l Reused in many parts of the system and across applications l Assigned to best programmers and thoroughly tested Systems Analysis and Design in a Changing World, 4 th Edition 14

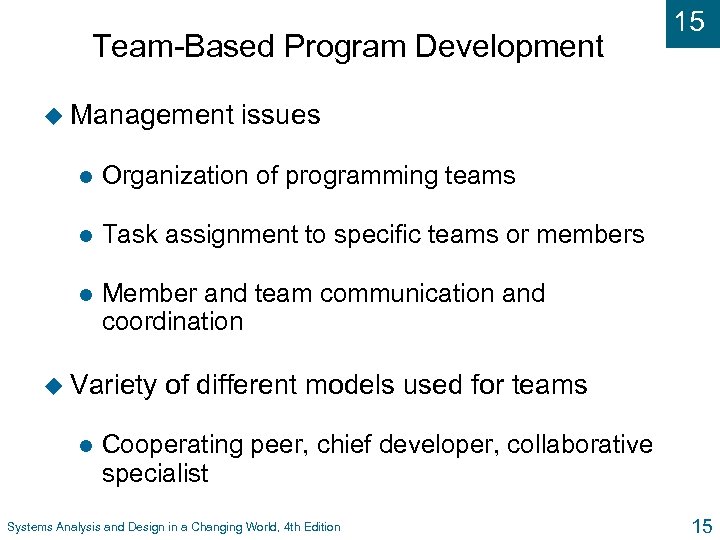

Team-Based Program Development u Management 15 issues l Organization of programming teams l Task Team-Based Program Development u Management 15 issues l Organization of programming teams l Task assignment to specific teams or members l Member and team communication and coordination u Variety l of different models used for teams Cooperating peer, chief developer, collaborative specialist Systems Analysis and Design in a Changing World, 4 th Edition 15

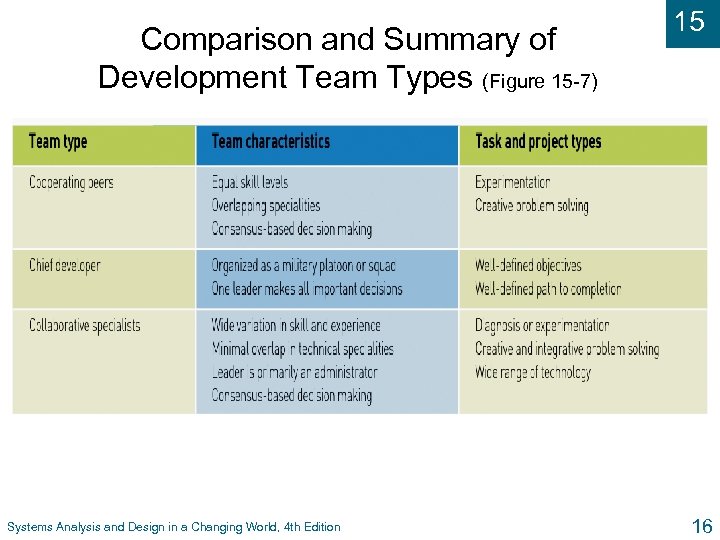

Comparison and Summary of Development Team Types (Figure 15 -7) Systems Analysis and Design Comparison and Summary of Development Team Types (Figure 15 -7) Systems Analysis and Design in a Changing World, 4 th Edition 15 16

15 Source Code Control u Source l code control system (SCCS) Automated tool for 15 Source Code Control u Source l code control system (SCCS) Automated tool for tracking source code files and controlling changes to those files u Repository of code and programmer actions l Check out file in read-only mode l Check out file in read/write mode l Check in a modified file Systems Analysis and Design in a Changing World, 4 th Edition 17

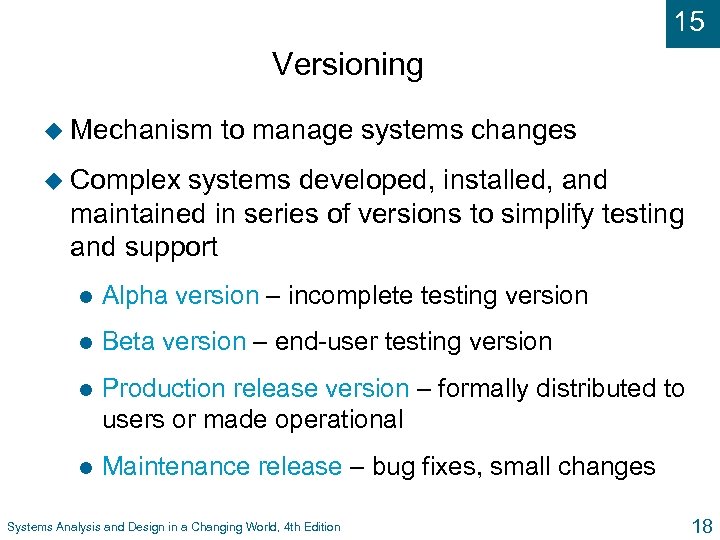

15 Versioning u Mechanism to manage systems changes u Complex systems developed, installed, and 15 Versioning u Mechanism to manage systems changes u Complex systems developed, installed, and maintained in series of versions to simplify testing and support l Alpha version – incomplete testing version l Beta version – end-user testing version l Production release version – formally distributed to users or made operational l Maintenance release – bug fixes, small changes Systems Analysis and Design in a Changing World, 4 th Edition 18

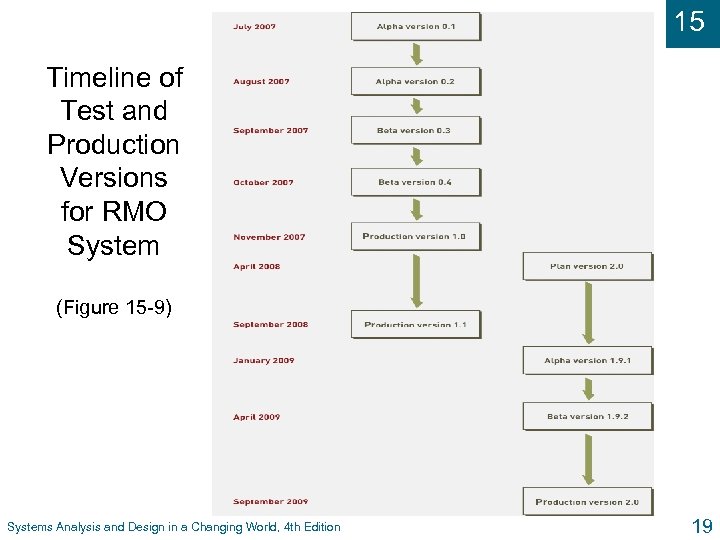

15 Timeline of Test and Production Versions for RMO System (Figure 15 -9) Systems 15 Timeline of Test and Production Versions for RMO System (Figure 15 -9) Systems Analysis and Design in a Changing World, 4 th Edition 19

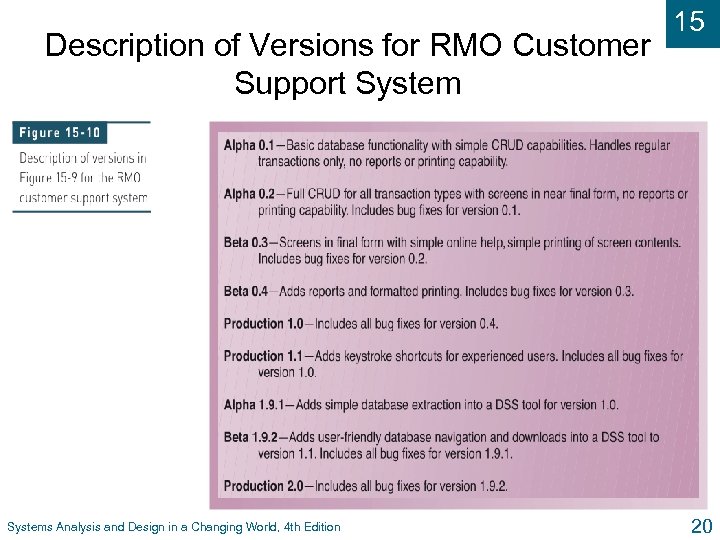

Description of Versions for RMO Customer Support Systems Analysis and Design in a Changing Description of Versions for RMO Customer Support Systems Analysis and Design in a Changing World, 4 th Edition 15 20

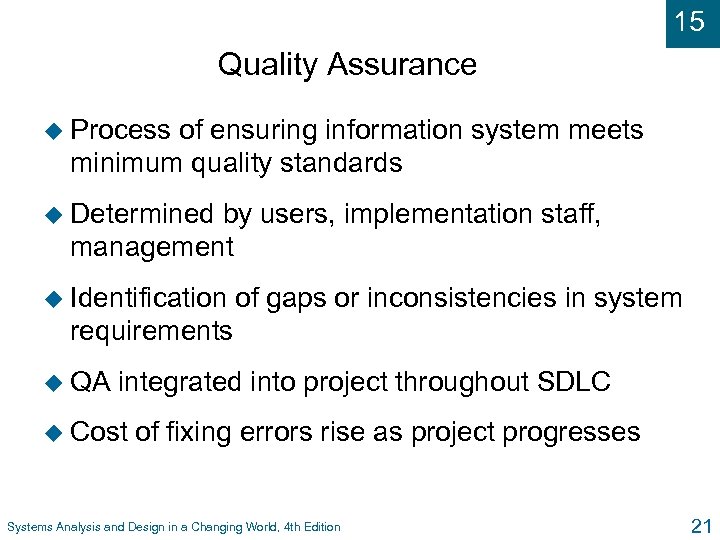

15 Quality Assurance u Process of ensuring information system meets minimum quality standards u 15 Quality Assurance u Process of ensuring information system meets minimum quality standards u Determined by users, implementation staff, management u Identification of gaps or inconsistencies in system requirements u QA integrated into project throughout SDLC u Cost of fixing errors rise as project progresses Systems Analysis and Design in a Changing World, 4 th Edition 21

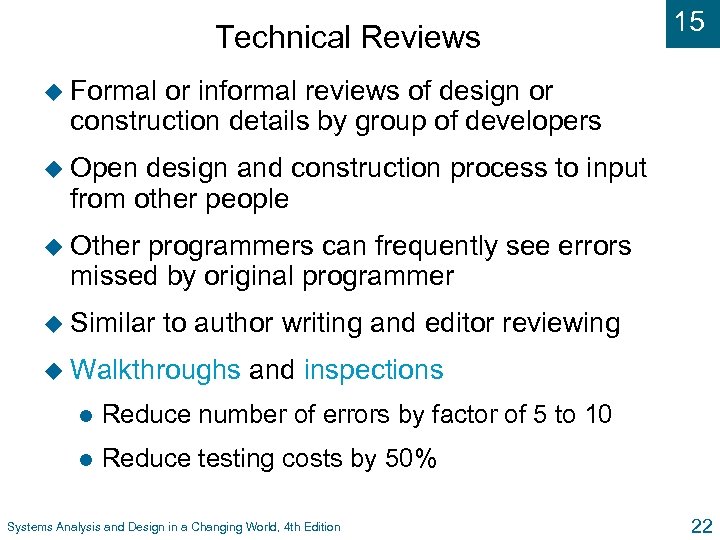

Technical Reviews 15 u Formal or informal reviews of design or construction details by Technical Reviews 15 u Formal or informal reviews of design or construction details by group of developers u Open design and construction process to input from other people u Other programmers can frequently see errors missed by original programmer u Similar to author writing and editor reviewing u Walkthroughs and inspections l Reduce number of errors by factor of 5 to 10 l Reduce testing costs by 50% Systems Analysis and Design in a Changing World, 4 th Edition 22

15 Testing u Process of examining a product to determine if any defects exist 15 Testing u Process of examining a product to determine if any defects exist u Testing levels are related to specific SDLC u Testing activities spread throughout SDLC phases u Most of testing takes place following software construction and definition of defect standards Systems Analysis and Design in a Changing World, 4 th Edition 23

Generic Model of Software Testing 15 (Figure 15 -12) Systems Analysis and Design in Generic Model of Software Testing 15 (Figure 15 -12) Systems Analysis and Design in a Changing World, 4 th Edition 24

Correspondence Between SDLC Phases and Various Types of Testing (Figure 15 -13) Systems Analysis Correspondence Between SDLC Phases and Various Types of Testing (Figure 15 -13) Systems Analysis and Design in a Changing World, 4 th Edition 15 25

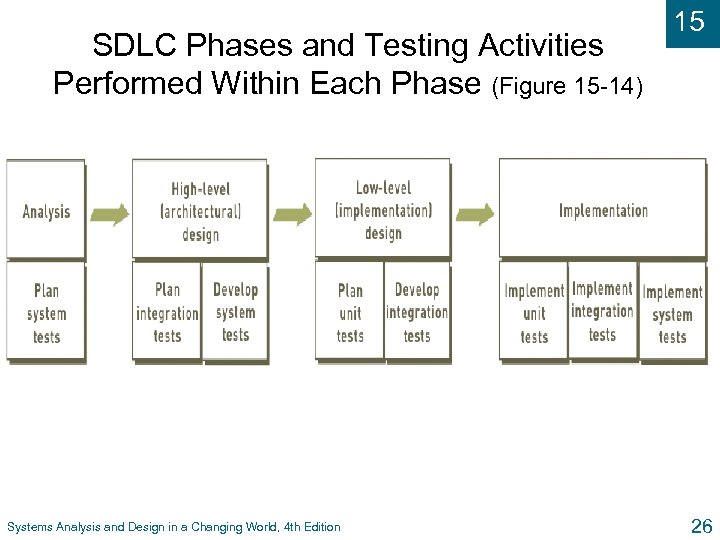

SDLC Phases and Testing Activities Performed Within Each Phase (Figure 15 -14) Systems Analysis SDLC Phases and Testing Activities Performed Within Each Phase (Figure 15 -14) Systems Analysis and Design in a Changing World, 4 th Edition 15 26

15 Test Cases u Important part of testing is specifying test cases and test 15 Test Cases u Important part of testing is specifying test cases and test data u. A test case is a formal description of l Starting state l Events to which software responds l Expected response or ending state u Analysis phase documentation is useful in preparing test cases (use-case driven) u Test data is defined to be used with a test case Systems Analysis and Design in a Changing World, 4 th Edition 27

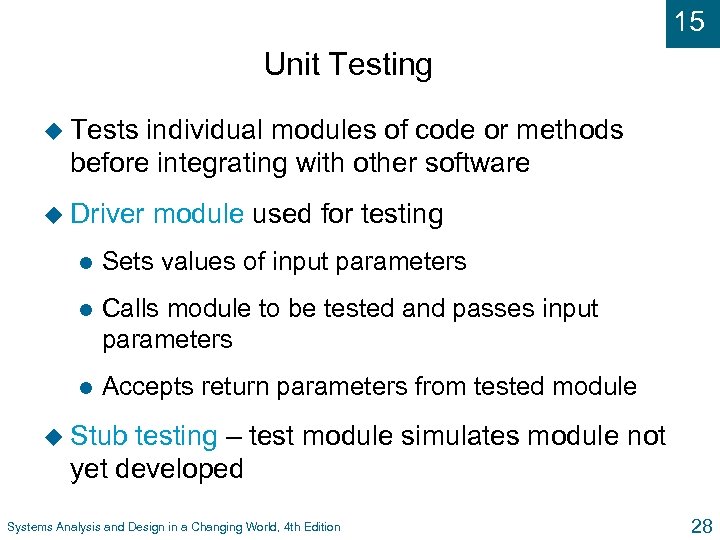

15 Unit Testing u Tests individual modules of code or methods before integrating with 15 Unit Testing u Tests individual modules of code or methods before integrating with other software u Driver module used for testing l Sets values of input parameters l Calls module to be tested and passes input parameters l Accepts return parameters from tested module u Stub testing – test module simulates module not yet developed Systems Analysis and Design in a Changing World, 4 th Edition 28

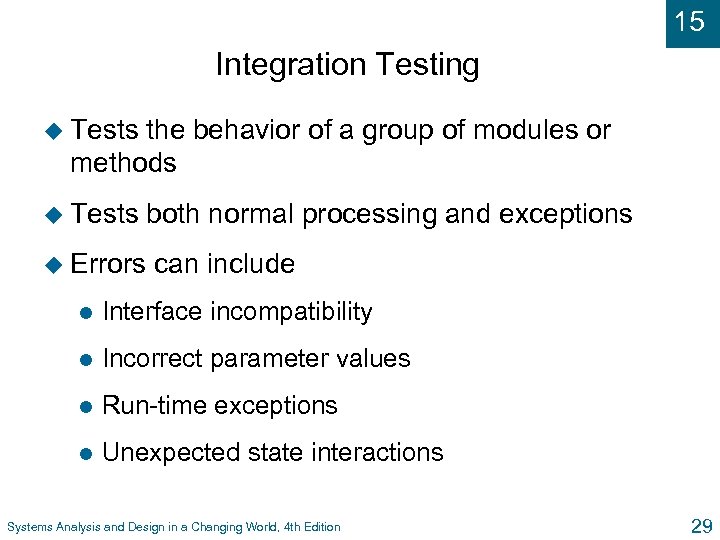

15 Integration Testing u Tests the behavior of a group of modules or methods 15 Integration Testing u Tests the behavior of a group of modules or methods u Tests both normal processing and exceptions u Errors can include l Interface incompatibility l Incorrect parameter values l Run-time exceptions l Unexpected state interactions Systems Analysis and Design in a Changing World, 4 th Edition 29

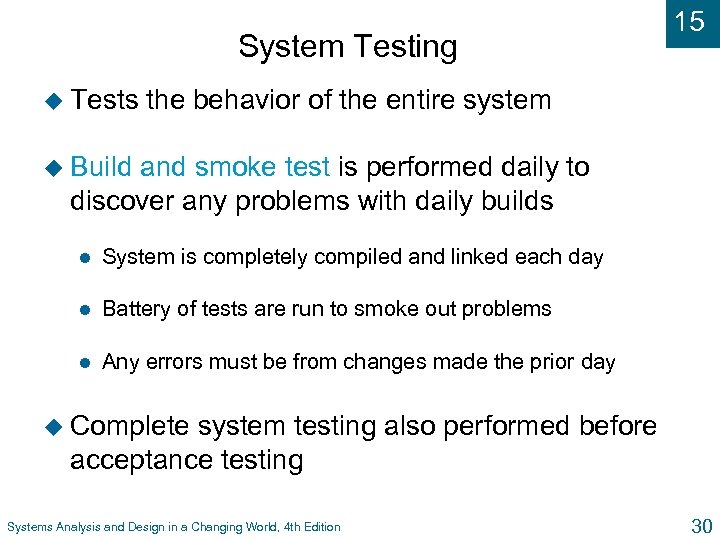

System Testing u Tests 15 the behavior of the entire system u Build and System Testing u Tests 15 the behavior of the entire system u Build and smoke test is performed daily to discover any problems with daily builds l System is completely compiled and linked each day l Battery of tests are run to smoke out problems l Any errors must be from changes made the prior day u Complete system testing also performed before acceptance testing Systems Analysis and Design in a Changing World, 4 th Edition 30

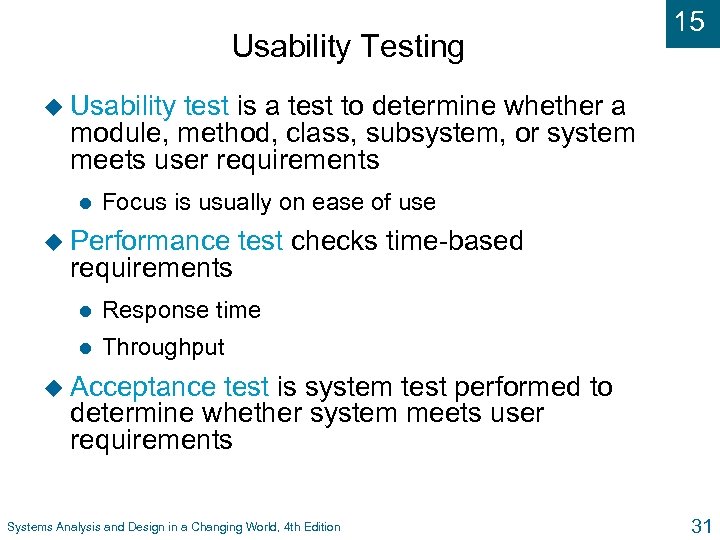

Usability Testing 15 u Usability test is a test to determine whether a module, Usability Testing 15 u Usability test is a test to determine whether a module, method, class, subsystem, or system meets user requirements l Focus is usually on ease of use u Performance requirements test checks time-based l Response time l Throughput u Acceptance test is system test performed to determine whether system meets user requirements Systems Analysis and Design in a Changing World, 4 th Edition 31

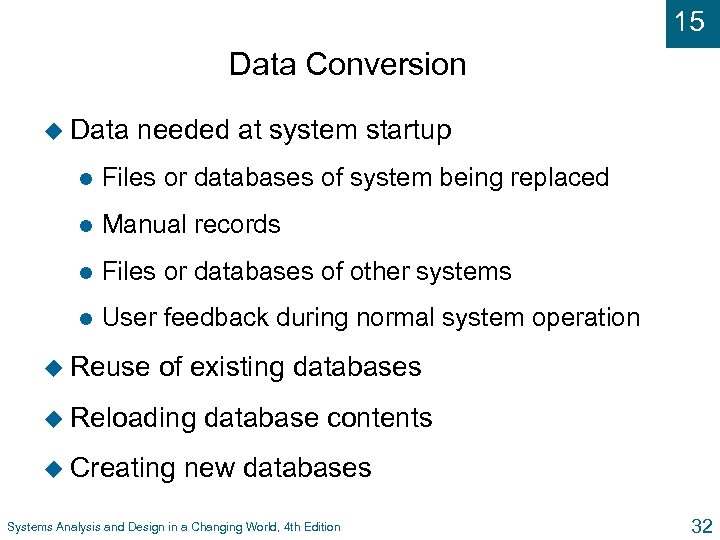

15 Data Conversion u Data needed at system startup l Files or databases of 15 Data Conversion u Data needed at system startup l Files or databases of system being replaced l Manual records l Files or databases of other systems l User feedback during normal system operation u Reuse of existing databases u Reloading u Creating database contents new databases Systems Analysis and Design in a Changing World, 4 th Edition 32

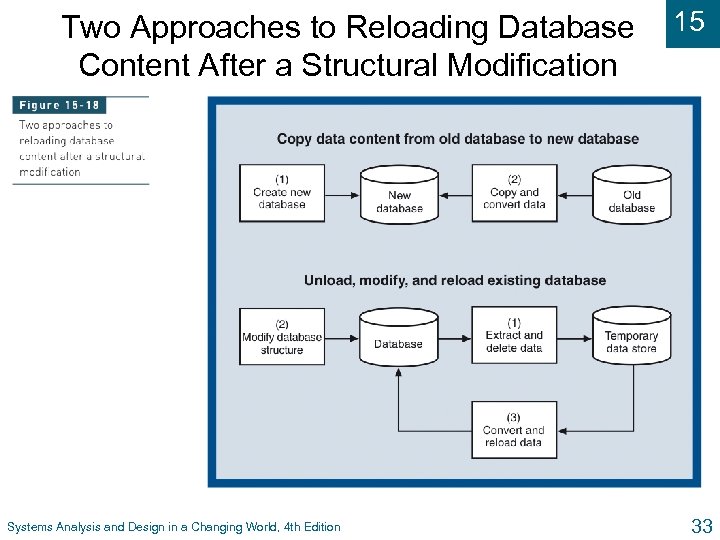

Two Approaches to Reloading Database Content After a Structural Modification Systems Analysis and Design Two Approaches to Reloading Database Content After a Structural Modification Systems Analysis and Design in a Changing World, 4 th Edition 15 33

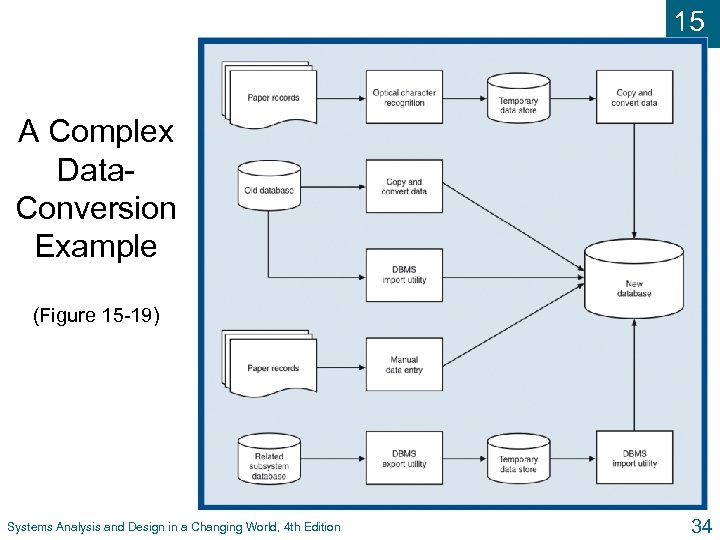

15 A Complex Data. Conversion Example (Figure 15 -19) Systems Analysis and Design in 15 A Complex Data. Conversion Example (Figure 15 -19) Systems Analysis and Design in a Changing World, 4 th Edition 34

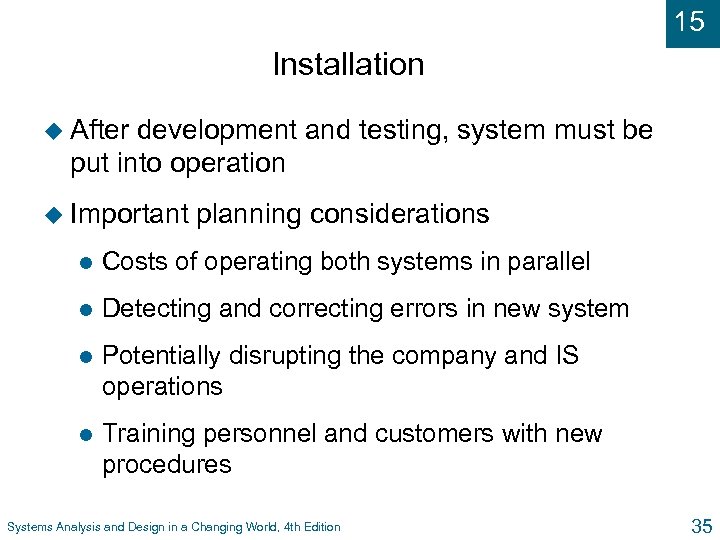

15 Installation u After development and testing, system must be put into operation u 15 Installation u After development and testing, system must be put into operation u Important planning considerations l Costs of operating both systems in parallel l Detecting and correcting errors in new system l Potentially disrupting the company and IS operations l Training personnel and customers with new procedures Systems Analysis and Design in a Changing World, 4 th Edition 35

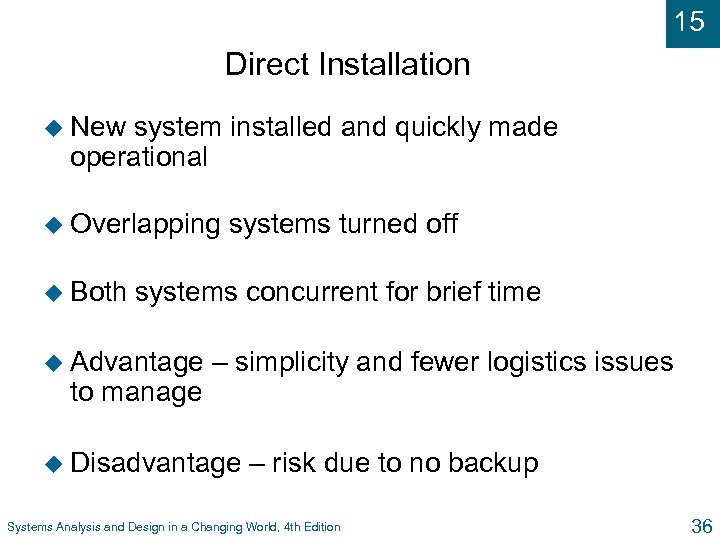

15 Direct Installation u New system installed and quickly made operational u Overlapping u 15 Direct Installation u New system installed and quickly made operational u Overlapping u Both systems turned off systems concurrent for brief time u Advantage to manage – simplicity and fewer logistics issues u Disadvantage – risk due to no backup Systems Analysis and Design in a Changing World, 4 th Edition 36

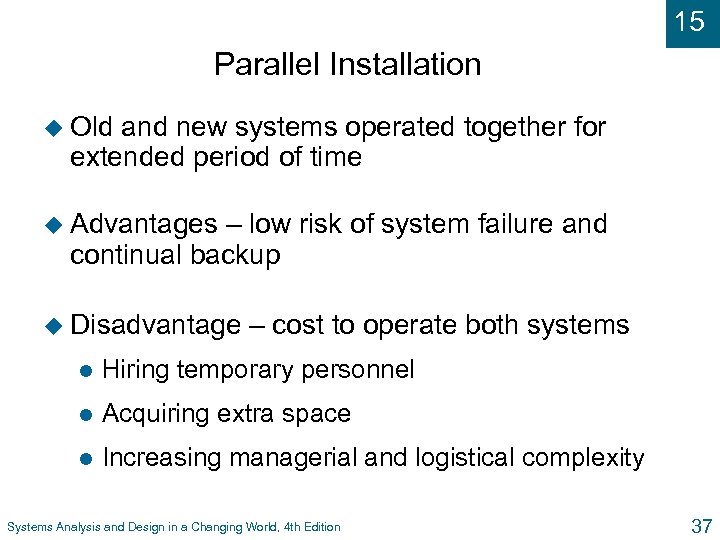

15 Parallel Installation u Old and new systems operated together for extended period of 15 Parallel Installation u Old and new systems operated together for extended period of time u Advantages – low risk of system failure and continual backup u Disadvantage – cost to operate both systems l Hiring temporary personnel l Acquiring extra space l Increasing managerial and logistical complexity Systems Analysis and Design in a Changing World, 4 th Edition 37

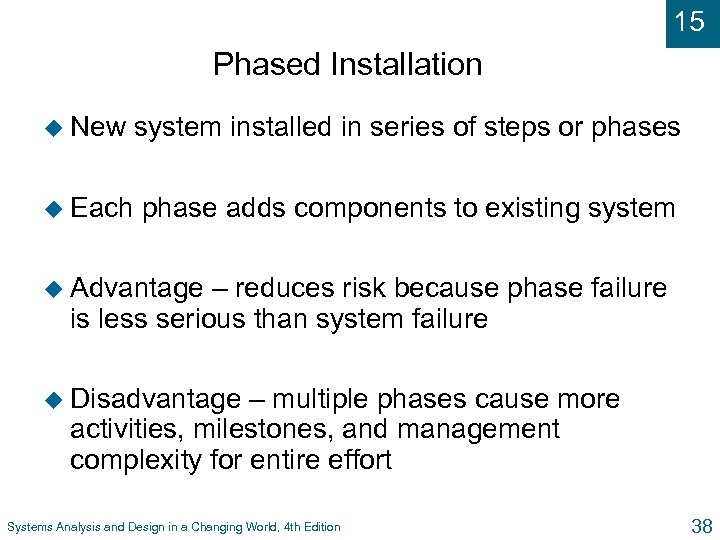

15 Phased Installation u New system installed in series of steps or phases u 15 Phased Installation u New system installed in series of steps or phases u Each phase adds components to existing system u Advantage – reduces risk because phase failure is less serious than system failure u Disadvantage – multiple phases cause more activities, milestones, and management complexity for entire effort Systems Analysis and Design in a Changing World, 4 th Edition 38

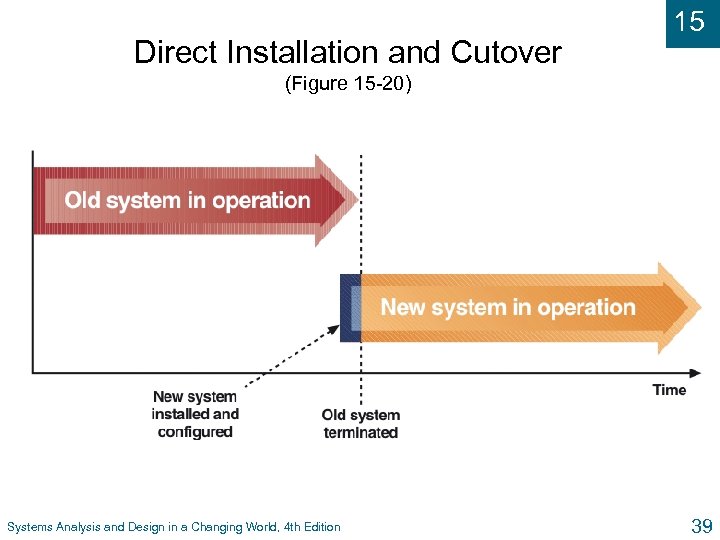

Direct Installation and Cutover 15 (Figure 15 -20) Systems Analysis and Design in a Direct Installation and Cutover 15 (Figure 15 -20) Systems Analysis and Design in a Changing World, 4 th Edition 39

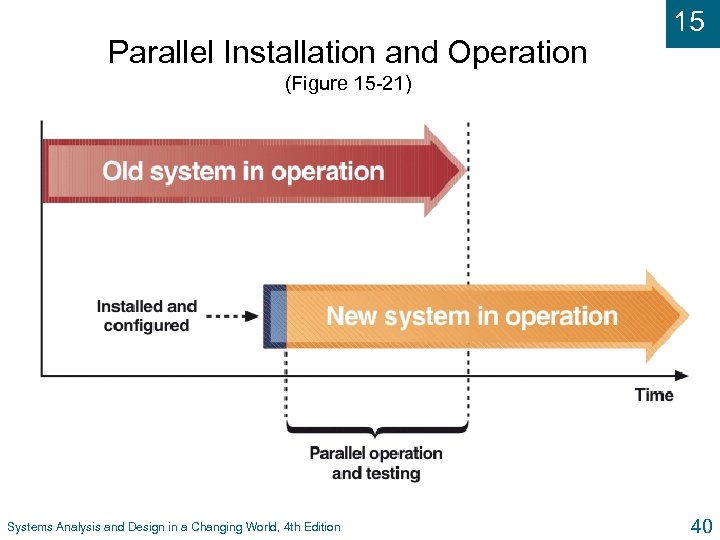

Parallel Installation and Operation 15 (Figure 15 -21) Systems Analysis and Design in a Parallel Installation and Operation 15 (Figure 15 -21) Systems Analysis and Design in a Changing World, 4 th Edition 40

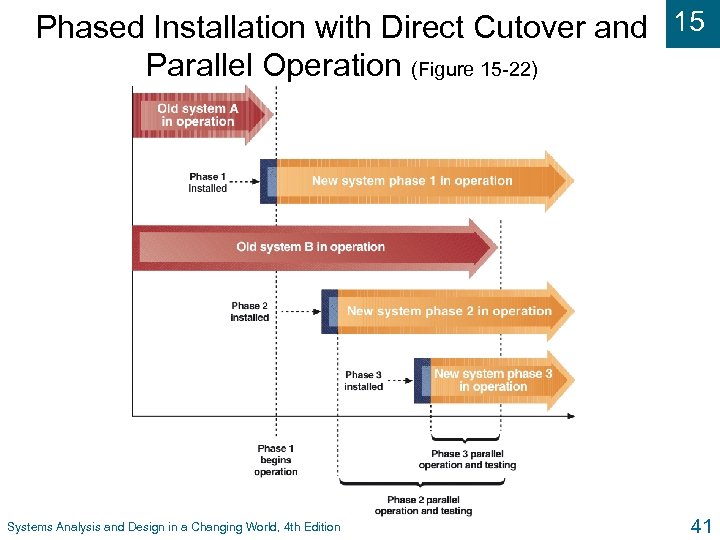

Phased Installation with Direct Cutover and 15 Parallel Operation (Figure 15 -22) Systems Analysis Phased Installation with Direct Cutover and 15 Parallel Operation (Figure 15 -22) Systems Analysis and Design in a Changing World, 4 th Edition 41

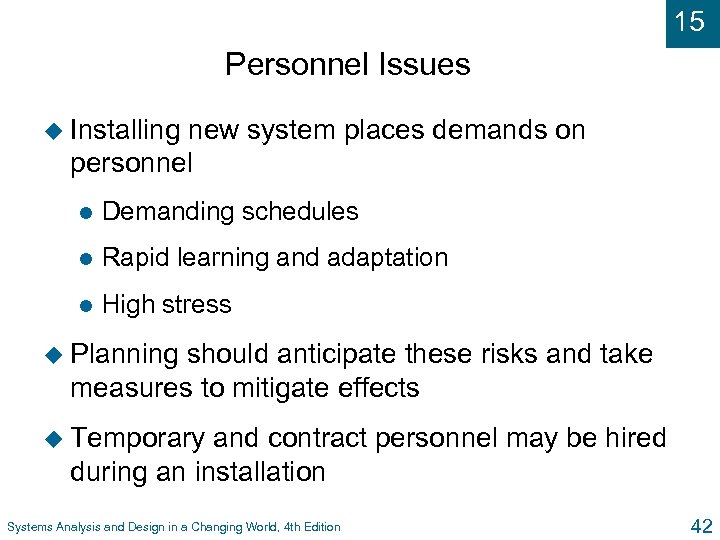

15 Personnel Issues u Installing new system places demands on personnel l Demanding schedules 15 Personnel Issues u Installing new system places demands on personnel l Demanding schedules l Rapid learning and adaptation l High stress u Planning should anticipate these risks and take measures to mitigate effects u Temporary and contract personnel may be hired during an installation Systems Analysis and Design in a Changing World, 4 th Edition 42

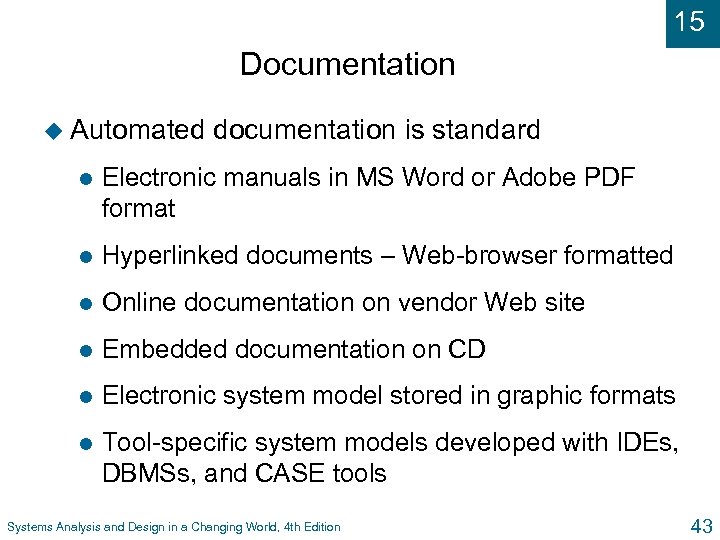

15 Documentation u Automated documentation is standard l Electronic manuals in MS Word or 15 Documentation u Automated documentation is standard l Electronic manuals in MS Word or Adobe PDF format l Hyperlinked documents – Web-browser formatted l Online documentation on vendor Web site l Embedded documentation on CD l Electronic system model stored in graphic formats l Tool-specific system models developed with IDEs, DBMSs, and CASE tools Systems Analysis and Design in a Changing World, 4 th Edition 43

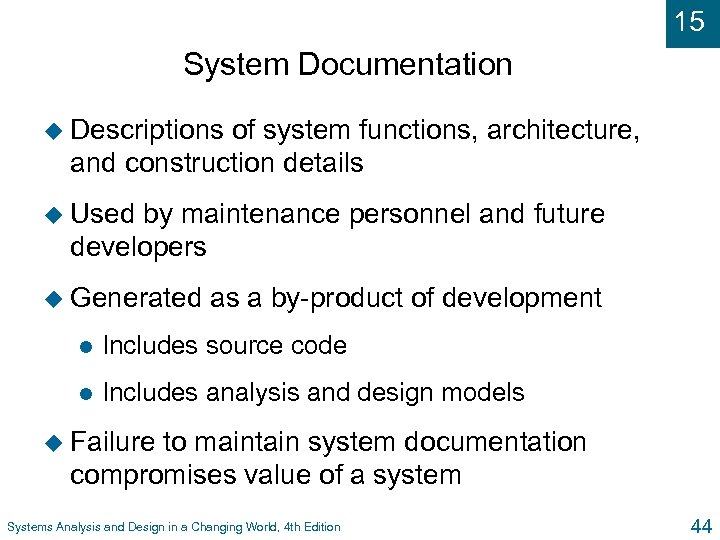

15 System Documentation u Descriptions of system functions, architecture, and construction details u Used 15 System Documentation u Descriptions of system functions, architecture, and construction details u Used by maintenance personnel and future developers u Generated as a by-product of development l Includes source code l Includes analysis and design models u Failure to maintain system documentation compromises value of a system Systems Analysis and Design in a Changing World, 4 th Edition 44

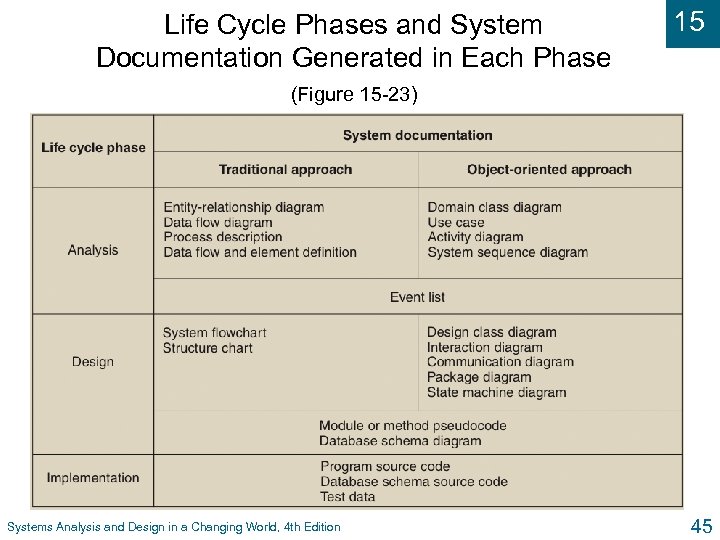

Life Cycle Phases and System Documentation Generated in Each Phase 15 (Figure 15 -23) Life Cycle Phases and System Documentation Generated in Each Phase 15 (Figure 15 -23) Systems Analysis and Design in a Changing World, 4 th Edition 45

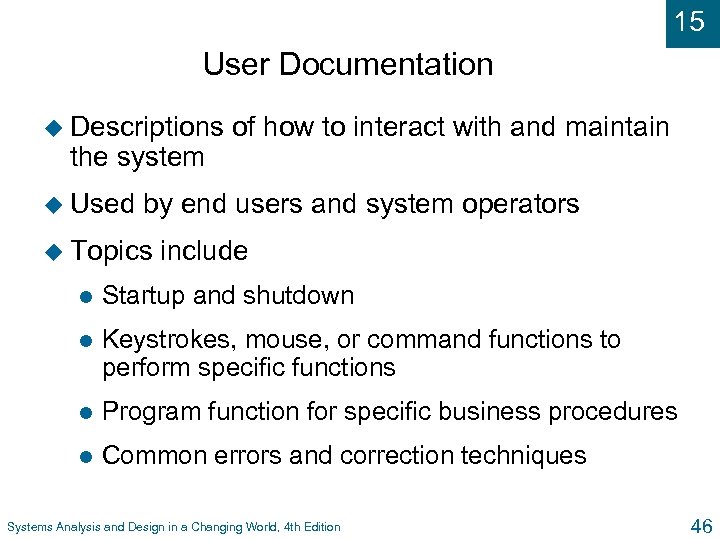

15 User Documentation u Descriptions the system u Used of how to interact with 15 User Documentation u Descriptions the system u Used of how to interact with and maintain by end users and system operators u Topics include l Startup and shutdown l Keystrokes, mouse, or command functions to perform specific functions l Program function for specific business procedures l Common errors and correction techniques Systems Analysis and Design in a Changing World, 4 th Edition 46

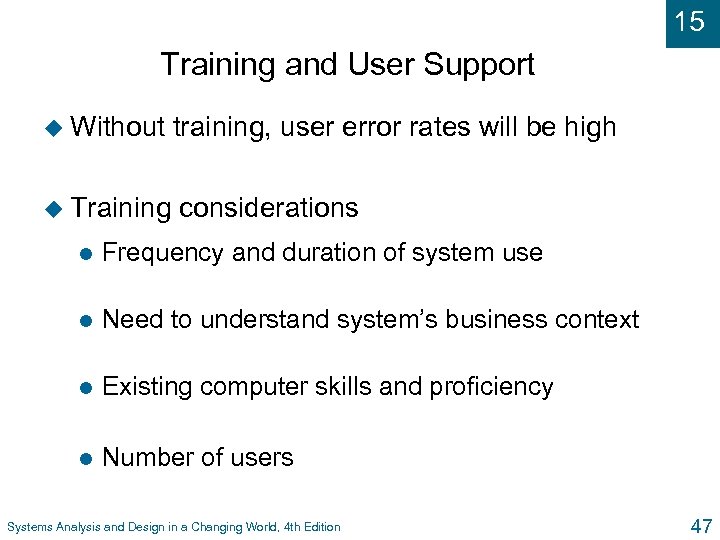

15 Training and User Support u Without training, user error rates will be high 15 Training and User Support u Without training, user error rates will be high u Training considerations l Frequency and duration of system use l Need to understand system’s business context l Existing computer skills and proficiency l Number of users Systems Analysis and Design in a Changing World, 4 th Edition 47

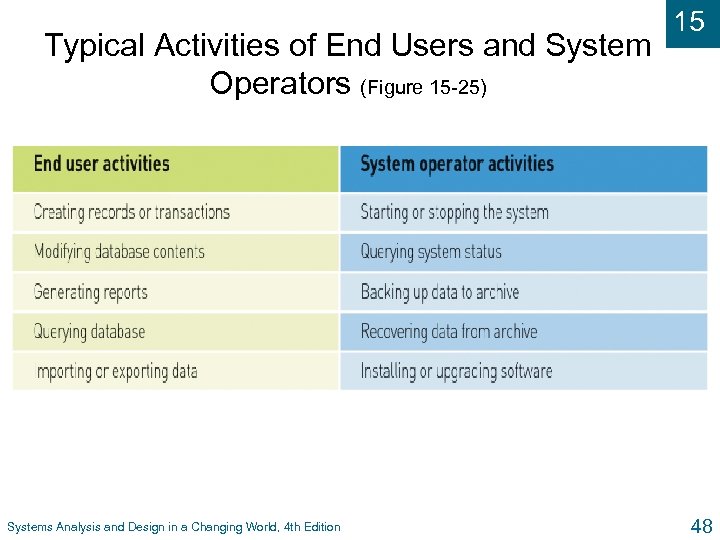

Typical Activities of End Users and System Operators (Figure 15 -25) Systems Analysis and Typical Activities of End Users and System Operators (Figure 15 -25) Systems Analysis and Design in a Changing World, 4 th Edition 15 48

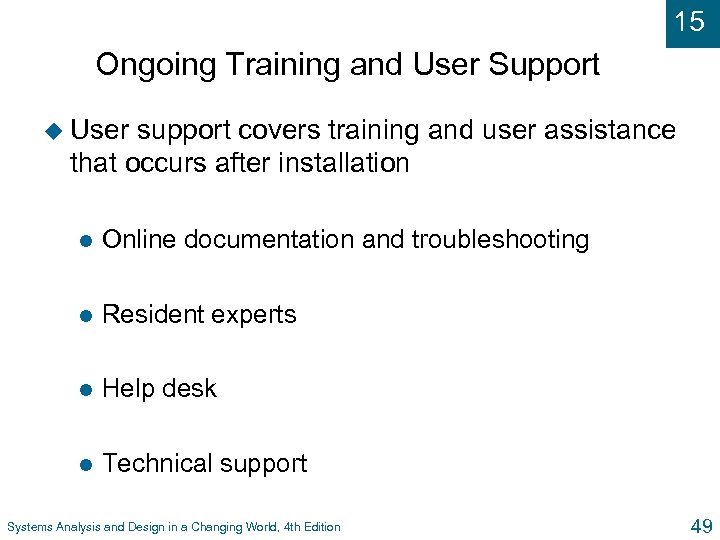

15 Ongoing Training and User Support u User support covers training and user assistance 15 Ongoing Training and User Support u User support covers training and user assistance that occurs after installation l Online documentation and troubleshooting l Resident experts l Help desk l Technical support Systems Analysis and Design in a Changing World, 4 th Edition 49

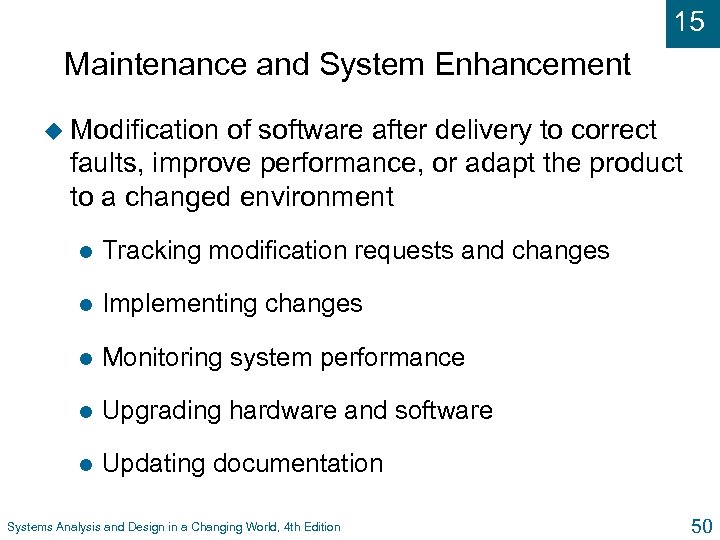

15 Maintenance and System Enhancement u Modification of software after delivery to correct faults, 15 Maintenance and System Enhancement u Modification of software after delivery to correct faults, improve performance, or adapt the product to a changed environment l Tracking modification requests and changes l Implementing changes l Monitoring system performance l Upgrading hardware and software l Updating documentation Systems Analysis and Design in a Changing World, 4 th Edition 50

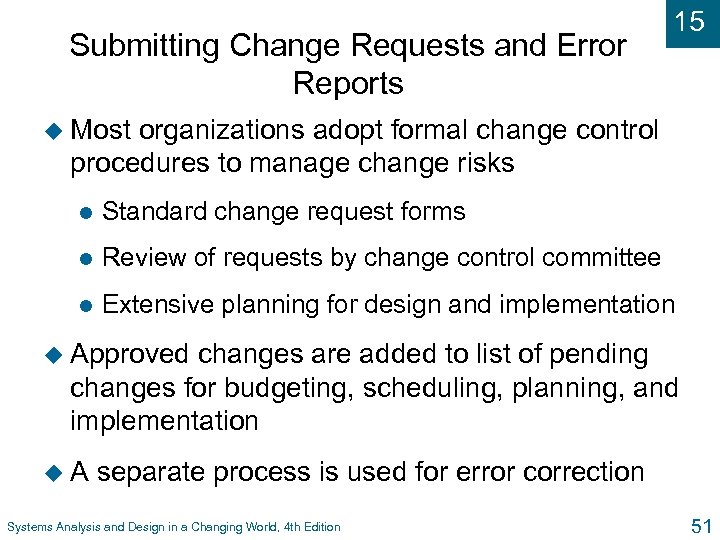

Submitting Change Requests and Error Reports 15 u Most organizations adopt formal change control Submitting Change Requests and Error Reports 15 u Most organizations adopt formal change control procedures to manage change risks l Standard change request forms l Review of requests by change control committee l Extensive planning for design and implementation u Approved changes are added to list of pending changes for budgeting, scheduling, planning, and implementation u. A separate process is used for error correction Systems Analysis and Design in a Changing World, 4 th Edition 51

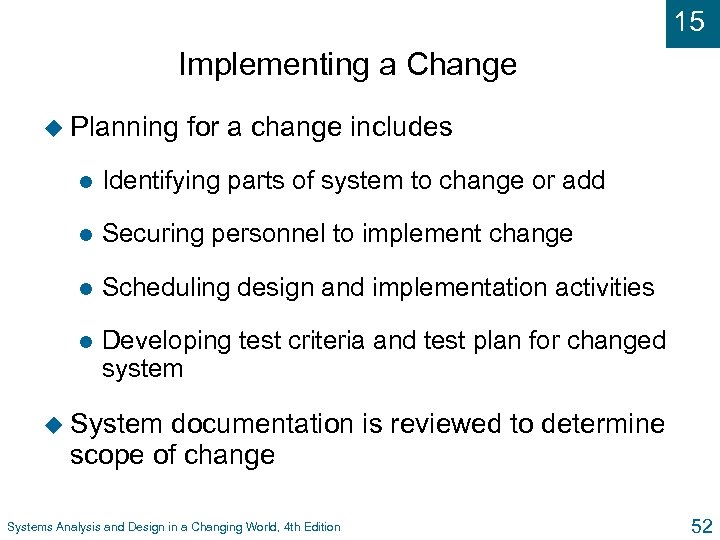

15 Implementing a Change u Planning for a change includes l Identifying parts of 15 Implementing a Change u Planning for a change includes l Identifying parts of system to change or add l Securing personnel to implement change l Scheduling design and implementation activities l Developing test criteria and test plan for changed system u System documentation is reviewed to determine scope of change Systems Analysis and Design in a Changing World, 4 th Edition 52

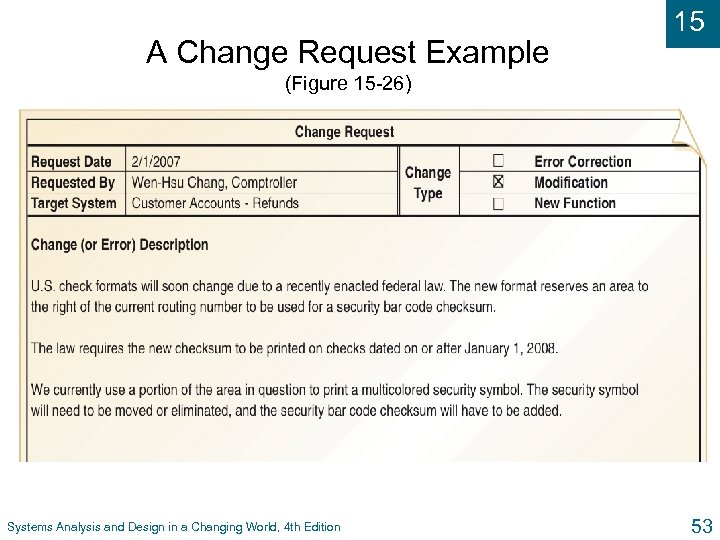

A Change Request Example 15 (Figure 15 -26) Systems Analysis and Design in a A Change Request Example 15 (Figure 15 -26) Systems Analysis and Design in a Changing World, 4 th Edition 53

A Change Review Form (Figure 15 -27) Systems Analysis and Design in a Changing A Change Review Form (Figure 15 -27) Systems Analysis and Design in a Changing World, 4 th Edition 15 54

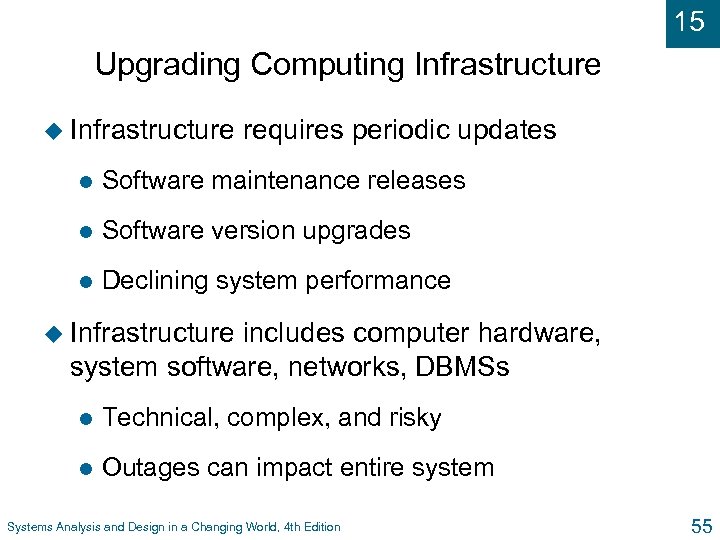

15 Upgrading Computing Infrastructure u Infrastructure requires periodic updates l Software maintenance releases l 15 Upgrading Computing Infrastructure u Infrastructure requires periodic updates l Software maintenance releases l Software version upgrades l Declining system performance u Infrastructure includes computer hardware, system software, networks, DBMSs l Technical, complex, and risky l Outages can impact entire system Systems Analysis and Design in a Changing World, 4 th Edition 55

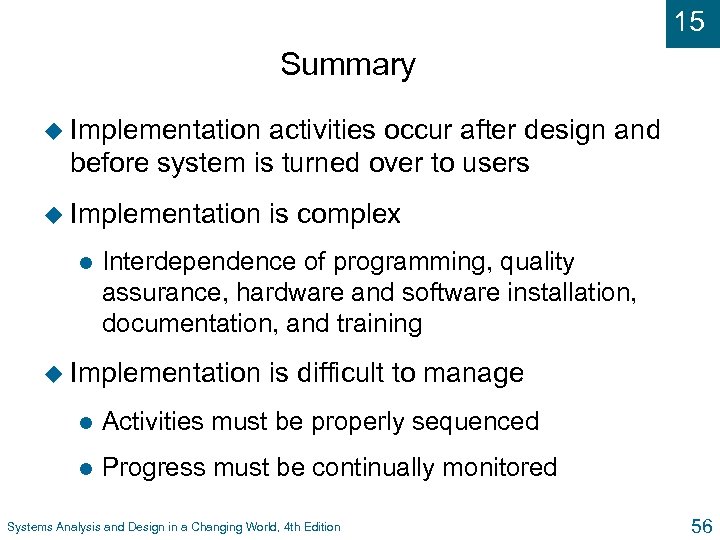

15 Summary u Implementation activities occur after design and before system is turned over 15 Summary u Implementation activities occur after design and before system is turned over to users u Implementation l is complex Interdependence of programming, quality assurance, hardware and software installation, documentation, and training u Implementation is difficult to manage l Activities must be properly sequenced l Progress must be continually monitored Systems Analysis and Design in a Changing World, 4 th Edition 56

15 Summary (continued) u Implementation is risky l Significant time and resources required l 15 Summary (continued) u Implementation is risky l Significant time and resources required l Often affects systems vital to daily operations u Software components constructed to l Minimize development resources needed l Maximize ability to test system and control errors l These goals often conflict: trade-off among resources, time, and desire to correct errors Systems Analysis and Design in a Changing World, 4 th Edition 57

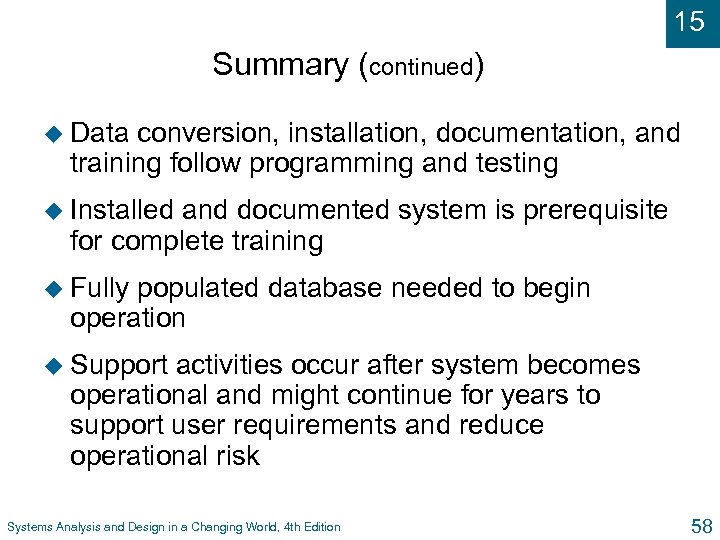

15 Summary (continued) u Data conversion, installation, documentation, and training follow programming and testing 15 Summary (continued) u Data conversion, installation, documentation, and training follow programming and testing u Installed and documented system is prerequisite for complete training u Fully populated database needed to begin operation u Support activities occur after system becomes operational and might continue for years to support user requirements and reduce operational risk Systems Analysis and Design in a Changing World, 4 th Edition 58
