System Network Structure Fluoresce Light Dimmers Power Monitoring

System Network Structure Fluoresce Light Dimmers Power Monitoring Modules HVAC Controllers RF Lux Sensors Smart i-Lon LON FTT-10 Network TCP/IP Thermostats Key. Pads RF Sensor Receivers RF Temp/Humi Sensors

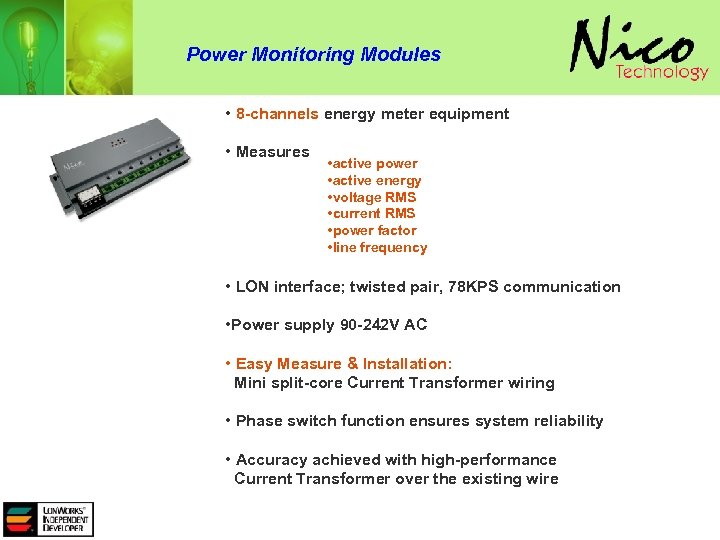

Power Monitoring Modules • 8 -channels energy meter equipment • Measures • active power • active energy • voltage RMS • current RMS • power factor • line frequency • LON interface; twisted pair, 78 KPS communication • Power supply 90 -242 V AC • Easy Measure & Installation: Mini split-core Current Transformer wiring • Phase switch function ensures system reliability • Accuracy achieved with high-performance Current Transformer over the existing wire

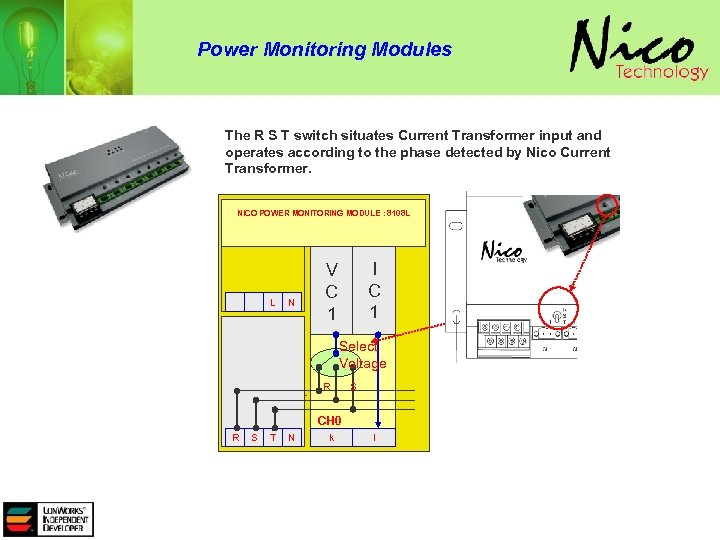

Power Monitoring Modules The R S T switch situates Current Transformer input and operates according to the phase detected by Nico Current Transformer. NICO POWER MONITORING MODULE : 8108 L L I C 1 V C 1 N Select Voltage R S T CH 0 R S T N k l

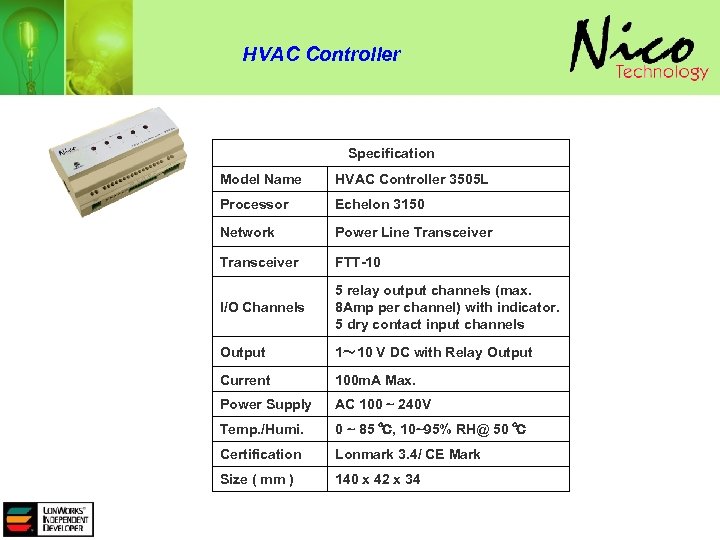

HVAC Controller Specification Model Name HVAC Controller 3505 L Processor Echelon 3150 Network Power Line Transceiver FTT-10 I/O Channels 5 relay output channels (max. 8 Amp per channel) with indicator. 5 dry contact input channels Output 1～ 10 V DC with Relay Output Current 100 m. A Max. Power Supply AC 100 ~ 240 V Temp. /Humi. 0 ~ 85 ℃, 10~95% RH@ 50 ℃ Certification Lonmark 3. 4/ CE Mark Size ( mm ) 140 x 42 x 34

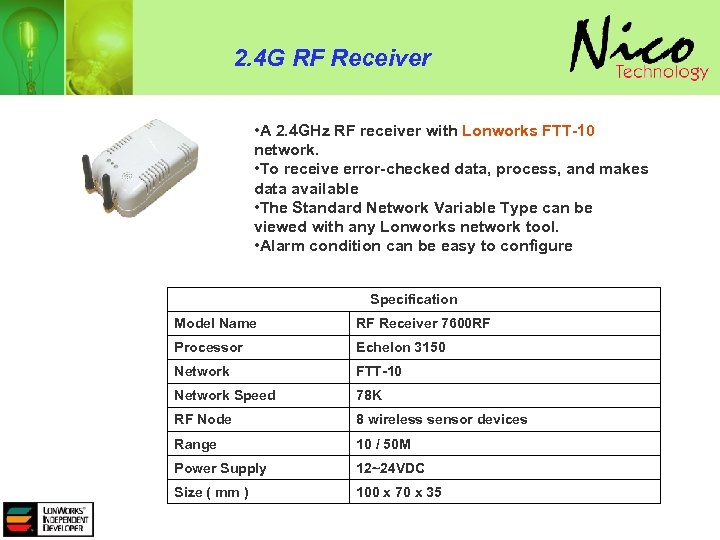

2. 4 G RF Receiver • A 2. 4 GHz RF receiver with Lonworks FTT-10 network. • To receive error-checked data, process, and makes data available • The Standard Network Variable Type can be viewed with any Lonworks network tool. • Alarm condition can be easy to configure Specification Model Name RF Receiver 7600 RF Processor Echelon 3150 Network FTT-10 Network Speed 78 K RF Node 8 wireless sensor devices Range 10 / 50 M Power Supply 12~24 VDC Size ( mm ) 100 x 70 x 35

LED Touch Keypad Specification Model Name LED Touch Keypad 5005 L Processor Echelon 3150 Control Key Blue LED Panel Network Speed 78 K / 10 K Connector 8 A Interlocking and plug-in connector • GUI Icon Power Supply 12~24 VDC @150 m. A • Variable Certificate CE • FT-X 1 Network Size ( mm ) 86 x 142 • Touch Panel • LED Backlight

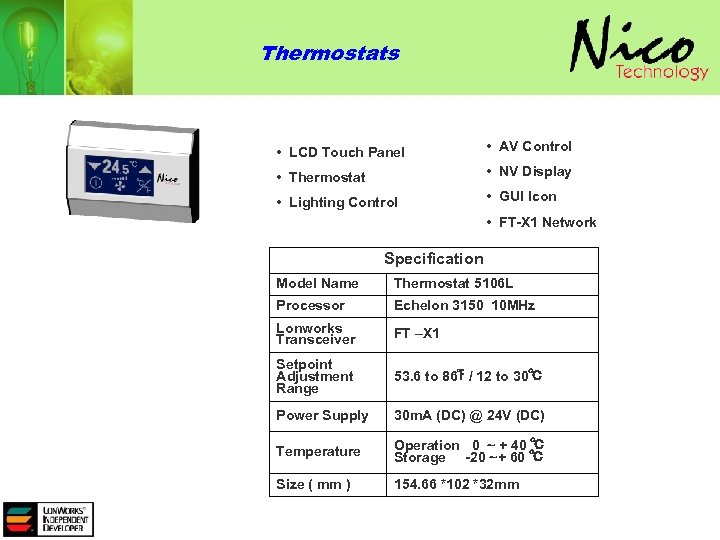

Thermostats • LCD Touch Panel • AV Control • Thermostat • NV Display • Lighting Control • GUI Icon • FT-X 1 Network Specification Model Name Thermostat 5106 L Processor Echelon 3150 10 MHz Lonworks Transceiver FT –X 1 Setpoint Adjustment Range 53. 6 to 86℉ / 12 to 30℃ Power Supply 30 m. A (DC) @ 24 V (DC) Temperature Operation 0 ~ + 40 ℃ Storage -20 ~+ 60 ℃ Size ( mm ) 154. 66 *102 *32 mm

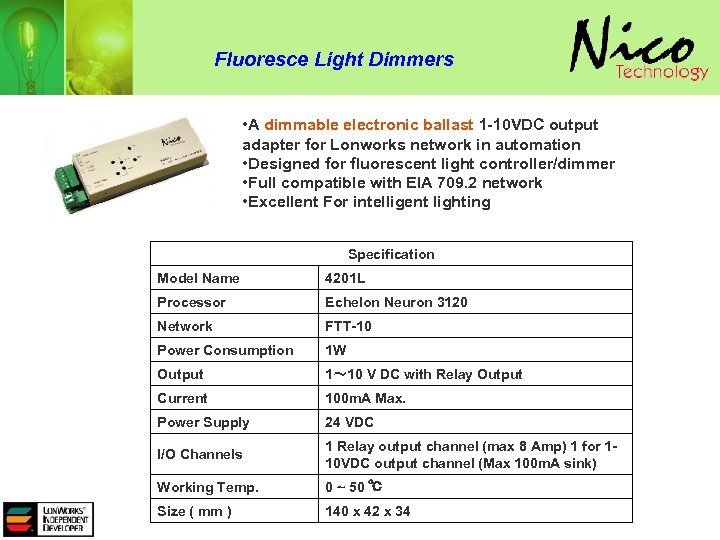

Fluoresce Light Dimmers • A dimmable electronic ballast 1 -10 VDC output adapter for Lonworks network in automation • Designed for fluorescent light controller/dimmer • Full compatible with EIA 709. 2 network • Excellent For intelligent lighting Specification Model Name 4201 L Processor Echelon Neuron 3120 Network FTT-10 Power Consumption 1 W Output 1～ 10 V DC with Relay Output Current 100 m. A Max. Power Supply 24 VDC I/O Channels 1 Relay output channel (max 8 Amp) 1 for 110 VDC output channel (Max 100 m. A sink) Working Temp. 0 ~ 50 ℃ Size ( mm ) 140 x 42 x 34

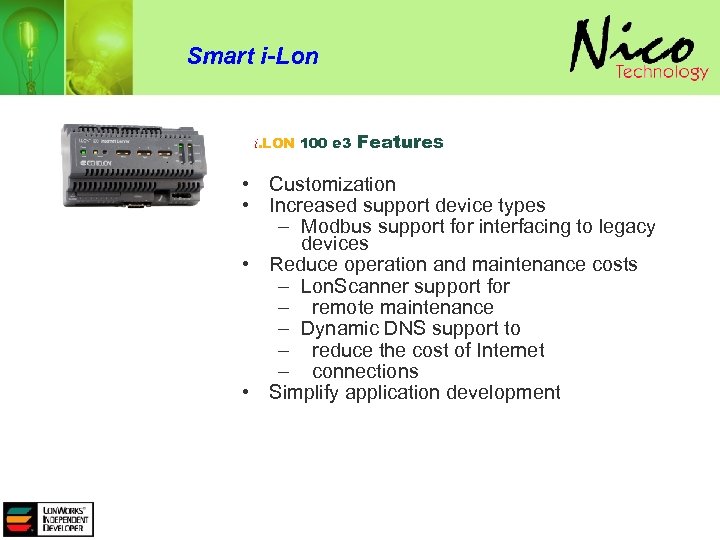

Smart i-Lon i. LON 100 e 3 Features • Customization • Increased support device types – Modbus support for interfacing to legacy devices • Reduce operation and maintenance costs – Lon. Scanner support for – remote maintenance – Dynamic DNS support to – reduce the cost of Internet – connections • Simplify application development

2. 4 G RF Lux Sensor • Comply with 7600 RF-SR receiver for standard EIA 709 network • No wiring • Real-time monitoring • Easy install: Network ID and Remote controller ID adjust by dip switches • 3 bits sip switch for sensor device’s ID, 4 bits dip switch for network id settings. Specification Model Name 7200 RF Lux Sensor Processor PIC 16 Memory 4 Kbytes EEPROM Network 2. 4 G RF RF Range 10 M Lux Range 0 ~ 4000 Lux Sample Interval 30 Sec. Power Supply 3 x AA alkaline 1. 5 V battery Power Consumption 10 ~20 m. A Battery Life 18 ~24 Months Size ( mm ) 86 x H 36. 3 mm

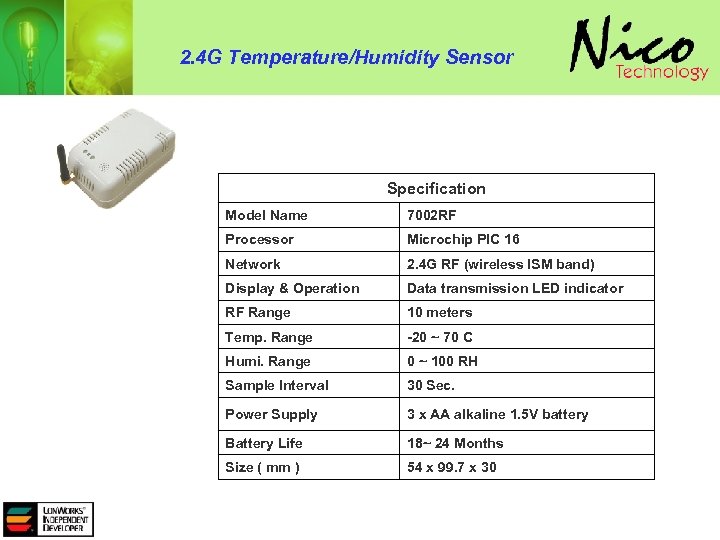

2. 4 G Temperature/Humidity Sensor Specification Model Name 7002 RF Processor Microchip PIC 16 Network 2. 4 G RF (wireless ISM band) Display & Operation Data transmission LED indicator RF Range 10 meters Temp. Range -20 ~ 70 C Humi. Range 0 ~ 100 RH Sample Interval 30 Sec. Power Supply 3 x AA alkaline 1. 5 V battery Battery Life 18~ 24 Months Size ( mm ) 54 x 99. 7 x 30
