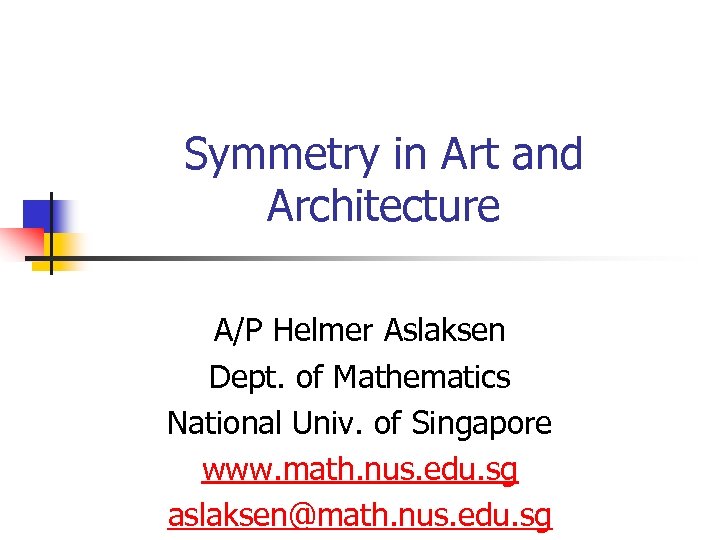

Symmetry in Art and Architecture A/P Helmer Aslaksen Dept. of Mathematics National Univ. of Symmetry in Art and Architecture A/P Helmer Aslaksen Dept. of Mathematics National Univ. of Singapore www. math. nus. edu. sg aslaksen@math. nus. edu. sg

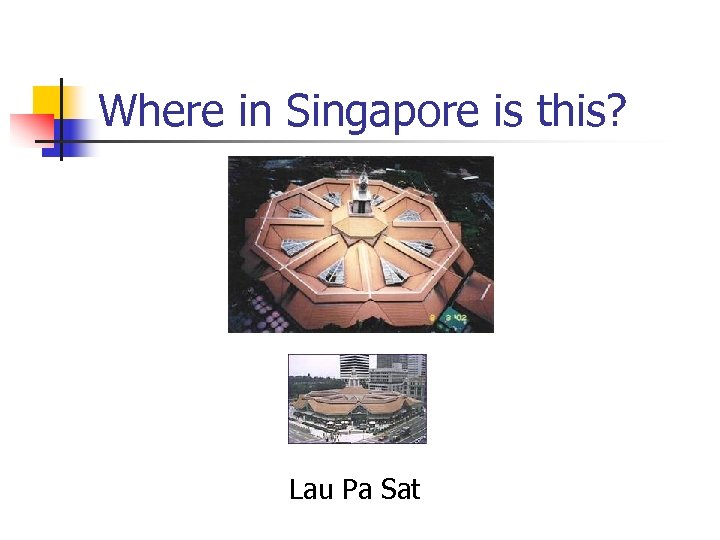

Where in Singapore is this? Lau Pa Sat Where in Singapore is this? Lau Pa Sat

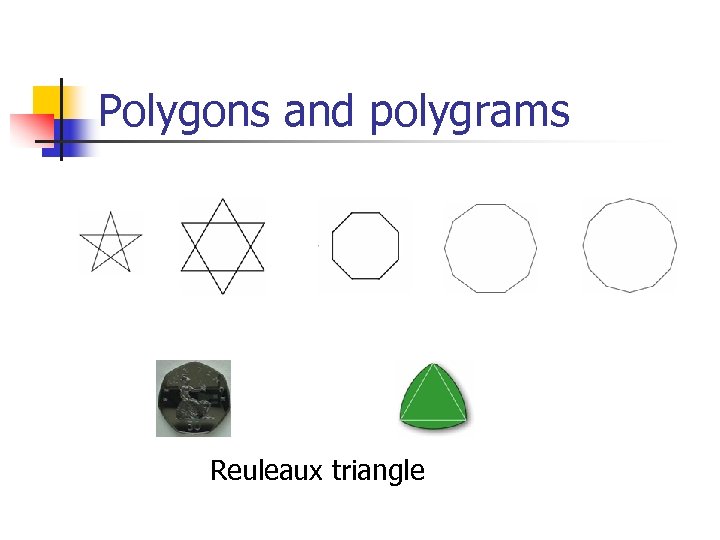

Polygons and polygrams Reuleaux triangle Polygons and polygrams Reuleaux triangle

Patterns in Islamic art Fez, Morocco, 1325 Patterns in Islamic art Fez, Morocco, 1325

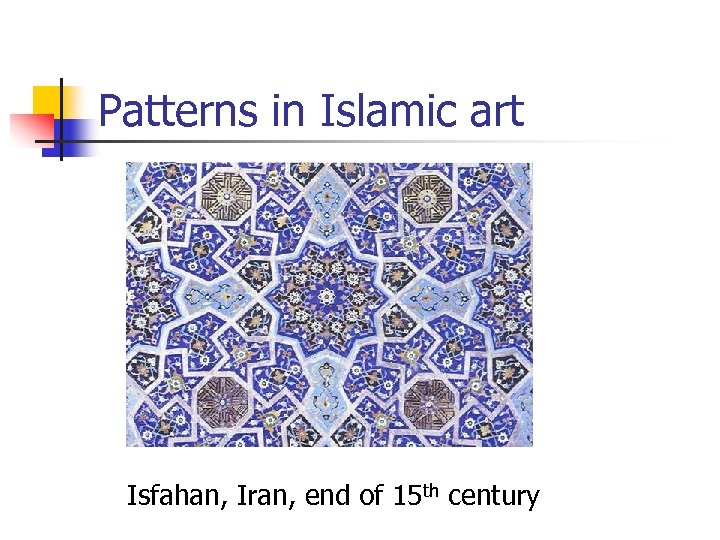

Patterns in Islamic art Isfahan, Iran, end of 15 th century Patterns in Islamic art Isfahan, Iran, end of 15 th century

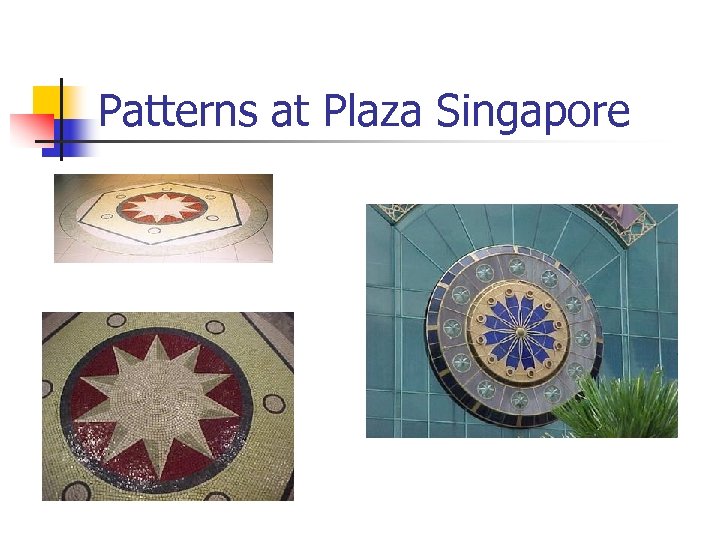

Patterns at Plaza Singapore Patterns at Plaza Singapore

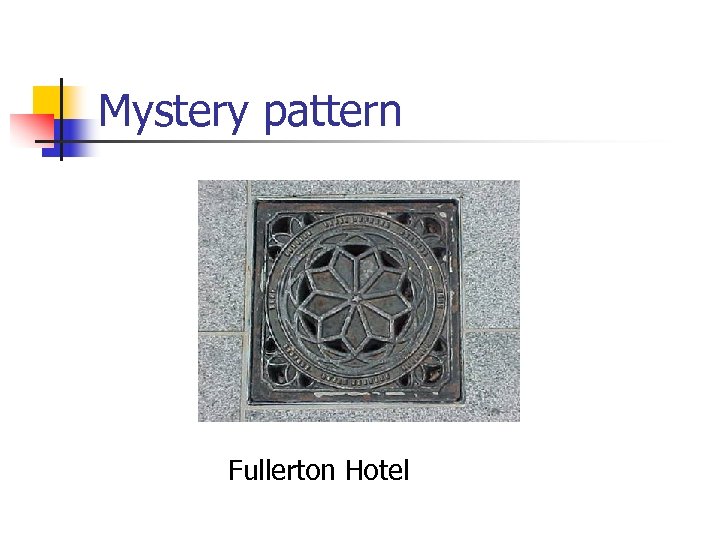

Mystery pattern Fullerton Hotel Mystery pattern Fullerton Hotel

Where in Singapore is this? Where in Singapore is this?

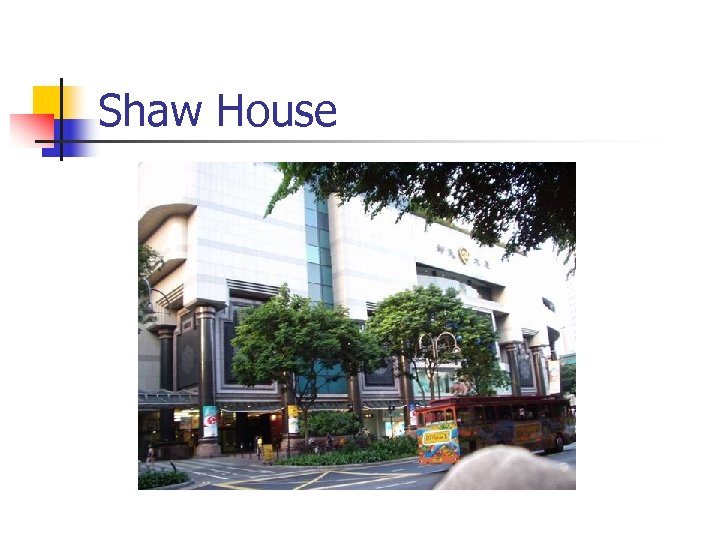

Shaw House Shaw House

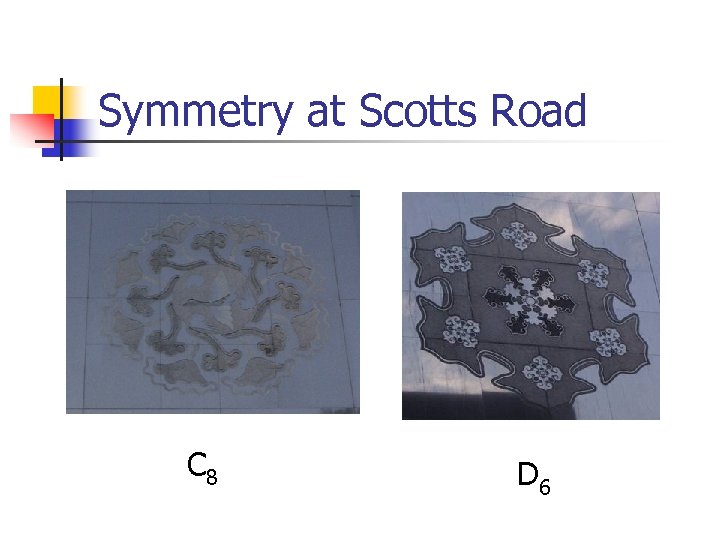

Symmetry at Scotts Road C 8 D 6 Symmetry at Scotts Road C 8 D 6

Marriott Hotel Marriott Hotel

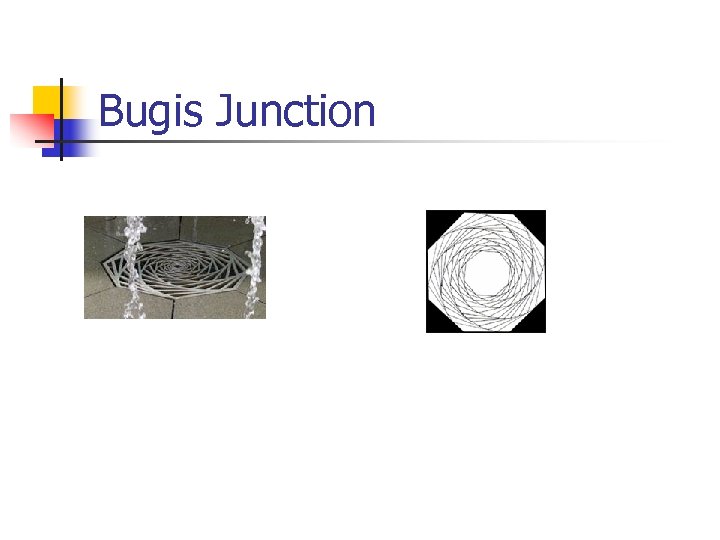

Bugis Junction Bugis Junction

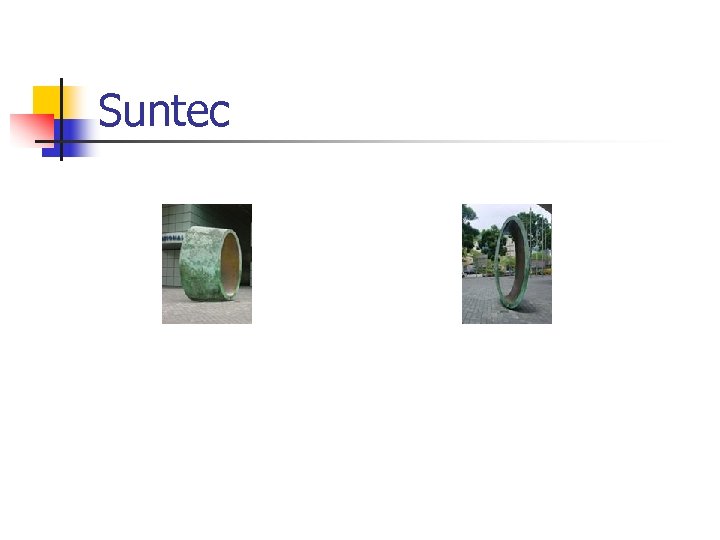

Suntec Suntec

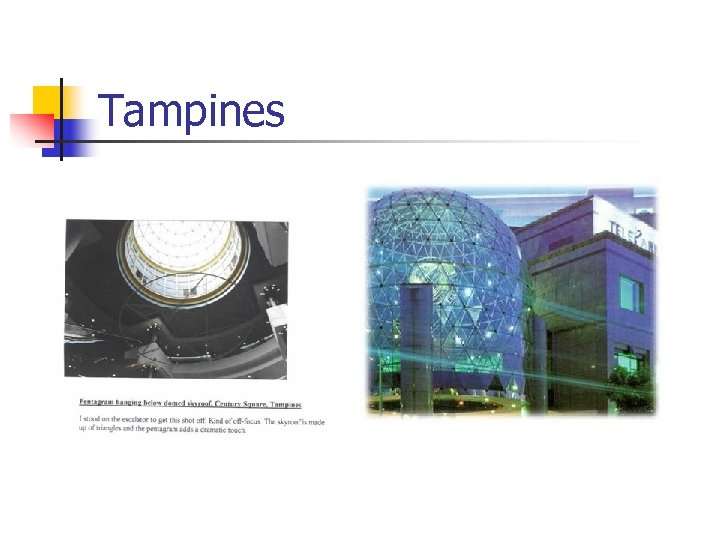

Tampines Tampines

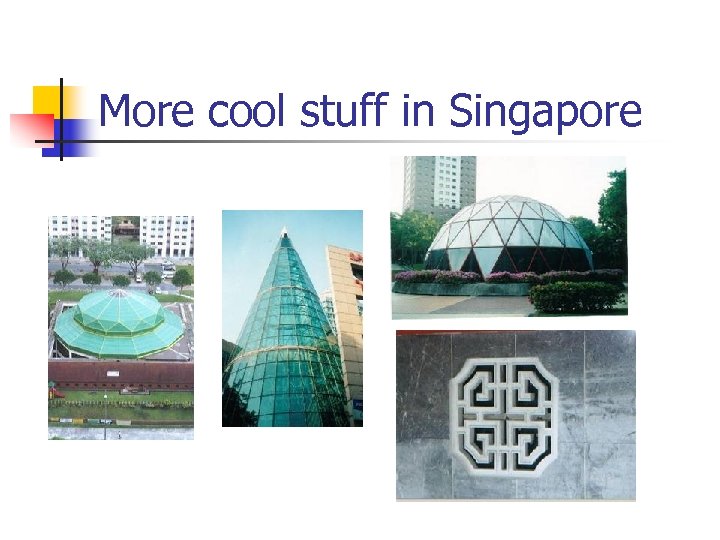

More cool stuff in Singapore More cool stuff in Singapore

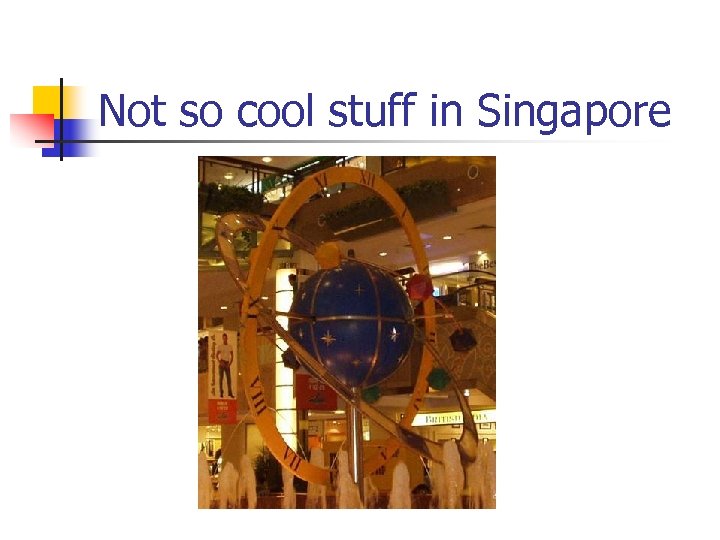

Not so cool stuff in Singapore Not so cool stuff in Singapore

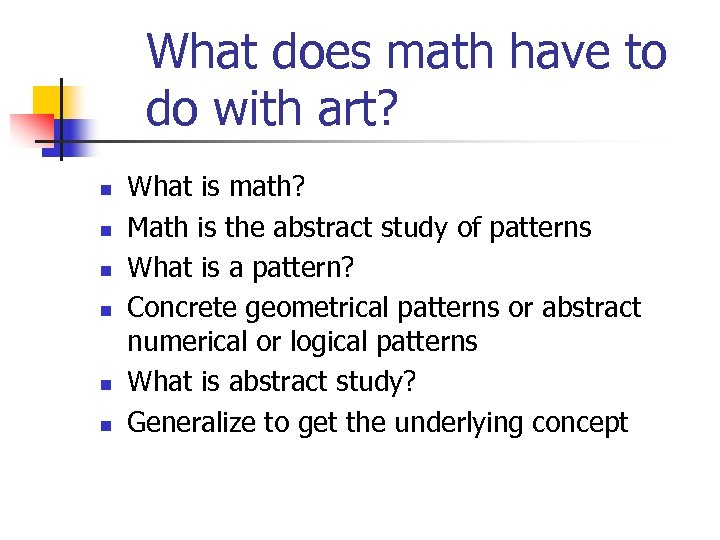

What does math have to do with art? n n n What is math? What does math have to do with art? n n n What is math? Math is the abstract study of patterns What is a pattern? Concrete geometrical patterns or abstract numerical or logical patterns What is abstract study? Generalize to get the underlying concept

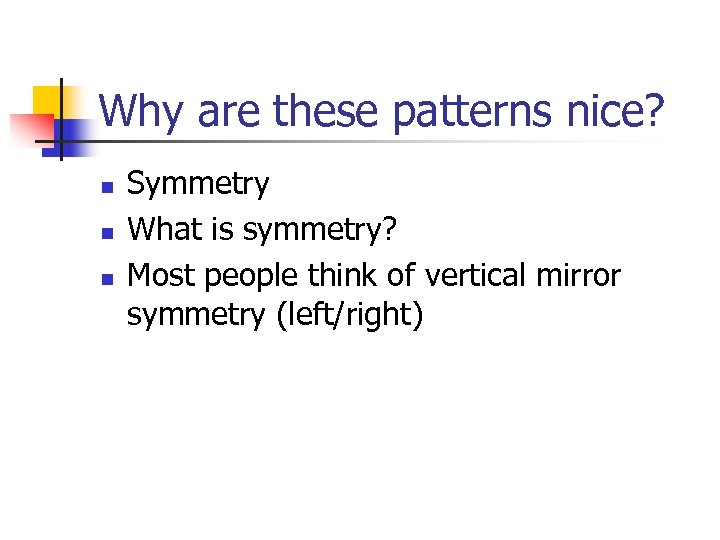

Why are these patterns nice? n n n Symmetry What is symmetry? Most people Why are these patterns nice? n n n Symmetry What is symmetry? Most people think of vertical mirror symmetry (left/right)

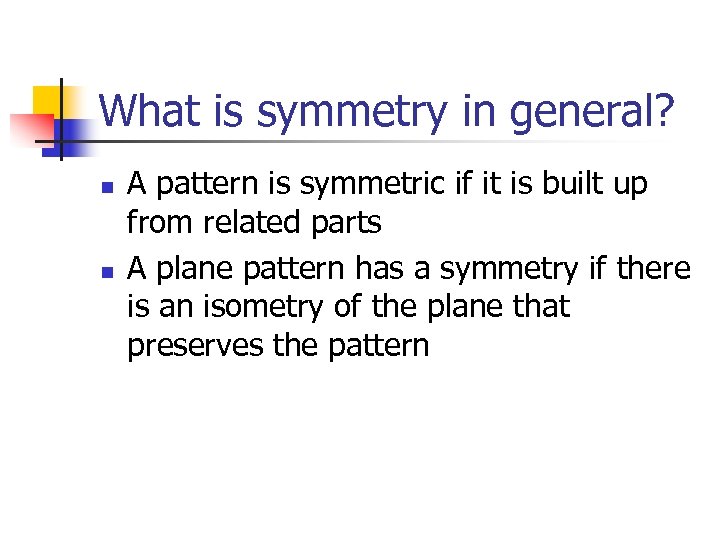

What is symmetry in general? n n A pattern is symmetric if it is What is symmetry in general? n n A pattern is symmetric if it is built up from related parts A plane pattern has a symmetry if there is an isometry of the plane that preserves the pattern

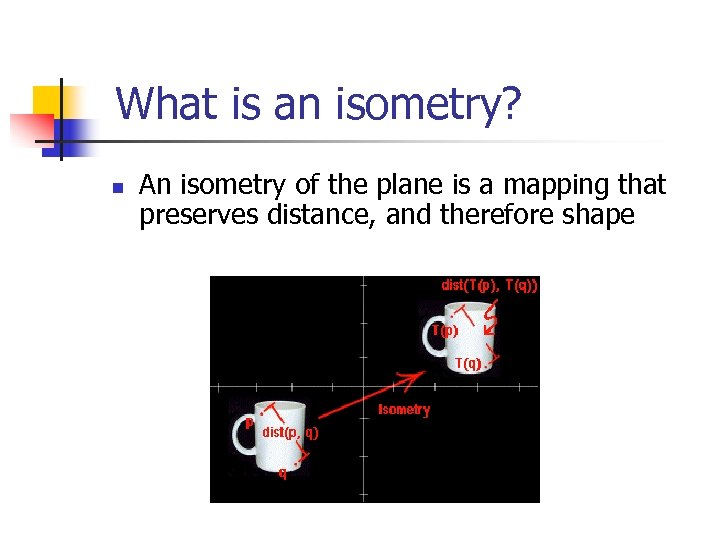

What is an isometry? n An isometry of the plane is a mapping that What is an isometry? n An isometry of the plane is a mapping that preserves distance, and therefore shape

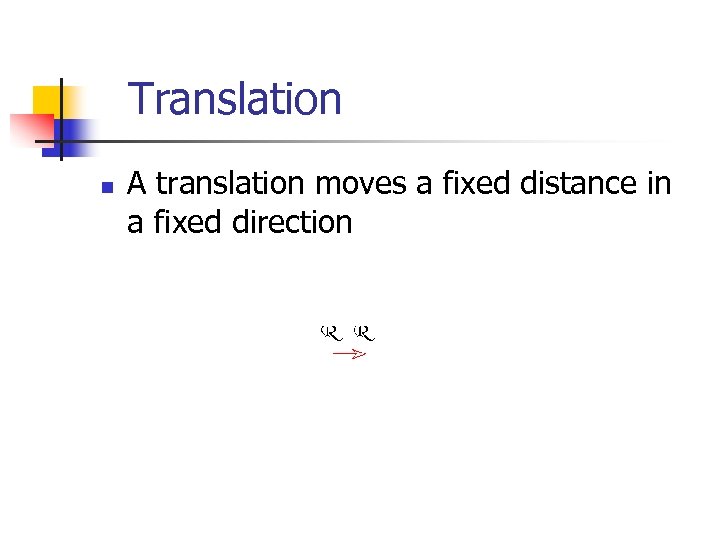

Translation n A translation moves a fixed distance in a fixed direction Translation n A translation moves a fixed distance in a fixed direction

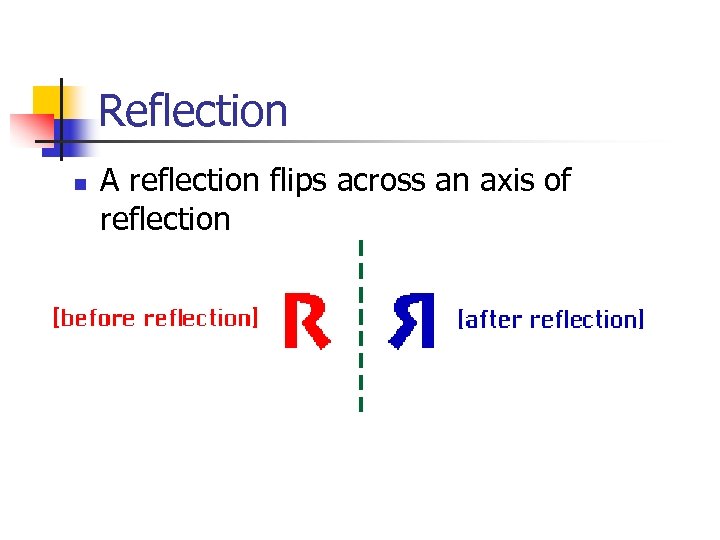

Reflection n A reflection flips across an axis of reflection Reflection n A reflection flips across an axis of reflection

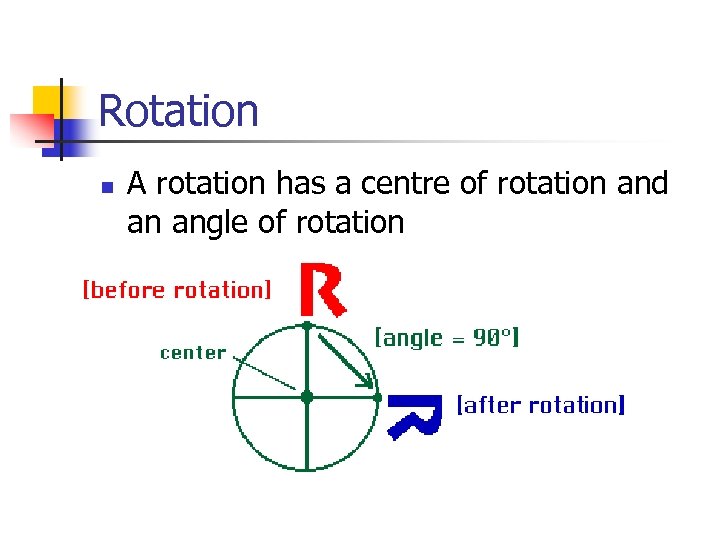

Rotation n A rotation has a centre of rotation and an angle of rotation Rotation n A rotation has a centre of rotation and an angle of rotation

N-fold rotation n If the angle is θ and n = 360 o/θ is N-fold rotation n If the angle is θ and n = 360 o/θ is a whole number, then we call the rotation an n-fold rotation

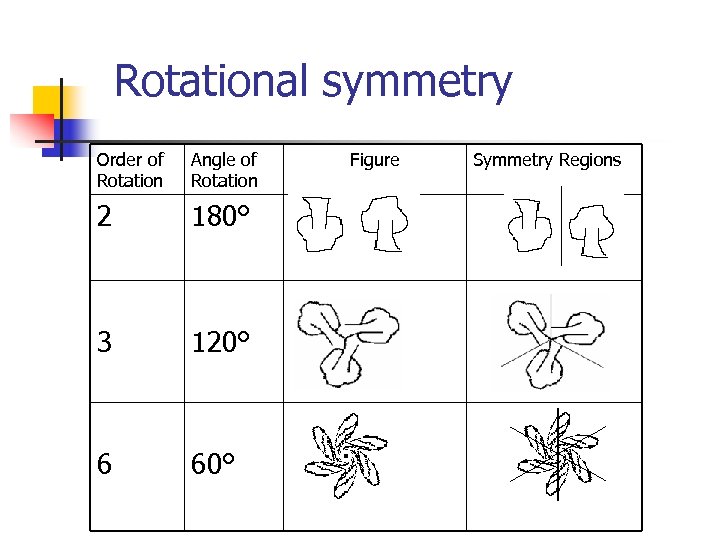

Rotational symmetry Order of Rotation Angle of Rotation 2 180° 3 120° 6 60° Rotational symmetry Order of Rotation Angle of Rotation 2 180° 3 120° 6 60° Figure Symmetry Regions

Glide reflection n A glide reflection is a combination of a reflection and a Glide reflection n A glide reflection is a combination of a reflection and a translation

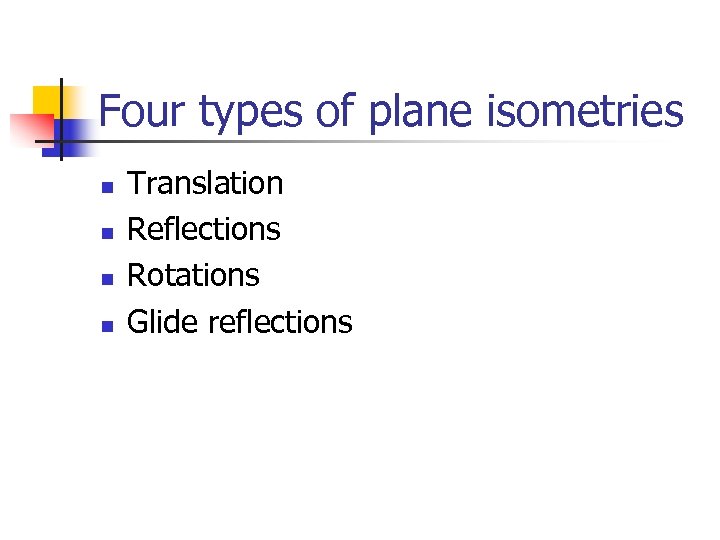

Four types of plane isometries n n Translation Reflections Rotations Glide reflections Four types of plane isometries n n Translation Reflections Rotations Glide reflections

Warning! Warning!

Sumerian symmetry Sumerian symmetry

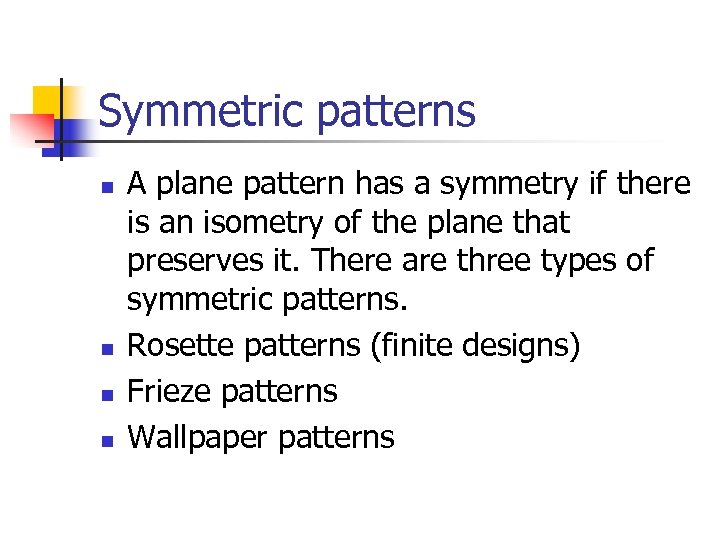

Symmetric patterns n n A plane pattern has a symmetry if there is an Symmetric patterns n n A plane pattern has a symmetry if there is an isometry of the plane that preserves it. There are three types of symmetric patterns. Rosette patterns (finite designs) Frieze patterns Wallpaper patterns

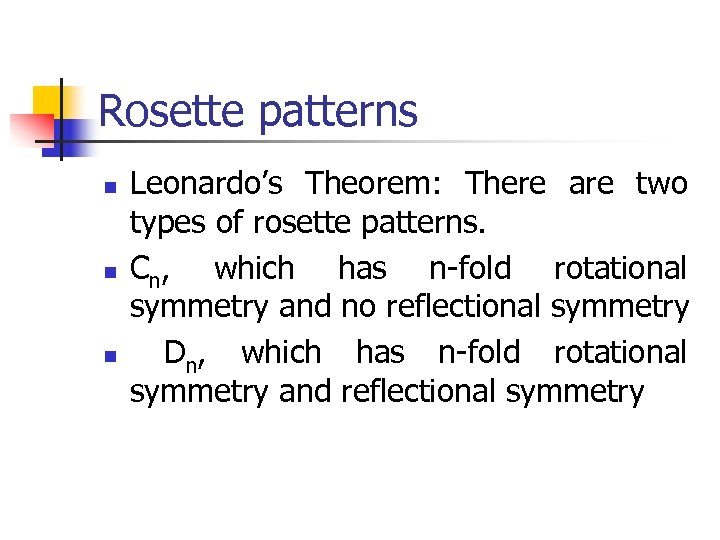

Rosette patterns n n n Leonardo’s Theorem: There are two types of rosette patterns. Rosette patterns n n n Leonardo’s Theorem: There are two types of rosette patterns. Cn, which has n-fold rotational symmetry and no reflectional symmetry Dn, which has n-fold rotational symmetry and reflectional symmetry

Examples of rosette patterns Examples of rosette patterns

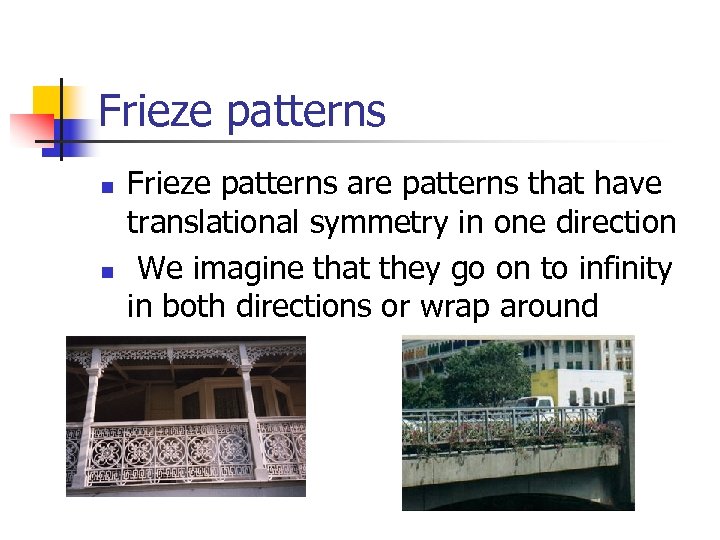

Frieze patterns n n Frieze patterns are patterns that have translational symmetry in one Frieze patterns n n Frieze patterns are patterns that have translational symmetry in one direction We imagine that they go on to infinity in both directions or wrap around

Frieze patterns on cloth Frieze patterns on cloth

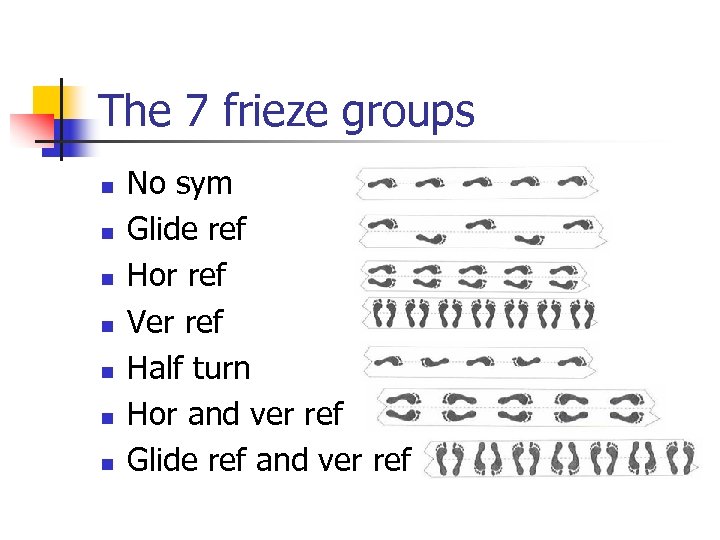

The 7 frieze groups n n n n No sym Glide ref Hor ref The 7 frieze groups n n n n No sym Glide ref Hor ref Ver ref Half turn Hor and ver ref Glide ref and ver ref

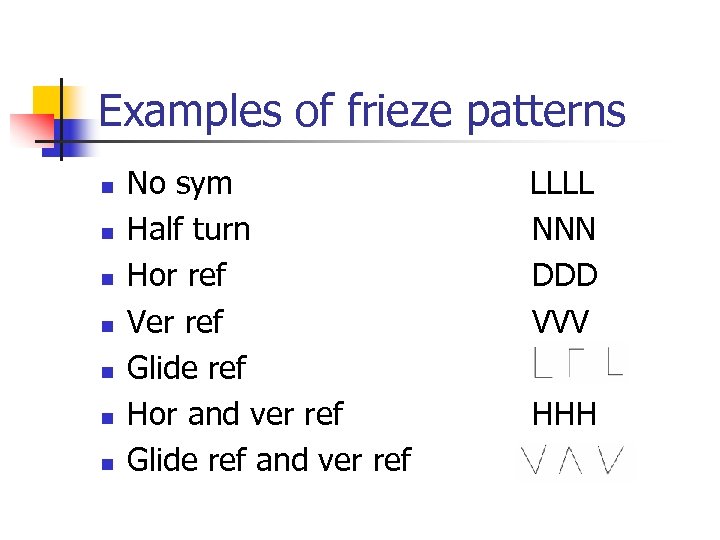

Examples of frieze patterns n n n n No sym Half turn Hor ref Examples of frieze patterns n n n n No sym Half turn Hor ref Ver ref Glide ref Hor and ver ref Glide ref and ver ref LLLL NNN DDD VVV HHH

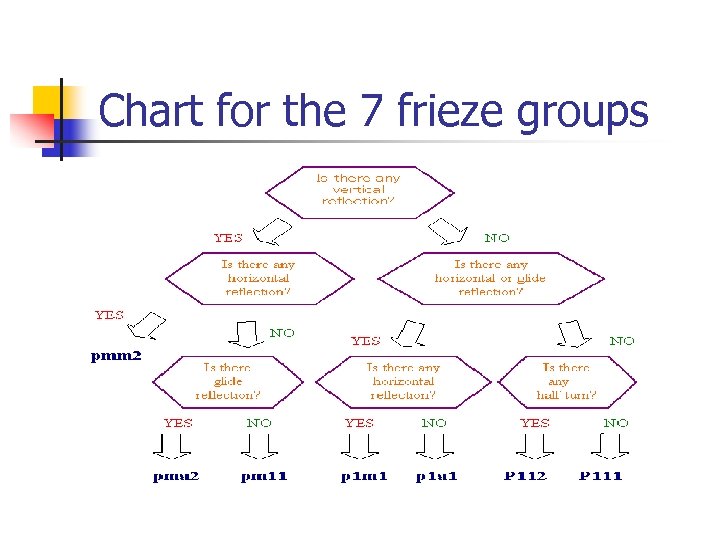

Chart for the 7 frieze groups Chart for the 7 frieze groups

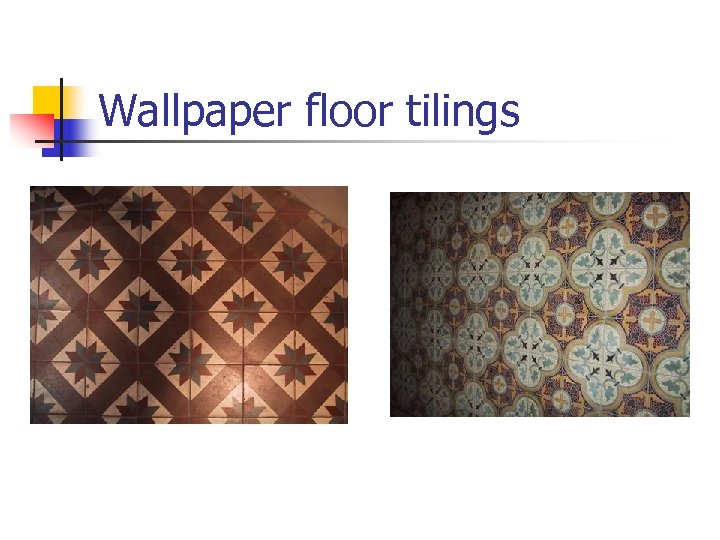

Wallpaper floor tilings Wallpaper floor tilings

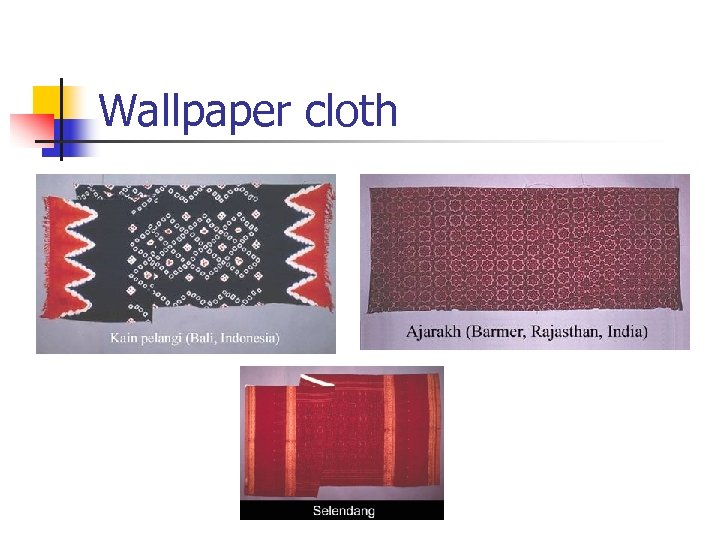

Wallpaper cloth Wallpaper cloth

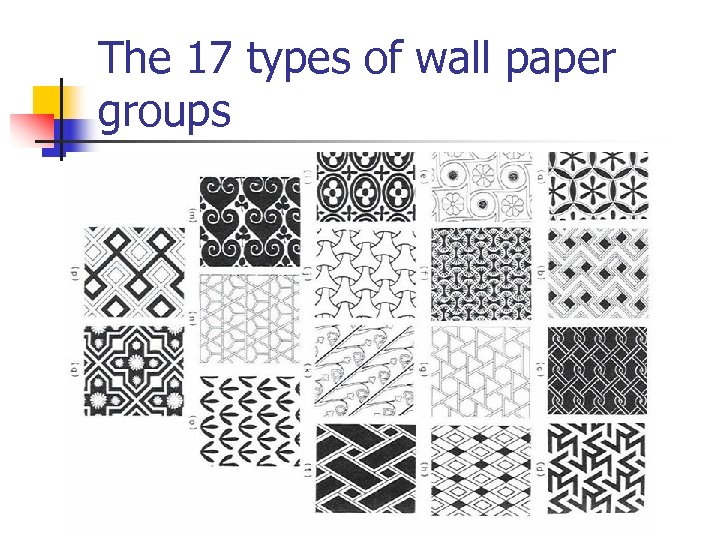

The 17 types of wall paper groups The 17 types of wall paper groups

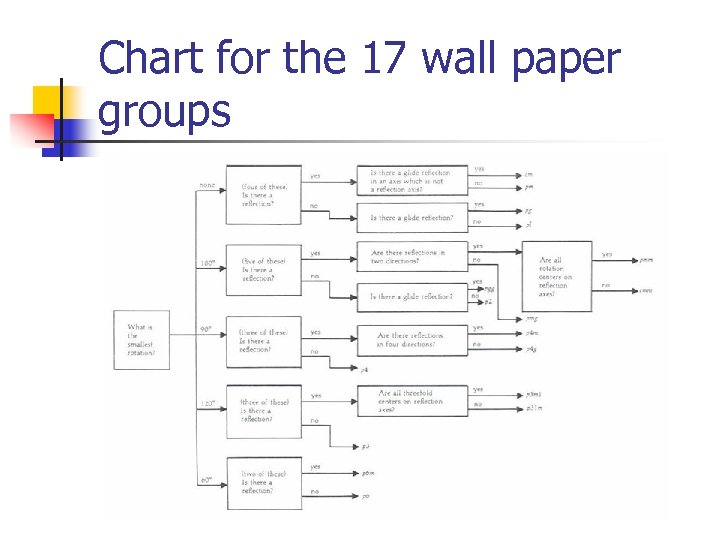

Chart for the 17 wall paper groups Chart for the 17 wall paper groups

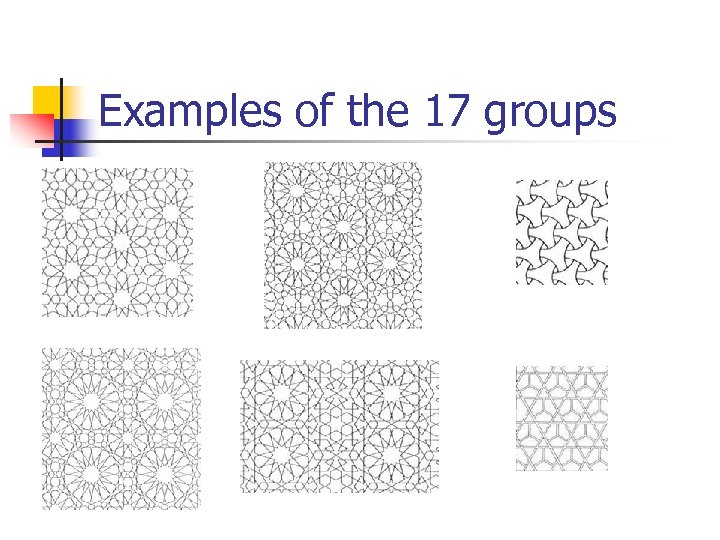

Examples of the 17 groups Examples of the 17 groups

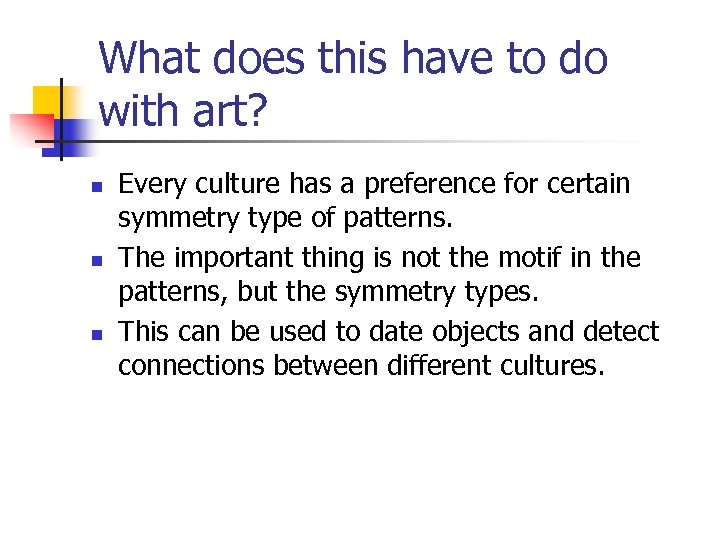

What does this have to do with art? n n n Every culture has What does this have to do with art? n n n Every culture has a preference for certain symmetry type of patterns. The important thing is not the motif in the patterns, but the symmetry types. This can be used to date objects and detect connections between different cultures.

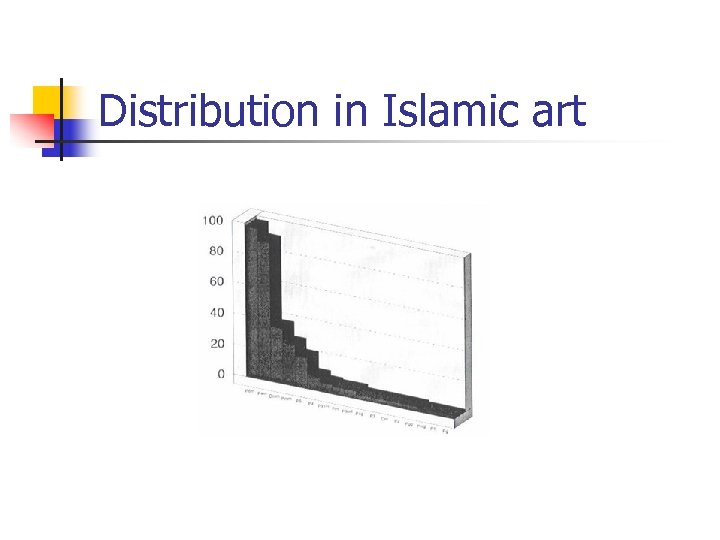

Distribution in Islamic art Distribution in Islamic art

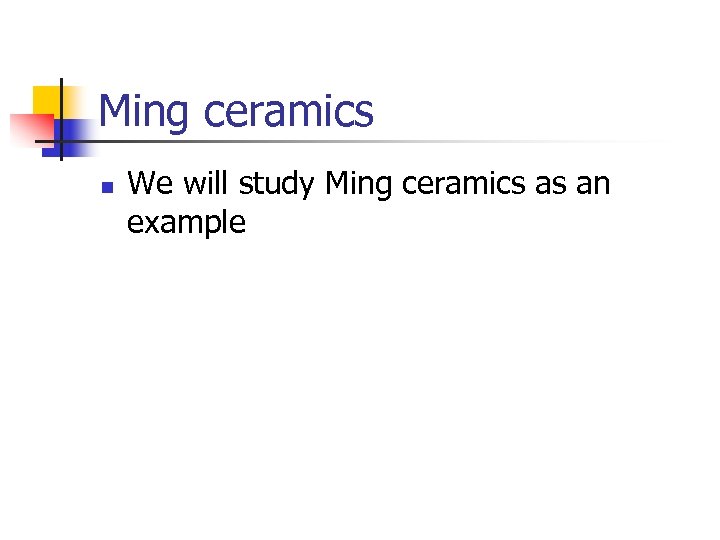

Ming ceramics n We will study Ming ceramics as an example Ming ceramics n We will study Ming ceramics as an example

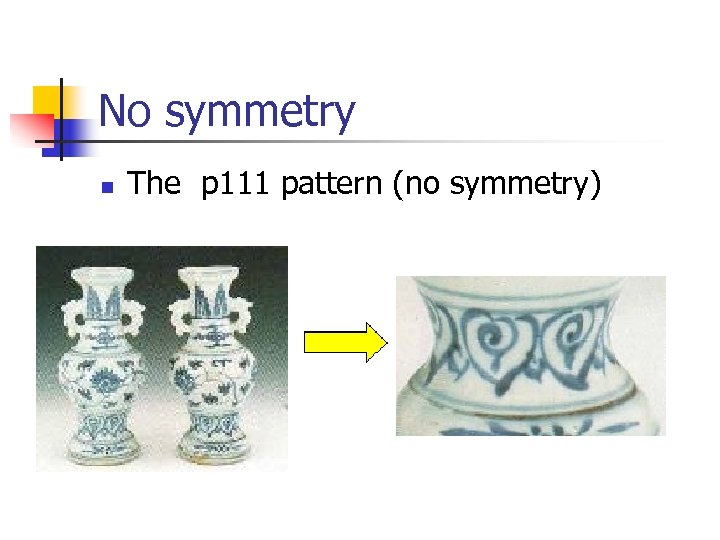

No symmetry n The p 111 pattern (no symmetry) No symmetry n The p 111 pattern (no symmetry)

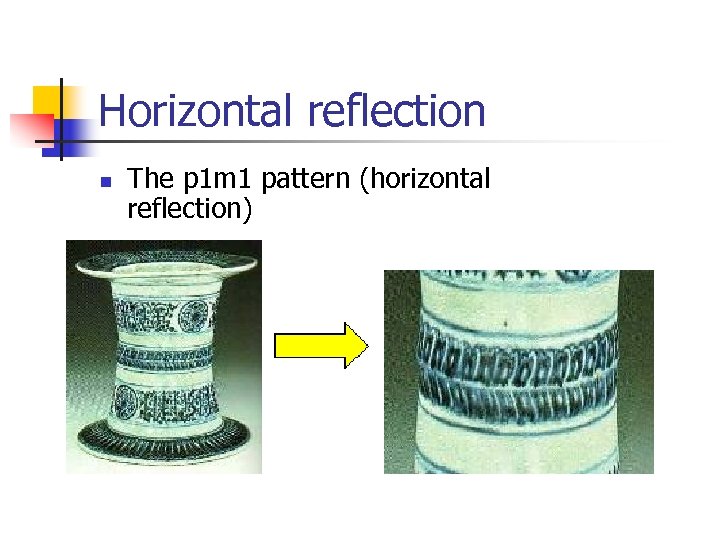

Horizontal reflection n The p 1 m 1 pattern (horizontal reflection) Horizontal reflection n The p 1 m 1 pattern (horizontal reflection)

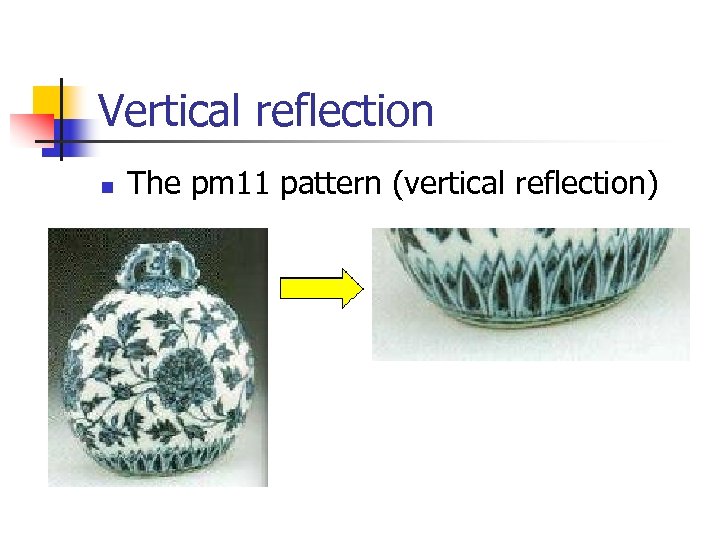

Vertical reflection n The pm 11 pattern (vertical reflection) Vertical reflection n The pm 11 pattern (vertical reflection)

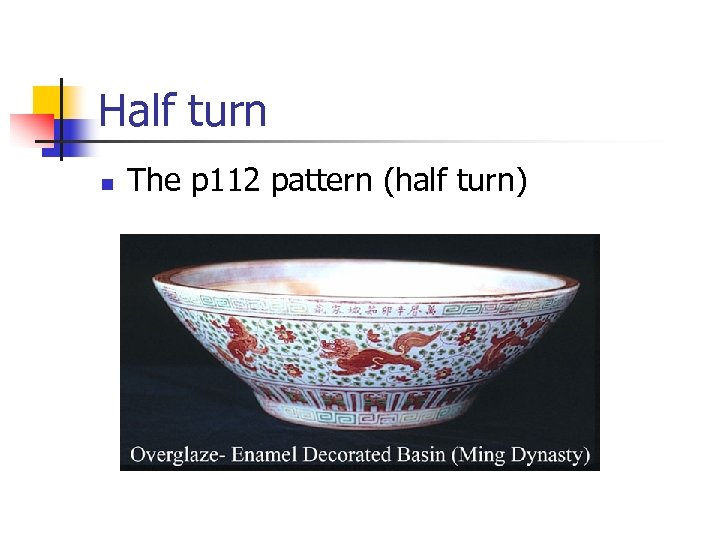

Half turn n The p 112 pattern (half turn) Half turn n The p 112 pattern (half turn)

Horizontal and vertical reflection n The pmm 2 pattern (horizontal and vertical reflections) Horizontal and vertical reflection n The pmm 2 pattern (horizontal and vertical reflections)

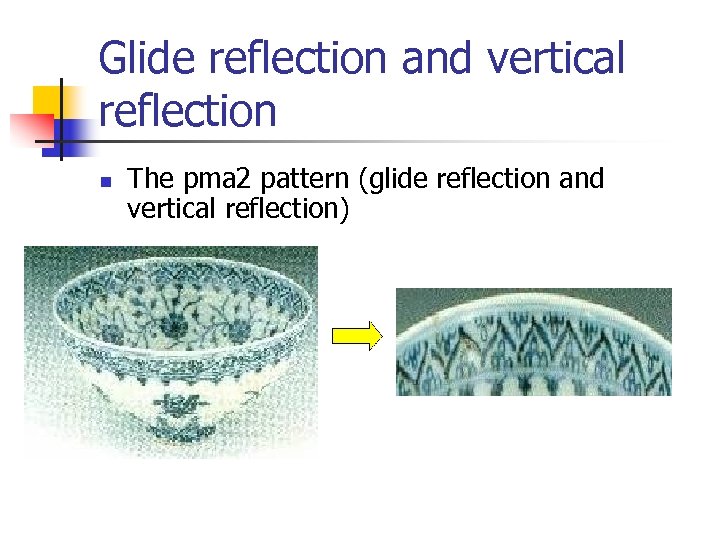

Glide reflection and vertical reflection n The pma 2 pattern (glide reflection and vertical Glide reflection and vertical reflection n The pma 2 pattern (glide reflection and vertical reflection)

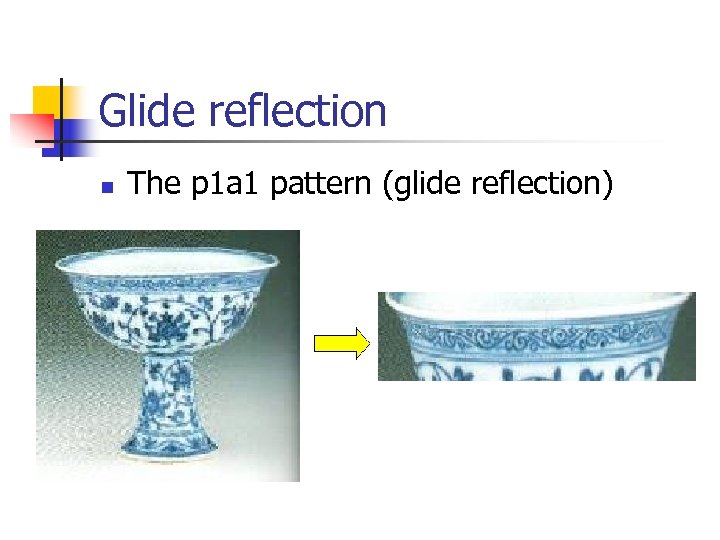

Glide reflection n The p 1 a 1 pattern (glide reflection) Glide reflection n The p 1 a 1 pattern (glide reflection)

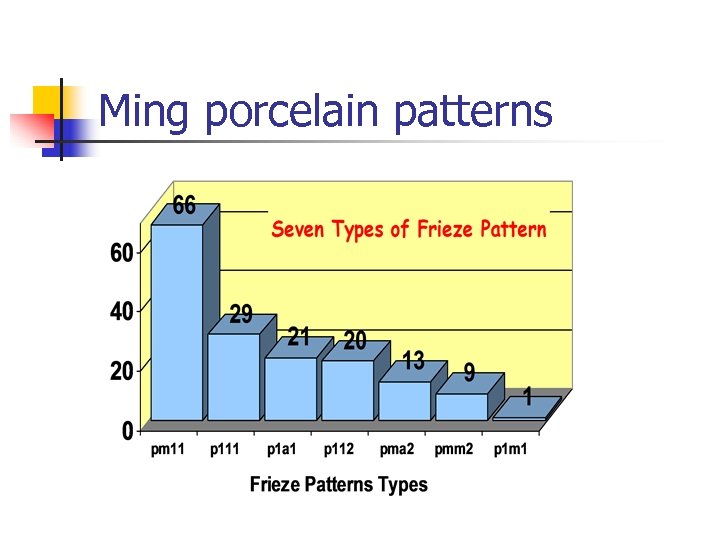

Ming porcelain patterns Ming porcelain patterns

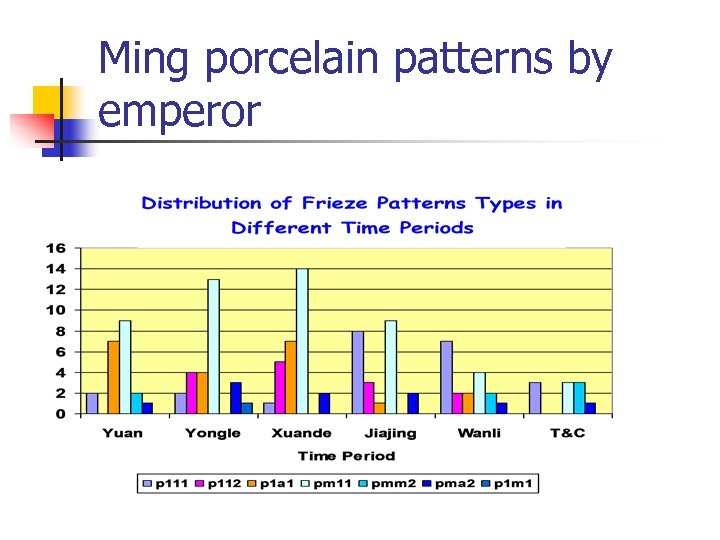

Ming porcelain patterns by emperor Ming porcelain patterns by emperor

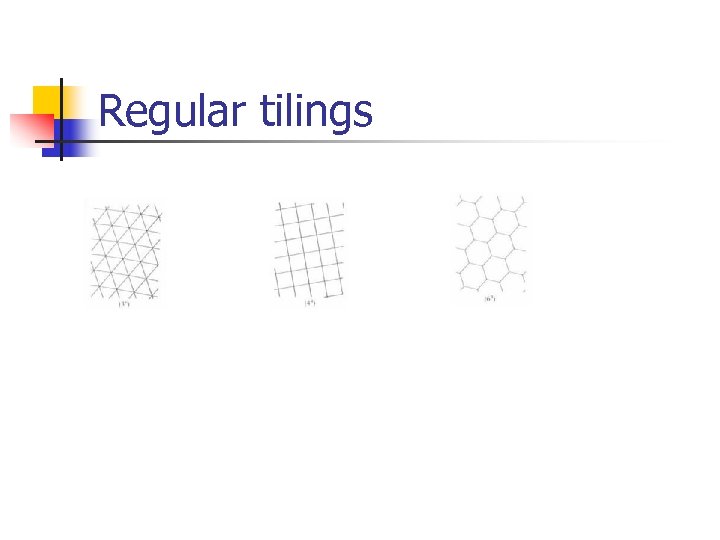

Regular tilings Regular tilings

Semiregular tilings Semiregular tilings

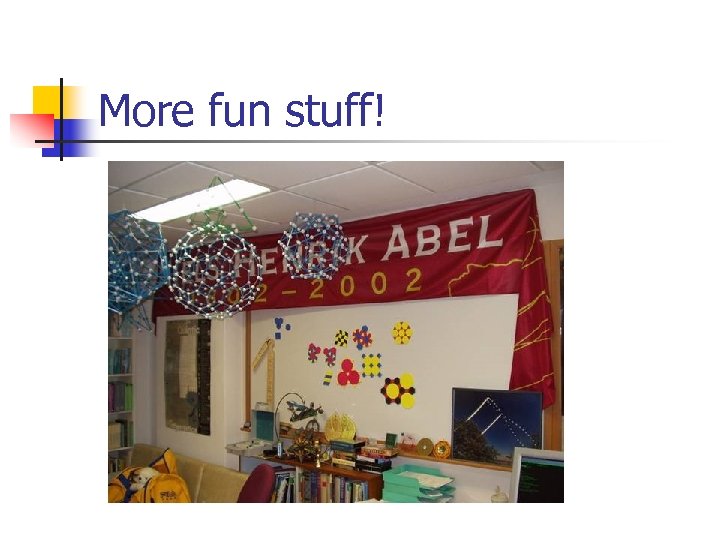

More fun stuff! More fun stuff!

False viewpoints n Pozzo’s ceiling (1694) and cupola (1685) in St. Ignatius, Rome False viewpoints n Pozzo’s ceiling (1694) and cupola (1685) in St. Ignatius, Rome

Perspective at SAM Perspective at SAM
