Switchgear for Primary Distribution Product: SIMOPRIME Energy Distribution Medium Voltage
SIMOPRIME Air-insulated, metal-enclosed, metal-clad Medium Voltage Switchgear Page 2 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
SIMOPRIME Agenda 1. Overview 2. Benefits 3. How You Will Get the Benefits 4. Summary Page 3 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
SIMOPRIME: Overview Typical applications: 1. Power Generating stations 2. Power Distribution centres 3. Industrial switching applications Page 4 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
SIMOPRIME: Technical Details SIMOPRIME - Rated values Rated voltage 7. 2 k. V 15 k. V 17. 5 k. V Rated frequency Hz 50/60 Rated power frequency- Withstand voltage k. V 201) 281) 35 38 Rated lightening impulse withstand voltage k. V 602) 753) 95 95 Rated short circuit breaking current max. k. A 40 40 Rated short time withstand current, 3 s max. k. A 40 40 Rated short circuit making current max. k. A 100/104 Rated peak withstand current max. k. A 100/104 Rated normal current of Busbars max. A 3600 Rated normal current of Feeders max. A 36004) 3600 1 -) Higher values for GOST standards as option 2 -) 40 k. V for open contact gaps of Vac. Contactor 3 -) 60 k. V for open contact gaps of Vac. Contactor 4 -) max. 400 A for contactor feeders Page 5 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
SIMOPRIME: Technical Details Rated voltage 7. 2 k. V 15 k. V 17. 5 k. V PM PM LSC 2 B Class IAC IAC max. k. A 40 40 0. 1/1. 0 Accessibility A A Classification AFLR Classification according to IEC 62271 -200: Partition class Service continuity category Internal arc aspects s Accessibility of compartments according to IEC 62271 -200: Busbar compartment Tool based Switching device compartment Interlock based accessible Connection compartment (front access) Tool based and Interlocked based accessible Connection compartment (rear access) Tool based Low voltage compartment Tool based Page 6 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
SIMOPRIME: Technical Details Rated voltage 7. 2 k. V 15 k. V 17. 5 k. V IP 4 X / IP 511) Degree of protection for enclosure 12 k. V IP 4 X / IP 511) Dimensions: Width mm 6002)/8004) 600/8004) Depth mm 1860 3) 1860 Height with IAC 0. 1 Sec. mm 2253 Height with IAC 1. 0 Sec. mm 2425 Height with IAC 1. 0 Sec (40 k. A) mm 2460 Indoor Number of phases 3 3 Number of busbars Single Front/Rear Bottom 1000 Installation details: Installation Cable access Cable entry Maximum site altitude above sea level 1 -) Applicable for non-ventilated panels Page 7 April 2009 m 2 -) 435 mm for Slim CFC Panel E D MV 1 PPM 3 -) 1837 mm for Slim CFC Panel 4 -) 40 k. A panels only with 800 mm Energy Distribution Medium Voltage
SIMOPRIME: Overview – Simoprime with 3 AH 5 1 = Door of low voltage compartment 2 = Opening for locking or unlocking low voltage compartment door 3 = Capacitive voltage detection system for feeder and busbar 4 = High voltage door of switching device compartment 5 = Inspection window for checking the switching device position 6 = Opening for locking or unlocking the high voltage door 7 = Opening for mechanical charging of circuit breaker closing spring 8 = Opening for manual (ON / OFF) of the circuit breaker 9 = Inspection window for reading the indicators 10 = Door handle 11 = Opening for switching device truck operation 12 = Opening for earthing switch operation Page 8 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
SIMOPRIME: Overview – Simoprime with 3 AH 5 13 = Pressure relief duct 14 = Busbars 15 = Bushings 16 = Post Insulators 17 = Current transformers 18 = Make-proof earthing switch 19 = Cable sealing ends 20 = Voltage transformers 21 = Earthing busbar 22 = Low voltage plug connector 23 = Vacuum Interrupters 24 = Switching device truck A: Switching device compartment B: Busbar compartment C: Connection compartment D: Switching device truck E: Low voltage compartment Page 9 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
SIMOPRIME: Overview - Simoprime with SION 1 = Door of low voltage compartment 2 = Opening for locking or unlocking low voltage compartment door 3 = Capacitive voltage detection system for feeder and busbar 4 = High voltage door of switching device compartment 5 = Inspection window for checking the switching device position 6 = Opening for locking or unlocking the high voltage door 7 = Opening for mechanical charging of circuit breaker closing spring 8 = Opening for manual (ON / OFF) of the circuit breaker 9 = Inspection window for reading the indicators 10 = Door handle 11 = Opening for switching device truck operation 12 = Opening for earthing switch operation Page 10 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
SIMOPRIME: Overview – Simoprime with SION 13 = Pressure relief duct 14 = Busbars 15 = Bushings 16 = Post Insulators 17 = Current transformers 18 = Make-proof earthing switch 19 = Cable sealing ends 20 = Voltage transformers 21 = Earthing busbar 22 = Low voltage plug connector 23 = Vacuum Interrupters 24 = Switching device truck A: Switching device compartment B: Busbar compartment C: Connection compartment D: Switching device truck E: Low voltage compartment Page 11 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
SIMOPRIME: Overview Basic design options: Cable entry: from bottom Page 12 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
SIMOPRIME: Overview Product range: Rated voltage 7. 2 k. V 15/17. 5 k. V Circuit breaker panel X X X Contactor panel 1) X X - Metering panel X X X Bussectionaliser X X X Switch fuse disconnector panel - - - 1 -) Slim contactor panel ( 435 mm width ) is available for 7. 2 k. V IEC Page 13 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
SIMOPRIME: Overview Vacuum circuit breaker panel Page 14 April 2009 Disconnecting panel E D MV 1 PPM Vacuum contactor panel Energy Distribution Medium Voltage
SIMOPRIME: Overview Bussectionaliser Page 15 April 2009 Metering panel E D MV 1 PPM Energy Distribution Medium Voltage
SIMOPRIME: Benefits 1. Peace of Mind 2. 2. Saves Lives 3. Increases Productivity 4. Saves Money Page 16 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
SIMOPRIME: Benefit No. 1 Peace of Mind Page 17 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Peace of Mind: How? Fulfilling all the mandatory type tests requirements of new IEC 62271 -200 1. Tests to verify the insulation level ( power frequency and impulse ). 2. Temperature rise and measurement of resistance of circuit. 3. Tests to prove the withstand capability of main and earthing circuits subjected to rated peak and short time withstand currents. 4. Test to prove the making and breaking capacity of the circuit breaker inside the switchgear panel. Page 18 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Peace of Mind: How? Fulfilling all the mandatory type tests requirements of new IEC 62271 -200 5. Test to prove the satisfactory operation of switching devices and removable parts. 6. Tests to verify the protection of persons against access to hazardous parts and the protection of the equipment against solid foreign objects + The stringent requirement of Internal arc testing as outlined in new IEC Page 19 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Peace of Mind: How? SIMOPRIME can be freely used on GOST standard countries. The certification is valid to 6 k. V and 10 k. V systems Page 20 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Peace of Mind: How? 3 AH 5 VCB SION VCB 3 AH 5 and SION breaker tested inside the panel, means higher operational reliability. Page 21 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Peace of Mind: How? Preventive mechanical interlocks avoid incorrect operations. Page 22 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Peace of Mind: How? Preventive Mechanical Interlocks 1. Operation of switching device is possible only when the switching device truck is in end position. 2. Moving of switching device truck from SERVICE to TEST is possible only when the switching device is switched OFF. Page 23 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Peace of Mind: How? Preventive Mechanical Interlocks 3. Moving of switching device truck from TEST to SERVICE position is possible only when the switching device is switched OFF, the low voltage plug is connected and the earthing switch is switched OFF. 4. Operation of earthing switch is possible only when the switching device truck is in TEST position. Page 24 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Peace of Mind: How? A redundant force ventilation system will automatically work in case of a fail on the main ventilator. Both ventilators have independent systems and can be replaced on site. Page 25 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Peace of Mind: How? Earthquake qualification • • • IEC 68 -3 -3 UBC zone 4 Transelec requirements (Chile) No damage or an unwanted operation during an unexpected earthquake Page 26 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Peace of Mind: How? SF 6 CB: 22% MOCB: 14% VCB: 64% World Market shares - Medium Voltage Switching technologies Vacuum interrupters - a highly proven and widely used technology, world-wide. Page 27 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Peace of Mind: How? Freedom from manufacturer’s monopolistic policies + Standard Instrument transformers Page 28 April 2009 E D MV 1 PPM Open communication protocol relays Energy Distribution Medium Voltage
Peace of Mind: How? ISO Certification Siemens has consistent quality standards for all products, processes and manufacturing centres. Page 29 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Peace of Mind: How? Europe S o u t h A s i a A m e r i c a Global village a reality A true international switchgear based on global best practice sharing and experience. Page 30 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Peace of Mind: How? s One word says it all! Page 31 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Peace of Mind: Summary Benefit Features 1. Peace of Mind 1. 1 Factory assembled, fully type tested switchgear as per IEC 62271 -200 1. 2 GOST certified 1. 3 Testing of VCB inside the panel 1. 4 Preventive mechanical interlocks 1. 5 Redundant forced ventilation 1. 6 Earthquake proof Page 32 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Peace of Mind: Summary Benefit Features 1. Peace of Mind 1. 7 Use of vacuum switching technology 1. 8 Use of world wide available parts 1. 9 Quality according to ISO 9001 1. 10 Design based on global best practice sharing and experience 1. 11 Siemens guarantee Page 33 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
SIMOPRIME: Benefit No. 2 Saves Lives Page 34 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Forecast: Saves Lives How many: How soon: Page 35 Even one life! As soon as you energize Siemens SIMOPRIME switchgear! April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Saves Lives: How? All operations behind closed door 1. All switching operations including emergency manual operations 2. Feeder earthing 3. Rack-in / rack-out operation of Switching device truck. 4. Not- Emergency manual charging of VCB operating mechanism. Page 36 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Saves Lives: How? Front door interlocks 1. Racking of VCB truck from Test to Service position not possible until the front door is closed and locked. 2. Front door cannot be closed and locked until the LV control plug is securely connected. 3. Front door cannot be opened until the VCB is switched OFF and racked out in Test position. Page 37 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Saves Lives: How? Partition class: PM 1. Earthed metallic shutters and partitions ensure partition class PM. 2. Class PM ensures no electric field in the opened compartment and no electrical field change in the adjacent compartments. 3. Thus partition class PM ensures safe maintenance when the switching device chamber is opened while keeping the busbars as well as cables under charged conditions. Page 38 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Saves Lives: How? 1. What is an internal arc? It is a high resistance arc fault within the switchgear enclosure due to insulation failure. 2. What are the effects of an internal arc fault? The fault current passing through the electric arc increases the air temperature inside the faulty compartment. The hot air expands and exerts very high pressure on the compartment walls and doors. If the switchgear is not designed and qualified for an internal arc, the high pressure can rupture the enclosure and endangers the life of persons working near the switchgear. Page 39 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Saves Lives: How? This is what will happen if the switchgear is not designed and qualified for internal arc. start Internal Arc Test. mpg Film Imagine what will happen to your operator. Page 40 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Saves Lives: How? What happens when there is an arc fault in an Internal Arc Classified switchgear as per IEC 62271 -200. 1. Correctly secured door and covers do not open. 2. No fragmentation of the enclosure occurs within the time specified for the test. 3. Arcing doesn’t cause holes in the accessible sides up to a height of 2 m. 4. Cotton test indicators do not ignite due to the effect of hot gases. 5. The enclosure remains connected to its earthing point. Page 41 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Saves Lives: How? If this failure happened in your SIMOPRIME, no one would even be hurt. Page 42 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Saves Lives: How? Vacuum Circuit Breaker means no explosion is possible. Page 43 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Saves Lives: How? SF 6 CB SIEMENS CB start SF 6 circuit breaker. mpg Film start vacuum circuit breaker. mpg Film Which interrupter would you prefer? Page 44 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Saves Lives: How? 1. Arc medium free from toxic by-products 2. Environment friendly and compatible Page 45 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Saves Lives: How? Make proof earthing switch tested inside the panel. Page 46 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Saves Lives: Summary Benefit Features 2. Saves Lives 2. 1 All operations behind closed front door 2. 2 Front door interlocks with VCB 2. 3 Partition class PM 2. 4 Internal Arc Classification switchgear Page 47 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Saves Lives: Summary Benefit Features 2. Saves Lives 2. 5 Make proof earthing switch 2. 6 Use of vacuum switching technology Page 48 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
SIMOPRIME: Benefit No. 3 Increases Productivity Page 49 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Increases Productivity: How? Metallic and earthed shutters and partitions Safe to touch Loss of Service Continuity category LSC 2 B-PM Maintenance in switching device compartment possible without de-energising the corresponding cable connections and busbars. Page 50 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Increases Productivity: How? Use of maintenance free Siemens vacuum interrupters means no interruption in power supply. Interrupters MTBF: 38, 500 Years Page 51 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Increases Productivity: How? Use of maintenance-free Siemens Vacuum Circuit Breaker means no interruption in power supply. VCB MTBF: 6300 Years Page 52 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Increases Productivity: Summary Benefit Features 3. Increases Productivity 3. 1 LSC 2 B-PM Switchgear 3. 2 Use of vacuum switching technology Page 53 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
SIMOPRIME: Benefit No. 4 Saves Money Page 54 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Saves Money: How? Use of maintenance-free Siemens Vacuum Circuit Breaker on withdrawable truck means low maintenance costs. Page 55 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Saves Money: How? Use of maintenance-free Siemens Vacuum Circuit Breaker means less life cycle cost. Page 56 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Saves Money: How? Easy access to busbars via rear or top means short installation time and less installation costs. Page 57 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
Saves Money: How? Switchgear installation, operation and maintenance without any special tools and tackles means low life cycle cost. Page 58 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage

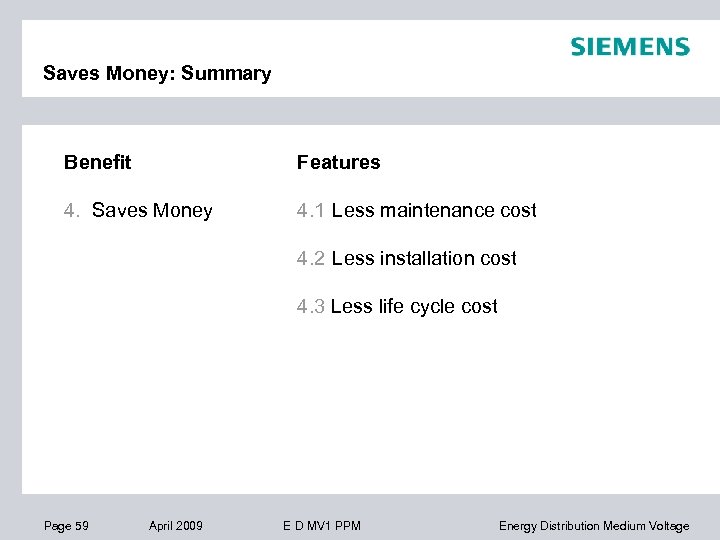

Saves Money: Summary Benefit Features 4. Saves Money 4. 1 Less maintenance cost 4. 2 Less installation cost 4. 3 Less life cycle cost Page 59 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
SIMOPRIME: Benefits´ summary 1. Peace of Mind 2. Saves Lives 3. Increases Productivity 4. Saves Money Page 60 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
SIMOPRIME The new air-insulated, metal-enclosed, metal-clad medium voltage switchgear from SIEMENS Page 61 April 2009 E D MV 1 PPM Energy Distribution Medium Voltage
