SWEA Product Assurance SWEA Peer Review March 28

SWEA Product Assurance SWEA Peer Review March 28 -29, 2011 IRAP, Toulouse

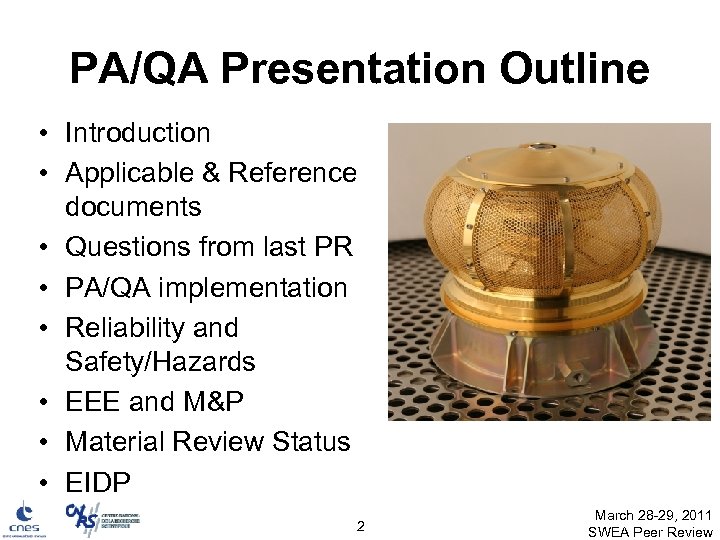

PA/QA Presentation Outline • Introduction • Applicable & Reference documents • Questions from last PR • PA/QA implementation • Reliability and Safety/Hazards • EEE and M&P • Material Review Status • EIDP 2 March 28 -29, 2011 SWEA Peer Review

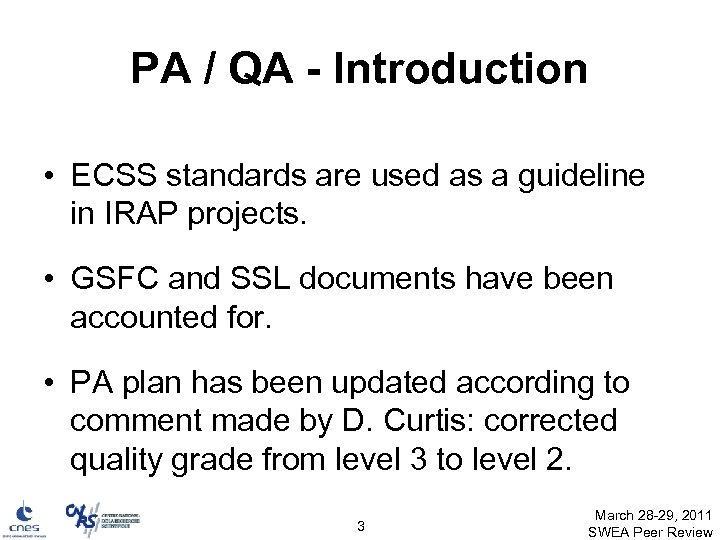

PA / QA - Introduction • ECSS standards are used as a guideline in IRAP projects. • GSFC and SSL documents have been accounted for. • PA plan has been updated according to comment made by D. Curtis: corrected quality grade from level 3 to level 2. 3 March 28 -29, 2011 SWEA Peer Review

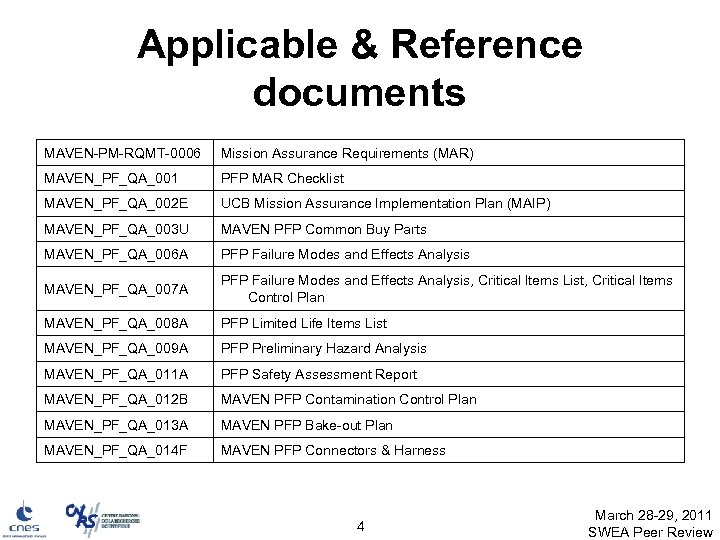

Applicable & Reference documents MAVEN-PM-RQMT-0006 Mission Assurance Requirements (MAR) MAVEN_PF_QA_001 PFP MAR Checklist MAVEN_PF_QA_002 E UCB Mission Assurance Implementation Plan (MAIP) MAVEN_PF_QA_003 U MAVEN PFP Common Buy Parts MAVEN_PF_QA_006 A PFP Failure Modes and Effects Analysis MAVEN_PF_QA_007 A PFP Failure Modes and Effects Analysis, Critical Items List, Critical Items Control Plan MAVEN_PF_QA_008 A PFP Limited Life Items List MAVEN_PF_QA_009 A PFP Preliminary Hazard Analysis MAVEN_PF_QA_011 A PFP Safety Assessment Report MAVEN_PF_QA_012 B MAVEN PFP Contamination Control Plan MAVEN_PF_QA_013 A MAVEN PFP Bake-out Plan MAVEN_PF_QA_014 F MAVEN PFP Connectors & Harness 4 March 28 -29, 2011 SWEA Peer Review

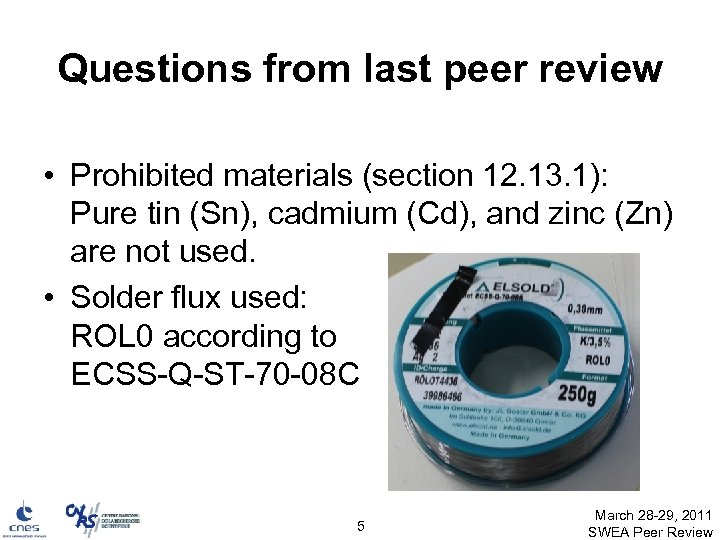

Questions from last peer review • Prohibited materials (section 12. 13. 1): Pure tin (Sn), cadmium (Cd), and zinc (Zn) are not used. • Solder flux used: ROL 0 according to ECSS-Q-ST-70 -08 C 5 March 28 -29, 2011 SWEA Peer Review

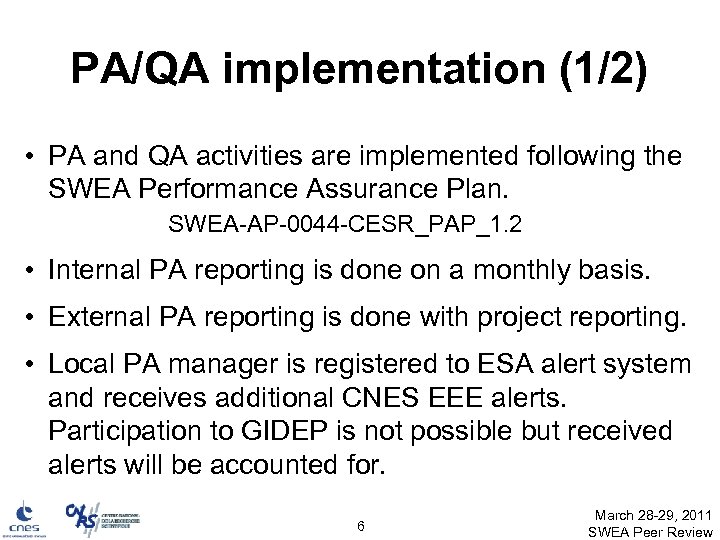

PA/QA implementation (1/2) • PA and QA activities are implemented following the SWEA Performance Assurance Plan. SWEA-AP-0044 -CESR_PAP_1. 2 • Internal PA reporting is done on a monthly basis. • External PA reporting is done with project reporting. • Local PA manager is registered to ESA alert system and receives additional CNES EEE alerts. Participation to GIDEP is not possible but received alerts will be accounted for. 6 March 28 -29, 2011 SWEA Peer Review

PA/QA implementation (2/2) • Risks and critical items are managed w. r. t. ECSS-M-ST-80 C and ECSS-Q-ST-10 -04 C. • Any non-conformance will be managed according to ECSS-Q-ST-10 -09. • Documentation is managed with Baghera, a dedicated documentation management system. • Configuration control is also managed with Baghera. 7 March 28 -29, 2011 SWEA Peer Review

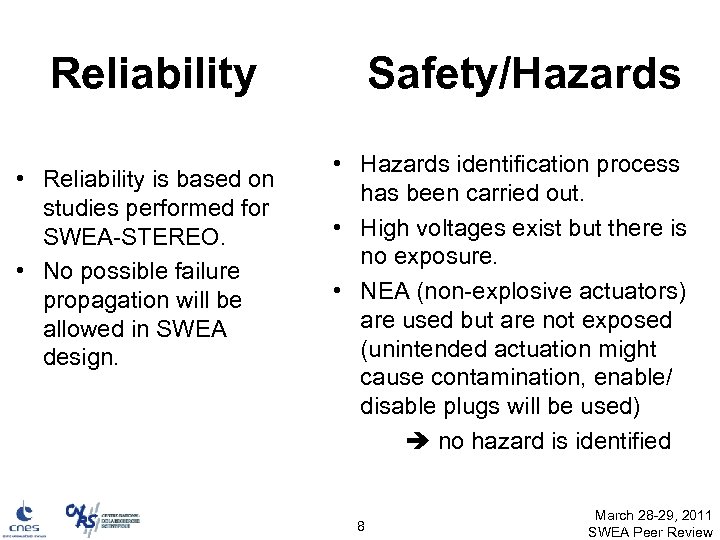

Reliability • Reliability is based on studies performed for SWEA-STEREO. • No possible failure propagation will be allowed in SWEA design. Safety/Hazards • Hazards identification process has been carried out. • High voltages exist but there is no exposure. • NEA (non-explosive actuators) are used but are not exposed (unintended actuation might cause contamination, enable/ disable plugs will be used) no hazard is identified 8 March 28 -29, 2011 SWEA Peer Review

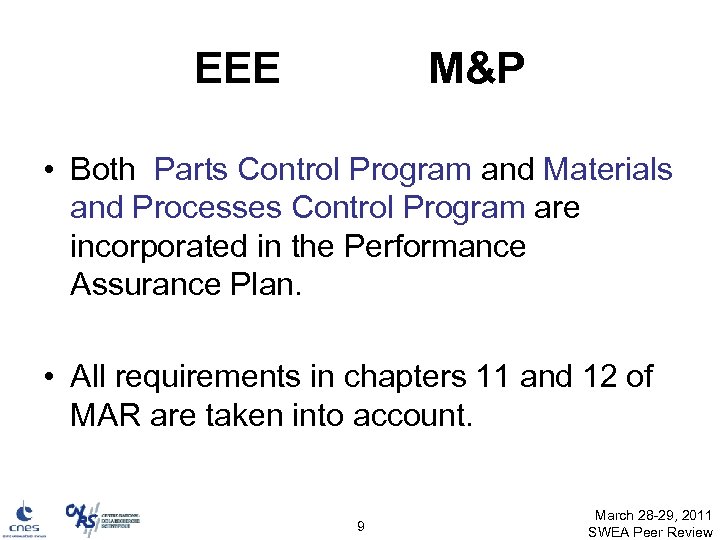

EEE M&P • Both Parts Control Program and Materials and Processes Control Program are incorporated in the Performance Assurance Plan. • All requirements in chapters 11 and 12 of MAR are taken into account. 9 March 28 -29, 2011 SWEA Peer Review

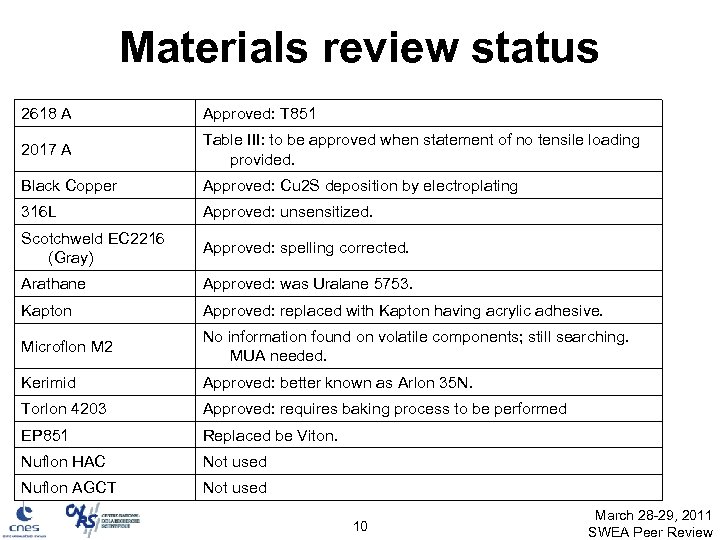

Materials review status 2618 A Approved: T 851 2017 A Table III: to be approved when statement of no tensile loading provided. Black Copper Approved: Cu 2 S deposition by electroplating 316 L Approved: unsensitized. Scotchweld EC 2216 (Gray) Approved: spelling corrected. Arathane Approved: was Uralane 5753. Kapton Approved: replaced with Kapton having acrylic adhesive. Microflon M 2 No information found on volatile components; still searching. MUA needed. Kerimid Approved: better known as Arlon 35 N. Torlon 4203 Approved: requires baking process to be performed EP 851 Replaced be Viton. Nuflon HAC Not used Nuflon AGCT Not used 10 March 28 -29, 2011 SWEA Peer Review

Particular & Molecular Contamination These are dealt with as part of normal work. IRAP having contamination and ESD sensitive parts, the general way of work which is implemented at IRAP covers the given requirements. – MCPs to be 500 A – Overall cleaning at level VC-HS. – Additional inspection with UV lamp. 11 March 28 -29, 2011 SWEA Peer Review

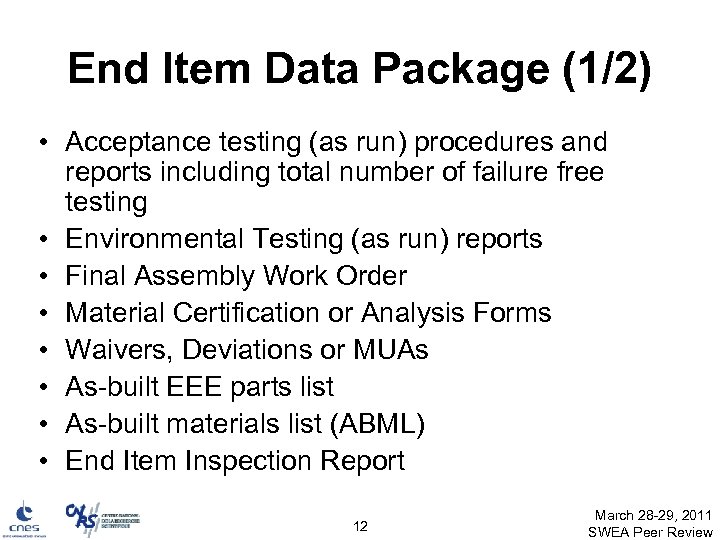

End Item Data Package (1/2) • Acceptance testing (as run) procedures and reports including total number of failure free testing • Environmental Testing (as run) reports • Final Assembly Work Order • Material Certification or Analysis Forms • Waivers, Deviations or MUAs • As-built EEE parts list • As-built materials list (ABML) • End Item Inspection Report 12 March 28 -29, 2011 SWEA Peer Review

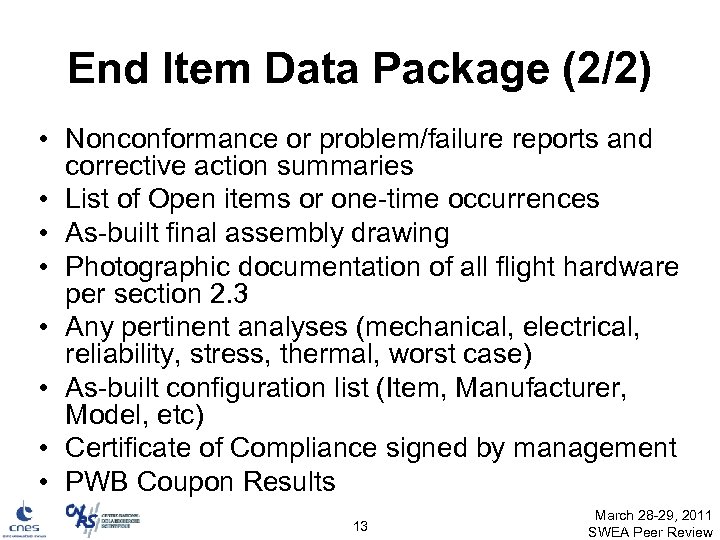

End Item Data Package (2/2) • Nonconformance or problem/failure reports and corrective action summaries • List of Open items or one-time occurrences • As-built final assembly drawing • Photographic documentation of all flight hardware per section 2. 3 • Any pertinent analyses (mechanical, electrical, reliability, stress, thermal, worst case) • As-built configuration list (Item, Manufacturer, Model, etc) • Certificate of Compliance signed by management • PWB Coupon Results 13 March 28 -29, 2011 SWEA Peer Review
