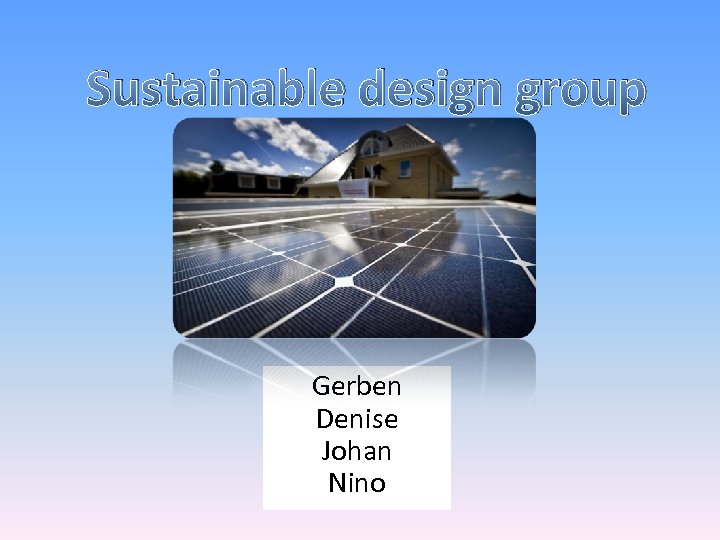

Sustainable design group Gerben Denise Johan Nino
Project Aalsmeer
Content • • • Project Aalsmeer Co-opperators Living-ambiance Energy producing Materials

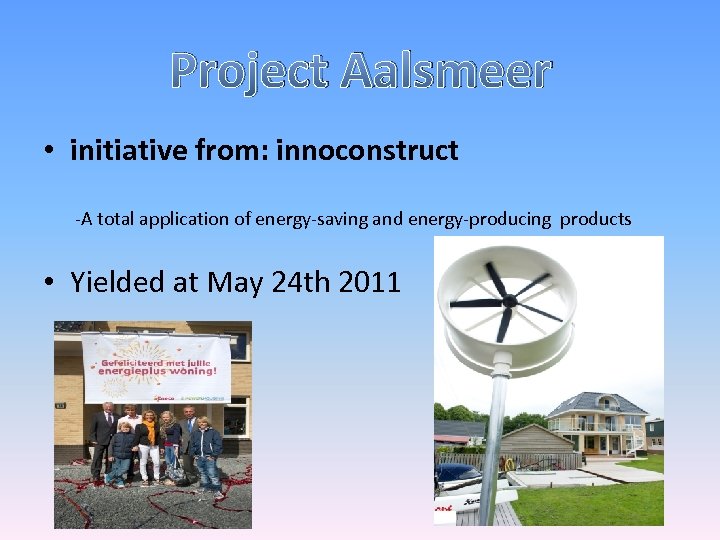

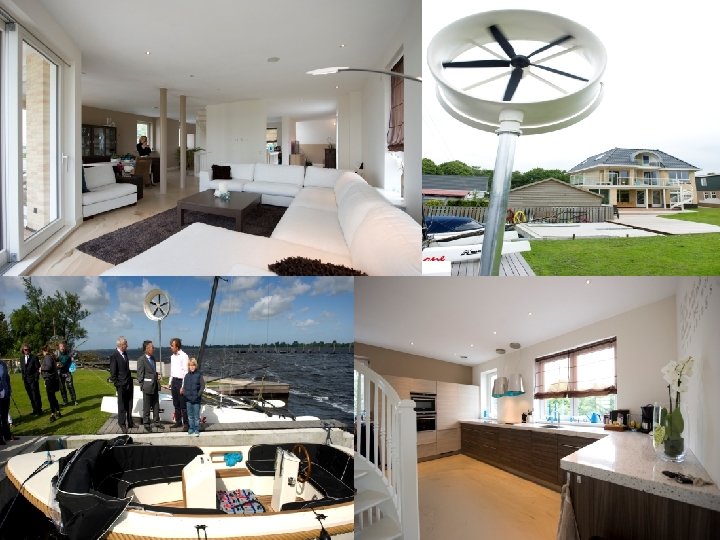

Project Aalsmeer • initiative from: innoconstruct -A total application of energy-saving and energy-producing products • Yielded at May 24 th 2011

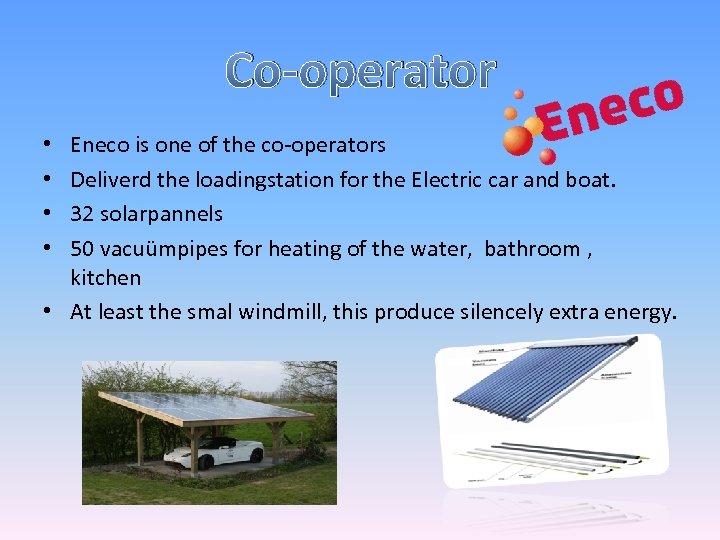

Co-operator Eneco is one of the co-operators Deliverd the loadingstation for the Electric car and boat. 32 solarpannels 50 vacuümpipes for heating of the water, bathroom , kitchen • At least the smal windmill, this produce silencely extra energy. • •

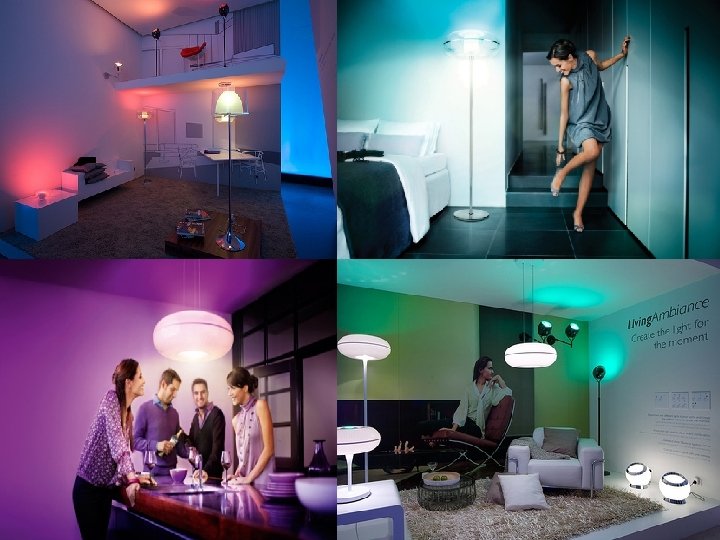

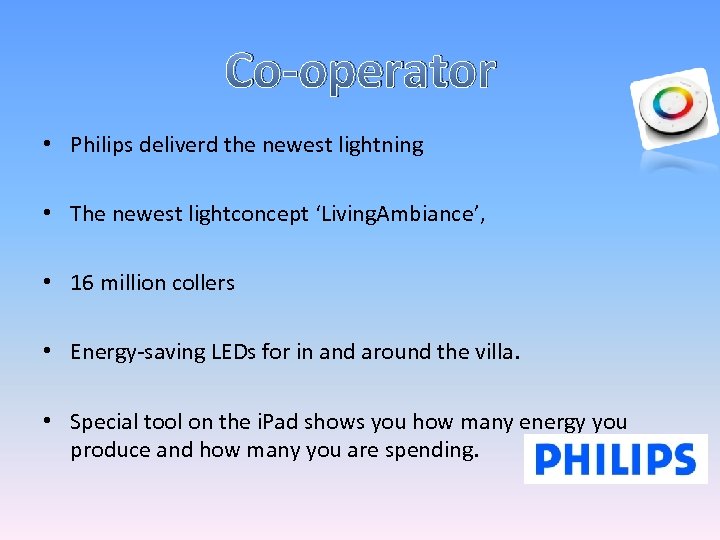

Co-operator • Philips deliverd the newest lightning • The newest lightconcept ‘Living. Ambiance’, • 16 million collers • Energy-saving LEDs for in and around the villa. • Special tool on the i. Pad shows you how many energy you produce and how many you are spending.
Energy producing • Combination of installations like heatpipes, pv -panels on the carport, een heatpomp and a windmill at the water. • All energysource are connected to a computersystem that registrate everything.
Materials • Power. Base is a high buildmatrial – – – Isolated Extremly light Pressureproof Fire-resistant Doesn’t absorb water • Power. Base is een hoogwaardig bouwmateriaal. – – – uiterst licht Isolerend Drukvast Brandbestendig Neemt geen water op

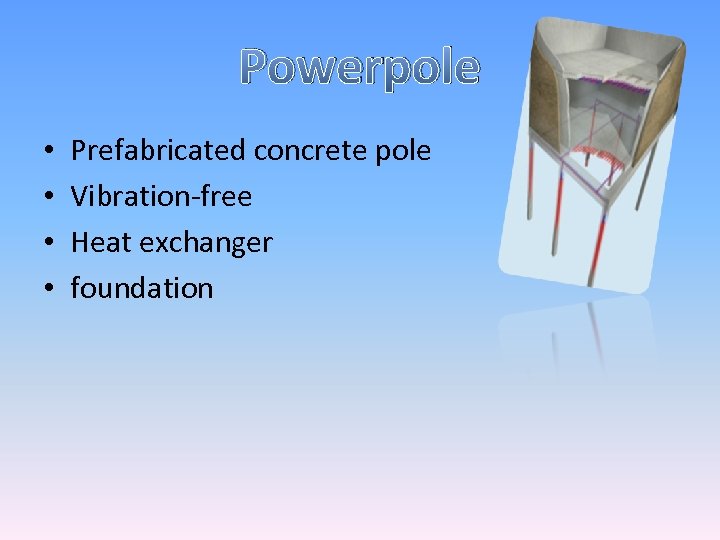

Powerpole • • Prefabricated concrete pole Vibration-free Heat exchanger foundation

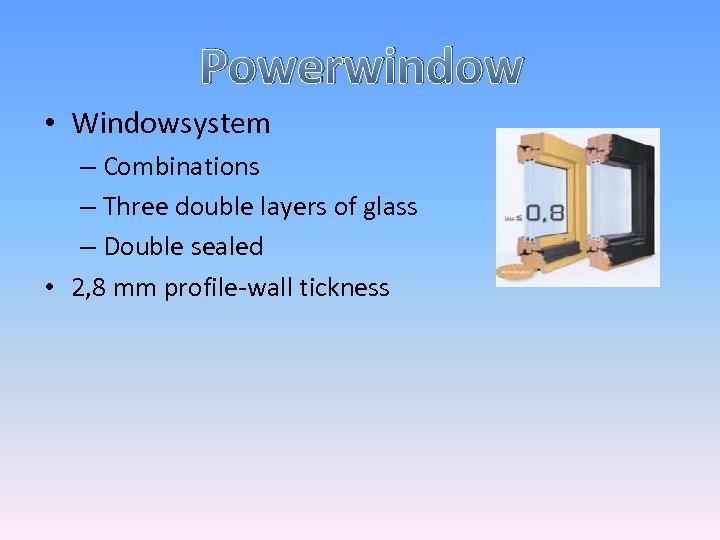

Powerwindow • Windowsystem – Combinations – Three double layers of glass – Double sealed • 2, 8 mm profile-wall tickness

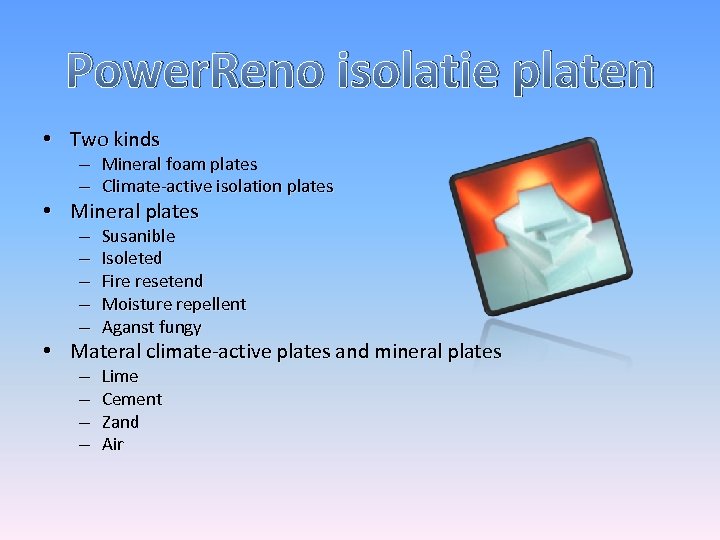

Power. Reno isolatie platen • Two kinds – Mineral foam plates – Climate-active isolation plates • Mineral plates – – – Susanible Isoleted Fire resetend Moisture repellent Aganst fungy – – Lime Cement Zand Air • Materal climate-active plates and mineral plates

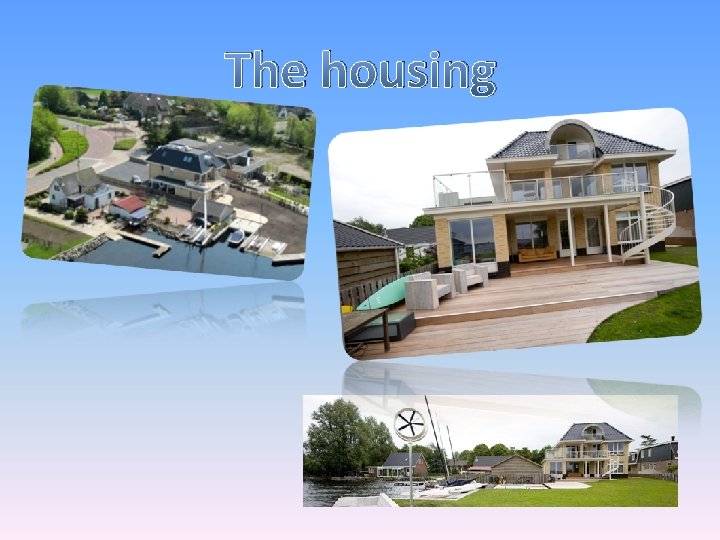

The housing

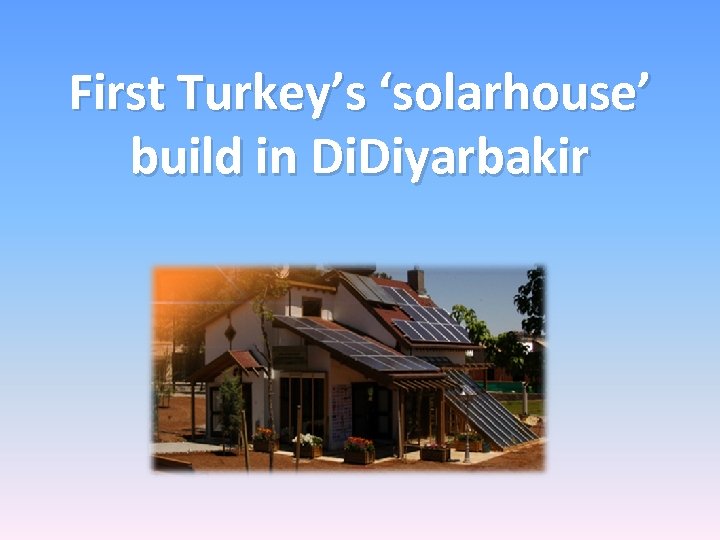

First Turkey’s ‘solarhouse’ build in Di. Diyarbakir
Content • • When was it opened and where Inside the solarhouse Solar-energy and wind panels Ventilation Isolation Biological purification rainwater Conclusion
When it’s openend and where • Where: Diyarbakır, turkije • When: 24 June 2008

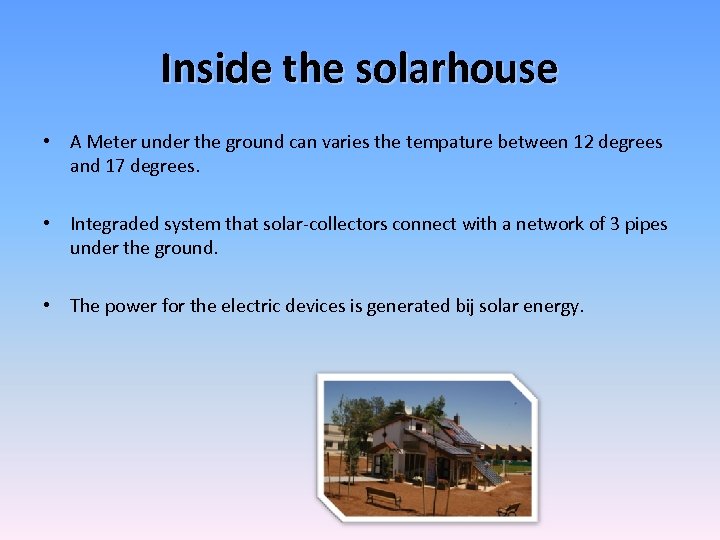

Inside the solarhouse • A Meter under the ground can varies the tempature between 12 degrees and 17 degrees. • Integraded system that solar-collectors connect with a network of 3 pipes under the ground. • The power for the electric devices is generated bij solar energy.

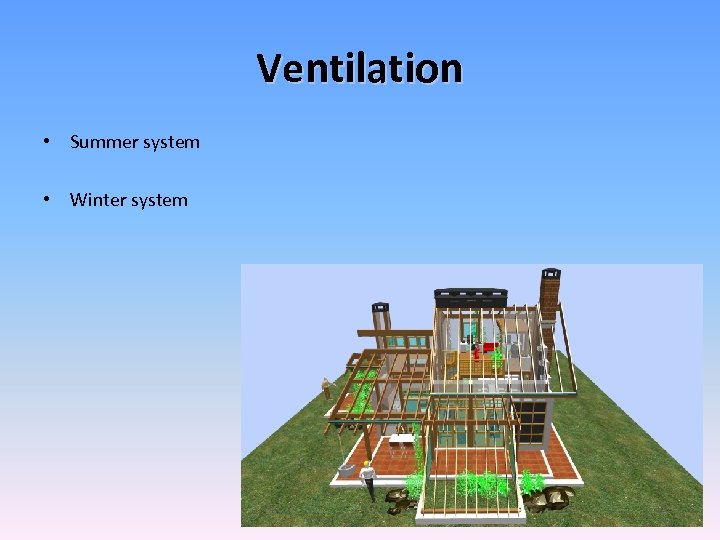

Ventilation • Summer system • Winter system

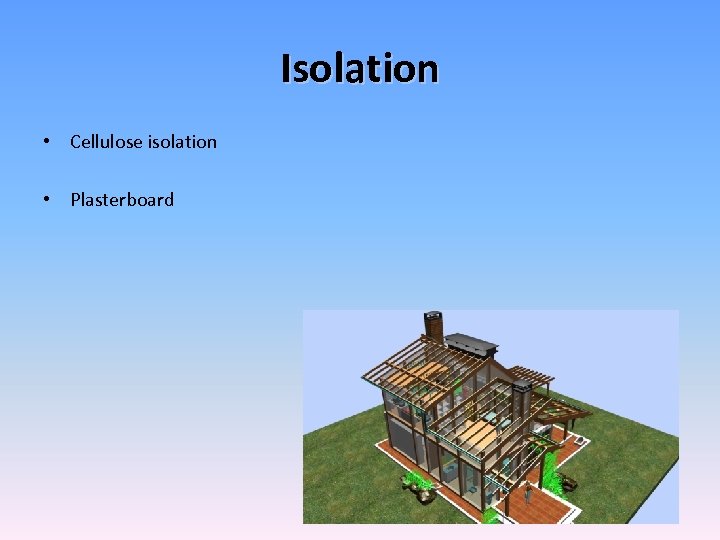

Isolation • Cellulose isolation • Plasterboard
Biological purification rainwater • This house is build on top of waterresounces. • They use the rainwahter for the yard and the greenhouses. • Zelf-cleaning of water

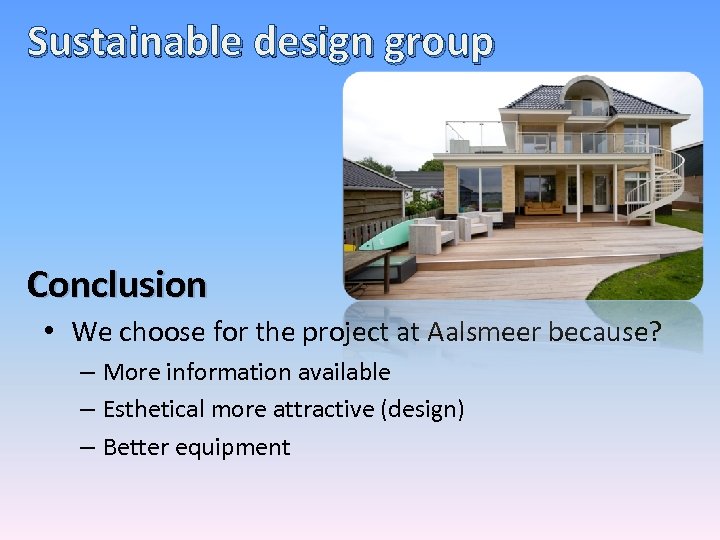

Sustainable design group Conclusion • We choose for the project at Aalsmeer because? – More information available – Esthetical more attractive (design) – Better equipment

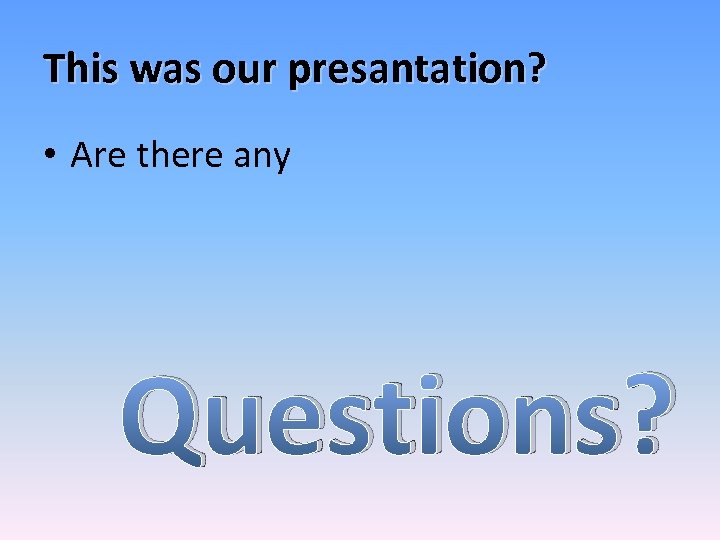

This was our presantation? • Are there any Questions?
