SUSTAINABLE AND GREEN BUILDING IN HILLSBOROUGH Hillsborough Building & Planning
What is a Green Building Program Green Building 101 Efficiency of buildings and responsible use of water and construction materials Reducing building impacts on human health and the environment Energy Conservation & Renewable Energy Resource Conservation Hillsborough Building & Planning

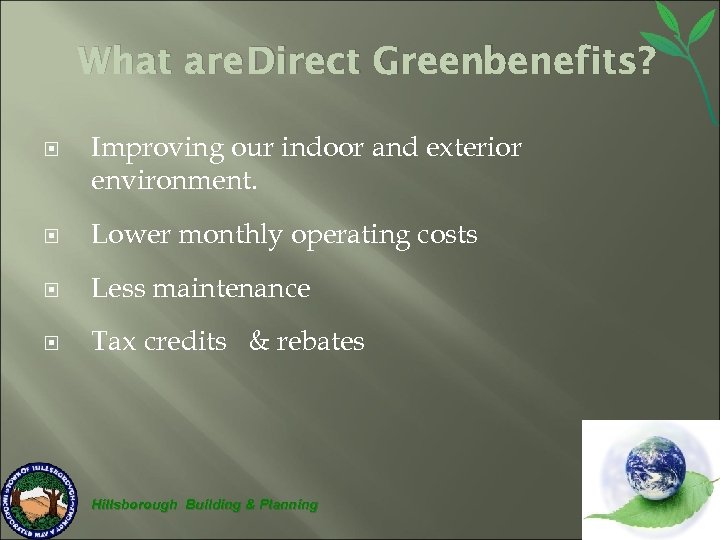

What are Direct Greenbenefits? Improving our indoor and exterior environment. Lower monthly operating costs Less maintenance Tax credits & rebates Hillsborough Building & Planning

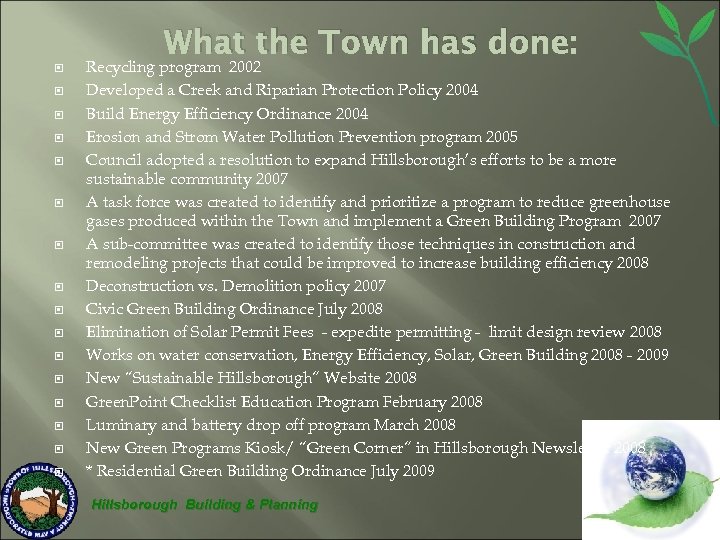

What the Town has done: Recycling program 2002 Developed a Creek and Riparian Protection Policy 2004 Build Energy Efficiency Ordinance 2004 Erosion and Strom Water Pollution Prevention program 2005 Council adopted a resolution to expand Hillsborough’s efforts to be a more sustainable community 2007 A task force was created to identify and prioritize a program to reduce greenhouse gases produced within the Town and implement a Green Building Program 2007 A sub-committee was created to identify those techniques in construction and remodeling projects that could be improved to increase building efficiency 2008 Deconstruction vs. Demolition policy 2007 Civic Green Building Ordinance July 2008 Elimination of Solar Permit Fees - expedite permitting - limit design review 2008 Works on water conservation, Energy Efficiency, Solar, Green Building 2008 - 2009 New “Sustainable Hillsborough” Website 2008 Green. Point Checklist Education Program February 2008 Luminary and battery drop off program March 2008 New Green Programs Kiosk/ “Green Corner” in Hillsborough Newsletter 2008 * Residential Green Building Ordinance July 2009 Hillsborough Building & Planning

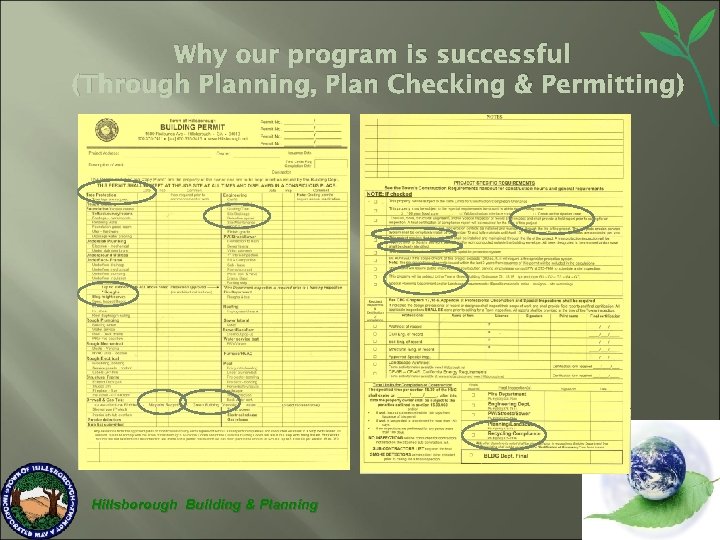

Why our program is successful (Through Planning, Plan Checking & Permitting) Hillsborough Building & Planning

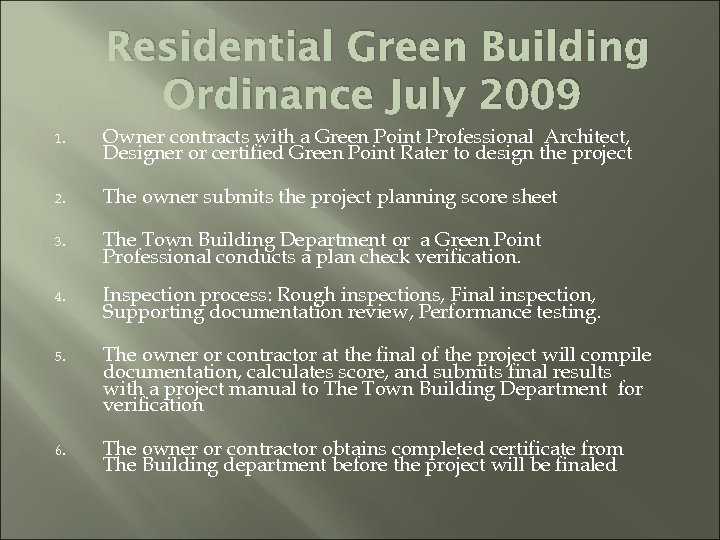

Residential Green Building Ordinance July 2009 1. Owner contracts with a Green Point Professional Architect, Designer or certified Green Point Rater to design the project 2. The owner submits the project planning score sheet 3. The Town Building Department or a Green Point Professional conducts a plan check verification. 4. Inspection process: Rough inspections, Final inspection, Supporting documentation review, Performance testing. 5. The owner or contractor at the final of the project will compile documentation, calculates score, and submits final results with a project manual to The Town Building Department for verification 6. The owner or contractor obtains completed certificate from The Building department before the project will be finaled
The required points Standards for Compliance Project Type Minimum Point Requirement Verification Documents Required New construction > Green Point 6, 0001 sf Checklist 75 points + 1 point per every additional 200 sf (150 points max) Green Point Summary Worksheet New construction up to 6, 000 sf Green Point Checklist 75 points Green Point Summary Worksheet Major remodels Green Point Checklist * 50 points Green Point Summary Worksheet G 4 Renovations/ Additions >4, 001 sf Green Point Checklist *40 points self verification G 5 Renovations/ Additions >2, 501 sf -4, 000 sf Green Point Checklist *20 points self verification Renovations/ Additions <2, 500 sf Green Point Checklist *10 points self verification Second Units Green Point Checklist 20 points Green Point Summary Worksheet G 1 G 2 G 3 G 6 G 7 Square footage Documents Required * Incentives for Compliance. • The number of Green Point checklist points required shall be reduced by: • 5 points for maintaining a minimum of 75% of existing walls, floors, and roof of a structure; • 5 points (in addition to (1) above) for maintaining a minimum of 95% of existing walls, floors, and roof of a structure; and/or Hillsborough Building & Planning

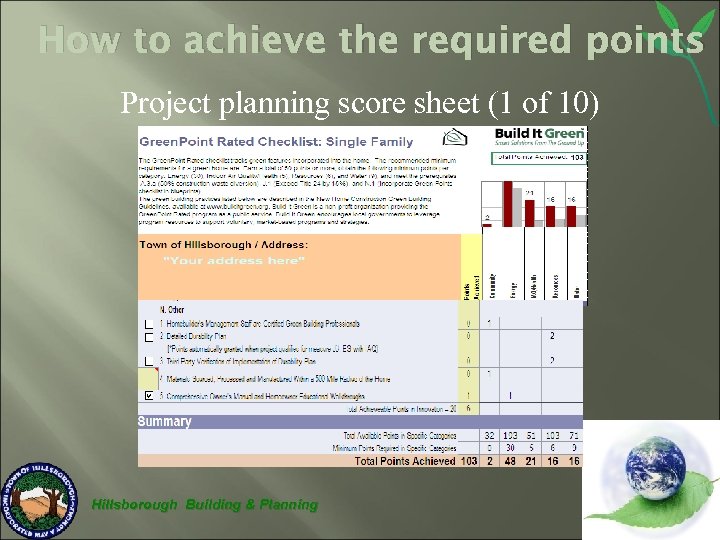

How to achieve the required points Project planning score sheet (1 of 10) Hillsborough Building & Planning

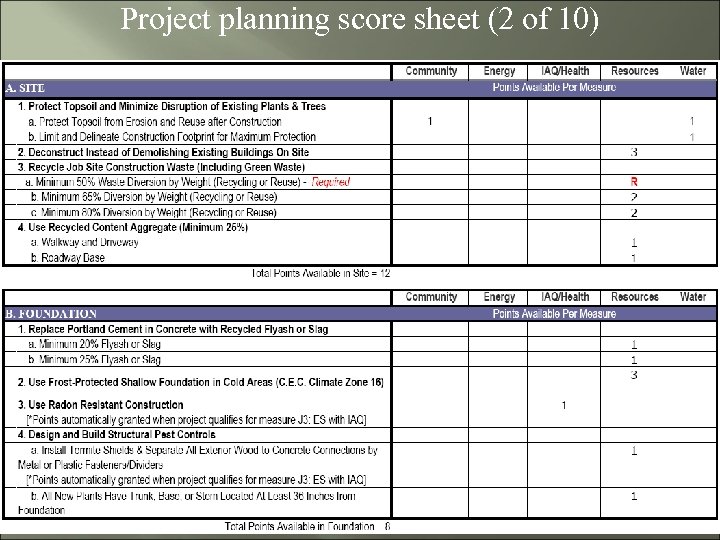

Project planning score sheet (2 of 10)

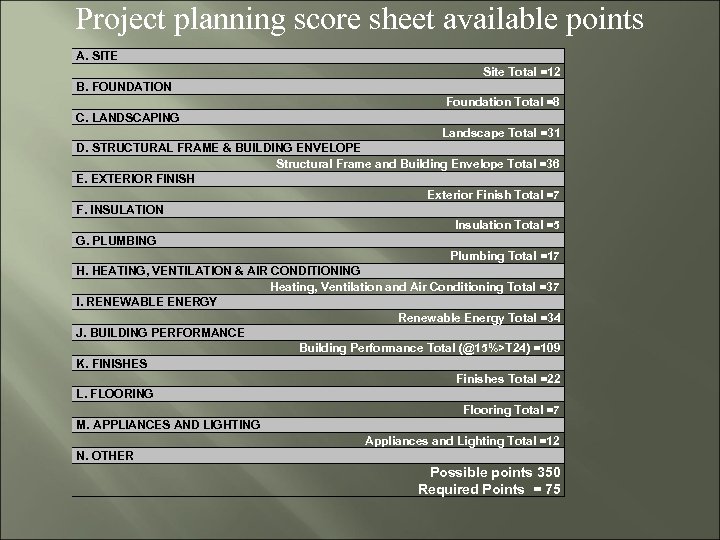

Project planning score sheet available points A. SITE Site Total =12 B. FOUNDATION Foundation Total =8 C. LANDSCAPING Landscape Total =31 D. STRUCTURAL FRAME & BUILDING ENVELOPE Structural Frame and Building Envelope Total =36 E. EXTERIOR FINISH Exterior Finish Total =7 F. INSULATION Insulation Total =5 G. PLUMBING Plumbing Total =17 H. HEATING, VENTILATION & AIR CONDITIONING Heating, Ventilation and Air Conditioning Total =37 I. RENEWABLE ENERGY Renewable Energy Total =34 J. BUILDING PERFORMANCE Building Performance Total (@15%>T 24) =109 K. FINISHES Finishes Total =22 L. FLOORING Flooring Total =7 M. APPLIANCES AND LIGHTING Appliances and Lighting Total =12 N. OTHER Possible points 350 Required Points = 75

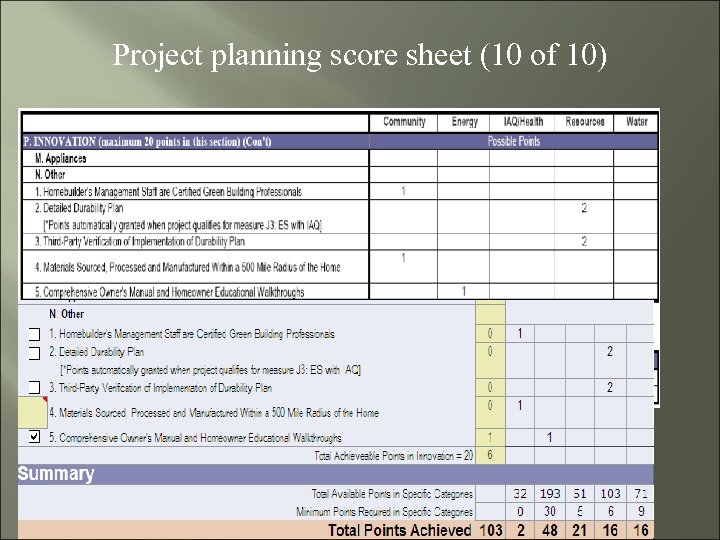

Project planning score sheet (10 of 10)

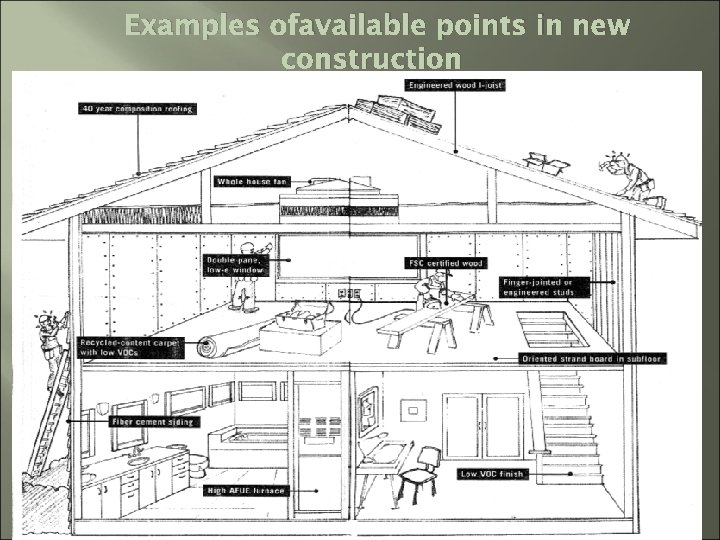

Examples ofavailable points in new construction

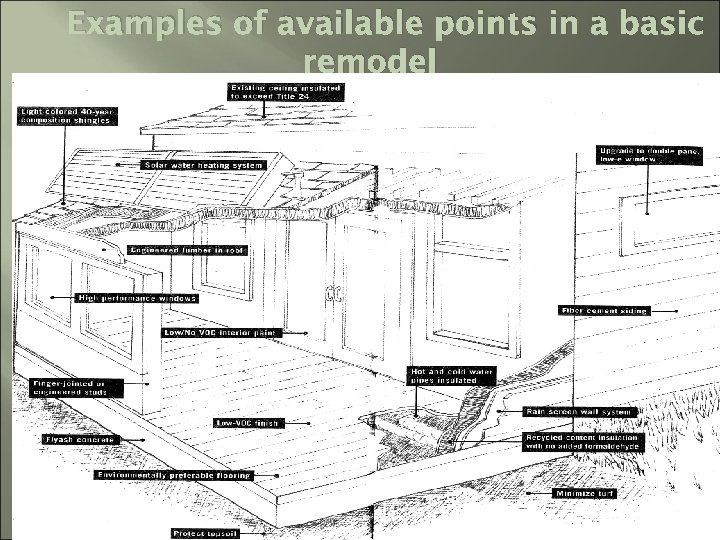

Examples of available points in a basic remodel

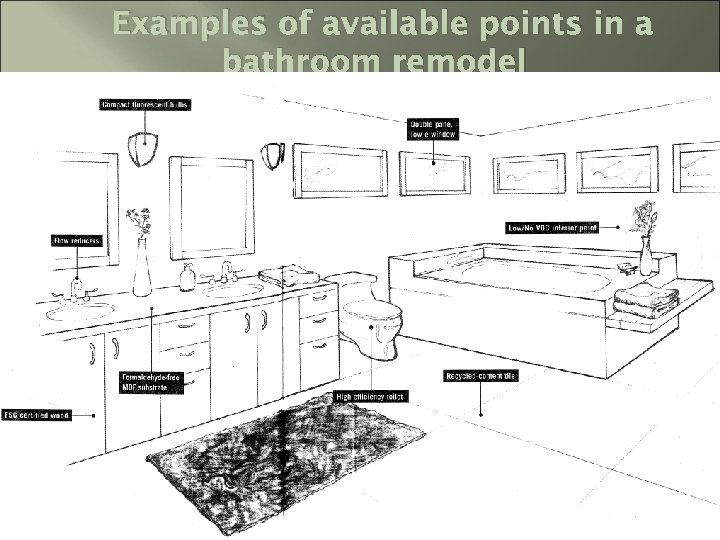

Examples of available points in a bathroom remodel
Examples of available points in a kitchen remodel

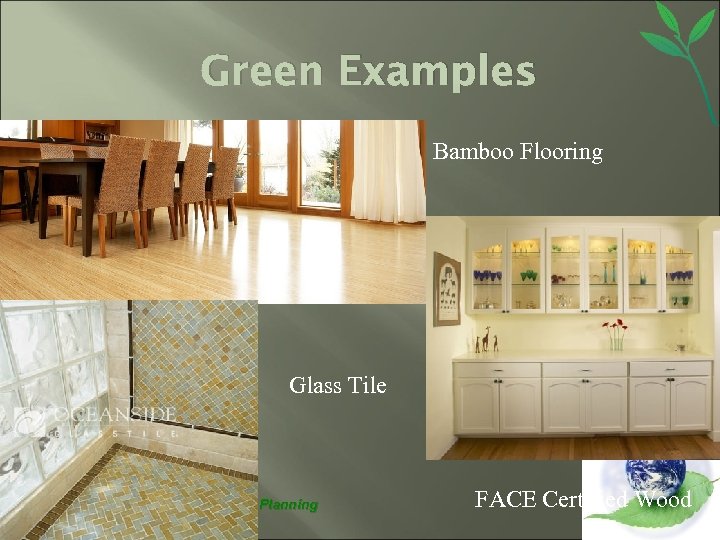

Green Examples Bamboo Flooring Glass Tile Hillsborough Building & Planning FACE Certified Wood
QUESTIONS AND ANSWERS Our goals can easily be met through education, better designs, better construction methods and the use of sustainable and improved building materials Hillsborough Building & Planning
