Supplier Collaboration Kent Kingston – Account Champion Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Siemens PLM Software

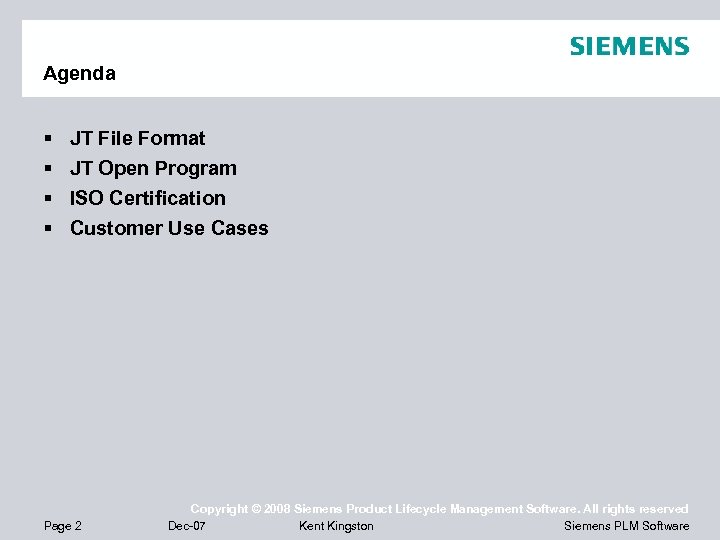

Agenda § § JT File Format JT Open Program ISO Certification Customer Use Cases Page 2 Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Dec-07 Kent Kingston Siemens PLM Software
Why JT • Lightweight for Hi-performance collaboration • Exact for 100% precision interrogation • CAD-neutral to enable multi-CAD environments • Architected for configured PLM workflows • Advanced graphic support for performance and realism • JT 2 Go for no-charge, downstream viewing JT is the common language for PLM Page 3 Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Dec-07 Kent Kingston Siemens PLM Software
Visualization Across All Industries 12 of Top 16 18 of top 20 15 of top § Automotive § Aerospace § High Tech. Electronics § Ship Building § Machinery § Mfg Facilities § Medical Devices Production Proven! Page 4 Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Dec-07 Kent Kingston Siemens PLM Software 4

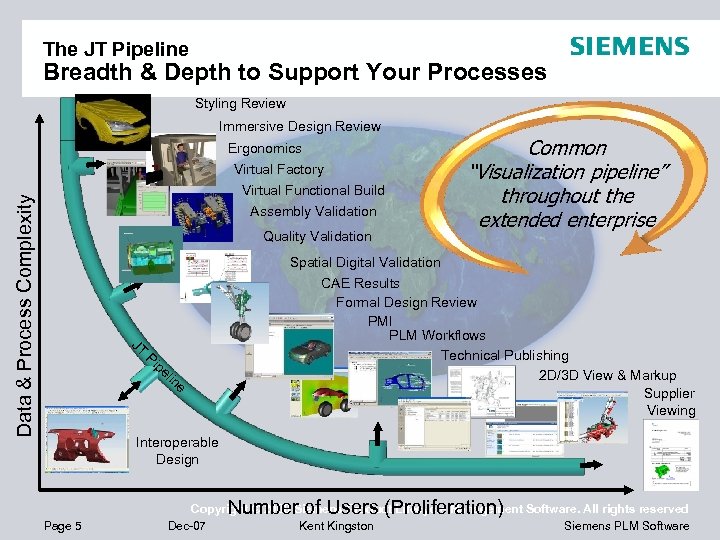

The JT Pipeline Breadth & Depth to Support Your Processes Styling Review Immersive Design Review Ergonomics Data & Process Complexity Virtual Factory Virtual Functional Build Assembly Validation Quality Validation JT Pi pe lin e Common “Visualization pipeline” throughout the extended enterprise Spatial Digital Validation CAE Results Formal Design Review PMI PLM Workflows Technical Publishing 2 D/3 D View & Markup Supplier Viewing Interoperable Design Number of Users (Proliferation) Page 5 Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Dec-07 Kent Kingston Siemens PLM Software
Teamcenter Visualization Products JT 2 Go Basic 3 D Measure Basic 3 D Section PMI Free download from www. jt 2 go. com Teamcenter Visualization Mockup Professional Publish Concept 3 D Coord. System Static Clearance 3 D Compare Dynamic Clearance Path Planning Standard 3 D Transform Filters 3 D Manipulator 3 D Alignment Adv. 3 D Measure Base Consolidated X Section Groups Clearance. DB 3 D Markup BREP Support Exploded View Export Attribute List PMI Viewing Full 2 D View & Markup Outline Capture Model Optimizer Snapshots VSA, Quality Advanced Printing CAE Results Viewing Mass Properties Report Layer Filter Conferencing Export JT, VRML Color Applicator Walk/Explore Mode Session Support Export PLM XML Animation Volume Clipping Attributes 2 D Measure Fly Mode Hide Obscuring Read VRML, STL, NX 2 D Layer Control Export Nastran, Alt. Hier. Movie Capture Analysis Basic 3 D Nav, Mea, Sec Advanced Measure Callout & Symbol Mgr Part Selection Product Structure Thrustline Editor 3 D Layer Control Tc Connectivity Stereo Viewing Jack Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Single Sign On 6 DOF Devices Dec-07 Page 6 Kent Kingston Siemens PLM Software
What is Ultra-Lightweight Precise? But First: What is JT? Master Design Definition § Design Intent § Feature Creation History § Intellectual Property Synchronized Collaboration § Common 3 D Language of PLM § Puts 3 D in the Hands of Non-CAD Users § Supports All Major CAD Systems § Ultra-Lightweight for internet CAD JT JT PMI Exact BREP Design Definition Auto. CAD Page 7 Attributes ULP Lightweight 1 Level Of 2 Details … (LODs) § Tolerance & Mfg data in 3 D collaboration context § Eliminate the need for most § Ultra-Precise 2 D § Keep Mfg in sync with Design use cases that don’t require “exact” geometry § As precise as. Visual Precision for § Infinite CAD – 100% exact § Enables exact measurements for technical illustrations making design decisions § Still Protects Intellectual Property § CAD Parameters and Attributes § PDM Metadata § Fast Load / Hi-performance § Extremely Large Assemblies § Reduced N/W Bandwidth for Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Collaboration Dec-07 Kent Kingston Siemens PLM Software 7

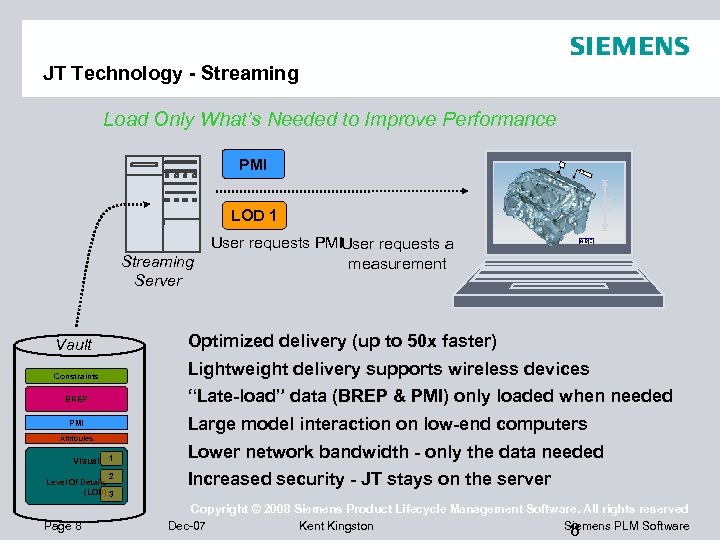

JT Technology - Streaming Load Only What’s Needed to Improve Performance BREP PMI 153 LOD 3 1 2 Streaming Server User requests PMIUser requests a measurement Vault Optimized delivery (up to 50 x faster) Constraints Lightweight delivery supports wireless devices “Late-load” data (BREP & PMI) only loaded when needed BREP Large model interaction on low-end computers PMI Attributes Visual 1 2 Level Of Details (LOD) 3 Page 8 Lower network bandwidth - only the data needed Increased security - JT stays on the server Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Dec-07 Kent Kingston Siemens PLM Software 8

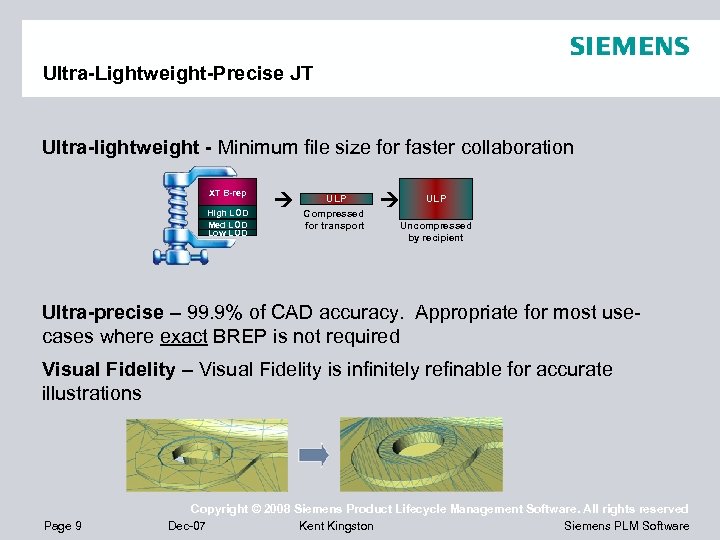

Ultra-Lightweight-Precise JT Ultra-lightweight - Minimum file size for faster collaboration XT B-rep High LOD Med LOD Low LOD ULP Compressed for transport ULP Uncompressed by recipient Ultra-precise – 99. 9% of CAD accuracy. Appropriate for most usecases where exact BREP is not required Visual Fidelity – Visual Fidelity is infinitely refinable for accurate illustrations Page 9 Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Dec-07 Kent Kingston Siemens PLM Software
Infinite Visual Precision JT with XT Brep, PMI 320 KB Ultra lightweight JT with PMI 32. 7 KB Infinite Visual 1/10 the size! Precision! Infinite Visual Precision! Precision Page 10 Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Dec-07 Kent Kingston Siemens PLM Software

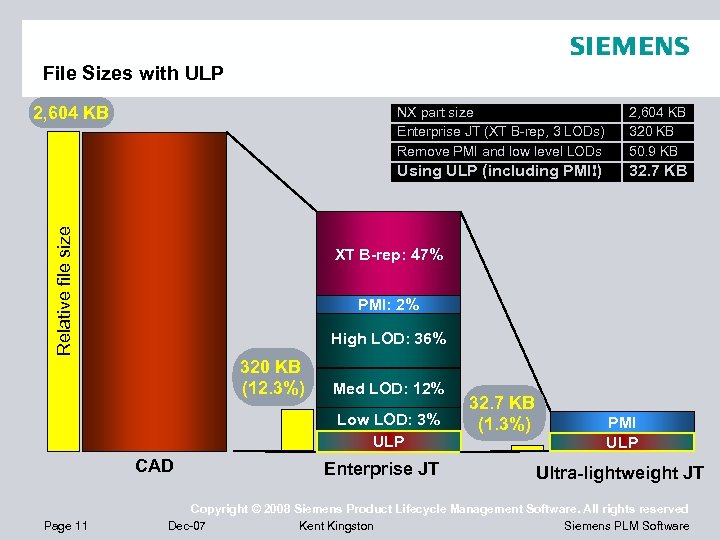

File Sizes with ULP 2, 604 KB 320 KB 50. 9 KB Using ULP (including PMI!) Relative file size NX part size Enterprise JT (XT B-rep, 3 LODs) Remove PMI and low level LODs 32. 7 KB XT B-rep: 47% PMI: 2% High LOD: 36% 320 KB (12. 3%) Med LOD: 12% Low LOD: 3% ULP CAD Page 11 Enterprise JT 32. 7 KB (1. 3%) PMI ULP Ultra-lightweight JT Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Dec-07 Kent Kingston Siemens PLM Software

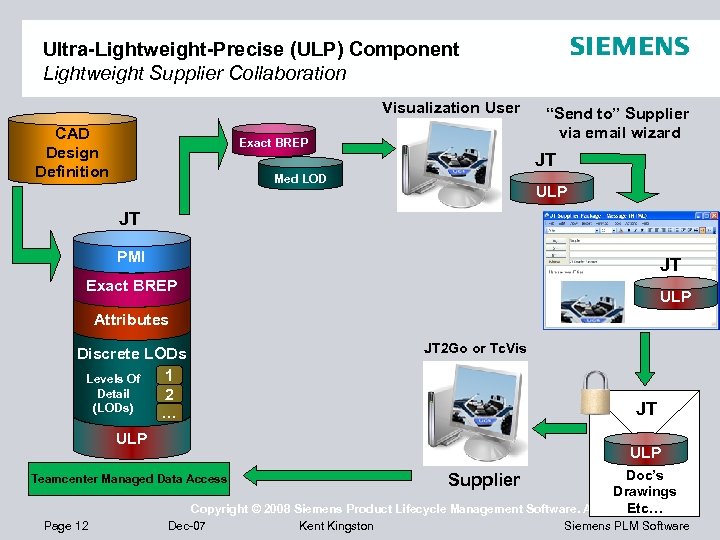

Ultra-Lightweight-Precise (ULP) Component Lightweight Supplier Collaboration Visualization User CAD Design Definition Exact BREP “Send to” Supplier via email wizard JT Med LOD ULP JT PMI JT Exact BREP ULP Attributes JT 2 Go or Tc. Vis Discrete LODs 1 Levels Of Detail 2 (LODs) … JT ULP Doc’s Drawings Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Etc… Supplier Teamcenter Managed Data Access Page 12 Dec-07 Kent Kingston Siemens PLM Software

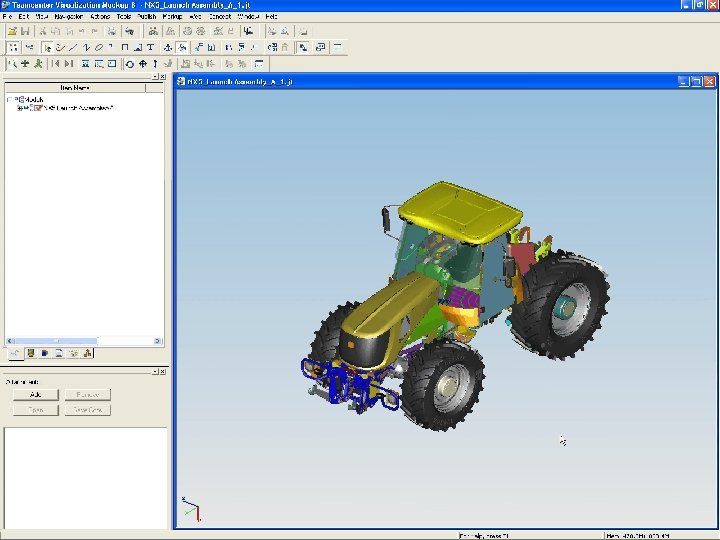

Page 13 Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Dec-07 Kent Kingston Siemens PLM Software

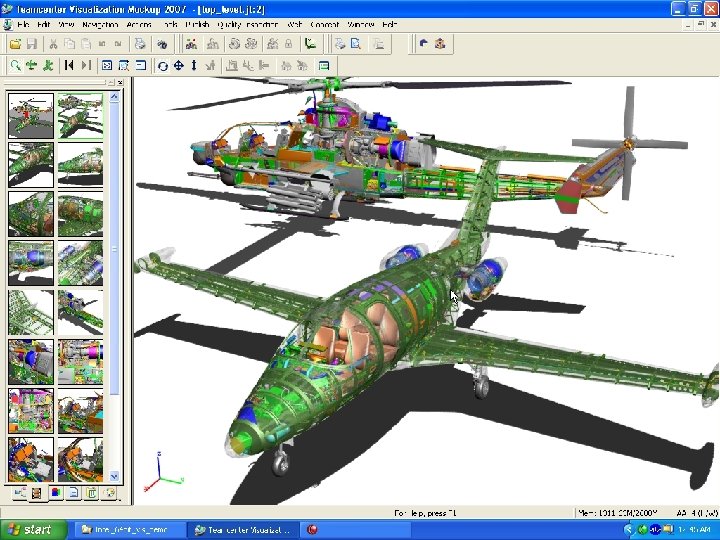

Page 14 Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Dec-07 Kent Kingston Siemens PLM Software

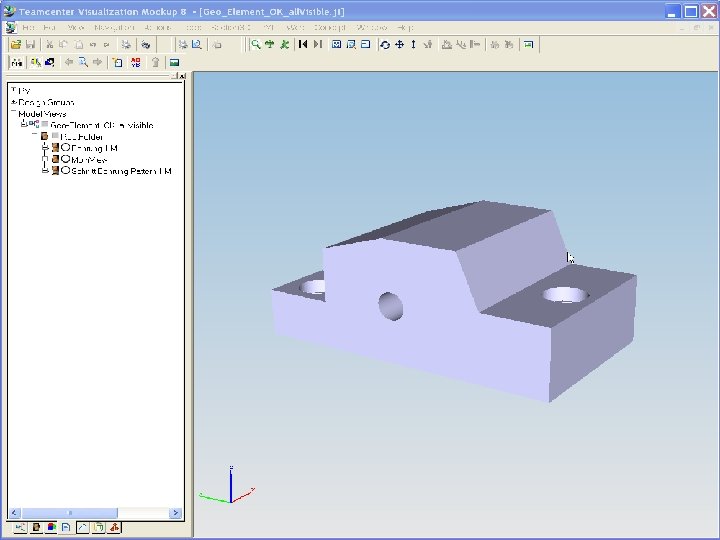

Page 15 Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Dec-07 Kent Kingston Siemens PLM Software
JT Open Program Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Siemens PLM Software

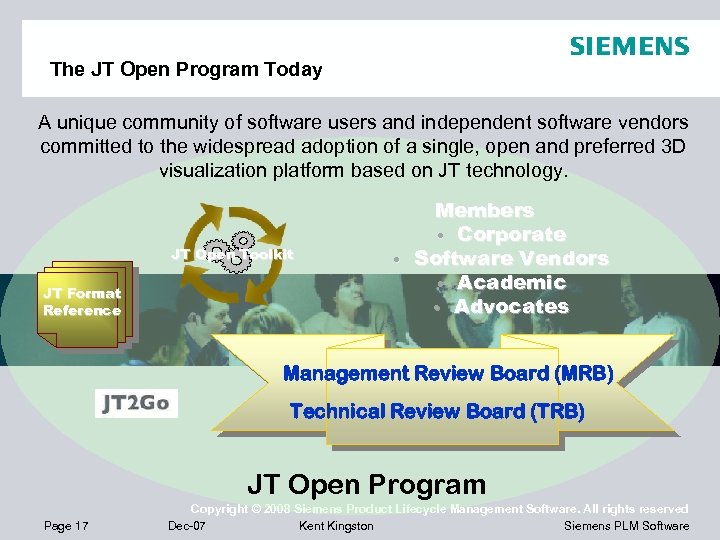

The JT Open Program Today A unique community of software users and independent software vendors committed to the widespread adoption of a single, open and preferred 3 D visualization platform based on JT technology. JT Open Toolkit JT Format Reference Members • Corporate • Software Vendors • Academic • Advocates Management Review Board (MRB) Technical Review Board (TRB) JT Open Program Page 17 Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Dec-07 Kent Kingston Siemens PLM Software
JT Open Program Members Corporate Members PATAC Caterpillar Procter & Gamble Chrysler Renault Daimler Robert Bosch Dana Rolls Royce DENSO IT Siemens Ford Suzuki Freightliner Speedshape General Motors Tata Motors Honda Academic Groups Nissan Bowers & Wilkins Corporate Members Boeing Visteon Mazda W. E. S. T Eng Magna International VW Audi Page 18 Academic Members Shanghai Jiatong Unv Villanova Unv of Michigan Unv of Texas, El Paso Purdue Heriot-Watt Unv Brigham Young Unv of Edinburgh Iowa State Unv of Ontario Unv of Tulsa Prarie View A&M Unv Northwestern Unv Darmstadt Unv Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Dec-07 Kent Kingston Siemens PLM Software

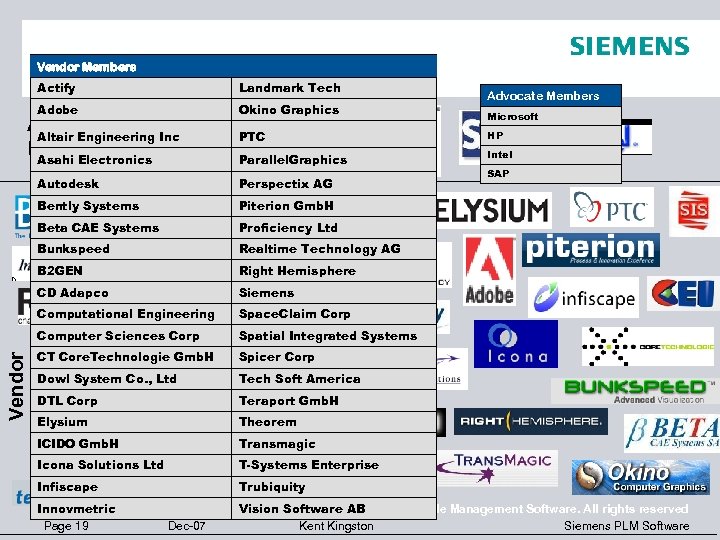

Vendor Members JT Open Program Members Actify Landmark Tech Adobe Okino Graphics Advocate Altair Engineering Inc Members Asahi Electronics Advocate Members Microsoft PTC HP Parallel. Graphics Intel Perspectix AG Bently Systems Beta CAE Systems Proficiency Ltd Bunkspeed Realtime Technology AG B 2 GEN Right Hemisphere CD Adapco Siemens Computational Engineering Space. Claim Corp Computer Sciences Corp Spatial Integrated Systems CT Core. Technologie Gmb. H Spicer Corp Dowl System Co. , Ltd Tech Soft America DTL Corp Teraport Gmb. H Elysium Theorem ICIDO Gmb. H Transmagic Icona Solutions Ltd T-Systems Enterprise Infiscape SAP Piterion Gmb. H Trubiquity Vendor Members Autodesk Innovmetric Page 19 Vision Software AB Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Dec-07 Kent Kingston Siemens PLM Software

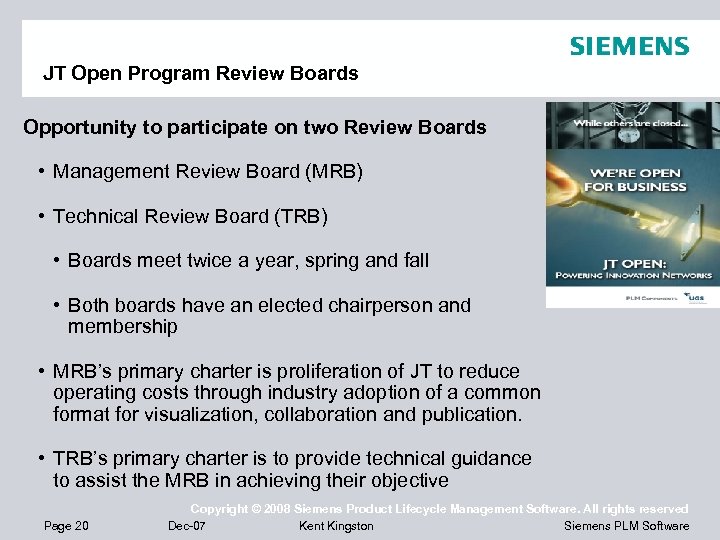

JT Open Program Review Boards Opportunity to participate on two Review Boards • Management Review Board (MRB) • Technical Review Board (TRB) • Boards meet twice a year, spring and fall • Both boards have an elected chairperson and membership • MRB’s primary charter is proliferation of JT to reduce operating costs through industry adoption of a common format for visualization, collaboration and publication. • TRB’s primary charter is to provide technical guidance to assist the MRB in achieving their objective Page 20 Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Dec-07 Kent Kingston Siemens PLM Software

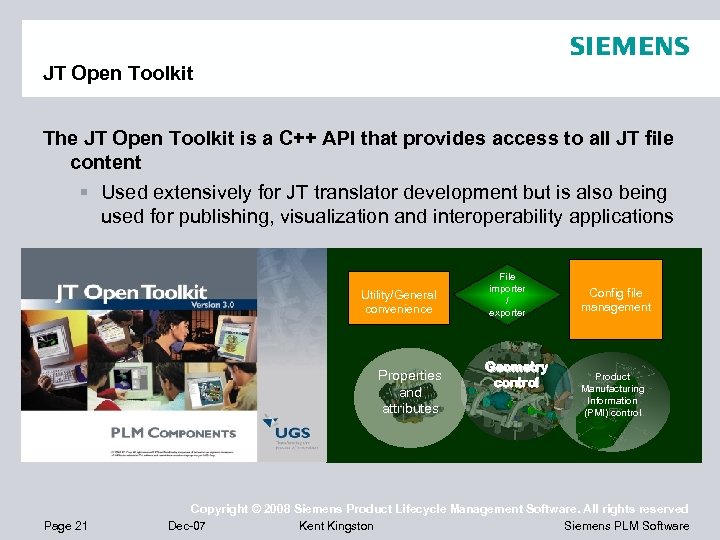

JT Open Toolkit The JT Open Toolkit is a C++ API that provides access to all JT file content § Used extensively for JT translator development but is also being used for publishing, visualization and interoperability applications Utility/General convenience Properties and attributes Page 21 File importer / exporter Geometry control Config file management Product Manufacturing Information (PMI) control Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Dec-07 Kent Kingston Siemens PLM Software

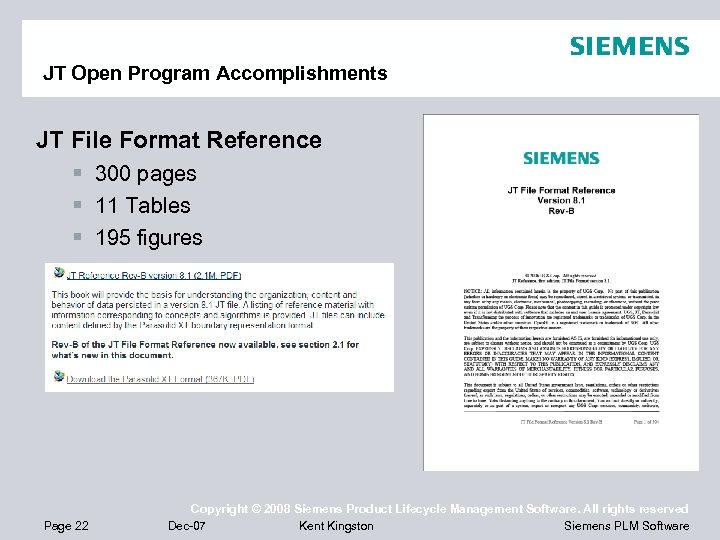

JT Open Program Accomplishments JT File Format Reference § 300 pages § 11 Tables § 195 figures Page 22 Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Dec-07 Kent Kingston Siemens PLM Software

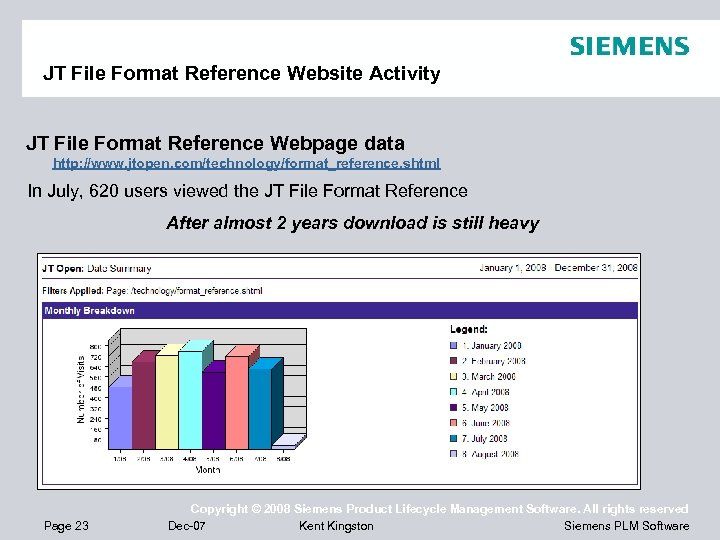

JT File Format Reference Website Activity JT File Format Reference Webpage data http: //www. jtopen. com/technology/format_reference. shtml In July, 620 users viewed the JT File Format Reference After almost 2 years download is still heavy Page 23 Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Dec-07 Kent Kingston Siemens PLM Software

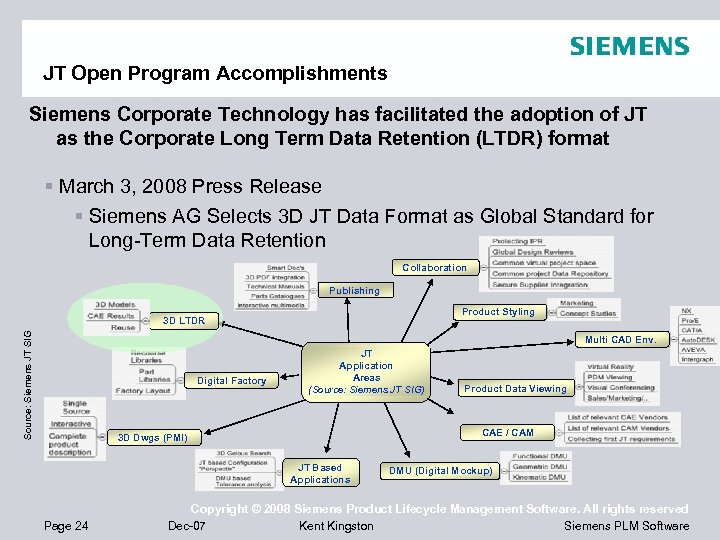

JT Open Program Accomplishments Siemens Corporate Technology has facilitated the adoption of JT as the Corporate Long Term Data Retention (LTDR) format § March 3, 2008 Press Release § Siemens AG Selects 3 D JT Data Format as Global Standard for Long-Term Data Retention Collaboration Publishing Product Styling Source: Siemens JT SIG 3 D LTDR Multi CAD Env. Digital Factory JT Application Areas (Source: Siemens JT SIG) CAE / CAM 3 D Dwgs (PMI) JT Based Applications Page 24 Product Data Viewing DMU (Digital Mockup) Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Dec-07 Kent Kingston Siemens PLM Software

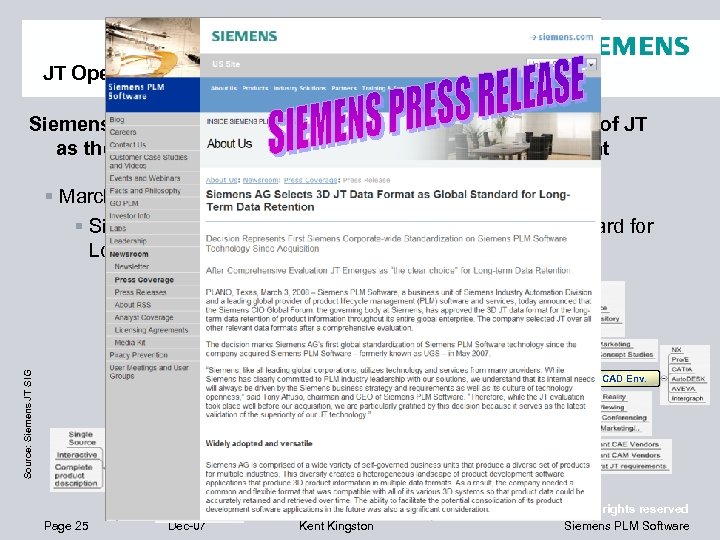

JT Open Program Accomplishments Siemens Corporate Technology has facilitated the adoption of JT as the Corporate Long Term Data Retention (LTDR) format § March 3, 2008 Press Release § Siemens AG Selects 3 D JT Data Format as Global Standard for Long-Term Data Retention Collaboration Source: Siemens JT SIG Publishing Product Styling Multi CAD Env. 3 D LTDR Digital Factory JT Application Areas (Source: Siemens JT SIG) CAE / CAM 3 D Dwgs (PMI) JT Based Copyright Applications © 2008 Siemens Page 25 Dec-07 Product Data Viewing DMU (Digital Mockup) Product Lifecycle Management Software. All rights reserved Kent Kingston Siemens PLM Software
JT For Supplier Collaboration JT data is being proposed as the single source of data exchanged for supplier collaboration in Multi CAD environments § Multi CAD workflows can make use of JT as reference data without converting to native CAD OEM 3 Offshore Global Supplier OEM 1 Page 26 OEM 2 Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Dec-07 Kent Kingston Siemens PLM Software

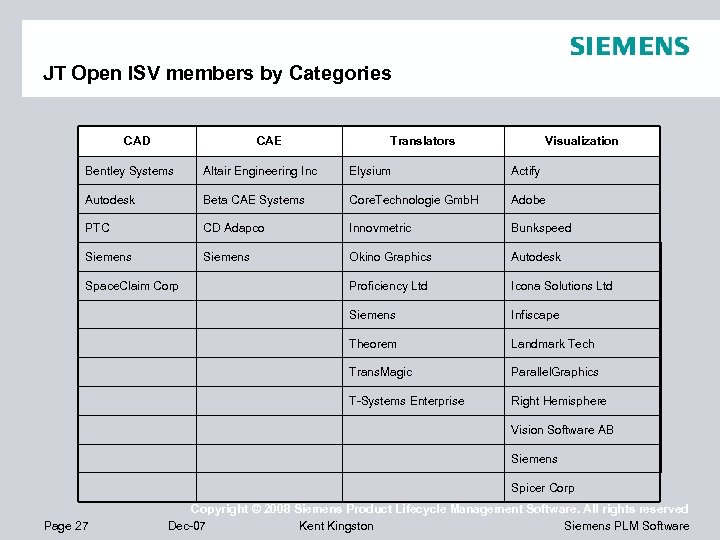

JT Open ISV members by Categories CAD CAE Translators Visualization Bentley Systems Altair Engineering Inc Elysium Actify Autodesk Beta CAE Systems Core. Technologie Gmb. H Adobe PTC CD Adapco Innovmetric Bunkspeed Siemens Okino Graphics Autodesk Proficiency Ltd Icona Solutions Ltd Siemens Infiscape Theorem Landmark Tech Trans. Magic Parallel. Graphics T-Systems Enterprise Right Hemisphere Space. Claim Corp Vision Software AB Siemens Spicer Corp Page 27 Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Dec-07 Kent Kingston Siemens PLM Software

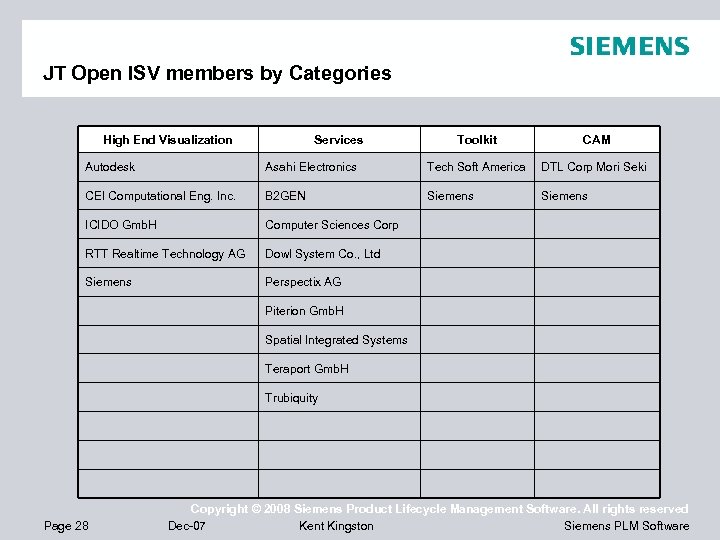

JT Open ISV members by Categories High End Visualization Services Toolkit CAM Autodesk Asahi Electronics Tech Soft America DTL Corp Mori Seki CEI Computational Eng. Inc. B 2 GEN Siemens ICIDO Gmb. H Computer Sciences Corp RTT Realtime Technology AG Dowl System Co. , Ltd Siemens Perspectix AG Piterion Gmb. H Spatial Integrated Systems Teraport Gmb. H Trubiquity Page 28 Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Dec-07 Kent Kingston Siemens PLM Software
ISO Certification Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Siemens PLM Software

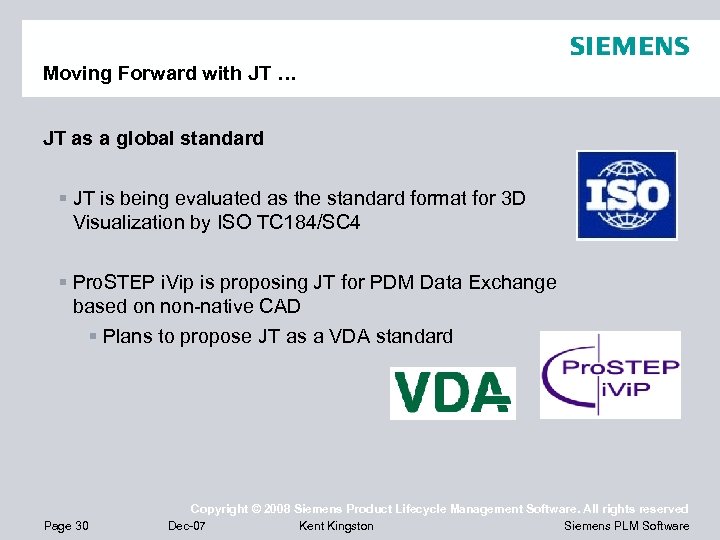

Moving Forward with JT … JT as a global standard § JT is being evaluated as the standard format for 3 D Visualization by ISO TC 184/SC 4 § Pro. STEP i. Vip is proposing JT for PDM Data Exchange based on non-native CAD § Plans to propose JT as a VDA standard Page 30 Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Dec-07 Kent Kingston Siemens PLM Software

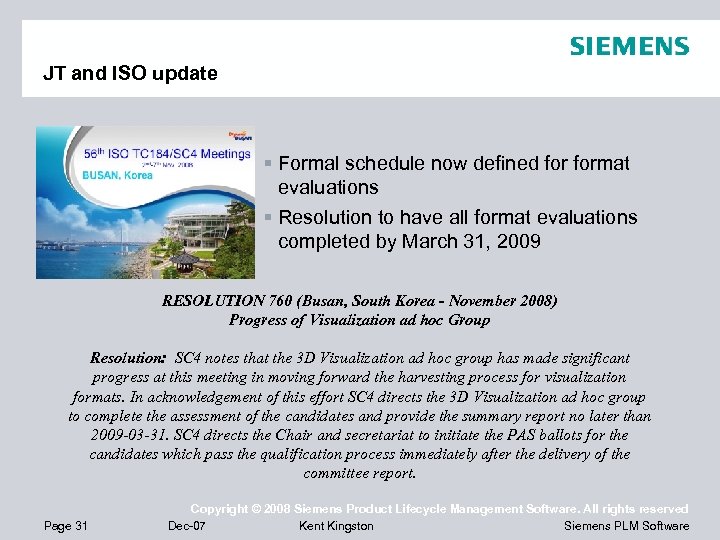

JT and ISO update § Formal schedule now defined format evaluations § Resolution to have all format evaluations completed by March 31, 2009 RESOLUTION 760 (Busan, South Korea - November 2008) Progress of Visualization ad hoc Group Resolution: SC 4 notes that the 3 D Visualization ad hoc group has made significant progress at this meeting in moving forward the harvesting process for visualization formats. In acknowledgement of this effort SC 4 directs the 3 D Visualization ad hoc group to complete the assessment of the candidates and provide the summary report no later than 2009 -03 -31. SC 4 directs the Chair and secretariat to initiate the PAS ballots for the candidates which pass the qualification process immediately after the delivery of the committee report. Page 31 Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Dec-07 Kent Kingston Siemens PLM Software

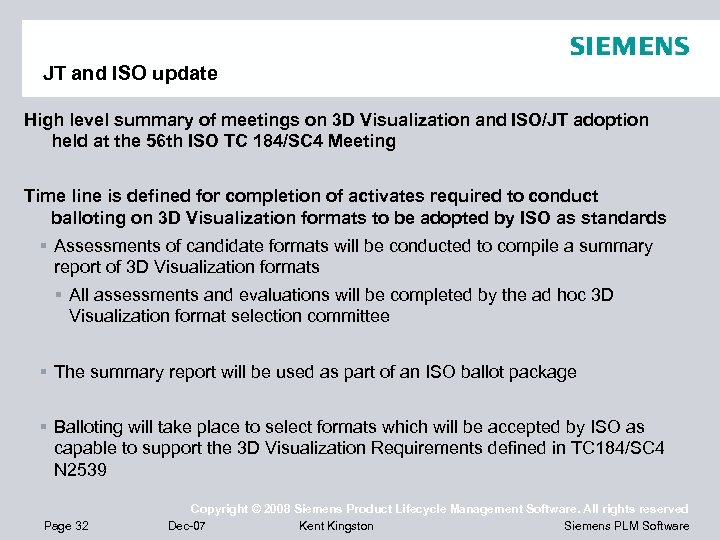

JT and ISO update High level summary of meetings on 3 D Visualization and ISO/JT adoption held at the 56 th ISO TC 184/SC 4 Meeting Time line is defined for completion of activates required to conduct balloting on 3 D Visualization formats to be adopted by ISO as standards § Assessments of candidate formats will be conducted to compile a summary report of 3 D Visualization formats § All assessments and evaluations will be completed by the ad hoc 3 D Visualization format selection committee § The summary report will be used as part of an ISO ballot package § Balloting will take place to select formats which will be accepted by ISO as capable to support the 3 D Visualization Requirements defined in TC 184/SC 4 N 2539 Page 32 Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Dec-07 Kent Kingston Siemens PLM Software

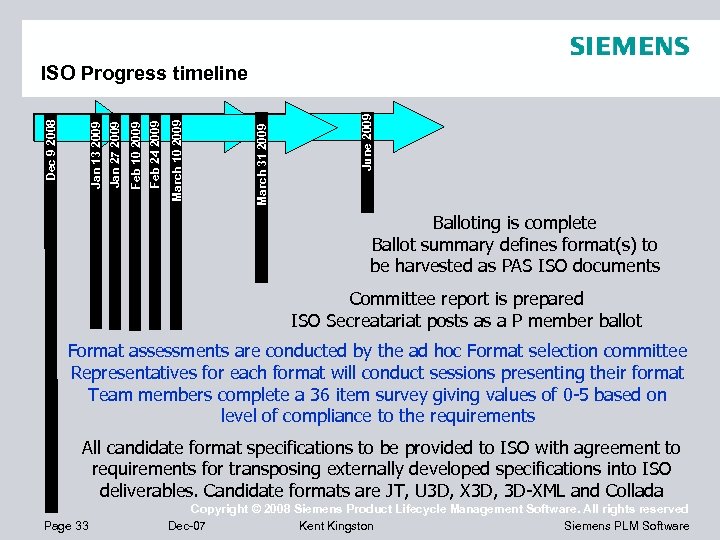

June 2009 March 31 2009 March 10 2009 Feb 24 2009 Feb 10 2009 Jan 27 2009 Jan 13 2009 Dec 9 2008 ISO Progress timeline Balloting is complete Ballot summary defines format(s) to be harvested as PAS ISO documents Committee report is prepared ISO Secreatariat posts as a P member ballot Format assessments are conducted by the ad hoc Format selection committee Representatives for each format will conduct sessions presenting their format Team members complete a 36 item survey giving values of 0 -5 based on level of compliance to the requirements All candidate format specifications to be provided to ISO with agreement to requirements for transposing externally developed specifications into ISO deliverables. Candidate formats are JT, U 3 D, X 3 D, 3 D-XML and Collada Page 33 Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Dec-07 Kent Kingston Siemens PLM Software

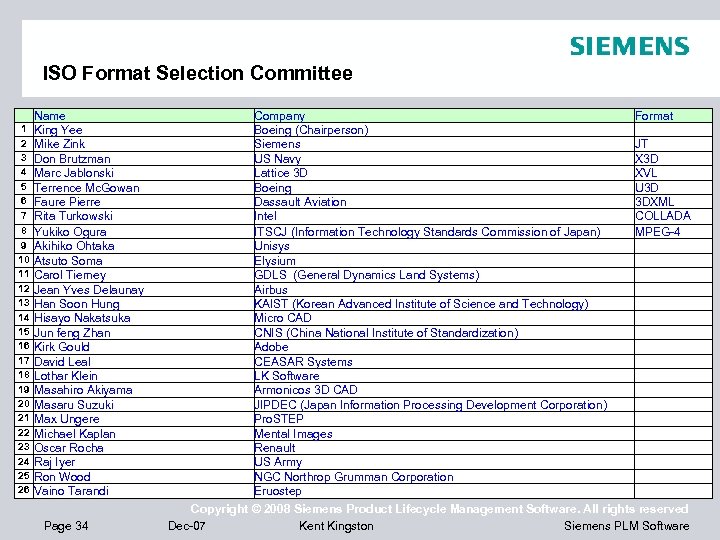

ISO Format Selection Committee 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 Name King Yee Mike Zink Don Brutzman Marc Jablonski Terrence Mc. Gowan Faure Pierre Rita Turkowski Yukiko Ogura Akihiko Ohtaka Atsuto Soma Carol Tierney Jean Yves Delaunay Han Soon Hung Hisayo Nakatsuka Jun feng Zhan Kirk Gould David Leal Lothar Klein Masahiro Akiyama Masaru Suzuki Max Ungere Michael Kaplan Oscar Rocha Raj Iyer Ron Wood Vaino Tarandi Page 34 Company Format Boeing (Chairperson) Siemens JT US Navy X 3 D Lattice 3 D XVL Boeing U 3 D Dassault Aviation 3 DXML Intel COLLADA ITSCJ (Information Technology Standards Commission of Japan) MPEG-4 Unisys Elysium GDLS (General Dynamics Land Systems) Airbus KAIST (Korean Advanced Institute of Science and Technology) Micro CAD CNIS (China National Institute of Standardization) Adobe CEASAR Systems LK Software Armonicos 3 D CAD JIPDEC (Japan Information Processing Development Corporation) Pro. STEP Mental Images Renault US Army NGC Northrop Grumman Corporation Eruostep Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Dec-07 Kent Kingston Siemens PLM Software
Customer Use Cases Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Siemens PLM Software

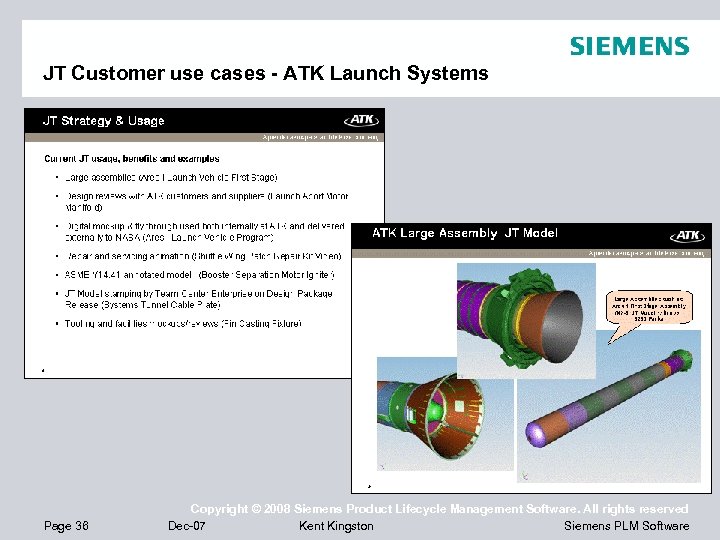

JT Customer use cases - ATK Launch Systems Page 36 Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Dec-07 Kent Kingston Siemens PLM Software
JT in Industry Automotive –Daimler § JT data is stored in the EDM system Smaragd which is accessible for all use cases Page 37 Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Dec-07 Kent Kingston Siemens PLM Software

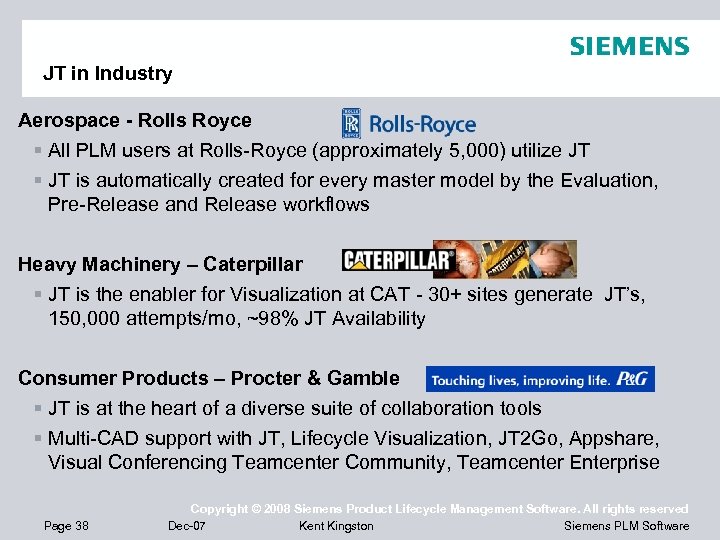

JT in Industry Aerospace - Rolls Royce § All PLM users at Rolls-Royce (approximately 5, 000) utilize JT § JT is automatically created for every master model by the Evaluation, Pre-Release and Release workflows Heavy Machinery – Caterpillar § JT is the enabler for Visualization at CAT - 30+ sites generate JT’s, 150, 000 attempts/mo, ~98% JT Availability Consumer Products – Procter & Gamble § JT is at the heart of a diverse suite of collaboration tools § Multi-CAD support with JT, Lifecycle Visualization, JT 2 Go, Appshare, Visual Conferencing Teamcenter Community, Teamcenter Enterprise Page 38 Copyright © 2008 Siemens Product Lifecycle Management Software. All rights reserved Dec-07 Kent Kingston Siemens PLM Software
