Sun Gard Treasury 2003 User Conference Jon Hunolt

Sun. Gard Treasury 2003 User Conference Jon Hunolt Director, Technical Services www. treasury. sungard. com

Citrix and the Treasury Environment Jon Hunolt Director, Technical Services www. treasury. sungard. com

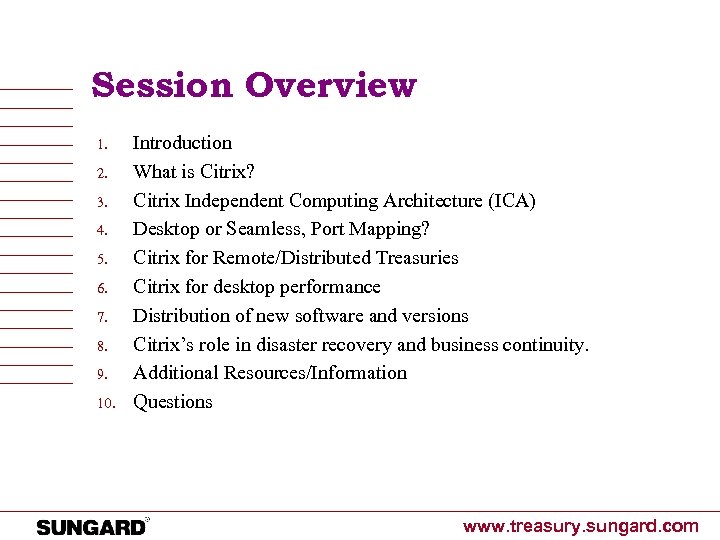

Session Overview 1. 2. 3. 4. 5. 6. 7. 8. 9. 10. Introduction What is Citrix? Citrix Independent Computing Architecture (ICA) Desktop or Seamless, Port Mapping? Citrix for Remote/Distributed Treasuries Citrix for desktop performance Distribution of new software and versions Citrix’s role in disaster recovery and business continuity. Additional Resources/Information Questions www. treasury. sungard. com

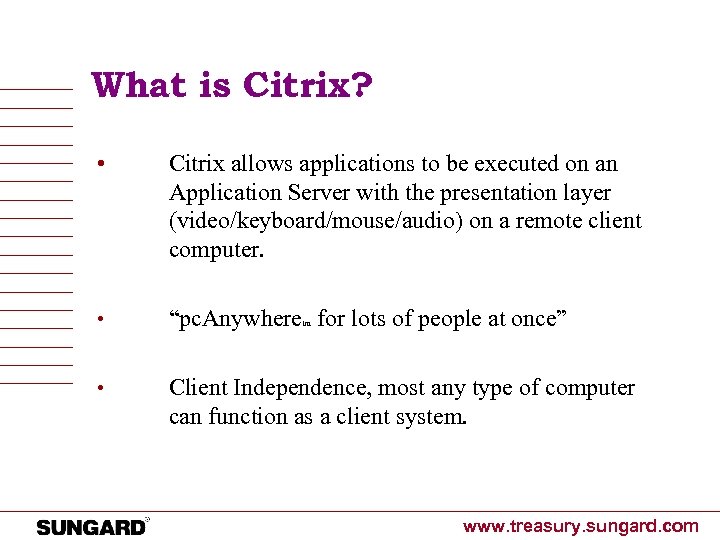

What is Citrix? • Citrix allows applications to be executed on an Application Server with the presentation layer (video/keyboard/mouse/audio) on a remote client computer. • “pc. Anywhere for lots of people at once” • Client Independence, most any type of computer can function as a client system. tm www. treasury. sungard. com

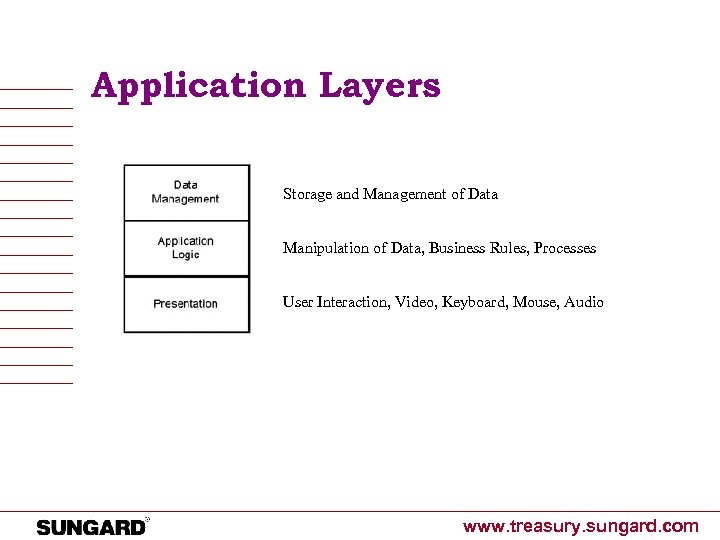

Application Layers Storage and Management of Data Manipulation of Data, Business Rules, Processes User Interaction, Video, Keyboard, Mouse, Audio www. treasury. sungard. com

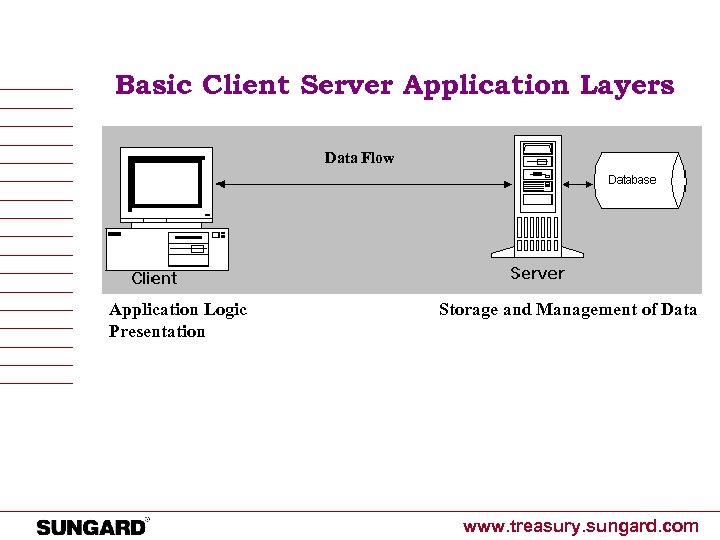

Basic Client Server Application Layers Data Flow Application Logic Presentation Storage and Management of Data www. treasury. sungard. com

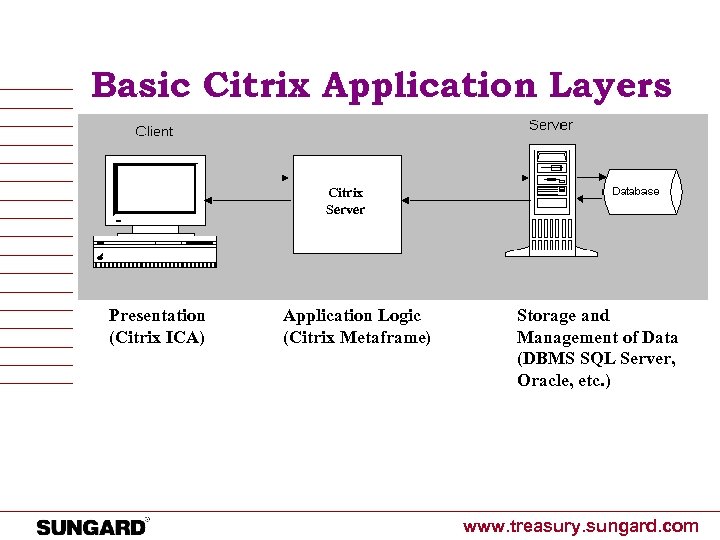

Basic Citrix Application Layers Citrix Server Presentation (Citrix ICA) Application Logic (Citrix Metaframe) Storage and Management of Data (DBMS SQL Server, Oracle, etc. ) www. treasury. sungard. com

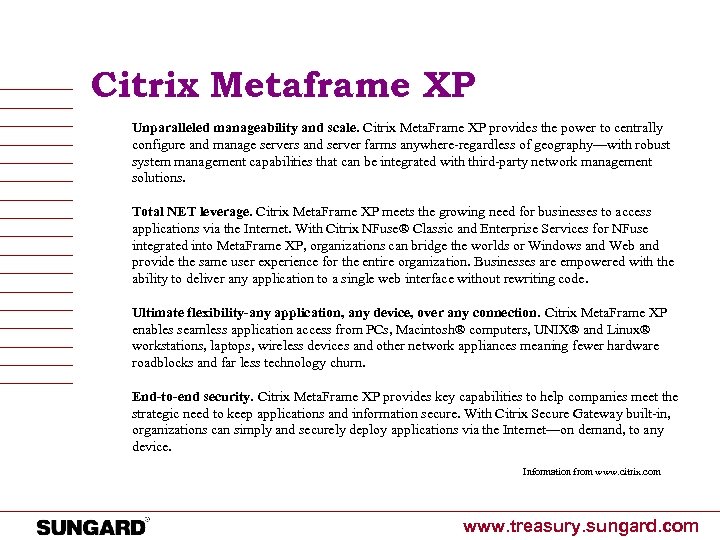

Citrix Metaframe XP Unparalleled manageability and scale. Citrix Meta. Frame XP provides the power to centrally configure and manage servers and server farms anywhere-regardless of geography—with robust system management capabilities that can be integrated with third-party network management solutions. Total NET leverage. Citrix Meta. Frame XP meets the growing need for businesses to access applications via the Internet. With Citrix NFuse® Classic and Enterprise Services for NFuse integrated into Meta. Frame XP, organizations can bridge the worlds or Windows and Web and provide the same user experience for the entire organization. Businesses are empowered with the ability to deliver any application to a single web interface without rewriting code. Ultimate flexibility-any application, any device, over any connection. Citrix Meta. Frame XP enables seamless application access from PCs, Macintosh® computers, UNIX® and Linux® workstations, laptops, wireless devices and other network appliances meaning fewer hardware roadblocks and far less technology churn. End-to-end security. Citrix Meta. Frame XP provides key capabilities to help companies meet the strategic need to keep applications and information secure. With Citrix Secure Gateway built-in, organizations can simply and securely deploy applications via the Internet—on demand, to any device. Information from www. citrix. com www. treasury. sungard. com

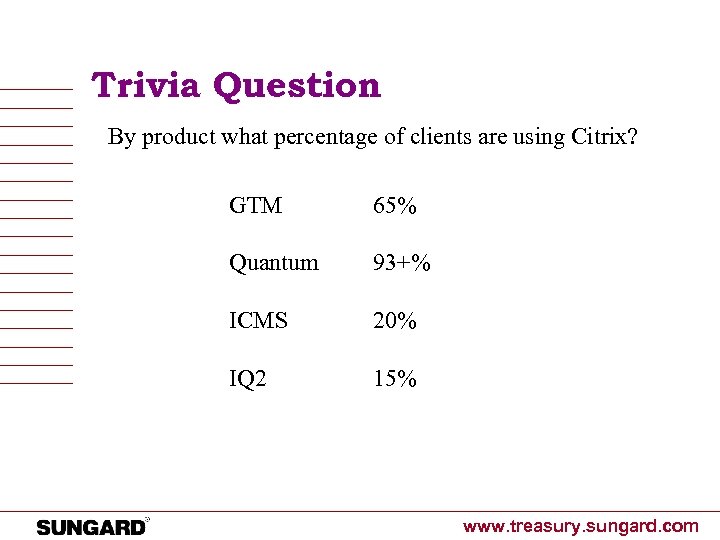

Trivia Question By product what percentage of clients are using Citrix? GTM 65% Quantum 93+% ICMS 20% IQ 2 15% www. treasury. sungard. com

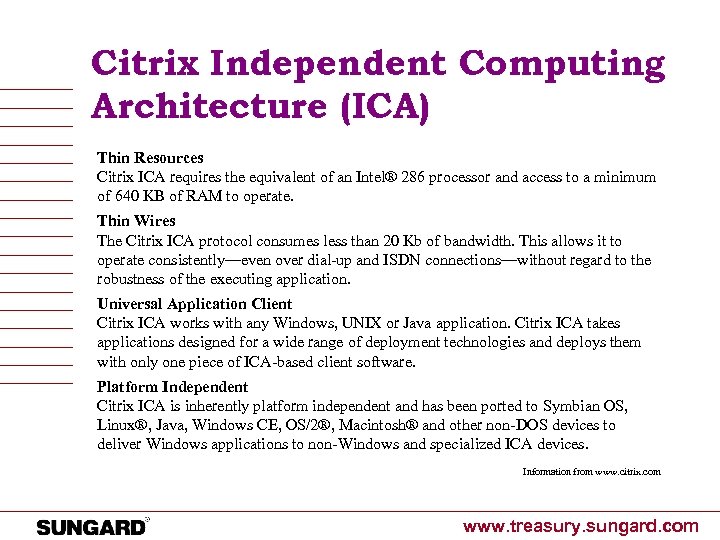

Citrix Independent Computing Architecture (ICA) Thin Resources Citrix ICA requires the equivalent of an Intel® 286 processor and access to a minimum of 640 KB of RAM to operate. Thin Wires The Citrix ICA protocol consumes less than 20 Kb of bandwidth. This allows it to operate consistently—even over dial-up and ISDN connections—without regard to the robustness of the executing application. Universal Application Client Citrix ICA works with any Windows, UNIX or Java application. Citrix ICA takes applications designed for a wide range of deployment technologies and deploys them with only one piece of ICA-based client software. Platform Independent Citrix ICA is inherently platform independent and has been ported to Symbian OS, Linux®, Java, Windows CE, OS/2®, Macintosh® and other non-DOS devices to deliver Windows applications to non-Windows and specialized ICA devices. Information from www. citrix. com www. treasury. sungard. com

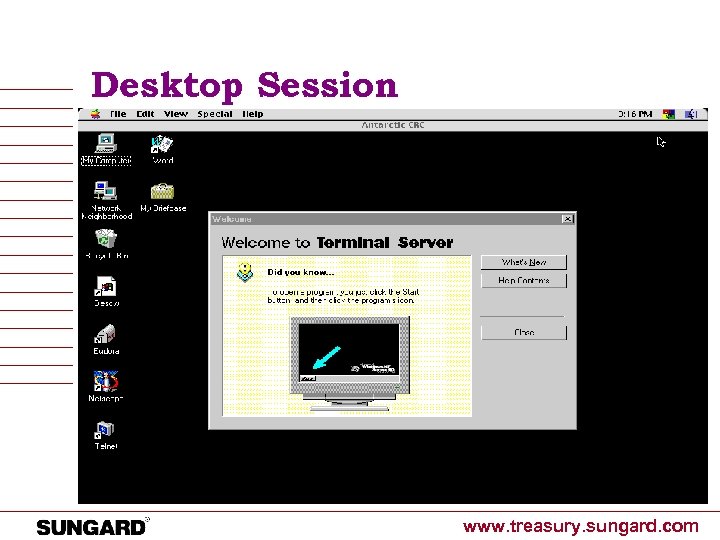

Desktop Session www. treasury. sungard. com

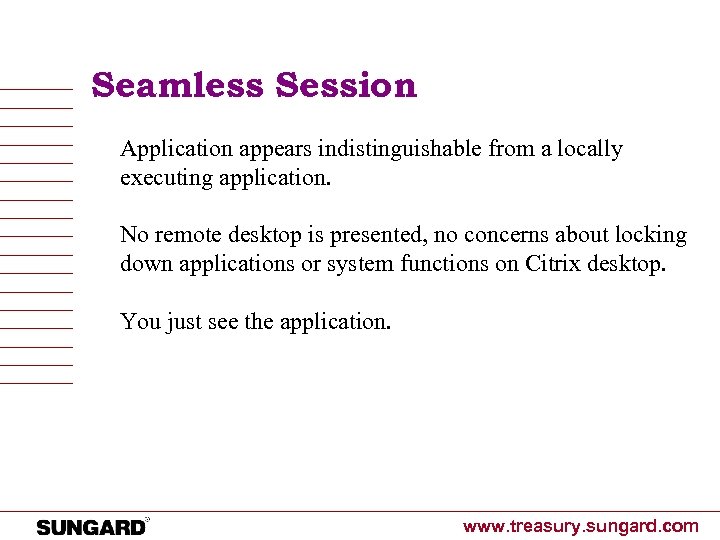

Seamless Session Application appears indistinguishable from a locally executing application. No remote desktop is presented, no concerns about locking down applications or system functions on Citrix desktop. You just see the application. www. treasury. sungard. com

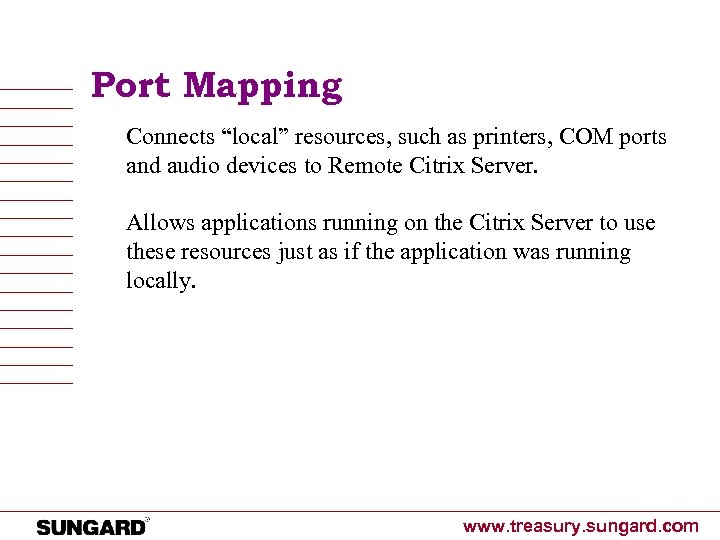

Port Mapping Connects “local” resources, such as printers, COM ports and audio devices to Remote Citrix Server. Allows applications running on the Citrix Server to use these resources just as if the application was running locally. www. treasury. sungard. com

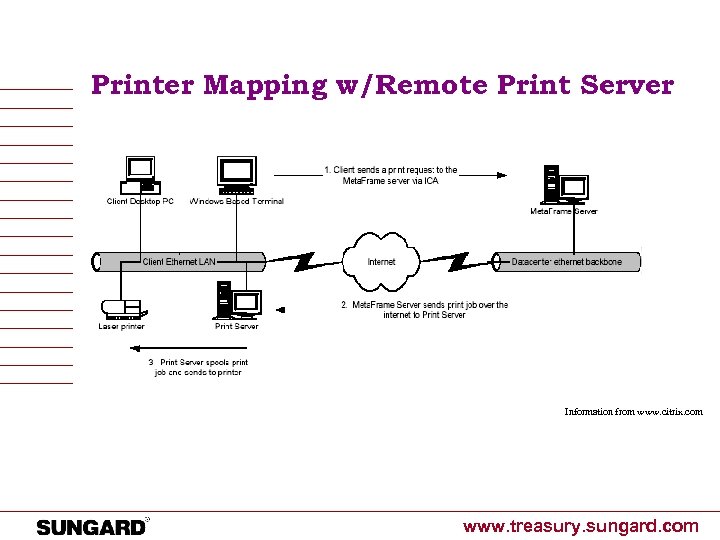

Printer Mapping w/Remote Print Server Information from www. citrix. com www. treasury. sungard. com

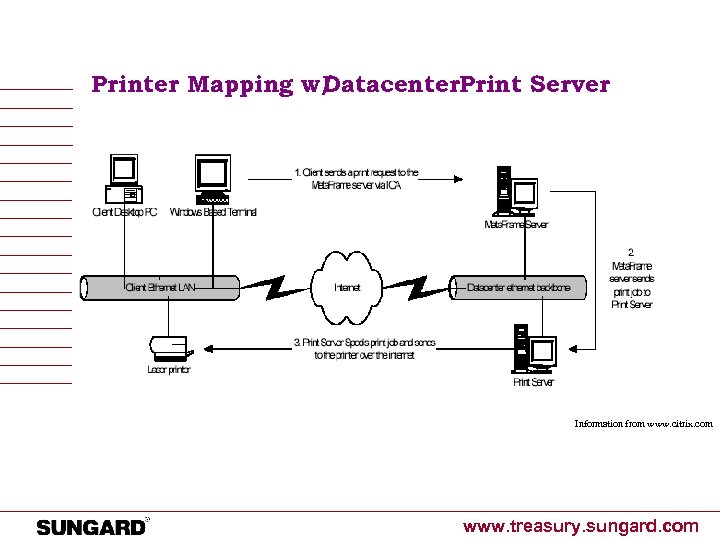

Printer Mapping w/ atacenter. Print Server D Information from www. citrix. com www. treasury. sungard. com

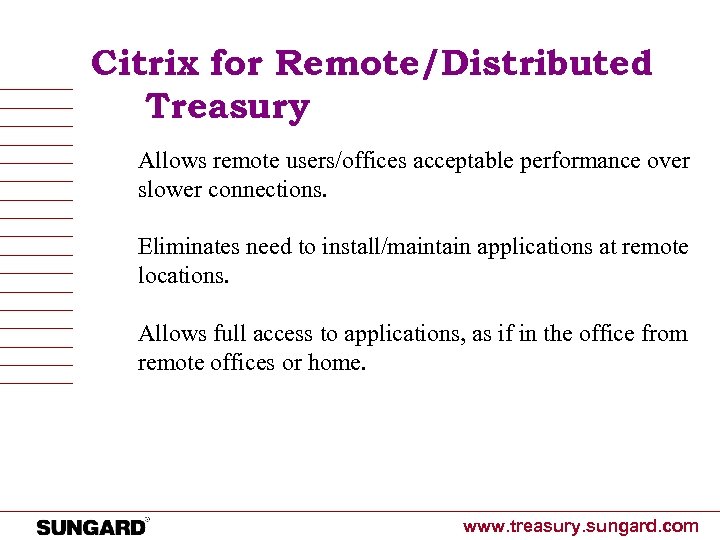

Citrix for Remote/Distributed Treasury Allows remote users/offices acceptable performance over slower connections. Eliminates need to install/maintain applications at remote locations. Allows full access to applications, as if in the office from remote offices or home. www. treasury. sungard. com

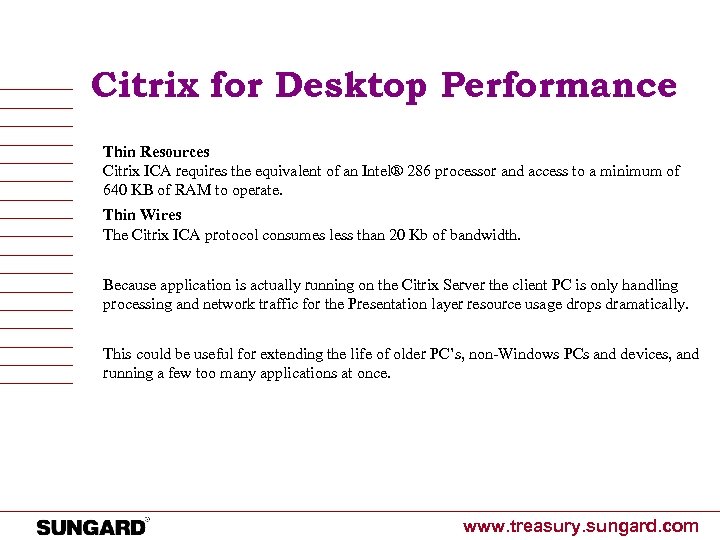

Citrix for Desktop Performance Thin Resources Citrix ICA requires the equivalent of an Intel® 286 processor and access to a minimum of 640 KB of RAM to operate. Thin Wires The Citrix ICA protocol consumes less than 20 Kb of bandwidth. Because application is actually running on the Citrix Server the client PC is only handling processing and network traffic for the Presentation layer resource usage drops dramatically. This could be useful for extending the life of older PC’s, non-Windows PCs and devices, and running a few too many applications at once. www. treasury. sungard. com

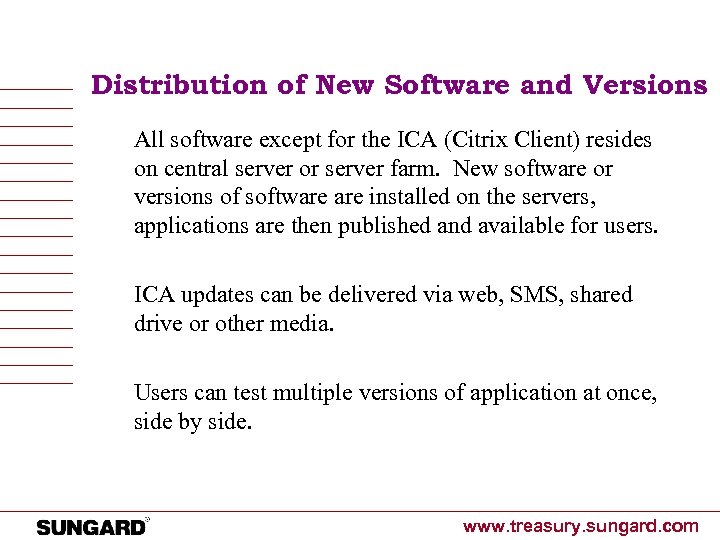

Distribution of New Software and Versions All software except for the ICA (Citrix Client) resides on central server or server farm. New software or versions of software installed on the servers, applications are then published and available for users. ICA updates can be delivered via web, SMS, shared drive or other media. Users can test multiple versions of application at once, side by side. www. treasury. sungard. com

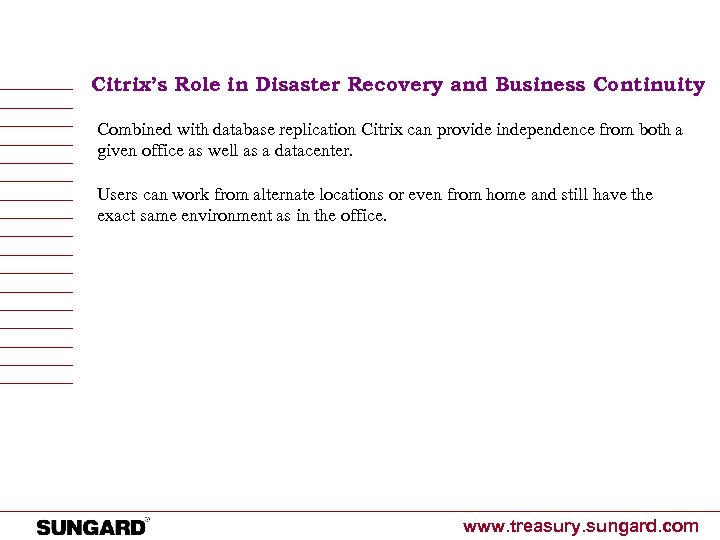

Citrix’s Role in Disaster Recovery and Business Continuity Combined with database replication Citrix can provide independence from both a given office as well as a datacenter. Users can work from alternate locations or even from home and still have the exact same environment as in the office. www. treasury. sungard. com

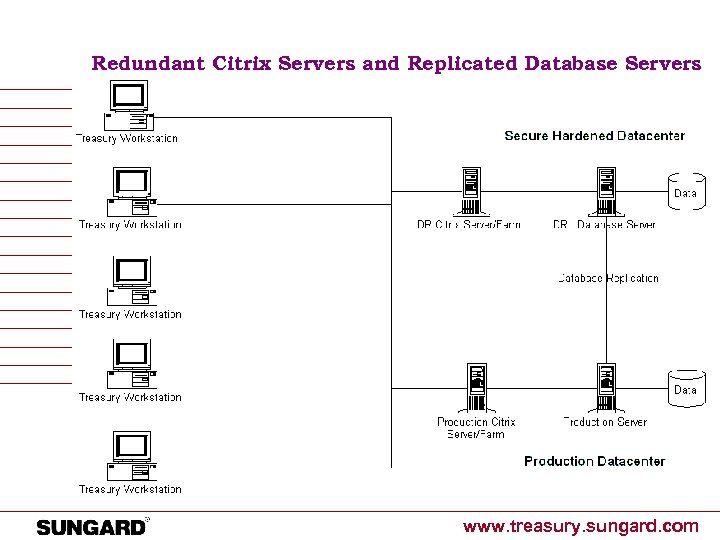

Redundant Citrix Servers and Replicated Database Servers www. treasury. sungard. com

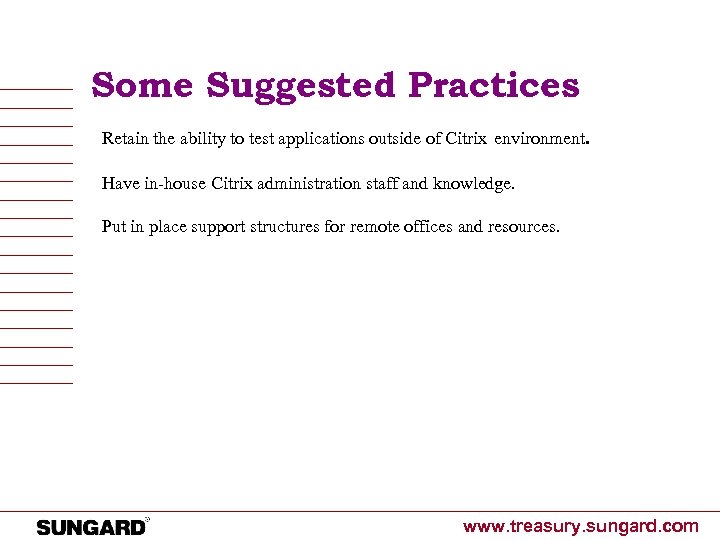

Some Suggested Practices Retain the ability to test applications outside of Citrix environment. Have in-house Citrix administration staff and knowledge. Put in place support structures for remote offices and resources. www. treasury. sungard. com

Additional Resources/Information www. citrix. com Citrix Product Documentation Library. The library, which contains the latest documentation for all Citrix products, is at http: //www. citrix. com/support (select Product Documentation). You can download updated editions of the documentation that ships with Citrix products, as well as supplemental documentation that is available only on the Web site. Citrix ICA Clients. Downloadable Citrix ICA Clients for all supported platforms are available from http: //www. citrix. com/download. Support options. Program information about Citrix Preferred Support Services options is available from the Support area of the Citrix Web site at http: // www. citrix. com/support. Software downloads. An FTP server provides access to the latest service packs, hotfixes, utilities, and product literature for download. www. printingsupport. com/ www. tweakcitrix. com/ http: //www. dabcc. com/ (Methodology In A Box) www. thin-world. com/ www. treasury. sungard. com

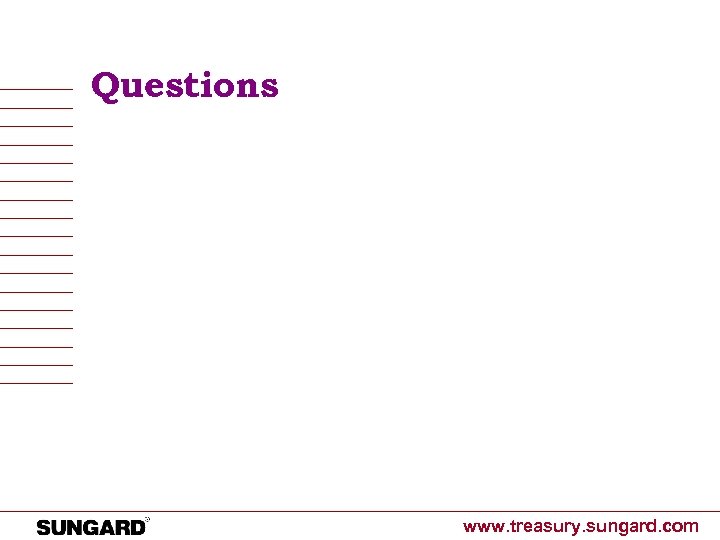

Questions www. treasury. sungard. com
