Agenda Introduction to Peering Partner Network ◦ Wholesale Enhancement Network Example of a Business Case for Partners ◦ Fixed to Mobile Services - Furious Mobile Wholesale Technical Overview ◦ System Architecture ◦ System Details

Peering Partners - Network Overview Peering Partner's is owned and operated by IPX Voice Ltd a UK based company providing Managed IP Exchange Services Peering Partner's was founded in 2009 and focuses on the provision of hosted carrier to carrier services. The London Internet Exchange (LIX) is part of our IPX Cloud and we have point of presence installed in Harbour Exchange. We have IPX Clouds established in Europe and are planning further installations in South Africa, Hong Kong and Nigeria. Today, 5 out of the top 10 Global Wholesale Operators connected to our Network forming a Global LCR for our partners. Our NGN is based on Nex. Tone MSX/RSM Equipment which interops with more than 700 networks worldwide with an ability to carrying more than 500 million Vo. IP minutes per month Peering Partners can provide solutions for wholesale peering, hosted telephony, NGN networks and IMS (3 G IMS Mobile) including hosted Fraud Management Systems which we can provide to supplement your business analytics.

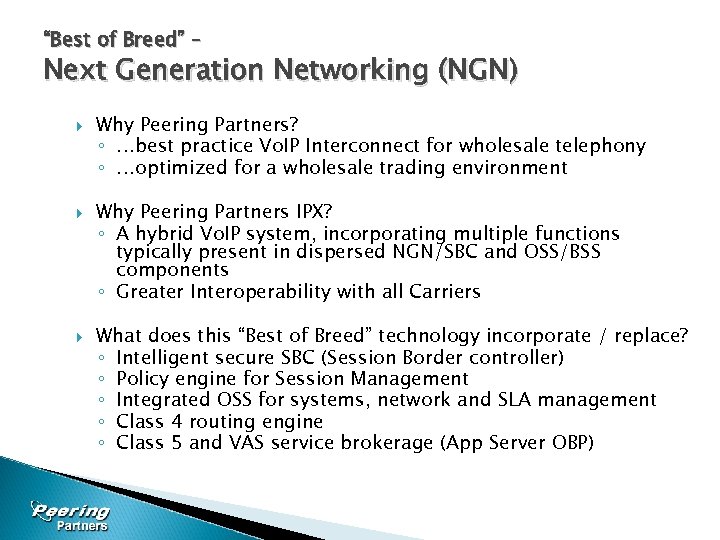

“Best of Breed” – Next Generation Networking (NGN) Why Peering Partners? ◦ …best practice Vo. IP Interconnect for wholesale telephony ◦ …optimized for a wholesale trading environment Why Peering Partners IPX? ◦ A hybrid Vo. IP system, incorporating multiple functions typically present in dispersed NGN/SBC and OSS/BSS components ◦ Greater Interoperability with all Carriers What does this “Best of Breed” technology incorporate / replace? ◦ Intelligent secure SBC (Session Border controller) ◦ Policy engine for Session Management ◦ Integrated OSS for systems, network and SLA management ◦ Class 4 routing engine ◦ Class 5 and VAS service brokerage (App Server OBP)

Peering Partners Interoperability Peering Partners use Nex. Tone systems which have been deployed to over 450+ carrier and service providers in 38 countries worldwide CONFIDENTIAL © 2010 Peering Partner's, All rights reserved.

Applications for our IPX Carrier to Carrier Peering ◦ Nex. Tone is the Market Leader ◦ Protocol IWF, Interoperability, Qo. S ◦ Topology Hiding, Call Admission Control ◦ MPLS VLANs, Nex. Tone Switch Partitioning Carrier to Enterprise Carrier to Consumer ◦ ◦ IP PBX interop – CCM, Avaya, Nortel Deployments w/Broad. Soft, Sylantro NAT Traversal, VLAN, Video Hoot-n-hollar (push-to-talk) ◦ Firewall/NAT, CALEA ◦ NAT Traversal, Outbound Proxy ◦ Call Center, IVR

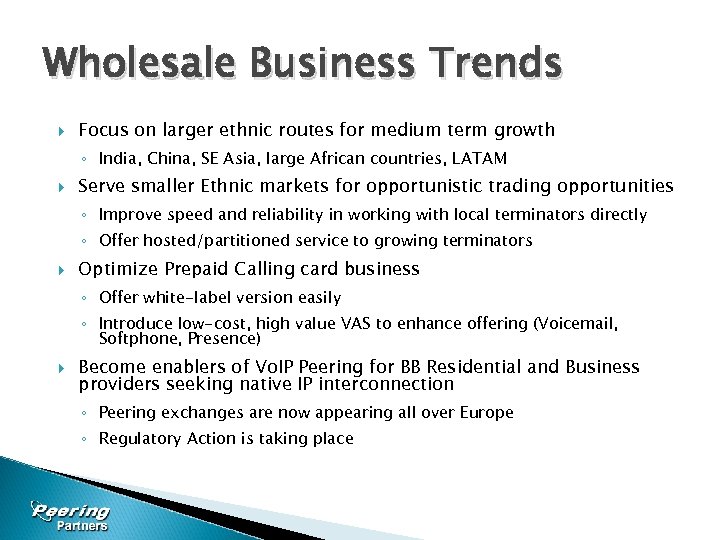

Wholesale Business Trends Focus on larger ethnic routes for medium term growth ◦ India, China, SE Asia, large African countries, LATAM Serve smaller Ethnic markets for opportunistic trading opportunities ◦ Improve speed and reliability in working with local terminators directly ◦ Offer hosted/partitioned service to growing terminators Optimize Prepaid Calling card business ◦ Offer white-label version easily ◦ Introduce low-cost, high value VAS to enhance offering (Voicemail, Softphone, Presence) Become enablers of Vo. IP Peering for BB Residential and Business providers seeking native IP interconnection ◦ Peering exchanges are now appearing all over Europe ◦ Regulatory Action is taking place

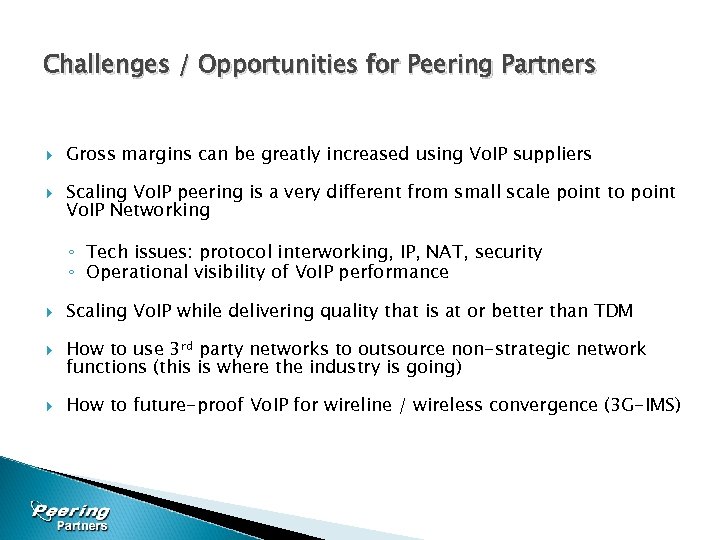

Challenges / Opportunities for Peering Partners Gross margins can be greatly increased using Vo. IP suppliers Scaling Vo. IP peering is a very different from small scale point to point Vo. IP Networking ◦ Tech issues: protocol interworking, IP, NAT, security ◦ Operational visibility of Vo. IP performance Scaling Vo. IP while delivering quality that is at or better than TDM How to use 3 rd party networks to outsource non-strategic network functions (this is where the industry is going) How to future-proof Vo. IP for wireline / wireless convergence (3 G-IMS)

Peering Partners - Wholesale Peering Interconnect via Public and/or Private peering networks – Internet, Private peering, Private point to point connectivity Profile a customer/supplier in terms of Interconnect size, allowed routes, cost/profitability, performance and quality of service Apply business and engineering policies such as SLA, cost/revenue & minutes allowed to be exchange Variable route changes based on Most profitable route, historical performance and real time analysis of traffic patterns and network behaviour and network stabilisation to insure maximum traffic efficiency, reduced risk (Credit and revenue assurance) and flexibility to optimise customer and supplier routes and costs. Normalisation of rate sheets to reduce incorrect route/costs selection in LCR or routing plan Interworking of different protocols and equipment – SIP and H. 323 Signalling normalisation through Interoperating between difference manufactures equipment and software versions.

IPX Voice “Best of Breed” Interoperability Map Applications servers and Proxies Softswitch Call controllers Firewalls Endpoints (Gateways, User Agents IP-PBX, IP Phones)

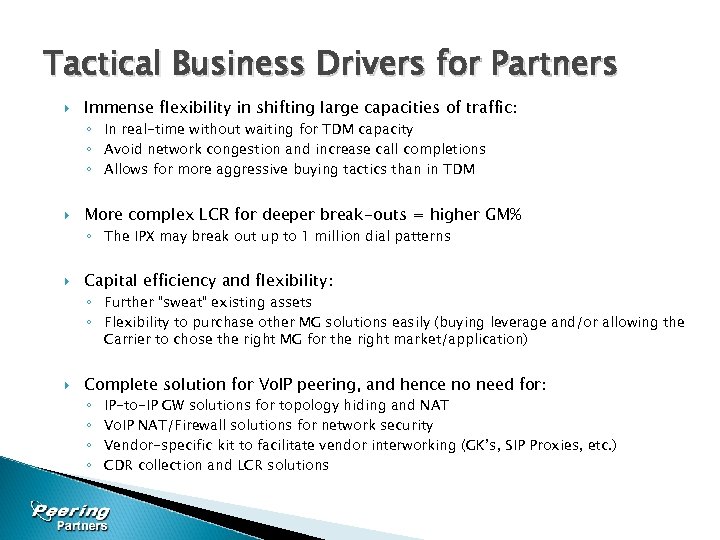

Tactical Business Drivers for Partners Immense flexibility in shifting large capacities of traffic: ◦ In real-time without waiting for TDM capacity ◦ Avoid network congestion and increase call completions ◦ Allows for more aggressive buying tactics than in TDM More complex LCR for deeper break-outs = higher GM% ◦ The IPX may break out up to 1 million dial patterns Capital efficiency and flexibility: ◦ Further “sweat” existing assets ◦ Flexibility to purchase other MG solutions easily (buying leverage and/or allowing the Carrier to chose the right MG for the right market/application) Complete solution for Vo. IP peering, and hence no need for: ◦ ◦ IP-to-IP GW solutions for topology hiding and NAT Vo. IP NAT/Firewall solutions for network security Vendor-specific kit to facilitate vendor interworking (GK’s, SIP Proxies, etc. ) CDR collection and LCR solutions

Partner Short Term Business Goals Identify how you may evolve your core network and operations in ways that achieve the following: Deliver immediate functional capabilities that help achieve your wholesale service and sales objectives While building an inherently valuable strategic architecture ◦ Flexibility to deliver new services with no network forklift ◦ ◦ Flexibility to easily provide service to a disparate universe of Vo. IP -based interconnect parties Network model and facilities which do not require additional headcount and gateway/POP investment While “sweating the assets” of present network

Peering Partners – International Gateway Application Overview John Bean Director, Europe, Middle East and Africa john. bean@ipxvoice. com 3/16/2018 CONFIDENTIAL © 2010, Peering Partner's. All rights reserved.

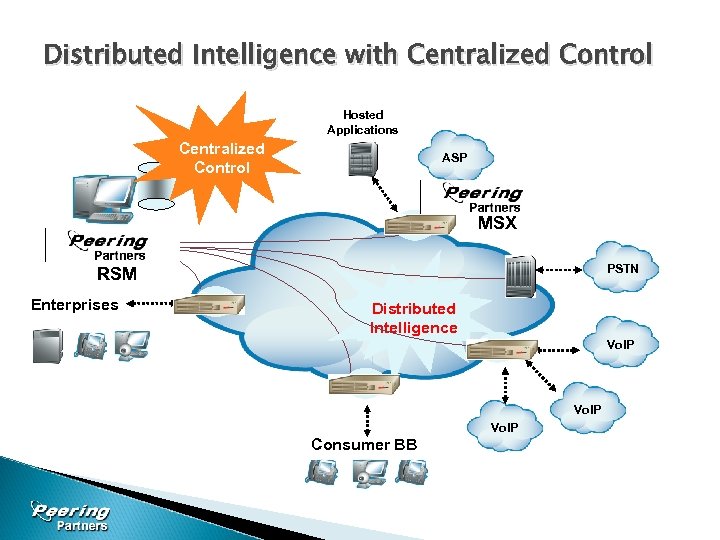

Distributed Intelligence with Centralized Control Hosted Applications Centralized Control ASP L 5 MSX OSS/Policy PSTN RSM Enterprises L 5 Distributed Intelligence Vo. IP L 5 Vo. IP Consumer BB

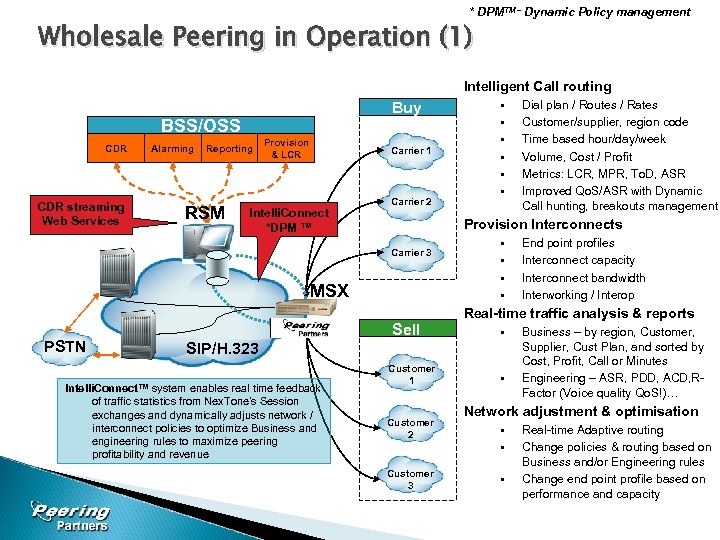

* DPMTM – Dynamic Policy management Wholesale Peering in Operation (1) Intelligent Call routing Buy BSS/OSS CDR Alarming § § Reporting Provision & LCR Carrier 1 § § § CDR streaming Web Services RSM Intelli. Connect *DPM ™ Carrier 2 Provision Interconnects Carrier 3 § § § MSX PSTN § § Sell Customer 1 Customer 2 § § Business – by region, Customer, Supplier, Cust Plan, and sorted by Cost, Profit, Call or Minutes Engineering – ASR, PDD, ACD, RFactor (Voice quality Qo. S!)… Network adjustment & optimisation § § Customer 3 End point profiles Interconnect capacity Interconnect bandwidth Interworking / Interop Real-time traffic analysis & reports SIP/H. 323 Intelli. Connect™ system enables real time feedback of traffic statistics from Nex. Tone’s Session exchanges and dynamically adjusts network / interconnect policies to optimize Business and engineering rules to maximize peering profitability and revenue Dial plan / Routes / Rates Customer/supplier, region code Time based hour/day/week Volume, Cost / Profit Metrics: LCR, MPR, To. D, ASR Improved Qo. S/ASR with Dynamic Call hunting, breakouts management § Real-time Adaptive routing Change policies & routing based on Business and/or Engineering rules Change end point profile based on performance and capacity

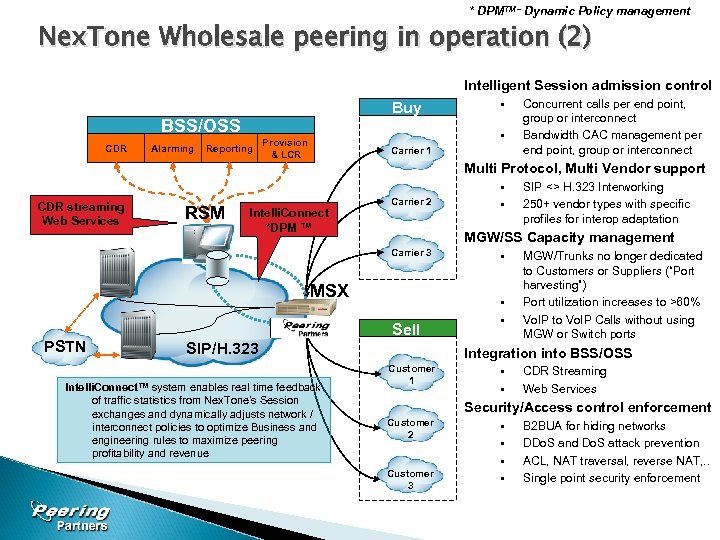

* DPMTM – Dynamic Policy management Nex. Tone Wholesale peering in operation (2) Intelligent Session admission control Buy BSS/OSS CDR Alarming Reporting § § Provision & LCR Carrier 1 Concurrent calls per end point, group or interconnect Bandwidth CAC management per end point, group or interconnect Multi Protocol, Multi Vendor support § CDR streaming Web Services RSM Intelli. Connect *DPM ™ Carrier 2 MGW/SS Capacity management Carrier 3 MSX PSTN § § Sell SIP/H. 323 Intelli. Connect™ system enables real time feedback of traffic statistics from Nex. Tone’s Session exchanges and dynamically adjusts network / interconnect policies to optimize Business and engineering rules to maximize peering profitability and revenue § SIP <> H. 323 Interworking 250+ vendor types with specific profiles for interop adaptation § MGW/Trunks no longer dedicated to Customers or Suppliers (“Port harvesting”) Port utilization increases to >60% Vo. IP to Vo. IP Calls without using MGW or Switch ports Integration into BSS/OSS Customer 1 § § CDR Streaming Web Services Security/Access control enforcement Customer 2 § § § Customer 3 § B 2 BUA for hiding networks DDo. S and Do. S attack prevention ACL, NAT traversal, reverse NAT, . . Single point security enforcement

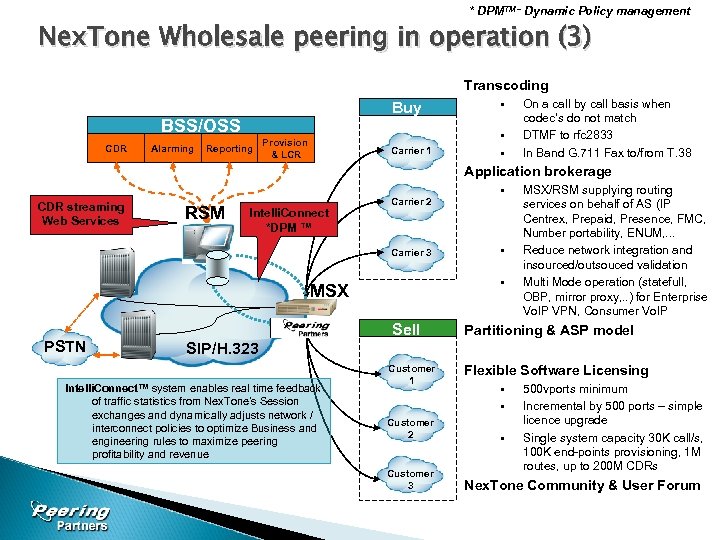

* DPMTM – Dynamic Policy management Nex. Tone Wholesale peering in operation (3) Transcoding Buy BSS/OSS CDR Alarming Reporting § § Provision & LCR Carrier 1 § On a call by call basis when codec’s do not match DTMF to rfc 2833 In Band G. 711 Fax to/from T. 38 Application brokerage CDR streaming Web Services RSM Intelli. Connect *DPM ™ Carrier 2 Carrier 3 § § MSX PSTN § Sell MSX/RSM supplying routing services on behalf of AS (IP Centrex, Prepaid, Presence, FMC, Number portability, ENUM, . . . Reduce network integration and insourced/outsouced validation Multi Mode operation (statefull, OBP, mirror proxy, . . ) for Enterprise Vo. IP VPN, Consumer Vo. IP Partitioning & ASP model SIP/H. 323 Intelli. Connect™ system enables real time feedback of traffic statistics from Nex. Tone’s Session exchanges and dynamically adjusts network / interconnect policies to optimize Business and engineering rules to maximize peering profitability and revenue Customer 1 Flexible Software Licensing § § Customer 2 Customer 3 § 500 vports minimum Incremental by 500 ports – simple licence upgrade Single system capacity 30 K call/s, 100 K end-points provisioning, 1 M routes, up to 200 M CDRs Nex. Tone Community & User Forum

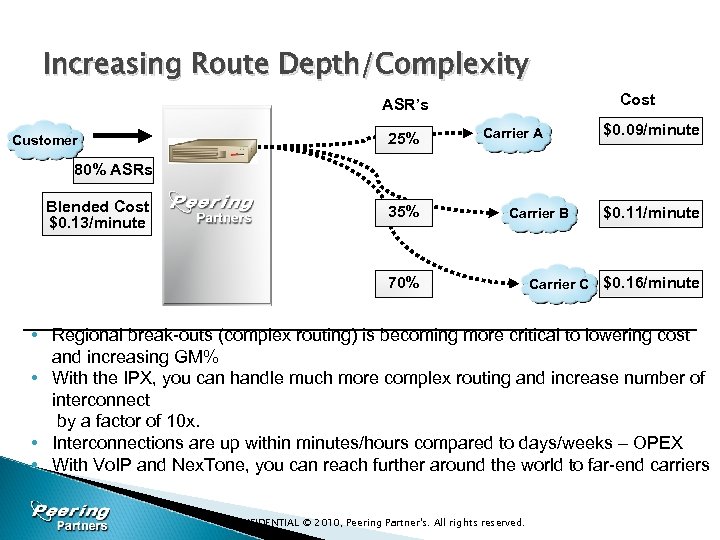

Increasing Route Depth/Complexity Cost ASR’s Customer 25% Carrier A $0. 09/minute 80% ASRs Blended Cost $0. 13/minute 35% Carrier B 70% Carrier C $0. 11/minute $0. 16/minute • Regional break-outs (complex routing) is becoming more critical to lowering cost and increasing GM% • With the IPX, you can handle much more complex routing and increase number of interconnect by a factor of 10 x. • Interconnections are up within minutes/hours compared to days/weeks – OPEX • With Vo. IP and Nex. Tone, you can reach further around the world to far-end carriers CONFIDENTIAL © 2010, Peering Partner's. All rights reserved.

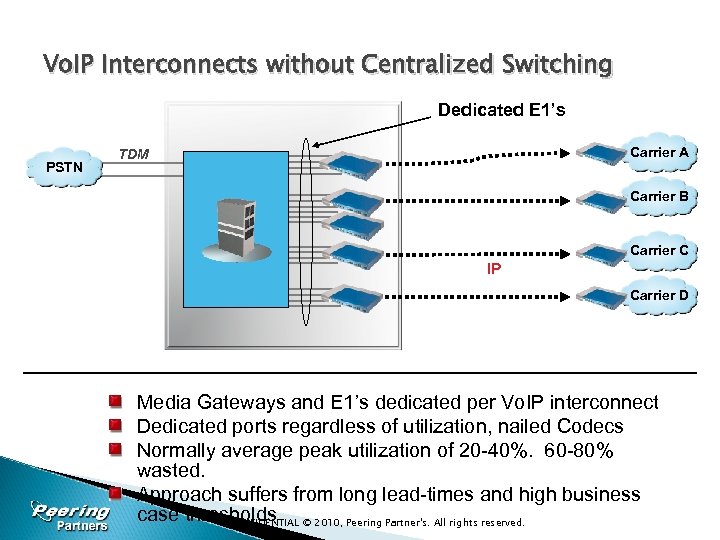

Vo. IP Interconnects without Centralized Switching Dedicated E 1’s PSTN Carrier A TDM Carrier B Class 4 Carrier C IP Carrier D Media Gateways and E 1’s dedicated per Vo. IP interconnect Dedicated ports regardless of utilization, nailed Codecs Normally average peak utilization of 20 -40%. 60 -80% wasted. Approach suffers from long lead-times and high business case thresholds © 2010, Peering Partner's. All rights reserved. CONFIDENTIAL

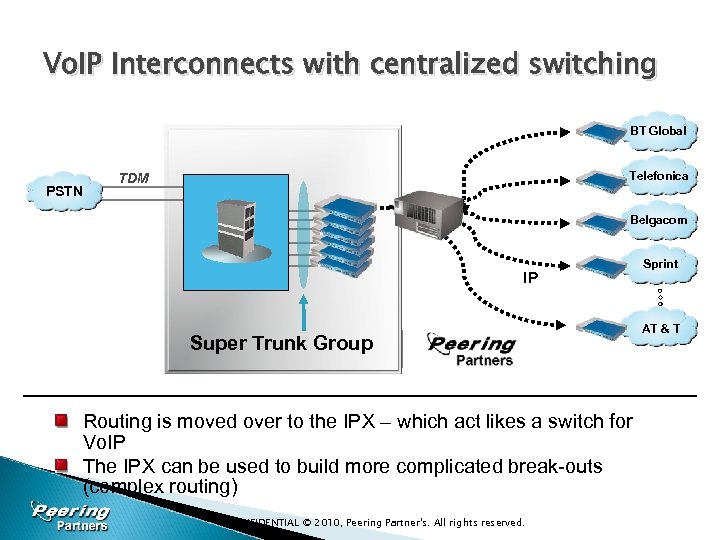

Vo. IP Interconnects with centralized switching BT Global PSTN Telefonica TDM Belgacom Class 4 IP Super Trunk Group Routing is moved over to the IPX – which act likes a switch for Vo. IP The IPX can be used to build more complicated break-outs (complex routing) CONFIDENTIAL © 2010, Peering Partner's. All rights reserved. Sprint AT & T

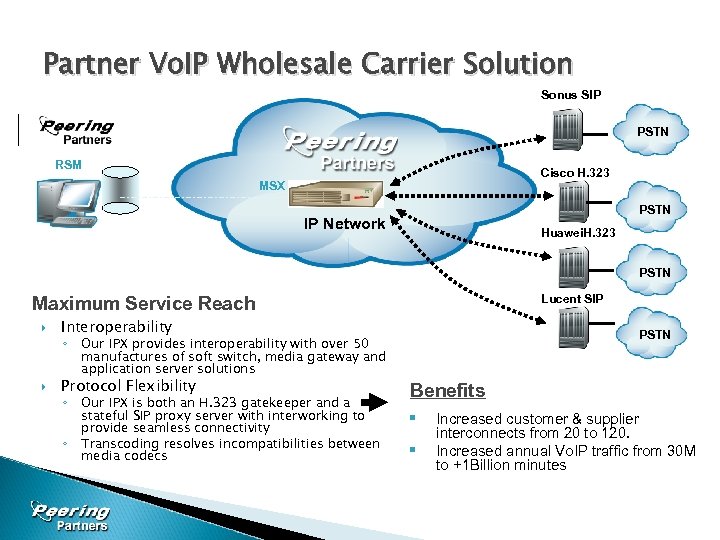

Partner Vo. IP Wholesale Carrier Solution Sonus SIP PSTN RSM Cisco H. 323 MSX PSTN IP Network Huawei. H. 323 PSTN Lucent SIP Maximum Service Reach Interoperability Protocol Flexibility PSTN ◦ Our IPX provides interoperability with over 50 manufactures of soft switch, media gateway and application server solutions ◦ Our IPX is both an H. 323 gatekeeper and a stateful SIP proxy server with interworking to provide seamless connectivity ◦ Transcoding resolves incompatibilities between media codecs Benefits § § Increased customer & supplier interconnects from 20 to 120. Increased annual Vo. IP traffic from 30 M to +1 Billion minutes

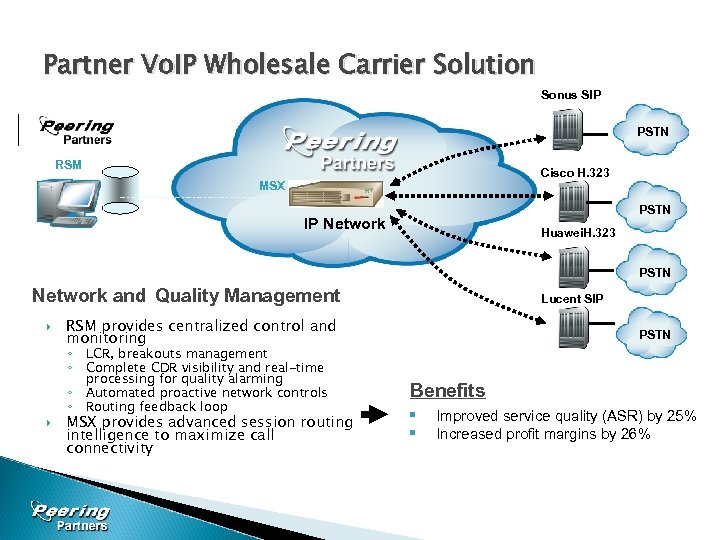

Partner Vo. IP Wholesale Carrier Solution Sonus SIP PSTN RSM Cisco H. 323 MSX PSTN IP Network Huawei. H. 323 PSTN Network and Quality Management RSM provides centralized control and monitoring ◦ LCR, breakouts management ◦ Complete CDR visibility and real-time processing for quality alarming ◦ Automated proactive network controls ◦ Routing feedback loop Lucent SIP MSX provides advanced session routing intelligence to maximize call connectivity PSTN Benefits § § Improved service quality (ASR) by 25% Increased profit margins by 26%

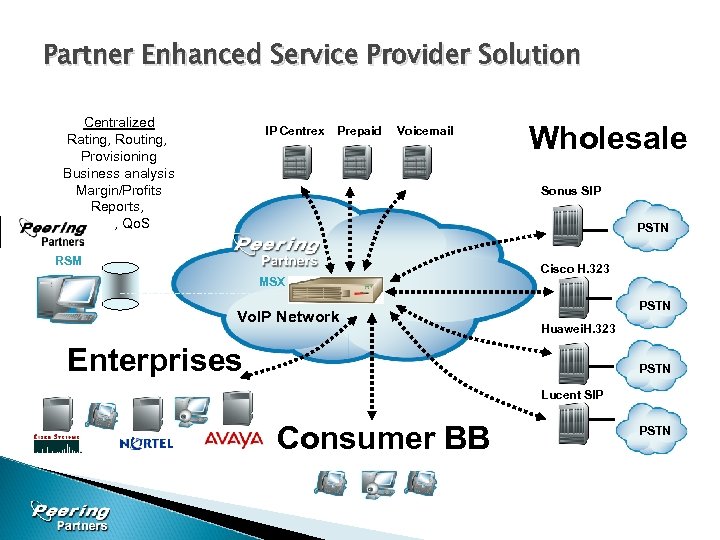

Partner Enhanced Service Provider Solution Centralized Rating, Routing, Provisioning Business analysis Margin/Profits Reports, SLA, Qo. S IP Centrex Prepaid Voicemail Wholesale Sonus SIP PSTN RSM MSX Vo. IP Network Cisco H. 323 PSTN Huawei. H. 323 Enterprises PSTN Lucent SIP Consumer BB PSTN

IPX -Wholesale Peering Solution Technical Overview John Bean Director, Europe, Middle East & Africa John. bean@ipxvoice. com 3/16/2018 CONFIDENTIAL © 2010, Peering Partner's. All rights reserved.

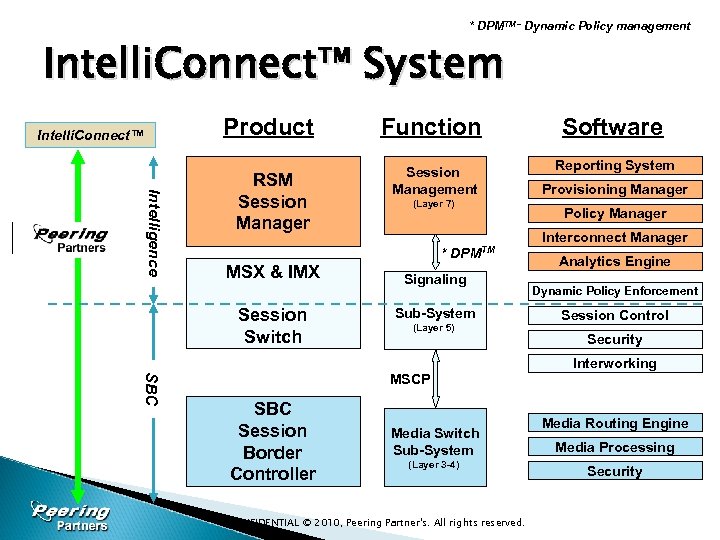

* DPMTM – Dynamic Policy management Intelli. Connect™ System Product Intelli. Connect™ Intelligence Function RSM Session Manager Session Management (Layer 7) * MSX & IMX Session Switch DPMTM Signaling Sub-System (Layer 5) SBC MSCP SBC Session Border Controller Media Switch Sub-System (Layer 3 -4) CONFIDENTIAL © 2010, Peering Partner's. All rights reserved. Software Reporting System Provisioning Manager Policy Manager Interconnect Manager Analytics Engine Dynamic Policy Enforcement Session Control Security Interworking Media Routing Engine Media Processing Security

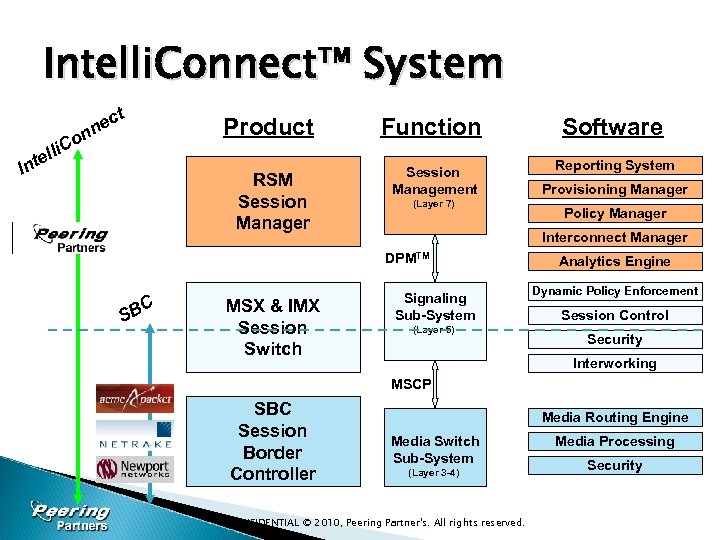

Intelli. Connect™ System ct ne n l tel In Product Function RSM Session Manager i. Co Session Management (Layer 7) MSX & IMX Session Switch Reporting System Provisioning Manager Policy Manager Interconnect Manager DPMTM C SB Software Signaling Sub-System (Layer 5) Analytics Engine Dynamic Policy Enforcement Session Control Security Interworking MSCP SBC Session Border Controller Media Routing Engine Media Switch Sub-System (Layer 3 -4) CONFIDENTIAL © 2010, Peering Partner's. All rights reserved. Media Processing Security

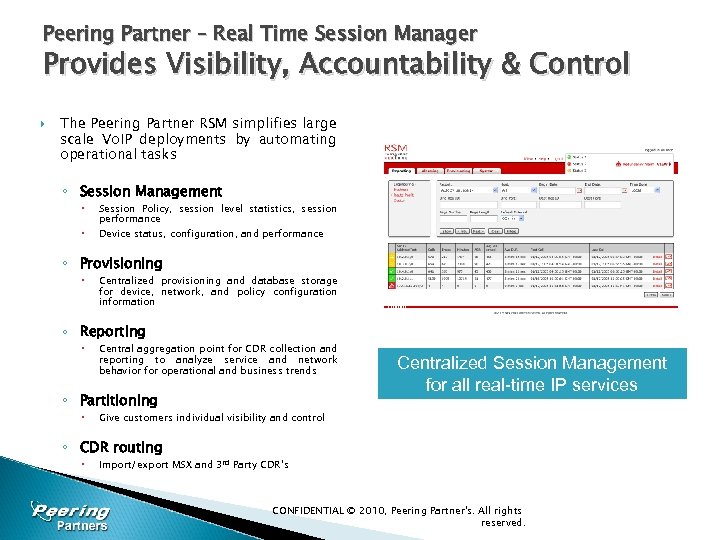

Peering Partner – Real Time Session Manager Provides Visibility, Accountability & Control The Peering Partner RSM simplifies large scale Vo. IP deployments by automating operational tasks ◦ Session Management Session Policy, session level statistics, session performance Device status, configuration, and performance ◦ Provisioning Centralized provisioning and database storage for device, network, and policy configuration information ◦ Reporting Central aggregation point for CDR collection and reporting to analyze service and network behavior for operational and business trends ◦ Partitioning Centralized Session Management for all real-time IP services Give customers individual visibility and control ◦ CDR routing Import/export MSX and 3 rd Party CDR’s CONFIDENTIAL © 2010, Peering Partner's. All rights reserved.

Alarms Support Real Time Awareness Engineering Alarms ◦ Alarm criteria based on ASR, ACD, PDV, Packet Loss etc. ◦ Alarm criteria based on error log file contents on the MSX Business Alarms ◦ Alarm criteria based on total minutes, dollar amount, etc. Alarm Triggers ◦ Multiple actions executed upon alarm criteria match (ON trigger) ◦ Multiple actions executed upon alarm criteria reset (OFF trigger) Alarm Filters ◦ All alarms can be filtered on Endpoints, Regions, Customers, Suppliers, Time-of-Day, System Load etc. Alarm Actions ◦ Adaptive routing actions conveyed to MSX Trickle Calls, Endpoint Priority, Route Priority ◦ Email, SNMP Trap, Syslog, Custom Scripts

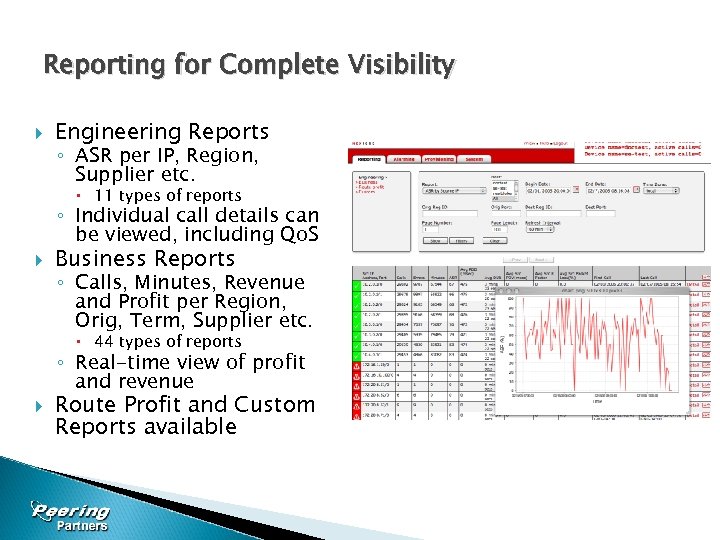

Reporting for Complete Visibility Engineering Reports ◦ ASR per IP, Region, Supplier etc. 11 types of reports ◦ Individual call details can be viewed, including Qo. S Business Reports ◦ Calls, Minutes, Revenue and Profit per Region, Orig, Term, Supplier etc. 44 types of reports ◦ Real-time view of profit and revenue Route Profit and Custom Reports available

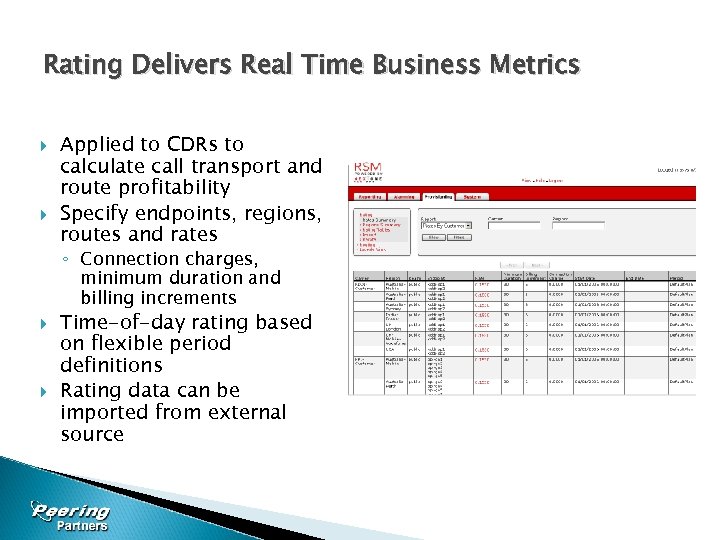

Rating Delivers Real Time Business Metrics Applied to CDRs to calculate call transport and route profitability Specify endpoints, regions, routes and rates ◦ Connection charges, minimum duration and billing increments Time-of-day rating based on flexible period definitions Rating data can be imported from external source

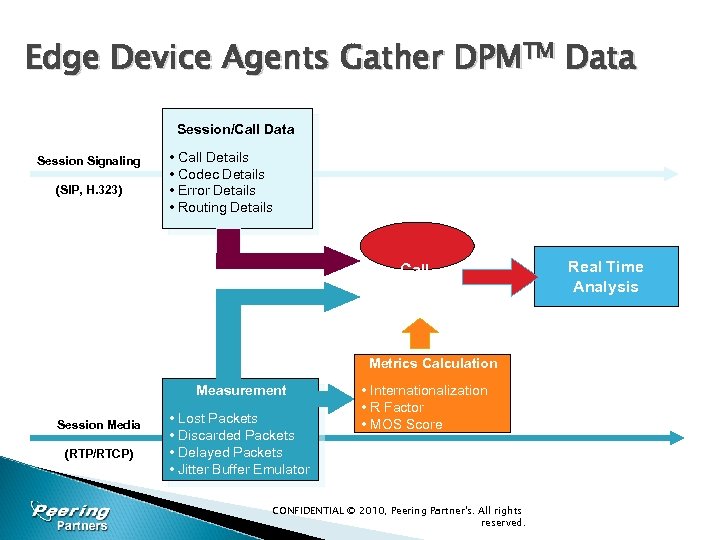

Edge Device Agents Gather DPMTM Data Session/Call Data Session Signaling (SIP, H. 323) • Call Details • Codec Details • Error Details • Routing Details Call Detail Record Metrics Calculation Measurement Session Media (RTP/RTCP) • Lost Packets • Discarded Packets • Delayed Packets • Jitter Buffer Emulator • Internationalization • R Factor • MOS Score CONFIDENTIAL © 2010, Peering Partner's. All rights reserved. Real Time Analysis

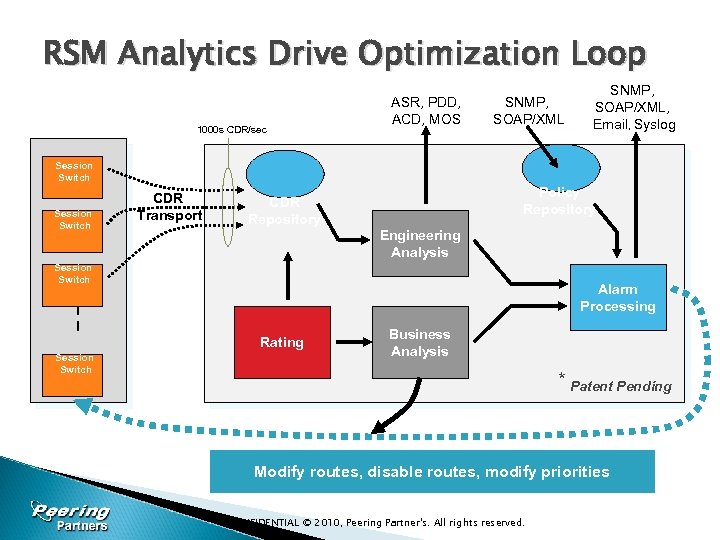

RSM Analytics Drive Optimization Loop 1000 s CDR/sec ASR, PDD, ACD, MOS SNMP, SOAP/XML, Email, Syslog Session Switch CDR Transport CDR Repository Policy Repository Engineering Analysis Session Switch Alarm Processing Rating Session Switch Business Analysis * Patent Pending Modify routes, disable routes, modify priorities CONFIDENTIAL © 2010, Peering Partner's. All rights reserved.

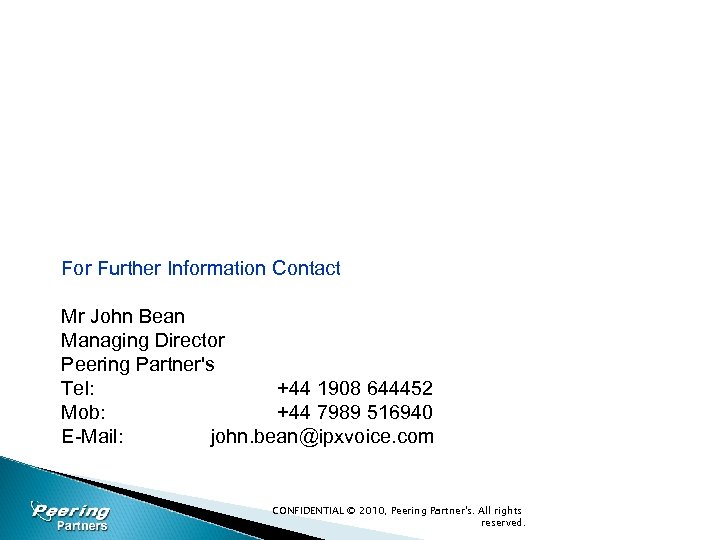

For Further Information Contact Mr John Bean Managing Director Peering Partner's Tel: +44 1908 644452 Mob: +44 7989 516940 E-Mail: john. bean@ipxvoice. com CONFIDENTIAL © 2010, Peering Partner's. All rights reserved.
