SUBPAC METOC TRAINING, SUPPORT, AND NAVO STORM PRODUCTION CDR Jim Hart COMSUBPAC Force Oceanographer SUBPAC METOC TRAINING, SUPPORT, AND NAVO STORM PRODUCTION CDR Jim Hart COMSUBPAC Force Oceanographer

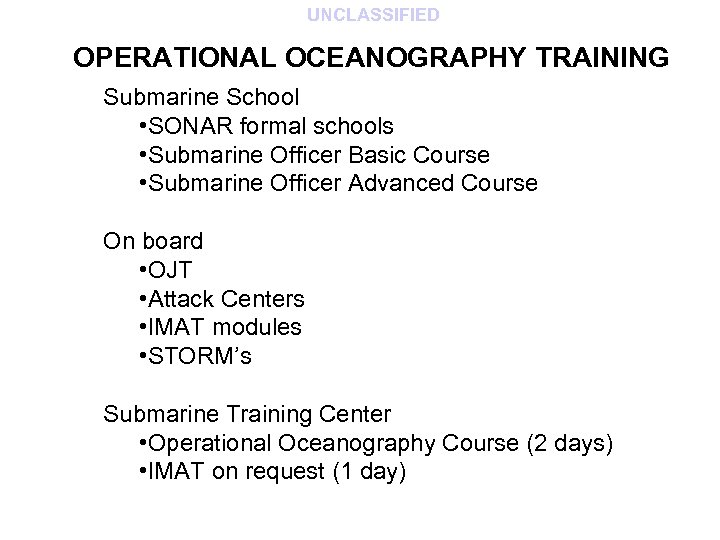

UNCLASSIFIED OPERATIONAL OCEANOGRAPHY TRAINING Submarine School • SONAR formal schools • Submarine Officer Basic UNCLASSIFIED OPERATIONAL OCEANOGRAPHY TRAINING Submarine School • SONAR formal schools • Submarine Officer Basic Course • Submarine Officer Advanced Course On board • OJT • Attack Centers • IMAT modules • STORM’s Submarine Training Center • Operational Oceanography Course (2 days) • IMAT on request (1 day)

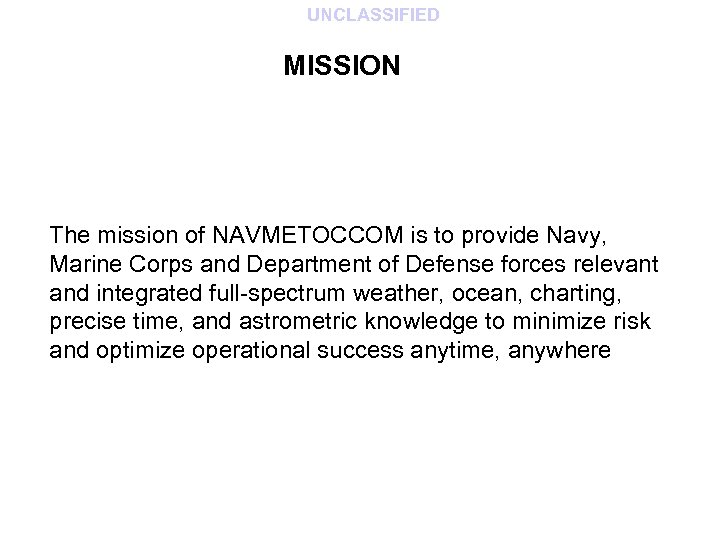

UNCLASSIFIED MISSION The mission of NAVMETOCCOM is to provide Navy, Marine Corps and Department UNCLASSIFIED MISSION The mission of NAVMETOCCOM is to provide Navy, Marine Corps and Department of Defense forces relevant and integrated full-spectrum weather, ocean, charting, precise time, and astrometric knowledge to minimize risk and optimize operational success anytime, anywhere

UNCLASSIFIED METOC ASHORE SUBPAC support • CSP Oceanographer • CTF 74 Oceanographer • NPMOD UNCLASSIFIED METOC ASHORE SUBPAC support • CSP Oceanographer • CTF 74 Oceanographer • NPMOD Bangor

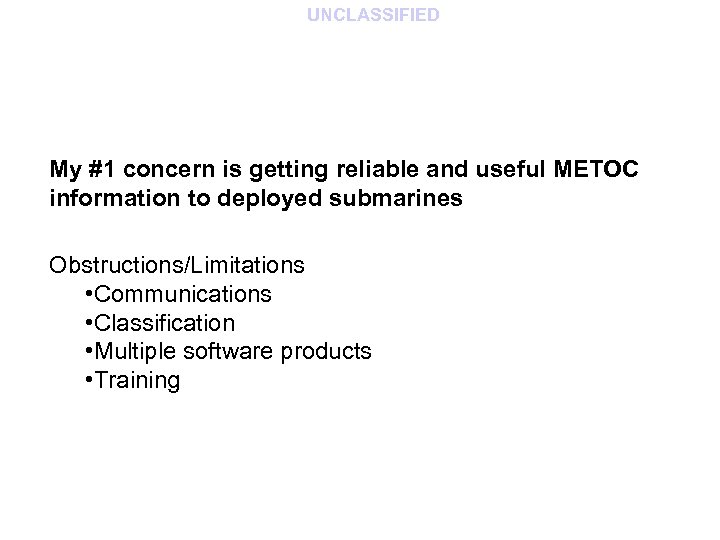

UNCLASSIFIED My #1 concern is getting reliable and useful METOC information to deployed submarines UNCLASSIFIED My #1 concern is getting reliable and useful METOC information to deployed submarines Obstructions/Limitations • Communications • Classification • Multiple software products • Training

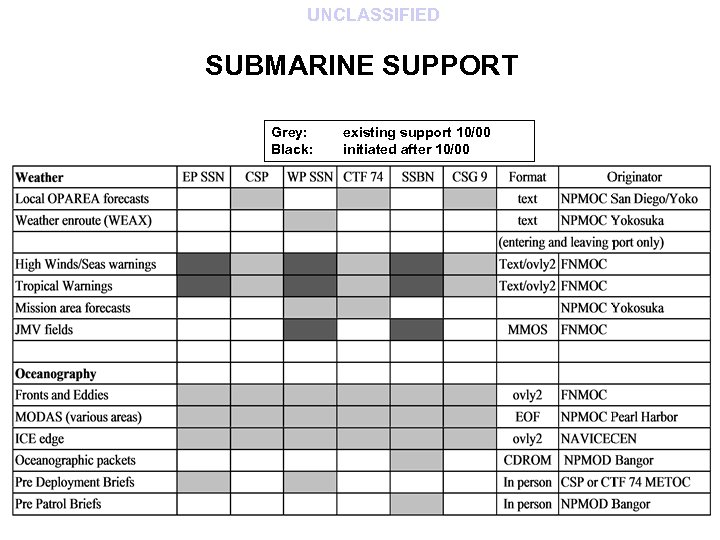

UNCLASSIFIED SUBMARINE SUPPORT Grey: Black: existing support 10/00 initiated after 10/00 UNCLASSIFIED SUBMARINE SUPPORT Grey: Black: existing support 10/00 initiated after 10/00

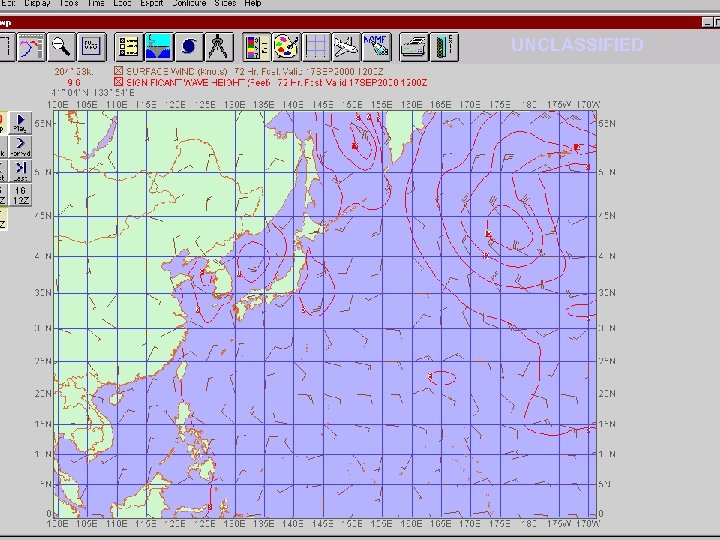

UNCLASSIFIED UNCLASSIFIED

UNCLASSIFIED UNCLASSIFIED

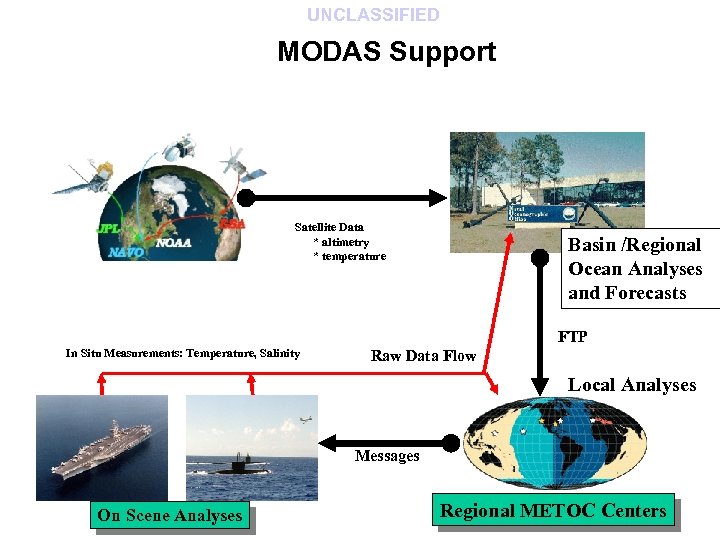

UNCLASSIFIED MODAS Support Satellite Data * altimetry * temperature Basin /Regional Ocean Analyses and UNCLASSIFIED MODAS Support Satellite Data * altimetry * temperature Basin /Regional Ocean Analyses and Forecasts FTP In Situ Measurements: Temperature, Salinity Raw Data Flow Local Analyses Messages On Scene Analyses Regional METOC Centers

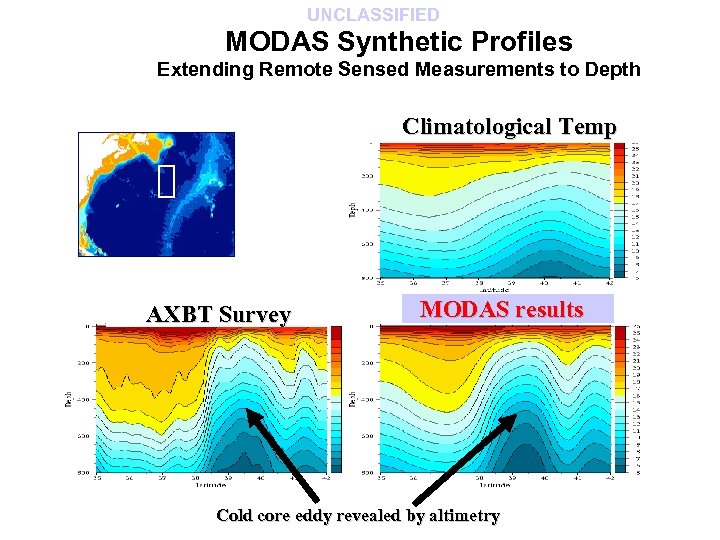

UNCLASSIFIED MODAS Synthetic Profiles Extending Remote Sensed Measurements to Depth Climatological Temp AXBT Survey UNCLASSIFIED MODAS Synthetic Profiles Extending Remote Sensed Measurements to Depth Climatological Temp AXBT Survey MODAS + Clim SSH + SSTresults Cold core eddy revealed by altimetry

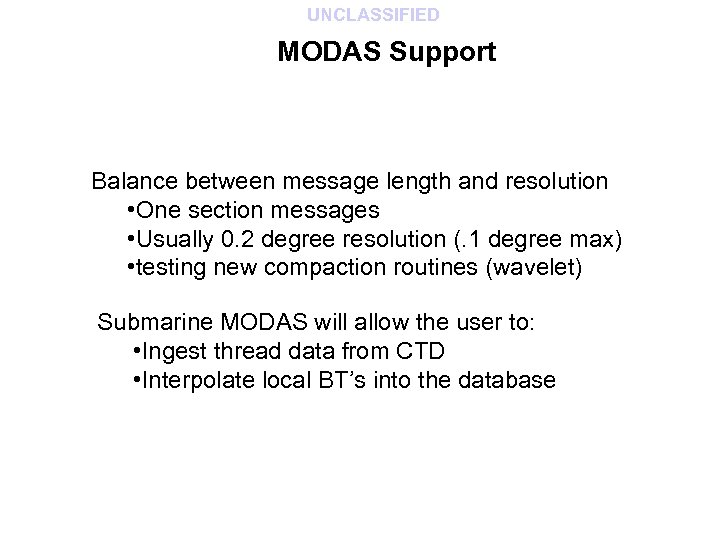

UNCLASSIFIED MODAS Support Balance between message length and resolution • One section messages • UNCLASSIFIED MODAS Support Balance between message length and resolution • One section messages • Usually 0. 2 degree resolution (. 1 degree max) • testing new compaction routines (wavelet) Submarine MODAS will allow the user to: • Ingest thread data from CTD • Interpolate local BT’s into the database

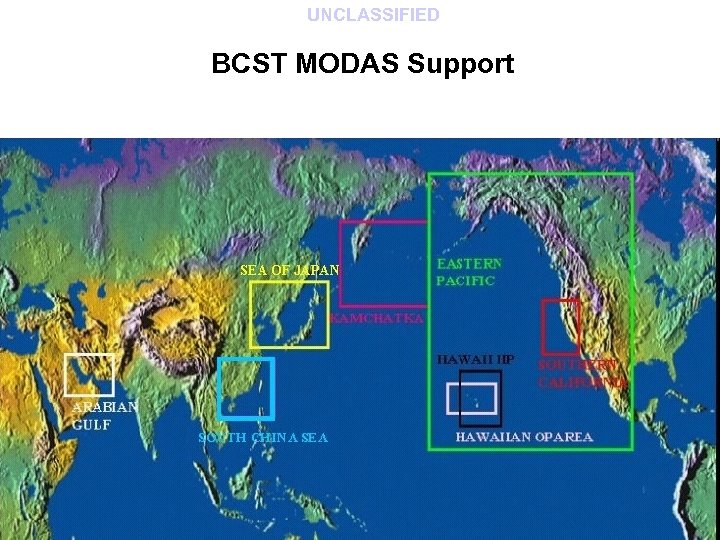

UNCLASSIFIED BCST MODAS Support UNCLASSIFIED BCST MODAS Support

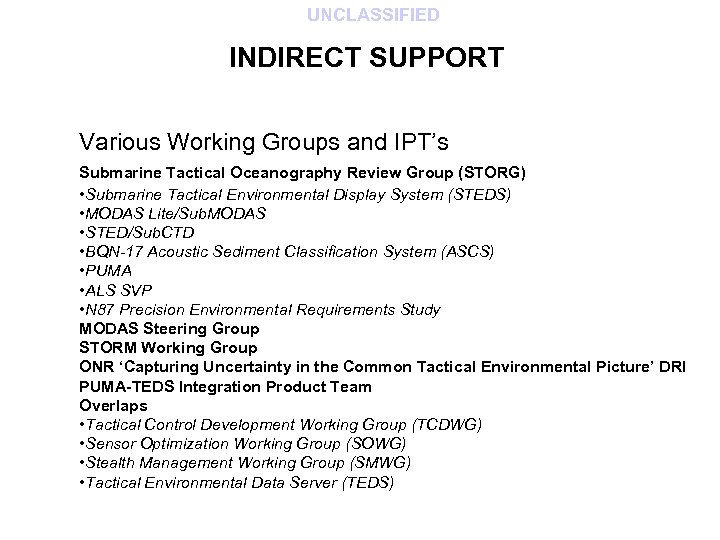

UNCLASSIFIED INDIRECT SUPPORT Various Working Groups and IPT’s Submarine Tactical Oceanography Review Group (STORG) UNCLASSIFIED INDIRECT SUPPORT Various Working Groups and IPT’s Submarine Tactical Oceanography Review Group (STORG) • Submarine Tactical Environmental Display System (STEDS) • MODAS Lite/Sub. MODAS • STED/Sub. CTD • BQN-17 Acoustic Sediment Classification System (ASCS) • PUMA • ALS SVP • N 87 Precision Environmental Requirements Study MODAS Steering Group STORM Working Group ONR ‘Capturing Uncertainty in the Common Tactical Environmental Picture’ DRI PUMA-TEDS Integration Product Team Overlaps • Tactical Control Development Working Group (TCDWG) • Sensor Optimization Working Group (SOWG) • Stealth Management Working Group (SMWG) • Tactical Environmental Data Server (TEDS)

STED UNCLASSIFIED Sub. MODAS Plug & Play Replacement for BQH-1 Analog SV UNCLASSIFIED Digital STED UNCLASSIFIED Sub. MODAS Plug & Play Replacement for BQH-1 Analog SV UNCLASSIFIED Digital Temp, Salinity, SV BQN-17/ASCP Continuous onboard oceanographic data fusion SEDIMENT PROPS. Density, Grain, Size Strength, Etc. Determine bottom composition and structure through bottom sounder echoes PUMA ALS SVP Determine SVP ahead of ship through HF Sonar echo returns Precision bottom mapping and map merger through HF Sonar

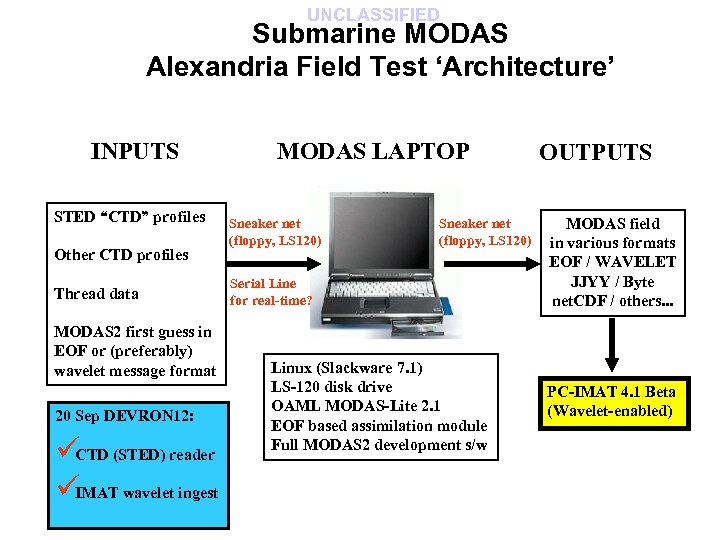

UNCLASSIFIED Submarine MODAS Alexandria Field Test ‘Architecture’ INPUTS STED “CTD” profiles Other CTD profiles UNCLASSIFIED Submarine MODAS Alexandria Field Test ‘Architecture’ INPUTS STED “CTD” profiles Other CTD profiles Thread data MODAS 2 first guess in EOF or (preferably) wavelet message format 20 Sep DEVRON 12: üCTD (STED) reader üIMAT wavelet ingest MODAS LAPTOP Sneaker net (floppy, LS 120) Serial Line for real-time? Linux (Slackware 7. 1) LS-120 disk drive OAML MODAS-Lite 2. 1 EOF based assimilation module Full MODAS 2 development s/w OUTPUTS MODAS field in various formats EOF / WAVELET JJYY / Byte net. CDF / others. . . PC-IMAT 4. 1 Beta (Wavelet-enabled)

UNCLASSIFIED Sub MODAS: STED Real World Example, Vertical Excursions Only Horizontal Section at 200 UNCLASSIFIED Sub MODAS: STED Real World Example, Vertical Excursions Only Horizontal Section at 200 m 340 x 330 km region Vertical Section to 500 m Summer 2000 Example: MODAS-Lite 2. 1 using only vertical excursion data Three vertical excursions were converted to standard profile format and assimilated using OAML MODASLite 2. 1, using the MODAS-Heavy 2. 1 first guess field (which used remote sensed SST and altimetry but no in situ profile; that is, the field that would be sent from NAVO or a Center via wavelet message).

UNCLASSIFIED GRIDDED-FIELD COMPRESSION WAVAL: Wavelet Compression Around Land-Masses Present EOF method New Wavelet method UNCLASSIFIED GRIDDED-FIELD COMPRESSION WAVAL: Wavelet Compression Around Land-Masses Present EOF method New Wavelet method Temperature at Surface (true and reconstructed) Error in reconstructed surface Temperature

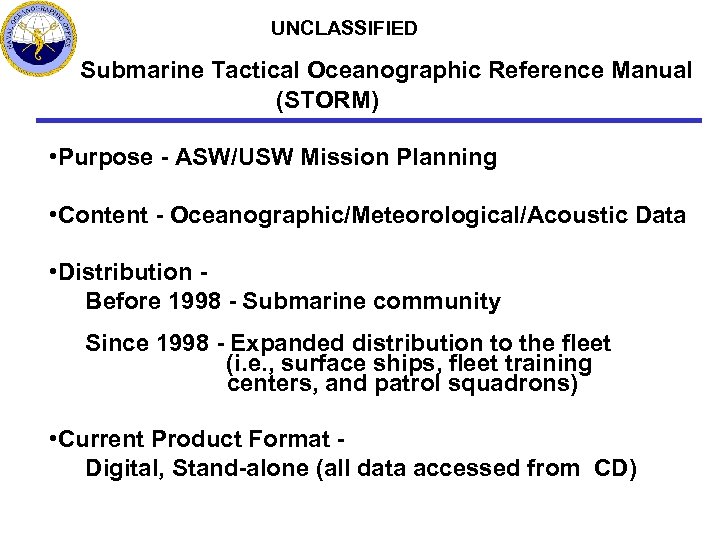

UNCLASSIFIED Submarine Tactical Oceanographic Reference Manual (STORM) • Purpose - ASW/USW Mission Planning • UNCLASSIFIED Submarine Tactical Oceanographic Reference Manual (STORM) • Purpose - ASW/USW Mission Planning • Content - Oceanographic/Meteorological/Acoustic Data • Distribution Before 1998 - Submarine community Since 1998 - Expanded distribution to the fleet (i. e. , surface ships, fleet training centers, and patrol squadrons) • Current Product Format Digital, Stand-alone (all data accessed from CD)

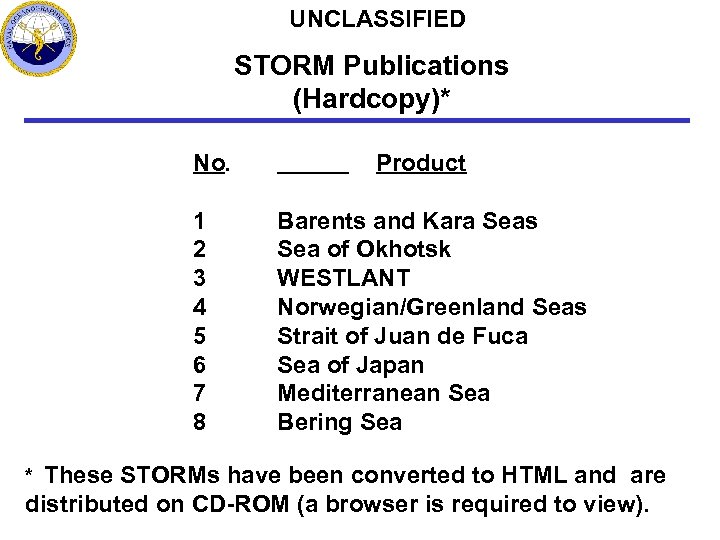

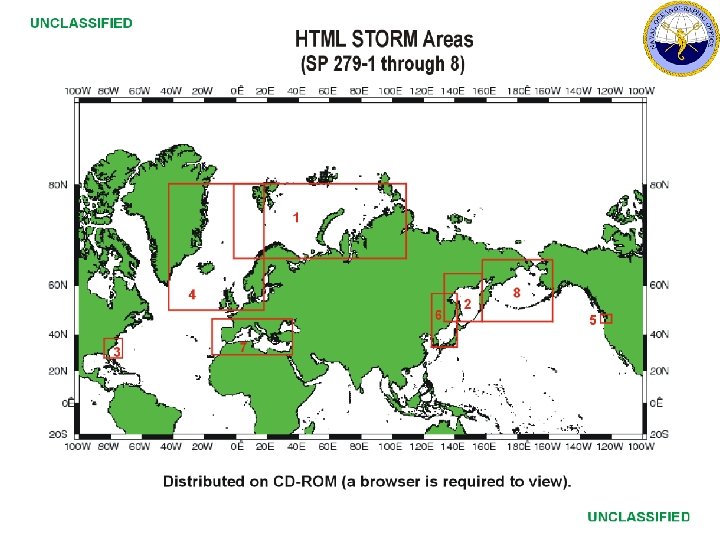

UNCLASSIFIED STORM Publications (Hardcopy)* No. 1 2 3 4 5 6 7 8 Product UNCLASSIFIED STORM Publications (Hardcopy)* No. 1 2 3 4 5 6 7 8 Product Barents and Kara Seas Sea of Okhotsk WESTLANT Norwegian/Greenland Seas Strait of Juan de Fuca Sea of Japan Mediterranean Sea Bering Sea These STORMs have been converted to HTML and are distributed on CD-ROM (a browser is required to view). *

SUBMARINE TACTICAL OCEANOGRAPHIC REFERENCE MANUAL (STORM) NORTH INDIAN OCEAN, RED SEA, AND ARABIAN GULF SUBMARINE TACTICAL OCEANOGRAPHIC REFERENCE MANUAL (STORM) NORTH INDIAN OCEAN, RED SEA, AND ARABIAN GULF (U) SP 279 -9, Version 2. 0 April 1998 UNCLASSIFIED

SUBMARINE TACTICAL OCEANOGRAPHIC REFERENCE MANUAL (STORM) YELLOW SEA, EAST CHINA SEA, SOUTH CHINA SEA, SUBMARINE TACTICAL OCEANOGRAPHIC REFERENCE MANUAL (STORM) YELLOW SEA, EAST CHINA SEA, SOUTH CHINA SEA, AND PHILIPPINE SEA (U) SP 279 -10, Version 1. 0 December 1998 UNCLASSIFIED

UNCLASSIFIED SUBMARINE TACTICAL OCEANOGRAPHIC REFERENCE MANUAL (STORM) CARIBBEAN SEA AND EQUATORIAL PACIFIC REGION OF UNCLASSIFIED SUBMARINE TACTICAL OCEANOGRAPHIC REFERENCE MANUAL (STORM) CARIBBEAN SEA AND EQUATORIAL PACIFIC REGION OF CENTRAL AND SOUTH AMERICA (U) SP 279 -11, Version 1. 0 June 1999

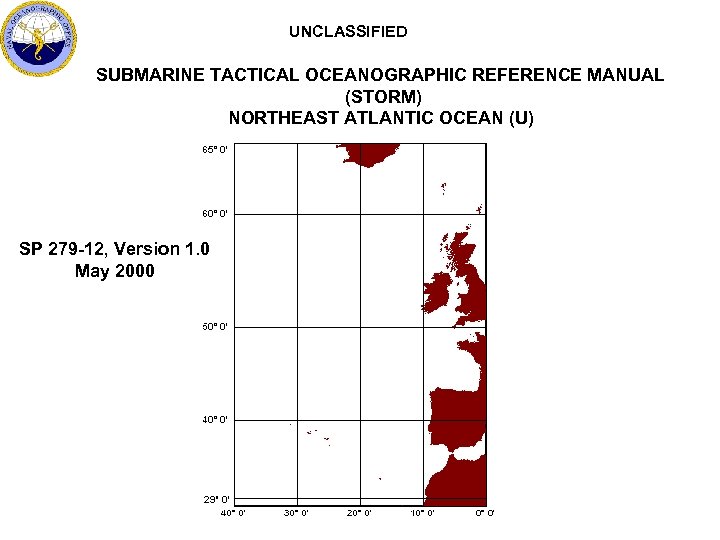

UNCLASSIFIED SUBMARINE TACTICAL OCEANOGRAPHIC REFERENCE MANUAL (STORM) NORTHEAST ATLANTIC OCEAN (U) SP 279 -12, UNCLASSIFIED SUBMARINE TACTICAL OCEANOGRAPHIC REFERENCE MANUAL (STORM) NORTHEAST ATLANTIC OCEAN (U) SP 279 -12, Version 1. 0 May 2000

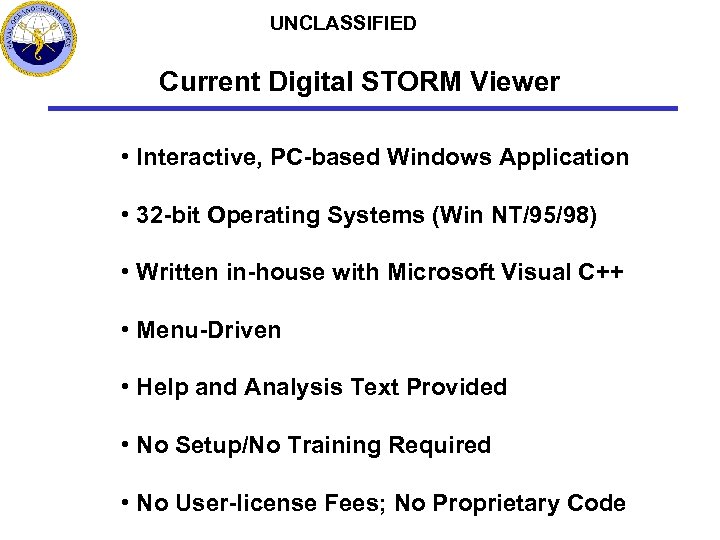

UNCLASSIFIED Current Digital STORM Viewer • Interactive, PC-based Windows Application • 32 -bit Operating UNCLASSIFIED Current Digital STORM Viewer • Interactive, PC-based Windows Application • 32 -bit Operating Systems (Win NT/95/98) • Written in-house with Microsoft Visual C++ • Menu-Driven • Help and Analysis Text Provided • No Setup/No Training Required • No User-license Fees; No Proprietary Code

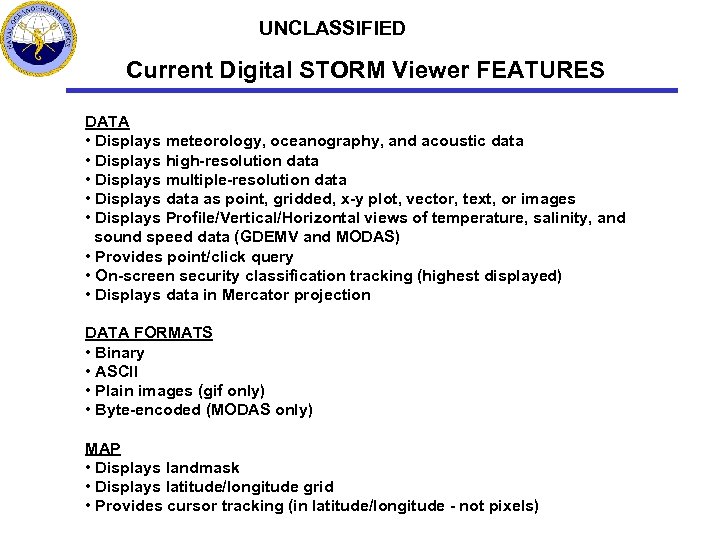

UNCLASSIFIED Current Digital STORM Viewer FEATURES DATA • Displays meteorology, oceanography, and acoustic data UNCLASSIFIED Current Digital STORM Viewer FEATURES DATA • Displays meteorology, oceanography, and acoustic data • Displays high-resolution data • Displays multiple-resolution data • Displays data as point, gridded, x-y plot, vector, text, or images • Displays Profile/Vertical/Horizontal views of temperature, salinity, and sound speed data (GDEMV and MODAS) • Provides point/click query • On-screen security classification tracking (highest displayed) • Displays data in Mercator projection DATA FORMATS • Binary • ASCII • Plain images (gif only) • Byte-encoded (MODAS only) MAP • Displays landmask • Displays latitude/longitude grid • Provides cursor tracking (in latitude/longitude - not pixels)

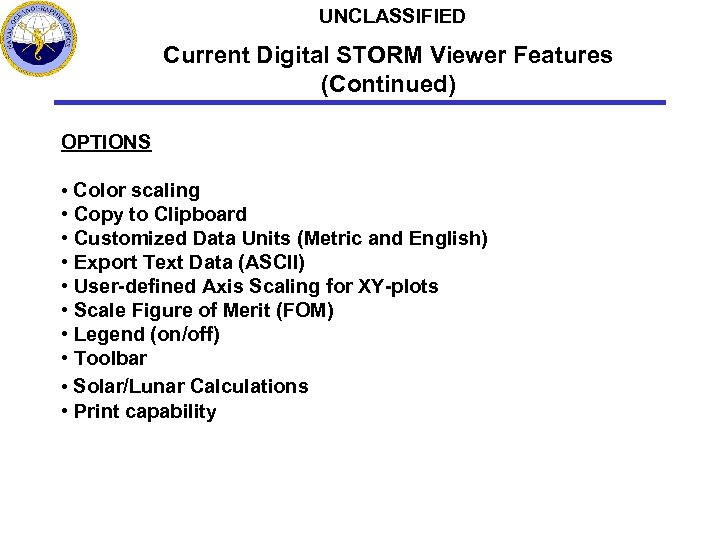

UNCLASSIFIED Current Digital STORM Viewer Features (Continued) OPTIONS • Color scaling • Copy to UNCLASSIFIED Current Digital STORM Viewer Features (Continued) OPTIONS • Color scaling • Copy to Clipboard • Customized Data Units (Metric and English) • Export Text Data (ASCII) • User-defined Axis Scaling for XY-plots • Scale Figure of Merit (FOM) • Legend (on/off) • Toolbar • Solar/Lunar Calculations • Print capability

UNCLASSIFIED Current Digital STORM Viewer Features (Continued) ZOOM • Zoom-in/Zoom-out • Restore (to original UNCLASSIFIED Current Digital STORM Viewer Features (Continued) ZOOM • Zoom-in/Zoom-out • Restore (to original map) • Select Area (user-input latitude/longitude coordinates) OVERLAYS • Bathymetry Contours (labeling/custom units/set contour interval) • User-defined Labeling • Cities/Geographic Features/Physiographic Features Overlay HELP • Context-sensitive Help Text (for product features; toolbar access) • Context-sensitive Analysis Text (for data; toolbar access)

UNCLASSIFIED DBDB-V Bathymetry 2 -Minute Resolution 5 -Minute Resolution UNCLASSIFIED DBDB-V Bathymetry 2 -Minute Resolution 5 -Minute Resolution

GDEM-V Sound Speed GDEM-V Sound Speed

GDEM-V Temperature GDEM-V Temperature

GDEM-V Salinity GDEM-V Salinity

UNCLASSIFIED New JAVA Viewer • Provides Platform Independence (e. g. , PCs, UNIX, HP-UNIX, UNCLASSIFIED New JAVA Viewer • Provides Platform Independence (e. g. , PCs, UNIX, HP-UNIX, LINUX); (Currently PC Platforms) • Currently Designed for Stand-Alone Access; Potential for Network and SIPRNET Access • Displays Static and Dynamic, Near-real-time Data Sets (e. g. , STORM data sets and REACT data sets) • Potential capability to link to other JAVA applications like MEDAL, NRL’s JAVA Digital Nautical Chart (DNC), and Additional Military Layer (AML) applications • No User-license Fees; No Proprietary Code

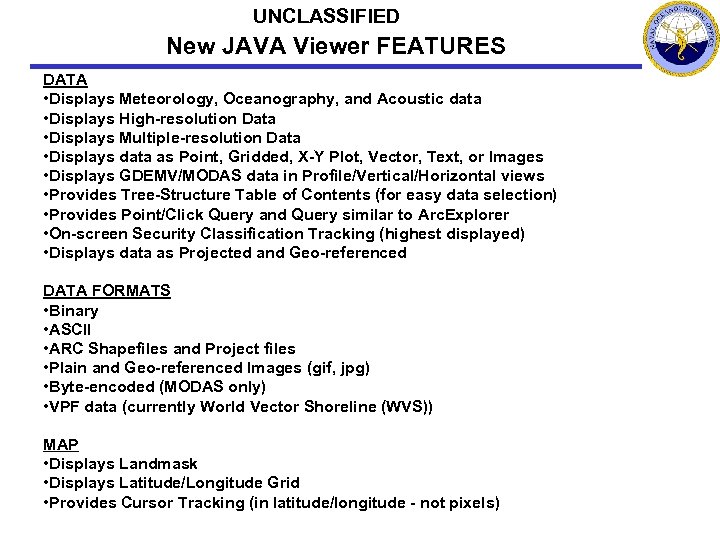

UNCLASSIFIED New JAVA Viewer FEATURES DATA • Displays Meteorology, Oceanography, and Acoustic data • UNCLASSIFIED New JAVA Viewer FEATURES DATA • Displays Meteorology, Oceanography, and Acoustic data • Displays High-resolution Data • Displays Multiple-resolution Data • Displays data as Point, Gridded, X-Y Plot, Vector, Text, or Images • Displays GDEMV/MODAS data in Profile/Vertical/Horizontal views • Provides Tree-Structure Table of Contents (for easy data selection) • Provides Point/Click Query and Query similar to Arc. Explorer • On-screen Security Classification Tracking (highest displayed) • Displays data as Projected and Geo-referenced DATA FORMATS • Binary • ASCII • ARC Shapefiles and Project files • Plain and Geo-referenced Images (gif, jpg) • Byte-encoded (MODAS only) • VPF data (currently World Vector Shoreline (WVS)) MAP • Displays Landmask • Displays Latitude/Longitude Grid • Provides Cursor Tracking (in latitude/longitude - not pixels)

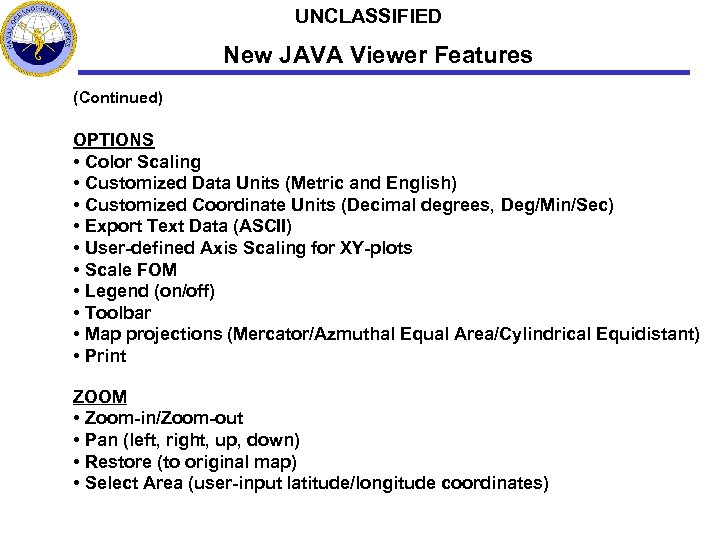

UNCLASSIFIED New JAVA Viewer Features (Continued) OPTIONS • Color Scaling • Customized Data Units UNCLASSIFIED New JAVA Viewer Features (Continued) OPTIONS • Color Scaling • Customized Data Units (Metric and English) • Customized Coordinate Units (Decimal degrees, Deg/Min/Sec) • Export Text Data (ASCII) • User-defined Axis Scaling for XY-plots • Scale FOM • Legend (on/off) • Toolbar • Map projections (Mercator/Azmuthal Equal Area/Cylindrical Equidistant) • Print ZOOM • Zoom-in/Zoom-out • Pan (left, right, up, down) • Restore (to original map) • Select Area (user-input latitude/longitude coordinates)

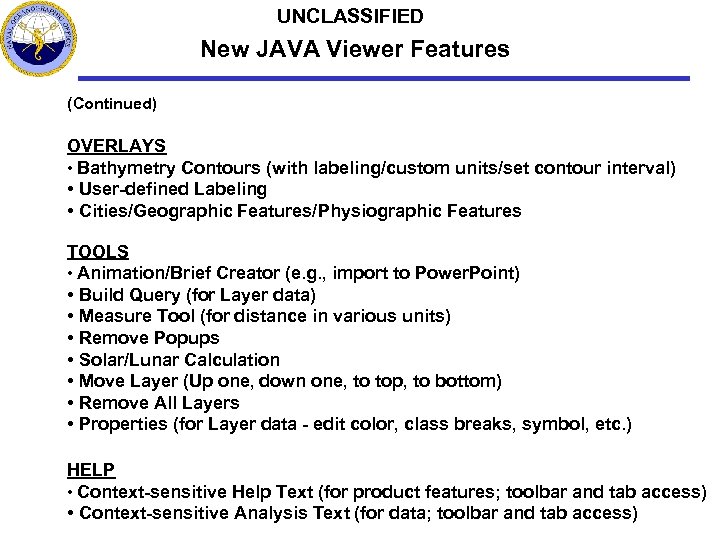

UNCLASSIFIED New JAVA Viewer Features (Continued) OVERLAYS • Bathymetry Contours (with labeling/custom units/set contour UNCLASSIFIED New JAVA Viewer Features (Continued) OVERLAYS • Bathymetry Contours (with labeling/custom units/set contour interval) • User-defined Labeling • Cities/Geographic Features/Physiographic Features TOOLS • Animation/Brief Creator (e. g. , import to Power. Point) • Build Query (for Layer data) • Measure Tool (for distance in various units) • Remove Popups • Solar/Lunar Calculation • Move Layer (Up one, down one, to top, to bottom) • Remove All Layers • Properties (for Layer data - edit color, class breaks, symbol, etc. ) HELP • Context-sensitive Help Text (for product features; toolbar and tab access) • Context-sensitive Analysis Text (for data; toolbar and tab access)

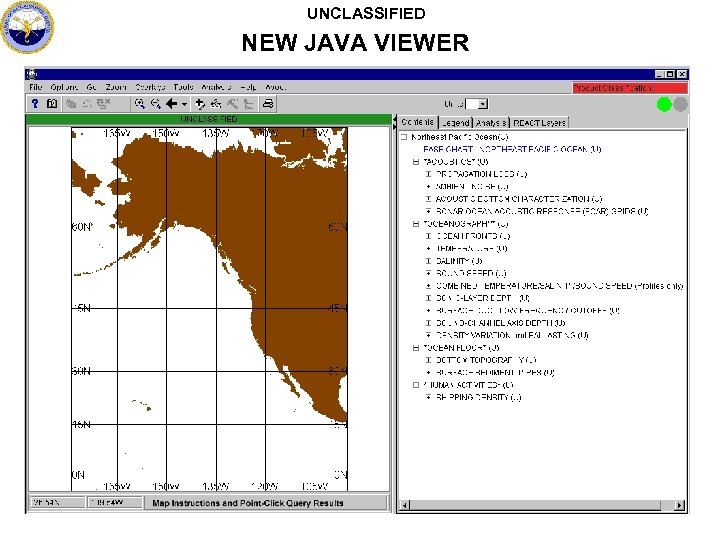

UNCLASSIFIED NEW JAVA VIEWER UNCLASSIFIED NEW JAVA VIEWER

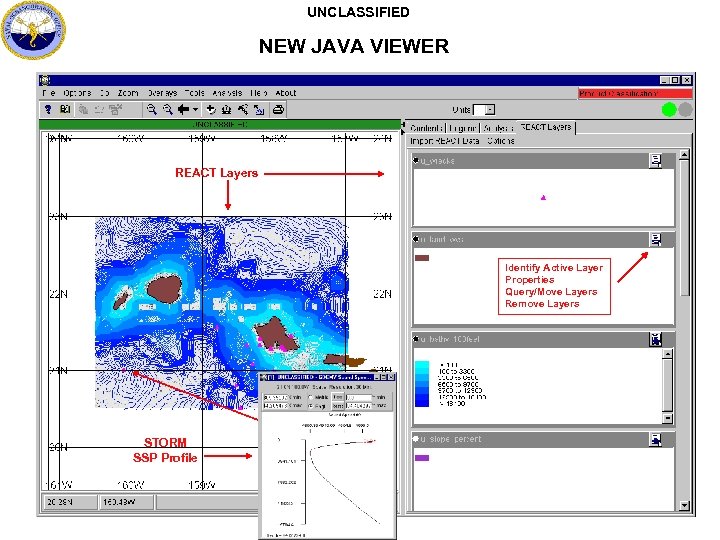

UNCLASSIFIED NEW JAVA VIEWER REACT Layers Identify Active Layer Properties Query/Move Layers Remove Layers UNCLASSIFIED NEW JAVA VIEWER REACT Layers Identify Active Layer Properties Query/Move Layers Remove Layers STORM SSP Profile

QUESTIONS? CDR Jim Hart COMSUBPAC N 73 Force Oceanographer (808) 473 -5652 DSN (315) QUESTIONS? CDR Jim Hart COMSUBPAC N 73 Force Oceanographer (808) 473 -5652 DSN (315) 473 -5652 [email protected] navy. mil n [email protected] csp. navy. smil. mil
