STYLITIS-101 Advanced, portable data acquisition system covering a wide range of measurement and recording needs

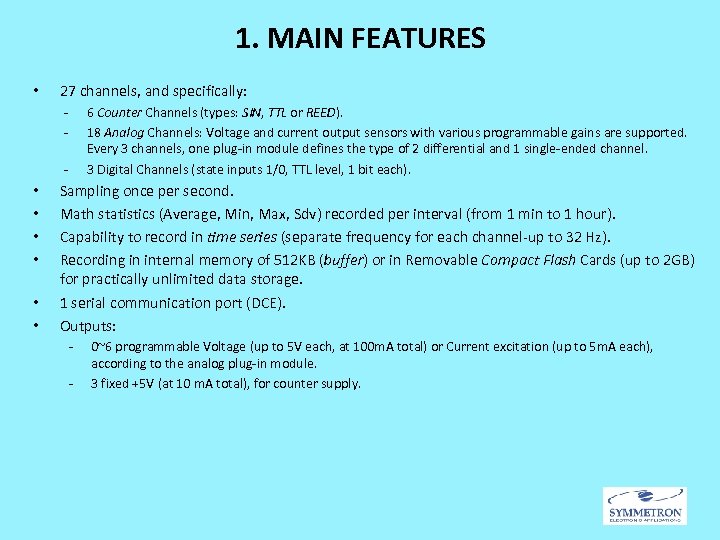

1. MAIN FEATURES • 27 channels, and specifically: - 6 Counter Channels (types: SIN, TTL or REED). 18 Analog Channels: Voltage and current output sensors with various programmable gains are supported. Every 3 channels, one plug-in module defines the type of 2 differential and 1 single-ended channel. 3 Digital Channels (state inputs 1/0, TTL level, 1 bit each). - • • • Sampling once per second. Math statistics (Average, Min, Max, Sdv) recorded per interval (from 1 min to 1 hour). Capability to record in time series (separate frequency for each channel-up to 32 Hz). Recording in internal memory of 512 KB (buffer) or in Removable Compact Flash Cards (up to 2 GB) for practically unlimited data storage. 1 serial communication port (DCE). Outputs: - 0~6 programmable Voltage (up to 5 V each, at 100 m. A total) or Current excitation (up to 5 m. A each), according to the analog plug-in module. 3 fixed +5 V (at 10 m. A total), for counter supply.

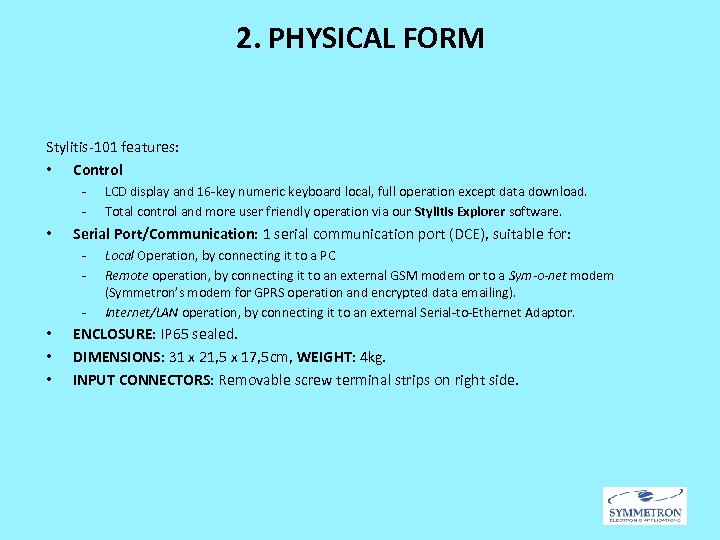

2. PHYSICAL FORM Stylitis-101 features: • Control - • Serial Port/Communication: 1 serial communication port (DCE), suitable for: - • • • LCD display and 16 -key numeric keyboard local, full operation except data download. Total control and more user friendly operation via our Stylitis Explorer software. Local Operation, by connecting it to a PC Remote operation, by connecting it to an external GSM modem or to a Sym-o-net modem (Symmetron’s modem for GPRS operation and encrypted data emailing). Internet/LAN operation, by connecting it to an external Serial-to-Ethernet Adaptor. ENCLOSURE: ΙΡ 65 sealed. DIMENSIONS: 31 x 21, 5 x 17, 5 cm, WEIGHT: 4 kg. INPUT CONNECTORS: Removable screw terminal strips on right side.

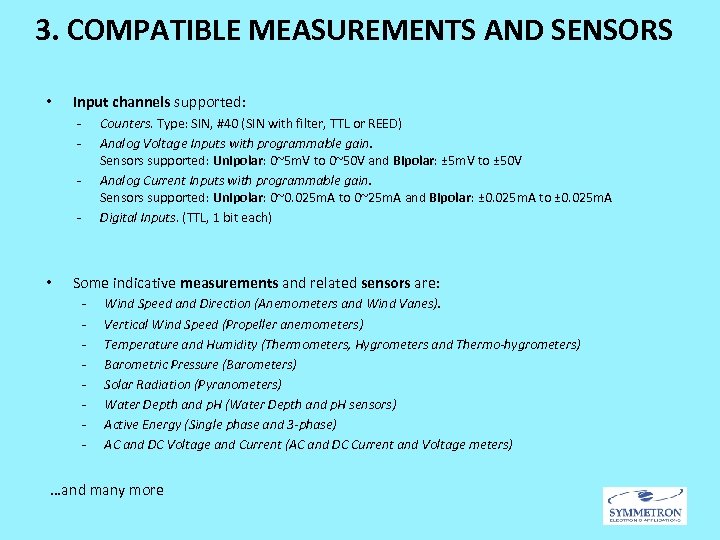

3. COMPATIBLE MEASUREMENTS AND SENSORS • Input channels supported: - Counters. Type: SIN, #40 (SIN with filter, TTL or REED) Analog Voltage Inputs with programmable gain. Sensors supported: Unipolar: 0~5 m. V to 0~50 V and Bipolar: ± 5 m. V to ± 50 V Analog Current Inputs with programmable gain. Sensors supported: Unipolar: 0~0. 025 m. A to 0~25 m. A and Bipolar: ± 0. 025 m. A to ± 0. 025 m. A Digital Inputs. (TTL, 1 bit each) - • Some indicative measurements and related sensors are: - Wind Speed and Direction (Anemometers and Wind Vanes). Vertical Wind Speed (Propeller anemometers) Temperature and Humidity (Thermometers, Hygrometers and Thermo-hygrometers) Barometric Pressure (Barometers) Solar Radiation (Pyranometers) Water Depth and p. H (Water Depth and p. H sensors) Active Energy (Single phase and 3 -phase) AC and DC Voltage and Current (AC and DC Current and Voltage meters) …and many more

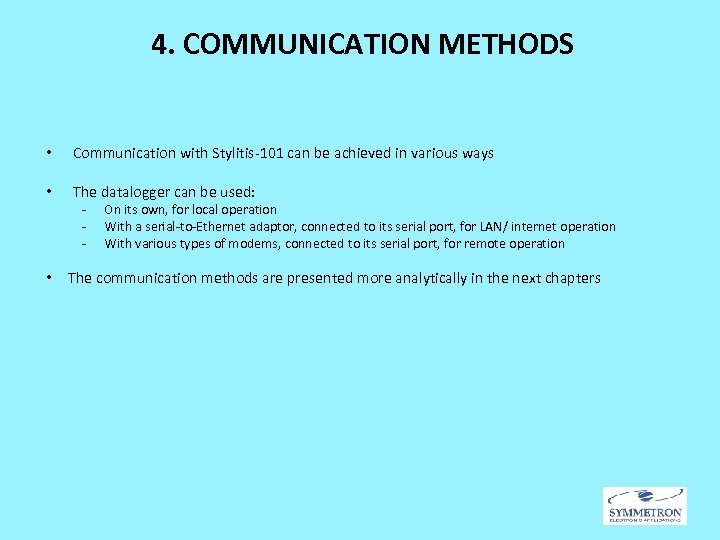

4. COMMUNICATION METHODS • Communication with Stylitis-101 can be achieved in various ways • The datalogger can be used: - • On its own, for local operation With a serial-to-Ethernet adaptor, connected to its serial port, for LAN/ internet operation With various types of modems, connected to its serial port, for remote operation The communication methods are presented more analytically in the next chapters

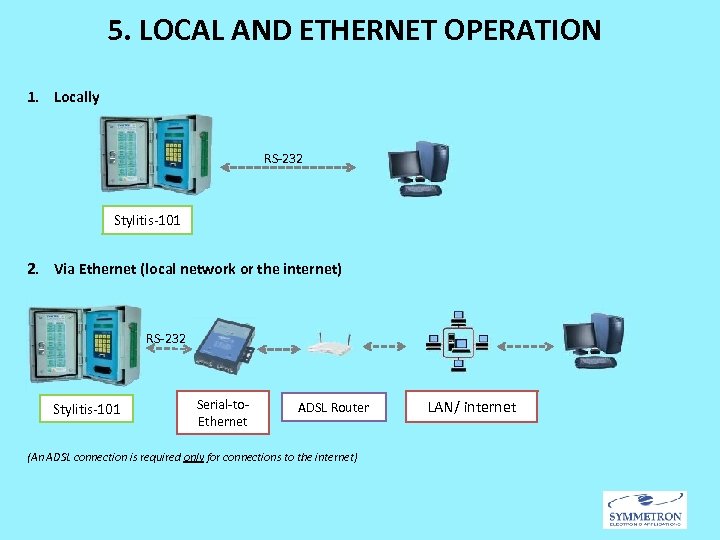

5. LOCAL AND ETHERNET OPERATION 1. Locally RS-232 Stylitis-101 2. Via Ethernet (local network or the internet) RS-232 Stylitis-101 Serial-to. Ethernet ADSL Router (An ADSL connection is required only for connections to the internet) LAN/ internet

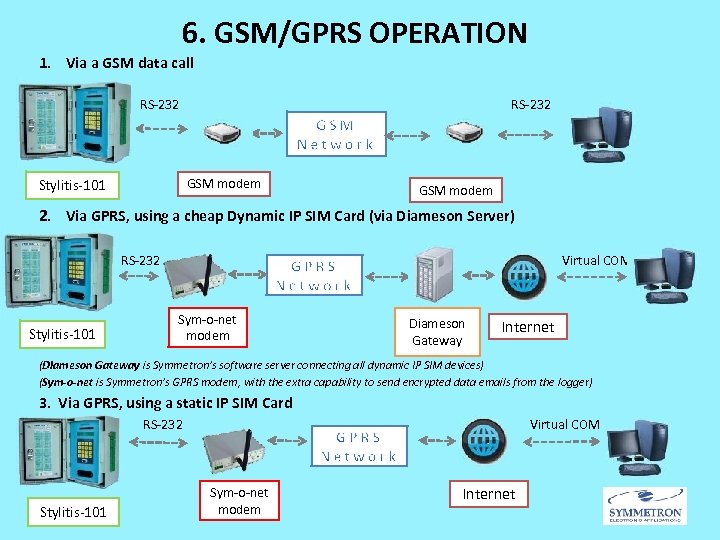

6. GSM/GPRS OPERATION 1. Via a GSM data call RS-232 GSM modem Stylitis-101 GSM modem 2. Via GPRS, using a cheap Dynamic IP SIM Card (via Diameson Server) RS-232 Stylitis-101 Virtual COM Sym-o-net modem Diameson Gateway Internet (Diameson Gateway is Symmetron’s software server connecting all dynamic IP SIM devices) (Sym-o-net is Symmetron’s GPRS modem, with the extra capability to send encrypted data emails from the logger) 3. Via GPRS, using a static IP SIM Card RS-232 Stylitis-101 Virtual COM Sym-o-net modem Internet

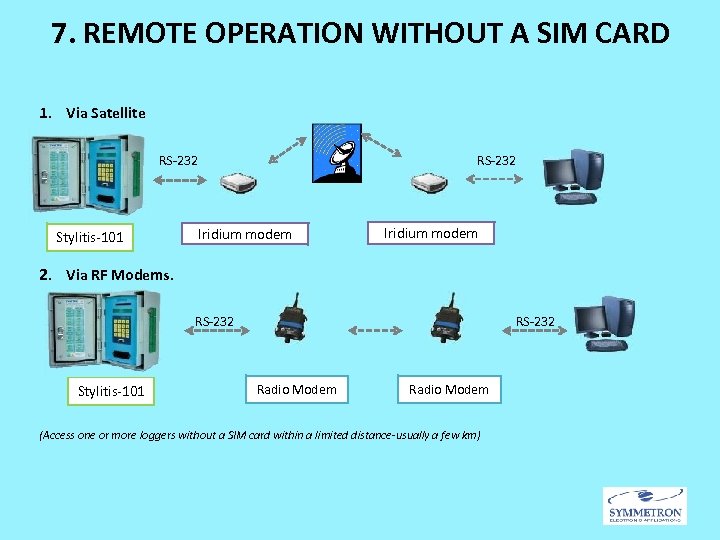

7. REMOTE OPERATION WITHOUT A SIM CARD 1. Via Satellite RS-232 Stylitis-101 RS-232 Iridium modem 2. Via RF Modems. RS-232 Stylitis-101 RS-232 Radio Modem (Access one or more loggers without a SIM card within a limited distance-usually a few km)

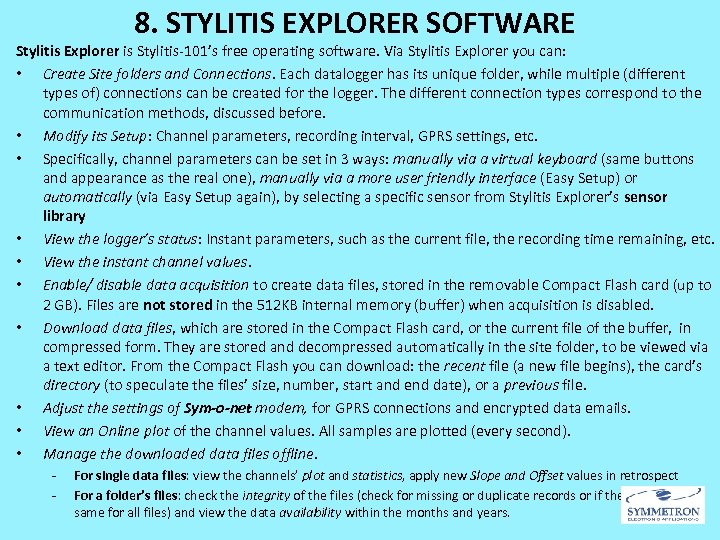

8. STYLITIS EXPLORER SOFTWARE Stylitis Explorer is Stylitis-101’s free operating software. Via Stylitis Explorer you can: • Create Site folders and Connections. Each datalogger has its unique folder, while multiple (different types of) connections can be created for the logger. The different connection types correspond to the communication methods, discussed before. • Modify its Setup: Channel parameters, recording interval, GPRS settings, etc. • Specifically, channel parameters can be set in 3 ways: manually via a virtual keyboard (same buttons and appearance as the real one), manually via a more user friendly interface (Easy Setup) or automatically (via Easy Setup again), by selecting a specific sensor from Stylitis Explorer’s sensor library • View the logger’s status: Instant parameters, such as the current file, the recording time remaining, etc. • View the instant channel values. • Enable/ disable data acquisition to create data files, stored in the removable Compact Flash card (up to 2 GB). Files are not stored in the 512 KB internal memory (buffer) when acquisition is disabled. • Download data files, which are stored in the Compact Flash card, or the current file of the buffer, in compressed form. They are stored and decompressed automatically in the site folder, to be viewed via a text editor. From the Compact Flash you can download: the recent file (a new file begins), the card’s directory (to speculate the files’ size, number, start and end date), or a previous file. • Adjust the settings of Sym-o-net modem, for GPRS connections and encrypted data emails. • View an Online plot of the channel values. All samples are plotted (every second). • Manage the downloaded data files offline. - For single data files: view the channels’ plot and statistics, apply new Slope and Offset values in retrospect For a folder’s files: check the integrity of the files (check for missing or duplicate records or if the interval is the same for all files) and view the data availability within the months and years.

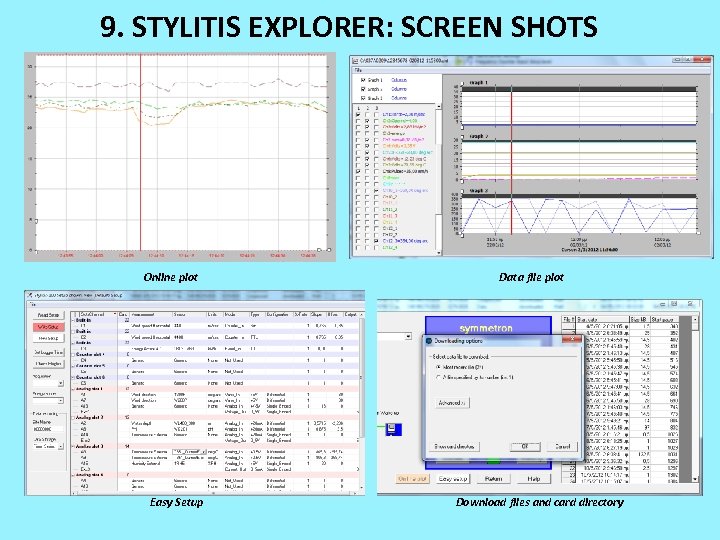

9. STYLITIS EXPLORER: SCREEN SHOTS Online plot Easy Setup Data file plot Download files and card directory

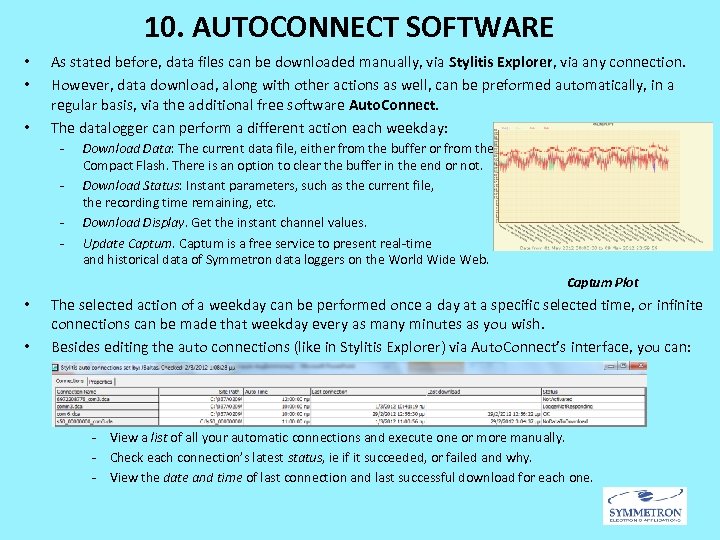

10. AUTOCONNECT SOFTWARE • • • As stated before, data files can be downloaded manually, via Stylitis Explorer, via any connection. However, data download, along with other actions as well, can be preformed automatically, in a regular basis, via the additional free software Auto. Connect. The datalogger can perform a different action each weekday: - Download Data: The current data file, either from the buffer or from the Compact Flash. There is an option to clear the buffer in the end or not. Download Status: Instant parameters, such as the current file, the recording time remaining, etc. Download Display. Get the instant channel values. Update Captum is a free service to present real-time and historical data of Symmetron data loggers on the World Wide Web. Captum Plot • • The selected action of a weekday can be performed once a day at a specific selected time, or infinite connections can be made that weekday every as many minutes as you wish. Besides editing the auto connections (like in Stylitis Explorer) via Auto. Connect’s interface, you can: - View a list of all your automatic connections and execute one or more manually. - Check each connection’s latest status, ie if it succeeded, or failed and why. - View the date and time of last connection and last successful download for each one.

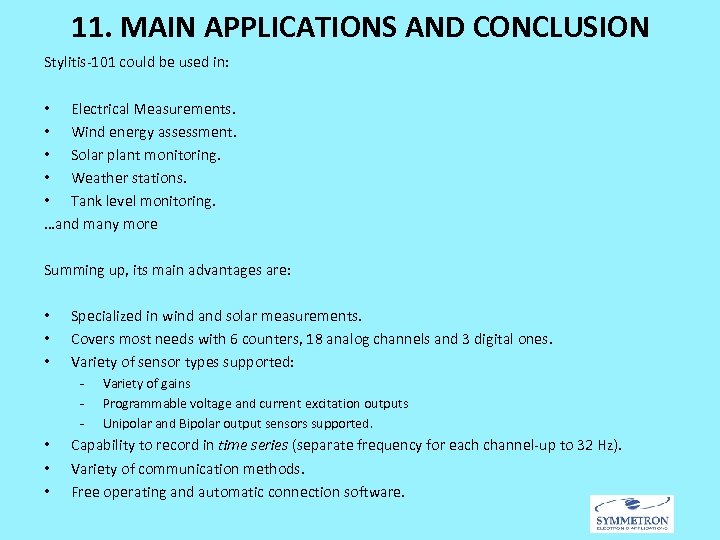

11. MAIN APPLICATIONS AND CONCLUSION Stylitis-101 could be used in: • Electrical Measurements. • Wind energy assessment. • Solar plant monitoring. • Weather stations. • Tank level monitoring. …and many more Summing up, its main advantages are: • • • Specialized in wind and solar measurements. Covers most needs with 6 counters, 18 analog channels and 3 digital ones. Variety of sensor types supported: - • • • Variety of gains Programmable voltage and current excitation outputs Unipolar and Bipolar output sensors supported. Capability to record in time series (separate frequency for each channel-up to 32 Hz). Variety of communication methods. Free operating and automatic connection software.
about Symmetron Our company was founded in 1989 by experienced engineers and evolved as a major manufacturer of dataloggers and supplier of measurement equipment. Symmetron is certified according to the ISO 9001 quality system and we are proud to have deployed thousands of measurement systems worldwide. Address 1, Antikythiron Street 153 44 Gerakas Greece tel: +30 -210 -6034002 fax: +30 -210 -6034003 email: info@symmetron. gr www. symmetron. gr
