Study of Ig E cross-reactivity of Blomia tropicalis

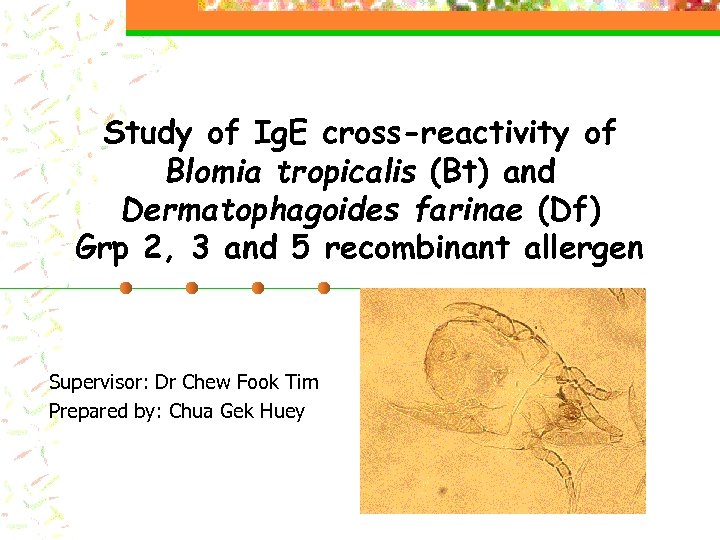

Study of Ig. E cross-reactivity of Blomia tropicalis (Bt) and Dermatophagoides farinae (Df) Grp 2, 3 and 5 recombinant allergen Supervisor: Dr Chew Fook Tim Prepared by: Chua Gek Huey

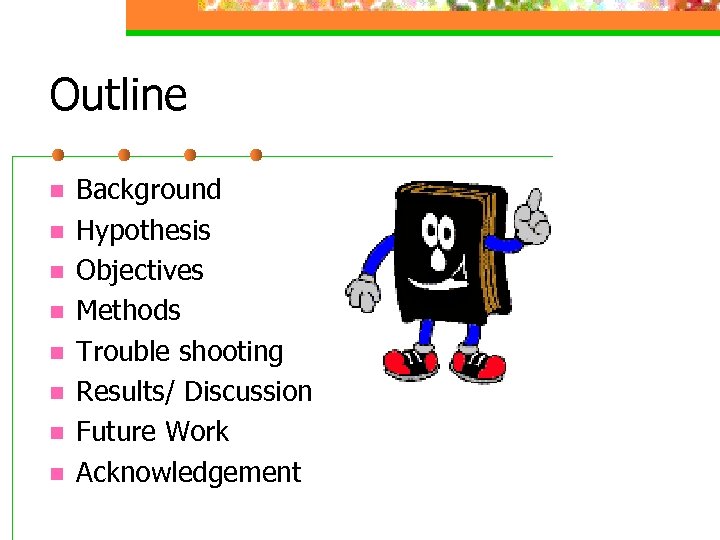

Outline n n n n Background Hypothesis Objectives Methods Trouble shooting Results/ Discussion Future Work Acknowledgement

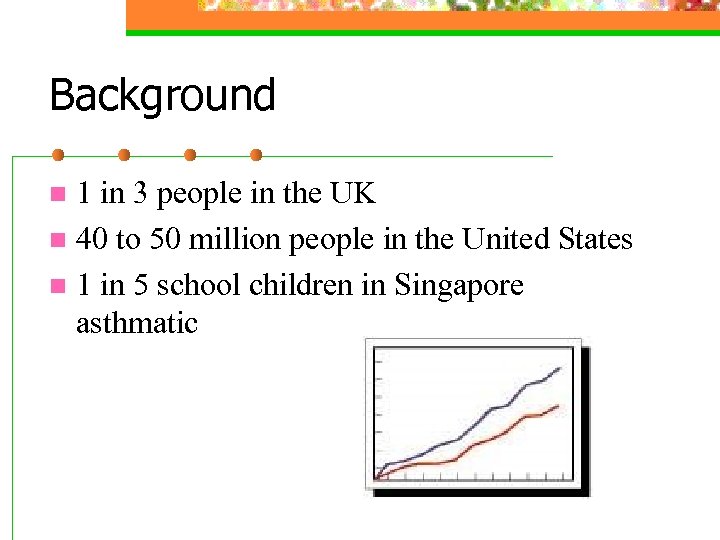

Background 1 in 3 people in the UK n 40 to 50 million people in the United States n 1 in 5 school children in Singapore asthmatic n

Symptoms Asthma n Rhinitis (nose) n Dermatitis (skin) n Conjunctivitis (eyes) n Anaphylaxis n

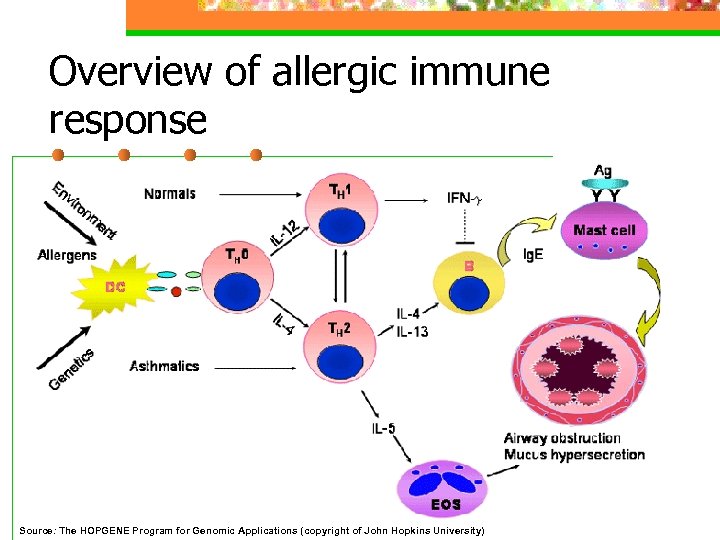

Overview of allergic immune response Source: The HOPGENE Program for Genomic Applications (copyright of John Hopkins University)

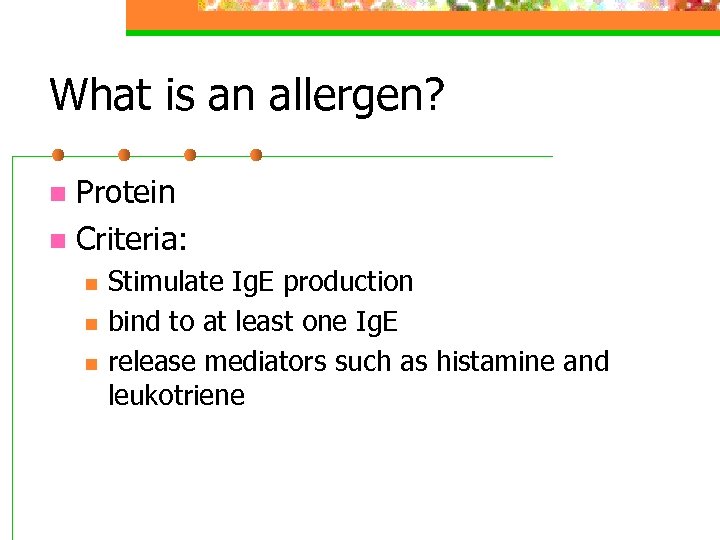

What is an allergen? Protein n Criteria: n n Stimulate Ig. E production bind to at least one Ig. E release mediators such as histamine and leukotriene

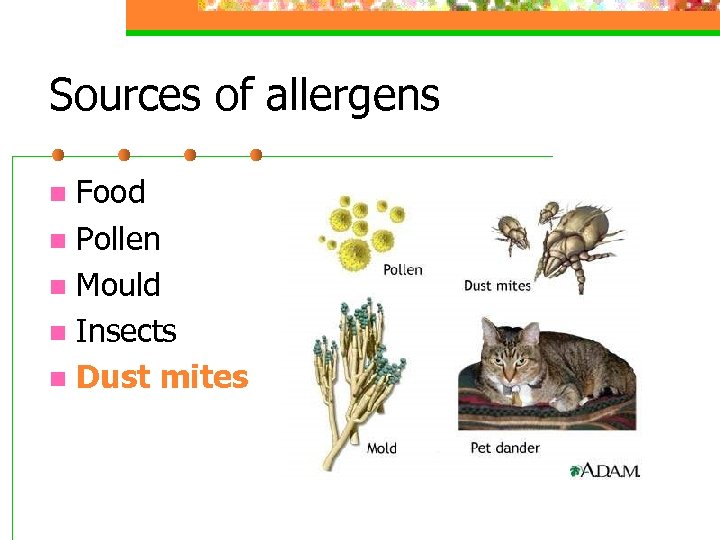

Sources of allergens Food n Pollen n Mould n Insects n Dust mites n

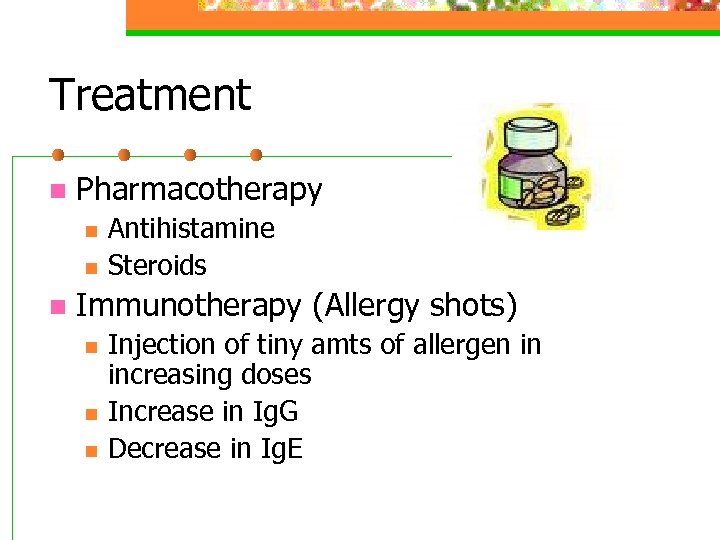

Treatment n Pharmacotherapy n n n Antihistamine Steroids Immunotherapy (Allergy shots) n n n Injection of tiny amts of allergen in increasing doses Increase in Ig. G Decrease in Ig. E

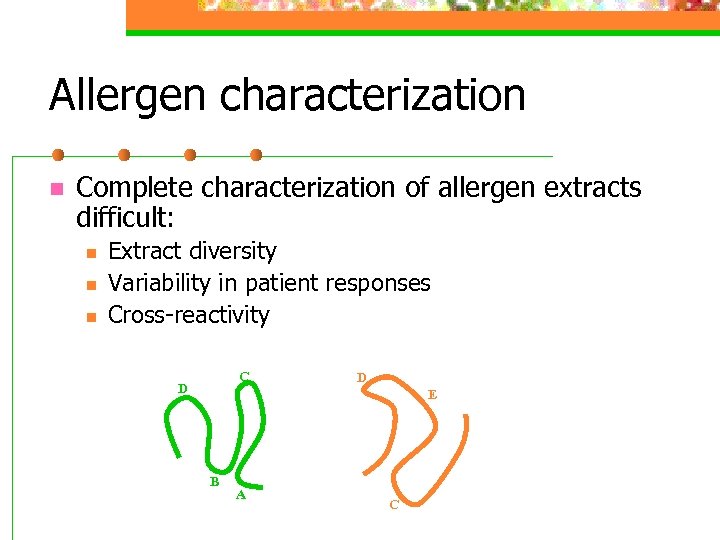

Allergen characterization n Complete characterization of allergen extracts difficult: n n n Extract diversity Variability in patient responses Cross-reactivity C D D E B A C

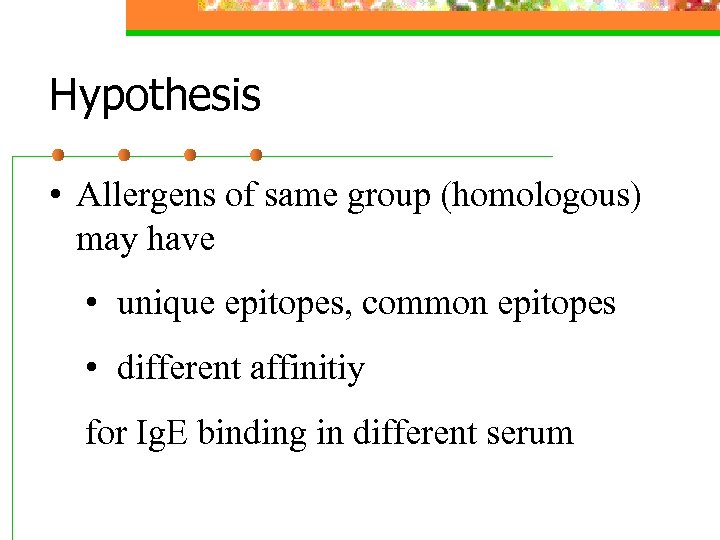

Hypothesis • Allergens of same group (homologous) may have • unique epitopes, common epitopes • different affinitiy for Ig. E binding in different serum

Objective Blomia tropicalis vs Dermatophagoides farinae n To evaluate the degree of cross-reactivity between n Blo t 2 vs Der f 2 n Blo t 3 vs Der f 3 n Blo t 5 vs Der f 5 n

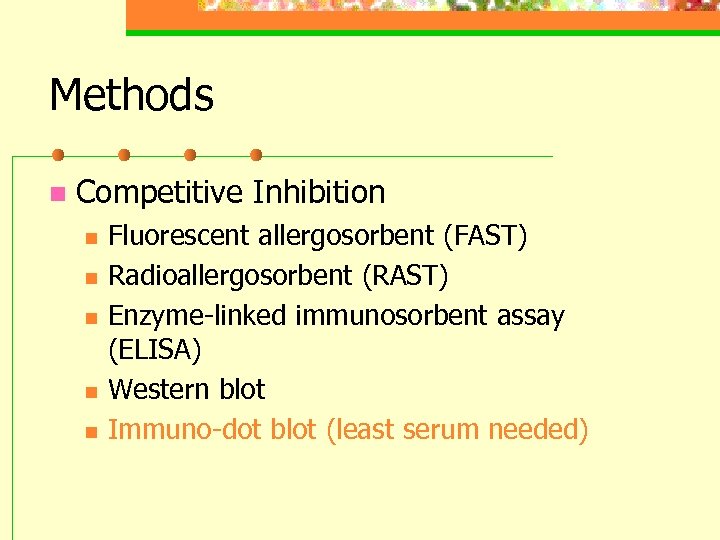

Methods n Competitive Inhibition n n Fluorescent allergosorbent (FAST) Radioallergosorbent (RAST) Enzyme-linked immunosorbent assay (ELISA) Western blot Immuno-dot blot (least serum needed)

Materials Human sera: 42 Italian, 55 Singaporean n Recombinant allergen n (Bt & Df Grp 2, 3 & 5) • p. ET 32 • E. coli (BL 21) • Expressed as a fusion protein with his-tag, s-tag & trx. A

Immuno-dot blot • System negative control : serum from non-allergenic individual • alkaline phosphatase anti-human Ig. E , alkaline phosphatase substrate Ig. E Positive ctrl Bt x Df x Bt Df p. ET Negative ctrl

Competitive inhibition Serum Diluant inhibitor • Inhibitor replaced by p. ET vector for zero-inhibition Test allergen

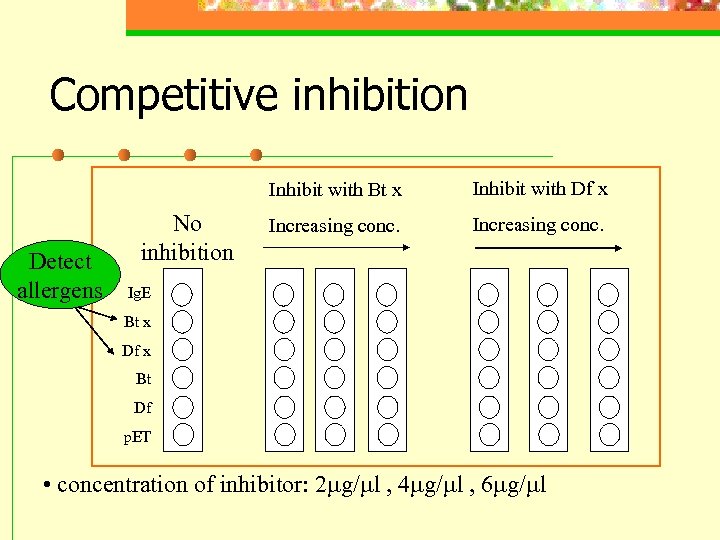

Competitive inhibition Inhibit with Bt x Detect allergens No inhibition Inhibit with Df x Increasing conc. Ig. E Bt x Df x Bt Df p. ET • concentration of inhibitor: 2 g/ l , 4 g/ l , 6 g/ l

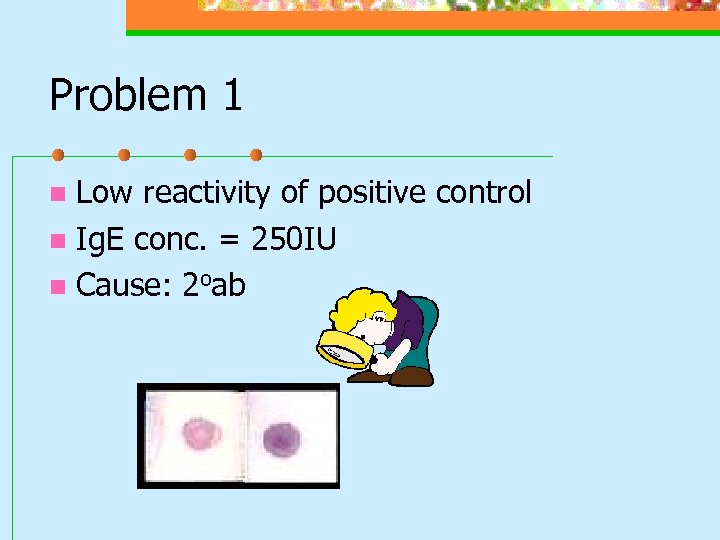

Problem 1 Low reactivity of positive control n Ig. E conc. = 250 IU n Cause: 2 oab n

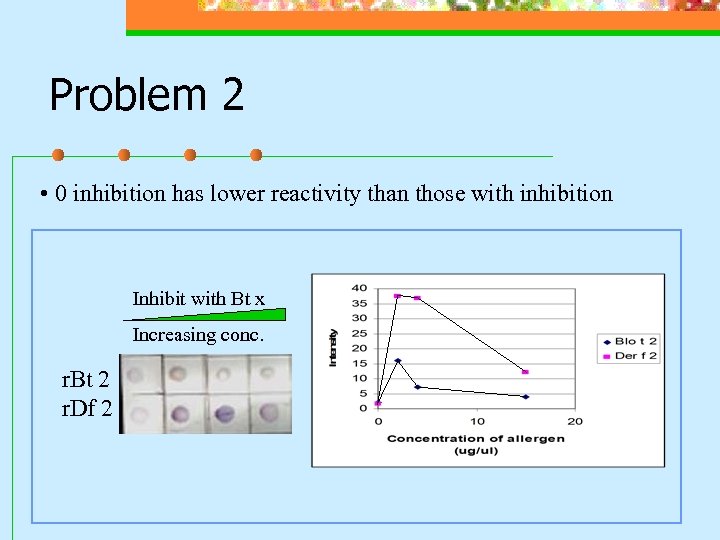

Problem 2 • 0 inhibition has lower reactivity than those with inhibition Inhibit with Bt x Increasing conc. r. Bt 2 r. Df 2

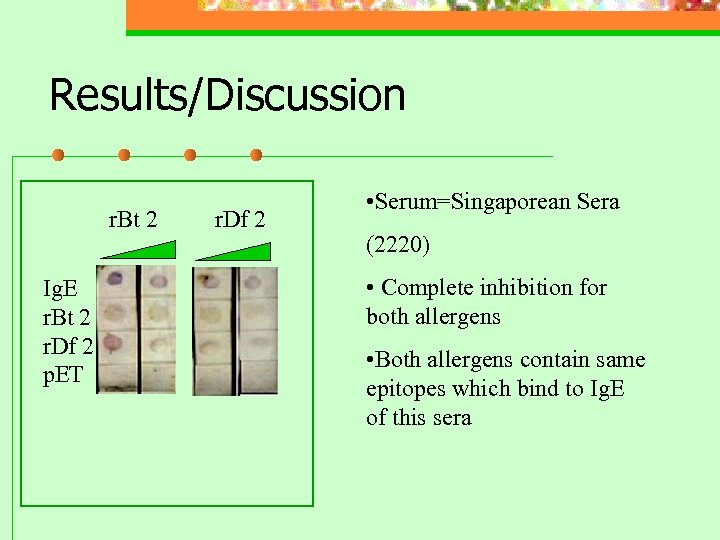

Results/Discussion r. Bt 2 Ig. E r. Bt 2 r. Df 2 p. ET r. Df 2 • Serum=Singaporean Sera (2220) • Complete inhibition for both allergens • Both allergens contain same epitopes which bind to Ig. E of this sera

Results/Discussion r. Bt 2 Ig. E r. Bt 2 r. Df 2 p. ET r. Df 2 • Serum=pool (I 221, I 86, 230, 22523, I 146) • r. BT 2 unable to inhibit r. DF 2 • r. DF 2 is able to inhibit r. BT 2 completely • r. DF 2 contains some unique epitopes not in r. BT 2

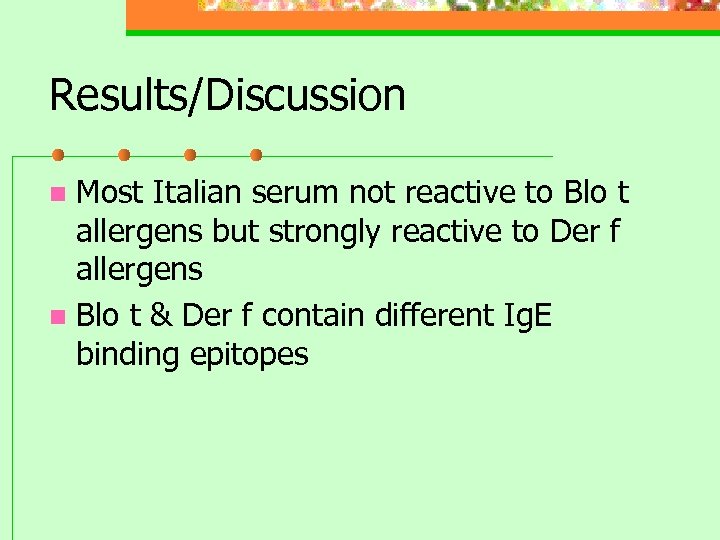

Results/Discussion Most Italian serum not reactive to Blo t allergens but strongly reactive to Der f allergens n Blo t & Der f contain different Ig. E binding epitopes n

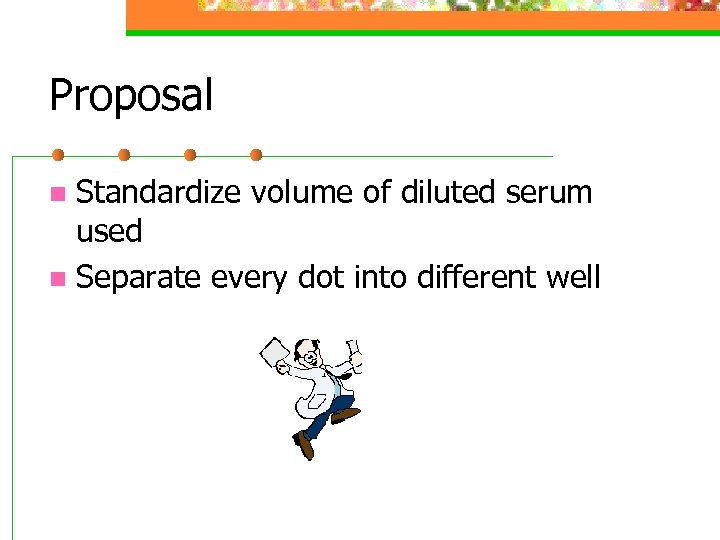

Proposal Standardize volume of diluted serum used n Separate every dot into different well n

Bioinformatics Hydropathic plots n Dotplots n Blastp n unique short amino-acid sequences n conserved within mites n

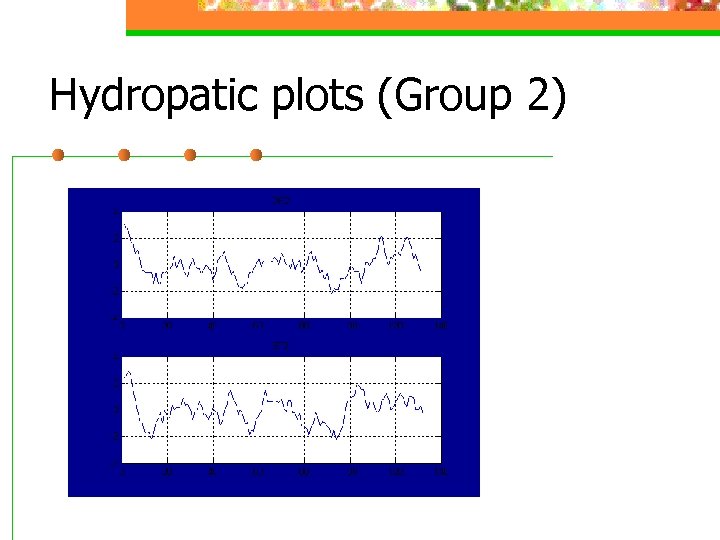

Hydropatic plots (Group 2)

Dot plot (Group 2)

Bioinformatics (Group 2) Allergen (hydropathic value, EIIP) Der f 2 C I I H R G K (-0. 0714, 0. 035) Blo t 2 CI IHKGK (0. 0143, 0. 0266) Der p 2 C I I H R G K (-0. 0714, 0. 035) Gly d 2 CV I H R G K (-0. 1143, 0. 0358) Eur m 2 CV I H R G T (0. 3429, 0. 0440) allergen A precursor CV I H K G K (-0. 0286, 0. 0274) [Psoroptes ovis] Lep D 1 CV I H R G E (-0. 0571, 0. 0314) Tyr p 2 CV I H K S K (-0. 0857, 0. 0386) Homo sapiens C I I N R G K (-0. 1143, 0. 0320) similar to b. A 494 O 16. 1 (KIAA 0637) • EIIP: electron-ion interaction potential

Bioinformatics Der f 2 LVGDNGVLAC Blo t 2 LVGDHGVVAC Lep d 2 LVGDHGVMAC Lep D 1 L IGDHGVMAC Gly d 2 L IGEHGVLAC Streptococcus pneumoniae LVGDHGLVAN

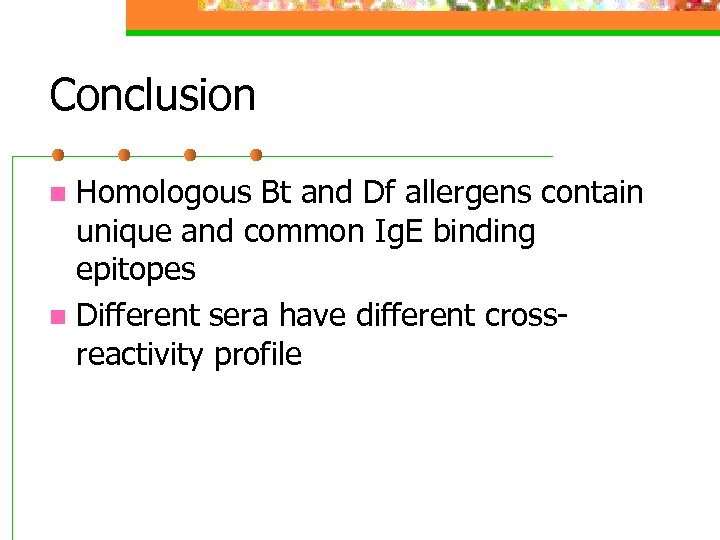

Conclusion Homologous Bt and Df allergens contain unique and common Ig. E binding epitopes n Different sera have different crossreactivity profile n

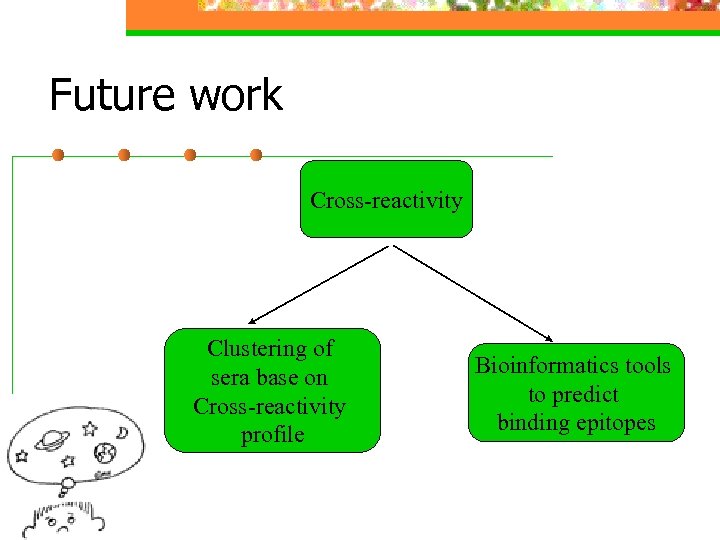

Future work Cross-reactivity Clustering of sera base on Cross-reactivity profile Bioinformatics tools to predict binding epitopes

Acknowledgement • Dr Chew Fook Tim • Dr Shang Huishen • Ms Ong Seow Theng • All Labmates (BII) • Dr Aylwin Ng • Dr Li Kuobin • Ms Wong Siew Chin • Ms Lim Yunping

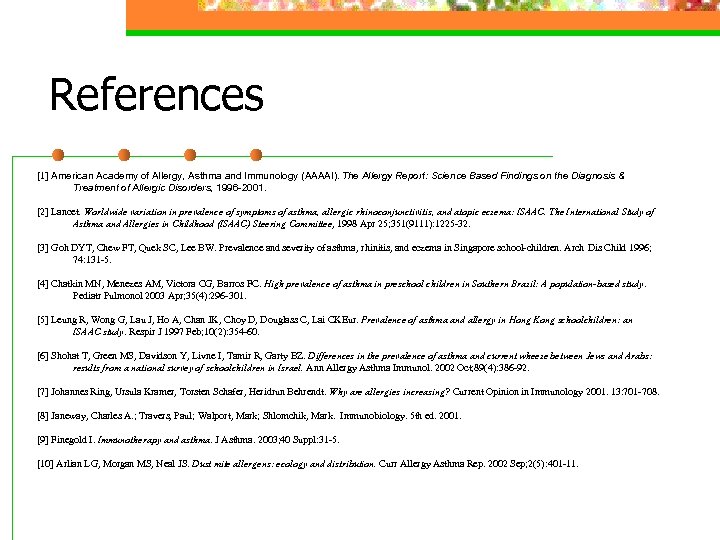

References [1] American Academy of Allergy, Asthma and Immunology (AAAAI). The Allergy Report: Science Based Findings on the Diagnosis & Treatment of Allergic Disorders, 1996 -2001. [2] Lancet. Worldwide variation in prevalence of symptoms of asthma, allergic rhinoconjunctivitis, and atopic eczema: ISAAC. The International Study of Asthma and Allergies in Childhood (ISAAC) Steering Committee, 1998 Apr 25; 351(9111): 1225 -32. [3] Goh DYT, Chew FT, Quek SC, Lee BW. Prevalence and severity of asthma, rhinitis, and eczema in Singapore school-children. Arch Dis Child 1996; 74: 131 -5. [4] Chatkin MN, Menezes AM, Victora CG, Barros FC. High prevalence of asthma in preschool children in Southern Brazil: A population-based study. Pediatr Pulmonol 2003 Apr; 35(4): 296 -301. [5] Leung R, Wong G, Lau J, Ho A, Chan JK, Choy D, Douglass C, Lai CKEur. Prevalence of asthma and allergy in Hong Kong schoolchildren: an ISAAC study. Respir J 1997 Feb; 10(2): 354 -60. [6] Shohat T, Green MS, Davidson Y, Livne I, Tamir R, Garty BZ. Differences in the prevalence of asthma and current wheeze between Jews and Arabs: results from a national survey of schoolchildren in Israel. Ann Allergy Asthma Immunol. 2002 Oct; 89(4): 386 -92. [7] Johannes Ring, Ursula Kramer, Torsten Schafer, Heridrun Behrendt. Why are allergies increasing? Current Opinion in Immunology 2001. 13: 701 -708. [8] Janeway, Charles A. ; Travers, Paul; Walport, Mark; Shlomchik, Mark. Immunobiology. 5 th ed. 2001. [9] Finegold I. Immunotherapy and asthma. J Asthma. 2003; 40 Suppl: 31 -5. [10] Arlian LG, Morgan MS, Neal JS. Dust mite allergens: ecology and distribution. Curr Allergy Asthma Rep. 2002 Sep; 2(5): 401 -11.

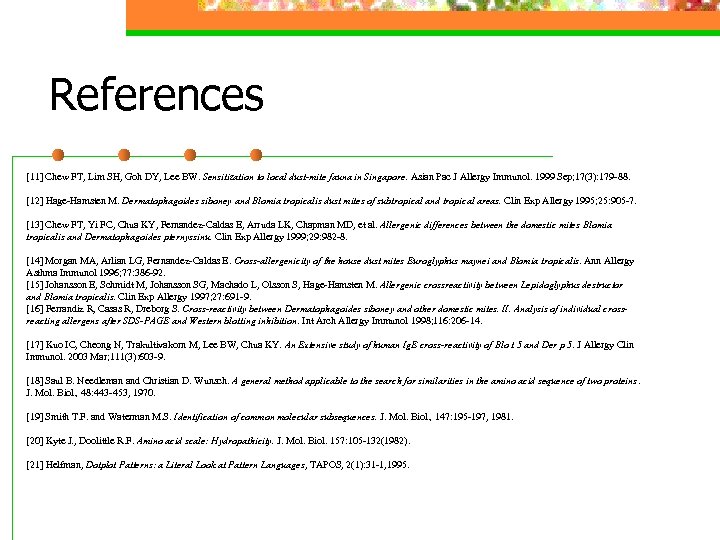

References [11] Chew FT, Lim SH, Goh DY, Lee BW. Sensitization to local dust-mite fauna in Singapore. Asian Pac J Allergy Immunol. 1999 Sep; 17(3): 179 -88. [12] Hage-Hamsten M. Dermatophagoides siboney and Blomia tropicalis dust mites of subtropical and tropical areas. Clin Exp Allergy 1995; 25: 905 -7. [13] Chew FT, Yi FC, Chua KY, Fernandez-Caldas E, Arruda LK, Chapman MD, et al. Allergenic differences between the domestic mites Blomia tropicalis and Dermatophagoides pternyssinu. Clin Exp Allergy 1999; 29: 982 -8. [14] Morgan MA, Arlian LG, Fernandez-Caldas E. Cross-allergenicity of the house dust mites Euroglyphus maynei and Blomia tropicalis. Ann Allergy Asthma Immunol 1996; 77: 386 -92. [15] Johansson E, Schmidt M, Johansson SG, Machado L, Olsson S, Hage-Hamsten M. Allergenic crossreactivity between Lepidoglyphus destructor and Blomia tropicalis. Clin Exp Allergy 1997; 27: 691 -9. [16] Ferrandiz R, Casas R, Dreborg S. Cross-reactivity between Dermatophagoides siboney and other domestic mites. II. Analysis of individual crossreacting allergens after SDS-PAGE and Western blotting inhibition. Int Arch Allergy Immunol 1998; 116: 206 -14. [17] Kuo IC, Cheong N, Trakultivakorn M, Lee BW, Chua KY. An Extensive study of human Ig. E cross-reactivity of Blo t 5 and Der p 5. J Allergy Clin Immunol. 2003 Mar; 111(3): 603 -9. [18] Saul B. Needleman and Christian D. Wunsch. A general method applicable to the search for similarities in the amino acid sequence of two proteins. J. Mol. Biol. , 48: 443 -453, 1970. [19] Smith T. F. and Waterman M. S. Identification of common molecular subsequences. J. Mol. Biol. , 147: 195 -197, 1981. [20] Kyte J. , Doolittle R. F. Amino acid scale: Hydropathicity. J. Mol. Biol. 157: 105 -132(1982). [21] Helfman, Dotplot Patterns: a Literal Look at Pattern Languages, TAPOS, 2(1): 31 -1, 1995.
