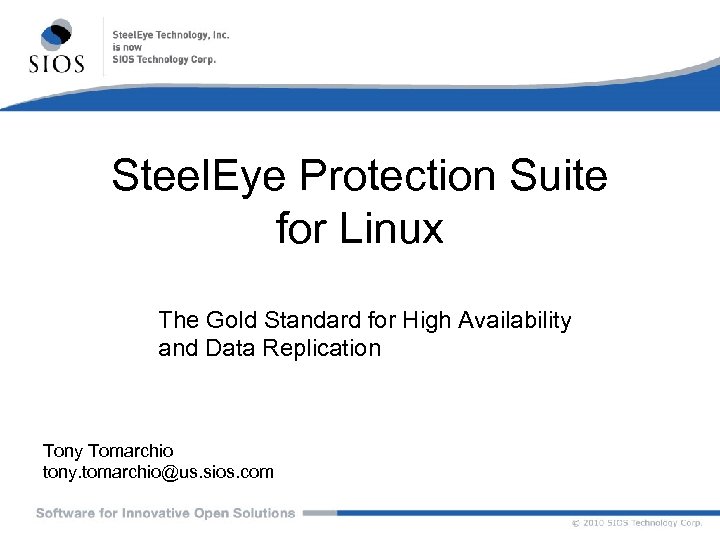

Steel. Eye Protection Suite for Linux The Gold Standard for High Availability and Data Replication Tony Tomarchio tony. tomarchio@us. sios. com

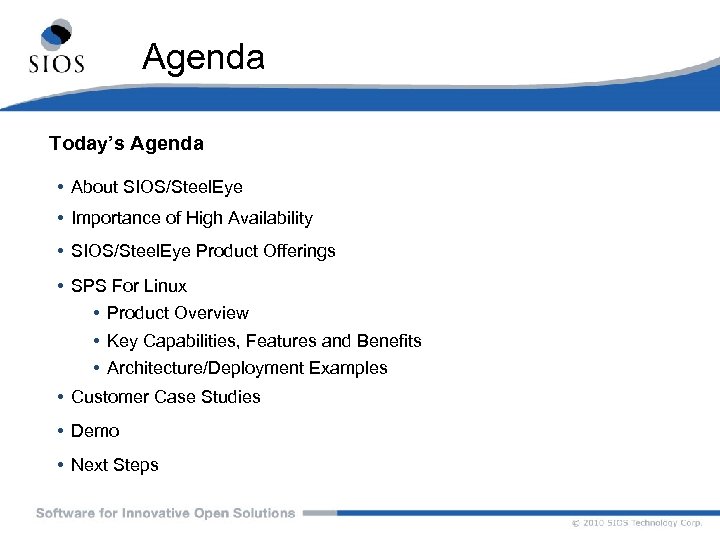

Agenda Today’s Agenda • About SIOS/Steel. Eye • Importance of High Availability • SIOS/Steel. Eye Product Offerings • SPS For Linux • Product Overview • Key Capabilities, Features and Benefits • Architecture/Deployment Examples • Customer Case Studies • Demo • Next Steps

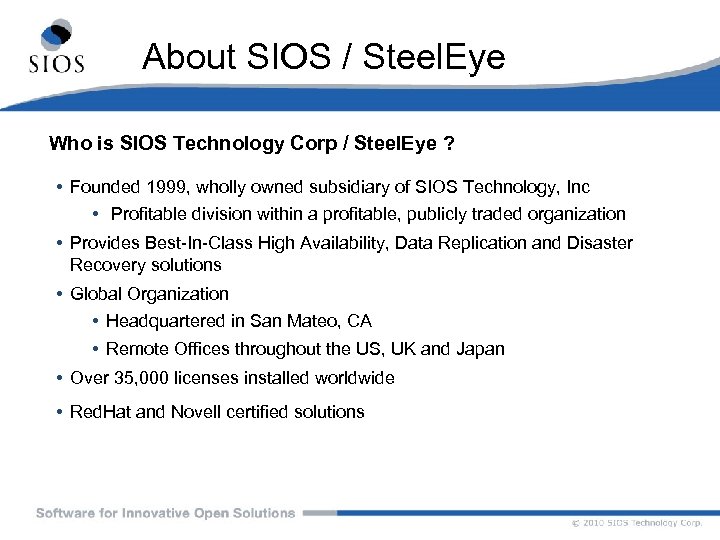

About SIOS / Steel. Eye Who is SIOS Technology Corp / Steel. Eye ? • Founded 1999, wholly owned subsidiary of SIOS Technology, Inc • Profitable division within a profitable, publicly traded organization • Provides Best-In-Class High Availability, Data Replication and Disaster Recovery solutions • Global Organization • Headquartered in San Mateo, CA • Remote Offices throughout the US, UK and Japan • Over 35, 000 licenses installed worldwide • Red. Hat and Novell certified solutions

The Cost of Downtime Linux in the Enterprise • Need for Linux based HA solutions is higher than ever: • Critical linux applications such as SAP and Oracle are rapidly growing across the enterprise • Applications not missions critical in the past are critical now (email, etc) • These applications need to be highly available to serve today’s 24 x 7 x 365 business landscape • Bottom Line: Cost of downtime to customers is substantial ! Cost of protection is NOT. Business Operation Cost/Hr. of Downtime Brokerage $6. 45 M Credit Card / Sales Authorization $2. 6 M Home Catalog Sales $90 K Airline Ticketing $89. 5 K Tele-Ticketing Sales $69 K Package Shipping $28 K ATM Fees $ 14. 5 K Your Business $ ? ?

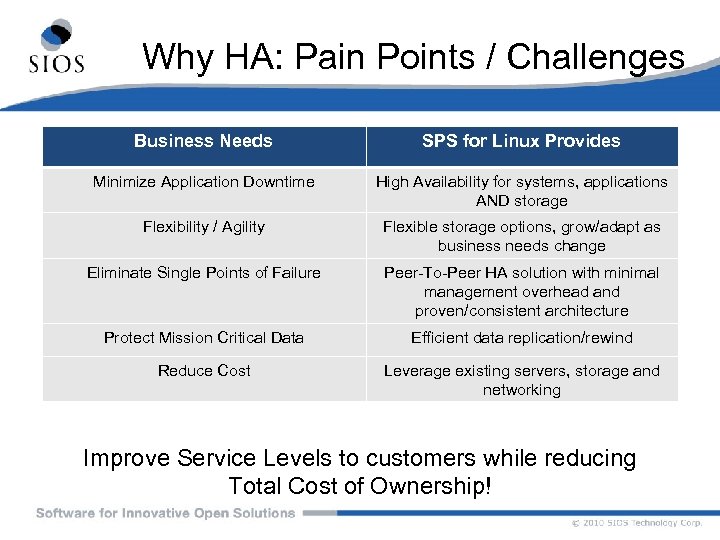

Why HA: Pain Points / Challenges Business Needs SPS for Linux Provides Minimize Application Downtime High Availability for systems, applications AND storage Flexibility / Agility Flexible storage options, grow/adapt as business needs change Eliminate Single Points of Failure Peer-To-Peer HA solution with minimal management overhead and proven/consistent architecture Protect Mission Critical Data Efficient data replication/rewind Reduce Cost Leverage existing servers, storage and networking Improve Service Levels to customers while reducing Total Cost of Ownership!

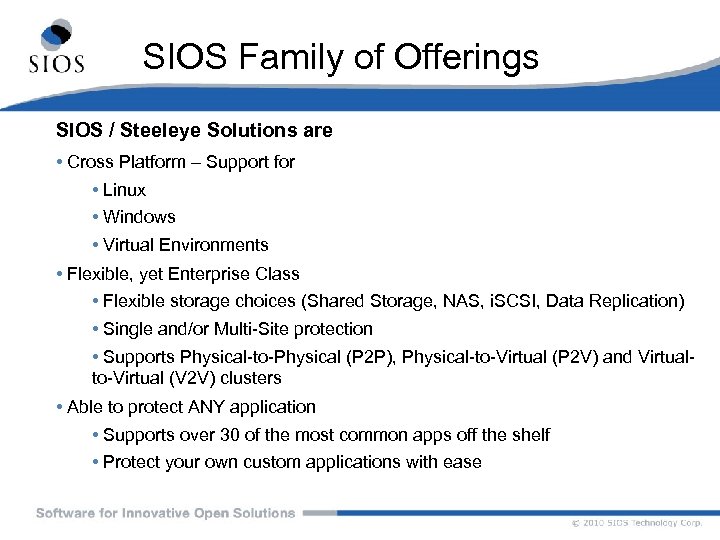

SIOS Family of Offerings SIOS / Steeleye Solutions are • Cross Platform – Support for • Linux • Windows • Virtual Environments • Flexible, yet Enterprise Class • Flexible storage choices (Shared Storage, NAS, i. SCSI, Data Replication) • Single and/or Multi-Site protection • Supports Physical-to-Physical (P 2 P), Physical-to-Virtual (P 2 V) and Virtualto-Virtual (V 2 V) clusters • Able to protect ANY application • Supports over 30 of the most common apps off the shelf • Protect your own custom applications with ease

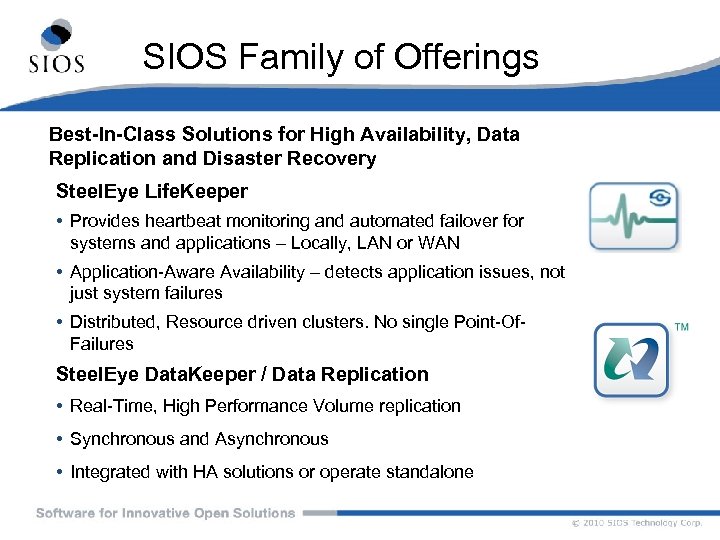

SIOS Family of Offerings Best-In-Class Solutions for High Availability, Data Replication and Disaster Recovery Steel. Eye Life. Keeper • Provides heartbeat monitoring and automated failover for systems and applications – Locally, LAN or WAN • Application-Aware Availability – detects application issues, not just system failures • Distributed, Resource driven clusters. No single Point-Of. Failures Steel. Eye Data. Keeper / Data Replication • Real-Time, High Performance Volume replication • Synchronous and Asynchronous • Integrated with HA solutions or operate standalone

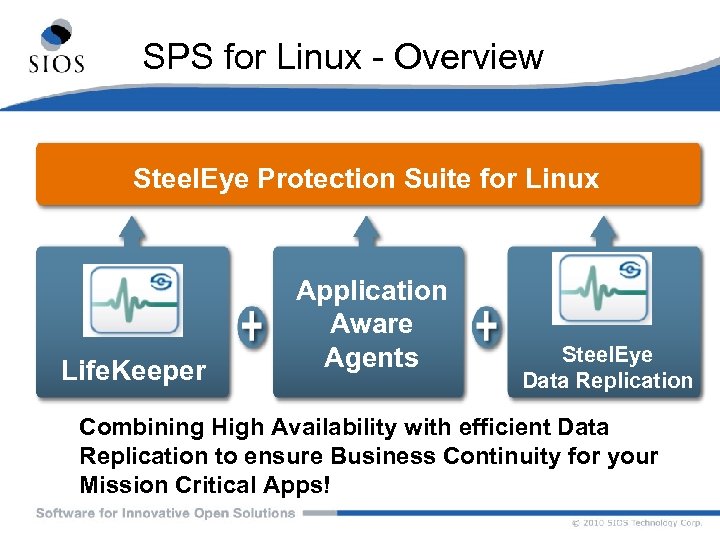

SPS for Linux - Overview Steel. Eye Protection Suite for Linux Life. Keeper Application Aware Agents Steel. Eye Data Replication Combining High Availability with efficient Data Replication to ensure Business Continuity for your Mission Critical Apps!

SPS for Linux Features and Benefits

SPS for Linux - Highlights Steel. Eye Protection Suite for Linux is: • Application Aware: Provides built-in, Application Aware Availability for over 30 key applications out of the box (Oracle, SAP, etc). • Easy and Empowering: With just a few clicks in the wizard-driven UI: • Recover application, servers, storage and networking • Monitor health and events • Manage the switchover/failover of critical applications with ease • Flexible / Extensible: • Flexible storage options • Grow/adapt your clusters with ease as your business needs change • Easily extend to support custom applications.

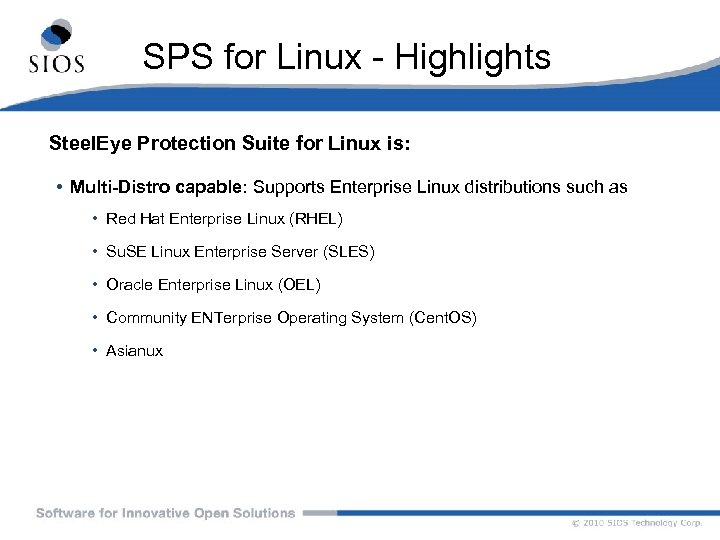

SPS for Linux - Highlights Steel. Eye Protection Suite for Linux is: • Multi-Distro capable: Supports Enterprise Linux distributions such as • Red Hat Enterprise Linux (RHEL) • Su. SE Linux Enterprise Server (SLES) • Oracle Enterprise Linux (OEL) • Community ENTerprise Operating System (Cent. OS) • Asianux

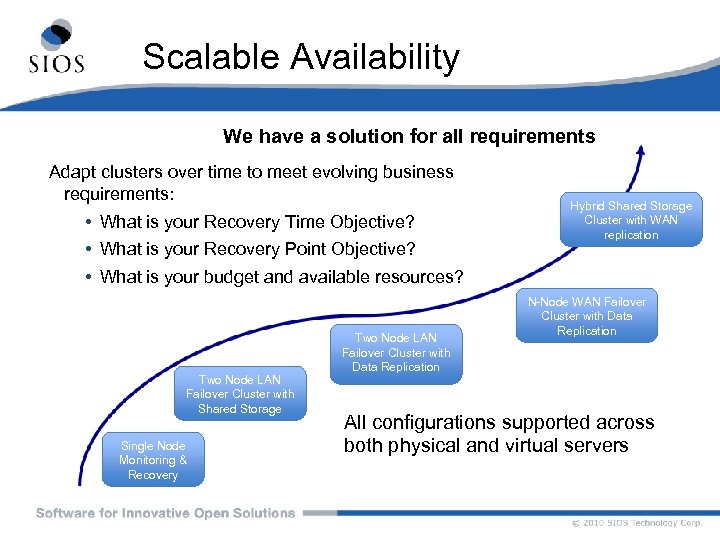

Scalable Availability We have a solution for all requirements Adapt clusters over time to meet evolving business requirements: • What is your Recovery Time Objective? • What is your Recovery Point Objective? • What is your budget and available resources? Two Node LAN Failover Cluster with Shared Storage Single Node Monitoring & Recovery Two Node LAN Failover Cluster with Data Replication Hybrid Shared Storage Cluster with WAN replication N-Node WAN Failover Cluster with Data Replication All configurations supported across both physical and virtual servers

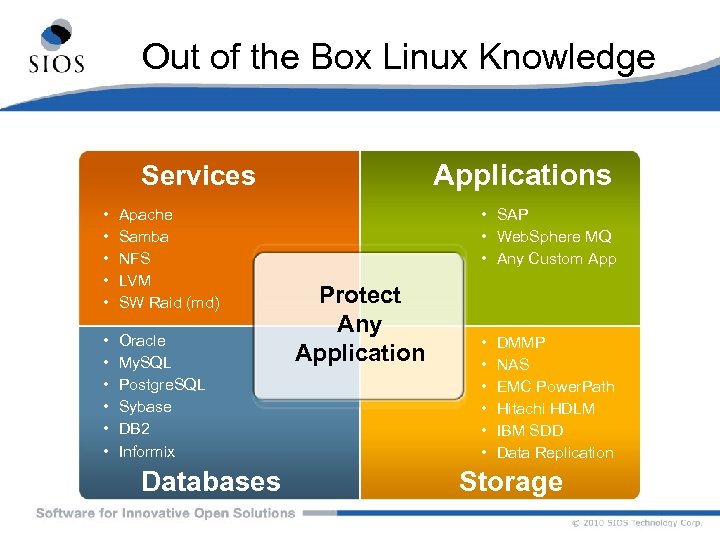

Out of the Box Linux Knowledge Applications Services • • • Apache Samba NFS LVM SW Raid (md) • • • Oracle My. SQL Postgre. SQL Sybase DB 2 Informix Databases • SAP • Web. Sphere MQ • Any Custom App Protect Any Application • • • DMMP NAS EMC Power. Path Hitachi HDLM IBM SDD Data Replication Storage

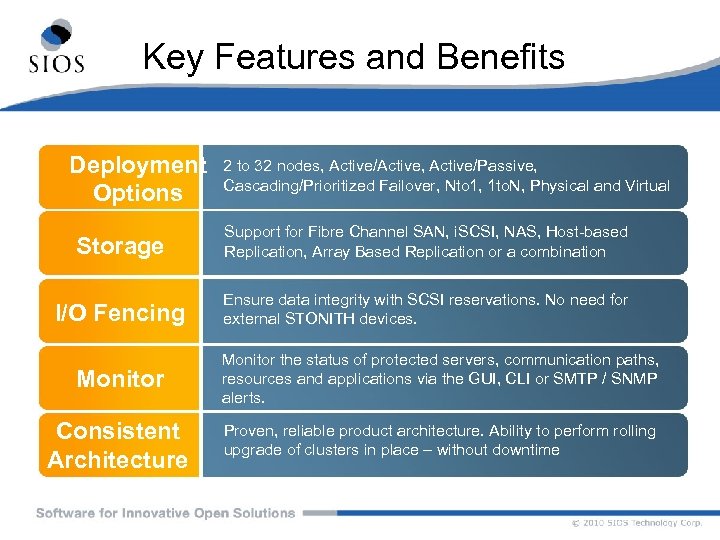

Key Features and Benefits Deployment Options 2 to 32 nodes, Active/Active, Active/Passive, Cascading/Prioritized Failover, Nto 1, 1 to. N, Physical and Virtual Storage Support for Fibre Channel SAN, i. SCSI, NAS, Host-based Replication, Array Based Replication or a combination I/O Fencing Ensure data integrity with SCSI reservations. No need for external STONITH devices. Monitor the status of protected servers, communication paths, resources and applications via the GUI, CLI or SMTP / SNMP alerts. Consistent Architecture Proven, reliable product architecture. Ability to perform rolling upgrade of clusters in place – without downtime

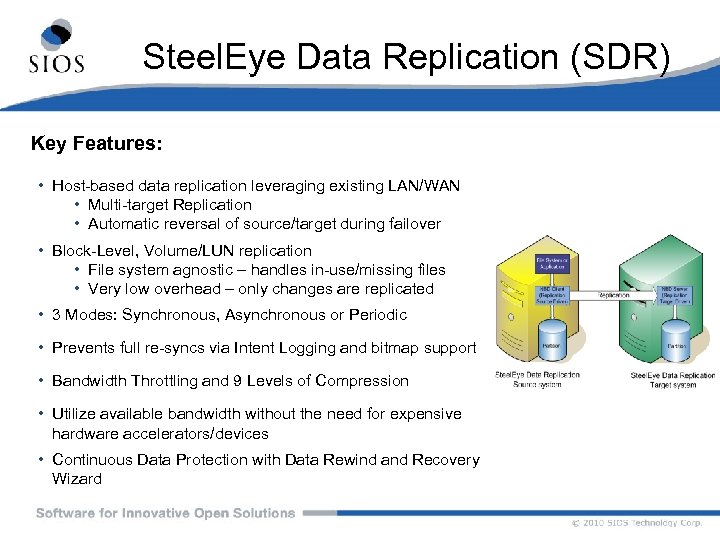

Steel. Eye Data Replication (SDR) Key Features: • Host-based data replication leveraging existing LAN/WAN • Multi-target Replication • Automatic reversal of source/target during failover • Block-Level, Volume/LUN replication • File system agnostic – handles in-use/missing files • Very low overhead – only changes are replicated • 3 Modes: Synchronous, Asynchronous or Periodic • Prevents full re-syncs via Intent Logging and bitmap support • Bandwidth Throttling and 9 Levels of Compression • Utilize available bandwidth without the need for expensive hardware accelerators/devices • Continuous Data Protection with Data Rewind and Recovery Wizard

Easy to Learn and Use Simplified User Interface • Monitor and Administer your clusters via a single, intuitive interface • Wizard-based setup • Java-Based UI can be run as an application or browser based applet • Command Line Interface (CLI) and SDK for integration and extension

Thank You! SPS for Linux Architecture/Deployment Examples

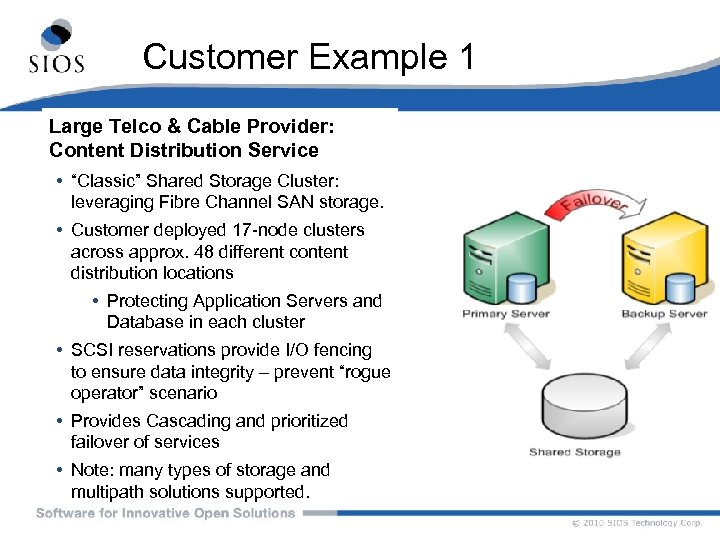

Customer Example 1 Large Telco & Cable Provider: Content Distribution Service • “Classic” Shared Storage Cluster: leveraging Fibre Channel SAN storage. • Customer deployed 17 -node clusters across approx. 48 different content distribution locations • Protecting Application Servers and Database in each cluster • SCSI reservations provide I/O fencing to ensure data integrity – prevent “rogue operator” scenario • Provides Cascading and prioritized failover of services • Note: many types of storage and multipath solutions supported.

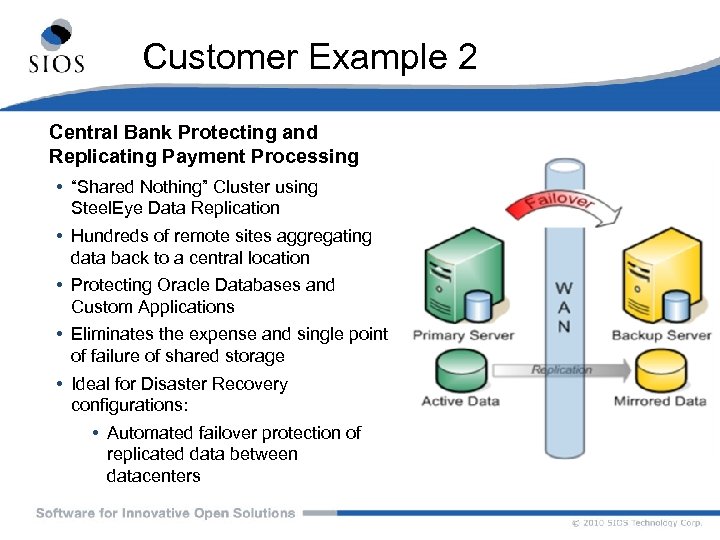

Customer Example 2 Central Bank Protecting and Replicating Payment Processing • “Shared Nothing” Cluster using Steel. Eye Data Replication • Hundreds of remote sites aggregating data back to a central location • Protecting Oracle Databases and Custom Applications • Eliminates the expense and single point of failure of shared storage • Ideal for Disaster Recovery configurations: • Automated failover protection of replicated data between datacenters

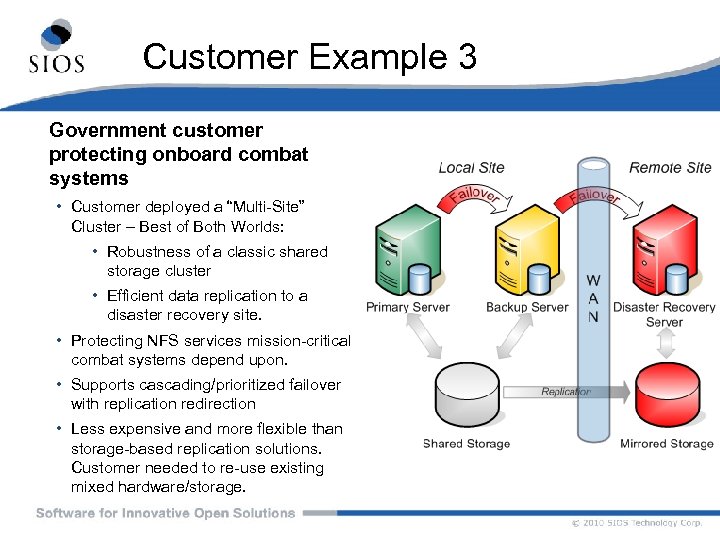

Customer Example 3 Government customer protecting onboard combat systems • Customer deployed a “Multi-Site” Cluster – Best of Both Worlds: • Robustness of a classic shared storage cluster • Efficient data replication to a disaster recovery site. • Protecting NFS services mission-critical combat systems depend upon. • Supports cascading/prioritized failover with replication redirection • Less expensive and more flexible than storage-based replication solutions. Customer needed to re-use existing mixed hardware/storage.

SPS For Linux Demo

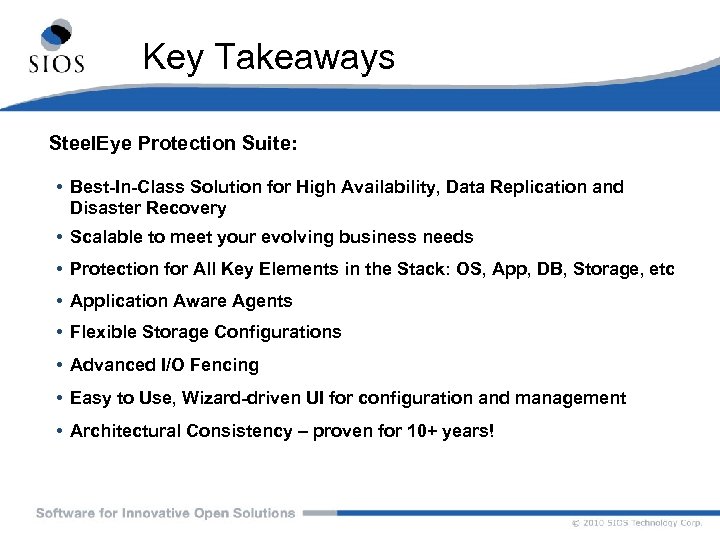

Key Takeaways Steel. Eye Protection Suite: • Best-In-Class Solution for High Availability, Data Replication and Disaster Recovery • Scalable to meet your evolving business needs • Protection for All Key Elements in the Stack: OS, App, DB, Storage, etc • Application Aware Agents • Flexible Storage Configurations • Advanced I/O Fencing • Easy to Use, Wizard-driven UI for configuration and management • Architectural Consistency – proven for 10+ years!

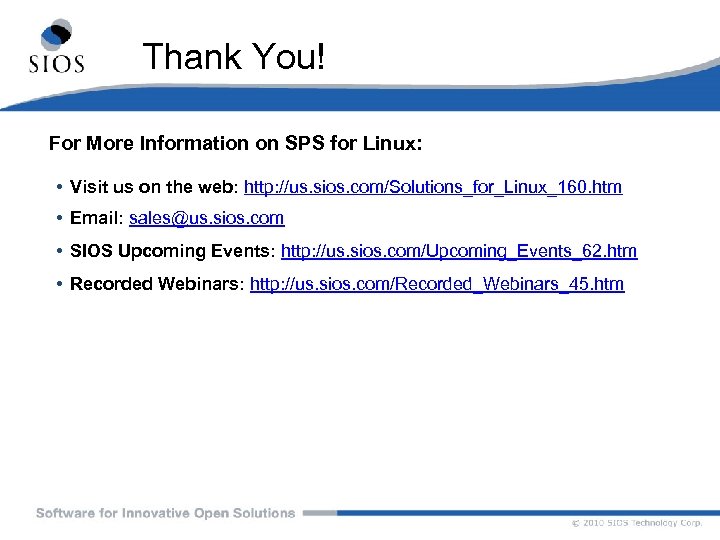

Thank You! For More Information on SPS for Linux: • Visit us on the web: http: //us. sios. com/Solutions_for_Linux_160. htm • Email: sales@us. sios. com • SIOS Upcoming Events: http: //us. sios. com/Upcoming_Events_62. htm • Recorded Webinars: http: //us. sios. com/Recorded_Webinars_45. htm
