Status of the DCS Richard Brenner (Uppsala University) " " Structure of the DCS Cabling of DCS sensors Interlock Status and near future plans
Structure of DCS

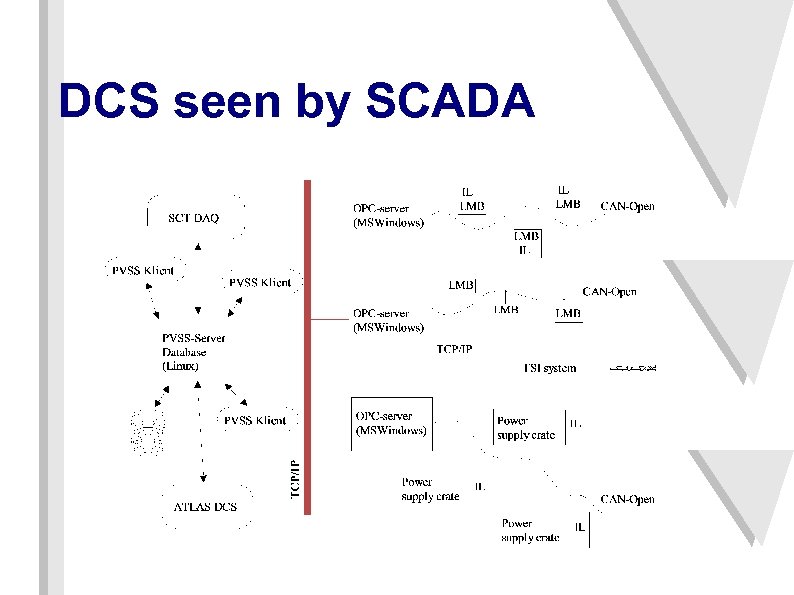

DCS seen by SCADA

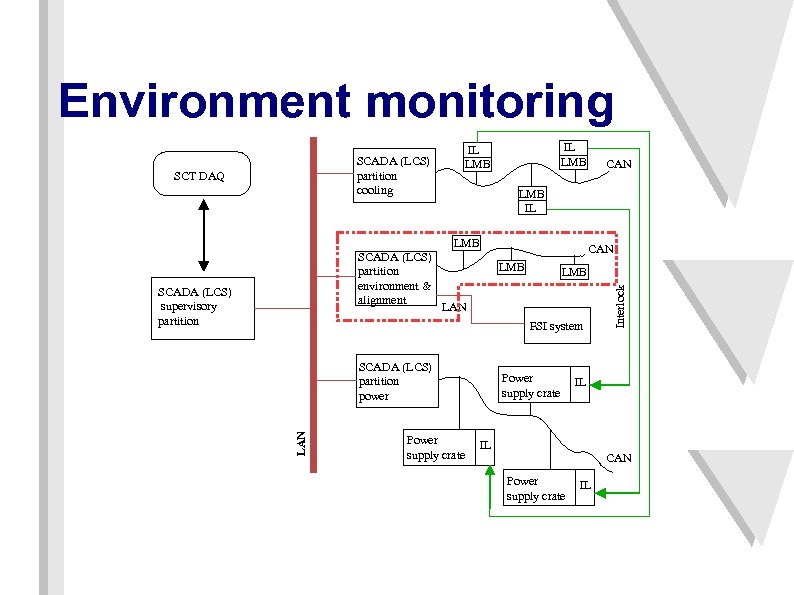

Environment monitoring LMB IL LMB SCADA (LCS) partition environment & alignment SCADA (LCS) supervisory partition CAN LMB LAN FSI system LAN SCADA (LCS) partition power Power supply crate Interlock SCADA (LCS) partition cooling SCT DAQ IL LMB IL IL CAN Power supply crate IL

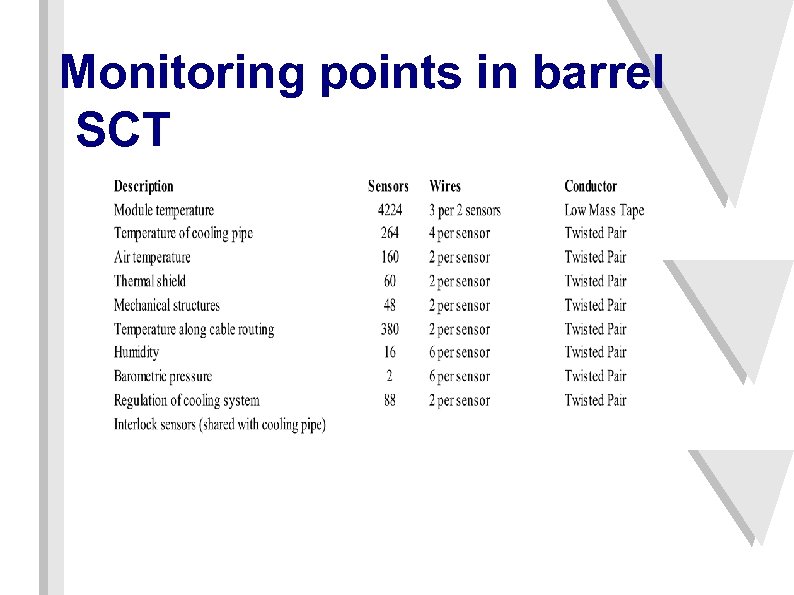

Monitoring points in barrel SCT

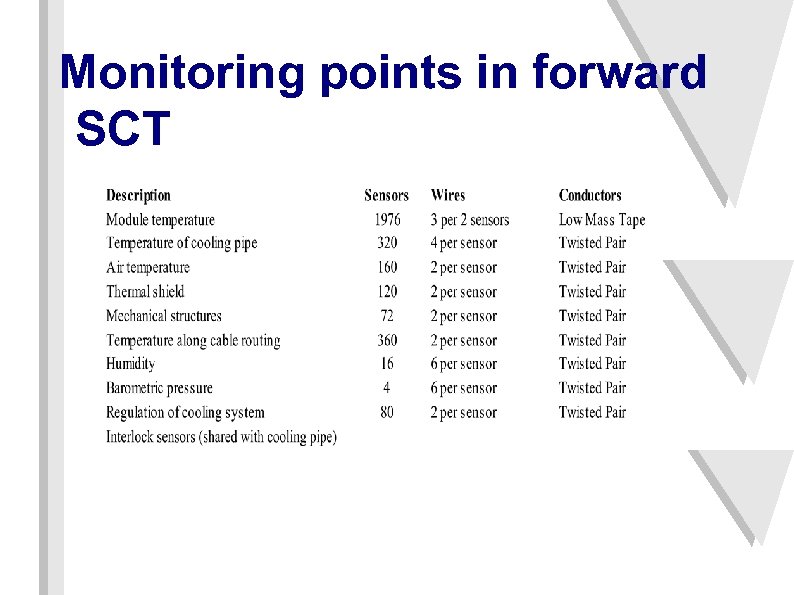

Monitoring points in forward SCT
Routing of DCS sensors ATLAS PP 3 Thermal Shield SCT Barrel/Disk Sensor 1 ELMB 30 m Omnetics connector Sensor 20 CAN bus USA 15 LCS

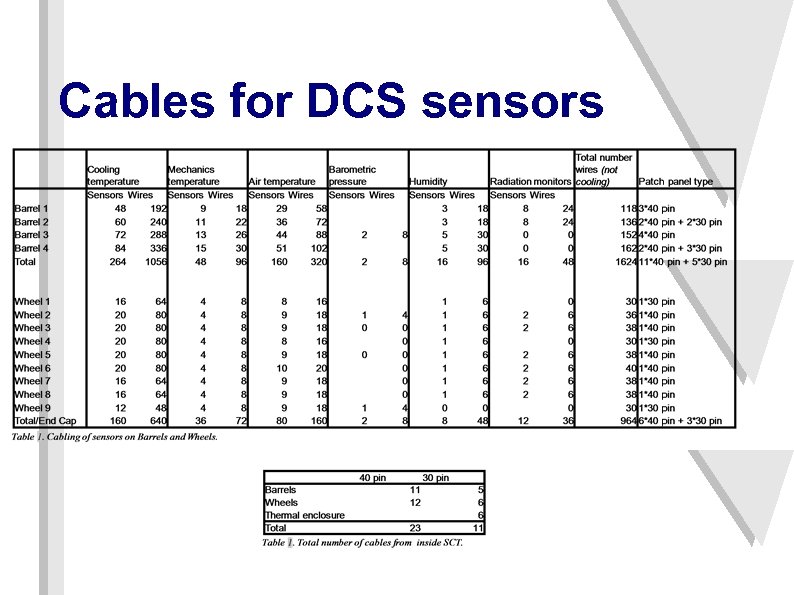

Cables for DCS sensors

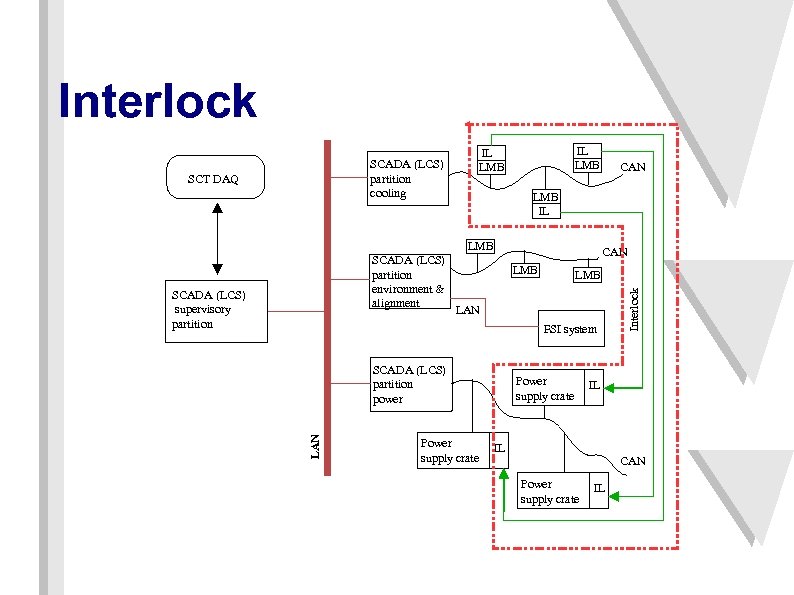

Interlock LMB IL LMB SCADA (LCS) partition environment & alignment SCADA (LCS) supervisory partition CAN LMB LAN FSI system LAN SCADA (LCS) partition power Power supply crate Interlock SCADA (LCS) partition cooling SCT DAQ IL LMB IL IL CAN Power supply crate IL
Interlock connection coolingpower supplies

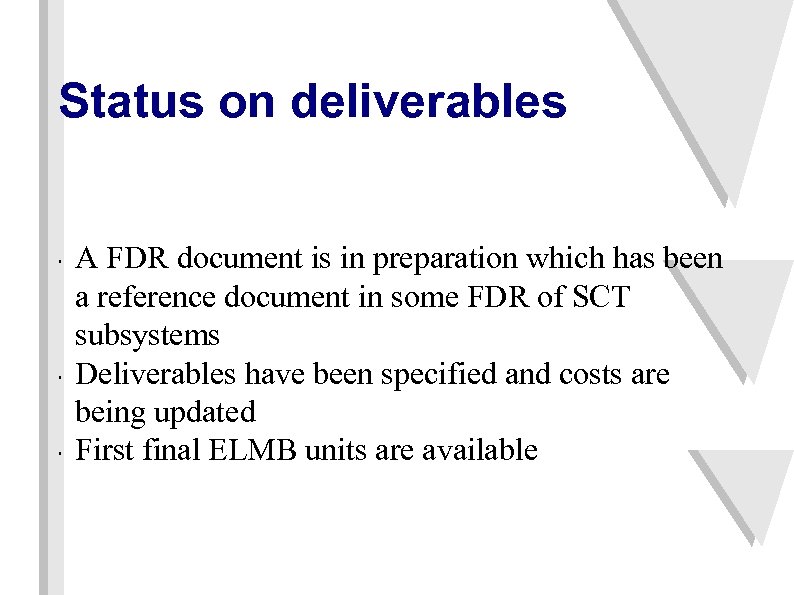

Status on deliverables " " " A FDR document is in preparation which has been a reference document in some FDR of SCT subsystems Deliverables have been specified and costs are being updated First final ELMB units are available

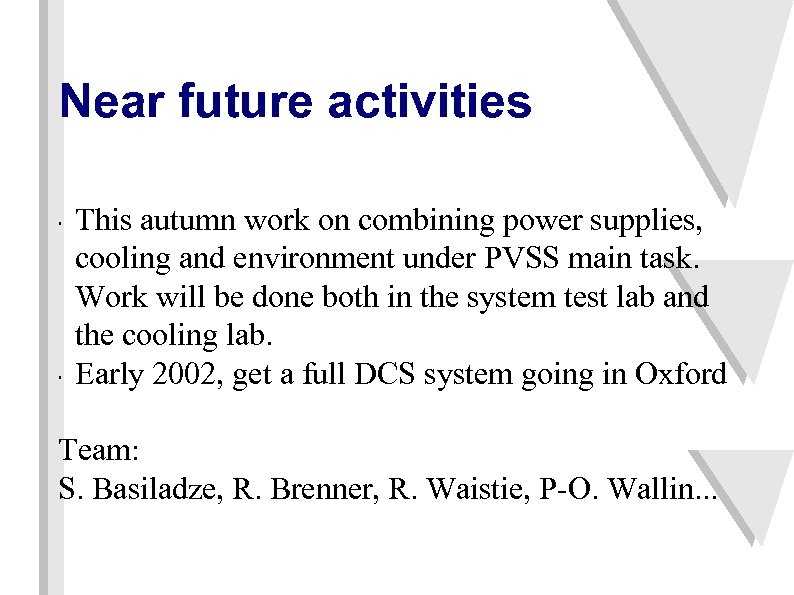

Near future activities " " This autumn work on combining power supplies, cooling and environment under PVSS main task. Work will be done both in the system test lab and the cooling lab. Early 2002, get a full DCS system going in Oxford Team: S. Basiladze, R. Brenner, R. Waistie, P-O. Wallin. . .

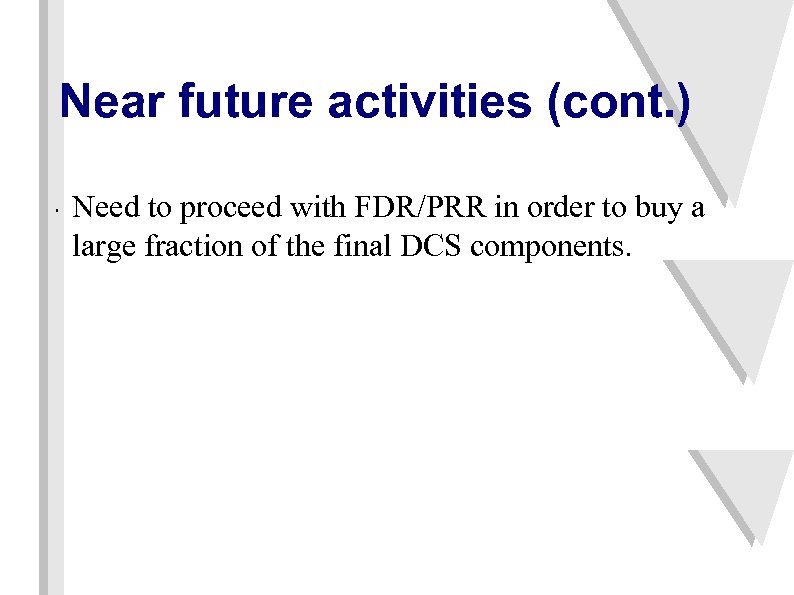

Near future activities (cont. ) " Need to proceed with FDR/PRR in order to buy a large fraction of the final DCS components.
