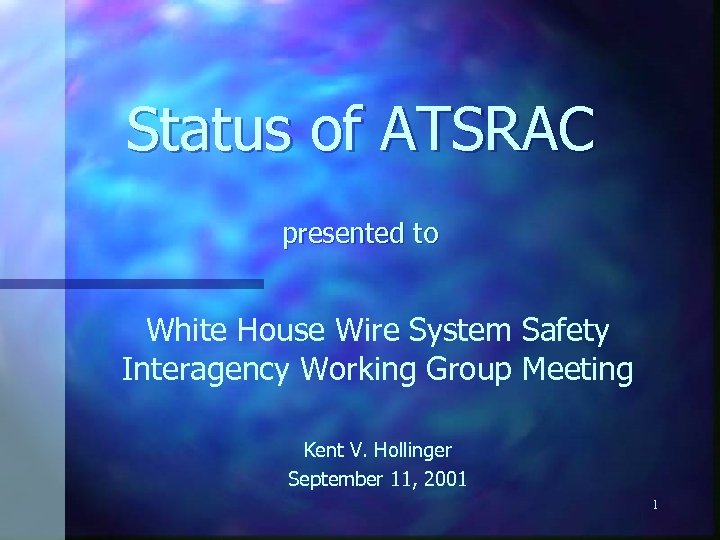

Status of ATSRAC presented to White House Wire System Safety Interagency Working Group Meeting Kent V. Hollinger September 11, 2001 1

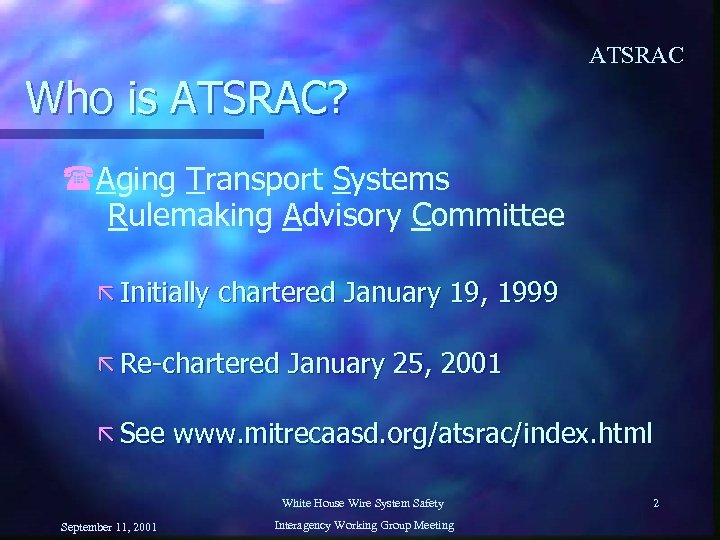

ATSRAC Who is ATSRAC? (Aging Transport Systems Rulemaking Advisory Committee ã Initially chartered January 19, 1999 ã Re-chartered January 25, 2001 ã See www. mitrecaasd. org/atsrac/index. html White House Wire System Safety September 11, 2001 Interagency Working Group Meeting 2

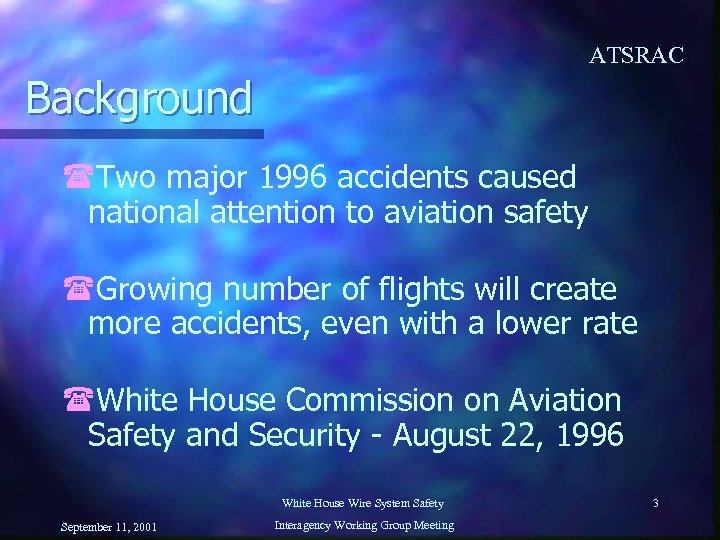

ATSRAC Background (Two major 1996 accidents caused national attention to aviation safety (Growing number of flights will create more accidents, even with a lower rate (White House Commission on Aviation Safety and Security - August 22, 1996 White House Wire System Safety September 11, 2001 Interagency Working Group Meeting 3

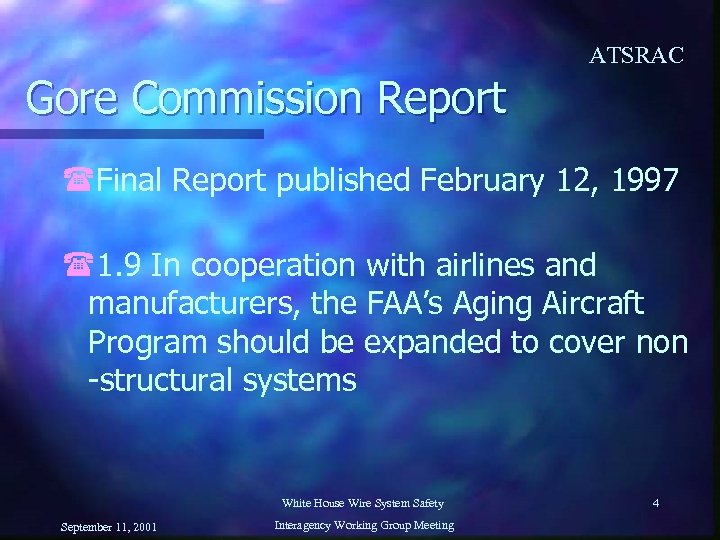

ATSRAC Gore Commission Report (Final Report published February 12, 1997 (1. 9 In cooperation with airlines and manufacturers, the FAA’s Aging Aircraft Program should be expanded to cover non -structural systems White House Wire System Safety September 11, 2001 Interagency Working Group Meeting 4

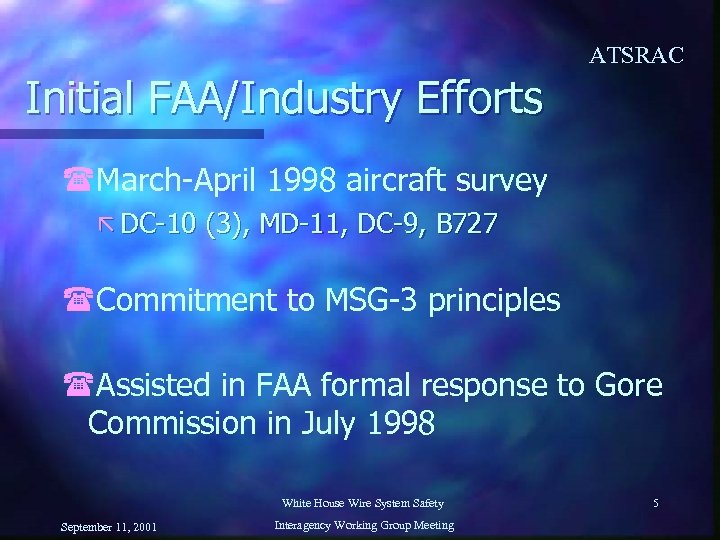

ATSRAC Initial FAA/Industry Efforts (March-April 1998 aircraft survey ã DC-10 (3), MD-11, DC-9, B 727 (Commitment to MSG-3 principles (Assisted in FAA formal response to Gore Commission in July 1998 White House Wire System Safety September 11, 2001 Interagency Working Group Meeting 5

ATSRAC ATA’s ASTF (Established on July 15, 1998 (Defined “aging” as aircraft past design life (Formed seven Working Groups to develop inspection criteria and survey sample a/c ã DC-8, DC-9, DC-10, B 727, B 737, B 747, L-1011 (Created ATA Spec 117 on July 31, 1998 White House Wire System Safety September 11, 2001 Interagency Working Group Meeting 6

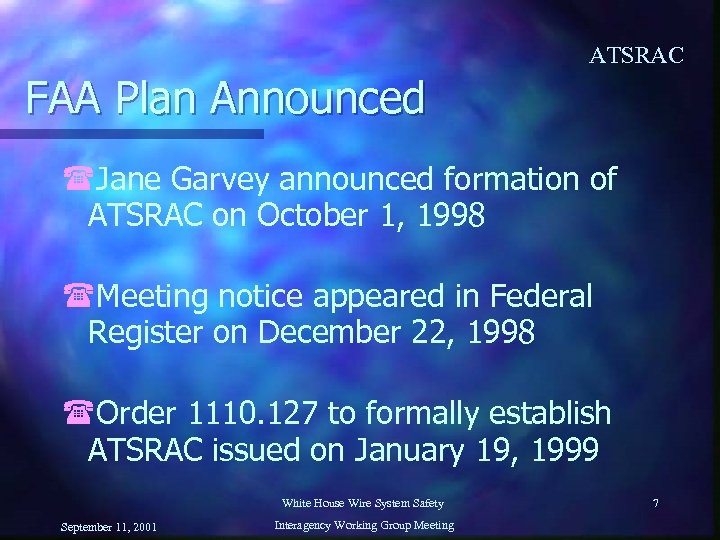

ATSRAC FAA Plan Announced (Jane Garvey announced formation of ATSRAC on October 1, 1998 (Meeting notice appeared in Federal Register on December 22, 1998 (Order 1110. 127 to formally establish ATSRAC issued on January 19, 1999 White House Wire System Safety September 11, 2001 Interagency Working Group Meeting 7

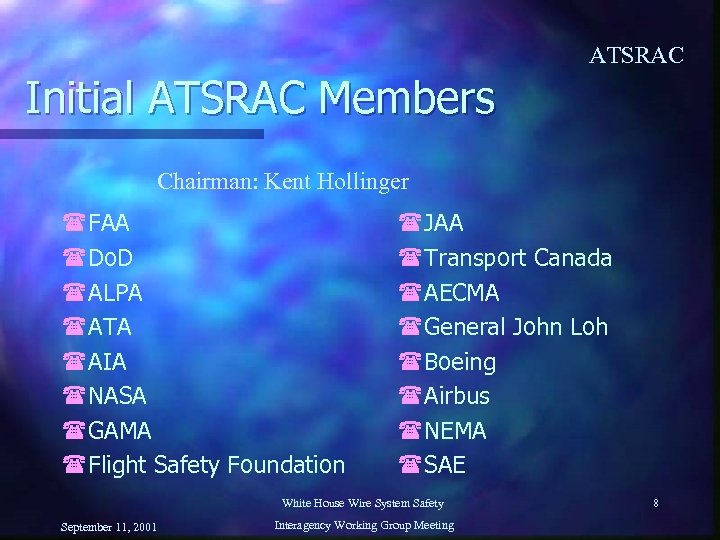

ATSRAC Initial ATSRAC Members Chairman: Kent Hollinger (FAA (Do. D (ALPA (ATA (AIA (NASA (GAMA (Flight Safety Foundation (JAA (Transport Canada (AECMA (General John Loh (Boeing (Airbus (NEMA (SAE White House Wire System Safety September 11, 2001 Interagency Working Group Meeting 8

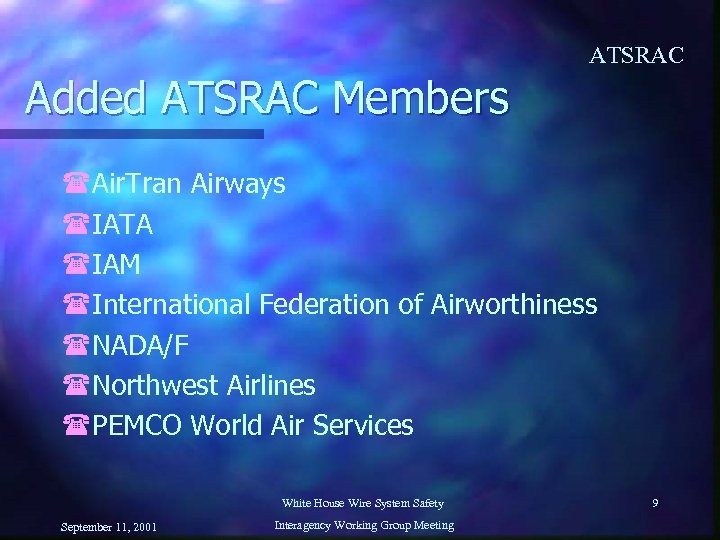

ATSRAC Added ATSRAC Members (Air. Tran Airways (IATA (IAM (International Federation of Airworthiness (NADA/F (Northwest Airlines (PEMCO World Air Services White House Wire System Safety September 11, 2001 Interagency Working Group Meeting 9

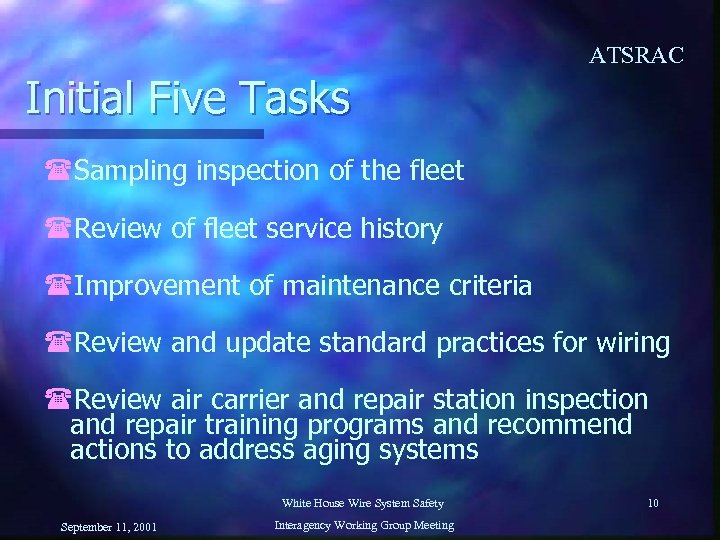

ATSRAC Initial Five Tasks (Sampling inspection of the fleet (Review of fleet service history (Improvement of maintenance criteria (Review and update standard practices for wiring (Review air carrier and repair station inspection and repair training programs and recommend actions to address aging systems White House Wire System Safety September 11, 2001 Interagency Working Group Meeting 10

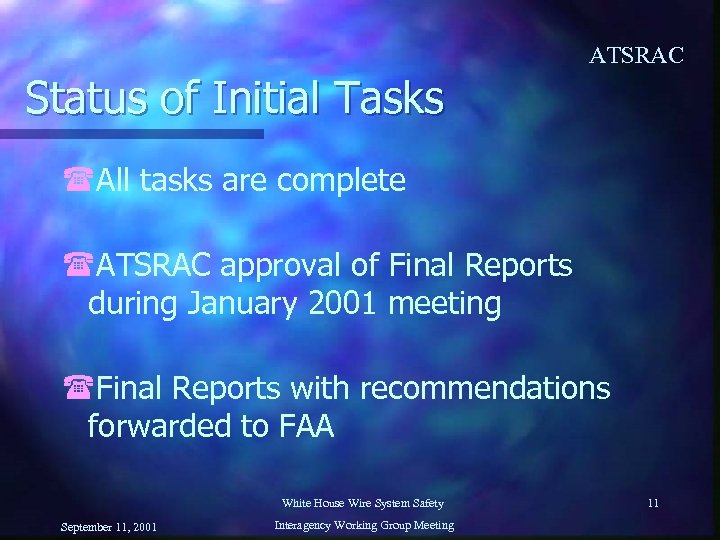

ATSRAC Status of Initial Tasks (All tasks are complete (ATSRAC approval of Final Reports during January 2001 meeting (Final Reports with recommendations forwarded to FAA White House Wire System Safety September 11, 2001 Interagency Working Group Meeting 11

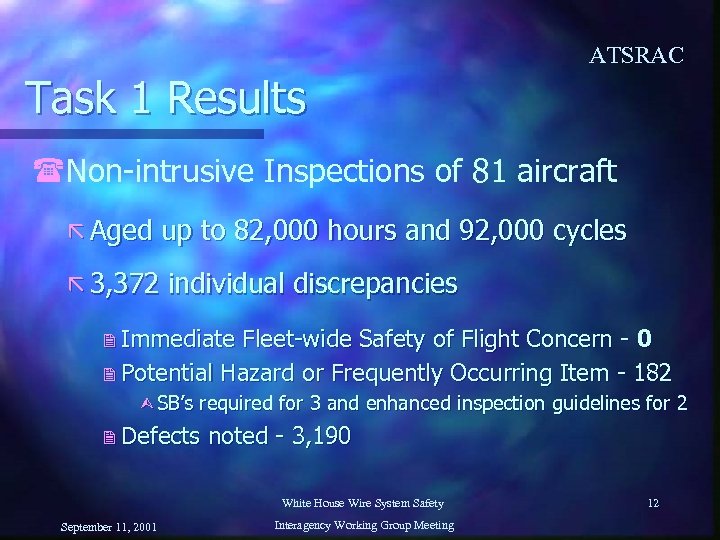

ATSRAC Task 1 Results (Non-intrusive Inspections of 81 aircraft ã Aged up to 82, 000 hours and 92, 000 cycles ã 3, 372 individual discrepancies 2 Immediate Fleet-wide Safety of Flight Concern - 0 2 Potential Hazard or Frequently Occurring Item - 182 Ù SB’s required for 3 and enhanced inspection guidelines for 2 2 Defects noted - 3, 190 White House Wire System Safety September 11, 2001 Interagency Working Group Meeting 12

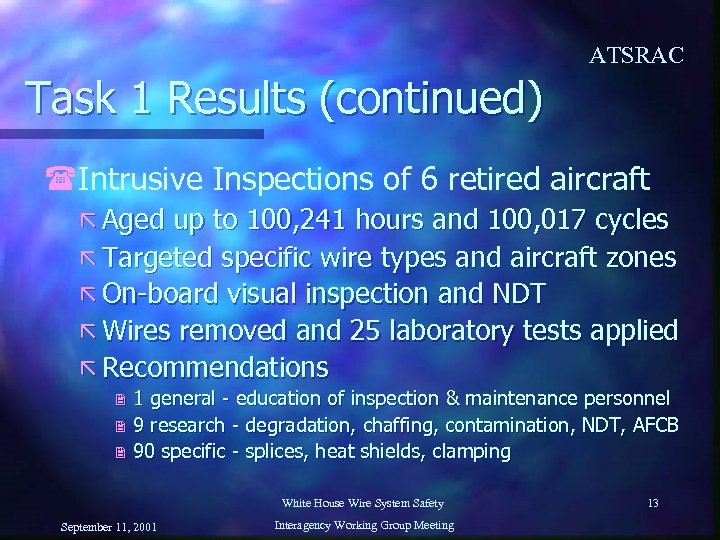

ATSRAC Task 1 Results (continued) (Intrusive Inspections of 6 retired aircraft ã Aged up to 100, 241 hours and 100, 017 cycles ã Targeted specific wire types and aircraft zones ã On-board visual inspection and NDT ã Wires removed and 25 laboratory tests applied ã Recommendations 2 2 2 1 general - education of inspection & maintenance personnel 9 research - degradation, chaffing, contamination, NDT, AFCB 90 specific - splices, heat shields, clamping White House Wire System Safety September 11, 2001 Interagency Working Group Meeting 13

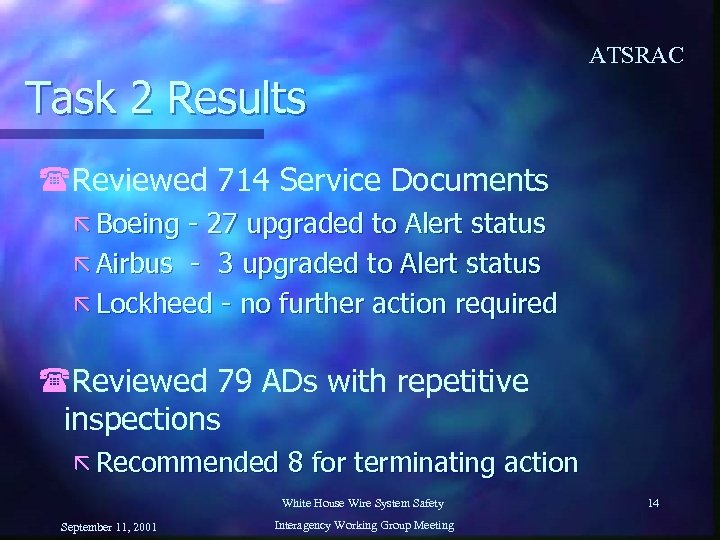

ATSRAC Task 2 Results (Reviewed 714 Service Documents ã Boeing - 27 upgraded to Alert status ã Airbus - 3 upgraded to Alert status ã Lockheed - no further action required (Reviewed 79 ADs with repetitive inspections ã Recommended 8 for terminating action White House Wire System Safety September 11, 2001 Interagency Working Group Meeting 14

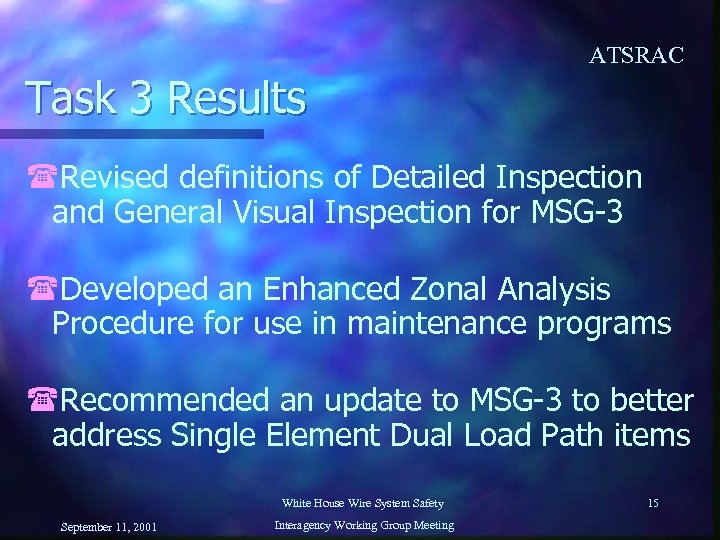

ATSRAC Task 3 Results (Revised definitions of Detailed Inspection and General Visual Inspection for MSG-3 (Developed an Enhanced Zonal Analysis Procedure for use in maintenance programs (Recommended an update to MSG-3 to better address Single Element Dual Load Path items White House Wire System Safety September 11, 2001 Interagency Working Group Meeting 15

ATSRAC Task 4 Results (Defined areas requiring standard practices for care and maintenance of wiring systems (Recommended recurrent training of technicians in specific areas (Promote “clean as you go” White House Wire System Safety September 11, 2001 Interagency Working Group Meeting 16

ATSRAC Task 5 Results (Developed an extensive training curriculum and associated lesson plans ã Module A - Introduction ã Module B - Chapter 20 Structure ã Module C - Inspection ã Module D - Housekeeping ã Module E - Wire ã Module F - Connective Devices ã Module G - Connective Device Repair ã Module H - Line Replaceable Units White House Wire System Safety September 11, 2001 Interagency Working Group Meeting 17

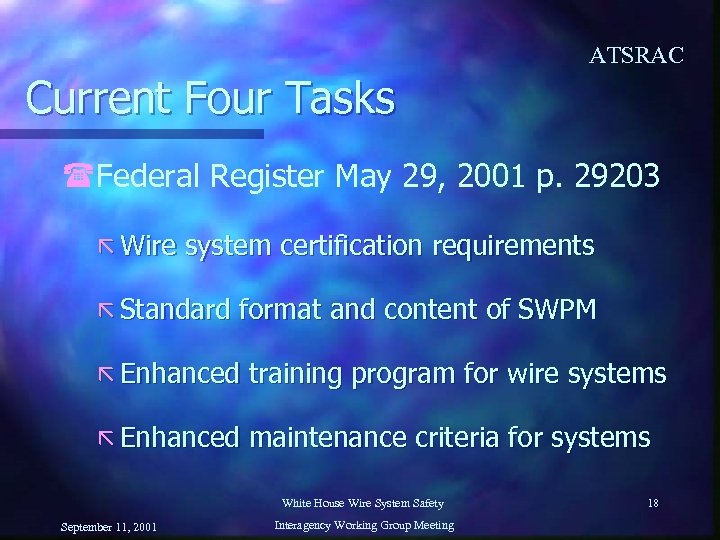

ATSRAC Current Four Tasks (Federal Register May 29, 2001 p. 29203 ã Wire system certification requirements ã Standard format and content of SWPM ã Enhanced training program for wire systems ã Enhanced maintenance criteria for systems White House Wire System Safety September 11, 2001 Interagency Working Group Meeting 18

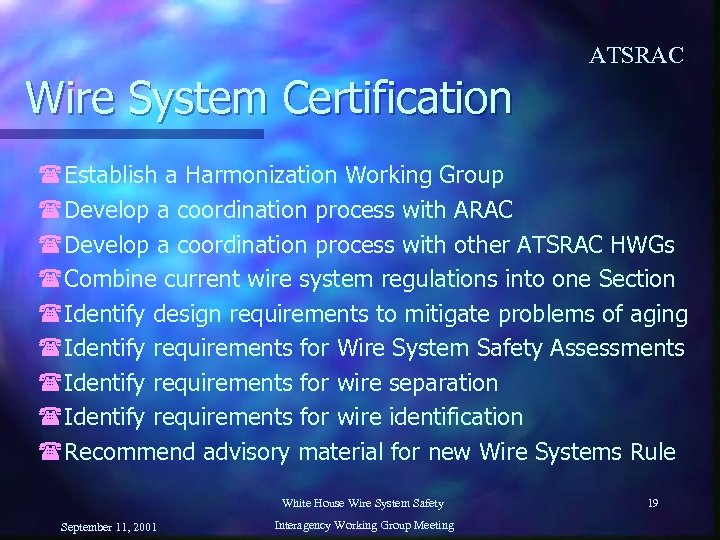

ATSRAC Wire System Certification (Establish a Harmonization Working Group (Develop a coordination process with ARAC (Develop a coordination process with other ATSRAC HWGs (Combine current wire system regulations into one Section (Identify design requirements to mitigate problems of aging (Identify requirements for Wire System Safety Assessments (Identify requirements for wire separation (Identify requirements for wire identification (Recommend advisory material for new Wire Systems Rule White House Wire System Safety September 11, 2001 Interagency Working Group Meeting 19

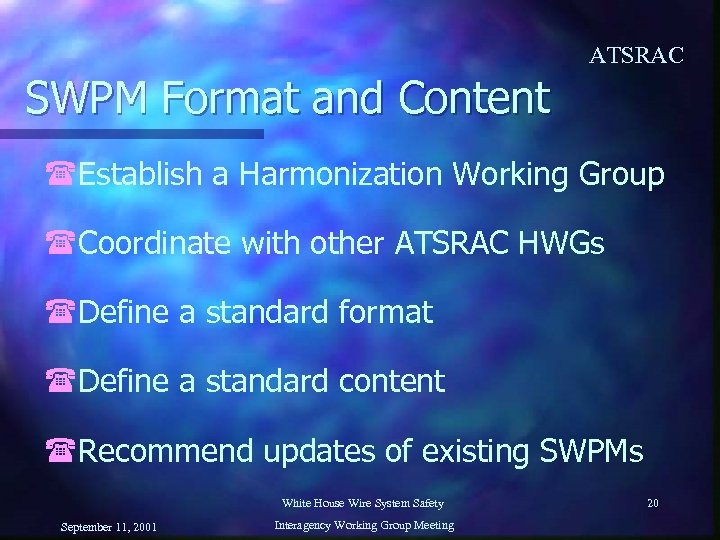

ATSRAC SWPM Format and Content (Establish a Harmonization Working Group (Coordinate with other ATSRAC HWGs (Define a standard format (Define a standard content (Recommend updates of existing SWPMs White House Wire System Safety September 11, 2001 Interagency Working Group Meeting 20

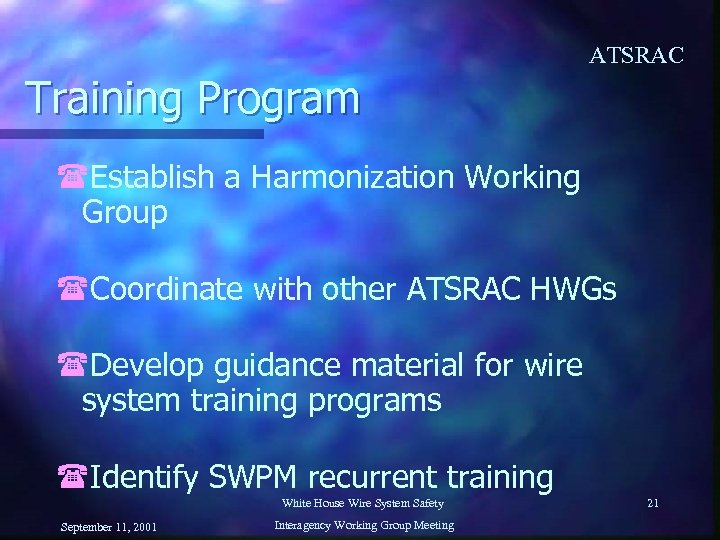

ATSRAC Training Program (Establish a Harmonization Working Group (Coordinate with other ATSRAC HWGs (Develop guidance material for wire system training programs (Identify SWPM recurrent training White House Wire System Safety September 11, 2001 Interagency Working Group Meeting 21

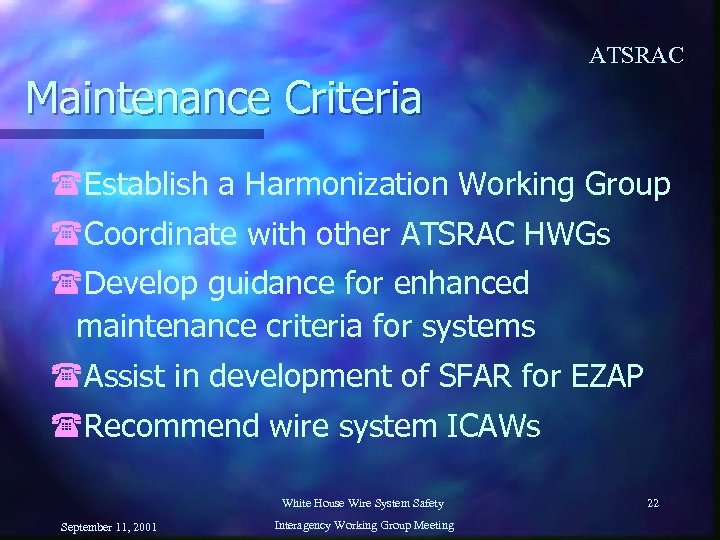

ATSRAC Maintenance Criteria (Establish a Harmonization Working Group (Coordinate with other ATSRAC HWGs (Develop guidance for enhanced maintenance criteria for systems (Assist in development of SFAR for EZAP (Recommend wire system ICAWs White House Wire System Safety September 11, 2001 Interagency Working Group Meeting 22

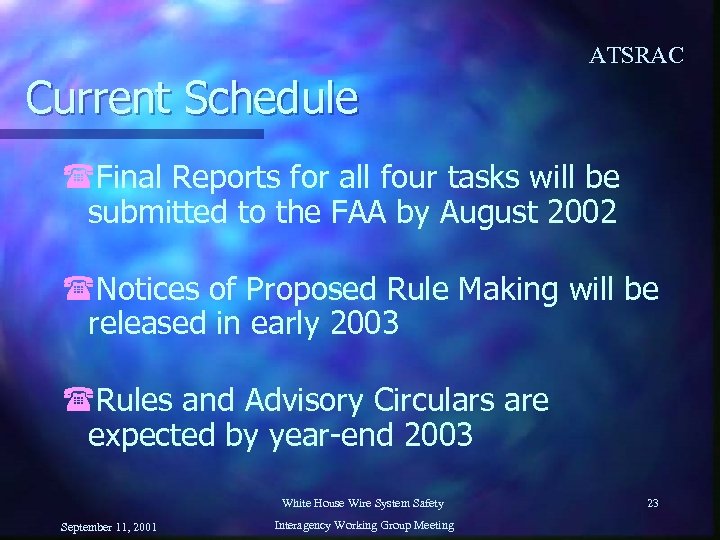

ATSRAC Current Schedule (Final Reports for all four tasks will be submitted to the FAA by August 2002 (Notices of Proposed Rule Making will be released in early 2003 (Rules and Advisory Circulars are expected by year-end 2003 White House Wire System Safety September 11, 2001 Interagency Working Group Meeting 23

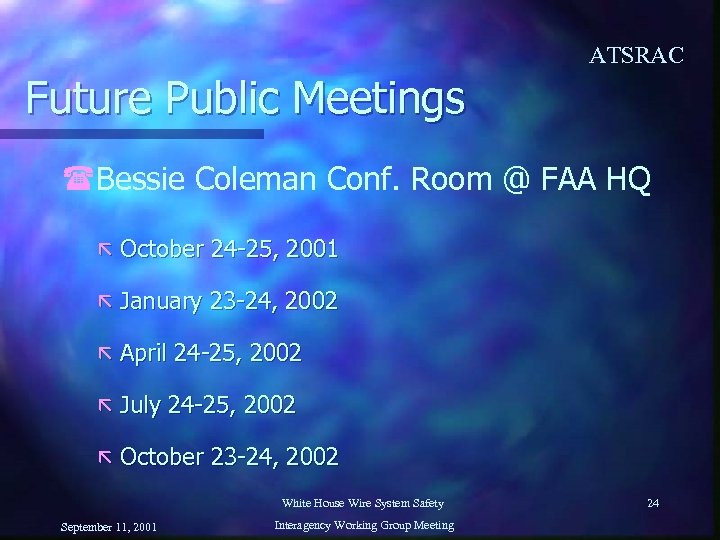

ATSRAC Future Public Meetings (Bessie Coleman Conf. Room @ FAA HQ ã October 24 -25, 2001 ã January 23 -24, 2002 ã April 24 -25, 2002 ã July 24 -25, 2002 ã October 23 -24, 2002 White House Wire System Safety September 11, 2001 Interagency Working Group Meeting 24

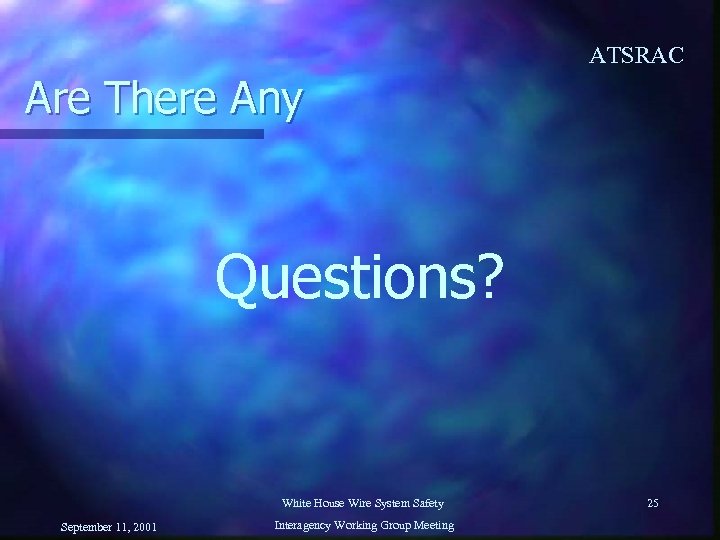

ATSRAC Are There Any Questions? White House Wire System Safety September 11, 2001 Interagency Working Group Meeting 25
