Stanislav Son 3 D Printing

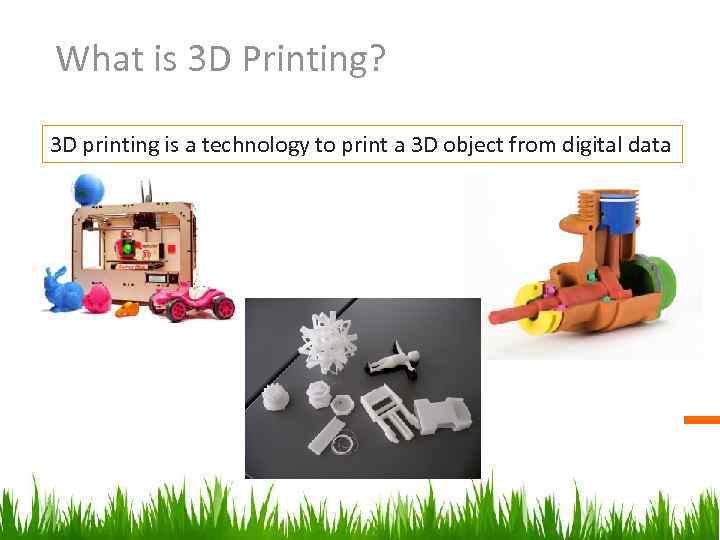

What is 3 D Printing? 3 D printing is a technology to print a 3 D object from digital data

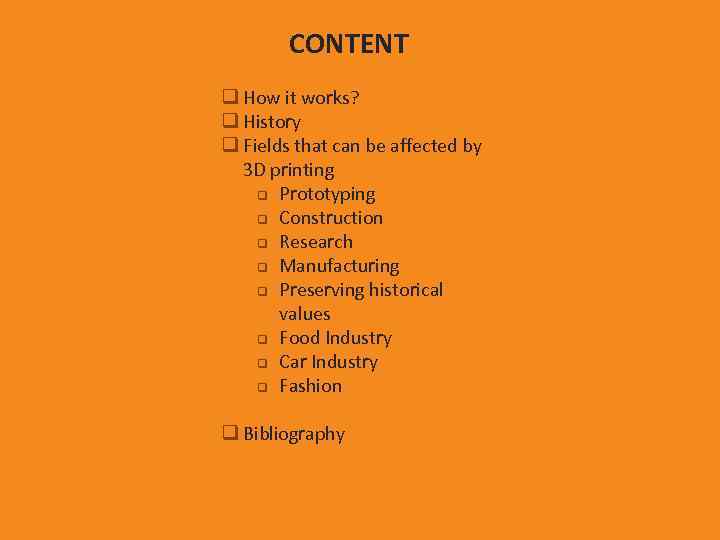

CONTENT q How it works? q History q Fields that can be affected by 3 D printing q Prototyping q Construction q Research q Manufacturing q Preserving historical values q Food Industry q Car Industry q Fashion q Bibliography
ARE YOU READY?
How it works? Molten polymer deposition additive manufacturing technique not subtractive Materials: metal, plastic, polymer, resin Granular materials binding

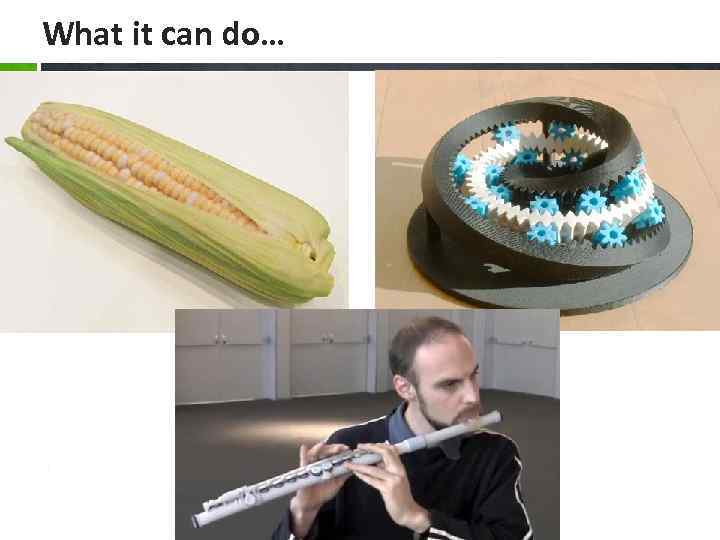

What it can do…

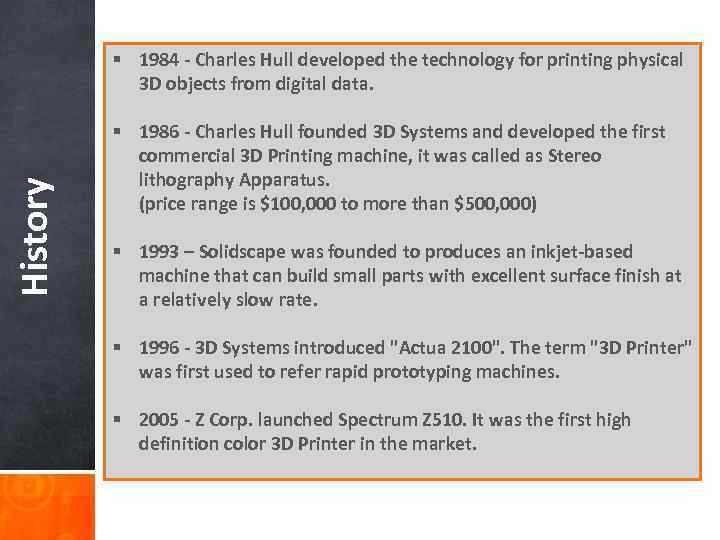

History § 1984 - Charles Hull developed the technology for printing physical 3 D objects from digital data. § 1986 - Charles Hull founded 3 D Systems and developed the first commercial 3 D Printing machine, it was called as Stereo lithography Apparatus. (price range is $100, 000 to more than $500, 000) § 1993 – Solidscape was founded to produces an inkjet-based machine that can build small parts with excellent surface finish at a relatively slow rate. § 1996 - 3 D Systems introduced "Actua 2100". The term "3 D Printer" was first used to refer rapid prototyping machines. § 2005 - Z Corp. launched Spectrum Z 510. It was the first high definition color 3 D Printer in the market.
Prototyping Manufactures do prototypes before production and it is usually done by milling or machining since it is cheaper than 3 D printing. If the cost will be cheaper, they can shift all the process to 3 D printing so process will be simple and easy.
Construction Main thing they are trying now is to print the constructional material. (There is a merit that the printed object is one piece, so it has more strength than something constructed by multiple pieces. ) 3 D printed models are already used for presentation for customers.

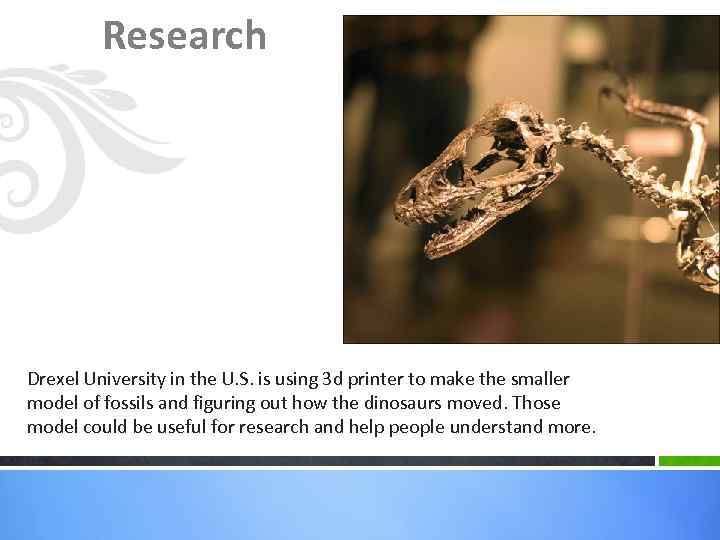

Research Drexel University in the U. S. is using 3 d printer to make the smaller model of fossils and figuring out how the dinosaurs moved. Those model could be useful for research and help people understand more.
Manufacturing If there is a 3 D printer, production of something is possible, so if the cost of the machine and the material become cheaper than current manufacturing, small/middle firms could come into the market. Usually production make profit by mass production since it cost a lot of resources (labor, space, and equipments) but 3 D printer will not need much resources, so manufacturing system now could lose advantage if 3 D printer become popular

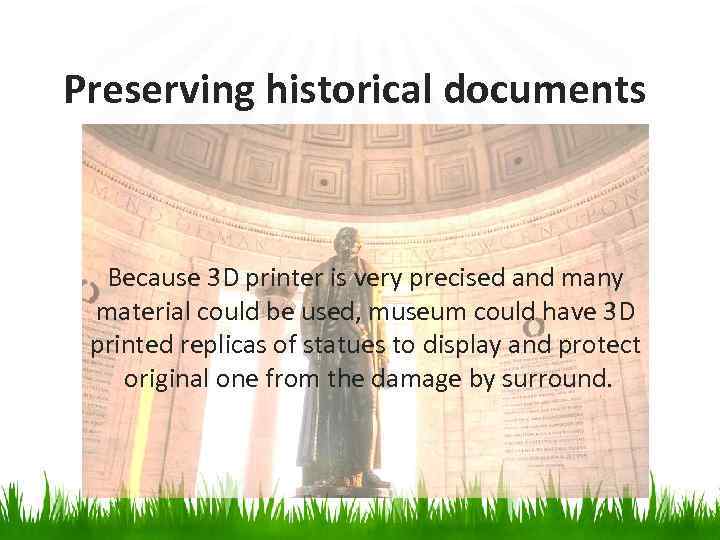

Preserving historical documents Because 3 D printer is very precised and many material could be used, museum could have 3 D printed replicas of statues to display and protect original one from the damage by surround.

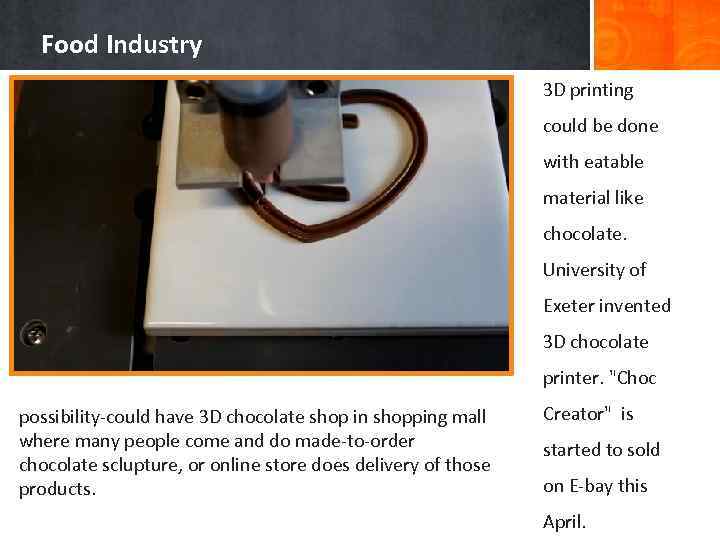

Food Industry 3 D printing could be done with eatable material like chocolate. University of Exeter invented 3 D chocolate printer. "Choc possibility-could have 3 D chocolate shop in shopping mall where many people come and do made-to-order chocolate sclupture, or online store does delivery of those products. Creator" is started to sold on E-bay this April.
Food Industry
3 D print could change the car manufacturing. Here is the world first 3 D printed car Car Manufacturing Because there is no bolts or welding, the body of Urbee is very strength and could used no problem for over 30 years. Developing this technology could change the style of car industries

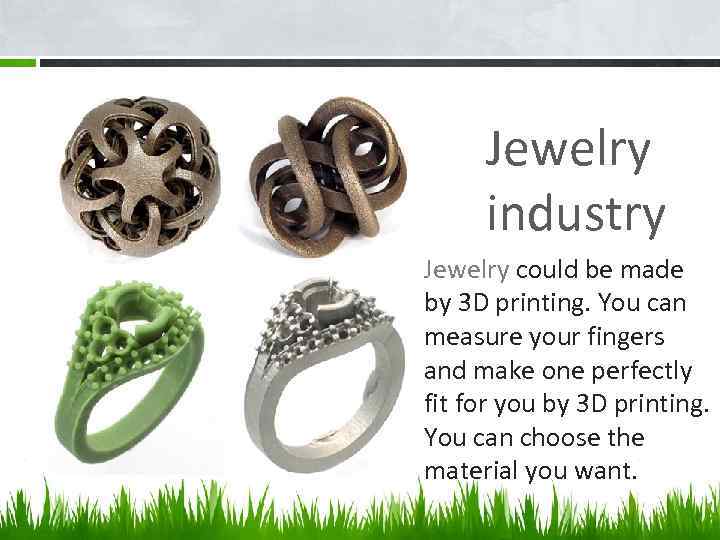

Jewelry industry Jewelry could be made by 3 D printing. You can measure your fingers and make one perfectly fit for you by 3 D printing. You can choose the material you want.
http: //www. shapeways. com/

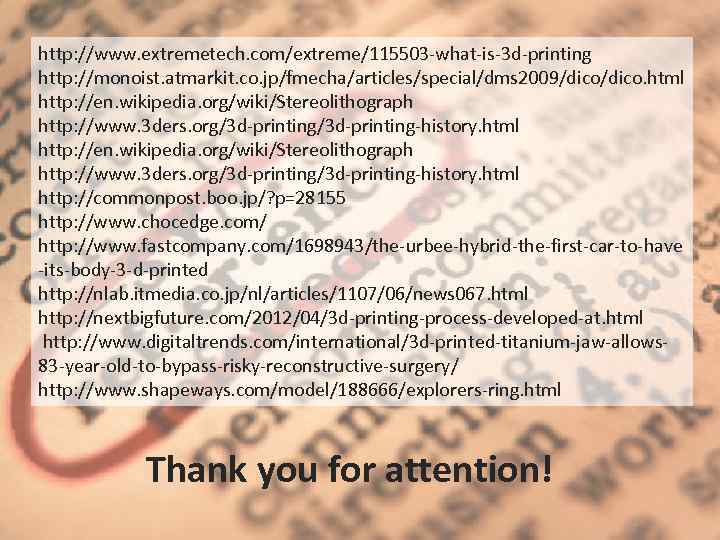

http: //www. extremetech. com/extreme/115503 -what-is-3 d-printing http: //monoist. atmarkit. co. jp/fmecha/articles/special/dms 2009/dico. html http: //en. wikipedia. org/wiki/Stereolithograph http: //www. 3 ders. org/3 d-printing/3 d-printing-history. html http: //commonpost. boo. jp/? p=28155 http: //www. chocedge. com/ http: //www. fastcompany. com/1698943/the-urbee-hybrid-the-first-car-to-have -its-body-3 -d-printed http: //nlab. itmedia. co. jp/nl/articles/1107/06/news 067. html http: //nextbigfuture. com/2012/04/3 d-printing-process-developed-at. html http: //www. digitaltrends. com/international/3 d-printed-titanium-jaw-allows 83 -year-old-to-bypass-risky-reconstructive-surgery/ http: //www. shapeways. com/model/188666/explorers-ring. html Thank you for attention!
