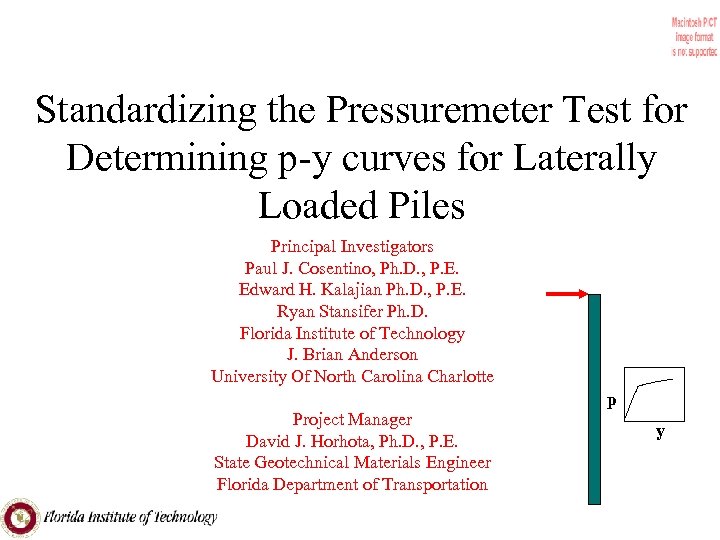

Standardizing the Pressuremeter Test for Determining p-y curves for Laterally Loaded Piles Principal Investigators Standardizing the Pressuremeter Test for Determining p-y curves for Laterally Loaded Piles Principal Investigators Paul J. Cosentino, Ph. D. , P. E. Edward H. Kalajian Ph. D. , P. E. Ryan Stansifer Ph. D. Florida Institute of Technology J. Brian Anderson University Of North Carolina Charlotte p Project Manager David J. Horhota, Ph. D. , P. E. State Geotechnical Materials Engineer Florida Department of Transportation y

Thanks to our Students Farid Messaoud – Civil Engineering Sunil Sundaram – Civil Engineering Thanks to our Students Farid Messaoud – Civil Engineering Sunil Sundaram – Civil Engineering Kishore Katamuri – Computer Science TJ Misilo - Engineering Management M. Allen Cottingham- Civil Engineering

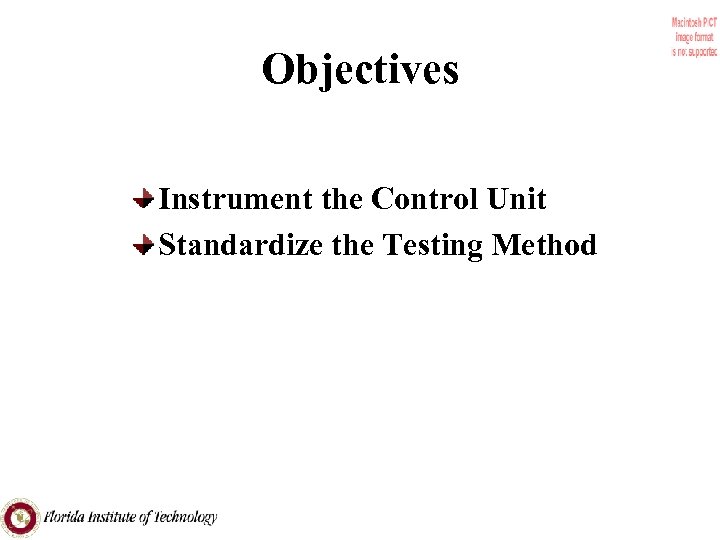

Objectives Instrument the Control Unit Standardize the Testing Method Objectives Instrument the Control Unit Standardize the Testing Method

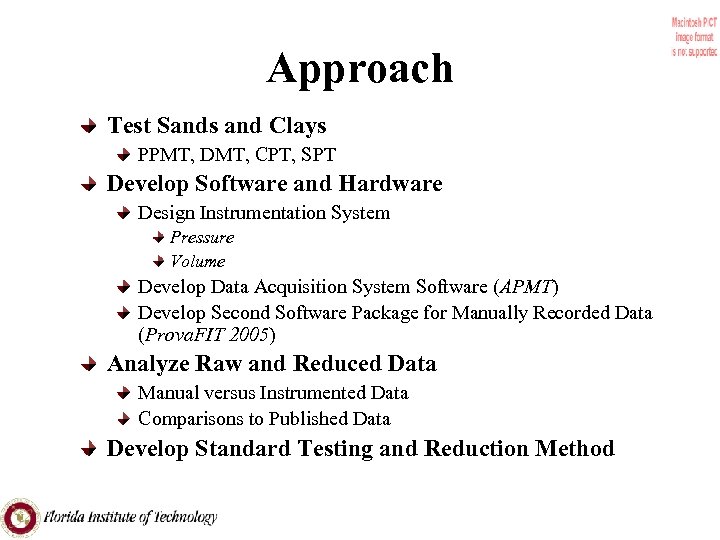

Approach Test Sands and Clays PPMT, DMT, CPT, SPT Develop Software and Hardware Design Approach Test Sands and Clays PPMT, DMT, CPT, SPT Develop Software and Hardware Design Instrumentation System Pressure Volume Develop Data Acquisition System Software (APMT) Develop Second Software Package for Manually Recorded Data (Prova. FIT 2005) Analyze Raw and Reduced Data Manual versus Instrumented Data Comparisons to Published Data Develop Standard Testing and Reduction Method

Pencel Pressuremeter Tubing Pressure Gage Volume Counter Probe Pencel Pressuremeter Tubing Pressure Gage Volume Counter Probe

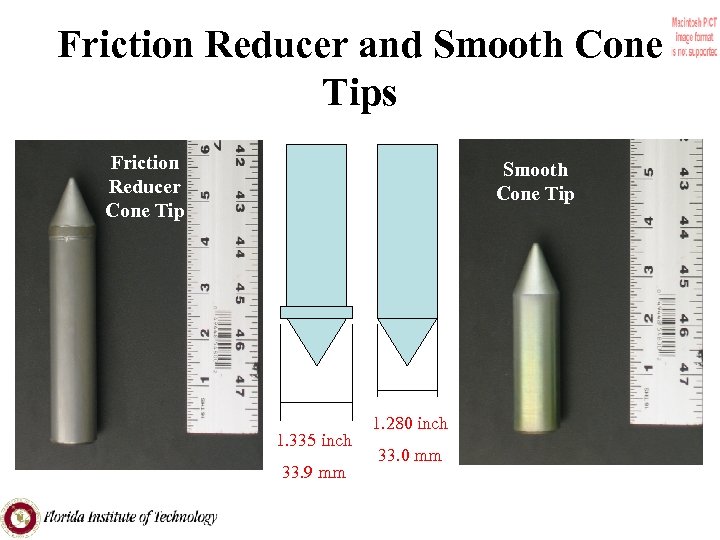

Friction Reducer and Smooth Cone Tips Friction Reducer Cone Tip Smooth Cone Tip 1. Friction Reducer and Smooth Cone Tips Friction Reducer Cone Tip Smooth Cone Tip 1. 335 inch 33. 9 mm 1. 280 inch 33. 0 mm

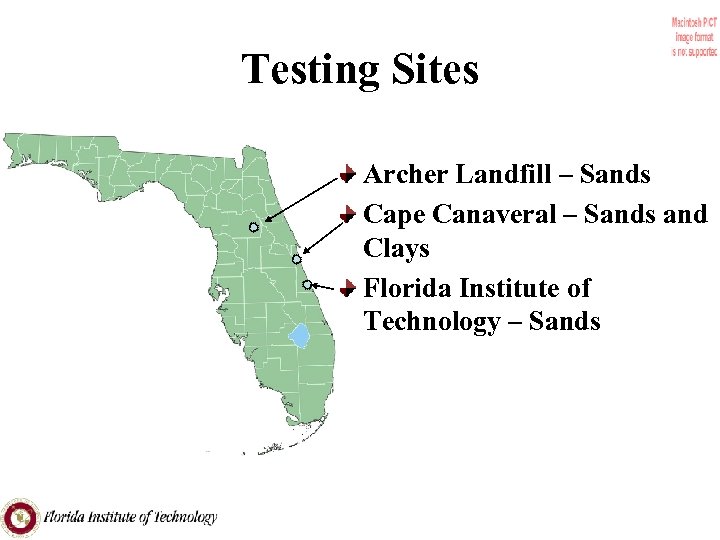

Testing Sites Archer Landfill – Sands Cape Canaveral – Sands and Clays Florida Institute Testing Sites Archer Landfill – Sands Cape Canaveral – Sands and Clays Florida Institute of Technology – Sands

Typical Results with Calibrations Typical Results with Calibrations

Explanation of Test Results Limit Pressure Lift-off or Initial Pressure Explanation of Test Results Limit Pressure Lift-off or Initial Pressure

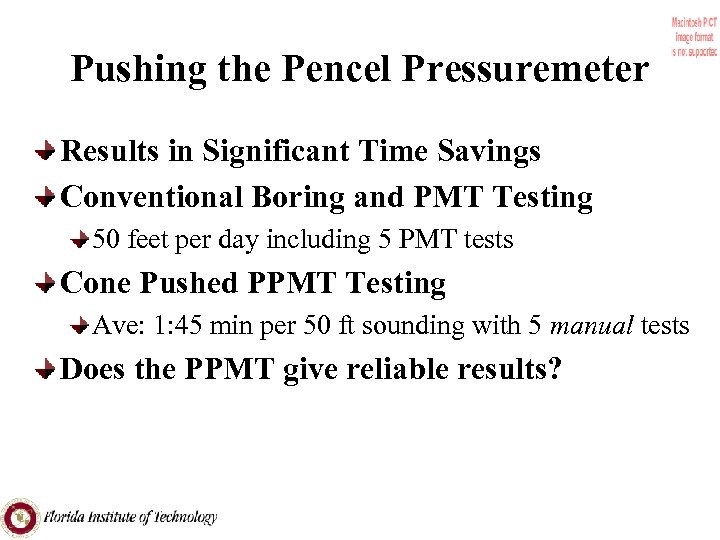

Pushing the Pencel Pressuremeter Results in Significant Time Savings Conventional Boring and PMT Testing Pushing the Pencel Pressuremeter Results in Significant Time Savings Conventional Boring and PMT Testing 50 feet per day including 5 PMT tests Cone Pushed PPMT Testing Ave: 1: 45 min per 50 ft sounding with 5 manual tests Does the PPMT give reliable results?

Elastic Modulus vs Limit Pressure FIT Sands Elastic Modulus vs Limit Pressure FIT Sands

DMT and PPMT Lift-off FIT Sands DMT and PPMT Lift-off FIT Sands

PPMT vs DMT Elastic Modulus FIT Sands PPMT vs DMT Elastic Modulus FIT Sands

PPMT vs DMT Lift-Off Pressures Cape Canaveral Clays PPMT vs DMT Lift-Off Pressures Cape Canaveral Clays

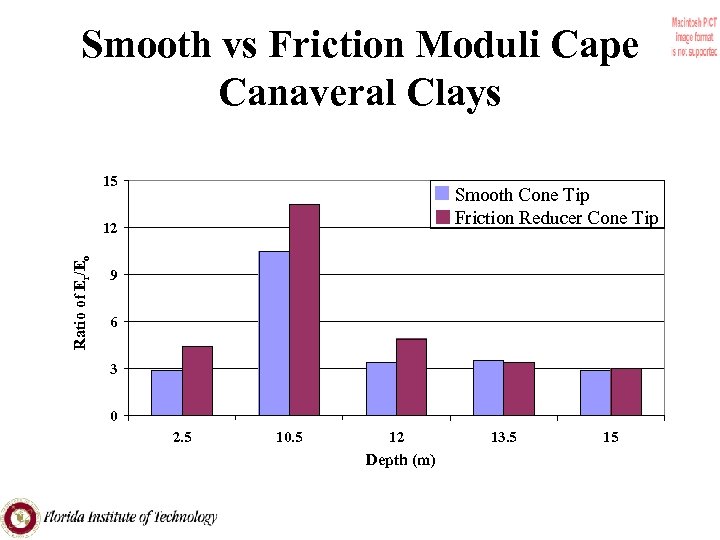

Smooth vs Friction Moduli Cape Canaveral Clays 15 Smooth Cone Tip Friction Reducer Cone Smooth vs Friction Moduli Cape Canaveral Clays 15 Smooth Cone Tip Friction Reducer Cone Tip Ratio of Er/Eo 12 9 6 3 0 2. 5 10. 5 12 Depth (m) 13. 5 15

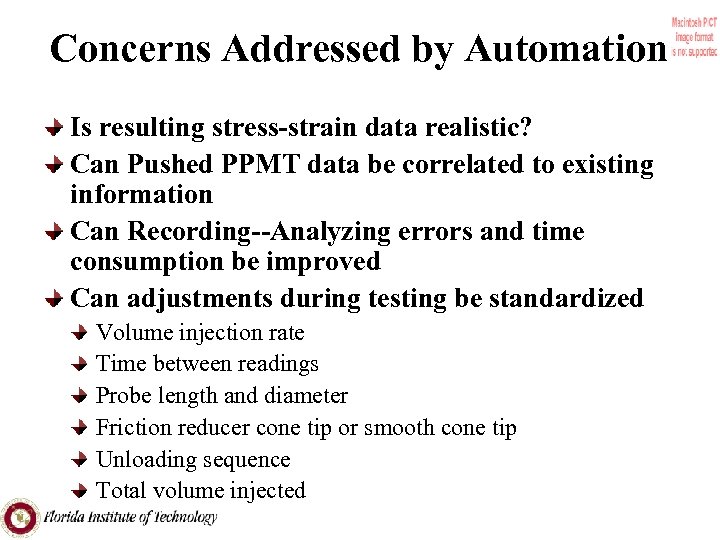

Concerns Addressed by Automation Is resulting stress-strain data realistic? Can Pushed PPMT data be Concerns Addressed by Automation Is resulting stress-strain data realistic? Can Pushed PPMT data be correlated to existing information Can Recording--Analyzing errors and time consumption be improved Can adjustments during testing be standardized Volume injection rate Time between readings Probe length and diameter Friction reducer cone tip or smooth cone tip Unloading sequence Total volume injected

Typical Test Procedure Insert probe to desired depth Inject equal volume increments of water Typical Test Procedure Insert probe to desired depth Inject equal volume increments of water & record pressures strain controlled Apply three calibrations to raw data; Membrane resistance Volumetric expansion Hydrostatic pressure About 75 pieces of data recorded

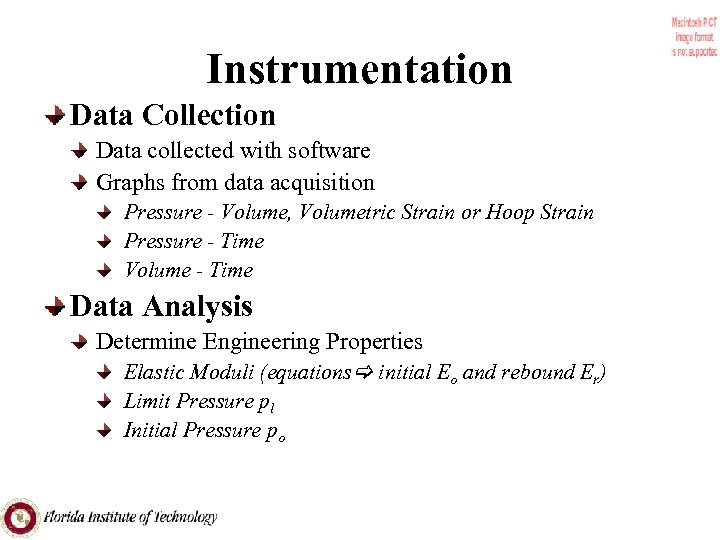

Instrumentation Data Collection Data collected with software Graphs from data acquisition Pressure - Volume, Instrumentation Data Collection Data collected with software Graphs from data acquisition Pressure - Volume, Volumetric Strain or Hoop Strain Pressure - Time Volume - Time Data Analysis Determine Engineering Properties Elastic Moduli (equations initial Eo and rebound Er) Limit Pressure pl Initial Pressure po

Typical APMT Screen Typical APMT Screen

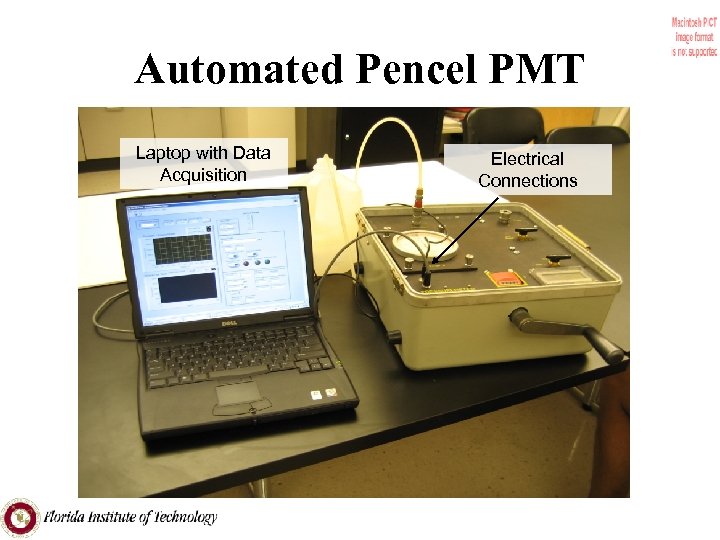

Automated Pencel PMT Laptop with Data Acquisition Electrical Connections Automated Pencel PMT Laptop with Data Acquisition Electrical Connections

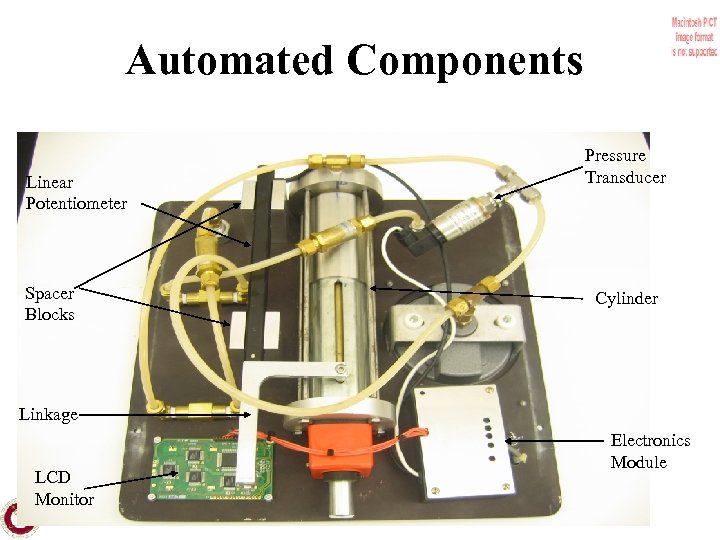

Automated Components Linear Potentiometer Spacer Blocks Pressure Transducer Cylinder Linkage LCD Monitor Electronics Module Automated Components Linear Potentiometer Spacer Blocks Pressure Transducer Cylinder Linkage LCD Monitor Electronics Module

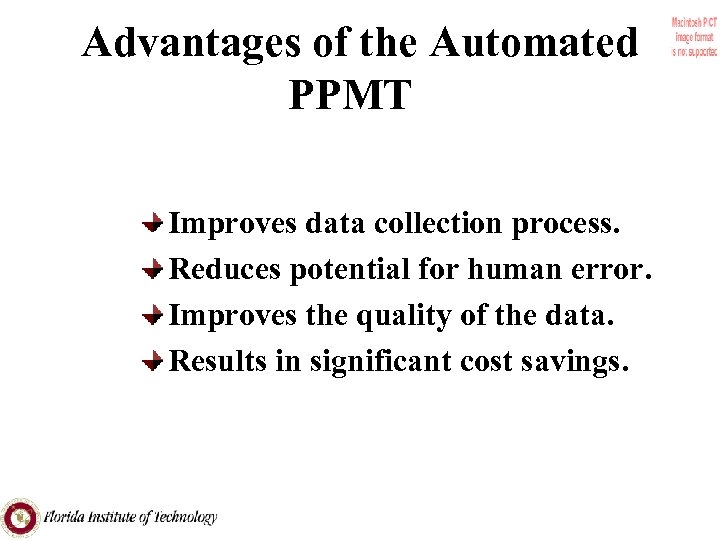

Advantages of the Automated PPMT Improves data collection process. Reduces potential for human error. Advantages of the Automated PPMT Improves data collection process. Reduces potential for human error. Improves the quality of the data. Results in significant cost savings.

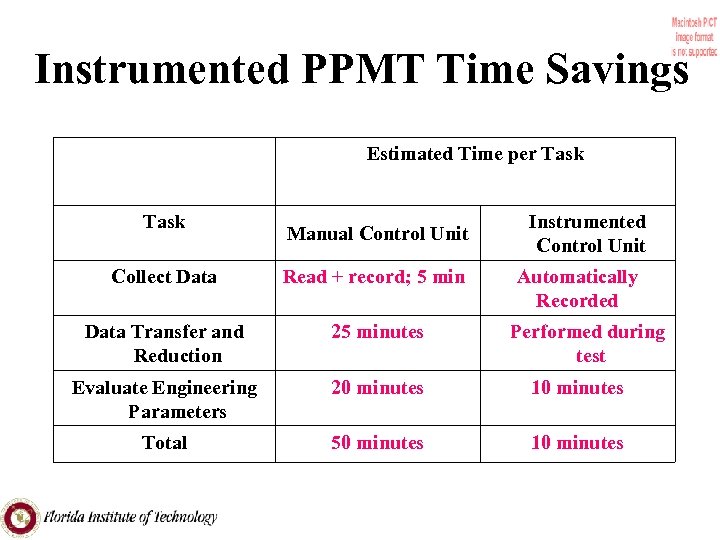

Instrumented PPMT Time Savings Estimated Time per Task Manual Control Unit Instrumented Control Unit Instrumented PPMT Time Savings Estimated Time per Task Manual Control Unit Instrumented Control Unit Collect Data Read + record; 5 min Automatically Recorded Data Transfer and Reduction 25 minutes Evaluate Engineering Parameters 20 minutes 10 minutes Total 50 minutes 10 minutes Performed during test

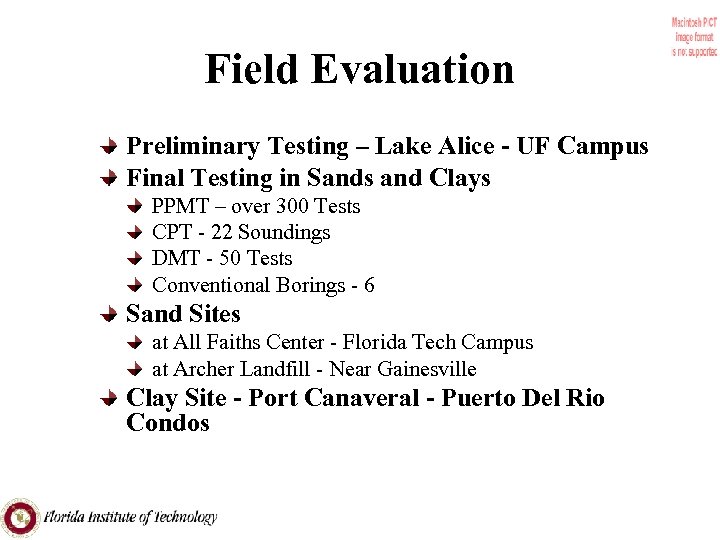

Field Evaluation Preliminary Testing – Lake Alice - UF Campus Final Testing in Sands Field Evaluation Preliminary Testing – Lake Alice - UF Campus Final Testing in Sands and Clays PPMT – over 300 Tests CPT - 22 Soundings DMT - 50 Tests Conventional Borings - 6 Sand Sites at All Faiths Center - Florida Tech Campus at Archer Landfill - Near Gainesville Clay Site - Port Canaveral - Puerto Del Rio Condos

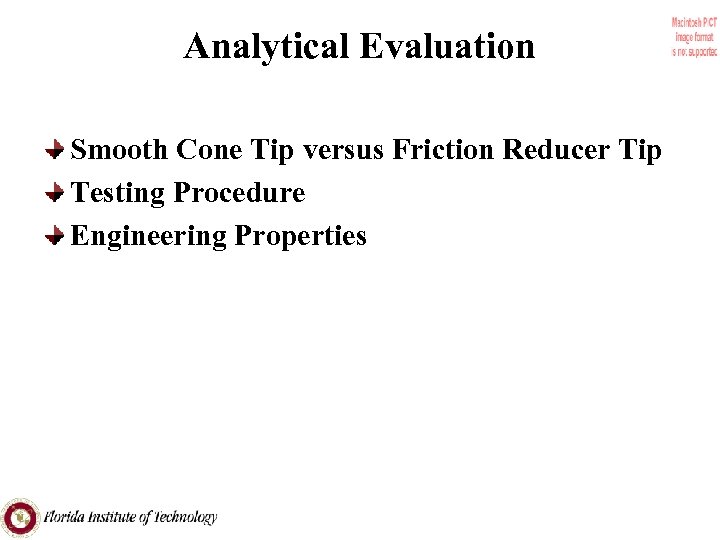

Analytical Evaluation Smooth Cone Tip versus Friction Reducer Tip Testing Procedure Engineering Properties Analytical Evaluation Smooth Cone Tip versus Friction Reducer Tip Testing Procedure Engineering Properties

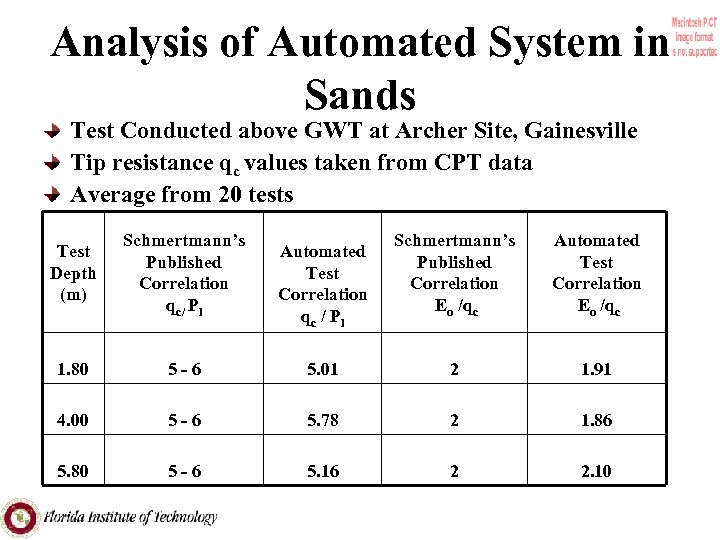

Analysis of Automated System in Sands Test Conducted above GWT at Archer Site, Gainesville Analysis of Automated System in Sands Test Conducted above GWT at Archer Site, Gainesville Tip resistance qc values taken from CPT data Average from 20 tests Test Depth (m) Schmertmann’s Published Correlation qc/ Pl Schmertmann’s Published Correlation Eo /qc Automated Test Correlation Eo /qc 1. 80 5 -6 5. 01 2 1. 91 4. 00 5 -6 5. 78 2 1. 86 5. 80 5 -6 5. 16 2 2. 10 Automated Test Correlation qc / P l

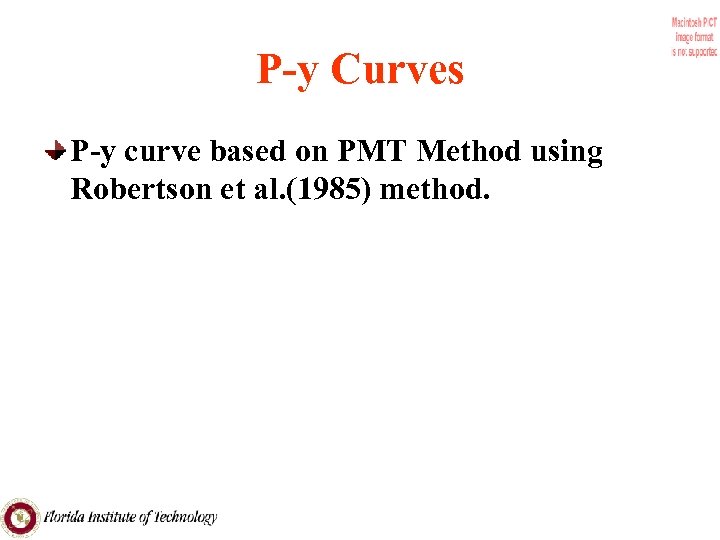

P-y Curves P-y curve based on PMT Method using Robertson et al. (1985) method. P-y Curves P-y curve based on PMT Method using Robertson et al. (1985) method.

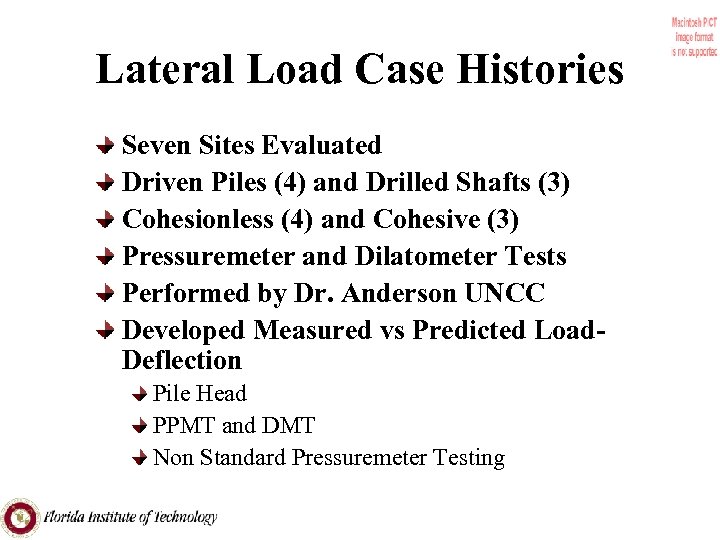

Lateral Load Case Histories Seven Sites Evaluated Driven Piles (4) and Drilled Shafts (3) Lateral Load Case Histories Seven Sites Evaluated Driven Piles (4) and Drilled Shafts (3) Cohesionless (4) and Cohesive (3) Pressuremeter and Dilatometer Tests Performed by Dr. Anderson UNCC Developed Measured vs Predicted Load. Deflection Pile Head PPMT and DMT Non Standard Pressuremeter Testing

Broadway Bridge Daytona Beach Broadway Bridge Daytona Beach

Salt Lake City Airport Salt Lake City Airport

Analyses Statistical Linear Regression with R 2 Qualitative Very Good < 10% error conservative Analyses Statistical Linear Regression with R 2 Qualitative Very Good < 10% error conservative Acceptable < 25 % error conservative Slightly Unconservative < 10 % over prediction Unconservative > 25 % over prediction

Statistical Results Statistical Results

Qualitative Results Qualitative Results

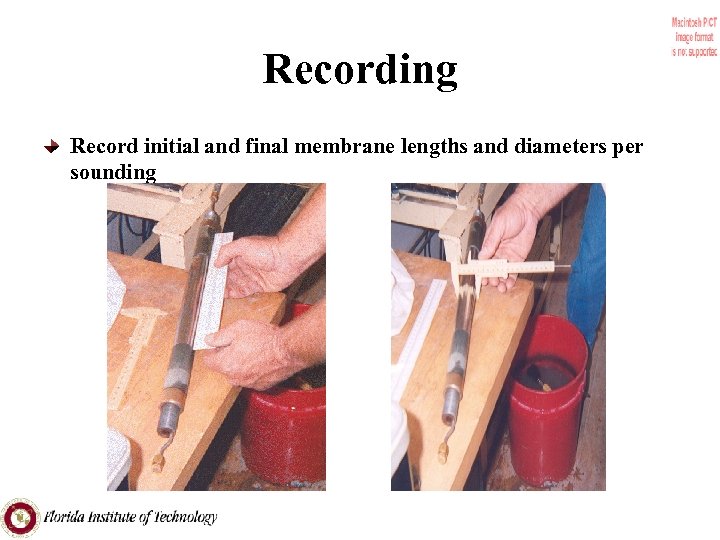

Recording Record initial and final membrane lengths and diameters per sounding Recording Record initial and final membrane lengths and diameters per sounding

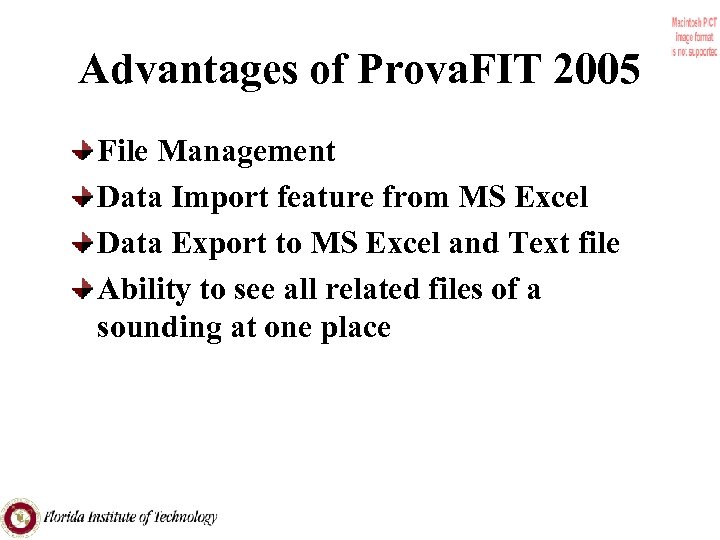

Advantages of Prova. FIT 2005 File Management Data Import feature from MS Excel Data Advantages of Prova. FIT 2005 File Management Data Import feature from MS Excel Data Export to MS Excel and Text file Ability to see all related files of a sounding at one place

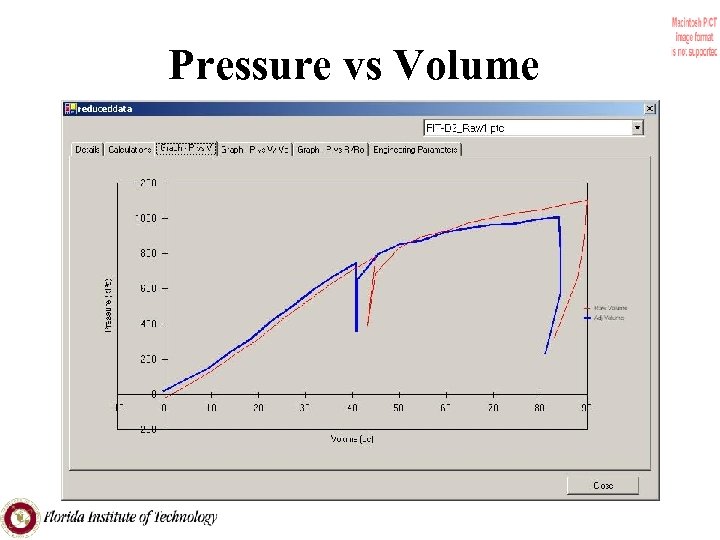

Pressure vs Volume Pressure vs Volume

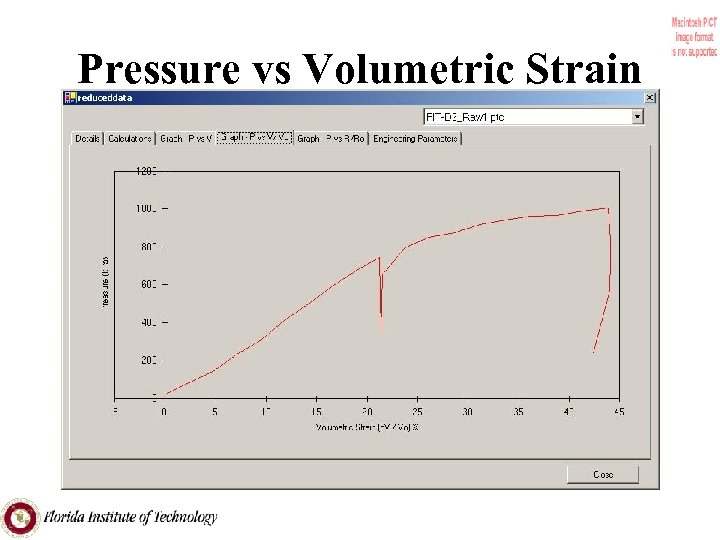

Pressure vs Volumetric Strain Pressure vs Volumetric Strain

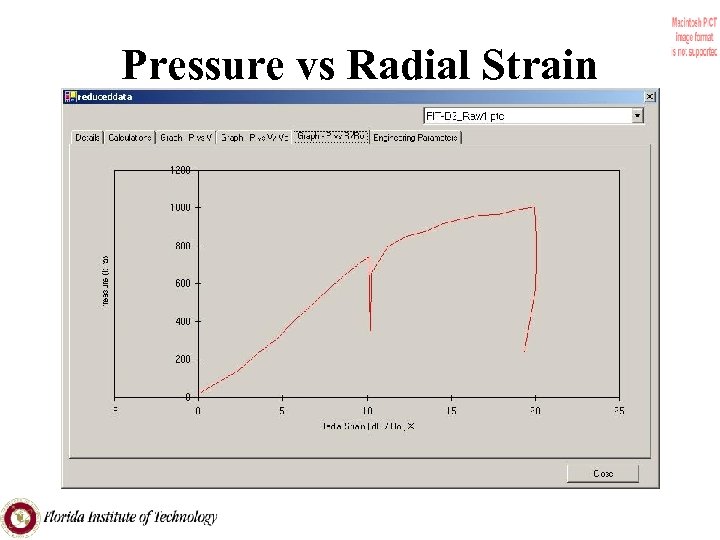

Pressure vs Radial Strain Pressure vs Radial Strain

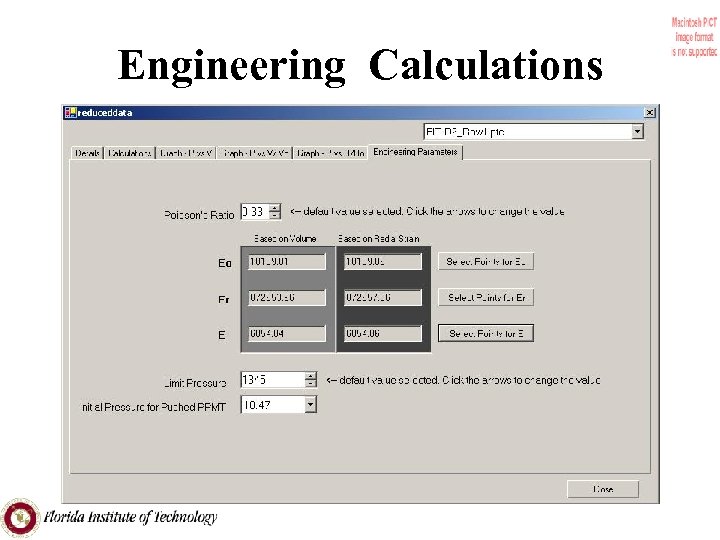

Engineering Calculations Engineering Calculations

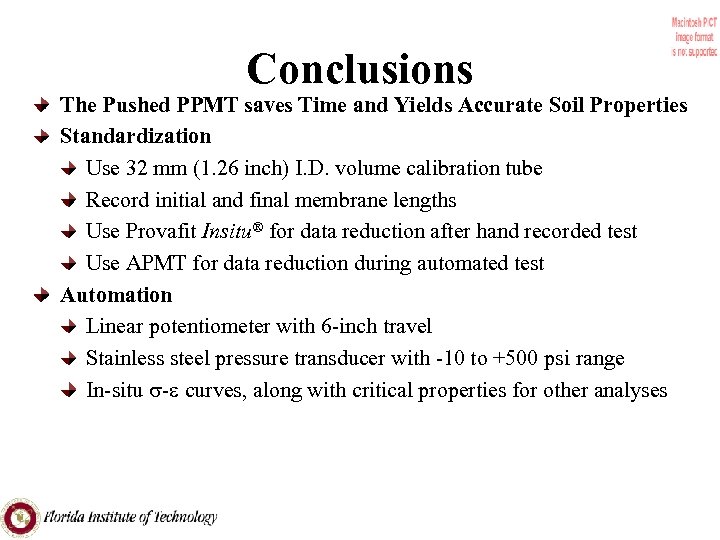

Conclusions The Pushed PPMT saves Time and Yields Accurate Soil Properties Standardization Use 32 Conclusions The Pushed PPMT saves Time and Yields Accurate Soil Properties Standardization Use 32 mm (1. 26 inch) I. D. volume calibration tube Record initial and final membrane lengths Use Provafit Insitu® for data reduction after hand recorded test Use APMT for data reduction during automated test Automation Linear potentiometer with 6 -inch travel Stainless steel pressure transducer with -10 to +500 psi range In-situ s-e curves, along with critical properties for other analyses

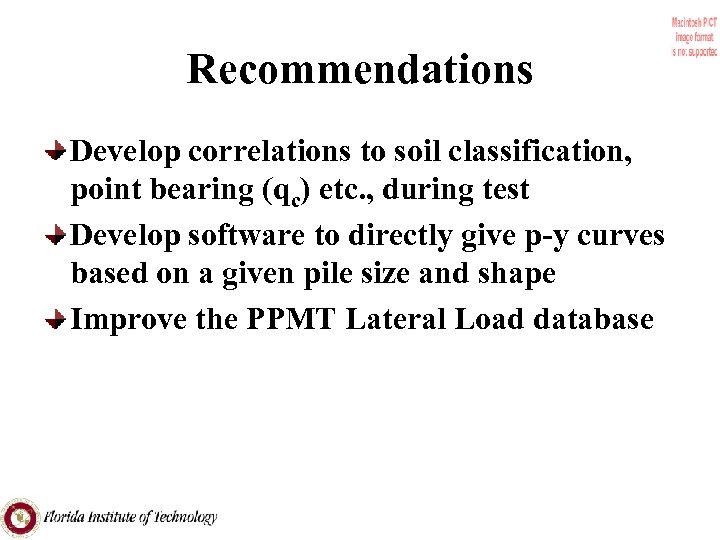

Recommendations Develop correlations to soil classification, point bearing (qc) etc. , during test Develop Recommendations Develop correlations to soil classification, point bearing (qc) etc. , during test Develop software to directly give p-y curves based on a given pile size and shape Improve the PPMT Lateral Load database

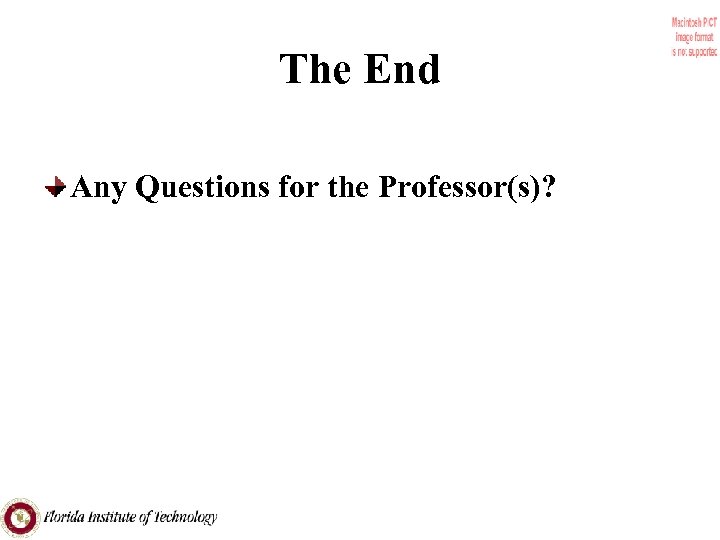

The End Any Questions for the Professor(s)? The End Any Questions for the Professor(s)?
