Stand-By Emergency Lighting Inverter Three Phase 3 KW – 125 KW

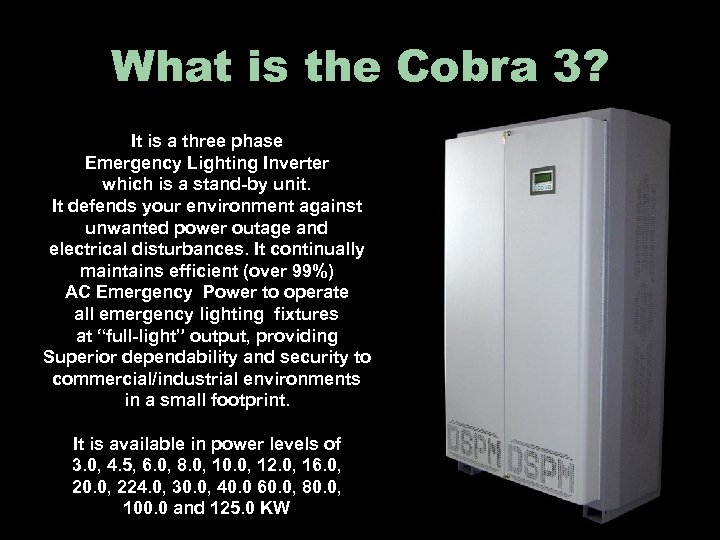

What is the Cobra 3? It is a three phase Emergency Lighting Inverter which is a stand-by unit. It defends your environment against unwanted power outage and electrical disturbances. It continually maintains efficient (over 99%) AC Emergency Power to operate all emergency lighting fixtures at “full-light” output, providing Superior dependability and security to commercial/industrial environments in a small footprint. It is available in power levels of 3. 0, 4. 5, 6. 0, 8. 0, 10. 0, 12. 0, 16. 0, 20. 0, 224. 0, 30. 0, 40. 0 60. 0, 80. 0, 100. 0 and 125. 0 KW

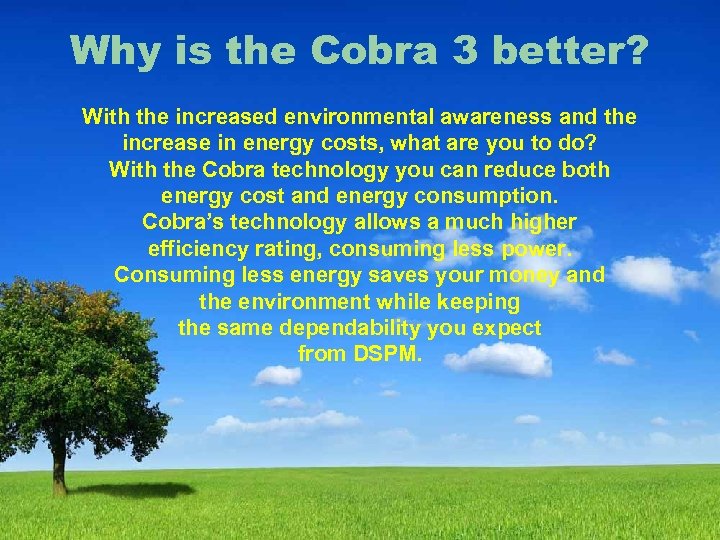

Why is the Cobra 3 better? With the increased environmental awareness and the increase in energy costs, what are you to do? With the Cobra technology you can reduce both energy cost and energy consumption. Cobra’s technology allows a much higher efficiency rating, consuming less power. Consuming less energy saves your money and the environment while keeping the same dependability you expect from DSPM.

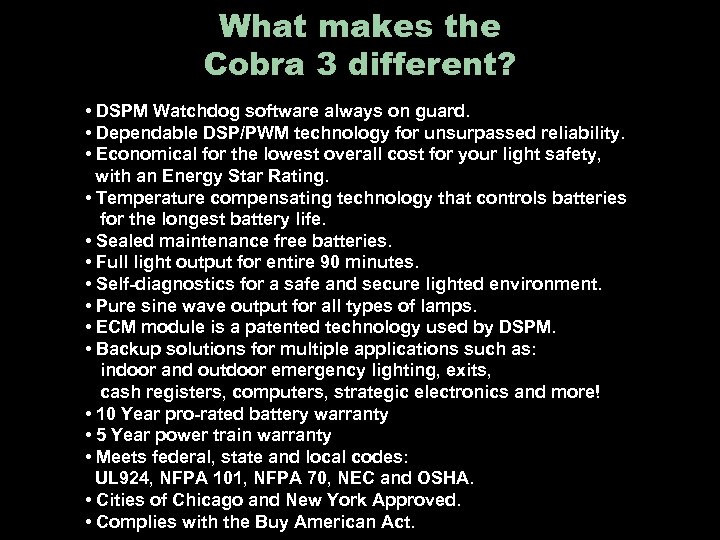

What makes the Cobra 3 different? • DSPM Watchdog software always on guard. • Dependable DSP/PWM technology for unsurpassed reliability. • Economical for the lowest overall cost for your light safety, with an Energy Star Rating. • Temperature compensating technology that controls batteries for the longest battery life. • Sealed maintenance free batteries. • Full light output for entire 90 minutes. • Self-diagnostics for a safe and secure lighted environment. • Pure sine wave output for all types of lamps. • ECM module is a patented technology used by DSPM. • Backup solutions for multiple applications such as: indoor and outdoor emergency lighting, exits, cash registers, computers, strategic electronics and more! • 10 Year pro-rated battery warranty • 5 Year power train warranty • Meets federal, state and local codes: UL 924, NFPA 101, NFPA 70, NEC and OSHA. • Cities of Chicago and New York Approved. • Complies with the Buy American Act.

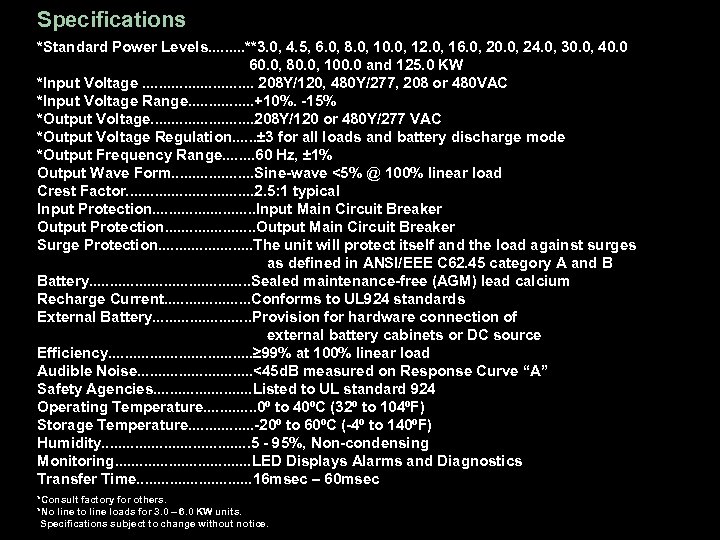

Specifications *Standard Power Levels. . **3. 0, 4. 5, 6. 0, 8. 0, 10. 0, 12. 0, 16. 0, 20. 0, 24. 0, 30. 0, 40. 0 60. 0, 80. 0, 100. 0 and 125. 0 KW *Input Voltage. . . . 208 Y/120, 480 Y/277, 208 or 480 VAC *Input Voltage Range. . . . +10%. -15% *Output Voltage. . . 208 Y/120 or 480 Y/277 VAC *Output Voltage Regulation. . . ± 3 for all loads and battery discharge mode *Output Frequency Range. . . . 60 Hz, ± 1% Output Wave Form. . . . . Sine-wave <5% @ 100% linear load Crest Factor. . . . 2. 5: 1 typical Input Protection. . . Input Main Circuit Breaker Output Protection. . . . . Output Main Circuit Breaker Surge Protection. . . The unit will protect itself and the load against surges as defined in ANSI/EEE C 62. 45 category A and B Battery. . . . . Sealed maintenance-free (AGM) lead calcium Recharge Current. . . . . Conforms to UL 924 standards External Battery. . . Provision for hardware connection of external battery cabinets or DC source Efficiency. . . . . ≥ 99% at 100% linear load Audible Noise. . . . <45 d. B measured on Response Curve “A” Safety Agencies. . . Listed to UL standard 924 Operating Temperature. . . 0º to 40ºC (32º to 104ºF) Storage Temperature. . . . -20º to 60ºC (-4º to 140ºF) Humidity. . . . . 5 - 95%, Non-condensing Monitoring. . . . LED Displays Alarms and Diagnostics Transfer Time. . . . 16 msec – 60 msec *Consult factory for others. *No line to line loads for 3. 0 – 6. 0 KW units. Specifications subject to change without notice.

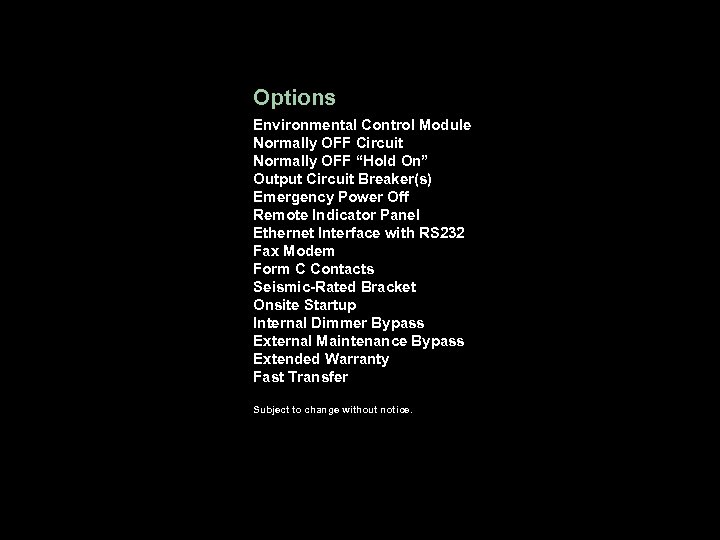

Options Environmental Control Module Normally OFF Circuit Normally OFF “Hold On” Output Circuit Breaker(s) Emergency Power Off Remote Indicator Panel Ethernet Interface with RS 232 Fax Modem Form C Contacts Seismic-Rated Bracket Onsite Startup Internal Dimmer Bypass External Maintenance Bypass Extended Warranty Fast Transfer Subject to change without notice.

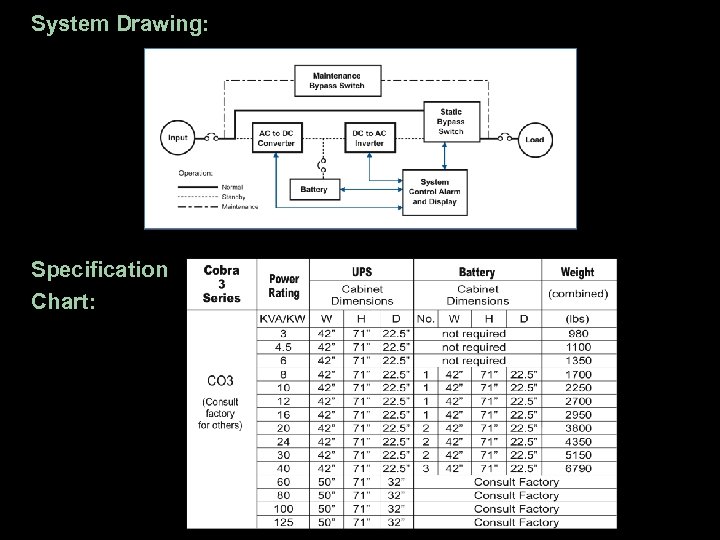

System Drawing: Specification Chart:

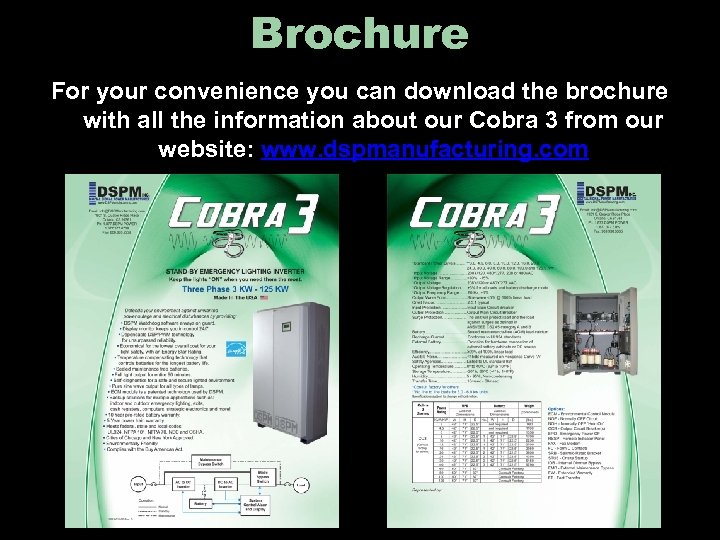

Brochure For your convenience you can download the brochure with all the information about our Cobra 3 from our website: www. dspmanufacturing. com
Data Sheet For your convenience you can download the data sheet with all the information along with how to order our Cobra 3 from our website: www. dspmanufacturing. com

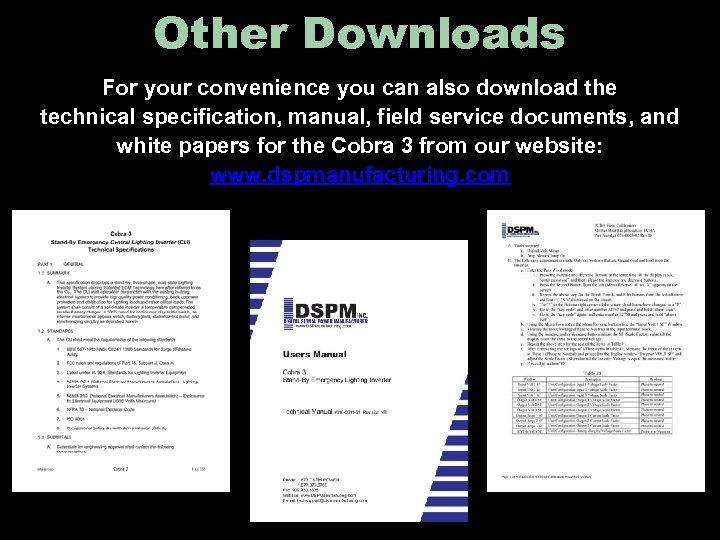

Other Downloads For your convenience you can also download the technical specification, manual, field service documents, and white papers for the Cobra 3 from our website: www. dspmanufacturing. com

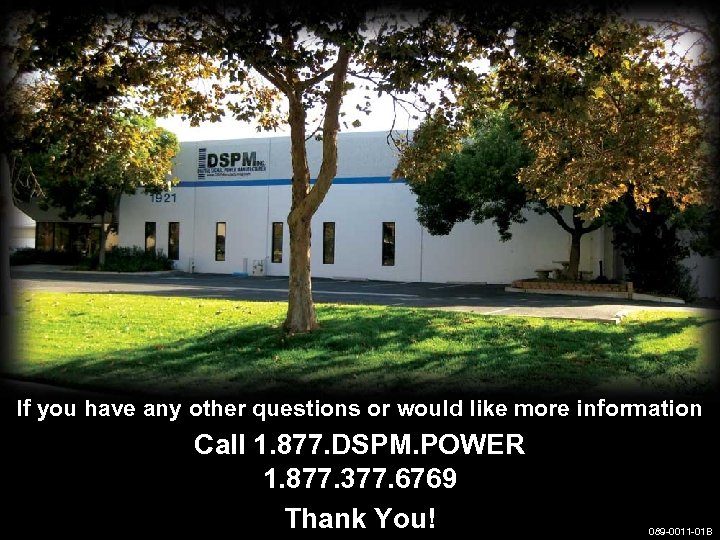

If you have any other questions or would like more information Call 1. 877. DSPM. POWER 1. 877. 377. 6769 Thank You! 089 -0011 -01 B
