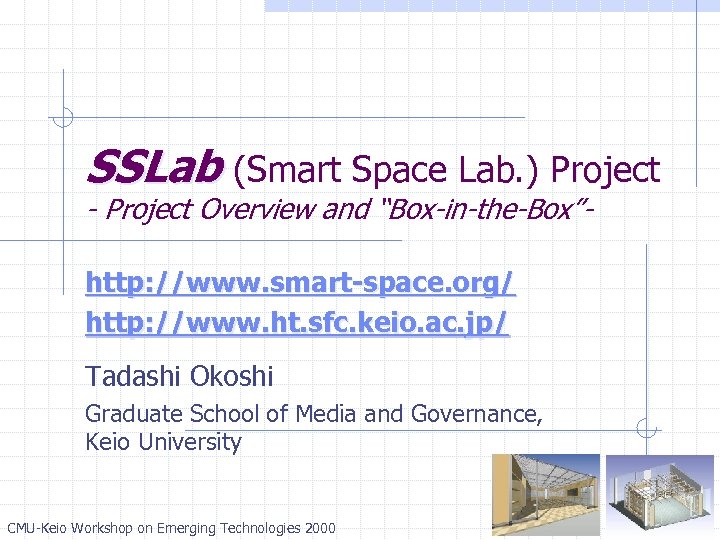

SSLab (Smart Space Lab. ) Project - Project Overview and “Box-in-the-Box”http: //www. smart-space. org/ http: //www. ht. sfc. keio. ac. jp/ Tadashi Okoshi Graduate School of Media and Governance, Keio University CMU-Keio Workshop on Emerging Technologies 2000

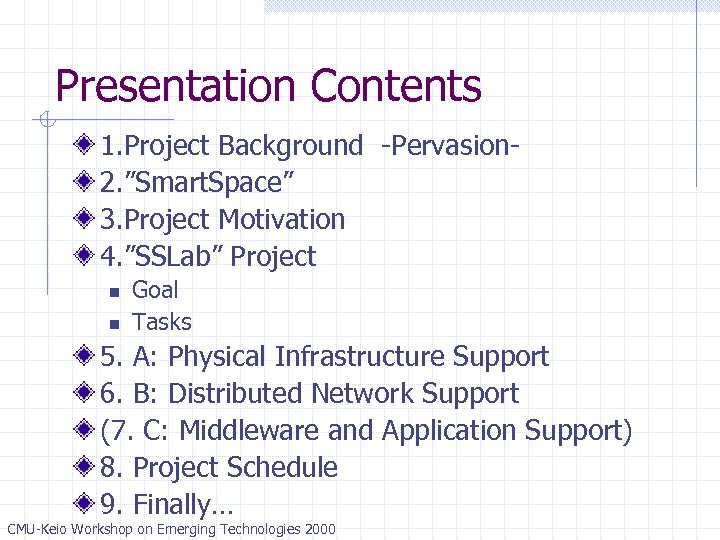

Presentation Contents 1. Project Background -Pervasion 2. ”Smart. Space” 3. Project Motivation 4. ”SSLab” Project n n Goal Tasks 5. A: Physical Infrastructure Support 6. B: Distributed Network Support (7. C: Middleware and Application Support) 8. Project Schedule 9. Finally… CMU-Keio Workshop on Emerging Technologies 2000
1. Project Background Pervasion of Computation Sensor Network CMU-Keio Workshop on Emerging Technologies 2000

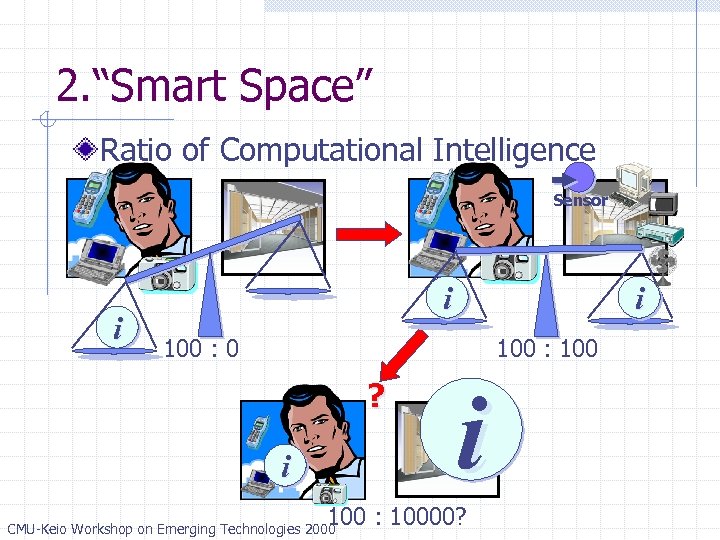

2. “Smart Space” Ratio of Computational Intelligence Sensor i i i 100 : 0 100 : 100 ? i i 100 : 10000? CMU-Keio Workshop on Emerging Technologies 2000

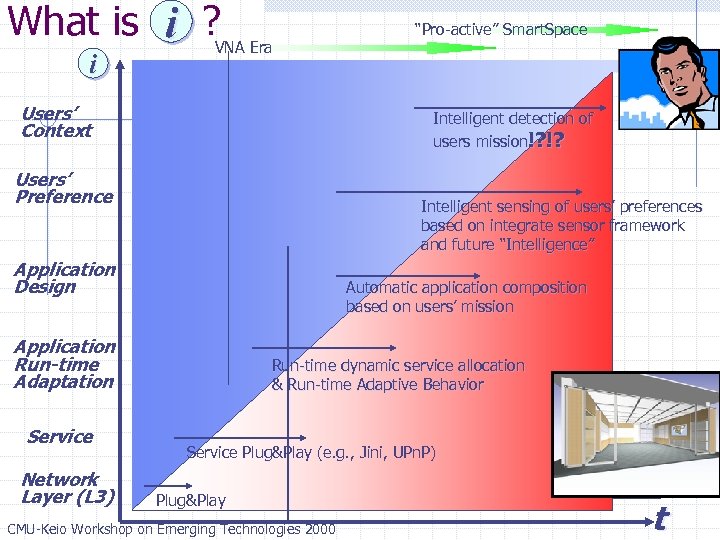

What is i ? i VNA Era Users’ Context Intelligent detection of users mission!? !? Users’ Preference Intelligent sensing of users’ preferences based on integrate sensor framework and future “Intelligence” Application Design Automatic application composition based on users’ mission Application Run-time Adaptation Service Network Layer (L 3) “Pro-active” Smart. Space Run-time dynamic service allocation & Run-time Adaptive Behavior Service Plug&Play (e. g. , Jini, UPn. P) Plug&Play CMU-Keio Workshop on Emerging Technologies 2000 t

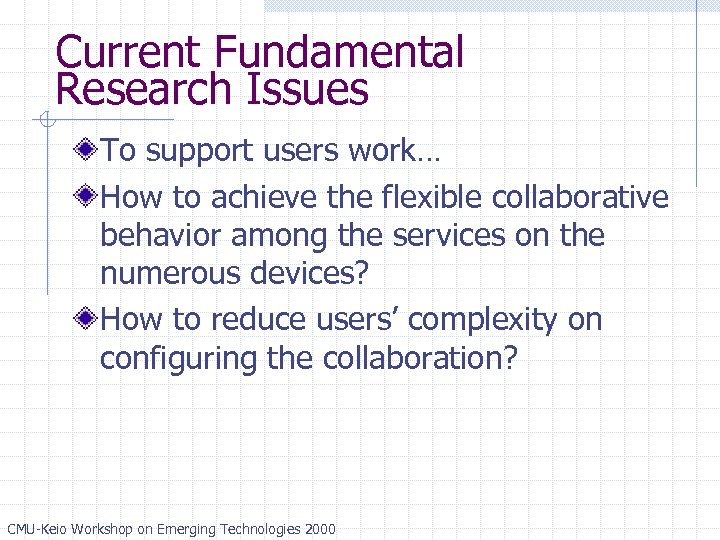

Current Fundamental Research Issues To support users work… How to achieve the flexible collaborative behavior among the services on the numerous devices? How to reduce users’ complexity on configuring the collaboration? CMU-Keio Workshop on Emerging Technologies 2000

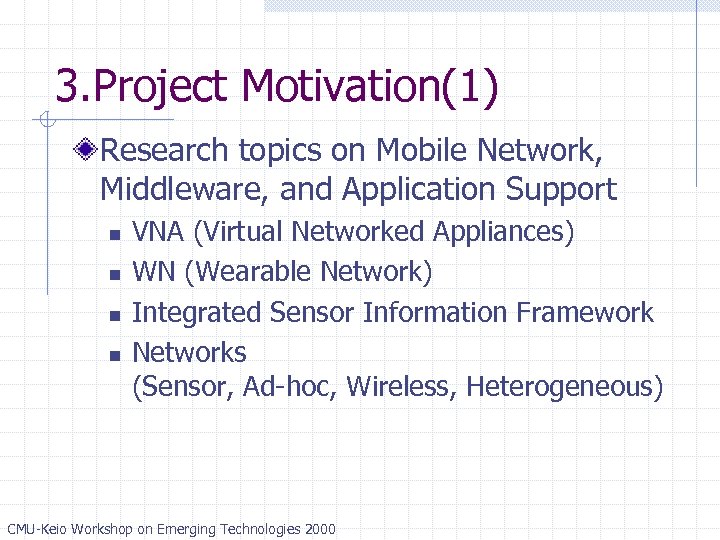

3. Project Motivation(1) Research topics on Mobile Network, Middleware, and Application Support n n VNA (Virtual Networked Appliances) WN (Wearable Network) Integrated Sensor Information Framework Networks (Sensor, Ad-hoc, Wireless, Heterogeneous) CMU-Keio Workshop on Emerging Technologies 2000

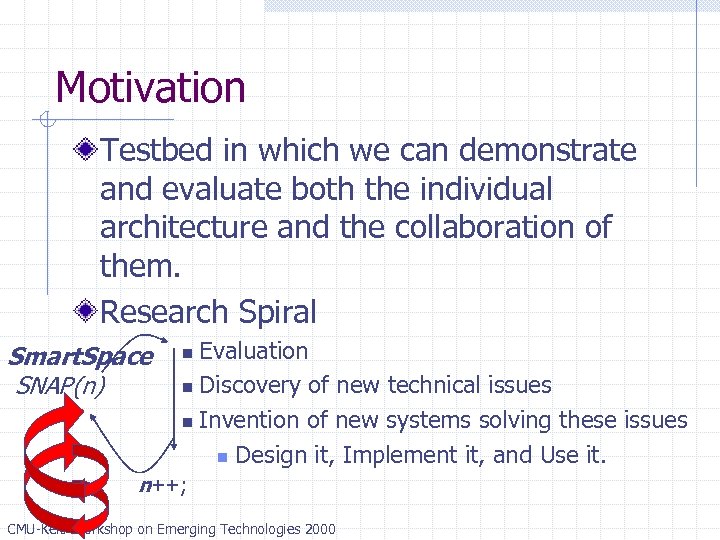

Motivation Testbed in which we can demonstrate and evaluate both the individual architecture and the collaboration of them. Research Spiral Smart. Space SNAP(n) Evaluation n Discovery of new technical issues n Invention of new systems solving these issues n Design it, Implement it, and Use it. n n++; CMU-Keio Workshop on Emerging Technologies 2000

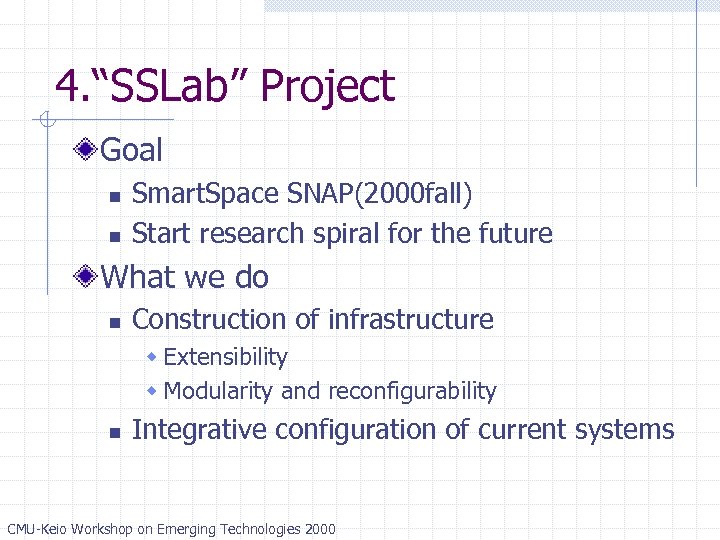

4. “SSLab” Project Goal n n Smart. Space SNAP(2000 fall) Start research spiral for the future What we do n Construction of infrastructure w Extensibility w Modularity and reconfigurability n Integrative configuration of current systems CMU-Keio Workshop on Emerging Technologies 2000

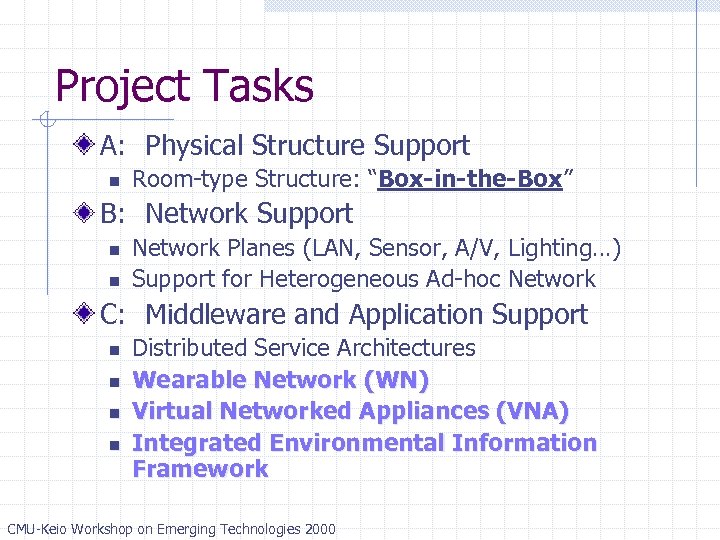

Project Tasks A: Physical Structure Support n Room-type Structure: “Box-in-the-Box” B: Network Support n n Network Planes (LAN, Sensor, A/V, Lighting…) Support for Heterogeneous Ad-hoc Network C: Middleware and Application Support n n Distributed Service Architectures Wearable Network (WN) Virtual Networked Appliances (VNA) Integrated Environmental Information Framework CMU-Keio Workshop on Emerging Technologies 2000

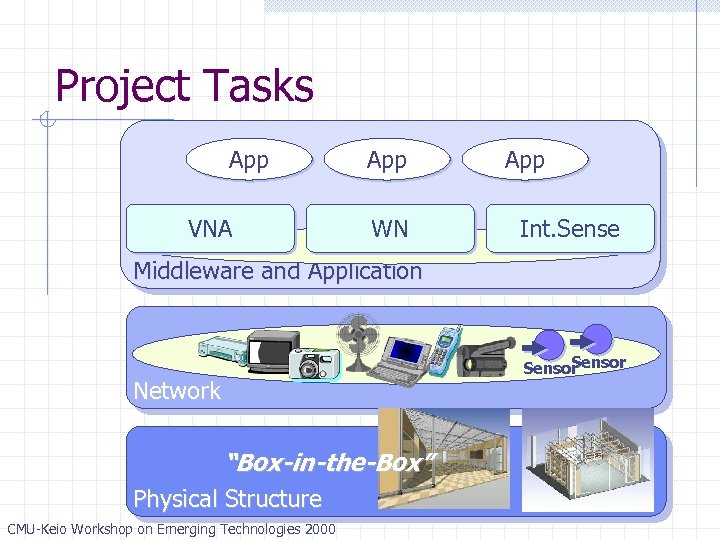

Project Tasks App VNA App WN App Int. Sense Middleware and Application Sensor Network “Box-in-the-Box” Physical Structure CMU-Keio Workshop on Emerging Technologies 2000

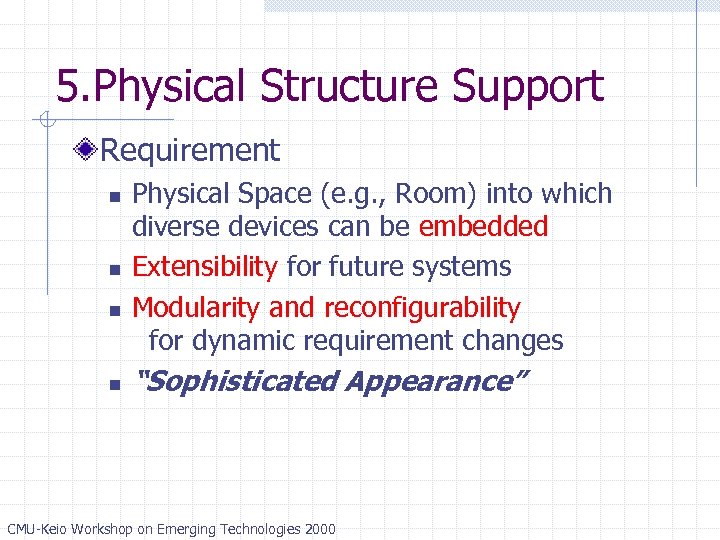

5. Physical Structure Support Requirement n n Physical Space (e. g. , Room) into which diverse devices can be embedded Extensibility for future systems Modularity and reconfigurability for dynamic requirement changes “Sophisticated Appearance” CMU-Keio Workshop on Emerging Technologies 2000

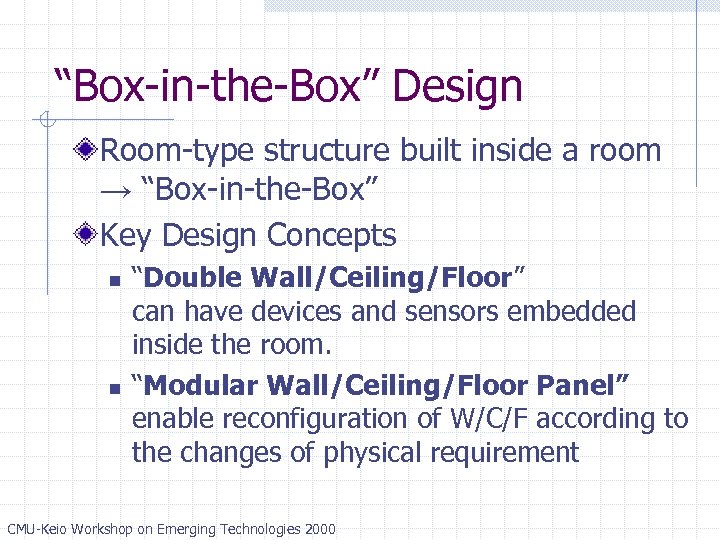

“Box-in-the-Box” Design Room-type structure built inside a room → “Box-in-the-Box” Key Design Concepts n n “Double Wall/Ceiling/Floor” can have devices and sensors embedded inside the room. “Modular Wall/Ceiling/Floor Panel” enable reconfiguration of W/C/F according to the changes of physical requirement CMU-Keio Workshop on Emerging Technologies 2000

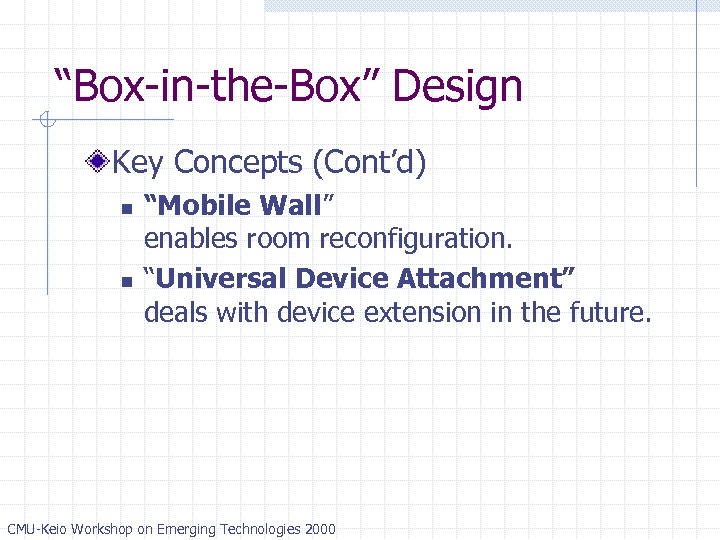

“Box-in-the-Box” Design Key Concepts (Cont’d) n n “Mobile Wall” enables room reconfiguration. “Universal Device Attachment” deals with device extension in the future. CMU-Keio Workshop on Emerging Technologies 2000

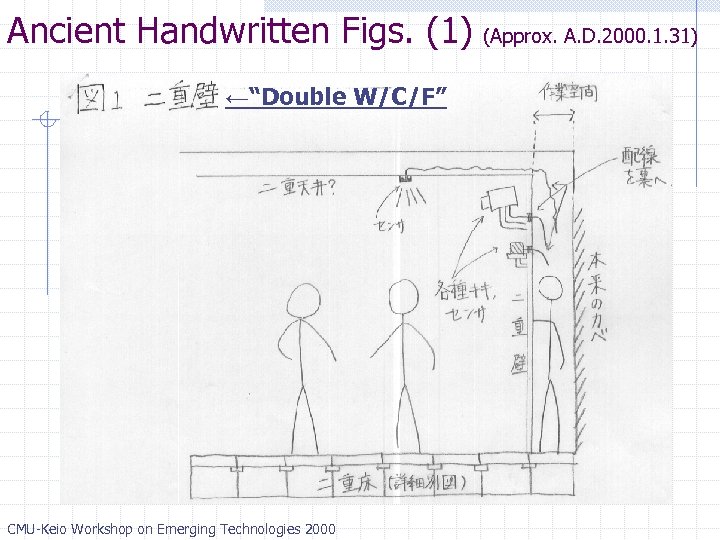

Ancient Handwritten Figs. (1) (Approx. A. D. 2000. 1. 31) ←“Double W/C/F” CMU-Keio Workshop on Emerging Technologies 2000

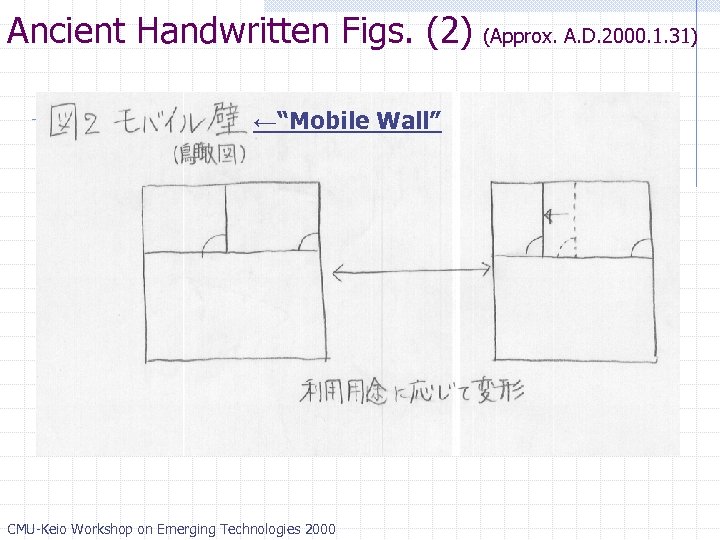

Ancient Handwritten Figs. (2) (Approx. A. D. 2000. 1. 31) ←“Mobile Wall” CMU-Keio Workshop on Emerging Technologies 2000

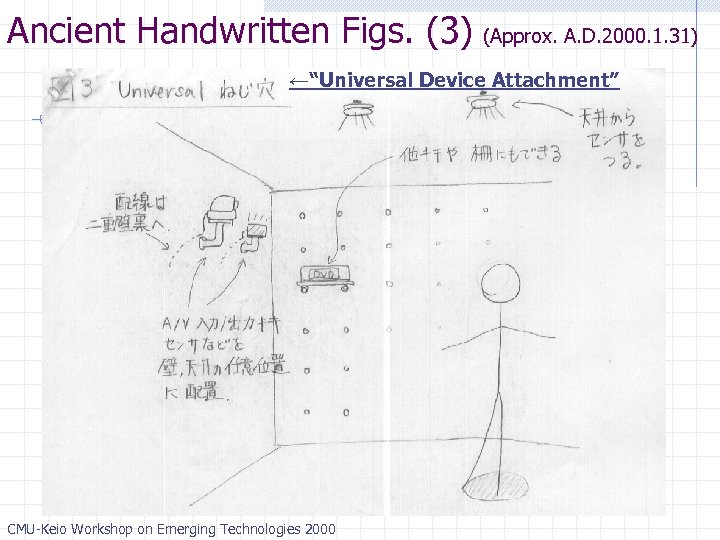

Ancient Handwritten Figs. (3) (Approx. A. D. 2000. 1. 31) ←“Universal Device Attachment” CMU-Keio Workshop on Emerging Technologies 2000
Implementation Inside Tokuda Laboratory room in Keio University SFC Campus “Digital Lab. Building” Outer: 7. 3 m x 6. 6 m Area Inner: 5. 4 m x 5. 4 m Area Constructed with modular frames mainly used for pavilions at exhibitions Collaboration n n Designed by Prof. Ikeda (@Keio) and his design studio (http: //www. ik-ds. com) Constructed by SHUKO Corp. (http: //www. shukoh. co. jp) CMU-Keio Workshop on Emerging Technologies 2000

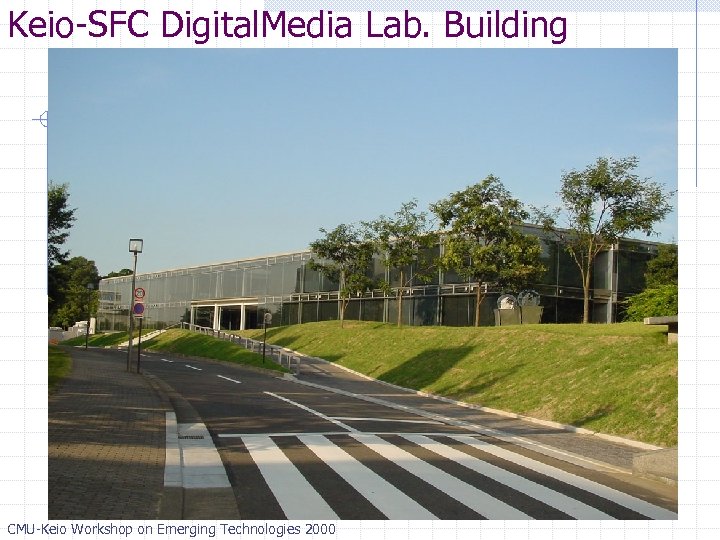

Keio-SFC Digital. Media Lab. Building CMU-Keio Workshop on Emerging Technologies 2000

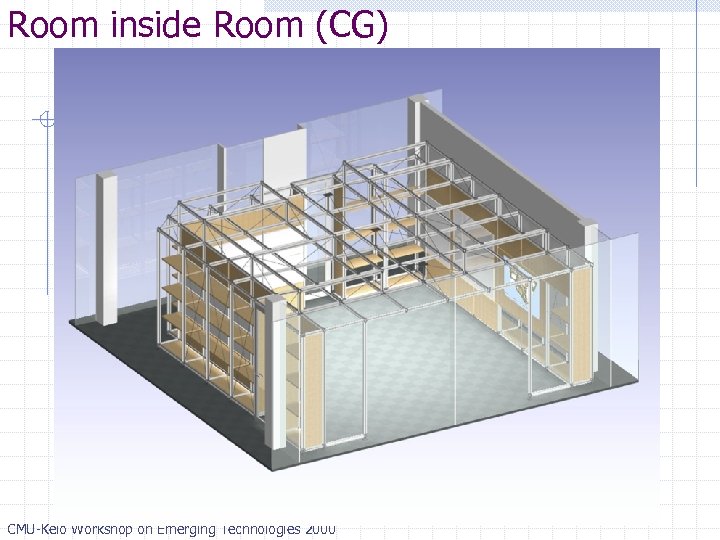

Room inside Room (CG) CMU-Keio Workshop on Emerging Technologies 2000

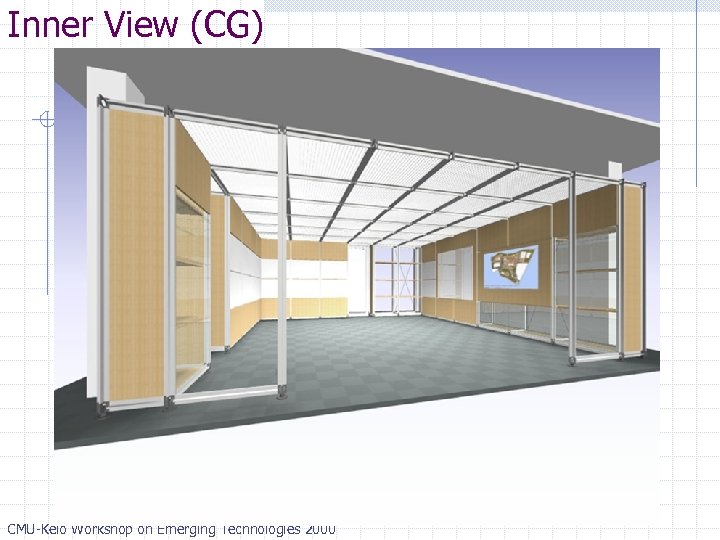

Inner View (CG) CMU-Keio Workshop on Emerging Technologies 2000

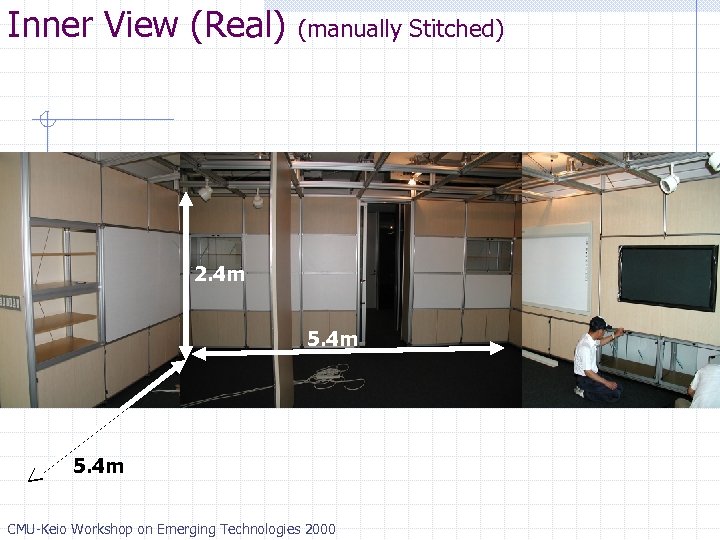

Inner View (Real) (manually Stitched) 2. 4 m 5. 4 m CMU-Keio Workshop on Emerging Technologies 2000

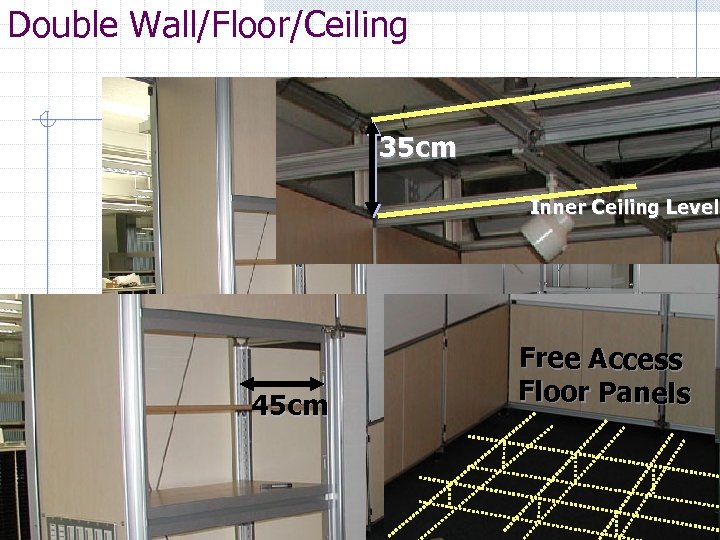

Double Wall/Floor/Ceiling 35 cm Inner Ceiling Level 45 cm CMU-Keio Workshop on Emerging Technologies 2000 Free Access Floor Panels

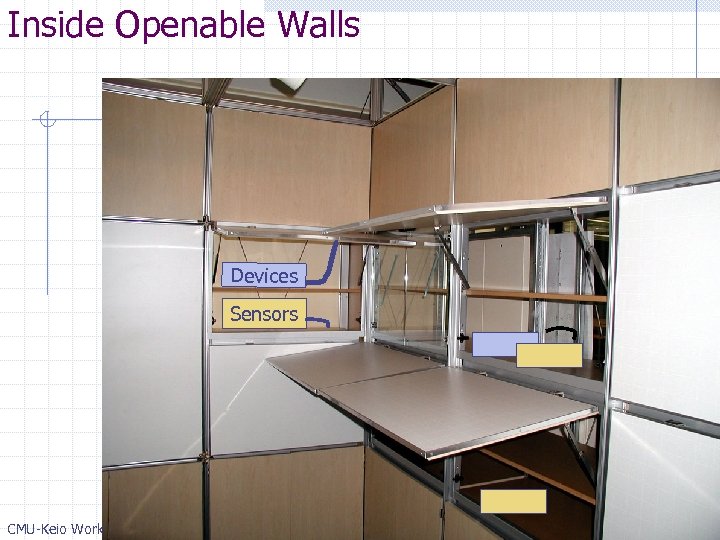

Inside Openable Walls Devices Sensors CMU-Keio Workshop on Emerging Technologies 2000

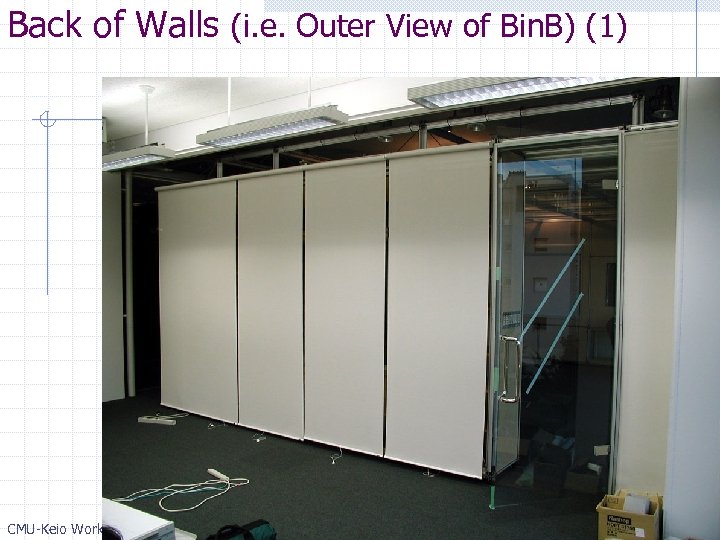

Back of Walls (i. e. Outer View of Bin. B) (1) CMU-Keio Workshop on Emerging Technologies 2000

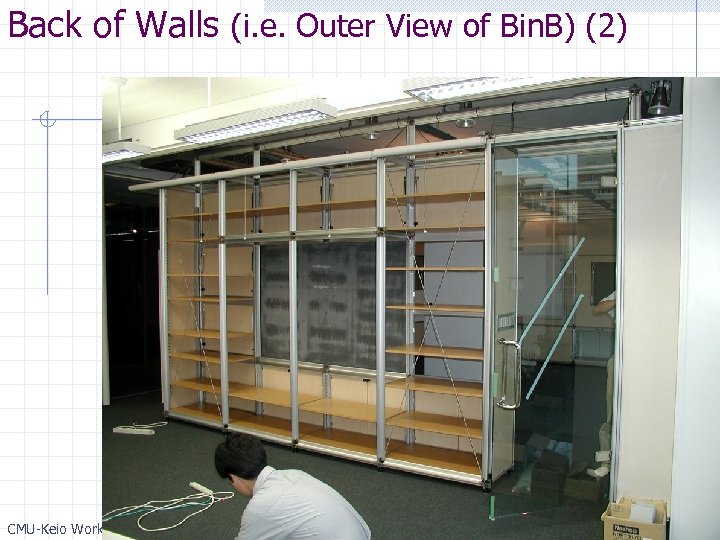

Back of Walls (i. e. Outer View of Bin. B) (2) CMU-Keio Workshop on Emerging Technologies 2000

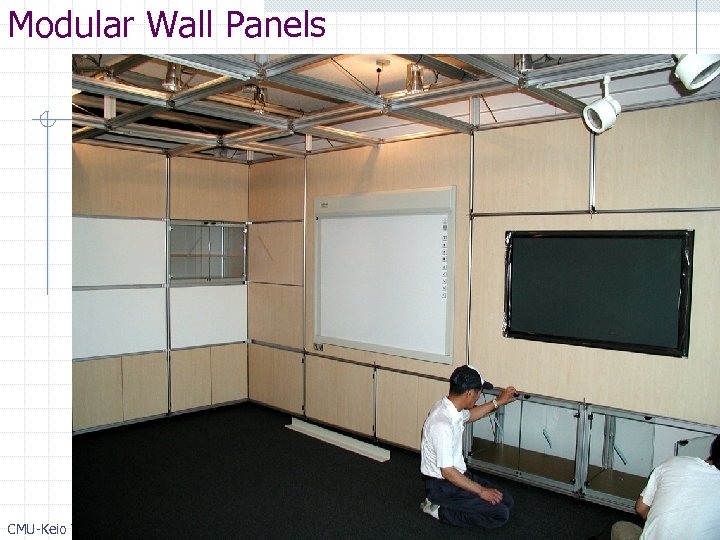

Modular Wall Panels 90 cm 60 cm CMU-Keio Workshop on Emerging Technologies 2000 Panel 90 cm width 60 cm height Types Whiteboard Wood Glass Openable Recofigurable

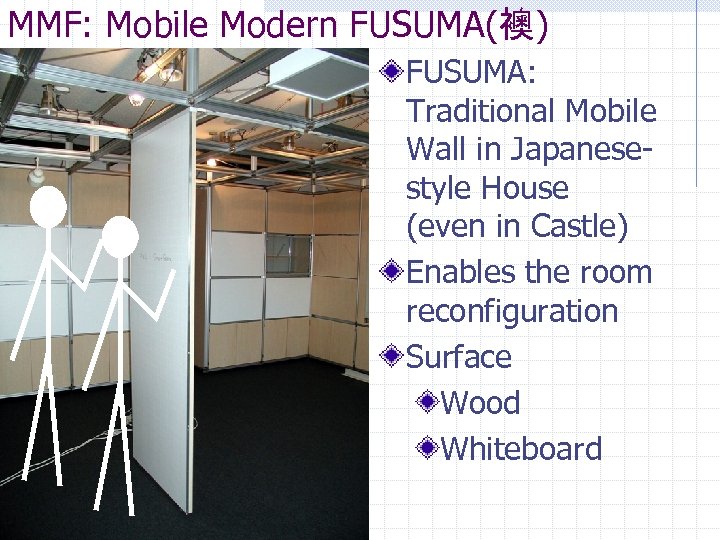

MMF: Mobile Modern FUSUMA(襖) FUSUMA: Traditional Mobile Wall in Japanesestyle House (even in Castle) Enables the room reconfiguration Surface Wood Whiteboard CMU-Keio Workshop on Emerging Technologies 2000

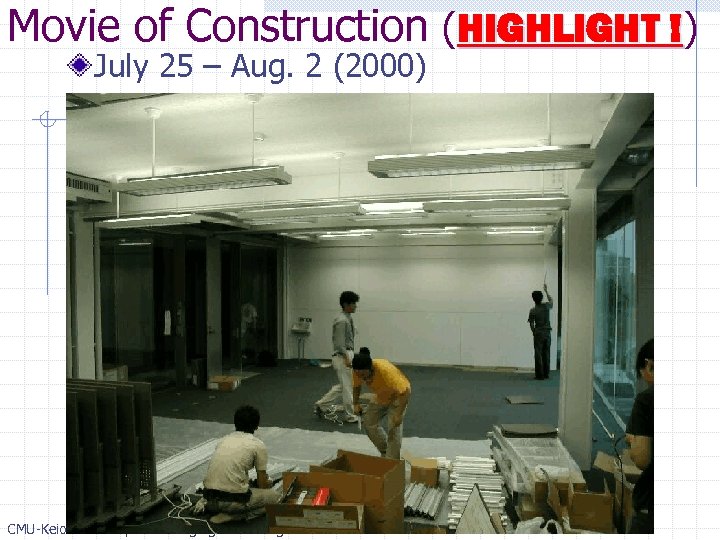

Movie of Construction (HIGHLIGHT !) ! July 25 – Aug. 2 (2000) CMU-Keio Workshop on Emerging Technologies 2000
6. B: Distributed Network Support “Region” Approach n n n 5 Separated Areas in SSLab Units for distributed management Suitable for “Mobile” demonstration Devices n n n PCs, Java-FCs (Region Servers) Sensors (Location, Illuminometer, Thermometer, Motion Processor…) A/V equipment (DV, D-VHS, DVD, PDP…) Soft. Board Lighting Equipment CMU-Keio Workshop on Emerging Technologies 2000

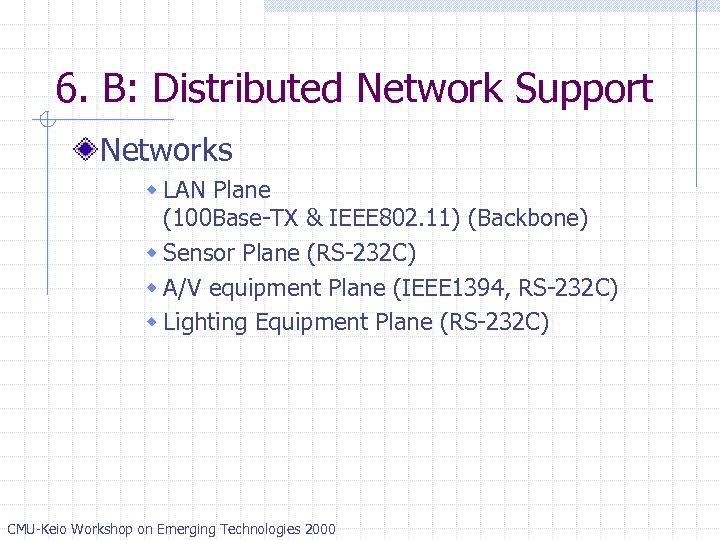

6. B: Distributed Network Support Networks w LAN Plane (100 Base-TX & IEEE 802. 11) (Backbone) w Sensor Plane (RS-232 C) w A/V equipment Plane (IEEE 1394, RS-232 C) w Lighting Equipment Plane (RS-232 C) CMU-Keio Workshop on Emerging Technologies 2000

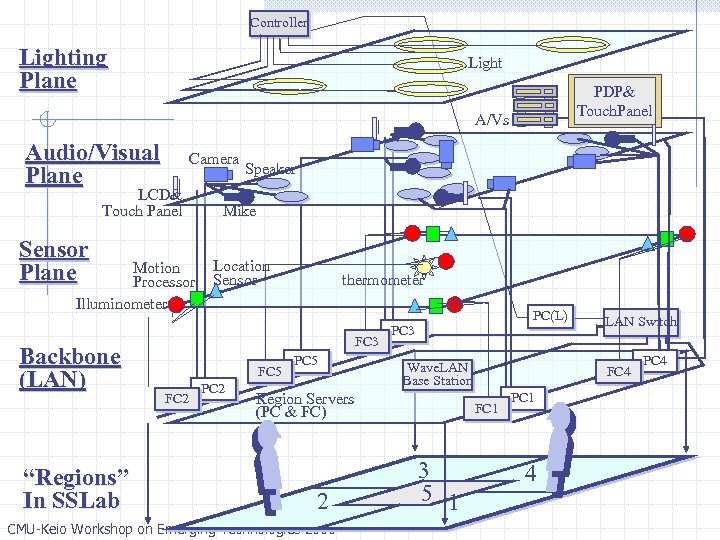

Controller Lighting Plane Light PDP& Touch. Panel A/Vs Audio/Visual Plane Camera LCD& Touch Panel Sensor Plane Motion Processor Illuminometer Backbone (LAN) “Regions” In SSLab Speaker Mike Location Sensor thermometer FC 3 FC 5 FC 2 PC 5 PC(L) PC 3 Wave. LAN Base Station Region Servers (PC & FC) 2 CMU-Keio Workshop on Emerging Technologies 2000 FC 4 FC 1 3 5 1 LAN Switch PC 1 4 PC 4

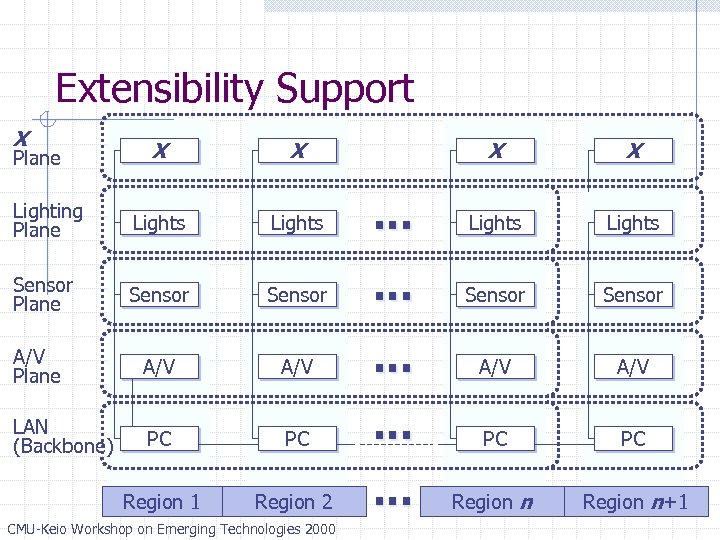

Extensibility Support X X X Lighting Plane Lights Sensor Plane Sensor A/V Plane LAN (Backbone) X X … Lights Sensor … Sensor A/V … A/V PC PC … PC PC Region 1 Plane Region 2 … Region n+1 CMU-Keio Workshop on Emerging Technologies 2000

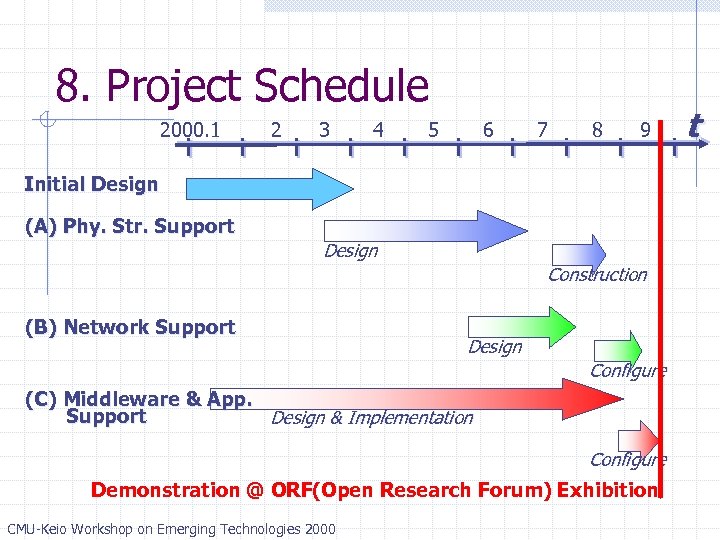

8. Project Schedule 2000. 1 2 3 4 5 6 7 8 9 Initial Design (A) Phy. Str. Support Design Construction (B) Network Support Design Configure (C) Middleware & App. Support Design & Implementation Configure Demonstration @ ORF(Open Research Forum) Exhibition CMU-Keio Workshop on Emerging Technologies 2000 t
Credit Tokuda-san, Tobe-san, Nishio-san Iwaiwa (D 1) Slash (D 1) Jin (D 1) Ngt (D 1) Mak (M 2) Fujimura (M 2) Sugino (M 2) Furusaka (M 2) Akihiko (M 1) Tailor (M 1) Nick (M 1) Yurayura (M 1) Yukihiko, Kenta (B 4) Haru (B 4) Soko (B 4) And many thanks to B folks! Niya, Dan, …… Supervising Leader in Japan(!) Box-in-the-Box, A/V Network Power. Lines, NGT-list <->SFC Power. Lines Network Furniture(!), Projector Location Sensor, Servers Sensors, Servers Lighting A/V, Projector, Soft. Board Servers Projector, Furniture Naming, Air Conditioner

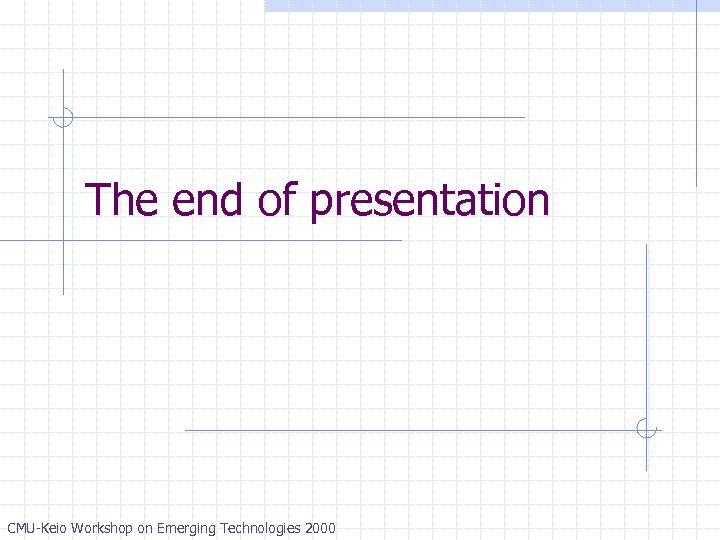

The end of presentation CMU-Keio Workshop on Emerging Technologies 2000

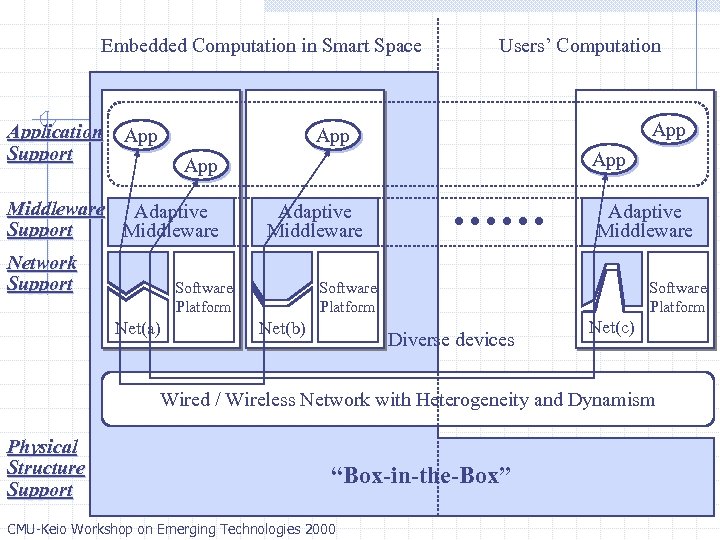

Embedded Computation in Smart Space Application Support App Users’ Computation App App Middleware Adaptive Support Middleware Network Support Adaptive Middleware Software Platform Net(a) …… Adaptive Middleware Software Platform Net(b) Software Platform Diverse devices Net(c) Wired / Wireless Network with Heterogeneity and Dynamism Physical Structure Support “Box-in-the-Box” CMU-Keio Workshop on Emerging Technologies 2000

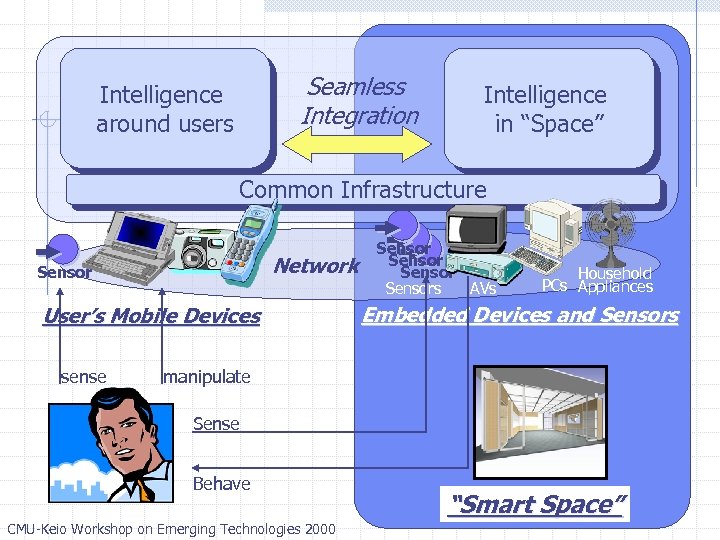

Seamless Integration Intelligence around users Intelligence in “Space” Common Infrastructure Network Sensor User’s Mobile Devices sense Sensors AVs Household PCs Appliances Embedded Devices and Sensors manipulate Sense Behave CMU-Keio Workshop on Emerging Technologies 2000 “Smart Space”
Major Characteristics (Requirements) Distribution for scalability Dynamic System Reconfigurability Adaptability Personalization CMU-Keio Workshop on Emerging Technologies 2000

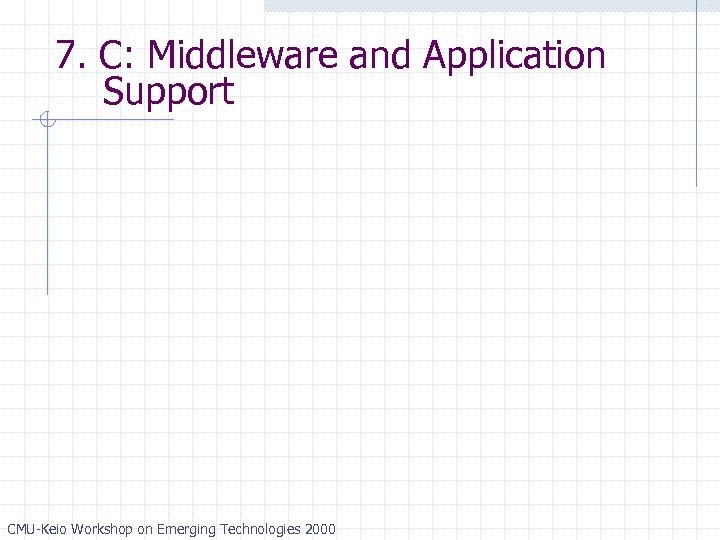

7. C: Middleware and Application Support CMU-Keio Workshop on Emerging Technologies 2000
