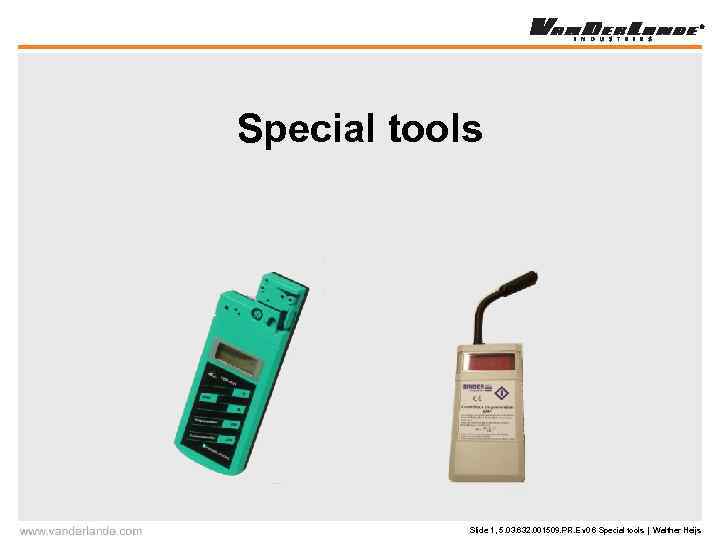

Special tools Slide 1 5 03 632 001509

Special tools Slide 1, 5. 03. 632. 001509. PR. E v 0 6 Special tools | Walther Heijs

What do we use ? • • • Multi meter Clamp meter Megger Stethoscope Tachometer Digital tension tester Welding tool Notebook PC Remote control Warning sign / Padlock Slide 2, 5. 03. 632. 001509. PR. E v 0 6 Special tools | Walther Heijs

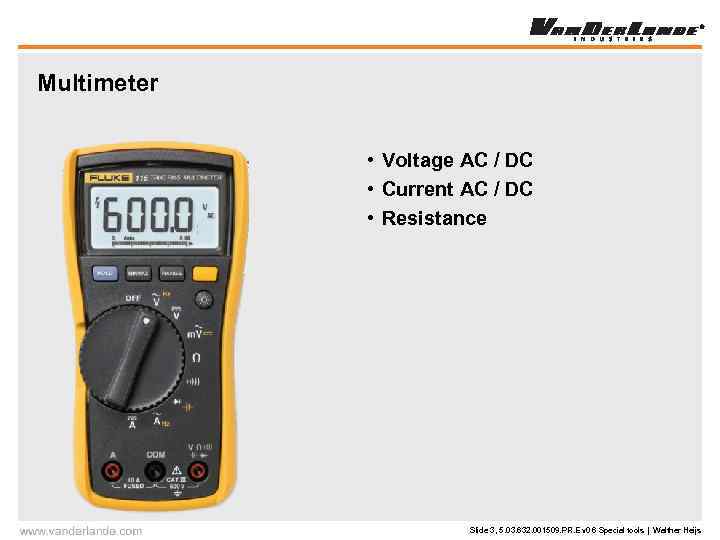

Multimeter • Voltage AC / DC • Current AC / DC • Resistance Slide 3, 5. 03. 632. 001509. PR. E v 0 6 Special tools | Walther Heijs

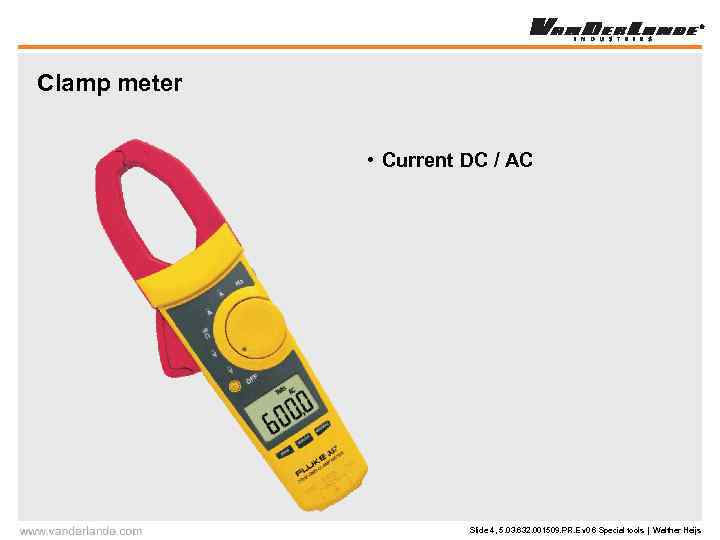

Clamp meter • Current DC / AC Slide 4, 5. 03. 632. 001509. PR. E v 0 6 Special tools | Walther Heijs

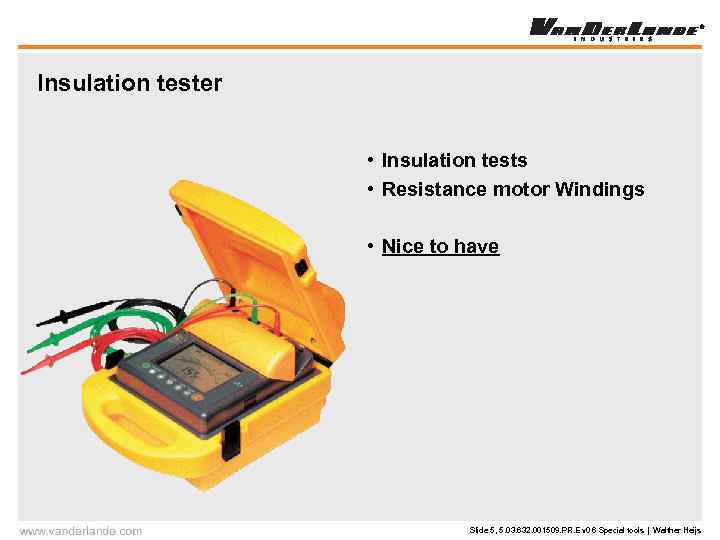

Insulation tester • Insulation tests • Resistance motor Windings • Nice to have Slide 5, 5. 03. 632. 001509. PR. E v 0 6 Special tools | Walther Heijs

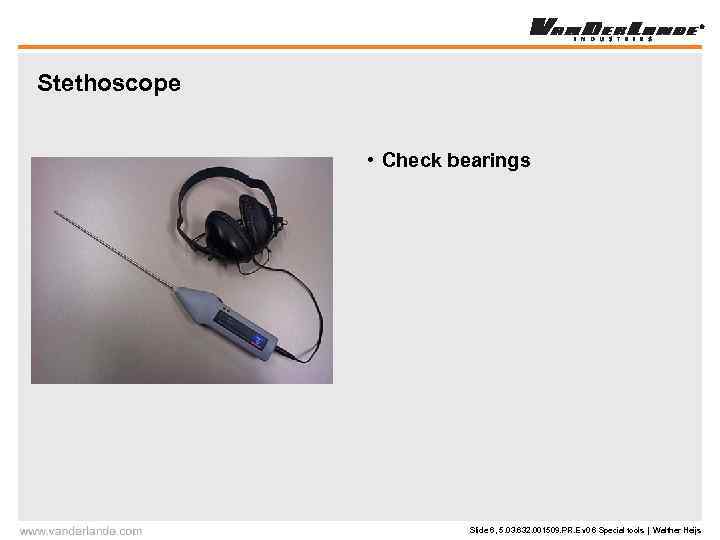

Stethoscope • Check bearings Slide 6, 5. 03. 632. 001509. PR. E v 0 6 Special tools | Walther Heijs

Tachometer • Conveyor speed • Motor speed Slide 7, 5. 03. 632. 001509. PR. E v 0 6 Special tools | Walther Heijs

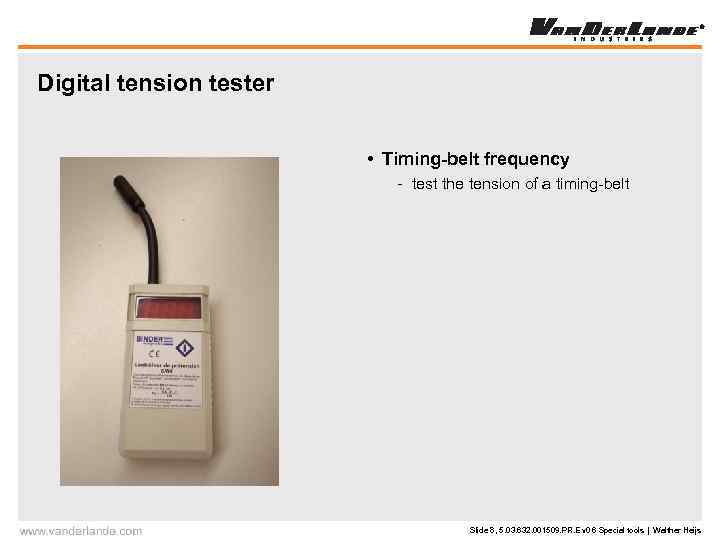

Digital tension tester • Timing-belt frequency - test the tension of a timing-belt Slide 8, 5. 03. 632. 001509. PR. E v 0 6 Special tools | Walther Heijs

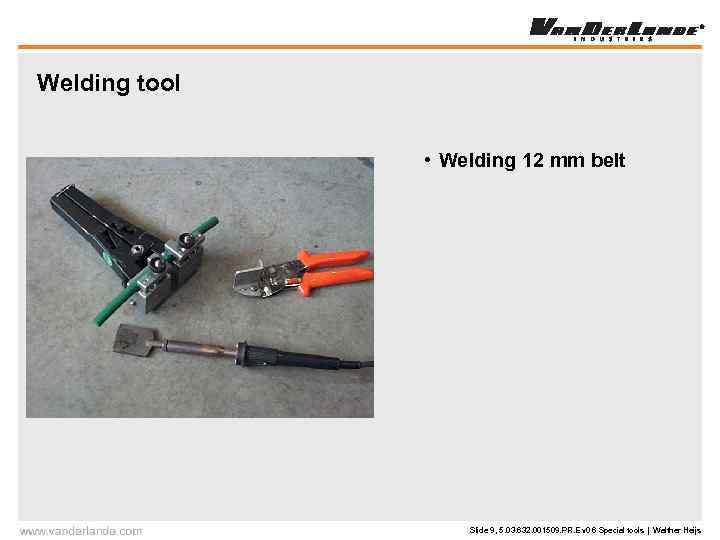

Welding tool • Welding 12 mm belt Slide 9, 5. 03. 632. 001509. PR. E v 0 6 Special tools | Walther Heijs

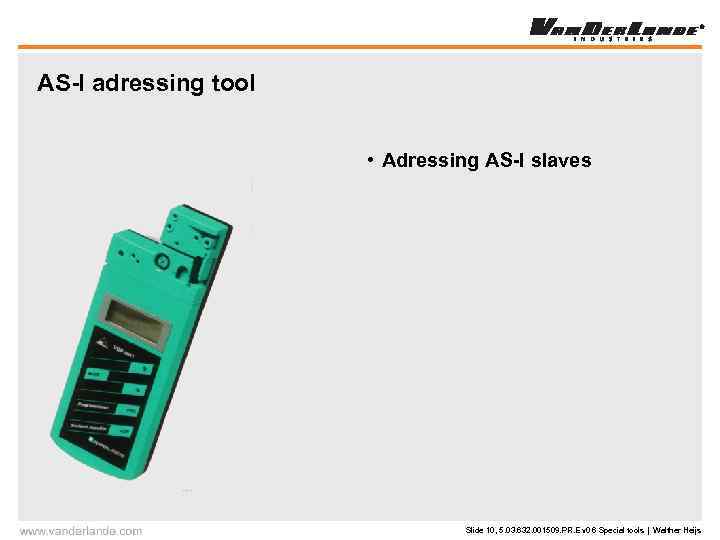

AS-I adressing tool • Adressing AS-I slaves Slide 10, 5. 03. 632. 001509. PR. E v 0 6 Special tools | Walther Heijs

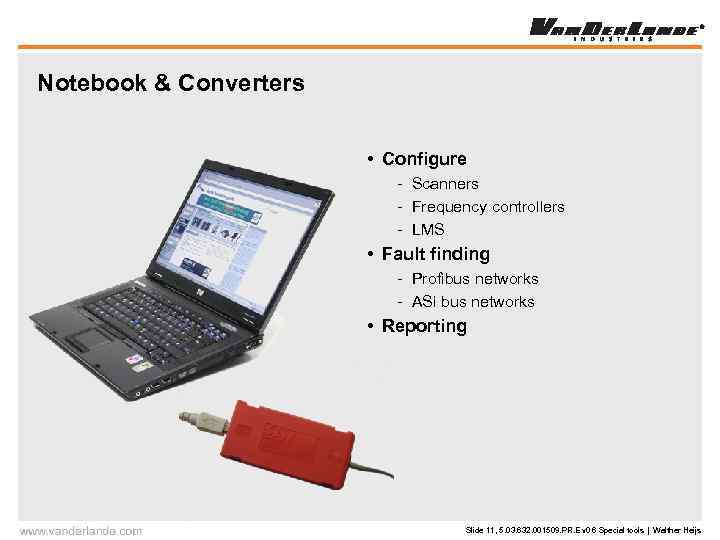

Notebook & Converters • Configure - Scanners - Frequency controllers - LMS • Fault finding - Profibus networks - ASi bus networks • Reporting Slide 11, 5. 03. 632. 001509. PR. E v 0 6 Special tools | Walther Heijs

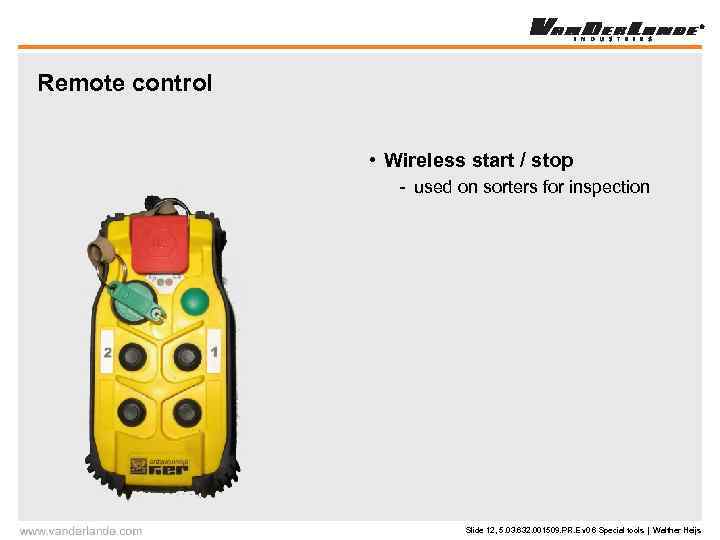

Remote control • Wireless start / stop - used on sorters for inspection Slide 12, 5. 03. 632. 001509. PR. E v 0 6 Special tools | Walther Heijs

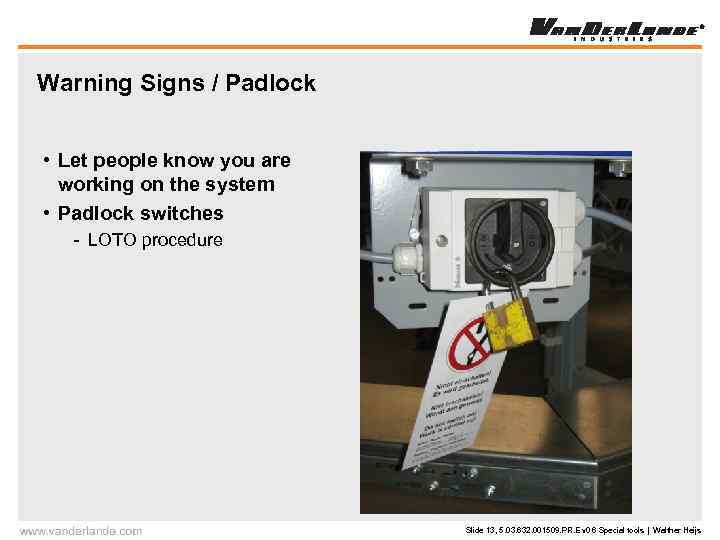

Warning Signs / Padlock • Let people know you are working on the system • Padlock switches - LOTO procedure Slide 13, 5. 03. 632. 001509. PR. E v 0 6 Special tools | Walther Heijs

Questions? Slide 14, 5. 03. 632. 001509. PR. E v 0 6 Special tools | Walther Heijs
