SOUL Software Installation INFLIBNET Centre An IUC of UGC P B No. 4116, Navrangpura Ahmedabad – 380009 soulsupport@inflibnet. ac. in

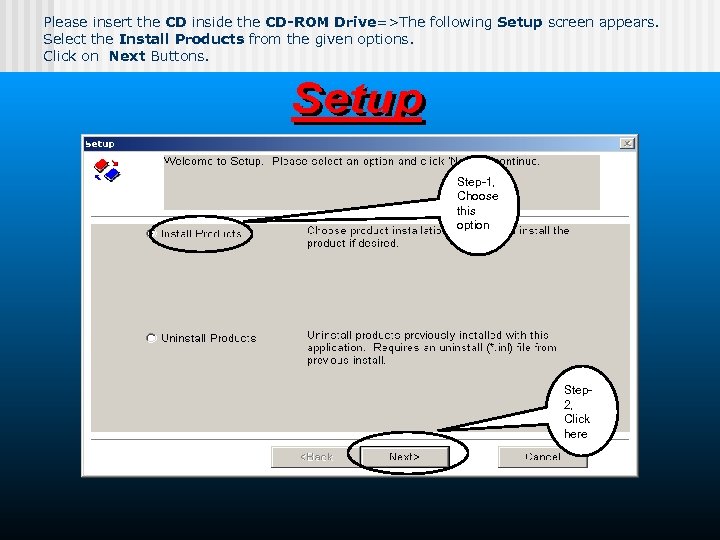

Please insert the CD inside the CD-ROM Drive=>The following Setup screen appears. Select the Install Products from the given options. Click on Next Buttons. Step-1, Choose this option Step 2, Click here

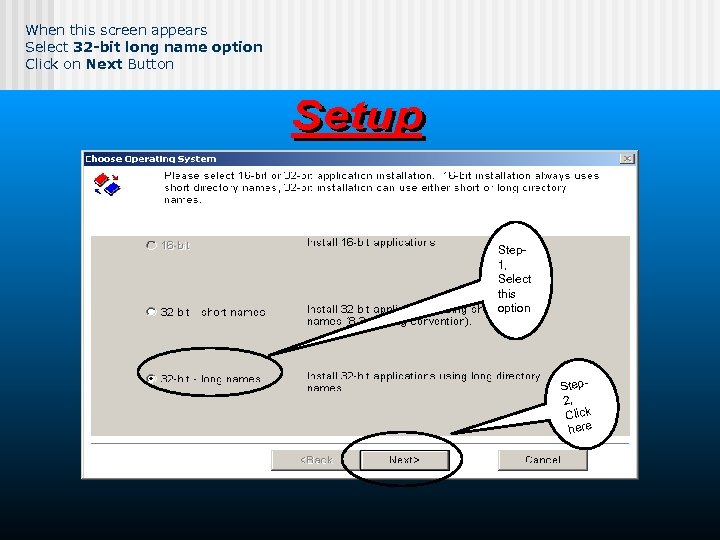

When this screen appears Select 32 -bit long name option Click on Next Button Step 1, Select this option Step 2, Click here

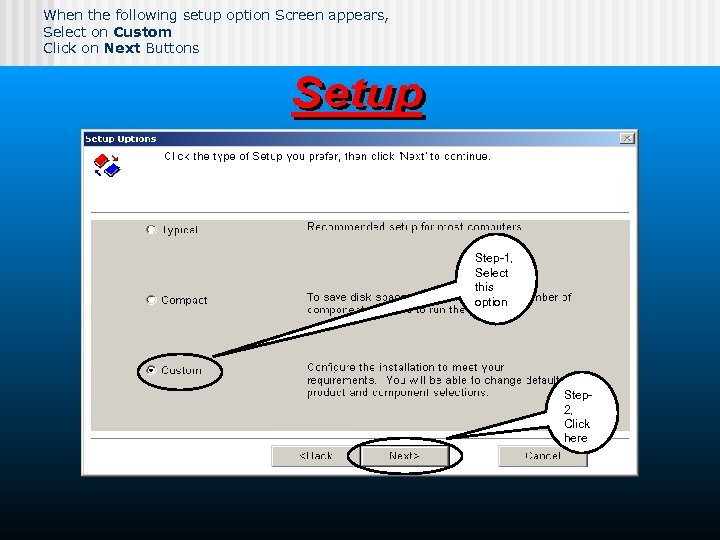

When the following setup option Screen appears, Select on Custom Click on Next Buttons Step-1, Select this option Step 2, Click here

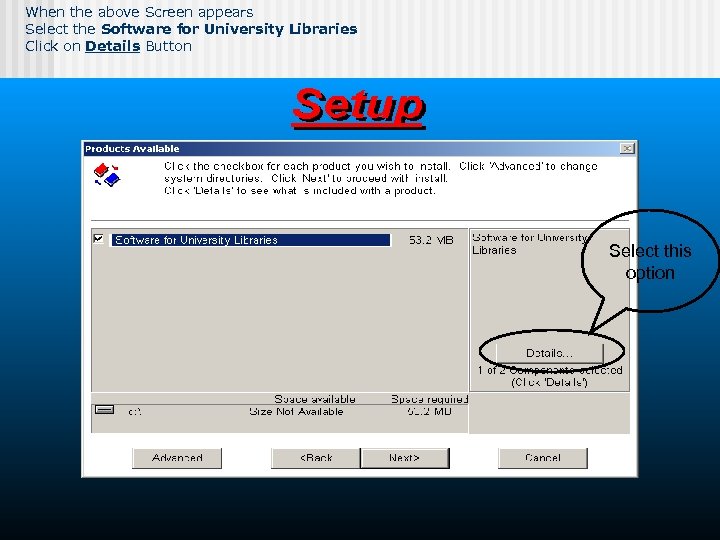

When the above Screen appears Select the Software for University Libraries Click on Details Button Select this option
When this Screen appears, Select the SOUL Application Files Select SOUL Server Files. Step-1, Select these two options Click on OK Button Step-1, Select these two options Step-2, Click here

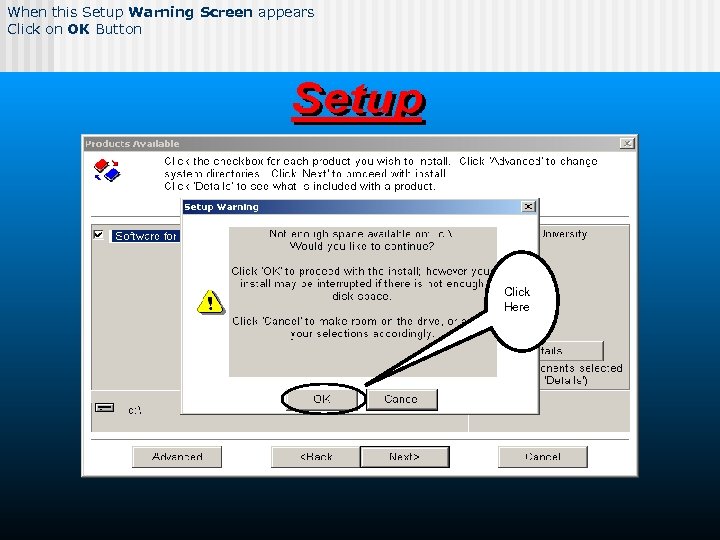

When this Setup Warning Screen appears Click on OK Button Click Here

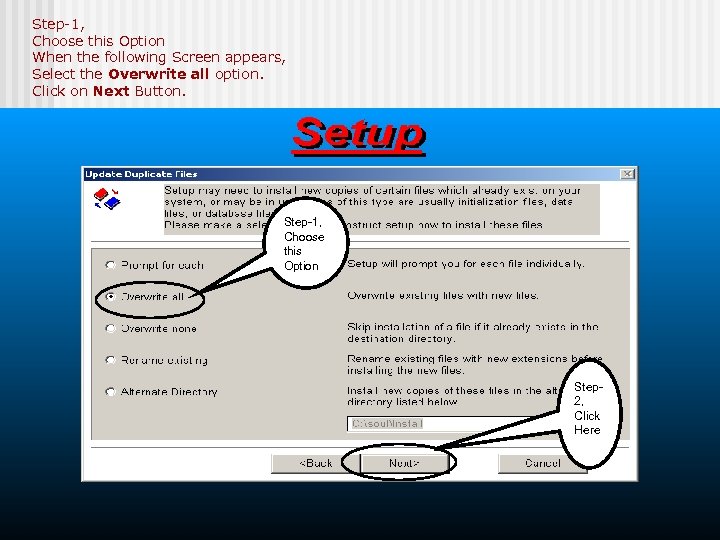

Step-1, Choose this Option When the following Screen appears, Select the Overwrite all option. Click on Next Button. Step-1, Choose this Option Step 2, Click Here

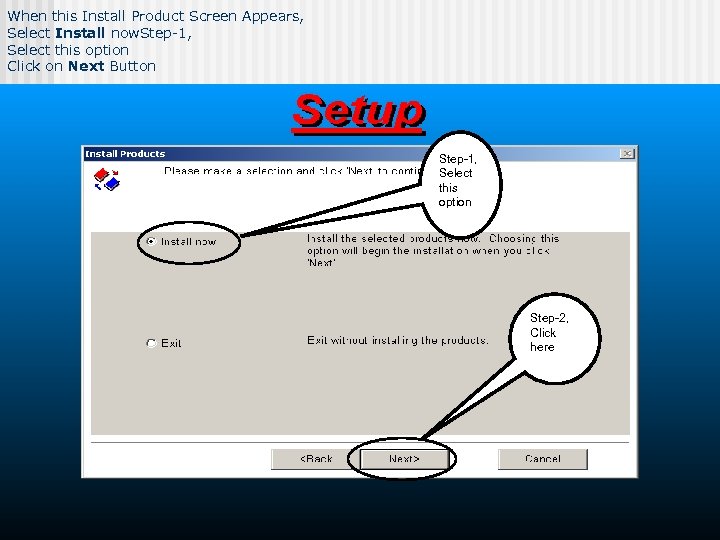

When this Install Product Screen Appears, Select Install now. Step-1, Select this option Click on Next Button Step-1, Select this option Step-2, Click here

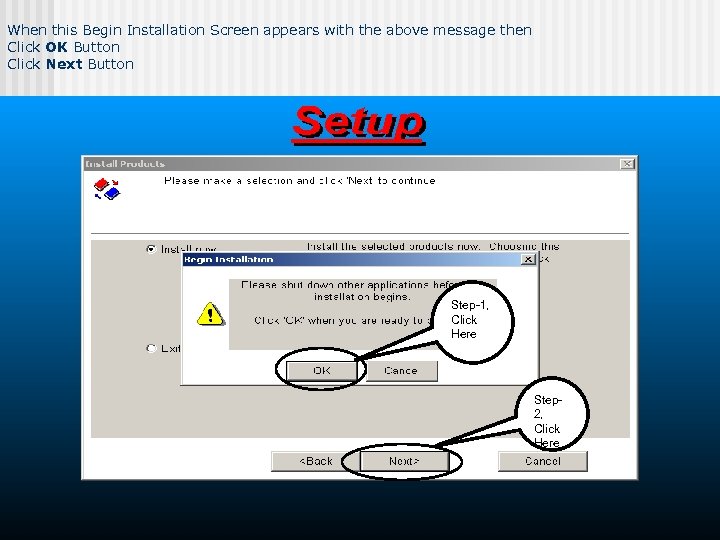

When this Begin Installation Screen appears with the above message then Click OK Button Click Next Button Step-1, Click Here Step 2, Click Here

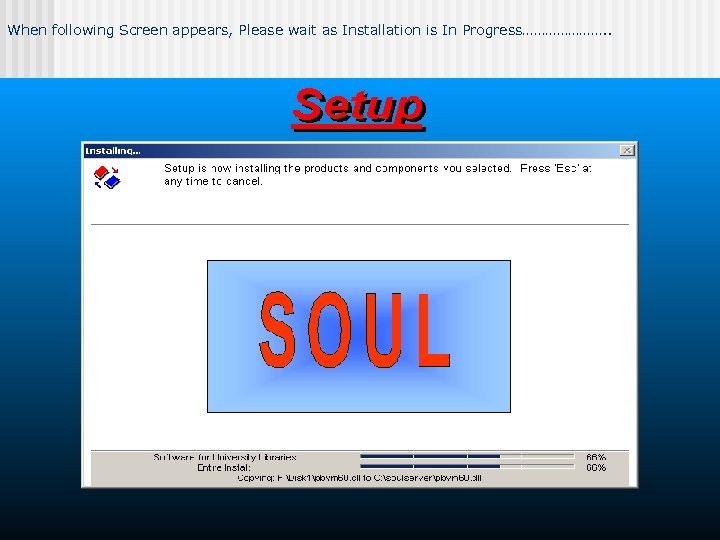

When following Screen appears, Please wait as Installation is In Progress…………………. .

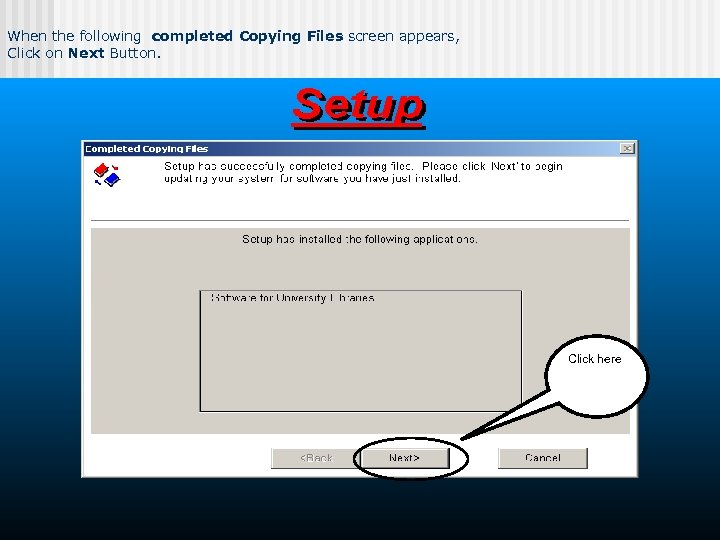

When the following completed Copying Files screen appears, Click on Next Button. Click here

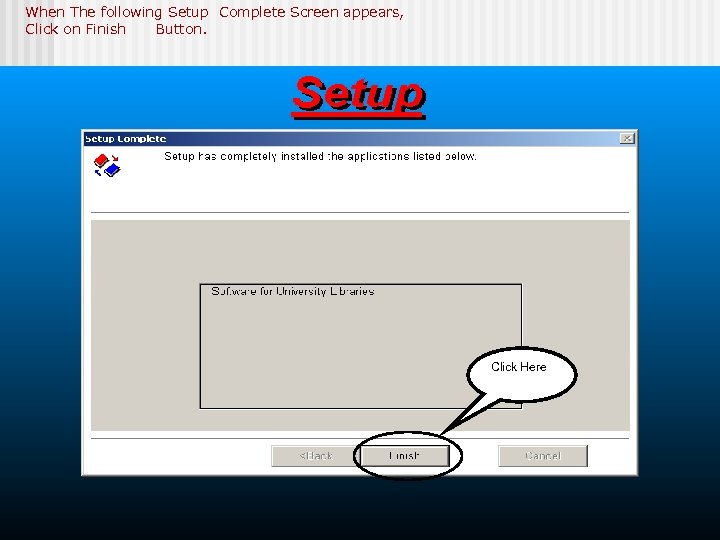

When The following Setup Complete Screen appears, Click on Finish Button. Click Here
Installation… The Software for University Libraries Has been Installed Successfully…………. .

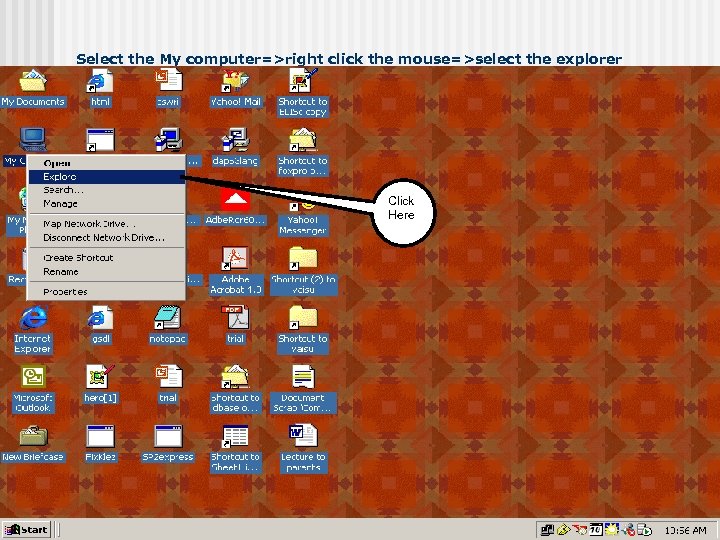

Select the My computer=>right click the mouse=>select the explorer Click Here
After Installation of SOUL Software we have to do Following things… 1. 2. 3. 4. Run install. exe file for hardware lock execution. Share Soulserver Folder for Clients Find Soul. ini file. Change the database name and Server name for accessing the database. . .

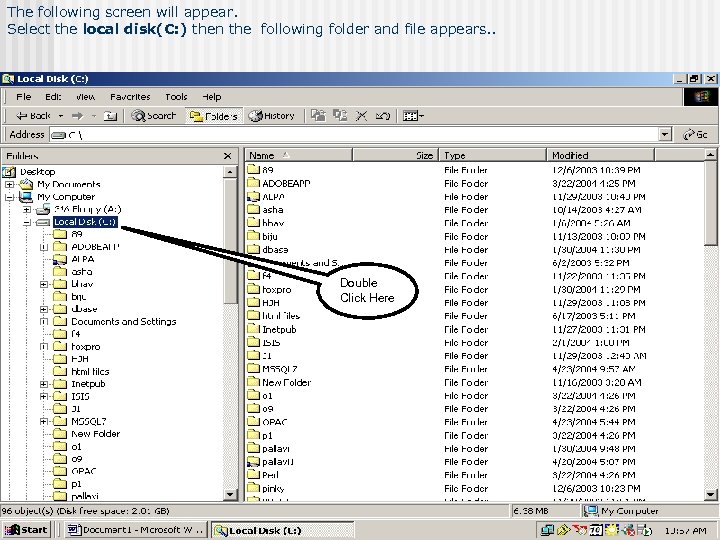

The following screen will appear. Select the local disk(C: ) then the following folder and file appears. . Double Click Here

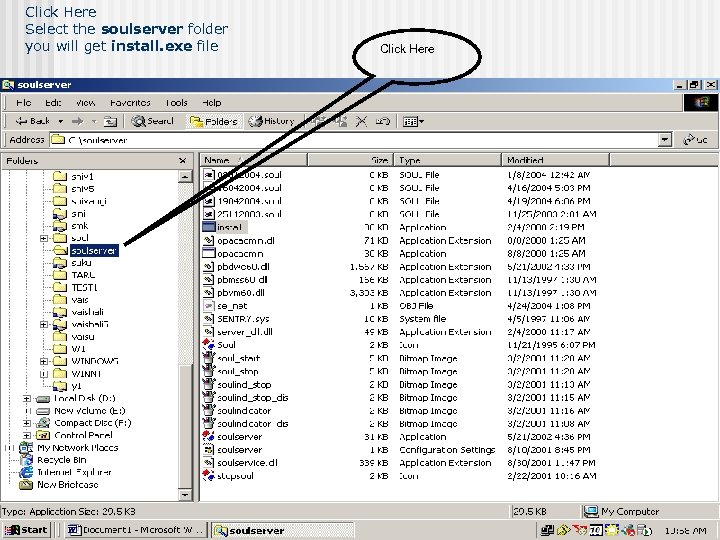

Click Here Select the soulserver folder you will get install. exe file Click Here

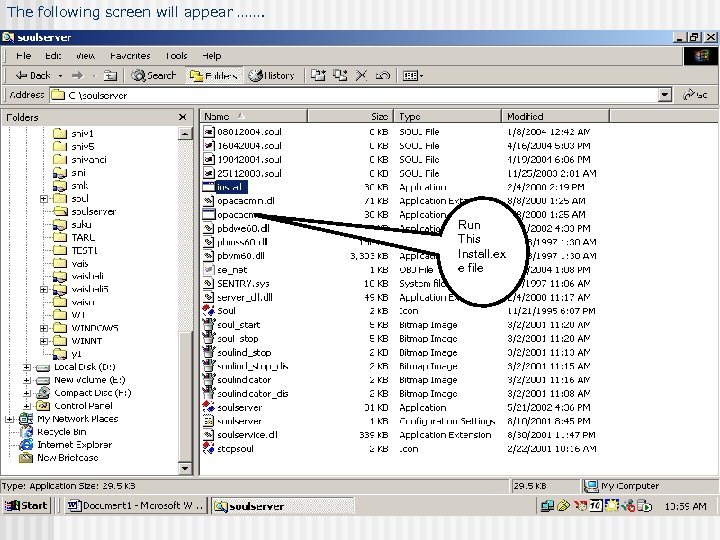

The following screen will appear ……. Run This Install. ex e file

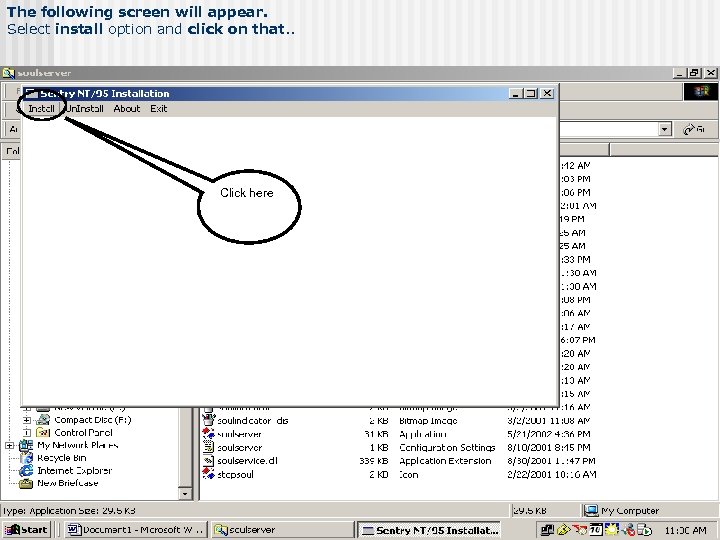

The following screen will appear. Select install option and click on that. . Click here
So hardware lock installation part is completed… The following message will appear… Click on OK Button Step-1, Click on Exit or close the screen. here (on exit option) or close the screen. Step-2, Click here

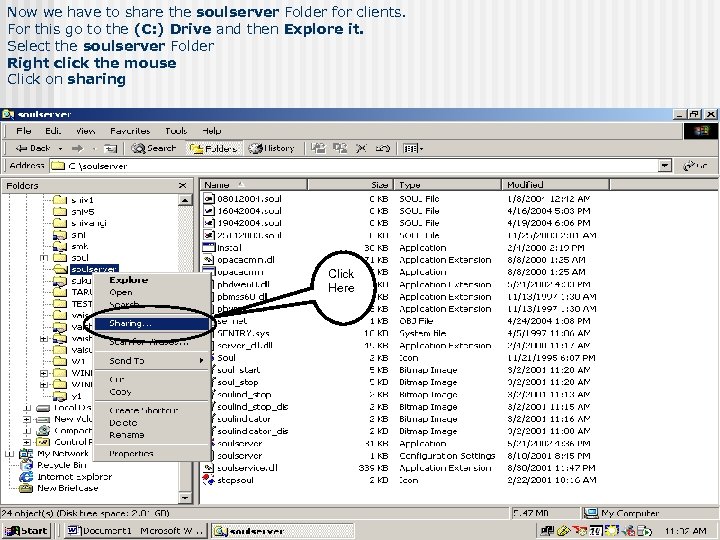

Now we have to share the soulserver Folder for clients. For this go to the (C: ) Drive and then Explore it. Select the soulserver Folder Right click the mouse Click on sharing Click Here

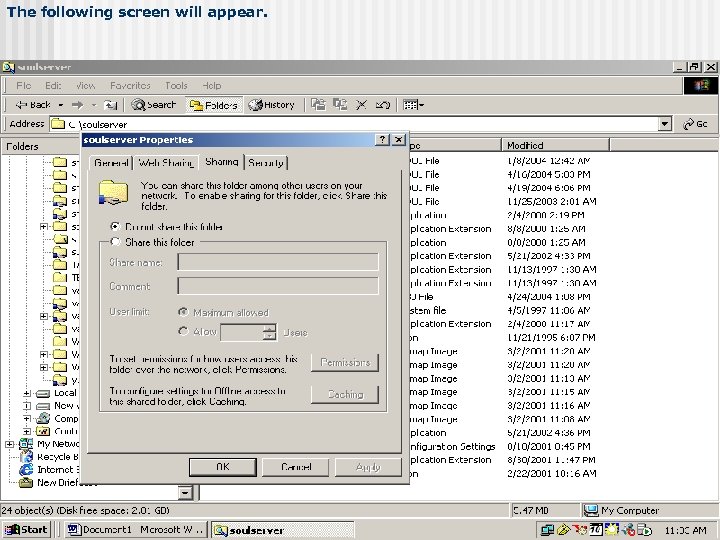

The following screen will appear.

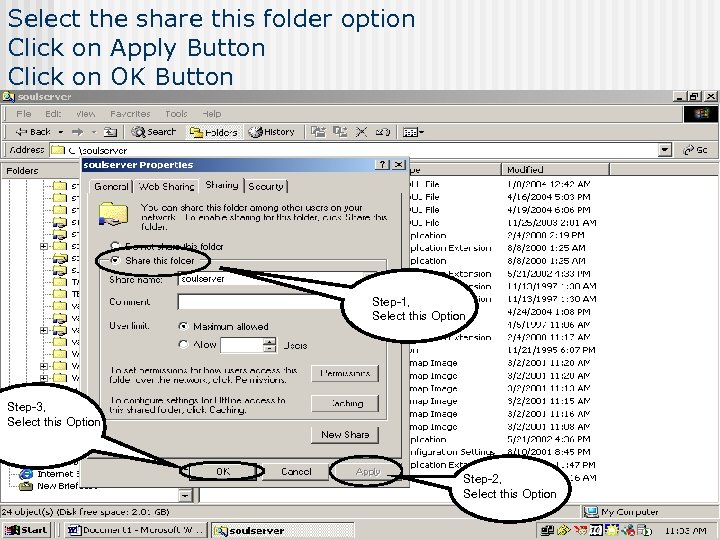

Select the share this folder option Click on Apply Button Click on OK Button Step-1, Select this Option Step-3, Select this Option Step-2, Select this Option

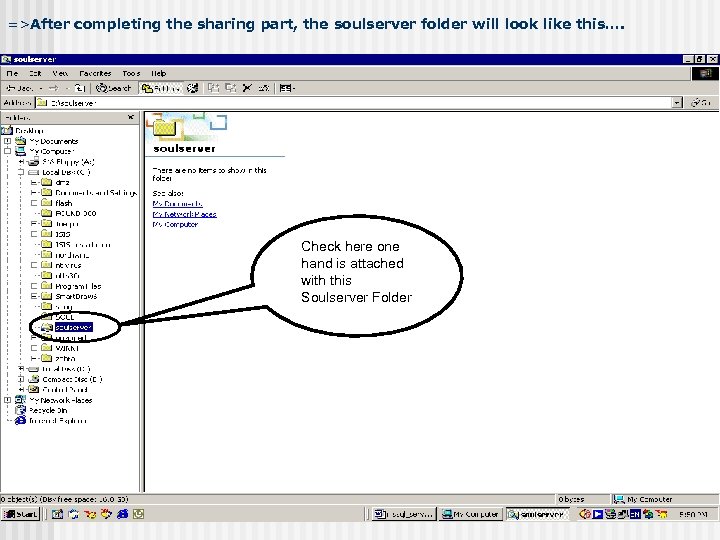

=>After completing the sharing part, the soulserver folder will look like this…. Check here one hand is attached with this Soulserver Folder

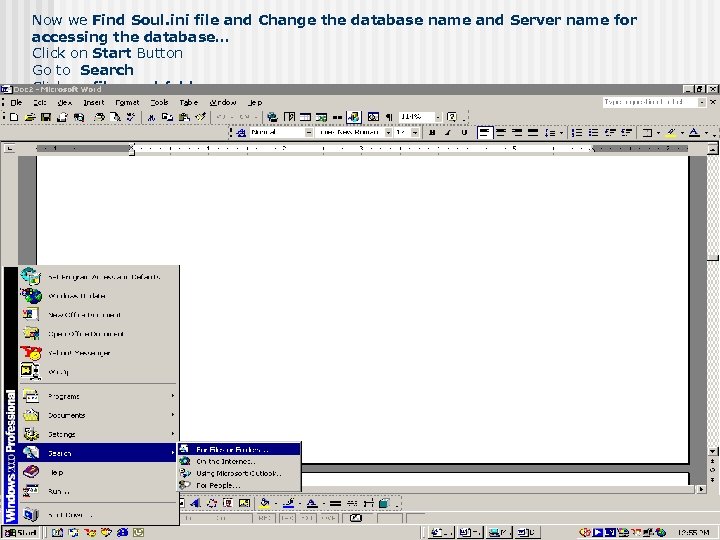

Now we Find Soul. ini file and Change the database name and Server name for accessing the database… Click on Start Button Go to Search Click on files and folder

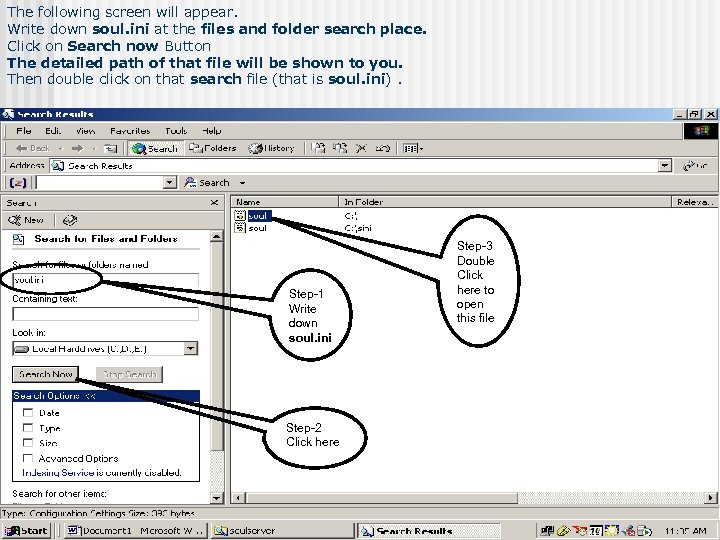

The following screen will appear. Write down soul. ini at the files and folder search place. Click on Search now Button The detailed path of that file will be shown to you. Then double click on that search file (that is soul. ini). Step-1 Write down soul. ini Step-2 Click here Step-3 Double Click here to open this file
The following notepad file will be opened on your screen.

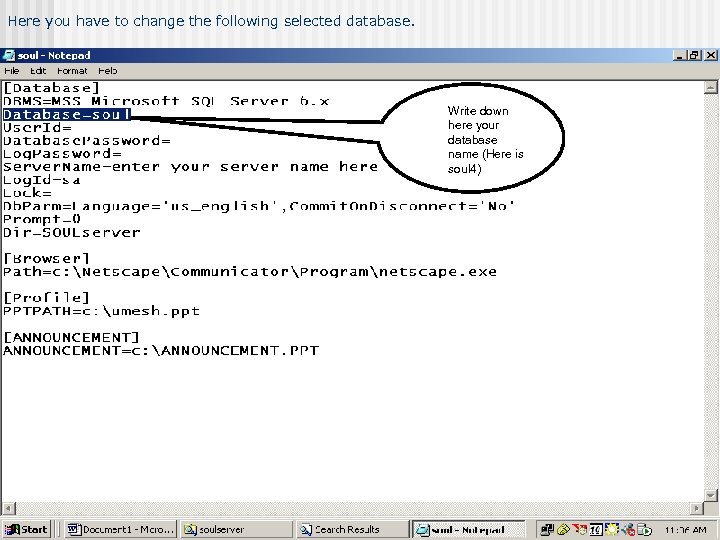

Here you have to change the following selected database. Write down here your database name (Here is soul 4)
Here you have to change the Server Name Write down here your local server name (Here is soultr)
This will be the final out put after changing database name and server name. Close the window Click here Check both database and server name
The following message will appear… Click on Yes Button Click here
Click on Start Go to programs Go to software for university libraries Click on soul server Click here

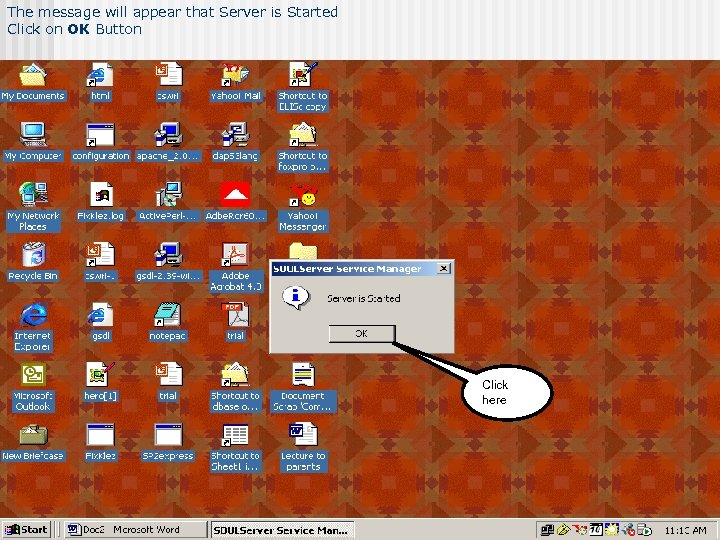

The message will appear that Server is Started Click on OK Button Click here

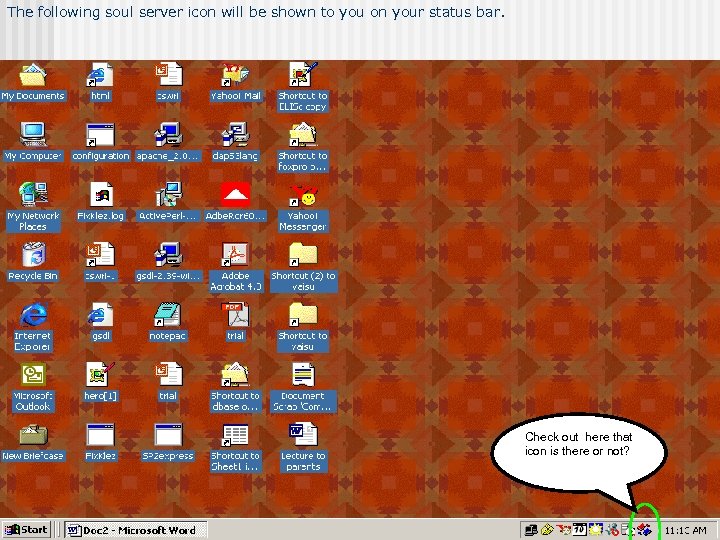

The following soul server icon will be shown to you on your status bar. Check out here that icon is there or not?

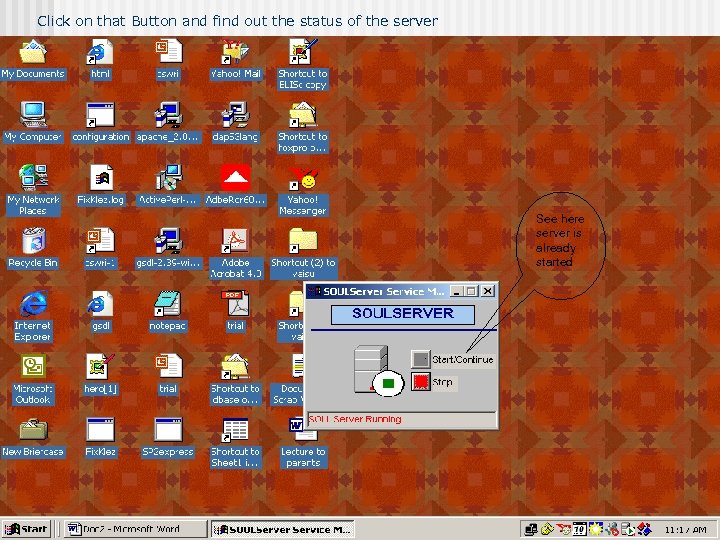

Click on that Button and find out the status of the server See here server is already started
Click on start Go to programs Go to software for university libraries Click on soul Applications Clic k Her e

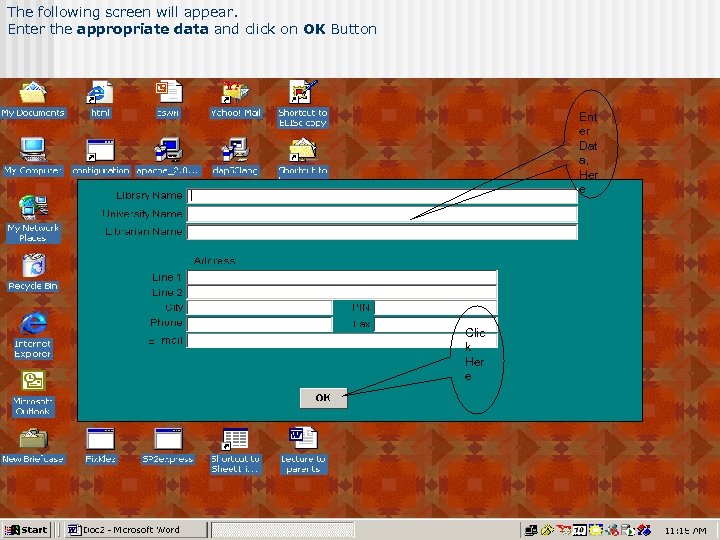

The following screen will appear. Enter the appropriate data and click on OK Button Ent er Dat a, Her e Clic k Her e

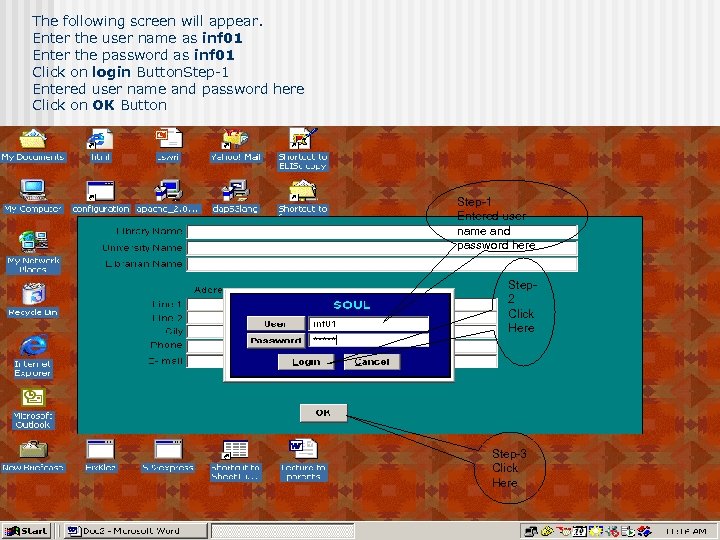

The following screen will appear. Enter the user name as inf 01 Enter the password as inf 01 Click on login Button. Step-1 Entered user name and password here Click on OK Button Step-1 Entered user name and password here Step 2 Click Here Step-3 Click Here
The following screen will appear … and start your application work.
Any doubts? Any Problem? If any… Mail to us root@inflibnet. ac. in Thanks
