Solutions to Mass Storage in Banking Surveillances Sales

Solutions to Mass Storage in Banking Surveillances Sales & Marketing Department Surveon Technology 2013

2 Solutions Overview

3 Banking Surveillances in Key Areas Bank Vaults Business Halls Control Center in Banks Public Areas Administrative Areas ATM Data Center

Challenges in Banking Surveillances: Massive Data Challenges in HD real-time performance and stability Integration problems in different independent systems Recording in real-time Recording system, Scalability in all aspects Capacity, data at 30 FPS and storing alarm system, intercom including numbers of protection, storage for 60 days system, access control channels, storages, and problems system and so on networks functionality. Network monitoring and the project scalability High resolutions bring the capacity and data protection issues 4

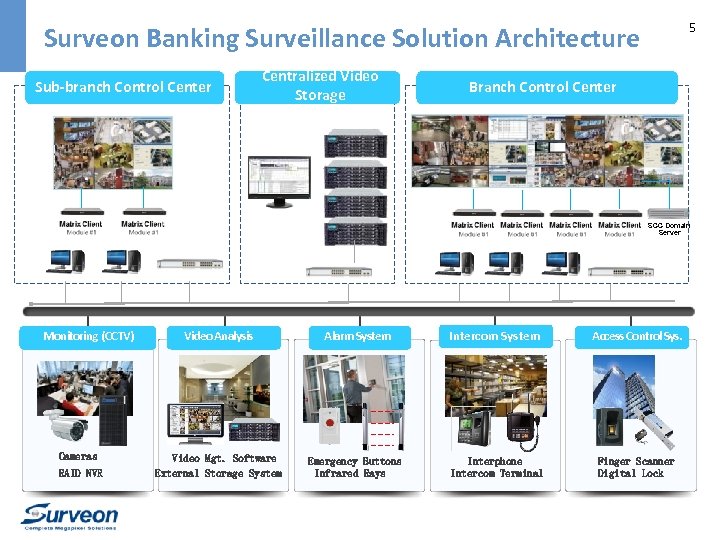

5 Surveon Banking Surveillance Solution Architecture Sub-branch Control Center Centralized Video Storage Branch Control Center SCC Domain Server Monitoring (CCTV) Cameras RAID NVR Video Analysis 视频分析 Alarm System Intercom System Access Control Sys. Video Mgt. Software External Storage System Emergency Buttons Infrared Rays Interphone Intercom Terminal Finger Scanner Digital Lock

6 Surveon Banking Surveillance System Architecture Intelligent Building Server ATM Bank Vaults Intelligent Building Mgt. Office Building NVR CCTV Cameras Data Center Monitoring Areas Service Points Fire Alarm Sys. Recording Storage Integrated Subsystems Intelligent Analysis I/O Integration SCC Mgt. Center Access Control Server The Safety & Security Department – TV Matrix Local Client The Security Department – Local Client

7 SCC Functions Overview

Surveon Enterprise Surveillance Management- Advantage 1 Enterprise Video Mgt. Enhanced Recording Sys. 8 High Scalability Distributed Architecture Enterprise video management software Built with RAID or enterprise Surveon offers high scalability with functions that meet what a Storage, distributed architecture; unlimited providing a highest mega pixel numbers of cameras, clients, storages Recording performance. can be added. 　This is applicable for professional security surveillance needs such as the E-Map and Virtual Matrix. banking surveillances In sub-branches, branches and data Execution centers of the head offices. Alarm Mgt. 360˚ Fisheye Central Control Mgt. Alarm Rules Mgt. Unified Client Time Complete Functions Mgt.

Surveon Enterprise Surveillance Management. Advantage 2 Real Time Video Analytics Intuitive Monitoring 9 Control Center & Matrix Wall More than 10 advanced real time VI Handles all tasks in one unified inter- Supports 1000+ channels，300+ Analytics in response to the professional face: operations in monitoring , NVRs，360 days recording and high- surveillance requirements. playback, advanced settings and end multiple monitors-in-one and so managements remotely, locally or on. central. Virtual Wall Access Control Unified UI in remote / local client, and central management. Log in via the browser on the computer remotely. Console#1 Entrance Control Traffic Direction Control Log in via IOS and Android smart phones. Console#2 Matrix Wall Alarm Console#3

Surveon Enterprise Surveillance Management- Advantage 3 2 -way Audio Detection Complete Controls & Managements Remotely Integrations in Alarm and Sub-systems The banking system can improve their From any client point to assign accounts Via I/O Box integrations to create performance and services via observing the to arrange system managements various sub-systems and to setup integrated videos and audios files. including alarm setups, parameter rules to manage proactively. configurations, storage management, data import & export. single login as authorized account s can setup all the connected cameras and NVRs Access Control Intrusion Detection Sys. remote login to check the system status, critical alarms and so on CAM 1320 Compact Indoor Dome Integrated alarm system controls and managements Alarm Rules Setting 10

Surveon Enterprise Surveillance Management- Advantage 4 Seamless Recording Equipped with the SD slot, automatically store the videos to the SD card during downtime, even when the network Connection is down. 360°Panoramic View CAM 7511 5 M Fish Eye Camera 11 People Count　 Use the people count data to arrange the display in the stores. [应用] - Count the people flow daily, weekly and monthly - Discover the hot product by analyzing the people flow - people count during openings, lunch breaks and discount period

12 Surveon Clustered Video Storage Solutions

13 Main challenge for megapixel surveillance is the storage It’s required for banking surveillance to record in real-time HD for long hours. But it also burdens the system performance, storage and under high risk of data loss. Number of IP Cameras Storage I/O Requirement 30 Days Recording 3 TB RAID NVR 60 Days Recording 3 TB RAID NVR Others Surveon 32 128 15 32 YES 40 160 18 37 NO YES 50 200 23 47 NO YES 64 512 29 60 NO YES 80 320 37 69 NO YES 100 47 95 NO YES 128 1024 60 121 NO YES • Standard Embedded or PC+VMS system don’t have the above performance. • Surveon’s solution is in-house design and production with the same quality as other big brands’.

Surveon Clustered Video Storage Architecture 14

15 Limitations of other NVR Storage Solutions Surveon Clustered Video Storage Other NVR Storage Pros and Cons Storage Method Clustered Storage Built in hard disk Reduce total number of HDD System Architecture RAID Subsystem PC Built in When PC is down, so is the storage. Overall Design Cableless, whole module designed, anti-vibration and advanced thermal design Cables, dusts, vibration and thermal issues HDD are prone to failure Performance Enterprise RAID Subsystem RAID Card or software RAID High performance and high stability Maintenance Hot swappable hard disks, central management None or Difficult Lower maintenance cost and risk Scalability Yes None More costs on expansion Occupied space Less than 2/3 Standard Save space Power Low power required Standard Save electricity IPVX Research points out the initial costs and maintenance for a 128 CH project can be reduced up to 600, 000 when using the clustering storage solutions

Advantages of Surveon Clustered Video Storage Other NVR Storage Surveon Advantages Storage Space Save 30% storage space Standard Save costs System Space Save 20% system space Standard Save space and electricity Recording Performance High Low 16 No frame Lost Storage Expansion Unlimited expansions None Camera numbers can be increased and the recording days can be prolonged. Design Cable-less, module designed Standard Easy installation Heat and Vibration Optimized Design None High stability Central Management Yes None Lower maintenance costs Fault-tolerant Disk Enterprise RAID 0, 1, 3, 5, 6, 10, 50, 60 None or low-level RAID 0, 1, 5 Data Integrity Data Protection Hard disk snapshots and remote backup None Data Integrity

Industry-leading, 5 levels advanced data services Problems Impacts Surveon Storage Solutions Others Recording Performance Stability , frame dropping Enterprise RAID ensures stability and no frame dropping. Low performance Hard disk Failure Unrecoverable videos Hardware RAID protection None or under high risk Files being deleted deliberately Critical evidence missing Local HD snapshot and recovery None Whole System Crashed (Natural Disasters) System dead Remote Replication None Long term recording (ex: 60+ days record) Unable to retrieve old data Remote backup / Archive. . None For financial industry, the loss of important image impacts more than the costs of investment in a good storage solution. 17

I/O Performance and Hard Drive Failure Protection Enterprise storage subsystem, cableless, module design, easy maintenance, antivibration and advanced thermal designed. 18 Ensure the maximum Ensure no frame dropping, stability under high rpm, increase overall system stability, lower the HDD failure rate hard drive failure protection and with extra RAID protection automatic recovery

HDD Damages from Embezzlements / Theft – Local 19 Hardware Snapshots Even if the recording is deleted deliberately, Surveon hardware snapshot and automatic recovery functionalities can be used to avoid huge loss from employee embezzlements and thefts. Employee embezzlements, or improper business practices Employees delete video recording deliberately Surveon hardware snapshot and automatic recovery functionalities avoid video loss.

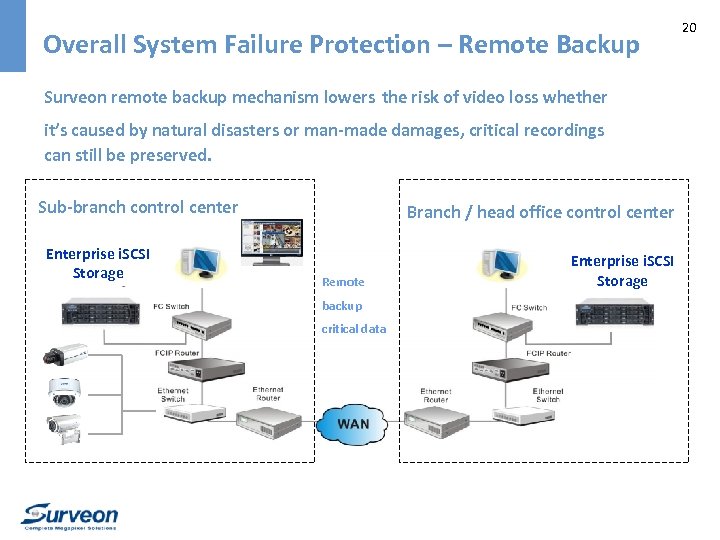

Overall System Failure Protection – Remote Backup Surveon remote backup mechanism lowers the risk of video loss whether it’s caused by natural disasters or man-made damages, critical recordings can still be preserved. Sub-branch control center Enterprise i. SCSI Storage Branch / head office control center Remote backup critical data Enterprise i. SCSI Storage 20

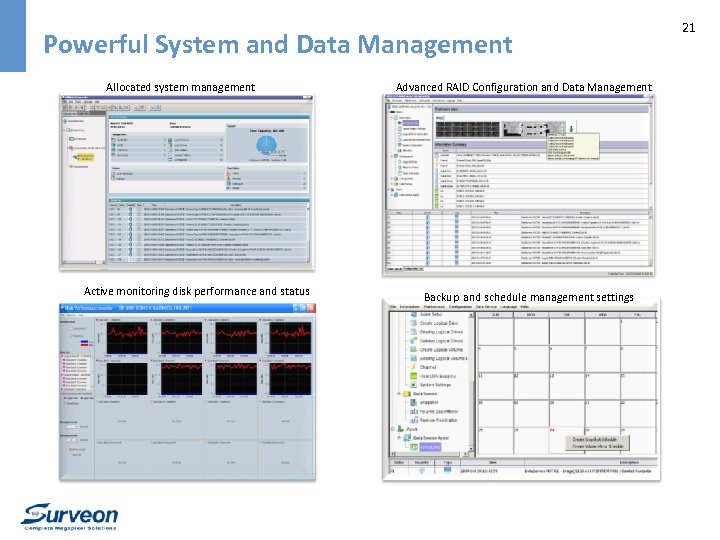

Powerful System and Data Management Allocated system management Active monitoring disk performance and status Advanced RAID Configuration and Data Management Backup and schedule management settings 21

22 3 Megapixel 30 FPS HDR Cameras

23 3 M Real-time Performance Surveon 3 M real-time camera can monitor 1. 5 times larger than a 2 M camera. 3 M Camera @ 30 FPS 2 M Camera @ 30 FPS A project with 18 sets of 2 M cameras can be replaced by 12 sets of 3 M cameras. Lower the cost of installation and maintenance by 40%.

24 More Details in Real-time For banking surveillance , 30 FPS in real-time is required. Surveon 3 M real-time cameras show more details. 2 Mega 3 Mega

High Resolution Surveillance Solution – full ranges of industrial-grade HD cameras Complete Product Lines 完整的产品线 - 1 M, 2 M, 3 M, 5 M Camera Lines -Industrial-grade design & 3 -year warranty -Industry leading 3 M real time & HDR cameras The Lowest Bitrate -Offers the lowest bitrate in market -Outstanding low light sensitivity HDR Range -True HDR - 2 M @ 50 FPS, 3 M @ 30 FPS 25

3 M Real-time HD in Banking Surveillance Applications 26 Monitor and manage key areas of the building such as main entrances, exits, stairways, stair halves, elevator halls, shelter areas, main way in the park lots, garage entrances, and outdoor parking lots. Surroundings of the Financial Institutes Office Buildings Business Halls With the HDR function, 3 M HD Cameras Surveon Day&Night cameras are Install HD Dome Cameras in the hallways or produce clear images all day long, and is vandal –proof designed and built with IP 66; stairway, the interior design will remain perfect for outdoor surveillance , key areas, the cameras are sure to be secured, intact. main roads and so on. suitable for parking lots, operation areas, warehouses and so on.

27 Surveon Control Center Solutions to Integration

28 Surveon Control Center Intergraded Solutions Overview u. Intergrades and manages all kinds of videos, alarms, events, and data u. Executes and manages the surveillance system in one unified platform u. Video analytics and real time alarms Surveon Control Center Solutions Applications: ATM, bank vaults, Alarms Controls Collecting data from different alarm systems such as HTML, I/O, etc to SCC. data centers, and office buildings Alarms Controls 3 rd Parties Surveillance System Surveion SCC Solution HD Surveillance Access Control Video Analytics SMR 8000 U Ｉ/O Controls

Active Video Intelligent Alarm System 29 u. Supports VI notifications to ensure rapid and accurate decisions SMR 8000 U Rules. Setting Virtual Fence Real-time. Analysis Access Control Tailgating Detection Supports real time VI notification and labels Real Time Event Notifications ▶Triggered event popups the videos ▶When an event is triggered, the monitors will switch to display its surrounding images.

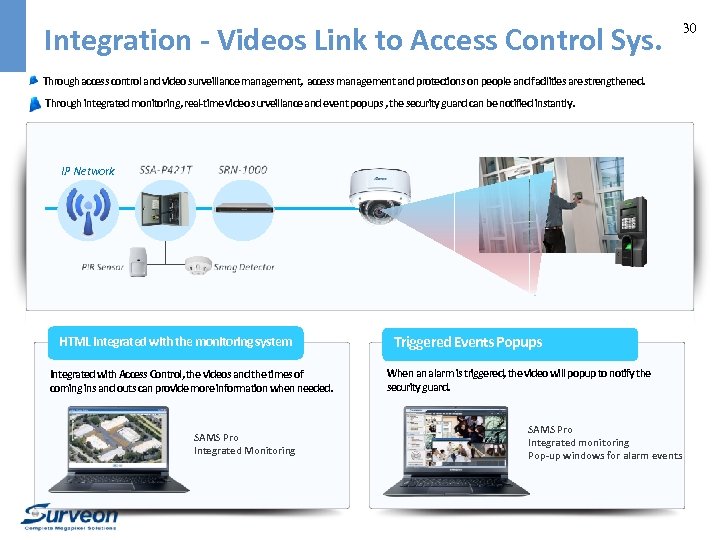

Integration - Videos Link to Access Control Sys. Through access control and video surveillance management, access management and protections on people and facilities are strengthened. Through integrated monitoring, real-time video surveillance and event popups , the security guard can be notified instantly. IP Network HTML integrated with the monitoring system Integrated with Access Control, the videos and the times of coming ins and outs can provide more information when needed. SAMS Pro Integrated Monitoring Triggered Events Popups When an alarm is triggered, the video will popup to notify the security guard. SAMS Pro Integrated monitoring Pop-up windows for alarm events 30

Active Intelligent Analysis Applications Access Detection • Hotel Reception Areas • Entrances of Hospitals, Residential Areas, Initiations Restricted Zone Virtual Wall • Residential Areas • Surroundings of Hotels, Campus, Factories • Important Buildings Virtual Fence • High Value Products • No • 域 Parking Areas • • Entrances of Warehouse • Important Facilities Tailgating Detection • ATM • Garages / Parking Lots • Access Controls • Important Facilities / Properties • Public Objects Count • People Flows in Stores • Business VI Integrations • Warehouses, Department Stores 31

32 Recommended Camera Series

33 Professional 3 M HD IP Camera Series 3 M 30 FPS, 2 M 60 FPS – HDR – Auto Focus CAM 3471 M/V 3 M IP 66 Bullet CAM 2441 3 M Box CAM 4471 M/V 3 M Vandal Proof Dome 5 M 14 FPS - Auto Focus – Fish Eye CAM 3571 M 5 M IP 66 Bullet CAM 2511 5 M Box CAM 4571 M 5 M Vandal Proof Dome CAM 7511 5 M Fish Eye Cameras M = Moto Lens V = Vari-Focal Lens

34 Professional 2 M IP Camera Series 2 M 30 FPS, SONY Exmor – Auto Focus CAM 3371 M/CAM 3361 2 M IP 66 Bullet CAM 2331/CAM 4361 2 M Box CAM 4371/CAM 4361 2 M Vandal Proof Dome 2 M 30 FPS - Auto Focus – Fish Eye CAM 3351 5 M IP 66 Bullet CAM 1320 5 M Box CAM 4321 5 M Vandal Proof Dome CAM 4311 5 M Fish Eye Cameras M = Moto Lens V = Vari-Focal Lens

Enterprise-Grade NVR & Central Storage Solutions u Supports megapixel quality videos and enhances HD videos quality u Supports DAS and i. SCSI SAN clustered video storages u Expandable to maximum 420 TB storage u Enterprise hardware RAID, advanced recording data protection u Built with professional video management software, controls over streams, video images and so on 35

Surveon SCC Platform Solutions u Enterprise proactive surveillance management platform u Central management, integrating all accounts, cameras and storages u Supports network and high scalability to thousands of channels u Intelligent decoding matrix wall applicable for professional control centers u Integrated videos, alarms, events, and data management u Advanced VI analysis and real-time alarms 36
