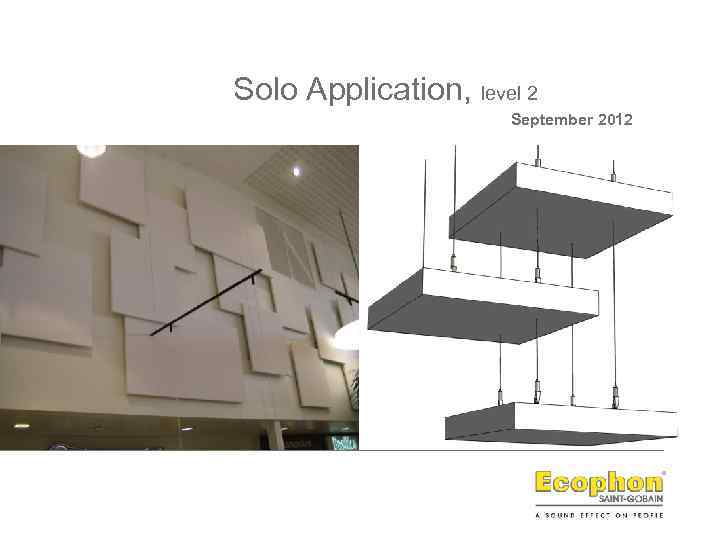

Solo Application, level 2 September 2012 This slide is used for start page and chaptering. Insert your image here (The image should cover the whole grey square by doing that you automatically follow the new graphic manual)

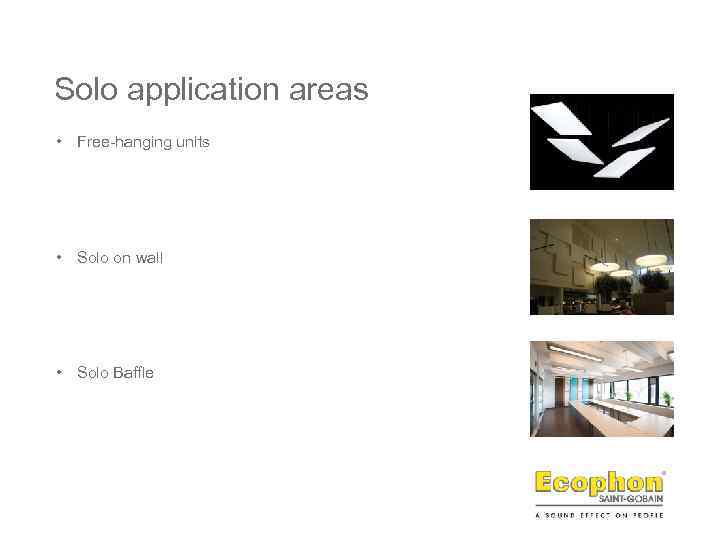

Solo application areas • Free-hanging units • Solo on wall • Solo Baffle
Free-hanging units • Installations in layers • Installations in angles • More safe and secure installations with Connect Adjustable wire hangers
Free-hanging units Connect Absorber anchor • For installations with: – Connect Adjustable wire hanger – Connect Rigid hanger • Advantages – New and stronger fixing in the Solo panel – Faster and more precise installation • 4 mm Allen key for screw driver included – Allows higher degree of design possibilities • Four layers of Solo panels • Angled installations up to 60° for individually installed panel • Angled installations up to 45° & up to four layers of Solo panels – Patent pending – Easy to attach profiles, with or without nuts – Adjustable wire solution more safe and secure • Always installed perpendicularly • Replaces Connect Spiral anchor

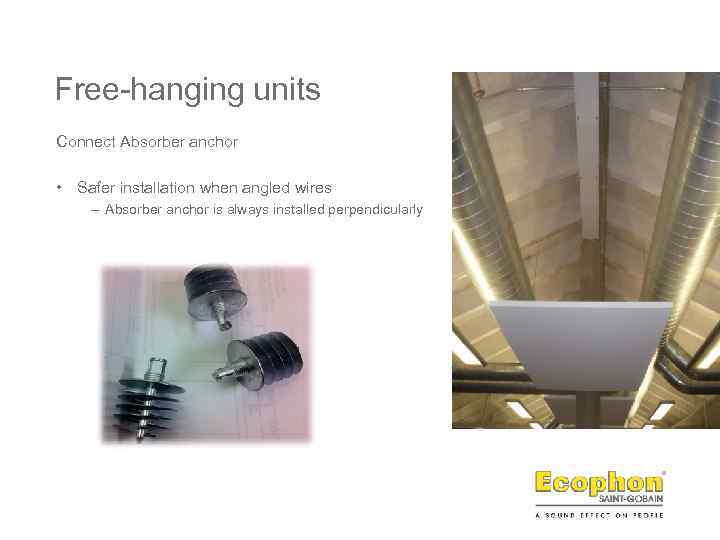

Free-hanging units Connect Absorber anchor • Safer installation when angled wires – Absorber anchor is always installed perpendicularly

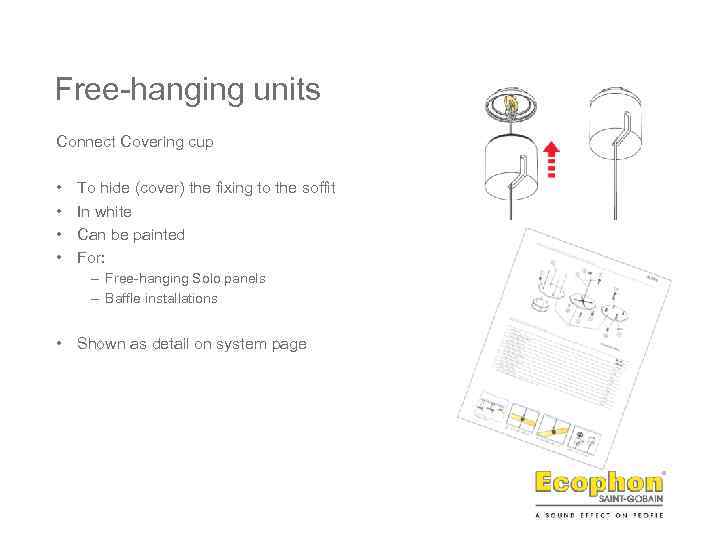

Free-hanging units Connect Covering cup • • To hide (cover) the fixing to the soffit In white Can be painted For: – Free-hanging Solo panels – Baffle installations • Shown as detail on system page

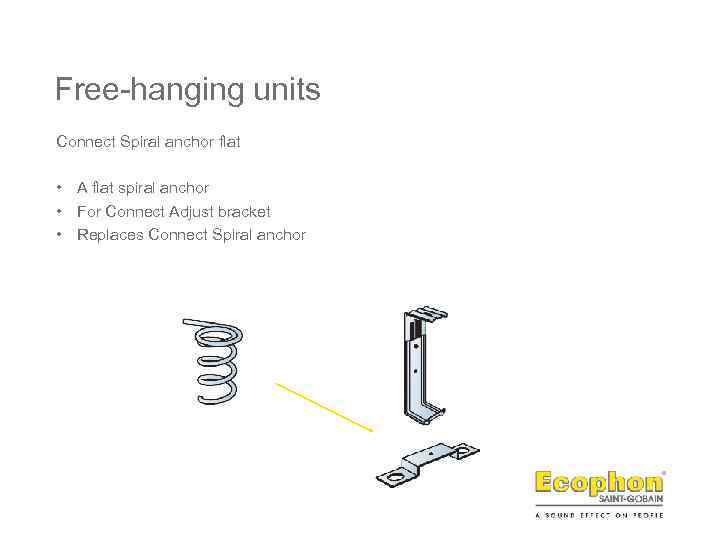

Free-hanging units Connect Spiral anchor flat • A flat spiral anchor • For Connect Adjust bracket • Replaces Connect Spiral anchor

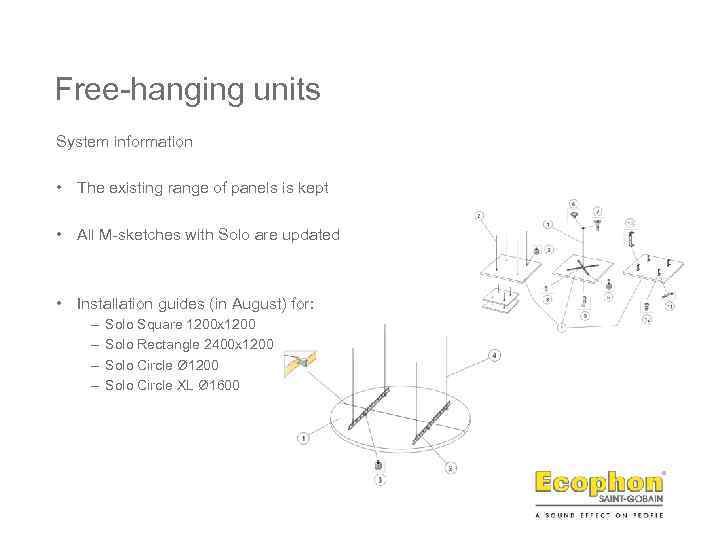

Free-hanging units System information • The existing range of panels is kept • All M-sketches with Solo are updated • Installation guides (in August) for: – – Solo Square 1200 x 1200 Solo Rectangle 2400 x 1200 Solo Circle Ø 1200 Solo Circle XL Ø 1600
Unframed wall applications • Installation of Solo panels on wall – In layers – Turned panels

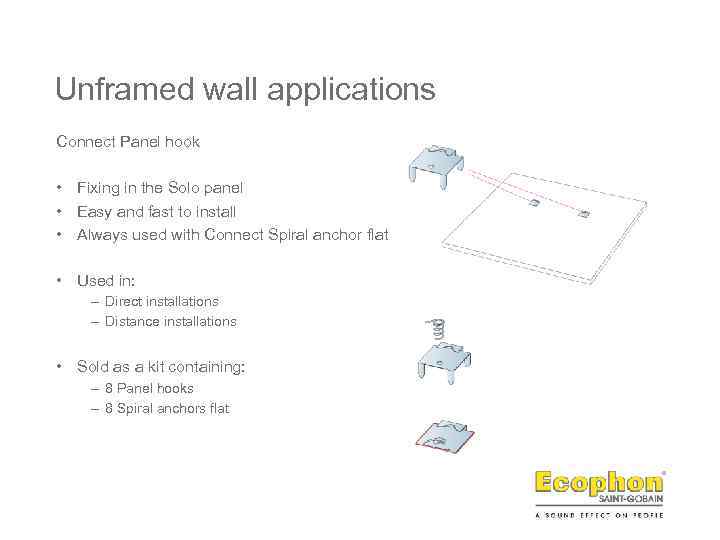

Unframed wall applications Connect Panel hook • Fixing in the Solo panel • Easy and fast to install • Always used with Connect Spiral anchor flat • Used in: – Direct installations – Distance installations • Sold as a kit containing: – 8 Panel hooks – 8 Spiral anchors flat
Unframed wall applications Connect Hook trim: – – For direct installations Ods: 55 mm Spiral anchor flat is used as a spacer Sold as a kit: • 2 trims • 4 Spiral anchors flat Connect Distance hanger: – For distance installations – Ods: 110 to 165 mm – Sold one by one Installations in max 3 layers 15 mm apart
Unframed wall applications • 5 new systems to install Solo panels on wall – – – Solo Square 1200 x 1200 Solo Rectangle 2400 x 1200, horizontal installation Solo Rectangle 2400 x 1200, vertical installation Solo Circle Ø 1200 Solo Circle Ø 800 • Installation guides for all systems (in August)
Template for Solo installations To facilitate installations with Solo panels – for free hanging installations & wall applications
Template for Solo installations Benefits – – Increase speed and accuracy during installation Application for Design protection For the panels and the soffit/wall Included in Solo boxes • • Solo Square 1200 x 1200 Solo Rectangle 2400 x 1200 Solo Circle Ø 800

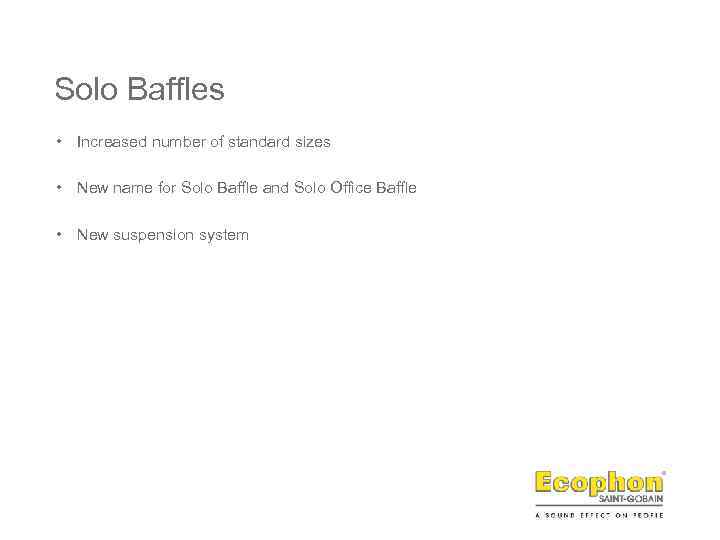

Solo Baffles • Increased number of standard sizes • New name for Solo Baffle and Solo Office Baffle • New suspension system

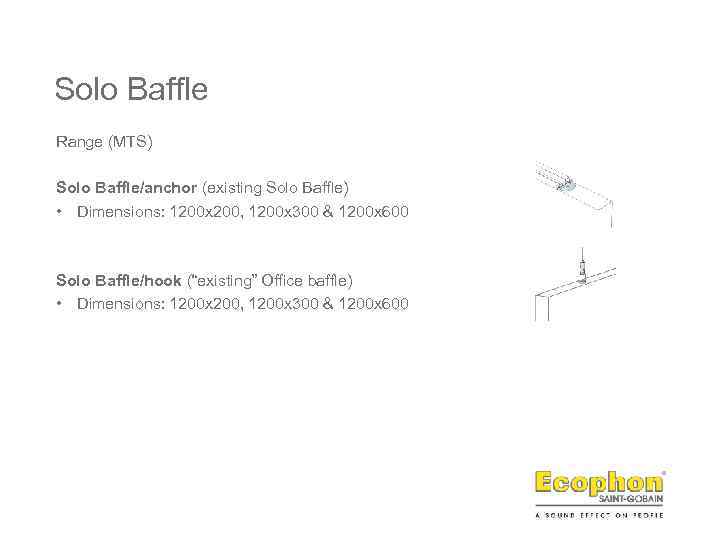

Solo Baffle Range (MTS) Solo Baffle/anchor (existing Solo Baffle) • Dimensions: 1200 x 200, 1200 x 300 & 1200 x 600 Solo Baffle/hook (“existing” Office baffle) • Dimensions: 1200 x 200, 1200 x 300 & 1200 x 600

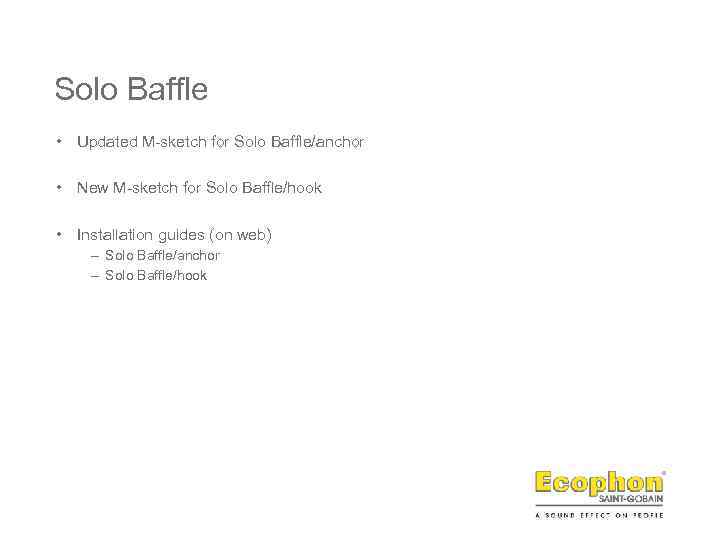

Solo Baffle • Updated M-sketch for Solo Baffle/anchor • New M-sketch for Solo Baffle/hook • Installation guides (on web) – Solo Baffle/anchor – Solo Baffle/hook

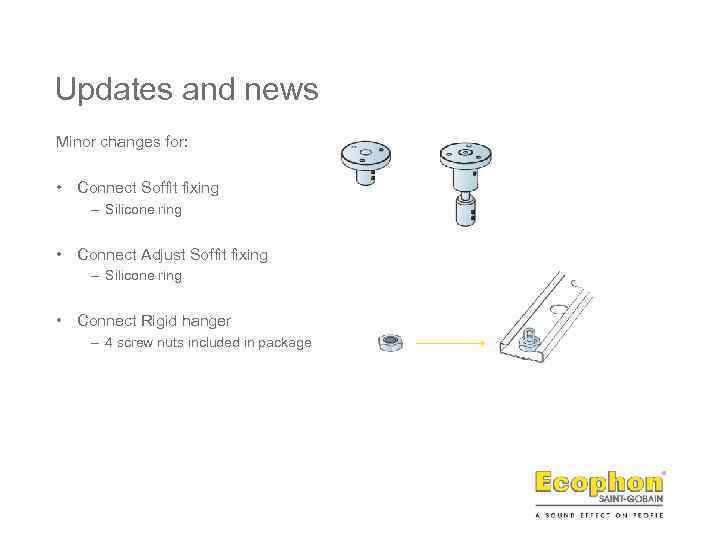

Updates and news Minor changes for: • Connect Soffit fixing – Silicone ring • Connect Adjust Soffit fixing – Silicone ring • Connect Rigid hanger – 4 screw nuts included in package

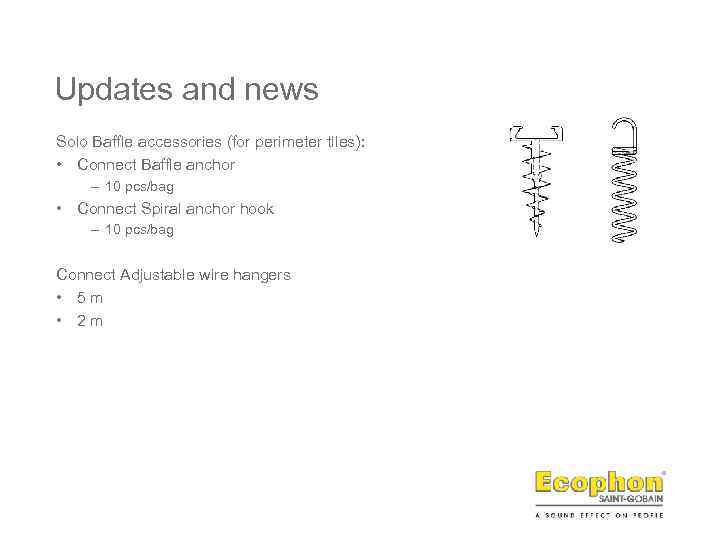

Updates and news Solo Baffle accessories (for perimeter tiles): • Connect Baffle anchor – 10 pcs/bag • Connect Spiral anchor hook – 10 pcs/bag Connect Adjustable wire hangers • 5 m • 2 m
System overview Product dimension M-sketch IG Solo Square 1200 x 1200 M 284, M 307 IG 284, IG 307 Solo Rectangle 2400 x 1200 M 281, M 305, M 306 IG 281, IG 305, IG 306 Solo Circle Ø 1200, Ø 800 M 282, M 292, M 308, M 320 IG 282, IG 308, IG 320 Solo Circle XL Ø 1600 M 290 IG 290 Solo Ellipse 2400 x 1000 M 291 - Solo Octagon 1200 x 1200 M 293 - Solo Heptagon 1168 x 1198 M 294 - Solo Hexagon 1040 x 1200 M 295 - Solo Pentagon 1139 x 1198 M 296 - Solo Triangle 1039 x 1200 M 297 - Solo Baffle/anchor 1200 x 600, 1200 x 300, 1200 x 200 M 232 IG 232 Solo Baffle/hook 1200 x 600, 1200 x 300, 1200 x 200 M 322 IG 322

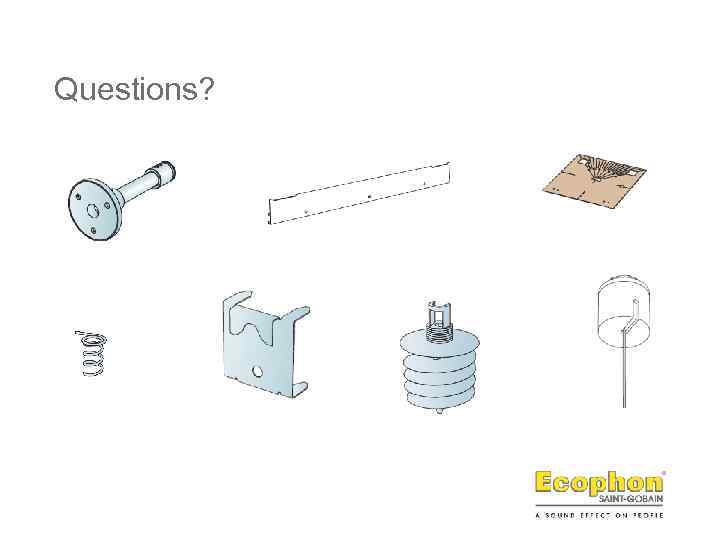

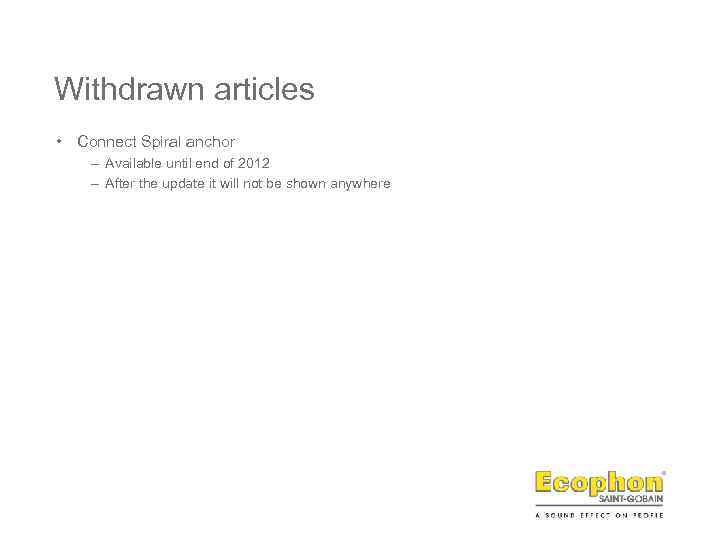

Withdrawn articles • Connect Spiral anchor – Available until end of 2012 – After the update it will not be shown anywhere
