SOLCON Company profile Izzi Eicher Area manager

SOLCON Company profile Izzi Eicher – Area manager Europe May 2008 1

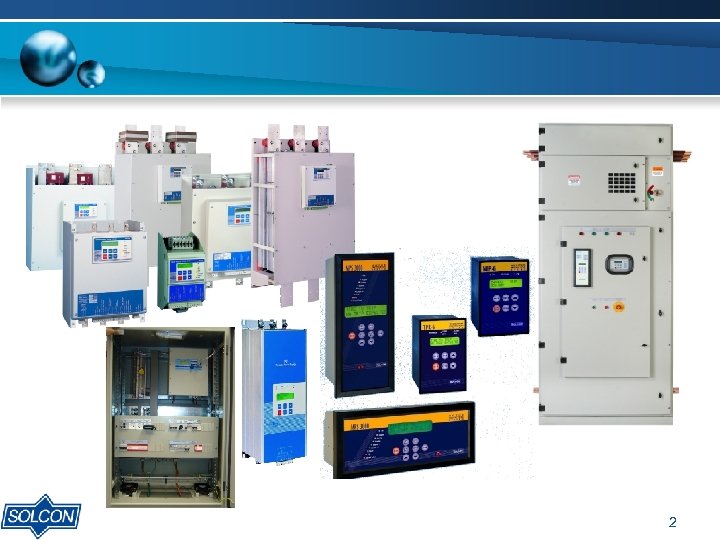

2

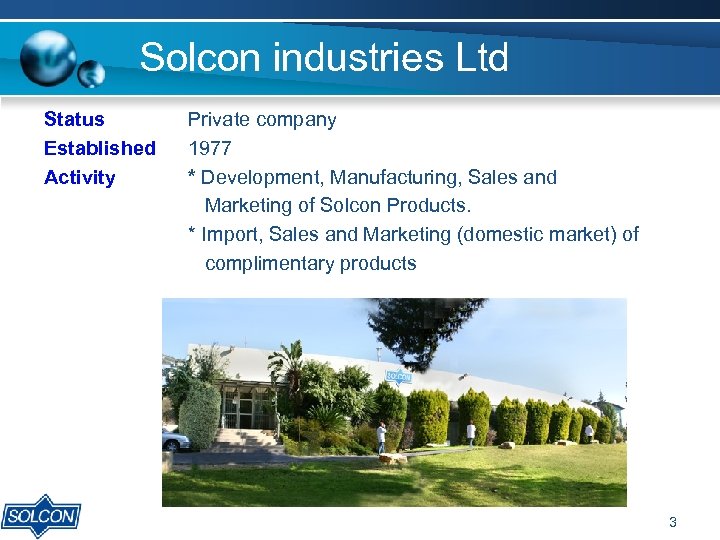

Solcon industries Ltd Status Established Activity Private company 1977 * Development, Manufacturing, Sales and Marketing of Solcon Products. * Import, Sales and Marketing (domestic market) of complimentary products 3

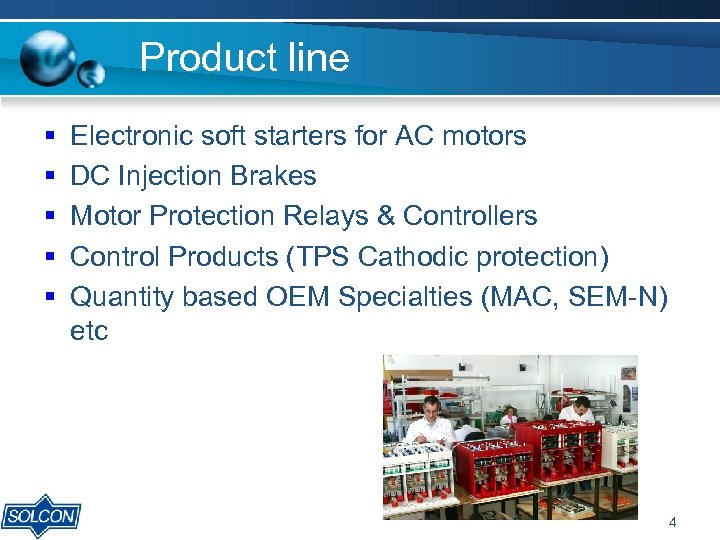

Product line § § § Electronic soft starters for AC motors DC Injection Brakes Motor Protection Relays & Controllers Control Products (TPS Cathodic protection) Quantity based OEM Specialties (MAC, SEM-N) etc 4

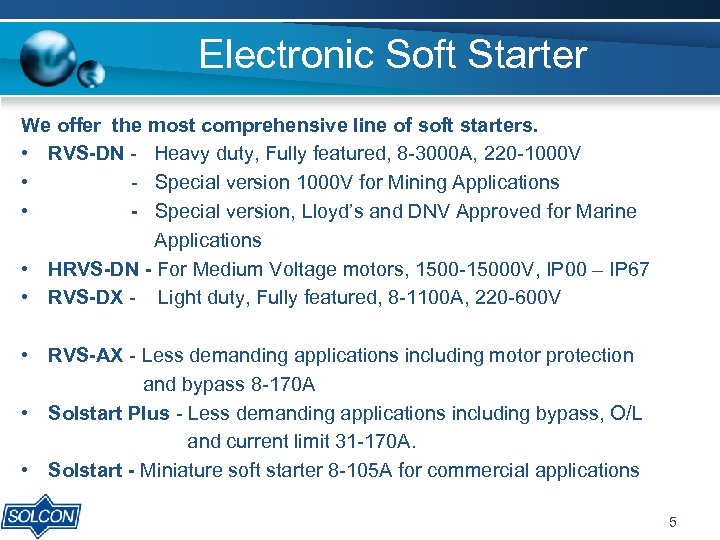

Electronic Soft Starter We offer the most comprehensive line of soft starters. • RVS-DN - Heavy duty, Fully featured, 8 -3000 A, 220 -1000 V • - Special version 1000 V for Mining Applications • - Special version, Lloyd’s and DNV Approved for Marine Applications • HRVS-DN - For Medium Voltage motors, 1500 -15000 V, IP 00 – IP 67 • RVS-DX - Light duty, Fully featured, 8 -1100 A, 220 -600 V • RVS-AX - Less demanding applications including motor protection and bypass 8 -170 A • Solstart Plus - Less demanding applications including bypass, O/L and current limit 31 -170 A. • Solstart - Miniature soft starter 8 -105 A for commercial applications 5

Electronic Soft Starter RVS-DN - Heavy duty, Fully featured, 8 -3000 A, 220 -1000 V - Special version 1000 V for Mining Applications - Special version, Lloyd’s and DNV Approved for Marine Applications - RVS-DN design to operate in the most severe application and conditions 6

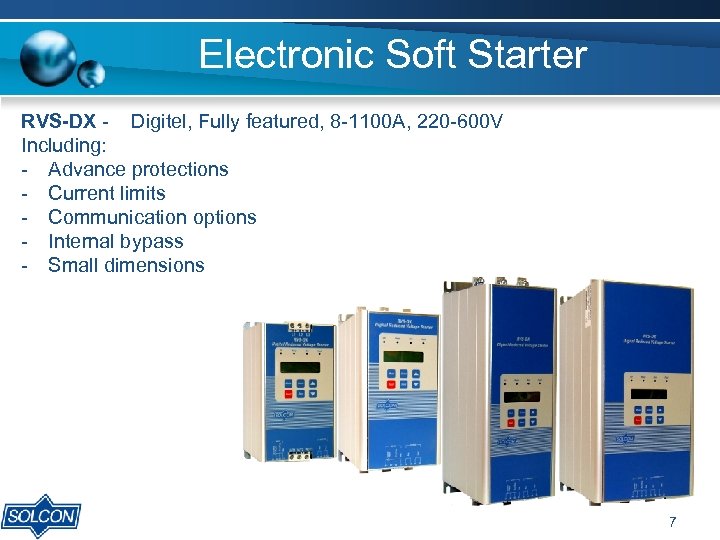

Electronic Soft Starter RVS-DX - Digitel, Fully featured, 8 -1100 A, 220 -600 V Including: - Advance protections - Current limits - Communication options - Internal bypass - Small dimensions 7

Electronic Soft Starter • - RVS-AX includes: Motor protections Internal bypass 8 -170 A Current limits Adjustable Soft start and soft stop 8

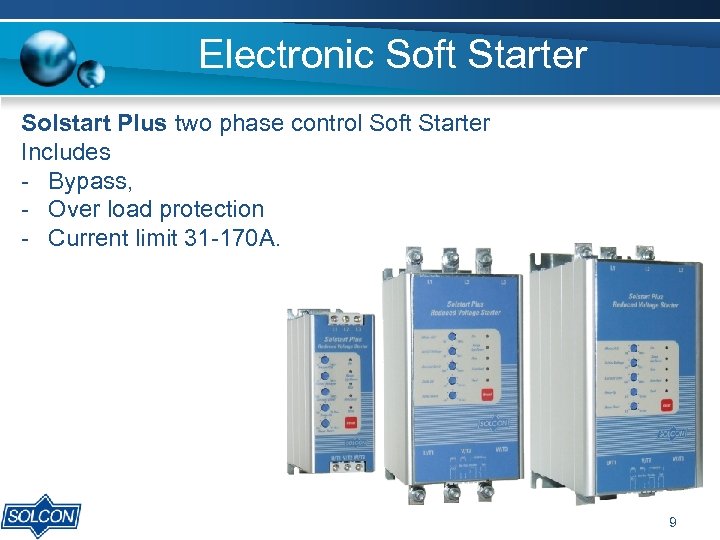

Electronic Soft Starter Solstart Plus two phase control Soft Starter Includes - Bypass, - Over load protection - Current limit 31 -170 A. 9

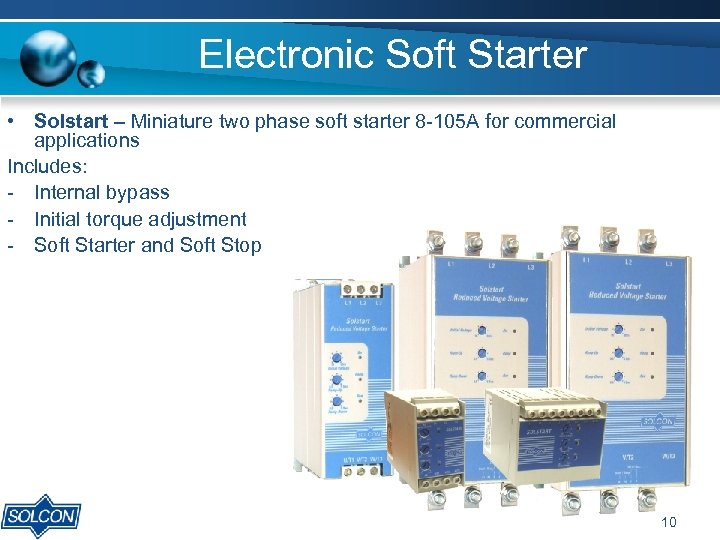

Electronic Soft Starter • Solstart – Miniature two phase soft starter 8 -105 A for commercial applications Includes: - Internal bypass - Initial torque adjustment - Soft Starter and Soft Stop 10

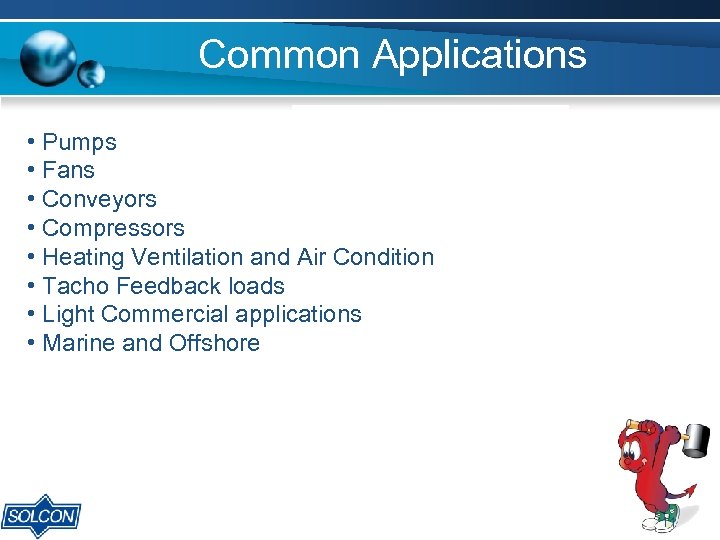

Common Applications • Pumps • Fans • Conveyors • Compressors • Heating Ventilation and Air Condition • Tacho Feedback loads • Light Commercial applications • Marine and Offshore 11

Pumps Pressure surges during starting and Water Hammer during stopping, providing the ultimate solution to water surges and water hammer 12

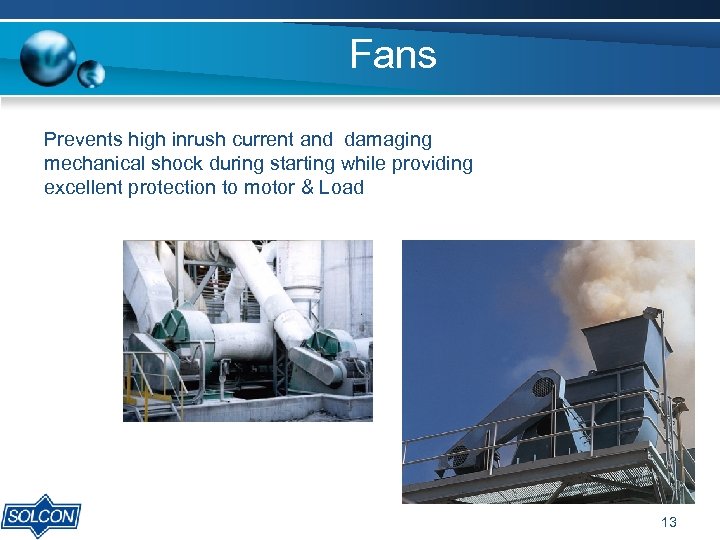

Fans Prevents high inrush current and damaging mechanical shock during starting while providing excellent protection to motor & Load 13

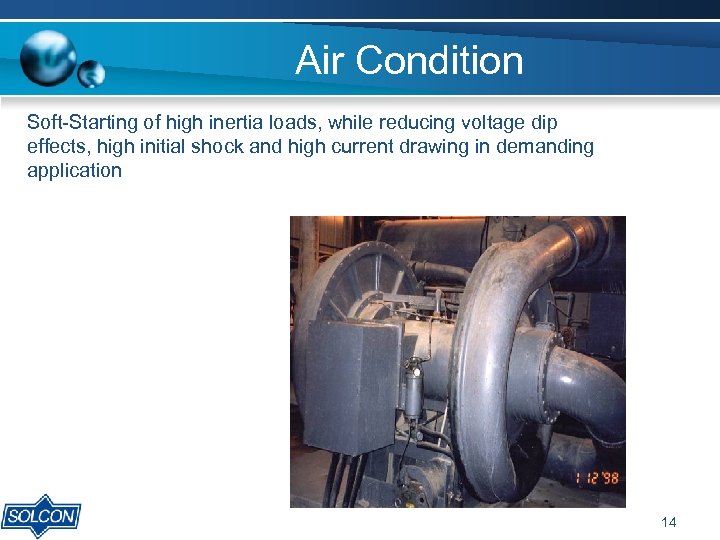

Air Condition Soft-Starting of high inertia loads, while reducing voltage dip effects, high initial shock and high current drawing in demanding application 14

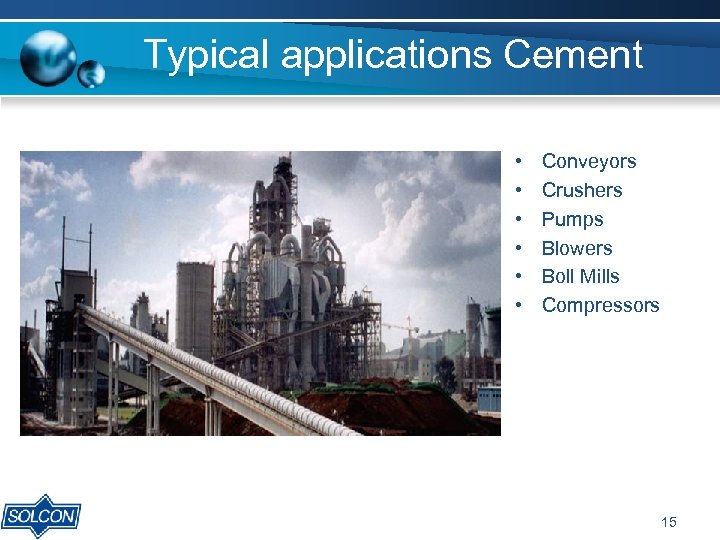

Typical applications Cement • • • Conveyors Crushers Pumps Blowers Boll Mills Compressors 15

Marine and Offshore Thrusters FPSO – water injection Crude Oil Pumps Rolls Royce Hydraulic Power Pack Ballast & Water pumps LNG Pumps / compressors FPSO- Gas Compressor Navy 16

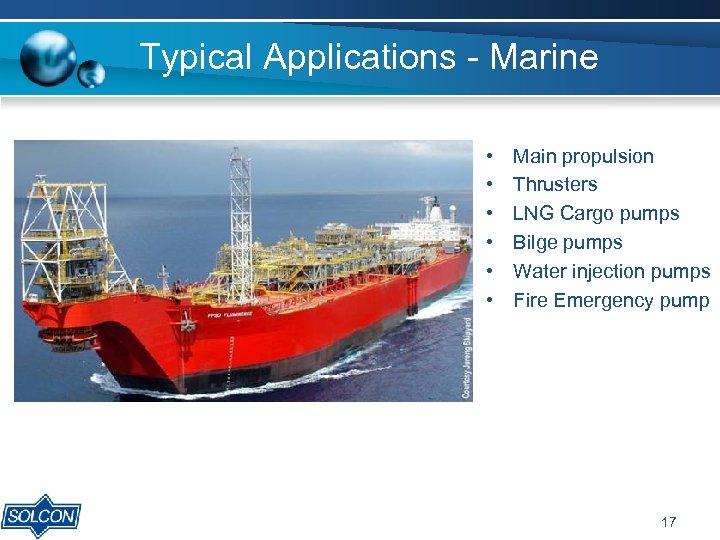

Typical Applications - Marine • • • Main propulsion Thrusters LNG Cargo pumps Bilge pumps Water injection pumps Fire Emergency pump 17

HRVS-DN Medium voltage 6600 V, 400 A 4160 V, 400 A – All in one 6600 V, 400 ADisconnect+incoming section 11000 V, 700 A 6600 V, 600 A – Multistart 18 15000 V, 800 A

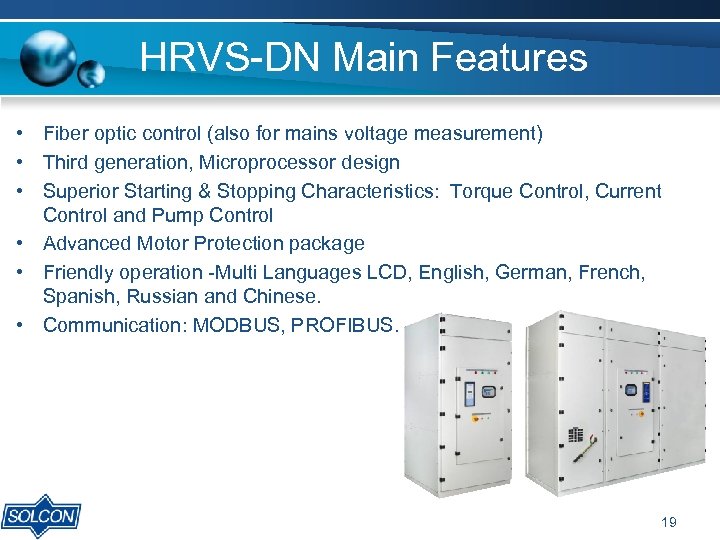

HRVS-DN Main Features • Fiber optic control (also for mains voltage measurement) • Third generation, Microprocessor design • Superior Starting & Stopping Characteristics: Torque Control, Current Control and Pump Control • Advanced Motor Protection package • Friendly operation -Multi Languages LCD, English, German, French, Spanish, Russian and Chinese. • Communication: MODBUS, PROFIBUS. 19

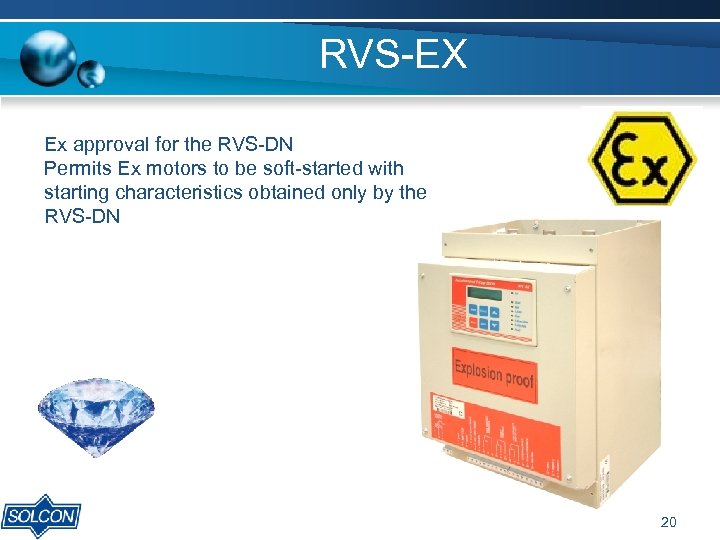

RVS-EX Ex approval for the RVS-DN Permits Ex motors to be soft-started with starting characteristics obtained only by the RVS-DN 20

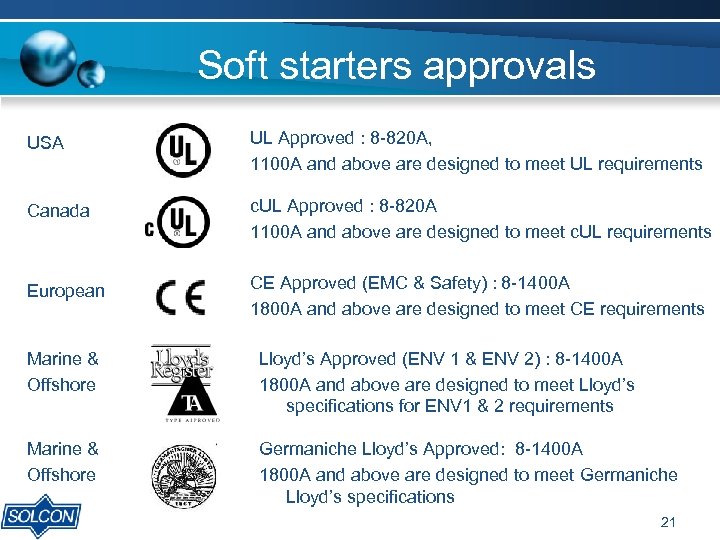

Soft starters approvals USA UL Approved : 8 -820 A, 1100 A and above are designed to meet UL requirements Canada c. UL Approved : 8 -820 A 1100 A and above are designed to meet c. UL requirements European CE Approved (EMC & Safety) : 8 -1400 A 1800 A and above are designed to meet CE requirements Marine & Offshore Lloyd’s Approved (ENV 1 & ENV 2) : 8 -1400 A 1800 A and above are designed to meet Lloyd’s specifications for ENV 1 & 2 requirements Marine & Offshore Germaniche Lloyd’s Approved: 8 -1400 A 1800 A and above are designed to meet Germaniche Lloyd’s specifications 21

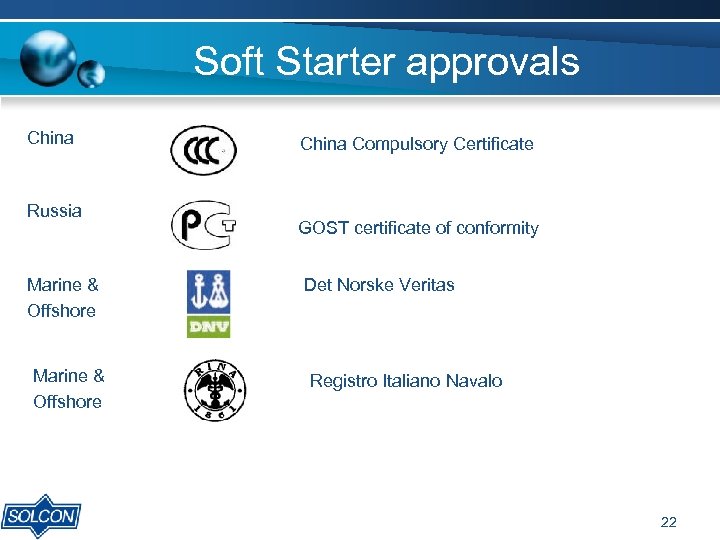

Soft Starter approvals China Russia Marine & Offshore China Compulsory Certificate GOST certificate of conformity Det Norske Veritas Registro Italiano Navalo 22

TPS- Temperature controller Rated power: 8 - 1500 KW Continuous Duty Connection modes Wye - neutral connected / not connected Delta, inside delta, number of parallel branches Digital Control Firing method: Zero crossing and Phase control 23

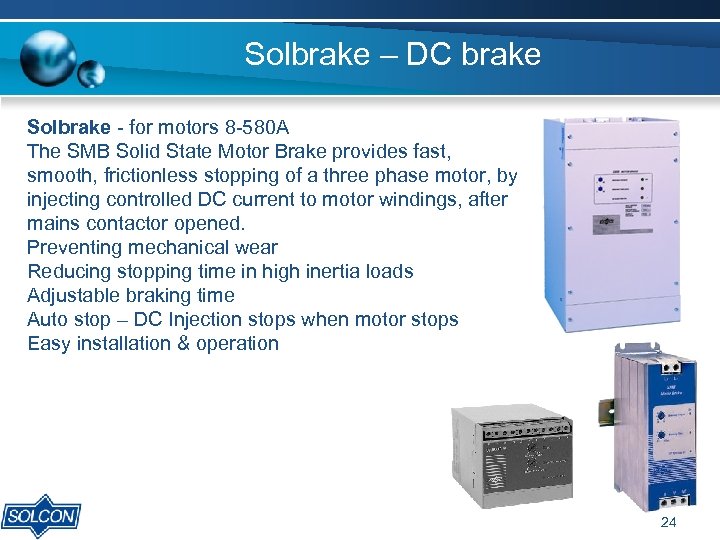

Solbrake – DC brake Solbrake - for motors 8 -580 A The SMB Solid State Motor Brake provides fast, smooth, frictionless stopping of a three phase motor, by injecting controlled DC current to motor windings, after mains contactor opened. Preventing mechanical wear Reducing stopping time in high inertia loads Adjustable braking time Auto stop – DC Injection stops when motor stops Easy installation & operation 24

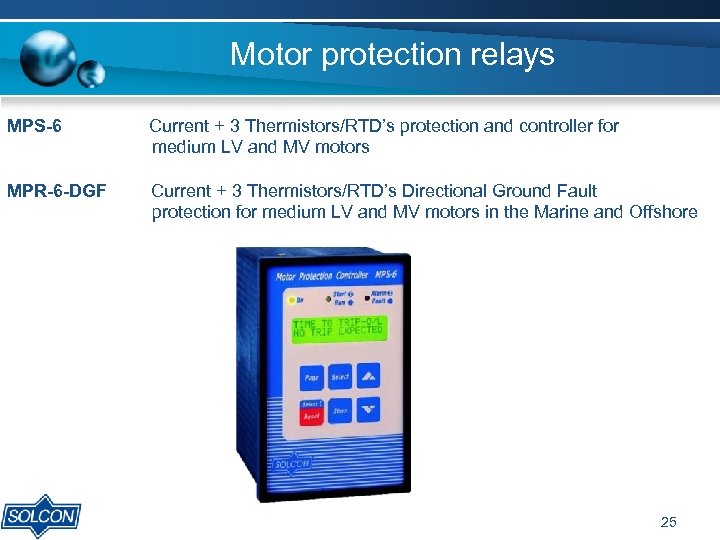

Motor protection relays MPS-6 Current + 3 Thermistors/RTD’s protection and controller for medium LV and MV motors MPR-6 -DGF Current + 3 Thermistors/RTD’s Directional Ground Fault protection for medium LV and MV motors in the Marine and Offshore 25

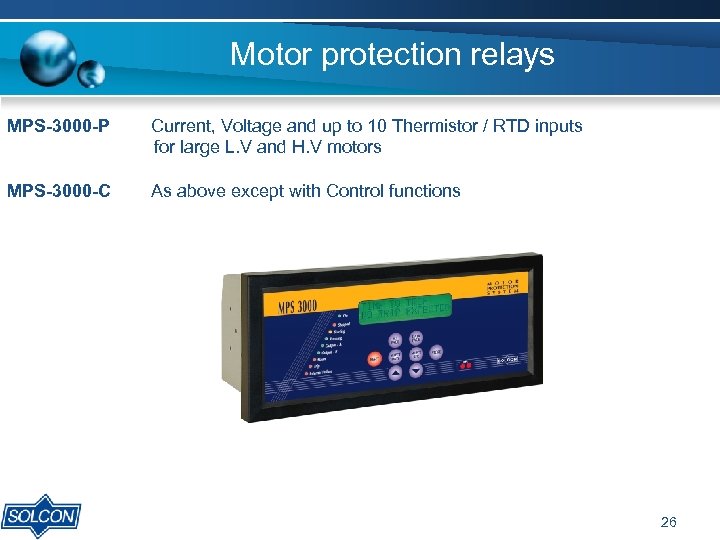

Motor protection relays MPS-3000 -P Current, Voltage and up to 10 Thermistor / RTD inputs for large L. V and H. V motors MPS-3000 -C As above except with Control functions 26

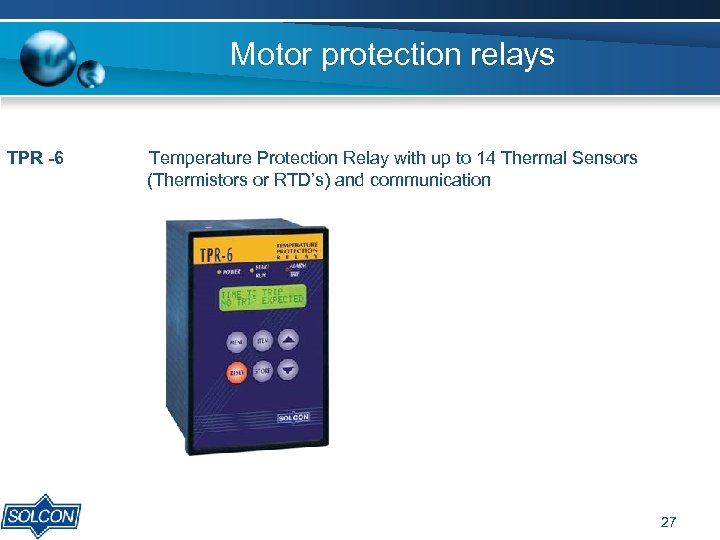

Motor protection relays TPR -6 Temperature Protection Relay with up to 14 Thermal Sensors (Thermistors or RTD’s) and communication 27

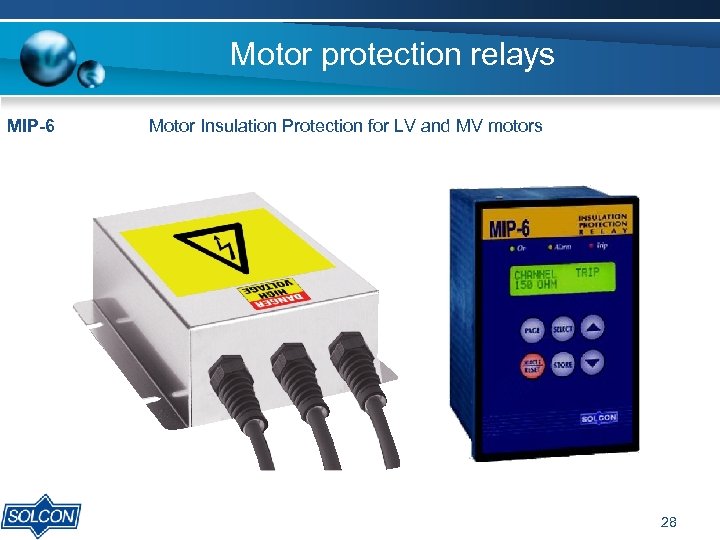

Motor protection relays MIP-6 Motor Insulation Protection for LV and MV motors 28

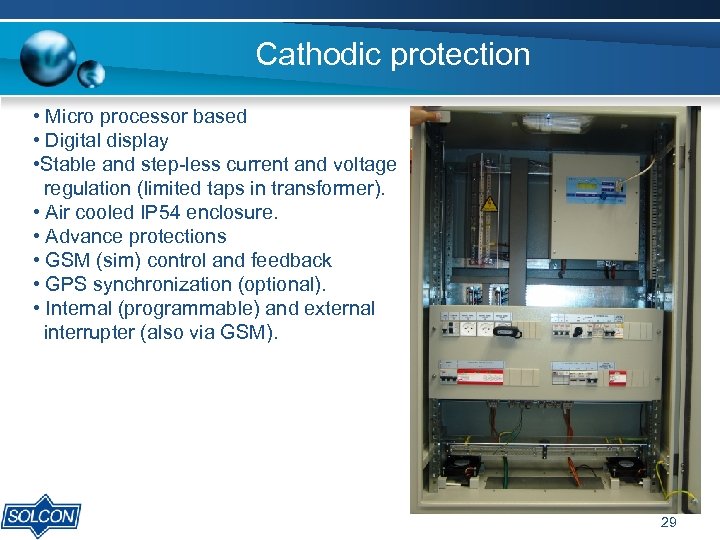

Cathodic protection • Micro processor based • Digital display • Stable and step-less current and voltage regulation (limited taps in transformer). • Air cooled IP 54 enclosure. • Advance protections • GSM (sim) control and feedback • GPS synchronization (optional). • Internal (programmable) and external interrupter (also via GSM). 29

THE END 30
